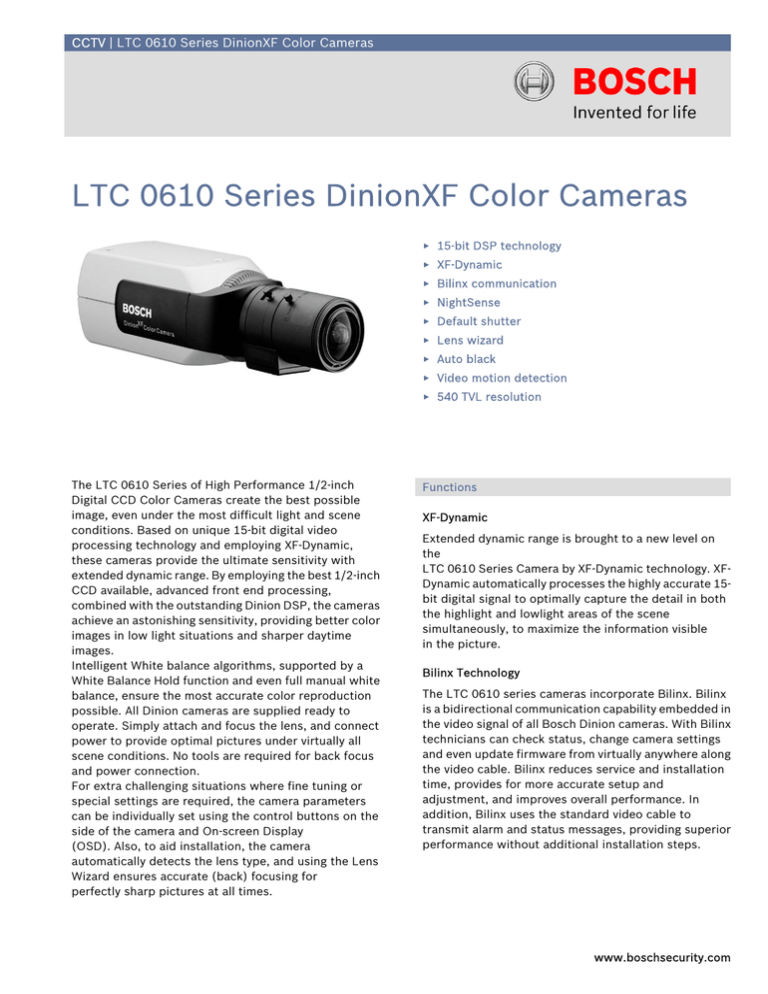

LTC0610/11
CCTV | LTC 0610 Series DinionXF Color Cameras
LTC 0610 Series DinionXF Color Cameras
▶ 15-bit DSP technology
▶ XF-Dynamic
▶ Bilinx communication
▶ NightSense
▶ Default shutter
▶ Lens wizard
▶ Auto black
▶ Video motion detection
▶ 540 TVL resolution
The LTC 0610 Series of High Performance 1/2-inch
Digital CCD Color Cameras create the best possible
image, even under the most difficult light and scene
conditions. Based on unique 15-bit digital video
processing technology and employing XF-Dynamic,
these cameras provide the ultimate sensitivity with
extended dynamic range. By employing the best 1/2-inch
CCD available, advanced front end processing,
combined with the outstanding Dinion DSP, the cameras
achieve an astonishing sensitivity, providing better color
images in low light situations and sharper daytime
images.
Intelligent White balance algorithms, supported by a
White Balance Hold function and even full manual white
balance, ensure the most accurate color reproduction
possible. All Dinion cameras are supplied ready to
operate. Simply attach and focus the lens, and connect
power to provide optimal pictures under virtually all
scene conditions. No tools are required for back focus
and power connection.
For extra challenging situations where fine tuning or
special settings are required, the camera parameters
can be individually set using the control buttons on the
side of the camera and On-screen Display
(OSD). Also, to aid installation, the camera
automatically detects the lens type, and using the Lens
Wizard ensures accurate (back) focusing for
perfectly sharp pictures at all times.
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on
the
LTC 0610 Series Camera by XF-Dynamic technology. XFDynamic automatically processes the highly accurate 15bit digital signal to optimally capture the detail in both
the highlight and lowlight areas of the scene
simultaneously, to maximize the information visible
in the picture.
Bilinx Technology
The LTC 0610 series cameras incorporate Bilinx. Bilinx
is a bidirectional communication capability embedded in
the video signal of all Bosch Dinion cameras. With Bilinx
technicians can check status, change camera settings
and even update firmware from virtually anywhere along
the video cable. Bilinx reduces service and installation
time, provides for more accurate setup and
adjustment, and improves overall performance. In
addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing superior
performance without additional installation steps.
www.boschsecurity.com
2 | LTC 0610 Series DinionXF Color Cameras
Video Motion Detection
SensUp
The built-in video motion detector allows you to select
up to four fully programmable areas with individual
thresholds. The global scene change detector
minimizes false alarms caused by sudden lighting
condition changes, such as switching on or off the
indoor or security lighting. When motion is detected
alarms may be displayed in the video signal, the output
relay can be closed in addition to alarm message
transmission on Bilinx.
By increasing the integration time on the CCD up to 10
times, the effective sensitivity is dramatically enhanced,
especially useful where there is no artificial lighting and
you rely on the moon, stars and scattered radiation.
Emission
EN55022 class B, FCC class B part 15
Auto Black
Immunity
EN50130-4 Alarm Systems, Part 4
Vibration
Camera with 500 gr (1.1 lbs) lens according to
IEC60068-2-27
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast
is reduced by fog or mist.
Default Shutter
When viewing moving objects a fast shutter speed is
required. When using a fast shutter speed the lens
opening or gain control needs to be increased to
maintain the video signal. The camera sensitivity is
limited by the fast shutter speed. The default shutter
setting of the LTC 0610 offers the best of all worlds, fast
shutter speed as long as there is sufficient light, however
as the light level falls, when other adjustments have
been exhausted, the shutter reverts to the standard
setting maintaining the cameras excellent sensitivity.
Certifications and Approvals
Electro Magnetic Compatibility
Safety
LTC 0610/11 and LTC 0610/51: EN60065
LTC 0610/21 and LTC 0610/61: UL6500, cUL CAN/CSA E60065-00
Installation/Configuration Notes
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest,
and a variable BLC level, the camera can be easily set up
for even the most challenging entrance applications.
Lens Wizard
The LTC 0610 series automatically detects the type of
lens installed. The Lens Wizard will focus the lens at
the maximum lens opening, to ensure that focus is
maintained throughout the entire 24-hour day/night
cycle.No special tools or filters are required.
Programmable Modes
The camera supports three independent operating
modes. The 3 modes are preprogrammed for typical
applications, but are fully programmable for individual
situations. Switching between modes is easy via Bilinx
or the external alarm input.
NightSense
The LTC0610 cameras feature NightSense. With
NightSense the sensitivity is increased by 9 dB in
monochrome mode. NightSense can be automatically
activated in low light situations, or remotely using Bilinx.
Dimensions in mm (inches)
Parts Included
Quantity
Components
1
LTC 0610 Series DinionXF Color Camera
1
Spare male 4 – pin lens connector
Lens not included
LTC 0610 Series DinionXF Color Cameras |
Technical Specifications
External Synchronal In- 75 ohm or High Impedance selectable
put
Electrical
Cable Compensation
Up to 1000m (3000ft) coax without external amplifiers (automatic setup in combination with coaxial
communication)
Camera ID
16 character editable string, position selectable
Lens Types
Manual, DC- and Video-iris auto-detect with override
DC-iris drive: max 50mA continuous
Video-iris: 11.5 ± 0.5 VDC, max. 50mA
continuos
Remote Control
Bi-directional coaxial communication
Model No.
RatedVoltage
LTC 0610/11
12 - 28 VAC
11 - 39 VDC
45 - 65 Hz
LTC 0610/21
12 - 28 VAC
11 - 39 VDC
45 - 65 Hz
LTC 0610/51
85 - 265 VAC
45 - 65 Hz
LTC 0610/61
85 - 265 VAC
45 - 65 Hz
Power Consumption
4W
1) F/1.2, 89% reflection, SenseUp off
Imager
Interline CCD type
1/2-inch image format
Mechanical
PAL Models
752 H x 582 V
Dimensions
(H x W x L)
59 x 67 x 122 mm
(2.28 x 2.6 x 4.8 inch) without lens
NTSC Models
768 H x 492 V
Weight
450 g (0.99 lbs) without lens
Tripod Mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
Active Pixels
Sensitivity (3200 k)
Sensitivity
(Fullvideo)1)
1.4 lx (0.14 fc)
Sensitivity 50 IRE1)
0.35 lux / 0.14 lux (NightSense)
(0.035 fc / 0.014 fc (NightSense))
Minimum
Illumination1)
0.18 lux / 0.08 lux (NightSense)
(0.018 fc / 0.008 fc (NightSense))
Minimum Illumination- 0.018 lux / 0.008 lux (NightSense)
with Sens Up
(0.0018 fc / 0.0008 fc (NightSense))
3
Environmental
Operating Temperature -20 °C to +50 °C (-4 °F to +122 °F)
Storage Temperature
-25 °C to +70 °C( -13 °F to +158 °F)
Operating Humidity
20% to 93% RH
Storage Humidity
up to 98% RH
Horizontal Resolution 540 TVL
Signal-to-Noise-Ratio
> 50dB
Video Output
1Vpp, 75 ohm
Y/C Output
Y: 1Vpp / C: 0.3Vpp
Synchronization
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Shutter
Auto (1/60 (1/50) to 1/500000), fixed,
flickerless, default
Night Sense
Auto, forced, off
Sensitivity up
Off, automatic continuous up to 10x
Auto Black
On, off selectable
Dynamic Range
32x dynamic range enhancement
Dynamic Noise Reduc- Auto, off selectable
tion
Ordering Information
Model | Description
LTC 0610/11 Dinion XF Color Camera
1/2-inch, high performance, 540 TVL, PAL, DSP, 12 – 28 VAC/11 – 39 VDC,
50 Hz
LTC 0610/21 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, NTSC, DSP, 12 – 28 VAC/
11 – 39 VDC, 60 Hz
LTC 0610/51 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, PAL, DSP, 85 – 265 VAC, 50 Hz
LTC 0610/61 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, NTSC, DSP, 85 – 265 VAC, 60 Hz
Hardware Accessories
LTC 3264/30 Varifocal Lens
1/2-inch, 4.5 – 10 mm, DC-iris, CS-mount F1.6-360, 4-pin
Contour
Sharpness enhancement level selectable
BLC
Off, area and level selectable
Gain
Auto (maximum level selectable to 28dB)
or fixed level selectable
Lens Mount
C and CS
LTC 3283/20 Zoom Lens
1/2-inch, 8.0 – 48 mm, Video-iris, CS-mount F1.4-360, 4-pin
White Balance
ATW (2500 - 10000K), AWB hold, Manual WB selectable
TC 120PS Power Supply Unit
110-120 VAC/15 VDC, 50/60 Hz, 300mA
VMD
four area, sensitivity selectable
Alarm Output
VMD or Bilinx
TC 220PS Power Supply Unit
230 VAC/15 VDC, 50 Hz, 10 VA
Alarm Input (TTL)
Profile switching, +5 V nominal, +40 VDC max.
Alarm Output Relay
max. 30 VAC or +40 VDC, max. 0,5 A
continuous, 10 VA
LTC 3274/41 Varifocal Lens
1/2-inch, 7.5 – 75 mm, DC-iris, CS-mount, F1.7-360, 4-pin
TC 220PSX-24 Power Supply Unit
230 VAC/20 VAC, 50 Hz, 20 VA
TC 1334 Power Supply Unit
120 VAC/24 VAC, 60 Hz, 30 VA
www.boschsecurity.com
4 | LTC 0610 Series DinionXF Color Cameras
Ordering Information
Model | Description
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
Americas:
Bosch Security Systems
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 585 223 4060
Fax: +1 800 289 0096
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: +31 (0) 40 27 83955
Fax: +31 (0) 40 27 86668
[email protected]
www.boschsecurity.com
Asia-Pacific:
Bosch Security Systems Pte Ltd
38C Jalan Pemimpin
Singapore 577180
Phone: +65 6319 3450
Fax: +65 6319 3499
[email protected].com
www.boschsecurity.com
© Bosch Security Systems, 2005 | Data subject to change without notice | 28. Nov. 2005
