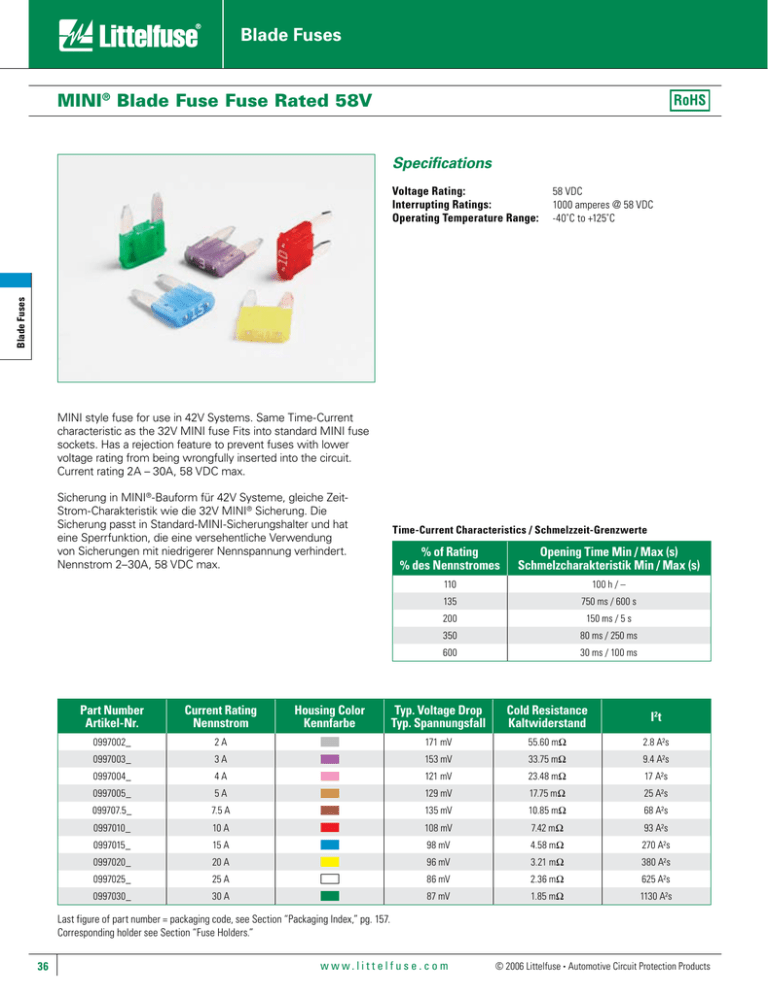

Blade Fuses
MINI® Blade Fuse Fuse Rated 58V
Specifications
58 VDC
1000 amperes @ 58 VDC
-40˚C to +125˚C
Blade Fuses
Voltage Rating:
Interrupting Ratings:
Operating Temperature Range:
MINI style fuse for use in 42V Systems. Same Time-Current
characteristic as the 32V MINI fuse Fits into standard MINI fuse
sockets. Has a rejection feature to prevent fuses with lower
voltage rating from being wrongfully inserted into the circuit.
Current rating 2A – 30A, 58 VDC max.
Sicherung in MINI® -Bauform für 42V Systeme, gleiche ZeitStrom-Charakteristik wie die 32V MINI® Sicherung. Die
Sicherung passt in Standard-MINI-Sicherungshalter und hat
eine Sperrfunktion, die eine versehentliche Verwendung
von Sicherungen mit niedrigerer Nennspannung verhindert.
Nennstrom 2–30A, 58 VDC max.
Part Number
Artikel-Nr.
Current Rating
Nennstrom
0997002_
Housing Color
Kennfarbe
Time-Current Characteristics / Schmelzzeit-Grenzwerte
% of Rating
% des Nennstromes
Opening Time Min / Max (s)
Schmelzcharakteristik Min / Max (s)
110
100 h / –
135
750 ms / 600 s
200
150 ms / 5 s
350
80 ms / 250 ms
600
30 ms / 100 ms
Typ. Voltage Drop
Typ. Spannungsfall
Cold Resistance
Kaltwiderstand
I2 t
2A
171 mV
55.60 mΩ
2.8 A²s
0997003_
3A
153 mV
33.75 mΩ
9.4 A²s
0997004_
4A
121 mV
23.48 mΩ
17 A²s
0997005_
5A
129 mV
17.75 mΩ
25 A²s
099707.5_
7.5 A
135 mV
10.85 mΩ
68 A²s
0997010_
10 A
108 mV
7.42 mΩ
93 A²s
0997015_
15 A
98 mV
4.58 mΩ
270 A²s
0997020_
20 A
96 mV
3.21 mΩ
380 A²s
0997025_
25 A
86 mV
2.36 mΩ
625 A²s
0997030_
30 A
87 mV
1.85 mΩ
1130 A²s
Last figure of part number = packaging code, see Section “Packaging Index,” pg. 157.
Corresponding holder see Section “Fuse Holders.”
36
www.littelfuse.com
© 2006 Littelfuse • Automotive Circuit Protection Products
Blade Fuses
MINI® Blade Fuse Fuse Rated 58V
Dimensions in mm / Maße in mm
Recommended Mating Cavity
