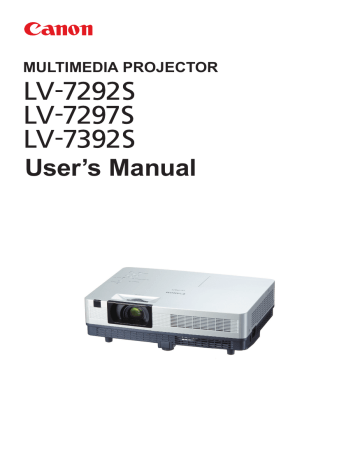

MULTIMEDIA PROJECTOR

User’s Manual

2

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

♦ Compact Design

This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

♦ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.30). Up to WUXGA resolution can be accepted.

♦ Useful Functions for Presentations

The digital zoom function allows you to focus on the crucial information during a presentation (p.37)

♦ Lamp mode

Brightness of the projection lamp can be selected (pp.27, 54).

♦ Direct Power Off Function

With the Direct Power Off function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection

(p.23).

♦ Logo Function

The Logo function allows you to customize the screen logo (pp.48-50). You can capture an image for the screen logo and use it for the starting-up display or between presentations.

♦ Multilanguage Menu Display

Operation menu is available in 20 languages:

English, German, French, Italian, Spanish,

Portuguese, Dutch, Swedish, Finnish, Polish,

Hungarian, Romanian, Russian, Turkish,

Kazakh, Vietnamese, Chinese, Korean,

Japanese and Thai (p.46).

♦ Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control unit (p.54). PIN code lock function prevents unauthorized use of the projector (pp.22, 55-56).

♦ Helpful Maintenance Functions

Lamp and filter maintenance functions provide for better and proper maintenance of the projector.

♦ Auto Setup Function

This function enables Auto input and Auto PC adjustment by simple pressing the AUTO SET button on the top control (p.47).

♦ Colorboard Function

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

♦ Power Management Mode

The Power management mode function reduces power consumption and maintains the lamp life (p.51).

♦ Closed Caption

This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels. (p.53)

Table of Contents

Features and Design . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . .5

Air Circulation 8

Installing the Projector in Proper Position 8

Moving the Projector 8

Compliance . . . . . . . . . . . . . . . . . . . . . .9

Part Names and Functions . . . . . . . .10

Front

Back

Bottom

10

10

10

Rear Terminal

Top Control

11

12

Remote Control Unit 13

Remote Control Unit Battery Installation 14

Remote Control Unit Operating Range 14

Remote Control Code 14

Installation . . . . . . . . . . . . . . . . . . . . . .15

Positioning the Projector

Project vertically to the screen

Adjust the Height and the Incline angle of the projected image

15

16

16

Connecting to a Computer

Connecting to VIDEO Equipment

Connecting to COMPONENT VIDEO and SCART Equipment

Using the ferrite core

Connecting the AC Power Cord

17

18

19

20

20

Basic Operation . . . . . . . . . . . . . . . . .21

Turning On the Projector

Turning Off the Projector

21

23

How to Operate the On-Screen Menu 24

Main Menu 25

Zoom and Focus Adjustment

Auto Setup Function

Keystone Correction

Remote control unit Operation

26

26

26

27

Computer Input . . . . . . . . . . . . . . . . .29

Input Source Selection (ANALOG PC:

COMPUTER) 29

Computer System Selection 30

Auto PC Adjustment

Manual PC Adjustment

Image Mode Selection

Image Adjustment

Aspect Setting

VIDEO Input . . . . . . . . . . . . . . . . . . . . .38

Input Source Selection (VIDEO,

S-VIDEO)

Input Source Selection (COMPONENT,

SCART)

38

39

31

32

34

35

36

VIDEO System Selection

Image Mode Selection

Image Adjustment

Aspect Setting

Setting . . . . . . . . . . . . . . . . . . . . . . . . .46

Setting 46

Information . . . . . . . . . . . . . . . . . . . . .59

Input Source Information Display 59

40

41

42

44

Maintenance and Cleaning . . . . . . . .60

WARNING indicator 60

Replacing the Filter

Resetting the Filter Counter

Attaching the Lens Cap

Cleaning the Projection Lens

Cleaning the Projector Cabinet

Lamp Replacement

Appendix . . . . . . . . . . . . . . . . . . . . . . .65

Troubleshooting

Menu Tree

Indicators and Projector Condition

65

68

70

61

61

62

62

62

63

Compatible Computer Specifications 71

Technical Specifications

Optional Parts

Attaching the Filter Cover to the Projector

72

73

74

Configurations of Terminals

PIN Code Protection

Dimensions

74

75

76

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

3

4

To the Owner

Before installing and operating this projector, read this manual thoroughly.

This projector provides many convenient features and functions.

Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the

“Troubleshooting” section on pages 65-67 of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

WARNING:

Safety Precaution

THIS APPARATUS MUST BE EARTHED.

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position.

Improper positioning may reduce the lamp life and result in severe accident or fire hazard.

– Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required.

If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

SIDE and TOP REAR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE EXCEPT LAMP REPLACEMENT.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES

THAT DANGEROUS VOLTAGE

CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS

UNIT .

THIS SYMBOL INDICATES THAT

THERE ARE IMPORTANT OPERATING

AND MAINTENANCE INSTRUCTIONS

IN THE USER'S MANUAL WITH THIS

UNIT .

Not for use in a computer room as defined in the Standard for the Protection of Electronic

Computer/Data Processing Equipment, ANSI/

NFPA 75.

NOTE FOR CUSTOMERS IN THE US

LAMP(S) INSIDE THIS PRODUCT

CONTAIN MERCURY AND MUST BE

RECYCLED OR DISPOSED OF ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS.

0.7’(20cm)

1.5’(50cm) 3’(1m) 3’(1m)

– Do not cover the ventilation slot on the projector.

Heat build-up can reduce the service life of your projector, and can also be dangerous.

– If the projector is unused for an extended time, unplug the projector from the power outlet.

– Do not project the same image for a long time.

1m 1m

The afterimage may remain on the LCD panels by the characteristic of panel.

DO NOT SET THE PROjECTOR IN GREASY,

WET, OR SMOKY CONDITIONS SUCH AS IN A

KITCHEN TO PREVENT A BREAKDOWN OR

A DISASTER. IF THE PROjECTOR COMES IN

CONTACT WITH OIL OR CHEMICALS, IT MAY bECOME DETERIORATED .

READ AND KEEP THIS USER'S MANUAL FOR

LATER USE.

To the Owner Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from

AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers.

A n a p p l i a n c e a n d c a r t combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-conditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing Covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or

frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or

water.

d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change

in performance-this indicates a need for

service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

5

Safety Instructions

WARNING

Immediately turn the power off, unplug the projector, and contact your dealer under the following conditions, otherwise a fire or an electric shock may result.

– If smoke comes out from it.

– If it emits a strange odor, or makes a strange noise.

– If lamp goes out with a loud bang.

– If water or any other liquid gets into it.

– If metal or foreign objects get inside it.

– If it is knocked down or dropped and the cabinet is broken.

WARNING

Follow the instructions below when using the power cable, otherwise a fire, an electric shock, or injury may result.

– Do not place heavy objects on the power cord or position the power cord under the projector.

Doing so may damage the power cord.

– Do not run the power cord under a carpet. As it goes unnoticed, excessive load may be applied on the cord unintentionally.

– Do not modify, bend forcibly, twist, or pull the power cord.

– Do not place the power cord near heat generating equipment or heat it.

– Do not bend, wind, or bind excessively the power cord when using it.

– Be sure to connect the projector to a grounded outlet. Failure to do so may result in an electric shock.

– Do not continue to use a damaged power cord.

If the power cord is damaged, take it to your dealer and have it replace.

– Use only the supplied power cord.

6

WARNING

Follow the instructions below when handling the power plug or connector, otherwise a fire, an electric shock, or injury may result.

– Use the projector within the voltage range specified on the projector (AC 100 V– 240 V).

– Insert the power plug or connector into the power outlet firmly. Do not use a damaged or loosen power plug or connector.

– Be sure to hold the power cord plug or connector when disconnecting it from the power outlet. If the power cord itself is pulled, it may be damaged.

– Do not plug or unplug the power cord with wet hands.

– Disconnect the power cord from the power outlet before cleaning the projector.

– Do not stick metal objects into the electrical contacts of the power plug or connector.

– When an extension cord is necessary, be sure that the total current load of all equipment connected to the extension cord does not exceed the specified rating of the extension cord.

– Periodically unplug the power cord and remove the dust that builds up on the power cord or connector.

WARNING

Follow the instructions below to install or handle the projector. Otherwise, a fire, an electric shock, or injury may result.

– Do not touch the projector, power cord, or cables when lighting begins.

– Do not use the projector in a bathroom or shower room.

– Do not expose the projector to rain, snow, or use near water.

– Do not insert metal objects into the projector through the air vents.

– Do not place the containers with water on the projector.

– Do not install in the locations exposed to oily vapors or smoke (e.g., near a cooking table or humidifier).

– Before moving the projector, turn the power off and disconnect the power cord and all cables.

– Do not put spray cans in front of the exhaust vent. When spray cans are exposed to heat, the pressure in them will increase and explode.

– Do not open nor remove the cabinet. There are high voltage components inside the projector.

Contact your dealer for inspection, adjustment, and service.

– Do not attempt to disassemble the projector

(including expendable parts) or remote control unit.

– Do not look into the lens while the projector is used. Strong light may hurt your eyes. Be especially careful that small children do not look into the lens.

WARNING

Follow the instructions below when the lamp is replaced or breaks.

– Always unplug the power cord before replacing the lamp.

– When the lamp breaks, shards of glass may scatter in the lamp housing. Contact your dealer for cleaning or inspecting the projector, or replacing the lamp.

WARNING

Follow the instructions below when handling the batteries. Failure to do so may cause explosion, heat generation, a fire, or leakage of the battery fluid.

– Do not heat or disassemble the batteries, or throw them into fire.

– Do not attempt to recharge the batteries.

Safety Instructions

– Remove the batteries when they have been exhausted or not in use for an extended period of time.

– Be sure to replace both batteries at the same time. Do not mix batteries of different types.

– Insert batteries correctly according to the “+” and “-“ markings.

– If a fluid from a battery leaks and comes in contact with your skin, rinse the affected skin thoroughly as soon as possible.

CAUTION

– Do not place heavy objects or step on the projector. Be especially careful that small children do not step on the projector. If not, the projector may drop or break, causing injury.

– Disconnect the power cord from the power outlet if the projector is left unused for a long period of time. Failure to do so may result in a fire.

– Do not bring your hands to the peripheral part of the exhaust vent on the cabinet. This area becomes hot during use. Be especially careful that small children do not touch the area.

Failure to do so may result in burn.

– Do not put metal objects in front of or near the exhaust vent. They will become hot while projector is being used.

– Do not place the projector on top of unstable or slanted surfaces. The projector may fall down and cause injury.

– Do not attach the lens cover while the projector is being used or place any objects in front of the lens. Failure to do so may result in a fire.

– A buildup of dust inside the projector can cause a fire or damage. Consult your dealer for cleaning.

– When installing the projector to a ceiling, consult your electrician or dealer. If the projector is not fixed securely, accidents may result.

CAUTION

– Never take out the lamp soon after the projector is used. Let the projector cool for at least 1 hour before taking out the lamp, as burns may result.

– If the lamp replacement icon appears or the

LAMP REPLACE indicator lights orange, immediately replace the lamp with a new one.

Otherwise, the lamp may burst.

– If the lamp burns out, the gas or dust

(containing mercury) inside the lamp may escape from the air vents. Immediately open the windows and ventilate the room. If you inhale the gas or the gas gets into your eyes or mouth, see a doctor at once.

– Dispose of a lamp containing mercury in the same manner as fluorescent lamps according to local regulations.

Safety Instructions

Precaution During Use

– This projector is a precision machine. Do not subject the projector to strong shocks or vibrations or knock it down. Remove the lens, close the lens mounting hole with the front cover, and retract the adjustable foot before placing the projector into the carrying case.

The projector may be damaged if you place it in the case without retracting the adjustable foot.

– Place the projector into the specified case when transporting it by courier or any other transportation service. Consult your dealer for the case.

– Keep space of 1 m or more at the sides of the projector between the intake/exhaust vents and walls. Poor ventilation may cause malfunction.

– Do not install the projector in the locations with heavy dust, high humidity, oily vapors, or cigarette smoke.

A buildup of dust on the optical elements such as lens or mirror may degrade image quality.

– Directly touching the lens may cause poor image quality.

– If the projector is carried from a cold place to a warm place or the room temperature is raised rapidly, condensation may form on the lens and mirror due to the moisture in the atmosphere, resulting in a blurred picture.

Wait until condensation evaporates and normal picture is shown.

– Do not install the projector in the locations with great difference in temperature. Doing so may cause malfunction. The ranges of the operating and storage temperatures are as shown below:

Operating temperature: 41˚F–95˚F [5˚C–35˚C]

Storage temperature: 10˚F–140˚F (-10˚C–

60˚C)

– Do not install the projector near high-voltage electric power lines or power sources.

– Do not place the projector on a carpet or bed.

The internal temperature will rise, causing malfunction.

– To avoid increase in the internal temperature, do not block the intake/exhaust vents.

– Position the projector at a proper angle.

Incorrect positioning may cause troubles and accidents. Do not roll the projector more than

20 degrees from the horizontal.

– Do not place any heat-sensitive objects on the projector.

7

Safety Instructions

Air Circulation

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

– Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

– Keep the exhaust vent at least 3’ (1 m) away from any objects.

– Do not touch a peripheral part of the exhaust vent, especially screws and metallic parts.

These areas will become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.

– Make sure that there is no object under the projector to prevent from covering the bottom openings.

Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector.

Installing the Projector in Proper

Position

Install the projector properly. Improper installation may reduce the lamp life and cause a fire hazard.

20°

20°

Do not roll the projector more than 20 degrees from side to side.

30°

30°

Do not pitch the projector more than 30 degrees from above and below.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

Air Intake Vent (Filter)

Moving the Projector

When moving the projector, retract the adjustable foot to prevent damage to the cabinet and use a suitable carrying case.

When this projector is not in use for an extended period, put it into a suitable case to protect the projector.

Air Intake Vent

CAUTION IN CARRYING OR

TRANSPORTING THE PROjECTOR

– Do not drop or bump the projector, otherwise damages or malfunctions may result.

– When carrying the projector, use a suitable carrying case.

– Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

– Do not put the projector in a case before the projector is cooled enough.

8

Exhaust Vent

(Hot air exhaust)

Safety Instructions

Compliance

Federal Communications Commission Notice

Multimedia Projector, Model: LV-7292S, LV-7297S, LV-7392S

(1) This device may not cause harmful interference, and operation.

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. equipment.

Canon U.S.A., Inc.

Canadian Radio Interference Regulations

This Class B digital apparatus complies with Canadian ICES-003.

AC POWER CORD REQUIREMENT

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters

Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

European Union (and EEA) only.

These symbols indicate that this product is not to be disposed of with your household waste, according to the WEEE Directive (2002/96/EC), the Battery Directive (2006/66/EC) and/or your national laws implementing those Directives.

If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery

Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or accumulator at a concentration above an applicable threshold specified in the

Battery Directive.

This product should be handed over to a designated collection point, e.g., on an authorized onefor-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this type of waste could have a possible impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE.

Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

9

10

Front

Back

⑩ ⑪

Bottom

② ③

Part Names and Functions

Top controls and Indicators

Zoom Ring

Focus Ring

Infrared Remote Receiver

Projection Lens

Lens Cap

(See page 62 for attaching.)

CAUTION

Do not turn on a projector with lens cap attached.

High temperature from light beam may damage lens cap and result in fire hazard.

Air Intake Vent

CAUTION

Internal fan is equipped in this projector, do not block the Air Intake Vent, otherwise it may cause a fire.

Lamp Cover

Terminals and Connectors

Power Cord Connector

Note:

Replace only with the same types of the supplied cords or cables. Using improper cords or cables may cause an electric shock or a fire.

Exhaust Vents

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

Air Intake Vent (Filter)

Adjustable Foot

Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

*Kensington is a registered trademark of ACCO

Brands Corporation.

① ②

Part Names and Functions

Rear Terminal

CONTROL

When the projector is controlled by a computer, connect to this jack with serial control cable.

COMPUTER IN /S-VIDEO IN /

COMPONENT IN

Connect output signal from a computer, component video output, RGB scart 21pin video output or S-VIDEO output to this terminal (pp.17-19).

VIDEO IN

Connect the composite video output signal to this jack (p.18).

11

Part Names and Functions

Top Control

WARNING

LAMP REPLACE

POWER

AUTO SET

MENU

OK

OK button

– Execute the selected item (p.24).

–Zoom in or out the image in the Digital zoom mode (p.37).

POINT

▲▼◄►

buttons

– Select an item or adjust the value in the On-

Screen Menu (p.24).

– Pan the image in the Digital zoom +/- mode

(p.37).

AUTO SET button

Execute the setting of Auto setup (includes

Auto input and Auto PC functions) in the setting menu (pp.26, 47).

POWER button

Turn the projector on or off (pp.21-23).

POWER indicator

– Lights red when the projector is in stand-by mode.

– Lights green during operations.

– Blinks green in the Power management mode (p.51).

MENU button

Open or close the On-Screen Menu (p.24).

LAMP REPLACE indicator

Lights yellow when the projection lamp reaches its end of life (pp.63, 70).

WARNING indicator

– Lights red when the projector detects an abnormal condition.

– Blinks red when the internal temperature of the projector exceeds the operating range

(pp.60, 70).

12

32:(5

:$51,1*

/$035(3/$&(

92/

0(18

2.

$ 8 726 (7

92/

Part Names and Functions Part Names and Functions

Remote Control Unit

POWER button

LV-RC07

Turn the projector on or off. (pp.21-23)

AUTO SET button

Execute the setting of Auto setup (includes

Auto input and Auto PC functions) in the setting menu. (pp.26, 47)

Note:

To ensure safe operation, please observe the following precautions:

– Do not bend, drop or expose the remote control unit to moisture or heat.

– For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any chemical material.

COMPUTER button

Select the COMPUTER input source.

(pp.29, 39)

VIDEO button

Select the VIDEO input source. (p.38)

S-VIDEO button

Select the S-VIDEO input source. (p.38)

Point

▲▼◄► buttons

– Select an item or adjust the value in the

On-Screen Menu. (p.24)

– Pan the image in the Digital zoom +/-

mode. (p.37)

ASPECT button

Select a screen mode. (pp.28,36-37,44-45)

MENU button

Open or close the On-Screen Menu. (p.24)

FREEZE button

Freeze the picture on the screen. (p.27)

BLANK button

Temporarily turn off the image on the screen.

(p.28)

D .ZOOM

+/-

buttons

Zoom in and out the images. (pp.27, 37)

IMAGE button

Select the image mode. (pp.28, 34, 41)

P-TIMER button

Operate the P-timer function. (pp.28, 52)

LAMP button

Select a lamp mode. (pp.27, 54)

INFO. button

Operate the information function. (p.59)

KEYSTONE button

Correct keystone distortion. (p.26)

OK button

– Execute the selected item. (p.24)

– Zoom in or out the image in Digital zoom

mode. (p.37)

COMPONENT button

Select the COMPONENT input source. (p.39)

13

Part Names and Functions

1

Open the battery compartment lid.

Remote Control Unit Battery Installation

2

Install new batteries into the compartment.

3

Replace the compartment lid.

Two AAA size batteries

For correct polarity

(+ and –), be sure battery terminals are in contact with pins in compartment.

WARNING

To ensure safe operation, please observe the following precautions :

● Use two (2) AAA type batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control unit to moisture or heat.

● Do not drop the remote control unit.

● If the battery has leaked on the remote control unit, carefully wipe the case clean and install new batteries.

● Risk of an explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions or your local disposal rule or guidelines.

Remote Control Unit Operating Range

Point the remote control unit toward the projector

(Infrared Remote Receiver) when pressing the buttons. Maximum operating range for the remote control unit is about 16.4'(5 m) and 60 degrees in front of the projector.

30°

16.4'

(5 m)

30° Remote control unit

Remote Control Code

The 2 different remote control codes (Code

1–Code 2) are assigned to this projector.

Switching the remote control codes prevents interference from other remote control units when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control unit. See

"Remote control" in the Setting Menu on page 54.

Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the

Code 1

and

Code 2

. The initial code is set to

Code 1

.

LV-RC07

14

MENU button

IMAGE button

Part Names and Functions

Installation

Positioning the Projector

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.

Note:

• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

• All measurements are approximate and may vary from the actual sizes.

40"

100"

83

150"

125

200"

167

300"(wide)

Max. Zoom

250

(Inch Diagonal)

300"(tele )

Min. Zoom

A

B

(Center)

Screen Size

(W x H) mm

4:3 aspect ratio

Zoom (max)

2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572

4.3’(1.30m) 10.7’(3.26m) 16.1’(4.90m) 21.5’(6.55m) 32.3’(9.84m)

5.1’(1.55m) 12.9’(3.92m) 19.4’(5.90m) 25.8’(7.87m) 38.7’(11.80m)

For LV-7392S

A:B = 6:1

Screen Size

(W x H) mm

4:3 aspect ratio

Zoom (max)

Zoom (min)

40”

813 x 610

For LV-8225

A : B = 6 : 1

Screen Size

(W x H) mm

4 : 3 aspect ratio

Zoom (max)

Zoom (min)

40”

813 x 610

4.3'(1.30m)

5.1'(1.55m)

2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572

22.9’(7.0m) 34.4’(10.5m)

100”

2032 x 1524

10.7'(3.26m)

12.9'(3.92m)

150”

3048 x 2286

16.1'(4.90m)

19.4'(5.90m)

200”

4064 x 3048

21.5'(6.55m)

25.8(7.87m)

300”

6096 x 4572

32.3'(9.84m)

38.7'(11.80m)

15

Installation

Project vertically to the screen

Adjust the light axis vertically to the screen.

Note:

If the projector is too oblique to the screen, part of the focus may be deviated.

90˚

Light axis

Adjust the Height and the Incline angle of the projected image

Projection angle can be adjusted up to 10.0 degrees with the adjustable foot.

Lift the front of the projector and push the foot lock latch on the projector.

Release the foot lock latch to lock the adjustable foot and rotate the adjustable foot to adjust the position and tilt.

To retract the adjustable foot, lift the front of the projector and push and undo the foot lock latch.

Note:

Retract the adjustable foot when transporting the projector.

Foot Lock Latch Adjustable Foot

Screen

Tilt the projector within ±20 degrees horizontally

When moving the projector horizontally, make suer to tilt the projector within ±20 degrees, otherwise it may result in lamp malfunction.

About the Keystone distortion adjust

The projection image will become distorted if the adjustable foot is lifted too high or the project angle is too oblique to the screen. In these conditions, adjust the height of the support desk of the projector.

Note:

Keystone distortion of the projected image can be corrected by menu operation. (pp 26, 37, 45)

About the brightness of the room

Do not expose the screen directly to the sunlight or lamp light, because this will make the screen too white to see the projection image clearly. When using the projector in a sufficient brightness room, slightly lower the brightness of the room.

16

Installation

Connecting to a Computer

Cables used for connection

• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)

Note:

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Installation

VGA cable

Monitor

Output

COMPUTER IN

/ S-VIDEO IN

/COMPONENT IN

17

Installation

Connecting to VIDEO Equipment

Cables used for connection

• VIDEO Cable

• S-VIDEO Cable

• S-VIDEO-VGA Cable

Note:

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Video, DVD player, etc.

S-VIDEO Output

S-VIDEO cable

S-VIDEO-

VGA cable

COMPUTER IN /

S-VIDEO IN

/COMPONENT IN

Composite VIDEO

VIDEO cable

VIDEO IN

18

Note:

• See page 73 for ordering optional cables.

Installation Installation

Connecting to COMPONENT VIDEO and SCART Equipment

Cables used for connection

• Scart-VGA Cable

• COMPONENT Cable

• COMPONENT-VGA Cable

Note:

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Video, DVD player, etc.

RGB Scart 21pin Output

COMPONENT VIDEO Output

(Y, Pb/Cb, Pr/Cr)

COMPONENT cable

Scart-

VGA cable

COMPONENT-

VGA cable

COMPUTER IN / S-VIDEO IN /

COMPONENT IN

Note:

• See page 73 for ordering optional cables.

19

Installation

Using the ferrite core

Before using the AC Power Cord, attach the ferrite core (supplied) as shown below. (See below for mounting location.)

The Power Cord with ferrite core must be used for RF interference suppression.

0.39" (10 mm)

Ferrite Core

AC Power Cord

Keep closing until it makes

a clicking sound.

20

Connecting the AC Power Cord

This projector uses nominal input voltages of

100-240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

If you are not sure of the type of power being supplied, consult your authorized dealer or service center.

Connect the projector with all peripheral equipment before turning the projector on.

Connect the AC power cord

(supplied) to the projector.

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

Note

:

Unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.

NOTE ON THE POWER CORD

AC power cord must meet requirement of the country where you use the projector.

Confirm the AC plug type with the chart below and proper AC power cord must be used.

If supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side AC outlet side

For the U.S.A. and Canada

Ground

For Continental Europe

For the U.K.

Ground

To power cord connector on your projector.

To the AC outlet.

(120 V AC)

To the AC outlet.

(200 - 240 V AC)

To the AC outlet.

(200 - 240 V AC)

Installation

Basic Operation

Turning On the Projector

1

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

2

Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap.

3

Press the POWER button on the top control or on the remote control unit. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.

16

The preparation display will disappear after 30 seconds.

Selected Input Source and Lamp mode

Lamp mode status

4

After the countdown, the input source that was selected the last time and the Lamp mode status icon (p. 54) appear on the screen for about 4 seconds.

5

If there is no signal input when start on the projector, or the current signal is missed while operating the projector, the VIDEO/

PC selection window will be displayed on the screen, please move the pointer to input source desired by pressing the Point ▲▼ buttons and press the OK button. And then follow the input signal guidance window to correct the signal and connection.

If the projector is locked with a PIN code,

PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.

(See page 54 for Lamp mode status.)

Note:

The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.

PC Selection

Guidance for PC Input

Note:

• When the Logo select function is set to

Off

, the logo will not be shown on the screen (p.48).

• When

Countdown off

or

Off

is selected in the

Display function, the preparation display will not be shown on the screen (p.48).

• When the Auto input function is set to

On 2

, the input signal will be searched automatically (p.47).

• When

Off

is selected in the Display function, the

VIDEO/PC selection window and the input signal guidance window are not shown on the screen

(p.48).

Video Selection

Guidance for Video Input

21

Basic Operation

Enter a PIN code

Use the Point ▲▼ buttons to enter a number.

Press the Point ► button to fix the number and move the red frame pointer to the next box. The number changes to

. If you fixed an incorrect number, use the Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to “Set”. Press the OK button so that you can start to operate the projector.

If you entered an incorrect PIN code,

PIN code

and the number (

   

) will turn red for a moment. Enter the correct PIN code all over again.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 55-56 for locking operation of the projector with your PIN code.

PIN Code Input Dialog Box

After the OK icon disappears, you can operate the projector.

Note:

•If the PIN code number is not entered or wrong PIN code number is entered within three minutes after the

PIN code dialog box appeared, the projector will be turned off automatically.

•The “1234” is set as the initial PIN code at the factory.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take special care in setting a new PIN code. Write down the number as a reminder. Should the PIN code be missing or forgotten, consult your dealer or service center.

About the Power Management mode

This projector has the Power Management mode function. When there is no signal input for more than 30 seconds and also there is no operation to the projector, the

No signal

image appears and the countdown begins. After the countdown, the lamp will be off. This function helps to save power consumption and extend the lamp life. (p. 51)

Remaining Time until the lamp is off.

When set to Standby

The cooling starts when the countdown is finished and the lamp is off. During the cooling, the POWER indicator blinks red, and do not do any operation to the projector.

The POWER indicator blinks green when the cooling is completed and it goes to the Power Management mode. In this condition, the projection lamp will be turned on and image will be projected if the input signal is reconnected or any button on the top control or remote control unit is pressed.

When set to Exit

The cooling starts when the countdown is finished and the lamp indicator is off. During the cooling, the

POWER indicator blinks red, and do not do any operation to the projector.

The power will be turned off and the projector goes to Standby mode when the cooling is completed.

22

Basic Operation Basic Operation

1

Turning Off the Projector

Press the POWER button on the top control or on the remote control unit, and

Power off?

appears on the screen.

2

Press the POWER button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans’ quietness and speed. See “Fan” on page

57.) At this time, you can unplug the AC power cord even if the fans are still running.

3

When the projector has cooled down enough, the POWER indicator stops blinking and you can turn on the projector.

CAUTION

TO MAINTAIN THE LIFE OF THE LAMP,

ONCE YOU TURN THE PROjECTOR ON,

WAIT AT LEAST FIVE MINUTES BEFORE

TURNING IT OFF .

CAUTION

DO NOT OPERATE THE PROJECTOR

CONTINUOUSLY WITHOUT REST.

CONTINUOUS USE MAY RESULT IN

SHORTENING THE LAMP LIFE. TURN OFF

THE PROjECTOR AND LET STAND FOR

ABOUT AN HOUR IN EVERY 24 HOURS.

Power off?

disappears after 4 seconds.

Direct Power Off Function

You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the POWER button.

Note:

• When using the Direct Power Off function, you can not restart the projector immediately after the power is disconnected. If the external power supply is suddenly cut off, the fans stop immediately. The lamp remains high temperature and needs to be cooled.

Note:

• When the Direct power on function is set to

On

, the projector will be turned on automatically by connecting the AC power cord to an AC outlet

(p.51).

• The running speed of cooling fans is changed according to the temperature inside the projector.

• Do not put the projector in a case before the projector is cooled enough.

• If the WARNING indicator blinks or lights red, see

“WARNING indicator” on page 60.

• While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.

• The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.

• The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal poweroff processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.

23

Basic Operation

How to Operate the On-Screen Menu

POWER

1

The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

Press the MENU button on the top control or the remote control unit to display the

On-Screen Menu.

2

Use the Point ▲▼ buttons to highlight or select a main menu item. Press the Point

► or the OK button to access the submenu items. (The selected item is highlighted in orange.)

3

Use the Point ▲▼ buttons to select the desired submenu item and press the OK button to set or access the selected item.

4

Use the Point ▲▼◄► buttons to adjust the setting or switch between each option and press the OK button to activate it and return to the submenu.

5

Press the Point ◄ button to return to the main menu. Press the MENU button to exit the On-Screen Menu.

When Main menu is selected

LAMP REPLACE

MENU

MENU button

Remote control unit

MENU button

LV-RC07

OK

AUTO SET

POINT ▲▼◄► buttons

OK button

POINT ▲▼◄► buttons

OK button

Point

or OK button

When Sub menu is selected

*

Point

◄ button

24

About the guide bar

*

Display the Select and Execute buttons.

The right picture shows the Sub menu guide bar.

MENU button

Close the menu screen

Point ◄ button

Go back to Main menu

Point ▲▼ buttons

Select items

OK button

Execute selected items

Point ► button

Adjust and select items

Basic Operation Basic Operation

Main Menu

For detailed functions of each menu, see “Menu Tree” on pages 68-69.

Main Menu Sub-Menu

Input

Used to select an input source from

COMPUTER

or

VIDEO

. (pp.29, 38-39)

PC adjust

Select

Auto PC

,

Fine sync

,

Total dots

,

Horizontal position

,

Vertical position

,

Current mode,

Clamp

,

Display area H, Display area V

,

Reset

,

Mode free

and

Store

to adjust the parameters to match with the PC input signal format. (pp.31-32)

Image select

Used to select an image mode from among

Presentation

,

Standard

,

High contrast

,

Cinema,

Blackboard(Green)

,

Colorboard

and

User 1-4

. (pp.34, 41)

Image adjust

For Computer source, used to adjust computer image [

Contrast

,

Brightness

,

Color temp.

,

White balance (R/G/B)

,

Sharpness

,

Gamma

,

Reset

and

Store

]. (p.35)

For VIDEO source, used to adjust picture image [

Contrast

,

Brightness

,

Color

,

Tint

,

Color temp.

,

White balance (R/G/B)

,

Sharpness

,

Gamma

,

Noise reduction

,

Progressive

,

Reset

and

Store

]. (pp.42-43)

Aspect

For Computer source, used to adjust size of the image [

Normal

,

Full

,

16:9

,

Zoom

,

True

,

Custom

,

Custom adj

.,

Digital zoom +/–

,

Keystone

For VIDEO source, used to set size of image [

,

Normal

Ceiling

,

Full

,

,

Rear

16:9

,

and

Reset

Zoom

,

]. (pp.36-37)

adj

.,

Keystone

,

Ceiling

,

Rear

and

Reset

]. (pp.44-45)

Setting

Information

Display the input source information. (p.59)

Guide

The key operation is displayed.

25

Basic Operation

Zoom and Focus Adjustment

Rotate the Zoom Ring to zoom in and out.

Rotate the Focus Ring to adjust the focus of the image.

Zoom Ring

Focus Ring

Auto Setup Function

Auto setup function is provided to automatically execute the setting of Auto setup (includes Auto input and Auto PC functions) in the setting menu by just pressing the AUTO SET button on the top control or

Note:

Fine sync

,

Total dots

,

Horizontal position

and

Vertical position

position of some computers cannot be fully adjusted with the Auto PC

Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.32-33).

LAMP REPLACE AUTO SET

AUTO SET button

POINT ▲▼ buttons

MENU

OK

Remote control unit

AUTO SET button

26

POINT ▲▼ buttons

KEYSTONE button

Press the KEYSTONE button on the remote control unit. The Keystone dialog box appears.

Use the Point ▲▼ buttons to correct keystone distortion. The keystone adjustment can be stored (pp.37, 45).

Reduce the upper width with the Point ▲ button.

Keystone Correction

Reduce the lower width with the Point

▼ button.

•The white arrows indicate that there is no correction.

•A blue arrow indicates the direction of correction.

•An arrow disappears at the maximum correction.

•If you press the KEYSTONE button on the remote control unit once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

•The adjustable range is limited depending on the input signal.

Basic Operation Basic Operation

Remote control unit Operation

Using the remote control unit for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.

COMPUTER, VIDEO, S-VIDEO and

COMPONENT buttons

Press the COMPUTER, VIDEO, S-VIDEO and

COMPONENT buttons on the remote control unit to select the input source. See pages 29, 38-39 for details.

FREEZE button

Press the FREEZE button on the remote control unit to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button.

Fig.1 will appear on the screen while the Freeze function is working.

Fig.1

Remote control unit

COMPUTER button

VIDEO button

COMPONENT button

S-VIDEO button

INFO. button

Display the input source information:

Input

,

H-sync freq.

,

V-sync freq.

,

Aspect

,

Language

,

Lamp status

,

Lamp counter

,

Power management mode

,

Key lock

,

PIN code lock,

Remote control

and

SERIAL NO.

(p.59)

FREEZE button

D .ZOOM buttons

D.ZOOM buttons

Press the D.ZOOM buttons on the remote control unit to enter to the Digital zoom +/– mode. See page 37 for details.

INFO . button

LAMP button

LV-RC07

Note:

See the next page for the description of other buttons.

LAMP button

Press the LAMP button on the remote control unit to select the lamp mode for changing the brightness on the screen.

High ........... Brighter than the Normal mode.

Normal ...... Normal brightness

Eco ............ Lower brightness reduces the lamp power consumption and extends the lamp life.

27

28

Basic Operation

BLANK button

Press the BLANK button on the remote control unit to black out the image. To restore to normal, press the BLANK button again or press any button. When the projected image is captured and is set as

User

in the Logo selection (p. 48), the screen changes each time you press the BLANK button as follows.

black out→ the captured image → normal

→• • • • •

Remote control unit

ASPECT button

P-TIMER button

BLANK button

IMAGE button

Note:

See the previous page for the description of other buttons.

LV-RC07

P-TIMER button

Press the P-TIMER button on the remote control unit to operate the Count up/Count down function. Refer to p.52 for detail of

Setting for the P-timer function.

To stop the count time, press the P-TIMER button.

To restart the P-timer, press the P-TIMER button again.

To cancel the P-timer function, press and hold the P-TIMER button.

BLANK

Blank

disappears after 4 seconds.

IMAGE button

Press the IMAGE button on the remote control unit to select a desired image mode of the screen. See pages 34, 41 for details.

P-Timer

ASPECT button

Select the screen size (See pages 36-37,

44-45 for details).

Basic Operation

Computer Input

Input Source Selection (ANALOG PC: COMPUTER)

Direct Operation

Choose

COMPUTER (ANALOG PC)

by pressing the COMPUTER button on the remote control unit.

Remote control unit

COMPUTER button

COMPUTER (ANALOG PC)

COMPUTER (SCART)

1

2

Menu Operation

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Input

and then press the

Point ► or the OK button.

LV-RC07

Use the Point ▲▼ buttons to select

COMPUTER

and then press the OK button.

Input Menu

3

When

COMPUTER

is selected, press the

Point ► button to access the submenu items. Use the Point ▲▼ buttons to select the

ANALOG PC

input source and then press the OK button.

COMPUTER

Note:

When the Auto input function is set to

On 1

or

On

2

in the Auto setup function, the input signal will be searched automatically (p.47).

29

Computer Input

Computer System Selection

This projector automatically tunes to various types of computers with its Multi-scan system and Auto

PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 71.)

One of the following messages may appear when:

Auto

- - - -

When the projector cannot recognize the connected signal conforming to the provided PC systems,

Auto

is displayed on the System Menu box and the Auto PC Adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp.

32-33).

There is no signal input from the computer. Check the connection between your computer and the projector. (See “Troubleshooting” on p. 66.)

PC System Menu

Selected system in the PC System Menu is displayed.

Mode 1

The preset system is manually adjusted in the PC adjust Menu. The adjusted data can be stored in

Mode

1-10

(pp. 32-33).

SVGA 1

PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.

*

Mode 1

and

SVGA 1

are examples.

Selecting Computer System Manually

PC system can also be selected manually.

1

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Input

and then press the Point ► or the OK button.

2

Use the Point ▲▼ buttons to select

System

and then press the Point ► or the OK button.

PC System Menu

Customized

Mode

(1–10)

set in the PC adjust Menu (pp.

32-33).

3

Use the Point ▲▼ buttons to select the desired system and then press the OK button.

Systems in this dialog box can be selected.

30

Computer Input Computer Input

Auto PC Adjustment

When the image is not stable or flicker, or when the image is not in right position as inputing ANALOG

PC signal, press the AUTO SET button on the remote control unit to adjust the

Fine sync

,

Total dots

,

Horizontal position

and

Vertical position

to obtain best display.

1

2

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

PC adjust

and then press the Point ► or the OK button.

Use the Point ▲▼ buttons to select

Auto

PC

and then press the OK button.

Note:

• The adjusted parameters from the Auto PC

Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu

(p.30). See also “Store” on page 33.

• The Auto PC Adjustment cannot be operated when

480i

,

575i

,

480p

,

575p

,

720p

,

1035i

or

1080i

is selected in the PC System Menu (p. 30).

PC adjust Menu

When the image is not provided properly with Auto PC adjustment

When the image is not provided properly with Auto

PC, operate as bellows:

Use

Input

menu to adjust the System mode to match to the computer resolution. Refer to page

30 for details.

See operation example below.

Use

PC adjust

menu to adjust the System mode manually and store the adjusted parameters in the Custom Mode. See page 33.

Operation Example

Resolution :1600 x 1200, Vertical Frequency: 60 Hz

1

Press the MENU button to display the

On-Screen Menu. Press the Point ▲▼ buttons to select

Input

.

2

Press the Point ► button to access to

COMPUTER

and then press the OK button.

3

Confirm the System mode displayed. If the input signal is different from the computer signal, operate the following steps.

4

Use the Point ▲▼ buttons to select

System

and and press the OK button or the Point ► button.

5

Use the Point ▲▼ buttons to select the input computer signal and press the OK button.

6

Press the MENU button to exit the On-Screen

Menu and confirm the image.

Note:

• Refer to page 71 for the Compatible Computer

Specifications.

• Some signal formats may not be able to display correctly.

• Only when input computer signal to the projector,

PC adjust

will become available.

Input Menu

Confirm System mode

Change System mode

31

Computer Input

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

1

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

PC adjust

and then press the Point ► or the OK button.

PC adjust Menu

2

Use the Point ▲▼ buttons to select the desired item and then press the OK button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value.

Fine sync

Use the Point ◄► buttons to adjust the value, eliminating a flicker from the image displayed

(from 0 to 31).

Total dots

Use the Point ◄► buttons to adjust the number of total dots in one horizontal period to match your PC image.

Horizontal position

Use the Point ◄► buttons to adjust the horizontal picture position.

Vertical position

Use the Point ◄► buttons to adjust the vertical picture position.

Current mode

Press the OK button to show

H-sync freq.

and

V-sync freq.

of the connected computer.

Clamp

Use the Point ◄► buttons to adjust the clamp level. When the image has dark bars, try this adjustment.

Display area H

Use the Point ◄► buttons to adjust the horizontal area displayed by this projector.

Display area V

Use the Point ◄► buttons to adjust the vertical area displayed by this projector.

32

Note:

Display area (H/V)

cannot be selected when

480i

,

575i

,

480p

,

575p

,

720p

,

1035i

or

1080i

is selected in the

PC System Menu (p.30).

Computer Input Computer Input

Reset

To reset the adjusted data, select

Reset

and press the OK button. A confirmation box appears and then select

Yes

. All adjustments will return to their previous figures.

Mode free

Mode free

To clear the stored data, select

Mode free

and then press the Point ► or the OK button. Move the highlight to the Mode that you want to clear and then press the OK button.

Store

To store the adjusted data, select

Store

and then press the Point ► or the OK button. Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the OK button.

This Mode has stored parameters.

Store

Values of

Total dots

,

Horizontal position

,

Vertical position

,

Display area

H

, and

Display area V

.

Vacant

Press MENU button to close this dialog box.

Press OK button to store the data.

33

Computer Input

Image Mode Selection

Direct Operation

Select the desired image mode among

Presentation

,

Standard

,

High contrast

,

Cinema

,

Blackboard (Green)

,

Colorboard

,

User 1

,

User 2

,

User 3

and

User 4

by pressing the IMAGE button on the remote control unit.

Remote control unit

Menu Operation

1

2

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Image select

and then press the Point ► or the OK button.

Use the Point ▲▼ buttons to select the desired item and then press the OK button.

Presentation

For viewing pictures in a bright room.

Standard

Normal picture mode preset on the projector.

High contrast

Picture mode with improved halftone for graphics.

Cinema

Picture mode adjusted with fine tone.

Blackboard (Green)

For the image projected on a blackboard.

This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Colorboard

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

Use the Point ▲▼ buttons to select

Colorboard and then press the Point ► or the

OK button to access the submenu. Press the

Point ▲▼ buttons to select items among Red,

Blue, Yellow and Green.

User 1-4

For viewing with the user preset image mode in the Image Adjust Menu (see page 35).

34

Image select Menu

IMAGE button

Presentation

Standard

High contrast

Cinema

Blackboard(Green)

Colorboard

User 1

User 2

User 3

User 4

Computer Input Computer Input

Image Adjustment

1

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Image adjust

and then press the Point ► or the OK button.

2

Use the Point ▲▼ buttons to select the desired item and then press the OK button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value.

Image Adjust Menu

Contrast

Press the Point ◄ button to decrease the contrast; press the Point ►button to increase the contrast (from 0 to 63).

Brightness

Press the Point ◄ button to decrease the brightness; press the Point ►button to increase the brightness (from 0 to 63).

Color temp.

Use the Point ◄► buttons to select the desired

Color temp. level (

XLow

,

Low

,

Mid

, or

High

).

White balance (Red / Green / Blue)

Press the Point ◄ button to lighten R/G/B tone; press the Point ► button to deepen R/G/B tone

(from 0 to 63).

Sharpness

Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image

(from 0 to 15).

Gamma

Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from

0 to 15).

Reset

To reset the adjusted data, select

Reset

and press the OK button. A confirmation box appears and then select

Yes

. All adjustments will return to their previous figures.

Store

To store the adjusted data, select

Store

and press the Point ► or the OK button. Use the

Point ▲▼ buttons to select one from

User 1

to

User 4

and press the OK button.

A confirmation box appears and then select

Yes

.

Stored data can be called up by selecting an

User (1-4)

in the Image Mode Selection on page

34.

Store

Selected Image mode

Use the Point ◄► buttons to adjust the setting value.

A confirmation box appears and then select

Yes

.

Note:

• When White balance

Red

,

Green

or

blue

is

adjusted,

Color temp.

will change to

User

.

• When

Blackboard(Green)

or

Colorboard

is selected in Image select,

Color temp.

will

change to

Blackboard

or

Colorboard

.

35

Computer Input

Aspect Setting

This projector has the picture screen resize function, which enables you to customize the image size.

1

Aspect Menu

2

Normal

Provide the image to fit the screen size.

Full

Provide the full screen image.

16:9

Provide the image at the 16:9 wide screen ratio.

Zoom

True

Provide the image in its original size. When the

Custom

image.

Custom adj.

Note:

• This projector cannot display any resolution higher than 1920 x 1200. If your computer’s screen resolution is higher than it, reset the resolution to the lower before connecting to the projector.

• The image data in other than 1024 x 768 is modified to fit the screen size in initial mode.

True

and

Digital zoom +/–

are disabled and cannot be displayed when

480i

,

575i

,

480p

,

575p, 720p

,

1035i

or

1080i

is selected in the

PC System Menu (p. 30).

• When

True

is selected in the Aspect menu,

Digital zoom +/-

can not be selected.

Custom adj.

adjust.

H&V

screen scale.

ratio is fixed. The

Scale V

unavailable. Adjust

Scale

Position H/V

the aspect ratio.

Common

screen position.

Reset

scale or position is used.

Press the OK button at

Reset

Note:

• When no signal is detected,

Normal

is set automatically .

• The adjustable range for

Scale H/V

and

Position H/V

is limited depending on the input signal.

36

Computer Input Computer Input

Digital zoom +

Select

Digital zoom +

. The On-Screen Menu

Remote control unit

POINT ▲▼◄► buttons

OK button

Digital zoom –

Select

Digital zoom –

. The On-Screen Menu

D.ZOOM + button

D.ZOOM - button

Keystone

LV-RC07

Source Selection Menu (see page 29) again, buttons.

Keystone

This function is used to adjust keystone adjust.

Keystone

To correct keystone distortion, press the OK button.

Keystone appears on the screen. Use the

Point ▲▼ buttons to correct keystone distortion (p.26).

Store

To store or reset the keystone correction, press the Point ► button.

Store

.............. Keep the keystone correction

Reset

the projector.

Ceiling

Rear

Press the OK button.

Ceiling

When this function is set to

On

, the picture will

Rear

When this function is set to

On

, the picture will project the image from rear of the screen.

Reset

To reset the adjusted data, select Reset and

Note:

• The minimum compression ratio is limited depending on the input signal, when the Keystone function is working or when the custom is selected for the screen size.

True

and

Digital zoom +/–

are disabled and cannot be displayed when

480i

,

575i

,

480p, 575p,

720p

,

1035i

or

1080i

is selected in the PC System

Menu (p.30).

Digital zoom +/-

cannot be selected when

True

is selected.

• The minimum compression ratio is limited at

Normal screen size.

37

VIDEO Input

Input Source Selection (VIDEO, S-VIDEO)

Direct Operation

Choose

VIDEO

or

S-VIDEO

by pressing the

VIDEO or the S-VIDEO button on the remote control unit.

Remote control unit

VIDEO button

VIDEO

S-VIDEO button

S-VIDEO

1

2

Menu Operation

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Input

and then press the

Point ► or the OK button.

Use the Point ▲▼ buttons to select

VIDEO

and then press the OK button.

VIDEO

LV-RC07

VIDEO

When video input signal is connected to the VIDEO jack, select

VIDEO

.

Use the Point ▲▼ buttons to select

COMPUTER

. And then press the Point ► button to access the submenu items. Use the

Point ▲▼ buttons to select the

S-VIDEO

and then press the OK button.

S-VIDEO

S-VIDEO

When the input source is coming from video equipment connected to the COMPUTER IN/S-VIDEO

IN/COMPONENT IN terminal with a S-VIDEO-VGA cable, select

S-VIDEO

.

COMPUTER

Press the Point ▲▼ buttons to select

S-VIDEO

.

38

Note:

When the Auto input function is set to

On 1

or

On

2

in the Auto setup function, the input signal will be searched automatically (p.47).

VIDEO Input

VIDEO Input

Input Source Selection (COMPONENT, SCART)

Direct Operation

Choose

COMPUTER (COMPONENT)

or

COMPUTER (SCART)

by pressing the COMPONENT or the

Remote control unit

COMPUTER button

COMPUTER (ANALOG PC)

COMPUTER (SCART)

COMPONENT button

COMPUTER (COMPONENT)

Input Menu

Menu Operation

1

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Input

and then press the Point ► or the OK button.

2

Use the Point ▲▼ buttons to select

COMPUTER

and then press the Point ► button.

3

Use the Point ▲▼ buttons to select

COMPONENT

or

SCART

and then press the

OK button.

COMPONENT

When the input source is coming from video equipment connected to the COMPUTER IN /S-VIDEO

IN/COMPONENT IN terminal with a COMPONENT-VGA Cable, select

COMPONENT

.

SCART

When the input source is coming from video equipment connected to the COMPUTER IN/S-VIDEO

IN/COMPONENT IN terminal with a Scart-VGA Cable, select

SCART

.

Note:

When the Auto input function is set to

On 1

or

On 2

, the input signal will be searched automatically (p.47).

Press the Point ▲▼ buttons to select

COMPONENT

or

SCART

.

39

VIDEO Input

VIDEO System Selection

1

2

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Input

and then press the

Point ► or the OK button.

Select

VIDEO

,

COMPUTER (S-VIDEO)

or

COMPUTER (COMPONENT)

input source. (pp. 38-39)

3

Use the Point ▲▼ buttons to select

System

and then press the Point ► or the OK button. Use the Point ▲▼ buttons to select the desired system and then press the OK button.

AV System Menu (VIDEO or S-VIDEO)

VIDEO or S-VIDEO

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When VIDEO

System is

PAL-M

or

PAL-N

, select the system manually.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among

PAL

,

SECAM

,

NTSC

,

NTSC 4.43

,

PAL-M

and

PAL-N

.

AV System Menu (COMPONENT)

COMPONENT

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format from among

480i

,

575i

,

480p

,

575p

,

720p

,

1035i

and

1080i

.

40

Note:

The AV System Menu cannot be selected when selecting

SCART

.

VIDEO Input

Direct Operation

Image Mode Selection

Select the desired image mode among

Presentation

,

Standard

,

High contrast

,

Cinema

,

Blackboard (Green)

,

Colorboard

,

User 1

,

User 2

,

User 3

and

User 4

by pressing the IMAGE button on the remote control unit.

Remote control unit

1

2

Menu Operation

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Image select

and then press the Point ► or the OK button.

Use the Point ▲▼ buttons to select the desired item and then press the OK button.

Presentation

For viewing pictures in a bright room.

Standard

Normal picture mode preset on the projector.

High contrast

Picture mode with improved halftone for graphics.

Cinema

Picture mode adjusted with fine tone.

Blackboard (Green)

For the image projected on a blackboard.

This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Colorboard

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

Use the Point ▲▼ buttons to select

Colorboard and then press the Point ► or the

OK button to access the submenu. Press the

Point ▲▼ buttons to select items among Red,

Blue, Yellow and Green.

User 1-4

For viewing with the user preset image mode in the Image Adjust Menu (p. 43).

Image select Menu

VIDEO Input

IMAGE button

Presentation

Standard

High contrast

Cinema

Blackboard (Green)

Colorboard

User 1

User 2

User 3

User 4

41

VIDEO Input

1

2

Image Adjustment

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Image adjust

and then press the Point ► or the OK button.

Use the Point ▲▼ buttons select the desired item and then press the OK button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value.

Image Adjust Menu

42

Contrast

Press the Point ◄ button to decrease the contrast; press the Point ► button to increase the contrast (from 0 to 63).

Selected Image mode

Brightness

Press the Point ◄ button to decrease the brightness; press the Point ► button to increase the brightness (from 0 to 63).

Color

Press the Point ◄ button decrease the intensity of the color; press the Point ► button increase the intensity of the color (from 0 to

63).

Tint

Press the Point ◄► buttons to adjust the tint value to get a proper color balance (from 0 to

63).

Color temp.

Use the Point ◄► buttons to select the desired Color temp. level (

XLow

,

Low

,

Mid

or

High

).

White balance (Red / Green / Blue)

Press the Point ◄ button to lighten R/G/B tone; press the Point ► button to deepen

R/G/B tone (from 0 to 63).

Use the Point ◄► buttons to adjust the setting value.

Sharpness

Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image

(from 0 to 15).

Gamma

Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).

Note:

• When the

White balance Red

,

Green

or

blue

is adjusted, the Color temp. level will change to

User

.

Tint

cannot be selected when the video system is

PAL

,

SECAM

,

PAL-M

or

PAL-N

(p. 40).

• When

Blackboard (Green)

or

Colorboard

is selected in Image select,

Color temp.

will change to

Blackboard

or

Colorboard

.

VIDEO Input

Noise reduction

Noise interference on the screen can be reduced. Select one of the following options to get smoother images.

Off

........ Disabled.

L 1

........ Lower reduction

L 2

........ Higher reduction

Progressive

An interlaced video signal can be displayed in progressive mode. Select one of the following options.

Off

........ Disabled.

L 1

........ For an active picture.

L 2

........ For a still picture.

Film

..... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality.

Reset

To reset the adjusted data, select

Reset

and press the OK button. A confirmation box appears and then select

Yes

. All adjustments will return to their previous figures.

Store

To store the adjusted data, select

Store

and press the Point ► or the OK button. Use the

Point ▲▼ buttons to select one from

User 1

to

User 4

and press the OK button.

A confirmation box appears and then select

Yes

. Stored data can be called up by selecting an

User (1-4)

in the Image Mode Selection on page 41.

Store Menu

Note:

Noise reduction

and

Progressive

can not be selected when the input signal is

480p

,

575p

,

720p

,

1035i

or

1080i

(p.40).

A confirmation box appears and then select

Yes

.

VIDEO Input

43

VIDEO Input

Aspect Setting

This projector has the picture screen resize function, which enables you to customize the image size.

1

2

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select

Aspect

and then press the Point ► or the OK button.

Use the Point ▲▼ buttons to select the desired item and then press the OK button.

Aspect Menu

Normal

Provide the image to fit the screen size while maintaining the aspect ratio of the input signal.

Full

Provide the full screen image.

16:9

Provide the image at the 16:9 wide screen ratio.

Zoom

Pan the horizontal direction of the image and cut the vertical direction of the image to fit the screen size (16:9). Only for 4:3 video aspect ratio signals.

Custom

Provide the last stored aspect screen image.

Custom adj.

Adjust the screen scale and position manually with this function.

Press the Point ► button at

Custom adj.

and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust.

Scale H/V

...... Adjust the Horizontal/Vertical screen scale.

H&V

............... When set to

On

, the aspect ratio is fixed. The

Scale V

appears dimmed and becomes unavailable.

Adjust

Scale H

, then the screen scale is automatically modified based on the aspect ratio.

Position H/V

.. Adjust the Horizontal/Vertical screen position.

Common

....... Save the adjusted scale or position to all the inputs. Press the

OK button at

Common

to display a confirmation box. To save the scale or position, press the OK button at

Yes

. When

Custom

is selected, the saved scale or position is used.

Reset

............. Reset the all adjusted values.

Press the OK button at

Reset

to reset, press the OK button at

Yes

.

Note:

• When no signal is detected,

Normal

is set automatically and the Aspect adjustment menu disappears.

• The adjustable range for

Scale H/V

and

Position H/V

is limited depending on the input signal.

44

VIDEO Input

Keystone

This function is used to adjust keystone distortion of the projected image. Use the Point

▲▼ buttons to choose the item you want to adjust.

Keystone

To correct keystone distortion, press the OK button.

Keystone appears on the screen. Use the

Point ▲▼ buttons to correct keystone distortion (p. 26).

Store

To store or reset the keystone correction, press the Point ► button.

Store

.......... Keep the keystone correction even when the AC power cord is plugged out or turning off the projector.

Reset

.......... Release the keystone correction when the AC power cord is plugged out or turning off the projector.

Ceiling

When this function is set to

On

, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to

On

, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

Reset

To reset the adjusted data, select Reset and press the OK button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.

Keystone

Ceiling

Rear

Press the OK button.

VIDEO Input

45

46

Setting

Setting

This projector has a Setting menu that allows you to set up the other various functions described below.

1

Press the MENU button to display the

On-Screen Menu. Press the Point ▲▼ buttons to select

Setting

and press the

Point ► or the OK button to access the submenu items.

Setting Menu

2

Use the Point ▲▼ buttons to select the desired item and then press the Point ► or the OK button to access the selected item.

3

Use the Point ▲▼ buttons to select the desired item and then press the OK button.

Language

The language used in the On-Screen Menu is available in English, German, French,

Italian, Spanish, Portuguese, Dutch, Swedish,

Finnish, Polish, Hungarian, Romanian,

Russian, Turkish, Kazakh, Vietnamese,

Chinese, Korean, Japanese and Thai.

Menu position

This function is used to change the position of the On-Screen Menu. Select

Menu position

and press the OK button.

The Menu position changes each time you press OK button as follows.

the center → the bottom left → the bottom right

→ the top left → the top right→.....

Language

Setting

Setting

Auto setup

This function enables Auto input and Auto PC adjustment by pressing the AUTO SET button on the top control or the remote control unit.

Settings for those functions can be altered as follows:

Auto input

This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point ▲▼ buttons to select one of the following options.

Off

....... Auto input does not work.

On 1

..... Auto input works under the following situation.

– When pressing the AUTO SET button on the top control or the remote control unit.

On 2

..... Auto input works under the following situation.

– When turning on the projector by pressing the POWER button on the top control or the remote control unit.

– When pressing the AUTO SET button on the remote control unit or the top control.

– When the current input signal is cut off.*

* If the Blank or Freeze function is active, cancel it to activate the Auto input. It is also unavailable when On-Screen menu is displayed.

Auto PC

On

.............Enables Auto PC Adjustment when pressing the AUTO SET button on the remote control unit or the top control.

Off

.............Disables Auto PC Adjustment.

Auto setup

Note:

• During

Auto input

is in progress, If the MENU button or the POWER button is pressed,

Auto input

will stop. If the COMPUTER button or

VIDEO or COMPONENT or S-VIDEO button is pressed,

Auto input

will stop and go back to the button's input signal.

Auto input

and

Auto PC

can not be set

Off

at the same time.

Fine sync

,

Total dots

,

Horizontal position

and

Vertical position

of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp. 32-33).

Note:

• While

Auto input

is set to

On 1

or

On 2

, the status of Input and Lamp are displayed every time the signal is switched.

• Only the last selected input source can be detected.

47

Setting

Background

Select the background screen for when no input signal is detected. Press the Point ▲▼ buttons to switch between each option.

blue

........Project a blue background.

User

........ Project an image captured in the

Logo setting.

Black

......Project a black background.

Display

This function decides whether to display

On-Screen Displays.

On

........................ Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough.

The factory default setting is in this option.

Countdown Off

... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Off

........................ Hide the On-Screen

Displays except;

● On-Screen Menu.

Power off?

No signal

(p. 23)

● P-Timer display. (p. 28)

for Power

management (p. 51)

Please wait ...

● Arrows for the True function in the Aspect

Menu. (p. 37)

Logo (Logo and Logo PIN code lock settings)

This function allows you to customize the screen logo with

Logo select

,

Capture

,

Logo

PIN code lock

and

Logo PIN code change

Note:

When

On

is selected in the Logo PIN code lock function,

Logo select

and

Capture

functions cannot be selected.

48

Logo select

This function decides on the starting-up display from among following options.

User

....... Show the image you captured.

Default

... Show the factory-set logo.

Off

.......... Show the countdown display only.

Logo select

Setting

Capture

This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations.

Select

Capture

and press the OK button.

A confirmation box appears and select

Yes

to capture the projected image.

After capturing the projected image, go to the

Logo select function and set it to

User

. Then the captured image will be displayed the next time you turn on the projector or when you press the

BLANK button (p 28).

To cancel the capture function, select

Yes

in the

"Quit?" confirmation box.

Note:

• Before capturing an image, select

Standard

in the Image select Menu to capture a proper image

(pp. 34, 41).

• A signal from a computer can be captured up to panel size (1024 x 768).

• When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.

• When Logo PIN code lock function is set to

On

,

Logo select

and

Capture

can not be selected.

• When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.

• When there is no captured image or it is interrupted while capturing an image,

User

can not be selected, you can only switch between

Default

and

Off

.

Capture

Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.

Off

.......... The screen logo can be changed freely from the Logo Menu (p. 48).

On

.......... The screen logo cannot be changed without a Logo PIN code.

If you want to change the

Logo PIN code lock

setting, press the OK button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial

Logo

PIN code

is set to “4321” at the factory.

Logo PIN code lock

Setting

49

Setting

Enter a Logo PIN code

Use the Point ▲▼ buttons to enter a number.

Press the Point ◄► buttons to fix the number and move the red frame pointer to the next box. The number changes to

. If you fixed an incorrect number, use the Point ◄► buttons to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a fourdigit number.

After entering the four-digit number, move the pointer to . Press the OK button so that you can start to operate the projector.

If you entered an incorrect Logo PIN code,

Logo PIN code

and the number (



) will turn red for a moment. Enter the correct Logo

PIN code all over again.

Change the Logo PIN code lock setting

Use the Point ▲▼ buttons to switch

Off

, and then press the OK button to make a choice.

On

or

Logo PIN code change

Logo PIN code can be changed to your desired four-digit number. Press the OK button to select

Logo PIN code change

.

Current logo

PIN code

dialog box appears, use the Point

▲▼buttons to enter the correct code. The New

Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box appears, choose

Yes

to set the new Logo PIN code.

Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.

CAUTION:

WHEN YOU HAVE CHANGED THE LOGO

PIN CODE, WRITE DOWN THE NEW

PIN CODE AS A REMINDER. SHOULD

THE LOGO PIN CODE BE LOST OR

FORGOTTEN, THE LOGO PIN CODE

SETTING CAN NO LONGER BE CHANGED.

50

Note:

If you forget your Logo PIN code and unable to change it, the Logo PIN code can be reset to the factory default setting (4321) according to the following procedures.

When you reset the Logo PIN code, the PIN code and

Key lock will be reset, as well.

1. Unplug the AC Power Cord from the AC outlet.

2. Hold down the OK button on the projector and connect the AC Power Cord into the outlet again.

Keep holding down the OK button until the POWER indicator lights. The Logo PIN code returns to the factory default setting while the Logo PIN code lock state will remain the same as the previous set state.

Enter a Logo PIN code

After a correct Logo PIN code is entered, the following dialog box appears.

Change the Logo PIN code lock setting

Change the Logo PIN code

Setting

Power management mode

For reducing power consumption as well as maintaining the lamp life, the Power management mode function turns off the projection lamp when the projector is not operated for a certain period.

Select one of the following options:

Standby

........ When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control unit is pressed.

Exit

............... When the lamp has been fully cooled down, the power will be turned off.

Off

................. Power management mode function is off.

Timer

............ If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with

No signal

appears. It starts the countdown until the lamp is turned off. Use the

Point ▲▼ buttons to set the

Timer (1~30min).

Note:

Factory default is

Standby: 5 min

.

Power management mode

Time left before Lamp is off.

Setting

Direct power on

When this function is set to

On

, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet.

Note:

Be sure to turn off the projector properly (see

“Turning Off the Projector” on page 23). If

the projector is turned off in the incorrect

sequence, the Direct power on function will

not work properly.

51

Setting

Standby mode

This function can set the electric power when the projector is standing by.

Serial

...... Does not restrict functionality even in standby mode.

Eco

......... Restricts some functions in standby mode to reduce power consumption.

Note:

• When selecting

Serial

, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off.

• When

Eco

is selected and the projector is in

Standby mode, the communication of RS-232C serial port is not available.

X: disabled O: enabled

Serial command

Direct power on

Eco

X

O

P-TIMER

Serial

O

O

P-timer display

P-timer

This function allows you to change the setting of the P-timer and execute it.

Select one of the following options:

Count up

....... The P-timer display

000:00

appears on the screen and the count up starts (

000:00-180:00

)

Count down

.. The time set in the Timer setting appears on the screen and the countdown starts.

Timer

............. Use the Point ▲▼ buttons to set the Timer (

1-180 Min

).

Timer

is available in Count down only.

Factory default velue is

10 Min

.

Start

............... It executes the count up or count down function. Press the OK button at

Start

and the indication changes into Stop. To stop

Count up

or

Count down

, press the OK button at

Stop

on the screen menu, then the indication changes into

Restart

. Press the

OK button at

Restart

to resume

Count up

or

Count down

.

Reset

............. Reset the P-timer values.

Press the OK button at

Reset

to

return to the following value;

Count up

... "000:00"

Count down

... Timer that you set

Exit

................ To exit the P-timer operation.

Stop or Cancel the P-timer via Remote control unit

To stop the P-timer function, press the P-TIMER button.

To cancel the P-timer, press and hold the P-TIMER button for a few seconds.

52

Setting

Closed Caption

Closed Caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select

Off

,

CC1

,

CC2

,

CC3

or

CC4

.

If the closed caption is not clear, you can change the text from

Color

to

White

.

Closed Caption

Setting

Note:

The Closed Caption is available only under the situation below.

• When the input signal is

COMPONENT

(for adjustment only),

VIDEO

or

S-VIDEO

, and the system is set to

Auto

,

NTSC

or

480i

, the Closed caption is available.

• If the system is set to

Auto

, and choose

NTSC

or

480i

as the input signal, the Closed caption function will be available.

Closed caption

will be unavailable when under other setting conditions.

• The Closed caption function is unavailable when

On-Screen menu and P-timer are displayed.

• The menu items of Closed Caption are displayed in gray while it is not available.

Press the Point ▲▼ buttons to select

Off

,

CC1

,

CC2

,

CC3

or

CC4

, and then press the OK button.

53

Setting

Lamp mode

This function allows you to change brightness of the screen.

High ........... Brighter than the Normal mode.

Normal ...... Normal brightness

Eco ............ Lower brightness reduces the lamp power consumption and extends the lamp life.

Note:

• Lamp mode can not be changed for a while after turning on the projector. Lamp needs some time to stabilize after the power is turned on.

Stored lamp mode will be active after the lamp is stabilized.

54

Remote control

This projector provides two different remote control codes: the factory-set initial code

(

Code 1

) and the secondary code (

Code 2

).

This switching function prevents remote control unit interference when operating several projectors or video equipment at the same time.

When operating the projector in

Code 2

, both the projector and the remote control unit must be switched to

Code 2

.

To change the code for the projector:

Select either

Code 1

or

Code 2

in this Setting

Menu.

To change the code for the remote control unit:

Press and hold both the MENU and IMAGE buttons together for 5 seconds or more. After changing the code, make sure the remote control unit operates properly.

Note:

• When different codes are set on the projector and on the remote control unit, any operation cannot be made. In that case, switch the code on the remote control unit to fit the code on the projector.

• If the batteries are removed from the remote control unit for a long period of time, the remote control code will be reset.

Remote control

Setting

Security (Key lock and PIN code lock)

This function allows you to use the Key lock and

PIN code lock function to set the security for the projector operation.

Key lock

This function locks the top control and remote control unit buttons to prevent operation by unauthorized persons.

Select

Key lock

and then press the OK button, and select the desired item by pressing the

Point ▲▼ buttons.

.... Unlocked.

.... Lock the operation of the top control. To unlock, use the remote control unit.

.... Lock the operation of the remote control unit. To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control unit nearby or there is something wrong with your remote control unit, contact the dealer where you purchased the projector or the service center.

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.

Off

.......... Unlocked.

On 1

....... Enter the PIN code every time turning on the projector.

On 2

....... Enter the PIN code to operate the projector once the power cord is disconnected; as long as the

AC power cord is connected, the projector can be operated without a

PIN code.

Whenever you change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. The

“1234” is set as the initial PIN code at the factory.

If you want to change the PIN code lock setting, press the OK button and the PIN code dialog box appears.

When the projector is locked with the PIN code, the Security icon appears on the guide.

Key lock

PIN code lock

When the projector is locked with the PIN code, the Security icon appears on the guide.

Setting

55

Setting

Enter a PIN code

Use the Point ▲▼ buttons to enter a number.

Press the Point ◄ ► buttons to fix the number and move the red frame pointer to the next box. The number changes to

. If you fixed an incorrect number, use the Point ◄ ► buttons to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a fourdigit number.

After entering the four-digit number, move the pointer to

Set

. Press the OK button so that you can change the following PIN code lock setting.

If you entered an incorrect PIN code,

PIN code

and the number (



) will turn red for a moment. Enter the correct PIN code all over again.

Change the PIN code lock setting

Use the Point ▲▼ buttons to select

Off

,

On

1

or

On 2

, and then press the OK button to make a choice.

Change the PIN code

The PIN code can be changed to your desired four-digit number. Press the OK button to select

PIN code change

. Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct code. The New PIN code input dialog box appears. Set a new PIN code.

CAUTION:

WHEN YOU HAVE CHANGED THE LOGO

PIN CODE, WRITE DOWN THE NEW PIN

CODE AS A REMINDER. IF YOU FORGET

YOUR PIN CODE, THE PROjECTOR CAN

NO LONGER BE STARTED.

56

Note

:

If you forget your PIN code and unable to change it, the PIN code can be reset to the factory default setting

(1234) according to the following procedures.

When you reset the PIN code, the Logo PIN code and

Key lock will be reset, as well.

1. Unplug the AC Power Cord from the AC outlet.

2. Hold down the OK button on the projector and connect the AC Power Cord into the outlet again.

Keep holding down the OK button until the POWER indicator lights. The PIN code returns to the factory default setting while the PIN code lock state will remain the same as the previous set state.

Enter a PIN code

Change the PIN code

OK button

Enter current PIN code to confirm

Enter new PIN code

Select

Yes

to finish the new

PIN code setting.

Setting

Fan

This function provides the following options in the cooling fans’ operation when the projector is turned off (p.23).

L 1

.... Normal operation

L 2

.... Slower, lower-sound and longish-time than the normal operation (

L 1

).

Fan control

Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.

Off

................ Normal speed. Set this function to

Off

when using the projector in non-high altitude environment.

On 1

............. Faster than Off mode. Select this mode when using the projector in high altitudes (about 1,000 meters to 2,000 meters above the sea level) where the fans have less cooling effect.

On 2

............. Faster than On 1 mode. Select this mode when using the projector in higher altitudes (about 2,000 meters to 3,000 meters above the sea level) where the fans have lesser cooling effect.

Note

:

The fan noise becomes louder in

On 1

and

On 2

.

Video delay control

When you want to make a digital processing of a projected image faster, set this function.

Use the Point ▲▼ buttons, select an item of

Off

or

On

.

Note

:

Noise reduction

and

Progressive

can not be selected when Video delay control function is set to

On

.

Lamp counter

Be sure to reset the Lamp replacement counter after the lamp is replaced. (p.63)

Press the Point ▲▼ buttons to choose the

Lamp counter function and then press the Point

► or the OK button to access the submenu items.

Lamp counter

................ This item shows the total accumulated time

Lamp counter reset

of the lamp usage.

....... Press the OK but

t

on to choose

Lamp counter reset

. Select

Yes

in the confirmation box if you want to reset the lamp counter, and then choose

Yes

in the second confirmation box to reset lamp counter.

Lamp counter reset

Setting

57

Setting

58

Filter counter

This function is used to set a frequency for the filter cleaning.

Use the Point ▲▼ buttons to select Filter counter and then press the Point ► or the OK button to access the submenu items.

Filter counter

......... Show the total accumulated time of the filter use timer setting.

Timer

..................... To set a timer, when the projector reaches the time, the Filter warning icon (Fig.1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary.

Filter counter reset

... After replacing the filter, be sure to reset the timer.

The Filter warning icon will not turn off until the filter counter is reset. For details about resetting the timer, refer to “Resetting the Filter

Counter” on page 61.

Fig .1

Filter warning icon

Filter counter

(

Press the OK button to select

, and then use the Point ▲▼ buttons to set the timer. Select from the use environment.

) depending on

Factory default

Filter warning icon appears on the screen at a set time (

Off

/

2000H

/

3000H

/

4000H

).

Note:

• This icon also appears at turning on.

• The Filter warning icon (Fig.1) will not appear when the Display function is set to

Off

(p.48), during

Freeze

(p.27), or

Blank

(p.28).

Warning log

This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

Note:

When the Factory default function is executed, all the warning log records will be deleted.

Factory default

This function returns all setting values except for the

User logo

,

PIN code lock

,

Logo PIN code lock

,

Lamp counter

and

Filter counter

Information

Setting

Information

Input Source Information Display

The Information Menu is used for checking the status of the image signal being projected and the operation of the projector.

Remote control unit

Direct Operation

Press the INFO. button on the remote control unit to display the Information Menu.

Menu Operation

Press the Point ▲▼ buttons to select the

Information. The Information Menu is displayed.

See below for displayed information.

Input

The selected input source is displayed.

H-sync freq.

The horizontal frequency of the input signal is displayed in

KHz

, or

- - - KHz

when no signal.

V-sync freq.

The vertical frequency of the input signal is displayed in , or when no signal.

Numbers of Hz doubles when during Interlace.

Aspect

The selected Screen size is displayed.

Language

The selected language is displayed.

Lamp status

The selected lamp mode is displayed.

Lamp counter

The cumulative lamp operating time is displayed.

Power management mode

Off

,

Standby

or

Exit

, and

Timer

are displayed.

Key lock

The selected Key lock icon is displayed.

PIN code lock

Off

or

On 1

or

On 2

is displayed.

Remote control

The selected remote code is displayed.

SERIAL NO.

The serial number of the projector is displayed.

The serial number is used to service the projector.

LV-RC07

Information Menu

INFO. button

59

Maintenance and Cleaning

WARNING indicator

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

The projector is shut down and the

WARNING indicator is blinking red.

When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the POWER button.

Note:

The WARNING indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING indicator stops blinking.

Then check the matters below:

– Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked.

– Has the projector been installed near an Air-

Conditioning/ Heating Duct or Vent? Move the installation of the projector away from the duct or vent.

– Is the filter clean? Clean the filter periodically.

Top Control

WARNING

LAMP REPLACE

MENU

OK

POWER

WARNING blinking red

AUTO SET

60

The projector is shut down and the

WARNING indicator lights red.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the

WARNING indicator lights red. In this case, unplug the AC power cord and reconnect it, and then turn the projector on once again to verify operation. If the projector cannot be turned on and the WARNING indicator still lights red, unplug the AC power cord and contact the service center.

WARNING

DO NOT LEAVE THE PROjECTOR WITH

THE AC POWER CORD CONNECTED

UNDER AN AbNORMAL CONDITION .

IT MAY RESULT IN FIRE OR ELECTRIC

SHOCK.

Top Control

WARNING

LAMP REPLACE

MENU

OK

POWER

WARNING lights red

AUTO SET

Maintenance and Cleaning

Maintenance and Cleaning

Replacing the Filter

Filter prevents dust from accumulating on the optical elements inside the projector. Should the Filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the Filter immediately. Replace the filter by following the steps below.

1

Turn off the projector, and unplug the AC power cord from the AC outlet.

Filter Latch

2

3

Place the latch in the OPEN position and pull out the filter in the arrow direction.

Slide the new filter (along the guide rails. Make sure that the filter is inserted completely.) Place the latch back in the

LOCK position.

4

Connect the AC power cord to the projector and turn on the projector.

5

Reset the filter counter.

LOCK

- Do not operate the projector with the filter

removed. Dust may accumulate on the optical

elements degrading picture quality.

- Do not put anything into the air vents. Doing so

may result in malfunction of the projector.

- Do not wash the filter with water or any other

liquid Matter. Otherwise the filter may be

damaged.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when you operate the projector. Usage in these environments may cause poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector degrading the quality of a projected image. When the symptoms above are noticed, contact your authorized dealer or service center for proper cleaning.

OPEN

Filter counter reset

Note:

• When replacing the filter, it is required a certain space to pull out the filter completely.

• When installing the projector, install the projector with keeping a certain space for replacing the filter.

Resetting the Filter Counter

Be sure to reset the Filter counter after cleaning or replacing the filter.

1

2

3

Press the MENU button to display the

On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ► or the OK button.

Use the Point ▲▼ buttons to select

Filter counter

and then press the Point ► or the

OK button. Use the Point ▲▼buttons to select

Filter counter reset

and then press the OK button.

Filter counter Reset?

appears. Select

Yes

to continue.

Another confirmation dialog box appears, select

Yes

to reset the Filter counter.

Filter counter Reset?

appears.

Select

Yes

, then another confirmation box appears.

Select

Yes

again to reset the Filter counter.

61

Maintenance and Cleaning

Attaching the Lens Cap

When moving this projector or while not using it over an extended period of time, attach the lens cap.

Attach the lens cap according to the following procedures.

1

Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place.

2

To pass the other end of the string into the hole on the bottom of the projector and pull at it.

Cleaning the Projection Lens

Unplug the AC power cord before cleaning.

Gently wipe the projection lens with a cleaning cloth that contains a small amount of nonabrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the lens.

Cleaning the Projector Cabinet

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.

62

When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.

CAUTION

Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air.

Maintenance and Cleaning Maintenance and Cleaning

Lamp Replacement

POWER

When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP

REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

WARNING

Top Control

LAMP REPLACE AUTO SET

LAMP

REPLACE indicator lights yellow

Lamp replacement icon

MENU

OK

Note:

• The image will be displayed for about 10 seconds.

• The Lamp replacement icon will not appear when the Display function is set to

Off

(p.48), during

Freeze

(p.27), or

Blank

(p.28).

CAUTION

CAUTION

Allow a projector to cool for at least one hour before you open the Lamp Cover. The inside of the projector can become very hot.

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

CAUTION

When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken.

If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.

Lamp Cover

Follow these steps to replace the lamp.

1

2

3

4

5

6

Unplug the AC power cord. Let the projector cool for at least one hour.

Loosen the screw and open the lamp cover.

Loosen the three (3) screws that secure the lamp. Lift the lamp out of the projector by using the handles.

Replace the lamp with a new one and secure the three (3) screws. Make sure that the lamp is set properly. Close the lamp cover and secure the screw.

Connect the AC power cord to the projector and turn on the projector.

Reset the lamp counter.

See "Lamp Counter" on page 57.

Screw

Lamp

Handles

Screw

Screw

Screw

63

Maintenance and Cleaning

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

Model No. of your projector : LV-7292S, LV-7297S, LV-7392S,

Replacement Lamp Type No. : LV-LP35

64

CAUTION

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly.

Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp life may differ from lamp to lamp and according to the environment of use.

There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP

REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

(Follow carefully the instructions in the Lamp Replacement section of this manual.)

Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE

TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately.

Contact an authorized service center for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

Appendix

Maintenance and Cleaning

Appendix

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

– Make sure you have properly connected the projector to peripheral equipment as described on pages 17-19.

– Make sure all equipment is connected to AC outlet and the power is turned on.

– When the projector does not project an image from the connected computer, restart the computer.

Problem:

– Solutions

No power

– Plug the power cord of the projector into the AC outlet.

– See if the POWER indicator lights red.

– Wait until the POWER indicator stops blinking to turn on the projector again. The projector can be turned on after the

POWER indicator turns red. See page 21.

– Check the WARNING indicator. If the WARNING indicator lights

red, projector cannot be turned on. See page 65.

– Check the projection lamp. See page 63.

– Unlock the Key lock function for the projector. See page 55.

The initial display is not shown.

– Make sure

Off

or

Countdown off

are not chosen at display

function. See page 48.

The initial display is not same

– Make sure

User

or

Off

are not chosen at Logo (select)

as the default set.

function. See page 48.

Input signal switches automatically.

– Make sure Auto input function is adjusted properly.

(or does not switch automatically)

See page 47.

When the projector is on and

– That is the Filter warning icon. See page 55.

you press the input source buttons, an icon other than the Lamp mode icon appears

.

An icon other than Input mode

– That is the Lamp replacement icon or the Filter warning icon.

or Lamp mode icon appears.

See page 63 or 55.

Image is out of focus.

– Adjust focus of the projector. See page 26.

– Provide proper distance between the projector and the

projection screen. See page 15.

– Check the projection lens to see if it needs cleaning.

See page 62.

– Moving the projector from a cool to warm place may result in

moisture condensation on the projection lens. In such cases,

leave the projector off and wait until condensation evaporates.

Image is Left/Right reversed.

– Check the Ceiling/Rear function. See pages 37, 45.

Image is Top/Bottom reversed.

– Check the Ceiling function. See pages 37, 45.

Picture is not bright enough.

– Check if the

Contrast

See pages 35, 42.

or

Brightness

is adjusted properly.

– Check if

Image mode

is selected properly. See pages 34,41.

– Check the Lamp mode function. See pages 27, 54.

– Check the LAMP REPLACE indicator. If it lights, the end of lamp

life is approaching. Replace the lamp with a new one promptly.

See page 63.

65

66

Appendix

No image

– Check the connection between your computer or video

equipment and the projector. See pages 17-19.

– See if the input signal is correctly output from your computer.

Some laptop computers may need to change the setting for

monitor output when connecting to a projector. See your

computer’s instruction manual for the setting.

– It takes about 30 seconds to display an image after turning on

the projector. See page 21.

– Check the Input signal, color system, video system or computer system mode.

– Make sure the temperature is not out of the specified Operating

Temperature (41˚F–95˚F [5˚C–35˚C]).

– When

Blank

is operating, the image cannot be displayed.

Press the BLANK button or any other button on the remote control unit.

The color is strange.

– Check the Input signal, color system,video system or computer

system mode.

menu. See pages 34,41.

– Make sure the

Blackboard

is not selected on Image select

Some displays are not seen

– Check the Display function. See page 48.

during the operation.

Auto PC adjustment function

– Check the Input signal. Auto PC adjustment function can not

does not work.

work when

480p

,

575p

,

720p

,

480i

,

575i

,

1035i

or

1080i

is

selected. See page 30.

The setting does not remain

– Make sure you selected

Store

after adjusting setting. Some

after turning off power.

settings can not be stored if not registered with

pages 35,43.

Store

. See

Power management mode

does not work.

– Power management mode function can not work while

Freeze

or

BLANK

function is running. See page 51.

Capture function does

– Check the connection and the input signal to see if there is

not work.

signal.

Auto setup does not work properly.

– Make sure

See page 47.

is not selected at any function of

Auto setup

.

The image is distorted or

– Check

PC adjust

menu or

Aspect

menu and adjust them.

runs off.

See pages 32-33, 37.

PIN code dialog box appears

– PIN code lock is being set. Enter a PIN code (the “1234” or

at start-up.

numbers you have set). See pages 22, 55-56.

Appendix Appendix

The Remote control unit does

– Check the batteries.

not work.

– Make sure no obstruction is between the projector and remote

control.

– Make sure you are not too far from the projector when using the

remote control unit. Maximum operating range is 16.4'(5 m).

– Make sure the code of the remote control unit is conformed to

the projector’s code. See page 54.

– Unlock the Key lock function for the remote control unit function. See page 55.

Indicator blinks or lights.

– Check the status of the projector with referring to "Indicators

and projector Condition". See page 70.

The exclamation mark appears

– Your operation is invalid. Operate correctly.

on the screen.

Top control does not work.

– The top control is not available if the top control is locked at

Key lock

under

Security

of Setting section. See page 55.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

67

68

Appendix

Input

Image select

Information

COMPUTER

VIDEO

Menu Tree

Computer Input/VIDEO Input

ANALOG PC

COMPONENT

SCART

S-VIDEO

Setting

Presentation

Standard

High contrast

Cinema

Blackboard (Green)

Colorboard Red/Blue/Yellow/Green

User 1

User 4

Input Source Information Display

Language

Menu position

Auto setup

20 languages provided.

Auto input

Auto PC

Off/On 1/On 2

On/Off

Background

Display

Logo

Blue/User/Black

Off /On/Countdown off

Logo select

Off

Default

User

Capture

Yes/No

Logo PIN code lock

Off/On

Logo PIN code change

Power management mode

Direct power on

Standby mode

P-timer

Standby

Exit

Off

Timer (1–30 Min)

On/Off

Eco/Serial

Count up

Count down

Timer

Start/Stop/Restart

Reset

Exit

Closed Caption

Closed Caption

Color

Off/CC1/CC2/CC3/CC4

Color/White

Lamp mode High/Normal/Eco

Remote control Code 1–Code 2

Security Key lock

Off

Projector

Remote control

PIN code lock

Off/On 1/On 2

Fan

Fan control

PIN code change

L 1/L 2

Off/On 1/On 2

Video delay control Off/On

Lamp counter Lamp counter H

Filter counter

Lamp counter reset Yes/No

Filter counter

Timer

Off/2000H/3000H/4000H

Filter counter reset Yes/No

Warning log

Factory default Yes/No

Appendix

System

(2)

Image Adjust

Aspect

VIDEO Input

Auto

1080i

1035i

720p

575p

480p

575i

480i

System

Contrast

Brightness

Color

Tint

Color temp.

(3)

Red

Green

Blue

Sharpness

Gamma

Noise reduction

Progressive

Reset

Store

0–63

0–63

0–63

0–63

XLow

Low

Mid

High

User

0–63

0–63

0–63

0–15

0–15

Off

L1

L2

Off

L1

L2

Film

Yes/No

User 1

User 4

Auto

PAL

SECAM

NTSC

NTSC 4.43

PAL-M

PAL-N

PC adjust

Image Adjust

Appendix

Computer Input

System

(1) SVGA 1

Mode 1

Mode 2

- - - -

Auto PC

Fine sync

Total dots

Horizontal position

Vertical position

Current mode

Clamp

Display area H

Display area V

Reset

Mode free

Store

Contrast

Brightness

Color temp.

Red

Green

Blue

Sharpness

Gamma

Reset

Store

0–31

Yes/No

Mode 1

Mode 10

Mode 1

Mode 10

0–63

0–63

XLow

Low

Mid

High

User

0–63

0–63

0–63

0–15

0–15

Yes/No

User 1

User 4

Normal

Full

16:9

Zoom

Custom

Custom adj.

Keystone

Ceiling

Rear

Reset

Scale H

Scale V

H&V On/Off

Position H

Position V

Common

Reset

Yes/No

Yes/No

Aspect

Normal

Full

16:9

Zoom

True

Custom

Custom adj.

Digital zoom +

Digital zoom –

Keystone

Ceiling

Rear

Reset

Scale H

Scale V

H&V

Position H

Position V

Common

Reset

On/Off

Yes/No

Yes/No

69

Appendix

Indicators and Projector Condition

Check the indicators for projector condition.

POWER

red/green

Indicators

WARNING

red

LAMP REPLACE

yellow

Projector Condition

The projector is off. (The AC power cord is unplugged.)

The projector is in stand-by mode. Press the POWER button to turn on the projector.

The projector is operating normally.

The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed and the POWER indicator stops blinking.

The projector is in the Power management mode.

The lamp lights up when operating the projector, and the projector begins to work.

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator stops blinking and the projector can be turned on. (The

WARNING indicator keeps blinking.)

The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops blinking.

Please check the Air filter.

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

Reaches recommended replacement time.

The icon appearing on the top right corner of the image indicates the replacement of the lamp.

Please replace the lamp as soon as possible.

The time before the LAMP REPLACE indicator lighting up, depends on the operating conditions (the state of the lamp mode).

• • • green.

• • • red • • • blinks green.

• • • blinks red.

70

• • • yellow.

• • • off

 When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow.

Appendix Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock.

When selecting these modes, PC adjustment can be limited.

RESOLUTION

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

640 x 480

720 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

768 x 575

640 x 480

768 x 576

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1152 x 864

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 1024

ON-SCREEN

DISPLAY

VGA 1

VGA 2

VGA 3

VGA 4

VGA 5

VGA 6

VGA 7

MAC LC13

MAC 13

480p

575p

480i

575i

SVGA 1

SVGA 2

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

SVGA 8

SVGA 9

SVGA 10

SVGA 11

MAC 16

MAC 19

XGA 1

XGA 2

XGA 3

XGA 4

XGA 5

XGA 6

XGA 7

XGA 8

XGA 9

XGA 10

XGA 11

XGA 12

XGA 13

XGA 14

XGA 15

SXGA 1

SXGA 2

SXGA 3

SXGA 4

SXGA 5

SXGA 6

SXGA 7

34.97

35.00

31.47

31.25

15.734

15.625

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

32.70

H-Freq.

(KHz)

31.47

31.47

31.47

37.86

37.86

37.50

43.269

38.00

49.72

60.24

48.36

68.677

60.023

56.476

60.31

48.50

44.00

63.48

36.00

62.04

61.00

35.522

46.90

47.00

58.03

64.20

62.50

63.90

63.34

63.74

71.69

81.13

77.07

75.70

86.96

(Interlace)

58.20

58.30

72.00

70.40

58.60

60.00

59.98

60.01

67.19

76.107

66.60

66.67

59.88

50.00

60.00

(Interlace)

50.00

(Interlace)

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

51.09

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

85.00

60.51

74.55

75.08

60.00

84.997

75.03

70.07

74.92

60.02

54.58

79.35

RESOLUTION

1280 x 1024

1280 x 1024

1280 x 960

1152 x 900

1152 x 900

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 1024

1152 x 900

1280 x 1024

1280 x 1024

1280 x 1024

1400 x 1050

1400 x 1050

1400 x 1050

1152 x 870

1280 x 960

1280 x 1024

1366 x 768

1360 x 768

1376 x 768

1360 x 768

1280 x 768

1280 x 768

1280 x 768

1280 x 800

1280 x 800

1280 x 800

1280 x 800

1280 x 800

1280 x 800

1280 x 800

1280 x 800

1280 x 768

1280 x 768

1920 x 1200

1920 x 1200

1680 x 1050

1440 x 900

1440 x 900

1600 x 1200

1600 x 1200

1600 x 1200

1600 x 1200

1280 x 720

1280 x 720

1920 x 1035

1920 x 1080

1920 x 1080

WUXGA 1

WUXGA 2

WSXGA+ 1

WXGA+ 1

WXGA+ 2

UXGA 1

UXGA 2

UXGA 3

UXGA 4

720p

720p

1035i

1080i

1080i

ON-SCREEN

DISPLAY

SXGA 8

SXGA 9

SXGA 10

SXGA 11

SXGA 12

SXGA 13

SXGA 14

SXGA 15

SXGA 16

SXGA 17

SXGA 18

SXGA 19

SXGA 20

SXGA+ 1

SXGA+ 2

SXGA+ 3

MAC21

MAC

MAC

WXGA 1

WXGA 2

WXGA 3

WXGA 4

WXGA 6

WXGA 7

WXGA 8

WXGA 9

WXGA 10

WXGA 11

WXGA 12

WXGA 17

WXGA 18

WXGA 19

WXGA 20

WXGA 21

WXGA 22

60.00

60.00

72.00

59.87

74.893

84.837

60.050

50.000

59.810

60.02

69.975

71.995

74.928

84.879

69.991

72.004

60.18

85.024

60.19

60.12

59.90

75.06

75.08

75.08

60.00

59.885

59.950

59.954

59.887

60.000

60.00

65.00

70.00

75.00

60.00

50.00

60.00

(Interlace)

60.00

(Interlace)

46.43

63.79

91.146

63.97

65.35

65.12

68.68

75.00

80.00

48.36

47.70

48.36

56.16

47.776

60.289

68.633

49.600

41.200

49.702

63.98

58.289

60.044

62.790

71.553

55.993

57.675

H-Freq.

(KHz)

63.98

79.976

60.00

61.20

71.40

50.00

50.00

63.37

76.97

61.85

74.556

74.038

65.290

55.935

74.918

75.00

81.25

87.5

93.75

45.00

37.50

33.75

33.75

28.125

V-Freq.

(Hz)

60.02

75.025

60.00

65.20

75.60

60.01

72.00

66.00

Note:

The specifications are subject to change without notice.

71

Appendix

Mechanical

Information

Projector Type

Net Weight

Foot Adjustment

Panel Resolution

Technical Specifications

Dimensions (W x H x D)

LCD Panel System

Multi-media Projector

13.13” x 3.98” x 9.72” (333.5mm x 101.0mm x

247.0mm)

(Not including protrusions)

6.17 lbs (2.8 kg)

0˚ to 10˚

LV-7292S, LV-7297S: 0.55”;

LV-7392S: 0.63”

TFT Active Matrix type, 3 panels

1,024 x 768 dots

Panel

Resolution

Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)

Signal

Compatibility

Optical

Information


Information

Interface

Power

Power consumption

Standby

Power consumption

Operating

Environment

Remote control unit

Color System

SD/HD TV Signal

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Input Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50–100 Hz

Projection Image Size

(Diagonal)

Adjustable from 40” to 300”

Throw Distance

LV-7292S, LV-7297S: 4.3’ -38.7’ (1.3m - 11.8m)

LV-7392S: 3.6’ - 34.4’ (1.1m - 10.5m)

Projection Lens

Projection Lamp

Brightness

(Lamp mode: “High” & Image mode: “Presentation” )

F 2.0 ~ 2.15 lens with f 18.38 mm ~ 22.06 mm with manual zoom and focus

215 W

LV-7292S LV-7297S LV-7392S

2200lm 2600lm 3000lm

Contrast ratio

(Lamp mode: “High” & Image mode: “Presentation” )

Uniformity

VIDEO Input Jack

Computer In/S-VIDEO In

/COMPONENT Input Jack

500:1

85%

RCA Type x 1

Mini D-sub 15 pin x 1

Control Port D-sub 9 pin x 1

AC 100–120 V (3.6A Max. ), 50/60 Hz (The U.S.A and Canada)

AC 100–240 V (3.6A -2.0A Max. ), 50/60 Hz (For other countries)

Lamp mode:

Eco/Normal/ High

LV-7292S

175W/218W/243W

LV-7297S LV-7392S

175W/243W/263W

Standby mode: Eco

Operating Temperature

Storage Temperature

Battery

Operating Range

Dimensions(W x H x D)

Net Weight

0.49W

41˚F–95˚F (5 ˚C–35 ˚C)

14˚F–140˚F (-10˚C–60 ˚C)

AAA Type 1.5V x 2

16.4' (5 m)/±30˚

2.0" x 0.7" x 4.3" (52 mm x 18 mm x 110 mm)

2.37 oz (67 g) (including batteries)

72

Appendix Appendix

Accessories

User’s Manual (CD-ROM)

Important Information and Quick Start Guide

Warranty card

AC Power Cord

Remote controller and Batteries

VGA Cable

Lens Cap with String

PIN Code Label

Ferrite core

Filter Cover for Ceiling Mount

● The specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of

the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the

characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and

Model No. to the sales dealer.

Model No.

COMPONENT-VGA Cable

S-VIDEO-VGA Cable

Soft Carrying Case

Remote controller

Projector Attachment

:

:

:

:

:

LV-CA32

LV-CA33

LV-SC01

LV-RC07

LV-CL17

Ceiling Attachment :

LV-CL18

High Ceiling Attachment :

LV-CL19

Lamp :

LV-LP35

73

Appendix

1

2

Attaching the Filter Cover to the Projector

The supplied filter cover is designed for preventing dust accumulation on the filter when mounting the projector on the ceiling.

Turn over the projector.

To Ceiling Mount

Drop-prevention Wire

(not supplied)

Place the filter cover on the filter as the picture shown below.

Hole

3

Attach the projector to the ceiling mount in accordance with the instruction manuals which come with the ceiling mount.

Filter Cover

(supplied)

Caps

Note:

• To keep the filter cover in position, be sure to attach the drop-prevention wire by threading it through the hole of the filter cover.

• If the LV-CL17 Projector Attachment is applied, the supplied filter cover is unnecessary.

Projector

Front feet

Configurations of Terminals

COMPUTER IN / S-VIDEO IN/ COMPONENT IN

Terminal: Analog RGB (Mini D-sub 15 pin)

5

10

4

15 14

3

9

13

8

2

12

7

1

11

6

6

7

4

5

8

1

2

3

Red/Cr/S-C Input

Green/Y/S-Y Input

Blue/Cb/--- Input

-----

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

12

13

14

15

9

10

11

+5V Power

Ground (Vert.sync.)

Ground

DDC Data

Horiz. sync. Input/Output (Composite H/V sync.)

Vert. sync.

DDC Clock

CONTROL CONNECTOR (D-sub 9 pin)

1

2

3

4

Serial

-----

R X D

T X D

-----

5

6

7

8

9

SG

-----

-----

-----

-----

74

Appendix

PIN Code Protection

While the projector is locked with the PIN code.

Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

Appendix

75

76

Appendix

4.6(0.18)

80.2(3.16)

247.0(9.72)

138.0(5.43)

122.2(4.81)

114.0(4.49)

Dimensions

Unit: mm(inch)

Screw Holes for Ceiling Mount

Screw: M4

Depth: 12.0(0.47)

2.9(0.11)

105.6(4.16)

24.0(0.94)

20.7(0.92)

40.7(1.60)

88.7(3.49)

98.1(3.86)

122.3(4.48)

126.3(4.97)

31.7(1.25) 64.6(2.54)

79.6(3.13)

46.2(1.82)

85.4(3.36)

83.8(3.30)

Appendix

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku,

Tokyo 146-8501, Japan

U.S.A.

CANON U.S.A. INC.

One Canon Plaza, Lake Success, NY

11042-1198, U.S.A.

For all inquires concerning this product, call toll free in the U.S. 1-800-OK-CANON

CANADA

CANON CANADA INC. HEADQUARTERS

6390 Dixie Road, Mississauga, Ontario L5T

1P7, Canada

CANON CANADA INC. MONTREAL BRANCH

5990, Cote-de-Liesse, Montreal Quebec H4T

1V7, Canada

CANON CANADA INC. CALGARY OFFICE

2828, 16th Street, N.E. Calgary, Alberta T2E

7K7, Canada

For all inquiries concerning this product, call toll free in Canada 1-800-OK-CANON

EUROPE, AFRICA & MIDDLE EAST
