DDC-WAR-MAN-0023
2014/2015 DDC-WAR-MAN-0023-0415
1
NOTICE TO PURCHASERS OF DD
PLATFORM ENGINES INSTALLED IN
VEHICLES SOLD OUTSIDE THE US.
Vehicles sold outside the U.S. are equipped with odometers reading in
kilometers. To convert warranty and maintenance mileage limitations to
kilometers, refer to the table below.
WARRANTY AND MAINTENANCE MILEAGE/
KILOMETER CONVERSION TABLE
Miles
Kilometers
Miles
Kilometers
4,000
6,400
40,000
64,000
6,000
9,600
50,000
80,000
10,000
16,000
60,000
96,000
12,500
20,000
70,000
112,000
20,000
32,000
80,000
128,000
25,000
40,000
90,000
144,000
30,000
48,000
100,000
160,000
Owner’s Name
Engine Serial No.
Engine Model No.
Date of Delivery
Miles/Km at Delivery Date
2
TABLE OF CONTENTS
Introduction ....................................................................................................................... 4
Limited Warranty on New Detroit EPA10 GHG14, DD13, DD15, DD16 Engines
Used in On-Highway Vehicle Applications.................................................................. 5
Warranty Period Chart – On-Highway Vehicle Applications.................................. 6
Limited Warranty on New Detroit EPA10 GHG14, DD13, DD15, DD16 Engines
Used in Fire Truck or Crash Vehicle Applications........................................................ 8
Warranty Period Chart – Fire Truck or Crash/Rescue Vehicle Applications....... 9
Emission Control Systems Information........................................................................ 11
2013 Federal Emission Control Systems Warranty................................................. 11
2013 California Emission Control Systems Warranty Statement......................... 13
Things You Should Know About the Emission Control Systems Warranty......... 16
U.S. Clean Air Act ....................................................................................................... 17
Explanation of Owner’s Emission Control Maintenance Services...................... 18
Owner’s Emission Control Maintenance Service Charts...................................... 20
Lubricating Oil Analysis – Warning Values................................................................. 29
Policy on Owner Service................................................................................................ 30
Customer Assistance Procedure.................................................................................. 34
Maintenance Record Log............................................................................................... 35
3
INTRODUCTION
An Important Message to Detroit Product Owners…

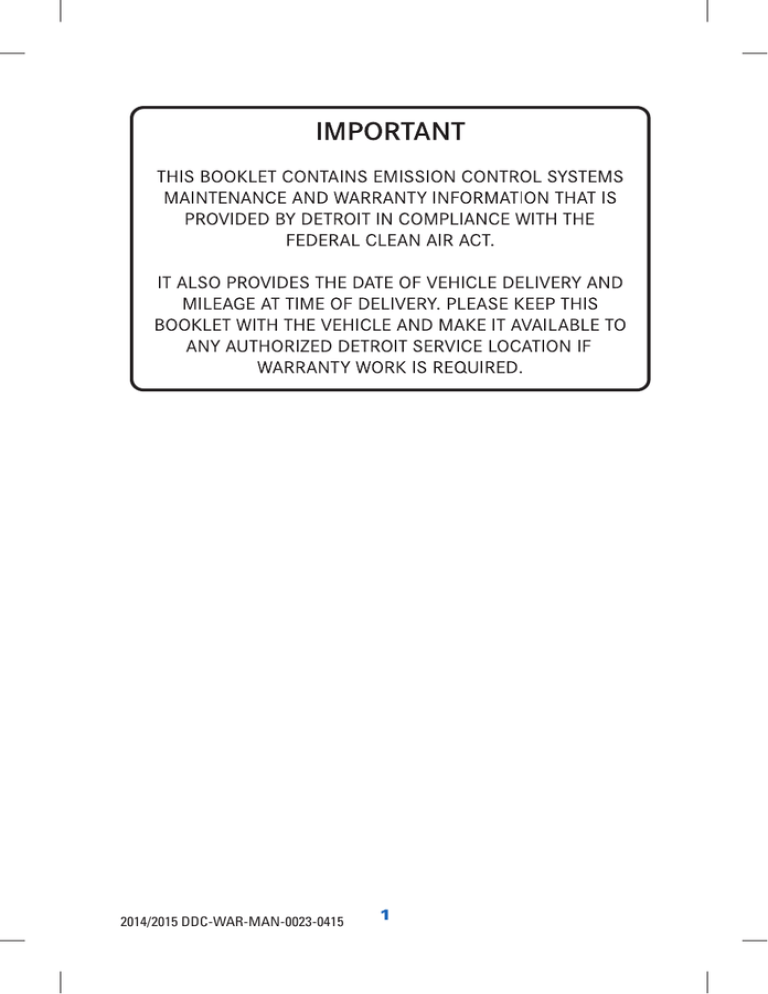

This booklet contains emission control systems maintenance and warranty
information that is provided by Detroit in compliance with the U.S. (Federal)
Environmental Protection Agency, Emission Regulations under the Canada
Motor Vehicle Safety Act in Canada, and the California Air Resources Board.
An emission label is attached to the cylinder head cover, as required by law.
Also contained in this booklet is warranty information applicable to the product
you have purchased.
4
LIMITED WARRANTY ON NEW DETROIT
EPA10 GHG14, DD13, DD15, DD16
ENGINES USED IN ON HIGHWAY VEHICLE
APPLICATIONS
TERMS OF COVERAGE
Uses
This warranty applies to the first retail purchaser and subsequent owners during
the WARRANTY PERIOD of new Detroit Diesel EPA10 GHG14, DD13, DD15, DD16
Engines (referred to as Engine) manufactured by Detroit Diesel and/or supplied
by Detroit Diesel or Detroit Diesel of Canada Limited (which are collectively
referred to as Detroit ) for use in on-highway vehicle applications operated in the
United States or Canada on or after January 1, 2010.
Defects
This warranty covers Engine REPAIRS to correct any malfunction occurring during
the WARRANTY PERIOD resulting from defects in material or workmanship.
Repairs
To obtain warranty repairs, you must request the needed repairs within the
WARRANTY PERIOD from an Detroit Authorized Service Outlet. Only new
genuine parts or remanufactured parts or components supplied or approved
by Detroit will be used. Detroit may, at its discretion, replace rather than repair
components. A reasonable time must be allowed to perform the warranty repair
after taking the engine to the authorized service outlet. The owner is responsible
for the percentage of repair costs shown in the warranty period chart. Repairs
will be performed during normal business hours.
Warranty Period
The WARRANTY PERIOD begins on the date the engine is delivered to the first
retail purchaser or put in use prior to sale at retail, whichever date occurs
first, and ends at the time or mileage/kilometer limits shown in the WARRANTY
PERIOD chart.
Like Replacement Engine
Engine(s) supplied by Detroit as a replacement for an engine still under warranty
will assume the identity of the engine being replaced and be entitled to the
remaining warranty coverage.
Service Supplies
The cost of service supplies such as coolant, oil and filters which are not reusable
due to needed warranty repairs is covered by this warranty.
5
Engine Removal and Reinstallation
Reasonable labor costs for Engine removal and reinstallation, when necessary to
make a warranty repair, are covered by this warranty.
Towing
During the base warranty period reasonable towing costs to the nearest
authorized service outlet are covered by the warranty when due to a warrantable
failure and the engine is either inoperable, cannot be safely operated or
continued operation would cause further damage to the Product.
Aftertreatment System (ATS) Progressive Damage
Progressive damage to the ATS resulting from injector failure beyond 200,000
miles/320,000 kilometers but within 2 years will be covered by this warranty.
WARRANTY PERIOD
On-Highway Vehicle Applications
ITEM
Warranty limitations
(Whichever Occurs First)
Months
Repair Charge To Be Paid By The
Owner
Miles/
Kilometers
Parts
Labor
Engine
0-24
Unlimited
No Charge
No Charge
*Aftertreatment
System
0-24
Unlimited
No Charge
No Charge
Accessories
0-24
0-100,000 mi
0-160,000 km
No Charge
No Charge
Upon expiration of the 24 month warranty coverage, but within 500,000
mi/800,000 km of use, the warranty continues to apply as follows:
Major
Components
1
25-60
0-500,000 mi
0-800,000 km
No Charge
100% of service
outlet’s normal
charge
1
Cylinder Block/Head, Crankshaft, Main Bearing Bolts, Flywheel Housing, Connecting Rod
Assemblies, Oil Coolant Module Casting, Water Pump Housing and Air Inlet Housing.
*
Diesel Oxidation Catalyst, Diesel Particulate Filter, SCR Catalyst, Aftertreatment Sensors,
Aftertreatment Control Module, Def Pump, Def Metering Unit, Aftertreatment Wiring Harness, Def
Injection Nozzle.
6
THIS WARRANTY DOES NOT COVER:
Repairs Due to Accidents, Misuse, Storage Damage, Negligence or Certain
Modifications
Repairs due to an accident, misuse, misapplication, storage damage, negligence or
modification exceeding Detroit specifications are not covered by this warranty.
Fuel Injectors After 200,000 Miles / 320,000 Kilometers
The repair or replacement of fuel injectors after 200,000 miles/320,000 kilometers of
operation is not covered by this warranty.
Maintenance
Detroit is not responsible for the cost of maintenance or repairs due to lack of
performance of required maintenance services as recommended by Detroit, or
the failure to use fuel, oil, lubricants and coolant meeting Detroit recommended
specifications. Performance of the required maintenance and use of proper
fuel, oil, lubricants and coolant are the responsibility of the owner. Refer to the
Engine Operator’s Guide for details.
Incidental or Consequential Damages
Detroit is not responsible for incidental or consequential costs or expenses
which the owner may incur as a result of a malfunction or failure covered by
this warranty, such as communication expenses, meals, lodging, loss of use of
the engine or vehicle (“downtime”), loss of time, inconvenience, cargo loss or
damage, and other similar costs and expenses.
Other Limitations
The performance of REPAIRS is the exclusive Owner’s remedy under this warranty.
Detroit does not authorize any person to assume or create for it any other
obligation or liability in connection with the engine or the accessories.
THIS WARRANTY AND THE EMISSION CONTROL SYSTEMS WARRANTY ARE THE
ONLY WARRANTIES APPLICABLE TO THE ENGINE AS USED IN ON-HIGHWAY VEHICLE
APPLICATIONS. DETROIT MAKES NO OTHER WARRANTIES EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. DETROIT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES AS DESCRIBED ABOVE.
Some states do not allow the limitation of how long this warranty may last
or the limitation or exclusion of incidental or consequential damages, so the
above may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which may vary from state to state.
7
LIMITED WARRANTY ON NEW DETROIT
EPA10 GHG14, DD13, DD15, DD16
ENGINES USED IN FIRE TRUCK OR CRASH
VEHICLE APPLICATIONS
TERMS OF COVERAGE
Uses
This warranty applies to the first retail purchaser and subsequent owners
during the WARRANTY PERIOD of new Detroit Diesel EPA10 GHG14, DD13,
DD15, DD16 Engines (referred to as Engine) manufactured by Detroit Diesel
and/or supplied by Detroit Diesel or Detroit Diesel of Canada Limited (which
are collectively referred to as Detroit ) for use in fire truck or crash vehicle
applications operated in the United States or Canada on or after January 1,
2010.
Defects
This warranty covers Engine REPAIRS to correct any malfunction occurring
during the WARRANTY PERIOD resulting from defects in material or
workmanship.
Repairs
To obtain warranty repairs, you must request the needed repairs within the
WARRANTY PERIOD from an Detroit Authorized Service Outlet. Only new
Genuine Parts or remanufactured parts or components supplied or approved
by Detroit will be used. Detroit may, at its discretion, replace rather than repair
components. A reasonable time must be allowed to perform the warranty
repair after taking the engine to the authorized service outlet. Repairs will be
performed during normal business hours.
Warranty Period
The WARRANTY PERIOD begins on the date the engine is delivered to the first
retail purchaser or put in use prior to sale at retail, whichever date occurs
first, and ends at the time or mileage/kilometer limits shown in the WARRANTY
PERIOD chart.
Like Replacement Engine
Engine(s) supplied by Detroit as a replacement for an engine still under
warranty will assume the identity of the engine being replaced and be entitled
to the remaining warranty coverage.
Service Supplies
The cost of service supplies such as coolant, oil and filters which are not
reusable due to needed warranty repairs is covered by this warranty.
8
Engine Removal and Reinstallation
Reasonable labor costs for Engine removal and reinstallation, when necessary
to make a warranty repair, are covered by this warranty.
WARRANTY PERIOD
Fire Truck or Crash/Rescue Vehicle Applications
Warranty Limitations
(Whichever Occurs First)
ITEM
Repair Charge To Be
Paid By The Owner
Months
Miles/
Kilometers
Parts
Labor
Engine
0-60
0-100,000 mi
0-160,000 km
No Charge
No Charge
Aftertreatment
System
0-60
0-100,000 mi
0-160,000 km
No Charge
No Charge
Accessories
0-24
0-100,000 mi
0-160,000 km
No Charge
No Charge
**
*
*
Fire Commander warranty is two year/unlimited mileage.
**
Diesel Oxidation Catalyst, Diesel Particulate Filter, SCR Catalyst, Aftertreatment Sensors,
Aftertreatment Control Module, Def Pump, Def Metering Unit, Aftertreatment Wiring Harness, Def
Injection Nozzle
THIS WARRANTY DOES NOT COVER:
Repairs Due to Accidents, Misuse, Storage Damage, Negligence or Certain
Modifications
Repairs due to an accident, misuse, misapplication, storage damage,
negligence or modification exceeding Detroit specifications are not covered by
this warranty.
Maintenance
Detroit is not responsible for the cost of maintenance or repairs due to lack of
performance of required maintenance services as recommended by Detroit, or
the failure to use fuel, oil, lubricants and coolant meeting Detroit recommended
specifications. Performance of the required maintenance and use of proper
fuel, oil, lubricants and coolant are the responsibility of the owner. Refer to the
Engine Operator’s Guide for details.
Incidental or Consequential Damages
Detroit is not responsible for incidental or consequential costs or expenses
which the owner may incur as a result of a malfunction or failure covered by
this warranty, such as communication expenses, meals, lodging, loss of use of
the engine or vehicle (“downtime”), loss of time, inconvenience, cargo loss or
damage, and other similar costs and expenses.
9
Other Limitations
The performance of REPAIRS is the exclusive Owner’s remedy under this
warranty. Detroit does not authorize any person to assume or create for it any
other obligation or liability in connection with the engine or the accessories.
THIS WARRANTY AND THE EMISSION CONTROL SYSTEMS WARRANTY ARE
THE ONLY WARRANTIES APPLICABLE TO THE ENGINE AS USED IN FIRE
TRUCK OR CRASH VEHICLE APPLICATIONS. DETROIT MAKES NO OTHER
WARRANTIES EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. DETROIT
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
AS DESCRIBED ABOVE.
Some states do not allow the limitation of how long this warranty may last
or the limitation or exclusion of incidental or consequential damages, so the
above may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which may vary from state to state.
10
EMISSION CONTROL SYSTEMS
INFORMATION
2013 FEDERAL EMISSION CONTROL SYSTEMS
WARRANTY COVERING DETROIT ENGINES
Detroit warrants to the owners of Detroit EPA10 GHG14, DD13, DD15, DD16
Engines built with standard exhaust emissions components, that the engine
(1) was designed, built and equipped so as to conform, at the time of sale,
with applicable regulations of the U.S. (Federal) Environmental Protection
Agency, Emission Regulations under the Canada Motor Vehicle Safety Act in
Canada, and the California Air Resources Board and (2) is free from defects
in material and workmanship which cause the engine to fail to conform with
those regulations for a period of 100,000 miles or five years of engine operation,
whichever occurs first, or the new product warranty, if the product warranty
is longer.
The warranty period shall begin on the date the vehicle is delivered to the first
retail purchaser or, if the vehicle is first placed in service as a demonstrator prior
to sale at retail, on the date the vehicle is first placed in such service. Emission
related defects in the genuine Detroit components listed below, including
reasonable related diagnostic costs, are covered by this warranty.
WHAT IS COVERED
These components are covered by the above warranty. Some scheduled
maintenance is required (refer to the Owner’s Emission Control Maintenance
Service Chart).
The Aftertreatment System: The Aftertreatment System (ATS) will be covered
under the base warranty period of the engine.
• Turbocharger
• Motor Control Module (MCM)
• EGR Cooler
• Camshaft Position Sensor
• Crankshaft Position Sensor
• Oil Temperature Sensor
• Intake Manifold Pressure Sensor
• Intake Manifold Temperature Sensor
• Fuel Temperature Sensor
11
• Coolant Outlet Temperature Sensor
• Intake Throttle Valve and Adaptor
• Delta P Sensor
• Fuel Injector
• EGR Valve and Actuator
• Charge Air Cooler Outlet Sensor
• High Pressure Fuel Pump
• Turbo Speed Sensor
The Aftertreatment System:
• Intake Throttle Valve
• Aftertreatment Control Module (ACM)
• Doser Block Assembly
• * Exhaust Fluid Pump
• Fuel Doser Valve
• * Fuel Rail Pressure Sensor
• Oxidation Catalyst
• * Fuel Pressure sensor (Low)
• Particulate Filter
• * Lo Dosing Unit
• DOC Inlet Temperature Sensor
• DEF Temperature Sensor NOX Sensors
• DOC Outlet Temperature Sensor
• SCR Catalyst
• DPF Inlet Pressure Sensor
* DEF ( Exhust Fluid)
• DPF Outlet Pressure Sensor
• DPF Outlet Temperature Sensor
• ATD Wiring Harness
WHAT IS NOT COVERED
• Conditions resulting from tampering, misuse, improper adjustments,
alteration, accident, failure to use recommended fuel or non-performance of
required maintenance services;
• The replacement of non-warranted maintenance parts;
• Consequential damages such as loss of time, inconvenience, economic loss,
loss of use of the engine or vehicle;
•A
ny engine in a vehicle on which odometer mileage has been changed so
that the mileage cannot be readily determined;
• Periodic maintenance of the Particulate Filter (cleaning)
DETROIT DIESEL CORPORATION DOES NOT AUTHORIZE ANY PERSON TO
CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH
THESE SYSTEMS. THIS WARRANTY IS IN ADDITION TO THE NEW DETROIT
ENGINE WARRANTY FOR ON-HIGHWAY VEHICLE APPLICATIONS.
12
2013 CALIFORNIA EMISSION CONTROL
SYSTEMS WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California
California Air
Air Resources
ResourcesBoard
Boardand
andDetroit
Detroitare
arepleased
pleasedtotoexplain
explainthe
the
engine.
In DD16
California,
emission control
control system
systemwarranty
warrantyon
onyour
yourEPA10
EPA10DD13/DD15
GHG14, DD13,
DD15,
new motor
vehicles must
designed,
builtmust
andbe
equipped
to meet
engine.
In California,
newbe
motor
vehicles
designed,
built the
andState’s
equipped to
stringent
standards.
Detroitstandards.
must warrant
the emission
control
meet
the anti-smog
State’s stringent
anti-smog
Detroit
must warrant
thesystem
emission
on your system
engine for
the periods
below
provided
been nothere
control
on your
engineoffortime
thelisted
periods
of time
listedthere
belowhas
provided
abuse,
neglect
or improper
of your
has
been
no abuse,
neglectmaintenance
or improper maintenance
of your engine.
Your emission control system may include parts such as the fuel injection
system, the turbocharger and engine computer. Also included may be hoses,
belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, Detroit will repair your engine at no cost
to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
For a period of use of five (5) years or 100,000 miles or 3,000 hrs of operation,
whichever occurs first:
1. If an emission-related part on your engine is defective, the part will be
repaired or replaced by Detroit . This is your emission control system
DEFECTS WARRANTY.
OWNER’S WARRANTY RESPONSIBILITIES:
• As the engine owner, you are responsible for performing the required
maintenance listed in your owner’s manual. Detroit recommends that you
retain all receipts covering maintenance on your engine, but Detroit cannot
deny warranty solely for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
• You are responsible for presenting your engine to an Detroit Authorized
Service Outlet as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days.
• As the engine owner, you should also be aware that Detroit may deny you
warranty coverage if your engine or a part has failed due to abuse, neglect,
improper maintenance or unauthorized modifications.
If you have any questions regarding your warranty rights and responsibilities,
you should contact Manager Service Operations at (313) 592-5000 or the
California Air Resources Board P.O. Box 8001, El Monte, CA 91731-2990.
13
DETROIT’S EMISSION CONTROL SYSTEM
WARRANTY COVERED COMPONENTS
WHAT IS COVERED
These components are covered by the above warranty. Some scheduled
maintenance is required (refer to the Owner’s Emission Control Maintenance
Service Chart).
The Aftertreatment System: The Aftertreatment System (ATS) will be covered
under the base warranty period of the engine.
• Turbocharger
• Motor Control Module (MCM)
• EGR Cooler
• Camshaft Position Sensor
• Crankshaft Position Sensor
• Oil Temperature Sensor
• Intake Manifold Pressure Sensor
• Intake Manifold Temperature Sensor
• Fuel Temperature Sensor
• Coolant Outlet Temperature Sensor
• Intake Throttle Valve and Adaptor
• Delta P Sensor
• Fuel Injector
• EGR Valve and Actuator
• Charge Air Cooler Outlet Sensor
• High Pressure Fuel Pump
• Turbo Speed Sensor
Continued on page 15
Emergency Repair Contact
See Nearest Authorized Dealer/Distributor or call 1-800-445-1980
14
The Aftertreatment System:
• Intake Throttle Valve
• Doser Block Assembly
• Fuel Doser Valve
• Oxidation Catalyst
• Particulate Filter
• DOC Inlet Temperature Sensor
• DOC Outlet Temperature Sensor
• DPF Inlet Pressure Sensor
• DPF Outlet Pressure Sensor
• DPF Outlet Temperature Sensor
• ATD Wiring Harness
• Aftertreatment Control Module (ACM)
• * Exhaust Fluid Pump
• * Fuel Rail Pressure Sensor
• * Fuel Pressure sensor (Low)
• * Lo Dosing Unit
• DEF Temperature Sensor NOX Sensors
• SCR Catalyst
* DEF ( Exhust Fluid)
WHAT IS NOT COVERED
• Conditions resulting from tampering, misuse, improper adjustments,
alteration, accident, failure to use recommended fuel or non-performance of
required maintenance services;
• The replacement of non-warranted maintenance parts;
• Consequential damages such as loss of time, inconvenience, economic loss,
loss of use of the engine or vehicle;
• Any engine in a vehicle on which odometer mileage has been changed so
that the mileage cannot be readily determined;
• Periodic maintenance of the Particulate Filter (cleaning)
DETROIT DIESEL CORPORATION DOES NOT AUTHORIZE ANY PERSON TO
CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH
THESE SYSTEMS. THIS WARRANTY IS IN ADDITION TO THE NEW DETROIT
ENGINE WARRANTY FOR ON-HIGHWAY VEHICLE APPLICATIONS.
15
THINGS YOU SHOULD KNOW ABOUT
THE EMISSION CONTROL SYSTEMS
WARRANTY
REPLACEMENT PARTS
The emission control systems of your new Detroit Engine were designed, built
and tested using Genuine Detroit Parts* and the engine is certified as being
in conformity with applicable regulations of the U.S. (Federal) Environmental
Protection Agency, Emission Regulations under the Canada Motor Vehicle
Safety Act in Canada, and the California Air Resources Board. Accordingly, it
is recommended that any replacement parts used for maintenance or for the
repair of emission control systems be new, Genuine Detroit Parts.
THE WARRANTY OBLIGATIONS ARE NOT DEPENDENT UPON THE USE OF ANY
PARTICULAR BRAND OF REPLACEMENT PARTS. THE OWNER MAY ELECT TO
USE NON-GENUINE DETROIT PARTS FOR REPLACEMENT PURPOSES. USE
OF REPLACEMENT PARTS WHICH ARE NOT OF EQUIVALENT QUALITY MAY
IMPAIR THE EFFECTIVENESS OF EMISSION CONTROL SYSTEMS.
If other than Genuine Detroit Parts are used for maintenance replacements
or for the repair of components affecting emission controls, the owner should
assure himself/herself that such parts are warranted by their manufacturer to
be equivalent to Genuine Detroit Parts in performance and durability.
MAINTENANCE AND REPAIRS
MAINTENANCE AND REPAIRS CAN BE PERFORMED BY ANY QUALIFIED
SERVICE OUTLET, HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED
BY AN AUTHORIZED DETROIT SERVICE OUTLET. Receipts covering the
performance of regular maintenance should be retained in the event questions
arise concerning maintenance. These receipts should be transferred to each
subsequent owner of this vehicle. Detroit reserves the right to deny warranty
coverage if the required maintenance has not been performed. However, this
decision would not be based solely on the absence of maintenance records.
Repairs covered by this warranty will be made at no charge by an Detroit
Authorized Service Outlet. If in an emergency situation it is necessary to have
repairs performed by other than an Detroit Authorized Service Outlet because
an authorized outlet is not reasonably available, repairs may be performed
at any available service establishment or by the owner, using any equivalent
replacement part. Detroit will reimburse the owner for expenses (including
Continued on page 17
16
diagnosis), not to exceed Detroit ’s suggested retail price for all warranted
parts replaced and labor charges based on Detroit ’s recommended time
allowance for warranty repair and the geographically appropriate hourly labor
rate. A part not being available within 30 days or a repair not being complete
within 30 days constitutes an emergency. For reimbursement of the repairs that
were performed, take the replaced parts and receipt to an Detroit Authorized
Service Outlet for reimbursement consideration.
*“GENUINE DETROIT PARTS” when used in connection with Detroit Engines, means parts manufactured by or for Detroit, designed for use on Detroit Engines and distributed by Detroit . This
definition includes remanufactured assemblies designated reliable and sold by authorized Detroit
Distributors that may be used in performing warranty repairs.
U.S. CLEAN AIR ACT
The U.S. Clean Air Act requires the engine manufacturer to furnish, with each
new engine to be installed in a motor vehicle, written instructions for proper
maintenance and use of the vehicle or engine by the ultimate purchaser. The
instructions shall correspond to regulations which the Administrator of the
Environmental Protection Agency (EPA) shall promulgate. This booklet provides
these instructions to owners in compliance with the law.
NORMAL ENGINE USE
The owner’s maintenance instructions contained in this booklet are based on
the assumption that the engine will be used to power a motor vehicle which
will be used as designed:
• To carry passengers and/or cargo within the weight limitations indicated on
the Vehicle Identification Number (VIN) affixed to the vehicle;
• To operate within legal operating limits;
• To operate on a daily basis, as a general rule, for at least several miles, and;
• To operate on specified fuel and lubricating oils as covered in the Operator’s
Manual
Unusual operating conditions will require more frequent engine maintenance
as specified in the Section “Explanation of Owner’s Emission Control
Maintenance Services.”
17
EXPLANATION OF OWNER’S EMISSION
CONTROL MAINTENANCE SERVICES
1. ENGINE LUBRICATING OIL: Change the lubricating oil every 50,000 miles
maximum for highway trucks. (Refer to Engine Requirements – Lubricating
Oil, Fuel and Filters – DDC-SVC-BRO-0001). Reference the DDPlatform
Operator’s Guide maintenance table and maintenance intervals for additional
details.
2. ENGINE LUBRICATING OIL FILTERS: Change the lubricating oil filters
at each oil change (50,000 mile maximum). Reference the DDPlatform
Operator’s Guide maintenance table and maintenance intervals for
additional detail.
3. COOLANT: Check the coolant level daily before starting the engine. Make
sure coolant is up to the proper level. Add coolant as necessary. DO NOT
OVERFILL. Check all cooling system lines and hoses for damage, leaks
or loose connections. Tighten or replace as necessary. (Refer to Coolant
Selections for Detroit Engines – DDC-SVC-BRO-0002). Check for proper
inhibitor level at 20,000 miles and add as required.
4.*FUEL FILTERS: Replace the filters or filter elements in the strainer and the
filter every 50,000 miles maximum or when plugging is indicated. Check
for leaks after servicing. Reference the DDPlatform Operator’s Guide
maintenance table and maintenance intervals for additional details.
5. DRY TYPE AIR CLEANER: Under no operating condition should the intake
restriction exceed 20 inches of water at full load and rated speed. A
clogged air cleaner element will cause excessive intake restriction and
a reduced air supply to the engine. For equivalent restriction limits for
lower speed, refer to Detroit Corporation Engineering Bulletin No. 39,
“Air Cleaner Systems for Detroit Engines.” If the dry type air cleaner is
equipped with an aspirator, check for aspirator damage or clogging. Clean
and repair as necessary.
6.*TURBOCHARGER: Inspect turbocharger mountings, air intake and exhaust
ducts for leaks. Check the oil inlet and outlet lines and connections for
leaks and for restrictions to oil flow. Check for unusual vibration or noises.
If excessive, remove the unit from service and have cause corrected.
Continued on page 19
*An emission control service.
18
7.*AFTERTREATMENT DEVICE (ATD): Under no operating conditions should
the exhaust back pressure ahead of the particulate filter exceed 8.86” Hg
(30kPa). At this level of back pressure, the Amber Warning Lamp (AWL)
will be illuminated and a SPN 3720 Code will be set in the engine Motor
Control Module (MCM). A clogged Particulate filter element will restrict
air flow through the engine. Inspect and clean every 300,000 miles or
9,000 hours, whichever occurs first. Reference the DD13 Operator’s Guide
maintenance table and maintenance intervals for additional details.
8. PARTICULATE FILTER: A “Check Engine Light” will illminate when
ash requires removal. Remove ash between 300,000 miles/9,00 eng hrs
(480,000km) to 400,000 miles/10,250 eng hrs (640,000km)
9. DEF PUMP FILTER: See maintenance table for required replacement.
10. D
EF PUMP AIR BLADDER: Refill with air every 24 months (if applicable).
11. V
ALVE LASH ADJUSTMENT: Adjust at 100,000mi (160,000km), at 500,000 mi
(800,000km) and then every 500,000 mi (800,000km) thereafter.
*An emission control service.
19
OWNER’S EMISSION CONTROL
MAINTENANCE SERVICE CHARTS
Severe Service Maintenance Intervals EPA10/GHG14
Note: Actual fuel filter life will vary based on fuel quality.
Note: Diesel Oxidation Catalyst (DOC) and the Selective Catalyst Reduction (SCR Catalyst) do not require
maintenance.
Key
No.†
Maintenance
Services
1
Maintenance Intervals (Miles/Kilometers In Thousands)
25 mi
40 km
640 hrs
50 mi
80 km
1280 hrs
75 mi
120 km
1925 hrs
100 mi
160 km
2565 hrs
125 mi
200 km
3205 hrs
150 mi
240 km
3850 hrs
Lubricating
Oil*
®
®
®
®
®
®
2
Lubricating
Oil Filter*
®
®
®
®
®
®
3
Coolant*
3
Cooling
System Filter
(if equipped)
Refer to the “How to Select Coolant” section for the listing of required
intervals using the recommended coolants.
®
Fuel Filters without Frame-mounted Filterr
4
Fuel Filters
®
®
®
®
®
®
®
®
Fuel Filters with Frame-mounted Filter
4
Frame-mounted
Filter
®
®
®
®
4
Fuel Filter
I
I
®
I
I
®
5
Belts
I
I
I
I
®
I
Air System
I
I
I
I
I
I
Air Cleaner
I
I
I
I
I
I
Air Compressor
I
I
I
I
I
I
6
Exhaust
System*
I
I
I
I
I
I
7
Aftertreatment
Device
Inspect external hardware and connections every 6 months or at oil
change intervals.
8
Diesel Particulate
Filter***
A “Check Engine Light” will illuminate when ash requires removal.
Normal DPF ash clean intervals are 300,000 miles (480,000km) 9,000 hours
to 4000,000 miles (640,000km) 10,250 eng hrs. **
9
DEF Pump filter
Replace filter every 150,000 miles (241,000 km )
10
DEF Pump
Air Bladder
(2010 engines only) Refill bladder with air every 24 months.
11
Valve lash
adjustment
Adjust at 100,000 mi (160,000 km), at 500,000 mi (800,000 km) and then
every 500,000 mi (800,000 km) thereafter.
20
MAINTENANCE
OPERATIONS
MAINTENANCE
OPERA® – ReplaceTIONS
*Check
*Check daily
daily
® – Replace
I – Inspect, Correct
I – Inspect, Correct
Note: Actual fuel filter life will vary based on fuel quality.
**Whichever comes first.
***Detroit highly recommends replacing the DPF with a Detroit genuine DPF to ensure maximum
replacement life.
Currently, Davco 482 is the only framed-mounted filtration system compatible for DetroitTM Engines.
Refer to “Routine Preventive Maintenance” for a description of all items.
R=Replace
I=Inspect
Note: DOC and SCR Catalyst do not require maintenance.
21
OWNER’S EMISSION CONTROL
MAINTENANCE SERVICE CHARTS
Short Haul Maintenance Intervals EPA10/GHG14
Note: Actual fuel filter life will vary based on fuel quality.
Note: Diesel Oxidation Catalyst (DOC) and the Selective Catalyst Reduction (SCR Catalyst) do not require
maintenance.
Key
No.†
Maintenance
Services
1
Maintenance Intervals (Miles/Kilometers In Thousands)
35 mi
55 km
895 hrs
70 mi
110 km
1795 hrs
105 mi
165 km
2690 hrs
140 mi
220 km
3590 hrs
175 mi
275 km
4485 hrs
Lubricating
Oil*
®
®
®
®
®
2
Lubricating
Oil Filter*
®
®
®
®
®
3
Coolant*
Refer to the “How to Select Coolant” section for the listing of required
intervals using the recommended coolants.
Cooling
System Filter
(if equipped)
®
Fuel Filters without Frame-mounted Filter
4
Fuel Filters
®
®
®
®
®
Fuel Filters with Frame-mounted Filter
4
Frame-mounted
Filter
®
®
®
®
®
4
Fuel Filter
I
I
®
I
I
5
Belts
I
I
I
I
®
Air System
I
I
I
I
I
Air Cleaner
I
I
I
I
I
Air Compressor
I
I
I
I
I
6
Exhaust
System*
I
I
I
I
I
7
Aftertreatment
Device
Inspect external hardware and connections every 6 months or at oil
change intervals.
8
Diesel Particulate
Filter***
A “Check Engine Light” will illuminate when ash requires removal.
Normal DPF ash clean intervals are 300,000 miles (480,000km) 9,000 hours
to 4000,000 miles (640,000km) 10,250 eng hrs. **
9
DEF Pump filter
Replace filter every 150,000 miles (241,000 km )
10
DEF Pump
Air Bladder
(2010 engines only) Refill bladder with air every 24 months.
11
Valve lash
adjustment
Adjust at 100,000 mi (160,000 km), at 500,000 mi (800,000 km) and then
every 500,000 mi (800,000 km) thereafter.
22
MAINTENANCEMAINTENANCE
OPERATIONS
OPERATIONS
® – Replace
*Check
*Check daily
daily
I – Inspect, Correct
® – Replace
I – Inspect, Correct
Note: Actual fuel filter life will vary based on fuel quality.
**Whichever comes first.
***Detroit highly recommends replacing the DPF with a Detroit genuine DPF to ensure maximum
replacement life.
Currently, Davco 482 is the only framed-mounted filtration system compatible for DetroitTM Engines.
Refer to “Routine Preventive Maintenance” for a description of all items.
R=Replace
I=Inspect
Note: DOC and SCR Catalyst do not require maintenance.
23
OWNER’S EMISSION CONTROL
MAINTENANCE SERVICE CHARTS
Long Haul Maintenance Intervals EPA10/GHG14
Note: Actual fuel filter life will vary based on fuel quality.
Note: Diesel Oxidation Catalyst (DOC) and the Selective Catalyst Reduction (SCR Catalyst) do not require
maintenance.
Key
No.†
Maintenance
Services
1
Maintenance Intervals (Miles/Kilometers In Thousands)
50 mi
80 km
1280 hrs
100 mi
160 km
2565 hrs
150 mi
240 km
3845 hrs
200 mi
320 km
5125 hrs
250 mi
400 km
6410 hrs
300 mi
480 km
7690 hrs
Lubricating
Oil*
®
®
®
®
®
®
2
Lubricating
Oil Filter*
®
®
®
®
®
®
3
Coolant*
Refer to the “How to Select Coolant” section for the listing of required
intervals using the recommended coolants.
Cooling
System Filter
(if equipped)
®
®
®
Fuel Filters without Frame-mounted Filter
4
Fuel Filters
®
®
®
®
®
®
Fuel Filters with Frame-mounted Filter
4
Frame-mounted
Filter
®
®
®
®
®
®
4
Fuel Filter
I
I
®
I
I
®
5
Belts
I
I
I
I
I
®
Air System
I
I
I
I
I
I
Air Cleaner
I
I
I
I
I
I
Air Compressor
I
I
I
I
I
I
6
Exhaust
System*
I
I
I
I
I
I
7
Aftertreatment
Device
Inspect external hardware and connections every 6 months or at oil
change intervals.
8
Diesel Particulate
Filter***
A “Check Engine Light” will illuminate when ash requires removal.
Normal DPF ash clean intervals are 300,000 miles (480,000km) 9,000 hours
to 4000,000 miles (640,000km) 10,250 eng hrs. **
9
DEF Pump filter
Replace filter every 150,000 miles (241,000 km )
10
DEF Pump
Air Bladder
(2010 engines only) Refill bladder with air every 24 months.
11
Valve lash
adjustment
Adjust at 100,000 mi (160,000 km), at 500,000 mi (800,000 km) and then
every 500,000 mi (800,000 km) thereafter.
24
MAINTENANCE
OPERATIONS
MAINTENANCE
OPERATIONS
® – Replace
*Check daily
® – Replace
I – Inspect, Correct
I – Inspect, Correct
Note: Actual fuel filter life will vary based on fuel quality.
**Whichever comes first.
***Detroit highly recommends replacing the DPF with a Detroit genuine DPF to ensure maximum
replacement life.
Currently, Davco 482 is the only framed-mounted filtration system compatible for DetroitTM Engines.
Refer to “Routine Preventive Maintenance” for a description of all items.
R=Replace
I=Inspect
Note: DOC and SCR Catalyst do not require maintenance.
The maximum oil drain and fuel filter replacement intervals for the DD13 /
DD15 listed above are based on engines operating with ULSD fuel (below
15ppm) with Power Guard Oil Specification (PGOS) 93K218 or 93K214
approved oil. API CJ-4 or CI-4 PLUS certified oil that is not PGOS approved
may be used at reduced drain intervals. The intervals listed above should be
considered as maximum and should not be exceeded. All values are in miles,
unless otherwise noted. For more details about oil quality, analysis and drain
intervals, refer to Detroit publication Lubricating Oil, Fuel, and Filters, DDCSVC-BRO-0001 and Engine Operator’s Guide.
The list of PGOS approved oils is available at www.DDCSN.com under
Literature and Lubricants / Fuel / Coolants.
25
DD SERIES PREVENTIVE
MAINTENANCE TABLES
Recreational Vehicles and Fire Trucks EPA10/GHG14
Note: Actual fuel filter life will vary based on fuel quality.
Note: Diesel Oxidation Catalyst (DOC) and the Selective Catalyst Reduction (SCR Catalyst) do not require
maintenance.
Key
No.†
Maintenance
Services
1
Maintenance Intervals (Miles/Kilometers In Thousands)
35 mi
55 km
895 hrs
70 mi
110 km
1795 hrs
105 mi
165 km
2690 hrs
140 mi
220 km
3590 hrs
175 mi
275 km
4485 hrs
Lubricating
Oil*
®
®
®
®
®
2
Lubricating
Oil Filter*
®
®
®
®
®
3
Coolant*
Refer to the “How to Select Coolant” section for the listing of required
intervals using the recommended coolants.
Cooling
System Filter (if
equipped)
®
®
Fuel Filters without Frame-mounted Filter
4
Fuel Filters
®
®
®
®
®
Fuel Filters with Frame-mounted Filter
4
Frame-mounted
Filter
®
®
®
®
®
4
Fuel Filter
I
I
®
I
I
5
Belts
I
I
I
I
®
Air System
I
I
I
I
I
Air Cleaner
I
I
I
I
I
Air Compressor
I
I
I
I
I
6
Exhaust
System*
I
I
I
I
I
7
Aftertreatment
Device
Inspect external hardware and connections every 6 months or at oil
change intervals.
8
Diesel Particulate
Filter***
A “Check Engine Light” will illuminate when ash requires removal.
Normal DPF ash clean intervals are 300,000 miles (480,000km) 9,000
hours to 4000,000 miles (640,000km) 10,250 eng hrs. **
9
DEF Pump filter
Replace filter every 150,000 miles (241,000 km )
10
DEF Pump
Air Bladder
(2010 engines only) Refill bladder with air every 24 months.
11
Valve lash
adjustment
Adjust at 100,000 mi (160,000 km), at 500,000 mi (800,000 km) and then
every 500,000 mi (800,000 km) thereafter.
26
MAINTENANCE OPERATIONS
*Check daily
® – Replace
I – Inspect, Correct
Note: Actual fuel filter life will vary based on fuel quality.
*Whichever comes first.
***Detroit highly recommends replacing the DPF with a Detroit genuine DPF to ensure maximum
replacement life.
Currently, Davco 482 is the only framed-mounted filtration system compatible for DetroitTM Engines.
Refer to “Routine Preventive Maintenance” for a description of all items.
R=Replace
I=Inspect
Note: DOC and SCR Catalyst do not require maintenance.
The maximum oil drain and fuel filter replacement intervals for the DD13 /
DD15 listed above are based on engines operating with ULSD fuel (below
15ppm) with Power Guard Oil Specification (PGOS) 93K218 or 93K214
approved oil. API CJ-4 or CI-4 PLUS certified oil that is not PGOS approved
may be used at reduced drain intervals. The intervals listed above should be
considered as maximum and should not be exceeded. All values are in miles,
unless otherwise noted. For more details about oil quality, analysis and drain
intervals, refer to Detroit publication Lubricating Oil, Fuel, and Filters, DDCSVC-BRO-0001 and Engine Operator’s Guide.
The list of PGOS approved oils is available at www.DDCSN.com under
Literature and Lubricants / Fuel / Coolants.
27
OWNER’S EMISSION CONTROL
MAINTENANCE SERVICE CHARTS
There are three types of maintenance schedules:
• Severe Service
• Short Haul
• Long Haul
Note: Load factor and idle time values must be based on DDEC reports representative of the
current service application.
Severe Service
Severe service applies to vehicles that annually travel up to 30,000 miles
(48,000 kilometers) or that operate under severe conditions. Examples of
Severe Service usage include: idle time over 35%, load factor over 55%,
operation on extremely poor roads or where there is heavy dust accumulation;
constant exposure to extreme hot, cold, salt-air, or other extreme climates;
frequent short-distance travel; construction-site operation; city operation (fire
truck, garbage truck), or farm operation. Only one of these conditions needs to
be met to categorize an application as Severe Service.
Short Haul
Short Haul service applies to vehicles that annually travel up to 60,000 miles
(96,000 kilometers) or with a load factor over 45% and operate under normal
conditions. Examples of Short Haul usage are: operation primarily in cities and
densely populated areas; local transport with infrequent freeway travel; or high
percentage of stop-and-go travel.
Long Haul
Long Haul service (over-the-road transport) applies to vehicles that annually
travel more than 60,000 miles (96,000 kilometers) with minimal city stop-and-go
operation. Examples of Long Haul service are: Regional delivery that is mostly
freeway mileage, interstate transport, and any road operation with high annual
mileage.
28
LUBRICATING OIL ANALYSIS – WARNING
VALUES
A fuel dilution exceeding 7.1% by volume indicates an immediate need for an
oil change and corrective maintenance action. Fuel dilution can be confirmed
by ASTM D3524 test procedure performed by oil suppliers or independent
laboratories.
In addition to the above considerations, the oil drain interval for Detroit Engines
has been exceeded if:
• The viscosity at 212oF (100oC) of a used oil sample exceeds 21.9 cst (15w-40).
• The iron content is greater than 200 parts per million.
• The carbon (soot) content by TGA exceeds 4.5% by weight (ASTM E1131).
• The total base number (TBN) is less than 33% of original (ASTM D4739).
Detroit biodiesel as a renewable fuel. Biodiesel fuels are mono-alkyl esters of
long chain fatty acids commonly referred to as Fatty Acid Methyl Esters and
are derived from renewable resources through a chemical process called
transesteriification. Detroit approves the use of biodiesel fuel blends up to 5%
maximum by volume in diesel fuel providing the following three conditions
are met:.
• The biodiesel fuel used in the blend meets ASTM Standard D6751 or EN ......
14214 specificaton.
• The biodiesel fuel used in the blend is sourced from a BQ-9000 Accredited Producer.
• The finished blend meets the fuel properties ASTM Standard D975 or EN 590 specification.
DetroitTM is responsible for the materials and workmanship of its engines.
Failures attributed to the use of fuels which do not meet industry standards
are not the fault of Detroit and will not be covered by Detroit product warranty.
While Detroit supports the use of B5, the use of unacceptable quality fuel that
does not meet industry standards can result in warranty evocation.
Note: Biodiesel fuelscan decrese the life of fuel filters and degrade their water coalescing ability.
It is Detroit’s recommendation that fuel filter maintenance intervals be reduced by 50% if fuels with
greater than 5% biodiesel are used in the engine 50% of the time or more.
29
POLICY ON OWNER SERVICE
MAINTENANCE SERVICES
Proper maintenance and care of the engine will help achieve lower overall
operating costs. Use of recommended fuels and lubricants and regular
maintenance performed by competent service personnel will help avoid conditions
arising from neglect which are not covered by Detroit new product warranties.
The maintenance services described in the applicable Operator’s Guide should
be performed at the time and/or mileage intervals stated, by an Authorized
Detroit Service Outlet or any qualified service outlet.
PRODUCTION CHANGE
Detroit reserves the right to make change(s) in design or add improvement(s)
on the products at any time without incurring any obligations to install same on
products previously purchased. Authorized Service Outlets reserve a similar
right.
WARRANTY REPAIR ORDER
For the owner’s records, the Authorized Service Outlet will provide a copy of
the warranty repair order listing all warranty repairs performed.
30
Fuel Additives
Detroit Diesel engines are designed to operate satisfactorily on a wide range
of diesel fuels. The use of supplemental fuel additives is not recommended due
to potential injector system or engine damage. Our experience has been that
such additives increase operating costs without providing benefit.‪
WATER CONTAMINATION
Some fuel additives claim temporary benefit when fuel is contaminated with
water. They are not intended to replace good fuel handling practices. Good fuel
handling practices include bulk tank filtration, regularly removing the water
from the bottom of the storage tank and regular tank cleaning.‪
Where water contamination is a concern, equip the fuel system with a fuel/
water separator and service it regularly. Supplemental fuel additives designed
to disperse, emulsify or carry the water through the fuel system should not be
used, as they can disable or significantly reduce the efficiency of fuel/water
separators, resulting in fuel system corrosion. Since many fuel additives act
as surfactants, their effect on the efficiency of fuel/water separators should
be evaluated by ASTM D7261 test method, which is a quick measurement of
roughly how much water passes through a coalescing filter in a single pass.‪
MICROBIAL CONTAMINATION
In marine and other environments where microbe growth is a problem, a
biocide may be used. Microbial activity may be confirmed with commercially
available test kits. When checking for microbial activity, collect fuel samples
from the bottom of the fuel tank. Follow the manufacturer’s instructions for
treatment. Avoid the use of biocides containing chlorine, bromine, or fluorine
compounds, since these may cause fuel system corrosion.‪
FUEL ADDITIVES THAT ARE NOT ALLOWED
The following fuel additives are NOT allowed:‪
USED ENGINE OIL‪
To avoid injury to skin from contact with the contaminants in used engine oil,
wear protective gloves and apron.‪
• U
sed Lubricating Oil – Detroit Diesel specifically prohibits the use
of drained lubricating oil in diesel fuel. Used lubricating oil contains
combustion acids and particulate materials, which erode injector
components, resulting in loss of power and increased exhaust emissions.
In addition, the use of drained lubricating oil will increase maintenance
requirements due to filter plugging and combustion deposits. Refer to “3.10
Waste Oil Disposal and Re-Refined Oils” , “Waste Oil Disposal and Rerefined Oils,” for recommendations on proper used oil disposal.
31
• G
asoline - The addition of gasoline to diesel fuel will create a serious fire
hazard. The presence of gasoline in diesel fuel will reduce the fuel cetane
number and increase combustion temperatures.
• E thanol - The addition of ethanol to diesel fuel will create a serious fire
hazard. The presence of ethanol in diesel fuel will reduce the fuel cetane
number and increase combustion temperatures. Drain and clean tanks
that contain such mixtures as soon as possible. Detroit Diesel will not be
responsible for any detrimental effects which it determines resulted from
the use of used lubricating oil, gasoline, or ethanol in diesel fuel.‪
EVALUATION OF SUPPLEMENTAL FUEL ADDITIVES FOR TEMPORARY USE
Many supplements available today are intended to be added to the fuel by the
customer. These include a variety of independently marketed products which
claim to be:
• Cetane Improvers
• Emission Control Additives
• Detergents
• Combustion Improvers
• Smoke Suppressants
• Cold Weather Flow Improvers
• Fuel Economy
Should a customer decide that a supplemental additive is temporarily required;
the following is intended to provide guidance to the customer in evaluating
potential safety hazards and deleterious engine effects.‪
• R
eview a Material Safety Data Sheet (MSDS) carefully for special handling
instructions and hazardous material content. Additives containing
hazardous materials should not be used due to personal safety risk.
• G
et a detailed compositional analysis from the supplier. Ash forming
metallic elements and corrosive elements must not be present. Additives
containing calcium, barium, zinc, phosphorous, sodium, magnesium, iron,
copper, and manganese are known to cause combustion ash deposits that
can foul fuel injectors and create deposits which may adversely affect
cylinder life. Halogenated compounds containing chloride, fluoride, and
bromide are corrosive, as are some sulfur- containing compounds. Avoid
the use of additives with these components.
32
• M
any additives act as surfactants, evaluate the effect of water separation
characteristics on the fuel in combination with the additive. Refer to Table
5-1 for performance requirements.
• M
any commercial diesel fuels today contain performance additives,
particularly those marketed as premium diesel fuel. Any supplemental
additive being considered must be compatible with the fuel it is to be used
in. Evaluate a mixture containing twice the recommended concentration
of additive for compatibility to represent an over dosage condition,
using the tests listed in Table “Diesel Fuel Specifications” , “Diesel Fuel
Specifications”.
OWNER’S WARRANTY RESPONSIBILITIES:
• C
onduct performance evaluation of a fuel supplemental additive in
customer equipment for a minimum of six months. Testing should be a sideby-side comparison with and without the additive to verify performance
claims. Testimonials do not guarantee similar performance in all
applications.
Supplemental fuel additives are not recommended due to potential injector
system or engine damage. Our experience has been that such additives
increase operating costs without providing benefit. The use of supplemental
fuel additives does not necessarily void the engine warranty. However, repair
expenses which result from fuel system or engine component malfunctions or
damage attributed to their use will not be covered. Accompany these products
with performance data supporting their merit as well as the manufacturer’s
warranty policy. Detroit Diesel will not test or verify the performance of any
supplemental additives and will not accept responsibility for use, selection, or
hazards relating to the use of such products. ‪
33
CUSTOMER ASSISTANCE PROCEDURE
Detroit has established a three-step procedure which customers should
follow when experiencing a problem with any Detroit product or Part. Detroit
fully realizes that ultimately the customer’s concerns will be resolved at the
Distributor/Dealer level and therefore encourages customers
to follow the procedure outlined below:
STEP ONE
Customers should discuss the problem with member(s) of management from the
Authorized Service Outlet. Frequently, complaints are the result of a breakdown
in communication and can quickly be resolved by a member of management. If
they have already discussed the problem with the Distributor or Dealer’s Sales
or Service Manager, they should contact the General Manager.
STEP TWO
When it appears that your problem cannot readily be resolved at the
Distributor/Dealer level without additional assistance, the Detroit Customer
Support Center (CSC) should be contacted at 1-800-445-1980.
The information provided to the CSC will be forwarded to the appropriate
Regional Product Support Manager. The customer will then be assisted by a
member of the Regional Product Support Manager’s staff, depending on the
nature of his/her problem.
Prior to contacting the CSC the customer should have the following
information available:
• Name and location of Authorized Service Outlet
• Type, make and Vehicle Identification Number of equipment
• Engine model and serial number
• Engine delivery date and accumulated miles/kilometers of hours or operation
• Nature of problem
• Chronological summary of the engine’s repair history
STEP THREE
If you are still not satisfied, present the entire matter in writing or by phone to:
Warranty Manager
Detroit
13400 Outer Drive, West
Detroit, Michigan 48239-4001
Phone: (313) 592-5000
Fax: (313) 592-5888
Website: www.demanddetroit.com
34
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
35
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
36
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
37
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
38
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
39
MAINTENANCE RECORD
Date
Miles / Kilometers
Service Performed
40
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
