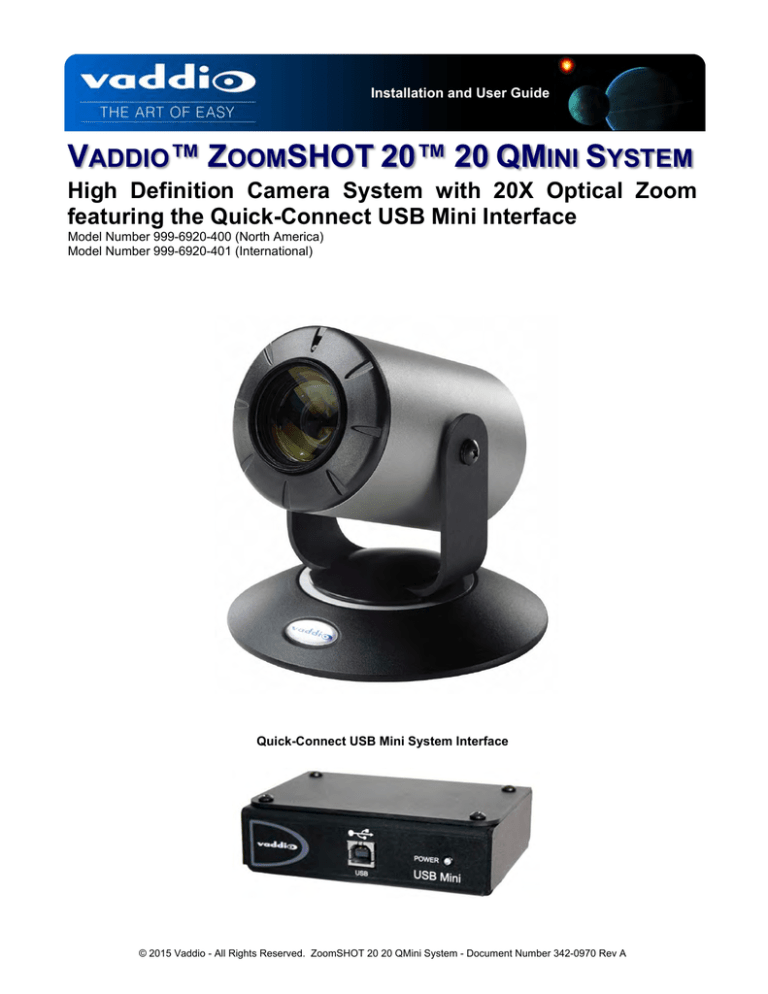

Installation and User Guide
VADDIO™ ZOOMSHOT 20™ 20 QMINI SYSTEM
High Definition Camera System with 20X Optical Zoom
featuring the Quick-Connect USB Mini Interface
Model Number 999-6920-400 (North America)
Model Number 999-6920-401 (International)
Quick-Connect USB Mini System Interface
© 2015 Vaddio - All Rights Reserved. ZoomSHOT 20 20 QMini System - Document Number 342-0970 Rev A
ZoomSHOT 20 QMini System
TABLE OF CONTENTS
Overview ................................................................................................................................................................................................................. 3 Unpacking ............................................................................................................................................................................................................... 4 Front View with Feature Call-outs ...................................................................................................................................................................... 4 Image: ZoomSHOT 20 HD PTZ Camera ..................................................................................................................................................... 4 Rear Panel Connections with Feature Call-outs ................................................................................................................................................. 5 Image: ZoomSHOT 20 HD Camera .............................................................................................................................................................. 5 Table: ZoomSHOT 20 DIP Switch Settings .................................................................................................................................................. 5 Table: WideSHOT HD VIDEO Selections ..................................................................................................................................................... 5 IR SHOT Commander Remote ............................................................................................................................................................................... 6 Image: Vaddio IR SHOT Commander Hand-held IR Remote ....................................................................................................................... 6 Table: ZoomSHOT 20 OSD Menu Structure ......................................................................................................................................................... 7 Quick-Connect USB Mini ........................................................................................................................................................................................ 9 Image: Front Panel with Feature Call-outs ................................................................................................................................................... 9 Image: USB Mini Top Panel Connections ..................................................................................................................................................... 9 Diagram: Basic System Configuration ZoomSHOT 20 with USB Mini ........................................................................................................ 10 First Time Set-up:.................................................................................................................................................................................................. 10 STEP BY STEP: ZoomSHOT 20 QMini System Installation Instructions ....................................................................................................... 11 Diagrams: Connecting the USB Mini........................................................................................................................................................... 11 Controlling the WideSHOT QMini System ........................................................................................................................................................ 12 USB Mini Details ............................................................................................................................................................................................... 12 Compatibility.......................................................................................................................................................................................................... 13 Table: Supported UVC Resolutions ............................................................................................................................................................ 13 Internal Web Pages and Control ........................................................................................................................................................................... 14 USB Mini Web Page Tour ................................................................................................................................................................................ 14 Screen Shot: Login...................................................................................................................................................................................... 14 Screen Shot: Camera Control Page - No Camera Detected ...................................................................................................................... 14 Screen Shot: Camera Control Page and User Menu for ZoomSHOT 20 ................................................................................................... 15 Screen Shot: Admin Log-in ......................................................................................................................................................................... 16 Screen Shot: Admin Menu - Camera Settings Page ................................................................................................................................... 17 Screen Shot: Admin Menu - Streaming Page ............................................................................................................................................. 18 Screen Shot: Admin Menu - Room Labels .................................................................................................................................................. 19 Screen Shot: Admin Menu - Networking ..................................................................................................................................................... 19 Screen Shot: Admin Menu - Security .......................................................................................................................................................... 20 Screen Shot: Admin Menu - Diagnostics .................................................................................................................................................... 20 Screen Shot: Admin Menu - System Menu ................................................................................................................................................. 21 Screen Shot: Admin Menu - Update Confirmation ...................................................................................................................................... 21 Screen Shot: Admin Menu - Update in Progress ........................................................................................................................................ 22 Screen Shot: Admin Menu - Help................................................................................................................................................................ 22 Connecting the USB Mini and ZoomSHOT 20 to the PC and Program of Choice ................................................................................................ 23 Skype Example: ................................................................................................................................................................................................ 23 VLC Media Player Example: ............................................................................................................................................................................. 23 General Specifications .......................................................................................................................................................................................... 24 Compliance and CE Declaration of Conformity for ZoomSHOT 20 ...................................................................................................................... 25 Compliance and CE Declaration of Conformity for Quick-Connect ...................................................................................................................... 26 Warranty Information............................................................................................................................................................................................. 27 Appendix 1: Pin-outs for ZoomSHOT 20 Camera and Quick-Connect USB Mini ................................................................................................ 28 Table: EZ-POWER VIDEO RJ-45 Connector Pin-outs .................................................................................Error! Bookmark not defined. Table: ZoomSHOT 20 Camera RS-232 Port .............................................................................................................................................. 28 System Notes: ....................................................................................................................................................................................................... 29 ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 2 of 30
ZoomSHOT 20 QMini System
OVERVIEW
The Vaddio ZoomSHOT 20 20 HD camera produces amazing results for small,
medium and large room applications. Anywhere that a point-of-view or
stationary camera is used alone, or in conjunction with a Vaddio PTZ camera to
simplify camera coverage and preset positioning, the ZoomSHOT 20 is the
answer.
Essentially, the ZoomSHOT 20 is a low cost pan/tilt/zoom camera, where the
pan and tilt are adjusted manually. However, unlike fixed lens security-type
stationary cameras, the ZoomSHOT 20 is equipped with a 20X optical power
zoom lens that produces a horizontal field of view ranging from 63º on the wide
end to 3.47º on the tele end in a HD 16:9 format.
Choose between three (3) IR frequencies for the Vaddio IR SHOT Commander
to allow multiple cameras to be locally IR controlled with a single remote control.
The ZoomSHOT 20 also has an OSD (on screen display) for easy set-up and
basic image control that is accessible with the IR remote.
The USB Mini is the latest product in the popular Vaddio Quick-Connect product
line. Designed to answer the demands of customers and integrators who
required simple and effective USB 2.0, 720p/30 streaming and capture
capabilities without the need for local analog or digital video outputs. The USB
Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC
application needs, the USB Mini will auto negotiate.
As with all Quick-Connect interfaces, the USB Mini powers the camera, returns HSDS™ (differential) video with
connectivity distances up to 150’ using the Vaddio standard two (2) Cat-5 wiring platform. The USB Mini will process
Vaddio HSDS video generated by the camera, and use it to create UVC files for use by USB 2.0 video streaming
or capture applications.
The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab similar to the
style used on the Vaddio EZCamera™ Interface Module or EZIM™. This provides the end user or integrator many
possibilities for mounting in easily accessible locations, as requirements dictate.
ZoomSHOT 20 paired with the Quick-Connect USB Mini Interface in this package represents an outstanding value
for pro installations at a great price. So breathe easy, and try a ZoomSHOT 20 with a USB Mini today!
Intended Use:
Before operating the device, please read the entire manual thoroughly. The system was designed, built and tested
for use indoors with the power supply provided. The use of a power supply, other than the one provided, or outdoor
operation has not been tested may result in damage or create a potentially unsafe operating condition.
Important Safeguards:
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.
In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,
do not immerse in water or other liquids and avoid extremely humid conditions.
Use only the power supply provided with the system. Use of any unauthorized or DC extended
power supplies will void any and all warranties.
Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not
work well for professional installations and can be the cause of intermittent connections, which
can result in the RS-232 control line failing and locking up, and/or compromising the HSDS (highspeed differential) signals. For best results, please use standard RJ-45 connectors and test all
cables for proper pin-outs prior to use and connection to Vaddio product.
Save These Instructions:
The information contained in this manual will help you install and operate your product. If these instructions are
misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from
www.vaddio.com free of charge.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 3 of 30
ZoomSHOT 20 QMini System
UNPACKING
Carefully remove the product and all of the included parts from the packaging.
Identify the following parts for each camera:
ZoomSHOT 20 QMini Camera System (North America)
Part Number: 999-6920-400

One (1) ZoomSHOT 20 HD Camera (998-6920-000)

One (1) IR SHOT Commander Remote Control

One (1) IR SHOT Commander One-sheet Guide

One (1) Thin Profile Wall Mount for ZoomSHOT 20/WideSHOT

One (1) Mounting Hardware Kit

One (1) Quick-Connect USB Mini Interface (999-1105-039)

One (1) 24 VDC, 2.08 Amp Power Supply with North American Power Cord

One (1) 6’ (1.83m) USB 2.0 Cable

Quick Start Guide
NOTE: Full manuals are now downloaded from support.vaddio.com
ZoomSHOT 20 QMini Camera System (International)
Part Number: 999-6920-401

One (1) ZoomSHOT 20 HD Camera (998-6920-000)

One (1) IR SHOT Commander Remote (Int’l pack-out)

One (1) IR SHOT Commander One-sheet Guide

One (1) Thin Profile Wall Mount for ZoomSHOT 20/WideSHOT

One (1) Mounting Hardware Kit

One (1) Quick-Connect USB Mini Interface (999-1105-039)

One (1) 24 VDC, 2.08 Amp Power Supply

One (1) 802-2435 Euro Power Cable

One (1) UK Power Cable

One (1) 6’ (1.83m) USB 2.0 Cable

Quick Start Guide
NOTE: Full manuals are now downloaded from support.vaddio.com
Front View with Feature Call-outs
Image: ZoomSHOT 20 HD PTZ Camera
①
③
②
④
⑤
1) Lens: 20X Optical Zoom Lens
2) IR Sensor and Power LED: The IR sensor for the IR SHOT Commander Remote is located here. In a
separate opening, a blue LED power light and a red LED tally resides (turns purple on boot up).
3) The Yoke: The yoke is used for manual pan and tilt. The tilt range is ± 30° and Pan is limited to the service
loop of the cabling.
4) The Aluminum Base and Steel Cylindrical Body: Please do not drop it on your foot, it‘s fairly substantial.
5) Really Cool Logo Badge (RCLB): The RCLB is on the base in a recessed ovoid area.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 4 of 30
ZoomSHOT 20 QMini System
Rear Panel Connections with Feature Call-outs
Image: ZoomSHOT 20 HD Camera
②
①
④
③
1) RS-232 (Color Coded Blue): The RS-232 port accepts serial control protocol for camera control, as well as
automatically identifies the camera to the Quick-Connect USB Mini and Quick-Connect USB Interfaces so the
correct software is loaded and ready for the ZoomSHOT 20.
2) EZ-POWER VIDEO Port (Color Coded Orange): This RJ-45 connector is only used with the Quick-Connect
SR, Quick-Connect DVI-D/HDMI SR Interface, Quick-Connect USB and USB Mini Interfaces to supply power and
return HSDS (differential) video from the camera over Cat-5 cable up to distance of 150’ (45.72m).
3) Dip Switch Settings: Settings for IR remote frequency, IR receiver on/off, image flip and defaults can be
configured on these switches. See the Switch Settings page for additional information. The DIP switch settings
are as follows:
Table: ZoomSHOT 20 DIP Switch Settings
DIP Switch
Function
1
Up = IR1, Down = IR2
2
Up = IR 1 or 2, Down = IR3
3
Up=IR ON, Down = IR OFF
4
Up = Normal Image, Down = Image Flip
5
Test Bars
6
Update Position - Leave UP unless updating firmware
All Down
Reset to Defaults - with power cycle
4) HD Video Select: A rotary switch allows the user to choose the video resolution and format. The HD Video
Select rotary switch settings are as follows:
Table: WideSHOT HD VIDEO Selections
Resolutions
Rotary
Rotary
720p/59.94 (USB 2.0)
8
0
1
2
3
4
5
6
7
1080i/59.94
1080p/59.94
-720p/50
1080i/50
1080p/50
480p/59.94
9
A
B
C
D
E
F
Resolutions
576p/50
-----1080p/29.97
1080p/25
Point the notch in the switch stem to
assign the rotary position.
Notes:
1)
For USB 2.0 video streaming, use position “0” (720p/59.94) for best results.
2)
Set the rotary switch to an assigned position. A medium grey privacy mask is displayed on unassigned positions.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 5 of 30
ZoomSHOT 20 QMini System
IR SHOT COMMANDER REMOTE
The Vaddio IR SHOT Commander works with the Vaddio ZoomSHOT 20 and WideSHOT camera systems and is
compatible with all the Vaddio PTZ cameras. All ZoomSHOT 20 and WideSHOT Camera Systems are shipped
with this IR remote.
Image: Vaddio IR SHOT Commander Hand-held IR Remote
(Top View)
ZOOM OUT
P-STORE
ZOOM I
IR 1
Red LED indicates IR transmission and
the brightness indicates battery strength
PRESET
OSD: On Screen Display Menu
Power On/Off
Camera Standby
OK, Enter, Select and
Camera Home
Arrow Keys X 4
 Pan Left, Pan Right,
 Tilt Up, Tilt Down
 Menu Navigation
Zoom Camera OUT (wide)
Zoom Camera IN (telephoto)
Preset Button - Setting Presets
 Move the camera into position
 Push and hold P-STORE button
 Touch buttons 1 or 2 to set Preset
Recalls ZoomSHOT 20 Preset
1 or Preset 2 (zoom position)
*WideSHOT uses a manual lens
Select IR Frequencies (3)
Allows up to 3 cameras to
be controlled in a room with
one (1) IR Remote
Note: Camera dip switches
set IR frequency.
IR SHOT Commander - Quick Specs
IR Range
20’ to 30’ (6m to 9m)
Batteries
2 x AAA (Batteries not shipped internationally)
Keys (buttons)
15 Silicone Rubber Keys
Dimensions
4.53” (115mm) x 1.57” (40mm) x 1.1” (28mm)
LxWxH
LED Indicator
Red LED illuminates when transmitting IR, brightness indicates battery strength
Compatible
Cameras
Ships with ZoomSHOT 20 and WideSHOT. Compatible with all Vaddio HD PTZ
cameras (limited function set) and most Sony BRC & EVI cameras.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 6 of 30
ZoomSHOT 20 QMini System
TABLE: ZOOMSHOT 20 OSD MENU STRUCTURE
Use this OSD menu with the IR SHOT Commander to make video adjustments (AWB, COLOR, EXP, etc…) on the HD-20SE
Camera.
Menu
SSDR
WHITE BAL
Controls
OFF
ON
Return
ATW
MANUAL>
AWC-SET
OUTDOOR
INDOOR
MERCURY
SODIUM
RETURN<
BACKLIGHT
OFF
WDR>
BLC>
HLC>
Modes/Range
SSDR 0-15
RED 0 - 1000
BLUE 0 - 1000
RETURN<
Default
Notes
OFF
8*
Dynamic Range Adjustment
*When Dynamic Range is ON
Return to Main Menu
ON
560
480
Auto White Balance - ON
Adjust Red Level
Adjust Blue Level
Return to WHITE BAL Menu
Set to Outdoor when room has direct sun light and blue walls
Set to Indoor when fluorescent lights start to cause color variation in ATW mode
Return to Main Menu
LEVEL (LOW / MED / HIGH)
RETURN<
LEVEL (LOW / MED / HIGH)
BOTTOM 1-100
LEFT 1-100
RIGHT 1-100
RETURN<
LEVEL (LOW / MED / HIGH)
MASK TONE 1-15
RETURN<
OFF
OFF
Default BLC is off
Wide Dynamic Range
OFF
Return to BACKLIGHT Menu
OFF
Return to BACKLIGHT Menu
Return to Main Menu
RETURN<
INTELLIGENCE
OFF
Intelligence, motion detection analytics and masking are not processed or used by the
camera; however the OSD menu still works.
FOCUS
MODE
ZOOM TRACK>
ZOOM SPEED>
DIGITAL ZOOM>
AUTO / MANUAL / ONE PUSH
OFF / TRACK / AUTO TRACK
SLOW / MEDIUM / FAST
OFF/ON
ON>LIMIT X2 - X16
RETURN<
OFF/AUTO
MANUAL>
POS INIT 1X - 20X
RETURN<
OFF/ON
ON > PRESET NO 1-128
PRESET SAVE
PRESET CLEAR
RETURN<
MANUAL / AUTO
Zoom POS INIT>
USER PRESET>
LENS INIT
RETURN<
EXPOSURE
BRIGHTNESS
IRIS>
SHUTTER
AGC
SSNR
SENS-UP
RETURN<
AUTO
AUTOTRACK
OFF
1X
OFF
1
Default is OFF
Avoid Digital Zoom if possible
Return to FOCUS Menu
Zoom position initialization
Sets INIT Zoom Position
Return to FOCUS Menu
Zoom Presets
Return to FOCUS Menu
Return to Main Menu
0-100
AUTO
MANUAL>
RETURN<
A FLK
ESC
MANUAL> 1/30 - 1/30,000 sec.
RETURN<
OFF / LOW /MED / HIGH
MANUAL (OFF)>
AGC VALUE 0 - 36dB
RETURN<
OFF / LOW /MED / HIGH
OFF
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
50
AUTO
Closed to F28
Brightness Sets Luminance Target
Automatic Gain Control
Manual Iris
Return to EXPOSURE Menu
Use Anti-Flicker when lighting causes color hunting
Shutter Speed
Return to EXPOSURE Menu
LOW
0 dB
Automatic Gain Control
LOW
OFF
Noise Reduction - Don’t use above Low
OFF - Do not Use
Return to Main Menu
Page 7 of 30
ZoomSHOT 20 QMini System
ZoomSHOT 20 OSD Menu Structure (continued)
Menu
SPECIAL
Controls
DAY/NIGHT>
DIS>
DEFOG
COMM ADJUST>
IMAGE ADJUST>
DISPLAY
VIDEO OUT FORM
Range/Modes
COLOR / B/W / AUTO
OFF / ON
OFF / ON / MANUAL/AUTO
BAUD RATE
UART
RETURN<
H-REV ON / OFF
V-REV ON / OFF
SHARPNESS ON/OFF
ON> 0-30
RETURN<
MONITOR LCD>
GAMMA .0 -1.0
COLOR LEVEL 0-100
RETURN<
USER>
GAMMA .0 - 1.0
COLOR LEVEL 0-100
RETURN<
RETURN<
CAM TITLE ON / OFF
ON> A-Z, 1-9
RETURN<
CAM ID ON / OFF
CAM INFO ON / OFF
ZOOM MAG ON/OFF
OSD COLOR
LANGUAGE
SET LANGUAGE
RETURN<
COMPONENT ON / OFF
RETURN<
Default
Notes
COLOR
Do not use
OFF
Digital Image Stabilization - leave off
OFF
Do not use
NEVER CHANGE THE BAUD RATE OR THE UART
SETTINGS - Control is lost if these are changed.
Factory default reboot will be required.
Return to SPECIAL Menu
OFF
Use Dip Switch on Camera to Flip Image
OFF
Use Dip Switch on Camera to Flip Image
ON
Picture Detail
15
Return to IMAGE ADJUST Menu
0.50
50
Return to IMAGE ADJUST Menu
0.50
50
Return to IMAGE ADJUST Menu
Return to Main Menu
OFF
Return to DISPLAY Menu
OFF
OFF
OFF
WHITE
ENGLISH
ON
WHITE/YELLOW/GREEN/RED/BLUE
(ENG, FR, KOR, SP, CHIN, JAP, PORT,
RUS, DUT, ITAL)
Return to Main Menu
Do not change this parameter
Do not change resolutions here - Use the
Rotary Switch on the back of the camera
RESET
EXIT
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 8 of 30
ZoomSHOT 20 QMini System
QUICK-CONNECT USB MINI
Image: Front Panel with Feature Call-outs
➋
➊
1) USB Port: USB Type-B port for connectivity to streaming or capture computer.
2) Power LED: Indicates presence of 24 VDC power for the Quick-Connect.
The USB Mini will automatically show up as a native USB 2.0 device on the connected computer. If not prompted
to allow the device as your primary UVC video source, it may be required to configure it as such in the operating
system of the streaming/capture computer.
Image: USB Mini Top Panel Connections
Side VIEW
➎
➊
➋
➌
➍
1) Power Connector: 5.5mm x 2.5mm coaxial power jack for use with provided 24 VDC, 2.08 Amp switching
power supply.
2) Mode Switch: White-capped, recessed, momentary tactile push button for switching between USB Streaming
and Web Control (Ethernet over USB) modes, as well as a Factory Reset mode.
Important configuration and operating note:
a. The USB Mini interface will boot up in UVC streaming video mode. A quick momentary touch will switch
to web control mode and video will no longer pass. This allows the administrator to set up the USB Mini
with the embedded web pages and when the administrator is finished, toggle back to UVC streaming
mode for the end user. It is highly unlikely that the end user will ever need access to the configuration
web pages during use of the USB Mini.
b. For resetting the USB Mini back to factory defaults, push and hold this switch in for approximately 5.0
seconds. The front panel blue LED will blink to indicate factory reset.
3) EZ-POWER VIDEO RJ-45 (Color Coded Orange): Simultaneously sends power to the camera to and returns
HSDS (differential) video from the camera to generate USB 2.0 (UVC) video for the connected PC.
4) RS-232 Jack (Color Coded Blue): RJ-45 control port for sending serial control to the camera.
5) Mounting Flange: The mounting flange provides for surface mounting the USB Mini (under table or in cable
tray) and easy access to the USB connection for laptop or computer.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 9 of 30
ZoomSHOT 20 QMini System
Diagram: Basic System Configuration ZoomSHOT 20 with USB Mini
Local
Power
Two (2) Cat-5 Cables
24 VDC
◄ HD Video from Camera - Power to Camera ▶
Serial Control (RS-232)
Distance up to 150’ (15.26m)
ZoomSHOT 20
HD Camera
Quick-Connect USB Mini
Rear Panel (above), Front Panel (below)
USB 2.0
Connected
to Front
Panel
Laptop with UC
Application
USB 2.0
(UVC
Drivers)
HD Video
(HDMI, DVI
or RGBHV)
Room Monitor
(Simulated video feed)
Extension of PC Video
FIRST TIME SET-UP:
The ZoomSHOT 20 is very easy to use and operate. There is documentation at the
back of this manual for pin-outs of the connectors on the ZoomSHOT 20 camera and
the USB Mini Interface.
Before Installing:
 Choose the camera mounting location while paying close attention to camera
viewing angles, lighting conditions, possible line of site obstructions, and
checking for in-wall obstructions where the camera is to be mounted. Always
pick a mounting location that will optimize the performance of the camera.

Please locate the camera to enable easy positioning of the camera body with
the ability to point down and away from the ceiling and a bunch of fluorescent
lighting cells. Cameras generally do not like to be swamped with fluorescent
light and very few people sit on the ceiling anyway.

The Thin Profile Wall Mount (right) for the ZoomSHOT 20 can be mounted directly to a 1-gang wall box or can
be mounted using only dry wall anchors.

For Power/Video and RS-232 signals, use standard Cat-5 cable (568B termination and real RJ-45 connectors)
from the EZ-POWER VIDEO and RS-232 ports on the back of the ZoomSHOT 20 to the Quick-Connect
Interface.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Image: ZoomSHOT 20
HD Camera with provided
Thin Profile Wall Mount
Page 10 of 30
ZoomSHOT 20 QMini System
STEP BY STEP: ZoomSHOT 20 QMini System Installation Instructions
STEP 1: After determining the optimum location of the camera, route, mark and test
the two (2) Cat-5 cables from the camera to the USB Mini Interface located at the table.
The two Cat-5 cables should feed-through the hole located on the rear flange of the
Thin Profile Wall Mount. If the bracket is mounted on a 1-gang wall box, use the screws
supplied with the wall box cover plate to attach the Thin Profile Wall Mount. If mounting
to the drywall with wall anchors, use two (2) quality wall anchors. The mount provides
for easy leveling. Pull the cat-5 cables though the wall and feed the cables through
the back of the mount. Level the mount and tighten the mounting screws.
STEP 2: Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the
camera, set up the camera’s output resolution and functional preferences. There are tables on page 6 that identify
the choices. Keep these tables handy for future use.
Setting the ZoomSHOT 20 Camera:
 Set the desired HD Resolution with the rotary selection switch. If changing the resolution, always reboot the
camera to ensure proper operation.
Note: Use 720p/59.94 (position “0”) for best results for streaming USB 2.0 (MJPEG).
 Set the IR frequency (1, 2 or 3) of the camera (if it is to respond to the IR remote control).
 Set the desired image orientation (normal or flipped).
STEP 3: Follow the wiring diagram for connecting the Cat-5 cables to the ZoomSHOT 20 and USB Mini but read
and understand the rest of these instructions especially the next note.
NOTE: Check all Cat-5 cables for continuity in advance of the final connection. Label the
Cat-5 cables. Plugging the EZ-POWER VIDEO cable into the wrong RJ-45 may cause
damage to the camera system and void the warranty. For premise cabling, please use real
RJ-45 connectors and crimpers. Please do not use pull through or EZ type RJ-45s.
STEP 3a: Connect a Cat-5 cable from the EZ-POWER VIDEO RJ-45 jack of the USB Mini to the EZ- POWER
VIDEO jack of the Vaddio camera.
STEP 3b: Connect a Cat-5 cable from the RS-232 TO CAMERA RJ-45 jack on the USB Mini to the RS-232
serial control port of the Vaddio camera.
Cat-5
Diagrams: Connecting the USB Mini
STEP 3a
STEP 3b
Cat-5
STEP 5
STEP 4: Place the camera onto the camera mount and use the provided ¼”-20 screws to secure the camera to
the mount. To dress the cabling, push the extra cable back into the wall opening.
HINT: A small piece of black fabric or felt attached to the back of the mount (wall-side) with a small slit to
allow cables through may help the overall dressing of the mount and cables.
STEP 5: Connect the supplied 24 VDC, 2.08 Amp switching power supply to the USB Mini. Plug in the AC power
cord to the power supply and connect it to a local power outlet. Verify the blue LED power light on the USB Mini
and the blue LED on the Vaddio camera are illuminated.
STEP 6: Connect a USB 2.0, Type-A Male to USB Type-B Male cable from the USB Type-B jack of the USB Mini
to the USB 2.0 Type-A port on the laptop or PC.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 11 of 30
ZoomSHOT 20 QMini System
STEP 6
USB 2.0
Cable
STEP 7: For best results, set the camera to 720p/59.94 video resolution by turning
its rotary resolution switch on the back of the camera to the ‘0’ position (at 6:00) with
the notch in the rotary switch pointed straight downward.
STEP 8: Using desired third party software, verify UVC stream. Upon applying power to the system, the USB
Mini should show up on the connected computer as a UVC video USB 2.0 peripheral (more on this later).
STEP 9: Connect the Vaddio 24 VDC, 2.08 Amp power supply to a power outlet and to the Mini USB Interface.
The USB Mini will initialize and power will travel down the EZ-POWER VIDEO Cat-5 cable to the camera. The
camera will boot up and in a few seconds, differential HD video will travel back down the Cat-5 cable to the USB
Mini. When an image is available, the camera is ready to accept control information from the IR SHOT Commander.
Controlling the WideSHOT QMini System
 IR Remote: The IR SHOT Commander Remote is the best way to control the camera in real-time. The IR
remote controller can control the camera’s basic functions and enter the OSD (on-screen display) for more
advanced controls. The IR remote is the best way to control the camera in real-time.

RS-232 Control: This control port is used by the USB Mini to ID the attached camera. Using another control
method (joystick or control system) is not necessarily a great idea because the USB Mini will not recognize the
camera and it won’t auto-load the control protocols for the camera or serve up the web pages (see next bullet).

Built-in Web Server Control: The USB Mini has a built-in web server that auto-loads the control protocols of
the Vaddio camera attached. Camera set-up and controls are available to the administrator of the system from
any approved browser on any computer. The system has two modes: Video Streaming Mode and Web Control
Mode. While using the Web Control Mode, the image is not available for preview. For this reason, the IR
SHOT Commander controlling the camera image through the OSD is the best way to control the camera in
real-time.
USB Mini Details
The USB Mini Interface is a Cat-5 camera interface and a USB 2.0 streaming appliance with a built-in webserver
for camera set-up and control. The interface uses UVC (Universal Video Class) drivers for USB 2.0 video and does
not require the loading of any other drivers to run on the PC.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 12 of 30
ZoomSHOT 20 QMini System
COMPATIBILITY
The Quick-Connect USB Mini will work with the following web browsers, soft codecs,
computer operating systems and media players:
Compatibility - Web Browsers:
1) Internet Explorer (IE 8 and above)
2) Safari (Rev 4 and 5)
3) Safari/iOS (Rev 4 and 5)
4) Chrome (the latest and current release - auto updating)
5) Firefox (the latest and current release - auto updating)
Soft Client Compatibility: The Quick-Connect USB Mini is compatible with the following soft codecs or
applications, in no particular order:
1) Skype
Win 7 & Mac OS X (10.7)
2) Web Ex (WBS 28.7 and up)
Win 7 & Mac OS X
3) Microsoft Lync
Win 7
4) Cisco Jabber
Win 7 & Mac OS X
5) Vidyo Desktop
Win 7 & Mac OS X
6) Google Plus
Win 7
7) Adobe Connect 8
Win 7 & Mac OS X
8) LifeSize ClearSea
Win 7
9) GoToMeeting (Citrix)
Win 7 & Mac OS X
10) Polycom M100
Win 7
11) Panaopto (lecture capture)
Win 7
Compatibility: Media Players:
The UVC with MJPEG and IP with H.264 video are compatible with the industry leading PC media players.
 Quick-Time 10.2
 VLC Media Player 2.0.4
 Real Player 16.0
Compatibility: Operating Systems
 Apple OS X (10.7 and above)
 Windows XP w/Service Pack 3 with known issues and errata
 Windows 7
 Linux
Evolving Compatibilities:
As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a
continuing research and development effort to ensure the compatibility with other manufacturer’s products.
Compatible with USB 2.0 UVC Drivers
The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available
for the Host PC and the USB Mini to negotiate and use for any approved/tested USB application. Typically, the
highest resolution possible between both the PC and USB Mini is used. However, not all OS and application
combinations are altogether typical.
Table: Supported UVC Resolutions
Format
Resolution
Frame Rate
Aspect Ratio
MJPEG
1280 x 720
15/30
16:9
960 x 544
15/30
16:9
704 x 576
15/30
4:3
640 x 480
15/30
4:3
640 x 360
15/30
16:9
424 x 240
15/30
4:3
352 x 240
15/30
4:3
320 x 240
15/30
4:3
320 x 180
15/30
16:9
Note: The bandwidth of USB 2.0 limits the maximum resolution to 720p/30 using MJPEG compression.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 13 of 30
ZoomSHOT 20 QMini System
INTERNAL WEB PAGES AND CONTROL
The internal web pages will allow control of the USB Mini and control of the attached camera via a network
connection. These web pages will allow the user or administrator to set security passwords, change the IP address,
view diagnostics, access the firmware upgrade page and more!
USB Mini Web Page Tour
Screen Shot: Login
The USB Mini has an integrated webserver a user’s camera control page at one level and an administrator’s
management tool at another level, which requires password authentication for access.
The Login Page will appear if there is a user name assigned by the administrator. Assigning a user name can limit
access to the admin menus by a general user. By default, the User name is blank and the password for the User
account is password. The Administrator can set the name and password for the User account. If no user name is
assigned, the web page will automatically open to the Camera Control page when the USB streaming mode is
toggled to Web Control Mode. The video is switched off in Web Control Mode, so as mentioned earlier the IR SHOT
Commander Remote is the best way to control the camera in real time.
Screen Shot: Camera Control Page - No Camera Detected
The No Camera Detected window will appear if the USB Mini has no communication with a Vaddio camera through
the RS-232 serial data port. Check the camera power and serial connections if the camera is not detected within
30 seconds of initialization. USB Mini controls the camera over the serial connection.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 14 of 30
ZoomSHOT 20 QMini System
Screen Shot: Camera Control Page and User Menu for ZoomSHOT 20
(Adjustable in web server mode only)
➊
➐
➑
➋
➌
➎
➍
➏
1)
Home Control: The Home button will return the camera to a full wide end view (1X). This control is functional with
the ZoomSHOT 20 camera.
2)
Zoom Control: The ZoomSHOT 20 lens can be controlled with the “+” to zoom-in (tele end) and the “-“ to zoom out
(wide end). This control works with the ZoomSHOT 20, but the manual lens on the WideSHOT can’t be controlled.
3)
Zoom Speed Control: The speed for the zoom control can be adjusted with the button in this section. For tighter
shots, it is recommended that the slower speed is used.
4)
Store Preset Button: Clicking the Store button opens up a pop-up dialog box. To set presets, set up the camera
shot with the IR remote, toggle to Web Control mode and open the Camera Control menu, click on choice of preset
number (1 through 6). The preset is stored and the dialog box closes. Toggle back to streaming mode on the USB
Mini.
5)
Camera Presets: Up to six (6) zoom presets can be stored and recalled simply by clicking a preset number.
6)
CCU Scenes: The user has access to the CCU scenes set and stored by the Admin. There are three (3) user
definable presets and six (6) presets preconfigured by the technical folks at Vaddio (really Scott set them all) that are
meant to be used in certain lighting scenarios. These lighting presets included; Automatic, Incandescent Hi,
Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor.
7)
Administration Menu: By clicking on the Administration menu bar, the Admin Login
screen will appear. The default Admin password is: password
8) Vertical: The vertical button will reduce the size of the window for the user controls and
remove the menu tabs on the left side of the screen. Click on ‘Full’ for the full sized
camera control web pages. For the most part, use the web control pages in full
screen mode.
Image:
Reduced window size for camera control
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 15 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Log-in
By selecting the Admin Menu Bar, the Admin Login password pop-up window will appear and await the entry of
the password. By entering the Admin menus, 10 more menu keys appear on the left side of the screen.
The default Admin Account Password is password
Cancel and Save Buttons
Note: At the bottom of each of the admin menus, there is a Cancel and Save button. Please
click on the Save button before exiting each web page if the changes made require retention.
Click Cancel to delete any changes made to the page while exiting.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 16 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Menu - Camera Settings Page
The Camera settings page provides the parameters to allow the end user to match the camera to the environment,
set the CCU presets and make startup assignments. Note: These controls can’t be adjusted in real-time while
viewing video, but if the IR SHOT Commander is used to change the color settings in video streaming mode, then
those settings are reflected on this page, which can be saved in a preset.
➊
➋
➌
➍
➎
1) Load Preset at Startup: Check this box to move the camera to a predefined preset location when the camera
powers up. Use the pull down menu to select the Preset 1 through 6 to be loaded when this box is checked.
2) Load CCU Scene at Startup: Check this box to load a CCU Scene into the camera when the camera powers
up. The pull down menu will allow the selection of one of the 6-factory scenes, or any of the three (3) user
defined scenes.
3) CCU Scenes: Click on any of these 9-buttons to load one of the CCU scenes into the camera. These scenes
can be fine-tuned if changes are needed, and stored into any of the three user defined scenes.
4) Color Settings: When painting or shading camera scenes for specific lighting situations or environments. The
parameters within the Color Settings section are defined below (top to bottom):
 Auto Iris check box: When checked, the camera will operate in Auto Iris mode, when unchecked, the
camera will be in Manual Iris mode and allow adjustment of Iris and Iris Gain levels.
 Iris: Move adjustment slider as required to adjust the iris opening. A numeric value is displayed in the box
to the right of the slider.

Gain: Move adjustment slider as required for amount of iris gain desired. A numeric value will be displayed
in the box to the right of the slider.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 17 of 30
ZoomSHOT 20 QMini System





Auto White Balance check box: When checked, camera will operate in Auto White Balance mode, when
unchecked camera will be in Manual White Balance Mode and allow for adjustment of Red and Blue Gain.
 Red Gain: Move the adjustment slider as required for amount of Red Gain desired. A numeric
value will be displayed in the box to the right of the slider.
 Blue Gain: Move the adjustment slider as required for amount of Blue Gain desired. Numeric
value will be displayed in the box to the right of the slider.
Back Light Compensation: When checked, Back Light Compensation will be applied to the camera if
BLC is supported by the camera and the camera is in Auto White Balance mode.
Detail: Move the adjustment slider as required for amount of detail (Aperture) desired. A numeric value
will be displayed in the box to the right of the slider. Note: If the detail is too high, the video can look grainy
and appear noisy too.
Chroma: Move the adjustment slider as required for the amount of Chroma (Color Vibrancy) desired. A
numeric value will be displayed in the box to the right of the slider.
Store CCU Scene button: Once the desired scene adjustments have been made, this button will activate
a pop-up menu that can be used to store this scene into one of the three user defined scene locations.
These user-defined scenes can be named as required for clarity and may be adjusted and re-saved at any
time.
5) Custom CCU Scene Labels: The labels for the (3) user Defined customizable scenes can be changed as
needed. Mouse the cursor into the appropriate window and edit the text. Press Save to store changes or
press Cancel to exit this window.
Screen Shot: Admin Menu - Streaming Page
➊
➋
➌
➍
1) Streaming Mode: Streaming for the USB Mini is limited to USB 2.0 streaming (MJPEG).
2) USB Device Name: The USB device “friendly” name is displayed here. This parameter is editable.
3) Color Space: The UVC drivers will negotiate the color depth, but this parameter allows the user to reduce the
color depth to 4:2:0, which is used with the older/cheaper webcams and applications, where image quality is
not as critical. The 4:2:2 color is used by many applications that take advantage of the performance of the
camera where the colors are more vibrant and precise.
4) When finished setting up the streaming mode, click save to put the changes into effect, or cancel, which will not
save the configuration.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 18 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Menu - Room Labels
The Room Labels menu allows the administrator to label the company name, room name, room phone and help
phone on a per USB Mini basis. The labels appear on every page at the top/middle of the page. Simply enter the
room information and click Save.
Screen Shot: Admin Menu - Networking
Under the Networking menu, the Network Configuration page displays the Hostname and allows configuration of
Ethernet over the USB port.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 19 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Menu - Security
The Security menu allows the Admin to UPDATE “user” PASSWORD and UPDATE “admin” PASSWORD. The
default “user” password is still password. The default “admin” password is also password. The Network
administrator can reassign the user name and password as well as the admin password. There is only one user
password and one admin password at any given time. If changes are made, click on Save to store the change.
Screen Shot: Admin Menu - Diagnostics
Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical
support team diagnose a problem with the USB Mini and the attached camera.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 20 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Menu - System Menu
The System Menu is where the Firmware Updates are performed. There will be firmware updates and upgrades
over the life of the Quick-Connect. The file for the firmware update is chosen in this menu and the update is started
here too.
Screen Shot: Admin Menu - Update Confirmation
After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact
Vaddio Technical Support for assistance with updates. Please read and completely understand the pop-up
warnings, as it is easy to lose patience waiting for updates. Click on continue to start the update.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 21 of 30
ZoomSHOT 20 QMini System
Screen Shot: Admin Menu - Update in Progress
After the firmware load is started, a pop-up screen will advise patience and notify, in terms of a percentage
completed, the progress of the firmware update load. Again, please don’t interrupt the firmware load.
Screen Shot: Admin Menu - Help
Service/Help information is located under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s
and System information are listed on this page. Have this page open when calling Vaddio Technical Support.
TECHNICAL SUPPORT NOTE:
Please work with your Network Administrator prior to calling Vaddio for technical support.
Please have on-site network personnel initiate tech support calls with Vaddio only.
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 22 of 30
ZoomSHOT 20 QMini System
CONNECTING THE USB MINI AND ZOOMSHOT 20 TO THE PC AND PROGRAM OF CHOICE
The USB Mini and attached camera are compatible with many programs and media players. The following is an
attempt to generally describe the steps to plug in the USB Mini with a Vaddio ZoomSHOT 20 camera and get an
image in a couple of popular programs.
Skype Example:
1) After connecting a camera to the USB Mini, with a quality USB 2.0 cable, plug
the USB-B port of the USB Mini Interface to the USB-A port of the computer.
A pop up window on the computer monitor will display the following:
a. Found USB Mini
b. Found USB Composite Device
c. Found USB Video Device
2) Open Skype and perform the following steps:
a. Open the Tools Menu and drop down to Options
b. Click on Video Settings and under Webcam choose USB Video Device
The systems will negotiate the highest resolutions possible, depending on the computer speed, network quality,
cabling etc..., and display the video signal of the camera. The camera attached to the USB Mini is best controlled
with the supplied Vaddio IR SHOT Commander or through IP as described earlier with the USB Mini’s web pages.
Make a test call to ensure the system is working properly.
VLC Media Player Example:
1) Same first step as above…
2) Open VLC Media Player and perform the following steps:
a. Click on the Media menu, drop down to Open Capture Device and click it.
b. Under Device Name, go to the Video Device Name drop down and choose USB Video Device.
c. Under Options, enter the Video Size as 1280x720
d. Click on Play
e. From there, VLC needs some instruction on the aspect ratio, so click on Tools and drop down to Aspect
Ratio and drop down again to 16:9 for 720p (1280x720).
VLC is a powerful record/playback system will buffer the images creating some delay in the way VLC displays the
image. This expected and normal.
With all the compatible software available, in general terms, the video device, aspect ratio, and resolution may
need to be set manually the first time through initial set-up. Some systems are easier than others (like Skype) and
others are more technical in nature and tend to do more stuff.
Example Program Notes: Most every OS, UC application or media player is in a constant state of updating and
change. The above instructions were written at the beginning of 2013 and some steps may be slightly different.
The general idea however is the same, generally…
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 23 of 30
ZoomSHOT 20 QMini System
GENERAL SPECIFICATIONS
ZoomSHOT 20 QMini System
Part Numbers
ZoomSHOT 20 Camera
Image Sensor
Total/Effective Pixels
Video Output Resolutions
Lens/ Focal Length
Horizontal Viewing Angle
Video S/N Ratio
Minimum Illumination
Serial Control Protocol
Manual Pan/Tilt Range
Preset Positions
Tally Light
Camera Connectors
HD Video Select
Camera Settings
Thin Profile Wall Mount
User Controls
Materials & Weight
Dimensions:
USB Mini Interface
Video Outputs
USB Interface
Network Interface
Streaming Protocols
Connectors
Supported Media Players
Supported Browsers
Power Supply
Dimensions (H x W x D)
Weight
Operating Temperatures
Power Consumption
ZoomSHOT 20 QMini System 999-6920-400 (North America)
ZoomSHOT 20 QMini System 999-6920-401 (International)
1/2.8-Type Exmor CMOS Image Sensor
2.38 Million Total Pixels, 2.14 Million Effective pixels
HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50, 16:9 Aspect Ratio
20X Optical Zoom, F=4.44mm wide end to 89mm tele end (F1.6 - F3.4),
Min. Focus Distance 1.5m
Horizontal: 63º Wide End to 3.47º Tele End, (16:9 Aspect Ratio)
>52 dB
Color: 0.3 Lux (F1.6, 1/30 sec, 50 IRE), B/W: 0.03 Lux (F1.6, 1/30 sec, 50 IRE)
RS-232 (Modified VISCA)
Pan: Limited to service loop of cabling, yoke and base are mechanical only, Tilt: ± 30°
Invertible for Ceiling Mount
Six (6) Programmed and Recalled via IR Remote, 16 Programmed and Recalled with RS-232
Available through RS-232 Control
Two (2) RJ-45 Jacks:
 EZ-Power VIDEO RJ-45 Jack for use with Quick-Connect - Supplies power to the camera and
returns differential HD video from the camera
 RS-232 RJ-45 Jack (RS-232 Communication)
16-Position Rotary Switch: Used to set the ZoomSHOT 20 HD Video Resolution Output
6-Position Dip Switch: For IR Freq., Baud Rate 9600, Image and Flip
16-Position Rotary Switch for Output Resolution Settings
535-2000-237 (included) Black powder coating, Sized to fit on 1-gang wall box or drywall, mounting
hardware included
IR Shot Commander Remote with OSD for camera set-up, RS-232
Aluminum & Steel, Weight = 2.75643 lbs. (1.68kg)
Tube: 3” ( 76.2mm) Diameter x 4.75” (120.65mm) Long
Base: 5.5” (139.7mm) Diameter
Overall Height: 5.5” (139.7mm) Tall
USB 2.0 (MJPEG): Resolution up to 720p/30 (Limits of USB 2.0 with MJPEG Compression to
achieve 30 fps)
Connector: Type-B, USB 2.0 Compliant, Standard UVC (Universal Video Class) Drivers
Ethernet over USB 2.0 only
USB 2.0, MJPEG (UVC standard drivers)
 Power: 5.5mm OD x 2.5mm ID Coaxial Connector
 RS-232 Port: Shielded RJ-45 Jack
 EZ-Power Video Port: Shielded RJ-45 Jack (Power and Differential HD Video)
 Quick-Time Media Play - Win 7 & Mac OS10X
 VLC Media Player - Win 7 & Mac OS10X
 Real Player - Win 7
 Internet Explorer
 Safari
 Safari/iOS
 Chrome
 Fire Fox
24 VDC, 2.08 Amp
3.60” (91.4mm) H x 4.48” (113.8mm) W x 1.25” (31.75mm) D
1.1 lbs. (0.5Kg)
0°C to 40°C / 20% to 80% Relative Humidity
<25 watts
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 24 of 30
ZoomSHOT 20 QMini System
COMPLIANCE AND CE DECLARATION OF CONFORMITY FOR ZOOMSHOT 20
Compliance testing was performed to the following regulations:

FCC Part 15 (15.107, 15.109), Subpart B

ICES-003, Issue 4: 2004

EN 55022 A: 2006 + A1: 2007

KN22 2008 (CISPR 22: 2006)

KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002)

EMC Directive 2004/108/EC

EN 55024: A2: 2003
Class A
Class A
Class A
Class A
Class A
Class A
Class A
FCC Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15, Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his/her own
expense.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device
must accept any interference including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the
user’s authority to operate this equipment.
ICES-003 Compliance
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out
in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numeriques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le
ministère des Communications du Canada.
European Compliance
This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and
Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate measures.
Standard(s) To Which Conformity Is Declared:
EMC Directive 2004/108/EC
EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005)
EN 55024: A2: 2003

EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001

EN 61000-4-3: 2006 + A1: 2008

EN 61000-4-4: 2004 + Corrigendum 2006

EN 61000-4-5: 2006

EN 61000-4-6: 2009

EN 61000-4-8: 2010

EN 61000-4-11: 2004
KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002)
IEC 60950-1:2005 (2nd Edition); Am 1:2009
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Class A
Immunity
Electrostatic Discharge
Radiated Emissions
Electrical Fast Transients
Surge Immunity
Conducted Emissions
Power Frequency Magnetic Field
Voltage Dips, Interrupts and Fluctuations
IT Immunity Characteristics (Same as EN 61000)
Information Technology Equipment - Safety
Information Technology Equipment - Safety
Page 25 of 30
ZoomSHOT 20 QMini System
COMPLIANCE AND CE DECLARATION OF CONFORMITY FOR QUICK-CONNECT USB MINI
Compliance testing was performed to the following regulations:
 FCC Part15, Sections 15.107, 15.109 Subpart B
 ICES-003 ISSUE 4, 2004
 EN55022 A1 2007
 EMC Directive 2004/108/EC

EN 55024: A2: 2003
 IEC 60950-1:2005 (2nd Edition); Am 1:2009
 EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Class A
Class A
Class A
Class A
Class A
Class A
Class A

 FCC Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15, Subpart B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his/her own
expense.
 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This
device must accept any interference including interference that may cause undesired operation of the device.
 Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void
the user’s authority to operate this equipment.
ICES-003 Compliance
ICES-003, Issue 4: 2004
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in
the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numeriques de la classe B préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère
des Communications du Canada.
European Compliance
This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and
Immunity and meets the requirements for a Class A digital device. In a domestic environment, this product may
cause radio interference in which case the user may be required to take adequate measures.
Standard(s) To Which Conformity Is Declared:
EMC Directive 2004/108/EC
EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005)
EN 55024: A2: 2003

EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001

EN 61000-4-3: 2006 + A1: 2008

EN 61000-4-4: 2004 + Corrigendum 2006

EN 61000-4-5: 2006

EN 61000-4-6: 2009

EN 61000-4-8: 2010

EN 61000-4-11: 2004
IEC 60950-1:2005 (2nd Edition); Am 1:2009
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Class A
Immunity
Electrostatic Discharge
Radiated Emissions
Electrical Fast Transients
Surge Immunity
Conducted Emissions
Power Frequency Magnetic Field
Voltage Dips, Interrupts and Fluctuations
Information Technology Equipment - Safety
Information Technology Equipment - Safety
Page 26 of 30
ZoomSHOT 20 QMini System
WARRANTY INFORMATION
(See Vaddio Warranty, Service and Return Policies posted on vaddio.com for complete details):
Hardware* Warranty: Two (2) year limited warranty on all parts and labor for Vaddio manufactured products. Vaddio warrants
its manufactured products against defects in materials and workmanship for a period of two years from the day of purchase, to
the original purchaser, if Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace
products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or
equivalent to new in accordance with industry standard practices.
Exclusions: The above warranty shall not apply to defects resulting from improper or inadequate maintenance by the customer,
customers applied software or interfacing, unauthorized modifications or misuse, mishandling, operation outside the normal
environmental specifications for the product, use of the incorrect power supply, modified power supply or improper site operation
and maintenance. OEM products and products manufactured by other companies are excluded and are covered by the
manufacturer’s warranty.
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under
warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor
charge will be estimated by a technician and confirmed by the customer prior to repair. All components must be returned for
testing as a complete unit. Vaddio will not accept responsibility for shipment after it has left the premises.
Vaddio Technical Support: Vaddio technicians will determine and discuss with the customer the criteria for repair costs and/or
replacement. Vaddio Technical Support can be contacted through one of the following resources: e-mail support at
[email protected] or online at vaddio.com.
Return Material Authorization (RMA) Number: Before returning a product for repair or replacement request an RMA from
Vaddio’s technical support. Provide the technician with a return phone number, e-mail address, shipping address, product serial
numbers and original purchase order number. Describe the reason for repairs or returns as well as the date of purchase. See
the General RMA Terms and Procedures section for more information. RMA’s are valid for 30 days and will be issued to Vaddio
dealers only. End users must return products through Vaddio dealers. Include the assigned RMA number in all correspondence
with Vaddio. Write the assigned RMA number clearly on the shipping label of the box when returning the product. All products
returned for credit are subject to a restocking charge without exception.
Voided Warranty: The warranty does not apply if the original serial number has been removed or if the product has been
disassembled or damaged through misuse, accident, modifications, use of incorrect power supply, use of a modified power
supply or unauthorized repair.
Shipping and Handling: Vaddio will not pay for inbound shipping transportation or insurance charges or accept any
responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound shipping, transportation, and insurance
charges for all items under warranty but will not assume responsibility for loss and/or damage by the outbound freight carrier.
If the return shipment appears damaged, retain the original boxes and packing material for inspection by the carrier. Contact
your carrier immediately.
Products not under Warranty: Payment arrangements are required before outbound shipment for all out of warranty products.
*Vaddio manufactures its hardware products from parts and components that are new or equivalent to new in accordance with industry standard practices.
Other General Information:
Care and Cleaning
Do not attempt to take this product apart at any time. There are no user-serviceable components inside.

Do not spill liquids in the product

Keep this device away from food and liquid

For smears or smudges on the product, wipe with a clean, soft cloth

Use a lens cleaner on the lens - not a hanky

Do not use any abrasive chemicals.
Operating and Storage Conditions:
Do not store or operate the device under the following conditions:

Temperatures above 40°C (104°F) or temperatures below 0°C (32°F)

High humidity, condensing or wet environments

In inclement weather

In swimming pools or under landscape waterfalls

Dry environments with an excess of static discharge

In orbit (collision and gravity issue)
 Under severe vibration
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 27 of 30
ZoomSHOT 20 QMini System
APPENDIX 1: PIN-OUTS FOR ZOOMSHOT 20 CAMERA AND QUICK-CONNECT USB MINI
Table: EZ-POWER VIDEO RJ-45 Connector Pin-outs
Pin
1
2
3
4
5
6
7
8
Signal
Power+
PowerY+
PB+
PB YPR+
PR-
EZ-POWER VIDEO
12345678
Important Note: The EZ-POWER VIDEO RJ-45 Connector on a Vaddio Cat-5 system camera is for use
with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces
ONLY (568B Wiring Standard). The video signals are differential (HSDS) and can only be processed by
the interfaces above.
Table: ZoomSHOT 20 Camera RS-232 Port
Pin #
Pin - 1
Pin - 2
Pin - 3
Pin - 4
Pin - 5
Pin - 6
Pin - 7
Pin - 8
Function
N/A
N/A
N/A
Not Used with QC-USB Mini
Not Used with QC-USB Mini
Digital GND
RXD (from TXD of control source)
TXD (to RXD of control source)
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
RS-232
12345678
Page 28 of 30
ZoomSHOT 20 QMini System
SYSTEM NOTES:
ZoomSHOT 20 QMini System Document Number 342-0970 Rev A
Page 29 of 30
ZoomSHOT 20 QMini System
Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464
www.vaddio.com
©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change
without notice or obligation. Vaddio, ZoomSHOT 20, WideSHOT, EZCamera, EZIM, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks
are property
of their respective
owners.Document
Document
Number
342-0970
Rev
ZoomSHOT
20 QMini System
Number
342-0970
Rev
A A, SD: 68903.5
Page 30 of 30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
