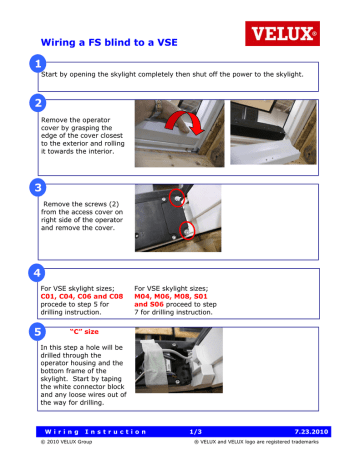

Wiring a FS blind to a VSE
1
Start by opening the skylight completely then shut off the power to the skylight.
2
Remove the operator
cover by grasping the
edge of the cover closest
to the exterior and rolling
it towards the interior.
3
Remove the screws (2)
from the access cover on
right side of the operator
and remove the cover.
4
For VSE skylight sizes;
C01, C04, C06 and C08
procede to step 5 for
drilling instruction.
5
For VSE skylight sizes;
M04, M06, M08, S01
and S06 proceed to step
7 for drilling instruction.
“C” size
In this step a hole will be
drilled through the
operator housing and the
bottom frame of the
skylight. Start by taping
the white connector block
and any loose wires out of
the way for drilling.
Wi ri ng
I ns tru ctio n
© 2010 VELUX Group
1/3
7.23.2010
® VELUX and VELUX logo are registered trademarks
Wiring a FS blind to a VSE
6
“C” size
Drill a ¼” hole through
the operator housing and
bottom frame so that the
hole comes out at the
back of the finish groove.
Do not damage wires or
drill to the exterior of
skylight.
7
“M” and “S” size
For wider skylights drill a
¼” hole to the right of the
operator. Angle the drill
so that the hole comes out
at the back of the finish
groove.
8
Install the FS blind wire
through the hole in the
frame and route to the
white connector.
Wire routing for ”C” sizes
Wire routing for ”M”and
”S” sizes
9
Install the blind wire to
the white connector block.
Install the wires so that
colors match within the
same termination block.
Wire from FS blind
Wi ri ng
I ns tru ctio n
© 2010 VELUX Group
2/3
7.23.2010
® VELUX and VELUX logo are registered trademarks
Wiring a FS blind to a VSE
10
Place the connector block
back into the operator
housing. Run the wires
for “M” and “S” sizes
through the access hole in
the side of the operator
housing. Replace the
access cover and secure
with screws (2).
11
Replace the operator
cover and return power to
the skylight.
12
Blind/s must be registered
to the KLR 100 remote
control within 10 minutes
of returning power to the
skylight.
If power has been on for
more than 10 minutes,
disconnect the power for 1
minute then re-connect
the power and register the
blind.
13
Register the blind by
going into the “menu” on
the remote control then
choose “system settings”
then choose “register
product”
Wi ri ng
This process can take up
two minutes. Once
completed, the blind is
now ready to operate.
I ns tru ctio n
© 2010 VELUX Group
3/3
For more operating details
refer to the KLR 100 Users
Manual.
7.23.2010
® VELUX and VELUX logo are registered trademarks
