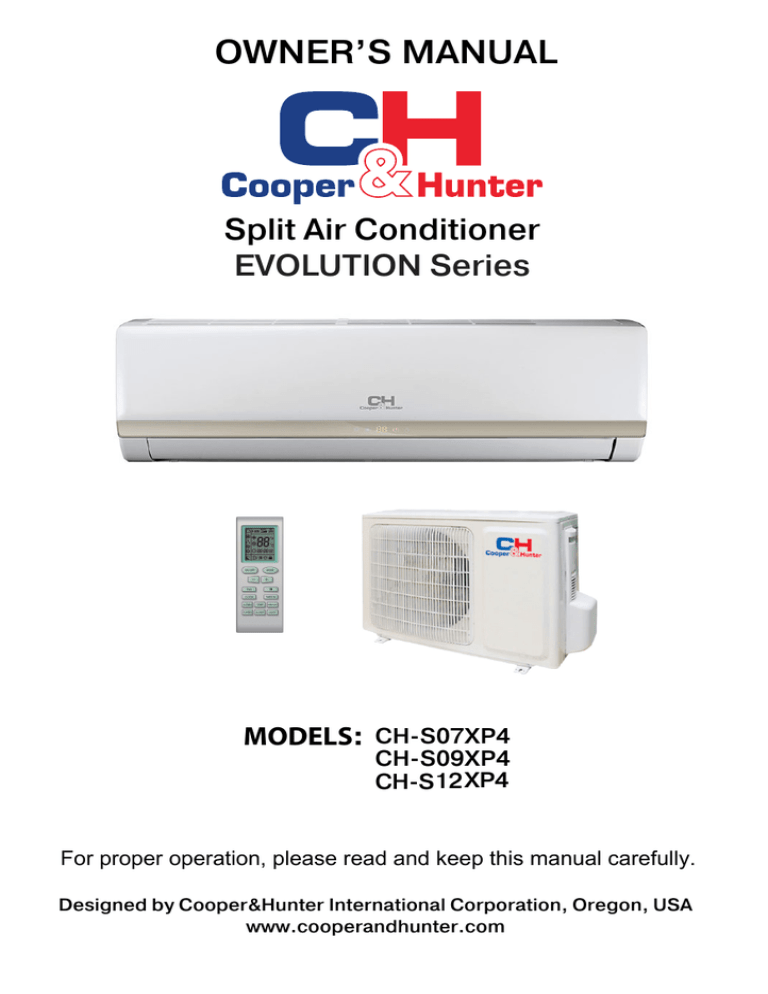

«Evolution Series»
OWNER’S MANUAL
Split Air Conditioner
EVOLUTION Series
MODELS: CH-S07XP4
CH-S09XP4
CH-S12 XP4
For proper operation, please read and keep this manual carefully.
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
OWNER’S MANUAL
Thank you for choosing Cooper&Hunter air conditioner
Congratulations! You have become the extra class conditionary
owner with all advantages: modern total air cleaning
technology, Active Filter against all kinds of air pollution “Cold Plasma”.
Operation Notices
Content
Precautions............................................................................................................1
Parts Name............................................................................................................6
Screen Operation Guide
Buttons on remote controller .................................................................................7
Introduction for icons on display screen ................................................................ 7
Introduction for buttons on remote controller .........................................................8
Function introduction for combination buttons ......................................................12
Operation guide ....................................................................................................12
Replacement of batteries in remote controller ......................................................12
Emergency operation ...........................................................................................13
Maintenance
Clean and Maintenance........................................................................................14
Malfunction
Malfunction analysis ............................................................................................16
Installation Notice
Installation dimension diagram ............................................................................20
Tools for installation .............................................................................................21
Selection of installation location ..........................................................................21
Requirements for electric connection .................................................................. 22
Installation
Installation of indoor unit......................................................................................23
Installation of outdoor unit ...................................................................................28
Vacuum pumping .................................................................................................31
Leakage detection ...............................................................................................31
Check after installation ........................................................................................32
Test and operation
Test operation ......................................................................................................32
Attachment
Configuration of connection pipe .........................................................................33
Pipe expanding method .......................................................................................35
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they are away from the appliance.
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
R410A(R32/125: 50/50): 1975
Precautions
Warning
Operation and Maintenance
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory ormental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not wash the air conditioner with water to avoid
electric shock.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
1
Precautions
Warning
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
Do not repair air conditioner by yourself. It may cause
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not extend fingers or objects into air inlet or air
outlet. It may cause personal injury or damage.
Do not block air outlet or air inlet. It may cause
malfunction.
Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air
conditioner and disconnect power immediately,and then
contact the dealer or qualified professionals for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
If the air conditioner operates under abnormal conditions,
it may cause malfunction,electric shock or fire hazard.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
Do not step on top panel of outdoor unit, or put heavy
objects. It may cause damage or personal injury.
2
Precautions
Warning
Attachment
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing
the unit.
According to the local safety regulations, use qualified
power supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in fixed
wiring.
Including an circuit break with suitable capacity, please
note the following table.Air switch should be included
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Don't use unqualified power cord.
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
Properly connect the live wire, neutral wire and
grounding wire of power socket.
Be sure to cut off the power supply before proceeding
any work related to electricity and safety.
3
Precautions
Warning
Do not put through the power before finishing installation.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper
tube.
The appliance shall be installed in accordance with
national wiring regulations.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel
only.
The air conditioner is the first class electric appliance. It
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The appliance must be positioned so that the plug is
accessible.
All wires of indoor unit and outdoor unit should be
connected by a professional.
If the length of power connection wire is insufficient,please
contact the supplier for a new one. Avoid extending the
wire by yourself.
4
Precautions
Warning
For the air conditioner with plug ,the plug should be
reachable after finishing installation.
For the air conditioner without plug, an circuit break
must be installed in the line.
If you need to relocate the air conditioner to another
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
Select a location which is out of reach for children and
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
The indoor unit should be installed close to the wall.
Working temperature range
Maximum cooling
Maximum heating
Indoor side DB/WB(℃ )
32/23
27/-
Outdoor side DB/WB(℃ )
43/26
24/18
● The operating temperature range (outdoor temperature) for cooling only unit is
18℃ ~43℃ ; for heat pump unit is -7℃ ~ 43℃ .
5
Parts Name
Indoor Unit
air inlet
panel
aux.button
cooling
indicator
power
indicator
horizontal louver
receiver
window
air outlet
display
heating
indicator
temp.
indicator
drying
indicator
(Display content or position may be different from above
graphics, please refer to actual products)
Outdoor Unit
remote controller
air inlet
Connection wire
air outlet
Notice:
Actual product may be different from above graphics, please refer to actual
products.
6
Buttons on remote controller
1
ON/OFF button
2
MODE button
3
+/- button
4
FAN button
5
button
6
CLOCK button
7
TIMER ON/TIMER OFF
button
5
8
X-FAN button
(Note: X-FAN is the same with
BLOW.)
8
7
9
TEMP button
10
9
10
TURBO button
12
11
11
LIGHT button
12
SLEEP button
1
2
3
4
6
Introduction for icons on display screen
set fan speed
operation mode
send signal
X-fan mode
auto mode
cool mode
dry mode
fan mode
heat mode
set temperature
turbo mode
set time
TIMER ON/TIMER
OFF
clock
sleep mode
child lock
light
Temp. display type
:set temp.
:outdoor ambient temp.
:indoor ambient
temp.
up&down swing
7
Introduction for buttons on remote controller
Caution: After putting through the power, the air conditioner will give out a
sound. Operation indictor " " is ON (red indicator). After that, you can operate
the air conditioner by using remote controller.
1
ON/OFF button
Pressing this button can turn on or turn off the air conditioner. After turning on the air
conditioner, operation indicator "
" on indoor unit’s display is ON (green indicator. The
colour is different for different models), and indoor unit will give out a sound.
2
MODE button
Press this button to select your required operation mode.
AUTO COOL DRY FAN
HEAT
● When selecting auto mode, air conditioner will operate automatically according to exfactory setting. Set temperature can’t be adjusted and will not be displayed as well. Press
"FAN" button can adjust fan speed. Press " " button can adjust fan blowing angle.
● After selecting cool mode, air conditioner will operate under cool mode. Cool indicator
"
" on indoor unit is ON. Press "+" or "-" button to adjust set temperature. Press "FAN"
button to adjust fan speed. Press " " button to adjust fan blowing angle.
● When selecting dry mode, the air conditioner operates at low speed under dry mode. Dry
indicator " " on indoor unit is ON. Under dry mode, fan speed can’t be adjusted. Press
" " button to adjust fan blowing angle.
● When selecting fan mode, the air conditioner will only blow fan, no cooling and no
heating. all indicators are OFF. Press "FAN" button to adjust fan speed. Press " "
button to adjust fan blowing angle.
● When selecting heating mode, the air conditioner operates under heat mode. Heat
indicator "
" on indoor unit is ON. Press "+" or "-" button to adjust set temperature
Press "FAN" button to adjust fan speed. Press " " button to adjust fan blowing angle.
(Cooling only unit won’t receive heating mode signal. If setting heat mode with remote
controller, press ON/OFF button can’t start up the unit).
Note:
● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5
minutes to blow air (actual delay time is depend on indoor ambient temperature).
● Set temperature range from remote controller: 16~30℃ ; Fan speed: auto, low speed,
medium speed, high speed.
8
Introduction for buttons on remote controller
3
"+" or "-" button
● Pressing "+" or "-" button once increases or decreases set temperature 1℃ Holding "+"
or "-" button, 2s later, set temperature on remote controller will change quickly. On
change accordingly. (Temperature can’t be adjusted under auto mode)
● When setting TIMER ON, TIMER OFF or CLOCK, press "+" or "-" button to adjust time.
(Refer to CLOCK, TIMER ON, TIMER OFF buttons) When setting TIMER ON, TIMER
OFF or CLOCK, press "+" or "-" button to adjust time. (Refer to CLOCK, TIMER ON,
TIMER OFF buttons)
4
FAN button
Pressing this button can set fan speed circularly as: auto (AUTO), low(
high(
).
), medium(
),
Auto
Note:
● Under AUTO speed, air conditioner will select proper fan speed automatically according
to ex-factory setting.
● Fan speed under dry mode is low speed.
5
button
● Pressing this button can select up&down swing angle. Fan blow angle can be selected
circularly as below:
no display
(horizontal louvers
stops at current position)
● When selecting " ", air conditioner is blowing fan automatically. Horizontal louver
will automatically swing up & down at maximum angle.
"
"
"
"
● Hold " " button over 2s to set your required swing angle.When reaching your required
angle, release the button.
Note:
●"
" may not be available. When air conditioner receives this signal, the air
conditioner will blow fan automatically.
9
Introduction for buttons on remote controller
6
CLOCK button
Press this button to set clock time. "
" icon on remote controller will blink. Press "+" or
"-" button within 5s to set clock time. Each pressing of "+" or "-" button, clock time will
increase or decrease 1 minute. Hold "+" or "-" button, 2s later, time will change quickly.
the time. "
" icon stops blinking.
Note:
● Clock time adopts 24-hour mode.
● The interval between two operations can’t exceeds 5s. Otherwise, remote controller will
quit setting status. Operation for TIMER ON/TIMER OFF is the same.
7
TIMER ON/TIMER OFF button
● TIMER ON button
"TIMER ON" button can set the time for timer on. After pressing this button, "
" icon
disappears and the word "ON" on remote controller blinks. Press "+" or "-" button
to adjust TIMER ON setting. After each pressing "+" or "-" button, TIMER ON setting will
increase or decrease 1min. Hold "+" or "-" button, 2s later, the time will change quickly
"
"
"
"
stop blinking. " " icon resumes displaying.Cancel TIMER ON: Under the condition
that TIMER ON is started up, press “TIMER ON” button to cancel it.
● TIMER OFF button
"TIMER OFF" button can set the time for timer off. After pressing this button, " " icon
disappears and the word "OFF" on remote controller blinks. Press "+" or "-" button to
adjust TIMER OFF setting. After each pressing "+" or "-" button, TIMER OFF setting
will increase or decrease 1min. Hold "+" or "-" button, 2s later, the time will change
"
"
"OFF" will stop blinking. " " icon resumes displaying. Cancel TIMER OFF. Under the
condition that TIMER OFF is started up, press "TIMER OFF" button to cancel it.
Note:
● Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.
● Before setting TIMER ON or TIMER OFF, please adjust the clock time.
● After starting up TIMER ON or TIMER OFF, set the constant circulating valid. After that,
air conditioner will be turned on or turned off according to setting time. ON/OFF button
has no effect on setting. If you don’t need this function, please use remote controller to
cancel it.
8
X-FAN button
Press this button under cool and dry mode to start up x-fan function, and " " icon on
remote controller will be displayed. Press this button again to cancel x-fan function, and
" " icon will disappear.
10
Introduction for buttons on remote controller
Note:
● When x-fan function is on, if the air conditioner is turned off, indoor fan will still
operate at low speed for a while to blow the residual water inside the air duct.
● During x-fan operation, press X-FAN button to turn off x-fan function. Indoor fan will
stop operation immediately.
9
TEMP button
By pressing this button, you can see indoor set temperature, indoor ambient temperature
or outdoor ambient temperature on indoor unit’s display. The setting on remote
controlleris is selected circularly as below:
no display
● When selecting " " or no display with remote controller, temperature indicator on
indoor unit displays set temperature.
● When selecting " " with remote controller, temperature indicator on indoor unit
displays indoor ambient temperature.
● When selecting "
" with remote controller, temperature indicator on indoor unit
displays outdoor ambient temperature.
Note:
● Outdoor temperature display is not available for some models. At that time, indoor unit
receives " " signal, while it displays indoor set temperature.
● It’s defaulted to display set temperature when turning on the unit. There is no display in
the remote controller.
● Only for the models whose indoor unit has dual-8 display.
● When selecting displaying of indoor or outdoor ambient temperature, indoor
temperature indicator displays corresponding temperature and automatically turn to
10
TURBO button
Under COOL or HEAT mode, press this button to turn to quick COOL or quick HEAT
mode. " " icon is displayed on remote controller. Press this button again to exit turbo
function and " " icon will disappear.
11
SLEEP button
Under COOL, HEAT or DRY mode, press this button to start up sleep function. "
" icon
is displayed on remote controller. Press this button again to cancel sleep function and
"
" icon will disappear.
12
LIGHT button
Pressing this button to turn off display light on indoor unit. "
" icon on remote controller
disappears. Press this button again to turn on display light. "
" icon is displayed.
11
Function introduction for combination buttons
Child lock function:
Press "+"and "-" simultaneously to turn on or turn off child lock function. When child
lock function is on," " icon is displayed on remote controller. If you operate the remote
controller, it won’t send signal.
Temperature display switchover function:
Under OFF status, press "-" and “MODE” buttons simultaneously to switch temperature
display between ℃ and ℉ .
Operation guide
1. After putting through the power, press "ON/OFF" button on remote controller to turn on
the air conditioner.
2. Press "MODE" button to select your required mode:AUTO, COOL, DRY, FAN, HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high speed.
5. Press "
" button to select fan blowing angle.
Replacement of batteries in remote controller
1. Press the back side of remote controller marked with
" "
of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and make
sure the position of "+" polar and "-" polar are correct.
3. Reinstall the cover of battery box.
signal sender
battery
reinstall
remove
Cover of battery box
Note:
● During operation, point the remote control signal sender at the receiving window on indoor
unit.
● The distance between signal sender and receiving window should be no more than 8m, and
there should be no obstacles between them.
telephone; remote controller should be close to indoor unit during operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the batteries.
● If the display on remote controller is fuzzy or there’s no display, please replace batteries.
12
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:
As shown in the fig. Open panel, press aux. button to turn on or turn off the
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
panel
aux. button
Clean and Maintenance
Note:
■ Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
Note:
● Do not remove the panel when cleaning it.
13
Clean and Maintenance
Clean filter
1
2
Open panel
3
Pull out the panel to a certain
angle as shown in the fig.
Clean filter
● Use dust catcher or water to
clean the filter.
● When the filter is very dirty, use
the water (below 45℃ ) to clean
it, and then put it in a shady
and cool place to dry.
Remove filter
Remove the filter as indicated in the fig.
4
Install filter
Install the filter and then close the
panel cover tightly.
Note:
■ The filter should be cleaned every three months. If there is much dust in the
operation environment, clean frequency can be increased.
■ After removing the filter, do not touch fins to avoid injury.
■ Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.
14
Clean and Maintenance
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether filter is clean.
4. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
5. Check whether drainage pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean filter and indoor unit’s panel.
3. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
Notice for recovery
1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.
15
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualified professionals.
Phenomenon
Check items
Solution
● Whether it's interfered severely ● Pull out the plug. Reinsert
(such as static electricity, stable the plug after about 3min, and
voltage)?
then turn on the unit again.
Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.
● Whether remote controller is
within the signal receiving
range?
● Signal receiving range is 8m.
● Whether there are obstacles?
● Remove obstacles.
● Whether remote controller is
● Select proper angle and point
pointing at the receiving
the remote controller at the rewindow?
ceiving window on indoor unit.
● Is sensitivity of remote contro- ● Check the batteries. If the
ller low; fuzzy display and no
power of batteries is too low,
display?
please replace them.
● Check whether remote cont● No display when operating
roller appears to be damaged.
remote controller?
If yes, replace it.
● Fluorescent lamp in room?
No air
emitted
from
indoor
unit
● Take the remote controller
close to indoor unit.
● Turn off the fluoresent lamp
and then try it again.
● Air inlet or air outlet of indoor
unit is blocked?
● Eliminate obstacles.
● Under heating mode, indoor
temperature is reached to set
temperature?
● After reaching to set temperature, indoor unit will stop blowing out air.
● Heating mode is turned on just ● In order to prevent blowing
now?
out cold air, indoor unit will be
started after delaying for several minutes, which is a normal phenomenon.
16
Malfunction analysis
Phenomenon
Air conditioner can’t
operate
Mist is emitted from
indoor unit’s
air outlet
Set temperature can’t
be adjusted
Cooling
(heating)
effect is
not good.
Check items
Solution
● Power failure?
● Wait until power recovery.
● Is plug loose?
● Reinsert the plug.
● Air switch trips off or fuse is
burnt out?
● Ask professional to replace
air switch or fuse.
● Wiring has malfunction?
● Ask professional to replace it.
● Unit has restarted immediately
● Wait for 3min, and then turn
after stopping operation?
on the unit again.
● Whether the function setting
for remote controller is
correct?
● Reset the function.
● Indoor temperature and humidity is high?
● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
● Unit is operating under auto
mode?
● Temperature can’t be adjusted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.
● Your required temperature
exceeds the set temperature
range?
● Set temperature range:
16℃ ~30℃ .
● Voltage is too low?
● Wait until the voltage
resumes normal.
● Filter is dirty?
● Clean the filter.
● Set temperature is in proper
range?
● Adjust temperature to proper
range.
● Door and window are open?
● Close door and window.
17
Malfunction analysis
Phenomenon
Odours are
emitted
Check items
Solution
● Whether there’s odour source, ● Eliminate the odour source.
such as furniture and cigarette,
● Clean the filter.
etc.
Air conditioner ● Whether there’s interference,
such as thunder, wireless
operates normally suddenly devices, etc.
● Disconnect power, put back
power, and then turn on the
unit again.
Outdoor
unit has
vapor
● Heating mode is turned on?
● During defrosting under heating mode, it may generate
vapor, which is a normal
phenomenon.
“Water
flowing”
noise
● Air conditioner is turned on or
turned off just now?
● The noise is the sound of
refrigerant flowing inside
the unit, which is a normal
phenomenon.
Cracking
noise
● Air conditioner is turned on or
turned off just now?
18
● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.
Malfunction analysis
Error Code
● When air conditioner status is abnormal, temperature indicator on indoor unit will
ation of error code.
Indoor
display
Error code
Error code
Above indicator diagram is only
for reference. Please refer to
actual product for the actual
indicator and position.
Troubleshooting
H1
Means defrosting status. It’s the normal phenomenon.
E5
It can be eliminated after restarting the unit. If not, please
U8
H6
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
C5
F1
F2
Not e : If there're other error codes, please contact qualified professionals for
service.
Warning
■ When below phenomenon occurs, please turn off air conditioner and disconfor service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Air switch trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
■ If the air conditioner operates under abnormal conditions, it may cause
19
At least 15cm
Space to the ceiling
Installation dimension diagram
Space to the wall
At least 15cm
At least 15cm
Space to the wall
o
et
n
tio
uc
tr
bs
o
Space to the obstruction
ac
Sp
the
At least 250cm
lea
the
to n
e
ac ctio
Sp stru
st
ob
lea
At cm
30
At least 50cm
At
cm
00
3
st
At least 30cm
Space to th
e wall
tru
bs
ce
a
Sp
to
o
the
At
At least 50cm
n
o
cti
Space to the
obstruction
00
t2
s
lea
cm
Drainage pipe
20
Tools for installation
1 Level meter
2 Screw driver
3 Impact drill
4 Drill head
5 Pipe expander
6 Torque wrench
7 Open-end wrench
8 Pipe cutter
9 Leakage detector
10 Vacuum pump
11 Pressure meter
12 Universal meter
13 Inner hexagon spanner
Note:
14 Measuring tape
● Please contact the local agent for installation.
● Don't use unqualified power cord.
Selection of installation location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is unavoidable, please consult the local
dealer:
1.The place with strong heat sources,
,
or volatile objects spread in the air.
2.The place with high-frequency
devices (such as welding machine,
medical equipment).
3.The place near coast area.
4.The place with oil or fumes in the air.
5.The place with sulfureted gas.
6.Other places with special circumstances.
7.The appliance shall not be installed in the laundry
Outdoor unit
Indoor unit
1. There should be no obstruction near air
inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and
won't affect other people.
3. Select a location which is convenient to
connect the outdoor unit and near the
power socket.
4. Select a location which is out of reach
for children.
5. The location should be able to withstand
the weight of indoor unit and won't increase noise and vibration.
6. The appliance must be installed 2.5m
7. Don't install the indoor unit right above
the electric appliance.
8. Please try your best to keep way from
fluorescent lamp.
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit
won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation
dimension diagram.
5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.
21
Requirements for electric connection
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit and
air switch.
3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to
electricity and safety.
6. Do not put through the power before finishing installation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
8. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
Grounding requirement
1. The air conditioner is the first class electric appliance. It must be properly
grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in
all poles should be connected in fixed wiring.
6. Including an air switch with suitable capacity, please note the following table. Air
switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)
Air-conditioner Air switch capacity
07K、09K、12K
10A
22
Installation of indoor unit
Step one: choosing installation location
Recommend the installation location to the client and then confirm it with the client.
Step two: install wall-mounting frame
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the
level meter and then point out the screw fixing holes on the wall.
2. Drill the screw fixing holes on the wall with impact drill (the specification of drill
head should be the same as the plastic expansion particle) and then fill the
plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and
then check if the frame is firmly installed by pulling the frame. If the plastic
expansion particle is loose, please drill another fixing hole nearby.
Step three: open piping hole
1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.
07、09K:
Wall
Space
to the
wall
above
150mm
Mark in the middle of it
Left
Φ55mm
Rear piping hole
12K:
Level meter
Wall
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Right
Φ55mm
Rear piping hole
Mark in the middle of it
Left
Φ55
Rear piping hole
Level meter
Wall
Space
to the
wall
above
150mm
Right
Φ55
Rear piping hole
2. Open a piping hole with the diameter of Φ55 on the selected outlet pipe
position. In order to drain smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.
23
Installation of indoor unit
Indoor
outdoor
Note:
● Pay attention to dust prevention and
take relevant safety measures when
opening the hole.
● The plastic expansion particles are
not provided and should be bought
locally.
Φ55
5-10
Step four: outlet pipe
1. The pipe can be led out in the
direction of right, rear right, left or
rear left.
2. When select leading out the pipe
from left or right, please cut off the
corresponding hole on the bottom
case.
left
right
left
rear right
rear left
right
cut off
the hole
Step five: connect the pipe of indoor unit
1. Aim the pipe joint at the corresponding
bellmouth.
pipe joint
union nut
pipe
2. Pretightening the union nut with hand.
3. Adjust the torque force by referring to the following sheet. Place the open-end
wrench on the pipe joint and place the torque wrench on the union nut. Tighten
the union nut with torque wrench.
24
Installation of indoor unit
open-end
wrench
union nut
torque wrench
pipe
Hex nut diameter Tightening torque (N.m)
15~20
Φ6
Φ 9.52
30~40
Φ 12
40~55
Φ 16
60~65
Φ 19
70~75
indoor pipe
4. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and
then wrap it with tape.
insulating pipe
Step six: install drain hose
1. Connect the drain hose to the outlet pipe of
indoor unit.
2. Bind the joint with tape.
outlet pipe
drain hose
drain hose
outlet
pipe
tape
drain hose
Note:
● Add insulating pipe in the indoor
drain hose in order to prevent
condensation.
● The plastic expansion particles are
not provided.
insulating pipe
Step seven: connect wire of indoor unit
panel
screw
1. Open the panel, remove the screw
on the wiring cover and then take
down the cover.
wiring cover
25
Installation of indoor unit
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
cable-cross
hole
power connection
wire
3. Remove the wire clip; connect the power
connection wire to the wiring terminal
according to the color; tighten the screw
and then fix the power connection wire
with wire clip.
07、09、12K Heat pump type:
blue black
yellowgreen
violet orange
outdoor unit connection
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
● If the length of power connection wire is insufficient, please contact the supplier
for a new one. Avoid extending the wire by yourself.
● For the air conditioner with plug, the plug should be reachable after finishing
installation.
● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole parting and the contact parting distance should
be more than 3mm.
26
Installation of indoor unit
Step eight: bind up pipe
1. Bind up the connection pipe, power
cord and drain hose with the band.
indoor unit
gas
pipe
connection pipe
drain hose
band
indoor and
outdoor power cord
indoor power cord
liquid pipe
band
3. Bind them evenly.
4. The liquid pipe and gas pipe should
be bound separately at the end.
drain hose
2. Reserve a certain length of drain
hose and power cord for installation
when binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.
Note:
● The power cord and control wire
can't be crossed or winding.
● The drain hose should be bound
at the bottom.
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed firmly and closed to the wall.
indoor
wall pipe
upper hook
outdoor
sealing gum
lower hook of
wall-mounting frame
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.
27
Installation of outdoor unit
Step one: fix the support of outdoor unit
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
Note:
● Take sufficient protective measures when
installing the outdoor unit.
● Make sure the support can withstand at least
four times of the unit weight.
● The outdoor unit should be installed at least
3cm above the floor in order to install drain
joint.
● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W
~16000W, 10 expansion screws are needed.
Step two: install drain joint
(Only for cooling and heating
unit)
Step three: fix outdoor unit
1. Place the outdoor unit on the
support.
2. Fix the foot holes of outdoor unit
with bolts.
1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
2. Connect the drain hose into the drain
vent.
drain vent
Drain hose
at least 3cm above the floor
foot holes
foot holes
chassis
outdoor drain joint
28
Installation of outdoor unit
Step four: connect indoor and outdoor pipes
3. Pretightening the union nut with
hand.
1. Remove the screw on the right handle of outdoor unit and then remove
the handle.
pipe joint
screw
yellowgreen
union nut
handle
2. Remove the screw cap of valve and
aim the pipe joint at the bellmouth of
pipe.
4. Tighten the union nut with torque
wrench by referring to the sheet
below.
torque
Hex nut diameter Tightening
(N.m)
Φ6
15~20
Φ 9.52
30~40
Φ 12
40~55
Φ 16
60~65
Φ 19
70~75
liquid pipe
liquid
valve
gas pipe
gas valve
1. Remove the wire clip; connect the po-wer connection wire and signal control
wire (only for cooling and heating unit) to the wiring terminal according to the
handle
07、09、12K Heat pump type:
N(1) 2
4
5
blue black violet orange
yellowgreen
Indoor unit connection
29
Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).
Note:
● After tighten the screw, pull the power cord slightly to check if it is firm.
● Never cut the power connection wire to prolong or shorten the distance.
Step six: neaten the pipes
1. The pipes should be placed along the wall,
bent reasonably and hidden possibly. Min.
semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall
hole, you must set a U-shaped curve in the
pipe before pipe goes into the room, in
order to prevent rain from getting into the
room.
wall
U-shaped curve
drain hose
Note:
● The through-wal height of drain hose
shouldn't be higher than the outlet
pipe hole of indoor unit.
● Slant the drain hose slightly downwards. The drain hose can't be
curved, raised and fluctuant, etc.
the drain hose
can't raise
upwards.
The drain hose can't be fluctuant
● The water outlet can't be placed
in water in order to drain smoothly.
The drain hose
can't be fluctuant
The water outlet
can't be placed
in water
30
The water
outlet can't be
fluctuant
Vacuum pumping
Use vacuum pump
1. Remove the valve caps on
liquid valve
the liquid valve and gas
piezometer
Lo
Hi
valve and the nut of refrigas valve
gerant charging vent.
valve cap
2. Connect the charging hose refrigerant charging
of piezometer to the refri- vent
gerant charging vent of gas nut of refrigerant
valve and then connect the charging vent
other charging hose to the
vacuum pump
vacuum pump.
3. Open the piezometer cominner hexagon
pletely and operate for
spanner
10-15min to check if the
pressure of piezometer remains in -0.1MPa.
close
4. Close the vacuum pump
open
and maintain this status for
1-2min to check if the pressure of piezometer remains
in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve
completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
Leakage detection
1. With leakage detector:
Check if there is leakage with leakage detector.
2. With soap water:
If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.
31
Check after installation
● Check according to the following requirement after finishing installation.
Items to be checked
Possible malfunction
Has the unit been installed firmly?
The unit may drop, shake or emit noise.
Have you done the refrigerant leakage
test?
It may cause insufficient cooling
(heating) capacity.
Is heat insulation of pipeline sufficient?
It may cause condensation and water
dripping.
Is water drained well?
It may cause condensation and water
dripping.
Is the voltage of power supply according to the voltage marked on the
nameplate?
It may cause malfunction or damaging
the parts.
Is electric wiring and pipeline installed
correctly?
It may cause malfunction or damaging
the parts.
Is the unit grounded securely?
It may cause electric leakage.
Does the power cord follow the specification?
It may cause malfunction or damaging
the parts.
Is there any obstruction in the air inlet
and outlet?
It may cause insufficient cooling
(heating) capacity.
The dust and sundries caused during
installation are removed?
It may cause malfunction or damaging
the parts.
The gas valve and liquid valve of
connection pipe are open completely?
It may cause insufficient cooling
(heating) capacity.
Test operation
1. Preparation of test operation
● The client approves the air conditioner.
● Specify the important notes for air conditioner to the client.
2. Method of test operation
● Put through the power, press ON/OFF button on the remote controller to start
operation.
● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check
whether the operation is normal or not.
● If the ambient temperature is lower than 16℃ , the air conditioner can’t
start cooling.
32
Configuration of connection pipe
1. Standard length of connection pipe
● 5m, 7.5m, 8m.
2. Min. length of connection pipe is 3m.
3. Max. length of connection pipe and max. high difference.
Cooling
capacity
Max length
Max height
of connecdifference
tion pipe
Cooling
capacity
Max length
Max height
of connecdifference
tion pipe
5000Btu/h
(1465W)
15
5
24000Btu/h
(7032W)
25
10
7000Btu/h
(2051W)
15
5
28000Btu/h
(8204W)
30
10
9000Btu/h
(2637W)
15
5
36000Btu/h
(10548W)
30
20
12000Btu/h
(3516W)
20
10
42000Btu/h
(12306W)
30
20
18000Btu/h
(5274W)
25
10
48000Btu/h
(14064W)
30
20
4. The additional refrigerant oil and refrigerant charging required after prolonging
connection pipe
● After the length of connection pipe is prolonged for 10m at the basis of
standard length, you should add 5ml of refrigerant oil for each additional 5m
of connection pipe.
● The calculation method of additional refrigerant charging amount (on the basis
of liquid pipe):
Additional refrigerant charging amount = prolonged length of liquid pipe ×
additional refrigerant charging amount per meter
● When the length of connection pipe is above 5m, add refrigerant according to
the prolonged length of liquid pipe. The additional refrigerant charging amount
per meter is different according to the diameter of liquid pipe. See the
following sheet.
33
Configuration of connection pipe
Additional refrigerant charging amount for R22, R407C, R410A and R134a
Diameter of connection pipe
Outdoor unit throttle
Liquid pipe(mm)
Gas pipe(mm)
Cooling only(g/m) Cooling and heating(g/m)
Φ6
Φ9.52 or Φ12
15
20
Φ6 or Φ9.52
Φ16 or Φ19
15
50
Φ12
Φ19 or Φ22.2
30
120
Φ16
Φ25.4 or Φ31.8
60
120
Φ19
_
250
250
Φ22.2
_
350
350
34
Pipe expanding method
Note:
Improper pipe expanding is the main cause of refrigerant leakage. Please expand
the pipe according to the following steps:
A: Cut the pipe
● Confirm the pipe length according to
the distance of indoor unit and
outdoor unit.
● Cut the required pipe with pipe cutter.
E: Expand the port
● Expand the port with expander.
hard
mold
expander
pipe
pipe
pipe cutter
leaning
uneven
Note:
● "A" is different according to the
diameter, please refer to the sheet
below:
burr
B: Remove the burrs
● Remove the burrs with shaper and
prevent the burrs from getting into
the pipe.
pipe
shaper
downwards
A(mm)
Outer diameter
(mm)
Max
Min
Φ6 - 6.35(1/4")
1.3
0.7
Φ9.52(3/8")
1.6
1.0
Φ12-12.7(1/2")
1.8
1.0
Φ15.8-16(5/8")
2.4
2.2
F: Inspection
● Check the quality of expanding port.
If there is any blemish, expand the
port again according to the steps
above.
C: Put on suitable insulating pipe
D: Put on the union nut
● Remove the union nut on the indoor
connection pipe and outdoor valve;
install the union nut on the pipe.
smooth surface
improper expanding
union pipe
leaning
pipe
the length is equal
35
damaged
surface
crack
uneven
thickness
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
E-mail: [email protected]
66129915258
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
