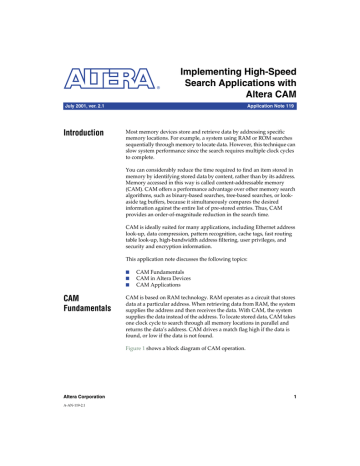

Implementing High-Speed
Search Applications with
Altera CAM
July 2001, ver. 2.1
Introduction
Application Note 119
Most memory devices store and retrieve data by addressing specific
memory locations. For example, a system using RAM or ROM searches
sequentially through memory to locate data. However, this technique can
slow system performance since the search requires multiple clock cycles
to complete.
You can considerably reduce the time required to find an item stored in
memory by identifying stored data by content, rather than by its address.
Memory accessed in this way is called content-addressable memory
(CAM). CAM offers a performance advantage over other memory search
algorithms, such as binary-based searches, tree-based searches, or lookaside tag buffers, because it simultaneously compares the desired
information against the entire list of pre-stored entries. Thus, CAM
provides an order-of-magnitude reduction in the search time.
CAM is ideally suited for many applications, including Ethernet address
look-up, data compression, pattern recognition, cache tags, fast routing
table look-up, high-bandwidth address filtering, user privileges, and
security and encryption information.
This application note discusses the following topics:
■
■
■
CAM
Fundamentals
CAM Fundamentals
CAM in Altera Devices
CAM Applications
CAM is based on RAM technology. RAM operates as a circuit that stores
data at a particular address. When retrieving data from RAM, the system
supplies the address and then receives the data. With CAM, the system
supplies the data instead of the address. To locate stored data, CAM takes
one clock cycle to search through all memory locations in parallel and
returns the data’s address. CAM drives a match flag high if the data is
found, or low if the data is not found.
Figure 1 shows a block diagram of CAM operation.
Altera Corporation
A-AN-119-2.1
1
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 1. CAM Block Diagram
Address
Data
CAM
Match Flag
CAM Accelerates Searches
CAM can accelerate applications requiring fast searches of databases,
lists, or patterns, such as in image or voice recognition. For example, the
search key could be a network user’s internet protocol (IP) address, and
the associated information could be a user’s access privileges and location
on the network. If the search key presented is available in CAM, CAM
indicates a match and returns the associated information, i.e., the user’s
privileges.
CAM Integration
Currently, most applications requiring fast searches use discrete CAM.
Designers must add a separate CAM device to their printed circuit board
(PCB), which increases design time and reduces the amount of usable PCB
space. Discrete CAM also reduces system performance because it
introduces additional on-chip and off-chip delays.
APEX 20KE, APEX 20KC, APEX II, and Mercury devices, which contain
on-chip CAM built into their embedded system blocks (ESBs), eliminate
the disadvantages of discrete CAM. Altera on-chip CAM has an access
time of 4 ns, compared to a 20-ns access time for a typical discrete CAM.
Because CAM is integrated inside an Altera device, it provides faster
system performance than traditional discrete CAM. Altera device CAM is
optimized for small- and medium-sized applications that are described in
the “CAM Applications” section on page 8. APEX 20KE, APEX 20KC,
APEX II, and Mercury devices all offer CAM support as described in this
application note
CAM in Altera
Devices
2
In Altera devices, each ESB can implement a 32-word × 32-bit CAM block.
Figure 2 shows CAM implemented in an ESB, and Figure 3 shows a block
diagram of CAM.
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 2. Implementing CAM in an ESB
data[]
inclocken
D
Q
data_in
ena
inclock
D
32-word
× 32-bit
Comparator
CAM
inaclr
outclocken
outclock
Q
data_address[]
ena
outaclr
wren
wraddress[]
Write
Control
RE
match
data[]
inclock
Figure 3. Altera CAM Block Diagram
wraddress[]
data[]
wren
inclock
inclocken
inaclr
data_address[]
match
outclock
outclocken
outaclr
Writing to Altera CAM
You can either pre-load CAM with data during configuration, or you can
write data during system operation. In most cases, two clock cycles are
required to write each word into CAM.
Figure 4 shows the waveform for an 8-bit input written to address A0 of a
CAM block. The data is driven to CAM for two clock cycles.
Figure 4. Writing an 8-Bit Input to CAM
Cycle 1
Cycle 2
Clock
Write Data
Write Address
Altera Corporation
11011001
11011001
A0
3
AN 119: Implementing High-Speed Search Applications with Altera CAM
A design can write “don’t care” bits into CAM words; bits set to “don’t
care” do not affect matching. The “don’t care” bits can be used as a mask
for CAM comparisons. A third clock cycle is required when “don’t care”
bits are used. The “don’t care” bits are signified by inverting them on the
third clock cycle.
Figure 5 shows the waveform for a 1101x100 word (with a “don’t care”
bit) written to CAM.
Figure 5. Writing 1101x100 to CAM
Cycle 1
Cycle 2
Cycle 3
Clock
Write Data
11010100
11010100
11011100
"Don't Care" Bit
Reading from Altera CAM
Altera CAM outputs operate in one of three different modes: single-match
mode, multiple-match mode, and fast multiple-match mode. In each
mode, an ESB outputs the matched data’s location as an encoded or
unencoded address. The address of the matched data is indicated in an
encoded output. In an unencoded output, each output represents one
word of the CAM block. If an output goes high, then the corresponding
address is a match (e.g., if the data is located in address 15, the fifteenth
output line goes high).
Single match mode is better suited for designs without duplicate data in
the memory. Acquiring outputs in this mode requires only one clock
cycle. Figure 6 shows an encoded CAM output.
4
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 6. Encoded CAM Output
CAM
addr[4..0] = 02
data[31..0] = 45
Data
Address
15
27
45
85
00
01
02
03
Encoded Output
match = 1
If the same data is written into multiple locations in the memory, CAM
should be used in multiple-match or fast multiple-match mode. In these
modes, CAM supports multiple-match data and ESB outputs the location
of the matched data as an encoded or unencoded address.
An ESB can output up to 16 words each clock cycle. In multiple-match
mode, it takes two clock cycles to output the 32 words in the CAM block.
The 32 words in an ESB are divided into two sets of 16 words, and one set
of 16 words is output each clock cycle. In fast multiple-match mode, only
the first set of 16 words is output, and the second set of 16 words is
ignored. While it only takes one clock cycle to output the data in an ESB,
only half of each ESB is used, limiting their capacity to 16 words. Figure 7
shows the CAM’s unencoded output.
Figure 7. Unencoded CAM Output
q0
data[30..0] (1)
Unencoded
Outputs
CAM
select (2)
q15
clock
select
unencoded output
0 to 15
16 to 31
Notes:
(1)
(2)
Altera Corporation
For an unencoded output, the ESB only supports 31 input data bits. One input bit
is used by the select line to choose one of the two banks of 16 outputs.
If the select input is a 1, then CAM outputs words 0 through 15. If the select
input is a 0, CAM outputs words 16 through 31.
5
AN 119: Implementing High-Speed Search Applications with Altera CAM
Deeper & Wider CAM Blocks
Each ESB in an Altera device supports a 1-Kbit CAM block (32 words of
32 bits each). You can implement wider or deeper CAM by combining
multiple CAM blocks using logic elements (LEs). The QuartusTM II
software combines ESBs and LEs automatically to create larger CAM
blocks. There is no intrinsic limit to cascading ESBs in an Altera device; all
ESBs in a device can be combined into one very large CAM block. For
example, by cascading 64 (out of 104) ESBs in an APEX 20KE EP20K400E
device, you can generate a 2,048-word × 32-bit or 1,024-word × 64-bit
block of CAM. Large Altera devices, such as the EP20K1000E device (with
160 ESBs), can generate a 4,096-word × 32-bit CAM block using 128 ESBs.
Creating Deeper CAM
To create deeper CAM blocks, the Quartus II software cascades the output
of each ESB. Both encoded and unencoded CAM outputs are used to
create deeper CAM blocks. In an encoded implementation, a multiplexer
selects the output of one of the ESBs and drives it out. The select line of the
multiplexer is controlled by the match flags of the ESBs. Figure 8 shows
an example of a 64-word × 32- or 31-bit CAM block implemented with
encoded and unencoded outputs.
6
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 8. Creating Deeper CAM with Encoded & Unencoded Outputs
Encoded Output
Words 31 to 0
data_address
data[31..0]
0
1
data
data_addr[4..0]
match
CAM ESB
data_address_5
data_address
data
match
match
CAM ESB
Words 63 to 32
Unencoded Output
Words 15 to 0
and 47 to 32
data[30..0] (2)
select
a0/a32 (1)
data
select
data_address
CAM ESB
a15/a47 (1)
a16/a48 (1)
data
select
select
data_address
CAM ESB
a31/a63 (1)
Words 31 to 16
and 63 to 48
Notes:
(1)
(2)
Words 0 through 31 are driven out in parallel in the first clock cycle, and words 32 through 63 are driven out in
parallel in the second clock cycle.
For an unencoded output, the ESB only supports 31 input bits. One input bit selects one of the two banks of
16 outputs.
Altera Corporation
7
AN 119: Implementing High-Speed Search Applications with Altera CAM
Creating Wider CAM
To increase the width of a CAM block, the Quartus II software cascades
the ESB’s unencoded outputs. Encoded outputs cannot be used, because
two different data words may coincidentally contain matching portions
and cause an incorrect output. To cascade the ESBs, each bit of the first
ESB is ANDed with the corresponding bit of the second ESB. When both
ESBs report a match, the entire word matches the stored word. Figure 9
shows an example of 32-word × 62-bit CAM implemented with
unencoded outputs.
Figure 9. Creating Wider CAM with an Unencoded Output
q0
CAM ESB
data[30..0]
select
data
CAM ESB
data_address
data
select
select
data_address
select
q15
data[61..31]
q0
q15
q0
q15
CAM
Applications
CAM is used to accelerate a variety of applications such as local-area
networks (LANs), database management, file-storage management, table
look up, pattern recognition, artificial intelligence, fully associative and
processor-specific cache memories, and disk cache memories. CAM can
also perform any search operation.
This section discusses the following applications:
■
■
■
■
■
■
■
■
■
■
■
■
8
Data Compression
Network Switch
IP Filters
IP Address Resolution
ATM Switch
Cache Tags
Wireless Basestations
Optimizing CDMA Systems with CAM
Optimizing W-CDMA Systems with CAM
Optimizing a GSM Design with CAM
Cache for Large External CAM
Cache Reference Design
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Data Compression
Data compression removes redundancy in a given piece of information,
producing an equivalent, but shorter, message. Data compression is
particularly useful in communications because devices can transmit the
same amount of data using fewer bits.
CAM implements data compression efficiently because it can quickly
search through the data structure containing the compression
information. Because a good portion of a compression algorithm’s time is
spent searching and maintaining this data structure, a hardware search
engine can greatly increase the algorithm throughput.
CAM look-up is performed after each word is presented. If the specific
code is not found in CAM, another word is shifted in. When the code is
found, CAM outputs the appropriate token and the input register is
flushed. CAM generates a result in a single transaction regardless of the
table size or length of the search list. This process makes CAM ideal for
data compression schemes that use sparsely populated tables as part of
their algorithm. Figure 10 shows an example of data compression using
CAM.
Figure 10. Using CAM for Data Compression
Sequence
CAM Contents
Uncompressed Data
Compressed Data
42 59 83 42 83 27 59
0
1
2
0
2
3
1
Data
Address
42
0
59
1
83
2
27
3
Token
Network Switch
Switch applications use CAM to process the address information from
incoming packets. To switch a packet to the correct outgoing port, the
incoming packet address is compared with a table of network addresses
stored in CAM. CAM outputs the destination for each data packet based
on its address.
CAM can store network address and switch port numbers (see Figure 11).
CAM in the switch compares gathered data against its stored table. If the
comparison yields a match, CAM outputs the destination, and routing
control forwards the packet to the correct port.
Altera Corporation
9
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 11. Using CAM as a Network Switch
PC
2712
PC
9743
1
PC
6541
2
0
PC
7461
3
4
Switch
PC
9811
Port
CAM Contents
Network
Address
Data
Address
6541
0
2712
1
9743
2
7461
3
9811
4
IP Filters
An IP filter is a security feature that prohibits unauthorized users from
accessing LAN resources. It can also restrict IP traffic over a wide-area
network (WAN) link. With an IP filter, LAN users can be restricted to
specific applications on the Internet (such as e-mail). CAM works as a
filter to block all access except for packets that have permission. The
addresses that have permission are stored in CAM; when an address is
sent to memory, CAM reports whether it contains the address. If the
address resides within CAM, it has permission for a particular activity.
Figure 12 shows an example of an IP filter.
10
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 12. Using CAM as an IP Filter
Addresses Stored in CAM
CAM
Status
Packet Address
Address
192.2.41.53
Pass
192.2.41.53
0
192.21.42.3
Pass
192.63.12.3
1
192.57.11.101
Denied
192.21.42.3
2
192.57.12.144
Denied
Data
When multiple permissions are required, a combination of CAM and
RAM enables this operation. Figure 13 shows a sample application that
regulates access to e-mail, the web, file transfer protocol (FTP), and telnet.
This application uses a 4-bit RAM block; each bit of RAM refers to one
permission or access.
Figure 13. Multiple-Permission IP Filter
RAM
CAM
192.63.12.3
Requested
Data
Address
Address
Data
Web
E-mail
FTP
Telnet
1
1
1
1
192.2.41.53
0
0
192.63.12.3
1
1
1
1
0
0
192.21.42.3
2
2
0
0
0
1
192.57.11.101
3
3
1
0
1
0
...
...
...
...
...
...
...
Web &
E-mail
Permission
IP Address Resolution
An Internet protocol address is a 32-bit number that identifies each sender
or receiver of information—packets sent across the Internet. When you
request an HTML page or send an e-mail, the Internet protocol part of a
TCP/IP address includes your IP address in the message and sends it to
the IP address obtained from the URL you requested or contained in the
recipient’s e-mail address. At the other end, the recipient can see the IP
address of the user who requested the web page or sent the e-mail and
respond by sending another message to the IP address it received.
Altera Corporation
11
AN 119: Implementing High-Speed Search Applications with Altera CAM
A media access control (MAC) address is a computer’s unique 48-bit
number (usually represented as a 12-digit hexadecimal number) used to
identify it on a local area network (LAN). When a computer is connected
to the Internet, a correspondence table relates your IP address to your
computer's physical MAC address on the LAN. A CAM and RAM
combination can be used to map the IP address to MAC address. CAM
stores the IP address, and RAM stores the corresponding MAC (Ethernet)
address. Figure 14 shows the CAM & RAM combination for IP address
resolution.
Figure 14. IP Address to MAC Address Translation
CAM
Internet
Protocol
Address
RAM
Address
Data
Address
192.2.41.53
0
0
92:ad:26:7e:81:ae
192.63.12.3
1
1
12:84:ea:72:9e:bd
192.21.42.3
2
2
ae:b3:f4:87:2e:81
Address
Data
MAC
Address
ATM Switch
CAM can be used in asynchronous transfer mode (ATM) switching
network components as a translation table. Because ATM networks are
connection-oriented, virtual circuits must be set up before transferring
data. There are two kinds of ATM virtual circuits: virtual path (identified
by a virtual path identifier (VPI)), and channel path (identified by a
channel path identifier (VCI)). VPI/VCI values are localized; each
segment of the total connection has a unique VPI/VCI combination.
Whenever an ATM cell travels through a switch, its VPI/VCI value must
change the next segment of connection through a process called VPI/VCI
translation. It is critical to optimize the translation speed to improve the
performance of high throughput ATM networks. CAM acts as an address
translator in an ATM switch and performs the VPI/VCI translation very
quickly. During the translation process, CAM processes the incoming
VPI/VCI values in ATM cell headers and generates addresses that access
data stored in RAM. RAM stores the VPI/VCI mapping data and other
connection information.
VPI/VCI fields from the ATM cell header are compared against a list of
current connections stored in the CAM array. From the comparison, CAM
generates an address that is used to access the RAM. A combination of
CAM and RAM implements the translation tables with fully parallel
search capability.
12
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
The ATM controller modifies the cell header using the VPI/VCI data from
RAM, and the cell is sent to the switch. This application is shown in
Figure 15. For optimal performance, both CAM and RAM should be
embedded into the same device.
Figure 15. CAM in an ATM Switch
ATM Controller
Switch
Fabric
CAM
Current
Connection
Data
VCI/VPI08
VCI/VPI23
VCI/VPI12
...
...
Address
0
1
2
...
...
Address
RAM
Address
0
1
2
...
...
Data
VCI/VPI35
VCI/VPI28
VCI/VPI03
...
...
Next
Connection
Cache Tags
Cache is high-speed memory that enables a microprocessor to quickly
access a subset of data from the main memory. The microprocessor can
access data stored in cache much faster than data located in the main
memory. Cache stores recently used items in a small amount of fast
memory; recently accessed words replace previously used words. Cache
uses both CAM and RAM to store data. CAM stores the address, or tag,
where the data can be found in RAM, and RAM contains the actual data.
For optimal performance, both CAM and RAM should be embedded into
the same device.
When requesting data, the microprocessor submits a data tag to the cache.
The cache compares the tag requested by the microprocessor with tags
stored in the CAM tag field. All tags in CAM are compared
simultaneously (in parallel) with the requested tag. If the tag is located in
the CAM block (i.e., a match is found), CAM’s match flag goes high. CAM
also sends the address of the data to RAM, which in turn outputs the
requested data to the microprocessor. Figure 16 diagrams this process.
If CAM does not find a match, CAM’s match flag goes low, and the cache
controller transfers the requested data from the main memory into cache.
The new data and address are stored in RAM and CAM, respectively, and
replace previously used data. Only the most recently used data is stored
in cache.
Altera Corporation
13
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 16. Searching CAM with the Tag Field in Cache
Cache
Microprocessor
Cache
Controller
RAM
CAM
Address
Data
0
A734
Data
(Tag)
Address
32
0
1
F275
44
1
2
B310
65
2
...
...
...
...
...
...
...
...
...
...
...
...
Main
Memory
Match Flag
Wireless Basestations
A conventional telephone system converts voice sound waves into
electrical signals that are then transmitted over a physical network
through wires. A cellular phone system converts voice sound waves into
radio waves that are then transmitted through the air using radio
frequency transmission.
Figure 17 shows the basic elements required when processing a call in a
cellular system network, including the positions of the mobile stations,
basestation subsystems, and the mobile service switching center.
14
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 17. General Architecture of a Cellular System Network
Transceiver
Basestation
Public Telephone
Network
Equipment
Identity
Register
Home
Identity
Register
Basestation
Controller
Transceiver
Basestation
Mobile Service
Switching
Center
Authentication
Center
Visitor
Location
Register
Basestation
Controller
Mobile Station
Transceiver
Basestation
Transceiver
Basestation
Mobile Station
Network Subsystem
Base Station Subsystem
The mobile service switching center is the central part of the network
subsystem. It switches calls between mobile subscriber units and
functions as a switching node for the public telephone network. Other
responsibilities include registration, authentication, location updates,
handovers, and call routing to roaming subscribers.
Basestation Subsystem
The basestation subsystem (BSS) is composed of two parts: the basestation
controller and the transceiver basestation. The basestation controller
controls the transceiver basestation and all the control functions and
physical links to and from the mobile station. Other responsibilities
include handovers, configuration of cell data, control of radio frequency
power levels within the transceiver basestation, and supervising the
functionality and control of multiple base transceiver units.
The transceiver basestation, which consists of all the radio transmission
and reception equipment, handles the radio-link protocols to the mobile
station in order to provide coverage to a geographical location.
Mobile Station
The mobile station is the user’s portable device. This device contains
mobile equipment.
Altera Corporation
15
AN 119: Implementing High-Speed Search Applications with Altera CAM
Optimizing CDMA Systems with CAM
Code division multiple access (CDMA) is a form of spread-spectrum
transmission where the transmitter spreads the information contained in
a particular signal over a much larger bandwidth than the original signal.
A CDMA (IS-95 standard) network consists of a public switching
telephone network (PSTN), mobile switching service center, basestation
controller, transceiver basestation, and the mobile cell. Each transceiver
basestation contains multiple channel elements, and each channel element
services one user. Figure 18 shows the CDMA network architecture.
Figure 18. CDMA Network Architecture
Transceiver Basestation 1
Mobile Station
Multiplexer
Mobile Station
Public Switching
Telephone
Network
Mobile Service
Switching
Center
Basestation
Controller
Transceiver Basestation n
Mobile Station
Multiplexer
Mobile Station
Channel Element
The CDMA system uses a 64 × 64-bit Walsh matrix: each Walsh Code is
64-bits long. A Walsh Code is the spreading code, by which the user’s data
is spread. Each user is assigned a unique Walsh Code for channelization.
The system is responsible for keeping track of which of the 64 Walsh codes
is assigned to each channel element. This can be done efficiently by using
a combination of CAM and RAM, where CAM provides the Walsh index
member for a user, and RAM provides the corresponding 64-bit Walsh
Code shown in Figure 19. By using this combination, the system can
efficiently track the Walsh Codes used for different users in the system.
16
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 19. CAM & RAM Combination to Implement Walsh Code in a CDMA System
Walsh Code Index
Transceiver Basestation
64-bit Walsh Code
CAM
Basestation
Controller
RAM
Mobile Station
Data
Address
Address
Data
User 5
0
0
1111 . . . 0011
User 1
1
1
1010 . . . 1010
User 7
2
2
1000 . . . 0001
...
...
...
...
Mobile Station
Mobile Station
Mobile Station
Optimizing W-CDMA Systems with CAM
Wideband code division multiple access (W-CDMA) uses an air interface
based on direct sequence CDMA. W-CDMA operates on a wide
bandwidth compared to IS-95, in order to meet the IMT 2000 standard.
Key features include performance improvement over the secondgeneration data rate requirement and service flexibility.
Performance Improvement
Using techniques such as power control, variable spreading code, turbo
coding, etc., W-CDMA techniques provide higher capacity, lower biterror rate, and a higher coverage area compared to older-generation
technology.
Service Flexibility
W-CDMA has the flexibility to handle mixed services and services with
variable bit rates because power is the shared resource between users. In
the downlink, the total carrier transmitter power is shared between the
users transmitting from the transmission basestation. In the uplink, there
is a maximum level of interface power that is shared between the
transmitting mobile stations.
The flexibility of W-CDMA is supported by orthogonal variable
spreading factor (OVSF) codes for channelization of different users. A
user’s data is spread in both the handset and the transceiver basestation
using the OVSF codes. OVSF codes maintain downlink transmission
orthogonally between users even when they are using different bit rates.
One physical resource carries multiple services with different bit rates. As
the bit rate changes, the power allocation to the physical resource changes
to maintain the quality of service at any instant of connection.
Altera Corporation
17
AN 119: Implementing High-Speed Search Applications with Altera CAM
Several physical channels can be transmitted in parallel on one connection
using different OVSF channelization codes to gain a higher channel bit
rate. Because the system needs to keep track of which OVSF code is
assigned to each channel element in the transceiver basestation, a
combination of CAM and RAM can be used to implement OVSF. CAM
provides the OVSF index for a user and RAM provides the corresponding
OVSF code, which can be from 4 to 256 bits in length (see Figure 20). By
using an OVSF code, the system can keep track of the OVSF codes used
for various users.
Figure 20. CAM & RAM Combination of OVSF Code in W-CDMA System
OVSF Code Index
OVSF Code
(4 to 256 Bits)
Transceiver Basestation
CAM
Basestation
Controller
RAM
Mobile Station
Data
Address
Address
Data
User 5
0
0
1111 . . . 0011
User 1
1
1
1010 . . . 1010
User 7
2
2
1000 . . . 0001
...
...
...
...
Mobile Station
Mobile Station
Mobile Station
Optimizing a GSM Design with CAM
The Global System for Mobile Communications (GSM) is a leading
standard for digital mobile telephones. It was originally developed to
create a common European mobile telephone network. Using embedded
CAM in the transceiver basestation can significantly increase a GSM
network’s performance by reducing the time required to look up a packet
destination.
GSM uses channel elements to control communication between the
mobile stations and the transceiver basestation. Channel elements are
defined by frequency and time, using frequency-division multiple access
(FDMA) and time-division multiple access (TDMA). GSM systems
communicate over a 25-MHz frequency range. The range is divided into
124 carrier frequencies spaced 200 KHz apart. Each basestation can use
one or more carrier frequencies.
The frequencies are divided by time using a TDMA scheme. The unit of
time in TDMA is called a burst period. Eight burst periods are grouped
into a TDMA frame.
18
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Each mobile station uses a channel, so eight mobile stations or users can
gain access to the network on the same TDMA frame. Figure 21 shows
how eight users can access a transceiver basestation at one specific
frequency.
Figure 21. Eight Channel Elements per Frequency
Transceiver Basestation
Frequency 1
User 1
User 2
User 3
User 4
User 5
User 6
User 7
User 8
Frequency 2
User 11
User 10
User 14
User 12
User 20
User 21
User 22
User 24
Frequency 3
User 30
User 44
User 19
User 15
User 25
User 26
User 23
User 35
CAM is used in the transceiver basestation to accelerate the routing of
voice and data information. Figure 22 shows how a CAM and RAM
combination is used to determine the correct frequency and time slot for
a particular mobile station.
Figure 22. CAM & RAM Combination Determine Packet Destination in Transceiver Basestation
Base Transceiver Station
CAM
Base
Station
Controller
User 5
Altera Corporation
User 7
RAM
Mobile Station
Data
Address
Address
Data
User 5
0
0
1111 . . . 0011
User 1
1
1
1010 . . . 1010
User 7
2
2
1000 . . . 0001
...
...
...
...
Mobile Station
Mobile Station
Mobile Station
19
AN 119: Implementing High-Speed Search Applications with Altera CAM
Using CAM embedded in Altera devices rather than a discrete CAM
device speeds the GSM network’s routing process. Embedded CAM
eliminates on- and off-chip delays associated with discrete CAM. The
embedded CAM device also cuts design time and reduces the board size
by eliminating the need for a second device on the board.
A typical transceiver basestation manager calls for up to 128 mobile
stations; therefore, a 128-word CAM block is required. A 128-word CAM
block can be easily integrated into four ESBs on a single APEX device.
Cache for Large External CAM
Cache speeds memory access by providing an embedded structure that
stores words that are commonly requested from the external CAM.
Because cache is faster and has less latency than an external device, it can
present the requesting system with a match address several clock cycles
before the external CAM. Cache is connected in parallel with the external
memory source; when the system sends a read request, it will send the
data simultaneously to the cache and the external CAM. If the data word
is stored in the cache, it will report to the system that it has found a match,
which in most cases is several clock cycles before the external CAM will
find a match. If the cache reports a miss, it will wait for the external CAM
to find a match and the cache will then proceed to write the new word and
address.
CAM cache is a combination of CAM and RAM elements. CAM cache
cannot be implemented exclusively in CAM because the CAM cache has
a smaller address width (five bits) than the external CAM due to the
smaller size of the cache. For example, a 32-word cache has an address
width of five bits, whereas a 256-word CAM has an address width of eight
bits, making it three bits too long for CAM cache. A RAM block is required
to store the additional three address bits that the CAM block cannot store.
Figure 23 shows a block diagram of the fully associative cache.
20
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 23. Block Diagram of a Fully Associative Cache
Data out to
External CAM
2
RAM
CAM
Data
Data
(Tag)
Address
45
00
61
01
21
10
1C
11
Address
Data
00
00110
01
00011
10
01000
11
11111
5
Cache
Controller
ram_widthadd
Address
5
ex_widthadd
Address from
external CAM
The CAM system is modeled by the block diagram in Figure 24. As the
diagram indicates, the cache uses registers on the inputs, which produces
a two-cycle hit latency. Any of these registers can be removed to reduce
the latency at the expense of the maximum frequency.
Figure 24. CAM Cache Block Diagram
APEX 20KE Device
Internal Cache
Data
System
Address
Altera Corporation
Data
CAM
RAM
External
CAM
Address
21
AN 119: Implementing High-Speed Search Applications with Altera CAM
Cache Reference Design
Altera has created reference designs to implement either direct mapped or
fully associative cache. These designs are available on the Altera web site
(http://www.altera.com). Table 1 describes the input and output ports of
the cache reference designs. Table 2 describes the parameters used to
customize the cache reference designs.
Table 1. Cache Reference Designs Port Listing
Port Name
22
Required
Type
clock
Yes
Input
Clock signal for all registers
Description
aclr
Yes
Input
Register clear signal
data_valid
Yes
Input
Indicates the current value on the
datain bus is registered and
initiates the search process
datain[]
Yes
Input
Input data for searching, writing, or
erasing from cache
write
Yes
Input
Indicates that cache should write the
values on the address_ext and
datain buses
delete
Yes
Input
Deletes the values on the datain
and address_ext buses from cache
ext_match_found
Yes
Input
Indicates that external CAM has
found a match; address_ext
reflects the matching address when
ext_match_found is high
address_ext[]
Yes
Input
Address or associated data value
from the external process
cache_busy
No
Output
Indicates that cache is busy writing or
erasing
cache_hit
Yes
Output
Signals that cache has found a match
for data at the address indicated by
cache_address
dataout[]
Yes
Output
Contains the associated data for the
value on the datain bus
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Table 2. Cache Reference Designs Parameter Listing
Parameter
Quartus II
Software
Support
Description
depth
Cache depth
datain_size
Width of the data values stored in cache
dataout_size
Width of the address values stored in cache
cache_widthad
Width of the CAM block’s local address bus; this value must
be log2(depth)
CAM is implemented in the Quartus II software through the altcam
megafunction. Figure 25 shows the symbol for the altcam megafunction.
The set of parameters used to configure this megafunction is listed in
Table 5.
Figure 25. The altcam Megafunction
Altera Corporation
23
AN 119: Implementing High-Speed Search Applications with Altera CAM
Table 3 describes the input pins of the altcam megafunction.
Table 3. altcam Megafunction Input Ports
Port Name
Required
Description
Notes
pattern[]
Yes
Input data pattern for searching or Input port WIDTH wide.
writing.
wrx[]
No
Pattern “don’t care” bits (indicated Input port WIDTH wide.
with 1s), for writing only.
wrxused
No
Indicates whether wrx[] should
be used.
wrdelete
No
Indicates that the pattern at
Deleting a pattern takes two clock cycles;
wraddress[] should be deleted. pattern[], wrx[], and wrxused are
ignored during delete cycles.
wraddress[] No
If false, writing takes two clock cycles to
complete; if true, writing takes three clock
cycles. If asserted during a write cycle, the
value of the wrx[] port is used. Otherwise, the
value of the wrx[] port has no effect.
Address for writing.
Input port WIDTHAD wide.
Write enable.
Assert wren to start a write or delete operation.
De-assert wren for a read (match) operation.
wren
No
inclock
Yes
Clock for most inputs.
inclocken
No
Clock enable for inclock.
inaclr
No
Asynchronous clear for registers
that use inclock.
mstart
No
Multi-match mode only: indicates
that a new CAM read is starting
and forces maddress[] to first
match.
This port is not available for single-match mode
but required for multiple-match modes. In fast
multiple-match mode, this port is required if the
mnext port is used.
mnext
No
Multi-match mode only: advances
maddress[] to next match.
This port is not available for single-match
mode.
outclock
No
Clock for mstart, mnext, and
outputs.
Used only if OUTPUT_REG="OUTCLOCK." If
OUTPUT_REG="UNREGISTERED" or
"INCLOCK" this port must remain
unconnected.
outclocken
No
Clock enable for outclock.
Used only if OUTPUT_REG="OUTCLOCK." If
OUTPUT_REG ="UNREGISTERED" or
"INCLOCK" this port must remain
unconnected.
outaclr
No
Asynchronous clear for registers
that use outclock.
24
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Table 4 describes the output pins of the altcam megafunction.
Table 4. altcam Megafunction Output Ports
Port
Required
Description
Comments
Output port WIDTHAD wide. One of the output ports
must be used. Altera recommends using either a
combination of the maddress[] and mfound
output ports, or the mbits[] output port.
maddress[]
No
Encoded address of current
match.
mbits[]
No
Address of the found match. Output port with width [NUMWORDS-1..0]. One of
the output ports must be present. Altera
recommends using either a combination of the
maddress[] and mfound output ports, or the
mbits[] output port.
mfound
No
Indicates at least one match. Used with the maddress[] port. One of the output
ports must be present. Altera recommends using
either a combination of the maddress[] and
mfound output ports, or the mbits[] output port.
mcount[]
No
Total number of matches.
Output port WIDTHAD wide. One of the output ports
must be present. Altera recommends using either a
combination of the maddress[] and mfound
output ports, or the mbits[] output port.
rdbusy
No
Indicates that read input
ports must hold their current
value.
One of the output ports must be present.
wrbusy
No
Indicates that write input
ports must hold their current
value.
One of the output ports must be present.
Table 5 list the parameters that are used to configure the altcam
megafunction.
Table 5. altcam Megafunction Parameters (Part 1 of 2)
Parameter
Type
Required
WIDTH
Integer
Yes
Width of the input pattern and stored patterns.
WIDTHAD
Integer
Yes
Width of wraddress[] port. WIDTHAD should be equal to CEIL
[LOG2(NUMWORDS)].
NUMWORDS
Integer
Yes
Number of words stored in memory. It indicates the width of the
mbits[] port. In general, mbits[] value should be
2^ (WIDTHAD-1) < NUMWORDS <= 2^ WIDTHAD.
Altera Corporation
Description
25
AN 119: Implementing High-Speed Search Applications with Altera CAM
Table 5. altcam Megafunction Parameters (Part 2 of 2)
Parameter
Type
Required
Description
LPM_FILE
String
No
Name of the Memory Initialization File (.mif) or Hexadecimal (Intelformat) File (.hex) containing RAM initialization data (<file name>),
or UNUSED. If omitted, contents default to "never match."
LPM_FILEX
String
No
Name of the second HEX File containing RAM initialization data
(<filename>_xu.hex). If omitted the default is UNUSED. Bits that are
1 in this file change the meaning of the bits in the first HEX File such
that the 0 bits in the first file become “don't care” bits, and the 1 bits
become "never match" bits in CAM patterns. The 0 bits in this file
preserve the normal meaning of the bits in the first HEX File.
MATCH_MODE
String
Yes
OUTPUT_REG
String
No
OUTPUT_ACLR
String
No
PATTERN_REG
String
No
PATTERN_ACLR
String
No
WRADDRESS_ACLR
String
No
WRX_REG
String
No
WRX_ACLR
String
No
WRCONTROL_ACLR
String
No
Selects between single-match mode and one of two multiple-match
modes. The values are SINGLE, MULTIPLE, and FAST_MULTIPLE.
If omitted, the default is MULTIPLE.
Indicates whether the outputs should be registered. Values are
UNREGISTERED, INCLOCK, and OUTCLOCK. If omitted, the default is
UNREGISTERED.
Indicates whether the outaclr port should affect the output
registers. Values are ON and OFF. If omitted, the default is ON.
Indicates whether pattern[] should be registered. Values are
UNREGISTERED and INCLOCK. If omitted, the default is INCLOCK.
Indicates whether the inaclr port should affect the pattern[]
registers. Values are ON and OFF. If omitted, the default is ON.
Indicates whether the inaclr port should affect the wraddress[]
registers. Values are ON and OFF. If omitted, the default is ON.
Indicates whether the wrx[] and wrxused ports should be
registered. Values are UNREGISTERED, and INCLOCK. If omitted, the
default is INCLOCK.
Indicates whether the inaclr port affects the wrx[] and wrxused
registers. Values are ON and OFF. If omitted, the default is ON.
Indicates whether the inaclr port affects the wren register. Values
are ON and OFF. If omitted, the default is ON.
Writing Patterns into CAM
Writing a new pattern in altcam or replacing its stored patterns with new
patterns involves the use of the pattern[], wrx[], wrxused, wrdelete,
wren, and wraddress[] ports. Patterns without “don’t care” bits can be
written in two clock cycles, and those with “don’t care” bits require three
clock cycles. During all write cycles, wren must be asserted and
wraddress[] and pattern[] must remain unchanged.
26
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
1
The design requires a different hold time if the pattern[] input
is unregistered. If unregistered, pattern[] data must be
available to the CAM for two complete clock cycles, and not just
the rising edge of the clock. By default, pattern[] is registered
in the MegaWizard Plug-In Manager.
If the pattern does not contain “don’t care” bits, then asserting
pattern[], wren, and wraddress[] for two clock cycles is sufficient.
“Don’t care” bits can be added by using the wrx[] port. Bits with 0 in
wrx[] mark valid pattern bits, and bits with 1 in wrx[] mark “don’t care”
pattern bits. When the wrx[] port is used, the wrx[], wrxused,
pattern[], wren, and wraddress[] must be asserted for three clock
cycles.
CAM entries can also be deleted by asserting wrdelete and wren for two
clock cycles, during which wraddress[] should indicate the address
containing the data that is to be deleted. The pattern[], wrx[], and
wrxused inputs are ignored during delete cycles.
CAM can be initialized using MIF or Intel HEX format files during device
configuration. The MIF format supports “don’t care” and “never match”
bits. These extra bits are also supported in the Intel HEX format by using
a second HEX file. One file is used to initialize the data (0 and 1), and a
second file is used to set the “don’t care” and “never match” bits. If the
optional second initialization file is used, it must be named <file>_xu.hex
if the first initialization file is named <file>.hex. The bits that are to be
matched exactly are defined by the values 0 or 1 in <file>.hex and 0 in
<file>_xu.hex. All “don’t care” bits that are matched in the CAM must
have a value of 0 in <file>.hex and a value of 1 in <file>_xu.hex. If a word
in <file>.hex contains a 1 that has a corresponding bit in the <file>_xu.hex
that is also set to 1, that word will never be matched. This is shown in
Table 6.
Table 6. HEX and MIF Initialization File Formats
Altera Corporation
<file>.hex
<file>_xu.hex
<file>.mif Equivalent
0
0
0
1
0
1
0
1
X
1
1
U
27
AN 119: Implementing High-Speed Search Applications with Altera CAM
Reading from CAM
To read patterns/addresses from altcam, three different modes can be
used:
■
■
■
Single-match mode
Multiple-match mode
Fast multiple-match mode
In multiple-match and fast multiple-match modes, an external priority
encoder generates the encoded match address output maddress[]. As a
result, when reading patterns in either of the multiple-match modes, the
encoding logic will generally result in higher logic utilization than with
single-match mode.
In all three modes, both encoded (maddress[]) and unencoded
(mbits[]) outputs are available. External logic generates the mfound and
mcount[] signals, which give the total number of matches.
Single-Match Mode
In single-match mode (MATCH_MODE = "SINGLE"), only one inclock clock
cycle is needed to read stored data from altcam.
When an input pattern matches one of the stored patterns in altcam,
match flag mfound will be asserted, and the address of the match will be
presented on maddress[]. Output port mbits[] gives the unencoded
version of the match. The output that indicates the number of matches
(mcount[]) is always either the value 0 or 1 in this mode.
1
In the single-match mode, altcam will not operate properly if
there are multiple patterns stored that match the same input
pattern. If this situation occurs, the Quartus II software will give
a warning during simulation indicating that CAM contains
multiple matches.
In single-match mode, the altcam megafunction will support CAMs
deeper than 32 words by using multiple embedded system blocks (ESBs).
For input patterns with widths greater than 32 bits, altcam will
automatically switch to fast multiple-match mode.
28
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
In order to write “don’t care” bits into altcam, wrused should be asserted
high, and waddress[], pattern[], and wren[] should be valid for three
clock cycles. The bits in wrx[] with a 1 value indicate “don’t care” bits.
For example, in Figure 26, at waddress[] 010 the wrx[] is 100, which
means that the third bit is a “don’t care” bit. As a result, reading 110 or
010 will flag a match at maddress[] 010.
Figure 26. Waveform for Single-Match Mode with “Don’t Care” Bits
Multiple-Match Mode
In multiple-match mode (MATCH_MODE = "MULTIPLE"), the megafunction
takes two inclock clock cycles to read from altcam and generate valid
outputs. This happens because the ESB generates 16 outputs at each clock
cycle. As a result, two cycles are required to generate all 32 outputs from
an ESB.
To search altcam for a new pattern, the pattern data should be applied
to the pattern[] port, and the mstart input should be asserted high for
the first clock cycle during the read cycle. If the input pattern matches any
of the stored patterns, mfound asserts high, and maddress[] gives the
address of the first match (after a two-cycle delay). Other match addresses
can be generated on subsequent clock cycles by asserting mnext and
holding it high for no more than two clock cycles after mstart. Output
port mbits[] gives the unencoded version of the matches. Output port
mcount[] counts the total number of matches.
Altera Corporation
29
AN 119: Implementing High-Speed Search Applications with Altera CAM
In this mode, each ESB supports 31 bits of data because the most
significant bit (MSB) is used to select between the even or odd outputs of
ESB at each clock cycle. But multiple-match mode supports both deeper
and wider CAMs by cascading 32-word × 31-bit ESBs.
Figure 27 shows the functional simulation waveform for multiple-match
mode. In multiple-match mode, the mstart provides the lowest match
address location, and mnext provides the consequent match locations on
maddress[]. Signal mnext should be asserted not more than two clock
cycles after mstart is asserted. In this example, data 1 has been written in
two locations: 6 and 10. Asserting mstart provides address location 6 on
the maddress[] port, and asserting mnext enables CAM to read out the
consequent location, 10.
Figure 27. Waveform for Multiple-Match Mode
Fast Multiple-Match Mode
Fast multiple-match mode (MATCH_MODE = "FAST_MULTIPLE") is
identical to multiple-match mode except that fast multiple-match mode
only takes one inclock clock cycle to read from altcam and generate
valid outputs. However, this quick generation uses only half of the
memory available in each ESB. As a result, ESB utilization is higher, but
data can be read out of altcam in one cycle.
30
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
The input and output ports used in fast multiple-match mode are identical
to multiple-match mode with a few exceptions. Ports such as
maddress[], mcount[], mfound, pattern[], wrx[], and wren function
the same as in multiple-match mode. The rbusy port is not used in fast
multiple-match mode because the read does not exceed one clock cycle.
Ports such as mstart and mnext are not required for this mode if the
location of the matched address is not required (if maddress[] is not
used), and only the mbits[] output gives the unencoded version of a
matching address. If the maddress[] output port is used, mstart and
mnext must be used to give the first and next matching addresses.
In this mode, the altcam megafunction supports CAMs deeper and wider
than 32 words and bits by cascading the ESBs. Figure 28 shows the
functional simulation result of a fast multiple-match mode.
Figure 28. Waveform for Fast Multiple-Match Mode
Altera Corporation
31
AN 119: Implementing High-Speed Search Applications with Altera CAM
CAM Mode Comparison
In order to compare the performance and utilization of the different CAM
modes, a 32-word × 32-bit CAM was compiled for an EP20K200E-1 device.
Table 7 shows the results of this comparison.
Table 7. CAM Mode Comparison (32 × 32)
Feature
Single-Match Mode
ESBs used
LEs used
fMAX
Multiple-Match Mode
Fast Multiple-Match Mode
1
1
2
35.0
98
79
198.89 (MHz)
94.45 (MHz)
190.91 (MHz)
Resource Usage
One ESB can implement a 32-word × 32-bit CAM. Table 8 shows the
resource usage for the altcam megafunction.
Table 8. Resource Usage for the altcam Megafunction (32 × 32)
Match Mode
CAM Patterns per ESB
CAM Pattern Bits per ESB
Single-match mode
32
32
Multiple-match mode
32
31
Fast multiple-match mode
16
32
MegaWizard Interface
The MegaWizardTM Plug-In Manager allows users to specify options for
the custom megafunction variations. The MegaWizard Plug-In Manager
asks questions about the preferred values for parameters or optional
ports.
The MegaWizard Plug-In Manager automatically generates a Component
Declaration File (.cmp) that can be used in VHDL Design Files (.vhd), and
an Include File (.inc) that can be used in Text Design Files (.tdf) and
Verilog Design Files (.v).
Users can start the MegaWizard Plug-In Manager in one of the following
ways:
■
■
32
Choose the MegaWizard Plug-In Manager command (Tools menu).
When working in the Block Editor, click MegaWizard Plug-In
Manager in the Symbol dialog box (Insert menu).
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 29 shows page 1 of the altcam MegaWizard Plug-In Manager.
Figure 29. Page 1 of altcam MegaWizard Plug-In Manager
Data Input Bus Width
This option allows users to select the width of the input pattern[] of the
designed altcam. The pull-down menu shows the value, which goes up
to 256 bits. For widths higher than 256 bits, the value must be typed in.
Depth of CAM
This option specifies the number of word lines to the altcam
megafunction. Two options are available: entering the number by its
entries (word lines) or by the width of address bits.
Operation Mode of CAM
There are three options for altcam operation mode.
■
■
■
Altera Corporation
Single match mode: Read occurs in one clock cycle, but it does not
support multiple match.
Multiple match mode: Read occurs in two-clock cycles and supports
multiple matches.
Fast multiple match mode: Read occurs in one clock cycle and
supports multiple matches, but it only uses half of an ESB.
33
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 30 shows the different options that can be selected on page 2 of the
MegaWizard Plug-in Manager.
Figure 30. Page 2 of the altcam MegaWizard Plug-In Manager
Optional Input Ports
wrxused and wrx[] are the inputs that are used to write “don’t care” bits
into the altcam megafunction. When wrxuxed is asserted, “don’t care”
bits will be written into altcam.
wrdelete is the input used to delete patterns from altcam.
mnext and mstart are an input pair that indicates the location of the first
and subsequent matches on the maddress[] outputs. In fast multiplematch mode, the mstart and mnext pair are optional, but selecting mnext
on page 2 of the MegaWizard Plug-In Manager will add the mstart input
into the wizard. mstart is automatically included in the wizard upon
selection of multiple-match mode.
Output Ports
maddress[] gives the address of the match entry.
34
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
mbits[] gives the unencoded version of the match location. In multiplematch mode or in fast multiple-match mode, only selecting mbits[]
(instead of maddress[]) will reduce the logic cell utilization because the
external logic used to encode the unencoded outputs will not be
implemented.
When in multiple-match mode or fast multiple-match mode, mcount[]
gives the total number of matches found in altcam. In single-match
mode, mcount[] only has a value of 0 or 1 because multiple match is not
supported in this mode.
mfound is the output that indicates whether any match was found.
Figure 31 shows page 4 of the altcam MegaWizard Plug-In Manager, in
which you can specify the memory initialization file.
Figure 31. Page 4 of the altcam MegaWizard Plug-In Manager
Specifying the Initial Contents of altcam
If you select to specify the initial contents of altcam, then the initial
memory file should be generated. If you select not to specify the initial
contents of altcam, then data should be written to altcam after
configuring the device.
Altera Corporation
35
AN 119: Implementing High-Speed Search Applications with Altera CAM
Two types of memory files exist: MIF and HEX files.
■
■
MIFs specify the pre-loaded pattern in the altcam. Only one file is
needed to load patterns incorporating 1, 0, X (“don’t care” bits) and
U (“never match” bits). This is an Altera file format and can only be
used for CAM functions that are implemented in the Quartus II
software. MIFs are not compatible with external simulators.
HEX files require two files to be created:
<file_name>.hex for 1 and 0 patterns
<file_name>_ux.hex for U and X
HEX files allow users to use the CAM function in third-party behavioral
simulation.
Examples
Figure 32 shows an altcam MegaWizard instantiation in single-match
mode. In this example, “don’t care” bits will be written into the altcam
through “don’t care” ports. Also, the outputs have been registered.
36
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 32. altcam Megafunction in Single-Match Mode with “Don’t Care” Ports
Single-Match Mode
32 bits × 32 words
pattern[31..0]
wren
wraddress[4..0]
mbits[31..0]
maddress[4..0]
mcount[4..0]
wrx[31..0]
mfound
wrxused
wrbusy
inclk
inclken
inaclr
Figure 33 shows the instantiation of fast multiple-match mode. In this
example, only 1 and 0 will be written into altcam.
Altera Corporation
37
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 33. altcam Megafunction in Fast Multiple-Match Mode
Multiple-Match Mode
31 bits × 32 words
pattern[31..0]
wren
wraddress[4..0]
mbits[31..0]
maddress[4..0]
mcount[4..0]
mfound
mstart
rdbusy
mnext
wrbusy
inclk
inclken
inaclr
When selecting multiple-match mode in the altcam MegaWizard Plug-In
Manager (Figure 34), the mstart input will be automatically selected as
one of input ports. The user has the option of selecting mnext as an input
if detecting the address of all matches is required.
38
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 34. altcam Megafunction in Multiple-Match Mode
Multiple-Match Mode
32 bits × 32 words
pattern[31..0]
wren
wraddress[4..0]
mbits[31..0]
maddress[4..0]
mcount[4..0]
mfound
mstart
rdbusy
mnext
wrbusy
inclk
inclken
inaclr
VHDL Instantiation
The following example code instantiates the altcam.vhd behavioral
model for the altcam megafunction. This particular example instantiates
the function, passes parameters, and connects the ports of the altcam to
input and output pins to demonstrate the functionality of the CAM. The
altcam function can be directly instantiated as shown here along with
other RTL code for simulation. This example uses files called cam.hex and
cam_xu.hex to initialize the contents. Both files are shown at the end of
this document.
Altera Corporation
39
AN 119: Implementing High-Speed Search Applications with Altera CAM
The cam32x8 file shown in Figure 35 instantiates the altcam behavioral
function. This can contain code other than just the altcam function call.
Figure 35. cam32x8 File Used to Instantiate altcam Behavioral Function
library ieee;
use ieee.std_logic_1164.all;
entity cam32x8 is
port
( pattern:
in std_logic_vector(7 downto 0);
wrx:
in std_logic_vector(7 downto 0);
wrxused: in std_logic;
wrdelete:
in std_logic;
wraddress: in std_logic_vector(4 downto 0);
wren:
in std_logic;
inclock:
in std_logic;
mstart:
in std_logic;
mnext:
in std_logic;
maddress:
out std_logic_vector(4 downto 0);
mbits:
out std_logic_vector(31 downto 0);
matchfound: out std_logic;
mcount:
out std_logic_vector(4 downto 0);
rdbusy:
out std_logic;
wrbusy:
out std_logic );
end cam32x8;
architecture apex of cam32x8 is
component altcam
generic
( width:
positive;
widthad:
positive;
numwords:
natural := 0;
lpm_file:
string := "UNUSED";
lpm_filex:
string := "UNUSED";
match_mode:
string := "SINGLE";
output_reg:
string := "UNREGISTERED";
output_aclr:
string := "OFF";
pattern_reg:
string := "INCLOCK";
pattern_aclr:
string := "Off";
wraddress_aclr:
string := "Off";
wrx_reg:
string := "INCLOCK";
wrx_aclr:
string := "off";
wrcontrol_aclr:
string := "OFF" );
port
( pattern:
in std_logic_vector(width -1 downto 0);
wrx:
in std_logic_vector(width -1 downto 0);
40
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
wrxused:
in std_logic;
wrdelete:
in std_logic;
wraddress: in std_logic_vector(widthad-1 downto 0);
wren:
in std_logic;
inclock:
in std_logic;
inclocken: in std_logic := '1';
inaclr:
in std_logic := '0';
mstart:
in std_logic;
mnext:
in std_logic;
outclock:
in std_logic := '0';
outclocken: in std_logic := '1';
outaclr:
in std_logic := '0';
maddress:
out std_logic_vector(widthad-1 downto 0);
mbits:
out std_logic_vector(numwords-1 downto 0);
mfound:
out std_logic;
mcount:
out std_logic_vector(widthad-1 downto 0);
rdbusy:
out std_logic;
wrbusy:
out std_logic );
end component;
begin
U0: altcam
generic map (width => 8, widthad => 5, lpm_file => "cam.hex",
lpm_filex => "cam_xu.hex", numwords => 32, match_mode => "MULTIPLE", output_reg
=> "UNREGISTERED")
port map (pattern => pattern, wrx => wrx, wrxused => wrxused,
wrdelete => wrdelete, wraddress => wraddress, wren => wren, inclock => inclock,
mstart => mstart, mnext => mnext,
maddress => maddress, mbits => mbits, mfound => matchfound, mcount => mcount,
rdbusy => rdbusy, wrbusy => wrbusy );
end apex;
Altera Corporation
41
AN 119: Implementing High-Speed Search Applications with Altera CAM
Testbench for 32 × 8 CAM in VHDL
cam_testbench.vhd shown in Figure 36 is an example testbench that
demonstrates the functionality of the altcam in multiple-match mode
with “don’t care” bits.
Figure 36. cam_testbench.vhd File
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.std_logic_arith.ALL;
USE std.textio.ALL;
ENTITY CAM_testbench IS
END CAM_testbench;
ARCHITECTURE testbench OF CAM_testbench IS
SIGNAL countclock:std_logic := '0';
COMPONENT cam32x8
PORT(
pattern:
in std_logic_vector(7 downto 0);
wrx:
in std_logic_vector(7 downto 0);
wrxused: in std_logic;
wrdelete:
in std_logic;
wraddress: in std_logic_vector(4 downto 0);
wren:
in std_logic;
inclock:
in std_logic;
mstart:
in std_logic;
mnext:
in std_logic;
maddress:
out std_logic_vector(4 downto 0);
mbits:
out std_logic_vector(31 downto 0);
mfound: out std_logic;
mcount:
out std_logic_vector(4 downto 0);
rdbusy:
out std_logic;
wrbusy:
out std_logic );
END COMPONENT;
SIGNAL pattern : std_logic_vector(7 downto 0) := "00000000";
SIGNAL wrx: std_logic_vector(7 downto 0) := "00000000";
SIGNAL wrxused: std_logic := '0';
SIGNAL wrdelete: std_logic := '0';
SIGNAL wraddress: std_logic_vector(4 downto 0) := "00000";
SIGNAL wren: std_logic := '0';
SIGNAL inclock: std_logic := '1';
SIGNAL mstart: std_logic := '0';
SIGNAL mnext: std_logic := '0';
SIGNAL maddress: std_logic_vector(4 downto 0);
SIGNAL mbits: std_logic_vector(31 downto 0);
SIGNAL mfound: std_logic;
SIGNAL mcount: std_logic_vector(4 downto 0);
42
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
SIGNAL rdbusy: std_logic;
SIGNAL wrbusy: std_logic;
BEGIN
# Create a 10MHz-clock signal
Clockin: PROCESS
BEGIN
inclock <= NOT(inclock);
WAIT FOR 50 ns;
END PROCESS;
# Create a 5MHz clock signal for the counter
clockcount: PROCESS
BEGIN
countclock <= NOT(countclock);
WAIT FOR 250 ns;
END PROCESS;
# Generate the pattern inputs using an 8-bit counter
PROCESS
variable cnt : integer range 0 to 256 := 88;
BEGIN
IF cnt = 256 THEN
cnt := 0;
END IF;
cnt := cnt + 1;
wait until ((countclock'event) and (countclock = '0'));
pattern <=
conv_std_logic_vector(cnt,8);
END PROCESS;
PROCESS
BEGIN
WAIT FOR 300 ns;
mstart <= '1';
WAIT FOR 100 ns;
mstart <= '0';
WAIT FOR 200 ns;
mnext <= '1';
WAIT FOR 100 ns;
mnext <= '0';
END PROCESS;
u1: cam32x8
PORT MAP(
pattern => pattern, wrx => wrx, wrxused => wrxused,
wrdelete => wrdelete, wraddress => wraddress, wren => wren,
inclock => inclock, mstart => mstart, mnext => mnext,
maddress => maddress, mfound => mfound, mcount => mcount,
rdbusy => rdbusy, wrbusy => wrbusy, mbits => mbits);
END testbench;
Altera Corporation
43
AN 119: Implementing High-Speed Search Applications with Altera CAM
Verilog HDL Instantiation
This example instantiates the altcam.v behavioral model for the altcam
megafunction. This particular example instantiates the function, passes
parameters, and connects the ports of the altcam to input and output pins
to demonstrate the functionality of the CAM. The altcam function can be
directly instantiated as shown here along with other RTL code for
simulation. This example uses files called cam.hex and cam_xu.hex to
initialize the contents. Both files are shown at the end of this document.
The cam32x8.v file shown in Figure 37 instantiates the altcam behavioral
function. This can contain code other than just the altcam function call.
Figure 37. cam32x8 File Used to Instantiate altcam.v Behavioral Model
module cam32x8 (pattern, wraddress, wren, mstart, wrx, wrxused, wrdelete, mnext,
inclock, inclocken, maddress, mbits, mfound, mcount, rdbusy, wrbusy);
input[7:0] pattern;
input[4:0] wraddress;
inputwren;
inputmstart;
input[7:0] wrx;
inputwrxused;
inputwrdelete;
inputmnext;
inputinclock;
inputinclocken;
//inputinaclr;
output[4:0] maddress;
output[31:0] mbits;
outputmfound;
output[4:0] mcount;
outputrdbusy;
outputwrbusy;
altcamU0 (.wrxused (wrxused), .inclocken (inclocken), .wren (wren), .inclock
(inclock), .mstart (mstart), .wrx (wrx),
.pattern (pattern), .mnext (mnext), .wraddress (wraddress), .wrdelete
(wrdelete), .mcount (mcount),
.wrbusy (wrbusy), .maddress (maddress), .mfound (mfound), .rdbusy (rdbusy),
.mbits (mbits));
defparam
U0.width =8,
U0.widthad = 5,
U0.numwords = 32,
U0.match_mode = "MULTIPLE",
U0.pattern_reg = "INCLOCK",
U0.wrx_reg = "INCLOCK",
44
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
U0.pattern_aclr = "Off",
U0.wrx_aclr = "Off",
U0.wrcontrol_aclr = "Off",
U0.wraddress_aclr = "Off",
U0.output_aclr = "Off",
U0.lpm_file = "cam.hex",
U0.lpm_filex = "cam_xu.hex";
endmodule
Verilog HDL Testbench
The Verilog HDL testbench demonstrates the functionality of the altcam
megafunction. If the Modelsim simulator is used with the Verilog HDL
model and hexadecimal initialization files, compile the design before
running the simulation. The convert_hex2ver utility converts the
hexadecimal initialization files to a usable format when simulating
Verilog HDL code. The following steps describe how this conversion is
done.
■
■
Obtain the convert_hex2ver.c and convert_hex2ver_lib.c files from
the Altera web site at http://www.altera.com.
Compile and link the source code into a library.
The following example code shows how to compile the source code
within Microsoft Visual C/C++ (version 4.1 and higher) on the
Windows NT/98/95 operating systems.
cl -c -I<modelsim_dir>\include convert_hex2ver.c convert_hex2ver_lib.c
link -dll -export:init_usertfs convert_hex2ver.obj convert_hex2ver_lib.obj
<modelsim_dir>\win32\mtipli.lib
The following example code shows how to compile the source code with
Sun C compiler on Solaris.
gcc -c -I<modelsim_dir>/include convert_hex2ver.c convert_hex2ver_lib.c
ld -G -B symbolic -o convert_hex2ver.so convert_hex2ver.o convert_hex2ver_lib.o
Modify modelsim.ini under the [vsim] section. For Windows NT/98/95
operating systems, add the following line of code:
veriuser = <DLL_dir>\convert_hex2ver.dll
For the Sun C compiler on Solaris, add the following line of code:
veriuser = <SO_dir>/convert_hex2ver.so
Altera Corporation
45
AN 119: Implementing High-Speed Search Applications with Altera CAM
The cam_testbench.v code in Figure 38 shows an example testbench that
demonstrates the functionality of the altcam megafunction in multiplematch mode with “don’t care” bits.
Figure 38. cam_testbench.v File
`timescale 1 ps / 1 ps
module cam_testbench();
wire [7:0] pattern;
reg [7:0] wrx;
reg wrxused;
reg wrdelete;
reg [4:0] wraddress;
reg wren;
reg inclock;
reg inclocken;
reg mstart;
reg mnext;
wire [4:0] maddress;
wire [31:0] mbits;
wire mfound;
wire [4:0] mcount;
wire rdbusy;
wire wrbusy;
reg [6:0] cnt;
reg clock_count;
cam32x8 L0(.pattern(pattern), .wrx(wrx), .wrxused(wrxused), .wrdelete(wrdelete),
.wraddress(wraddress), .wren(wren), .inclock(inclock), .mstart(mstart),
.mnext(mnext), .maddress(maddress),
.mbits(mbits), .mfound(mfound), .mcount(mcount), .rdbusy(rdbusy),
.wrbusy(wrbusy), .inclocken(inclocken));
initial
begin
assign inclocken = 1'b1;
wrmask = 8'b00000000;
wrmaskused = 1'b0;
wrdelete = 1'b0;
mstart = 1'b0;
mnext = 1'b0;
end
46
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
initial cnt = 88;
assign pattern = cnt;
initial
begin
inclock = 1'b0;
forever #50000 inclock = ~inclock;
end
initial
begin
clock_count = 1'b0;
forever #250000 clock_count = ~clock_count;
end
[email protected](posedge clock_count)
begin
if (cnt == 256)
cnt = 0;
cnt = cnt + 1;
end
initial
begin
mstart = 1'b0;
mnext = 1'b0;
#300000 mstart = 1'b1;
#100000 mstart = 1'b0;
#200000 mnext = 1'b1;
#100000 mnext = 1'b0;
end
endmodule
Initialization file (cam.hex) for 32 × 8 bit CAM
The cam.hex file contains the data to initialize the altcam. Note that
addresses 0003 and 0007 contain the same data 59 (highlighted in blue in
Figure 39). This indicates that multiple match exists in this example.
Figure 39 shows the initialization file (cam.hex) for a 32-word × 8-bit
CAM block:
Altera Corporation
47
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 39. 32 × 8-Bit CAM Block Initialization File
:0100000009f6
:0100010022dc
:01000200A25b
:0100030059a3
:0100040001fa
:01000500B04a
:0100060003f6
:01000700599f
:0100080035c2
:0100090009ed
:01000a0020d5
:01000b001Ada
:01000c0003f0
:01000d0028ca
:01000e0045ac
:01000f0024cc
:0100100009e6
:010011000De1
:0100120018d5
:010013007874
:0100140003e8
:0100150025c5
:010016001Bce
:0100170023c5
:01001800796e
:0100190033b3
:01001a001Fc6
:01001b0003e1
:01001c0011d2
:01001d0009d9
:01001e0006db
:01001f000Fd1
:00000001ff
cam_ xu.hex
The cam_xu.hex file (see Figure 40) contains “don’t care” information to
initialize the altcam. Whenever the data in the <filename>_ xu.hex file
contains 0, it indicates that “don’t care” does not exist in that specific
location. In this example, addresses 0003 and 0007 contain non-zero data,
02, indicating “don’t care” condition (highlighted in blue in Figure 40).
These addresses will be matched when either data h59 or h5b is presented
on the pattern[] input. This is due to the “don’t care” condition on the
first bit (2) of addresses 0003 and 0007.
48
Altera Corporation
AN 119: Implementing High-Speed Search Applications with Altera CAM
Figure 40. cam_xu.hex File
:0100000000ff
:0100010000fe
:0100020000fd
:0100030002fa
:0100040000fb
:0100050000fa
:0100060000f9
:0100070002f6
:0100080000f7
:0100090000f6
:01000a0000f5
:01000b0000f4
:01000c0000f3
:01000d0000f2
:01000e0000f1
:01000f0000f0
:0100100000ef
:0100110000ee
:0100120000ed
:0100130001eb
:0100140000eb
:0100150000ea
:0100160000e9
:0100170000e8
:0100180001e6
:0100190000e6
:01001a0000e5
:01001b0000e4
:01001c0000e3
:01001d0000e2
:01001e0000e1
:01001f0000e0
:00000001ff
END
Conclusion
CAM can be used to accelerate a variety of search applications. By
embedding CAM into advanced device architecture, Altera improves the
performance of memory searches without on- and off-chip delays.
Revision
History
The information contained in Application Note 119 (Implementing High
Speed Search Applications with Altera CAM) version 2.1 supersedes
information published in previous versions. In version 2.1, a bullet on
page 1 was changed to include all Altera devices.
Altera Corporation
49
AN 119: Implementing High-Speed Search Applications with Altera CAM
®
101 Innovation Drive
San Jose, CA 95134
(408) 544-7000
http://www.altera.com
Applications Hotline:
(800) 800-EPLD
Customer Marketing:
(408) 544-7104
Literature Services:
(888) 3-ALTERA
[email protected]
50
Altera, APEX, APEX 20K, APEX 20KC, APEX 20KE, APEX II, MegaWizard, Quartus, and Quartus II are
trademarks and/or service marks of Altera Corporation in the United States and other countries. Altera
acknowledges the trademarks of other organizations for their respective products or services mentioned in this
document. Altera products are protected under numerous U.S. and foreign patents and pending applications,
maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current
specifications in accordance with Altera’s standard warranty, but reserves the right to make changes to any
products and services at any time without notice. Altera assumes no responsibility or liability
arising out of the application or use of any information, product, or service described herein
except as expressly agreed to in writing by Altera Corporation. Altera customers are advised
to obtain the latest version of device specifications before relying on any published
information and before placing orders for products or services.
Copyright  2001 Altera Corporation. All rights reserved.
Altera Corporation
Printed on Recycled Paper.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
