LIT-0422 Rev.4

© 2013 Peerless Industries, Inc. Peerless-AV® is a registered trademark of Peerless Industries, Inc. All rights reserved.

Other parties’ marks are the property of their respective owners. peerless-av.com

800-865-2112

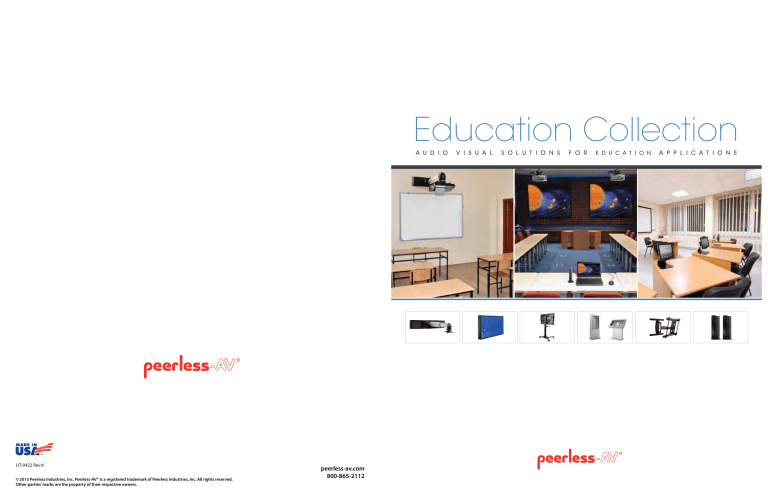

Education Collection

A u d i o V i s u A l s o l u t i o n s f o r e d u c A t i o n

A P P l i c A t i o n s

AUDIO VISUAL SOLUTIONS FOR EDUCATION

u n P A r A l l e l e d P e o P l e , P r o c e s s e s A n d P r o d u c t s

Peerless-AV stands as a leader in the audiovisual mounting industry for more than 40 years. We consistently deliver innovative solutions that focus on quality, simple installation and functionality.

At Peerless-AV, we consider a “solution” to be more than the product itself. A true solution encompasses how the product is made, how it gets to you and the service you receive. We devote care and attention to every element of our AV solutions so we can fulfill the sum total of your needs.

c o n t i n u o u s i n n o V A t i o n

A d V A n c e d

M A n u f A c t u r i n g c o M M i t M e n t t o Q u A l i t y

We are always adding new products to keep pace with the constant changes in AV technology.

We design, manufacture and test products in our u.s.-based facility; ensuring that all products will meet your exacting standards.

We guarantee your satisfaction—designing for ease of installation, improved durability, better aesthetics—your needs guide our manufacturing process, from conception to production.

Today’s students desire an active learning environment—expecting more from their classrooms than ever before. They want their surroundings to support co-learning, co-creation and open discussion. Students and educators are bringing new tools, new attitudes and new expectations into the classroom. In order to keep pace, the classroom must evolve.

Working closely with educators and technology experts, the Peerless-AV team has focused on designing comprehensive solutions for seamlessly incorporating technology in the education space. We developed a line of interactive devices designed with collaborative learning in mind, meant to engage students in the educational experience. Our line of short-throw projector solutions now includes built-in wireless systems and integrated audio. And our expanded line of

AV mounting solutions and accessories make upgrades even easier, streamlining the adoption of new technologies.

At Peerless-AV we understand that technology upgrades often require creative solutions for updating an existing structure or classroom environment. As the industry leader in Custom Solutions, we offer true innovation, technical expertise and state-of-the-art facilities to take projects from concept through successful implementation.

Backed by years of industry experience, a complete line of AV mounting solutions and accessories, and the latest in technological innovations, Peerless-AV equips you with the building blocks needed to create the classroom of the future.

AUDIO SOLUTIONS

WL-AU-PST1200A-W shown

1. EXTENSIVE COMPATIBILITY

Three adjustable arm lengths

accommodate virtually any short

throw projection distance

2. CLEAN AESTHETICS

Internal cable management for

a clean, clutter-free appearance

3. PRECISE IMAGE ALIGNMENT

PRGS-UNV/PRG-UNV Projector

Mount provides secure, easy-to-use

image alignment settings*

4. ENHANCED AUDIO

Integrated co-axial speakers

provide crisp, clear audio

reproduction

5. AMPLIFIED SOUND

Powerful amplifier with wireless

volume control, fills almost any

room size with sound

SHORT THROW PROJECTOR MOUNTS

PSTK-600 shown

1. UNIVERSAL COMPATIBILITY

Multiple throw lengths to cover

nearly all short throw projectors

2. INTEGRATED CABLE MANAGEMENT

Protects, contains and conceals cables

for a clean, professional installation

3. ALL-IN-ONE SOLUTION

Kitted with Peerless-AV

Projector Mount

PRGS-UNV

* PRGS-UNV comes with WL-AU-PST600A-W,

WL-AU-PST1200A-W and WL-AU-PST1600A-W models

PRG-UNV comes with WL-AU-PST600A,

WL-AU-PST1200A and WL-AU-PST1600A models

Visit peersound.peerless-av.com to view complete line of Audio Solutions

Accessories ................................ pages 30-31

WL-AU-PST600A/1200A/1600A(-W)

WIRELESS SHORT THROW PROJECTOR AUDIO SYSTEM

COLOR:

Black or white

• 5-1/4" woofers with 1" post tweeters offer ideal frequency response for AV content as well as spoken voice

• 25W x 2 class-D Amplifier features AV and microphone inputs with gain adjustment, treble/base/balance adjustments, stereo/mono bridging,

and wireless remote control

• Wireless remote controls for Amplifier are included for cable-free convenience

• Three adjustable arm lengths from 18.04" to 64.31" (458 to 1633mm)

to accommodate short throw projection distances

• Removable cover includes security hardware, steel skeleton, acrylic skin,

and easy-clean speaker grills

• All electronics are protected by security brackets to safeguard from theft

• Up to 3" left or right horizontal adjustment after installation for perfect projector image positioning

• Up to 3º of vertical adjustment can be made to compensate for sag in arm or wall

• Surge protector to power and protect all equipment within enclosure

is included

WL-AU-AVWSA(-W)

WIRELESS AUDIO WALL SYSTEM

COLOR:

Black or white

• 5-1/4" woofers with 1" post tweeters offer ideal frequency response for AV content as well as spoken voice

• 25W x 2 class-D amplifier features AV and microphone inputs with gain adjustment, treble/base balance adjustments, stereo/mono bridging, and wireless remote control

• Wireless remote controls for Amplifier are included for cable-free convenience

• Fully enclosed equipment management system conceals and protects electronic components, offering a clean, clutter-free appearance

• Removable cover includes security hardware, steel skeleton, acrylic skin,

and easy-clean speaker grills

• All electronics are protected by security brackets to safeguard from theft

• Surge protector to power and protect all equipment within enclosure is included

Use Short Throw Distance Calculator

@ projectorcalculator.peerless-av.com

Accessories ................................ pages 30-31

PSTA-600 shown

PSTA-600/-1200/-1600

PSTK-600/-1200/-1600

SHORT THROW PROJECTOR MOUNT

COLOR:

Silver and Black

• Aluminum alloy telescoping arm with

lock down slot

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Three different throw lengths to cover nearly all short throw projectors

• Includes the PRGS-UNV projector mount

• Double stud wall plate included with all PSTK models has 10" (254mm) of lateral shift and

3" (76mm) of horizontal lift

PSTA-028 shown

PSTA-028(W) / PSTK-028(W)

SHORT THROW PROJECTOR MOUNT

COLOR:

Black or white

• Sliding carriage design allows projector mount to glide into place at any location on the short throw arm

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Includes the PRGS-UNV projector mount

• The PSTK model’s double stud wall plate allows for placement on walls where stud location may not be in the optimum location

PSTK-2955 shown

PSTA-2955(W) / PSTK-2955(W)

SHORT THROW PROJECTOR MOUNT

COLOR:

Black or white

• Telescoping arm design provides a large range of mounting options with convenient lockdown slots at every point

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Includes the PRGS-UNV projector mount

• The PSTK model’s double stud wall plate allows for placement on walls where stud location may not be in the optimum location

Adjustable mounting pattern

Max load

up to 17.63" (448mm)

—

Adjustable mounting pattern

Distance from the wall

Wl-Au-Pst600A(-W): 19.44"-26.33" (494-669mm)

Wl-Au-Pst1200A(-W): 32.43"-49.95"(824-1269mm) 5.58” (142mm)

Wl-Au-Pst1600A(-W): 48.18"-65.71"(1224-1669mm)

Swivel

Roll

Pitch

15°/-20° (Prgs-unV) / ±20° (Prg-unV)

±5° (Prgs-unV) / ±10° (Prg-unV)

360° (during installation)

—

Security

yes yes

25lb (11kg)

—

Distance from the wall

Pitch | swivel | roll

up to 17.63" (448mm) up to 17.63" (448mm) up to 17.63" (448mm)

PstA-600: 16.73"-23.62" (425-600mm)

PstK-600: 18.04"-24.93" (458-633mm)

PstA-1200: 29.72"-47.24" (755-1200mm)

PstK-1200: 31.03"-48.55" (788-1233mm)

PstA-1600: 45.47"-63.00" (1155-1600mm)

PstK-1600: 46.78"-64.31" (1188-1633mm)

+15°/-20° | 360° | ±5°

Security

PstA-028: 6.00"-33.00" (152-838mm)

PstK-028: 6.42"-33.42" (163-849mm)

PstA-2955: 37.00"-61.55" (940-1563mm)

PstK-2955: 37.42"-61.98" (950-1574mm)

+15°/-20°| 360° | ±5° +15°/-20° | 360°| ±5° yes yes yes

Amplifier Specifications

Power rating

Inputs

Outputs

Volume Control

Audio controls

Power source

25W x 2 rMs class-d amplifier

3.5mm stereo Auxiliary jack, 3.5mm stereo microphone jack

Bridgeable stereo speaker jacks

Wireless ir remote control; onboard local volume control

Base, treble, balance adjustments; Microphone input gain adjustment; stereo / bridge mono switch

Voltage: 120V Ac, 60Hz; consumption: 24V dc, 2A

Max load

Listings / Certifications

25lb (11kg) 50lb (22kg) 35lb (15kg)

Speaker Specifications

5-1/4" 2-way speakers with 35W maximum power handling; 1" post tweeters; 60Hz to 20kHz frequency response, 86 dB sensitivity

UNIVERSAL PROJECTOR MOUNTS

PRGS-UNV shown

1. PRECISION GEAR IMAGE ADJUSTMENT

Reduces installation time and delivers

pin-point image alignment

2. UNIVERSAL COMPATIBILITY

Spider

Universal Adaptor Plate

extends up to 17.63" (448mm) to fit

most projector models

3. SIMPLE FLUSH CEILING

INSTALLATION

Enables fast and easy flush ceiling

installation with open wrench access

Accessories ................................ pages 30-31

Adjustable mounting pattern

Distance from the ceiling

Distance from the wall

Tilt | swivel | roll

Security

Max load

Listings / Certifications

PJF2-UNV(-S)

PJF2 PROJECTOR MOUNT

COLOR:

Black or silver

• Simple ball-in-socket design enables quick and easy installation and adjustment

• Spider ® Universal Adaptor Plate extends up to

17.63" (448mm) to fit most projector models

• Security hardware provided at every connection point

• Two thumb screws allow for easy projector removal and maintenance

PRGS-UNV(-S)(-W)

PRECISION GEAR PROJECTOR MOUNT

COLOR:

Black, silver or white

• Spider

Universal Adaptor Plate extends up to

17.63" (448mm) to fit most projector models

• Two adjustment knobs control pitch and roll for precise image alignment. Engage using a Phillips screwdriver or extend the knobs to adjust by hand

• Cable management allows cables to be routed through the projector mount and out of sight

• Quick release mechanism to easily service projector

• Pre-installed security screws provide optional pitch and roll lock to prevent tampering with image alignment

PRSS-UNV(-S)(-W)

PRSS PROJECTOR MOUNT

COLOR:

Black, silver or white

• Spider ® Universal Adaptor Plate extends up to

17.63" (448mm) to fit most projector models

• Four points of adjustment enable precise image alignment

• Cable management allows cables to be routed through the projector mount and out of sight

• Pre-installed security screws provide optional pitch and roll lock to prevent tampering with image alignment

• Quick release mechanism to easily service projector

• Low profile design allows projector to be

flush with the ceiling up to 17.63" (448mm)

4.23"-5.23" (107-133mm) 3.63”-4.63” (92-118mm) 3.63”-4.63” (92-118mm)

— — —

±15° | 360° | ±15° +15°/-20° | 360° | ±5° +15°/-20° | 360° | ±5° yes yes yes

50lb (22kg) 50lb (22kg) 50lb (22kg)

EN 60065 up to 17.63" (448mm) up to 17.63" (448mm)

PRGS-EXB shown

Wireless solutions

Wall Adaptor included with PRGS-EXA/EXB and

PRSS-EXA/EXB models

PRGS-EXA/EXB/EXC(-W)

PRSS-EXA/EXB/EXC(-W)

PRECISION GEAR ADJUSTABLE

PROJECTOR CEILING/WALL MOUNT KIT

(PRGS-EXA/EXB/EXC models)

PRSS ADJUSTABLE PROJECTOR

CEILING/WALL MOUNT KIT

(PRSS-EXA/EXB/EXC models)

COLOR:

Black or white

• Includes PRGS precision gear projector mount with PRGS-EXA/EXB/EXC models or PRSS series projector mount with PRSS-EXA/EXB/EXC models

• Safety catch designed into extension to ensure user and equipment safety

• Mounts to ceiling or wall (depending on model) with included wall mount interface

• Integrated cable management protects,

contains and conceals cables for a clean, professional installation

PSM-UNV(-S)(-W) |PSMU-PRSS(-S)(-W)

PSM/PSMU SECURITY MOUNT

COLOR:

Black, silver or white

• PSMU models include the PRSS projector mount

and PSM models include the PJF2 projector mount

• Two-piece tray design prevents access to the projector

• Cable management allows cables to be

routed through projector mount and out of sight

• Key–lock security for theft deterrence

• Slide-out tray enables quick projector removal

• Universal hole pattern on the mounting tray accommodates most projectors

PE1120(-W)

PROJECTOR ENCLOSURE

COLOR:

Black or white

• Fits projectors up to 20"W x 18"D x 10"H

(508 x 457 x 254mm)

• 3-step installation

• Adjustable pipe clamp fits 1" NPT to 1-½"

NPT pipe

• “Hook-n-Hang” feature allows hands-free

operation during projector installation or

maintenance

• Peerless-AV exclusive security hardware

included to prevent tampering

• Mounts flush to the ceiling or on a 1-1/2"

NPT extension column to provide optimum positioning

WL-PRG-UNV-200

PEERAIR™ WIRELESS

PRG PROJECTOR MOUNT

COLOR:

Black

• Includes everything needed to mount and stream wireless Full HD 1080p and passive 3D content to

the mounted projector through walls, floors or ceilings

• Patent-pending precision gears provides exact projector image alignment

• Pre-assembled design reduces installation time

• Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs

• Includes two 1.6" (0.5m) HDMI cables for clean,

fast and easy connectivity

• Includes IR Extender for enhanced remote control

of AV components

• Release mechanism to easily service components

• Quick and easy installation and plug-and-play wireless set-up up to 17.63" (448mm)

Prgs/Prss-eXA: 12.33"-17.43" (313-443mm)

Prgs/Prss-eXB: 16.31"-25.30" (414-643mm)

Prgs/Prss-eXc: 22.76"-37.54" (578-954mm)

Prgs/Prss-eXA: 9.72"-13.86" (247-352mm)

Prgs/Prss-eXB: 13.74"-21.73" (349-552mm)

+15°/-20° | 360° | ±5°

14.23" x 12.67" (362 x 322mm) tray

4.67” (119mm)

PSM-UNV models

3.79" (96mm)

PSMU-PRSS models

±15° | 360° | ±15

PSM-UNV models

—

+15/-20° | 360°| ±5°

(±15° tilt when flush mounted)

PSMU-PRSS models

yes yes

50lb (22kg)

EN 60065

50lb (22kg)

EN 60065

—

12.57" (323mm)

—

yes

— up to 17.63" (448mm)

3.81"-4.81" (97-122mm)

—

±20°| 360°

(±15° when flush mounted)

| ±10° yes

50lb (22kg)

See pages 28-29 for details on

HD Flow

Pro Wireless Multimedia Kit or visit peerless-av.com to view complete line of Wireless Mounting Solutions.

WHITEBOARD MOUNTS

IWB600-UNIV

1. UNIVERSAL DESIGN

Four individual bezel clamps enable virtually any whiteboard up to 1.75” thick to be easily mounted

2. ADJUSTABLE DEPTH

Mounts over most existing marker boards or chalkboards and chalk trays, by simply adjusting the height and depth of the mount

3. ADJUSTABLE SIZE RANGE

Telescoping vertical rails allow the mount to accommodate existing boards up to 76" (1930mm) tall

4. ATTACHMENT VERSATILITY

Attach a whiteboard with the universal compatibility of the adjustable bezel clamps or use the dedicated mounting holes along the vertical rail

UNIVERSAL CEILING MOUNTS

PLCM-UNL-CP shown

1. ACHIEVE IDEAL PLACEMENT

Mounts to wood or concrete

2. INTEGRATED CABLE MANAGEMENT

Protects, contains and conceals cables

for a clean, professional installation

3. INSTALLATION EASE

Simple hook-on screen installation

LCC-36-CS

PC930B

PC932B

LCC-36

Accessories ................................ pages 30-31

Whiteboard

Adapter Compatibility

Distance from Wall

Max load

Listings / Certifications

IWB600-UNIV IWB600-2SB

UNIVERSAL WHITEBOARD MOUNT

For attaching over existing marker boards and chalkboards

COLOR:

Silver

• Four individual clamps enable virtually any board up to 1.75" (45mm) thick to be easily mounted

• Telescoping vertical rails allow the mount to fit over existing boards up to 76" (1930mm) tall

• Mounts over most existing marker boards or chalkboards and chalk trays, by simply adjusting

the height and depth of the mount

• Unique design allows universal mounting compatibility via the adjustable bezel clamps

or dedicated via the mounting hole pattern built into most industry leading whiteboards

• To increase rigidity of the whiteboard, add the optional ACC956 bumpers between the mount and the whiteboard

DEDICATED WHITEBOARD MOUNT

For attaching over existing marker boards and chalkboards

COLOR:

Silver

• Mounts over the existing chalkboard, even boards with chalkboard trays, with depth adjustable wall brackets

• Vertical and horizontal whiteboard adjustment

• Hook-on design allows for single person installation

• To increase rigidity of the whiteboard, add the optional ACC956 bumpers between the mount and the whiteboard

IWB600-WB

DEDICATED WHITEBOARD MOUNT

For attaching over existing marker boards and chalkboards

COLOR:

Silver

• Mounts over most existing chalkboard, even boards with chalkboard trays

• Vertical and horizontal whiteboard adjustment

• Hook-on design allows for single person installation

• To increase rigidity of the whiteboard, add the optional ACC956 bumpers between the mount and the whiteboard universal Models: infinite x 48.00"-76.00" (1219-1930mm) dedicated Models:

64" SMART Board

SB660, 77" SMART Board

SB680,

77" SMART SBX880, 77" Marsh Board PR4050000,

63" Hitachi Starboard

DUO, 77" Hitachi Starboard

DUO,

77" Hitachi Starboard

TRIO, 88" Hitachi Starboard

DUO,

77" Interwrite DualBoard 1277, 64" ActivBoard

164,

78" ActivBoard

178, 78" ActivBoard

378 PRO,

87" ActivBoard

387 PRO, 95" ActivBoard

395 PRO

5.82"-7.35" (148-187mm) universal Models:

— dedicated Models:

64" SMART Board

SB660, 77" SMART Board

SB680,

77" Marsh Board PR4050000, 63" Hitachi Starboard

DUO,

77" Hitachi Starboard

DUO, 77" Hitachi Starboard

TRIO

88" Hitachi Starboard

DUO, 77" Interwrite DualBoard 1277,

64" ActivBoard

164, 78" ActivBoard

178, 78" ActivBoard

378 PRO,

87" ActivBoard

387 PRO, 95" ActivBoard

395 PRO

3.39"-5.79" (86-147mm)

70lb (32kg) 70lb (32kg) universal Models:

— dedicated Models:

SMART Board

600, 600i, 685ix, 800, 800i and 885ix

5.14" (131mm)

50lb (22kg)

Accessories ................................ pages 30-31

LCC-18-(C)(S) | LCC-36-(C)(S)

CEILING MOUNT

COLOR:

Black or silver

• Adjustable column length in 1" (25mm) increments

• Display can be mounted in standard position

or face-down

• Optional cable management covers

(“C” models only)

• 0.75" extension pipe for low profile appearance

and includes adapter to 1.5" NPT pipe

PLCM-UNL-CP

CEILING MOUNT

COLOR:

Black

• Up to 20° of tilt and 360° swivel

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Uses standard 1.5" NPT pipe

• Simple Hook-and-Hang TM installation

PC930A/B/C(-S)(-W)

PC932A/B/C(-S)(-W)

CEILING MOUNT

COLOR:

Black, silver or white

• Comes in three adjustable extension channel lengths for optimal viewing position

• Integrated cable management protects,

contains and conceals cables for a clean, professional installation

• Safety catch design built into extension channel

• Swivel adjustment within ceiling plate

Display size

VESA ® pattern

Adjustable mounting pattern (W x H)

Distance from the ceiling

13" to 29"

75/100mm

—

32" to 65" up to 600 x 400mm

731 x 433mm (28.76" x 17.05")

15" to 24"

PC930A/B/C models

15" to 40"

PC932A/B/C models

75/100mm

200 x 100 and 200 x 200mm

PC930A/B/C models PC932A/B/C models

—

19.3"-32.3"

(491-822mm)

LCC-18-(C)(S)

36.8"-49.8"

(936-1266mm) 33.34" (847mm)

9.8"-13.9" 13.7"-21.8" 20.2"-34.0"

(249-353mm) (350-556mm) (514-864mm)

LCC-36-(C)(S)

Tilt | swivel

+20°/-5° | 360°

Landscape

yes

to portrait

Requires display to be removed and reset on mount.

+20° | 360° +15°/-5° | 360°

— yes

Requires display to be removed and reset on mount.

Max load

Listings / Certifications

yes

40lb (18kg) yes

200lb (90kg)

EN 60065 yes

50lb (22kg)

UNIVERSAL FLAT, TILT & ARTICULATING WALL MOUNTS

SAX772PU shown

1. INTEGRATED CABLE MANAGEMENT

Protects, contains and conceals cables

for a clean, professional installation

2. VIEWING FLEXIBILITY

Arm extends up to 26.54" (674mm) from the wall

for SAX762PU and SAX772PU

3. CLEAN APPEARANCE

Open wall plate design for installation flexibility

4. POST-INSTALLATION LEVELING

±5º of roll

5. WALL PLATE KNOCKOUT

Increased cable and power management options with

optional in-wall accessory for powering flat panel display

and routing low-voltage cables through the wall

6. LANDSCAPE TO PORTRAIT ROLL

Rotate the flat panel 90º without removing the display

Contact your Peerless-AV sales representative for more information

Accessories ............... pages 30-31

SFX645(P) SFX650(P)

UNIVERSAL FLAT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 13" (330mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

UNIVERSAL FLAT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 25" (635mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

SFX660(P) STX645(P)(L)

UNIVERSAL FLAT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 24" (610mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

UNIVERSAL TILT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 13" (330mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

• 5° of negative tilt offers 3" of space for hands-free, behind the display access

• IncreLok™ offers fixed tilt lock in

5° increments

Display size

32" to 47" 32" to 55" 46" to 80"

VESA

pattern

up to 400 x 400mm up to 600 x 400mm up to 800 x 400mm

Adjustable mounting pattern (W x H)

up to 452 x 433mm

(17.79"W x 17.04"H)

up to 744 x 433mm up to 827 x 433mm

(29.29"W x 17.04"H) (32.54"W x 17.04"H)

Distance from the wall

Tilt | swivel | roll

1.21" (31mm)

—

Horizontal display adjustment

1.21" (31mm)

— up to 25" (635mm)

1.21" (31mm)

— up to 24" (610mm)

Landscape to portrait

— — —

Security

on sfX645 model on sfX650 model on sfX660 model

Max load

80lb (36kg) 120lb (54kg) 150lb (68kg)

Listings / Certifications

32" to 47" up to 400 x 400mm up to 431 x 433mm

(16.96"W x 17.04"H)

1.69" (43mm)

+15°/-5° one-touch™ tilt with increlok™ tilt lock up to 13" (330mm)

— on stX645(l) models

80lb (36kg)

STX650(P)(L) STX660(P)(L) SAX755PU SAX762PU SAX772PU

UNIVERSAL TILT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 24" (610mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

• 5° of negative tilt offers 3" of space for hands-free, behind the display access

• IncreLok™ offers fixed tilt lock in

5° increments

UNIVERSAL TILT WALL MOUNT

COLOR:

Black

• Low-profile design

• Up to 1" of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

• Up to 23" (584mm) of horizontal display adjustment for centering display on wall

• Open wall plate design

• Fast installation

• 5° of negative tilt offers 3" of space for hands-free, behind the display access

• IncreLok™ offers fixed tilt lock in

5° increments

UNIVERSAL ARTICULATING WALL ARM

COLOR:

Black

• Low-profile design

• Internal cable management

• Display can be rotated from landscape

to portrait without removing the display

• ±0.5" of vertical adjustment for postinstallation height adjustment fine-tuning

UNIVERSAL ARTICULATING WALL ARM

COLOR:

Black

• Low-profile design

• Internal cable management

• Display can be rotated from landscape

to portrait without removing the display

• ±0.5" of vertical adjustment for postinstallation height adjustment fine-tuning

• Wall plate knockout for addition of power receptacle accessory option

UNIVERSAL ARTICULATING WALL ARM

COLOR:

Black

• Low-profile design

• Internal cable management

• Display can be rotated from landscape

to portrait without removing the display

• ±0.5" of vertical adjustment for postinstallation height adjustment fine-tuning

• Wall plate knockout for addition of power receptacle accessory option

32" to 55" up to 600 x 400mm up to 723 x 433mm

(28.46"W x 17.04"H)

1.69" (43mm)

46" to 80" up to 800 x 400mm up to 805 x 433mm

(31.71"W x 17.04"H)

1.69" (43mm)

+15°/-5° one-touch™ tilt with increlok™ tilt lock up to 24" (610mm)

+15°/-5° one-touch™ tilt with increlok™ tilt lock up to 23" (584mm)

40" to 52" up to 600 x 400mm up to 661 x 449mm

(26.03

W x 17.69"H)

2.54"-26.41" (65-671mm)

+15°/-5° one-touch™ tilt | ±90° | 90° up to 18" (461mm)

40" to 63" up to 600 x 400mm up to 661 x 449mm

(26.03"W x 17.69"H)

2.60"-26.54" (66-674mm)

+15°/-5° one-touch™ tilt | ±90° | 90° up to 18" (461mm)

50" to 80" up to 800 x 600mm up to 813 x 607mm

(32.03"W x 23.91"H)

2.60"-26.54" (66-674mm)

+15°/-5° one-touch™ tilt | ±90° | 90° up to 24" (613mm)

— on stX650(l) models

120lb (54kg)

—

yes yes yes on stX660(l) models

150lb (68kg)

Acc925

80lb (36kg)

Acc925

110lb (50kg)

Acc925

135lb (61kg)

OSHPD Approval Pending

UNIVERSAL FLAT & TILT WALL MOUNTS

ST660 shown

1. OPEN ARCHITECTURE

Offers outstanding flexibility in mount

placement by easily accommodating cables,

cords, and electrical gang boxes

2. FINISHED END PANEL

Unique end panel design creates a clean

appearance by hiding screws from view

3. EASY TILT ADJUSTMENT

The display is supported by tilt adaptors

that allow for +15°/-5° tilt adjustment in

one easy motion

4. SECUREMENT SCREWS

Assures the display is secured to the wall

plate preventing the display from accidentally

being dislodged

Wireless solutions

Accessories ................................ pages 30-31

SF630(-S)

(-AB)(-AW)

Flat

ST630

(-AB)(-AW)

Tilt

SF632

(-AB)(-AW)

Flat

ST632

(-AB)(-AW)

Tilt

SF640

(-AB)(-AW)

Flat

ST640

(-AB)(-AW)

Tilt

SF650

(-AB)(-AW)

Flat

ST650

(-AB)(-AW)

Tilt

UNIVERSAL FLAT/TILT

WALL MOUNT

COLOR:

Black, silver,

• antimicrobial black or antimicrobial white

Display adaptor plate simply hooks onto the wall plate for quick and easy installation

• Includes hardware for installation to wood stud, concrete, cinder block and metal stud ( metal stud accessory required) *

*ACC215

UNIVERSAL FLAT/TILT

WALL MOUNT

COLOR:

Black, antimicrobial black or antimicrobial white

• Display adaptor plate simply hooks onto the wall plate for quick and easy installation

• Includes hardware for installation to wood stud, concrete, cinder block and metal stud ( metal stud accessory required)

*ACC215

UNIVERSAL FLAT/TILT WALL MOUNT

COLOR:

Black, antimicrobial black or antimicrobial white

• Open wall plate design allows for total wall access, increasing electrical access and cable management options

• Universal adaptors easily hook onto wall plate for fast installation

• Includes hardware for installation to wood stud, concrete, cinder block and metal stud ( metal stud accessory required) *

• Comes with Peerless-AV fastener pack with all necessary display attachment hardware

*ACC415

UNIVERSAL FLAT/TILT WALL MOUNT

COLOR:

Black, antimicrobial black or antimicrobial white

• Open wall plate design allows for total wall access, increasing electrical access and cable management options

• Universal adaptors easily hook onto wall plate for fast installation

• Includes hardware for installation to wood stud, concrete, cinder block and metal stud ( metal stud accessory required) *

• Comes with Peerless-AV fastener pack with all necessary display attachment hardware

*ACC415

SF660

(-AB)(-AW)

Flat

ST660

(-AB)(-AW)

Tilt

UNIVERSAL FLAT/TILT WALL MOUNT

COLOR:

Black, silver, antimicrobial black or antimicrobial white

• Open wall plate design allows for total wall

access, increasing electrical access and cable management options

• Universal adaptors easily hook onto wall plate

for fast installation

• Includes hardware for installation to wood stud, concrete, cinder block and metal stud (

stud * metal

• Comes with Peerless-AV fastener pack with all

*ACC415

Display size

10" to 24" 22" to 40"

VESA ® pattern

75,100, 200 x 100

75/100mm and 200 x 200mm

Additional adaptor plates Additional adaptor plates also available also available

Adjustable mounting pattern (W x H)

— —

Distance from the wall

0.96" 1.58"-2.23"

(24m) (40-57mm)

SF630 models ST630 models

1.02"

(26m)

SF632 models

1.66"-2.91"

(42-74mm)

ST632 models

—

Tilt

IncreLok

—

Horizontal display adjustment

Security

yes

Max load

Listings / Certifications

80lb (36kg)

—

— yes

115lb (52kg)

32" to 47"

450 x 433mm 458 x 449mm

(17.73" x 17.05") (18.02" x 17.67")

32" to 56" up to 400 x400mm up to 600 x 400mm

742 x 433mm 750 x 449mm

(29.23" x 17.05") (29.52" x 17.67")

37" to 63" up to 800 x 400mm

825 x 433mm 832 x 449mm

(32.48" x 17.05") (32.75" x 17.67")

1.2"

(30mm)

SF640 models

2.63"-4.87"

(67-124mm)

ST640 models

1.7" 2.63"-5.71"

(

43mm)

SF650 models

(67-145mm)

(

1.25" 2.63"-5.71"

32mm) (67-145mm)

SF660 models ST660 models

—

— up to 6" (152mm) yes

150lb (68kg)

up to 8" (203mm)

yes

175lb (79kg) up to 8" (203mm) yes

200lb (90kg)

SF670(-S)

(-AB)(-AW)

Flat

ST670

(-AB)(-AW)

Tilt

SF680

(-AB)(-AW)

Flat

ST680

(-AB)(-AW)

Tilt

UNIVERSAL FLAT/TILT WALL MOUNT

COLOR:

Black, silver, antimicrobial black or antimicrobial white

• Universal adaptors easily hook onto wall plate

for fast installation

• Easy-Glide

design ensures display is securely

attached to wall plate

• Mounts to wood studs, concrete, cinder block or metal studs ( metal stud accessory required)

• Comes with Peerless-AV fastener pack with all necessary display attachment hardware

*ACC615

UNIVERSAL FLAT/TILT WALL MOUNT

COLOR:

Black, silver, antimicrobial black or antimicrobial white

• Universal adaptors easily hook onto wall plate

for fast installation

• Easy-Glide

design ensures display is securely

attached to wall plate

• Mounts to wood studs, concrete, cinder block or metal studs ( metal stud accessory required)

• Comes with Peerless-AV fastener pack with all necessary display attachment hardware

*ACC615

WL-ST660-200

PEERAIR™ WIRELESS TILT WALL MOUNT

COLOR:

Black

• Includes everything needed to mount and stream wireless Full HD 1080p content to the mounted display through walls, floors or ceilings

• Provides an ultra sleek wireless content delivery system with no long and costly cable runs

• Integrated IR Extender for remote control of AV components

• Built-in 3-tap grounded outlet for wireless components and display power allowing for only one extension cord

to be routed to the power outlet

• Provides excess display power and wireless component cable storage for a clean look

42" to 71"

up to 800 x 400mm

908 x 503mm 915 x 503mm

(35.75" x 19.79") (36.04" x 19.8")

(

1.73"

44mm)

SF670 models

3.04"-6.41"

(77-163mm)

ST670 models

—

15°/-5°

—

-5°, 0°, 5°, 10°, 15°

1111 x 745mm 1119 x 745mm

(43.75" x 29.31") (44.04" x 29.31")

832 x 449mm

(32.75" x 17.67")

(

1.83"

46mm)

SF680 models

3.04"-8.77"

(77-223mm)

ST680 models

(

2.67"

68mm)

—

15°/-5°

(Tilt may be effected based on placement of wireless module)

—

-5°, 0°, 5°, 10°, 15° -5°, 0°, 5°, 10°, 15°

up to 12" (304mm) up to 12" (304mm) up to 8" (203mm)

yes

250lb (113kg)

61" to 102"

up to 1000 x 600mm

yes

350lb (158kg) with max load 200lb (90kg)

37" to 63"

up to 800 x 400mm

yes

200lb (90kg)

See pages 28-29 for details on

HD Flow

Pro Wireless Multimedia Kit or visit peerless-av.com to view complete line of Wireless Mounting Solutions.

UNIVERSAL PIVOT & ARTICULATING WALL MOUNTS

1. LOW-PROFILE

Reduced depth of 4.43" holds display closer to the wall than ever before

2. NEW WALL PLATE DESIGN

Minimalistic wall plate for increased

wall access and improved aesthetic

3. INTEGRATED CABLE MANAGEMENT

Protects, contains and conceals cables

for a clean, professional installation

4. PERFECT POSITIONING

1" of vertical adjustment for fine

tuning of display positioning

5. FULL RANGE OF MOTION

Multi-link construction allows

for a full 180° of articulation

SA761PU shown

Wireless solutions

SP724P

Pivot

SA724P

Articulating

SP737P

Pivot

SA737P

Articulating

SP746P

Pivot

SA746P

Articulating

Accessories ............... pages 30-31

PIVOT/ARTICULATING WALL MOUNT

COLOR:

Black

• Easy leveling ±5° after display installation

• Internal cable management provides clean, professional installation finish

• Landscape or portrait mounting

options increases display versatility

• Quick and easy, Hook-and-Hang™

one-person installation

• ±15° of One-Touch™ tilt for smooth viewing angle adjustment

• Mounts to wood studs, concrete, cinder, breeze block or metal studs (metal stud accessory required)*

*WSP700/ WSP701

PIVOT/ARTICULATING WALL MOUNT

COLOR:

Black

• Easy leveling ±5° after display installation

• Internal cable management provides clean, professional installation finish

• Landscape or portrait mounting

options increases display versatility

• Quick and easy, Hook-and-Hang™

one-person installation

• ±15° of One-Touch™ tilt for smooth viewing angle adjustment

• Mounts to wood studs, concrete, cinder, breeze block or metal studs (metal stud accessory required)*

*WSP700/ WSP701

PIVOT/ARTICULATING WALL MOUNT

COLOR:

Black

• Easy leveling ±5° after display installation

• Internal cable management provides clean, professional installation finish

• Landscape or portrait mounting options increases display versatility

• Quick and easy, Hook-and-Hang™

one-person installation

• ±15° of One-Touch™ tilt for smooth viewing angle adjustment

• Mounts to wood studs, concrete, cinder, breeze block or metal studs (metal stud accessory required)*

*WSP700/ WSP701

SP850-UNL(P)(S)(GB)(GS)

Pull-out Swivel

PULL-OUT SWIVEL WALL MOUNT

COLOR:

Black, silver, high gloss black or high gloss silver

• Integrated cable management

for a clean look

• Locking tab provides optional swivel restriction to one side

• Lock Key™ installation tool secures

arms for easy display installation

• Lock-out feature prevents unwanted extension

• Includes hardware for installation

to wood stud, concrete or cinder block

Display size

10" to 24" 22" to 37" 22" to 47"

VESA ® pattern

75, 100, 200 x 100, 200 x 200,

75 x 75, 100 x 100mm 75 x 75, 100 x 100, 200 x 100 300 x 200, 300 x 300, and 200 x 200mm 400 x 300 and 400 x 400mm

Adjustable mounting pattern (W x H)

—

Distance from the wall

2.50"-9.61" 2.50"-16.71"

(64-224mm) (64-425mm)

SP724P models SA724P models

Horizontal display adjustment

— —

Tilt | swivel | roll

±15° | ±90° | ±5° ±15° | ±90° | ±5° ±15° | ±90° | ±5°

—

2.50"–11.88" 2.52"–21.26"

(64-302mm) (64-540mm)

SP735P models SA735P models

—

2.61"-11.99" 2.61"-21.31"

(66-304mm) (66-543mm)

SP746P models SA746P models

—

Landscape to portrait

— — —

Acc918 Acc975 Acc976

Security

Max load

Listings / Certifications

25lb (11kg) 55lb (25kg) 70lb (32kg)

32" to 65"

100, 200 x 100mm

729 x 433mm

(28.70" x 17.05")

3.40"–11.90"

(86-302mm)

0°, 5° or 10° | ±45° | ±1° up to 3.50" (89mm)

— yes

150lb (68kg)

OSHPD Approval Pending

SA752P(U)

Articulating

SA761P(U)

Articulating

ARTICULATING WALL ARM

COLOR:

Gloss black

• Multi-link construction allows for a full 180°

range of motion

• Integrated cable management contains, protects and conceals cables for a clean clutter-free look

• Display can be rotated from portrait to landscape without removing the display

• 1" (25.4mm) vertical adjustment for display

position fine tuning

• Mounts to wood studs, concrete or cinder block

ARTICULATING WALL ARM

COLOR:

Gloss black, antimicrobial black or antimicrobial white

• Multi-link construction allows for a full 180°

range of motion

• Minimalistic wall plate footprint for increased wall access and improved aesthetics

• Integrated cable management contains, protects and conceals cables for a clean clutter-free look

• Display can be rotated from portrait to landscape without removing the display

• 1" (25.4mm) vertical adjustment for display

position fine tuning

• Mounts to wood studs, concrete or cinder block

32" to 52" up to 600 x 400mm

689 x 439mm

( 27.12" x 17.29")

4.43"-27.43"

(112-697mm)

SA752PU models

2.73"-25.73"

(69-654mm)

SA752P models

15°/-5° | ±90° | ±5°

37" to 60"

up to 600 x 400mm

689 x 439mm

( 27.12" x 17.29")

4.43"-27.55"

(113-700mm)

2.85"-25.85"

(72-657mm)

SA761PU models SA761P models

15°/-5° | ±90° | ±5°

SA763PU

Articulating

SA771P(U)

(-AB)(-AW)

Articulating

WL-SA761PU-200

ARTICULATING WALL ARM

COLOR:

Gloss black, antimicrobial black or antimicrobial white

• Multi-link construction allows for a full 180°

range of motion

• Minimalistic wall plate footprint for increased wall access and improved aesthetics

• Integrated cable management contains, protects and conceals cables for a clean clutter-free look

• Display can be rotated from portrait to landscape without removing the display

• 1" (25.4mm) vertical adjustment for display

position fine tuning

• Mounts to wood studs, concrete or cinder block

37" to 63"

SA763PU model

37" to 71"

SA771P(U) models

up to 600 x 400mm up to 800 x 400mm

SA763PU model SA771P(U) models

687 x 439mm 827 x 439mm

( 27.06" x 17.29") (32.56" x 17.29")

SA763PU model SA771PU models

4.43"-27.55"

(113-700mm)

SA763PU / SA771PU models

2.83"–25.83"

(72-656mm)

SA771P models

15°/-5° | ±90° | ±5°

PEERAIR™ WIRELESS

ARTICULATING WALL MOUNT

COLOR:

Gloss Black

• Includes everything needed to mount and stream wireless Full HD 1080p content to the mounted display through walls, floors or ceilings

• Provides an ultra sleek wireless content delivery system with no long and costly cable runs

• Integrated IR Extender for remote control of AV components

• Built-in 3-tap grounded outlet for wireless components and display power allowing for only

one extension cord to be routed to the power outlet

• Provides excess display power and wireless component cable storage for a clean look

42" to 60"

up to 600 x 400mm

689 x 439mm

( 27.12” x 17.29”)

4.43”-27.55”

(113-700mm)

15°/-5° | ±90° | ±5°

— yes

Acc925

90lb (41kg)

up to 4.5” (114mm)

yes

Acc925

130lb (59kg)

up to 4.5" (114mm)

yes

Acc925

200lb (91kg)

OSHPD Approval Pending

up to 4.5" (114mm)

yes

Acc925

130lb (59kg)

See pages 28-29 for details on

HD Flow

Pro Wireless Multimedia Kit or visit peerless-av.com to view complete line of Wireless Mounting Solutions.

DIGITAL SIGNAGE SOLUTIONS

DS-VL-H048 and DS-VL-H036 and ACC-DSV329 with accessory DS-ACC-LDCM shown

1. NO MEASURING

Install multiple displays onto

one mounting system with

virtually no measuring required

2. INFINITE POSSIBILITIES

Create any combination of wall plates and vertical rails forming a limitless linear array of displays

3. INSTALLATION SECURITY

Prevent tampering and theft with included security hardware

4. VERSATILITY

Portrait or landscape orientation, tilt displays to -5, 0, 5, 10 degrees

* contact customer care to order custom spacers

specifically for your video wall configuration

Accessories .................. pages 30-31

DS-VW650

ULTRA THIN FLAT VIDEO WALL MOUNT

COLOR:

Black

• Great for 2 x 2 configurations

• Custom wall plate spacers eliminate extra measuring and guesswork during installation*

• Simple horizontal adjustment makes aligning displays quick and easy

• Ultra-thin design provides a streamlined video wall profile, perfect for ADA applications

• Durable locking rail holds display ensuring

a safe and secure installation

• Included security hardware deters tampering

and theft

DS-VW665 DS-VW765-LAND | DS-VW765-POR

VIDEO WALL MOUNTING SOLUTION

NON-PULL OUT

COLOR:

Black

• Modular mount for unlimited video wall display configurations

• Tool-less micro adjustment at 8 points seamlessly align the displays

• Custom wall plate spacers eliminate the

guesswork and on-site installation calculations*

• Integrated cable management tie-backs make display-to-display cabling simple

• Displays and mounts sit flush against the wall

for a clean profile

• Included security hardware deters tampering

and theft

FULL-SERVICE VIDEO WALL MOUNT

COLOR:

Black

• Pull-out/prop-open mechanism provides quick

service access

• Modular mount for unlimited video wall display configurations utilized for landscape applications with

DS-VW765-LAND and for portrait with DS-VW765-POR

• Custom wall plate spacers eliminate the guesswork and on-site installation calculations*

• Tool-less 8-point micro adjustments for easy display alignment

• Integrated cable management tie-backs make display-to-display cabling simple

• Security hardware option prevents displays

from articulating

DS-VW646-2X2 | DS-VW660-2X2

UNIVERSAL 2X2 VIDEO WALL

MOUNTING KIT

COLOR:

Black

• 2 x 2 video wall mounting kit

• Horizontal adjustment makes mounting and aligning displays quick and easy

• Included security hardware deters tampering and theft

• ADA compliant with displays measuring 1.71" deep or less

• Includes adaptor rail alignment measuring plate to assist in the mounting of the displays

Configuration

Shown: DS-VL-H060 with ACC-DSV449

Configuration

Shown: DS-VL-H060 with ACC-DSV240

DS-VL-H & ACC-DSV models

DIGITAL MENU BOARD KIT

COLOR:

Black

• Adjustable up to 15° of forward tilt and

-5° backward tilt for optimal viewing angle

• Infinite horizontal configuration

• Displays and mounts sit flush against the wall for a clean appearance

• Screens can be mounted both landscape and portrait

• Horizontal screen adjustment

• Customizable mounting kit that can hold

any number of displays, landscape or

portrait, in an infinite linear formation*

* contact customer care for assistance in

calculating your linear display configuration

DST660

FLAT/TILT WALL MOUNT

WITH MEDIA PLAYER STORAGE

COLOR:

Black

• Accommodates media players up to

12" x 13" x 2.4" (305 x 330 x 61mm)

• The media player can be removed from the bottom if replacement, repair or maintenance is necessary without having to remove the display

• Display can be mounted in portrait or landscape

• Continuous tilt options from 0-10 degrees or fixed at 0, 3.5 and 7 degrees

• Included security hardware deters tampering and loss

DST960

FLAT/TILT UNIVERSAL CEILING MOUNT

WITH COMPUTER/MEDIA PLAYER STORAGE

COLOR:

Black

• Universal mounting in either portrait or landscape orientation

• Continuous tilt from 0 – 15 degrees

• Available area within mount for housing

a computer or media controller device

16.79" x 11.58" x 3.18" (426 x 294 x 81mm)

• Internal side and top mounting locations provided for an electrical box

• Clean design hides components and cable

from view

Display size

40" to 50" 40" to 65" 40" to 65"

100mm increments starting at 100mm increments starting at 100mm increments starting at 200 x 200mm

VESA

pattern

200 x 200mm up to 600 x 400mm 200 x 200mm up to 700 x 400mm

Additional patterns supported with adaptor plates

up to 700 x 400mm up to 400 x 600mm

DS-VW765-LAND DS-VW765-POR

Additional patterns supported with adaptor plates

Distance from the

wall or ceiling

0.69" (17.53mm)

(from the wall)

—

3.08"-3.83" (78-97mm)

(from the wall)

3.08"-3.83" (78-97mm)

(from the wall)

Micro-adjustments

8-point tool-less adjustment 8-point tool-less adjustment

Horizontal display adjustment

yes yes yes

Security

yes yes yes

40" to 46" 47" to 60"

DS-VW646-2X2 DS-VW660-2X2

1733 x 1136mm 2070 x 1318mm

DS-VW646-2X2 DS-VW660-2X2

2.28" (58mm)

(from the wall)

— yes yes

Max load

Listings / Certifications

75lb (34.02kg) 125lb (57kg) 125lb (57kg)

600lb (272kg)

20" to 65" 40" to 60" 40" to 60"

Acc-dsV240: up to 240mm

Acc-dsV329: up to 329mm

Acc-dsV449: up to 449mm

Acc-dsV503: up to 503mm from 200 x 100 up to 400 x 400mm

ACC-V800X available for 600 x 400 and 800 x 400mm patterns

from 200 x 100 up to 400 x 400mm

ACC-V800X available for 600 x 400 and 800 x 400mm patterns

Acc-dsV745: up to 745mm

Acc-dsV240: 2.55" (65mm)

(from the wall)

Acc-dsV329/449/503/745: 2.6" (66mm)

2.83" (72mm)

(from the wall)

up to 12' (3657mm)

(Varies depending on ceiling plate and extension column used)

—

— yes

Acc-dsV240: 125lb (56kg)

Acc-dsV329: 150lb (68kg)

Acc-dsV449: 175lb (79kg)

Acc-dsV503: 250lb (113.4kg)

Acc-dsV745/ ds-Vl-H models: 350lb (158.8kg)

—

— yes

125lb (57kg)

—

— yes

125lb (57kg)

KIOSK SOLUTIONS

KIP546-S shown

KIL546-S shown

1. HINGED LOCKING FRAME

Highly secure frame hinges open for easy

installation and maintenance access

2. 8-WAY MICRO ADJUSTMENT

Provides quick vertical, horizontal and

depth adjustment of display

3. FLAT BASE

Unobtrusive design can be free standing

or bolted to floor for increased safety

and security

A FULLY INTEGRATED AND READY-TO-INSTALL

CUSTOM KIOSK AT YOUR FINGERTIPS

Build your own Integrated Kiosk @ kiosks.peerless-av.com including flat panel display, media player, content management software, power protection, thermal management, display protection, vinyl graphics, integration services, etc.

Agion

antimicrobial finish available to assist in controlling the spread of infections.

Contact Peerless-AV Customer Care for more information.

Display size

40"

VESA ® pattern

Micro-adjustments

Horizontal display adjustment

Security

Max load

KIP540(-S)

KIP542(-S)

KIP546(-S)

KIP547(-S)

KIP555(-S)

KIP540B(-S)

KIP542B(-S)

KIP546B(-S)

KIP547B(-S)

KIP555B(-S)

PORTRAIT KIOSK ENCLOSURE

COLOR:

Gloss black or silver

• Accommodates ultra-thin or deeper commercial displays up to 4" (101mm) thick, while accentuating slim kiosk design

• Secured front and back doors allow convenient access to the display, media player and other internal components for easy installation and maintenance

• Stand-alone kiosk enclosure or fully integrated with display, media player, power and thermal management, etc.

• Supports a wide range of aesthetic options including multiple colors, vinyl wraps, etc. to best match the environment or promote brand strategy

• Pre-assembled to simplify installation of entire solution

PORTRAIT BACK-TO-BACK KIOSK ENCLOSURE

COLOR:

Gloss black or silver

• Accommodates ultra-thin displays up to 1.83" (46mm) thick to accentuate slim kiosk design

• Secured doors allow convenient access to the display, media player and other internal components for easy installation and maintenance

• Stand-alone kiosk enclosure or fully integrated with display, media player, power and thermal management, etc.

• Supports a wide range of aesthetic options including multiple colors, vinyl wraps, etc. to best match the environment or promote brand strategy

• Pre-assembled to simplify installation of entire solution

KIL540(-S)

KIL542(-S)

KIL546(-S)

KIL547(-S)

LANDSCAPE KIOSK ENCLOSURE

COLOR:

Gloss black or silver

• Accommodates ultra-thin or deeper commercial displays up to 3" (76mm)

thick, while accentuating a slim kiosk design

• Hinged top frame offers easy access to display and other internal components

for easy maintenance and enhanced security

• Supports wide range of aesthetic options including multiple colors, vinyl wraps,

etc. to best match environment or promote brand strategy

• Stand-alone kiosk enclosure or fully integrated with screen, media player,

power and thermal management, etc.

• Pre-assembled to simplify installation of entire solution

We ask. You answer.

KioskBuilder

does the rest.

Just go to kiosks.peerless-av.com, where the

KioskBuilder application will guide you through a simple series of questions such as:

• Will the kiosk be indoors or outdoors?

• Portrait or landscape orientation?

• Free-standing, desktop or wall-mounted?

• What kind of display/touch technology,

media player, etc., do you want?

Then, KioskBuilder provides you with options and you make your selections. It’s that easy.

200 x 200 up to 800 x 400mm

8-way adjustment for flush alignment

42" ultra-thin 46" ultra-thin 47" ultra-thin 55" ultra-thin yes

40" ultra-thin 42" ultra-thin 46" ultra-thin 47" ultra-thin

KIL540(-S) KIL542(-S) KIL546(-S) KIL547(-S)

200 x 200 up to 600 x 400mm

8-way adjustment for flush alignment

yes

Choose from the best names in the business.

We have partner agreements with top-tier technology companies that allow us to get you any high-quality products you need. It also ensures product compatibility for flawless performance for years to come.

75lb (34kg) yes

150lb (68kg) yes

75lb (34kg)

Get started at kiosks.peerless-av.com.

Listings / Certifications

KIOSK SOLUTIONS

UNIVERSAL TABLET MOUNTS

1. MEETS ADA CERTIFICATION

Low profile design extends

1.0" (25mm) from the wall

2. 8-WAY MICRO ADJUSTMENT

Provides quick vertical, horizontal and depth adjustment of display

3. EXTENDABLE ARMS

Allows easy installation and

maintenance of display

4. REMOVABLE FRONT COVER

Highly secure frame hinges

open for easy installation

and maintenance access

1. UNIVERSAL

Adjustable height and width, providing

a universal fit for most tablets

2. VERSATILE

±30° of One-Touch™ tilt and swivel

and 360° of roll to achieve virtually

any viewing angle

3. SLEEK AND STYLISH

Two color options available for

coordinating with tablet aesthetics

4. SECURE

Option to place on desk or secure

down with theft resistant security screws

PTM400S shown

KIP746-S shown

Agion

antimicrobial finish available to assist in controlling the spread of infections.

Contact Peerless-AV Customer Care for more information.

PORTRAIT

MODELS:

LANDSCAPE

MODELS:

KIP640(-S)

KIP642(-S)

KIP646(-S)

KIP647(-S)

KIL640(-S)

KIL642(-S)

KIL646(-S)

KIL647(-S) landscape model shown

WALL KIOSK ENCLOSURE

COLOR:

Gloss black or silver

• Accommodates ultra-thin displays up to 2.25" (57mm) thick to accentuate slim kiosk design

• Low profile design extends 3.96" (101mm) away from the wall which meets the American with Disabilities Act (ADA) certification

• Hinged top frame offers easy access to display and other internal components for easy maintenance and enhanced security

• Supports wide range of aesthetic options including multiple colors, vinyl wraps, etc. to best match environment or promote brand strategy

• Stand-alone kiosk enclosure or fully integrated with screen, media player, power and thermal management, etc.

PORTRAIT

MODELS:

LANDSCAPE

MODELS:

KIP740(-S)

KIP742(-S)

KIP746(-S)

KIP747(-S)

KIL740(-S)

KIL742(-S)

KIL746(-S)

KIL747(-S)

Portrait model shown

IN-WALL KIOSK ENCLOSURE

COLOR:

Gloss black or silver

• Accommodates ultra-thin displays up to 2.25" (57mm) thick to accentuate slim kiosk design

• Removable front cover and pull-out mount offers easy access to the display and other internal components for easy maintenance and enhanced security

• Low profile design extends 1.0" (25mm) away from the wall which meets the American with Disabilities Act (ADA) certification

• Supports wide range of aesthetic options including multiple colors, vinyl wraps, etc. to best match environment or promote brand strategy

• Stand-alone kiosk enclosure or fully integrated with screen, media player, power and thermal management, etc.

KIP410I Tablet accessory:

HCACC401

Battery (Single)

Additional accessories ............ pags 30-31

PTM200

Shown with

SA724P SmartMount

Articulating Wall Mount

PTM400S(-W)

UNIVERSAL TABLET CRADLE

COLOR:

Black

• Adjustable height and width, providing a universal fit for most tablets

• Stylish cover for improved aesthetics

• Easily attaches to any 75 x 75mm

VESA

mount

• Two color options available for coordinating with tablet aesthetics

UNIVERSAL DESKTOP

TABLET MOUNT

COLOR:

Black or white

• Adjustable height and width, providing a universal fit for most tablets

• Stylish cover for improved aesthetics

• ±30° of One-Touch™ tilt and swivel

• 360° of roll for versatile placement options

• Option to place on desk or secure down with theft-resistant security screws

• Two color options available for coordinating with tablet aesthetics

PTS510I(-S)(-W)

KIP410I(-S)

IPAD FLOOR STAND

COLOR:

Black, silver or white

• Optimized for iPad 2, New iPad and

iPad with Retina Display

• Quickly rotates from landscape to portrait with the release of the spring pin

• Internal cable management creates

an aesthetically pleasing appearance

• Cable management options include routing through the base or through

the rear bottom of the pole

• Socket pin security screws keep the iPad secured within the enclosure

• Base can be free standing or bolted

to the floor to increase security

IPAD DESKTOP KIOSK

COLOR:

Black or silver

• Optimized for iPad, iPad2 and

iPad with Retina display

• No interference with Wi-Fi, Bluetooth

or 3G/4G communication

• Slim 2" profile complements tablet design

• 24+ hours of estimated battery life is longest

on the market, when used with an external battery system accessory. (Actual battery performance may vary based on wireless connectivity, application usage, brightness setting, etc.)

• Bolts to mounting surface or secures with high bond, double-sided tape to any solid surface

Display size

40" ultra-thin 42" ultra-thin 46" ultra-thin 47" ultra-thin

KIP/KIL640(-S) KIP/KIL642(-S) KIP/KIL646(-S) KIP/KIL647(-S)

VESA

pattern

Micro-adjustments

40" ultra-thin 42" ultra-thin 46" ultra-thin 47" ultra-thin

KIP/KIL740(-S) KKIP/KIL742(-S) KIP/KIL746(-S) KIP/KIL747(-S)

200 x 200 up to 600 x 400mm

8-way adjustment for flush alignment

Horizontal display adjustment

Security

Max load

yes yes

75lb (34kg)

Tablet size

VESA

pattern

Distance from the wall

Tilt | swivel | roll

Landscape to portrait

Security

Max load

Listings / Certifications

7.68" to 13.75" (195-349mm)

* tablet must be between 0.3"-0.75" deep

75 x 75mm

—

7.68" to 13.75" (195-349mm)

* tablet must be between 0.3"-0.75" deep

9.7" (24.63mm)

iPad 2, New iPad and iPad with Retina Display

— — —

±30° one-touch™ tilt | ±30° | 360° fixed 35° viewing angle

— yes yes

9.7" (24.63mm)

iPad, iPad2 and iPad with Retina display

—

Acc954

5lb (2.27kg) yes

5lb (2.27kg) yes yes

5lb (2.27kg) 5lb (2.27kg)

UNIVERSAL DESKTOP & TABLET MOUNTS

1. 360º ROTATION

Arm folds back over the base into

a compact retracted position

2. QUICK RELEASE MECHANISM

Quick release adaptor enables

the display to be removed and

reattached in seconds

3. INTEGRATED CABLE MANAGEMENT

Protects, contains and conceals cables

for a clean, professional installation

3. DESK ASSEMBLY

For wood or composite surfaces

up to 3" (76mm) thick

LCT620A LCT620AD

Accessories .................. pages 30-31

LCT101 LCT100 LCT620A | LCT620AD

ARTICULATING DESKTOP ARM

COLOR:

Black

• Extends up to 23.14" (588mm) with up

to 12.22" (311mm) of height adjustment

• Infinite display positioning maximizes work space and provides ideal viewing positioning

• Integrated cable management protects, contains and conceals cables for

a clean, professional installation

• Optional laptop configuration

with usage of ACC329

100 SERIES DESKTOP STAND

COLOR:

Black

• Clamp to edge of desktop or bolt

through using the grommet option

• Integrated cable management protects, contains and conceals cables for

a clean, professional installation

LCT620A: MONITOR DESKTOP ARM WITH EXTENSION

LCT620AD: DUAL MONITOR DESKTOP ARM WITH EXTENSION

COLOR:

Black

• Extends up to 23" (584mm) with 12.60" (320mm) of height adjustment

• Infinite display positioning maximizes work space and provides ideal viewing positioning

• Arm retracts over the base into a compact retracted position

• Optional laptop configuration with usage of ACC329

Also available as a wall mount, contact

Peerless-AV Customer Care for product details

LCZ-2F430B

DUAL MONITOR DESKTOP STAND

COLOR:

Black

• Dual display desktop mount eliminates desktop clutter

• Ergonomically designed for viewing multiple displays with minimum effort

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

Also available in triple and quad style, contact

Peerless-AV Customer Care for product details

LCT-203

DUAL MONITOR DESKTOP STAND

COLOR:

Charcoal

• Dual display desktop mount eliminates

desktop clutter

• Ergonomically designed booking feature allows viewing multiple displays with minimum effort

• Designed for fast and effortless assembly

and to accommodate various monitor sizes

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

HP447 HP455

DESKTOP SWIVEL MOUNT

COLOR:

Black

• Built-in swivel up to 360º allows for optimum viewing angle

• Base stand bolts down for safety/security

• Adjustable height allows for greater flexibility

• Cable management internally through the mount and down through the mounting surface

• Decorative base is aesthetically pleasing and hides desktop mounting hardware

• Security screws prevent tampering and theft

DESKTOP SWIVEL MOUNT

COLOR:

Black

• Built-in swivel up to 360º allows for optimum viewing angle

• Base stand bolts down for safety and security

• Adjustable height allows for greater flexibility

• Cable management internally through the mount and down through the mounting surface

• Decorative base is aesthetically pleasing and hides desktop mounting hardware

• Security screws prevent tampering and theft

Display size

up to 30" up to 30"

VESA

pattern

75/100mm 75/100mm

Mounting options

desk clamp and grommet mount option desk clamp and grommet mount option up to 30"

75/100mm desk clamp and grommet mount option

— yes yes

Adjustable pole height

Swivel | Tilt: Monitor/Arm | Roll

Landscape to portrait

Security

Max load

Listings / Certifications

360° | ±60°/±45° | 360° 180° | ±40°/ — | 360° 180° | +80/°-10° (monitor)/±45° (arm) | 360° yes yes

Acc918 Acc918

25lb (11kg) 20lb (9kg) yes

Acc918

15lb (6.8kg) per display up to 30" desktop up to 24" desktop

32" to 47"

Bolt down

32" to 55"

300 x 300, 400 x 200 and 400 x 400mm

Bolt down yes

—

360° | — | 360° — | — |±10° yes

19.8b (9kg) per display yes yes

360° with swivel stops at

0°, ±20°, ±30°, ±60°, ±90°, 210° & 240°

(cables will only allow swivel upto their available length(s))

360° with swivel stops at at 0°, ±20°, ±30°, ±60°, ±90°, 210° & 240°

(cables will only allow swivel upto their available length(s))

— — —

22.5lb (10kg) per display 75lb (34kg) security screws & slope nuts

75lb (34kg)

STANDS AND CARTS

1. IDEAL VIEWING ANGLE

Incremental tilt of -2, 0 and +5 degrees,

makes it simple to set for preferred viewing

2. PERFECT SCREEN POSITIONING

Continuous vertical adjustment for desired

viewing height

3. CENTRALIZED AV COMPONENTS

Metal shelf provided for AV component support

4. SUPERIOR MOBILITY

4" (101mm) swivel casters enable safe and easy maneuverability over various flooring surfaces and through doorways

SR650M shown

SC560DPS

Wireless solutions

Accessories .............................................. pages 22-23

Listings / Certifications

SR560M

FLAT PANEL FLOOR CART

COLOR: :

Black

SR560M: Black cart with metal shelf

• Incremental tilt of +5º, 0º, and -2º locks in the ideal viewing angle

• Maneuvers easily on 4¨ (101mm) swivel casters, with 2 of them locking

• Adjustable metal shelf holds AV components and accessories

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

Also available as a floor stand, contact Peerless-AV Customer Care

SC560DPB/DPS

FLAT PANEL FLOOR CART

COLOR: :

Black

SC560DPB: Black poles and black base

SC560DPS: Chrome poles and black base

• Chrome or black poles to match the décor of any room or space

• Incremental tilt of +5º, 0º, and -2º and locks in

the ideal viewing angle

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Maneuvers easily on 4" (101mm) swivel casters, with 2 of them locking

Also available as a floor stand, contact Peerless-AV Customer Care

SC560FK

FLAT PANEL FLOOR CART

COLOR: :

Black

• Display can be mounted in a face up table-top configuration or tilted at -60º for kiosk applications

• Secure media storage enclosure located under display

• Access to media player without having to

remove the display

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Maneuvers easily on 4" (101mm) swivel casters, with 2 of them locking

Also available as a floor stand, contact Peerless-AV Customer Care

Display size

VESA

pattern

32" to 65" up to 600 x 400mm up to 65"

up to 300 x 300mm

Additional patterns supported with optional adaptor plates

32" to 65"

up to 600 x 400mm

Adjustable mounting pattern (W x H) (

730 x 433mm

28.75" x 17.05")

Vertical

continuous

adjustment

Requires universal adaptor plate

(sold separately)

continuous

(

730 x 433mm

28.75" x 17.05")

—

Tilt

Landscape to portrait

Security

-2°, 0°, +5°

— yes

-2°, 0°, +5° -90°, -60° yes

Requires display to be removed and reset on mount.

yes

—

yes

Max load

up to 250lb (113kg) total

150lb (68kg) display

50lb (22kg) per shelf

115lb (42kg) 150b (68kg)

Pending Pending

SS560F

FLAT PANEL FLOOR STAND

COLOR:

Black

• Incremental tilt of -2º, 0º, and +5º locks in the ideal viewing angle

• Continuous vertical adjustment for perfect viewing height

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

FPZ-600

FPZ-670

FLAT PANEL FLOOR STAND

COLOR:

Black

• Fits single or back-to-back displays up to 70"

•

Integrated cable management protects, contains and conceals cables for a clean, professional installation

Portrait or landscape orientation fits up to four displays with additional dual display cartridge

• FPZ-670 media player storage designed to conceal media player and surge protectors

FPZ-640

FLAT PANEL FLOOR STAND

COLOR:

Black

• Fits displays with VESA

75, 100, 200 x 100 and 200 x 200mm mount pattern

• Collapsible design allows legs to fold for easy transporting and storing

• Integrated cable management protects, contains and conceals cables for a clean, professional installation

• Display height is adjustable from 48.54"

to 64.29" (1233-1633mm) in 4" (100mm) increments

WL-SR560M-200

PEERAIR™ WIRELESS FLAT PANEL DISPLAY CART

COLOR:

Black

• Includes everything needed to mount and stream wireless Full HD 1080p content to the mounted display through walls, floors or ceilings

• 4" swivel casters enable safe and easy maneuverability over various flooring surfaces

and through doorways

• Two locking casters ensure complete stability wherever the cart is placed

• Integrated IR Extender for remote control of

AV components

• Built-in 3-tap grounded outlet for wireless components and display power allowing for only

one extension cord to be routed to the power outlet up to 65"

100, 200 and 300mm

Additional patterns supported with optional adaptor plates

Requires universal adaptor plate

(sold separately)

continuous up to 70" up to 90" up to 52" 47" to 65"

100, 200 x 100 and 200 x 200mm

Additional patterns supported with adaptor plates

75,100, 200 x 100 and 200 x 200mm up to 600 x 400mm

Requires universal adaptor plate

(sold separately)

—

(

730 x 433mm

28.75” x 17.05”) continuous 48.54"-64.29" (1233-1633mm) continuous

-2°, 0°, +5° yes

Requires display to be removed and reset on mount.

yes

160lb (72.5kg)

200b (90kg) per display

fPZ-600: up to four displays with Acc604

fPZ-670: up to two displays with Mis735

Pending

— yes

Requires display to be removed and reset on mount.

fPZ-670:

Pending

— yes yes yes yes

Requires display to be removed and reset on mount.

110lb (49kg)

-2°, 0°, +5°

—

150lb (68kg) display

50lb (22kg) per shelf

See pages 28-29 for details on

HD Flow

Pro Wireless Multimedia Kit or visit peerless-av.com to view complete line of Wireless Mounting Solutions.

OUTDOOR SOLUTIONS

CL-47PLC68-OB shown

1. PATENTED DYNAMIC THERMAL TRANSFER™ SYSTEM

Keeps internal components safely cooled and warmed

without allowing in water, dust, vapor or insects

2. BUILT TO LAST

All metal construction protects against the harshest

of environments keeping components safe from

physical damage

3. PROTECTIVE SCREEN

Anti-reflective impact-resistant safety glass protects

the screen against damage

4. QUALITY PICTURE ANYTIME

Ambient light sensor allows easy viewing in both bright

and low light environments

5. COMPLETE CUSTOMIZATION

Color match, add logos or patterns for additional

branding and school spirit options

Xtreme

displays

Visit ciiltech.com to view our complete line of outdoor displays

CL-42PLC68-OB

CL-47PLC68-OB

CL-55PLC68-OB

Ciil

Xtreme

COLOR:

Black

Daylight Readable Flat Panel Displays

Only Ciil Xtreme daylight readable displays utilize optic bonding that provides a deeper contrast. This creates a crisper picture that is as readable in direct sunlight as displays with a higher brightness rating.

Ciil’s daylight readable technology makes it easier for the eye to see the picture even when the sun is at its brightest. Ideal for outdoor stadiums or in wayfinding applications around campus.

CL-42PLC68

CL-47PLC68

Ciil

Xtreme

COLOR:

Black

Standard Flat Panel Displays

Ciil Xtreme displays take on all the extremes an outdoor TV is subjected to. Its fully sealed design prevents ice, water, dust, fumes, chemicals, microparticles, and bugs from getting in. Nothing penetrates, because there are no seams. Ideal for outdoor stadiums and arenas, menu boards or event schedules.

Display size

Resolution

Shatter-resistant glass

Brightness

Net weight

Environmental rating

Operating range

Orientation

42" 47" 55"

CL-42PLC68-OB CL-47PLC68-OB CL-55PLC68-OB

42"

CL-42PLC68

1920 x 1080

47"

CL-47PLC68

yes

700 cd/m2

92lb 110lb 130lb

CL-42PLC68-OB CL-47PLC68-OB CL-55PLC68-OB

iP68 neMA 6

-40°f to +140°f

Portrait/landscape

92lb

CL-42PLC68

110lb

CL-47PLC68

SPK-030

Ciil

Soundbar

COLOR:

Black

• Gold-plated connections provide a more reliable signal connection and are not affected by external weather conditions

• Aluminum enclosure features rubber gaskets at every seam that completely seal, isolate, and protect the sound bar’s electronics from the outside environment

• Woofers and tweeters are driven by very powerful rare-earth neodymium magnets that provide the best frequency response while reducing the size and weight of the sound bar

CLCOV-XS-GR

CLCOV-SM-GR

CLCOV-MD-GR

CLCOV-LG-GR

Ciil

TV/Display Covers

COLOR:

Grey

• Uses quality vinyl fabric to ensure protection of TV/display

• Hook-and-loop Velcro system ensures cover stays in place during all weather conditions

• Comes in a variety of sizes to perfectly fit your Ciil TV/display

Wireless solutions

Models ESA763PU and EPT650 available as standard non-wireless solutions. Contact Peerless-AV

Customer Care for more information.

Accessories ......... pages 30-31

WL-ESA763PU-200

OUTDOOR

PEERAIR™ WIRELESS OUTDOOR

ARTICULATING WALL MOUNT

COLOR:

Gloss black

• Includes everything needed to mount and stream wireless Full HD 1080p content to the mounted display through walls, floors or ceilings

• Provides an ultra sleek wireless outdoor content delivery system with no long and costly cable runs

• Integrated IR Extender for remote control

of AV components

• Built-in 3-tap grounded outlet for wireless

components and display power allowing for only

one extension cord to be routed to the power outlet

• Provides excess display power and wireless component cable storage for a clean look

WL-EPT650-200

OUTDOOR

PEERAIR™ WIRELESS OUTDOOR

TILT WALL MOUNT

COLOR:

Black

• Includes everything needed to mount and stream wireless Full HD 1080p content to the mounted display through walls, floors or ceilings

• Provides an ultra sleek wireless outdoor content delivery system with no long and costly cable runs

• Integrated IR Extender for remote control

of AV components

• Built-in 3-tap grounded outlet for wireless components and display power allowing for only one extension cord to be routed to the power outlet

• Provides excess display power and wireless component cable storage for a clean look

Display size

VESA

pattern

42" to 63" 42" to 60" up to 600 x 400mm up to 600 x 400mm

Adjustable mounting pattern (W x H)

687 x 439mm

(27.06" x 17.29")

738 x 449mm

(29.04" x 17.67")

Distance from the wall

4.43"-27.55"

(113-700mm)

2.58"

(66mm)

Tilt | swivel | roll

+15°/-5° | ±90° | ±5° +15/-5°

(with 5° lock increments)

(Tilt may be effected based on placement of wireless module)

Horizontal display adjustment

up to 4.5" (114mm) 8" (203mm)

Landscape to portrait

yes

—

Security

yes yes

Max load

200lb (91kg) 175lb (79kg)

See pages 28-29 for details on HD Flow

Pro Wireless Multimedia Kit or visit peerless-av.com to view complete line of Wireless Mounting Solutions.

WIRELESS SOLUTIONS

Get to know the best PeerAir™ Wireless Solution for your needs. With three distinct technologies – WHDI, Wi-Fi and Broadcast

– each PeerAir Solution provides distinctive feature sets that enable a wide range of functionality. Tested in Peerless-AV’s labs, refined in real-world trials, there’s a solid solution for every type of education use.

HDS-WHDI100 HDS200(-2)(-3)(-4) HDS-PB100

Visit peerair.peerless-av.com for more information.

Accessories ......... pages 30-31

WIRELESS HD MULTIMEDIA SYSTEM

Commercial and Educational applications include the need to send digital AV content wirelessly when cable runs are too labor and time intensive. Especially helpful in providing an IR and USB HID back channel to allow control of the PC or media content at a remote location away from the projector/ display. Ideal for in-room or through one wall wireless applications with the option to connect additional HDMI devices wirelessly to one HDTV with additional Transmitter(s)*.

*Additional Transmitter(s)

(HDS-WHDI100T), sold separately.

HD FLOW

PRO WIRELESS MULTIMEDIA KIT

Commercial and Educational applications include the need to send analog and/or digital content wirelessly where cable runs are not an option. With a total of (5) AV inputs, most signals are supported including legacy analog devices. With a secure wireless connection you can now stream full HD content through walls with minimal latency up to four displays*.

PICO BROADCASTER

Commercial and Educational Digital

Signage applications requiring wireless content delivery for distances up to a 350’ radius (160m). Ideal for menu boards, event schedules, and environments where any number of displays could be repositioned from time to time.

*Additional Receivers (HDS-200-R) and

programming required, sold separately.

Wireless Technology

WHdi with auto channel hopping

(4.9-5.9gHz)

Wi-fi, 802.11n (dynamic frequency selection), 5.15-5.25 gHz over-the-air broadcasting on ‘white-space’ channel over uHf 500-700 MHz frequencies

Input Connections

Output Connections

Wireless

100ft (30m)**

Transmission

Distance

constructed of steel, wood, concrete or brick

may decrease transmission distance.

Multi-Screen

Capabilities

1 transmitter*** to 1 receiver up to two screens (one wired, one wireless)

***Additional Transmitter(s)

(HDS-WHDI100T), sold separately.

2 - HdMi

1 - Mini usB Hid

1 - HdMi

1 - usB Hid

1 - HdMi pass-through (transmitter)

1 - ir out (transmitter)

131ft (40m)**

** Transmission distance depends on actual

environment. Expressed distance is based on

line-of-sight measurement. Obstructions

constructed of steel, wood, concrete or brick

may decrease transmission distance.

1 transmitter, up to 4 receivers***

*** Additional Receivers (HDS200-R), programming

required when adding receivers to an already

existing system. Multicast systems HDS200-2,-3,-4

ship pre-programmed.

2 - HdMi

1 - composite

1 - 3.5mm audio

1 - ir in (receiver)

1 - VgA (component with provided adaptor)

1 - lAn

1 - usB (service port only on receiver)

1 - HdMi

1 - composite

1 - component

1 - 3.5mm audio

1 - ir out (transmitter)

1 - lAn

350ft (106m)

(transmission distance may be tuned down to meet project needs)

Broadcast to unlimited number of dtVs within the transmission distance

1 - ethernet

1 - usB (for servicing)

1- dB9 (rs-232 for servicing)

Broadcast signal is received by antenna and Atsc tuner

COMPLETE LINE OF WIRELESS MOUNTING SOLUTIONS

Pro Wireless Multimedia Kit, these wireless mounts are not only purpose-built mounting devices, they are versatile wireless solutions. All components are provided to allow easy integration to the display, making it easy to set up content to the display without any cables, while creating an impressive technological wonder.

WL-ST660-200 WL-SA761PU-200

WIRELESS INDOOR

TILT WALL MOUNT

For 42"-60" Displays

See page 13 for details

ACCESSORIES

WL-SR560M-200

WIRELESS INDOOR

ARTICULATING WALL MOUNT

For 37"-63" Displays

See page 15 for details

WIRELESS INDOOR

FLAT PANEL DISPLAY CART

For 47"-65" Displays

See page 25 for details

WL-PRG-UNV-200

WL-EPT650-200

PROJECTOR

MOUNTING SOLUTIONS

For projectors up to 50lb (22kg)

See page 7 for details

WIRELESS OUTDOOR

TILT WALL MOUNT

For 42"-6O" Outdoor Displays

See page 27 for details

Visit peerair.peerless-av.com to view complete line of Wireless Mounting Solutions.

HDS-ATA100

High Definition Over-The-Air

Broadcast Antenna

COLOR:

Black

• Low-profile easily concealable design

• Self adhesive compression clips for multiple mounting options

• Passive antenna with multi-directional

polar pattern

• Compatible with the HDS-PB100 Pico

Broadcaster for personal broadcast reception

HDS-ASE

HDS-IRE

EC-HD Models

WIRELESS SECURITY ENCLOSURE

FOR USE WITH HD FLOW MODELS

IR EXTENDER

• Theft protection for HDS Flow Pro Transmitter or

Receiver units with security screws and hidden mounting hardware for enhanced security

• Two-piece design for quick and easy installation

• Mounts to any flat surface such as desktop or wall

• Offers visibility of front indicator lights and toggle button

• HD Flow Pro device can be removed for maintenance without un-installing enclosure

• Hide HD Flow Receiver in a stand or mount it behind the TV while maintaining IR functionality for remote components

• Discreet appearance ideal for blending into any environment

• Compatible with all models of HDS100/200

Cord Length: 3ft (0.91m) lead

Connection Type: 3.5mm plug

Range: up to 22ft (6.71m) range from

remote control to IR Extender

EC-HD015F

1.5ft (0.5m) High Speed

HDMI Cable with Ethernet

EC-HD025F

2.5ft (0.75m) High Speed

HDMI Cable with Ethernet

EC-HD03F

3ft (1m) High Speed

HDMI Cable with Ethernet

WL-ESA763PU-200

WIRELESS OUTDOOR

ARTICULATING WALL MOUNT

For 42"-63" Outdoor Displays

See page 27 for details

DE-HD Models

DE-HD0075B

Delta 2.5ft (0.75m)

Premium High Speed

HDMI Cable with Ethernet

DE-HD01B

Delta 3ft (1m)

Premium High Speed

HDMI Cable with Ethernet

CABLES SURGE PROTECTORS SAFETY KIT

DEB-CV05/10/15/20

HIGH PERFORMANCE COMPONENT

AUDIO VIDEO CABLE

• Exacting cable geometry delivers outstanding sound quality

and clarity

• HD 1080i/720p compatible

• 24K gold-plated contacts for superior signal transfer

• Color coded connector ends identify red, green or blue signal conductor

Lengths

16' (5m) / 32' (10m) / 49' (15m) / 65' (20m)

DEB-HD10

HIGH SPEED HDMI

CABLE WITH ETHERNET

• 3DTV compatible (stereo 1080p image resolution)

• Ethernet channel for connecting Internet-enabled AV devices

minimizing cabling

• Audio return channel eliminates need for additional audio cable between display with integrated receiver and amplifier

• Supports 4k x 2k image resolutions (2160p) and FULL HD (1080p) compatible

• Increased color profile support for digital cameras

32' (10m)

ACCESSORIES

SLW-HDRU05 | SLW-HDRZ05

HIGH SPEED HDMI

CABLES WITH ETHERNET

FOR REAR MOUNTED CONNECTIONS

• Right-angled HDMI

connector projects only 14mm from

rear of display’s HDMI socket (plug inserted)

• Ultra slim flat cable 3mm

• Right angled (90°) HDMI connection fits the vast majority

of flat panel displays with a horizontal HDMI socket (SLW-HDRU05)

• Right angled (270°) HDMI connection fits the vast majority

of flat panel displays with side mounted HDMI sockets (SLW-HDRZ05)

16' (5m)

CEILING PLATES

DCS400

Multi-display Structural Ceiling

Stress Decoupler

DCT300

Multi-display Truss Ceiling

Stress Decoupler

DCT500/600/700/800/900

Multi-display I-beam Clamps

ACC600

Multi-display Interface Bracket

CEILING EXTENSIONS

ADAPTOR PLATES

ADD models

Fixed or Adjustable Extension Columns for Ceiling Decouplers

Visit www.peerless-av.com

EXT models

Fixed Extension Columns

Various lengths available.

Visit www.peerless-av.com

RMI1

Landscape to Portrait

Accessory

PLP-UNL

Display Adaptor Plate

Additional display adapter plates available, visit www.peerless-av.com

ALU/AEC models

Adjustable Extension Columns

Various lengths available.

Visit www.peerless-av.com

PLP-V4X2

Display Adaptor Plate

Contact Peerless-AV Customer Care for additional dedicated adapter plates

ACC050

Stabilizer Kit

ACC-V800X

VESA

800 x 400mm

Adaptor

PVP3000-PL8

EIGHT OUTLET SURGE PROTECTOR

• Protection Indicator Lights – Green and red LED indicator lights confirm components are protected

• Master Outlet – Continuously powered and controls both power save outlets

• Energy Saver Outlets – Power based on master outlet status

• Network/Phone (RJ45/RJ11) Combo Jacks – Network or phone line surge protection

• DSS/Coax Connectors – Gold-plated connectors provide surge protection for cable, DSS and cable modems

• EMI/RFI Noise Filter – Noise filtering for enhanced component performance

Number of Outlets

ACSTA1-US

STABILIS SAFETY KIT

• An effective, universal solution to secure flat panel screens in the home

• Manufactured and tested to prevent children accidentally pulling large screens forward onto themselves

• Fits a full range of LCD & Plasma screens from 32" to 60" with telescopic height adjustment

• Rotational design allows the display to swivel left and right

HARDWARE

CMJ470/480/490

Ceiling Plates

Additional ceiling plates available, visit www.peerless-av.com

CMJ455/CMJ450R1

Suspended Ceiling Plates

CMJ300/CMJ310

Unistrut and Structural Ceiling Plates

PB-1

Plenum Box

ACC215/415/615

Metal Stud Fastener Kit -

2/4/6 togglers

ACC800/ACC850(S)

Connectors with Cord

Management

ACC830

Side to Side Adjuster

ACC002ACC640(B(W)/ACC641

Escutcheon Ring

PLCM-2-UNL

Flat Panel Straight Column Mount with Universal Adapter Bracket

DESKTOP ACCESSORIES

ACC450

VESA

200 x 200mm

Accessory Plate

WALL PLATES

WSP700/701

Metal Stud Wall Plate for

SA/SP724P/735P/737P/746P

WSP756

Metal Stud Wall Plate for

SA752P(U)/763PU/771P(U)

ACC625/ACC630

Wall Adaptor Box for projector arm

SHELVES

SECURITY

MOUNT ACCESSORIES

ACC931/ACC932/ACC951

AV Component Shelf

PS200

Adjustable Shelf

ACC918

Security Fasteners for SP/SA724P Wall

Mounts and LCT101, LCT100, LCT620A(D),

LCZ-2F430B and LCT-203 Desktop Mounts

ACC925

Security Fasteners for SA752P(U), SA761P(U),

SA763PU, SA771P(U), SAX755PU, SAX762PU,

SAX772PU and WL-SA761PU-200 Wall Mounts

ACC954

Theft Resistant Security Kit for PTM400 and PTM200

ACC975

Security Fasteners for

SP/SA737P Wall Mounts

ACC976

Security Fasteners for

SP/SA746P Wall Mounts

ACCXT100

SmartMountXT

Left/Right Speaker Accessory for SAX755PU, SAX762PU and SAX772PU

ACCXT200

SmartMountXT

Soundbar

Speaker Accessory for

SAX755PU, SAX762PU and SAX772PU

VPM/SVPM/DS Models

Adjustable Component Mounts

ACCXT300

SmartMountXT

Video

Conferencing Accessory

Shelf for SAX755PU,

SAX762PU and SAX772PU

ACC309

Video Conference Shelf

ACCXT302

SmartMountXT

Video

Conferencing Accessory

Shelf for SFX645(P), SFX650(P),

SFX660(P), STX645(P)(L),

STX650(P)(L) and STX660(P)(L)

IN-WALL BOXES

IBA2(-W)/IBA3(-W)

Recessed Cable Management

& Power Storage Accessory Box

IIBA2AC(-W)/IBA3AC(-W)

Recessed Cable Management &

Power Storage Accessory Box With

Surge Protected Duplex Receptacle

IBA4-W

Easy Mount Recessed Low

Voltage Cable Plate

IBA5-W

Recessed Low Voltage

Media Plate With Duplex

Surge Suppressor

CART/STAND ACCESSORIES

ACC314

Laptop Arm

ACC320

Electrical Outlet Strip with

Cord Wrap for SR560M/G and WL-SR560M-100 models

ACC310

Feet Accessory for SR560M/G and WL-SR560M-100 models

ACC319

Video Conferencing Shelf for SR560M/G and

WL-SR560M-100 models

ACC953

SmartMountXT

Component Shelf Accessory for SAX755PU, SAX762PU and SAX772PU

ACCXT400/402

SmartMountXT

Recessed Power Outlet with Low Voltage In-Wall Cable Routing

ACCXT400 for SAX762PU and SAX772PU

ACCXT402 for SFX and STX models

STAND ACCESSORIES

ACC604/MIS735

Dual-display Cartridge for

Flat Panel Stands, FPZ-600/-670

ACC325

Accessory Shelf for Flat

Panel Stand, FPZ-600

ACC329

Laptop Cooling Tray

ACC315

Base Shelf for SR560M/G and WL-SR560M-100 models

ACC330

AV Component Shelf for

Flat Panel Stand, FPZ-640

LIT-0422 Rev.4

Other parties’ marks are the property of their respective owners. peerless-av.com

800-865-2112

Education Collection

A u d i o V i s u A l s o l u t i o n s f o r e d u c A t i o n

A P P l i c A t i o n s

Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

User manual | Education [pdf, 3 MB

© 2013 Peerless Industries, Inc. Peerless-AV® is a registered trademark of Peerless Industries, Inc. All rights reserved.

Other parties’ marks are the property of their respective owners. peerless-av.com

800-865-2112

Education Collection

AUDIO VISUAL SOLUTIONS FOR EDUCATION

Peerless-AV stands as a leader in the audiovisual mounting industry for more than 40 years. We consistently deliver innovative solutions that focus on quality, simple installation and functionality.

At Peerless-AV, we consider a “solution” to be more than the product itself. A true solution encompasses how the product is made, how it gets to you and the service you receive. We devote care and attention to every element of our AV solutions so we can fulfill the sum total of your needs.

We are always adding new products to keep pace with the constant changes in AV technology.

We design, manufacture and test products in our u.s.-based facility; ensuring that all products will meet your exacting standards.

We guarantee your satisfaction—designing for ease of installation, improved durability, better aesthetics—your needs guide our manufacturing process, from conception to production.

AV mounting solutions and accessories make upgrades even easier, streamlining the adoption of new technologies.

Backed by years of industry experience, a complete line of AV mounting solutions and accessories, and the latest in technological innovations, Peerless-AV equips you with the building blocks needed to create the classroom of the future.

AUDIO SOLUTIONS

SHORT THROW PROJECTOR MOUNTS

UNIVERSAL PROJECTOR MOUNTS

WHITEBOARD MOUNTS

UNIVERSAL CEILING MOUNTS

UNIVERSAL FLAT, TILT & ARTICULATING WALL MOUNTS

UNIVERSAL FLAT & TILT WALL MOUNTS

UNIVERSAL PIVOT & ARTICULATING WALL MOUNTS

DIGITAL SIGNAGE SOLUTIONS

KIOSK SOLUTIONS

A FULLY INTEGRATED AND READY-TO-INSTALL

CUSTOM KIOSK AT YOUR FINGERTIPS

We ask. You answer.

KioskBuilder

does the rest.

Choose from the best names in the business.

Get started at kiosks.peerless-av.com.

KIOSK SOLUTIONS

UNIVERSAL TABLET MOUNTS

UNIVERSAL DESKTOP & TABLET MOUNTS

STANDS AND CARTS

OUTDOOR SOLUTIONS

Xtreme

displays

Wireless solutions

WIRELESS SOLUTIONS

Get to know the best PeerAir™ Wireless Solution for your needs. With three distinct technologies – WHDI, Wi-Fi and Broadcast

– each PeerAir Solution provides distinctive feature sets that enable a wide range of functionality. Tested in Peerless-AV’s labs, refined in real-world trials, there’s a solid solution for every type of education use.

CABLES SURGE PROTECTORS SAFETY KIT

ACCESSORIES

© 2013 Peerless Industries, Inc. Peerless-AV® is a registered trademark of Peerless Industries, Inc. All rights reserved.

Other parties’ marks are the property of their respective owners. peerless-av.com

800-865-2112

Education Collection

Related manuals
