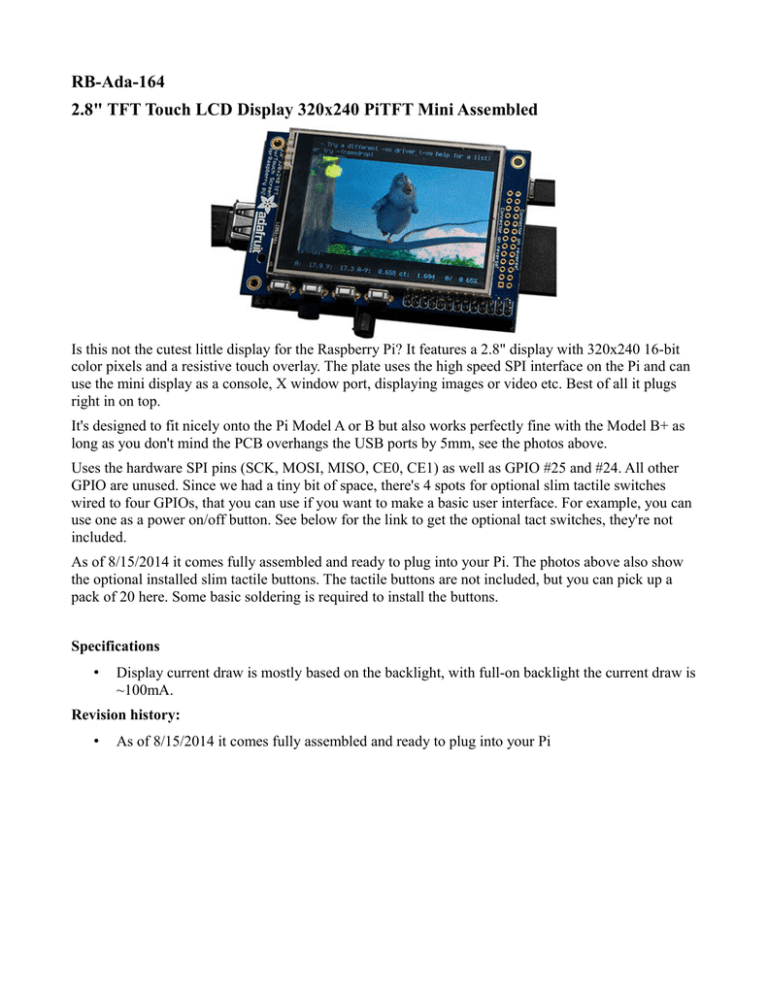

RB-Ada-164
2.8" TFT Touch LCD Display 320x240 PiTFT Mini Assembled
Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit
color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can
use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs
right in on top.
It's designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Model B+ as
long as you don't mind the PCB overhangs the USB ports by 5mm, see the photos above.
Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other
GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches
wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can
use one as a power on/off button. See below for the link to get the optional tact switches, they're not
included.
As of 8/15/2014 it comes fully assembled and ready to plug into your Pi. The photos above also show
the optional installed slim tactile buttons. The tactile buttons are not included, but you can pick up a
pack of 20 here. Some basic soldering is required to install the buttons.
Specifications
•
Display current draw is mostly based on the backlight, with full-on backlight the current draw is
~100mA.
Revision history:
•
As of 8/15/2014 it comes fully assembled and ready to plug into your Pi
