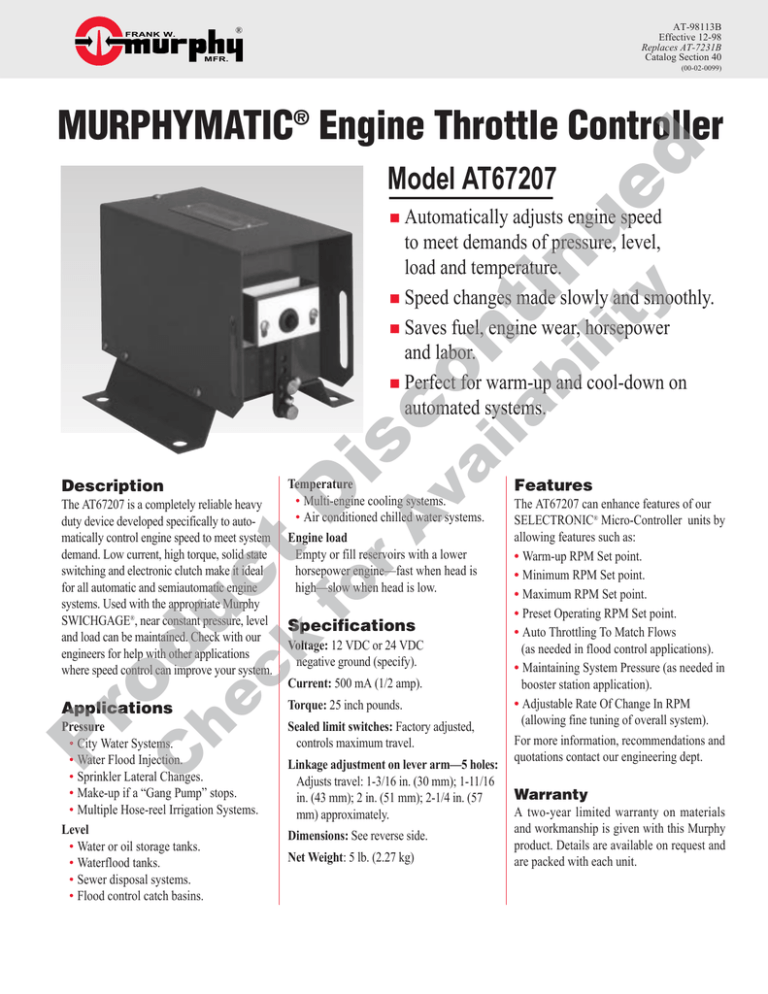

MURPHYMATIC Engine Throttle Controller

MURPHYMATIC Engine Throttle Controller
AT-98113B
Effective 12-98
Replaces AT-7231B
Catalog Section 40
®
FRANK W.
MFR.
(00-02-0099)
d
MURPHYMATIC® Engine Throttle Controller
ty
fo
r
Specifications
ck
ro
d
he u
c
t
The AT67207 is a completely reliable heavy
duty device developed specifically to automatically control engine speed to meet system
demand. Low current, high torque, solid state
switching and electronic clutch make it ideal
for all automatic and semiautomatic engine
systems. Used with the appropriate Murphy
SWICHGAGE®, near constant pressure, level
and load can be maintained. Check with our
engineers for help with other applications
where speed control can improve your system.
Temperature
• Multi-engine cooling systems.
• Air conditioned chilled water systems.
Engine load
Empty or fill reservoirs with a lower
horsepower engine—fast when head is
high—slow when head is low.
D
Description
A
va
is
■
ila
co
■
Voltage: 12 VDC or 24 VDC
negative ground (specify).
Current: 500 mA (1/2 amp).
Pressure
• City Water Systems.
• Water Flood Injection.
• Sprinkler Lateral Changes.
• Make-up if a “Gang Pump” stops.
• Multiple Hose-reel Irrigation Systems.
Level
• Water or oil storage tanks.
• Waterflood tanks.
• Sewer disposal systems.
• Flood control catch basins.
Sealed limit switches: Factory adjusted,
controls maximum travel.
C
Torque: 25 inch pounds.
P
Applications
Linkage adjustment on lever arm—5 holes:
Adjusts travel: 1-3/16 in. (30 mm); 1-11/16
in. (43 mm); 2 in. (51 mm); 2-1/4 in. (57
mm) approximately.
Dimensions: See reverse side.
Net Weight: 5 lb. (2.27 kg)
ili
■
Automatically adjusts engine speed
to meet demands of pressure, level,
load and temperature.
Speed changes made slowly and smoothly.
Saves fuel, engine wear, horsepower
and labor.
Perfect for warm-up and cool-down on
automated systems.
nt
b in
■
ue
Model AT67207
Features
The AT67207 can enhance features of our
SELECTRONIC® Micro-Controller units by
allowing features such as:
• Warm-up RPM Set point.
• Minimum RPM Set point.
• Maximum RPM Set point.
• Preset Operating RPM Set point.
• Auto Throttling To Match Flows
(as needed in flood control applications).
• Maintaining System Pressure (as needed in
booster station application).
• Adjustable Rate Of Change In RPM
(allowing fine tuning of overall system).
For more information, recommendations and
quotations contact our engineering dept.
Warranty
A two-year limited warranty on materials
and workmanship is given with this Murphy
product. Details are available on request and
are packed with each unit.
Operation
How to Order
A Murphy SWICHGAGE * constantly monitors
pressure, level, temperature or load. Adjustable high
and low contacts on SWICHGAGE® are set slightly
above and below desired operating point. When
demand changes, pointer touches appropriate high
or low contact and signals speed change.
AT67207 controller responds only so long as contact is made. The controller stops immediately when
contacts separate. Slow, smooth action prevents
“hunting” or “surging” on normal applications.
®
AT67207 – ___
d
Voltage
ue
12 = 12 VDC
24 = 24 VDC
ty
type control. For more information, recommendations and
quotations contact our engineering dept.
nt
b in
*Mercury tube or snap-action switches are not suitable for this
Typical Wiring
6-3/4 in.
(171 mm)
5-1/8 in.
(130 mm)
fo
r
t
4-3/4 in.
(121 mm)
1
2
3
AT67207
5-1/2 in.
(140 mm)
Battery
ck
d
he u
c
SWICHGAGE®
ila
7/8 in.
(22 mm)
3-5/8 in.
(92 mm)
5-7/8 in.
(149 mm)
A
va
D
is
co
3-3/4 in.
(95 mm)
ili
Dimensions
12-1/4 in.
(311 mm)
C
P
ro
15 in.
(381 mm)
In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time.
