View SHD SHELF BRACKET

View SHD SHELF BRACKET
4
3
2
1

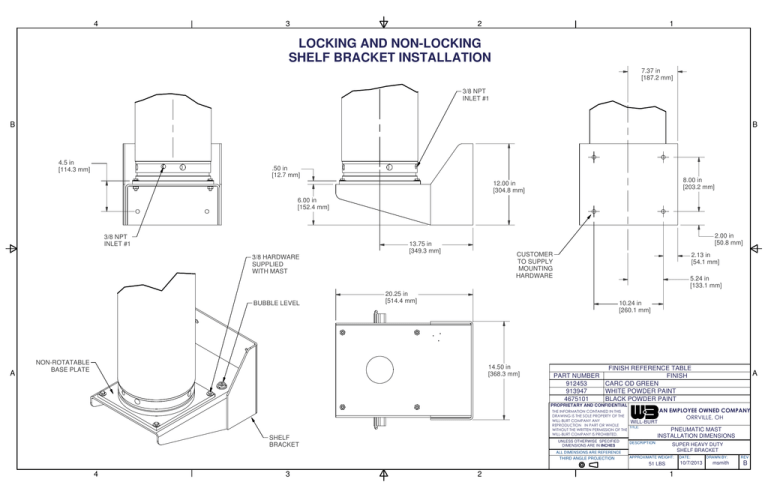

LOCKING AND NON-LOCKING
SHELF BRACKET INSTALLATION
7.37 in
[187.2 mm]
3/8 NPT
INLET #1
B
B
4.5 in
[114.3 mm]
.50 in
[12.7 mm]
8.00 in
[203.2 mm]
12.00 in
[304.8 mm]
6.00 in
[152.4 mm]
3/8 NPT
INLET #1
2.00 in
[50.8 mm]
13.75 in
[349.3 mm]
CUSTOMER
TO SUPPLY
MOUNTING
HARDWARE
3/8 HARDWARE
SUPPLIED
WITH MAST
BUBBLE LEVEL
A
2.13 in
[54.1 mm]
5.24 in
[133.1 mm]
20.25 in
[514.4 mm]
10.24 in
[260.1 mm]
NON-ROTATABLE
BASE PLATE
14.50 in
[368.3 mm]
FINISH REFERENCE TABLE
PART NUMBER
FINISH
912453
CARC OD GREEN
913947
WHITE POWDER PAINT
4675101
BLACK POWDER PAINT
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF THE
WILL-BURT COMPANY ANY
WILL-BURT
REPRODUCTION IN PART OR WHOLE
TITLE:
WITHOUT THE WRITTEN PERMISSION OF THE
WILL-BURT COMPANY IS PROHIBITED.
AN EMPLOYEE OWNED COMPANY
ORRVILLE, OH
PNEUMATIC MAST
INSTALLATION DIMENSIONS
SHELF
BRACKET
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
DESCRIPTION
ALL DIMENSIONS ARE REFERENCE
THIRD ANGLE PROJECTION
SUPER HEAVY DUTY
SHELF BRACKET
APPROXIMATE WEIGHT:
4
3
2
DATE:
10/7/2013
51 LBS
1
DRAWN BY:
msmith
REV
B
