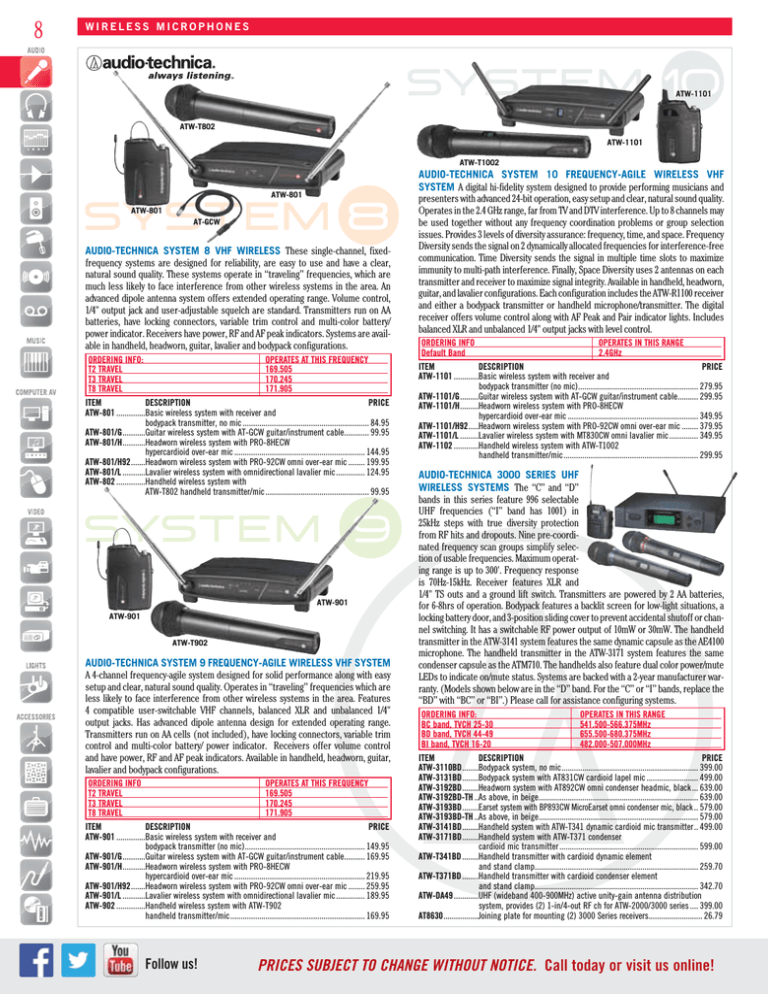

8

W I R E L E S S M I C R O P H O N E S

ATW-1101

ATW-T802

ATW-801

ATW-801

AT-GCW

AUDIO-TECHNICA SYSTEM 8 VHF WIRELESS

These single-channel, fixedfrequency systems are designed for reliability, are easy to use and have a clear, natural sound quality. These systems operate in “traveling” frequencies, which are much less likely to face interference from other wireless systems in the area. An advanced dipole antenna system offers extended operating range. Volume control,

1/4" output jack and user-adjustable squelch are standard. Transmitters run on AA batteries, have locking connectors, variable trim control and multi-color battery/ power indicator. Receivers have power, RF and AF peak indicators. Systems are available in handheld, headworn, guitar, lavalier and bodypack configurations.

ORDERING INFO:

T2 TRAVEL

T3 TRAVEL

T8 TRAVEL

OPERATES AT THIS FREQUENCY

169.505

170.245

171.905

ITEM DESCRIPTION

ATW-801 ..............Basic wireless system with receiver and

PRICE

bodypack transmitter, no mic ............................................................. 84.95

ATW-801/G ...........Guitar wireless system with AT-GCW guitar/instrument cable ............ 99.95

ATW-801/H ...........Headworn wireless system with PRO-8HECW hypercardioid over-ear mic ............................................................... 144.95

ATW-801/H92 .......Headworn wireless system with PRO-92CW omni over-ear mic ........ 199.95

ATW-801/L ...........Lavalier wireless system with omnidirectional lavalier mic .............. 124.95

ATW-802 ..............Handheld wireless system with

ATW-T802 handheld transmitter/mic .................................................. 99.95

ATW-901

ATW-901

ATW-T902

AUDIO-TECHNICA SYSTEM 9 FREQUENCY-AGILE WIRELESS VHF SYSTEM

A 4-channel frequency-agile system designed for solid performance along with easy setup and clear, natural sound quality. Operates in “traveling” frequencies which are less likely to face interference from other wireless systems in the area. Features

4 compatible user-switchable VHF channels, balanced XLR and unbalanced 1/4" output jacks. Has advanced dipole antenna design for extended operating range.

Transmitters run on AA cells (not included), have locking connectors, variable trim control and multi-color battery/ power indicator. Receivers offer volume control and have power, RF and AF peak indicators. Available in handheld, headworn, guitar, lavalier and bodypack configurations.

ORDERING INFO

T2 TRAVEL

T3 TRAVEL

T8 TRAVEL

OPERATES AT THIS FREQUENCY

169.505

170.245

171.905

ITEM DESCRIPTION

ATW-901 ..............Basic wireless system with receiver and

PRICE

bodypack transmitter (no mic) .......................................................... 149.95

ATW-901/G ...........Guitar wireless system with AT-GCW guitar/instrument cable .......... 169.95

ATW-901/H ...........Headworn wireless system with PRO-8HECW hypercardioid over-ear mic ............................................................... 219.95

ATW-901/H92 .......Headworn wireless system with PRO-92CW omni over-ear mic ........ 259.95

ATW-901/L ...........Lavalier wireless system with omnidirectional lavalier mic .............. 189.95

ATW-902 ..............Handheld wireless system with ATW-T902 handheld transmitter/mic ................................................................. 169.95

ATW-1101

ATW-T1002

AUDIO-TECHNICA SYSTEM 10 FREQUENCY-AGILE WIRELESS VHF

SYSTEM

A digital hi-fidelity system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality.

Operates in the 2.4 GHz range, far from TV and DTV interference. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. Provides 3 levels of diversity assurance: frequency, time, and space. Frequency

Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multi-path interference. Finally, Space Diversity uses 2 antennas on each transmitter and receiver to maximize signal integrity. Available in handheld, headworn, guitar, and lavalier configurations. Each configuration includes the ATW-R1100 receiver and either a bodypack transmitter or handheld microphone/transmitter. The digital receiver offers volume control along with AF Peak and Pair indicator lights. Includes balanced XLR and unbalanced 1/4" output jacks with level control.

ORDERING INFO

Default Band

OPERATES IN THIS RANGE

2.4GHz

ITEM DESCRIPTION

ATW-1101 ............Basic wireless system with receiver and

PRICE

bodypack transmitter (no mic) .......................................................... 279.95

ATW-1101/G .........Guitar wireless system with AT-GCW guitar/instrument cable .......... 299.95

ATW-1101/H .........Headworn wireless system with PRO-8HECW hypercardioid over-ear mic ............................................................... 349.95

ATW-1101/H92 .....Headworn wireless system with PRO-92CW omni over-ear mic ........ 379.95

ATW-1101/L .........Lavalier wireless system with MT830CW omni lavalier mic .............. 349.95

ATW-1102 ............Handheld wireless system with ATW-T1002 handheld transmitter/mic ................................................................. 299.95

AUDIO-TECHNICA 3000 SERIES UHF

WIRELESS SYSTEMS

The “C” and “D” bands in this series feature 996 selectable

UHF frequencies (“I” band has 1001) in

25kHz steps with true diversity protection from RF hits and dropouts. Nine pre-coordinated frequency scan groups simplify selection of usable frequencies. Maximum operating range is up to 300'. Frequency response is 70Hz-15kHz. Receiver features XLR and

1/4" TS outs and a ground lift switch. Transmitters are powered by 2 AA batteries, for 6-8hrs of operation. Bodypack features a backlit screen for low-light situations, a locking battery door, and 3-position sliding cover to prevent accidental shutoff or channel switching. It has a switchable RF power output of 10mW or 30mW. The handheld transmitter in the ATW-3141 system features the same dynamic capsule as the AE4100 microphone. The handheld transmitter in the ATW-3171 system features the same condenser capsule as the ATM710. The handhelds also feature dual color power/mute

LEDs to indicate on/mute status. Systems are backed with a 2-year manufacturer warranty. (Models shown below are in the “D” band. For the “C” or “I” bands, replace the

“BD” with “BC” or “BI”.) Please call for assistance configuring systems.

ORDERING INFO:

BC band, TVCH 25-30

BD band, TVCH 44-49

BI band, TVCH 16-20

OPERATES IN THIS RANGE

541.500-566.375MHz

655.500-680.375MHz

482.000-507.000MHz

ITEM DESCRIPTION PRICE

ATW-3110BD ........Bodypack system, no mic .................................................................. 399.00

ATW-3131BD ........Bodypack system with AT831CW cardioid lapel mic ......................... 499.00

ATW-3192BD ........Headworn system with AT892CW omni condenser headmic, black ... 639.00

ATW-3192BD-TH ..As above, in beige ............................................................................. 639.00

ATW-3193BD ........Earset system with BP893CW MicroEarset omni condenser mic, black .. 579.00

ATW-3193BD-TH ..As above, in beige ............................................................................. 579.00

ATW-3141BD ........Handheld system with ATW-T341 dynamic cardioid mic transmitter .. 499.00

ATW-3171BD ........Handheld system with ATW-T371 condenser cardioid mic transmitter ................................................................... 599.00

ATW-T341BD ........Handheld transmitter with cardioid dynamic element and stand clamp ............................................................................... 259.70

ATW-T371BD ........Handheld transmitter with cardioid condenser element and stand clamp ............................................................................... 342.70

ATW-DA49 ............UHF (wideband 400-900MHz) active unity-gain antenna distribution system, provides (2) 1-in/4-out RF ch for ATW-2000/3000 series .... 399.00

AT8630 .................Joining plate for mounting (2) 3000 Series receivers .......................... 26.79

Follow us!

PRICES SUBJECT TO CHANGE WITHOUT NOTICE. Call today or visit us online!

W I R E L E S S M I C R O P H O N E S

9

AUDIO-TECHNICA

2000 SERIES

UHF FREQUENCY-AGILE

SYSTEMS

This series delivers professional performance, easy setup, automatic scanning, true diversity reception, Tone Lock™ tone squelch & other advanced features at an affordable price. Any of its 10 channels may be used together, eliminating frequency coordination problems. The metal half-rack receiver features XLR & unbalanced

1/4" outputs, ground lift switch, an included rack-mount kit and detachable UHF antennas. The ATW-T220a handheld transmitter features the PRO 41 capsule for maximum feedback rejection & lasting dependability. Bodypack transmitter has switchable 10mW/30mW RF output. Both bodypack & handheld transmitters operate on 2 AA cells, for up to 9hrs of use. Under ideal conditions may yield up to a 300' operating range. Models shown below are in the “AD” band. For opposite band substitute “AI” for “AD” at end of part number.

ORDERING INFO

AD Band, TVCH 45-48

AI Band, TVCH 16-19

OPERATES IN THIS RANGE

656.125-678.500 MHz

487.125-506.500 MHz

ITEM DESCRIPTION PRICE

ATW-2110AD ............. Bodypack system, no mic ............................................................ 299.00

ATW-2129AD ............. Lavalier system, with AT829CW unidirectional lapel mic ............ 349.00

ATW-2192AD ............. Headworn system, with AT892CW omni condenser head mic, black .. 549.00

ATW-2192AD-TH........ As ATW-2192, in beige ................................................................ 549.00

ATW-2120AD ............. Handheld system with ATW-T220 cardioid dynamic mic ............. 349.00

ATW-CHG2................. Two-bay recharging station for 2 ATW-T220 hh transmitters, and/or ATW-T210 bodypack transmitters in any combination, with auto shut-off feature ........................................................... 160.45

ATW-DA49 ................. UHF (wideband 400-900MHz) active unity-gain antenna distribution system, provides two 1-in/4-out RFch, for ATW-2000/3000 series ........................................................... 399.00

AT8630 ...................... Joining plate kit for two 2000 series receivers .............................. 26.79

AUDIO TECHNICA 1800 SERIES

CAMERA-MOUNT UHF WIRELESS SYSTEMS

These UHF camera-mount wireless mic systems provide extremely flexible, professional, and easy-to-use operation. Series features automatic frequency scanning, Tone Lock™ squelch, back-lit LCD, soft-touch buttons, headphone monitor output with independent level control, and durable metal construction.

The dual channel systems include the ATW-R1820 dual receiver with 2 completely independent receiver channels in a single unit. Dual balanced used interchangeably.

ORDERING INFO

D band, TVCH 44-49 655.500-680.375 MHz

ITEM DESCRIPTION

Dual-Channel Models

ATW-1821D ............... Includes ATW-R1820 receiver, 2 ATW-T1801 UniPak™

PRICE

ATW-1822D ............... Includes ATW-R1820 receiver and 2 ATW-T1802

ATW-1823D ............... Includes ATW-R1820 receiver, ATW-T1801 UniPak™ body-pack transmitter, ATW-T1802 plug-on transmitter,

Single Channel Models

ATW-1811D ............... Includes ATW-R1810 receiver, 1 ATW-T1801 UniPak™

ATW-1812D ............... Includes ATW-R1810 receiver and 1 ATW-T1802 plug-on transmitter ..................................................................... 549.00

ATW-1813D ............... Includes ATW-R1810 receiver, 1 ATW-T1801 UniPak™ body-pack transmitter, 1 ATW-T1802 plug-on transmitter, and a lavalier microphone .......................................................... 749.00

AUDIO-TECHNICA ARTIST ELITE SERIES FREQUENCY AGILE UHF

WIRELESS SYSTEMS

The AEW 4000 single channel and AEW 5000 dual channel systems feature 996 selectable UHF channels per band with True Diversity, dual compander circuitry, Tone Lok™ squelch, multiple channel coordination, highly visible white-on-blue LCD displays, and Intelliscan™, which finds and sets the best available frequencies on all linked receivers. Stores up to 5 presets with names.

Bodypack transmitters feature locking battery doors. The AEW 3000 receiver has

XLR and 1/4" TS outputs as well as 1/4" headphone out. The AEW 5000 features an onboard Ethernet interface for monitoring/controlling system parameters (includes software), XLR, 1/4" TRS and 1/4" headphone out. (Models shown below are in the

“AD” band. For the “AC” band, replace the “AD” with “AC” at end of part number.)

Please call for assistance in configuring systems.

ORDERING INFO:

AC band, TVCH 25-30

AD band, TVCH 44-49

OPERATES IN THIS RANGE:

541.500-566.375 MHz

655.500-680.375 MHz

ITEM DESCRIPTION PRICE

Single-Channel UHF Systems

AEW-4110AD ........Bodypack system, no mic .................................................................. 949.00

AEW-4230AD ........Handheld system with AEW-T3300a cardioid condenser mic .......... 1169.00

AEW-4240AD ........Handheld system with AEW-T4100a cardioid dynamic mic .............. 999.00

AEW-4250AD ........Handheld system with AEW-T5400a cardioid condenser mic .......... 1349.00

AEW-4260AD ........Handheld system with AEW-T6100a hypercardioid dynamic mic ...... 999.00

AEW-4313AD ........Combo system with 1 bodypack, (no lapel mic), and AEW-T3300a HH ....................................................................... 1549.00

Dual-Channel UHF Systems (partial listing, more combo systems available)

AEW-5244AD ........Dual-handheld system with 2 AEW-T4100a cardioid dynamic mics .................................................................... 3099.00

AEW-5255AD ........Dual-handheld system with 2 AEW-T5400a cardioid condenser mics ................................................................. 4039.00

AEW-5266AD ........Dual-handheld system with 2 AEW-T6100a hypercardioid dynamic mics ........................................................... 3099.00

AEW-5313AD ........Dual-combo system with 1 bodypack,

(no lapel mic) and 1 AEW-T3300a HH ............................................. 3279.00

AEW-5413AD ........Dual-combo system with 2 bodypacks,

(no lapel mic) and 2 AEW-T3300a HH ............................................. 4159.00

Components (partial listing)

AEW-R4100D........Single-channel UHF diversity receiver only ....................................... 739.00

AEW-R5200D........Dual-channel UHF diversity receiver only ........................................ 2239.00

AEW-T1000AD ......Bodypack transmitter only for 4000/5000 series .............................. 469.00

AT8628A ...............Joining plate for two 4000/5000 series receivers ................................ 20.94

AUDIO-TECHNICA MICS/ACCESSORIES FOR AT WIRELESS SYSTEMS

ITEM DESCRIPTION PRICE

Microphones (with 4-pin locking connector for AT Unipak bodypacks)

MT830CW .............Lapel mic, omni condenser ................................................................. 85.52

AT829CW..............Lapel mic, cardioid condenser ............................................................ 51.21

AT831CW..............Lapel mic, cardioid condenser ............................................................ 85.82

AT899CW..............Lapel mic, subminiature omni without power module ...................... 142.32

PRO8HE-CW .........Headworn mic, hypercardioid dynamic................................................ 92.67

ATM75CW .............Headworn mic, cardioid condenser ..................................................... 97.77

AT889CW..............Headworn mic, noise canceling condenser ....................................... 162.75

BP892CW .............Headworn mic, omni condenser ........................................................ 299.00

PRO92CW.............Headworn mic, omni condenser, black .............................................. 129.00

PRO92CW-TH .......As PRO92CW, in beige....................................................................... 129.00

Accessories

AT-GCW ................Guitar input cable for AT UniPak body-packs ..................................... 18.62

AEW-DA550C........UHF (540-565MHz) active unity-gain antenna distribution system for “C” band, provides two 1 in-4 out RF channels for up to 4 receivers (for 3000/4000/5000 series) ................................. 633.71

AEW-DA660D........As AEW-DA550C, with (655-680MHz) for “D” band .......................... 633.71

ATW-A49 ..............Wideband directional 6dB gain antenna, mounts on wall/mic stand .. 283.22

ATW-A54P ............Pair of UHF (541-567MHz) powered dipole antennas ........................ 552.92

ATW-A64P ............As ATW-A54P but 655-681MHz ......................................................... 552.92

ATW-A3C ..............Pair of UHF (540-565MHz) 1/2 wave antennas with BNC conn for ATW-3000 series wireless .............................................................. 35.87

ATW-A3D ..............As ATW-A3C, with 655-680MHz operation ........................................... 35.87

ATW-DA49 ............UHF (wide-band 440-900MHz) active unity-gain antenna distribution system, provides two 1 in-4 out RF channels for up to 4 receivers

(for 2000/3000 series) ...................................................................... 399.00

Visit fullcompass.com today!

For expert advice - call: 800-356-5844

M-F: 9:00-5:30 Central

10

W I R E L E S S M I C R O P H O N E S

WX150A

WX160A

BEYERDYNAMIC TG 1000 DIGITAL WIRELESS SYSTEM

Covering an impressive 319MHz of the UHF bandwidth (470-

789MHz), this 24-bit digital wireless system can be used in a variety of venues worldwide. Its wireless transmission signal features advanced digital encryption and the system is functional at a range of up to 984 feet. The dual receiver features OneButton Navigation and Intuitive Chameleon

Software pre-installed. The handheld transmitter has 5 interchangeable capsules available to fit any application. Beltpack transmitters are available for use with lavalier and headworn mics or use a cable to connect it to an electric guitar or bass.

ITEM DESCRIPTION

PRICE

TG1000...................... Receiver, dual channel UHF, 24-bit, digital .............................. 3499.99

TG1000-HANDHELD ... Handheld transmitter, UHF, 24-bit, digital, capsule purchased separately..................................................... 999.99

TG-V50W-CAPS ......... Capsule, dynamic cardioid .......................................................... 149.99

TG-V56W-CAPS ......... Capsule, electret condenser cardioid .......................................... 279.99

TG-V70W-CAPS ......... Capsule, dynamic hypercardioid ................................................. 249.99

TG-V90W-CAPS ......... Capsule, ribbon cardioid ............................................................. 499.99

TG-V96W-CAPS ......... Capsule, true condenser cardioid ................................................ 699.99

TG1000-BELTPACK .... Beltpack transmitter, UHF, 24-bit, digital ................................... 999.99

WA-CGI ..................... Instrument cable for TG-BELTPACK ............................................... 99.99

WA-ATO-ACTIVE ........ Active directional antenna .......................................................... 449.99

WA-ATD-PASS ........... Passive wideband directional antenna ....................................... 449.99

WA-ATD-ACTIVE ........ Active/passive omnidirectional antenna ..................................... 429.99

WA-AS6 ..................... 6-way antenna splitter with power supply ................................ 1499.99

WA-AMP .................... Antenna amplifier ....................................................................... 379.99

WX155A

WX100A

CAD AUDIO WX100 UHF WIRELESS SYSTEMS

With an intuitive control scheme and state-of-the-art wireless technology, the WX100 wireless system is an ideal solution for a variety of applications. The system’s simplicity and thoughtful design make it easy to operate for both casual users and seasoned professionals. The

WX100A receiver offers superior audio bandwidth and convenient battery charging.

The WX150A handheld transmitter has a dynamic capsule and the WX155A bodypack transmitter ships with a 301 lavalier microphone. The WX160A is a unique gooseneck wireless transmitter with a desktop stand.

ITEM DESCRIPTION PRICE

WX100A..................... Wireless receiver ......................................................................... 249.00

WX150A..................... Handheld microphone transmitter ............................................... 199.00

WX155A..................... Bodypack transmitter, with 301 lavalier microphone .................. 199.00

WX160A..................... Gooseneck microphone transmitter, with desk top base ............. 289.00

IN

E 6

XD V35 DIGITAL WIRELE

SS SYSTEM

A reliable and easy-to-use digital wireless system which operates in the license-free 2.4GHz band. Constructed of lightweight, heavy-duty polycarbonate, it offers full-frequency, uncompressed, 24-bit audio while the adjustable dynamic filter reduces ambient and handling noise.

Encoded Digital Channel Lock technology prevents interference from other 2.4GHz devices. One-step setup is quick and easy and the system has a range of up to 275ft.

Up to 6 systems may be used simultaneously. The handheld system includes a cardioid handheld transmitter and features cutting-edge microphone modeling technology. The optional V75-SC handheld transmitter has a supercardioid polar pattern and four built-in mic models. For a complete listing of Line 6 wireless components, visit our website.

ORDERING INFO:

Default Band

OPERATES AT:

2.4GHz

ITEM DESCRIPTION PRICE

XD-V35 .................Digital wireless system with handheld transmitter........................... 299.99

XD-V35L ...............Digital wireless system with bodypack transmitter and lav mic ....... 299.99

LINE 6 XD-V75 DIGITAL WIRELESS SYSTEMS

Exclusive digital technology prevents audio interference. Set up is simple, just turn it on and pick a channel. Fullrange compander-free operation delivers clear sounding vocals. The XD-V75 system operates in the 2.4GHz band, which is free from TV broadcast and white space device interference. All systems feature rackmountable receivers and an operating range of

300ft. The handheld system includes a cardioid handheld transmitter and features digital models of 10 popular live-sound microphones. The optional V75-SC handheld transmitter has a supercardioid polar pattern and four built-in mic models. The lavalier, headworn and bodypack systems each feature 9 different EQ filter models, digital channel lock and standard TA4 mini-XLR input on the transmitter. Visit our website for a full list of individual Line 6 wireless components.

ORDERING INFO:

Default Band

OPERATES AT:

2.4GHz

ITEM DESCRIPTION PRICE

XD-V75 .................Handheld digital wireless system ..................................................... 599.99

XD-V75L ...............Lavalier digital wireless system ........................................................ 599.99

XD-V75HS.............Headworn digital wireless system (available in black or tan) .......... 649.99

XD-V75TR .............Bodypack digital wireless system, NO MIC........................................ 549.99

V75-THH12-SC .....Handheld transmitter, supercardioid ................................................ 399.99

Follow us!

Para asistencia en Español llame al 800-356-5844 x1164 y x1178

W I R E L E S S M I C R O P H O N E S

GM4WR

HM-3

BP-300

R300-RX

ULM18

GE-WIRELESSDRWR

GM-7W-TSA

HT-300

EV R300 SERIES UHF WIRELESS SYSTEMS

This series features ClearScan™ for finding the next open channel available, and EZsync™ which allows for infrared transfer from receiver to transmitter for error-free setup. The R300 receiver has 32 preset channels, with compatible groups allowing up to 8 systems to operate simultaneously under ideal conditions. It has 1/4" TS, and XLR outputs, and a frequency response of 80Hz-18kHz (±2dB). The BP-300 bodypack terminates to a TA4 connector for use with all EV lapel/headworn mics. The HT-300 handheld transmitter features a

PL22 cardioid, dynamic head. All transmitters feature metal construction, have 8mW

RF outputs, and operate up to 14 hours using 2 AA alkaline cells. Please specify band

A or B when ordering, or call for assistance.

ORDERING INFO:

A Band - TVCH 38-41

B Band - TVCH 48-51

OPERATES IN THIS RANGE:

618.000-634.000 MHz

678.000-694.000 MHz

ITEM DESCRIPTION

PRICE

R300-L ...................... Bodypack system with ULM18 unidirectional lapel mic .............. 299.00

R300-E ...................... Headworn system with HM-3 omnidirectional headworn mic ...... 309.00

R300-HD ................... Handheld system with PL22 cardioid, dynamic mic .................... 299.00

R300-RX.................... R300 series receiver only ............................................................ 265.50

HT-300 ...................... Handheld transmitter only, with PL22 head ................................ 163.50

BP-300...................... Bodypack transmitter only ........................................................... 143.00

APD4+ ...................... Antenna/Power distribution for up to (4) R300 receivers ............ 561.00

RM-300 ..................... Rackmount kit for (1) R300 receiver ............................................. 24.00

RMD-300 ................... Rackmount kit for (2) R300 receivers............................................ 31.50

GM1WP

GM2W

GM-1WEVAA

GM5W

GATOR CASES WIRELESS MIC ACCESSORIES

ITEM DESCRIPTION

ATA Mic Cases

PRICE

GM1WP ..........For single wireless system, space for body pack, mic, adjustable tray height, interior receiver dimensions: 8.5" L x 8.5" W x 2" H ............ 139.99

GM4WR ..........Holds 4 wireless systems (1/2 rack with double sided tape),

4 slot mic/body pack holder under trap door in lid, accessory pocket, foam lid, carpet lined interior .................................... 239.99

GM-6W-TSA ....Holds 6 wireless mics, battery storage with form fitting foam slots, polyethylene construction, each mic drop is 10.25" L x 2.25" D, with TSA locking latches ......................................................................... 119.99

GM-7W-TSA ....Holds 7 wireless mics with battery storage, polyethylene construction,

2 lift-out trays with 4 adjustable dividers, with TSA locking latches ..... 159.99

Nylon or EVA Rubber Foam Exterior Cases

GM-1WEVAA ...EVA rubber foam, for single 1/2 rack system, front and rear unzips for access, storage for receiver, beltpack, hh x-mitter, flexible foam receiver cavity dims: 8" L x 8" W x1.75" H .......................... 59.99

GM2W.............For 2 wireless systems, 600-denier nylon construction,

2 extra-deep 8.5" mic drops, and compartments, interior receiver dimensions: 8.5" L x 8.5" W x 3.25" H............................. 59.99

GM5W.............For 5 wireless systems, nylon construction, 8.5" mic drop, storage compartment for receivers and accessories, interior receiver dimensions: 8.5" x 7" W x 4" H ....................................... 59.99

Wireless Mic Rack Drawer – 3RU drawer, black powder-coat finish, 16ga steel

GE-WIRELESSDRWR

Stores 4 wireless mics/bodypacks, foam storage holds 16 AA cells, accessory compartment, plywood dividers, inc lock and key .................. 149.99

EV RE2 WIRELESS MICROPHONE

SYSTEM

Features include Advanced

ClearScan™ Auto Channel Select, over

1,112 selectable channels, automatic or manual group and channel selection, LCD display, balanced XLR and 1/4" outputs

(mic/line switchable), battery level status, and more. The RE2 Pro versions feature dual “high/low” power switching on the transmitters and interchangeable capsules on the handheld transmitters.

Bodypack specific features include magnesium case and detachable antenna. The

Pro receiver features rack-mount kit with front antenna extensions. Please call to determine best frequency band when ordering. Please note that the RE2 Pro series components are only available in the “A” band.

ITEM DESCRIPTION

RE2 UHF Series Single Channel Systems

ORDERING INFO:

G Band, TVCH38-42

A Band, TVCH 43-48

OPERATES IN THIS RANGE:

614.000-642.000MHz

648.00-676.000MHz

PRICE

RE2-N2...................... Handheld system with ND267A dynamic cardioid head .............. 459.00

RE2-N7...................... Handheld system with ND767A dynamic supercardioid head ..... 499.00

RE2-410 .................... Handheld system with RE410 cardioid condenser head .............. 529.00

RE2-510 .................... Handheld system with RE510 supercardioid condenser head ....... 569.00

RE2-COMBO .............. Combo system with ND267A HH and bodypack with ULM21 lav mic .. 699.00

RE2-BP ..................... Bodypack system, no mic ............................................................ 449.00

RE2-L10 .................... Lavalier system, with OLM10 omni lapel mic .............................. 499.00

RE2-L21 .................... Lavalier system, with ULM21 unidirectional lapel mic ................ 529.00

RE2-E-BEIGE............. Bodypack system, with RE97 headworn mic, omni, beige ........... 699.00

RE2-G........................ Guitar/instrument system with cable .......................................... 479.00

APD4+ ...................... Antenna/power distro system for up to (4) RE2 series receivers .... 561.00

RE2-PRO UHF Series - sold as components

ORDERING INFO:

A Band, TVCH 43-48

OPERATES IN THIS RANGE:

648.00-676.000MHz

RE2-PRO-71910X1.... Single-channel UHF receiver only, includes rackmount kit, antennas .. 379.00

PHTU-2D7 ................. HH transmitter only with ND767A dynamic supercardioid head ....... 429.00

PHTU-2C5 ................. HH transmitter only with RE510 supercardioid condenser head ....... 549.00

WTU-2 ....................... Magnesium bodypack .................................................................. 672.50

Looking for wireless audio for video?

See pages

395-396

Looking for wireless in-ear systems?

See pages

85-87

UCR401

UCR411A

EW300IEM-G3

PSM900

SMV SERIES

Visit fullcompass.com today!

For expert advice - call: 800-356-5844

M-F: 9:00-5:30 Central

11

12

W I R E L E S S M I C R O P H O N E S

LECTROSONICS DIGITAL HYBRID

WIRELESS™

Combines 24-bit digital audio with an analog FM radio link to provide outstanding audio quality and the extended operating range of the best analog wireless systems. Overcomes channel noise in a dramatically new way, digitally encoding the audio bit-stream in the transmitter and decoding it in the receiver, yet sending the encoded information via an analog FM wireless link.

This proprietary DSP algorithm eliminates a compander circuit and its artifacts, and preserves the RF spectral footprint of analog FM designs to simplify multi-channel coordination with existing analog wireless systems. Here are the frequency blocks/ detailed choices for most of the Lectrosonics products shown in this section:

ORDERING INFO:

Block 470, TVCH 14-18

Block 19, TVCH 16-20

Block 20, TVCH 21-25

Block 21, TVCH 25-29

Block 22, TVCH 29-33

Block 23, TVCH 34-37 (note 608-614MHz may not be used in US for wireless)

Block 24, TVCH 38-42

Block 25, TVCH 42-46

Block 26, TVCH 46-50

OPERATES IN THIS RANGE:

470.100-495.600MHz

486.400-511.900MHz

512.000-537.500MHz

537.600-563.100MHz

563.200-588.700MHz

588.800-614.300MHz

614.400-639.900MHz

640.00-665.500MHz

665.600-691.100MHz

LECTROSONICS SYSTEMS MICS/ACCESSORIES (PARTIAL LISTING)

ITEM DESCRIPTION

Lectrosonics Models

PRICE

M1195P................Omni lapel mic, with locking TA5-F connector ......................................CALL

M152/5P ..............High-performance omni lapel mic, with locking TA5-F connector .........CALL

M119MC ...............Omni lapel mic, with locking micro plug (for MM400C beltpack) .........CALL

M152/MC..............High-performance omni lapel, with locking micro plug (for MM400C) ....CALL

M152/WP .............Waterproof version of M152/MC (for MM400C beltpack) ......................CALL

HM172P ...............Earset mic, single boom (4.15"), omni, condenser, beige, with TA5-F connector ......................................CALL

RK119 .................Windscreen for M119 style mics ...........................................................CALL

RK150 .................Windscreen for M150/M152 style mics .................................................CALL

Third Party Models

AT899CT5 .............Audio-Technica sub-mini omni lapel mic, with TA5-F connector, black...CALL

AT899CT5-TH .......As AT899CT5, in “beige” finish .............................................................CALL

BP892CT5 ............Earset mic, single boom, sub-mini, omni condenser, with TA5-F connector, black .......................................CALL

BP892CT5-TH.......As BP892CT5, in “beige” finish ............................................................CALL

B6W4FF05B-LS ....Countryman B6 mini lavalier mic, omni, TA5-F connector, black .........CALL

MEMWF05B-LS.....Countryman EMW (square) lavalier mic, omni, TA5-F connector, black ................................................................CALL

E6IOW5L-LS .........Countryman E6 headset mic, with replaceable cable, omni, TA5-F connector, light beige .......................................................CALL

MM400C

WM

SMV

LMA

SMQV

HH WITH

CAPSULE

RM

HM

LECTROSONICS DIGITAL HYBRID WIRELESS™ TRANSMITTERS

A wide array of compatible transmitters are available to work with Lectrosonic’s portable and studio receivers. The SMQV and SMV are part of the “Super-Mini” series of transmitters which are ideal when concealment is a primary concern. They feature membrane switches, LCD interfaces, current servo input for maximum dynamic range, accept a wide variety of mic types, and have an aluminum splash-proof housing. The RM remote unit allows you to change settings while these units are hidden on the talent. The UM400a model features spring-loaded beltclips, servo-input amps for a wide range of gain, and a tough extruded powder-coated housing. The MM400c is a water-resistant mini transmitter with 100mW RF output for long range use with minimal interference. Bodypacks have locking Switchcraft TA5 connections unless otherwise noted. Please specify frequency block when ordering as it must match the receiver’s frequency in order to work. Call your Sales Pro for assistance when setting up your system.

ORDERING INFO:

Blocks 470, 19, 20, 21, 22, 23, 24, 25, 26

OPERATES IN THIS RANGE:

See chart above in this column

ITEM DESCRIPTION

Transmitters

SMQV........Super-miniature transmitter, variable output (50/100/250mW), water-resistant, includes pouch, uses (2) AA cells,

PRICE

lithium battery provides up to 7.5hrs of operation ...........................................CALL

SMV ..........Super-miniature transmitter, variable output (50/100mW), water-resistant, uses (1) AA cell ......................................................................CALL

UM400A....Beltpack transmitter, 100mW RF output, requires (1) 9V cell ..........................CALL

MM400C ...Water-tight beltpack transmitter, 100mW RF output, micro 2.5mm jack, (1) AA cell ..........................................................................CALL

LMA ..........Beltpack transmitter, 50mW RF output, requires (1) 9V cell ............................CALL

WM ...........Waterproof bodypack transmitter, switchable output, LCD interface with lockout ..CALL

Accessories

RM............Remote control option for all “SM” models.......................................................CALL

SMBCUP ...Beltclip for SM models, connectors point up ....................................................CALL

SMBCDN ...Beltclip for SM models, connectors point down ................................................CALL

SMDBC .....Hinged beltclip for SMQV, connectors can point up or down ............................CALL

Handheld and Plug-On Transmitters

HH ............Handheld transmitter only, selectable 50 or 100mW output power, uses

(2) AA lithium cells for approx 10hrs battery life, requires capsule .................CALL

HHC ..........Cardioid capsule for the HH..............................................................................CALL

HM............Plug-on transmitter for 100/200/IFB series, 100mW RF output, multi-voltage phantom power, quick-lock XLR connector, (2) AA cells

(up to 12hrs using lithium cells), 40Hz-20kHz ±1dB .......................................CALL

LECTROSONICS VENUE SERIES/VF FIELD MODULAR RECEIVER SYSTEMS

The Venue receiver system is a modular UHF design that operates with Digital Hybrid

Wireless™ transmitters, and DSP modes to support a variety of analog transmitters.

It consists of a master assembly that accepts 1 to 6 plug-in receiver modules (VRS or

VRT modules, not included with base unit). The VRMWB master assembly includes an antenna multi-coupler, computer communications interface, and the rackmount for the receiver modules. It has 6 balanced XLR audio outputs, 50ohm BNC antenna inputs and outputs, USB, RS232 port for the computer interface, as well as an LCD interface for setup and monitoring. Operates on 10 to 18 VDC from external power supply (included). Includes LecNet2™ software for simplifying setup and monitoring your system. All functions and settings can be made via software, including firmware updates through the USB and serial ports. System requires a pair of antennas with coax feed cables. The VR-FIELD assembly is a portable version that shares most of the feature set, but operates on 10-18VDC from an external power supply or NP1style battery. Choose from the ALP models of Log Periodic Dipole Array wideband directional antennas or the SNA600 omnidirectional collapsible dipole listed below.

ORDERING INFO:

Blocks 470, 19, 20, 21, 22, 23, 24, 25, 26

OPERATES IN THIS RANGE:

See chart in previous column

ITEM DESCRIPTION

VRM-WB-MSTR-ASSEMBLY

230MHz wideband master assembly only with power supply,

PRICE

(no receivers or antennas included, choose from VRS or

VRT modules and antennas below) .............................................................CALL

VR-FIELD-ASSEMBLY

230MHz wideband field assembly only with power supply

(no receivers or antennas included – choose from VRS or

VRT modules and antennas below) .............................................................CALL

VRS/E01 .........Standard receiver module only - fixed bandwidth front-end design suitable for most RF environments, select frequency block ........................CALL

VRT.................Tracking receiver module only- same as VRS but with addition of advanced frequency tracking front-end filters, for hostile RF areas, select frequency block ...............................................CALL

ALP500...........Shark fin antenna, economical model for fixed applications ......................CALL

ALP620...........Shark fin antenna, skeletal design for decreased wind loading ................CALL

ALP650...........Shark fin antenna, with onboard amplifier for long cable runs.

Phantom powered from Venue master assembly ........................................CALL

SNA600 ..........Collapsible dipole antenna kit, adjustable from 550MHz to 800MHz full 360 degree receiving pattern. Includes mounting kit ...........................CALL

ARG2 ..............Coaxial antenna cable, mini coax, BNC/BNC 2ft.........................................CALL

ARG15 ............Antenna cable, mini coax, 15ft BNC/BNC, 15ft...........................................CALL

ARG25 ............Low loss antenna cable, coax BNC/BNC, 25ft .............................................CALL

ARG50 ............Low loss antenna cable, coax BNC/BNC, 50ft .............................................CALL

ARG100 ..........Low loss antenna cable, coax BNC/BNC, 100ft ...........................................CALL

Follow us!

We service many of the major brands that we carry.

Call our Authorized Repair Department at 800-356-5844 x1303.

14

W I R E L E S S M I C R O P H O N E S

SENNHEISER EVOLUTION G3 UHF WIRELESS SYSTEMS

The receivers commonly feature 1/2 rack width metal housings, true diversity operation, 42MHz bandwidth with 1,680 switchable frequencies, LCD displays, AutoScan for frequency selection, sound check mode to check audio and RF signal during setup,

HDX compander, wireless sync of transmitters via infrared interface, integrated EQ,

XLR and 1/4" TS output jacks. The compact transmitters have integrated charging contacts (for use with optional charging accessories), use AA cells and will operate up to 8 hours. Frequency response is 25Hz-18kHz. Backwards compatible with G1/

G2 series.

EVOLUTION 100 SERIES-G3

The EM100-G3 receiver has a SN ratio of >110dB, and has up to 12 compatible frequencies per bank. It also has a built-in guitar tuner and cable emulation.

EVOLUTION 300 SERIES-G3

The EM300-G3 receiver has a SN ratio of >112dB, an ethernet port that allows you to control settings via a computer, and has up to 24 compatible frequencies per bank. No guitar tuner or cable emulation. Bodypack transmitters have configurable mute modes and switchable RF output power (10/30mW).

EVOLUTION 500 SERIES-G3

The EM500-G3 receiver shares the features of the

300 series but improves to a SN ratio of 115dB and has 32 compatible frequencies per bank. The 500 series handheld transmitters feature 900 series Sennheiser capsules.

Like the 100 series, the receivers have a built-in guitar tuner and cable emulation.

ORDERING INFO:

A Range, TVCH 21-28

G Range, TVCH 30-37

B Range, TVCH 40-47

OPERATES IN THIS RANGE:

516.000-558.000MHz

566.000-608.000MHz

626.000-668.000MHz

ITEM DESCRIPTION PRICE

100 Series Sets with rackmountable EM100 receiver

(GA3 rack ears not included)

EW112-G3 ............Presentation set with SK100-G3 bodypack & ME2 omni lapel mic ... 649.95

EW122-G3 ............Presentation set with SK100-G3 bodypack & ME4 cardioid lapel mic .. 649.95

EW152-G3 ............Headworn set with SK100-G3 bodypack & ME3 cardioid, condenser headset ............................................................................ 649.95

EW172-G3 ............Instrument set with SK100-G3 bodypack & Ci1 instrument cable .... 499.95

EW135-G3 ............Vocal set with E835 handheld cardioid dynamic mic ....................... 599.95

EW145-G3 ............Vocal set with E845 handheld supercardioid dynamic mic.............. 649.95

EW165-G3 ............Vocal set with E865 handheld supercardioid condenser mic ............ 749.95

GA3 ......................Rackmount kit for wireless receiver .................................................... 39.95

100 Series Sets with portable EK100 receiver (for camera use) – includes Ci1

1/8" output cable, CL100 XLR unbalanced output cable, CA2 camera mount

EW100ENG-G3 .....ENG set with SK100-G3 bodypack, ME2 omni lapel mic,

& SKP100 plug-on transmitter (no phantom power) ......................... 799.95

EW112P-G3..........ENG set with SK100-G3 bodypack, & ME2 omni lapel mic ................ 629.95

EW122P-G3..........ENG set with SK100-G3 bodypack, & ME4 cardioid lapel mic ........... 629.95

EW135P-G3..........ENG set with SKM835 handheld transmitter, cardioid dynamic mic.... 599.95

300 Series Sets with rackmountable EM300 receiver (GA3 rack ears included)

EW312-G3 ............Presentation set with SK300-G3 bodypack & ME2 omni lapel mic ... 849.95

EW322-G3 ............Presentation set with SK300-G3 bodypack & ME4 cardioid lapel mic .. 849.95

EW352-G3 ............Headworn set with SK300-G3 bodypack &

ME3 cardioid condenser headset ...................................................... 899.95

EW335-G3 ............Vocal set with E835 handheld cardioid dynamic mic ....................... 849.95

EW345-G3 ............Vocal set with E845 handheld supercardioid dynamic mic ............... 899.95

EW365-G3 ............Vocal set with E865 handheld supercardioid condenser mic ............ 999.95

500 Series Sets with rackmountable EM500 receiver (GA3 rack ears included)

EW512-G3 ............Presentation set with SK500-G3 bodypack & ME2 omni lapel mic.... 1049.95

EW572-G3 ............Instrument set with SK500-G3 bodypack & Ci1 instrument cable .... 849.95

EW500/935-G3.....Vocal set with E935 handheld cardioid dynamic mic ....................... 969.95

EW500/945-G3.....Vocal set with E945 handheld supercardioid dynamic mic ............... 999.95

EW500/965-G3.....Vocal set with E965 handheld switchable cardioid or supercardioid condenser mic .......................................................... 1499.95

SENNHEISER XS SERIES WIRELESS SYTEMS

XS Wireless delivers renowned

Sennheiser sound to small venues, conference rooms or houses of worship. Truediversity reception offers worry-free operation. It features 24MHz switching bandwidth, 8 frequency banks containing 12 coordinated channels each and 960 available frequencies which are tunable in 25kHz steps. The powerful scan function identifies available channels while the new Remote Channel sync allows components to be synchronized at a distance. Transmitters will operate up to 10hrs on 2 AA batteries.

Operates at ranges up to 250'.

ORDERING INFO

A Range

B Range

OPERATES IN THIS RANGE

548.000-572.000MHz

614.000-636.000MHz

ITEM DESCRIPTION

XSW-12 ..................... Lavalier system with SK20 bodypack, EM10 receiver,

PRICE

ME2-2 clip-on lapel mic .............................................................. 399.95

XSW-52 ..................... Headworn system with SK20 bodypack, EM10 receiver,

ME3 headset mic......................................................................... 449.95

XSW-35 ..................... Handheld system with SKM35 HH dynamic cardioid transmitter, EM10 receiver ............................................ 399.95

XSW-65 ..................... Handheld system with SKM65 HH condenser supercardioid transmitter, EM10 receiver ................................... 449.95

XSW-72 ..................... Instrument system with SK20 bodypack, EM10 receiver,

CL1 instrument cable .................................................................. 399.95

SENNHEISER 2000 SERIES UHF WIRELESS SYSTEMS

Series features include backwards compatibility with Evolution G1/G2/G3 transmitters, true diversity operation (rackmount receivers only), built-in Ethernet port for linking to PCs, switching bandwidth between 42-75MHz in 25kHz steps, and up to 64 compatible presets per band. The rack mount receivers (EM2000/EM2050) feature integrated power supply, and active splitter (up to 8 receivers may be linked w/out using additional splitters), transformer balanced

XLR and 1/4" outputs, scan feature for compatible frequency selection, 4 selectable EQ presets, HDX compander, built-in guitar tuner, Soundcheck mode for monitoring transmission conditions, and IR sync with compatible transmitters.

ORDERING INFO:

A Range, TVCH 21-28

G Range, TVCH 28-40

B Range, TVCH 40-51

OPERATES IN THIS RANGE:

516.000-558.000MHz

558.000-626.000MHz

626.000-698.000MHz

ITEM DESCRIPTION PRICE

EM2000 ..................... Single-channel UHF wireless receiver, 1RU ............................... 1849.95

EM2050 ..................... Dual-channel UHF wireless receiver, 1RU ................................. 2799.95

EK2000...................... Camera-mount UHF wireless receiver ......................................... 899.95

SK2000XP ................. UHF bodypack transmitter only (no mic) ..................................... 799.95

SKM2000-BLACK ....... Handheld transmitter, black (note: no capsule included) ........... 799.95

SKP2000 ................... Plug-on transmitter, 10/30/50/100mW RF output, supplies phantom power, 3-pin Lemo socket .............................. 799.95

Please call for info on accessories and capsules for handheld transmitters!

Follow us!

We have the largest selection of hard-to-find items. Call us!

W I R E L E S S M I C R O P H O N E S

15

SMK5200-II NICKEL

SENNHEISER 5000 SERIES PROFESSIONAL WIRELESS SYSTEMS

This system centers around the EM3732-II dual-channel receiver (except the

BP-PACKAGE-4) and transmits across the UHF spectrum. They have up to 184MHz of switching bandwidth and are capable of integrating with 2000 Series systems. An integrated antenna splitter allows daisy chaining of up to 8 units for 16 channels of audio.

The integrated Ethernet port allows for remote control via Wireless System Manager

Software. Transmitters have switchable output power and a Low Intermodulation mode which allows larger numbers of transmitters to operate in congested RF environments. Transmitters are available in Nickel, Black or Steel Blue and you must also indicate frequency range when ordering.

ITEM DESCRIPTION PRICE

Handheld Packages (transmitters available in black, blue or nickel)

HH-PACKAGE-1 ......... (2) SMK5200-II handheld transmitters, (2) B5000-2 battery sleds,

(2) Neumann KK104-S capsules, (1) EM3732-II receiver ................CALL

HH-PACKAGE-2 ......... (2) SMK5200-II handheld transmitters, (2) B5000-2 battery sleds,

(2) Neumann KK105-S capsules, (1) EM3732-II receiver ................CALL

HH-PACKAGE-3 ......... (2) SMK5200-II handheld transmitters, (2) B5000-2 battery sleds,

(2) Sennheiser MD5235 capsules, (1) EM3732-II receiver ..............CALL

HH-PACKAGE-4 ......... (1) SKM5200-II handheld transmitter, (1) B5000-2 battery sled,

(1) Neumann KK104-S capsule, (1) EM3731-II receiver ..................CALL

HH-PACKAGE-5 ......... (1) SKM5200-II handheld transmitter, (1) B5000-2 battery sled,

(1) Neumann KK105-S capsule, (1) EM3731-II receiver ..................CALL

HH-PACKAGE-6 ......... (1) SKM5200-II handheld transmitter, (1) B5000-2 battery sled,

(1) Sennheiser MD5235 capsule, (1) EM3731-II receiver ................CALL

Bodypack Packages (available with black or beige lav mics)

BP-PACKAGE-2 ......... (2) SK5212-II bodypack transmitters,

(2) MKE2 Gold lavalier kits, (1) EM3732-II receiver ........................CALL

BP-PACKAGE-4 ......... (1) SK5212-II bodypack transmitter,

(1) MKE2 Gold lavalier kit, (1) EM3731-II receiver ..........................CALL

Accessories

A5000CP ................... Passive circularly-polarized UHF antenna ................................... 999.95

A2003-UHF................ Passive wideband directional remote UHF antenna .................... 279.95

A1031-SINGLE........... Passive wideband omnidirectional UHF antenna ........................ 159.95

RG213-50.................. Low-loss RF antenna cable, 50’, BNC connectors, MIL-SPEC ...... 199.95

RG213-100................ Low-loss RF antenna cable, 100’, BNC connectors, MIL-SPEC .... 349.95

SMK5200-II

BLACK

SMK5200-II

STEEL BLUE

SK5212-II

EM3732-II

ORDERING INFO: OPERATES IN THIS RANGE:

L 470-638MHz

N 614-698MHz

SK9000

ME9002

EM9046

ME9004

ORDERING INFO:

A1 - A4

A5 - A8

B1 - B4

B5 - B8

ME9005

SKM9000-NI

SKM9000-BK

MD9325-BK MD9325-NI MD9325-BK-NI

OPERATES IN THIS RANGE

470.000-558.000MHz

550.000-638.000MHz

630.000-718.000MHz

710.000-798.000MHz

SENNHEISER DIGITAL 9000 SERIES WIRELESS SYSTEM

This system has been developed for professional users in broadcast studios, theaters and live performance situations who are unwilling to compromise on sound.

Its unique uncompressed digital audio transmission offers artifact-free sound with superb dynamics. The use of extremely narrow filters allows a very narrow set-up of the respective radio frequencies within the available range without risking intermodulation. The EM9046 receiver offers 328MHz of switching bandwidth from 470 to 798MHz. Its modular design can support up to 8 receiver modules with modules for analog and digital output. Its intuitive icon-based user interface is displayed via a large TFT display, which can also be used to view the built-in graphical spectrum analyzer and RF level recorder. The SK9000 bodypack transmitter is lightweight and durable with magnesium housing and a 3-pin Lemo connector for lavalier microphones, guitars and instruments. The SKM9000 handheld transmitter is available with

4 new capsule choices and is also compatible with Neumann, Sennheiser Evolution and 2000 series capsules. For more information about this system please call your

Sales Pro.

ITEM DESCRIPTION PRICE

EM9046-SU ............... Modular receiver system, multi-channel (up to 8) ..........................CALL

EM9046-DRX ............. Digital receiver module ............................................................. 2000.00

EM9046-DAO ............. Digital audio output module ..................................................... 2000.00

EM9046-AAO ............. Analog audio output module ..................................................... 4500.00

SK9000...................... Bodypack transmitter ................................................................ 2600.00

SKM9000-BK ............. Handheld transmitter, black ..................................................... 2600.00

SKM9000-NI .............. As above, in nickel .................................................................... 2600.00

SKM9000-BK-COM .... Handheld transmitter with command button, black.................. 2995.00

SKM9000-NI-COM ..... As above, in nickel .................................................................... 2995.00

ME9002 ..................... Omnidirectional capsule, condenser ........................................... 600.00

ME9004 ..................... Cardioid capsule, condenser ....................................................... 600.00

ME9005 ..................... Supercardioid capsule, condenser ............................................... 600.00

MD9235..................... Supercadioid capsule, dynamic – available in black, nickel or combination finishes .................................................... 550.00

Visit fullcompass.com today!

For expert advice - call: 800-356-5844

M-F: 9:00-5:30 Central

D I R E C T B O X E S

DBX DB12 AND DB10 DIRECT

BOXES

Utilizes custom metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry to preserve the sonic integrity and true characteristics of the signal source. Both boxes include a pad switch that accommodates instrument, line and even speaker level signals. Includes polarity invert and ground lift.

DB12

ITEM DESCRIPTION PRICE

DB12 ......................... Active DI box .................................................................................. 99.95

DB10 ......................... Passive DI box ............................................................................... 79.95

DN100

KLARK-TEKNIK DN100 & DN200 ACTIVE

DIRECT BOXES

Both feature a high-impedance, transformer-isolated inputs on XLR connectors and

(2) twin 1/4" linked input connectors (Two 1/4"

Link Thru, Left and Right on the DN200), and a low-impedance active balanced XLR output. Both utilize 24V to 48V phantom power. The DN100 has a

DN200

switchable 30dB input pad & switchable 15dB output attenuation while the DN200 has a global 20dB input pad and ground lift switches. The DN200 also has (2) RCA phono inputs, a sum switch that optionally routes both inputs to both outputs and a split switch that optionally routes left input to both outputs.

ITEM DESCRIPTION PRICE

DN100 ....................... Active direct box ............................................................................ 99.00

DN200 ....................... Active stereo direct box ............................................................... 149.00

PRO CO IGATE AUDIO GATEWAY

This rackmountable universal audio interface takes high impedance headphone or line level signals from MP3 players, mono or stereo unbalanced line inputs, and instrument inputs and converts them into low impedance balanced mic signals that are ready for use with your mixing console.

ITEM DESCRIPTION PRICE

IGATE .............Line level to balanced mic signal rackmount audio interface, 1RU ........ 273.74

PRO CO CB-1 DIRECT BOX

Affordable and versatile.

Features 1/4" Hi-Z in put and loop-through out put, a Lo-Z

16-gauge steel box.

ITEM DESCRIPTION PRICE

CB1 ........................... Passive direct box ......................................................................... 54.73

PRO CO INTERFACE BOXES DB-1 DIRECT BOX

1/4" phone jack input, 1/4" phone jack par al lel output. SPKR/

INST switch (-20dB pad). FIL TER/FLAT switch (six dB/octave low pass), XLRM isolated output with GND/LIFT switch.

ITEM DESCRIPTION PRICE

DB1 ........................... Passive direct box ......................................................................... 90.63

LITTLE LABS RED EYE PASSIVE

DIRECT BOX/RE-AMP BOX

A direct box and re-amping tool featuring a high-quality buffered direct box input (phantom power required via XLR in) or passive direct box inputs; both with ground lift and phase reverse capabilities. Compare the direct and re-amped signals with a single button. It is expandable for daisy chaining to other Red Eyes to feed multiple amps or pedals. (2) 1/4" instrument inputs (1 active, 1 passive), XLR in, XLR out and (1)

1/4" re-amp output.

ITEM DESCRIPTION PRICE

RED-EYE-3D .........Passive direct box/re-amp box with phantom power ......................... 269.00

PRO CO DB-2 STEREO DIRECT BOX

This low-noise direct box has a high dynamic range and features two 1/4" inputs with parallel 1/4" outputs, a -30dB pad for each input, and 2

XLRM balanced outputs with a ground lift switch. Suitable for any high impedance instrument, it uses two DBT-1 transformers and MU metal cans for optimal RF/EMF rejection. When using a single input, this direct box will act as a transformerisolated split that provides 2 balanced outputs from a single in.

ITEM DESCRIPTION PRICE

DB-2.......................... Stereo direct box ...........................................................................176.85

ROLLS DB25 MATCHBOX

The DB25 is a transformer-balanced, passive direct box. It features a ground lift switch for hum elimination, and an attenuator switch for padding the input signal by 20dB, or 40dB. Padding the input signal provides a way to connect the DB25 to a line-level signal, even a speaker level signal and connecting it to a balanced line or mic input on a mixer. The two 1/4" inputs are paralleled for guitarists to “pass-through” their input signal to a tuner, pre amp, etc.

ITEM DESCRIPTION

DB25-B ..................... Matchbox, polarity + pin 2 hot (XLR),

PRICE

freqency response 50Hz-15kHz ±3dB ........................................... 23.63

SC700 SC800CT

SC900

SM PRO AUDIO TRANZ WIRELESS STEREO DI SYSTEM

Make virtually any audio system wireless with this unique solution to the age-old problem of tangled cables. Featuring XLR and RCA connectors, this 2-channel system operates at 2.4GHz up to 30 meters, and is powered by either a 9V battery or +12V external power. Other features include continuously variable input control, peak/power/system check LEDs, and channel select switch. Multiple TRANZ receivers can be hooked up to one TRANZ transmitter, allowing you to easily distribute your signal wherever it’s needed.

ITEM DESCRIPTION PRICE

SMP-TRZ-R ............... Receiver, wireless DI ................................................................... 139.99

SMP-TRZ-T ................ Transmitter, wireless DI .............................................................. 139.99

SC800

SWITCHCRAFT DIRECT BOXES

These boxes convert the output of high impedance line level audio devices and musical instruments to low impedance, balanced and isolated mic level signals that can be connected to audio consoles, mic pres, effects processors, and other equipment with 3-pin XLR inputs. The SC700 and

SC700CT feature RCA inputs and are designed for use with sources like MP3 players and turntables. The SC800 and SC800CT are designed for use with instruments. The

SC900 and SC900CT are also for instrument use and feature Phantom Lift technology which allows the ground lift function to be operated remotely using +48V phantom power from the console. All models feature throughputs, high quality I/O jacks, -20dB pad, and Pin 1 ground lift. Built by hand in the USA.

ITEM DESCRIPTION PRICE

SC700 ....................... A/V direct box with Jensen transformer ....................................... 179.99

SC700CT ................... A/V direct box with custom transformer ........................................ 99.99

SC800 ....................... Instrument DI box with Jensen transformer ................................. 179.99

SC800CT ................... Instrument DI box with custom transformer .................................. 84.99

SC900 ....................... Instrument DI box, Jensen transformer, phantom lift .................. 199.99

SC900CT ................... Instrument DI box, with custom transformer, phantom lift ........... 99.99

Visit fullcompass.com today!

For expert advice - call: 800-356-5844

M-F: 9:00-5:30 Central

69

70

D I R E C T B O X E S

WHIRLWIND DI2 PASSIVE DUAL DIRECT BOX

This hardwired version of the Director2

DI makes it easy to keep your stage clean and eliminates the need for piles of mic cables.

Features include 1/4" parallel in/out jacks, ground lift, Snakeskin fanout, and color coding.

VT - violet (YL, VT, and BL shown at right).

ITEM DESCRIPTION PRICE

DI2-050-XX ...........................Passive, hardwired, dual-channel direct box, 50ft length ..................................................... 335.50

DI2-025.................................As above, 25ft length ............................................................................................................ 273.22

DI2-015-XX ...........................As above, 15ft length ................................................................................................................CALL

WHIRLWIND DIRECT-JT

A top-of-the-line passive DI featuring the Jensen

JT-DB-EPC:200k:1.5k transformer for wide frequency response and superior noise rejection. The 1/4" input jacks can be used as “INPUT/THRU” or they may be combined with the “COMBINE” pushbutton to safely sum stereo feeds to a single channel. The “FILTER/OFF” button engages a filter that emulates the frequency response of a microphone placed in front of a 12" speaker. The

“PAD” button engages 15dB pad for reducing hot input levels. Also includes reverse phase and ground lift buttons. THD @ 1kHz: less than 0.001%

ITEM DESCRIPTION PRICE

DIRECT-JT .............................Passive direct box in aluminum housing ............................................................................... 169.88

PODDI

PODMIX

MULTIDIRECTOR

WHIRLWIND DIRECTOR

SERIES DIRECT BOXES

A premium direct box that converts a line, instrument or speaker level signal to a low impedance mic level.

The input is Hi-Z bridging.

Features include a 30dB pad

DIRECTOR

DIRECTOR+

switch for selecting line/instrument or speaker level, a switch able low pass rolloff filter to eliminate amplifier noise, and a ground lift switch on the Lo-Z output.

Director+ utilizes the newly-designed DImax transformer; Director and Multi-

Director utilize the TRHL-M transformer.

ITEM DESCRIPTION PRICE

DIRECTOR ................. Passive, TRHL-M transformer, direct box ...................................... 65.34

DIRECTOR+ ............... Passive, DImax transformer, direct box ....................................... 117.50

MULTIDIRECTOR........ Passive, 4 Director DI’s in 1RU package ..................................... 259.59

WHIRLWIND HOT BOX

This top-of-the-line DI is an active direct box that op er ates from bat tery or phantom power. The Hot Box provides su per-clean front-end circuit ry that delivers the wid est frequency re sponse that you’ll find in any direct box. There is a ground-lift switch, use ful for elim i nat ing ground-loop hum prob lems even with phan tom power, and a switch that al lows you to switch be tween in stru ment, line, or am pli fi er inputs.

ITEM DESCRIPTION PRICE

HOTBOX ..................... Active direct box .......................................................................... 128.61

HOTBOX-QUAD........... 1RU 4-channel active DI ............................................................. 510.65

WHIRLWIND PODMIX AND PODDI DIRECT

BOXES

The podMIX is a passive mixer and direct box that combines a mic source with a stereo line level audio source for connection to a single channel input of a sound system.

It accepts stereo line inputs via 1/8" stereo jack or dual RCA phone jacks and sums them with a mic signal into a single balanced XLR mono output. Works with dynamic and condenser mics and passes phantom power from the output to the mic input.

The podDI accepts stereo inputs and sums them into a single balanced XLR mono output. A variable attenuator on each input allows level matching between left and right inputs, making the podDI a passive mixer in split track audio applications. Signal input is via 1/8" stereo TRS jack or color coded RCA phono jacks, and features a balanced male XLR output. Also be used as a single input DI box. Both feature a ground lift switch for eliminating hum and buzz.

ITEM DESCRIPTION PRICE

PODMIX ..................... Mic/Line passive mixer and direct box ........................................ 127.07

PODDI ....................... Single input/output summing direct box ....................................... 73.41

WHIRLWIND PCDI AND PCDIQ DIRECT BOXES

The PCDI is designed to interface your unbalanced stereo line sources with professional balanced low impedance equipment. Features 2 separate DI’s, Inputs; 1-3.5mm

(1/8") mini TRS stereo jack or 2 sets of color coded

RCA in/thru. Output; color coded XLRs. Also features a mono/stereo switch, ground lift and a 20dB pad. The PCDIQ

PCDIQ

PCDI

also features a stereo mix buss to combine any combination of channels into a stereo mic level, balanced output. Perfect for interfacing with the outputs of CD players, computer sound cards, tape decks, etc.

ITEM DESCRIPTION PRICE

PCDI.......................... Dual-direct box ............................................................................ 134.93

PCDIQ ....................... Quad-direct box ........................................................................... 518.81

WHIRLWIND IMP2 / IMP JT

DIRECT BOXES

An economical

Direct Box that converts a line or instrument level unbalanced signal to a low impedance balanced signal.

IMP2

IMPJT

The input is Hi-Z bridging and the output is provided with a ground lift switch. IMP JT features a Jensen transformer,

IMP2 utilizes the TRHL transformer.

ITEM DESCRIPTION PRICE

IMP2 ......................... Passive, TRHL transformer, direct box ........................................... 43.55

IMPJT ........................ Passive, Jensen transformer, direct box ...................................... 145.85

WHIRLWIND EDB1

An economy direct box offering rugged construction while maintaining exceptional sound quality. 1/4" in and through jacks, pad switch, and ground lift.

Input impedance: 20k Ω; output impedance: 150Ω.

ITEM DESCRIPTION PRICE

EDB1 ......................... Direct box ...................................................................................... 31.67

Follow us!

Our Sales Pros will provide you with the solutions you need.

72

D I R E C T B O X E S

RADIAL ENGINEERING DIRECT BOXES

No-compromise DIs for both studio and live applications. They use ultra-high quality/low distortion components for transparency and a clear signal with amazing frequency response. Available in a variety of configurations. All boxes feature heavy-duty 14-gauge steel boxes, XLR or XLR-1/4" TRS and unbalanced connectors and are covered by a 3-year warranty.

ITEM DESCRIPTION PRICE

J33 .......................Combo phono preamp and direct box ................................................ 199.99

J48-MK2 ...............Transformerless DI, 15dB pad, 48V phantom power, ground lift, mix-merge, 10Hz-40kHz ................................................. 199.99

JDX .......................Guitar amp DI, ground lift, polarity switch ....................................... 199.99

JDI-MK3................Passive DI, ground lift, Jensen transformer, 10Hz-80kHz ................. 199.99

JDI-DUPLEX ..........Stereo version of the JDI-MK3, US-made transformer ....................... 349.99

JD6 .......................6-channel rackmount version of the JDI-MK3, with Eclipse transformer ................................................................... 899.99

JD7 .......................Guitar level distribution to feed up to 7 amps simultaneously, with push button selection, Jensen transformer, balanced I/O ....... 1099.99

J-RAK-8 ................Chassis (2RU) for up to 8 DIs, drivers or splitters ............................ 139.99

JPC .......................2-channel active/transformer DI with 1/8", 1/4" and RCA inputs to interface with computers/consumer audio gear ........................... 199.99

PRODI ..................Mono transformer-coupled passive DI................................................. 99.99

ITEM DESCRIPTION PRICE

PZ-DI ...................Active DI for Orchestral Piezo Pickups............................................... 219.99

TWIN-ISO .............2-channel line-level isolation box with Jensen transformers,

15dB pad and separate ground lifts ................................................. 259.99

JS2 .......................Mic splitter, 1-in/3-out ..................................................................... 219.99

JS3 .......................As JS2, with input, thru and 2 transformer-isolated outputs ............ 259.99

PRO48 ..................Active direct box, compact design ...................................................... 99.99

PROAV1 ................Single-channel AV DI box, 1/4", 1/8", RCA, XLR inputs..................... 119.99

PROAV2 ................Passive stereo multimedia DI with RCA, 3.5mm, XLR, 1/4" ............. 169.99

PROD8..................Passive 8-channel DI, Radial trasformers, 1RU ................................ 799.99

SB1-ACOUSTIC .....Active acoustic DI, compact ................................................................ 69.99

SB2-PASSIVE .......Passive DI for bass and keys .............................................................. 69.99

SB4-PIEZO ...........Active DI for orchestral piezo pickups, compact ................................. 79.99

SB5-LAPTOP.........Passive stereo DI for laptops, 1/8" TRS connector .............................. 99.99

STAGE-DIRECT .....Active DI with mute switch and tuner out ......................................... 219.99

PRO48

TWIN-ISO

JDX

JD6

SB1-ACOUSTIC

J33

JD7

JX4

4

MANAGER

Designed for demanding professional concert

TUBE DI

This DI has a 100% discrete

Class ‘A’ front end with no circuit-stacorrection which allows adjustment for any magnetic pickup. With the Drag Control bypassed Firefly jumps to 4 megohms, great for use with piezo pickups. A 12AX7 tube provides for extra warmth and detail.

ITEM DESCRIPTION PRICE

FIREFLY .................... Tube direct box ............................................................................ 599.99

RADIAL ENGINEERING J+4™ BALANCED

SIGNAL DRIVER

A stereo interface designed to accept unbalanced low output level devices such as instruments, computers or CD players and boost the signal to a balanced +4dB level for easy manipulation in professional situations. It is built of 100% discrete components. The combination of active signal buffering with transformer isolation eliminates noise, delivering better than 95dB signal-to-noise ratio. Controls are minimal, consisting of a stereo of 1/4" jacks for DJ mixers or keyboards, RCA jacks for CD players and a 1/8" TRS jack for MP3 players. Outputs are a pair of 3-pin XLR connectors.

ITEM DESCRIPTION PRICE

J+4 ............................ Balanced signal driver ................................................................ 199.99

buffering with 100% discrete components throughout. Inputs A and B have Drag™

Control load correction that lets you dial in the perfect load on the pickup for the most natural tone. Inputs B and C are equipped with a trim level that lets you quickly balance signal levels when using wireless systems or active guitars. It has 2 effects loops, one is a ‘local’ loop for a drawer full of pedals or multi-effects processors. The second loop is a long-haul balanced interface that provides a noise-free connection for distances up to 328' when combined with a stand-alone Radial SGI-44 interface. A built-in direct box functions as an output to the PA or as a dry feed for recording. Up to 6 amplifiers may be used at once. Outputs 1 and 2 are single while outputs 3 and

4 are doubled-up to drive multiple stacks. All outputs are transformer-isolated and have 180º polarity reverse switches. Amp selection can be done via the front panel or by using the optional JR5 remote control.

ITEM DESCRIPTION PRICE

JX44 .......................... Guitar signal manager .............................................................. 1499.99

JR5 ............................ Remote control for the JX44 ....................................................... 249.99

SGI-44....................... Stand-alone interface, for JX44 ................................................... 339.99

RADIAL ENGINEERING JDV™ ACTIVE DI

This DI is able to handle any type of instrument and reproduces sound with accuracy and little-to-no coloration. It has 100% discrete Class ‘A’ circuitry which eliminates zero-cross distortion. Rather than using phase-cancelling negative feedback loops to stabilize the circuit, the JDV employs a tube-like configuration with proprietary stabilizers.

A Drag Control enables you to correct the load of the instrument as if connected directly to an amplisquawk. The 30V internal rails ensure digital samplers and active basses are handled with ease. It also features separate outputs for the PA, monitors, amps and tuner.

ITEM DESCRIPTION PRICE

JDV ............................ Active direct box .......................................................................... 399.99

Follow us!

Shop anytime. Buy online. Go to fullcompass.com

P A G I N G & D I S P A T C H M I C S S P L I T T E R S & C O M B I N E R S

73

ART S8 8-CHANNEL MIC SPLITTERS

Splits 8 mic signals into 16 (8 direct XLR outs, 8 transformer-balanced XLR outs). Direct outputs pass phantom power from the main mixer to the mics. Includes a ground lift switch on each isolated output and an attenuator pad switch on each input.

ITEM DESCRIPTION PRICE

S8-ART ...................... 2-way 8-channel mic splitter, 16 XLR outs ................................. 239.00

ART S8-3-WAY 8-CHANNEL MIC SPLITTER

An 8-channel 3-way mic splitter suitable for recording, broadcast, or live sound scenarios where microphone and XLR balanced line level input signals need to go to multiple locations. Each channel has 1

XLR input; 1 direct XLR output with 2 additional transformer isolated XLR outputs for a total of 3 balanced outputs from each mic input signal.

ITEM DESCRIPTION PRICE

S8-3-WAY.................. 3-way 8-channel mic splitter ...................................................... 279.00

TM

ART SPLITCOM PRO MIC SPLITTER/

COMBINER

Used to split or combine balanced low impedance microphone signals.

It provides 1 direct-coupled output and 1 isolated output from a single microphone, or 1 output from 2 microphone inputs. Phantom power passes through each output to their respective input. Includes phase invert and ground lift.

ITEM DESCRIPTION PRICE

SPLITCOM-PRO ......... Mic splitter/combiner .................................................................... 35.00

AUDIO-TECHNICA UNIMIX MIC COMBINER

The Uni-Mix is a 24V-48V phantom-powered 2-1 microphone combiner with balance control. Its rugged steel housing can be mounted anywhere in-line, either near the mixer or the microphone. Phantom power is passed to the microphone.

ITEM DESCRIPTION PRICE

AT8681 ...................... 2-1 mic com bin er with bal ance control......................................... 56.90

AUDIO-TECHNICA AT8801 PHANTOM POWER

SUPPLY

The AT8801 is a line-powered device that provides

48V phantom power for a single microphone. This highly regulated power supply provides a constant voltage source, even with a heavily loaded input. The regulator IC is internally protected to prevent overheating even if shorted. The rugged steel case is finished in enamel and provides shielding from electrostatic interference. It includes a plug-in power module (wall wart) that attaches to the electronics module with a 6' cable

ITEM DESCRIPTION PRICE

AT8801 ...................... 1-channel 48V phantom power supply .......................................... 55.13

KLARK-TEKNIK SQUARE ONE SPLITTER

Features 8 channels of Midas XL8-inspired preamps, 9-position rotary gain switches,

30Hz hi-pass filter, duplicate inputs on the front and back, 48V phantom power per channel, transformer-isolated outputs, and more. I/O consists of 8 XLR mic/lin ins

(front and back), 8 XLR outs on front panel, 16 XLR outs on the rear panel and 1 headphone out on 1/4" TRS.

ITEM DESCRIPTION PRICE

SQUARE-ONE-SPLITTER ........8-channel splitter ............................................................ 599.00

PRO CO UTILITY MICROPHONE

MUTING BOXES

These problem solvers help in a variety of situations. Check out the

Full Compass website for more detailed specs. The “Cough Drop” provides noiseless instantaneous muting for those “emergency” situations. The “Short Stop” is for temporarily muting a dynamic or condenser mic by pressing and holding the switch. Releasing the switch resumes the signal. The “Sign Off” works the same way except that you don’t need to hold the switch down to mute. You push once to mute, again to resume the signal. The “Power Mute” combines the functions of the “Short Stop” and the “Sign Off” into one unit. The “Panic Button” is for when you actually need to switch your signal from front of house, to an alternate location (i.e. backstage to request a different guitar, etc.)

ITEM DESCRIPTION PRICE

COUGHDROP-SHORTSTOP ........ Shortstop momentary muting switch .............................. 77.79

COUGHDROP-SIGNOFF .............Sign-off latching muting switch ..................................... 77.79

COUGHDROP-PANICBUTTN....... Panic button A/B switch ............................................... 146.99

COUGHDROP-POWERMUTE ......Shortstop and Sign-off in one unit ............................... 140.06

PRO CO AUDIO VISUAL INTERFACE BOXES

1/4" phone, RCA phono and 3.5mm mini-jack in puts (all par al lel). HIGH/LOW switch

(-20dB pad). 1/4" phone jack line out put. XLR male iso lat ed mic-lev el out put with ground lift switch.

ITEM DESCRIPTION PRICE

AV1A.......................... Mobile interface box .................................................................... 118.69

AVP-1STS .................. A/V interface with steel wallplate/mountable ............................. 101.54

AVP-1VSTS ................ A/V interface with volume control ............................................... 127.42

PRO CO MS-2/MS-3 MIC SPLITTERS

Female XLR input, XLR male 1-direct and 1-isolated (with ground lift) output (MS-2), or 1-direct and 2-isolated (with ground lift) outputs (MS-3), both use the Pro Co MBT-1 transformer.

ITEM DESCRIPTION PRICE

MS2 ....................1x2 mic splitter ........................................81.71

MS3 ....................1x3 mic splitter ........................................99.53

PRO CO MS42A/MS43A RACKMOUNT

MIC SPLITTERS

These split mic signals for 2 or 3 mixers. 4-female XLR mic inputs, 2 outputs

(MS42A) or 3 outputs (MS43A), 1 direct and 1 or

2 isolated (with ground lift) XLR outputs.

MS42A

ITEM DESCRIPTION PRICE

MS42A ....................... 4x2 rackmount splitter ................................................................ 267.08

MS43A ....................... 4x3 rackmount splitter ................................................................ 360.84

PRO CO SPORTS ANNOUNCER

SWITCHES

These rugged, desktop push-totalk mic switches are designed specifically for sports event announcers but equally suitable for any application where a desktop push-totalk device is required. Offers clean reliable performance with any balanced or floating low-impedance (150ohm nominal) mic or signal source. Designed for

SAS2

SAS1

SAS3

either condenser or dynamic mics.

XLRF input and XLRM outputs standard. SAS3 has 1 XLRF mic input on the gooseneck as a direct connect and an additional XLRF input on the back (both inputs run parallel and controlled by switch.)

ITEM DESCRIPTION PRICE

SAS1.......................... Push-to-talk switch, (1) XLRF in, (1) XLRM out, magnetically shielded ................................................................. 196.08

SAS2.......................... Push-to-talk switch with 6" gooseneck (mic and adapter not included), (1) XLRF in, (1) XLRM out, magnetically shielded ...... 255.19

SAS3.......................... Push-to-talk switch with 6" gooseneck XLRF in,

(1) XLRF in, (1) XLRM out, magnetically shielded ....................... 288.47

Looking for

USB adapters?

See pages 56-57

X2U

Visit fullcompass.com today!

For expert advice - call: 800-356-5844

M-F: 9:00-5:30 Central

74

M I C R O P H O N E A C C E S S O R I E S / S P L I T T E R S A N D C O M B I N E R S

WHIRLWIND SPLIT 6

Use this handy box when you need to split a line level signal up to 6 times. Features

1 female XLR input wired to 6 male XLR outputs. Note:

It is not recommended that the SPLIT 6 be used to split a microphone level signal to more than two outputs.

ITEM DESCRIPTION PRICE

SPLIT6................Line-level signal splitter ..................65.34

2-TO-1 MIC COMBINER

This versatile box combines

2 microphone signals into 1 of Input #2.

IMP-COMBINER......... Mic combiner ............................95.54

WHIRLWIND ISOXL/ISOPOD

The ISO-XL delivers transformer isolation for eliminating hums and buzzes in your audio signal. The ISOPOD uses a transformer to isolate any unbalanced 1/8" stereo connection (for example from a laptop or MP3 player) and safely and quietly sums the signal to mono XLR.

ITEM DESCRIPTION PRICE

ISO-XL ....................... Inline isolation transformer ........................................................... 43.83

ISOPOD ..................... Inline 1/8" stereo - XLR mono transformer .................................... 52.50

8CX

JS2

HOTSHOTABI

RADIAL ENGINEERING MIC ACCESSORIES

CHERRY-PICKER

HOTSHOTABO

GOLD-DIGGER

DM1-HOTSHOT

ITEM DESCRIPTION PRICE

JS2 ............................ Jensen transformer mic splitter with XLR input, thru, and isolated monitor output +4th output with ground lift .......... 219.99

8CX ........................... Mic splitter, 8 channels on frame mount for install, radial transformers ..................................................................... 699.99

HOTSHOTABI.............. Dual-to-single XLR source selector ............................................... 79.99

HOTSHOTABO............. Single-to-dual XLR source selector ............................................... 79.99

DM1-HOTSHOT........... Passive mic mute and signal redirector, momentary switch with ground lift ............................................... 79.99

CHERRY-PICKER ....... Passive mic preamp selector with phantom power ..................... 349.99

GOLD-DIGGER ........... 4-channel mic selector with trim adjust on each channel .......... 349.99

ROLLS PB224 PHANTOM POWER

SUPPLY

Perfect for any condenser microphone, the PB224 powers even the high-current draw microphones. The unit features a rock solid 48 volts of clean phantom power. It can operate from two internal 9V batteries or from the Rolls PS27S AC adapter.

ITEM DESCRIPTION PRICE

PB224 ....................... 2-channel phantom power supply ................................................. 81.00

PS27S ....................... AC adapter .................................................................................... 18.36

VU VU-ATTEN ADJUSTABLE IN-LINE ATTENUATOR

Enables balanced low-impedance microphones to connect to low- to mid-impedance inputs in high-SPL applications. Adjusts via a -10dB, -20dB or -30dB switch to match the mic output to the input of mixers, portable recording devices, and more. Prevents input overloading due to high-level signals and is compatible with phantom power.

ITEM DESCRIPTION PRICE

VU-ATTEN .................. Adjustable in-line attenuator, XLRF to XLRM ................................ 22.38

SHURE PROBLEM SOLVERS

ITEM DESCRIPTION

A15AS.............Switchable mic attenuator, (15, 20, 25dB), passes

PRICE

phantom, requires use of balanced signals.............................................. 45.60

A15BT.............Bridging transformer, in-line XLRF to XLRM,

33kΩ primary, 600Ω or 7.5kΩ secondary ............................................... 51.30

A15HP ............High pass filter, in-line XLRF to XLRM, roll off of 12dB below 100Hz, requires use of balanced signals ........................................ 54.15

A15LA .............Line adapter, converts balanced line level signals to mic level

(50dB attenuation), in-line XLRF to XLRM configuration .......................... 41.33

A15PRS ..........Switchable phase reverser, requires balanced signals, XLRF to XLRM ........ 71.25

A15RF ............RF Filter, XLR in/out, passes phantom power ........................................... 49.88

A15TG.............Tone generator, 700Hz mic level signal, XLRM output ............................ 143.90

A85F...............Transformer, Lo-Z, XLRF to Hi-Z 1/4" phone plug, may be used in reverse ........... 18.75

A95U ..............Transformer, Lo-Z, XLRM to Hi-Z Amphenol MC1M with 1/4" jack adapter, may be used in reverse ....................................... 48.72

A95UF ............As A95U, with XLRF low impedance connector ......................................... 48.72

A96F...............Transformer, Lo-Z XLRF to medium impedance mini plug on attached 2' cable ................................................................................. 62.64

A120S.............In-line on/off switch (no connectors, requires soldering) ......................... 27.84

SWITCHCRAFT RMAS1 SINGLE CHANNEL MIC SPLITTER

Passive 3-way transformer isolated mic splitter with XLRF input,

XLRM 1-direct and 2-isolated, with ground lifts, -40dB pad. The direct out passes phantom power.

ITEM DESCRIPTION PRICE

RMAS1....................... 1x3 mic splitter ............................................99.99

SWITCHCRAFT

AUDIOSTIX

These problem-solving adapter boxes can be used in a variety of situations.

The 318 converts 1/8" TRS jack to balanced mono

3-pin male XLR mic-level output with volume control and ground lift swtich. The

319 converts 1/8" TRS jack to balanced mono 3-contact terminal block line-level output with pad and lift switches. The 366R is an AES/EBU adapter which converts female XLR 110ohm to BNC 75ohm. The 367R is an AES/EBU adapter which converts BNC 75ohm to male XLR 110ohm.

ITEM DESCRIPTION PRICE

318............................ Adapter, 1/8"TRS to 3-pin XLRM ................................................... 59.99

319............................ Adapter, 1/8"TRS to terminal block ............................................... 45.50

366R ......................... Adapter, AES/EBU, XLRF to BNC .................................................... 34.50

367R ......................... Adapter, AES/EBU, BNC to XLRM ................................................... 34.50

Follow us!

PRICES SUBJECT TO CHANGE WITHOUT NOTICE. Call today or visit us online!

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
