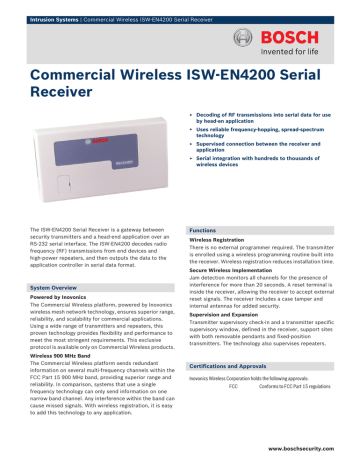

ISW-EN4200 Serial Receiver Spec Sheet
Intrusion Systems | Commercial Wireless ISW-EN4200 Serial Receiver
Commercial Wireless ISW-EN4200 Serial
Receiver
▶ Decoding of RF transmissions into serial data for use
by head-en application
▶ Uses reliable frequency-hopping, spread-spectrum
technology
▶ Supervised connection between the receiver and
application
▶ Serial integration with hundreds to thousands of
wireless devices
The ISW‑EN4200 Serial Receiver is a gateway between
security transmitters and a head-end application over an
RS‑232 serial interface. The ISW‑EN4200 decodes radio
frequency (RF) transmissions from end devices and
high‑power repeaters, and then outputs the data to the
application controller in serial data format.
System Overview
Powered by Inovonics
The Commercial Wireless platform, powered by Inovonics
wireless mesh network technology, ensures superior range,
reliability, and scalability for commercial applications.
Using a wide range of transmitters and repeaters, this
proven technology provides flexibility and performance to
meet the most stringent requirements. This exclusive
protocol is available only on Commercial Wireless products.
Functions
Wireless Registration
There is no external programmer required. The transmitter
is enrolled using a wireless programming routine built into
the receiver. Wireless registration reduces installation time.
Secure Wireless Implementation
Jam detection monitors all channels for the presence of
interference for more than 20 seconds. A reset terminal is
inside the receiver, allowing the receiver to accept external
reset signals. The receiver Includes a case tamper and
internal antennas for added security.
Supervision and Expansion
Transmitter supervisory check-in and a transmitter specific
supervisory window, defined in the receiver, support sites
with both removable pendants and fixed-position
transmitters. The technology also supervises repeaters.
Wireless 900 MHz Band
The Commercial Wireless platform sends redundant
information on several multi‑frequency channels within the
FCC Part 15 900 MHz band, providing superior range and
reliability. In comparison, systems that use a single
frequency technology can only send information on one
narrow band channel. Any interference within the band can
cause missed signals. With wireless registration, it is easy
to add this technology to any application.
Certifications and Approvals
Inovonics Wireless Corporation holds the following approvals:
FCC
Conforms to FCC Part 15 regulations
www.boschsecurity.com
2 | Commercial Wireless ISW-EN4200 Serial Receiver
Installation/Configuration Notes
Compatibility Information
The ISW-EN4200 Serial Receiver is compatible with the
following products:
ISW‑EN1262
PIR Motion Sensor‑Transmitter (Residential and
Low‑traffic Commercial Applications)
ISW‑EN1265
PIR Motion Sensor‑Transmitter (Ceiling‑mount
Applications)
Control Panels
Parts Included
D7212GV2 and D7212G
D7412GV2 and D7412G
D9412GV2 and D9412G
Wirless Interface Module
ISW‑D8125CW
Commercial Wireless Interface Module
Component
1
ISW‑EN4200 Serial Receiver
Technical Specifications
Receivers
Electrical
ISW‑EN4204R
LED Receiver
ISW‑EN4216R
LCD Receiver
Power:
10 to 14 V, 100 mA
Environmental
Repeaters
ISW‑EN5040‑T
Quant.
High‑power Repeater
Transmitters
Relative Humidity:
Up to 90%, non‑condensing
Temperature (operating):
0°C to +60°C
(+32°F to +140°F)
Mechanical
ISW‑EN1210
Universal Transmitter (Single‑input)
ISW‑EN1210EOL
Universal Transmitter with EOL Resistor
ISW-EN1210SK
Dimensions:
16.2 cm x 9.4 cm x 2.8 cm
(6.4 in. x 3.6 in. x 1.1 in.)
Survey Transmitter
Weight:
133 g (4.7 oz)
ISW‑EN1210W
Door-Window Transmitter with Reed Switch
Reception Characteristics
ISW‑EN1215EOL
Universal Transmitter with Wall Tamper and EOL
Resistor
Frequency Compatibility:
ISW‑EN1215WEOL
Door‑Window Transmitter with Wall Tamper, Reed
Switch, and EOL Resistor
Trademarks
ISW‑EN1223D
Water-resistant Pendant Transmitter
(Double-button)
ISW‑EN1223S
Water-resistant Pendant Transmitter
(Single-button)
ISW‑EN1223SK
Survey Pendant Transmitter
ISW‑EN1233D
Necklace Pendant Transmitter (Double‑button)
ISW‑EN1233S
Necklace Pendant Transmitter (Single‑button)
ISW‑EN1235D
Beltclip Pendant Transmitter (Double‑button)
ISW‑EN1235S
Beltclip Pendant Transmitter (Single‑button)
ISW‑EN1235DF
Fixed-location Transmitter (Double‑button)
ISW‑EN1235SF
Fixed-location Transmitter (Double‑button)
ISW‑EN1242
Smoke Detector-Transmitter
ISW‑EN1247
Glass-break Sensor Transmitter
ISW-EN1249
Billtrap Transmitter
ISW‑EN1260
PIR Motion Sensor‑Transmitter (Commercial and
High‑end Domestic Applications)
ISW‑EN1261HT
PIR Motion Sensor‑Transmitter (High‑traffic Areas)
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems Inc. 2009 | Data subject to change without notice
T6270999307 | Cur: en-US, V1, 30 Jun 2009
901 MHz to 928 MHz
Trademark names are used throughout this document. In
most cases, these designations are claimed as trademarks
or registered trademarks in one or more countries by their
respective owners. Rather than placing a trademark symbol
in every occurrence of a trademark name, Bosch Security
Systems, Inc. uses the names only in an editorial fashion
and to the benefit of the trademark owner with no intention
of infringing the trademark.
Inovonics is a trademark of Inovonics Wireless Corporation.
Ordering Information
Commercial Wireless ISW-EN4200 Serial
Receiver
Asia-Pacific:
Represented by
Robert Bosch (SEA) Pte Ltd, Security Systems
38C Jalan Pemimpin
Singapore 577180
Phone: +65 6319 3453
Fax: +65 6319 3499
[email protected]
www.boschsecurity.com
ISW-EN4200
