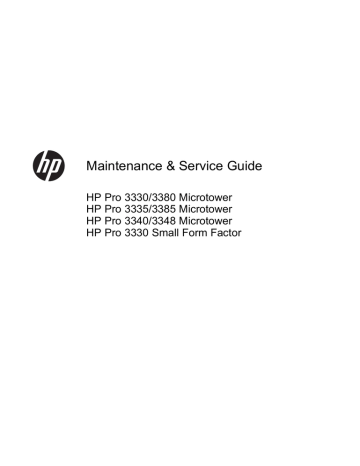

Maintenance & Service Guide
HP Pro 3330/3380 Microtower
HP Pro 3335/3385 Microtower
HP Pro 3340/3348 Microtower
HP Pro 3330 Small Form Factor
© Copyright 2011 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
Maintenance & Service Guide
HP Pro 3330/3380 Microtower
HP Pro 3335/3385 Microtower
HP Pro 3340/3348 Microtower
HP Pro 3330 Small Form Factor
Second Edition (October 2011)
Document Part Number: 670582-002
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
Text set off in this manner provides important supplemental information.
iii
iv
About This Book
Table of contents
1 Product Features ............................................................................................................................................ 1
Identifying the Chassis ......................................................................................................................... 1
Serviceability Features ......................................................................................................................... 1
Feature Overview ................................................................................................................................. 2
Microtower Components ...................................................................................................................... 3
Small Form Factor Components .......................................................................................................... 4
2 Installing and Customizing the Software ...................................................................................................... 5
Installing the Operating System ........................................................................................................... 5
Downloading Microsoft Windows Updates ........................................................................................... 5
Installing or Upgrading Device Drivers (Windows systems) ................................................................. 6
Accessing Disk Image (ISO) Files ........................................................................................................ 6
Protecting the Software ........................................................................................................................ 6
3 Computer Setup (F10) Utility ......................................................................................................................... 7
Computer Setup (F10) Utilities ............................................................................................................. 7
Using Computer Setup (F10) Utilities .................................................................................. 8
Computer Setup—File ......................................................................................................... 9
Computer Setup—Storage ................................................................................................ 10
Computer Setup—Security ................................................................................................ 12
Computer Setup—Power ................................................................................................... 15
Computer Setup—Advanced ............................................................................................. 16
Recovering the Configuration Settings ............................................................................................... 17
4 Illustrated parts catalog ............................................................................................................................... 18
Microtower (MT) Chassis Spare Parts ............................................................................................... 18
Computer Major Components ............................................................................................ 18
Cables ................................................................................................................................ 20
Misc Parts .......................................................................................................................... 22
Drives ................................................................................................................................. 23
Misc Boards ....................................................................................................................... 23
v
Sequential Part Number Listing ......................................................................................... 23
Small Form Factor (SFF) Chassis Spare Parts .................................................................................. 26
Computer major components ............................................................................................ 26
Cables ................................................................................................................................ 28
Misc Parts .......................................................................................................................... 29
Drives ................................................................................................................................. 30
Misc Boards ....................................................................................................................... 30
Sequential Part Number Listing ......................................................................................... 31
5 Serial ATA (SATA) Drive Guidelines and Features .................................................................................... 33
SATA Hard Drives .............................................................................................................................. 33
SATA Hard Drive Cables .................................................................................................................... 33
SATA Data Cable .............................................................................................................. 33
SMART ATA Drives ............................................................................................................................ 34
Hard Drive Capacities ........................................................................................................................ 34
6 Routine Care and Disassembly Preparation .............................................................................................. 35
Electrostatic Discharge Information .................................................................................................... 35
Generating Static ............................................................................................................... 35
Preventing Electrostatic Damage to Equipment ................................................................ 36
Personal Grounding Methods and Equipment ................................................................... 36
Grounding the Work Area .................................................................................................. 37
Recommended Materials and Equipment .......................................................................... 37
Operating Guidelines .......................................................................................................................... 38
Routine Care ...................................................................................................................................... 38
General Cleaning Safety Precautions ................................................................................ 38
Cleaning the Computer Case ............................................................................................ 38
Cleaning the Keyboard ...................................................................................................... 39
Cleaning the Monitor .......................................................................................................... 39
Cleaning the Mouse ........................................................................................................... 40
Service Considerations ...................................................................................................................... 40
Power Supply Fan ............................................................................................................. 40
Tools and Software Requirements .................................................................................... 40
Screws ............................................................................................................................... 40
Cables and Connectors ..................................................................................................... 41
Hard Drives ........................................................................................................................ 41
Lithium Coin Cell Battery ................................................................................................... 41
7 Removal and Replacement Procedures – Microtower (MT) Chassis ....................................................... 42
Preparation for Disassembly .............................................................................................................. 42
vi
Access Panel ...................................................................................................................................... 43
Front Bezel ......................................................................................................................................... 45
Memory .............................................................................................................................................. 47
DDR3-SDRAM DIMMs ...................................................................................................... 47
Populating DIMM Sockets ................................................................................................. 50
Removing Memory Modules .............................................................................................. 50
Expansion Cards ................................................................................................................................ 53
Cable Management ............................................................................................................................ 59
Cable Connections ............................................................................................................ 61
Drives ................................................................................................................................................. 62
Drive Positions ................................................................................................................... 63
Installing Additional Drives ................................................................................................. 64
System Board Drive Connections ..................................................................... 65
Removing an Optical Drive ............................................................................... 67
Removing a Hard Drive ..................................................................................... 70
Front I/O and USB Panel Housing Assembly ..................................................................................... 77
Power Switch/LED Assembly ............................................................................................................. 79
System Fan ........................................................................................................................................ 81
Speaker .............................................................................................................................................. 83
Fan Sink Assembly ............................................................................................................................. 85
Processor ........................................................................................................................................... 86
Power Supply ..................................................................................................................................... 89
System Board ..................................................................................................................................... 91
Battery ................................................................................................................................................ 92
8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis ......................................... 94
Preparation for Disassembly .............................................................................................................. 94
Access Panel ...................................................................................................................................... 95
Front Bezel ......................................................................................................................................... 97
Memory .............................................................................................................................................. 98
DDR3-SDRAM DIMMs ...................................................................................................... 98
Populating DIMM Sockets ................................................................................................. 99
Removing DIMMs ............................................................................................................ 100
Expansion Card ................................................................................................................................ 103
Cable Management .......................................................................................................................... 107
Cable Connections .......................................................................................................... 108
Drives ............................................................................................................................................... 109
Drive Positions ................................................................................................................. 109
Removing Drives ............................................................................................................. 110
Removing an Optical Drive ............................................................................. 110
Removing the Hard Drive ................................................................................ 112
vii
Power Switch .................................................................................................................................... 116
Front USB Assembly ........................................................................................................................ 118
Speaker ............................................................................................................................................ 120
Fan Assembly ................................................................................................................................... 122
Fan Sink ........................................................................................................................................... 124
Processor ......................................................................................................................................... 126
Power Supply ................................................................................................................................... 128
System Board ................................................................................................................................... 131
Battery .............................................................................................................................................. 132
Appendix A Connector Pin Assignments .................................................................................................... 134
Ethernet BNC ................................................................................................................................... 134
USB .................................................................................................................................................. 134
Microphone ....................................................................................................................................... 134
Headphone ....................................................................................................................................... 135
Line-in Audio .................................................................................................................................... 135
Line-out Audio .................................................................................................................................. 135
4-Pin Power (for CPU) ...................................................................................................................... 135
Monitor ............................................................................................................................................. 136
Serial Interface, Powered and Non-Powered ................................................................................... 136
DVI Connector .................................................................................................................................. 137
24-Pin Power .................................................................................................................................... 138
PCI Express ..................................................................................................................................... 139
PCI Express ..................................................................................................................................... 140
Appendix B Power Cord Set Requirements ................................................................................................ 141
General Requirements ..................................................................................................................... 141
Japanese Power Cord Requirements .............................................................................................. 141
Country-Specific Requirements ........................................................................................................ 142
Appendix C POST Error Messages .............................................................................................................. 143
POST Numeric Codes and Text Messages ..................................................................................... 144
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes .............................................. 152
Appendix D Troubleshooting Without Diagnostics .................................................................................... 156
Safety and Comfort .......................................................................................................................... 156
Before You Call for Technical Support ............................................................................................. 156
Helpful Hints ..................................................................................................................................... 157
Solving General Problems ................................................................................................................ 159
Solving Power Problems .................................................................................................................. 162
viii
Solving Diskette Problems ............................................................................................................... 163
Solving Hard Drive Problems ........................................................................................................... 166
Solving Media Card Reader Problems ............................................................................................. 169
Solving Display Problems ................................................................................................................. 171
Solving Audio Problems ................................................................................................................... 175
Solving Printer Problems .................................................................................................................. 177
Solving Keyboard and Mouse Problems .......................................................................................... 178
Solving Hardware Installation Problems ........................................................................................... 180
Solving Network Problems ............................................................................................................... 181
Solving Memory Problems ............................................................................................................... 185
Solving Processor Problems ............................................................................................................ 186
Solving CD-ROM and DVD Problems .............................................................................................. 187
Solving USB Flash Drive Problems .................................................................................................. 189
Solving Front Panel Component Problems ...................................................................................... 190
Solving Internet Access Problems .................................................................................................... 190
Solving Software Problems .............................................................................................................. 193
Contacting Customer Support .......................................................................................................... 194
Appendix E Password Security and Resetting CMOS ............................................................................... 195
Resetting the Password Jumper ...................................................................................................... 196
Clearing and Resetting the CMOS ................................................................................................... 196
Appendix F Backup and Recovery ............................................................................................................... 198
Windows 7 – Backup and Recovery ................................................................................................. 198
Backing Up Your Information ........................................................................................... 198
Performing a Recovery .................................................................................................... 200
Using the Windows Recovery Tools ............................................................... 200
Using F11 ........................................................................................................ 201
Using a Windows 7 Operating System DVD (purchased separately) ............. 201
Appendix G Specifications ........................................................................................................................... 203
MT Specifications ............................................................................................................................. 203
SFF Specifications ........................................................................................................................... 204
Index ................................................................................................................................................................. 205
ix
x
1
Product Features
Identifying the Chassis
HP Pro 33xx Series MT
NOTE:
HP Pro 33xx Series SFF
The drive configuration shown above may be different than your computer model.
Serviceability Features
The computers include features that make them easy to upgrade and service. A Torx T-15 or flat
blade screwdriver is needed for many of the installation procedures described in this guide.
Identifying the Chassis
1
Feature Overview
The HP Pro 3330 series includes the following features:
Microtower chassis:
●
Choice of Intel® processors
●
Chipset: Intel H61
●
Integrated graphics: Intel HD
●
Up to 8 GB DDR3 SDRAM system memory available standard (depending on model)
●
Up to 1 TB 3.0 Gb/s SATA hard drive
●
Bays: 2 external 5.25, 1 external Media Card Reader bay, 2 internal 3.5” bays; Ports: 4 SATA
devices supported, 3Gb/s, 1.5Gb/s;
●
SuperMulti DVD Drive or Blu-ray BD-RW SuperMulti DL Drive
●
Realtek 8171E-VB Gbe LAN with Lightning protection
●
6 total external USB 2.0 ports (2 front, 4 rear); 2 dual internal USB 2x6 unshrouded & keyed pin
headers
●
Expansion slots: 1 PCIe x16, 1 PCIe x1, 2 PCI
●
Optional 16-1 card reader
●
DVI-D and VGA video ports
●
Legacy I/O: 2 PS/2, 1 serial port, 2nd serial port option, parallel port option
●
Audio: Codec: Realtek ALC656-GR; Jacks: Front HP Out, Mic In; Rear Line-Out, Line-In, Mic-In
●
Genuine Windows 7 versions or RedFlag Linux
Small form factor chassis:
2
●
Choice of Intel® processors
●
Chipset: Intel H61
●
Integrated graphics: Intel HD
●
Up to 8 GB DDR3 SDRAM system memory available standard (depending on model)
●
Up to 1 TB 3.0 Gb/s SATA hard drive
●
Bays: 1 external 5.25, 1 internal 3.5” bays; Ports: 4 SATA devices supported; Speed: 3Gb/s,
1.5Gb/s SATA 2.0
●
SuperMulti DVD Drive or Blu-ray BD-RW SuperMulti DL Drive
●
Realtek 8171E-VB Gbe LAN with Lightning protection
●
6 total external USB 2.0 ports (2 front, 4 rear); 2 dual USB 2x6 unshrouded & keyed pin headers
●
Expansion slots: 1 PCIe x16, 1 PCIe x1, 2 PCI
Chapter 1 Product Features
●
Optional 16-1 card reader
●
DVI-D and VGA video ports
●
Legacy I/O: 2 PS/2, 1 serial port, 2nd serial port option, parallel port option
●
Audio: Codec: Realtek ALC656-GR; Jacks: Front HP Out, Mic In; Rear Line-Out, Line-In, Mic-In
●
Genuine Windows 7 versions or RedFlag Linux
Microtower Components
Table 1-1 Microtower Components
1
(2) external 5.25” drive bays for optional optical
drives
6
(1) PCIe x1 slot, (1) PCIe x16 slot, (2) PCI slots
External 3.5” drive bay for optional media reader
2
Power Supply
7
USB Scroll Mouse
3
Rear I/O includes: (4) USB 2.0 ports; network,
DVI-D and VGA video ports, microphone jack,
audio in/out jacks serial port, PS2 connectors
8
HP USB Standard Value Keyboard
4
Front I/O includes: (2) USB 2.0 ports, dedicated
headphone output, microphone jack
9
Monitor (sold separately)
5
(2) internal 3.5” hard drive bays
Microtower Components
3
Small Form Factor Components
Table 1-2 Microtower Components
4
1
External 5.25” drive bay for optical drive
6
Power Supply
2
Internal 3.5” hard drive bay
7
USB Scroll Mouse
3
Rear I/O includes: (1) PCIe x1 slot, (1) PCIe x16
slot, (2) PCI slots, (4) USB 2.0 ports; network,
DVI-D and VGA video ports, microphone jack,
audio in/out jacks serial port, PS2 connectors
8
HP USB Standard Value Keyboard
4
Front I/O includes: (2) USB 2.0 ports, dedicated
headphone output
9
Monitor (sold separately)
5
HP 6-in-1 Media Card Reader (some models)
Chapter 1 Product Features
2
Installing and Customizing the
Software
If your computer was not shipped with a Microsoft operating system, some portions of this
documentation do not apply. Additional information is available in online help after you install the
operating system.
NOTE: If the computer was shipped with Windows 7 loaded, you will be prompted to register the
computer with HP Total Care before installing the operating system. You will see a brief movie
followed by an online registration form. Fill out the form, click the Begin button, and follow the
instructions on the screen.
CAUTION: Do not add optional hardware or third-party devices to the computer until the operating
system is successfully installed. Doing so may cause errors and prevent the operating system from
installing properly.
NOTE: Be sure there is a 10.2-cm (4-inch) clearance at the back of the unit and above the monitor
to permit the required airflow.
Installing the Operating System
The first time you turn on the computer, the operating system is installed automatically. This process
takes about 5 to 10 minutes, depending on which operating system is being installed. Carefully read
and follow the instructions on the screen to complete the installation.
CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER
UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the installation process may
damage the software that runs the computer or prevent its proper installation.
NOTE: If the computer shipped with more than one operating system language on the hard drive,
the installation process could take up to 60 minutes.
If your computer was not shipped with a Microsoft operating system, some portions of this
documentation do not apply. Additional information is available in online help after you install the
operating system.
Downloading Microsoft Windows Updates
1.
To set up your Internet connection, click Start > Internet Explorer and follow the instructions on
the screen.
2.
Once an Internet connection has been established, click the Start button.
Installing the Operating System
5
3.
Select the All Programs menu.
4.
Click on the Windows Update link.
In Windows 7, the Windows Update screen appears. Click view available updates and make
sure all critical updates are selected. Click the Install button and follow the instructions on the
screen.
In Windows XP, you will be directed to the Microsoft Windows Update Web site. If you see
one or more pop-up windows that ask you to install a program from http://www.microsoft.com,
click Yes to install the program. Follow the instructions on the Microsoft Web site to scan for
updates and install critical updates and service packs.
It is recommended that you install all of the critical updates and service packs.
5.
After the updates have been installed, Windows will prompt you to reboot the machine. Be sure
to save any files or documents that you may have open before rebooting. Then select Yes to
reboot the machine.
Installing or Upgrading Device Drivers (Windows
systems)
When installing optional hardware devices after the operating system installation is complete, you
must also install the drivers for each of the devices.
If prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse
button in the dialog box to locate the i386 folder. This action points the operating system to the
appropriate drivers.
Obtain the latest support software, including support software for the operating system from
http://www.hp.com/support. Select your country and language, select Download drivers and
software (and firmware), enter the model number of the computer, and press Enter.
Accessing Disk Image (ISO) Files
There are disk image files (ISO files) included on your PC that contain the installation software for
additional software. These CD image files are located in the folder C:\SWSetup\ISOs. Each .iso file
can be burned to CD media to create an installation CD. It is recommended that these disks be
created and the software installed in order to get the most from your PC. The software and image file
names are:
●
Corel WinDVD SD and BD – installation software for WinDVD – used to play DVD movies
●
HP Insight Diagnostics OR Vision Diagnostics – software to perform diagnostic activities on your
PC
Protecting the Software
To protect the software from loss or damage, keep a backup copy of all system software,
applications, and related files stored on the hard drive. Refer to the operating system or backup utility
documentation for instructions on making backup copies of your data files.
6
Chapter 2 Installing and Customizing the Software
3
Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
●
Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash
media devices.
●
Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run
during a Full Boot. You can set the system to:
❑
always Quick Boot (default);
❑
periodically Full Boot (from every 1 to 30 days); or
❑
always Full Boot.
●
Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test
(POST) messages. Post Messages Disabled suppresses most POST messages, such as
memory count, product name, and other non-error text messages. If a POST error occurs, the
error is displayed regardless of the mode selected. To manually switch to Post Messages
Enabled during POST, press any key (except F1 through F12).
●
Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
restarted.
●
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during
power-on.
●
Establish a setup password that controls access to the Computer Setup (F10) Utility and the
settings described in this section.
●
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or
embedded NIC, so that they cannot be used until they are unsecured.
●
Enable or disable removable media boot ability.
Computer Setup (F10) Utilities
7
●
Solve system configuration errors detected but not automatically fixed during the Power-On SelfTest (POST).
●
Replicate the system setup by saving system configuration information on a USB device and
restoring it on one or more computers.
●
Execute self-tests on a specified ATA hard drive (when supported by drive).
●
Enable or disable DriveLock security (when supported by drive).
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2.
Press either Esc or F10 while the “Press the ESC key for Startup Menu” message is displayed at
the bottom of the screen.
Pressing Esc displays a menu that allows you to access different options available at startup.
NOTE: If you do not press Esc or F10 at the appropriate time, you must restart the computer
and again press Esc or F10 when the monitor light turns green to access the utility.
3.
If you pressed Esc, press F10 to enter Computer Setup.
4.
A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
5.
Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the Computer Setup
Utilities menu, press Esc.
6.
To apply and save changes, select File > Save Changes and Exit.
●
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To reset to factory settings or previously saved default settings (some models), select
Apply Defaults and Exit. This option will restore the original factory system defaults.
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
Table 3-1 Computer Setup (F10) Utility
8
Heading
Table
File
Computer Setup—File on page 9
Storage
Computer Setup—Storage on page 10
Security
Computer Setup—Security on page 12
Power
Computer Setup—Power on page 15
Advanced
Computer Setup—Advanced on page 16
Chapter 3 Computer Setup (F10) Utility
Computer Setup—File
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-2 Computer Setup—File
Option
Description
System Information
Lists:
●
Product name
●
SKU number (some models)
●
Processor type/speed/stepping
●
Cache size (L1/L2/L3) (dual core processors have this listed twice)
●
Installed memory size/speed, number of channels (single or dual) (if applicable)
●
Integrated MAC address for embedded, enabled NIC (if applicable)
●
System BIOS (includes family name and version)
●
Chassis serial number
●
Asset tag
About
Displays copyright notice.
Set Time and Date
Allows you to set system time and date.
Apply Defaults and
Exit
Applies the currently selected default settings and clears any established passwords.
Ignore Changes
and Exit
Exits Computer Setup without applying or saving any changes.
Save Changes and
Exit
Saves changes to system configuration or default settings and exits Computer Setup.
Computer Setup (F10) Utilities
9
Computer Setup—Storage
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-3 Computer Setup—Storage
Option
Description
Device Configuration
Lists all installed BIOS-controlled storage devices.
When a device is selected, detailed information and options are displayed. The following options
may be presented:
Hard Disk: Size, model, firmware version, serial number.
Emulation type has the following choices:
●
None (prevents BIOS data accesses and disables it as a boot device)
●
Hard Disk (treated as a hard disk)
CD-ROM: Model, firmware version, serial number.
Storage Options
SATA Emulation
Allows you to choose how the SATA controller and devices are accessed by the operating
system. There are two supported options: IDE and AHCI (default).
IDE - This is the most backwards-compatible setting of the three options. Operating systems
usually do not require additional driver support in IDE mode.
AHCI (default option) - Allows operating systems with AHCI device drivers loaded to take
advantage of more advanced features of the SATA controller.
NOTE: The RAID/AHCI device driver must be installed prior to attempting to boot from a RAID/
AHCI volume. If you attempt to boot from a RAID/AHCI volume without the required device driver
installed, the system will crash (blue screen). RAID volumes may become corrupted if they are
booted to after disabling RAID.
10
Chapter 3 Computer Setup (F10) Utility
Table 3-3 Computer Setup—Storage (continued)
DPS Self-Test
Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection
System (DPS) self-tests.
NOTE: This selection will only appear when at least one drive capable of performing the DPS
self-tests is attached to the system.
Boot Order
Allows you to:
●
Specify the order in which EFI boot sources (such as a internal hard drive, USB hard drive,
USB optical drive, or internal optical drive) are checked for a bootable operating system
image. Each device on the list may be individually excluded from or included for
consideration as a bootable operating system source.
EFI boot sources always have precedence over legacy boot sources.
●
Specify the order in which legacy boot sources (such as a network interface card, internal
hard drive, USB optical drive, or internal optical drive) are checked for a bootable operating
system image. Each device on the list may be individually excluded from or included for
consideration as a bootable operating system source.
●
Specify the order of attached hard drives. The first hard drive in the order will have priority in
the boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: You can use F5 to disable individual boot items, as well as disable EFI boot and/or
legacy boot.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the
computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping
the boot menu) when the monitor light turns green. After POST is completed, a list of bootable
devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter.
The computer then boots from the selected non-default device for this one time.
Computer Setup (F10) Utilities
11
Computer Setup—Security
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-4 Computer Setup—Security
Option
Description
Setup Password
Allows you to set and enable a setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup options, flash the
ROM, and make changes to certain plug and play settings under Windows.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
See the Desktop Management Guide for more information.
Power-On Password
Allows you to set and enable a power-on password. The power-on password prompt appears
after a power cycle. If the user does not enter the correct power-on password, the unit will not
boot.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
See the Desktop Management Guide for more information.
Password Options
Allows you to enable/disable:
(This selection appears
only if a power-on
password or setup
password is set.)
●
Lock Legacy Resources (appears if a setup password is set). Default is enabled.
●
Setup Browse Mode (appears if a setup password is set) (allows viewing, but not changing,
the F10 Setup Options without entering setup password). Default is enabled.
●
Password prompt on F9, F11, & F12 (allows access to menus without entering setup
password). Default is enabled.
●
Network Server Mode (appears if a power-on password is set). Default is disabled.
See the Desktop Management Guide for more information.
Device Security
Allows you to set Device Available/Device Hidden (default is Device Available) for:
●
Embedded security device (some models)
●
System audio
●
Serial ports (some models)
●
Parallel port (some models)
●
Network controller
NOTE: You must disable AMT before trying to hide the network controller.
12
●
SATA0
●
SATA1
●
SATA2
●
SATA3
Chapter 3 Computer Setup (F10) Utility
Table 3-4 Computer Setup—Security (continued)
USB Security
Allows you to set Enabled/Disabled (default is Enabled) for:
●
●
●
Front USB Ports
◦
USB Port 3
◦
USB Port 4
Rear USB Ports
◦
USB Port 8
◦
USB Port 9
◦
USB Port 10
◦
USB Port 11
Internal USB Ports
◦
USB Port 1
◦
USB Port 2
NOTE: The HP Pro 3330/3380 includes a USB port disable feature that when enabled, requires
that you perform the following steps to enable USB ports.
From the top F10 Setup menu, press Ctrl+U to access the screen to allow you to enable the ports.
Slot Security
Allows you to disable any PCI Express x16, PCI Express x1, or PCI slots Default is enabled.
Network Boot
Enables/disables the computer’s ability to boot from an operating system installed on a network
server. (Feature available on NIC models only; the network controller must be either a PCI
expansion card or embedded on the system board.) Default is enabled.
Computer Setup (F10) Utilities
13
Table 3-4 Computer Setup—Security (continued)
System IDs
System Security
(some models: these
options are hardware
dependent)
Allows you to view:
●
Product Name
●
Serial number
●
Universal Unique Identifier (UUID) number. The UUID can only be updated if the current
chassis serial number is invalid. (These ID numbers are normally set in the factory and are
used to uniquely identify the system.)
●
SKU Number
●
Family Name
●
Asset tag (18-byte identifier), a property identification number assigned by the company to
the computer.
●
Feature Byte
●
Build ID
●
Keyboard locale setting for System ID entry
Data Execution Prevention (enable/disable) - Helps prevent operating system security breaches.
Default is enabled.
Virtualization Technology (VTx/VTd)(some models) (enable/disable) - Controls the virtualization
features of the processor and DMA remapping features of the chipset. Changing this setting
requires turning the computer off and then back on. Default is disabled.
Intel TXT (LT) Support (some models) (enable/disable) - Controls the underlying processor and
chipset features needed to support a virtual appliance. Changing this setting requires turning the
computer off and then back on. Default is disabled. To enable this feature you must enable the
following features:
●
Embedded Security Device Support
●
Virtualization Technology
●
Virtualization Technology Directed I/O
Embedded Security Device Support (some models) (enable/disable) - Permits activation and
deactivation of the Embedded Security Device. Changing this setting requires turning the
computer off and then back on.
NOTE: To configure the Embedded Security Device, a Setup password must be set.
●
Reset to Factory Settings (some models) (Do not reset/Reset) - Resetting to factory defaults
will erase all security keys. Changing this setting requires turning the computer off and then
back on. Default is Do not reset.
CAUTION: The embedded security device is a critical component of many security
schemes. Erasing the security keys will prevent access to data protected by the Embedded
Security Device. Choosing Reset to Factory Settings may result in significant data loss.
OS management of Embedded Security Device (some models) (enable/disable) - This option
allows the user to limit operating system control of the Embedded Security Device. Changing this
setting requires turning the computer off and then back on. This option allows the user to limit OS
control of the Embedded Security Device. Default is enabled.
Reset of Embedded Security Device through OS (some models) (enable/disable) - This option
allows the user to limit the operating system ability to request a Reset to Factory Settings of the
Embedded Security Device. Changing this setting requires turning the computer off and then back
on. Default is disabled.
NOTE: To enable this option, a Setup password must be set.
14
Chapter 3 Computer Setup (F10) Utility
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-5 Computer Setup—Power
Option
Description
OS Power
Management (some
models)
●
Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce
processor voltage and frequency when the current software load does not require the full
capabilities of the processor. Default is enabled.
●
Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the
processors power consumption when the processor is idle. Default is extended.
●
Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a
visual indication of what sleep state the system is in. Each sleep state has a unique blink
pattern. Default is disabled.
◦
S0 (On) = Solid green LED.
◦
S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(green LED) — repeated cycles of 3 blinks and a pause.
◦
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(green LED) — repeated cycles of 4 blinks and a pause.
◦
S5 (Soft Off) = LED is off.
NOTE: If this feature is disabled, S4 and S5 both have the LED off. S1 (no longer
supported) and S3 use 1 blink per second.
Hardware Power
Management
SATA Power Management – Enables or disables SATA bus and/or device power management.
Default is enabled.
S5 Maximum Power Savings – Turns off power to all nonessential hardware when system is off to
meet EUP Lot 6 requirement of less than 1 Watt power usage. Default is disabled.
S5 Wake on LAN (enable/disable). Default is disable.
Thermal
●
To disable Wake on LAN during the off state (S5), use the arrow (left and right) keys to
select the Advanced > Device Options menu and set the S5 Wake on LAN feature to
Disable. This obtains the lowest power consumption available on the computer during S5. It
does not affect the ability of the computer to Wake on LAN from suspend or hibernation, but
will prevent it from waking from S5 via the network. It does not affect operation of the
network connection while the computer is on.
●
If a network connection is not required, completely disable the network controller (NIC) by
using the arrow (left and right) keys to select the Security > Device Security menu. Set the
Network Controller option to Device Hidden. This prevents the network controller from being
used by the operating system and reduces the power used by the computer in S5.
CPU Fan Speed (view only) – Lets you view fan speed.
System Fan Speed (view only) – Lets you view fan speed.
Computer Setup (F10) Utilities
15
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-6 Computer Setup—Advanced (for advanced users)
Option
Heading
Power-On Options
Allows you to set:
●
POST messages (enable/disable). Default is disabled.
●
After Power Loss (off/on/previous state). Default is Power off. Setting this option to:
◦
Power off—causes the computer to remain powered off when power is restored.
◦
Power on—causes the computer to power on automatically as soon as power is
restored.
◦
Previous state—causes the computer to power on automatically as soon as power is
restored, if it was on when power was lost.
NOTE: If you turn off power to the computer using the switch on a power strip, you will not be
able to use the suspend/sleep feature or the Remote Management features.
●
16
POST Delay (in seconds). Enabling this feature will add a user-specified delay to the POST
process. This delay is sometimes needed for hard disks on some PCI cards that spin up very
slowly, so slowly that they are not ready to boot by the time POST is finished. The POST
delay also gives you more time to select F10 to enter Computer (F10) Setup. Default is
None.
BIOS Power-On
Allows you to set the computer to turn on automatically at a time you specify.
Onboard Devices
Allows you to set resources for or disable onboard system devices (serial port or parallel port).
Bus Options
On some models, allows you to enable or disable:
●
PCI SERR# Generation. Default is enabled.
●
PCI VGA Palette Snooping, which sets the VGA palette snooping bit in PCI configuration
space; only needed when more than one graphics controller is installed. Default is disabled.
Chapter 3 Computer Setup (F10) Utility
Table 3-6 Computer Setup—Advanced (for advanced users) (continued)
Device Options
AMT Configuration
(some models)
Allows you to set:
●
Num Lock State at Power-On (off/on). Default is off.
●
Multi-Processor (enable/disable). Use this option to disable multi-processor support under
the OS. Default is enabled.
●
NIC PXE Option ROM Download (PXE, iSCSI, disabled). The BIOS contains an embedded
NIC option ROM to allow the unit to boot through the network to a PXE server. This is
typically used to download a corporate image to a hard drive. The NIC option ROM takes up
memory space below 1MB commonly referred to as DOS Compatibility Hole (DCH) space.
This space is limited. This F10 option will allow users to disable the downloading of this
embedded NIC option ROM thus giving more DCH space for additional PCI cards which may
need option ROM space. The default will be to have the NIC option-ROM-enabled. Default is
PXE.
Allows you to set:
●
AMT (enable/disable). Allows you to enable or disable functions of the embedded
Management Engine (ME) such as Active Management Technology (AMT). If set to disable,
the Management Engine is set to a temporarily disabled state and will not provide functions
beyond necessary system configuration. Default is enabled.
●
Unconfigure AMT/ME (enable/disable). Allows you to unconfigure any provisioned
management settings for AMT. The AMT settings are restored to factory defaults. This
feature should be used with caution as AMT will not be able to provide any set AMT
management functions once unconfigured. Default is disabled.
●
Watchdog Timer (enable/disable). Allows you to set amount of time for a operating system
and BIOS watchdog alert to be sent if the timers are not deactivated. BIOS watchdog is
deactivated by BIOS and would indicate that a halt occurred during execution if the alert is
sent to the management console. An operating system alert is deactivated by the operating
system image and would indicate that a hang occurred during its initialization. Default is
enabled.
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command
with the Computer Setup (F10) Utility before Restore is needed.
NOTE: It is recommended that you save any modified computer configuration settings to a USB
flash media device and save the device for possible future use.
To restore the configuration, insert the USB flash media device with the saved configuration and
perform the Restore from Removable Media command with the Computer Setup (F10) Utility.
Recovering the Configuration Settings
17
4
Illustrated parts catalog
Microtower (MT) Chassis Spare Parts
Computer Major Components
18
Chapter 4 Illustrated parts catalog
Item
Description
Spare part number
(1)
Access panel
657104-001
(2)
Front bezel
(3)
For use in the People's Republic of China
670439-AA1
For use on 3330 models
668571-001
Power supply
300W
656721-001
250W, non-PFC
508466-001
System board (includes replacement thermal material)
(4)
For use in 3330/3380 models (Intel)
663099-001
(5)
For use in 3340/3348 models (Intel)
663100-001
(6)
For use in 3335/3385 models (AMD)
663101-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB
585157-001
2-GB
635803-001
1-GB
635802-001
Processors (include replacement thermal material; not illustrated)
NOTE:
Intel processors for use in models 3330/3380 and 3340/3348.
Intel Core i7 processors:
2600, 3.4 GHz, 8-MB L3 cache
638632-001
Intel Core i5 processors:
2500, 3.3 GHz, 6-MB L3 cache
638631-001
2400, 3.1 GHz, 6-MB L3 cache
638630-001
Intel Core i3 processors:
2120, 3.3 GHz, 3-MB L3 cache
638629-001
2100, 3.1 GHz, 3-MB L3 cache
638628-001
Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache)
638628-001
Intel Pentium Dual-Core processors:
G850, 2.9-GHz, 3-MB L3 cache
655973-001
G630, 2.7 GHz, 3-MB L3 cache
665123-001
G620, 2.6-GHz, 3-MB L3 cache
655971-001
Intel Celeron Dual-Core processors:
G540, 2.5 GHz, 2-MB L3 cache
666892-001
G530, 2.4 GHz, 2-MB L3 cache
666891-001
G440, 1.6 GHz, 1-MB L3 cache
666890-001
Microtower (MT) Chassis Spare Parts
19
Item
Description
Spare part number
AMD Phenom II processors:
X4 B99, 3.3 GHz, 6-MB L3 cache
647012-001
X4 B97, 3.2 GHz, 6-MB L3 cache
619789-001
X4 B95, 3.0 GHz, 6-MB L3 cache
585156-001
X4 B59, 3.4 GHz, 6-MB L3 cache
647013-001
X3 B77, 3.2 GHz, 6-MB L3 cache
619788-001
X3 B75, 3.0 GHz, 6-MB L3 cache
585154-001
X2 B60, 3.3 GHz, 6-MB L3 cache
666888-001
X2 B57, 3.2 GHz, 6-MB L3 cache
621428-001
AMD Athlon II processors:
X2 B30, 3.6 GHz, 2-MB L2 cache
666886-001
X2 B28, 3.4 GHz, 2-MB L2 cache
647014-001
X2 B26, 3.2 GHz, 2-MB L2 cache
611193-001
X2 250, 3.0 GHz, 2-MB L2 cache
666887-001
X2 220, 2.8 GHz, 2-MB L2 cache
611192-001
AMD Sempron processor:
X2 190, 2.5 GHz, 1-MB L2 cache
Cables
20
Chapter 4 Illustrated parts catalog
666889-001
Item
Description
Spare part number
(1)
Power switch/LED assembly
657105-001
(2)
SATA cable, 165 mm
657102-001
SATA cable, 370 mm (not illustrated)
656833-001
Adapter, DVI to VGA, HF (not illustrated)
657401-001
DMS-59 to Dual VGA cable (not illustrated)
463023-001
PATA to SATA power adapter (not illustrated)
449283-001
Microtower (MT) Chassis Spare Parts
21
Misc Parts
Item
Description
Spare part number
(1)
Chassis fan
657103-001
(2)
Fan sink (includes replacement thermal material)
667727-001
(3)
Front I/O and USB assembly
668572-001
Speaker with rubber rivets
666885-001
Card reader, 16-in-1
657099-001
Card reader, bezel blank
657853-001
Card reader, bezel
657854-001
Mouse
22
PS2, optical, black
537748-001
USB, laser, black
570580-001
USB, optical, black
537749-001
Rubber feet
530593-001
Serial port kit
638815-001
Printer port kit
638817-001
USB powered speakers
636917-001
Chapter 4 Illustrated parts catalog
Drives
Description
Spare part number
Hard drive
1-TB, 7200-rpm, 6G
636930-001
750-GB, 7200-rpm, 6G
639363-001
500-GB, 7200-rpm, 6G
636929-001
250-GB, 7200-rpm, 6G
636927-001
Optical drive
Blu-ray BD-RW SuperMulti DL Drive with LightScribe
617030-001
16X SATA DVD±RW drive
581600-001
DVD-ROM drive
581599-001
Bezel, optical drive
657852-001
Misc Boards
Description
Spare part number
ATI Radeon HD 6350 512-MB graphics adapter
637995-001
ATI Radeon HD 6450 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666330-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
632827-001
nVidia GeForce GT405 512-MB graphics adapter
657108-001
Intel Gigabit NIC, includes bracket
490367-001
Sequential Part Number Listing
Spare part
number
Description
449283-001
PATA to SATA power adapter
508466-001
Power supply, 250W, PFC
463023-001
DMS-59 to Dual VGA cable
490367-001
Intel Gigabit NIC, includes bracket
530593-001
Rubber feet
537748-001
Mouse, PS2, optical, black
537749-001
Mouse, USB, optical, black
570580-001
Mouse, USB, laser, black
Microtower (MT) Chassis Spare Parts
23
24
Spare part
number
Description
581599-001
16X SATA DVD±RW drive
581600-001
16X SATA DVD±RW drive
585154-001
AMD Phenom II X3 B75 processor, 3.0 GHz, 6-MB L3 cache
585156-001
AMD Phenom II X3 B95 processor, 3.0 GHz, 6-MB L3 cache
585157-001
Memory module, 4-GB, PC3 10600, 1333-MH
611192-001
AMD Athlon X2 220 processor, 2.8 GHz, 2-MB L2 cache
611193-001
AMD Athlon B26 220 processor, 3.2 GHz, 2-MB L2 cache
617030-001
Blu-ray BD-RW SuperMulti DL Drive with LightScribe
619788-001
AMD Phenom II X3 B77 processor, 3.2 GHz, 6-MB L3 cache
619789-001
AMD Phenom II X4 B97 processor, 3.2 GHz, 6-MB L3 cache
621428-001
AMD Phenom II X2 B57 processor, 3.2 GHz, 6-MB L3 cache
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632827-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
635802-001
Memory module, 1-GB, PC3 10600, 1333-MHz
635803-001
Memory module, 2-GB, PC3 10600, 1333-MHz
636917-001
USB powered speakers
636927-001
250 GB, 7200 rpm SATA hard drive, 6G
636929-001
500-GB, 7200 RPM hard drive, 6G
636930-001
1-TB, 7200 RPM hard drive, 6G
637995-001
ATI Radeon HD 6350 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 512-MB graphics adapter
638628-001
Intel Core i3 2100 processor (3.1-GHz, 3-MB L3 cache)
638629-001
Intel Core i3 2120 processor (3.3-GHz, 3-MB L3 cache)
638630-001
Intel Core i5 2400 processor (3.1-GHz, 6-MB L3 cache)
638631-001
Intel Core i5 2500 processor (3.3-GHz, 6-MB L3 cache)
638632-001
Intel Core i7 2600 processor (3.4-GHz, 8-MB L3 cache)
638815-001
Serial port kit
638817-001
Printer port kit
639363-001
750-GB, 7200 RPM hard drive, 6G
647012-001
AMD Phenom II X4 B99 processor, 3.4 GHz, 6-MB L3 cache
647013-001
AMD Phenom II X4 B59 processor, 3.4 GHz, 6-MB L3 cache
647014-001
AMD Athlon II X2 B28 processor, 3.4 GHz, 2-MB L2 cache
655971-001
Intel Pentium Dual-Core, G620 (2.6-GHz, 3-MB L3 cache)
655972-001
Intel Pentium Dual-Core, G840 (2.8-GHz, 3-MB L3 cache)
Chapter 4 Illustrated parts catalog
Spare part
number
Description
655973-001
Intel Pentium Dual-Core, G850 (2.9-GHz, 3-MB L3 cache)
656721-001
Power supply, 300W
656833-001
SATA cable, 370 mm
657099-001
Card reader, 16-in-1
657102-001
SATA cable, 165 mm
657103-001
Chassis fan
657104-001
Access panel
657105-001
Power switch/LED assembly
657108-001
nVidia GeForce GT405 512-MB graphics adapter
657401-001
DVI to VGA adapter, HF
657852-001
Bezel, optical drive
657853-001
Card reader bezel blank
657854-001
Card reader bezel
663099-001
System board for use in 3330/3380 models
663100-001
System board for use in 3340/3348 models
663101-001
System board for use in 3335/3385 models
666330-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666885-001
Speaker with rubber rivets
666886-001
AMD Athlon X2 B30 processor, 3.6 GHz, 2-MB L2 cache
666887-001
AMD Athlon X2 250 processor, 3.0 GHz, 2-MB L2 cache
666888-001
AMD Phenom X2 B60 processor, 3.5 GHz, 2-MB L2 cache
666889-001
AMD Sempron X2 190 processor, 2.5 GHz, 1-MB L2 cache
666890-001
Intel Celeron Dual-Core G440 processor (1.6 GHz, 1-MB L3 cache)
666891-001
Intel Celeron Dual-Core G530 processor (2.4 GHz, 2-MB L3 cache)
666892-001
Intel Celeron Dual-Core G540 processor (2.5 GHz, 2-MB L3 cache)
667727-001
Fan sink for use in models with Intel processors (includes replacement thermal material)
668571-001
Front bezel for use on 3330 models
668572-001
Front I/O and USB assembly
670439-AA1
Front bezel for use in the People’s Republic of China
Microtower (MT) Chassis Spare Parts
25
Small Form Factor (SFF) Chassis Spare Parts
Computer major components
Item
Description
Spare part number
(1)
Access panel
656832-001
(2)
Front bezel
669569-001
(3)
Power supply
(4)
220W
656722-001
270W
665224-001
System board (includes replacement thermal material)
663099-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB
585157-001
2-GB
635803-001
1-GB
635802-001
Processors (include replacement thermal material; not illustrated)
Intel Core i7 processors:
2600, 3.4 GHz, 8-MB L3 cache
638632-001
Intel Core i5 processors:
2500, 3.3 GHz, 6-MB L3 cache
26
Chapter 4 Illustrated parts catalog
638631-001
Item
Description
Spare part number
2400, 3.1 GHz, 6-MB L3 cache
638630-001
Intel Core i3 processors:
2120, 3.3 GHz, 3-MB L3 cache
638629-001
2100, 3.1 GHz, 3-MB L3 cache
638628-001
Intel Pentium Dual-Core processors:
G850, 2.9-GHz, 3-MB L3 cache
655973-001
G630, 2.7 GHz, 3-MB L3 cache
665123-001
G620, 2.6-GHz, 3-MB L3 cache
655971-001
Intel Celeron Dual-Core processors:
G540, 2.5 GHz, 2-MB L3 cache
666892-001
G530, 2.4 GHz, 2-MB L3 cache
666891-001
G440, 1.6 GHz, 1-MB L3 cache
666890-001
Small Form Factor (SFF) Chassis Spare Parts
27
Cables
28
Item
Description
Spare part number
(1)
Power switch/LED assembly
656984-001
(2)
SATA cable, 370 mm
656833-001
SATA cable, 165 mm (not illustrated)
657102-001
Adapter, DVI to VGA, HF (not illustrated)
657401-001
DMS-59 to Dual VGA cable (not illustrated)
463023-001
PATA to SATA power adapter (not illustrated)
449283-001
Chapter 4 Illustrated parts catalog
Misc Parts
Item
Description
Spare part number
(1)
Chassis fan
656834-001
(2)
Fan sink (includes replacement thermal material)
667727-001
(3)
Front I/O and USB assembly
668570-001
Mouse (not illustrated)
PS2, optical, black
537748-001
USB, laser, black
570580-001
USB, optical, black
537749-001
Speaker with rubber rivets
666885-001
Card reader, 16-in-1
657099-001
Card reader, bezel blank
657853-001
Card reader, bezel
657854-001
Serial port kit
638815-001
Printer port kit
638817-001
USB powered speakers
636917-001
Feet
660261-001
Small Form Factor (SFF) Chassis Spare Parts
29
Drives
Description
Spare part number
Hard drive
1-TB, 7200-rpm
636930-001
750-GB, 7200-rpm
639363-001
500-GB, 7200-rpm
636929-001
250-GB, 7200-rpm
636927-001
Optical drive
16X SATA DVD±RW drive
581600-001
DVD-ROM drive
581599-001
Blu-ray BD-RW SuperMulti DL Drive
617030-001
Misc Boards
30
Description
Spare part number
ATI Radeon HD 6350 512-MB graphics adapter
637995-001
ATI Radeon HD 6450 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666330-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
632827-001
nVidia GeForce GT405 512-MB graphics adapter
657108-001
Intel Gigabit NIC, includes bracket
490367-001
Chapter 4 Illustrated parts catalog
Sequential Part Number Listing
Spare part
number
Description
449283-001
PATA to SATA power adapter
463023-001
DMS-59 to Dual VGA cable
490367-001
Intel Gigabit NIC, includes bracket
537748-001
Mouse, PS2, optical, black
537749-001
Mouse, USB, optical, black
570580-001
Mouse, USB, laser, black
581599-001
DVD-ROM drive
581600-001
16X SATA DVD±RW drive
585157-001
Memory module, 4-GB, PC3 10600, 1333-MH
617030-001
Blu-ray BD-RW SuperMulti DL Drive
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632827-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
635802-001
Memory module, 1-GB, PC3 10600, 1333-MHz
635803-001
Memory module, 2-GB, PC3 10600, 1333-MHz
636917-001
USB powered speakers
636927-001
250 GB, 7200 rpm SATA hard drive, 6G
636929-001
500 GB, 7200 rpm SATA hard drive, 6G
636930-001
1 TB, 7200 rpm SATA hard drive, 6G
637995-001
ATI Radeon HD 6350 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 512-MB graphics adapter
638628-001
Intel Core i3 2100 processor (3.1-GHz, 3-MB L3 cache)
638629-001
Intel Core i3 2120 processor (3.3-GHz, 3-MB L3 cache)
638630-001
Intel Core i5 2400 processor (3.1 GHz, 6-MB L3 cache)
638631-001
Intel Core i5 2500 processor (3.3 GHz, 6-MB L3 cache)
638632-001
Intel Core i7 2600 processor (3.4 GHz, 8-MB L3 cache)
638815-001
Serial port kit
638817-001
Printer port kit
639363-001
750 GB, 7200 rpm SATA hard drive, 6G
655971-001
Intel Pentium Dual-Core G620 processor (2.6-GHz, 3-MB L3 cache)
655972-001
Intel Pentium Dual-Core G840 processor (2.8-GHz, 3-MB L3 cache)
655973-001
Intel Pentium Dual-Core G850 processor (2.9-GHz, 3-MB L3 cache)
656722-001
Power supply, 220W
Small Form Factor (SFF) Chassis Spare Parts
31
32
Spare part
number
Description
656833-001
SATA cable, 370 mm
656832-001
Access panel
656834-001
Chassis fan
656984-001
Power switch/LED assembly
657099-001
Card reader, 16-in-1
657102-001
SATA cable, 165 mm
657108-001
nVidia GeForce GT405 512-MB graphics adapter
657401-001
DVI to VGA adapter, HF
657852-001
Bezel, optical drive
657853-001
Card reader, bezel blank
657854-001
Card reader, bezel
660261-001
Feet
663099-001
System board
665224-001
Power supply, 270W
666330-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666885-001
Speaker with rubber rivets
666890-001
Intel Pentium Dual-Core G440 processor (1.6 GHz, 1-MB L3 cache)
666891-001
Intel Pentium Dual-Core G530 pricessor (2.4 GHz, 2-MB L3 cache)
666892-001
Intel Pentium Dual-Core G540 processor (2.5 GHz, 2-MB L3 cache)
668569-001
Front bezel
667727-001
Fan sink (includes replacement thermal material)
668570-001
Front I/O and USB assembly
Chapter 4 Illustrated parts catalog
5
Serial ATA (SATA) Drive Guidelines
and Features
NOTE: HP only supports the use of SATA hard drives on these models of computer. No Parallel
ATA (PATA) drives are supported.
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable
7/7
Number of pins in power cable
15
Maximum data cable length
39.37 in (100 cm)
Data interface voltage differential
400-700 mV
Drive voltages
3.3 V, 5 V, 12 V
Jumpers for configuring drive
N/A
Data transfer rate
3.0 Gb/s
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA
1.5 Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and
never bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
SATA Hard Drives
33
SMART ATA Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may
be properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the
operating system may differ from that marked on the hard drive or listed in the computer specification.
Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by
Microsoft are bytes to the base 2.
Drive/Partition Capacity Limits
Maximum Size
34
File System
Controller Type
Operating System
Partition
Drive
FAT 32
ATA
Windows 7
32 GB
2 TB
NTFS
ATA
Windows 7
2 TB
2 TB
Chapter 5 Serial ATA (SATA) Drive Guidelines and Features
6
Routine Care and Disassembly
Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to
the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs* from plastic tube
400 V
700 V
2,000 V
Electrostatic Discharge Information
35
Removing DIPs* from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs* from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
*These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE:
700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following packaging and grounding precautions are necessary to prevent
damage to electric components and accessories.
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
boxes.
●
Protect all electrostatic parts and assemblies with conductive or approved containers or
packaging.
●
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
conductive foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on
both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
36
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Chapter 6 Routine Care and Disassembly Preparation
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative
surfaces.
●
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Electrostatic Discharge Information
37
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and
cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all
vented sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they
are subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software,
including sleep states.
Routine Care
General Cleaning Safety Precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 38 before cleaning the
computer.
38
Chapter 6 Routine Care and Disassembly Preparation
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with
a cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the
vents and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 38 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the
Computer Case on page 38.
When cleaning debris from under the keys, review all rules in General Cleaning Safety Precautions
on page 38 before following these procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from
under the keys.
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be
used as too much air pressure can dislodge lubricants applied under the wide keys.
●
If you remove a key, use a specially designed key puller to prevent damage to the keys. This
tool is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these
keys are improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
●
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the Computer Case on page 38.
Routine Care
39
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 38.
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is
off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Tools and Software Requirements
To service the computer, you need the following:
●
Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
●
HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamperresistant bits (Smart Cover FailSafe Key, PN 166527-002)
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
40
Chapter 6 Routine Care and Disassembly Preparation
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid
bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot
be caught or snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
protective packaging until they are actually mounted in the CPU.
●
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
while the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a
drive, avoid touching the connector. For more information about preventing electrostatic
damage, refer to Electrostatic Discharge Information on page 35
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
fields such as monitors or speakers.
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this
guide for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose
in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the
battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, their authorized partners, or their agents.
Service Considerations
41
7
Removal and Replacement Procedures
– Microtower (MT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for Disassembly
1.
Close any open software applications.
2.
Exit the operating system.
3.
Remove any diskette or compact disc from the computer.
4.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on
even when the computer is in the “Standby,” or “Suspend” modes. The power cord should
always be disconnected before servicing a unit.
5.
Disconnect the power cord from the electrical outlet and then from the computer.
6.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using
the wrong screw in an application may damage the unit.
42
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Access Panel
Description
Spare part number
Access panel
657104-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Using a flathead or Torx screwdriver, remove the screw on the back panel that secures the
panel to the computer.
Figure 7-1 Removing the access panel screw
Access Panel
43
3.
Slide the side panel toward the back, and then pull it away from the computer.
NOTE: You may want to lay the computer on its side to install internal parts. Be sure the side
with the access panel is facing up.
Figure 7-2 Removing the access panel
To replace the access panel, reverse the removal steps.
44
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Front Bezel
Description
Spare part number
Front bezel for use on 3330 models
668571-001
Front bezel for use only in the People's Republic of China
670439-AA1
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Press outward on the three latches on the right side of the bezel.
Figure 7-3 Removing the Front Bezel
4.
Remove the access panel (Access Panel on page 43).
Front Bezel
45
5.
Rotate the right side of the bezel off the chassis followed by the left side.
Figure 7-4 Removing the Front Bezel
NOTE:
The appearance of the front bezel may vary.
To reinstall the front bezel, reverse the removal procedure.
46
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Memory
Description
Spare part number
4-GB, PC3-10600
585157-001
2-GB, PC3-10600
635803-001
1-GB, PC3-10600
635802-001
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DDR3-SDRAM DIMMs
There are two DIMM slots on the system board.
●
HP Pro 3330/3380: 2 DIMM slots, 8 GB max
●
HP Pro 3340/3348: 2 DIMM slots, 8 GB max
●
HP Pro 3335/3385: 4 DIMM slots, 16 GB max
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 8 GB of memory for Intel models or
16 GB for AMD models.
Figure 7-5 DIMM Socket Locations — HP Pro 3330/3380
Table 7-1 DIMM Socket Locations — HP Pro 3330/3380
Description
Socket Color
Insertion Order
XMM1 socket, Channel A (populate first)
Black
1
Memory
47
Table 7-1 DIMM Socket Locations — HP Pro 3330/3380 (continued)
Description
Socket Color
Insertion Order
XMM3 socket, Channel B
Black
2
NOTE: A DIMM must occupy the XMM1 socket.
Figure 7-6 DIMM Socket Locations — HP Pro 3340/3348
Table 7-2 DIMM Socket Locations — HP Pro 3340/3348
Description
Socket Color
Insertion Order
XMM1 socket, Channel A (populate first)
Black
1
XMM2 socket, Channel B
Blue
3
XMM3 socket, Channel A
Black
2
XMM4 socket, Channel B
Blue
4
NOTE: A DIMM must occupy the XMM1 socket.
48
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Figure 7-7 DIMM Socket Locations — HP Pro 3335/3385
Table 7-3 DIMM Socket Locations — HP Pro 3335/3385
Description
Socket Color
Insertion Order
XMM3 socket, Channel A (populate first)
Black
1
XMM4 socket, Channel B
Black
2
NOTE: A DIMM must occupy the XMM1 socket.
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-10600 DDR3-1333 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 9 DDR3 1333 MHz (9-9-9 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
Memory
49
NOTE:
The system will not operate properly if you install unsupported DIMMs.
Populating DIMM Sockets
Populate the DIMM sockets in the following order: XMM1, XMM3
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
●
The system will operate in single channel mode if the DIMM sockets are populated in one
channel only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity
of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.
The technology and device width can vary between the channels. If Channel A is populated with
one 1-GB DIMM and Channel B is populated with one 2-GB DIMM, the system will operate in
dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is
not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. If you are populating the sockets with one 2-GB DIMM, and one 1-GB DIMM,
Channel A should be populated with the 2-GB DIMM, and Channel B should be populated with
the 1-GB DIMM. With this configuration, 2 GB will run as dual channel and 1 GB will run as
single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
Removing Memory Modules
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
50
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
3.
Locate the memory module sockets on the system board.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
4.
Open both latches of the memory module socket.
Figure 7-8 Removing a DIMM
Memory
51
5.
Remove the memory module from the socket.
Figure 7-9 Removing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
A DIMM must occupy the DIMM1 socket. Always populate the blue sockets before the black
sockets in each channel.
To create a dual-channel memory configuration, the memory capacity of Channel A must equal
the memory capacity of Channel B. Refer to Populating DIMM Sockets on page 50 for more
information.
To install a memory module, reverse the removal procedures.
52
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Expansion Cards
Description
Spare part number
ATI Radeon HD 6350 512-MB graphics adapter
637995-001
AATI Radeon HD 6450 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666330-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
632827-001
nVidia GeForce GT405 512-MB graphics adapter
657108-001
Intel Gigabit NIC, includes bracket
490367-001
The computer has one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and two
PCI expansion slots. The expansion slots accommodate full-height or half-height expansion cards.
Figure 7-10 Expansion Slot Locations – HP Pro 3330/3380
Expansion Cards
53
Figure 7-11 Expansion Slot Locations — HP Pro 3340/3348
Figure 7-12 Expansion Slot Locations – HP Pro 3335/3385
Table 7-4 Expansion Slot Locations
54
Item
Description
PCIE X16
PCI Express x1 expansion slot
PCIEX1_1
PCI Express x16 expansion slot
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Table 7-4 Expansion Slot Locations (continued)
Item
Description
PCI1
PCI slot
PCI2
PCI slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
Expansion Cards
55
4.
On the rear of the computer, a slot cover lock secures the expansion card brackets in place.
Remove the screw from the slot cover lock then slide the slot cover lock up to remove it from the
chassis.
Figure 7-13 Removing the slot cover screw
Figure 7-14 Opening the slot cover lock
56
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a.
If you are installing an expansion card in a vacant socket, you must remove the metal slot
cover on the rear panel that covers the expansion slot. Be sure to remove the appropriate
slot cover for the expansion card you are installing.
b.
If you are removing a standard PCI card or a PCIe x1 card, hold the card at each end, and
carefully rock it back and forth until the connectors pull free from the socket. Pull the
expansion card straight up from the socket then away from the inside of the chassis to
release it from the chassis frame. Be sure not to scrape the card against the other
components.
Figure 7-15 Removing a PCI expansion card — PCIe x1 card shown
Expansion Cards
57
c.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Be sure not to scrape the card against the other
components.
Figure 7-16 Removing a PCI Express x16 expansion card
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
8.
To install an expansion card, locate where the card will be seated inside the computer.
Figure 7-17 Expansion slot locations (HP Pro 3330/3380 shown)
58
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
9.
Hold the card just above the expansion socket on the system board then move the card toward
the rear of the chassis so that the bracket on the card is aligned with the open slot on the rear of
the chassis. Press the card straight down into the expansion socket on the system board.
Figure 7-18 Installing an expansion card — PCIe x16 shown
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Reconfigure the computer, if necessary. Refer to Computer Setup (F10) Utility on page 7 for
instructions on using Computer Setup.
Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heat sink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cable from the P1 connector on the system board, always
follow these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
Cable Management
59
2.
Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
60
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Cable Connections
System board connectors are color-coded to make it easier to find the proper connection.
Connector Name
Connector Color
Description
ATX_POWER
white
Power supply, 24-pin
ATX_CPU
white
Power supply, 4-pin
SYS_FAN
brown
Chassis fan
CPU_FAN
white
Heat sink fan
INT_SPKR
white
Speaker
F_PANEL
black
Power switch
F_AUDIO
yellow
Front I/O audio
MINI_LED
white
Front_I/O
F_USB1
white
Media card reader
F_USB2
white
Front I/O USB
F_USB3
white
Front I/O USB
SATA0
dark blue
Primary hard drive
SATA1
white
Primary optical drive
SATA2
light blue
Second hard drive
SATA3
orange
Second optical drive
Cable Management
61
Drives
Description
Spare part number
DVD-ROM drive
581599-001
16X SATA DVD±RW drive
581600-001
Blu-ray BD-RW SuperMulti DL Drive
617030-001
Bezel, optical drive
657852-001
1 TB, 7200 rpm SATA hard drive, 6G
636930-001
750 GB, 7200 rpm SATA hard drive, 6G
639363-001
500 GB, 7200 rpm SATA hard drive, 6G
636929-001
250 GB, 7200 rpm SATA hard drive, 2.5-inch, 6G
636927-001
The computer supports up to five drives that may be installed in various configurations.
This section describes the procedure for replacing or upgrading the storage drives. A Torx T-15
screwdriver is needed to remove and install the guide screws on a drive.
62
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Drive Positions
Figure 7-19 Drive Positions
1
Two 5.25-inch external drive bays for optical drives
2
One 3.5-inch external drive bay for media card reader
3
Two 3.5-inch internal hard drive bays
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup. Refer to Computer Setup (F10) Utility on page 7 for more information.
Drives
63
Installing Additional Drives
When installing drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect an optical drive to the light blue SATA connector on the system board labeled SATA2.
●
The power cables for the SATA drives connect directly to the power supply. The primary hard
drive connects to the power connector labeled P3. The primary optical drive connects to the
power connector labeled P5.
●
Connect a media card reader to the system board connector labeled F_USB2.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector. For more information about preventing electrostatic damage, refer to
Electrostatic Discharge Information on page 35.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
64
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
Figure 7-20 System Board Drive Connections – HP Pro 3330/3380
Figure 7-21 System Board Drive Connections – HP Pro 3340/3348
Drives
65
Figure 7-22 System Board Drive Connections – HP Pro 3335/3385
Table 7-5 System Board Drive Connections
66
System Board Connector
System Board Label
Color
SATA0
SATA0
dark blue
SATA1
SATA1
white
SATA2
SATA2
light blue
SATA3
SATA3
orange
Media Card Reader
F_USB2
white
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove an optical drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Remove the front bezel (Front Bezel on page 45).
4.
Locate the optical drives.
Figure 7-23 Locating the optical drives
Drives
67
5.
Unlock the drive by pulling the release lever slightly away from the computer and placing in an
upright position.
Figure 7-24 Pushing the optical drive
6.
Push the optical drive slightly forward.
Figure 7-25 Pushing the optical drive
68
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
7.
Disconnect the power cable and data cable from the rear of the optical drive.
Figure 7-26 Disconnecting the power and data cables
8.
Slide the drive out of the computer.
Figure 7-27 Removing the drive
To install an optical drive, reverse the removal procedures.
When installing an optical drive, slide the drive back until the hole on the drive aligns with the
alignment hole on the computer.
Drives
69
Figure 7-28 Optical drive alignment hole
Removing a Hard Drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have created a Recovery Disc Set to restore the operating system, software drivers,
and any software applications that were preinstalled on the computer.
70
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
3.
Locate hard disk drive in the computer.
Figure 7-29 Hard drive location
Drives
71
4.
Remove the two screws that secure the hard drive cage to the computer.
Figure 7-30 Removing the hard drive cage screws
5.
Press the latch at the side of the hard drive cage to release it.
Figure 7-31 Releasing the hard drive cage
72
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
6.
Lift the cage partially out of the computer.
Figure 7-32 Lifting the hard drive cage
7.
Disconnect the cables from the of the hard drive.
Figure 7-33 Disconnecting the hard drive cables
Drives
73
8.
74
The cage may contain one or two hard disk drives. Each drive has two screws on each side of
the cage. Remove the screws for the drive to remove from the cage.
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
9.
Slide the hard drive out of the cage.
Figure 7-34 Disconnecting the hard drive cables
To install a hard drive, reverse the removal procedures.
When installing a hard drive, align the screw holes on the hard disk drive with the screw holes on the
cage.
Figure 7-35 Disconnecting the hard drive cables
When installing a hard drive cage, set the hard drive cage down into the bay, aligning the tabs on the
bottom of the cage with the tabs on the chassis.
Drives
75
Figure 7-36 Disconnecting the hard drive cables
76
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Front I/O and USB Panel Housing Assembly
Description
Spare part number
Front I/O and USB assembly
668572-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43)
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (Front Bezel on page 45).
5.
Unplug the three cables that connect the assembly to the system board. The assembly cables
connect to the following system board connectors:
6.
●
F_AUDIO – yellow connector
●
F_USB1 – white connector
Remove the screw (1) that secures the housing to the chassis, and then slide the housing up (2).
Figure 7-37 Front I/O assembly removal
Front I/O and USB Panel Housing Assembly
77
7.
Rotate the top of the assembly outward (1), and then pull the assembly away from the chassis
(2) while guiding the cables through the hole in the chassis.
Figure 7-38 Removing the front I/O assembly
To install the housing assembly, reverse the removal procedures.
78
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Power Switch/LED Assembly
Description
Spare part number
Power switch/LED assembly
657105-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (Front Bezel on page 45).
5.
Remove the optical drive (Removing an Optical Drive on page 67).
6.
Disconnect the braided cables from the black system board connector labeled JFP1.
7.
Remove the cable from the clips in the optical drive cage.
Figure 7-39 Power switch cable routing
Power Switch/LED Assembly
79
8.
Press the tab on the top of the switch holder (1) to disengage it from the chassis, lift the switch
upward to disengage the tab at the bottom of the switch (2) from the chassis, and then pull the
power switch away from the chassis while guiding the wires through the hole in the chassis.
Figure 7-40 Removing the power switch assembly
To install the power switch/LED assembly, reverse the removal procedures.
80
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
System Fan
Description
Spare part number
Fan
657103-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the rear facing toward you.
4.
Remove the four Phillips screws that secure the fan to the chassis.
Figure 7-41 Removing the fan screws
System Fan
81
5.
Disconnect the cable from the red/brown system board connector labeled SYS_FAN (1), pull the
fan into the chassis until it clears the chassis lip, and then lift it out of the chassis (2).
NOTE: System board appearance may vary.
Figure 7-42 Removing the fan
To install the fan, reverse the removal procedures.
82
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Speaker
Description
Spare part number
Speaker with rubber rivets
666885-001
The speaker is secured to the front of the chassis with three rubber rivets that are part of the speaker.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Remove the front bezel (Front Bezel on page 45).
4.
Lay the computer on its side so you can access both the inside and outside of the front of the
computer.
5.
Disconnect the cable from the white system board connector labeled INT_SPKR.
6.
From the front, squeeze the thicker part of the rubber rivets next to the chassis wall.
Figure 7-43 Speaker rubber rivets
Speaker
83
7.
While squeezing the outer rivet, from the inside of the chassis, pull the associated inside rivet
toward the inside of the computer until the outside rivet is pulled into the chassis.
Figure 7-44 Removing the speaker
To install the speaker, reverse the removal procedures.
When installing the speaker, from the inside of the computer, feed the outer rubber rivets through the
holes in the front chassis wall, and the pull the rivets from the outside until the speaker is properly
seated with the narrow part of the rivets sitting in the holes in the chassis.
84
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Fan Sink Assembly
Description
Spare part number
Fan sink for use in models with Intel processors
667727-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the rear facing toward you.
4.
Loosen the four captive Torx screws that secure the fan sink to the system board.
5.
Disconnect the fan sink cable from the white system board connector labeled CPU FAN.
Figure 7-45 Removing the fan sink (fan sink appearance may vary)
6.
Lift the fan sink from the processor and set it on its side to keep from contaminating the work
area with thermal grease.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink to the processor. This is especially important as the pins on the socket
are very fragile and any damage to them may require replacing the system board.
When reinstalling an existing heat sink, make sure that its bottom has been cleaned with an alcohol
wipe and fresh thermal grease has been applied to the top of the processor. New heat sinks come
from the factory with fresh thermal grease already applied.
Fan Sink Assembly
85
Processor
Description
Spare part number
Intel Core i7 processors
2600, 3.4 GHz, 8-MB L3 cache
638632-001
Intel Core i5 processors
2500, 3.3 GHz, 6-MB L3 cache
638631-001
2400, 3.1 GHz, 6-MB L3 cache
638630-001
Intel Core i3 processors
2120, 3.3 GHz, 3-MB L3 cache
638629-001
2100, 3.1 GHz, 3-MB L3 cache
638628-001
Intel Pentium Dual-Core processors
G850, 2.9 GHz, 3-MB L3 cache
655973-001
G840, 2.8 GHz, 3-MB L3 cache
655972-001
G620, 2.6 GHz, 3-MB L3 cache
655971-001
Intel Celeron Dual-Core processors
G540, 2.5 GHz, 2-MB L3 cache
666892-001
G530, 2.4 GHz, 2-MB L3 cache
666891-001
G440, 1.6 GHz, 1-MB L3 cache
666890-001
AMD Phenom II processors:
X4 B99, 3.3 GHz, 6-MB L3 cache
647012-001
X4 B97, 3.2 GHz, 6-MB L3 cache
619789-001
X4 B95, 3.0 GHz, 6-MB L3 cache
585156-001
X4 B59, 3.4 GHz, 6-MB L3 cache
647013-001
X3 B77, 3.2 GHz, 6-MB L3 cache
619788-001
X3 B75, 3.0 GHz, 6-MB L3 cache
585154-001
X2 B60, 3.3 GHz, 6-MB L3 cache
666888-001
X2 B57, 3.2 GHz, 6-MB L3 cache
621428-001
AMD Athlon II processors:
86
X2 B30, 3.6 GHz, 2-MB L2 cache
666886-001
X2 B28, 3.4 GHz, 2-MB L2 cache
647014-001
X2 B26, 3.2 GHz, 2-MB L2 cache
611193-001
X2 250, 3.0 GHz, 2-MB L2 cache
666887-001
X2 220, 2.8 GHz, 2-MB L2 cache
611192-001
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Description
Spare part number
AMD Sempron processor:
X2 190, 2.5 GHz, 1-MB L2 cache
666889-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the rear facing toward you.
4.
Remove the fan sink Fan Sink Assembly on page 85).
5.
If you are removing an Intel processor, rotate the locking lever to its full open position (1), raise
and rotate the microprocessor retainer to its full open position (2), and then carefully lift the
processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
CAUTION: The heat sink must be installed within 24 hours of installing the processor to
prevent damage to the processor’s solder connections.
Figure 7-46 Removing an Intel processor
To install a new processor:
1.
Place the processor in its socket.
2.
If installing an Intel processor, close the retainer.
3.
Secure the locking lever.
If reusing the existing heat sink, go to step 4.
If using a new heat sink, go to step 7.
Processor
87
4.
If reusing the existing heat sink, clean the bottom of the heat sink with the alcohol pad provided
in the spares kit.
5.
Apply the thermal grease provided in the spares kit to the top of the processor and install the
heat sink atop the processor.
6.
Go to step 8.
7.
If using a new fan sink, remove the protective covering from the bottom of the fan sink and place
it in position atop the processor.
8.
Secure the fan sink to the system board and system board tray with the 4 captive screws and
attach the fan sink control cable to the system board.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in
an X) to evenly seat the heat sink on the processor. This is especially important as the pins on
the socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system
ROM to ensure that the latest version of the BIOS is being used on the computer. The latest
system ROM BIOS can be found on the Web at: http:\\h18000.www1.hp.com/support/files.
88
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
Power Supply
Description
Spare part number
Power supply, 300W
656721-001
Power supply, 250W, PFC
508466-001
WARNING! Voltage is always present on the system board when the computer is plugged into an
active AC outlet. To avoid possible personal injury and damage to the equipment the power cord
should be disconnected from the computer and/or the AC outlet before opening the computer.
NOTE: When installing a new power supply, be sure to set the red switch to the setting (230 V or
115 V) appropriate for the country in which the computer is used. Spare power supplies normally
arrive set for 230 V.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect all power cables from the mass storage devices and from the system board. The
following image points out power connectors in a system with one hard drive and one optical
drive. System configuration may vary.
Figure 7-47 Power supply connectors and cables
Power Supply
89
5.
Remove the four screws that secure the power supply to the rear chassis.
Figure 7-48 Power supply screws
6.
Inside of the unit, press the power supply release latch on the chassis base (1).
7.
Slide the power supply toward the front of the computer (2), then lift the power supply out of the
computer (3).
Figure 7-49 Removing the power supply
To install the power supply, reverse the removal procedure.
90
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
System Board
Description
Spare part number
System board for use in 3330/3380 models (includes thermal material)
663099-001
System board for use in 3340/3348 models (includes thermal material)
663100-001
System board for use in 3335/3385 models (includes thermal material)
663101-001
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules
●
Processor
●
Expansion cards
To remove the system board:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Lay the computer on its side with the rear facing toward you.
4.
Remove the front bezel (Front Bezel on page 45).
5.
Remove an expansion cards (Expansion Cards on page 53).
6.
Disconnect the power, and data cables from the back of all installed drives.
7.
Disconnect all cables from the system board.
8.
Remove the six screws that secure the system board to the chassis.
System Board
91
9.
Slide the system board toward the front of the chassis, and then lift it up and out of the chassis.
To install the system board, reverse the removal procedure.
NOTE:
BIOS.
When replacing the system board, you must also change the chassis serial number in the
NOTE: After installing a new system board, always update the system ROM to ensure that the
latest version of the BIOS is being used on the computer. The latest system ROM BIOS can be found
at: http:\\h18000.www1.hp.com/support/files.
Battery
The battery that comes with your computer provides power to the real-time clock and has a lifetime of
about three years. When replacing the battery, use a battery equivalent to the battery originally
installed on the computer. The computer comes with a 3-volt lithium coin cell battery.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC
wall socket. The lithium battery is only used when the computer is NOT connected to AC power.
WARNING! This computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
92
❑
Do not attempt to recharge the battery.
❑
Do not expose to temperatures higher than 60°C (140°F)
❑
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
❑
Replace the battery only with the HP spare designated for this product.
Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Troubleshooting Without Diagnostics on page 156 chapter for information on backing up the CMOS
settings.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, its authorized partners, or its agents.
CAUTION: Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
NOTE: It may be necessary to remove an expansion card to gain access to the battery.
3.
Locate the battery and battery holder on the system board.
4.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
5.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up (2). Push the other edge down until the clamp snaps over the other edge of
the battery.
6.
Replace the computer access panel.
7.
Plug in the computer and turn on power to the computer.
8.
Reset the date and time, your passwords, and any special system setups, using Computer
Setup. Refer to Computer Setup (F10) Utility on page 7.
Battery
93
8
Removal and Replacement Procedures
– Small Form Factor (SFF) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for Disassembly
See Routine Care and Disassembly Preparation on page 35 for initial safety procedures.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Close any open software applications.
3.
Exit the operating system.
4.
Remove any compact disc or media card from the computer.
5.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6.
Disconnect the power cord from the electrical outlet and then from the computer.
7.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using
the wrong screw in an application may damage the unit.
94
Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Access Panel
Description
Spare part number
Access panel
656832-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
If the computer is on a stand, remove the computer from the stand.
3.
Remove the Torx screw that secures the access panel to the computer.
Figure 8-1 Removing the access panel screw
Access Panel
95
4.
Slide the access panel toward the back of the computer, and then pull it away from the
computer.
Figure 8-2 Removing the access panel
To install the access panel, reverse the removal procedure.
96
Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Front Bezel
Description
Spare part number
Front bezel
668569-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Lift up the three tabs on the top of the bezel.
Figure 8-3 Removing the front bezel
4.
Rotate the bezel off the chassis.
Figure 8-4 Removing the front bezel
To install the front bezel, reverse the removal procedure.
Front Bezel
97
Memory
Description
Spare part number
4-GB, PC3-10600
585157-001
2-GB, PC3-10600
635803-001
1-GB, PC3-10600
635802-001
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DDR3-SDRAM DIMMs
The memory sockets on the system board can be populated with up to two DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 8 GB of memory:
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered non-ECC PC3-10600 DDR3-1333 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 9 DDR3 1333 MHz (9-9-9 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
98
The system will not operate properly if you install unsupported DIMMs.
Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Populating DIMM Sockets
There are two DIMM sockets on the system board, with one socket per channel.
Populate the DIMM sockets in the following order: XMM1, then XMM3.
Figure 8-5 DIMM Socket Locations
Table 8-1 DIMM Socket Locations
Description
Socket Color
Insertion Order
XMM1 socket, Channel A
(populate first)
Black
1
XMM3 socket, Channel B
Black
2
NOTE: A DIMM must occupy the XMM1 socket.
●
The system will operate in single channel mode if the DIMM sockets are populated in one
channel only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity
of the DIMM in Channel A is equal to the total memory capacity of the DIMM in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with one 2-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMM in Channel A is
not equal to the total memory capacity of the DIMM in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and one 1-GB
DIMMs, Channel A should be populated with the 2-GB DIMM, and Channel B should be
Memory
99
populated with the 1-GB DIMM. With this configuration, 2 GB will run as dual channel and 1 GB
will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
Removing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to Electrostatic Discharge Information on page 35.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Rotate the optical drive to its upright position.
Figure 8-6 Rotating the optical drive
100 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
5.
Open both latches of the memory module socket (1), and remove the memory module from the
socket (2).
Figure 8-7 Removing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B.
Memory 101
6.
To install a memory module, holding the module by the edges, completely slide it into the slot.
Make sure the module is pressed completely into the socket, and then gently push down on the
module until it snaps in place.
Figure 8-8 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
102 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Expansion Card
Description
Spare part number
ATI Radeon HD 6350 512-MB graphics adapter
637995-001
ATI Radeon HD 6450 512-MB graphics adapter
637996-001
ATI Radeon HD 6450 1-GB graphics adapter, PCIe x16
666330-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x16
632486-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB, PCIe x1
632827-001
nVidia GeForce GT405 512-MB graphics adapter
657108-001
Intel Gigabit NIC, includes bracket
490367-001
The computer has one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and two
PCI expansion slots. The expansion slots accommodate full-height or half-height expansion cards.
Figure 8-9 Expansion Slot Locations
Table 8-2 Expansion Slot Locations
Item
Description
PCIE X16
PCI Express x1 expansion slot
PCIEX1_1
PCI Express x16 expansion slot
PCI1
PCI slot
PCI2
PCI slot
Expansion Card 103
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
4.
Release the slot cover bracket by removing the screw that secures the bracket, and then lifting
the bracket off the computer.
Figure 8-10 Opening the expansion slot bracket
5.
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a.
If you are installing an expansion card in a vacant socket, remove the appropriate
expansion slot cover on the back of the chassis. Pull the slot cover straight up then away
from the inside of the chassis.
104 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
b.
If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Pull the expansion card straight up from the socket
then away from the inside of the chassis to release it from the chassis frame. Be sure not to
scrape the card against the other components.
NOTE: PCI cards and PCI Express x1 cards do not have the retention arm. PCI Express
X16 card is shown below.
Figure 8-11 Removing a standard PCI expansion card
6.
Store the removed card in anti-static packaging.
7.
If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
Expansion Card 105
8.
To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the
expansion socket on the system board.
Figure 8-12 Installing an expansion card
NOTE: When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
9.
Reattach the bracket to the back of the computer
Figure 8-13 Replacing the expansion slot bracket
106 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Reconfigure the computer, if necessary.
Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heat sink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cable from the P1 connector on the system board, always
follow these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
2.
Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
Cable Management 107
Cable Connections
System board connectors are color-coded to make it easier to find the proper connection.
Connector Name
Connector Color
Description
ATX_POWER
white
Power supply, 24-pin
ATX_CPU
white
Power supply, 4-pin
SYS_FAN
brown
Chassis fan
CPU_FAN
white
Heat sink fan
INT_SPKR
white
Speaker
F_PANEL
black
Power switch
F_AUDIO
yellow
Front I/O audio
MINI_LED
white
Front_I/O
F_USB1
white
Media card reader
F_USB2
white
Front I/O USB
F_USB3
white
Front I/O USB
SATA0
dark blue
Primary hard drive
SATA1
white
Primary optical drive
SATA2
light blue
Second hard drive
SATA3
orange
Second optical drive
108 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
Drives
Description
Spare part number
16X SATA DVD±RW drive
581600-001
DVD-ROM drive
581599-001
Blu-ray BD-RW SuperMulti DL Drive
617030-001
1 TB, 7200 rpm SATA hard drive
636930-001
750 GB, 7200 rpm SATA hard drive
639363-001
500 GB, 7200 rpm SATA hard drive
636929-001
250 GB, 7200 rpm SATA hard drive
636927-001
Drive Positions
Figure 8-14 Drive positions
Table 8-3 Drive Positions
1
5.25-inch external drive bay for an optical drive
2
3.5-inch internal drive bay for a hard drive
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Drives 109
Removing Drives
When installing drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0.
●
Connect an optical drive to the light blue SATA connector on the system board labeled SATA2.
●
Connect a media card reader to the system board connector labeled F_USB1.
●
The power cables for the SATA drives connect directly to the power supply. The primary hard
drive connects to the power connector labeled P4. the primary optical drive connects to the
power connector labeled P3.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector. For more information about preventing electrostatic damage, refer to
Electrostatic Discharge Information on page 35.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Rotate the drive cage to its upright position.
110 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
5.
If removing an optical drive, disconnect the cables from the rear of the drive.
Figure 8-15 Removing the drive cables
6.
Remove the Torx screw from the cage.
Figure 8-16 Removing the optical drive screw
7.
Return the drive to its normal position.
Drives 111
8.
Push the optical drive from behind, and then remove it from the front of the computer.
Figure 8-17 Removing the optical drive
Removing the Hard Drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the
hard drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Rotate the drive cage to its upright position.
112 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
5.
On the front of the computer, pull and hold the hard drive release latch to unlock the hard drive.
Figure 8-18 Pulling the hard drive release latch
6.
With the release latch pulled out, lift the rear of the hard drive.
Figure 8-19 Lifting the hard drive
Drives 113
7.
Disconnect the cables from the rear of the hard drive.
Figure 8-20 Disconnecting the hard drive cables
8.
Remove the hard drive from the computer.
Figure 8-21 Removing the hard drive
114 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
9.
Remove the four guide screws from the hard drive for use in the replacement hard drive.
Figure 8-22 Removing the hard drive guide screws
To replace the hard drive, reverse the removal procedures.
Drives 115
Power Switch
Description
Spare part number
Power switch/LED assembly
656984-001
The power switch is attached to the front of the chassis using tabs (no screws). Its cable routes
through metal tabs in the chassis floor. The power switch cable connects to the front USB assembly
cable.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Rotate the drive cage to its upright position.
5.
From the inside of the computer, remove the power switch cable from the tabs on the computer
floor.
Figure 8-23 Removing the power switch cable
116 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
6.
Disconnect the power switch cable from the front USB assembly cable.
Figure 8-24 Disconnecting the power switch cable
7.
From the outside, front of the computer, press the tab on the right side of the power switch (1) to
disengage it from the chassis.
8.
Rotate the power switch right to left (2), and then remove it from the computer (3) while routing
the cable through the hole in the front of the chassis.
Figure 8-25 Removing the power switch
To install the power switch, reverse the removal procedure.
Power Switch 117
Front USB Assembly
Description
Spare part number
Front I/O and USB assembly
668570-001
The front USB assembly is secured to the front of the chassis with one screw. Push the assembly into
the chassis to remove it.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Disconnect the two cables from the system board as follows:
5.
●
Yellow connector labeled F_AUDIO
●
White connector labeled F_USB2
Remove the cables from the clip on the base pan of the computer.
Figure 8-26 Removing the cables from the clip
118 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
6.
From the front of the computer, remove the screw that secures the assembly to the front of the
chassis.
Figure 8-27 Removing the front USB assembly screw
7.
Push the left side of the assembly down slightly (1), and then push the assembly into the
computer (2).
Figure 8-28 Disengaging the front USB assembly
8.
Remove the assembly from the computer.
To install the front USB assembly, reverse the removal procedure.
Front USB Assembly 119
Speaker
Description
Spare part number
Speaker
666885-001
The speaker is secured to the front of the chassis with three rubber rivets that are part of the speaker.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
3.
Remove the front bezel (Front Bezel on page 45).
4.
Lay the computer on its side so you can access both the inside and outside of the front of the
computer.
5.
Disconnect the cable from the white system board connector labeled INT_SPKR.
6.
From the front, squeeze the thicker part of the rubber rivets next to the chassis wall.
Figure 8-29 Speaker rubber rivets
120 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
7.
While squeezing the outer rivet, from the inside of the chassis, pull the associated inside rivet
toward the inside of the computer until the outside rivet is pulled into the chassis.
Figure 8-30 Removing the speaker
To install the speaker, reverse the removal procedures.
When installing the speaker, from the inside of the computer, feed the outer rubber rivets through the
holes in the front chassis wall, and the pull the rivets from the outside until the speaker is properly
seated with the narrow part of the rivets sitting in the holes in the chassis.
Speaker 121
Fan Assembly
Description
Spare part number
Fan
656834-001
The fan assembly is attached to the inside floor of the chassis using two screws. The fan is inside of a
removal metal cage.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the front bezel (Front Bezel on page 97).
4.
Disconnect the fan cable from the system board connector labeled SYS_FAN.
5.
Remove the Torx screw that secures the left side of the fan to the computer.
6.
Cut the plastic tie (1) that secures the fan cable to the power supply power cables.
7.
Remove the two screws (2) that secure the fan to the computer. The screw near the computer
side is not shown in the following image.
8.
Lift the fan assembly up and out of the computer (3).
Figure 8-31 Removing the fan
122 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
9.
if you need to remove the fan from the metal case, remove the four screws that secure the fan to
the case, and remove the fan from the case.
Figure 8-32 Removing the fan from the metal case
To install the fan, reverse the removal procedure.
Fan Assembly 123
Fan Sink
Description
Spare part number
Fan sink
667727-001
The fan sink is secured atop the processor with four captive Torx screws. A fan cable connects to the
system board.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Rotate the drive cage to its upright position.
4.
Loosen the four captive screws that secure the fan sink to the system board tray.
CAUTION: Fan sink retaining screws should be removed in diagonally opposite pairs (as in an
X) to even the downward forces on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
Figure 8-33 Loosening the fan sink screws
124 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
5.
Disconnect the cable from the system board (1), lift the fan sink from atop the processor (2) and
set it on its side to keep from contaminating the work area with thermal grease.
Figure 8-34 Removing the fan sink
When reinstalling the fan sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Fan sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink on the processor to avoid damage that could require replacing the system
board.
Failure to install the fan duct may cause the computer to overheat.
Fan Sink 125
Processor
Description
Spare part number
Intel Core i7 processors
2600, 3.4 GHz, 8-MB L3 cache
638632-001
Intel Core i5 processors
2500, 3.3 GHz, 6-MB L3 cache
638631-001
2400, 3.1 GHz, 6-MB L3 cache
638630-001
Intel Core i3 processors
2120, 3.3 GHz, 3-MB L3 cache
638629-001
2100, 3.1 GHz, 3-MB L3 cache
638628-001
Intel Pentium Dual-Core processors
G850, 2.9 GHz, 3-MB L3 cache
655973-001
G840, 2.8 GHz, 3-MB L3 cache
655972-001
G620, 2.6 GHz, 3-MB L3 cache
655971-001
Intel Celeron Dual-Core processors
G540, 2.5 GHz, 2-MB L3 cache
666892-001
G530, 2.4 GHz, 2-MB L3 cache
666891-001
G440, 1.6 GHz, 1-MB L3 cache
666890-001
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Remove the fan sink (Fan Sink on page 124).
4.
Rotate the locking lever to its full open position (1).
5.
Raise and rotate the microprocessor retainer to its fully open position (2).
126 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
6.
Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.
Figure 8-35 Removing the processor
To install a new processor:
1.
Place the processor in its socket and close the retainer. Make sure the slot in the processor fits
into the post on the socket.
2.
Secure the locking lever. If reusing the existing heat sink, go to step 3. If using a new heat sink,
go to step 6.
3.
If reusing the existing fan sink, clean the bottom of the fan sink with the alcohol pad provided in
the spares kit.
CAUTION: Before reinstalling the fan sink you must clean the top of the processor and the
bottom of the fan sink with an alcohol pad supplied in the spares kit. After the alcohol has
evaporated, apply thermal grease to the top of the processor from the syringe supplied in the
spares kit.
4.
Apply the thermal grease provided in the spares kit to the top of the processor and install the fan
sink atop the processor.
5.
Go to step 7.
Processor 127
6.
If using a new fan sink, remove the protective covering from the bottom of the fan sink and place
it in position atop the processor.
7.
Secure the fan sink to the system board and system board tray.
CAUTION: Fan sink retaining screws should be tightened in diagonally opposite pairs (as in an
X) to evenly seat the fan sink on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at: http://h18000.www1.hp.com/support/files.
Power Supply
Description
Spare part number
Power supply, 220W
656722-001
Power supply, 270W
665224-001
WARNING! To reduce potential safety issues, only the power supply provided with the computer, a
replacement power supply provided by HP, or a power supply purchased as an accessory from HP
should be used with the computer.
The rotating power supply is located at the rear of the chassis. It is held in place by a bracket – no
screws are used.
WARNING! Voltage is always present on the system board when the computer is plugged into an
active AC outlet. To avoid possible personal injury and damage to the equipment the power cord
should be disconnected from the computer and/or the AC outlet before opening the computer.
The power supply is secured to the rear of the computer with four Torx screws. On the inside of the
computer, a tab secures the power supply to the base pan.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
Rotate the drive cage up and disconnect the power cables from all of the drives.
4.
Disconnect the power cables from the system board as follows:
●
white 24-pin labeled P1 from ATX_POWER system board connector
●
white 4-pin labeled P2 from ATX_CPU system board connector
128 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
5.
From the rear of the computer, remove the four screws that secure the power supply to the
computer.
Figure 8-36 Removing the power supply screws
Power Supply 129
6.
On the inside of the computer, press the tab at the front of the power supply (1), pull the power
supply forward (2), slide it back and toward the side of the computer so it can sit lower on the
bottom of the computer, and then rotate it and lift it out of the computer (3).
Figure 8-37 Removing the power supply
To install the power supply, reverse the removal procedure.
CAUTION: When installing the power supply cables, make sure they are properly positioned so
they are not cut by the drive cage and are not pinched by the rotating power supply.
130 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
System Board
Description
Spare part number
System board (includes thermal material)
663099-001
The system board is secured to the computer with six screws.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2.
Remove the access panel (Access Panel on page 95).
3.
When replacing the system board, make sure the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules (seeMemory on page 98)
●
Expansion cards (Expansion Card on page 103)
●
Heat sink (Fan Sink on page 124)
●
Processor (Processor on page 126)
4.
Remove the fan from the chassis (Fan Assembly on page 122).
5.
Rotate the drive cage to its upright position.
6.
Rotate the power supply to its full upright position.
7.
Disconnect all data and power cables from the system board.
8.
Disconnect the balance of the cables from the system board.
9.
Remove the six screws that secure the system board to the chassis.
System Board 131
10. Slide the system board away from the rear of the computer to disengage the ports, and then lift
the board up and out of the chassis.
Figure 8-38 Removing the system board
To install the system board, reverse the removal procedure.
NOTE:
BIOS.
When replacing the system board, you must also change the chassis serial number in the
CAUTION: Before reinstalling the heat sink you must clean the top of the processor and the bottom
of the heat sink with an alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply
thermal grease to the top of the processor from the syringe supplied in the spares kit.
CAUTION: When reconnecting the cables it is important that they be positioned so they do not
interfere with the rotation of the drive cage or power supply.
Battery
The battery that comes with your computer provides power to the real-time clock and has a lifetime of
about three years. When replacing the battery, use a battery equivalent to the battery originally
installed on the computer. The computer comes with a 3-volt lithium coin cell battery.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC
wall socket. The lithium battery is only used when the computer is NOT connected to AC power.
WARNING! This computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
❑
Do not attempt to recharge the battery.
❑
Do not expose to temperatures higher than 60°C (140°F)
❑
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
❑
Replace the battery only with the HP/Compaq spare designated for this product.
132 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Troubleshooting Without Diagnostics on page 156 chapter for information on backing up the CMOS
settings.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, its authorized partners, or its agents.
CAUTION: Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2.
Remove the access panel (Access Panel on page 43).
NOTE: It may be necessary to remove an expansion card to gain access to the battery.
3.
Locate the battery and battery holder on the system board.
4.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
5.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up (2). Push the other edge down until the clamp snaps over the other edge of
the battery.
6.
Replace the computer access panel.
7.
Plug in the computer and turn on power to the computer.
8.
Reset the date and time, your passwords, and any special system setups, using Computer
Setup. Refer to Computer Setup (F10) Utility on page 7.
Battery 133
A
Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some of
these connectors may not be used on the product being serviced.
Ethernet BNC
Connector and Icon
Pin
Signal
1
Data
2
Ground
USB
Connector and Icon
Pin
Signal
1
+5 VDC
2
- Data
3
+ Data
4
Ground
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Audio_Right
3 (Shield)
Ground
Microphone
Connector and Icon (1/8” miniphone)
134 Appendix A Connector Pin Assignments
Headphone
Connector and Icon (1/8” miniphone)
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Power_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_In_Left
2 (Ring)
Audio_In_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_Out_Left
2 (Ring)
Audio_Out_Right
3 (Shield)
Ground
Line-in Audio
Connector and Icon (1/8” miniphone)
Line-out Audio
Connector and Icon (1/8” miniphone)
4-Pin Power (for CPU)
Connector and Icon
Pin
Signal
1
GND
2
GND
3
+12V CPU
4
-12V CPU
Headphone 135
Monitor
Connector and Icon
Pin
Signal
Pin
Signal
1
Red Analog
9
+5V (fused)
2
Green Analog
10
Ground
3
Blue Analog
11
Not used
4
Not used
12
DDC Serial Data
5
Ground
13
Horizontal Sync
6
Ground
14
Vertical Sync
7
Ground
15
DDC Serial Clock
8
Ground
Serial Interface, Powered and Non-Powered
Connector and Icon
136 Appendix A Connector Pin Assignments
Pin
Signal
1
Carrier Detect (12V if powered)
2
Receive Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request to Send
8
Clear to Send
9
Ring Indicator (5V if powered)
DVI Connector
Connector and Icon
Pin
Signal
Pin
Signal
1
T.M.D.S. Data2–
13
T.M.D.S. Data3+
2
T.M.D.S. Data2+
14
+5V Power
3
T.M.D.S. Data2/4 Shield
15
Ground (for +5V)
4
T.M.D.S. Data4–
16
Hot Pug Detect
5
T.M.D.S. Data4+
17
T.M.D.S. Data0–
6
DDC Clock
18
T.M.D.S. Data0+
7
DDC Data
19
T.M.D.S. Data0/5 Shield
8
No Connect
20
T.M.D.S. Data5–
9
T.M.D.S. Data1–
21
T.M.D.S. Data5+
10
T.M.D.S. Data1+
22
T.M.D.S. Data Shield
11
T.M.D.S. Data1/3 Shield
23
T.M.D.S. Clock+
12
T.M.D.S. Data3–
24
T.M.D.S. Clock-
DVI Connector 137
24-Pin Power
Connector
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+3.3V
7
GND
13
+3.3V
19
GND
2
+3.3V
8
POK
14
–12V
20
open
3
GND
9
+5 Vaux
15
GND
21
+5V
4
+5V
10
+12V
16
PSON
22
+5V
5
GND
11
+12V
17
GND
23
+5V
6
+5V
12
+3.3V
18
GND
24
GND
138 Appendix A Connector Pin Assignments
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin A
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
PRSNT1
6
JTAG3
11
PERST#
16
PERp0
21
PERp1
2
+12V
7
JTAG4
12
GND
17
PERn0
22
PERn1
3
+12V
8
JTAG5
13
REFCLK+
18
GND
23
GND
4
GND
9
+3.3V
14
REFCLK-
19
RSVD
24
GND
5
JTAG2
10
+3.3V
15
GND
20
GND
25
PERp2
26
PERn(2)
31
GND
36
PERn4
41
GND
46
GND
27
GND
32
RSVD
37
GND
42
GND
47
PERp7
28
GND
33
RSVD
38
GND
43
PERp6
48
PERn7
29
PERp3
34
GND
39
PERp5
44
PERn6
49
GND
30
PERn3
35
PERp4
40
PERn5
45
GND
50
RSVD
51
GND
56
PERp9
61
PERn10
66
GND
71
GND
52
PERp8
57
PERn9
62
GND
67
GND
72
PERp13
53
PERN8
58
GND
63
GND
68
PERp12
73
PERn13
54
GND
59
GND
64
PERp11
69
PERn12
74
GND
55
GND
60
PERp10
65
PERn11
70
GND
75
GND
76
PERp14
81
PERn15
77
PERn14
82
GND
78
GND
79
GND
80
PERp15
Pin B information is on the next page
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express 139
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin B
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+12V
6
SMDAT
11
WAKE#
16
GND
21
GND
2
+12V
7
GND
12
RSVD
17
22
GND
23
PETp2
24
PETn2
25
GND
GND
3
RSVD
8
+3.3 V
13
GND
18
PETp1
4
GND
9
JTAG1
14
PETp0
19
PETn1
5
SMCLK
10
3.3vAux
15
PETn0
20
26
GND
31
PRSNT2#
36
GND
41
PETp6
46
PETn7
27
PETp3
32
GND
37
PETp5
42
PRTn6
47
GND
28
PETn3
33
PETp4
38
PETn5
43
GND
48
PRSNT2#
29
GND
34
PETn4
39
GND
44
GND
49
GND
30
RSVD
35
GND
40
GND
45
PETp7
50
PETp8
51
PETn8
56
GND
61
GND
66
PETp12
71
PETn13
52
GND
57
GND
62
PETp11
67
PETn12
72
GND
53
GND
58
PETp10
63
PETn11
68
GND
73
GND
54
PETp9
59
PETn10
64
GND
69
GND
74
PETp14
55
PETn9
60
GND
65
GND
70
PETp13
75
PETn14
76
GND
81
PRSNT2#
77
GND
82
RSVD
78
PETp15
79
PETn15
80
GND
Pin B information is on the next page
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
140 Appendix A Connector Pin Assignments
B
Power Cord Set Requirements
The power supplies on some computers have external power switches. The voltage select switch
feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts
AC. Power supplies on those computers that do not have external power switches are equipped with
internal switches that sense the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where
you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General Requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for
evaluation in the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a
nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord
must be between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed
upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point
where the cord exits from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set is
damaged in any manner, replace it immediately.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
General Requirements 141
Country-Specific Requirements
Additional requirements specific to a country are shown in parentheses and explained below.
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it
will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug
must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
142 Appendix B Power Cord Set Requirements
C
POST Error Messages
This appendix lists the error codes, error messages, and the various indicator light and audible
sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the
probable source of the problem, and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count
and non-error text messages. If a POST error occurs, the screen will display the error message. To
manually switch to the POST Messages Enabled mode during POST, press any key (except F10,
F11, or F12). The default mode is POST Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are
determined by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the
memory test. Full Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE:
For more information on Computer Setup, see Computer Setup (F10) Utility on page 7.
143
POST Numeric Codes and Text Messages
This section covers those POST errors that have numeric codes associated with them. The section
also includes some text messages that may be encountered during POST.
NOTE:
The computer will beep once after a POST text message is displayed on the screen.
Table C-1 Numeric Codes and Text Messages
Control panel message
Description
Recommended action
101-Option ROM Checksum Error
System ROM or expansion board option
ROM checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently
added, remove it to see if the problem
remains.
4.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
5.
If the message disappears, there may
be a problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
2.
Remove expansion boards.
3.
Replace the system board.
1.
If a PCI expansion card was recently
added, remove it to see if the problem
remains.
2.
In Computer Setup, set Advanced >
Device Options > NIC PXE Option
ROM Download to DISABLE to
prevent PXE option ROM for the
internal NIC from being downloaded
during POST to free more memory for
an expansion card's option ROM.
Internal PXE option ROM is used for
booting from the NIC to a PXE server.
103-System Board Failure
110-Out of Memory Space for Option ROMs
162-System Options Not Set
DMA or timers.
Recently added PCI expansion card
contains an option ROM too large to
download during POST.
Configuration incorrect.
RTC (real-time clock) battery may need to
be replaced.
Run Computer Setup and check the
configuration in Advanced > Onboard
Devices.
Reset the date and time under Control
Panel. If the problem persists, replace the
RTC battery. See the Removal and
Replacement section for instructions on
installing a new battery, or contact an
authorized dealer or reseller for RTC battery
replacement.
144 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
163-Time & Date Not Set
Invalid time or date in configuration
memory.
RTC (real-time clock) battery may need to
be replaced.
Reset the date and time under Control
Panel (Computer Setup can also be used).
If the problem persists, replace the RTC
battery. See the Removal and Replacement
section for instructions on installing a new
battery, or contact an authorized dealer or
reseller for RTC battery replacement.
163-Time & Date Not Set
CMOS jumper may not be properly
installed.
Check for proper placement of the CMOS
jumper if applicable.
164-MemorySize Error
Memory amount has changed since the last
boot (memory added or removed).
Press the F1 key to save the memory
changes.
164-MemorySize Error
Memory configuration incorrect.
1.
Run Computer Setup or Windows
utilities.
2.
Make sure the memory module(s) are
installed properly.
3.
If third-party memory has been added,
test using HP-only memory.
4.
Verify proper memory module type.
1.
Ensure memory modules are correctly
installed.
2.
Verify proper memory module type.
3.
Remove and replace the identified
faulty memory module(s).
4.
If the error persists after replacing
memory modules, replace the system
board.
A memory module in memory socket
identified in the error message is missing
critical SPD information, or is incompatible
with the chipset.
1.
Verify proper memory module type.
2.
Try another memory socket.
3.
Replace DIMM with a module
conforming to the SPD standard.
214-DIMM Configuration Warning
Populated DIMM Configuration is not
optimized.
Rearrange the DIMMs so that each channel
has the same amount of memory.
219-ECC Memory Module Detected ECC
Modules not supported on this Platform
Recently added memory module(s) support
ECC memory error correction.
1.
If additional memory was recently
added, remove it to see if the problem
remains.
2.
Check product documentation for
memory support information.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
201-Memory Error
213-Incompatible Memory Module in
Memory Socket(s) X, X, ...
301-Keyboard Error
RAM failure.
Keyboard failure.
POST Numeric Codes and Text Messages 145
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
303-Keyboard Controller Error
I/O board keyboard controller.
1.
Reconnect keyboard with computer
turned off.
2.
Replace the system board.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Reseat the graphics card
(if applicable).
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
3.
Verify monitor is attached and turned
on.
4.
Replace the graphics card (if possible).
304-Keyboard or System Unit Error
501-Display Adapter Failure
Keyboard failure.
Graphics display controller.
510-Flash Screen Image Corrupted
Flash Screen image has errors.
Reflash the system ROM with the latest
BIOS image.
511-CPU, CPUA, or CPUB Fan not
Detected
CPU fan is not connected or may have
malfunctioned.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
1.
Reseat front chassis fan.
2.
Reseat fan cable.
3.
Replace front chassis fan.
1.
Reseat CPU or chassis fan.
2.
Reseat fan cable.
3.
Replace CPU or chassis fan.
1.
Reseat power supply fan.
2.
Reseat fan cable.
3.
Replace power supply fan.
512-Chassis, Rear Chassis, or Front
Chassis Fan not Detected
513-Front Chassis fan not detected
514-CPU or Chassis Fan not Detected
515-Power Supply fan not detected
Chassis, rear chassis, or front chassis fan is
not connected or may have malfunctioned.
Front chassis fan is not connected or may
have malfunctioned.
CPU or chassis fan is not connected or may
have malfunctioned.
Power supply fan is not connected or may
have malfunctioned.
146 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
601-Diskette Controller Error
Diskette controller circuitry or floppy drive
circuitry incorrect.
1.
Check and/or replace cables.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
3.
Replace diskette drive.
4.
Replace the system board.
1.
Disconnect any other diskette
controller devices (tape drives).
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
605-Diskette Drive Type Error
Mismatch in drive type.
660-Display cache is detected unreliable
Integrated graphics controller display cache
is not working properly and will be disabled.
Replace system board if minimal graphics
degrading is an issue.
912-Computer Cover Has Been Removed
Since Last System Startup
Computer cover was removed since last
system startup.
No action required.
917-Front Audio Not Connected
Front audio harness has been detached or
unseated from motherboard.
Reconnect or replace front audio harness.
918-Front USB Not Connected
Front USB harness has been detached or
unseated from motherboard.
Reconnect or replace front USB harness.
921-Device in PCI Express slot failed to
initialize
There is an incompatibility/problem with this
device and the system or PCI Express Link
could not be retrained to an x1.
Try rebooting the system. If the error
reoccurs, the device may not work with this
system
1151-Serial Port A Address Conflict
Detected
Both external and internal serial ports are
assigned to COM1.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion
cards.
2.
Clear CMOS. (See Appendix B,
Password Security and Resetting
CMOS on page 195.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1152-Serial Port B Address Conflict
Detected
1155-Serial Port Address Conflict Detected
Both external and internal serial ports are
assigned to COM2.
Both external and internal serial ports are
assigned to same IRQ.
POST Numeric Codes and Text Messages 147
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
1720-SMART Hard Drive Detects Imminent
Failure
Hard drive is about to fail. (Some hard
drives have a hard drive firmware patch that
will fix an erroneous error message.)
1.
Determine if hard drive is giving correct
error message. Enter Computer Setup
and run the Drive Protection System
test under Storage > DPS Self-test.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard
drive.
1796-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the
SATA 0 and SATA 1 connectors must be
used before SATA 2 and SATA 3.
Ensure SATA connectors are used in
ascending order. For one device, use SATA
0. For two devices, use SATA 0 and SATA
1. For three devices, use SATA 0, SATA 1,
and SATA 2.
1797-SATA Drivelock is not supported in
RAID mode.
Drivelock is enabled on one or more SATA
hard drives, and they cannot be accessed
while the system is configured for RAID
mode.
Either remove the Drivelocked SATA device
or disable the Drivelock feature. To disable
the Drivelock feature, enter Computer
Setup, change Storage > Storage
Options > SATA Emulation to IDE, and
select File > Save Changes and Exit.
Reenter Computer Setup and select
Security > Drivelock Security. For each
listed Drivelock-capable SATA device,
ensure Drivelock is Disabled. Lastly,
change Storage > Storage Options >
SATA Emulation back to RAID and select
File > Save Changes and Exit.
1801-Microcode Patch Error
Processor is not supported by ROM BIOS.
1.
Upgrade BIOS to proper version.
2.
Change the processor.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the
computer, restore the original memory
configuration, and reboot the
computer.
4.
If the error persists, replace the system
board.
2200-PMM Allocation Error during MEBx
Download
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM.
148 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
2201-MEBx Module did not checksum
correctly
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the
computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the
computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat the
memory modules, and reboot the
computer.
3.
If the memory configuration was
recently changed, unplug the power
cord, restore the original memory
configuration, and reboot the
computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the
system board.
2202-PMM Deallocation Error during MEBx
cleanup
2203-Setup error during MEBx execution
2204-Inventory error during MEBx execution
2205-Interface error during MEBx execution
Memory error during POST execution of the
Management Engine (ME) BIOS Extensions
option ROM.
MEBx selection or exit resulted in a setup
failure.
BIOS information passed to the MEBx
resulted in a failure.
MEBx operation experienced a hardware
error during communication with ME.
POST Numeric Codes and Text Messages 149
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
2211-Memory not configured correctly for
proper MEBx execution.
DIMM1 or XMM1 is not installed.
Make sure there is a memory module in the
black DIMM1 socket and that it is properly
seated.
2212-USB Key Provisioning failure writing to
device
USB device used for USB key provisioning
will not allow BIOS to update provision file
properly.
1.
Try a different USB key device for
provisioning.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Update to the latest ME firmware
version.
2.
If the error persists and system BIOS
has been recently updated, restore
previous system BIOS version.
3.
If the error still persists, replace the
system board.
1.
Recreate the provisioning file using
third party management console
software.
2.
If the error persists and system BIOS
has been recently updated, restore
previous system BIOS version.
Otherwise, update the ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists and system BIOS
has been recently updated, restore
previous system BIOS version.
Otherwise, update the ME firmware
version.
3.
If the error still persists, replace the
system board.
2217-ME Firmware Version request failure
2218-ME Firmware Version should be
updated
2219-USB Key Provisioning file has invalid
header identifier
2220-USB Key Provisioning file has
mismatch version
ME firmware is not properly responding to
BIOS query for version information.
ME firmware must be updated to match
current functionality contained in the system
BIOS.
Provisioning file contained on the USB key
has been corrupted or is not a valid version
for the current ME firmware.
Provisioning file contained on the USB key
is not a valid version for the current ME
firmware.
150 Appendix C POST Error Messages
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
2230-General error during MEBx execution
Error occurred during MEBx execution
which fails into the “General” grouping.
Status information displayed along with the
error provides further clarity into the failure.
MEBx handles transference of information
between the system BIOS and ME
firmware.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
Error occurred during MEBx execution
which fails into “ME” grouping.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
Special system configurations with reduced
ME firmware image require BIOS control of
ME firmware upgrading. A failure has
occurred after the ME firmware update
process in which the BIOS could not relock
the ME firmware region.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
Special system configurations with reduced
ME firmware image require BIOS control of
ME firmware upgrading. A failure has
occurred prior to the ME firmware update
process in which the BIOS could not unlock
the ME firmware region.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version and ME firmware
version.
3.
If the error still persists, replace the
system board.
Electronic serial number is missing.
Enter the correct serial number in Computer
Setup.
2231-ME error during MEBx execution
2232-AMT error during MEBx execution
2233-HECI error during MEBx execution
2239-ME image lock failure
2240-ME image unlock failure
Invalid Electronic Serial Number
Error occurred during MEBx execution
which fails into “AMT” grouping.
Error occurred during MEBx execution
which fails into “MEI or HECI” grouping.
POST Numeric Codes and Text Messages 151
Table C-1 Numeric Codes and Text Messages (continued)
Control panel message
Description
Recommended action
Network Server Mode Active and No
Keyboard Attached
Keyboard failure while Network Server
Mode enabled.
1.
Reconnect keyboard with computer
turned off.
2.
Check connector for bent or missing
pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
Parity Check 2
Parity RAM failure.
Run Computer Setup and Diagnostic
utilities.
Interpreting POST Diagnostic Front Panel LEDs and
Audible Codes
This section covers the front panel LED codes as well as the audible codes that may occur before or
during POST that do not necessarily have an error code or text message associated with them.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of
the computer and refer to the following table to determine the front panel LED codes.
Recommended actions in the following table are listed in the order in which they should be
performed.
Not all diagnostic lights and audible codes are available on all models.
Table C-2 Diagnostic Front Panel LEDs and Audible Codes
Activity
Beeps
Possible Cause
Recommended Action
Green Power LED On.
None
Computer on.
None
Green Power LED flashes
every two seconds.
None
Computer in Suspend to
RAM mode (some models
only) or normal Suspend
mode.
None required. Press any key or move the
mouse to wake the computer.
152 Appendix C POST Error Messages
Table C-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes two
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
2
Processor thermal
protection activated:
1.
Ensure that the computer air vents are not
blocked and the processor cooling fan is
running.
2.
Open hood, press power button, and see if
the processor fan spins. If the processor fan
is not spinning, make sure the fan's cable is
plugged onto the system board header.
3.
If fan is plugged in, but is not spinning, then
replace heat sink/fan assembly.
4.
Contact an authorized reseller or service
provider.
Processor not installed
(not an indicator of bad
processor).
1.
Check to see that the processor is present.
2.
Reseat the processor.
Power failure (power
supply is overloaded).
1.
Open the hood and ensure the 4 or 6-wire
power supply cable is seated into the
connector on the system board.
2.
Check if a device is causing the problem by
removing ALL attached devices (such as
hard, diskette, or optical drives, and
expansion cards). Power on the system. If
the system enters the POST, then power off
and replace one device at a time and
repeat this procedure until failure occurs.
Replace the device that is causing the
failure. Continue adding devices one at a
time to ensure all devices are functioning
properly.
3.
Replace the power supply.
4.
Replace the system board.
A fan may be blocked or
not turning.
OR
The heat sink/fan
assembly is not properly
attached to the processor.
Red Power LED flashes three
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
3
Red Power LED flashes four
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
4
OR
The incorrect external
power supply adapter is
being used on the USDT.
OR
The USDT power supply adapter must be at
135W and use the Smart ID technology before
the system will power up. Replace the power
supply adapter with the HP-supplied USDT
power supply adapter.
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 153
Table C-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes five
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
5
Pre-video memory error.
CAUTION: To avoid damage to the DIMMs or
the system board, you must unplug the computer
power cord before attempting to reseat, install, or
remove a DIMM module.
Red Power LED flashes six
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
6
Pre-video graphics error.
1.
Reseat DIMMs.
2.
Replace DIMMs one at a time to isolate the
faulty module.
3.
Replace third-party memory with HP
memory.
4.
Replace the system board.
For systems with a graphics card:
1.
Reseat the graphics card.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace
the system board.
Red Power LED flashes
seven times, once every
second, followed by a two
second pause. Beeps stop
after fifth iteration but LEDs
continue until problem is
solved.
7
System board failure
(ROM detected failure
prior to video).
Replace the system board.
Red Power LED flashes eight
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
8
Invalid ROM based on
bad checksum.
1.
Reflash the system ROM with the latest
BIOS image. See the “Boot Block
Emergency Recovery Mode” section of the
Desktop Management Guide for more
information.
2.
Replace the system board.
1.
Check that the voltage selector, located on
the rear of the power supply (some
models), is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Unplug the AC power cord from the
computer, wait 30 seconds, then plug the
power cord back in to the computer.
3.
Replace the system board.
4.
Replace the processor.
Red Power LED flashes nine
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
9
154 Appendix C POST Error Messages
System powers on but is
unable to boot.
Table C-2 Diagnostic Front Panel LEDs and Audible Codes (continued)
Activity
Beeps
Possible Cause
Recommended Action
Red Power LED flashes ten
times, once every second,
followed by a two second
pause. Beeps stop after fifth
iteration but LEDs continue
until problem is solved.
10
Bad option card.
1.
Check each option card by removing the
card (one at a time if multiple cards), then
power on the system to see if fault goes
away.
2.
Once a bad card is identified, remove and
replace the bad option card.
3.
Replace the system board.
1.
Install a TXT capable processor.
2.
Disable TXT in the Computer Setup (F10)
utility.
3.
Reinstall the original processor.
Red Power LED flashes
eleven times, once every
second, followed by a two
second pause. Beeps stop
after fifth iteration but LEDs
continue until problem is
solved.
11
The current processor
does not support a
feature previously
enabled on this system.
System does not power on
and LEDs are not flashing.
None
System unable to power
on.
Press and hold the power button for less than 4
seconds. If the hard drive LED turns green, the
power button is working correctly. Try the
following:
1.
Check that the voltage selector (some
models), located on the rear of the power
supply, is set to the appropriate voltage.
Proper voltage setting depends on your
region.
2.
Replace the system board.
OR
Press and hold the power button for less than 4
seconds. If the hard drive LED does not turn on
green then:
1.
Check that the unit is plugged into a
working AC outlet.
2.
Open hood and check that the power button
harness is properly connected to the
system board.
3.
Check that both power supply cables are
properly connected to the system board.
4.
Check to see if the 5V_aux light on the
system board is turned on. If it is turned on,
then replace the power button harness. If
the problem persists, replace the system
board.
5.
If the 5V_aux light on the system board is
not turned on, remove the expansion cards
one at a time until the 5V_aux light on the
system board turns on. It the problem
persists, replace the power supply.
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 155
D
Troubleshooting Without Diagnostics
This chapter provides information on how to identify and correct minor problems, such as diskette
drive, hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter
problems with the computer, refer to the tables in this chapter for probable causes and recommended
solutions.
Safety and Comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment
may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. For more information, refer to the Safety & Regulatory Information guide.
Before You Call for Technical Support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
●
Run the HP diagnostic tool.
●
Run the hard drive self-test in Computer Setup. Refer to Computer Setup (F10) Utility on page 7
for more information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 143 for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is
available. Or, replace the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
156 Appendix D Troubleshooting Without Diagnostics
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to Helpful Hints on page 157 in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional
Edition's online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/
go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers
and HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number, product ID number, and monitor serial number before
calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system from the Recovery Disc Set that you created or restore the system to its
original factory condition in HP Backup and Recovery Manager.
CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data
files before running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized
service provider or dealer.
Helpful Hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check that the voltage select switch (some models) is set to the appropriate voltage for your
region (115V or 230V).
●
Check that the computer is turned on and the green power light is on.
●
Check that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights
are error codes that will help you diagnose the problem. Refer to Appendix A, POST Error
Messages on page 143 for more information.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
Helpful Hints 157
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the
system remains in suspend mode, shut down the computer by pressing and holding the power
button for at least four seconds then press the power button again to restart the computer. If the
system will not shut down, unplug the power cord, wait a few seconds, then plug it in again. The
computer will restart if it is set to power on automatically as soon as power is restored in
Computer Setup. If it does not restart, press the power button to start the computer.
●
Reconfigure the computer after installing a non-plug and play expansion board or other option.
See Solving Hardware Installation Problems on page 180 for instructions.
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (diskette, CD, or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system,
check to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the
other monitor connectors are disabled and if the monitor is connected into these ports, the
monitor will not function. You can select which source will be the default VGA source in
Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied
to the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
158 Appendix D Troubleshooting Without Diagnostics
Solving General Problems
You may be able to easily resolve the general problems described in this section. If a problem
persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the
operation, contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
Table D-1 Solving General Problems
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four
seconds until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to USB keyboard or mouse.
Cause
Solution
Computer is in standby mode.
To resume from standby mode, press the power button or
press any key.
CAUTION: When attempting to resume from standby
mode, do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
System has locked up.
Restart computer.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
First, reset the date and time under Control Panel
(Computer Setup can also be used to update the RTC date
and time). If the problem persists, replace the RTC battery.
See the Removal and Replacement section for instructions
on installing a new battery, or contact an authorized dealer or
reseller for RTC battery replacement.
NOTE: Connecting the computer to a live AC outlet
prolongs the life of the RTC battery.
Cursor will not move using the arrow keys on the keypad.
Cause
Solution
The Num Lock key may be on.
Press the Num Lock key. The Num Lock light should not be
on if you want to use the arrow keys. The Num Lock key can
be disabled (or enabled) in Computer Setup.
Solving General Problems 159
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the F10 BIOS settings to make sure the internal
system speaker is not muted (this setting does not
affect the external speakers).
2.
Make sure the external speakers are properly
connected and powered on and that the speakers'
volume control is set correctly.
3.
Use the system volume control available in the
operating system to make sure the speakers are not
muted or to increase the volume.
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heat sink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on
the hard drive.
Low on memory.
Add more memory.
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved
memory back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Too many applications running.
1.
Close unnecessary applications to free up memory.
2.
Add more memory. Some applications run in the
background and can be closed by right-clicking on their
corresponding icons in the task tray. To prevent these
applications from launching at startup, go to Start >
Run (Windows XP) or Start > All Programs >
Accessories > Run (Windows Vista and 7) and type
msconfig. On the Startup tab of the System
Configuration Utility, clear applications that you do not
want to launch automatically.
1.
Lower the display resolution for the current application
or consult the documentation that came with the
application for suggestions on how to improve
performance by adjusting parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Some software applications, especially games, are stressful
on the graphics subsystem
Cause unknown.
