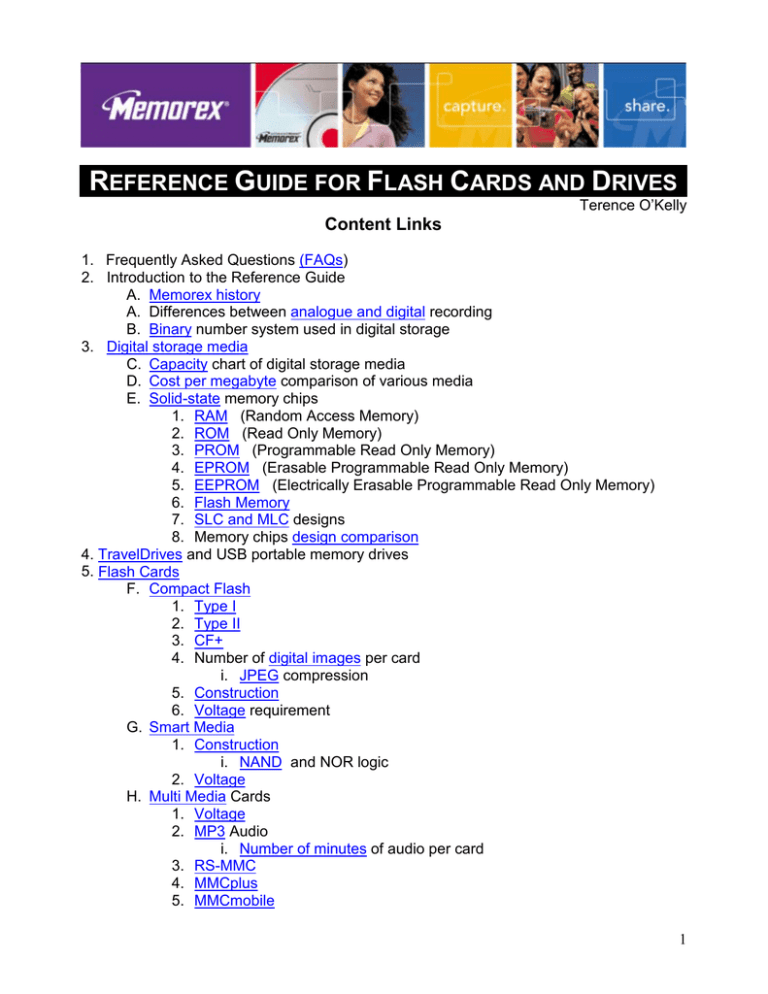

Terence O’Kelly
Content Links
1. Frequently Asked Questions (FAQs)
2. Introduction to the Reference Guide
A. Memorex history
A. Differences between analogue and digital recording
B. Binary number system used in digital storage
3. Digital storage media
C. Capacity chart of digital storage media
D. Cost per megabyte comparison of various media
E. Solid-state memory chips
1. RAM (Random Access Memory)
2. ROM (Read Only Memory)
3. PROM (Programmable Read Only Memory)
4. EPROM (Erasable Programmable Read Only Memory)
5. EEPROM (Electrically Erasable Programmable Read Only Memory)
6. Flash Memory
7. SLC and MLC designs
8. Memory chips design comparison
4. TravelDrives and USB portable memory drives
5. Flash Cards
F. Compact Flash
1. Type I
2. Type II
3. CF+
4. Number of digital images per card
i. JPEG compression
5. Construction
6. Voltage requirement
G. Smart Media
1. Construction
i. NAND and NOR logic
2. Voltage
H. Multi Media Cards
1. Voltage
2. MP3 Audio
i. Number of minutes of audio per card
4. MMCplus
5. MMCmobile
6. MMCmicro
7. MMCmini
8. SecureMMC
9. miCard
Secure Digital
1. SDMI protection
2. MiniSD
3. microSD
4. SDIO cards
Memory Stick
1. MagicGate
2. Memory Stick Duo
3. Memory Stick Pro
xD Picture Card
Applications of flash cards
Comparison of all flash cards
1. Profiles
2. Specifications
Flash card speeds: read and write
Flash card readers
Formatting flash devices
Care and handling of flash media
FAQs about Flash Cards and Drives
There is a lot of confusion about the various different types of flash memory. In order to help
customers make educated choices about the media and formats they choose, Memorex has
assembled a list of Frequently Asked Questions in addition to the Memorex Guide to Flash Cards
and Drives that covers the subject in detail. Click on the blue text to get to the answer to each
question. Some answers have additional links to the Memorex Reference Guide for even more
Flash Media Questions
What are flash media? Why are they called “flash”?
How many different kinds are there?
Which one is the best?
Which one should I get?
What is the Compact Flash?
Why are there two different Compact Flash cards?
My camera takes a 3.3V Compact Flash. Which one should I get?
I can’t find 8MB Compact Flash cards anymore. What happened?
One CompactFlash card I have doesn’t work, and every device I put it into fails to work
after I use it. Could it be corrupting files or something?
10) What are Smart Media?
11) I have a camera that takes Smart Media, but the card won’t fit. What gives?
12) My original digital camera came with an 8MB Smart Media card. I tried your 32MB card
and it doesn’t work. What’s wrong?
13) Why do my Smart Media cards work fine if I format them in my camera and use them in
the camera and on my Windows XP computer, but if I format them on my computer, they
don’t work?
14) I have two cameras that use Smart Media cards. I can’t switch a Smart Media card from
one camera to another to add more pictures. Why not?
15) What are MultiMedia cards?
16) What are Secure Digital cards?
17) What is an SDIO card?
18) MultiMedia and Secure Digital cards look the same. Are they really just the same?
19) What are Memory Sticks?
20) What is digital film?
21) If these things are digital film, should I keep them out of the airport X-ray machines?
22) Some digital film cards are faster than others. Should I use the faster cards for taking
pictures in low light?
23) What do I have to do to protect these things? It seems nothing can hurt them but sitting on
24) How many times can I erase and rerecord information on my flash card?
25) After I erase files by deleting them from my flash card a few times, the card doesn’t work
as well. Is it wearing out?
26) My camera tells me that my flash card has errors on it. Now what?
27) My flash card is supposed to hold 256MB of data; but when I get close to filling it up, it
doesn’t work. Is it mislabeled?
28) I can’t get my flash card reader to work. What’s wrong?
29) My doesn’t my Memorex TravelDrive show any files on it in Windows 2000 when the
write/protect switch is on? They show up in Windows XP.
The answers to the questions follow below. Click on the link to the Memorex Reference Guide to
Flash Cards and Drives to get more detailed information, including pictures and charts. If you have
a question not listed in our FAQs, E-mail the question to us; and we will add your question and the
answer to the most frequently asked questions.
1) Flash media are electronically programmable memory chips popularized as storage media
for digital cameras, camcorders, laptop computers, personal digital assistants, and MP3
players as well as many other devices. They are called “flash” because a sudden “flash” of
voltage changes their data memory. See the Reference Guide section on EEPROM
memory chips.
2) There are seven different types: PC cards, Compact Flash, Smart Media, Secure Digital,
MultiMedia, Memory Stick, and xD digital cards. The latter six are the most common.
3) The cards are not distinguished by good, better, best. The main difference is in the size
and weight of the card versus its capacity. Devices that need a lot of storage capacity,
such as high-resolution digital cameras, often use the Compact Flash because it is the
largest and can hold the most. Small, hand-held devices favor the smaller MultiMedia or
Secure Digital cards for reasons of size and weight.
4) Your digital device determines that. If your digital camera takes Compact Flash, that is the
one to get. If your camera takes Smart Media and your laptop takes Compact Flash, get a
combination reader for your desktop computer to transfer both types. There are universal
flash readers that will read and write to all seven of the most common types.
5) The Compact Flash, despite its name, is the largest version that is capable of storing the
most data. It was called compact because it was so much smaller than PC cards when it
was introduced.
6) Compact Flash I is thinner than the Type II. The Type I is 3.3 mm thick and the Type II is
5.0 mm, similar to the thickness of the PC card types. Because Type II cards are thicker,
they can hold more data than Type I cards. Type I cards will fit into Type II slots, but not
the other way around because Type II cards are too thick for Type I slots.
7) Compact Flash cards are compatible with 3.3- or 5.0-volt devices. There is no need to
choose one suited by voltage.
8) As production costs for the larger capacity 64MB, 128MB, and 256MB have decreased and
prices have come down, costs for the lower capacity cards have remained the same. Since
the prices would end up being the same for a 32MB card as an 8MB card, manufacturers
have decided to concentrate on offering customers the better value. The same thing also
holds true for the other flash cards.
9) It is not corrupting files, but it may be doing something worse. If one of the small openings
in the CF card is even slightly closed by having a plastic edge folded over, the card not only
will not work, it may also bend the particular fragile pin in every camera or reader into the
card is inserted. Check the bottom of the faulty card to see if one of the squares is closed
in. It may be possible to reshape it properly, but bending the pins back is delicate business.
10) Smart Media are thinner flash cards than Compact Flash. They do not have a controller
built into them, so that reduces weight, thickness, and cost, although market prices have
fallen so quickly that price savings are hard to see.
11) Check to see what voltage Smart Media card the camera requires. It may be that you have
a 5.0-volt card that is designed not to fit into the slot for a 3.3-Volt Smart Media device. See
the Reference Guide for more details.
12) Smart Media cards do not have controllers in them, unlike other flash memory cards. The
controllers are in the devices that write to them or read from them. If your digital camera is
an early version whose controller is limited to capacities of 16MB, it will not recognize larger
capacity cards. Unless you can get a firmware upgrade from the camera manufacturer, the
larger cards will not work in your camera.
13) The problem is a difference in the formatting. When you format your Smart Media in your
camera, it is using an older FAT (File Allocation Table) format that goes back to the time
when floppy diskettes were the main computer storage medium. Windows XP recognizes
that format; but when XP does its own formatting, it defaults to FAT32, a newer file system
that cameras do not recognize. The solution is to do your formatting in the camera (unless
you want to try to use your computer to format in FAT16 instead of FAT32). Some newer,
high performance cameras, such as the Canon EOS-1 DS, will be using FAT 32 as the
standard format.
14) The answer has to do with the design of the Smart Media cards. In order to make them as
thin and light as possible, the controller chip that is in charge of writing data is left out of the
card and sits in the writing device. Your cameras may have different software running the
controllers in each camera, and they do not handle data the same way. You will have to
format separate Smart Media cards for use in each camera.
15) MultiMedia cards are the smallest, thinnest, and lightest of all, about the size of a postage
stamp. This is an advantage for small, hand-held devices that try to avoid extra weight.
16) Secure Digital cards are very similar to MultiMedia cards in size, but they have several
extra features: built-in copyright protection, a write/protect switch, and faster read and write
speeds. They are also a bit thicker than MultiMedia cards.
17) An SDIO (SD Input/Output) card is any mobile electronic device that performs high-speed
data transfer using the SD-type port. An SDIO card is compatible with SD in terms of
mechanical, electrical, power, signal, and software parameters and consumes very little
power from the host. Examples of SDIO cards are Wi-Fi transmitters, GPS locaters,
modems, digital tuners, and cameras.
18) Although they look almost identical, the Secure Digital card is slightly thicker. That
prevents them from sliding into MultiMedia slots, but MultiMedia cards do work in the thicker
Secure Digital slots. There are other differences in the design features.
19) Memory Stick is a flash card designed and developed by Sony and used in many Sony
20) “Digital film” is a phrase used to describe any flash medium. It refers to their most popular
application in digital cameras.
21) X-rays can damage photographic film because they are a form of energy similar to light
energy, but we cannot see it. Film will “see” X-rays and record them. The energy is not
enough to affect flash media; so they are safe for the X-ray equipment used in airports.
Very large doses of radiation, however, such as those proposed as security for U.S. postal
letters, will destroy flash media as well as any information on them.
22) Speed in terms of photographic film refers to how fast the film will react to available light.
Faster films need less light and are better in low-light situations. “Digital film” is only an
analogy for flash cards. The speed of flash cards is unrelated to the speed of film. Flash
card speed refers to the rate of data being transferred to or from the card. The term “1X” is
equal to 150 kilobytes per second, the same rate of data transfer speed as that from a CD
audio disc as it plays. Some cards have fast controllers that will allow speeds of 12X
(1.8MB/sec) or even 16X (2.4MB/sec). Faster cards may improve the speed of a camera
taking multiple shots, but only if: a) the camera is designed for faster speeds, b) the
camera’s RAM buffer memory is large enough, and c) a flash lighting is not needed. The
recharging of the light will take the most time, and that occurs most in low-light situations.
23) Sitting on them may bend them enough to damage the circuitry on the inside, but they are
remarkably free from most environmental dangers. Even dropping them on a rug won’t
damage them, but a drop to a hard floor might---except for the rugged Compact Flash.
Keep them in temperature and humidity ranges comfortable for human beings and in
protective packaging and they should be OK. Note answer 13, though.
24) Flash media should be able to withstand at least 1 million erase/record cycles without any
25) The card is not wearing out, but the filing arrangement for data can develop errors after
time. Instead of just deleting files, it is better to reformat the entire card in the camera or
camcorder that is using it in order to keep the file structure perfectly intact. Tip: after
reformatting, the camera will automatically number photo files from the beginning, which
means new photos will have the same file names and numbers as older photos you may
have stored on other media such as hard drives or optical discs. You will have to rename
the older or new photos in order to avoid name conflicts if they end up stored in the same
file folder.
26) The error message most likely means that data on at least one file are corrupt. The likely
cause is incomplete information either from: a) a battery that did not have enough power
during a write cycle, b) turning off the camera before a write cycle was complete, or c)
pulling the flash card out before the write cycle was finished. Reformatting the card will
likely restore it, but all the data on it will be lost.
27) Once a rewritable/erasable storage medium gets close to being completely full with data,
the filing system gets frantic trying to find more room. It is always wise not to try to fill a
flash card or rewritable optical disc to full capacity. Leave a little “breathing room” for the
file system.
28) There are several reasons why a flash card reader may not work properly:
a. Improper installation—Memorex readers are USB devices that are plugged into the
USB port before the computer is turned on. Once the computer is booted up, plug
and play recognition will identify the reader and load the drivers for it.
b. Lack of drivers—some flash readers come with a CD-ROM that has the proper
driver set for the reader while other readers rely on plug-and-play recognition. If the
proper drivers are not in your computer, you can download them from Memorex’s
website at:
c. Lack of support for the device—the Apple Mac OSX operating system in its earliest
configuration did not offer built-in (“native”) support for Smart Media readers; so
drivers had to be installed by users. The early OSX did not support multi-level
devices such as the combination Compact Flash/Smart Media or multi-flash
readers. Updates to the Mac operating system will likely add the necessary drivers.
You can check the Memorex website for more detailed information on software
conflicts and the fixes.
29) This can happen if the TravelDrive is formatted in the NTFS format instead of the standard
FAT32 or FAT format. Unlocking the write/protect switch will free up the files, but it is still
better to use FAT32 formatting with these drives in order to have them work best in
Windows 98SE, Windows Me, and Windows 2000.
Memorex has long been one of the world’s foremost suppliers of media for memory storage. The
very name of the company is a shortened form of “MEMORy EXcellence” that started in 1961 with
the manufacture of half-inch 9-track computer tape and progressed to audio and video cassettes,
digital audio cassettes, and computer diskettes. As technology developed, Memorex expanded to
optical storage media such as recordable and rewritable CDs and DVDs and has become one of
the world’s leading suppliers. Now, as the long-promised age of solid-state memory storage has
expanded to familiar consumer products, Memorex offers a number of USB-based flash memory
storage drives. Memorex believes that many of our customers are curious to know more about the
products they are using. In our commitment to “memory excellence,” we hope to explain the
technology behind the products we sell, particularly the very latest products. The Memorex
Reference Guide to Flash Media explains these solid-state storage media in simple, non-technical
language. Very technical information that may be of interest only to the most interested readers
appears in the green-shaded passages.
People simply cannot remember everything they want to recall over the course of time, so they
make a “record” of it, a word that means “remember by heart.” Our hearts are no more reliable
than our brains; so our records are stored elsewhere on various media, each of which has
advantages and disadvantages. The first media were cave walls, wonderful for permanence but
lacking in portability. Stones, papyrus, parchment, and paper all replaced cave walls as more
portable and accessible if less durable media, but each medium lacked a fundamental property
long desired by anyone committing data to a record—the ability to easily change the data to
account for mistakes, changes, or additions. That ability came with magnetic media: tapes and
discs that could be easily altered without destroying the integrity of the earlier information.
Magnetic media have been the chief type of memory storage for the last sixty years; but they are
prone to damage from unintentional magnetic fields, misalignment of moving parts, and wear.
Optical media such as CD-RWs and rewritable DVDs have avoided most, but not all of the wear
problems by using light to read stored information. (Wear in the form of severe scratches from
rough handling can still threaten the data). These discs still rely on the mechanical accuracy of
laser tracking servomotors and drive motor speeds to store and retrieve our data. The ideal has
long been a medium with no moving parts at all: solid-state memory in a small, portable, protected
format with great storage capacity. Flash media have finally achieved that ideal, but with little
fanfare and recognition. In the entire history of recording media, flash memory is one of the most
amazing achievements; but in our insatiable desire for greater storage capacity, we often overlook
these tiny memory cards. People most often discover them first when they invest in a digital
camera, but the features they offer make them wonderfully suited for a wide variety of applications.
Sooner or later, flash media will become a common form of memory storage in everyday life.
These cards use digital technology, as do so many of today’s technological advances. The world
has quickly accepted “digital” as a distinction of superior technology and quality, often without fully
understanding what it means in everyday products. Long familiar items such as cameras and
televisions are being “digitized”; and although most people know that digital products can be used
in conjunction with their computers, they are not wholly comfortable with what digital truly means.
Analogue comes from two Greek words loosely meaning “word for word,” as in a translation. The
adjective is a way of describing information in one understandable way analogous to or similar to
the actual way. The description is often applied to the use of a “picture for picture” instead of a
“word for word” translation. For example, an analogue clock has hands that make a complete
circuit in a minute or in an hour or in half a day, depending on which hand it is. The hands
continually go around just as the earth turns completely around on its axis in a day. Photographs
are analogue recordings of the light that entered a camera 1 lens and altered the chemistry on
photographic film on the back wall. Reproductions can be made onto paper from the film or even
from the paper. The problem with this system is that the information gets mixed up with the flaws
of the medium. A clock hand that does not keep up with the other hands gives inaccurate
information. Dust or a scratch on photographic film or on a photograph reproduced from the film
will show up on all copies produced from them.
Digital recording is a method that avoids these flaws. Digital recording does not try to draw or
imitate the information that is being saved. Instead, it converts the information into a mathematical
code that ignores the flaws of whatever medium is storing the data. To use an analogy, a canvas
painting of a landscape records the landscape with all the “flaws” of canvas and paint texture
(those “flaws” that make a painting an inaccurate but artistic impression). If oil is spilled on the
painting, it is difficult to restore what was there because the oil becomes part of the record. If,
however, someone recorded the landscape with a “paint-by-number” scheme in great detail, the oil
would not matter. The oil stain had no numbers assigned to it, so the artist could reproduce the
landscape by following the number code exactly. The more numbers involved, the more accurate
and detailed the reproduction would be—and every copy would be almost identical to the original.
The word digital refers to digits or numbers. It comes from the Latin word digitus, or “finger,”
because everyone learns to count on his or her fingers. We have ten fingers; so our common
numbering system is to the base 10 and uses ten digits—0 to 9. The mathematical code used in
digital recordings is very intricate and needs computer chips to encode and decode, but computers
don’t have fingers. They have transistors that recognize only two states: on/off (or “0/1,”
“change/no change,” “+/-,” etc.). Computer engineers use the binary numbering system for
computers, a numbering system to the base 2 that needs only two numbers, 0 and 1, to construct
any value. Expressing the same number 3723 in both our common decimal system (10) and the
binary (2) numbering system shows the differences between the two.
The decimal system uses digits 0 to 9. Each column is 10X greater than the one on its right.
1 millions 100 thousands 10 thousands thousands hundreds tens ones
= 3,723
The binary system uses only digits 0 and 1. Each column is 2X greater than the one on its
2048’s 1024’s 512’s 256’s 128’s 64’s 32’s 16’s eights fours twos ones
+ 1,024 +
512 +
+ 128 +
+ 0 + 0
= 3,723
”Camera“ is Italian for “room.” In 1558 Battista della Porta constructed a darkened room with a lens fitted into a small hole in one wall.
Light entered the lens and produced an upside down image on the opposite wall of whatever was visible through the lens. He called the
room his “camera obscura.” Film cameras work on the same principle, and photosensitive film rests on the “back wall” of the room.
In our familiar decimal system, each column of digits goes up by a factor of 10. The number 3723
is represented by 3,723 with a comma often separating each of the sections worth a thousand. In
the binary system that computers understand, 3723 is represented by the number 111010001011
for which each column represents a factor of 2. Each column is twice the value of the column to its
right. We count by 10’s (fingers). Computers count by 2’s (on/off transistors).
The binary digits that computers use are called “bits.” These bits are organized into “words”
containing eight bits called, in a fit of early computer geek humor, “bytes.” It is these words that
commonly describe capacities such as a kilobyte, megabyte, gigabyte, and so forth. Because
these capacities are based on a binary system, there is often confusion about the true value of the
numbers. A kilobyte literally means “1,000 bytes”; but because the number base is a 2, not a 10,
the closest binary number to 1,000 is 210 or 1,024. A kilobyte is actually 1,024 bytes in the binary
way of counting. The base 2 math appears in the order of capacities of flash media: 4MB, 8MB,
16MB, 32MB, 64, 128MB, 256MB, 512MB, each being double the previous version.
Flash Media Capacities
unformatted capacity in MB
2HD floppy flash card
16 MB
flash card
32 MB
flash card
64 MB
flash card
128 MB
flash card
256 MB
flash card
512 MB
flash card
Figure 1
In the earliest days of computers kilobytes meant a lot of information. That did not last long.
Technological progress has made computers faster, smaller, and less expensive and has made
the storage media for them capable of greater capacity while also shrinking their size and cost.
Memorex’s half-inch computer tapes gave way to 8” floppy disks, then 5 ¼” diskettes, then the 3.5”
diskettes that are now being replaced by CD-Rs and CD-RWs. The ideal memory storage product
has been a medium that offered a number of advantages that no previous media had offered
• small, light-weight, portable format
• high storage capacity (Figure 1)
• fast data transfer
• erasable
• no moving parts to be misaligned or calibrated
low power requirements to prolonging battery life
low cost (Figure 2)
Flash memory offers all but the last; but as people become more accustomed to the technology
and increasing demand allows production to increase also, costs will continue to decline as they
have for the last few years (Figure 2).
Costs Per Megabyte
cost per megabyte
flash card flash card flash card flash card flash card flash card flash card CD-RW
64 MB 128 MB 256 MB 512 MB
700 MB
Figure 2
Expressing file sizes
Computers calculate in binary form; humans calculate in decimal form because of our 10 fingers. Even
though “digital” comes from the Latin word for finger, digital data are calculated as binary amounts. The
difference has led to a great deal of confusion over capacities. The numerical expressions for the large
amounts of data use prefixes from Latin and Greek decimal numbers. When applied to binary numbers,
these terms are not accurate because the binary numbers are always slightly greater than the decimal
expressions. As the numbers grow in value, the difference becomes larger. Computers express file sizes in
binary terms. Storage media such as drives, optical discs, and flash media generally use the decimal
method according to the standard recommended by IBM in the 1950s. The difference in value was of little
significance then, but as capacities have grown, the difference has also grown:
Literal, decimal
Suggested Change
Value in Binary Terms
For Binary Values
The difference is most obvious when one compares the stated capacity of some storage media with the
computer’s calculation of that capacity. A “10GB drive,” for example, may have 10 billion bytes of storage
capacity, but the computer will divide by 1,024 to determine the number of gigabytes rather than by 1,000; so
it will claim capacity to be 9.3 GB, not 10GB. A 4.7GB DVD holds almost 4.7 million bytes of data, but in
binary terms that is a mere “4.37GB.” Some groups have called for new terminology to define the “kilo
binary byte” as a “kibibyte” to distinguish it from a decimal “kilobyte” in order to reduce the confusion. The
last column above is the proposed list of new terminology to distinguish binary values. Others, ignoring the
heritage of IBM, Greece, and nature’s ten fingers, have claimed the storage industry is cheating the
consumer because the computer is always right. The difference between stated capacity of a medium and
what the computer claims it to be is compounded by formatting that takes up some of the capacity of
rewritable media. They need to reserve some of their capacity for file addresses and error correction, and
the media cannot be used unless they are formatted with that information first. The amount of capacity taken
up varies according to the software used to format the medium, but it can be a significant portion of total
medium capacity.
This reference guide will refer to the stated capacity of storage media in order to keep things as clear as
Flash media cards are the latest in a series of solid-state memory devices that have been around
for some time but are usually hidden within other products. What makes flash memory cards
distinct is the fact that they are removable and easy to erase, unlike their predecessors. In other
ways, however, they carry the vestiges of the types of memory chips known mainly to computer or
electronic engineers.
Chip Memory
Variable links
Word lines
Bit lines
Figure 3
Memory chips all begin with the same basic design in their electronic circuitry formed in a grid
pattern (Fig. 3). One series of lines in the grid forms the computer binary words (8 bits in a word)
of digital data, and the other series of lines in the grid forms the binary bits that make up each
word. If there is a connection between the bit line and the word line where they intersect, the value
of that bit is 1. If there is no connection, the value of the bit at that point is 0. In the example in
Figure 3, the first line of an imaginary 3-bit word would be 101 because there is no link in the
middle, reading the word from left to right. The value of the next word line is 111 because all three
links are in place. The last word line has a value of 011 in binary form because there is no link
between the bit line and the word line at the first intersection. This is the fundamental way memory
chips work. With thousands of bit and word lines they can store tremendous amounts of
information. What is different about each type of memory chip is how the links are designed to
operate in each one.
RAM stands for “Random Access Memory.” RAM chips use transistors to link the bit and word
lines, and they need a constant energy source to keep the information stored. Once the power
source is removed, the transistors lose whatever information was retained until power is restored
and new information is sent to the chip. This characteristic is described as “volatile” because the
information simply “flies away” once a power supply is removed.
ROM is “Read Only Memory.” ROM chips use diodes in place of transistors as the links between
bit lines and word lines. Diodes will pass electric current in only one direction once the voltage
reaches a particular threshold (usually 0.6 volts in ROM chips). ROM chips are designed with all
the information programmed in them so that diodes only appear at intersections where the value is
supposed to be a 1. If the value is supposed to be 0, there is no link at all at that intersection. The
information designed into the chip with the presence or absence of diodes is permanent and
unchangeable because the diode links cannot be altered.
ROM chips are inexpensive to make; but in order to test whether their design is correct in the first
place requires “programmable read only memory, or PROMs. The links in these chips are fuses
that conduct electricity between all the bit and word lines for values of 1 across every intersection
of the entire chip before the chip is programmed. The programming process sends high enough
current 2 down every fuse link that is supposed to be zero and “burns” out the fuse so that no link is
left and the intersection will now read 0. Programming or burning the PROM is done only once.
The information is “permanent” unless an accidental burst of electricity from a discharge of static
electricity burns out more fuses.
The Erasable Programmable Read Only Memory, or EPROM, allows a chip to be programmed,
erased, and reprogrammed again. In the evolution of memory chips, they are very close to flash
memory chips in the way the function. The link between the bit line and the word line consists of
two transistors separated by a thin layer of oxide. The first transistor is called a “floating gate,” and
the second is a “control gate.” As long as electricity flows through these gates at a value of 50% or
more of the intended current, the intersection is considered a 1. In order to get the value to 0, a
voltage of 10 to 13 volts is applied to the floating gate so that electrons are forced through to the
other side of the oxide layer 3 where they block current from flowing to the control gate. If the flow
of current through the floating gate/control gate link is less than 50% of its intended value, that
intersection has a value of 0. Erasing the chip requires the application of an ultraviolet light at a
precise wavelength of 253.7 nanometers through a quartz crystal window in the chip to restore all
the links to 1s, a tricky process that requires removing the chip and erasing everything on it.
EEPROM—(nearly there)
Electrically Erasable Programmable Read Only Memory gets around the erasing problem of
EPROMS by using an electrical field to erase the information and restore each link to a value of 1.
The advantage of EEPROMS is that users do not have to remove the chips to erase them and
erasure does not have to apply to the entire chip, only to the selected links. The disadvantage is
that the erasure is done one byte at a time, a very slow process in computer time.
”Current” describes the flow of electricity; voltage describes the power pushing it. If electricity were water, a rain shower would be
high current (fast moving) but with low voltage (not a lot of force in each drop). A pinhole leak in Boulder Dam, on the other hand, would
be similar to low current, high voltage—not much flow, but a lot of force behind it. A shock of 50,000 volts is about the same as a static
spark resulting from walking on a rug in a dry room in winter—lots of volts, very little current. A bolt of lightning has about the same
voltage as the static spark—but it is the tremendous current of the lightning bolt that lights up the sky and does the damage.
This is a process physicists call “Fowler-Nordheim tunneling.”
Finally Flash
The development of flash memory solved the problem of slow one-byte-at-a-time erasure of the
EEPROMs by using in-circuit wiring across the chip so that either the entire chip could be erased
or only selected sections known as blocks. Writing to the chip is also faster because data can
transfer at a rate of 512-byte sections instead of the EEPROMs’ slower individual bytes. The links
are much the same design as those in EPROMS and EEPROMs— floating gate/oxide layer/control
gates. Figure 4 shows a connected link that allows electricity (the yellow arrow) to flow through the
floating gate, the thin oxide layer, and the control gate at a rate of at least 50% of the intended
current. As long as the current flow is above 50%, the link is in place and the intersection has a
value of 1.
Figure 4
Figure 5 shows the same link with a 10-13 volt charge (the black arrow) applied to the floating gate
transistor that forces electron blockers through the thin oxide layer to its other side. The electrons
reduce current flow (the yellow arrow) to the control gate to less than half its value, and that
effectively makes this intersection a 0 in binary terms because the link is no longer recognized. In
order to restore the flow of current through the control gate and change the value of the link back to
a 1, a higher voltage field is applied to remove the electron blockers. Figure 6 is a comparison
chart listing the various types of memory chips with their advantages and disadvantages.
There are two types of cells known as single level cells (SLC) and multi-level cells (MLC). In order to reduce
the cost of memory, designers developed a more complex MLC design that doubles the amount of memory
on a single chip. The simpler, more expensive SLC uses one bit of data for each cell and holds that bit in
one of two states: “1” for erased or “0” for programmed. The MLC design stores 2 bits in each cell in one of
four possible states: “11” for erased, “10” for two thirds, “01” for one third, or “00” for programmed. MLC
designs have a clear advantage in terms of density and lower cost of manufacturing, but their complexity
necessitates more error checking. The enhanced EDC (error detection and correction) eats up part of the
storage capacity MLC gains, and the extra complexity slows the memory chips down considerably. Simpler
SLC chips can write up to three times faster than MLC chips and read over 40% faster. Durability tests
suggest that SLC chips may also be more reliable than MLC chips. One study showed SLC chips capable of
100,000 read/write cycles compared to MLC’s 10,000 cycles. Certain requirements for faster read/write
cycles, such as Windows® ReadyBoost™, have lead to dual-channel MLC chips that are much faster than
single MLC memory chips and competitive with SLC in terms of speed.
Figure 5
Comparison of Memory Chips
type of link
loses memory if power is lost
inexpensive in large volumes
needs UV light for erasure
slow erasure and writing
expensive but costs are declining
Figure 6
Further development of flash memory technology led to these chips appearing in removable cards
of different designs and sizes for different applications and USB-based “drives” used as the latest
way to transfer large files quickly, easily, and safely. These fast, noiseless, lightweight, and
portable media with no moving parts are the first solid-state memory products for general
consumer use. As their storage capacities increase and production costs decrease, they will
compete with optical discs as the main storage media in the future, finally putting magnetic tape
into the same category as cave walls and papyrus as quaint forms of storing information.
TravelDrives are not really drives at all since nothing moves
inside. They are flash memory devices in the shape of small
cartridges no larger than a thumb. One end of the device is a
USB connector that plugs into a USB port so that the computer
recognizes the device as a removable drive. The fact that the TravelDrive is solid-state memory
and not a real mechanical drive means that it is a durable, safe, and reliable means of storing or
transferring files. A real drive in such a small form is both more expensive and delicate. The small
shape and lightweight design of many of these USB portable devices make them suitable for
sticking them in a pocket or even attaching to a key chain with little worry about any damage to the
memory card or to the data stored on it. TravelDrives also have two built-in protection features:
1) a locking write/protect tab to prevent accidental erasure of important files (not on all models); and
2) a warning LED that lights when the device is attached to a USB port and flashes as data are
transferred to the device. The flashing LED is a reminder not to remove a TravelDrive while data
are being transferred to or from the drive in order to prevent corrupted files.
TravelDrives contain memory chips with capacities of up to 8GB and a USB controller for
transferring files. PCs with Windows ME/2000/XP/Vista and Apple Macintosh OS from 8.6 and
newer accept these USB portable memory devices as plug and play removable memory and,
therefore, need no drivers to use them. Windows 98 and 98SE require the installation of a driver in
order to recognize these USB storage devices, and drivers are sometimes included with them.
All recent Memorex TravelDrives are USB 2.0-compatible devices, which means that they can
transfer data through a USB 2.0 port more than ten times faster than through a slower USB 1.1
port. The USB 1.1 and USB 2.0 TravelDrives can be used in either type of USB port, but the 2.0
version will deliver its higher transfer speed only in the faster USB 2.0 ports.
The memory chip used in USB flash devices and in all flash cards is known as a NAND-type EEPROM.
“NAND” means “not and,” a type of memory logic referred to as Boolean logic after George Boole, who
argued that logic was a mathematical, not philosophical exercise. Boole devised a logic system in 1853 that
consisted of different types of logic “gates” that define the steps in coming to a logical conclusion. An AND
gate would mean that if one input were a value of 1 AND a second input were also 1, the result is a 1, too.
The NAND gate is the opposite: under the premise above that Input #1 AND Input #2 are both values of 1,
the result is 0. The NAND logic has a counterpart known as ”NOR-type” (“not or”) logic. By arranging a
series of different interconnected electrical logic circuits, the final results will always be “remembered” as
either a value of 1 or 0 depending on the inputs. That’s how the circuit attains its “memory.” Unless one is a
mathematician or a computer engineer, it is easier to distinguish NAND logic from NOR logic by the layout of
the memory cells. Memory cells in NAND chips are arranged in series while the NOR memory cells are
arranged in parallel. NAND chips have fast write and erase abilities because they write in small blocks of
information rather than in single bytes. What NAND architecture gains in read/write speeds, however, it
gives up to NOR logic in quick random access. NOR logic chips are used for applications using binary code
rather than memory, such as a computer’s BIOS or a device’s firmware.
NAND Flash
•Transistors arranged in series
•Software allows devices to work similarly to disc
NOR Flash
• Each transistor stands alone.
• Works as internal memory with fast random
access to any location
•Erase cycles: 100,000 for SLC; 10,000 for MLC*
•faster write and erase times
•greater data density and capacity
•less expensive than NOR
• 100,000 erase cycles
• fast read/slow write and erase
• generally limited to 32MB capacity
• more expensive/byte than NAND
•USB Drives and Flash Cards
BIOS and firmware
* These erase cycles do not mean that the devices can only be accessed or changed 100,000 or 10,000 times.
A “wear
leveling” feature in flash memory distributes the changes in the memory cells to prevent some cells from seeing changes
all the time while other cells are ignored. Wear leveling distributes the changes around the cells so that they all approach
the 100,000 or 10,000 cycles uniformly.
USB memory drives have been growing in popularity because of their usefulness and simplicity.
Unlike flash cards with their confusing array of shapes and sizes that determine their application,
USB drives use the universal USB connection as their standard connection and use their multiple
shapes and sizes for as expressions of style. USB drives are, in fact, merely flash cards with a
standard connection that makes them easy to use.
The first cards on the market were PCMCIA cards named for the Personal Computer Memory Card
Industry Association that set the standards for these cards. These cards come in three types of
increasing thickness for different applications: Type I is 3.3 millimeters; Type II is 5.0 mm; and
Type III is 10.5 mm. The Type I cards can fit into Type III slots, but the reverse is not true because
of the greater thickness of the Type III card. Laptop computers immediately adopted these storage
devices because of the advantages of flash memory in terms of capacity, small size, erasable and
non-volatile memory, and low power consumption. The PCMCIA or “PC” cards were an immediate
hit, and development work began on other designs that would incorporate the same advantages
with other additional features, particularly smaller sizes. The results are a variety of flash memory
cards and, perhaps, more confusion than is necessary.
In 1994 the Compact Flash appeared as a smaller alternative to the PCMCIA card. It was onefourth the volume of the PC card with only 50 contact pins instead of the PC card’s 68 pins, but it
used the same type of connecting slot. There are two versions of the CF card: Type I, the more
common version, with a thickness of 3.3 millimeters; and Type II, with a thickness of 5.0 mm. Like
the PC cards with their varying thickness, the Type I can fit into all Type II slots, but not vice versa.
Although these cards were dubbed “compact” when they were introduced, today they are the
largest of the cards most commonly used.
Many people expected the CF cards to lose in
popularity to newer, smaller cards introduced since 1994; but their larger physical layout has
actually worked in their favor, particularly for digital cameras that have grown in both sophistication
and in their requirements for larger storage capacity. The larger physical dimensions of the Type II
Compact Flash cards allow their capacities to reach 16GB, three and half times more than a DVD!
The increased capacity is handy because digital cameras have moved from the resolution provided
by one million pixels (1 megapixel resolution) to that of 10 megapixels in the most advanced
cameras as their picture resolution exceeds the theoretical “film quality” of 7-8 megapixels. A
Minolta Dimage 7, a 5-megapixel camera, can hold 22 “economy” quality pictures on a 16MB
Compact Flash card at its highest 2560x1920 image resolution setting, but only 1 “Super Fine”
picture at that resolution. A standard SLR film camera, on the other hand, will take 24 “film quality”
pictures on a typical role of 35-mm. film. The Minolta Dimage 7 would need a 128MB Compact
Flash card to hold 7 or 8 Super Fine pictures at its highest resolution (2560x1920), but the same
card could hold almost 60 “Fine” pictures and over 170 economy photos. Figure 7 is a chart of the
differences between typical cameras’ flash card capacities for two different quality settings
producing medium sized pictures at a resolution of 1,024x768. As the numbers in the chart show,
the more advanced the camera, the more storage capacity it needs.
Number of Images per Flash Card
1 megapixel
2 megapixel
3 megapixel
4 megapixel
5 megapixel
6 megapixel
File size of 1 image
340/120 kB
450/155 kB
591/174 kB
1002/278 kB
1600/340 kB
2100/450 kB
8 MB
Figure 7
JPEG (Joint Photographic Experts Group) is a file format with several different levels of compression that
range from fine (1:4) to normal (1:8) to basic (1:16). These levels are commonly expressed as quality
ranges of “economy, normal, fine, or even superfine.” Compressing the picture information allows more
images to be stored because the files are smaller. Some digital cameras also allow uncompressed images
in a TIFF format (Tagged Image File Format) that end up being very large files. Compression artifacts are
generally not noticeable unless pictures are enlarged dramatically; but resolution is also a factor in
enlargements, and that resolution depends both on the number of recording pixels built into the camera and
the selected size of the image. Smaller images on the order of 640x480 pixels of resolution will show few
artifacts. Larger images of 1600x1200 or 2560x1920 will tend to show more artifacts unless the camera has
enough pixels to better resolve the images. For decent picture quality, a 1.3-megapixel camera can
reproduce a maximum of 5-inch by 7-inch prints. For 8x10-inch pictures, a camera should have at least 2
megapixels. As the chart shows, cameras with a greater number of pixels create larger files and need more
storage capacity.
The file size is based on medium sized (1,024x768) pictures in normal JPEG compression. Larger
reproductions requiring greater resolution will yield fewer images; smaller reproductions will yield more. The
actual file size depends on the camera, the selected size of the image, the amount of compression, the
quality level selected, and even the complexity of the scene. All of these values are approximate.
The maximum theoretical capacity of a Compact Flash card is 137GB, but technical problems and
costs preclude any move to that capacity any time soon. There is pressure, however, to increase
the Compact Flash capacity to 16GB and beyond so that the cards can hold enough data to
replace miniDV digital video cassettes in digital camcorders. There are some significant
advantages of using flash memory in digital camcorders:
Simpler mechanical requirements eliminate complex tape guidance and transport systems
and helical scanning heads.
Transfer rates of video data are measured in seconds rather than real-time hours for tape.
Flash memory cards are more tolerant of tough environmental conditions than tape.
A 5-GB capacity matches that of recordable DVD discs.
The remaining problem is that eliminating the expensive tape mechanics of a digital video
camcorder would make the entire recording device far less expensive than the Compact Flash
medium it would use. Today’s 4GB Compact Flash cards are often more expensive than many of
today’s entry-level digital camcorders.
The Compact Flash card itself is a rugged plastic shell with two stainless-steel faces front and
back. The shell contains a small circuit board with a number of flash-memory chips as well as a
controller chip. The controller chip can speed up the transfer of data to and from the chip as well
as manage defects and correct errors that might occur during any transfer. The number of memory
chips on the internal circuit board determines the capacity of the card so that externally all of the
cards of the same type are the same physical size. Compact Flash has two rows of 25 pinholes on
the insertion end of the card into which contact pins reach the circuitry. The card has no pins that
can be bent and no exposed contacts that can be damaged.
X-Ray of CompactFlash Card
Contact pins
Controller chip
NAND memory
The Compact Flash card also excels in writing speeds. The latest specification 4.1 supports data
writing speeds up to 133 MB/s. CF cards operate on a power supply of either 3.3 volts or 5.0 volts
and use only 5% of the power required for a small 1.8-inch or 2.5-inch disc drive. The cards are
five to ten times more rugged than disc drives, too: they can withstand a 10-foot drop to a hard
floor, a shock measured as 2,000 Gs of force. In terms of the ideal storage medium, Compact
Flash seemed to fill all the requirements except for its high initial cost when it was introduced. As
digital cameras grew in popularity, the popularity of the CF card grew along with them; and the
future points to their use as recording media for digital video.
CF+ is a design for other devices such as wireless communication cards and micro hard drives
such as the IBM Microdrive to use CompactFlash Type II slots and take advantage of the CF
Toshiba took a very different approach to flash memory in 1994 when they introduced what they
called “solid-state floppy-disk cards” or Smart Media. 5 The card is small, just one-third the size of
a credit card and almost as thin because there is no controller chip in the card. The control of data
is left to the reading/writing device rather than to the card. Eliminating the control chip not only
allowed a reduction of the thickness of the card, it also reduced costs because the controller chips
reside in read/write devices instead of each card. The simplicity of the design is apparent in its
appearance. Rather than having pin connectors, the card has a flat gold electrode on its surface
that is divided into sections that take the place of pins. The decorative wavy lines on the flat
electrode are actually designed to add reinforcement to the surface. The electrode connects to a
single flash memory chip by means of bonding wires. The electrode, bonding wires, and the
memory chip are all submerged in a sealing bed of resin that is inserted into a thin, protective
plastic case. This method of assembly avoids the need to solder pins and connectors to a circuit
board and keeps costs low (Figure 8).
Figure 8
Toshiba’s idea may have been smart, but they should have called it “Smart Medium.” Media are always plural, whether they are
discs, news carriers, solid-state cards, or conductors of séances. A single one is a medium. One flash card is a medium. TV is a
medium as is a newspaper or a CD-R. The word is almost always misused, particularly by people in the media business who should
know better.
Smart Media chips use just one NAND memory chip in the card. If an SM card needs greater
capacity, it simply uses a NAND chip that offers that capacity rather than stack chips as other flash
cards do. Smart Media cards also differ from other flash cards in their ability to withstand shocks.
Their shock limit is half that of the larger card—1,000 G.s of force versus the Compact Flash limit
of 2,000 G.s. The advantages of Smart Media lie in their smaller design, lighter weight (one-tenth
that of the Compact Flash card) and simpler construction.
There are two versions of the Smart Media card that differ in the voltage of the power supply they
require. A notched corner on the lower left side means the card works with a 3.3-volts power
supply. A notch on the lower right side indicates a 5.0-volt card. Some devices will work with
either 3.3V or 5.0V cards, but consumers should check to make sure that they select the proper
SM card. The 5.0 versions usually do not fit into devices requiring the 3.3V card.
If smaller size is a virtue, the MultiMedia card holds a big advantage. By using Toshiba’s NANDbased memory chips instead of Intel’s larger NOR-based chips used in Compact Flash, MMC
cards could be far smaller. This flash memory card is about the size of a postage stamp, the
smallest, thinnest, and lightest of the memory cards until the micro versions were introduced. For
that reason they are commonly used in portable MP3* players, mobile phones, and other handheld devices that are also small and lightweight.
*MP3 (Motion Picture Experts Group, Layer 3) is a compression scheme for audio signals that has different
levels of compression that increasingly eliminate audio signals that listeners are not expected to be able to
hear. The audio data transfer rate for uncompressed CD signals is 1,411.2 kilobits/second (16 bits/sample x
2 channels x 44,100 samples/second), but this rate creates very large files. In order to transfer audio on the
Internet or to store as smaller files, compression schemes reduce file sized by eliminating portions of the
signal that listeners are not likely to hear. One example of eliminated sound would be low-level, high
frequency signals masked by louder sounds at lower frequencies to which human ears are more sensitive.
This type of compression is known as “lossy” compression because once the signal is modified, the missing
parts cannot be restored. Reducing the 1,411.2 kbps rate of CDs to 320 kbps brings the files down to a
more manageable size with little to no audible change to the sound. It is not “CD-quality,” however, no matter
what the advertising hype claims, because data have been lost. MP3 files of 320kbps are still rather large;
and there are additional compression schemes of 256, 224, 192, 160, 128, 112, 96, 80, 64, 56, 48, and
32kbps further reducing the file size and the audio quality. The general standard for an acceptable balance
of MP3 sound quality and small file size is 128kps. The actual sound quality depends greatly on the decoder
used to play back the digital signal as well as the compression level. Figure 10 is a chart with a rough
approximation of the number of minutes of music one can expect to store on different capacities of flash
MultiMedia cards operate at either 2.7 volts or 3.6 volts from the power source. These cards will
work in Secure Digital card slots as well as MMC slots; but because the SD cards (described
below) are slightly thicker, the reverse is not true. Music stored on an MMC card, however, will not
play back on an SD device because the SD audio devices only work with encrypted music files.
The insertion end of a MultiMedia card has seven gold slide contacts on the back. In all other
respects, the MultiMedia card is similar to its bigger brothers. A new version called MMCplus
follows a new standard referred to as “MMC4.” This new standard increases the number of
contacts from 7 to 11 and allows higher performance in terms of speeds and capacities, with a
maximum capacity of up to 8GB. MMC cards follow an open standard, which allows companies to
develop improvements with fewer restrictions such as licensing agreements. This arrangement
has led to a number of other confusing versions of MMC cards:
1) smaller version of the MultiMedia card is available as a “Reduced Sized-MMC” or
RS-MMC intended for the smaller, lighter devices that need memory storage such
as camera-phones, for example. The RS-MMC card (18mm x24mm x1.4mm)
has the same width as a standard MMC or SD card, and this design feature allows
the card to fit into those standard slots with attachment of a simple mechanical
adapter. Capacities of 2GB are possible for the RS-MMC.
2) The MMC4 standard update also introduced a new version of the RS-MMC with a
lower operating voltage of 1.8V (or a dual voltage that includes 1.8V) to reduce
battery power consumption in cell phones. This version is known as the
3) MMCmini is similar to the RS-MMC but has 11 pins and a smaller profile (20mm x
21.5mm x 1.4mm) to fit into smaller card slots.
4) The MMCmicro card (12mm x 14mm x 1.1mm) replaced the RS-MMC as the
smallest flash card available when it was introduced in 2005. This card is the size
of a keyboard key--one-fourth the size of the MultiMedia card and one-third the
size of the RS-MMC. The design is intended to make a card even smaller and
with lower power consumption for mobile phones in particular. It operates at
voltages of either 3.3V or1.8V and requires just one-sixth the power consumption
of the MultiMedia card. The tiny card can write at 7MB per second and read at
10MB per second. Maximum capacity will reach 4GB with four NAND chips
stacked in the tiny devices. These tiny cards can fit into adapters that allow them
to be used in standard MMC and SD card slots (Figure 9).
Figure 9
Adapter with MMCmicro
miCard compared to MMC Card
5) SecureMMC is a MultiMedia card with encryption features similar to those applied
to the Secure SD and Sony’s MagicGate Memory Stick (see below). The
secureMMC has not reached the market yet.
As if things were not confusing enough in the MMC camp, the miCard seen in Figure 9 is a
USB memory device based on MMC electrical specifications and not a card at all, despite its
name. Measuring only 21mmX12mmX1.95mm, the miCard is for the moment the smallest
USB flash drive available. It is 40% smaller than a miniSD in area and about 18% smaller in
volume. Despite the small size, the miCard has a total capacity ranging from 128MB to 8GB
with a “theoretical” capacity of 2048GB. That’s 2 terabytes of storage! The miCard uses a 16bit bus rather than the 4-bit or 8-bit buses used in SD and MMC cards, and that 16-bit bus
allows sequential speeds of up to 60MB per second with a “theoretical” speed of 120MBs once
the internal interface of NAND chips can be sped up. Although the miCard is a USB 2.0
device, its power consumption is significantly lower than that allowed by the USB 2.0 standard.
In those cases where a USB 2.0 port is not available, an adapter converts the miCard USB
drive to an SD/MMC card.
The open standard has kept MMC alive, but it has also led to a proliferation of flash cards that
can confuse consumers.
Number of 4-Minute Songs on Flash Devices
audio quality
very good
very good
very poor
very poor
forget it
64MB 128MB 256MB 512MB
Figure 10
The Secure Digital card is almost identical to the MultiMedia card, but it has several features the
MMC card does not share. The most significant was supposed to be its compliance with the
Secure Digital Music Initiative specification (SDMI) to protect specific copyrighted material, but that
format is no longer being promoted since the copy protection code was cracked. SD audio devices
may still require audio encryption, and that eliminates MMC cards as in such devices. Some SD
cards that contain encrypted audio files will not allow other types of files, such as picture files, on
the same card. A second feature is a mechanical write/protect switch on the card to prevent
accidental erasures, similar to the write/protect tabs found on floppy disks. SD cards have faster
read and write speeds than MultiMedia cards, and this advantage in addition to its features has
contributed to SD cards’ greater acceptance in the market than that for the MultiMedia card. Since
MultiMedia cards do work in Secure Digital slots, they will not face obsolescence if the format is
ever discontinued. The backs of the Secure Digital cards have nine gold slide contacts, two more
than those on standard MultiMedia cards.
Secure Digital Family
Unlocked for writing
Write/protect tab
Locked to prevent
Figure 11
There are additional versions of smaller SD cards in addition to the standard size. The MiniSD
(20mm x 21.5mm x 1.4mm) is 60% smaller than the original in order to fit into cell phones and
expand to PDAs where small size and light weight are important. The MiniSDs have a capacity of
up to 4GB. Adapters will allow them to be used in SD devices (Figure 12), and they share most of
the same features except the write/protect tab. An even smaller version (11mm x 15mm x 1mm)
formerly known as “Transflash” is now called “microSD.” This tiny card is available for cellular
phones and other devices where small size and low weight are critical characteristics. These
media are capable of storing 8GB with write speeds of 6MB/s and read speeds as fast as 16MB/s.
Adapters allow the microSD cards to work in standard sized SD slots (Figure 12).
MiniSD Adapter
MicroSD Adapter
Figure 12
The SD card has become the most common flash memory card format for electronic products. As
a flash card, however, it still has the limitation typical of all flash cards—the need for its own
particular card slot in order to be read or be written. USB flash devices owe their enormous
popularity to the “universality” of the USB port that is standardized throughout the computer and
electronics industry. In order to take advantage of the widespread use of USB ports, the Memorex
SD/USB 2-in1 Interface Card has a patented design that allows users to use either SD slots or
USB ports. The card works as a standard SD card in SD card slots and card readers. It can also
turn into a fast USB 2.0 memory device when the USB interface is extended from the card (Figure
13). The Dual Interface design allows this particular card to function as both a “travel drive” and as
a standard SD card for the most practicality possible.
Figure 13
Although 2GB seems to be reasonable capacity (capacity equal to almost 1400 double-sided
floppy disks), the developers of SD cards realize more capacity is always welcome. They have
introduced SDHC format (Secure Digital High Capacity) according to a new SD 2.0 standard. SD
and microSD cards greater than 2GB in capacity will fall into the SDHC class with a capacity range
of 4GB to 32GB. Unfortunately, these SDHC and microSDHC cards are not compatible with
standard SD and microSD cards and devices. However, SDHC readers and devices are
compatible with SD cards as well as the SDHC cards. These new cards have speed classes
associated with them. Unlike standard SD cards that had speeds specified as a maximum limit,
SDHC cards get their classification from a minimum sustained write speed limit.
SD specification 1.01
SDHC Class 2
Class 4
Class 6
maximum read/write speed of 10 MB/second
20 MB/second
minimum read/write speed of 2 MB/second
4 MB/second
6 MB/second
*The speed rating is based on a 1X speed of 150 kB/second, the transfer rate of an audio CD and using a FAT32 file
format. The multiplication factors use decimal calculations rather than binary calculations. That means that 1,000 kB =
1MB rather than 0.976 MB.
The speed of SD, SDHC, and other flash cards has not been a significant consideration until their
capacities became large enough for them to be used for storing video. Digital cameras that allow
continuous shooting still slow things down a bit with their internal buffers and digital processing, but
their ability to shoot good quality video at 30 frames per second puts some significant demands on
the speed of the flash card to keep up. One digital camcorder is capable of 30 fps high definition
recording at a speed of 4.375 MB/second, so that is some indication of the maximum speed
required for recording good quality standard video onto a flash card in a digital camera or
SDIO (SD Input/Output) Cards are not flash memory storage devices at all. They are generally
mobile electronic devices that plug into ports that are identical to SD ports, but these SDIO cards
are designed for many different applications. SDIO cards are completely compatible with the SD
format in terms of their mechanical design, electrical and power requirements, signal information,
and software parameters. They consume very little power from the host device while providing
high-speed data transfer in multiple ways. Examples of SDIO cards are Wi-Fi transmitters, GPS
locaters, modems, digital tuners, tiny scanners, and cameras.
SD cards – up to 2GB capacity
SD/HC cards – from 4GB to 32GB capacity. These cards are incompatible with earlier SD
devices and need SD/HC compatible devices in order to work properly. These cards come
in three speed classes (see above.)
MiniSD cards – 60% smaller than SD cards. Capacities are up to 4GB.
MicroSD cards – 75% smaller than SD cards. Capacities are up to 8GB despite their tiny
SDIO cards – not flash cards at all but devices that work in SD slots.
Sony is the developer and chief promoter of the Memory Stick, a lightweight, rectangular flash
memory card used in many types of Sony products from cameras, to MP3 players, to personal
digital assistants. A few non-Sony products accept Memory Stick also, and that number may
continue to grow. There are ten versions of Memory Sticks:
1) The original standard blue stick using a serial transfer interface
2) MagicGate white Memory Sticks with copyright protection similar to that provided by the
Secure Digital cards. Audio files require this version in order to be able to be played back
in Sony audio devices that use Memory Sticks.
3) Memory Stick Duo, a smaller version about half the size of the standard stick.
4) Memory Stick Select, a standard 128MB stick with a switch that accesses a second layer of
another 128MB for a total of 256MB.
5) Memory Stick PRO with MagicGate copyright protection, higher capacity, and faster
transfer rates using a parallel transfer interface. The Memory Stick PRO version is
incompatible with earlier versions of Memory Stick devices, but Memory Stick PRO devices
are “forward compatible” in the sense that they will be able to use the older Memory Stick
6) Memory Stick PRO-HG with an 8-bit parallel interface in addition to the regular serial and 4bit parallel interfaces. The interface clock frequency is also different, with an increase from
40 MHz to 60 MHz for data transfer speeds three times faster than the older Memory
Sticks. Data transfer rates can reach up to 480 Mbps (roughly 60 MB/sec), and writes
speeds are up to120 Mbps (15 MB/sec).
7) Memory Stick PRO Duo, the smaller version of the Memory Stick PRO
8) Memory Stick PRO High-Speed Duo with write speeds up to 80MB/s in compatible devices
9) Cobalt blue MagicGate Memory Sticks that can be used in both the standard serial ports as
well as the faster transfer parallel ports that the Memory Stick PRO card utilizes. These
new sticks will replace the original blue sticks and offer the advantage of being compatible
with all Memory Stick devices.
10) Memory Stick Micro, or “M2” (15mm x 12.5mm x 1.2mm), a tiny version with two low
operating voltages of 3.3V or 1.8V to allow their use in very small hand-held devices such
as camera phones. The lower 1.8-volt power requirement uses 40% less power than the
larger Memory Stick Duo version, an advantage in smaller devices where the greatest
weight is in the battery. The MagicGate copy protection is part of the M2 requirements.
The first M2 cards come in capacities of 256MB, 512MB, and 1GB.
With the introduction of the cobalt blue Memory Sticks, Sony makes MagicGate DRM (Digital
Rights Management) protection a standard feature for all Memory Stick flash storage. Although
the use of parallel transfer speeds up data reading, the write speeds of the newer cobalt blue
MagicGate versions remain about the same as for the early basic blue versions. The newer cards
also retain the write/protect switch on the card that prevents accidental erasure, just as Secure
Digital cards and floppy diskettes do.
The xD (Extreme Digital) Picture Card is a new device introduced by Olympus and Fuji as a
replacement for Smart Media. Smart Media cards are limited in their capacity despite their
physical size, so the xD Picture Card is designed to have advantages in both physical size (20mm
x 25mm x 1.78mm) and a large future capacity up to 8 gigabytes. Changes in the design of the
internal architecture of the xD cards with capacities greater than 512MB, however, have reduced
read/write speeds and have made the cards incompatible with some of the earliest xD cameras.
The xD card gets around the problems of being “the new kid on the block” by including adapters
that allow it to work in Compact Flash and Smart Media slots. Like the Smart Media cards, the xD
card has no internal controller; so the cost of the adapters has to include the cost of the required
data controller.
Figure 14
The Compact Flash and Smart Media cards began as removable storage devices for laptop
computers and digital cameras offering far greater storage capacity than floppy disks at much
faster transfer rates. Floppy disks are little more than plastic cartridges containing a circular piece
of magnetic tape that spins like hard drive. Flash media, on the other hand, offer significant
advantages over diskettes:
• no moving parts
• shock resistance
• capability of over a million read/write/erase cycles
• far greater durability
• much wider temperature and humidity range
• smaller physical shape
• amazing storage capacity for such small devices
Flash Card Profiles
Memory Stick
xD Picture
Memory Stick Duo
Figure 15
As flash media grew in popularity, they found more uses in other devices. MP3 audio players and
tiny voice recorders use the smaller flash memory cards as replacements for bulky and unreliable
tape cartridges. Printers have added slots for accepting flash media containing digital image files
straight from digital cameras or large graphic files transferred from computers. PDA’s (personal
digital assistants) added flash memory slots for transferring files to or from personal computers.
Flash media have even replaced logging tapes in military aircraft and railroad locomotives.
The choice of flash memory depends on each one’s special design features. Compact Flash’s
thicker profile allows greater memory storage, and its early introduction has allowed it to be widely
used in many devices. The smaller size of Secure Digital cards, on the other hand, has been an
advantage in hand-held devices such as portable MP3 players and lightweight digital camcorders.
New devices such as the Memorex ThumbDrive incorporate flash memory in a lightweight,
portable package that plugs directly into USB ports for easy file transfers. Figure 15 is a profile of
the different types of cards showing their relative dimensions. Figure 16 is a chart comparing
features of each of the different flash memory cards and the most common type of devices that
use each type.
Flash cards, like optical media, seem to concentrate on speed of data transfers in addition to
capacity as distinguishing features of the card. Data transfer speeds are determined by a number
of variables, however, and there are no common standards that appear to be used uniformly in
specifying rates of speed. A speed of “1X” is 150 kilobytes per second. Faster speeds are
multiples of that 1X: 4X = 600 kB/s; 12X = 1.8 MB/s; 32X = 4.8 MB/s; and 40X = 6 MB/s. Read
speed is always the faster rating because it is easier and faster to pick up data patterns than to
sort them and write them. The sizes of files and the number of files, however, will alter the actual
speeds. Writing or reading hundreds of small files will take longer than writing or reading the same
total capacity spread over several large files.
Flash Media Comparison
Type I
Smart Media
Present max
read speed
write speed
weight (grams):
max shock:
number of pins:
Memory Stick
xD Picture
USB 2.0
8GB (plus)
2GB /32GB
up to 1.5
up to 1.7
up to 40 (plus)
up to 16
up to 1.8
up to 60 (HG)
up to 5
up to 40
up to 1.5
up to 0.3
up to 25 (plus)
up to 9
up to 2.45
up to 15 (HG)
up to 2.5
2,000 G
1,000 G
1,000 G
1,000 G
1,000 G
1,000 G
11 (plus)
up to 40
22 (contacts)
large capacity lightweight
small size
small size
small size
small size
small size
works in SD slots
little support
beyond Sony
only by
Olympus and
Fuji so far
slow write speed
size; weight
slow transfer
large profile
less durable
commonly used
Fuji, Olympus,
digital cameras
MP3 players
voice recorders
MP3 players
first use in
new Olympus
and Fuji
Sony cameras,
Nokia mobile phones
Cell phones
Sony devices
Palm PDAs
Palm PDAs
Memory Stick Pro and Pro Duo can hold as much as 8GB, but the standard Memory Stick has a maximum of 256MB in two banks of
128MB accessible by switching between the two banks.
Figure 16
The actual speed depends on the design of the controller chip in the card as well as the design of
the reading/writing device. Faster flash cards may make no difference in digital cameras whose
own internal processing of images is far slower than the card’s transfer speeds. As capacities of
flash cards grow, however, and cards are used for storing much more information, read and write
speeds become more significant. Some newer digital cameras rely on the fastest speed of cards
to record video. Slower flash cards may not be able to provide the video feature on such cameras
although there would be no such restrictions on standards photographs.
NAND Flash Speed Restrictions
Although NAND flash devices are commonly described as writing data randomly, random writing is a form of
sequential writing in little, random sections. In digital terms, a “blank” flash memory device contains only the
“1’s” in the digital choices of 1’s and 0’s. Data are stored in the form of adding electrons to prevent certain
cells from passing electricity so that they become “0’s.” To change a zero to a one, the entire block of NAND
cells has to be erased first to convert all cells to ones; then the particular cell has to be written again to turn
it to a zero. In order to write to a NAND memory chip, the controller must follow a 2-step process:
1. Erase all the cells in a block to ones.
2. Write zeroes to particular cells in a block in order to store digital data.
Flash memory is divided into blocks that are generally 128 kB in size, each block holding 64 pages of 2 kB.
“Random” writing in NAND memory means:
1. Erasing an area for the new data for a block or a series of blocks
2. Copying all the unchanging data into the new area
3. Writing the new zeroes into the same area.
Even if only one 2 kB-page changes, the entire block of 128 kB has to be rewritten; and the writing of that
block is sequential, one page at a time throughout the entire block. That is why random access writing takes
so much longer than simple sequential writing. It is also why speed ratings for flash cards and USB flash
devices apply only to the faster sequential write speeds than the much slower random write speeds.
Every computer today still comes with a floppy disk drive. The drives and the diskettes are
inexpensive and very handy; but as computer files grow ever larger, the limited formatted* capacity
of 1.44MB becomes a handicap. Flash media are much handier, faster, and more reliable in
addition to being able to hold at least 7 times more information. There are two ways to transfer
data to and from a computer via flash cards: 1) using a PCMCIA card slot (common among
laptops, unusual for desktops), or 2) using a flash card reader attached to a USB port on a desktop
or laptop.
PCMCIA Adapter
Many laptops have PC Card PCMCIA card slots installed in them for these older and larger
storage cards. Adapters allow the newer flash cards to fit into them so that the newer cards are
fully functional when the adapter is plugged into the PCMCIA slot. There are also other types of
adapters on the market for Smart Media, Secure Digital, and Memory Stick cards. The
PCMCIA/Compact Flash combination is an easier and more economical method of transferring
large files to and from a laptop than adding a CD-R/-RW drive to the computer if a floppy disk drive
is no longer adequate to hold today’s larger files.
*Flash media require formatting just as floppy disks, CD-RWs, and DVD recordable discs used for storing
files. The format defines the address structure on the medium so that files can be erased, moved, or altered
without disrupting the other information that is stored. Most flash media and floppy discs have the formats
installed during verification testing during the manufacturing process. Optical media do not come preformatted (except for some format information molded into the surface of DVD-RAM discs) because the
process would take too long. Formatting takes up storage space on a rewritable medium so that the full
stated capacity is more than actual storage capacity. A double-sided, double density floppy disk has a
stated capacity of 2.0MB, but only 1.44MB after formatting. A 700MB CD-RW has about 550MB of storage
capacity after formatting. A 128MB flash card can have 122MB of storage capacity after it is formatted.
Improper use of a flash card can corrupt the data on the card so that a digital camera, for example, will show
error messages for the card. The cause is most often interruption of the write cycle due to turning the
camera off too soon or pulling the card out before writing was finished. Other causes can be a battery that is
too low or out of power entirely. Reformatting will return the flash card to use, but reformatting also erases
all the information that was on the card.
Digital devices such as digital cameras or flash card readers can reformat the cards in a process that is
nearly identical to that for floppy disks. Scandisk can also be used to verify the card’s integrity in the same
way to be sure the problem was in a corrupt file rather than a damaged card.
It is easy to add flash card capability to computers using the computer’s USB ports. Readers for
Compact Flash Type I and II cards, Smart Media, Secure Digital, Memory Stick, and
xD cards are increasingly common. Many new “multi-media” computers include slots built into the
face of the computer so that any of the flash cards can be easily inserted into or removed from the
computer to transfer files easily and conveniently. These multi-flash readers can also be added to
older computers by fitting them to unused 3.5” or 5.25” drive bays.
Compact Flash/Smart Media USB Readers
The end of a flash reader cord attaches to a USB (Universal Serial Bus) connector on computers
while the computer is turned off. When the computer boots up, the “plug and play” software will
recognize the reader and configure it as another drive on the system with an assigned letter, for
example, as “drive E” or “drive G.” Combination readers and multi-flash readers treat each slot as
an available drive with its own drive letter. Moving files from the computer to the card or from the
card to the reader is simply a matter of dragging and dropping files, just as simple as on a floppy
disk drive, only faster and with greater security and capacity. Multi-flash readers also allow a user
to easily transfer data to or from a Compact Flash card in the upper slot to any other type of card in
the lower slot. There is often driver software included with the readers for users of the Windows
98SE operating system that requires USB drivers because USB was introduced after Win 98SE
was in the market. Windows NT does not allow the use of USB, but the other Windows operating
systems include USB support and do not require additional drivers.
Using USB connectors allows file transfer speeds up to 10 times faster than parallel port card
Flash cards are sturdy, rugged, and durable—but they are not indestructible. Certain care must be
taken to protect them and the data they store. With proper care, they should be capable of over 1
million data write/read/erase cycles and preserve written data for 100 years. 6 The electrical socket
connectors are capable of at least 10,000 insertions, but only if used properly.
• Never force a flash card into an electronic device. It will go in only one way and should
slide into the respective slot easily.
• Keep flash cards away from extreme ranges of temperature and humidity; keep them
out of direct sunlight.
Many flash devices use a function known as wear leveling to distribute data across different blocks each
time the device is written to so that the same blocks are not used over and over. This means that the written
information is distributed over the entire device, extending its lifetime to the maximum amount.
Keep flash cards away from electrostatic sources and magnetic fields. This caution has
grown to include sending them through the U.S. Postal Service in the type of packaging
that is likely to undergo electron beam irradiation that will damage semiconductors.
Do not bend them or drop them.
Do not eject the cards or turn off any device when data is being transferred to the card.
Be aware of remaining battery power on hand-held devices so that data are not lost if
the battery finally runs out.
These amazing little cards are as close to the ideal medium as technology has been able to
provide. Further research and development promises even more storage capacity in the existing
physical shape so that these cards may be able to surpass CD-Rs and CD-RWs in their data
capacity and begin to challenge DVD discs. The age of solid-state memory is just beginning, and
the future promises ever more fantastic applications of digital technology with flash memory to back
it up.
Memorex has been a well-recognized and trusted supplier of high quality media for many years.
We take pride in helping to inform consumers so that they can make better decisions on
purchasing the products they need.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
