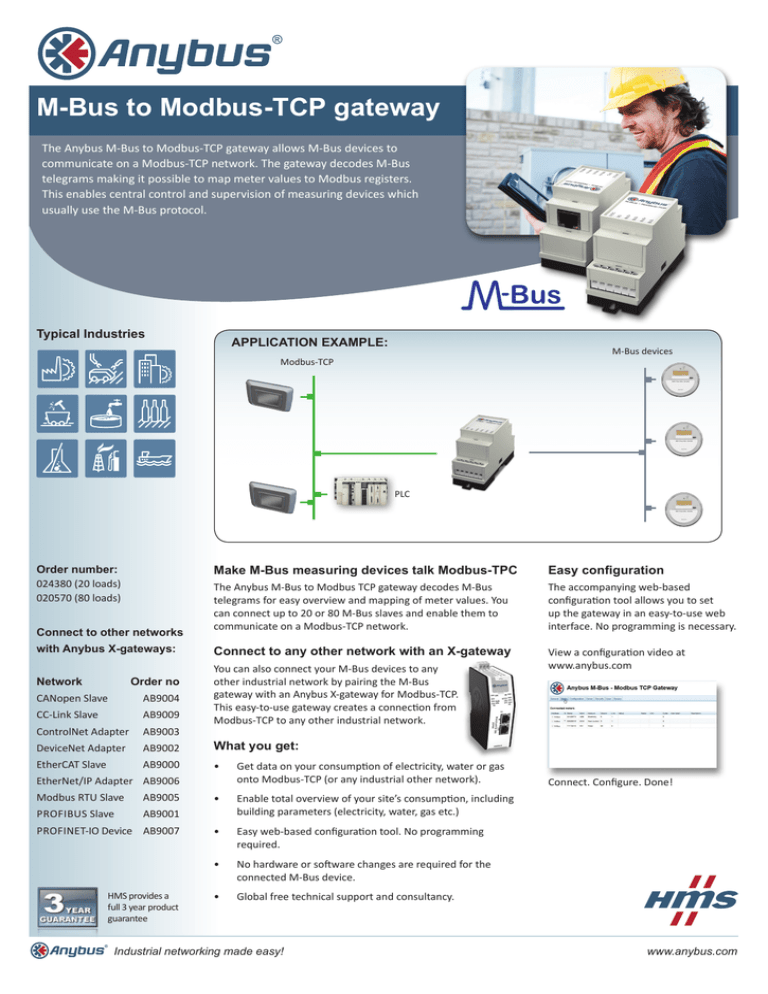

M-Bus to Modbus-TCP gateway
The Anybus M-Bus to Modbus-TCP gateway allows M-Bus devices to
communicate on a Modbus-TCP network. The gateway decodes M-Bus
telegrams making it possible to map meter values to Modbus registers.
This enables central control and supervision of measuring devices which
usually use the M-Bus protocol.
Typical Industries
APPLICATION EXAMPLE:
M-Bus devices
Modbus-TCP
PLC
Order number:
024380 (20 loads)
020570 (80 loads)
Connect to other networks
with Anybus X-gateways:
Network
Order no
CANopen Slave
AB9004
CC-Link Slave
AB9009
ControlNet Adapter AB9003
Make M-Bus measuring devices talk Modbus-TPC
Easy configuration
The Anybus M-Bus to Modbus TCP gateway decodes M-Bus
telegrams for easy overview and mapping of meter values. You
can connect up to 20 or 80 M-Bus slaves and enable them to
communicate on a Modbus-TCP network.
The accompanying web-based
configuration tool allows you to set
up the gateway in an easy-to-use web
interface. No programming is necessary.
Connect to any other network with an X-gateway
View a configuration video at
www.anybus.com
You can also connect your M-Bus devices to any
other industrial network by pairing the M-Bus
gateway with an Anybus X-gateway for Modbus-TCP.
This easy-to-use gateway creates a connection from
Modbus-TCP to any other industrial network.
DeviceNet Adapter
AB9002
What you get:
EtherCAT Slave
AB9000
•
Get data on your consumption of electricity, water or gas
onto Modbus-TCP (or any industrial other network).
•
Enable total overview of your site’s consumption, including
building parameters (electricity, water, gas etc.)
•
Easy web-based configuration tool. No programming
required.
•
No hardware or software changes are required for the
connected M-Bus device.
•
Global free technical support and consultancy.
EtherNet/IP Adapter AB9006
Modbus RTU Slave
AB9005
PROFIBUS Slave
AB9001
PROFINET-IO Device AB9007
HMS provides a
full 3 year product
guarantee
Industrial networking made easy!
Connect. Configure. Done!
www.anybus.com
TECHNICAL SPECIFICATIONS
Technical Details
Dimensions (L•W•H) 89 • 35 • 58 mm
Protection class IP40
Enclosure material Plastic
Baud rate 300 to 19 200 bps
Max number of M-Bus slaves 20/80
Mounting DIN rail (35•7,5/15)
Connectors M-Bus Screw terminal, max. 2.5 mm²
Connector Ethernet 100 MBit, RJ45, shielded
IP-address Configurable or via DHCP
Certifications CE
Electrical Characteristics
Power supply 24VDC, <max. 2.5 mm²
Current consumption Max 300 mA
Environmental Characteristics
Operating temp 0 to 50 oC
RJ45 connector for Modbus TCP
LED-indicators
M-Bus connectors (connects up to 20 slave devices)
DIN-rail mounting
24 V Power Supply
