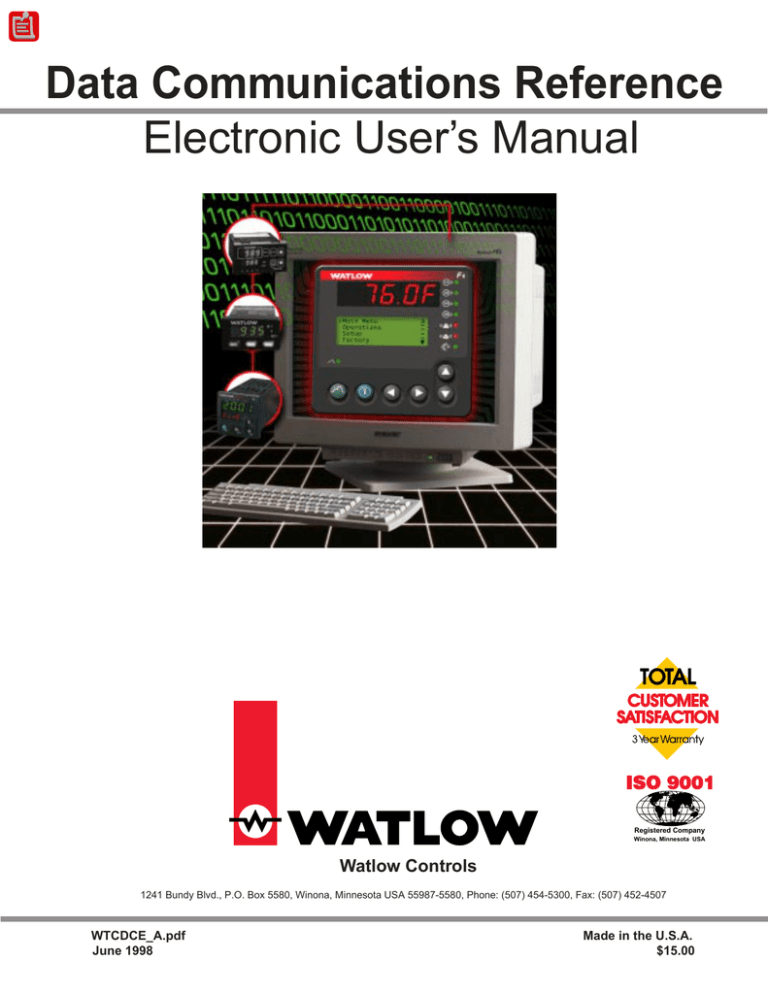

Data Communications Reference

Electronic User’s Manual

Registered Company

Winona, Minnesota USA

Watlow Controls

1241 Bundy Blvd., P.O. Box 5580, Winona, Minnesota USA 55987-5580, Phone: (507) 454-5300, Fax: (507) 452-4507

WTCDCE_A.pdf Made in the U.S.A.

June 1998 $15.00

Safety Information

We use note, caution and warning symbols throughout this book to draw your attention to important operational and safety information.

A “ NOTE” marks a short message to alert you to an important detail.

A “ CAUTION” safety alert appears with information that is important for protecting your equipment and performance. Be especially careful to read and follow all cautions that apply to your application.

A “ WARNING” safety alert appears with information that is important for protecting you, others and equipment from damage. Pay very close attention to all warnings that apply to your application.

The safety alert symbol, , (an exclamation point in a triangle) precedes a general CAUTION or

WARNING statement.

The electrical hazard symbol, , (a lightning bolt in a triangle) precedes an electric shock hazard

CAUTION or WARNING safety statement.

Technical Assistance

If you encounter a problem with your Watlow controller, review all of your configuration information to verify that your selections are consistent with your application: inputs; outputs; alarms; limits; etc. If the problem persists after checking the above, you can get technical assistance from your local Watlow representative, or by dialing (507) 454-5300, ext. 1111. An applications engineer will discuss your application with you.

Please have the following information available when calling:

• Complete model number (from the label on the side of the controller)

• All configuration information,

User Profile Record, Custom Main Page Record and Operations Page Parameter Record

• User’s Manual

• Diagnostic Menu readings (if applicable)

About Watlow Controls

Watlow Controls is a division of Watlow Electric

Mfg. Co., St. Louis, Missouri, a manufacturer of industrial electric heating products since 1922.

Watlow begins with a full set of specifications and completes an industrial product that is manufactured in-house, in the U.S.A. Watlow products include electric heaters, sensors, controllers and switching devices. The Winona operation has been designing solid-state electronic control devices since

1962, and has earned the reputation as an excellent supplier to original equipment manufacturers.

These OEMs and end users depend upon Watlow

Controls to provide compatibly engineered controls that they can incorporate into their products with confidence. Watlow Controls resides in a 100,000square-foot marketing, engineering and manufacturing facility in Winona, Minnesota.

Your Feedback

Your comments or suggestions on this manual are welcome. Please send them to the Technical

Literature Team, Watlow Controls, 1241 Bundy

Blvd., P.O. Box 5580, Winona, Minnesota, 55987-

5580; phone: (507) 454-5300; fax: (507) 452-4507.

The Watlow Controls Data Communications Guide is copyrighted by Watlow Winona, Inc., © June 1998, with all rights reserved. (1454)

T

Table of Contents

Chapter 1

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Getting Started . . . . . . . . . . . . . . . . . . . . . . .4

Convention . . . . . . . . . . . . . . . . . . . . . . . . . .4

Chapter 2

Elements of Machine to Machine Comm. . . .5

Character Format . . . . . . . . . . . . . . . . . . . . .5

Bits and Bytes . . . . . . . . . . . . . . . . . . . . . . .5

ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASCII Chart . . . . . . . . . . . . . . . . . . . . . . . . .6

Serial Communication . . . . . . . . . . . . . . . . . .7

Parity Bits . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Start and Stop Bits . . . . . . . . . . . . . . . . . . . .8

Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . .8

Computer Languages . . . . . . . . . . . . . . . . . .8

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Chapter 3

Interface Standards . . . . . . . . . . . . . . . . . . .9

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Biasing of Buses . . . . . . . . . . . . . . . . . . . . . .9

Interface Converters . . . . . . . . . . . . . . . . . .10

Protocols . . . . . . . . . . . . . . . . . . . . . . . . . .10

Chapter 4

Write Your Own (HMI) . . . . . . . . . . . . . . . . .12

Purchase an HMI package . . . . . . . . . . . . .18

Chapter 5

Interface Adapters . . . . . . . . . . . . . . . . . . .20

Watlow Software Tools . . . . . . . . . . . . . . . .20

922 Comm Diagnostic . . . . . . . . . . . . . . . .21

Comm4 Diagnostic Software . . . . . . . . . . . .21

Comm5vb Diagnostic Software . . . . . . . . . .21

CRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Interface Comparison . . . . . . . . . . . . . . . . .22

Controller Comparison Summery . . . . . . . .22

Appendix

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Disclaimer of Warranty . . . . . . . . . . . . . . . .28

A downloadable electronic copy of this user manual is available free of charge through Watlow's web site: http://www.watlow.com/prodtechinfo

Wa t l o w C o n t r o l s C o m m u n i c a t i o n G u i d e 3

Chapter One -

Introduction

Audience

The document is targeted towards new users interested in using data communications with Watlow controllers.

Media

This document is available in electronic format only. It is viewable using Adobe

Acrobat Reader available free from the

Adobe site www.adobe.com

on the

World Wide Web.

Purpose

The purpose of this document is to enable users to:

1. Understand the basics of serial data communications via standard definitions, interfaces and protocols.

2. Set up and use a simple network of one

Watlow controller.

3. Set up and use a network of two or more Watlow controllers with HMI

(human-machine interface) software or an operator interface panel.

Getting Started

Your task is to get one or more controllers to talk to a PC or PLC. How do you make this happen? The purpose of this document is to assist you in that task by providing information about communications. The task of getting a PC or PLC communicating with controllers is a five step process:

1. Determine a strategy for communications.

2. Purchase a controller with a communication interface and protocol that supports your strategy.

3. Wire controllers for power, control and communication.

4. Configure the controllers to do what you want them to do.

5. Configure the PC or PLC software and hardware to do what you want them to do.

The first step is the most difficult since decisions need to be made before anything is purchased. It really involves three basic items:

1. Determine how many controllers you will communicate with.

2. Pick a protocol and interface that supports the information exchange.

3. Purchase hardware and software to make this happen.

This document will only deal with the task of communication. Refer to the user’s manuals for each product for information about wiring and configuring the controllers and software.

Convention

In this document, numbers in the format

0x00 represent values in hexadecimal.

Numbers in the format 0 represent values in decimal and finally, numbers in the format 00000000 represent values in binary unless stated otherwise.

Watlow Controls Communications Guide 4

Chapter 2 -

Definition of Terms

Elements of Machine-to-

Machine Communication

In human communication there are basic words and sentences used to get a message across. Likewise, with computers and controllers. They need a code called a character format or character set. They need rules called protocol to govern their conversation and prevent confusion and errors. Computers need a connecting interface over which to communicate.

They may use one pair of wires to send information in one direction and another pair to send in the opposite direction (full duplex). Or they may use one pair to send in both directions (half duplex).

Character Format

The code or character formats for Watlow data communication is shared by virtually everyone in the electronics business everywhere. This code defines a computer stream of 1’s and 0’s, that are created by varying a voltage signal in a regular manner. The code is the American

Standard Code for Information

Interchange, called ASCII (asky).

Bits and Bytes

The word bit is simply the contraction of the words binary digit . A bit is the basic unit in ASCII. It is either a “1” or a “0”.

A byte is a string of seven or eight bits that a computer treats as a single character. ASCII requires seven bits to represent each letter of the alphabet, each digit and each punctuation mark we use.

ASCII

The ASCII code defines 128 separate seven- or eight-bit characters (see chart below), one for each letter, digit and punctuation mark. ASCII also includes control characters similar to those we find on computer keys, such as backspace, shift and return. It also has nine communications control characters for identification, enquiry (inquiry), start of text, end of text, end of transmission, acknowledge, negative acknowledge and escape.

The ASCII code is sometimes written in a base-16 number system that is called hexadecimal or “hex” for short. The numbers 0 through 9 represents the first ten digits of this system, and the letters A through F represents the final six digits.

The 128 ASCII character code with the decimal and hexadecimal equivalents is listed below.

Watlow Controls Communications Guide 5

Dec Hex

3C

3D

3E

3F

38

39

3A

3B

34

35

36

37

30

31

32

33

2C

2D

2E

2F

28

29

2A

2B

24

25

26

27

20

21

22

23

1C

1D

1E

1F

18

19

1A

1B

14

15

16

17

10

11

12

13

0C

0D

0E

0F

08

09

0A

0B

04

05

06

07

00

01

02

03

ASCII

Char

>

?

<

=

;

:

8

9

6

7

4

5

2

3

0

1

/

.

-

,

*

+

)

(

$

%

&

#

!

SP

FS

GS

RS

US

CAN

EM

SUB

ESC

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

FF

CR

SO

SI

BS

HT

LF

VT

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

60

61

62

63

56

57

58

59

52

53

54

55

48

49

50

51

44

45

46

47

40

41

42

43

36

37

38

39

32

33

34

35

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

08

09

10

11

04

05

06

07

00

01

02

03

The first digit in bold is the parity bit when enabled.

7 bit w/ Even

Parity

00000000

10000001

10000010

00000011

10000100

00000101

00000110

10000111

10001000

00001001

00001010

10001011

10011100

00011101

00011110

10011111

10100000

00100001

00100010

10100011

00100100

10100101

10100110

00100111

00101000

10101001

10101010

00101011

00001100

10001101

10001110

00001111

10010000

00010001

00010010

10010011

00010100

10010101

10010110

00010111

00011000

10011001

10011010

00011011

10101100

00101101

00101110

10101111

00110000

10110001

10110010

00110011

10110100

00110101

00110110

10110111

10111000

00111001

00111010

10111011

00111100

10111101

10111110

00111111

No Parity

7 or 8 bit

00110000

00110001

00110010

00110011

00110100

00110101

00110110

00110111

00111000

00111001

00111010

00111011

00111100

00111101

00111110

00111111

00100000

00100001

00100010

00100011

00100100

00100101

00100110

00100111

00101000

00101001

00101010

00101011

00101100

00101101

00101110

00101111

00010000

00010001

00010010

00010011

00010100

00010101

00010110

00010111

00011000

00011001

00011010

00011011

00011100

00011101

00011110

00011111

00000000

00000001

00000010

00000011

00000100

00000101

00000110

00000111

00001000

00001001

00001010

00001011

00001100

00001101

00001110

00001111

ASCII Chart

7 bit w/ Odd

Parity

ASCII

Char

Dec

10000000

00000001

00000010

10000011

00000100

10000101

10000110

00000111

00001000

10001001

10001010

10011011

00011100

10011101

10011110

00011111

00100000

10100001

10100010

00100011

10100100

00100101

00100110

10100111

10101000

00101001

00101010

00001011

10001100

00001101

00001110

10001111

00010000

10010001

10010010

00010011

10010100

00010101

00010110

10010111

10011000

00011001

00011010

10101011

00101100

10101101

10101110

00101111

10110000

00110001

00110010

10110011

00110100

10110101

10110110

00110111

00111000

10111001

10111010

00111011

10111100

00111101

00111110

10111111

{ z x y

}

|

~

DEL t u v w r s p q n o l m j k i h f g d e b c

` a

^

_

]

\

[

Z

X

Y

T

U

V

W

R

S

P

Q

N

O

L

M

J

K

I

H

F

G

D

E

B

C

@

A

120

121

122

123

124

125

126

127

112

113

114

115

116

117

118

119

104

105

106

107

108

109

110

111

96

97

98

99

100

101

102

103

92

93

94

95

88

89

90

91

84

85

86

87

80

81

82

83

76

77

78

79

72

73

74

75

68

69

70

71

64

65

66

67

7C

7D

7E

7F

78

79

7A

7B

74

75

76

77

70

71

72

73

6C

6D

6E

6F

68

69

6A

6B

64

65

66

67

60

61

62

63

5C

5D

5E

5F

58

59

5A

5B

54

55

56

57

50

51

52

53

4C

4D

4E

4F

48

49

4A

4B

44

45

46

47

40

41

42

43

Hex No Parity

7 or 8 bit

01110000

01110001

01110010

01110011

01110100

01110101

01110110

01110111

01111000

01111001

01111010

01111011

01111100

01111101

01111110

01111111

01100000

01100001

01100010

01100011

01100100

01100101

01100110

01100111

01101000

01101001

01101010

01101011

01101100

01101101

01101110

01101111

01010000

01010001

01010010

01010011

01010100

01010101

01010110

01010111

01011000

01011001

01011010

01011011

01011100

01011101

01011110

01011111

01000000

01000001

01000010

01000011

01000100

01000101

01000110

01000111

01001000

01001001

01001010

01001011

01001100

01001101

01001110

01001111

7 bit w/ Odd

Parity

01110000

11110001

11110010

01110011

11110100

01110101

01110110

11110111

11111000

01111001

01111010

11111011

01111100

11111101

11111110

01111111

11100000

01100001

01100010

11100011

01100100

11100101

11100110

01100111

01101000

11101001

11101010

01101011

11101100

01101101

01101110

11101111

11010000

01010001

01010010

11010011

01010100

11010101

11010110

01010111

01011000

11011001

11011010

01011011

01011100

01011101

01011110

11011111

01000000

11000001

11000010

01000011

11000100

01000101

01000110

11000111

11001000

01001001

01001010

11001011

01001100

11001101

11001110

01001111

7 bit w / Even

Parity

11110000

01110001

01110010

11110011

01110100

11110101

11110110

01110111

01111000

11111001

11111010

01111011

11111100

01111101

01111110

11111111

01100000

11100001

11100010

01100011

11100100

01100101

01100110

11100111

11101000

01101001

01101010

11101011

01101100

11101101

11101110

01101111

01010000

11010001

11010010

01010011

11010100

01010101

01010110

11010111

11011000

01011001

01011010

11011011

01011100

11011101

11011110

01011111

11000000

01000001

01000010

11000011

01000100

11000101

11000110

01000111

01001000

11001001

11001010

01001011

11001100

01001101

01001110

11001111

Watlow Controls Communications Guide 6

Serial Communication

The interfaces we’ve chosen employ serial communication, which is the exchange of data in a one-bit-at-a-time, sequential manner on a single data line or channel.

Serial contrasts with parallel communication, which sends several bits of information simultaneously over multiple lines or channels. Not only is serial data communication simpler than parallel, it is also less costly

ASCII Control Codes

ASCII Control Codes are used to give instructions to the remote device and result in specific actions, such as a line feed instruction on a printer.

ASCII Control Codes, the first 33

ASCII characters (non printable), are important for the operation of communicating equipment. They give instruction to remote devices that result in specific actions such as a line feed on a printer Holding down the keyboard control key while pressing the appropriate keyboard key will send these values.

ASCII

Char

Dec Hex Ctrl Key

Equiv.

NUL 00 00 Crtl @

SOH 01 01 Crtl A

STX 02 02 Crtl B

ETX 03 03 Crtl C

EOT 04 04 Crtl D

ENQ 05 05 Crtl E

ACK 06 06 Crtl F

BEL 07 07 Crtl G

BS

HT

LF

VT

08 08 Crtl H

09 09 Crtl I

10 0A Crtl J

11 0B Crtl K

FF 12 0C Crtl L

CR 13 0D Crtl M

SO 14 0E Crtl N

SI 15 0F Crtl O

DLE 16 10 Crtl P

Definition ASCII

Char

Dec Hex Ctrl Key

Equiv.

Null Character

Start of Header

Start of Text

End of Text

DC1 17 11 Crtl Q

DC2 18 12 Crtl R

DC3 19 13 Crtl S

DC4 20 14 Crtl T

End of Transmission NAK 21 15 Crtl U

Enquiry SYN 22 16 Crtl V

Acknowledge

Bell

ETB

CAN

23

24

17

18

Crtl W

Crtl X

Back Space EM 25 19 Crtl Y

Horizontal Tabulation SUB 26 1A Crtl Z

Line Feed

Vertical Tabulation

ESC

FS

27

28

1B

1C

Crtl [

Crtl \

Form Feed

Carriage Return

Shift Out

Shift In

Data Link Escape

GS

RS

US

SP

29

30

31

32

1D

1E

1F

20

Crtl ]

Crtl |

Crtl _

Parity Bit

Remember that ASCII is a seven- or eightbit code. What about that eighth bit? It’s called the parity bit. A parity bit is added to the ASCII character to verify the accuracy of the first seven bits. We are declaring that the number of 1s in the 8bit character frame will be either always odd or always even.

This way we can detect a single error in the seven-bit group. Take a look at the representation of the transmitted upper case “W.” In this case we have selected

“odd” parity. The number of 1s in the first seven bits, plus the parity bit, must always total an odd number. The total number of 1s in the binary character

1010111 (W) is 5, already an odd number.

Thus our parity bit will be a 0.

Definition

Data Control 1 - XON

Data Control 2

Data Control 3 - XOFF

Data Control 4

Negative Acknowledge

Synchronous Idle

End of Trans Block

Cancel

End of Medium

Substitute

Escape

File Separator

Group Separator

Record Separator

Unit Separator

Space

If we were transmitting the lower case “w”

(binary 1110111), the parity bit would be a 1 because the total number of 1’s in the character frame is 6, an even number.

Adding the parity bit makes it odd, and consistent with the odd parity rule.

If a noise spike came onto the data line and changed the signal voltage level enough to reverse a 1 to a 0 in the character frame, the receiver would detect that error. The total number of 1s would be even and a violation of the odd-parity rule.

At Watlow, we use odd, even and no parity.

Odd parity sets the parity bit to 0 if there are an odd number of 1s in the first seven bitsEven parity sets the parity bit to 0 if there are an even number of 1s in the first seven bits.

No parity ignores the parity bit.

Watlow Controls Communications Guide 7

Start and Stop Bits

A start bit informs the receiving device that a character is coming, and a stop bit tells it that a character is complete. The start bit is always a 0. The stop bit is always a 1.

The human speech equivalent of these bits could be a clearing of the throat to get someone’s attention (start bit); and a pause at the end of a phrase (stop bit).

Both help the listener understand the message.

Baud Rate

The baud rate refers to the data transmission. When a change in signal represents one data bit, baud rate is equal to bits per second (bps). Standard baud rates for computers are 300, 600, 1200,

2400, 4800, 9600 and 19200 baud.

Computer Languages

Computer languages are simply sets of symbols and rules for their use. There are many computer languages and a wide variety of applications for them.

Programmers use languages to enable computers to do real work.

Syntax

Syntax for a natural language dictates how we put words together to make phrases and sentences. In data communications, syntax also dictates how we order the parts of a message.

Watlow Controls Communications Guide 8

Chapter Three -

Watlow Controls

Approach to Data

Communications

Interface Standards

An interface is a means for electronic systems to interact. It’s a specific kind of electrical wiring configuration. Four interfaces are commonly used:

EIA-232 (Full Duplex)

An EIA-232 (formerly RS-232) interface uses three wires: a single transmit wire; a single receive wire; and a common line.

Only two devices can use an EIA-232 interface. A -3 to -24 volt signal indicates a 1 and a +3 to +24 volt signal indicates a

0. The EIA-232 signal is referenced to the common line rather than to a separate wire, as in EIA-485 and EIA-422. An

EIA-232 cable is limited to 50 feet, due to noise susceptibility.

EIA-422 (Full Duplex)

The EIA-422 interface uses five wires: a

“talk” pair; a “listen” pair; and a common line. It can handle one master and up to ten remote devices in a multidrop (more than one controller shares the same wires) network up to 4,000 feet long. EIA-422 uses the difference in voltage between the two wires to indicate a 1 or a 0 bit. A 1 is a difference of -5 volts, while a 0 is a difference of +5 volts.

EIA-423 (Full Duplex)

An EIA-423 interface is compatible with

EIA-232. It is a newer standard designed for more speed and distance. It uses three wires: a single transmit wire; a single receive wire; and a common line. Only two devices can use an EIA-423 interface.

A -3 to -6 volt signal indicates a 1 and a

+3 to +6 volt signal indicates a 0. The

EIA-423 signal is referenced to the

Watlow Controls Communications Guide 9 common line rather than to a separate wire, as in EIA-485 and EIA-422. An

EIA-423 cable is limited up to 4,000 feet, due to noise susceptibility.

EIA-485 (Half Duplex)

An EIA-485 interface uses three wires: a

T+/R+, a T-/R- and a common line. A -5volt signal is interpreted as a 1, a +5-volt signal as a 0. As many as 32 remote devices can be connected to a master on a multi-drop network up to 4,000 feet long.

Wiring

Most PCs and some PLCs have a standard

EIA-232 port (usually referred to as RS-

232). In these instances, you must use an interface converter to connect to EIA-

422 or EIA-485. These interface standards are required to have a multi-drop system

(more than one controller on the bus). See the list below for some vendors who sell these converters.

Should your PC or PLC have the appropriate interface, just connect using the wiring diagram supplied with your controller.

For EIA-422, the T+ connects to the R+, sometimes labeled “B” while the Tconnects to the R- , sometimes labeled

“A”. For EIA-485, the terminal marked

“A” usually connects to the T-/R- while the “B” terminal connects to the T+/R+ of the controller.

The standards do not specify the wire size and type. Use of AWG 24 twisted pair provides excellent results. If shielded cable is used, terminate the shield at one end only.

Always follow the manufacturer’s instructions supplied with the interface converter. See Biasing of Buses next.

Biasing of Buses

The EIA-485 standard requires the bus to be biased for reliable communication. This means to provide termination resistors

across the T+/R+ and T-/R- wires. One resistor is placed at the PC or PLC where it connects to the EIA-485 bus. The second resistor is placed at the last controller on the network. Do not place resistors at each controller. The impedance of the wires used for the bus determines the resistor value. For twisted pair, the value is typically 120 ohms. In addition, it may be necessary to have a pull-up and pull-down resistor between the power supply and ground of the interface adapter. Check the documentation that came with your interface adapter.

Biasing the bus reduces reflection of signals sent down the bus. These reflections are sometimes referred to as a standing wave.

This condition is most notable when communicating at high baud rates.

Interface Converters

The purpose of an interface converter is to allow two different buses to be connected. Interface converters are required when connecting an EIA-232 port to an EIA-422 or EIA-485 bus.

The EIA-422 bus is a full duplex bus. This means that it can send and receive data at the same time. The EIA-485 bus is a half duplex bus. This means that it can only send or receive data at any given time.

Some interface converters on the market have provided the ability to have full duplex with the EIA-485 bus. This is accomplished by using two receivers and transmitters tied in tandem. This type of converter will not work with the Watlow controllers. Be sure that the model you purchase is designed for half duplex.

Another consideration when using interface converters is how the converter handles switching between transmit and receive. When connecting between an

EIA-232 and an EIA-485, the converter must convert two items. First it must convert the voltage level. Second it must convert from half duplex to full duplex.

This is not an easy task. Typically it is accomplished via a handshake line from

Watlow Controls Communications Guide 10 the PC or PLC. When data flows into the converter from the PC, a handshake line is placed high. When data flows out of the converter to the PC, the handshake line is placed low. In this way, the handshake line controls the direction of information.

Another method of achieving this is to use a built-in timer. The converter switches to transmit when a character is sent to it from the PC. After a period of time when the PC has not transmitted, the converter switches to a receive mode.

It is important that you understand how your converter accomplishes this task.

You are required to wire this feature or make settings on the converter to enable this function. The PC will not talk to the controllers correctly with out properly setting this.

Your converter may also require settings through dip switches, to set up communications parameters like baud rate, data bits, start bits, stop bits and handshaking. See the documentation that comes with your converter for more detail.

The converter may require a separate power supply. Some converters get their power from the handshake lines of the PC.

If you rely on this method, you will need to wire these additional lines. In addition, your software must set these lines high. A more reliable method is to use the external power supply. This is especially necessary when using a laptop computer.

Protocols

Protocol describes how to initiate an exchange. It also prevents two machines from attempting to send data at the same time. There are a number of different data communications protocols, just as there are different human cultural protocols that vary according to the situation.

The protocol part of Watlow communications is very important, because it gives us a quality of communication that others often don’t have. Protocol-driven communications

are more accurate, because they are less prone to both operator and noise errors.

Protocol maintains system integrity by requiring a response to each message. It’s like registered mail — you know that your letter has been received because the post office sends you a signed receipt.

In Watlow data communications, a dialog will continue successfully as long as the messages are in the correct form and responses are returned to the protocol leader. If the operator enters an incorrect message, or interference comes on to the data line, there will be no response. In that case the master must retransmit the message or go to a recovery procedure. If an operator continues to enter an incorrect message or interference continues on the data line, the system will halt until the problem is resolved.

Watlow provides you with three protocol choices: XON/XOFF, ANSI x3.28, Modbus

RTU

XON/XOFF

The first protocol is conventional

XON/XOFF protocol. It works very well for systems that do not require a message response and for those with only two devices (one PC and one controller).

Sending of the "XON" (0x11) and "XOFF"

(0x13) controls information. This is the simplest protocol offered by Watlow

Controls.

ANSI x3.28

The second, called “Full Protocol,” is based on the American National Standard

Institute’s standard ANSI X3.28-1976,

Subcategory 2.2. The Full Protocol is required for systems that need a response to every message, and for any “multidrop” network, which has more than two communication devices. Addressing a certain controller on the bus, then enclosing all messages with a <STX> start of text (0x02) and <ETX> end of text

(0x03) controls information exchange.

The characters <ENQ>, <EOT>, <DLE> are used to determine who has control of the bus. Lastly, all messages are <ACK>

Watlow Controls Communications Guide 11 acknowledged (0x06) or <NAK> negative acknowledged (0x15) to ensure messages where received correctly.

Modbus Remote Terminal Unit

(RTU)

Gould Modicon, now called AEG

Schneider, created the third protocol for process control systems called "Modbus".

This protocol is the most complex of the three. It has the advantage of being extremely reliable in exchanging information, a highly desirable feature for industrial data communications. This protocol works on the principle of packet exchanges. The packet contains the address of the controller to receive the information, a command field that says what is to be done with the information and several fields of data. Reading from these registers retrieves all information in the controller. These registers are listed in your user’s manual. You will need this list to determine where the data is located.

The last item sent in the packet is a field to ensure the data is received intact. This is called a cyclic redundancy check-sum.

All information exchanged is in hex numbers. Watlow only supports the binary version of Modbus, referenced as RTU.

The ASCII version is less efficient and is not supported.

Chapter Four -

Human Machine

Interfaces (HMI)

HMI stands for Human-Machine-

Interface, and is sometimes referred to as

Man-Machine-Interface (MMI). This is an operator interface that allows you to monitor and control your process. Many software packages were written to allow a

PC to perform this function. Use care in selecting software packages. Some will run only under a specific disk operating system such as Windows NT from Microsoft. The serial interface and protocol must match between the PC or PLC and the controller.

Many companies provide free working demonstration copies. Obtain a demonstration copy so you can see if the program meets your needs.

Listed below are a few of the many software packages that claim to support the Modbus protocol. Watlow does not recommend any one software package nor supports the implementation of any software package not sold by Watlow.

Contact the software manufacturer for more information in applying their software.

Write your own HMI

Writing an XON/XOFF

Application

The great thing about XON/XOFF protocol is the simplicity of communications. The basic structure is to send information to the controller as needed until you receive an XOFF (0x13).

You must wait until you receive an XON

(0x11) before continuing. The controller follows this same scheme. There are no confirmations of commands sent. This protocol is highly efficient in that few characters are sent to handle the flow of information. This protocol is sometimes referred to as “flow control”.

The disadvantage of this protocol is lower reliability in ensuring that both parties receive the proper information. In addition, only two devices can be on a bus because no means is provided to address any controller.

Handling Error Codes (ER2)

All communications' related error codes are ER2 error codes, which means that they're not considered cause for a shutdown of the unit itself. With

XON/XOFF flow control, error codes may be generated, but there will be no standard indication of this fact. Therefore, you may want to query the status of ER2 after each command sent to see if it was successful.

User Responsibility

Users must refrain from altering prompts that do not appear on the controller’s front panel or are not included on the specific model. For example, do not send an A2LO command to a unit not equipped with an alarm for output 2.

Most Watlow controllers contain a register to disable saving of the current set point to EEPROM. When using your PC or PLC to control the set point in the

Watlow controller, the EEPROM may be prematurely damaged. There is a limit to the number of times you can store information in the EPPROM. PCs can quickly reach this limit if the set point is continually changed, as in a ramping controller. Disabling this feature will prevent this damage.

Care must also be taken that the process can not cause damage to property or injury to personnel if the wrong commands are sent due to operator error or equipment malfunction. Be sure to use limit devices on the equipment to prevent system runaway.

Writing an ANSI x3.28 Application

Handling Error Codes (ER2)

All communications' related error codes are ER2 error codes, which means that

Watlow Controls Communications Guide 12

they're not considered cause for a shutdown of the unit itself. There is always a communications error code generated when the <NAK> character

(0x15) is sent under the ANSI x3.28

protocol

User Responsibility

Users must refrain from altering prompts that do not appear on the controller’s front panel or are not included on the specific model. For example, do not send an A2LO command to a unit not equipped with an alarm for output 2.

Most of Watlow controllers contain a register to disable saving of the current set point to EEPROM. When using your PC or PLC to control the set point in the

Watlow controller, the EEPROM may be prematurely damaged. There is a limit to the number of times you can store information in the EPPROM. PCs can quickly reach this limit if the set point is continually changed, as in a ramping controller. Disabling this feature will prevent this damage.

Care must also be taken that the process can not cause damage to property or injury to personnel if the wrong commands are sent due to operator error or equipment malfunction. Be sure to use limit devices on the equipment to prevent system runaway.

Because of the wide array of choices available for setting up a Watlow controller, only a subset of the prompts contains parameters in a given situation.

The user's manual explains the interrelations between prompts.

Writing a Modbus Application

Modbus RTU enables a computer or PLC to read and write directly to registers containing the controller’s parameters.

With it you could read all 141 of the controller’s parameters with five read commands.

Because of the wide array of choices available for setting up a controller

Watlow Controls Communications Guide 13 utilizing Modbus, only a subset of the prompts contain parameters in a given situation. This document explains the interrelations between prompts.

If you already have a software application that uses Modbus, you can simply skip to the Temperature/process Controller

Prompt Table or the Modbus RTU Address

Table in the user’s manual for the address information your program will need. The rest of this section on the Modbus provides information for writing a software application that uses Modbus.

1. You need to code messages in eight-bit bytes, with no parity bit, one stop bit

(8, n, 1).

2. Negative parameter values must be written in twos' complement format.

Parameters are stored in two-byte registers accessed with read and write commands to a relative address.

3. Messages are sent in packets that are delimited by a pause at least as long as the time it takes to send 30 bits. To determine this time in seconds, divide

30 by your baud rate.

4. Because changing some parameters automatically changes or defaults other parameters, use the Complete

Parameter Download Sequence table listed in the user's manual to order write commands.

Using a controller address of 0x00 for a write command, will send that command to all the controllers in the network. This is a powerful feature if all the controllers on a network use all or most of the same parameters.

Packet Syntax

Each message packet begins with a one-byte controller address, from 0x01 to 0xF7.

The second byte in the message packet identifies the message command: read

(0x03 or 0x04); write (0x06 or 0x10); or loop back (0x08).

The next n bytes of the message packet contain register addresses and/or data.

The last two bytes in the message packet contain a two-byte Cyclical Redundancy

Checksum (CRC) for error detection.

Packet format: nn | nn | nnnn… | nn nn address command registers and/or data

CRC

Read Multiple Registers Command (0x03 or 0x04)

This command returns from 1 to 32 registers.

Packet sent to controller:| nn | 03 | nn nn | 00 nn | nn nn | controller address (one byte) read command (0x03 or 0x04) starting register high byte starting register low byte number of registers high byte (0x00) number of registers low byte

CRC low byte

CRC high byte

Packet returned by controller: | nn | 03 | nn | nn nn … nn nn | nn nn | controller address (one byte) read command (0x03 or 0x04) number of bytes (one byte) first register data low byte first register data high byte

… register n data high byte register n data low byte

CRC low byte

CRC high byte

Watlow Controls Communications Guide 14

Example (988 only): Read register 0 (model number) of the controller at address 1.

Sent: 01 03 00 00 00 01 84 0A

Received: 01 03 02 03 DC B9 2D

Message: 988 (0x03DC).

Example (988 only): Read register 1 and 2 (Process 1 and 2 values) of controller at address 5.

Sent: 05 03 00 01 00 02 94 4F

Received: 05 03 04 00 64 00 C8 FF BA

Message: 100 (0x0064) and 200 (0x00C8).

Write to a Single Register Command (0x06)

This command writes a parameter to a single register. The controller will echo back the command. An attempt to write to a read-only parameter returns an illegal data address error (0x02). (See “Exception Responses,” pg. 4.9.)

Packet sent to controller:| nn | 06 | nn nn | nn nn | nn nn | controller address (one byte) write to a register command (0x06) register high byte register low byte data high byte data low byte

CRC low byte

CRC high byte

Example (988 only): Set register 7 (SPI) to 200 (0x00C8) on controller at address 9.

Sent: 09 06 00 07 00 C8 38 D5

Received: 09 06 00 07 00 C8 38 D5

Write to Multiple Registers Command (0x10)

This command actually writes a parameter to only a single register. An attempt to write to a read-only parameter returns an illegal data address error (0x02). (See

“Exception Responses,” pg. 4.9.)

Packet sent to controller:| nn | 10 | nn nn | 00 01 | 02 | nn nn | nn nn | controller address (one byte) write to multiple registers command (0x10) starting register high byte starting register low byte number of registers to write high byte (0x00) number of registers to write low byte (must be 0x01) number of data bytes (must be 0x02) data high byte data low byte

CRC low byte

CRC high byte

Watlow Controls Communications Guide 15

Packet returned by controller: | nn | 10 | nn nn | 00 01 | nn nn | controller address (one byte) write to multiple registers command (0x10) starting register high byte starting register low byte number of registers to write high byte (0x00) number of registers to write low byte (must be 0x01)

CRC low byte

CRC high byte

Loop Back Command (0x08)

This command simply echoes the message. This serves as a quick way to check your wiring.

Packet sent to controller:| nn | 08 | nn nn | nn nn | controller address (one byte) loop back command (0x08) data high byte data low byte

CRC low byte

CRC high byte

Example: Run loop back test on controller at address 40 (0x28).

Sent: 28 08 55 66 77 88 31 B7

Received: 28 08 55 66 77 88 31 B7

Exception Responses

When a controller cannot process a command it returns an exception response and sets the high bit (0x80) of the command.

0x01 illegal command

0x02 illegal data address

0x03 illegal data value

Packet returned by controller: | nn | nn | nn | nn nn | controller address (one byte) command + 0x80 exception code (0x01 or 0x02 or 0x03)

CRC low byte

CRC high byte

Watlow Controls Communications Guide 16

Messages with the wrong format, timing or CRC are ignored. A read command sent to an inactive parameter returns 0x0000.

Example: Exception 01 - Command 02 is not supported.

Sent: 01 02 00 01 00 02 A8 0B

Received: 01 82 01 81 60

Example: Exception 02 - The parameter at register 45 (0x002D) is inactive.

Sent: 01 06 00 2D 00 01 D8 C3

Received: 01 86 02 C3 A1

Example: Exception 03 - Cannot write 12,000 (0x2EE0) to register 7, out of range, illegal data value.

Sent: 01 06 00 07 2E E0 24 23

Received: 01 86 03 02 61

Special Modbus Functions

The following are Modbus registers with special functions: 24, Disable Non-volatile (system)

Memory; 106, Alarm Status Output 2; 110, Alarm

Status Output 3; 114, Alarm Status Output 4; 200,

Auto-Manual Operation Mode; 311, Clear Input

Errors; 331, Clear Alarms; 332, Silence Alarms.

A "0" indicates an inactive state. Send "1" to the register to activate the function. It will automatically reset to "0" when the function is complete. See your

User’s Manual for detail on your specific model.

Watlow Controls Communications Guide 17

Handling Error Codes

Error codes are divided into two types.

Read error codes and write error codes are called exception codes. Reading from a register that does not exist or is currently disabled will typically respond with a large out of range value such as -32000, -32001, or -32002. The Series 988 returns a value of zero.

Writing to a register that is not supported, is inactive or out of range will return a packet with 0x80 added to the command sent. The byte following this will contain the value 0x01 for illegal command, 0x02 for illegal address, or 0x03 for illegal data value. Writing to a read only register will return an exception code 0x02.

See your user's manual for exact values and definitions.

User Responsibility

Users must refrain from altering prompts that do not appear on the controller’s front panel or are not included on the specific model. For example, do not send an A2LO command to a unit not equipped with an alarm for output 2.

Most of Watlow controllers contain a register to disable saving of the current set point to EEPROM. When using your PC or PLC to control the set point in the

Watlow controller, the EEPROM may be prematurely damaged. There is a limit to the number of times you can store information in the EPPROM. PCs can quickly reach this limit if the set point is continually changed, as in a ramping controller. Disabling this feature will prevent this damage.

Care must also be taken that the process can not cause damage to property or injury to personnel if the wrong commands are sent due to operator error or equipment malfunction. Be sure to use limit devices on the equipment to prevent system runaway.

Purchase an HMI package

Not all HMIs are equal in performance. Set up and operation / function of each

Watlow Controls Communications Guide 18 manufacturer’s HMI package is unique.

Industrial controllers operate in a harsh, electrically noisy environment. This can cause less robust HMIs to work intermittently or not at all. In addition, the platform (PC or PLC) which runs the

HMI is subject to failures causing unpredictable operation of your process.

Watlow has not tested the HMIs listed with the exception of ANAWIN and

WATLINK. This list is provided as informational only. Watlow makes no claims as to the performance or compatibility with any HMI software package.

Anawin by Watlow Anafaze

334 Westridge Drive

Watsonville, CA 95076

Phone 408-724-3800 http://www.watlow.com

WATLINK by Watlow Controls

1241 Bundy Blvd

Winona, MN 55987

Phone 507-454-5300 http://www.watlow.com

CONTROLWARE by Controlware

245 Northland Blvd

Cincinnati, OH 45246-3603

Phone 800-776-9704 http://www.controlware.com

Cimplicity by GE Fanuc

Phone 1-800-648-2001 http://www.gefanuc.com

Genesis by Iconics

100 Foxborough Blvd

Foxborough, MA 02035

Phone 800-946-9679 http://www.iconics.com

Interact by CTC

50 W. TechneCenter Drive

Milford, OH 45150

Phone 513-831-2340 http://www.ctcusa.com

KEPware MMI by KEPware, Inc.

81 Bridge Street

Yarmouth, ME 04096

Phone 207-846-5881

http://www.kepware.com

LabView by National Instruments

6504 Bridge Point Parkway

Austin, TX 78730-5039

Phone 512-794-0100 http://www.natinst.com

Lookout by National Instruments

6504 Bridge Point Parkway

Austin, TX 78730-5039

Phone 512-794-0100 http://www.natinst.com

Modbus for Windows by Calta

Computer Systems Ltd.

230, 550-71 Ave. SE

Calgary, Alberta Canada T2H 0S6

Phone 403-252-5094 http://www.calta.com

OI-2000 by Software Horizons, Inc.

10 Tower Office Park

Suite 200

Woburn, MA 01801-2120

Phone 617-933-3747 http://www.shorizons.com

SpecView by SpecView, LLC

41 Canyon Green Court

San Ramon, CA 94583

Phone 510-275-0600 http://www.specview.com

Watlow Controls Communications Guide 19

Visual Logic Controller by Steeplechase

Software, Inc.

1330 Eisenhower Place

Ann Arbor, MI 48108

Phone 313-975-8100 http://www.steeplechase.com

Wonderware 2000 by Wonderware

Corp.

100 Technology Drive

Irvine, CA 92718

Phone 714-727-3200 http://www.wonderware.com

Chapter Five -

Operator Interface

Panels

Not all Operator Interface Panels are equal in performance. Programming of each manufacturer’s panel is unique. Industrial controllers operate in a harsh, electrically noisy environment. This can cause less robust panels to work intermittently or not at all. Watlow has not tested the panels listed and this list is provided as informational only. Watlow makes no claims as to the performance or compatibility with any Operator Interface

Panel.

EXOR

4740T Interstate Drive

Cincinnati, OH 45246

Phone 513-874-4665 http://www.exor-rd.com

CTC

50 W. TechneCenter Drive

Milford, OH 45150

Phone 513-831-2340 http://www.ctcusa.com

Maple Systems

1930 220

th

Street SE

Suite 101

Bothell, WA 98021

Phone 425-486-4477 http://www.maple-systems.com

Advantech

Phone 1-800-800-6889 http://www.advantech-usa.com

Interface Adapters

Not all converters are equal in performance. Industrial controllers

Watlow Controls Communications Guide 20 operate in a harsh, electrically noisy environment. This can cause less robust converters to work intermittently or not at all. Watlow has not tested the converters listed and this list is provided as informational only. Watlow makes no claims as to the performance or compatibility with any converter .

B&B Electronics

707 Dayton Road

PO Box 1040

Ottawa, IL 61350

Phone 815-433-5100 http://www.bb-elec.com

Part # 485OIC for EIA-232 to EIA-422 or EIA-485

Dataforth Corporation (formerly supplied by Burr-Brown)

3331 E. Hemisphere Loop

Tucson, AZ 85706

Phone 800-444-7644

Part # LDM422 for EIA-232 to EIA-422

Part # LDM485 for EIA-232 to EIA-485

CMC – Connecticut Microcomputer

Corporation

Watlow Software Tools

920Comm Diagnostic

Software

Watlow has a program available free of charge called “920COMM.EXE” that is used with the Series 920 Controller. This can be downloaded from our BBS at 507-

452-3958. This is a terminal program that handles the protocol for you. The program can be used to determine if your cables are properly connected and that the controller is working. This program supports the ANSI x3.28 and XON/XOFF protocols.

922Comm Diagnostic

Software

Another program available free of charge is called “922COMM.EXE" which is used with the Series 922 Controller. This can be downloaded from our BBS at 507-452-

3958. This is a terminal program that handles the protocol for you. The program can be used to determine if your cables are properly connected and that the controller is working. This program supports the ANSI x3.28 and XON/XOFF protocols.

Comm4 Diagnostic Software

The “COMM4.EXE” program can be downloaded free of charge from our BBS at

507-452-3958. This is a terminal program which handles the protocol for you. The program can be used to determine if your cables are properly connected and that the controller is working. This program supports the ANSI x3.28 and XON/XOFF protocols.

Comm5vb Diagnostic

Software

The “COMM5VB.EXE” program can be downloaded free of charge from our BBS at

507-452-3958. This is a terminal program that handles the protocol for you. The program can be used to determine if your cables are properly connected and that the controller is working. This program supports the Modbus, ANSI x3.28 and

XON/XOFF protocols.

CRC

Cyclical Redundancy Checksum (CRC)

Algorithm

This C routine, calc_crc(), calculates the cyclical redundancy checksum, CRC, for a string of characters. The CRC is the result of dividing the string by 0xA001. Modbus applications calculate the packet’s CRC then append it to the packet.

#define POLYNOMIAL 0xA001; unsigned int calc_crc(unsigned char

*start_of_packet, unsigned char

*end_of_packet)

{ unsigned int crc; unsigned char bit_count; unsigned char *char_ptr;

/* Start at the beginning of the packet */ char_ptr = start_of_packet;

/* Initialize CRC */ crc = 0xffff;

/* Loop through the entire packet */ do{

/* Exclusive-OR the byte with the CRC */ crc ^= (unsigned int)*char_ptr;

/* Loop through all 8 data bits */ bit_count = 0; do{

/* If the LSB is 1, shift the CRC and XOR the polynomial mask with the CRC */ if(crc & 0x0001){ crc >>= 1; crc ^= POLYNOMIAL;

}

/* If the LSB is 0, shift the CRC only */ else{ crc >>= 1;

}

} while(bit_count++ < 7);

} while(char_ptr++ < end_of_packet); return(crc);

}

Watlow Controls Communications Guide 21

Interface Comparison

Interface Maximum Max #

EIA-423 4,000 feet 1

EIA-422 4,000 feet 10

EIA-485 4,000 feet 32

Cable Voltage

Standard Bus Length Controllers Type Level

EIA-232 50 feet 1 3-wire 3 – 24 v

Balanced/ Duplex

Unbalanced

Unbalanced Full

3-wire 3 – 12 v Unbalanced Full

5-wire 2.0 – 6 v Balanced Full

3-wire 1.6 – 6 v Balanced Hal

Summary

As first stated in this article, the steps involved to communicate are:

1. Determine how many controllers you will communicate with

2. Pick a protocol and interface that supports the information exchange

3. Purchase hardware and software to make this happen.

The number of controlled zones will determine the number of controllers connected to the PC or

PLC. Pick a protocol that will support this number. Consider speed and reliability of communications when picking the protocol. Ask yourself, how will the devices understand each other? Pick an interface that will support the number of devices connected, transmit over the desired distance and is industrially hardened

(will communicate in electrically noisy environments). Lastly, purchase an interface, controllers, PC or PLC and software that will work together. Software may be written to accomplish the task if you have the skills and resources to do so.

Watlow Controls Communications Guide 22

Appendix

Glossary

Address

A unique designator for a location of data or a controller that allows each location or controller on a single communications bus to respond to its own message. Similar to your own residence address.

ANSI

ANSI x3.28

The American National Standards Institute developed this communication standard protocol. This method uses a unique address for each device. Only the master can initiate a communications session by sending an address and then the <ENQ> character. All other messages must start with a start of text <STX> and end with an end of text <ETX> character. The bus is released to the other device by sending

<EOT> character. Messages are <ACK> acknowledged or <NAK> negative acknowledged.

ASCII (pronounced AS-KEY)

American Standard Code for Information

Interchange. A universal standard for encoding alphanumeric characters into 7 or 8 binary bits.

Asynchronous

Communications where characters can be transmitted at an unsynchronized point in time. In other words, it can start and stop anytime. The time between transmitted characters may be of varying lengths.

Communication is controlled by “start” and “stop” bits at the beginning and end of each character.

Baud

Unit of signaling speed derived from the number of events per second (normally bits per second).

Baud rate

The rate of information transfer in serial communications, measured in bits per second.

Watlow Controls Communications Guide 23

Binary

Number based system where only two characters exist, 0 and 1. Counting is 0, 1, 10, 11...

Bit condition in the binary system.

Byte

A term referring to eight associated bits of information, sometimes called a “character”.

CAN Bus

The communications protocol that includes software and hardware. CAN was originally developed by the German company Robert Bosch for use in the auto industry to provide a cost-effective communications bus for in-car electronics.

Character

Letter, numeral, punctuation, control figure or any other symbol contained in a message.

Typically this is encoded in one byte.

Communications

The use of digital computer messages to link components. (See serial communications and baud rate)

Converter

This device will convert from one hardware interface to another such as from EIA-232 to EIA-

485. The converter may be transparent to the software, which means you do not have to give any special considerations to software programming.

CRC

When data is corrupted during transmission, a method is used to return the data to its correct value. This can be accomplished through several methods: parity, checksum and CRC (cyclic mechanism using a polynomial algorithm based on the content of a message frame at the transmitter and included in a field appended to the frame. At the receiver, it is then compared with the results of the calculation that is performed by the receiver.

Data

The information that is transferred across the communications bus. This may be a setpoint, setup parameter, or any character. This information is transferred to an address or register.

DB-9

A standardized connector shaped like the letter “D” when viewed on edge. This connector has 9 contacts. It is utilized on most IBM AT compatible PCs as the serial port.

DB-15

A standardized connector shaped like the letter “D” when viewed on edge. This connector has 15 contacts. It is utilized on most IBM AT compatible PCs as the game/midi port.

DB-25

A standardized connector shaped like the letter “D” when viewed on edge. This connector has 25 contacts. It is utilized on most IBM AT compatible PC’s as the parallel port when the PC end contains socket contacts. Can also be the serial port when the PC end contains pin contact.

Decode

This is the reverse of encode. When a piece of data has information embedded in it, decode is to extract that information.

Ex. To extract an “A” from 01000001.

DeviceNet

A software protocol / hardware interface based on CAN. A low cost communication link that connects industrial devices over a network. Uses twisted pair wires for the power and bus. Nodes can be removed or inserted on the bus without powering down the network.

Double Word

Equivalent to two words or four bytes.

This equals 32 bits.

Duplex

The ability to send and receive data at the same time. “To listen and talk at the same time.”

EIA

See Electronic Industries Association

EIA-232

Electronic Industries Association developed this standard hardware interface to allow one device to talk to another device in full duplex mode. This method uses a differential voltage between one wire and ground. Also called an unbalanced system since the ground wire carries the sum of current of all lines. First standard to gain wide acceptance by manufacturers.

Transmission is limited to about 50 feet.

EIA-422

Electronic Industries Association developed this standard hardware interface to allow up to 10 devices to be on a bus at one time. This method uses a differential voltage between two wires. Also called a balanced system since each wire carries the same current values. This has the advantage of being immune to outside electrical disturbances.

EIA-423

Electronic Industries Association developed this standard hardware interface to allow one device to talk to another device in full duplex mode. This method uses a differential voltage between one wire and ground. Also called an unbalanced system since the ground wire carries the sum of current of all lines. This standard is compatible with EIA-232. The outputs were beefed up to allow transmission up to

4000 ft.

EIA-485

Electronic Industries Association developed this standard hardware interface to allow up to 32 devices to be on a bus at one time. This method uses a differential voltage between two wires. Also called a balanced system since each wire carries the same current value. This has the advantage of being immune to outside electrical disturbances.

EIA/TIA -232, -422, -423 and -485

Data communications standards set by the

Electronic Industries Association and

Telecommunications Industry Association.

Watlow Controls Communications Guide 24

Formerly referred to as RS-

(Recommended Standard). (See EIA-232,

EIA-422, EIA-423 and EIA-485)

Electronic Industries Association

(EIA)

An association in the US that establishes standards for electronics and data communications

Encode

To embed information into a piece of data. This is the reverse of decode. Ex.

Let’s let 01000001 stand for an “A”.

Error Correction

When an inconsistency is in the data, a method is used to detect and/or return the data to its correct value. This can be done through several methods, parity, checksum and CRC (cyclic redundancy checksum) are a three of these.

Ethernet

A local area network developed by Xerox in the early 70’s and standardized by

Xerox, Digital Equipment and Intel in

1978. This is a serial communications method which all devices share the lines.

An address is sent in a packet to talk to a device on the line. This protocol supports peer-to-peer communications.

Even

This term is used with parity. See parity.

Fieldbus

The term fieldbus is a general definition for an industrial network media that resides at the machine level and below in a total network system. The primary purpose of this network is to interconnect the machine level and sublevel control functions and services in a distributive topology. It is not a particular protocol or physical connection system. Included in this generalization definition are standard protocols of Profibus, Modbus, DeviceNet,

SDS, WorldPIP, and P-Net.

Firmware

Instruction or data stored in an IC

(integrated circuit) or on a read only disk.

This data is programmed once and cannot easily be changed as software can.

Full

See Full Duplex.

Full Duplex

Full is used to mean the duplex’s full capability. The ability to send and receive data at the same time. The same as duplex.

GPIB

See IEEE488

Half Duplex

The ability to send or receive data, but not at the same time. “To listen or talk, but not both at the same time.”

Handshake (Handshaking)

Exchange of predetermined signals between two devices establishing a connection. Using extra wires or software signals to coordinate communications, signals can be sent to tell the transmitter the current status of the other device receiver. Ex. Are you busy or are you ready?

Hex or Hexadecimal

Number based system where sixteen characters exist, 0 to 9, A to F. Counting is 0..9,A,B,C..

HMI

Human to Machine Interface typically performed in software on a personal computer. Also called MMI.

IEEE488

Bus developed by Hewlett-Packard in 1965 as HP-IB. Also referred to as GPIB

(General Purpose Interface Bus). Consist of 8 data lines and 8 control lines. Bus length limited to 20.0 meters. Supports 15 devices on the bus at one time.

Logic Level

A voltage measurement system where only two stable voltage values exist. Ex. 0v and

5V, or -3v and +3v.

Watlow Controls Communications Guide 25

Mark

Represents the transmission of data bit logic 1 (see logic level). Usually this is the most negative voltage value in serial communications.

Master

The device on the bus that controls all communications. Only the master can initiate conversation.

Modbus

A software protocol developed by Gould

Modicon (now AEG) for process control systems. No hardware interface is defined.

Modbus is accessed on the master/slave principle, the protocol providing for one master and up to 247 slaves. Only the master can initiate a transaction. This is a half duplex protocol.

MMI

Man to Machine Interface typically performed in software on a personal computer. Also called HMI.

Network

When two or more devices share communications lines, the devices are

“networked”.

Node

A point of interconnection to a network.

Noise Immunity

The ability of communications lines to ignore electrical noise generated in the communications lines by nearby magnetic and electrostatic fields.

Odd

This term is used with parity. See parity.

OSI

Open Systems Interconnection are those which conform to specifications and guidelines that are open to all. This allows equipment from any manufacturer, which claims to comply with the standard, to be used interchangeably on the standard network.

Parallel

Communication using this method, transfers eight bits or one byte at a time over eight data wires and one ground wire.

This method is eight times faster than using serial but utilizes more hardware.

Parity

A bit is assigned at the beginning of a byte to stand for parity. When the ‘1’ bits are counted, the number will be even or odd.

A parity bit is used to ensure that the answer is always even if even parity or odd if odd parity. If the receiving end counts the ‘1’ bits and the sum is not the same odd or even, an error is generated. Ex.

00010000 has an odd number of 1s. In even parity, we would set the parity to 1 so we have an even number of bits. In odd parity, we would set the parity bit to 0 so we have an odd number of ‘1’ bits. Parity is used to detect errors caused by noise in data transmission.

PC

Personal Computer, coined by IBM when it introduced its first IBM PC Jr., which later became PC, XT, AT, 286, 386, 486,

Pentium, Pro, MMX Pentium, and latest

Pentium II.

Peer to Peer

Two devices that can talk to each other.

Both devices can initiate communications.

This may also be called Master-to-Master communications.

Profibus

Profibus is actually three buses. Profibus

FMS (Field Message Specification),

Profibus PA (Process Automation), and

Profibus DP (Process Periphery). FMS is a higher level bus intended to operate with

PLCs, Pcs and higher level nodes. Profibus

DP supports three masters. The masters then operate with field nodes as master-toslaves. Profibus PA is an intrinsically safe bus. The protocol is essentially the same as DP but the electrical / physical specifications are modified to satisfy low voltage and current requirements.

Watlow Controls Communications Guide 26

Protocol

A set of rules for communication. This will specify what method to transfer information, packet size, information headers and who should talk when. It is used to coordinate communication activity.

Receive

To accept data sent from another device.

The device that receives the data is the receiver.

Register

An area of memory that provides temporary storage of digital data.

RJ11

A connector used on most telephones that has four terminals.

SDS

Smart Distributed System is a CAN based device-level control network that can be scan or event driven, configured as masterslave or peer-to-peer, and can support devices of varying complexity. . Uses twisted pair wires for the power and bus.

Slave

A device that only responds to commands.

This device never starts communication on it’s own. Only the Master can do this.

(See Master)

SCADA

Supervisory Control and Data Acquisition

Serial

To process something in order. First item, second item, etc.

Serial Communications

A method of transmitting information between devices by sending all bits serially

(see serial) over a single communication channel.

EIA/TIA-232

(Formerly RS-232) -

An Electronic Industries Association

(EIA)/Telecommunication Industry

Association (TIA) standard for interface

Watlow Controls Communications Guide 27 between data terminal equipment and data communications equipment for serial binary data interchange. This is usually for communications over a short distance (50 feet or less) and to a single device.

EIA/TIA-485 (Formerly RS-485) –

An Electronic Industries Association

(EIA)/Telecommunication Industry

Association (TIA) standard for electrical characteristics of generators and receivers for use in balanced digital multi-point systems. This is usually used to communicate with multiple devices over a common cable or where distances over 50 feet are required.

Software

Information of data or program stored in an easily changeable format. (RAM,

Floppy Disk, Hard Disk)

Space

Represents the transmission of a data bit logic 0 (see logic level). Usually this is the most positive voltage value in serial communications.

Start Bit

A binary bit or logic level that represents when the serial data information is about to start (at the beginning of a character or byte). This voltage level is positive.

Stop Bit

A binary bit or logic level that represents when the serial data information is complete (at the end of a character or byte). This voltage level is negative.

Synchronous

When data is transmitted on a data line and a clock signal is used on another line to determine when to check the data line for a logic level. This clock is said to

“synchronize” the data.

TCP/IP

Transmission Control Protocol/Internet

Protocol is a software protocol used to send and receive data between different computer systems. Standard protocol used on the Internet.

Transmit

To send data from one device to another.

The device that sends the data is the transmitter.

Word

Two bytes make a word. This contains 16 bits.

XON/XOFF

A software protocol that controls the flow of serial information. Sending an XON tells the transmitter to start sending information. An XOFF tells the transmitter to stop sending until the receiver has processed the current information. XOFF = DC3 = Control S = hex 11, XON = DC1 = Control Q = hex

13.
