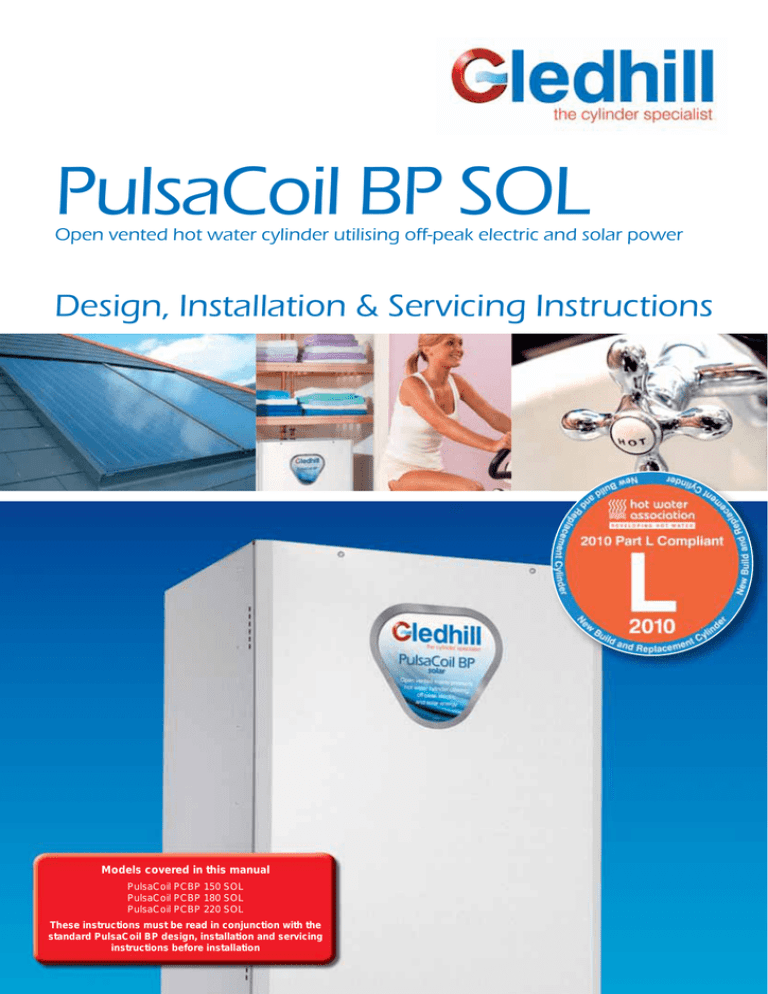

PulsaCoil BP SOL
Open vented hot water cylinder utilising off-peak electric and solar power
Design, Installation & Servicing Instructions
Models covered in this manual
PulsaCoil PCBP 150 SOL
PulsaCoil PCBP 180 SOL
PulsaCoil PCBP 220 SOL
These instructions must be read in conjunction with the
standard PulsaCoil BP design, installation and servicing
instructions before installation
CONTENTS
ISSUE 1: 02-10
Section
Page
DESIGN
Introduction
Technical Data
3
4
SERVICING
Short Parts List
7
BENCHMARK
Commissioning Checklist
Service Record
8
9
Terms & Conditions
10
Building Regulations and Benchmark Commissioning
The Building Regulations (England & Wales) require that the installation of a heating
appliance be notified to the relevant Local Authority Building Control Department.
From 1st April 2005 this can be achieved via a Competent Person Self Certification
Scheme as an option to notifying the Local Authority directly. Similar arrangements
will follow for Scotland and will apply in Northern Ireland from 1st January 06.
Benchmark places responsibilities on both manufacturers and installers.The purpose is to
ensure that customers are provided with the correct equipment for their needs, that it is
installed, commissioned and serviced in accordance with the manufacturers instructions
by competent persons and that it meets the requirements of the appropriate Building
Regulations. The Benchmark Checklist can be used to demonstrate compliance with
Building Regulations and should be provided to the customer for future reference.
Installers are required to carry out installation, commissioning and servicing work in
accordance with the Benchmark Code of Practice which is available from the Heating
and Hot Water Industry Council who manage and promote the Scheme. Visit www.
centralheating.co.uk for more information.
Page 2
The Gledhill PulsaCoil range is a WBS
listed product and complies with the
HWA Specification for hot water only
thermal storage products. The principle was
developed in conjunction with British Gas.
This product is manufactured under an ISO
9001:2008 Quality System audited by BSI.
Gledhill’s first priority is to give a high quality
service to our customers.
Quality is built into every Gledhill product
and we hope you get satisfactory service
from Gledhill.
If not please let us know.
DESIGN
However, a pair of sensor pockets T2 and T3
are provided on the PulsaCoil BP SOL. A 10mm
dry pocket is provided at low level (T2) for the
installation of a solar control sensor. Another
10mm dry pocket is provided at high level (T3)
for the high limit thermostat (to be provided by
the installer) to prevent the store temperature
rising above 85°C. This is usually done by
stopping the solar input to the PulsaCoil. A
further control sensor will also need to be
provided by the installer adjacent to the solar
collector (T1). See diagram on page 5 for further
details.
T1
Solar
Pumping
Station
Solar
Controller
Expansion
Vessel
F & E cistern
Pressure
Relief
Solar Coil
Return Connection
T3
Solar Coil Flow
Connection
A safety device (pressure relief valve) to control
the risk of over-pressure in system components
should be fitted as shown on the Solar System
diagram. A termination from a safety pressure
device should minimise the risk of damage to
persons or materials. Suitable locations are a
high temperature receptacle, an internal gulley
or else issue externally at ground level. High
level termination from walls or on roofs could
cause injury to people or animals below if the
valve were to release scalding water and steam.
The pipe leading to the safety device and the
collector should be of rigid and non-deformable
construction, without any possibility of
restriction or disclosure by any other fitted
component.
To obtain maximum benefit from this appliance
it is recommended that it is used in conjunction
with an Economy 7 off peak electrical tariff.
If the appliance is used with an on peak tariff it
is recommended that a time clock is fitted on
the electrical supply to the off peak (bottom)
immersion heater. This should be set to charge
the store overnight and allow the solar to
replenish the store during the day.
T2
Typical arrangement of a Solar System
incorporating Pulsacoil BP Sol
The arrangement and components of a PulsaCoil BP Sol appliance are shown
schematically above and on page 4.
The current solar appliance is based on the standard PulsaCoil appliance and this
addendum must be read in conjunction with the Design, Installation and Servicing
Instructions provided for the standard appliance.
The basic difference between this and a standard PulsaCoil appliance is the addition
of a solar coil at the bottom of the thermal store.
Because this product does not require a safety discharge from a temperature and
pressure relief valve, any installations will be easy to incorporate into the building
and will not suffer from the problems associated with using PVCu soil stacks to take
the discharge from unvented cylinders.
All the equipment and controls for the solar system will need to be designed,
supplied and installed by the Solar installer from the connections provided on
top of the appliance.
Page 3
The standard manual fill model is shown
opposite but an automatic fill model with ball
valve and overflow can be provided if ordered
as an optional extra.
In order to meet the Building Regulations
requirement to reduce the rate of accumulation
of scale in hard water areas, it is important
that the installer checks the hardness of the
incoming water supply.
If this exceeds 200ppm (mg/l), we recommend
that the factory fitted scale inhibitor is ordered
as an optional extra.
If it exceeds 300ppm (mg/l), we recommend the
use of a polyphosphate type of scale inhibitor.
This can also be ordered as an optional extra but
will need fitting on site by the installer.
INTRODUCTION
DESIGN
1. Bottom (off-peak) immersion heater
10
2. Top (on-peak) immersion heater
F & E cistern
3. CW inlet - 22mm
4. HW outlet - 22mm
5. Thermostatic blending valve (factory
setting 50-55˚C)
12
11
8
6. Top solar sensor pocket (T3)
9
7. Bottom solar sensor pocket (T2)
8. Solar coil flow (from collector)
connection - 15mm
5
6, T3
4
9. Solar coil return (to collector)
connection - 15mm
10. Feed and expansion cistern
11. Cold feed - 15mm
12. Open vent - 22mm
2
Appliance
case
3
1
7, T2
Typical Schematic Arrangement of the PulsaCoil BP SOL
TECHNICAL DATA
Page 4
DESIGN
Schematic arrangement of extra wiring required for solar appliance
(including high temperature interlock)
Gledhill Pulsacoil BP Sol
3rd Party Typical Solar Kit Arrangement
Solar Collector
Solar Circuit Pump
L
Br
N
T1
E
Bl G/Y
Solar Return
T3
10mm dry pocket provided
for overheat sensor
It is the responsibility of the installer
to follow all best practices for solar
plumbing connections, support for
this will need to be sought from
the solar kit supplier.
10mm dry pocket provided
for 3rd party solar controller
sensor to be inserted
o
80.5 C
T2
G/Y
Bl
Br
This diagram must be used in conjunction with the full
Pulsacoil BP wiring diagram in the Design, Installation and
Servicing Instruction Manual.
E
SOLAR PUMP
N CONTROLLED
OUTPUT
L
Complete Solar Kit supplied and fitted by Installer. The Pulsacoil BP Solar
appliance is supplied with the following additional items:1.
2.
3.
Page 5
15mm copper solar collector pipe connection
15mm copper solar return pipe connection
10mm diameter dry pocket for solar control sensor
TECHNICAL DATA
DESIGN
Technical Specification of PulsaCoil BP SOL
Models
Overall dimensions
Minimum cupboard
dimensions
PCBP220SOL
(mm)
1332
1533
1734
Width
(mm)
560
560
560
Depth
(mm)
605
605
(3)
605
(3)
2484 (3)
Height
(mm)
2082
Width
(mm)
600
600
600
Depth
(mm)
620
620
640
(mm)
22
22
22
2283
Collector
(mm)
15
15
15
Return
(mm)
15
15
15
(l/min)
18
22
22
Empty
(kg)
69
78
85
Full
(kg)
219
258
295
Maximum hot water flow rate (1)
Weight
PCBP180SOL
Height
Hot and cold water
Solar Pipe Connections
PCBP150SOL
Dwelling Type
Bedrooms
1
1-2
1-2
Bathrooms
1 or
1 or
1
1
1
1
(m2)
40
50
65
Thermal Store
Open Vented
6m
6m
6m
Solar System
(bar)
6
6
6
Mains pressure hot water
(bar)
5
5
5
(litres)
150
175
200
En-suite
Maximum Floor Area
(4)
Maximum System Pressures
SAP 2005 Data
Storage Volumes
Total
(litres)
57
64
73
Heat loss declared (2)
Solar
(kWh/24h)
1.31
1.5
1.6
Temperature factor
-
0.721
0.721
0.721
(m2)
1.31
1.31
1.31
Area of solar heat exchanger
1. This flow rate is based on a 35°C temperature rise and assumes that the
recommended pressures and adequate flow are available at the appliance.
2. The heat losses from thermal stores should not be directly compared with heat
losses from unvented or vented cylinders because they are treated differently in
SAP. The SAP calculator takes account of the type of store and various correction
factors are included to reflect the different ways that the hot water and heating
operates.
3. This height allows for the installation of the single F&E cistern in the same cupboard
as the Pulsacoil BP appliance (complete with ballvalve - if specified).
4. For compliance with Building Regulations Part L1.
For any further technical information/assistance regarding this product please ring
the Gledhill Technical Help line on 01253 474584.
TECHNICAL DATA
Page 6
SERVICING
Description
Stock Code
1
Top immersion heater - Incalloy 825 immersion heater - with dual (control & safety) thermostat.
XB483
2
Bottom immersion heater - Incalloy 825 immersion heater - with dual (control & safety) thermostat.
XB483
3
Brawa mix thermostatic hot water blending valve
XC007
4
Scale inhibitor PCB
XB142
1/2
3
4
Page 7
SHORT PARTS LIST
BENCHMARK
Page 8
Page 9
BENCHMARK
Gledhill (Building Products) Ltd
AMD. OCTOBER 2011
CONDITIONS OF SALE & GUARANTEE TERMS
1.
Gledhill (Building Products) Ltd (“We” or “Gledhills”) only do business upon the Conditions which appear
below and no other. Unless we so agree in writing these Conditions shall apply in full to any supply of goods by us
to the exclusion of any Conditions or terms sought to be imposed by any purchaser. These Conditions of Sale and
Warranty Terms override those which are contained on the Invoice Forms and all Sales are now subject to these
Conditions of Sale and Warranty terms only.
2.
PRICE
Once an order or call off has been accepted the price will be held for three months but if delivery is extended
beyond that period at the customer’s request, then we reserve the right to amend the price when necessary.
The company reviews its pricing annually to adjust for changes in our cost base. We reserve the right to alter prices
at any time for severe movements in raw materials (mainly copper and steel). If there is to be a change we will give
customers at least four weeks notice but anything delivered after that date will be at the revised price. An order
may not be cancelled or varied after acceptance without the written consent of the company. Such cancellation or
variation shall be subject to such reasonable charges as may be appropriate.
3.
SPECIFICATION
The goods are supplied in accordance with the Specifications (if any) submitted to the Purchaser and any additions
and alterations shall be the subject of an extra charge. Any goods not so specified shall be in accordance with our
printed literature or the literature of any of our component suppliers (subject to any modifications made since
publication). If we adopt any changes in construction or design of the goods, or in the specification printed in our
literature, the Purchaser shall accept the goods so changed in fulfilment of the order.
4.
PAYMENT
The buyer shall make payment in full within thirty days from the end of the month in which the invoice is dated. If
we receive payment in full on or before the due date we will allow an appropriate settlement discount except where
we have quoted a special net price. If payment is not received in full on or before the due date we shall be entitled
in addition to the invoice price to:
(i)
payment of a sum equal to any increase in the copper price supplement applicable to the particular goods
sold between the date of receipt of order and the date of receipt of payment in full; and
(ii) interest on any part of the invoice price unpaid after the due date at the rate of 3% per annum over the base
rate for the time being of HSBC Bank plc.
5.
TIME
We give estimates of delivery dates in good faith and time of delivery is not nor shall be made of the essence of any
contract nor shall we be liable for any loss or damage occasioned by delay in delivery.
6.
DELIVERY
We deliver free normally by our own vehicles within 25 miles of any of our manufacturing depots. Delivery to any
place more than 25 miles from one of our manufacturing depots may be subject to our quoted delivery charges. We
reserve the right to make delivery of goods contained in one order by more than one consignment and at different
times. Where a period is agreed for delivery and such period is not extended by our Agreement, the Purchaser shall
take delivery within that period. If the Purchaser fails to take delivery, we shall be entitled at the Purchaser’s risk
and expense to store the goods at the Purchaser’s premises or elsewhere and to demand payment as if they had
been despatched. Off loading at point of delivery shall be the responsibility of and be undertaken by the Purchaser.
7.
SHORTAGES OR DAMAGE
Goods must be inspected before signature of delivery note and any damage, shortage or discrepancy noted on the
delivery note and the goods returned on the same vehicle. The buyer must also give us immediate written notice of
the damage, shortage or discrepancy so that we may prompt investigation.
8.
RETURN OF GOODS
Goods may not be returned to the Company except by prior written permission of an authorised officer of the
Company and such return shall be subject to payment by the Purchaser of handling and re-stocking charges,
transport and all other costs incurred by the Company.
9.
COMPANY LIABILITY AND GUARANTEE
9.1. Subject to the terms of these Conditions of Sale and Guarantee Terms Gledhills provide Guarantees in respect
of specific products as set out in this clause.
9.2. Each Guarantee is strictly conditional upon the following:9.2.1. Complaints must be given to us immediately, before any action is taken, as responsibility cannot be accepted
if repairs or renewals are attempted on site without our written approval.
9.2.2. The unit has been installed in accordance with our installation and service instructions and all relevant codes
of practice and regulations in force at the time of installation.
9.2.3. All necessary inlet controls and safety valves have been fitted correctly.
9.2.4. The unit has only been used for the storage of potable water supplied from the public mains.
9.2.5 Where appropriate the unit has been regularly maintained as detailed in the installation and service instructions
9.2.6. Defects caused by corrosion or scale deposits are not covered by any Guarantee.
9.2.7. Where we agree to rectify any defect we reserve the right to undertake the work on our own premises.
9.2.8. We will not accept any labour charges associated with replacing the unit or parts for any of the following
products listed.
9.3. Guarantees are provided in respect of specified goods supplied by Gledhills as follows:(a) Domestic and Commercial Open Vented Cylinders and Tanks.
The storage vessel is guaranteed for ten years and if it proves to be defective either in materials or
workmanship, we will either repair or supply replacement at our option with the closest substitute in the case
of any obsolete product to any address in Great Britain.
(i) free of all charge during the first year after delivery by us.
(ii) thereafter at a charge of one-tenth of the then current list price and any copper price supplement and
delivery charge during the second year after delivery by us and increasing by a further one-tenth on the
second and subsequent anniversary of delivery by us.
(b) Domestic Mains Fed Products [Primary Stores]
The storage vessel is guaranteed for five years and if it or any integral pipework as part of the storage vessel
assembly proves to be defective either in materials or workmanship, we reserve the right to either repair or
supply replacements or the closest possible substitute in the case of any obsolete product and will collect and
deliver to any address in England, Wales and Scotland (excluding all Scottish Islands).
(i) free of all charge during the first year after delivery by us.
(ii) thereafter at a charge of one-fifth of the then current list price or any copper price supplement and
delivery charge during the second year after delivery by us increasing by a further one-fifth on the second
and subsequent anniversary of delivery by us.
TERMS AND CONDITIONS
Page 10
(c) Stainless Steel Unvented Cylinders
Gledhill guarantee the components including
controls, valves and electrical parts for two years from
the date of purchase. IT SHOULD BE NOTED THAT
THE FACTORY FITTED TEMPERATURE AND PRESSURE
RELIEF VALVE MUST NOT BE REMOVED OR ALTERED
IN ANY WAY OR THE GUARANTEE WILL NOT BE VALID.
GLEDHILL WILL NOT BE RESPONSIBLE FOR ANY
CONSEQUENTIAL LOSS OR DAMAGE HOWEVER IT IS
CAUSED.
The guarantee for the stainless steel vessel is for
twenty five years if the original unit is returned to us
AND PROVIDED THAT:
(i) It has not been modified, other than by Gledhill.
(ii) It has not been subjected to wrong or improper
use or left uncared for.
(iii) It has only been used for the storage of potable
water, max 200mg/litre chloride.
(iv) It has not been subjected to frost damage.
(v) The benchmark service record is completed after
each annual service.
(vi) The unit has been serviced annually.
(vii) Any disinfection has been carried out strictly in
accordance with BS6700.
If the stainless steel vessel proves to be defective
either in materials or workmanship we reserve the
right to either repair or supply replacements or the
closest possible substitute in the case of any obsolete
product and will collect and deliver to any address in
England, Scotland and Wales (excluding all islands):
(i) free of charge during the first year after delivery by
us.
(ii) thereafter at a charge of one twenty fifth of the
then current list price during the second year
after delivery by us and increasing by a further
one twenty fifth on the second and subsequent
anniversary of delivery by us.
ACTION IN THE EVENT OF FAILURE
If the stainless steel cylinder develops a leak we will
ask for a deposit against the supply of a new one. This
will be refunded if the failure is within the terms of the
warranty when it has been examined by us.
Please note:
- Installation must have been carried out by a
licensed specialized company (heating contractor
or plumber) following the version of installation
instructions in force.
- Gledhill or its representative was given the
opportunity to check complaints on site
immediately after any defect occurred.
- Confirmation exists that the system was
commissioned properly and that the system
was checked and maintenance was performed
annually by a specialised company licensed for
this purpose.
(d) Components of our products other than
Storage Vessels and Integral Pipework.
We will either extend to the purchaser the same terms
of warranty as we are given by the manufacturer of
the component or if the manufacturer does not give
any warranty, replace free of charge any component
which becomes defective within two years after the
date of the delivery by us and is returned to us at the
purchaser’s expense but we shall not meet the cost of
removal or shipping or return of the component or
any other cost charges or damages incurred by the
purchaser.
9.4.
9.4.1. In respect of goods supplied by us and in respect of
any installation work carried out by or on our behalf,
our entire liability and the purchaser’s sole remedies
(subject to the Guarantees) shall be as follows:(a) We accept liability for death or personal injury to
the extent that it results from our negligence or
that of our employees
(b) Subject to the other provisions of this clause 9
we accept liability for direct physical damage
to tangible property to the extent that such
damage is caused by our negligence or that of our
employees, agents or subcontractors.
(c) Our total liability to the purchaser over and above any liability to replace under the Guarantees (whether
in contract or in tort including negligence) in respect of any one cause of loss or damage claimed to result
from any breach of our obligations hereunder, shall be limited to actual money damages which shall not
exceed £20,000 provided that such monetary limit shall not apply to any liability on the part of ourselves
referred to in paragraph (a) above
(d) Except as provided in paragraph (a) above but otherwise not withstanding any provision herein contained
in no event shall we be liable for the following loss or damage howsoever caused and even if foreseeable
by us or in our contemplation:(i) economic loss which shall include loss of profits, business revenue, goodwill or anticipated savings
(ii) damages in respect of special indirect or consequential loss or damage (other than death, personal
injury and damage to tangible property)
(iii) any claim made against the purchaser by any other party (save as expressly provided in paragraph (b) above)
(e) Except in respect of our liability referred to in paragraph (a) above no claim may be made or action
brought (whether in contract or in tort including negligence) by the purchaser in respect of any goods
supplied by us more than one year after the date of the invoice for the relevant goods.
(f) Without prejudice to any other term we shall not be liable for any water damage caused directly or
indirectly as a result of any leak or other defect in the goods. We cannot control the conditions of use of
the goods or the time or manner or location in which they will be installed and the purchaser agrees to
be fully responsible for testing and checking all works which include the goods at all relevant times (up
to, including and after commissioning) and for taking all necessary steps to identify any leaks and prevent
any damage being caused thereby.
(g) Nothing in these Conditions shall confer on the purchaser any rights or remedies to which the purchaser
would not otherwise be legally entitled
10. LOSS OR INJURY
Notwithstanding any other provision contained herein the purchaser’s hereby agree to fully indemnify us against
any damages losses costs claims or expenses incurred by us in respect of any claim brought against us by any third
party for:(a) any loss injury or damage wholly or partly caused by any goods supplied by us or their use.
(b) any loss injury or damage wholly or partly caused by the defective installation or substandard workmanship
or materials used in the installation of any goods supplied by us.
(c) any loss injury or damage in any way connected with the performance of this contract.
(d) any loss resulting from any failure by the purchaser to comply with its obligations under these terms as to
install and/or check works correctly.
PROVIDED that this paragraph will not require the purchaser to indemnify us against any liability for our own acts
of negligence or those of our employees agents or sub-contractors
FURTHER in the case of goods supplied by us which are re-sold and installed by a third party by the purchaser it will
be the sole responsibility of the purchaser to test the goods immediately after their installation to ensure that inter
alia they are correctly installed and in proper working order free from leaks and are not likely to cause any loss injury
or damage to any person or property.
11. VARIATION OF WARRANTY AND EXCLUSION
Should our warranty and exclusion be unacceptable we are prepared to negotiate for variation in their terms but
only on the basis of an increase in the price to allow for any additional liability or risk which may result from the
variation. Purchasers are advised to insure against any risk or liability which they may incur and which is not covered
by our warranty.
12. ADVICE
Any advice or assistance given by the Company is provided without charge and is in good faith without undertaking,
representation or warranty, and we will not accept any liability, whether consequential or compensatory, for advice
or assistance given.
13. RISK AND RETENTION OF TITLE
(a) goods supplied by us shall be at the Purchaser’s risk immediately upon delivery to the Purchaser or into
custody on the Purchaser’s behalf or to the Purchaser’s Order. The Purchaser shall effect adequate insurance
of the goods against all risks to the full invoice value of the goods, such insurance to be effective from the time
of delivery until property in the goods shall pass to the Purchaser as hereinafter provided.
(b) property in the goods supplied hereunder will pass to the Purchaser when full payment has been made by the
Purchaser to us for :(i) the goods of the subject of this contract.
(ii) all other goods the subject to of any other contract between the Purchaser and us which, at the time of
payment of the full price of the goods sold under this contract, have been delivered to the Purchaser but
not paid for in full.
(c) until property in the goods supplied hereunder passes to the Purchaser in accordance with paragraph (2) above.
(i) the Purchaser shall hold the goods in a fiduciary capacity for us and shall store the same separately from any
other goods in the Purchaser’s possession and in a manner which enables them to be identified as our goods.
(ii) the Purchaser shall immediately return the goods to us should our authorised representative so request.
All the necessary incidents associated with a fiduciary relationship shall apply.
(d) the Purchaser’s right to possess the goods shall cease forthwith upon the happening of any of the following
events, namely :(i) if the Purchaser fails to make payment in full for the goods within the time stipulated in clause 4 hereof.
(ii) if the Purchaser, not being a company, commits any act of bankruptcy, makes a proposal to his or her
creditors for a compromise or does anything which would entitle a petition for a Bankruptcy Order to be
presented.
(iii) if the Purchaser, being a company, does anything or fails to do anything which would entitle an
administrator or an administrative receiver or a receiver to take possession of any assets or which would
entitle any person to present a petition for winding up or to apply for an administration order.
(e) the Purchaser hereby grants to us an irrevocable licence to enter at any time any vehicle or premises owned
or occupied by the Purchaser or in the possession of the Purchaser for the purposes of repossessing and
recovering any such goods the property in which has remained in us under paragraph (2) above. We shall not
be responsible for and the Purchaser will indemnify us against liability in respect of damage caused to any
vehicle or premises in such repossession and removal being damaged which it was not reasonably practicable
to avoid.
(f)
notwithstanding paragraph (3) hereof and subject to paragraph (7) hereof, the Purchaser shall be permitted to
Page 11
sell the goods to third parties in the normal course of
business. In this respect the Purchaser shall act in the
capacity of our commission agent and the proceeds of
such sale :(i) shall be held in trust for us in a manner which
enables such proceeds to be identified as such,
and :
(ii) shall not be mixed with other monies nor paid into
an overdrawn bank account.
We, as principal, shall remunerate the Purchaser as
commission agent a commission depending upon
the surplus which the Purchaser can obtain over and
above the sum, stipulated in this contract of supply
which will satisfy us.
(g) in the event that the Purchaser shall sell any of the
goods pursuant to clause (6) hereof, the Purchaser
shall forthwith inform us in writing of such sale and
of the identity and address of the third party to whom
the goods have been sold.
(h) if, before property in the goods passes to the
Purchaser under paragraph (2) above the goods are or
become affixed to any land or building owned by the
Purchaser it is hereby agreed and declared that such
affixation shall not have the effect of passing property
in the goods to the Purchaser. Furthermore if, before
property in the goods shall pass to the Purchaser
under paragraph (2) hereof, the goods are or become
affixed to any land or building (whether or not owned
by the Purchaser), the Purchaser shall:(i) ensure that the goods are capable of being
removed without material injury to such land or
building.
(ii) take all necessary steps to prevent title to the
goods from passing to the landlord of such land
or building.
(iii) forthwith inform us in writing of such affixation
and of the address of the land or building
concerned.
The Purchaser warrants to repair and make good
any damage caused by the affixation of the goods
to or their removal from any land or building and to
indemnify us against all loss damage or liability we
may incur or sustain as a result of affixation or removal.
(i) in the event that, before property in the goods
has passed to the Purchaser under paragraph (2)
hereof, the goods or any of them are lost, stolen,
damaged or destroyed :(ii) the Purchaser shall forthwith inform us in writing
of the fact and circumstances of such loss, theft,
damage or destruction.
(iii) the Purchaser shall assign to us the benefit of any
insurance claim in respect of the goods so lost,
stolen, damaged or destroyed.
14. NON-PAYMENT
If the Purchaser shall fail to make full payment for the goods
supplied hereunder within the time stipulated in clause 4
hereof or be in default of payment for any other reason then,
without prejudice to any of our other rights hereunder, we
shall be entitled to stop all deliveries of goods and materials
to the Purchaser, including deliveries or further deliveries of
goods under this contract. In addition we shall be entitled
to terminate all outstanding orders.
15. VALUE ADDED TAX
All prices quoted are exclusive of Value Added Tax which will
be charged at the rate ruling at the date of despatch of invoice.
16. TRADE SALES ONLY
We are only prepared to deal with those who are not
consumers within the terms of the Unfair Contract Terms
Act 1977, the Sale of Goods Act 1979 and the Supply of
Goods and Services Act 1982. Accordingly any person who
purchases from us shall be deemed to have represented that
he is not a consumer by so purchasing.
17. JURISDICTION
The agreement is subject to English law for products
delivered in England and Scottish law for products delivered
in Scotland and any dispute hereunder shall be settled in
accordance therewith dependent upon the location.
18. PRODUCT DEVELOPMENT
Gledhill have a policy of continuous product development
and may introduce product modifications from time to time.
TERMS AND CONDITIONS
Providing peace of mind
On expiry of your initial warranty period, Gledhill Response Limited would be
pleased to provide further customer support with a range of services including:
Low cost annual repair and maintenance contracts direct from Gledhill
Annual servicing and safety checks
Expert response to ‘out of warranty’ breakdowns at fixed charges
Please ring 08445 679898 or visit www.gledhill.net for further details
Gledhill Building Products Limited
Sycamore Estate, Squires Gate, Blackpool FY4 3RL Tel: 01253 474550 Fax: 01253 474551 [email protected]
Gledhill Building Products produce cylinders for use with a wide range of heat sources including;
Gas and oil boilers
Ground source heat pumps
Electricity
Solar energy
Air source heat pumps
Wood burning stoves
For further information of Gledhill products can be found on the internet at www.gledhill.net
“Only the best
is acceptable”
FM 2057
Gledhill cylinders are produced
under an ISO 9001:2008
Quality System accepted
by BSI
To protect our
environment, we
use copper a totally
recyclable metal,
which never
becomes waste.
Due to a programme of continuous improvement Gledhill Building Products reserve the right to modify products without prior notice.
It is advisable to check the product technical detail by using the latest design and installation manuals available from our technical support team or on our website.
Issue 01 02/10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
