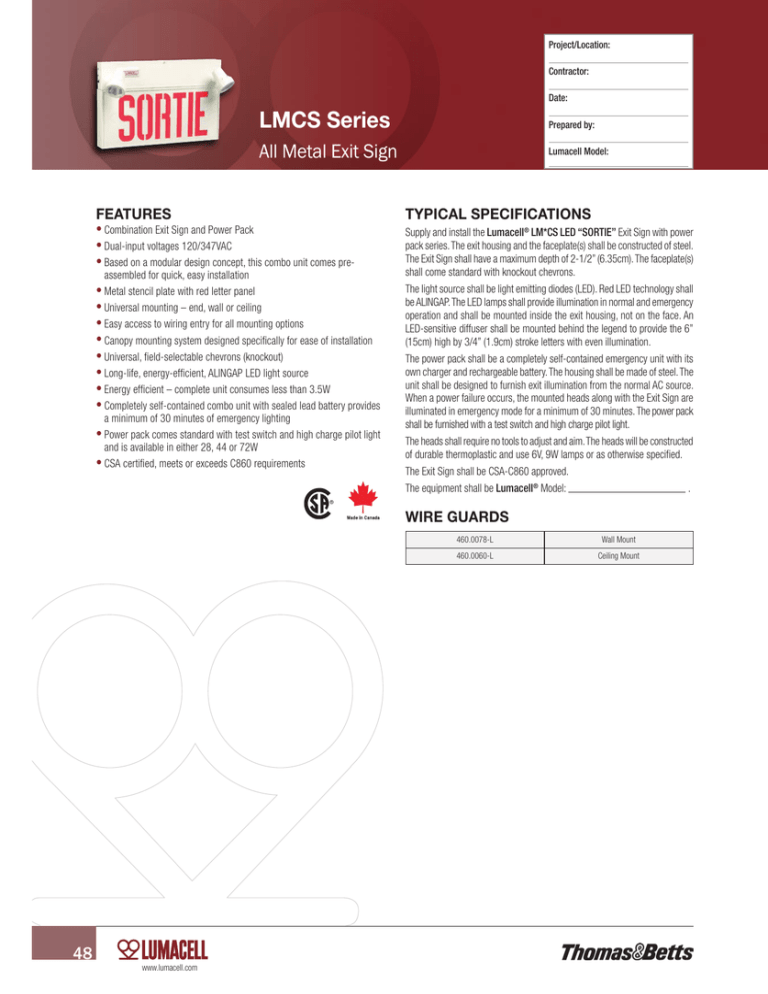

LMCS Series All Metal Exit Sign TYPICAL SPECIFICATIONS FEATURES

LMCS Series All Metal Exit Sign TYPICAL SPECIFICATIONS FEATURES
Project/Location:
Contractor:
Date:
LMCS Series
Prepared by:
All Metal Exit Sign
FEATURES
•Combination Exit Sign and Power Pack
•Dual-input voltages 120/347VAC
•Based on a modular design concept, this combo unit comes preassembled for quick, easy installation
•Metal stencil plate with red letter panel
•Universal mounting – end, wall or ceiling
•Easy access to wiring entry for all mounting options
•Canopy mounting system designed specifically for ease of installation
•Universal, field-selectable chevrons (knockout)
•Long-life, energy-efficient, ALINGAP LED light source
•Energy efficient – complete unit consumes less than 3.5W
•Completely self-contained combo unit with sealed lead battery provides
a minimum of 30 minutes of emergency lighting
•Power pack comes standard with test switch and high charge pilot light
and is available in either 28, 44 or 72W
•CSA certified, meets or exceeds C860 requirements
Lumacell Model:
TYPICAL SPECIFICATIONS
Supply and install the Lumacell® LM*CS LED “SORTIE’’ Exit Sign with power
pack series. The exit housing and the faceplate(s) shall be constructed of steel.
The Exit Sign shall have a maximum depth of 2-1/2” (6.35cm). The faceplate(s)
shall come standard with knockout chevrons.
The light source shall be light emitting diodes (LED). Red LED technology shall
be ALINGAP. The LED lamps shall provide illumination in normal and emergency
operation and shall be mounted inside the exit housing, not on the face. An
LED-sensitive diffuser shall be mounted behind the legend to provide the 6”
(15cm) high by 3/4” (1.9cm) stroke letters with even illumination.
The power pack shall be a completely self-contained emergency unit with its
own charger and rechargeable battery. The housing shall be made of steel. The
unit shall be designed to furnish exit illumination from the normal AC source.
When a power failure occurs, the mounted heads along with the Exit Sign are
illuminated in emergency mode for a minimum of 30 minutes. The power pack
shall be furnished with a test switch and high charge pilot light.
The heads shall require no tools to adjust and aim. The heads will be constructed
of durable thermoplastic and use 6V, 9W lamps or as otherwise specified.
The Exit Sign shall be CSA-C860 approved.
.
The equipment shall be Lumacell® Model:
WIRE GUARDS
48
www.lumacell.com
460.0078-L
Wall Mount
460.0060-L
Ceiling Mount
Project/Location:
Contractor:
Date:
LMCS Series
Prepared by:
All Metal Exit Sign
Lumacell Model:
DIMENSIONS
Dimensions are approximate and subject to change.
45/8” [11.7 cm]
45/8” [11.7 cm]
61/2” [16.6 cm]
121/4” [31.2 cm]
11” [28.0 cm]
73/8” [18.7 cm]
121/4” [31.0 cm]
133/8” [34.1 cm]
191/8” [48.5 cm]
63/8” [16.2 cm]
18” [45.7 cm]
6V & 12V
12V
LM27, LM50 & 12LM50
12LM80 Only
POWER CONSUMPTION AND UNIT RATING
MODEL
AC SPECS
Sortie Sign Module
30MIN
WATTAGE CAPACITY
2H00
1H00
1H30
-
-
-
0.25/0.08A
27
15
12
9
-
0.25/0.08A
50
30
20
16
8
12LM50
0.25/0.08A
50
30
20
16
8
12LM80
0.25/0.08A
80
45
36
27
12
LM27
LM50
120/347VAC
-
4H00
Less than 2W
-
ORDERING INFORMATION
SERIES
APPROVAL
LM27= 6V-27W
LM50= 6V-50W
12LM50= 1 2V-50W
12LM80= 1 2V-80W
CS1= single face all-or
ceiling-mount
CSU= universal mounting
with metalic canopy
complete with two
face plates
NUMBER
OF HEADS
Blank= no heads
1= one head
2= two heads
HEADS STYLE /
WATTAGE
LD1= MR16, LED 6V-4W
LD7= MR16, LED 12V-4W
LD9= MR16 LED 12V-5W
LD10= MR16 LED 12V-6W
MT9= micro-tungsten, 9W
MQ8= micro-halogen, 8W
MQ12= micro-halogen, 12W
MQM6= micro-MR16, 6V-6W
(6V only)
MQM10= micro-MR16, 10W
(6V only)
MQM12= micro-MR16, 12W
(12V only)
MQM20= m
icro-MR16,
20W(12V only)
Other styles available.
Consult your sales representative.
COLOUR
W= factory white
B= black
TG= textured aluminum*
*H
eads available in white
or black only. Please
specify. Other colours
available, consult your sales
representative
VOLTAGE
Blank=
120/347VAC
OPTIONS
Blank= no options
T1= time delay (5 minutes)
T2= time delay (10 minutes)
T3= time delay (15 minutes)
TP= tamper proof screws
990.0119-L= tamper proof bit*
*One bit needed per order.
EXAMPLE: LM27CS12MT9W
www.lumacell.com
49
