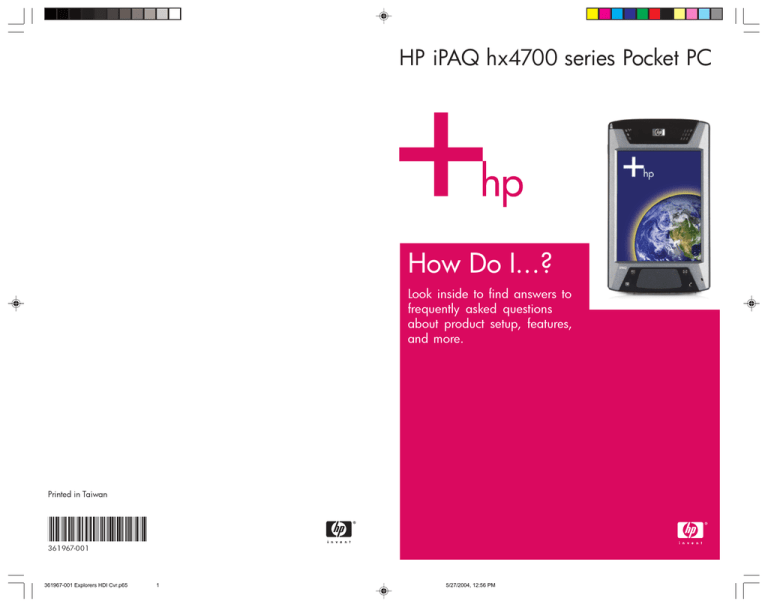

HP iPAQ hx4700 series Pocket PC
How Do I...?
Look inside to find answers to
frequently asked questions
about product setup, features,
and more.
Printed in Taiwan
361967-001
361967-001 Explorers HDI Cvr.p65
1
5/27/2004, 12:56 PM
© 2004 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows NT are trademarks of Microsoft
Corporation in the U.S. and other countries.
All other product names mentioned herein may be trademarks of their
respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein. The information is provided “as is”
without warranty of any kind and is subject to change without notice. The
warranties for Hewlett-Packard products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should
be construed as an additional warranty.
Ä
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
How Do I...?
HP iPAQ hx4700 series Pocket PC
First Edition (June 2004)
Document Part Number: 361967-001
Contents
How Do I Find Out What’s On My CD? . . . . . . . . . . . . . . . 1
How Do I Install Microsoft ActiveSync?. . . . . . . . . . . . . . . 2
How Do I Create an ActiveSync Partnership?. . . . . . . . . . . 5
How Do I Synchronize My Pocket PC
to a Personal Computer? . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How Do I Synchronize My Messaging, Contacts, or
Calendar? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How Do I Troubleshoot Outlook Errors
When Attempting to Synchronize
Messaging, Contacts, or Calendar? . . . . . . . . . . . . . . . . . . 13
How Do I Find the Product ID and Serial Number of My
Pocket PC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How Do I Manage Available Storage? . . . . . . . . . . . . . . . 16
How Do I Maximize Battery Life? . . . . . . . . . . . . . . . . . . 19
How Do I Know the Battery is Charging? . . . . . . . . . . . . . 21
How Do I Check the Battery Charge Level? . . . . . . . . . . . 22
How Do I Perform a Soft (Normal) Reset? . . . . . . . . . . . . 23
How Do I Perform a Hard (Full) Reset? . . . . . . . . . . . . . . 24
How Do I Use the TodayPanel Lite
to Monitor My System Resources? . . . . . . . . . . . . . . . . . . 27
How Do I Set Up My Pocket PC
to Use Wi-Fi? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
How Do I Use Bluetooth to Transfer
Files to Another Pocket PC, Computer, or Printer? . . . . . . 34
How Do I Use Bluetooth to Print? . . . . . . . . . . . . . . . . . . . 39
How Do I Use a Global Positioning
System (GPS) Device with My
Pocket PC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Contents
How Do I Enable/Disable
HP ProtectTools on My Pocket PC? . . . . . . . . . . . . . . . . .
Enabling Security . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disabling Security . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Do I Migrate Data from Palm
Desktop to Pocket PC 2003, 2nd Edition? . . . . . . . . . . . . .
How Do I Transfer Files from My
Personal Computer to My Pocket PC?. . . . . . . . . . . . . . . .
How Do I Protect My Pocket PC From
Screen Damage or Cracking?. . . . . . . . . . . . . . . . . . . . . . .
How Do I Find Information On Topics
Not Covered in This Booklet? . . . . . . . . . . . . . . . . . . . . . .
44
44
47
49
50
53
54
This document is intended to answer the most frequently asked
questions regarding the HP iPAQ hx4700 series Pocket PC. For
complete setup and installation instructions, refer to the Getting
Started document in the box or the User’s Guide located on the
Companion CD. For further support, visit www.hp.com/support
to chat with an HP support specialist.
How Do I Find Out What’s On My CD?
HP iPAQ Companion CD
HP iPAQ hx4700 series Pocket PC
This CD includes Microsoft® ActiveSync® 3.7.1
This CD also includes:
• Microsoft®
Outlook® 2002
• Additional Software
from Microsoft®
• Additional Software
from HP
In printable format:
• HP iPAQ User's
Guide and other
documents
• Important Safety
information
Version 1.0
www.hp.com/support
© 2004 Hewlett-Packard Development Company, L.P.
Product of Taiwan
First Edition June 2004
361962-001
The Companion CD is located in the box and contains:
■
Microsoft ActiveSync 3.7.1
■
Microsoft Outlook 2002
■
User’s Guide
■
Know Your Options (Accessories Information)
■
Important Safety Information
1
All of the software and documents are designed to be installed on
your personal computer to enhance your ability to use your HP
iPAQ Pocket PC to its fullest potential. The CD also contains
Microsoft add-on software applications and Pocket PC
enhancements that can be installed directly onto your Pocket PC
for use “on the go.”
Note: It is recommended that you save the CD sleeve for future
use. It contains the product key for installing Microsoft Outlook.
How Do I Install Microsoft ActiveSync?
Microsoft ActiveSync, located on the Companion CD, is the
software that allows your Pocket PC and your personal computer
to communicate with each other.
Before you connect your Pocket PC to your computer, insert the
Companion CD in your computer and let the HP iPAQ Setup
Wizard guide you step-by-step in setting up your Pocket PC and
computer.
Note: If the HP iPAQ Setup Wizard detects an earlier version
of ActiveSync or Outlook on your computer, it prompts you to
install the most recent version from the Companion CD. It is
recommended that you do so; however, be sure to back up your
files before installation begins.
To run the HP iPAQ Setup Wizard and install Microsoft
ActiveSync:
1. Before you connect your Pocket PC to your computer with
the synchronization cable, insert the Companion CD that
came with your Pocket PC into the CD-ROM drive on your
computer. The HP iPAQ Setup Wizard starts automatically.
2
2. Select Setup Wizard.
3. Read the Welcome page, make sure your Pocket PC is not
connected to your computer yet, and select Next.
4. The Setup Wizard scans your system and recommends
programs for you to load. If the Setup Wizard detects an
earlier version of Microsoft Outlook installed on your
personal computer, it suggests installing Outlook 2002. If you
want to synchronize your calendar, contacts, inbox, notes,
and/or tasks, it is recommended that you allow the Setup
Wizard to install Outlook 2002. Earlier versions (such as
Microsoft Outlook Express) will not work with ActiveSync
and the Pocket PC.
5. Likewise, the Setup Wizard scans your system to detect
earliers versions of Window Media Player and HP Image
Zone. It is recommended that you allow the Wizard to install
these programs in order to take advantage of all functions on
your Pocket PC.
3
6. When the Set Up Microsoft ActiveSync window is
displayed, click Next.
7. When the Select Installation Folder for Microsoft
ActiveSync window is displayed, accept the default location
offered, or select Change... to specify a a different location.
8. When the File Download window is displayed, click Open.
4
You will know ActiveSync installed successfully when you see
the Set Up a Partnership screen. Proceed to the next section,
“How Do I Create an ActiveSync Partnership?”
Note: If you are having trouble installing ActiveSync and have
firewall software installed, try disabling the firewall software
during ActiveSync installation and enabling it again after
installation is complete. If you are connected to a corporate
firewall, contact your IT Administrator for assistance.
How Do I Create an ActiveSync
Partnership?
A Microsoft ActiveSync partnership allows your HP iPAQ Pocket
PC and your personal computer to communicate with each other.
To synchronize your Pocket PC and your personal computer, you
must first create a partnership using ActiveSync. You only need
to create a partnership once.
These instructions give information on creating a basic
partnership. Other partnership options are available, and
instructions can be found in Chapter 2, “Synchronizing with Your
Computer,” of the User’s Guide located on the Companion CD.
5
To create an ActiveSync partnership between your Pocket PC and
your personal computer:
1. When the Get Connected screen is displayed during
ActiveSync installation, connect the desktop cradle to your
personal computer by attaching the free end of either the
USB cable or the serial cable to either the USB port or the
serial port on your personal computer. Then connect one end
of the AC Adapter to the cradle and the other end to an
electrical outlet.
2. Turn on your Pocket PC by pressing the Power button, then
insert it into the desktop cradle.
6
3. When the Set Up a Partnership screen is displayed, select
Standard Partnership and click Next.
4. When the New Partnership screen is displayed, select
Synchronize with this desktop computer, then click Next.
7
5. When the Select Number of Partnerships screen is
displayed, choose whether you want to synchronize with one
computer or two (e.g., home and office).
6. When the Select Synchronization Settings screen is
displayed, check the items you want to synchronize between
your Pocket PC and your personal computer.
8
7. When the Setup Complete screen is displayed, click Finish.
ActiveSync immediately begins synchronizing.
Do you want to learn more about:
■
setting up a guest partnership?
■
setting up a partnership with a server?
■
setting up a partnership with two computers?
■
setting up a partnership for two handheld devices?
Refer to the Microsoft Pocket PC 2003 Web site at
www.microsoft.com/windowsmobile/resources/support/pocketpc.
Fill in your region, your device, and your operating system; then click the
Get Support button. Under Support Topics on the left side of the
window, select ActiveSync.
9
How Do I Synchronize My Pocket PC
to a Personal Computer?
Synchronizing your Pocket PC and your personal computer
allows you to keep the same information (such as calendar,
contacts, and e-mails) in both places, making it available when
you work on your personal computer or when you take your
Pocket PC on the go. There are several ways to synchronize your
Pocket PC with your personal computer:
■
Desktop cradle
■
Optional AutoSync Cable
■
Bluetooth
■
Infrared
■
Wi-Fi and a server
The most common way to synchronize is using the desktop cradle
with the USB synchronization cable. This section explains how to
synchronize using the desktop cradle.
To synchronize your personal computer and your Pocket PC:
1. Be sure ActiveSync is installed on your personal computer.
Refer to “How Do I Install Microsoft ActiveSync?” earlier in
this document for more information.
2. Be sure the desktop cradle is connected to your personal
computer with the USB synchronization cable.
3. Place your Pocket PC in the desktop cradle. Synchronization
begins automatically.
Note: If you must log onto a server such as your company’s
Virtual Private Network, you may receive a message from
ActiveSync telling you it is unable to synchronize. You must first
log onto the server in order for ActiveSync to synchronize.
10
If ActiveSync does not begin synchronizing, start it manually:
On your personal computer, open ActiveSync by clicking from
the Start menu > Programs > Microsoft ActiveSync > Sync.
Occasionally when attempting to synchronize to a personal
computer, you might receive an “Unable to Detect Device” error
message. This usually means your desktop cradle is not properly
connected to the synchronization cable, or your Pocket PC is not
seated firmly in the desktop cradle.
If you get this error:
1. Make sure the USB connector on the synchronization cable is
securely connected to your desktop cradle and your personal
computer.
2. Make sure that your Pocket PC is connecting to the
communications port in the desktop cradle.
Once the connection issue is resolved, ActiveSync begins
synchronizing automatically.
To find out how to resolve other error messages, see Chapter 12,
“Troubleshooting” in the User’s Guide located on the
Companion CD.
Do you want to learn more about:
■
synchronizing with the optional AutoSync Cable?
■
synchronizing using Bluetooth?
■
synchronizing using Infrared?
■
synchronizing using Wi-Fi and a server?
Refer to the User’s Guide on the Companion CD.
11
How Do I Synchronize My Messaging,
Contacts, or Calendar?
If you did not previously set up your Messaging, Contacts, or
Calendar to synchronize with your Pocket PC when ActiveSync
was first loaded, you can set it or remove the setting whenever
you want.
To synchronize a new selection with your Pocket PC:
1. Double-click the Microsoft ActiveSync icon in the system
tray of your personal computer.
2. In the ActiveSync Window, click Options > Sync Options
tab.
3. On the Sync Options page, check the items you want
synchronized and uncheck those you do not want
synchronized.
Note: It is recommended that you check the Synchronize mobile
device clock upon connecting so your Pocket PC and your
personal computer always agree on the date and time. If this box
is not checked, files can accidentally be overwritten during
synchronization due to differences in dates and times on the files.
4. Under the Schedule tab, choose whether you want to
synchronize Continuously, On connection, or Manually. If
necessary, you can also select options for scheduling
synchronization with a server, or using a wireless connection.
5. Click OK to save the settings and minimize the ActiveSync
window.
6. The items selected will automatically synchronize with the
Pocket PC when it is inserted in the desktop cradle and the
computer is turned on.
12
How Do I Troubleshoot Outlook Errors
When Attempting to Synchronize
Messaging, Contacts, or Calendar?
When synchronizing, you may receive various error messages.
For answers to troubleshooting these errors, refer to the Microsoft
Windows Mobile 2003 Web site at
www.microsoft.com/windowsmobile/resources/support/pocketpc.
Fill in your region, your device, and your operating system; then
click the Get Support button. Select the Support Topic that best
describes the error message you received.
How Do I Find the Product ID and
Serial Number of My Pocket PC?
The product ID and serial number label are located on your
Pocket PC and also in the HP Asset Viewer program.
It is recommended that you have this information available before
contacting HP Customer Support, particularly if you are calling
for in-warranty support.
To use HP Asset Viewer to locate the product ID and Serial
Number:
1. From the Start menu, tap Settings > System tab > HP Asset
Viewer.
2. Tap the Identity tab to locate the Serial Number.
3. Tap the System tab to locate the Product ID.
13
Ä
CAUTION: Before removing the battery to view the label located
underneath the battery, be sure to back up any unsaved information
or applications held in memory (RAM) or copy them to the iPAQ File
Store folder. Data and applications in RAM will be lost when
removing the battery or if the battery completely discharges. You do
not need to reinstall applications and data installed in the iPAQ File
Store folder because they are saved in ROM. Also before removing
the battery, check to see that the internal backup battery is fully
charged by tapping Start > Settings > System tab > Power
icon.
To view the Product ID and Serial Number label underneath the
battery:
1. Unlock the battery by sliding the lock button on the bottom of
the Pocket PC to the right or unlocked position 1.
14
2. Push the battery release lever to the left 2 and slide the
battery out to remove it 3.
3. The label containing the Product ID and Serial Number is
beneath the battery.
15
How Do I Manage Available Storage?
Your Pocket PC normally manages storage for you by moving
available space back and forth between storage memory (memory
used to store data and document files) and program memory
(memory used to run programs) as needed. However, there are a
variety of ways you can manage storage space yourself to
maximize the memory capacity of your Pocket PC. You can
choose any or all of the options below.
Option A: Changing Storage Settings
Manually
To temporarily change the storage settings manually:
1. On your Pocket PC, tap Start > Settings > System tab >
Memory.
2. Use the stylus to slide the Storage/Program bar as necessary.
3. Tap OK to save your changes.
Shortcut:
If you have set your Pocket PC to display the
TodayPanel on the Today screen, tap the Memory icon located
halfway down the Today screen to change your memory settings.
Option B: Stopping Running Programs
To stop programs that are running in the background:
1. Tap Start > Settings > System tab > Memory > Running
Programs tab.
2. Select one or more of the programs in the Running Program
List.
16
3. Tap Stop > OK.
Shortcut: :
If you have set your Pocket PC to display the
TodayPanel on the Today screen, tap the Memory icon located
halfway down the Today screen and tap the Running Programs
tab.
Option C: Removing Unused Programs
To permanently uninstall programs you have installed yourself:
1. Tap Start > Settings > System tab > Remove Programs.
2. Select a program to remove.
3. Tap Remove > OK.
Option D: Using iPAQ File Store
iPAQ File Store is an unused portion of ROM (Read-Only
Memory, where the operating system and built-in programs are
stored). Files stored in iPAQ File Store will not be deleted if you
perform a full (hard) reset.
To store files in iPAQ File Store:
1. Copy the file(s) you want to store in iPAQ File Store.
2. Tap Start > Programs > File Explorer > My Device > iPAQ
File Store.
3. Tap Edit > Paste.
To view available memory in iPAQ File Store:
1. Tap Start > Settings > System tab > Memory > Storage
Card tab.
2. Select iPAQ File Store from the drop-down list.
17
Option E: Using Optional Storage Expansion
Cards
There are a variety of storage expansion cards available for
purchase, such as Secure Digital (SD) cards or CompactFlash
(CF) cards. These cards can be installed in the Expansion Slot
on the top of your Pocket PC.
For more information on purchasing expansion cards, visit the
HP Web site at www.hp.com/products/pocketpc/options.
Do you want to learn more about:
■
what you can do with optional expansion cards?
■
using expansion cards in your iPAQ Pocket PC?
Refer to the User’s Guide located on the Companion CD.
18
How Do I Maximize Battery Life?
To help your battery last as long as possible between charges, you
can change the battery settings on your Pocket PC.
Adjusting these settings will maximize your battery life:
■
Dim the backlight. Tap Start > Settings > System tab >
Backlight > Brightness tab. Slide the Brightness Level
slider under On Battery halfway down to the middle
position. This position dims the backlight only when the
Pocket PC is operating on battery power.
IMPORTANT: Adjusting the Battery Brightness Level slider to a
middle position is the single most important thing you can do to
preserve battery life.
Shortcut:
On the Today screen, in the TodayPanel Lite, tap
the Battery icon > Backlight Settings > Brightness tab and
adjust the battery brightness level slider halfway down to the
middle position.
■
Leave your Pocket PC connected to AC power at all times
when you’re not using it.
■
Set the device to turn off after a short time if not being used.
Tap Start > Settings > System tab > Power > Advanced tab.
On battery power, set the device to power off in the shortest
acceptable time.
Shortcut:
On the Today screen, tap the Battery icon >
Advanced tab and set the time for device to power off.
■
Turn off the backlight. Tap Start > Settings > System tab >
Backlight > Battery Power tab; then set the backlight to go
off quickly after you stop using your Pocket PC.
19
■
Turn off Bluetooth power when not in use. To turn off
Bluetooth, tap the iPAQ Wireless icon in the lower right
corner of the Today screen, then, on the iPAQ Wireless
screen, tap the Bluetooth icon to turn it off.
■
Set the device to receive incoming infrared beams manually.
Tap Start > Settings > Connections tab > Beam, then
uncheck Receive all incoming beams.
■
To ensure you always have battery power available, an
optional standard battery is recommended. For more
information on purchasing optional batteries, visit the HP
Web site at www.hp.com/go/ipaqaccessories.
Note: If you remove or replace your battery, your Pocket PC will
perform a soft reset. Be sure to close all applications and save
data before removing the battery.
20
How Do I Know the Battery is
Charging?
There are two ways to see if the battery is charging.
■
When the Pocket PC is connected to the AC Adapter and the
battery is recharging, the power indicator light on the front of
the Pocket PC flashes amber. When the battery is fully
recharged, the light turns solid amber.
■
To view it on screen, from the Today screen, tap the Battery
icon. On the Power screen, under Main battery, the
Recharging state displays Charging until a full charge is
reached. When it is fully charged, it displays Battery power
remaining.
If the power indicator light is not flashing while you are trying to
recharge, disconnect and reconnect the AC Adapter to your
Pocket PC to make sure you have a proper connection.
21
How Do I Check the Battery Charge
Level?
To check the battery charge level, from the Today screen, tap the
Battery icon > Main tab, or tap Start > Settings > System tab >
Power > Main tab. You can view the amount of battery power
remaining for both the Main battery and the Backup battery.
If the battery charge level is low, recharge the battery by
connecting the Pocket PC to AC power using the desktop cradle
or the AC Adapter, or change the battery. When the Pocket PC
turns off due to low battery level and does not turn on again, you
have only up to 72 hours to recharge the battery before you
lose data.
For information on purchasing an optional standard battery, visit
the HP Web site at www.hp.com/go/ipaqaccessories.
Ä
CAUTION: Do not allow the battery installed in your Pocket PC to
discharge completely. Doing so will not harm your Pocket PC or
battery, but your Pocket PC will lose all data not stored in ROM.
Discharging the battery completely is similar to performing a hard
reset. Refer to “How Do I Perform a Hard (Full) Reset?” later in this
document for more information.
22
How Do I Perform a Soft (Normal)
Reset?
A soft reset does not erase any applications or saved data, but be
sure to save any unsaved data before performing a soft reset since
any unsaved data will be lost.
Perform a soft reset when:
■
you want to stop all running applications
■
after installing a new application
■
if your Pocket PC “locks up”
To perform a soft reset:
1. Locate the Reset button on the bottom of your Pocket PC.
2. Use the stylus to lightly press the Reset button.
The Pocket PC restarts and displays the Today screen.
23
How Do I Perform a Hard (Full) Reset?
Perform a hard reset only when you want to clear all
user-installed settings, applications, and data from RAM
(Random Access Memory), where data and applications you have
loaded are stored.
If the battery installed in your Pocket PC discharges completely,
your Pocket PC will operate as if a hard reset had been performed
once the battery has been recharged. Refer to “How Do I Check
the Battery Charge Level?” earlier in this document for more
information.
Ä
CAUTION: If you perform a hard reset, your Pocket PC loses all data
and programs not saved in iPAQ File Store.
To perform a hard reset:
1. Press and hold down the Calendar and iTask buttons 1.
2. While holding down these buttons, use the stylus to
lightly press the Reset button on the bottom of the iPAQ
Pocket PC 2 for about two seconds.
24
3. When the Pocket PC screen begins to fade, release the
Calendar and iTask buttons first, and then remove the stylus
from the Reset button.
Note:
If you simultaneously push and hold the Reset, Calendar,
and iTask buttons for more than two seconds, the battery
disconnects. To restart the unit, either plug the unit into the AC
Adapter or press the Reset button again.
After performing a hard reset, you may need to reinstall
applications stored in iPAQ File Store to restore shortcuts and full
functionality.
The Pocket PC resets and powers on.
If the Pocket PC does not power on after a reset, do the following:
Check the battery door to ensure it is locked. If not, slide the
battery lock switch to the left (or locked position) on the bottom
of the Pocket PC. This action locks the battery door.
If the battery door is not locked, the Pocket PC does not power
on. For more information, refer to “Installing the Battery” in
Chapter 3 of the User’s Guide located on the Companion CD.
25
To return your iPAQ Pocket PC to factory settings after
performing a hard reset:
1. Tap Start > Programs > File Explorer > My Device.
2. Tap the iPAQ File Store folder to open it.
3. Tap Edit > Select All.
4. Tap and hold the selected files, then tap Delete.
5. Tap Yes to delete all files in iPAQ File Store.
26
How Do I Use the TodayPanel Lite
to Monitor My System Resources?
The TodayPanel Lite displays halfway down the Today screen as
icons or as text bars for quick and easy accessibility to
the following:
■
Today settings and Options
■
Battery power
■
Storage memory
■
Memory used in the iPAQ File Store folder
■
Pocket PC backlight
You select how you want the shortcuts
displayed by:
1. Tapping the File folder icon on the far left of the TodayPanel
Lite bar.
2. Tapping Options from the drop-down menu.
3. On the TodayPanel Lite screen, next to Display Mode, tap
the drop-down arrow and select Icons or Compact.
4. Tap OK to save the changes.
You select if you even want the shortcuts
displayed on the Today screen by:
1. Tapping Start > Settings > Today icon > Items tab.
2. Under Checked items appear on the Today screen, tap in
the TodayPanel checkbox to remove the checkmark if you do
not want the TodayPanel to appear on the Today screen, or
place a checkmark in the checkbox to display the
TodayPanel.
3. Tap OK to save the changes.
27
How Do I Set Up My Pocket PC
to Use Wi-Fi?
Your iPAQ Pocket PC comes with Wireless Fidelity (Wi-Fi)
already installed. This means you do not need to use cables or
plug in to a network wall connection to access the Internet with
your Pocket PC. All you need are wireless access points to
transmit data to and from your Pocket PC using Wi-Fi.
Note: Most private corporations already have wireless access
points installed in their buildings. Visit your local computer store
for information on installing wireless access points in your home.
Powering Wi-Fi On or Off
To use Wi-Fi on your Pocket PC, you need to turn on Wi-Fi and
set up your device.
Note: The Wi-Fi antenna for the Pocket PC is located in the top
of the unit. If you cover up the top of the Pocket PC after you
have turned on Wi-Fi, signal strength diminishes.
To turn Wi-Fi on or off:
1. From the Today screen, tap the iPAQ Wireless icon (
the Command bar located at the bottom of the screen.
) in
2. Tap the Wi-Fi button on the iPAQ Wireless screen.
When Wi-Fi is powered on, the Wi-Fi icon on the iPAQ
Wireless screen turns from gray to amber to green and the
Wi-Fi light-emitting diode (LED), located on the top left
corner of the unit, is solid blue indicating Wi-Fi or Bluetooth
are on.
28
Note: Even though the indicator is blue to indicate Wi-Fi is
turned on, it does not necessarily mean a connection has been
established with another device or access point.
If Wi-Fi is off, the Wi-Fi icon turns from green to gray.
Battery Saving Tip: Turn Wi-Fi off when you are not using it.
When Wi-Fi is on, be sure one of the Wi-Fi power saving
modes is selected. Refer to “Powering Wi-Fi On or Off” in
the User’s Guide for more information.
Automatically Connecting to a Network
1. If one or more broadcast networks are present, the Network
Indicator icon (
) appears in the Navigation bar. Tap the
network you want to connect to, and then tap whether the
network connects to the Internet (does not use proxy settings)
or Work (uses proxy settings).
2. If you are prompted for a Network Key (WEP), enter it and
tap Connect. If you are not sure, contact your network
administrator.
Manually Entering New Network Settings
A wireless network can be added either when the network
is detected (the Network Indicator icon is showing in the
Navigation bar) or manually by entering setting information.
To manually add a wireless network:
1. Be sure Wi-Fi is on.
2. In the Navigation bar, tap the Connections icon ( or
Settings > Advanced tab > Select Networks button.
)>
3. Enter or select the network name (or tap New) you want to
use to either connect to the Internet using an ISP or My Work
Network for work. Tap OK once completed.
4. Set up your Dialing Rules and Exceptions and press OK.
The next step is to set up your network interface cards.
29
5. From the iPAQ Wireless screen, tap (Wi-Fi) Settings.
6. Select Add New ... in the list box on the General tab to start
configuring wireless networks.
Note: If a network was detected in step 3, the Security Set
Identifier (SSID) is automatically entered and cannot be changed.
7. Enter an SSID into the Network name box.
8. In the Connects to: box, select where your network connects
to (The Internet or Work).
9. If you want to connect to an ad-hoc connection, tap the This
is a device-to-device (ad-hoc) connection checkbox.
10. If authentication information is needed, from the Configure
Wireless Network screen, tap the Network Key tab.
Note: To determine whether authentication information is
needed, see your network administrator.
11. To configure the type of network authentication to use, select:
a. To use Shared Key authentication, tap the
Authentication (Shared mode) listbox. Type the
network key in the Network Key: box.
b. To use data encryption, tap the Data encryption
(WEP enabled) listbox.
c. If a network key is provided by your network
automatically, tap the The Key is provided for
me automatically checkbox.
12. For increased security, tap 802.1x tab and select the Use
IEEE802.1x network access control checkbox. You should
only check this option if it is supported by your network
environment. Ask your network administrator if you
are unsure.
13. Select EAP type (PEAP or Smart Card/Certificate) from
the listbox.
30
14. Once you have completed entering the network settings, tap
OK and OK again to exit this menu.
Searching for Networks to Access
Networks that you have already configured are preferred
networks and can be found on the iPAQ Wireless screen by
tapping the Wi-Fi button > Settings > Wireless Networks list
box. You can choose whether to connect only to preferred
networks or to have your Pocket PC search for and connect to any
available network (preferred or not).
1. From the iPAQ Wireless screen, tap the Wi-Fi button >
Settings > Wireless tab.
2. In the Networks to access box, tap the type of network you
want to connect to (All Available, Only access points, or
Only computer-to-computer).
3. To connect only to networks that have already been
configured, clear the Automatically connect to
non-preferred networks checkbox.
Note: If you check the Automatically connect to
non-preferred networks checkbox, your Pocket PC detects any
new networks and provides you the opportunity to
configure them.
Do you want to learn more about:
■
automatically connecting to a network?
■
manually entering new network settings?
■
searching for networks to access?
Refer to the User’s Guide located on the Companion CD. For
more information on any of the wireless screens, tap Start >
Help from any screen to get help on that screen.
31
Your HP iPAQ Pocket PC can connect to a network using Wi-Fi.
Note: Before connecting, it will be helpful to familiarize
yourself with the following wireless technology terms.
Term
Definition
Wireless Protection
Authentication (WPA)
An Interim Standard designed to work with
existing Wi-Fi products enabled with WEP.
It ensures that the individual is who he/she
claims to be by scrambling the keys and by
adding integrity-checking features.
Wired Equivalent
Privacy (WEP)
A security protocol designed to provide a
wireless local area network (WLAN) with
the same level of security usually expected
on a LAN.
Encryption
A conversion process of data that cannot
be easily understood by unauthorized
people. Basically, it is a method for
protecting data.
Internet Protocol (IP)
Address
A 128-bit number that identifies each
sender or receiver of information which is
sent in packets across the Internet. For
example, when you request an HTML page
or send e-mail, the Internet Protocol part of
TCP/IP includes your IP address in the
message. In this example, this information
identifies your computer as the sender
and/or receiver of information.
Wireless Fidelity
(Wi-Fi)
The term used for a high-frequency
wireless LAN.
802.11b
The standard specification for WLANs,
often called Wi-Fi, developed by the
Institute of Electrical and Electronics
Engineers (IEEE).
(Continued)
32
(Continued)
Term
Definition
Media Access Control
(MAC) Address
A computer’s unique hardware number in a
network. For example, on an Ethernet LAN,
it’s the same as your Ethernet address.
When you are connected to the Internet a
correspondence table relates your IP
address to your computer’s MAC address
on the LAN.
Hotspots
Public or private areas where there is a
wireless access point available. These
wireless connections could be located, for
example, at a library or cyber cafe.
Wireless Access Point
A point of access to a wireless connection
to a network.
Security Set Identifier
(SSID)
A sequence of characters uniquely defining
(naming) a WLAN. Basically, each set of
wireless devices communicating with each
other is called a basic service set (BSS).
Several BSSs can be joined to form one
logical WLAN, called an extended service
set (ESS). An SSID is simply the 1-32
alphanumeric, case sensitive name given
to each ESS.
33
How Do I Use Bluetooth to Transfer
Files to Another Pocket PC, Computer,
or Printer?
Your Pocket PC comes with built-in Bluetooth technology that
allows short-range connections and provides fast, reliable, and
secure wireless communication with other Bluetooth-enabled
devices. Bluetooth allows you to exchange information with other
Bluetooth-enabled devices located within 30 feet (10 meters) of
your Pocket PC.
To transfer files from your Pocket PC to another
Bluetooth-enabled device, such as another Pocket PC, personal
computer, or printer:
1. On your Pocket PC, tap the iPAQ Wireless icon in the lower
right corner of the Today screen.
2. On the iPAQ Wireless screen, tap Bluetooth > Settings >
Services tab.
34
3. Under Services, tap the File Transfer tab. The Service
Settings checkboxes are automatically enabled when you
select a service.
4. Leave only the Enable service checkbox checked, and
uncheck the other checkboxes, then tap OK.
5. On the iPAQ Wireless screen, tap the Bluetooth Manager
button.
35
6. Tap New > Browse files on a remote device > Next and
allow the Bluetooth Connection Wizard some time to browse
for the Bluetooth-enabled device.
7. Once the Bluetooth device icon appears on the Bluetooth
Connection Wizard screen, tap it to begin the discovery
process and follow the Bluetooth Connection Wizard
instructions.
Note: Be sure the Bluetooth-enabled device you are connecting
to has enabled the same service feature.
36
8. Once a connection has been established, tap the device icon,
then tap and hold a file transfer shortcut icon.
9. Tap Connect.
10. Tap File, then tap Send a File… .
11. Locate a file to send.
12. Tap the file to automatically send it.
13. Tap OK.
37
Do you want to learn more about:
■
exchanging contacts, calendar items, and tasks?
■
sending or exchanging business cards?
■
synchronizing with a computer through an ActiveSync
connection?
■
partnering with a Bluetooth-enabled cell phone and using as a
wireless modem?
■
connecting to other Bluetooth devices (Virtual COM port)?
■
connecting to Bluetooth wireless local area networks
(WLANs)?
■
printing to a Bluetooth printer?
■
creating a personal area network (PAN) to chat, play
games, etc.?
Refer to the User’s Guide located on the Companion CD.
38
How Do I Use Bluetooth to Print?
You can print e-mails and notes from your Pocket PC using a
Bluetooth printer.
To set up your Pocket PC to print to a Bluetooth printer:
1. To open Mobile Printing, from the Today screen, tap Start >
Programs > Print Manager.
2. Be sure your Pocket PC is located within 30 feet (10 meters)
of the Bluetooth printer you are using.
3. From the Today screen, tap the iPAQ Wireless icon in the
lower right corner, then tap the Bluetooth button on the iPAQ
Wireless screen.
4. Tap the Bluetooth Manager button.
5. Tap New > Explore a Bluetooth Device > Next.
Allow some time for your device to browse for the Bluetooth
printer.
6. Once the Bluetooth printer is listed on the Bluetooth Browser
screen, tap OK in the upper right corner to close the screen.
7. From the Today screen, tap Start > Programs > Print
Manager > Tools > Configuration > Printers tab.
8. Tap Add > Bluetooth printer > Choose printer button >
Search for a Bluetooth printer > Next button.
9. Select the Bluetooth printer you want to print to, then tap
Add.
10. You may receive a message that says, “Unable to determine
printer model. Do you still want to select a printer model
from the printer list?” Tap OK.
11. Select the printer, then tap Add > OK > Printer added >
OK.
39
12. Tap OK in the upper right corner to exit Print Manager.
Note: You should only need to perform the above steps one time
for each Bluetooth printer you wish to use.
To print to a Bluetooth printer:
1. Tap Start > Programs > Print Manager.
2. Tap the E-mail icon to search for an e-mail to print, or tap the
Search icon to search for another document to print.
3. Select the document to print, then tap the Print Now button.
40
How Do I Use a Global Positioning
System (GPS) Device with My
Pocket PC?
There are a number of GPS Navigation Systems on the market
that can be used with your Pocket PC. The following instructions
apply to the HP iPAQ Navigation System, which is available from
and supported by HP. For information on using other GPS devices
with your Pocket PC, refer to the instructions that came with the
product.
Note: The Global Positioning System package is an optional
feature and sold separately from the Pocket PC.
To use the HP iPAQ Navigation System with your Pocket PC:
1. Insert your Pocket PC into the desktop cradle.
2. Close all applications on your personal computer and your
Pocket PC.
3. Install Disc 1 that came with your HP iPAQ Navigation
System into the CD drive on your personal computer and
follow the on-screen instructions.
41
4. When the Map Loader screen appears, determine how
you want to load maps and follow the instructions to load
whichever maps you choose.
Note: Be sure you have enough memory available to load the
maps you choose. You can monitor available memory by referring
to the Available Memory and Selected Size boxes. Refer to
“How Do I Manage Available Storage?” earlier in this document
for information on increasing memory availability.
5. Click Generate Map to transfer the map to your Pocket PC.
When prompted, insert Disc 2 into your CD drive and click
OK.
6. Be sure the GPS receiver is charged and the power is on. To
verify that the receiver is charged, plug it in. If the yellow
LED is on, it is still charging. If it goes out, the charge is
complete. To verify that the power is on, look for the flashing
GPS or Bluetooth LED.
7. Turn Bluetooth on by tapping the iPAQ Wireless icon in the
Command bar > Bluetooth button on the iPAQ Wireless
screen > OK.
8. Tap Start > Programs > iPAQ Navigation System > OK.
42
9. To check whether your iPAQ Navigation System and iPAQ
Pocket PC have partnered, tap the iPAQ Wireless icon >
Bluetooth Manager > My Shortcuts tab. Two green arrows
on the BT-GPS Receiver icon indicate an active connection.
10. Position the HP Bluetooth GPS receiver in your vehicle
window so that the receiver has an unobstructed view of the
sky. When the green LED flashes, the satellites have located
the receiver.
Note: The Bluetooth GPS receiver may take 5-10 minutes to
acquire a fix on the three satellites needed to accurately position
the vehicle. If the GPS receiver does not acquire a fix within 5-10
minutes, reposition the GPS receiver and try again.
11. From the iPAQ Navigation System, tap View at the bottom
of the screen, then tap Map. A map will display centered on
your current location. Your current location is depicted as a
green arrow in a blue circle.
12. Tap Menu > Destination, then select the type of destination
(e.g., Address, Points of Interest, Recent, Intersection,
Favorites). Enter the necessary information to input your
destination.
13. Follow the voice prompts and map display to your
destination.
For detailed instructions on using the HP iPAQ Navigation
System, refer to the Getting Started Guide and the User’s Guide
that came with the iPAQ Navigation System or visit the HP Web
site at http://www.hp.com/support.
For information on purchasing the HP iPAQ Navigation System,
visit the HP Web site at http://www.hp.com/go/ipaqaccessories.
43
How Do I Enable/Disable
HP ProtectTools on My Pocket PC?
The HP ProtectTools provides on-device security protection,
minimizing the risk of losing sensitive information on your HP
iPAQ Pocket PC. HP ProtectTools provides strong authentication
and encryption of email, calendar, contacts, notes, tasks, and/or
all files stored in the My Documents folder. It can also be used to
encrypt data stored on expansion cards.
Ä
CAUTION: HP ProtectTools provides strong protection of your Pocket
PC and the data stored on it. To access the Pocket PC, you will have
the option of enabling either a PIN or password. If you forget your
PIN or password, you will be able to access the device with a backup
question and answer. If you forget both your PIN/password and
question/answer, there is no way to unlock your device. You will
have to reset it, resulting in the loss of all data on your iPAQ Pocket
PC, including data stored in iPAQ File Store. It is recommended that
you remember your PIN/password and question/answer.
Enabling Security
You should only need to enable security one time. You can make
changes to any of your security settings at a later time without
going through the setup procedure again. For more information,
refer to “Manage Security Settings” in Chapter 7 of the User’s
Guide located on the Companion CD.
To enable security on your iPAQ Pocket PC:
1. From the Today screen, tap Start > Settings > Personal tab
>HP ProtectTools.
2. The security configuration screen displays the message “Do
you want to configure HP ProtectTools security on your
device?” Tap Yes.
3. On the Lock Settings screen, select your choices for the
following:
44
❏
Lock device—secures device by requiring your PIN or
password to authenticate access to the HP iPAQ.
❏
Log off—secures device by requiring your PIN or
password, stops running all programs, and encrypts your
data. You can also select the amount of time between
when you last used the device and when the data is
encrypted.
Note: Because encryption/decryption can take some time, if you
use your device frequently, you may want to select a longer
period of time.
4. Tap Next.
5. From the Unlock Settings screen, select the method in which
you want to unlock your HP iPAQ, along with the number of
attempts allowed for each setting:
❏
4-digit PIN—a four-digit number
❏
Password—a combination of numbers and/or letters of
any length
❏
Strong alphanumeric password—a minimum of eight
characters including at least one uppercase letter, one
lowercase letter, and one number.
6. Tap Next.
7. From the Fail-Safe Settings screen:
❏
Select the number of attempts you will have to answer
your hint question correctly.
45
❏
Select what the device should do if you fail to answer
your hint question correctly after the associated number
of attempts.
Note:
It is recommended that you select the default, “Pause
before retrying question.”
❏
Select whether to keep security after a hard reset.
Note: It is recommended that you select this option to ensure that
the data stored in your iPAQ Pocket PC remains secure after a
hard reset.
8. Tap Next.
9. From the Encryption Settings screen:
❏
Note:
Select the encryption strength.
◆
Lite is the fastest but least secure algorithm.
◆
Blowfish is both fast and secure.
◆
Triple DES and AES are the most secure.
It is recommended that you use the default, AES.
❏
Select which data you want encrypted. If you select to
have the My Documents folder encrypted, you can also
choose whether to encrypt media files (for example,
audio, video, or picture files). Media files often take
longer to encrypt and decrypt than other file types.
❏
Select whether you want the encryption status displayed.
Selecting this option allows you to monitor the
encryption/decryption process. For more information,
refer to “Encrypting/Decrypting Data” in Chapter 7 of
the User’s Guide located on the Companion CD.
46
10. Tap Next.
11. From the Security Configuration Complete screen, tap
Continue to create your PIN or password and answer your
hint question.
12. Prior to entering your PIN or password, you will be asked for
a passphrase. Tap OK, then follow the onscreen instructions
to create a passphrase.
Note: The passphrase is not something you will need to
remember on a daily basis, but you should remember it for future
reference. For more information on passphrases, tap the More
Information... button.
13. Tap OK.
14. If requested, enter your PIN or password two times for
verification purposes.
15. From the Set up Passwords screen, select your hint question
by tapping the left and right arrow buttons near the question.
Answer the question two times for verification purposes.
16. Tap OK. Your iPAQ Pocket PC will reset itself after a few
seconds, or you can tap the Reset Now button to reset the
device immediately.
Note:
After the device has completed the reset process, you will
be asked for your PIN or password before you can begin using it
again.
Disabling Security
You can disable HP ProtectTools at any time using your PIN or
password.
47
Ä
CAUTION: It is recommended that you leave HP ProtectTools
enabled at all times to ensure the data on your iPAQ Pocket PC is
secure. If you disable security, you will have to repeat the process
described in “Enabling Security” to set up security again.
To disable security:
1. Tap the yellow lock icon in the Taskbar at the bottom of the
Today screen.
2. Tap Manage Security Settings.
3. Enter your PIN or password to authenticate yourself.
4. Tap the Disable Security button.
5. Follow the onscreen instructions to disable security.
Do you want to learn more about:
■
unlocking your Pocket PC?
■
encrypting/decrypting data?
■
changing your HP ProtectTools settings?
Refer to Chapter 7, “Using HP ProtectTools,” in the User’s Guide
located on the Companion CD.
48
How Do I Migrate Data from Palm
Desktop to Pocket PC 2003, 2nd
Edition?
If you used a Palm Operating System (OS) based device before
purchasing your iPAQ Pocket PC, you will need to migrate your
data from the Palm Desktop software to Microsoft Pocket
PC 2003, 2nd Edition.
Note: Do not insert your iPAQ Pocket PC into the desktop cradle
until you have installed ActiveSync and are prompted to do so.
To migrate data from Palm Desktop to Pocket PC 2003, 2nd
Edition:
1. If you do not already have Microsoft Outlook 98 or higher
installed on your personal computer, install Outlook 2002
from the Companion CD as described in “How Do I Install
Microsoft ActiveSync?” earlier in this document.
2. Insert the Companion CD that came with your Palm device
into your computer’s CD-ROM drive. From the Discover
Your Handheld screen, select Install Microsoft Conduits.
Alternatively, you may reinstall the Palm Desktop software.
During the configuration process, select Synchronize your
handheld with Microsoft Outlook and Palm Desktop
software.
Note: Microsoft Outlook must be set as your default e-mail
program to properly synchronize with the Palm Desktop
software. If you need to change your settings, open Microsoft
Outlook, then click Tools > Options > Other tab and check the
Make Outlook the default program for E-mail, Contacts, and
Calendar checkbox. Click Apply > OK, then restart your
personal computer.
49
3. Use the HotSync software located on the Companion CD
that came with your Palm unit to synchronize your Palm
information with Outlook. Refer to the instructions that came
with your Palm unit for help installing or using Hotsync.
4. When Outlook is synchronized with your Palm device,
uninstall Hotsync from your personal computer. Click
Start > Control Panel > double-click Add or Remove
Programs. Select Palm Desktop, then click Remove. Follow
the on-screen instructions.
5. Install ActiveSync on your personal computer as described in
“How Do I Install Microsoft ActiveSync?” earlier in this
document.
6. Create a partnership between your Pocket PC and your
personal computer as described in “How Do I Create an
ActiveSync Partnership?” earlier in this document.
7. Synchronize your Pocket PC with Outlook as described in
“How Do I Synchronize My Pocket PC to a Personal
Computer?” earlier in this document.
How Do I Transfer Files from My
Personal Computer to My Pocket PC?
You may want to take files you create on your personal computer
with you on your Pocket PC. To do this:
1. On your personal computer, click Start > Programs >
Microsoft ActiveSync.
2. In ActiveSync, click Tools > Options.
3. Under the Sync Options tab, check the Files checkbox.
50
4. A message is displayed stating that a Synchronized Files
folder will be created on your personal computer’s desktop.
Click OK.
5. Click OK to save your changes, then click File > Close to
close ActiveSync.
6. If your Pocket PC is in the desktop cradle, synchronization
begins automatically, and a folder is created on your desktop
which is named after the name you gave your Pocket PC
when you set up your partnership (for example, Pocket_PC
51
My Documents). If your Pocket PC is not in the cradle,
synchronization begins and the folder is created when you
place your Pocket PC in the cradle.
Note: If synchronization does not begin automatically, on your
personal computer open ActiveSync and click File > Options >
Schedule tab. Under Desktop schedule, select either
Continuously or On connection from the dropdown list box,
then click OK to save the changes.
7. Copy any files you want to transfer to your Pocket PC to the
Synchronized Files folder for transfer during
synchronization.
8. To verify that the files were transferred successfully, on your
Pocket PC, tap Start > Programs > File Explorer > My
Documents folder.
52
How Do I Protect My Pocket PC From
Screen Damage or Cracking?
Ä
CAUTION: The screen on your Pocket PC is made of glass and can
be damaged or broken by drops, impacts, or pressure.
Note: HP is not responsible for damage that occurs as a result of
your failure to follow the instructions that came with the HP
branded product. Refer to the warranty document included with
your Pocket PC for more information.
You should observe the following guidelines to protect the screen
on your iPAQ Pocket PC from damage:
■
Do not sit on your Pocket PC.
■
When transporting your Pocket PC in a purse, pocket,
briefcase, etc., ensure the device does not get compressed,
bent, dropped, or hit.
■
When not in use, close the flip cover on your Pocket PC and
store it in a case. You can select from a wide variety of case
options at www.hp.com/go/ipaqaccessories.
■
Do not place anything on top of your Pocket PC.
■
Do not bang your Pocket PC against hard objects.
■
Never use any device other than the stylus that comes with
the Pocket PC or an approved replacement to tap or write on
the screen. If you lose or break your stylus, you can order
extras at www.hp.com/go/ipaqaccessories.
■
Clean your Pocket PC by wiping the screen and the exterior
with a soft, damp cloth lightly moistened only with water.
53
Ä
CAUTION: To reduce the risk of damage to the internal components,
do not spray liquid directly on the screen, or allow excess liquid to drip
inside your Pocket PC. Using soap or other cleaning products on the
screen may discolor the finish and damage it.
How Do I Find Information On Topics
Not Covered in This Booklet?
For complete setup and installation instructions, refer to the
Getting Started document in the box or the User’s Guide located
on the Companion CD. The User’s Guide is in a printable format
if you prefer a hard copy document.
If you have questions on using your Pocket PC that have not been
covered in this booklet or in the Getting Started or User’s Guide,
refer to the iPAQ Handheld Forum (a message board) at
www.hp.com/support/ipaqforums.
To receive support from an HP-qualified technical support
specialist, visit the HP support Web site at www.hp.com/support.
To find information on the support Web site for your specific
product, be sure to have your model or product name available.
To chat with a support specialist online, select the hp Instant
Support icon.
To access the hp Instant Support icon:
1. On your personal computer, open your Web browser (for
example, Internet Explorer) and type in the URL
www.hp.com/support.
2. Select your country or region.
3. Select See support and troubleshooting information, then
type your Product ID in the box. If you do not know your
Product ID, refer to “How Do I Find the Product ID and
Serial Number of My Pocket PC?” in this document for more
information.
54
4. Click the >> button.
5. Select your specific product from the list.
6. The Technical Support page for your iPAQ Pocket PC is
displayed. The hp Instant Support icon is located on the
right-hand side.
55
HP iPAQ hx4700 series Pocket PC
How Do I...?
Look inside to find answers to
frequently asked questions
about product setup, features,
and more.
361967-001 Explorers HDI Cvr.p65
1
5/27/2004, 12:56 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
