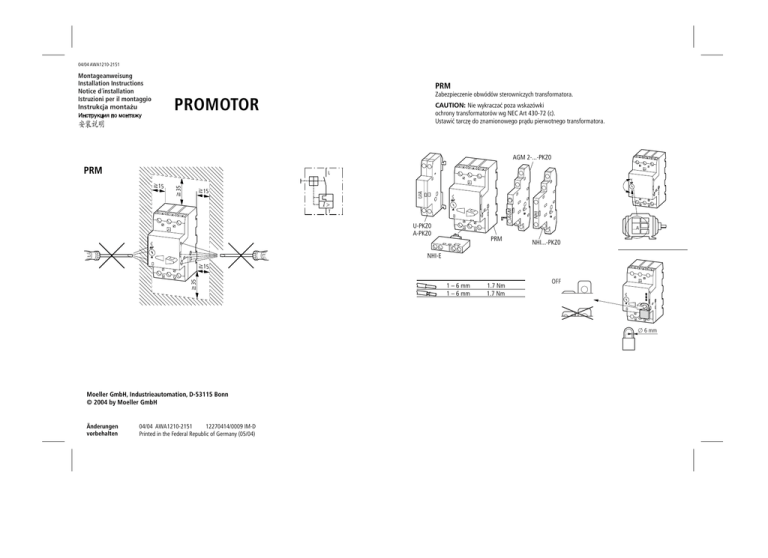

Montageanweisung
Installation Instructions
Notice d´installation
Istruzioni per il montaggio
Instrukcja montażu
PRM
Zabezpieczenie obwódów sterowniczych transformatora.
PROMOTOR
CAUTION: Nie wykraczać poza wskazówki
ochrony transformatorów wg NEC Art 430-72 (c).
Ustawić tarczę do znamionowego prądu pierwotnego transformatora.
AGM 2-...-PKZ0
PRM
15
U/A
15
35
L
T
U-PKZ0
A-PKZ0
NHI
AGM
I>
...A
PRM
NHI...-PKZ0
NHI-E
35
15
1 – 6 mm
1 – 6 mm
1.7 Nm
1.7 Nm
OFF
o 6 mm
