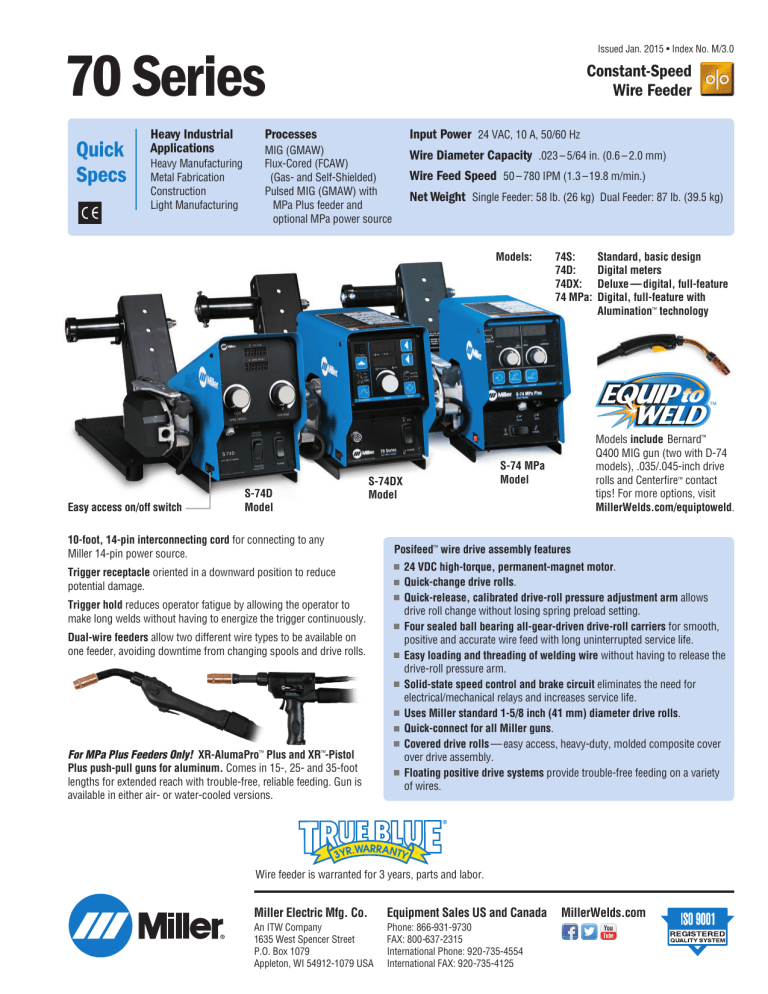

Issued Jan. 2015 • Index No. M/3.0
70 Series
Quick
Specs
Heavy Industrial
Applications
Heavy Manufacturing
Metal Fabrication
Construction
Light Manufacturing
Constant-Speed
Wire Feeder
Processes
Input Power 24 VAC, 10 A, 50/60 Hz
MIG (GMAW)
Flux-Cored (FCAW)
(Gas- and Self-Shielded)
Pulsed MIG (GMAW) with
MPa Plus feeder and
optional MPa power source
Wire Diameter Capacity .023 – 5/64 in. (0.6 – 2.0 mm)
Wire Feed Speed 50 – 780 IPM (1.3 –19.8 m/min.)
Net Weight Single Feeder: 58 lb. (26 kg) Dual Feeder: 87 lb. (39.5 kg)
Models:
Easy access on/off switch
S-74D
Model
Trigger receptacle oriented in a downward position to reduce
potential damage.
Trigger hold reduces operator fatigue by allowing the operator to
make long welds without having to energize the trigger continuously.
Dual-wire feeders allow two different wire types to be available on
one feeder, avoiding downtime from changing spools and drive rolls.
For MPa Plus Feeders Only! XR-AlumaPro™ Plus and XR™-Pistol
Plus push-pull guns for aluminum. Comes in 15-, 25- and 35-foot
lengths for extended reach with trouble-free, reliable feeding. Gun is
available in either air- or water-cooled versions.
Standard, basic design
Digital meters
Deluxe — digital, full-feature
Digital, full-feature with
Alumination™ technology
Models include Bernard™
Q400 MIG gun (two with D-74
models), .035/.045-inch drive
rolls and Centerfire™ contact
tips! For more options, visit
MillerWelds.com/equiptoweld.
S-74 MPa
Model
S-74DX
Model
10-foot, 14-pin interconnecting cord for connecting to any
Miller 14-pin power source.
74S:
74D:
74DX:
74 MPa:
Posifeed™ wire drive assembly features
24 VDC high-torque, permanent-magnet motor.
Quick-change drive rolls.
Quick-release, calibrated drive-roll pressure adjustment arm allows
drive roll change without losing spring preload setting.
Four sealed ball bearing all-gear-driven drive-roll carriers for smooth,
positive and accurate wire feed with long uninterrupted service life.
Easy loading and threading of welding wire without having to release the
drive-roll pressure arm.
Solid-state speed control and brake circuit eliminates the need for
electrical/mechanical relays and increases service life.
Uses Miller standard 1-5/8 inch (41 mm) diameter drive rolls.
Quick-connect for all Miller guns.
Covered drive rolls — easy access, heavy-duty, molded composite cover
over drive assembly.
Floating positive drive systems provide trouble-free feeding on a variety
of wires.
Wire feeder is warranted for 3 years, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
74S, 74D and 74DX Wire Feeder Features
S models (basic 70 Series feeders)
Wire speed control.
Factory-set run-in control for improved arc starts.
24 VDC high-torque, permanent-magnet motor.
Quick-change drive rolls.
Quick-release, drive-roll pressure adjustment arm allows drive roll change without losing
spring preload setting.
Solid-state speed control and brake circuit for increased service life.
Floating positive drive systems provide trouble-free feeding on a variety of wires.
S-74S
single feeder
D models add the following features
D-74D
dual feeder
Digital meters for easy viewing of the wire feed speed and voltage.
Remote voltage control allows operator to set voltage at the wire feeder without having to go
back to the power source.
Tachometer feedback to help keep wire feed speed accurate.
DX models add the following features
Four weld programs allow the operators to store four independent welding parameters
reducing welding setup time. (Four programs available per side on dual feeder.)
Adjustable run-in control for improved arc starts.
Adjustable weld sequence control gives operator complete control of the welding
parameters: preflow, run-in, weld time, crater, burnback and postflow.
Welding process range control locks parameters at a set percentage of welding parameters
to ensure welding procedures and quality standards are maintained on the shop floor.
Dual schedule, trigger dual schedule and trigger program select allows operator to switch
welding parameters without readjusting machine, eliminating downtime and enhancing quality.
S-74DX
single feeder
(Use with CV, DC
Power Sources.)
74S, 74D and 74DX Specifications (Subject to change without notice.)
Input
Power
Wire Feed Speed
Wire Diameter Capacity*
24 VAC,
10 A,
50/60 Hz
50–780 IPM (1.3–19.8 m/min.)
Optional high-speed motor:
90–1440 IPM (2.3 – 36.6 m/min.)
.023 –5/64 in. (0.6 –2 mm)
Dimensions
S-74 (Single Feeder)
D-74 (Dual Feeder)
H: 14 in. (356 mm)
W: 12.5 in. (318 mm)
D: 28 in. (711 mm)
H: 14 in. (356 mm)
W: 21 in. (533 mm)
D: 35 in. (889 mm)
Net Weight
S-74 (Single)
D-74 (Dual)
58 lb. (26 kg)
87 lb. (39.5 kg)
*Note: When using 3/32 –1/8 in. (2.4 – 3.2 mm) wires contact Miller Electric Mfg. Co. at 1-920-735-4505 for more information on low-speed options.
74S, 74D and 74DX Control Panels
S-74S and S-74D
1. Voltage Display
Meter*
2. Wire Speed
Display Meter*
3. Wire Feed
Speed Select
4. Trigger Hold
5. Voltage Select**
6. Jog/Purge
S-74DX
1
2
3
5
*S-74D model only
**Optional on S-74S
4
6
70 Series
24V Wire Feeder
1. Program Display
2. Program # Select
3. Weld Sequence
4. Voltage/Time Select
5. Voltage/Time
Display Meter
6. Wire Feed/
Amperage Select
7. Wire Speed/
Amperage Display
Meter
8. Control Knob
9. Trigger Hold/Dual
Schedule Control
10. Jog/Purge
1
2
4
5
6
7
3
8
9
10
®
70 Series
24V Wire Feeder
2
74 MPa Plus Wire Feeder Features
MPa Plus models have the features of the S/D/DX models and add the following
Alumination™ technology gives you the ability to use the extended reach of a push-pull
system for consistent, versatile and dependable aluminum wire feeding. Alumination gives
you the versatility to handle whatever aluminum welding job you want to tackle.
Synergic Pulsed MIG operation when optimized with the Invision MPa power supplies.
Provides communication between the power source, feeder and gun. As wire speed
increases/decreases, the pulse parameters also increase/decrease to match the right amount
of power needed.
Trigger schedule select allows the operator to select the alternative schedule by quickly
tapping the gun trigger when not welding. When optimized with MPa power sources the
operator can also switch from MIG to Pulsed MIG.
Profile Pulse™ provides
TIG appearance with MIG
simplicity and productivity.
Achieve “stacked dime” weld
bead appearance without
back-stepping. Profile Pulse
frequency can be changed to increase or decrease the spacing between the ripple pattern to
achieve the desired weld appearance.
Accu-Mate™ properly seats the power pin for best feeding performance and prevents
Accu-Mate grooved MIG guns from sliding in the casting.
S-74 MPa Plus
single feeder
D-74 MPa Plus
dual feeder
(Use with CV, DC
Power Sources.)
74 MPa Plus Specifications (Subject to change without notice.)
Input
Power
24 VAC,
10 A,
50/60 Hz
Wire Feed Speed
Wire Diameter Capacity*
50–780 IPM
(1.3–19.8 m/min.)
.023 – 5/64 in. (0.6 – 2.0 mm)
.035 –1/16 in. (0.9 –1.6 mm) aluminum
Dimensions
S-74 MPa Plus
(Single Feeder)
D-74 MPa Plus
(Dual Feeder)
H: 14 in. (356 mm)
W: 12.5 in. (318 mm)
D: 28 in. (711 mm)
H: 14 in. (356 mm)
W: 21 in. (533 mm)
D: 35 in. (889 mm)
Net Weight
S-74 MPa Plus
(Single Feeder)
D-74 MPa Plus
(Dual Feeder)
58 lb. (26 kg)
87 lb. (39.5 kg)
*Wire kit #230 708 is required to run 1/16 in. (1.6 mm) aluminum wire on XR-AlumaPro™ Plus guns and XR™-Pistol Plus guns.
74 MPa Plus Control Panel (D-74 MPa Plus dual feeder panel shown.)
D-74 MPa Plus
1. Left Dual Schedule Indicator
2. Voltage/Arc Length
Display Meter
3. Left Adjust Knob
4. Setup Button
5. Start Button
6. Right Dual Schedule Indicator
7. Amperage/Wire Speed
Display Meter
8. Right Adjust Knob
9. Left/Right Select Button
10. Crater Button
11. Jog/Purge
1
6
2
7
3
8
4
9
5
10
RO17
RO21
RO16
11
JOG
PURGE
3
70 Series Control Box, Cables and Wire Drive Motor Assemblies
Single Remote Configuration
*For additional lengths visit
MillerWelds.com/equiptoweld.
Control Box
#300 881 S-74S
#300 882 S-74D
#300 883 S-74DX
Motor Control Cable (11 conductor)*
#254 935 010 10 ft. (3 m)
#254 935 025 25 ft. (7.6 m)
Wire Drive Motor Assembly
#300 904 Left-hand drive
Gun NOT included.
Must be ordered
separately.
Dual Remote Configuration
Flexible mounting options
for wire drive assembly
Fixed automation, boom
applications, or other
applications that benefit
from having the drive
assembly located away
from the control box.
*For additional lengths visit
MillerWelds.com/equiptoweld.
Control Box
#300 886 D-74S
#300 887 D-74D
#300 888 D-74DX
Motor Control Cable (11 conductor)* Wire Drive Motor Assembly
#300 741 001 Right-hand drive
#254 935 010 10 ft. (3 m)
#254 935 025 25 ft. (7.6 m)
Motor Control Cable (11 conductor)*
#254 935 010 10 ft. (3 m)
#254 935 025 25 ft. (7.6 m)
Guns NOT included.
Must be ordered
separately.
If using spooled wire
you will need to order
Feeder Base #195 369.
Wire Drive Motor Assembly
#300 904 Left-hand drive
70 Series MPa Plus Control Box, Cables and Wire Drive Motor Assemblies
Single Remote Configuration
*For additional lengths visit
MillerWelds.com/equiptoweld.
Gun NOT included.
MPa Plus Motor Control
Cable (14 conductor)*
#254 864 010 10 ft. (3 m)
#254 864 025 25 ft. (7.6 m)
MPa Plus Control Box
#300 738 S-74 MPa Plus
Must be ordered
MPa Plus Wire Drive
separately.
Motor Assembly
#300 740 Left-hand drive
(for use with push-only guns, AlumaPro Plus
push-pull guns and Pistol Plus push-pull guns)
Dual Remote Configuration
Flexible mounting options
for wire drive assembly
Fixed automation, boom
applications, or other
applications that benefit
from having the drive
assembly located away
from the control box.
Note: Right-side drive in dual remote
configurations is push-only.
MPa Plus Control Box
#300 739 D-74 MPa Plus
*For additional lengths visit
MillerWelds.com/equiptoweld.
4
Right Side Motor Control
Cable (11 conductor)*
#254 935 010 10 ft. (3 m)
#254 935 025 25 ft. (7.6 m)
MPa Plus Motor Control
Cable (14 conductor)*
#254 864 010 10 ft. (3 m)
#254 864 025 25 ft. (7.6 m)
Wire Drive Motor Assembly
#300 741 Right-hand drive
(for use with push-only guns)
Guns NOT included.
Must be ordered
separately.
MPa Plus Wire Drive Motor Assembly
#300 740 Left-hand drive
(for use with push-only guns, AlumaPro Plus
push-pull guns and Pistol Plus push-pull guns)
If using spooled wire
you will need to order
Feeder Base #195 369.
Power Source Compatibility for MPa Plus Wire Feeders
Power Source
Invision™ 352 and 450 MPa
XMT® 350 and 450 MPa
AlumaPower™ 350 and 450 MPa
XMT® 350 and 450 CC/CV
XMT® 304 CC/CV
Invision™ 456P
Invision™ 456MP
Invision™ 354P
Invision™ 354MP
Deltaweld® (after KF790532)
Dimension™ (after KE614131)
Pulse Capable
Yes
Yes
Yes (Aluminum only)
Yes (with Optima)
Yes (with Optima)
Yes (with Optima)
Yes
Yes (with Optima)
Yes
No
No
Synergic
Pulsed MIG
Yes
Yes
Yes (Aluminum only)
No
No
No
No
No
No
No
No
System Communication
Enhanced Arc Control
Yes
Yes
Yes
No
No
No
No
No
No
No
No
Electronic Inductance/
SharpArc
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Compatibility
Optimized
Best
Best
Better
Better
Better
Better
Better
Better
Good
Good
Note: Power sources not included in this list are not recommended. For specific information, please contact your local Miller ® distributor.
Drive Roll Kits and Guides (Order from Miller Service Parts.)
Select drive roll kits from chart below according to type and wire size being used. Drive roll kits include four drive rolls, necessary guides and feature an anti-wear sleeve for inlet guide.
“V” groove
for hard wire
Wire Size
.035 in. (0.9 mm)
#151 026
.040 in. (1.0 mm)
#161 190
.045 in. (1.1/1.2 mm)
#151 027
.052 in. (1.3/1.4 mm)
#151 028
1/16 in. (1.6 mm)
#151 029
.068/.072 in. (1.8 mm)
—
5/64 in. (2.0 mm)
—
3/32 in. (2.4 mm)
—
“U” groove for
soft wire or
soft-shelled
cored wires
—
—
#151 037*
—
#151 039
—
—
#151 041
“V” knurled for
hard-shelled
cored wires
“U” cogged
for extremely soft
wire or soft-shelled
cored wires (i.e.,
hard facing types)
#151 052
—
#151 053
#151 054
#151 055
#151 056
#151 057
#151 058
—
—
#151 070
—
#151 072
—
—
—
“U” groove for
aluminum
wires contains
nylon guides
#243 233
—
#243 234*
—
#243 235
—
—
—
*Accommodates .045 and .047 (3/64 in.) wire.
Nylon Wire Guides for Feeding Aluminum Wire
Wire Size
.035 in. (0.9 mm)
.047 in. (1.2 mm)
1/16 in. (1.6 mm)
Inlet Guide
#221 912
#221 912
#221 912
Intermediate Guide
#242 417
#205 936
#205 937
Note: “U” groove drive rolls are recommended when feeding aluminum wire.
Wire Guides
Wire Size
.023 – .040 in. (0.6 – 1.0 mm)
.045 – .052 in. (1.1 – 1.4 mm)
1/16 – 5/64 in. (1.6 – 2 mm)
3/32 –7/64 in. (2.4 – 2.8 mm)
Inlet Guide
#221 030
#221 030
#221 030
#229 919
Intermediate Guide
#149 518
#149 519
#149 520
#149 521
5
Genuine Miller Options and Accessories
®
Remote Voltage Control
#194 988 Field. Non-digital for S-74S
#194 991 Field. Non-digital for D-74S
Industrial MIG 4/0 Kit with Dinse
Connector #300 405
For use with XMT® 304 and 350, and
Invision™ 350 MPa and 352 MPa power
sources. This useful pulse-ready MIG kit
can be purchased separately. Includes
flowmeter regulator with 10-foot (3 m) gas
hose, 10-foot (3 m) 4/0 feeder weld cable
with Dinse connector on one end and a lug
on the other, 15-foot (4.6 m) work cable
with Dinse connector on one end and
600-amp C-clamp on the other.
Carrying Cart #056 301
A utility cart for the wire feeder and
other miscellaneous welding supplies.
Height: 34 inches (863 mm).
Lower tray height: 9 inches (228 mm).
Shipped disassembled.
Feeder Cart #142 382
A low-profile, creeper cart which allows the
operator to easily move the feeder around
the work area. Shipped disassembled.
Turntable Assembly #146 236
Allows rotation of the feeder as operator
changes work positions. This reduces
strain and bending on gun cable.
Industrial MIG 4/0 Kit #300 390
For use with Invision™ 450 MPa,
XMT® 450 CC/CV and MPa, CP-302,
Deltaweld, and Dimension power sources.
Includes flowmeter regulator with 10-foot
(3 m) gas hose, 10-foot (3 m) 4/0 feeder
weld cable with lugs, and 15-foot (4.6 m)
work cable with 600-amp C-clamp.
Hanging Bail (Electrically Isolated)
#058 435
Used for suspending feeder over work area.
Note: Spool covers cannot be installed if the wire
drive assembly is in a rotated position.
Spool Adapter #047 141
For use with 14-pound (6.4 kg) spool of
Lincoln self-shielding wire.
Wire Reel Assembly #108 008
For 60-pound (27 kg) coil of wire.
Reel Covers
#058 256 For S-74 and left side of
D-74 models
#091 668 For right side of D-74 models
For 60-pound (27 kg) coil. Helps to protect
the welding wire from dust and other
contaminants.
Note: Reel covers cannot be installed if the wire drive
assembly is in a rotated position.
Wire Straightener
#141 580 For .035 –.045 inch
(0.9 –1.1 mm) diameter wire.
#141 581 For 1/16 –1/8 inch
(1.6 – 3.2 mm) diameter wire.
Helps reduce the cast in wire to improve
wire feeding performance and increase the
service life of the gun liner and contact tip.
6
Spool Covers
#057 607 For S-74 and left side of
D-74 models
#090 389 For right side of D-74 models
For 12-inch (305 mm) spool.
Extension Cables for 14-Pin Plugs to
14-Pin Sockets*
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Provides 14-pin, 24 VAC, contactor and
voltage control. Add to the standard
10-foot (3 m) feeder cable to extend feeder
farther from power source.
*For additional lengths visit MillerWelds.com/equiptoweld.
Genuine Miller Accessories (Continued)
®
For MPa Plus Wire Feeders only
DSS-9 Dual Schedule Switch #071 833
A two-position slide switch which attaches
to the gun handle and is used to select the
desired welding condition for dual schedule
purposes. The gun trigger operates as a standard gun trigger. (For 74DX models only.)
Extension Cables*
#247 831 025 25 ft. (7.6 m)
#247 831 050 50 ft. (15.2 m)
#247 831 080 80 ft. (24.4 m)
Eleven conductors to support contactor
control and remote voltage control on all
Miller electronic CV 14-pin power sources.
Additional functions supported when using
the MPa power sources include Synergic
Pulsed MIG, and remote process select and
side select capabilities.
*For additional lengths visit MillerWelds.com/equiptoweld.
Swingarc™ Boom-Mounted Wire Feeders
Swingarc boom-mounted semiautomatic
wire feeders bring an extra dimension of
flexibility and efficiency to high-production
wire welding stations. You get an effective
solution that maximizes output, especially
when dealing with large weldments and
hard-to-reach places. See Lit. Index No.
M/13.11.
XR-Aluma-Pro™ Plus Gun
#300 000 001 15 ft. (4.6 m), air-cooled
#300 001 001 25 ft. (7.6 m), air-cooled
#300 004 001 25 ft. (7.6 m), water-cooled
This easy-to-use and easy-to-maintain
gooseneck-style MIG gun is designed for
push-pull wire feed systems. Available in
air- or water-cooled versions. Gun design
allows for better access into tight spots.
XR™-Pistol-Plus Guns
#300 753 15 ft. (4.6 m), air-cooled
#300 754 25 ft. (7.6 m), air-cooled
#300 755 35 ft. (10.6 m), air-cooled
#300 757 25 ft. (7.6 m), water-cooled
This easy-to-use and easy-to-maintain
pistol-grip MIG gun is designed for
push-pull wire feed systems. Available in
air- or water-cooled versions.
1/16-inch (1.6 mm) Wire Kit #230 708
Specially designed for 1/16-inch wire.
Includes idler roll, head tube liner and
inlet guide. Required when running
1/16-inch wires. Not included with standard
XR-Aluma-Pro Plus or XR-Pistol-Plus guns.
Hardwire Liner Kit for Steel and Stainless
#198 377
For 15-, 25-, or 35-foot (4.6, 7.6 or 10.6 m)
guns. Kit consists of gun head tube liner
and feed cable liner. Recommend using
.030–.045 inch mild steel or stainless steel
electrode wire (.052- and 1/16-inch wire
not recommended).
Phosphorous Bronze Liner (Optional)
#233 999 Long Head Tube (air or water)
#233 998 Short Head Tube (air only)
Steel Liner (Optional)
#242 191 Short Head Tube (air only)
7
Ordering Information
Equipment and Options
Stock No.
Description
Qty.
Single Feeders (all single feeders include one 15-ft. (4.6 m) Bernard Q400 gun and drive rolls)
S-74S
#951 196
With standard motor
#951 197
With high-speed motor
#300 616 002
With CE, Euro, standard motor
S-74D
#951 198
With standard motor
#951 199
With high-speed motor
#300 617 003
With CE, Euro, standard motor
S-74DX
#951 200
With standard motor
#951 201
With high-speed motor
#951 202
With low-speed motor
#300 618 003
With CE, Euro, standard motor
S-74 MPa Plus
#951 291
With standard motor, optimized for MPa power sources with
(Order XR-Aluma-Pro Plus or XR-Pistol Plus
push-pull capability
and U-groove drive rolls separately)
Dual Feeders (all dual feeders include two 15-ft. (4.6 m) Bernard Q400 guns and drive rolls)
D-74S
#951 203
With standard motor
D-74D
#951 204
With standard motor
#951 205
With high-speed motor
#300 620 002
With CE, Euro, standard motor
D-74DX
#951 206
With standard motor
#951 207
With high-speed motor
#300 621 002
With CE, Euro, standard motor
D-74 MPa Plus
#951 292
With standard motor, optimized for MPa power sources with
(Order XR-Aluma-Pro Plus or XR-Pistol Plus
push-pull capability
and U-groove drive rolls separately)
Remote Voltage Control
#194 988
#194 991
Field. Non-digital control (S-74S model only)
Field. Non-digital control (D-74S model only)
See page 4
#Q4015AE8EM
400 A, 15 ft. (4.6 m)
For MPa Plus wire feeders only. See page 7
Remote Configurations
Replacement Gun and Consumables
Bernard™ Q400
XR-Aluma-Pro™ Plus and XR™-Pistol Plus
Centerfire™ consumables
Power Sources
Invision™ 352 MPa and 450 MPa
XMT ® MPa Series and 304/350/450 CC/CV
CP-302 and Deltaweld ® Series
Dimension™ Series
Accessories
Industrial MIG 4/0 Kits
Carrying Cart
Feeder Cart
Turntable Assembly
Hanging Bail
Wire Straightener
Spool Covers
Spool Adapter
Wire Reel Assembly
Reel Covers
Extension Cables
DSS-9 Dual Schedule Switch
Swingarc™ Boom-Mounted Wire Feeders
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
See Lit. Index No. DC/23.6
See Lit. Index No. DC/18.84, DC/18.8 and DC/18.83
See Lit. Index No. DC/13.0 and DC/16.2
See Lit. Index No. DC/19.2
See page 6
#056 301
#142 382
#146 236
#058 435
Electrically isolated
See page 6
See page 6
#047 141
#108 008
See page 6
See pages 6 and 7
#071 833
See Lit. Index No. M/13.11
Total Quoted Price:
Price
Download PDF
