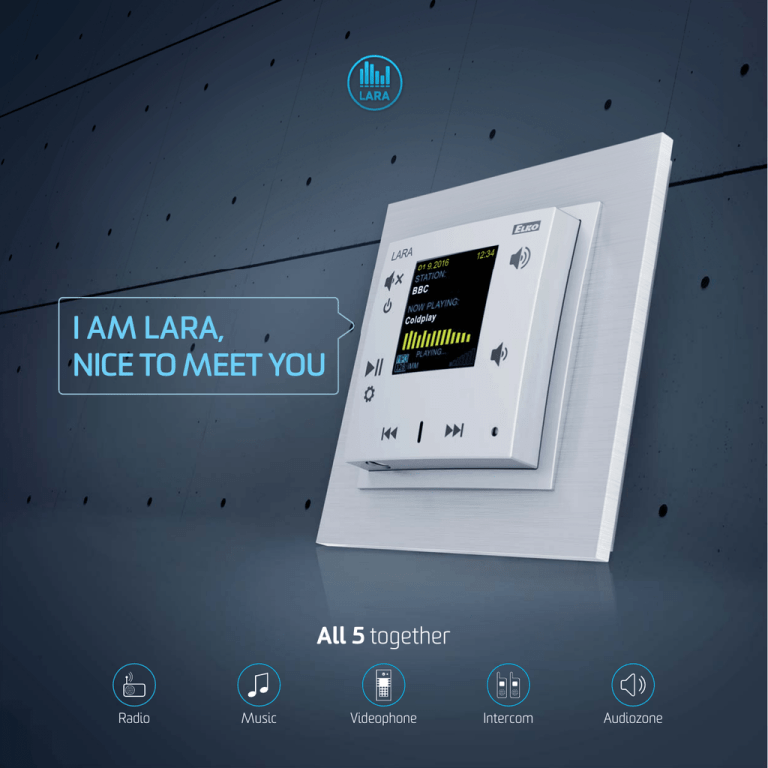

I AM LARA,
NICE TO MEET YOU
All 5 together
Radio
Music
Videophone
Intercom
Audiozone
I am able to do:
I am LARA,
Radio
Listen to
o yo
your
ur fav
avorite radio station anywhere
in the perfect sou
ound
nd..
Music
You can play your favourite songs from
om your
Smartphone, MP3, NAS server.
Videophone
In a combination with IP door commun
unicator you can
still keep track of who is standing ou
utside the front
door of your home.
Intercom
Communicate with
h all your family members in the household and the
here
re‘s
‘ no need to chase anyone anymore.
Audiozone
Control your Multimedia in your house.
nice to meet yout
Everyone has all types of switches at home. But,
can you imagine that your switch is playing the
radio, music and you can communicate with
others through it - e.g. with your roommates or
visitors at the door?
Yes, it is possible. We were able to implement
all these in one device with the size of a switch.
Along with the speakers in the same design (for
mounting into an installation box), you can get
very fast, nice and cheap sound not only in your
bathroom or kitchen, where the installation of an
audio HiFi system would otherwise take a lot of
wires and space, but this small device can even
handle a 20 W speaker.
02
03
LARA Radio
LARA Intercom
Enjoy perfect sound
without the noise!
Your smart house keeper can control
your multimedia in your house.
LARA Radio is inextricably linked to the music and provides perfect listening experience.
• LARA is an Internet radio and music player equipped with a high-resolution color
OLED display.
• We have registered 40 favorite Czech radios stations as presets stations,
but you can easily change it using configurator.
• LARA plays the music stored in the NASA storage or in the external source
(phone, MP3 player) connected through cable on the front panel of device.
• Inbuilt amplifier 10W allows direct connection of speakers (in the same LOGUS90
design) or allows connection of external in-wall or ceiling speakers.
• Thanks to automatically obtaining an IP address from a DHCP - there is no need
to set up the LARA network again (in case you do not set a static IP address).
Control:
Capacitive-touch buttons directly on LARA
IR remote controller which is included in the package
Via your Smartphone and a LARA NAS App
Directly from PC - SW LARA configurator
LEGEND:
LARA-NAS application - application for controlling the music via a Smartphone
Network cable - LAN cable for connection LARA PoE adapter
LAN (Local Area Ethernet, computer network) - computer cables (UTP) distributed throughout the building
and connected to the switch. It connects computers and other IP devices together that are connected
to the network.
PoE (Power Over Ethernet, power supply through a network cable) - enables to supply terminal devices
via the LAN cable. Through adapter (6191) connected to LAN cable or through switch which has an inbuilt PoE (6605).
Switch, router - a box which connects LAN cables together and provides communication between devices
which are connected to the router; router allows you to share wireless Internet to LAN network
IP (Internet Protocol) - it is a device protocol operating in LAN networks; each device has its own unique
IP address (e.g. 192.168.11)
WiFi (Wireless Fidelity) - wireless computer network (WLAN)
WiFi bridge - converter that allows you to convert wire LAN connection to WiFI (5210)
04
Thanks to videophone function, now it is possible to have a voice communication between Lara and the sound of the door (IP Intercom), so with someone visiting and standing in front of the house, we can see that on LARA display as part of this function which
increases the security feeling and safety besides of course, the comfort for the user.
LARA Intercom is equipped with an OLED colored display with the size of 1.5“, which is
used to transfer images and sounds from the door camera properly. The display also
shows basic information about playing music, which also serves the orientation in the
menu settings, etc. The intercom function can also be used for communications between all the family members throughout the whole house, thanks to two way voice
communications possibilities between differnt Lara units.
LARA intercom can also play music and stream the radio, which can be saved up to 40
channels. You can pick any radio station from all over the world which is providing the
data for a proper connection.
LARA intercom can also play the contents of external music source, which may be an
iPhone, smart phone or eg. MP3 player. These devices are connected to the audio input
3.5mm stereo jack, which is located below the front panel
LARA intercom can also play audio files from a central data repository, where Logitech
Media Server is installed. You can also use LARA function can LARY within the complex
iNELS iNELS or as a fully independent home automation device. When it’s used within
iNELS systém, then its being controlled by iHC applications, however, when you’re
using it as NAS, then LARA NAS App is available.
LARA Radio has an integrated amplifier with an output of 2 x 10 W, which greatly simplifies the installation in areas where that power is sufficient. LARA can be used for
example in the kitchen sound system, bathrooms, waiting rooms, offices, reception
areas, lobbies, operating rooms and wellness areas.
05
Make your interior design
stand out - use LARA
Choose from a variety of colors and materials.
ANIMATO (orange + white)
ANIMATO (green + white)
ANIMATO (silver + gray)
Build your own LARA yourself!
+
Device
06
+
Frame
=
Cover
Complete unit
07
INTERIOR
LARA is the perfect piece
for your interior, which is
also functional and makes
your life easier.
LIVING ROOM
Take advantage of all LARA features to ensure your comfort
and convenience. Find out who is waiting at the entrance,
call your kids to lunch or listen to your favourite music.
KITCHEN
BATHROOM
Radio in your bathroom can
create a pleasant and supportive atmosphere e.g. while
taking a bath.
08
Radio connected to a LAN or
wireless network allows you
to listen to the Internet radio.
But wait - that‘s not all!
You can connect your LARA
to your Smartphone, tabler,
MP3, NAS Server.
09
LARA
LARA KIT
Control options
LARA & music in the switch
KIT FOR CONROLLING MUSIC,
WHICH PERFECTLY FITS IN YOUR HOME´S INTERIOR.
10
Touch control:
IR Remote controller:
Smartphone
You can control your LARA by capacitive touch-buttons
You can control from the comfort of your couch in the
living room and turn on your favourite music, switch
a track and much more.
Apps for Smartphone provides unlimited
possibilities for control.
LARA is a music and internet radio player. We have registered 40 favorite Czech radios stations as presets stations, but you can easily change it using configurator. LARA plays the music stored in the NASA storage or in the external source (phone, MP3 player) connected through cable on the front panel of device.
Inbuilt amplifier allows direct connection of speakers (in the same LOGUS 90 design) or allows connection of external in-wall or ceiling speakers.
Content kit:
LARA Radio
Speaker to the installation box
Cover speaker - white
3 - frame, BASE - white
LARA Remote controller
LARA PoE adapter
Network cable 0,2m - white
Network cable 1m - white
AUX cable LARA
11
Kit for wire connection
Kit for wirelles connection
Everything perfectly hidden in the wall!
You do not have a LAN cable?
LARA
LARA
LARA speaker
LARA
PSB-10-24
- power supply
PoE injector
PSB-10-24
- power supply
PoE injector
AUX cable LARA
AUX cable LARA
KU - installation box
Power supply 230V
- cable in wall
Internet - LAN cabel
12
Power supply 230V
- cable in wall
KU - installation box
Internet - LAN cable
INFORMATION:
INFORMATION:
The power set is designed for installation in new and existing homes (apartments). It requires two places where it‘s possible to bring
a LAN cable to the installation box , or where the cable is already feed. The power supply is located in the installation box and for its
connection the basic cable is only necessary. The set includes power supply and PoE injector, which connects the LAN cable with LARA
unit. The PoE injector is designed for mounting into installation box.
The power set is designed for installation in new and existing homes (apartments). It requires two places where it‘s possible to bring
a LAN cable to the installation box , or where the cable is already feed, meanwhile, the installation box lacks any some power supply.
The kit includes an adapter that should be plugged into the socket) and PoE injector which connects (LAN cable) with LARA. The PoE
injector is designed for mounting into installation box.
13
Kit for wire connection
Kit for wirelles connection
AC power adapter
You can not cut into the walls?
LARA speaker
LARA
LARA
Wi-Fi
adapter
PoE Adapter
PSB-10-24
- power supply
Surface mount box
Power supply 230V
AUX cable LARA
Power supply 230V
Internet - LAN cable
KU - installation box
14
Internet - LAN cabel
INFORMATION:
INFORMATION:
The power set is designed for installation in existing buildings or apartments. It is used everywhere where it is not possible to apply
construction work or in other way we can basically connect LARA to the internet LAN cable. The kit includes a power supply (which
connect directly to the power cable) and an AirGateway for LARA wireless connection to the Internet. Installation is designed for standard profound installation box, also the set occupies two places in the installation box (beside LARA and the speakers).
The power set is designed for installation in new as well as existing homes or apartments. It is used in everywhere where it is not
possible to perform a construction work, or in any other way we can connect LARA to the internet LAN cable. The kit includes a power
supply that should be plugged into the socket and an AirGateway for LARA wireless connection to the Internet.
15
LARA
LARA Wiring diagram
LARA Intercom
Hall
Speakers
LARA Intercom
Kitchen
LARA Intercom
Living room
LARA Intercom
Childroom
Wall speakers
Amplifier
Ceiling speakers
Cinch cable
LAN with PoE
Logus speakers
LAN with PoE
WiFi
LARA 3
LAN with PoE
LAN with PoE
Connection
Server
LARA 4
Audio cable
LAN with PoE
LAN with PoE
LARA 2
LARA 1
LAN with PoE
OR
Switch with PoE
LAN
iMM Server
LAN
LAN with PoE
Wi-Fi bridge
LAN with PoE
LAN with PoE
PoE Adapter
Hall
Kitchen
LAN
Wi-Fi
Childroom
Door lock
LAN
Living room
SIP Intercom
with camera
Door lock
SIP Intercom
with camera
Switch with PoE
VIDEOZONE Living room
NAS
HDMI
HDMI
LAN
VIDEOZONE
AUDIO
Amplifier
LAN, RS232
32
iMM
iOS
iHC-TI
Android
iHC-MA
Android
iHC-TA
iMM Client/Server
Android
LARA NAS App
16
iOS
iHC-MI
iMM Client
iOS
iHC-MI
iOS
iHC-TI
Android
iHC-MA
Android
iHC-TA
iMM
17
LARA
LARA
Accessories
Accessories
SPEAKERS AND CABLES
INSTALLATION MATERIAL
1-FRAME
AUX CABLE LARA (LARA CINCH CABLE)
Used to connect LARA with exter. amplifier. Reduction 4pin from
LARA LINE OUT to 2x CINCH plug into amplifier, length 2x20 cm.
Used to connect LARA with external amplifier. Reduction 4pin
from LARA LINE OUT to 2x CINCH plug into amplifier.
5208
POWER SUPPLY (PSB-10-24)
Switching stabilized power supplies with fi xed output voltage, intended for mounting into an installation box (e.g.
KU-68). PSB-10-24 - stabilized power supply 24V/10 W.
75023
CMF
75106
CBR
NAS EXTERNAL STORAGE
Two-chamber NAS server with the function of hosting,
sharing and data security.
7 212
NETWORK CABLE, 0.2 M
Flat white LAN cable CAT5, length 20 cm, terminated with
2x RJ45 plugs.
18
3-FRAME
90930 TBR
4-FRAME
90940 TBR
5-FRAME
90950 TBR
WIFI BRIDGE
POE SWITCH
Used for LARA wireless connection via WiFi network.
Provides LAN connectivity and PoE power supply for up to
5 x LARA. Max. distance between LARA and switch is 10 m
at the power supply 12 V, and approximately 20 m at the
power supply 24 V. Power supply AC 230 V.
5210
6605
POWER SUPPLY POE + WIFI INTO A BOX
5224
POWER SUPPLY POE INTO AN BOX
5226
PoE injector with power supply intended for an installation box. Power supply 230 V.
WiFi bridge with PoE and power supply into an installation box. Power supply 230V.
10976 ABR
INSTALLATION BOX 1-GANG (KP 67/2)
6705
INSTALLATION BOX 2-GANG (KP 64/2)
6706
INSTALLATION BOX 3-GANG (KP 64/3)
6707
INSTALLATION BOX 4-GANG (KP 64/4)
6708
INSTALLATION BOX 5-GANG (KP 64/5)
6709
INSTALLATION BOX 1-GANG (KP 64/LD)
6710
INSTALLATION BOX 2-GANG (KP 64/2L)
6711
INSTALLATION BOX 3-GANG (KP 64/3L)
6712
6702
POE SUPPLY
Power injector with plug-in adapter 230V.
NETWORK CABLE, 1 M
Flat white LAN cable CAT5, length 1 m, terminated with 2x
RJ45 plugs.
90920 TBR
SURFACE MOUNT BOX
SURFACE SPEAKER
Two-way speaker intended for mounting in a ceiling
or on the walls: Power 15W, 32  speaker impedance,
dimensions 270x183x37 mm. Color: White
2-FRAME
6704
CEILING SPEAKER
Speaker is suitable for the installation in suspended ceilings and hollow walls. Mounting hole diameter 143 mm,
Power 15W, 32 speaker impedance.
90910 TBR
4378
AUX CABLE LARA (LARA AUDIO CABLE)
Used to connect LARA with external music source (smartphone, mp3 player). Length 20cm terminated with 2x stereo jack 3.5mm.
POWER SUPPLY AND NETWORK
INSTALLATION BOX 4-GANG (KP 64/4L)
6713
INSTALLATION BOX 5-GANG (KP 64/5L)
6714
UNIVERSAL BOX 1068-02
6716
UNIVERSAL BOX KUH 1/L NA
6717
6700
5225
POWER SUPPLY POE + WIFI
5227
WiFi bridge with PoE plug in adapter 230 V.
19
w w w.i nel s.com/l ara
TECHNICAL SUPPORT:
800 100 671
[email protected]
Complex solution of electro-installation for your house provided by
ELKO EP, Ltd.
Palackeho 493 / Holešov - Všetuly 769 01 / Czech Republic
Phone: +420 800 100 671 / e-mail: [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
