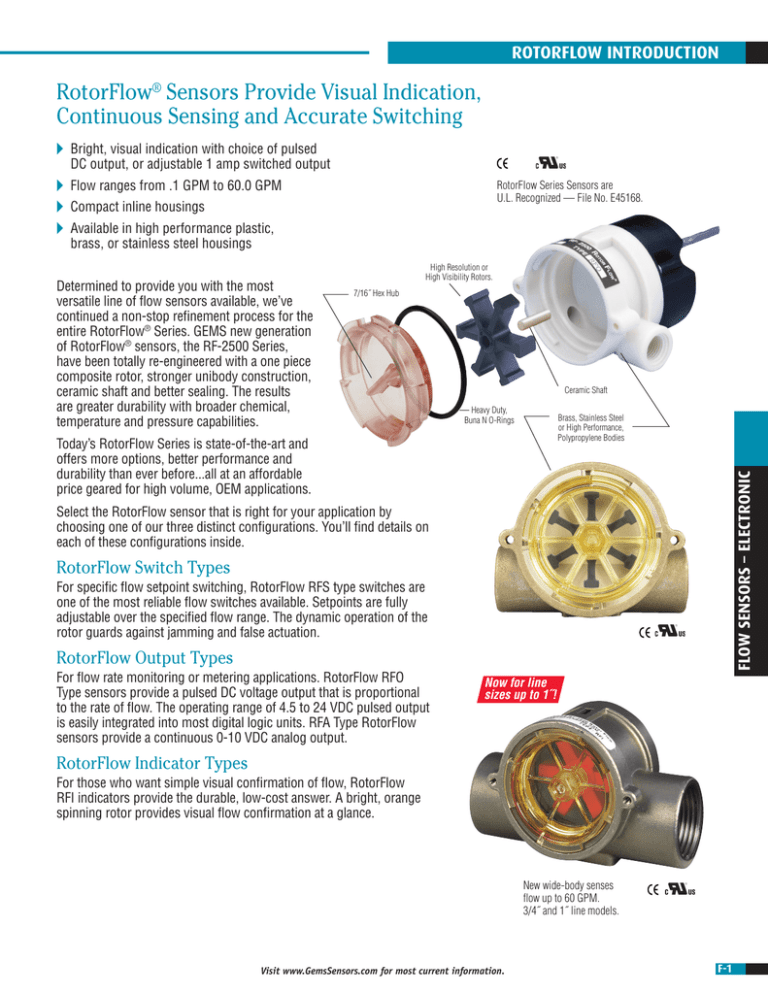

ROTORFLOW INTRODUCTION

RotorFlow

®

Sensors Provide Visual Indication,

Continuous Sensing and Accurate Switching

 Bright, visual indication with choice of pulsed

DC output, or adjustable 1 amp switched output

 Flow ranges from .1 GPM to 60.0 GPM

 Compact inline housings

Available in high performance plastic,

brass, or stainless steel housings

RotorFlow Series Sensors are

U.L. Recognized — File No. E45168.

High Resolution or

High Visibility Rotors.

Determined to provide you with the most versatile line of flow sensors available, we’ve continued a non-stop refinement process for the entire RotorFlow

®

Series. GEMS new generation of RotorFlow

®

sensors, the RF-2500 Series, have been totally re-engineered with a one piece composite rotor, stronger unibody construction, ceramic shaft and better sealing. The results are greater durability with broader chemical, temperature and pressure capabilities.

7/16˝ Hex Hub

Today’s RotorFlow Series is state-of-the-art and offers more options, better performance and durability than ever before...all at an affordable price geared for high volume, OEM applications.

Select the RotorFlow sensor that is right for your application by choosing one of our three distinct configurations. You’ll find details on each of these configurations inside.

Heavy Duty,

Buna N O-Rings

RotorFlow Switch Types

For specific flow setpoint switching, RotorFlow RFS type switches are one of the most reliable flow switches available. Setpoints are fully adjustable over the specified flow range. The dynamic operation of the rotor guards against jamming and false actuation.

RotorFlow Output Types

For flow rate monitoring or metering applications. RotorFlow RFO

Type sensors provide a pulsed DC voltage output that is proportional to the rate of flow. The operating range of 4.5 to 24 VDC pulsed output is easily integrated into most digital logic units. RFA Type RotorFlow sensors provide a continuous 0-10 VDC analog output.

RotorFlow Indicator Types

For those who want simple visual confirmation of flow, RotorFlow

RFI indicators provide the durable, low-cost answer. A bright, orange spinning rotor provides visual flow confirmation at a glance.

Now for line sizes up to 1˝!

Ceramic Shaft

Brass, Stainless Steel or High Performance,

Polypropylene Bodies

New wide-body senses flow up to 60 GPM.

3/4˝ and 1˝ line models.

Visit www.GemsSensors.com for most current information.

F-1

F-2

Flow Set Point Switching – RFS Types

Combines visual confirmation of flow with dynamic, electronic switch operation

Easy, adjustable switch point calibration: a local LED signals when set point is reached

RotorFlow

®

Switches build an extra level of reliability and protection into your equipment. By principle of operation, the rotor cannot be deceived into indicating a positive flow situation when no flow actually exists. Once set to a desired actuation point, RotorFlow will switch to a “no-flow” condition should the rotor stop for any reason.

Typical Applications

Protect expensive electronic equipment from coolant flow failure on...

• Semiconductor

Processing Equipment

• Lasers • Medical Equipment

• X-Ray and Other High Power Tubes

• Robotic Welding Equipment

File No. E45168

Specifications

Wetted Materials

Body

Rotor Pin

Rotor

Lens

O-Ring

Low Flow Adaptor

Operating Pressure, Maximum

Brass or Stainless Steel Body

Polypropylene Body

Operating Temperature,

Brass or Stainless Steel Body

Polypropylene Body

Electronics

Viscosity, Maximum

Input Power

Relay Contact Ratings (SPDT)

Current Consumption

24 VDC

115 VAC

Repeatability

Set Point Accuracy (Factory Set)

Set Point Differential

Electrical Termination

Brass, 316 Stainless Steel or Polypropylene

(Hydrolytically Stable, Glass Reinforced)

Ceramic

PPS Composite, Black

Polysulfone

Viton

®

(Alloy Bodies); Buna N (Polypropylene Body)

Glass Reinforced Polypropylene

200 PSIG (13.8 bar) @ 70°F (21°C),

100 PSIG (6.9 bar) Max. @ 212°F (100°C)

100 PSIG (6.9 bar) @ 70°F (21°C),

40 PSI (2.8 bar) Max. @ 180°F (82°C)

1

-20°F to 212°F (-29°C to 100°C)

-20°F to 180°F (-29°C to 82°C)

150°F (65°C) Ambient

200 SSU

24 VDC or 115 VAC

1 Amp, 24 VDC Resistive; 0.3 Amp, 110 VAC

No Load Load (Relay Energized)

20mA 35mA

45mA 95mA

2% Maximum Deviation

± 5%

15% Maximum

20 AWG PVC-Jacketed, 24˝ Cable. Color Codes:

Red = +VAC/VDC, Black = Ground,

White = N.O. Contact, Brown = N.C. Contact,

Green = Common

Note:

1. Optional pulsed output available with RFS. Consult factory.

Dimensions

Polypropylene Bodies

2.37˝

(60.2 mm)

.64˝ (16.3 mm)

2.50˝ (63.5 mm)

3.06˝ (77.7 mm)

VDC VAC

.80˝

(20.3 mm)

2.38˝ (60.5 mm)

2.50˝ (63.5 mm)

3.01˝ (76.4 mm)

VDC

.87˝

(22.1 mm)

2.32˝ (58.9 mm)

VAC

2.50˝

(63.5 mm)

3.94˝

(100 mm)

.80˝ (20.3 mm)

4.50˝ (114.3 mm)

Brass and Stainless Steel Bodies - .25˝ and .50˝ Port

2.37˝

(60.2 mm)

VAC

1/4˝ PORTS = .80˝ (20.3 mm)

1/2˝ PORTS = .87˝ (22.1 mm)

4.50˝ (114.3 mm)

Brass and Stainless Steel Bodies - .75˝ and 1.00˝ Port

VDC

1.06˝

(26.9 mm)

(50.8 mm)

1.06˝

(26.9 mm)

4.76˝

(120.9 mm)

Visit www.GemsSensors.com for most current information.

RFS TYPE

Switch Set Point Calibration With LED Signal (RFS Type)

With the unit installed in the line and power supplied, complete the following steps to calibrate switch actuation point with proper flow rate. A small flat-blade screwdriver is the only tool required.

1. Adjust liquid flow in the line to the rate at which switch actuation is desired.

2. Insert screwdriver into opening on backside of housing and fit blade into the potentiometer adjustment screw inside.

3. If LED is not illuminated, slowly turn screwdriver counterclockwise and stop as soon as LED illuminates.

4. If LED is illuminated, turn screwdriver clockwise until LED light goes out. Then, slowly turn screwdriver counterclockwise and stop as soon as LED illuminates.

1/2" STRAIN

RELIEF HOLE

LED INDICATOR IS

ILLUMINATED WHEN

RELAY SWITCH IS

CLOSED. AIDS FIELD

CALIBRATION

SET POINT

ADJUSTMENT

CABLE

OUTPUT

How To Order

Specify Part Number based on desired body material, port size and input power rating.

Body

Material

Polypropylene

Brass

Port Size

NPT

.25˝

.50˝

.25˝

.50˝

.75˝

1.00˝

Flow Ranges – GPM

Low Range* Standard Range

0.1 to 1.0 0.5 to 5.0

1.5 to 12.0 4.0 to 20.0

0.1 to 1.0 0.5 to 5.0

1.5 to 12.0 4.0 to 20.0

5.0 to 30.0

8.0 to 60.0

Part

Number

Stainless

Steel

9/16-18**

.50˝

.75˝

1.00˝

0.1 to 1.0

1.5 to 12.0

0.5 to 5.0

4.0 to 20.0

– 5.0 to 30.0

8.0 to 60.0

* With use of Low Flow Adapter supplied. See Page F-8 for more information.

** Straight thread with O-ring seal.

– Stock Items.

180395

180396

181688

181689

165073

165074

165077

165078

155425

155876

155485

155886

156265

156266

156268

156269

181691

181692

181693

181694

Input

Power

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

24 VDC

115 VAC

Special Requirements:

GEMS caters to OEM needs with special configurations for potable water and enhanced chemical capabilities. Consult factory for further details.

For higher pressure/temperature ratings, stainless face plates are available.

Consult factory.

High Resolution Black Rotor

PPS composite. Each of the six rotor arms is magnetized. A PTFE loaded bushing ensures long life.

Pressure Drop-Typical

Standard

Flow Range

Units

12

9

6

1/4˝

Ports

3

0

0 1 2 3 4 5

1/2˝ Ports

10 15

Flow Rate – GPM

20 25

Low Flow

Range Units

9

6

3

1/4˝ Ports

1/2˝ Ports

0

0

.1 .2 .3 .4 .5 .6 .7 .8 .9

1.0

2 3 4

5

Flow Rate – GPM

10 15

High Flow

Units

12

9

6

3/4˝

Ports

3

1.0˝ Ports

0

0 10 20 30 40 50 60 70 80 90

Flow Rate – GPM

100 110

Visit www.GemsSensors.com for most current information.

F-3

Flow Rate Monitoring – RFO Type

 4.5 to 24 VDC Pulsed Output

GEMS Sensors popularized the RotorFlow’s paddlewheel design by combining high visibility rotors with solid-state electronics that are packaged into compact, panel mounting housings. They provide accurate flow rate output with integral visual confirmation...all with an unprecedented price/performance ratio. RFO Types feature a

VDC pulsed output.

Typical Applications

• Water Purification/Dispensing Systems • Chemical Metering Equipment

• Lasers and Welders • Water Injection Systems

• Semiconductor Processing Equipment • Chillers and Heat Exchangers

Specifications

Wetted Materials

Body

Rotor Pin

Rotor

Lens

O-Ring

Low Flow Adaptor

Brass, 316 Stainless Steel or Polypropylene

(Hydrolytically Stable, Glass Reinforced)

Ceramic

PPS Composite, Black

Polysulfone

Viton

®

1

(Alloy Bodies); Buna N (Polypropylene Body)

Glass Reinforced Polypropylene

Operating Pressure, Maximum Optional SS Face Plate 500 PSI

Brass or Stainless Steel Body 200 PSIG (13.8 bar) @ 70°F (21°C),

100 PSI (6.9 bar) Max. @ 212°F (100°C)

1

Polypropylene Body

100 PSIG (6.9 bar) @ 70°F (21°C),

40 PSI (2.8 bar) Max. @ 180°F (82°C)

Operating Temperature,

Brass or Stainless Steel Body -20°F to 212°F (-29°C to 100°C)

Polypropylene Body

-20°F to 180°F (-29°C to 82°C)

Electronics

Viscosity, Maximum

Input Power

Output Signal

Current Consumption

150°F (65°C) Ambient

200 SSU

4.5 VDC to 24 VDC

4.5 VDC to 24 VDC Pulse. (Sourcing)

Pulse Rate Dependent on Flow Rate, Port Size and Range.

8 mA, No Load

Current Source Output, Max.

70 mA

Frequency Output Range

15 Hz (Low Flow) to 225 Hz (High Flow)

Accuracy

Electrical Termination

See Table Below

22 AWG PVC-Jacketed, 24˝ Cable. Color Coded:

Red = +VDC; Black = Ground; White = Signal Output

Notes:

1. For higher pressure/temperature ratings, stainless face plates are available. Consult factory.

Dimensions

Polypropylene Bodies

File No. E45168

2.50˝ (63.5 mm)

3.06˝ (77.7 mm)

Brass and Stainless Steel Bodies - .25˝ and .50˝ Ports

2.50˝ (63.5 mm)

3.01˝ (76.4 mm)

.64˝ (16.3 mm)

Ro HS

GE

MS COMPLIAN

T

®

Ro HS

MS COMPLIAN

.80˝ (20.3 mm)

2.38˝ (60.5 mm)

1/4˝ PORTS =

80˝ (20.3 mm)

1/2˝ PORTS =

87˝ (22.1 mm) 2.32˝ (58.9 mm)

Brass Bodies – .75˝ and 1.00˝ NPT Ports

F-4

How To Order

For standard configurations, specify Part Number based on desired body material and port size.

Body

Material

Polypropylene

Brass

Stainless

Steel

Port Size

NPT

.25˝

.50˝

.25˝

.50˝

.75˝

1.00˝

9/16˝-18**

.50˝

.75˝

1.00˝

Flow Range – GPM

Low Range*

(Accuracy)

Standard Range

(Accuracy)

0.1 to 1.0 (±7.0%) 0.5 to 5.0 (±7.0%)

1.5 to 12.0 (±7.0%)

0.1 to 1.0 (±7.0%)

4.0 to 20.0 (±15.0%)

0.5 to 5.0 (±7.0%)

1.5 to 12.0 (±7.0%)

0.1 to 1.0 (±7.0%)

4.0 to 20.0 (±15.0%)

5.0 to 30.0 (±15.0%)

8.0 to 60.0 (±15.0%)

0.5 to 5.0 (±7.0%)

1.5 to 12.0 (±7.0%)

4.0 to 20.0 (±15.0%)

5.0 to 30.0 (±15.0%)

8.0 to 60.0 (±15.0%)

Part

Number

2.50˝

(63.5 mm)

3.94˝

(100 mm)

1.06˝

(26.9 mm)

2.95˝

(74.9 mm)

155421

155481

156261

156262

194761

194762

165071

165075

194763

194764

High Resolution

Black Rotor

PPS composite. Each of the six rotor arms is magnetized. A PTFE loaded bushing ensures long life.

Don't Use - Replaced with RFO B&SS 1/4" &1/2" art

Note: Improved accuracy can be achieved by calibrating the individual

RFO unit.

* With use of Low Flow Adapter supplied.

See Page F-8 for more information.

** Straight thread with O-ring seal.

– Stock Items.

Visit www.GemsSensors.com for most current information.

2.50" (63.5 mm)

3.06" (77.7 mm)

.25" (6.3 mm)

1/4" NPT-2.01" (51.1 mm)

1/2" NPT-2.21" (56.1 mm)

3/4" NPT-2.51" (63.8 mm)

Operating Principle

PARTIAL

CUTAWAY

HALL EFFECT SENSOR

SENDS A VOLTAGE PULSE

WITH EACH PASS OF

MAGNETIC FIELD

MAGNETIZED ROTOR

FLOW OUT FLOW IN

1. As liquid passes through the RotorFlow body, the magnetic rotor spins at a rate proportional to flow. This causes a series of magnetic fields (the rotor vanes) to excite the Hall Effect sensor, producing a series of voltage pulses.

2. The output pulses (RFO) are at the same voltage level as the input (4.5 - 24 VDC) with a frequency proportional to the flow rate. The output signal can be utilized by digital rate meters totalizers or other electronic controllers. RFA Type analog sensors condition the output signal to 0-10 VDC.

3. RotorFlow Indicators may be mounted with flow entering either port. Performance is optimized by positioning ports at the top of the unit, in a horizontal plane.

Flow Rate

(GPM)

25

30

35

40

17

18

19

20

45

50

55

60

13

14

15

16

9.0

10

11

12

5.0

6.0

7.0

8.0

3.0

3.5

4.0

4.5

0.10

0.25

0.50

0.75

1.0

1.5

2.0

2.5

*Low Flow Adapter

Frequency vs. Flow Rate-Typical

.25˝

15

110

128

148

168

185

34

54

73

90

.25˝ with

Adapter*

13

41

90

137

186

Output Frequency – Hz

RFO Model – Based on Port Size

.50˝

.50˝ with

Adapter*

17

25.9

34

43

34 60

183

195

207

220

135

147

158

170

44.8

55

65.9

76

87.5

99

110

122

76.7

94

111

129

147

165

185

204

.75˝

12

24

0

61

93

128

163

196

High Flow

+VDC

12

0

22

30

TIME

0

TIME

Note: Consult factory for flow rate/frequency curves.

43

123

137

153

170

185

60

74

91

107

RFO TYPE

Pressure Drop-Typical

Standard

Flow

Range

Units

12

9

6

1/4˝

Ports

3

0

0 1 2 3 4 5

1/2˝ Ports

10 15

Flow Rate – GPM

9

Low Flow

Range

Units

6

1/4˝ Ports

1/2˝ Ports

3

20 25

0

0

.1 .2 .3 .4 .5 .6 .7 .8 .9

1.0

2 3 4

5

Flow Rate – GPM

10 15

High Flow

Units

12

9

6

3/4˝

Ports

3

1.0˝ Ports

0

0 10 20 30 40 50 60 70 80 90

Flow Rate – GPM

100 110

Signal Output

Output signal for RFO Types is an on/off pulse of the

DC voltage supplied to the unit, it is compatible with all digital logic families. Input voltage range is 4.5 to 24

VDC. Frequency of the output pulse is proportional to the flow rate and ranges from approximately 15 Hz at low flow to 225 Hz at high flow.

Example:

Low Flow

12

+VDC

12

TIME

+VDC

0

Visit www.GemsSensors.com for most current information.

F-5

TIME

+VDC

F-6

Flow Rate Monitoring – RFA Types

 0 to 10 VDC Analog Output

GEMS Sensors popularized the RotorFlow’s paddlewheel design by combining high visibility rotors with solid-state electronics that are packaged into compact, panel mounting housings. They provide accurate flow rate output with integral visual confirmation...all with an unprecedented price/performance ratio. RFA Types feature a

0 to 10 VDC analog output which is proportional to flow rate.

Specifications

Wetted Materials

Body

Rotor Pin

Rotor

Brass, 316 Stainless Steel or Polypropylene

(Hydrolytically Stable, Glass Reinforced)

Ceramic

PPS Composite, Black

1

Lens

O-Ring

Polysulfone

Viton

®

(Alloy Bodies); Buna N (Polypropylene Body)

Low Flow Adaptor

Glass Reinforced Polypropylene

Operating Pressure, Maximum

Brass or Stainless Steel Body 200 PSIG (13.8 bar) @ 70°F (21°C),

100 PSIG (6.9 bar) @ 212°F (100°C)

2

Polypropylene Body

100 PSIG (6.9 bar) @ 70°F (21°C),

40 PSI (2.8 bar) Max. @ 180°F (82°C)

Operating Temperature,

Brass or Stainless Steel Body -20°F to 212°F (-29°C to 100°C)

Polypropylene Body

Electronics

Viscosity, Maximum

Input Power

-20°F to 180°F (-29°C to 82°C)

150°F (65°C) Ambient

200 SSU

24 VDC, ±10%

Output Signal

Current Consumption

0-10 VDC Analog Signal @ 1mA, Max.

25 mA, Max.

Current Source Output, Max. 10 mA

Accuracy

See Table Below

Electrical Termination

22 AWG PVC-Jacketed, 24˝ Cable. Color Coded:

Red = +VDC; Black = Ground; White = Signal Output

Notes:

1. Standard on Stainless Steel bodies.

2. For higher pressure/temperature ratings stainless steel face plates are available. Consult factory.

How To Order

For standard configurations, specify Part Number based on desired body material and port size.

Body

Material

Polypropylene

Brass

Stainless

Steel

Port Size

NPT

.25˝

.50˝

.25˝

.50˝

Low Range

(Accuracy)

Flow Ranges – GPM

Part

Number

Standard Range

(Accuracy)

Part

Number

0.1 to 1.0 (±7.0%)

230206

0.5 to 5.0 (±7.0%)

230205

1.5 to 12.0 (±7.0%)

230207

4.0 to 20.0 (±15.0%)

230201

0.1 to 1.0 (±7.0%)

230209

0.5 to 5.0 (±7.0%)

230202

1.5 to 12.0 (±7.0%)

230210

4.0 to 20.0 (±15.0%)

230203

.75˝

1.00˝

5.0 to 30.0 (±10.0%)

230212

8.0 to 60.0 (±15.0%)

230214

9/16˝-18 0.1 to 1.0 (±7.0%)

230211

0.5 to 5.0 (±7.0%)

230204

.50˝ 1.5 to 12.0 (±7.0%)

230216

4.0 to 20.0 (±15.0%)

230208

.75˝

1.00˝

5.0 to 30.0 (±10.0%)

230213

8.0 to 60.0 (±15.0%)

230215

– Stock Items.

Typical Applications

• Water Purification/Dispensing Systems

• Chemical Metering Equipment

• Lasers and Welders

• Water Injection Systems

• Semiconductor Processing Equipment

• Chillers and Heat Exchangers

Dimensions

Polypropylene Bodies

2.50˝ (63.5 mm)

3.06˝ (77.7 mm)

Brass and Stainless Steel Bodies - .25˝ and .50˝ Ports

2.50˝ (63.5 mm)

3.01˝ (76.4 mm)

.64˝ (16.3 mm)

.80˝ (20.3 mm)

2.38˝ (60.5 mm)

1/4˝ PORTS =

80˝ (20.3 mm)

1/2˝ PORTS =

87˝ (22.1 mm)

2.32˝ (58.9 mm)

Brass Bodies – .75˝ and 1.00˝ NPT Ports

2.50˝

(63.5 mm)

3.94˝

(100 mm)

High Resolution

Black Rotor

PPS composite. Each of the six rotor arms is magnetized. A PTFE loaded bushing ensures long life.

1.06˝

(26.9 mm)

2.95˝

(74.9 mm)

Don't Use - Replaced with RFO B&SS 1/4" &1/2" art

Visit www.GemsSensors.com for most current information.

1/4" NPT-.64" (16.3 mm)

1/2" NPT-.70" (17.8 mm)

3/4" NPT-.70" (17.8 mm)

2.50" (63.5 mm)

3.06" (77.7 mm)

.25" (6.3 mm)

1/4" NPT-2.01" (51.1 mm)

1/2" NPT-2.21" (56.1 mm)

3/4" NPT-2.51" (63.8 mm)

RFA/RFI TYPES

Visual Indicators – RFI Types

This is RotorFlow in its most basic form — a bright orange rotor turning with fluid flow. Simple, direct and reliable. Flow rate is estimated, or simply confirmed, by viewing the speed of the turning rotor. Either port may be used for incoming flow, and bayonet mounting lens is easily removed for quick cleanout. RFI Type RotorFlow sensors are easy to see, easy to install and easy to afford.

Typical Applications

• Visual flow confirmation on heat exchangers • Plastic injection molding equipment

Specifications

Wetted Materials

Body

Rotor Pin

Rotor

Lens

O-Ring

Low Flow Adaptor

Operating Pressure,

Brass or Stainless Steel Body

Polypropylene Body

Operating Temperature,

Brass or Stainless Steel Body

Polypropylene Body

Brass, 316 Stainless Steel or Polypropylene

(Hydrolytically Stable, Glass Reinforced)

Ceramic

High Visibility Orange, Molded Nylon

Polysulfone

Viton

®

(Brass Body); Buna N (Polypropylene Body)

Glass Reinforced Polypropylene

100 PSIG (7 bar) @212°F (100°C)

200 PSIG (13.8 bar) Max. @ 70°F (21°C)

100 PSIG (6.9 bar) at 70°F (21°C),

40 PSI (2.8 bar) Max. @ 180°F (82°C)

-20°F to 212°F (-29°C to 100°C)

-20°F to 180°F (-29°C to 82°C)

Operating Principle

1. As liquid passes through the RotorFlow body, the rotor spins at a rate proportional to flow.

2. RotorFlow Indicators may be mounted with flow entering either port. At low flow rates, performance is optimized by positioning ports at the top of the unit, in a horizontal plane.

Dimensions

Polypropylene Bodies

Ro HS

GE

MS COMPLIAN

Ro HS

MS COMPLIAN

.64˝ (16.3 mm)

2.50˝ (63.5 mm)

3.06˝ (77.7 mm)

.80˝ (20.3 mm)

1.37˝ (34.8 mm)

.30˝ (7.6 mm)

Brass and Stainless Steel Bodies - .25˝ and .50˝ Ports

.30˝ (7.6 mm)

2.50˝ (63.5 mm)

3.01˝ (76.4 mm)

1/4˝ PORTS =

80˝ (20.3 mm)

1/2˝ PORTS =

87˝ (22.1 mm)

1.37˝

(34.8 mm)

Brass Body – .75˝ and 1.00˝ Ports

How To Order

Specify Part Number based on desired body material and port size.

Body

Material

Port Size

NPT

Flow Ranges – GPM

Low* Range Standard Range

Polypropylene

Brass

Stainless

Steel

.25˝

.50˝

.25˝

.50˝

.75˝

1.00˝

9/16˝ - 18**

.50˝

.75˝

1.00˝

0.1 to 1.0

1.5 to 12.0

0.1 to 1.0

1.5 to 12.0

0.1 to 1.0

1.5 to 12.0

0.5 to 5.0

4.0 to 20.0

0.5 to 5.0

4.0 to 20.0

5.0 to 30.0

8.0 to 60.0

0.5 to 5.0

4.0 to 20.0

5.0 to 30.0

8.0 to 60.0

* With use of Low Flow Adapter supplied. See Page F-8 for more information.

** Straight thread with O-ring seal.

– Stock Items.

Part Number

155420

155480

142541

142542

180392

181681

174596

173138

181682

181683

2.50˝

(63.5 mm)

3.94˝

(100 mm)

High Visibility

Orange Rotor

Constructed of Molded Nylon for good general purpose compatibility with a wide range of fluids. Offers high visibility.

1.06˝

(26.9 mm)

(50.8 mm)

Visit www.GemsSensors.com for most current information.

F-7

F-8

Easy Installation and Maintenance

A proper installation will enhance RotorFlow sensor performance. Install using standard pipe fitting tools; horizontal fluid lines are recommended. For further installation and maintenance recommendations, refer to one of the following instruction bulletins: RFO Types–Part Number 157258; RFI Types–Part Number

157259; RFS Types–Part Number 157261.

Since their function is to monitor dynamic fluid flow, naturally the rotor will react to turbulence, pulsation, entrained air, and other flow anomalies induced in the flow stream by other process hardware. For optimum performance, install RotorFlow units where nominal flow conditions exist with ports located at the top. Incoming flow may be placed to either port; a minimum of 8 inches (20 cm) of straight pipe on the inlet side is required. When operating in the low flow range, the supplied Low Flow Adapter must be installed in the incoming port.

8˝ MIN

(20 CM)

8˝ MIN

(20 CM)

Incoming

Flow

Incoming

Flow

Low Flow

Adapter

Low Flow

Adapter

Panel Mounting

Plastic Bodies. Two (2) mounting ears are provided at the body center line to receive #8 self-tapping screws to accommodate panel mounting of the plastic

RotorFlow units. Note: ANSI T type 23 self-tapping screws are recommended. They may be replaced with standard machine screws if re-installation should be required.

Brass and Stainless Steel Bodies. Two (2) mounting holes are provided on the body centerline, as shown below. #8-32UNC-2B screws are required for mounting.

2.50˝ (63.5 mm)

2.50˝ (63.5 mm)

Except for straight-thread versions, RotorFlow sensors connect to piping via NPT mating thread forms.. The use of an appropriate thread sealant is necessary to assure a leak-tight connection. Permatex “No More Leaks

®

” or 2 wraps of Teflon

®

tape are the only sealants recommended for GEMS flow sensors. Straight-thread versions require an O-ring for sealing.

150 micron filtration is recommended. However, should foreign particles enter the

RotorFlow sensor, accumulation is easily cleared by removing the lens from the body.

The lens is removed by turning its 7/16˝ hex center hub 45° counter-clockwise with a standard socket wrench. To reinstall the lens, simply reverse the process. Pressure must be relieved from the system prior to sensor clean-out. O-rings should be lubricated prior to re-assembly.

Low Flow Applications

A low flow adapter is supplied with all Rotorflow units. It is used to produce accurate response at low flow rates. Install the adapter, as shown above, in the port selected for incoming flow.

RotorFlow

®

Maintenance Kits

Rebuild your RotorFlow

®

Sensors and Switches in less than 5 minutes with one of these kits.

Includes:

• Ceramic Rotor Pin

• 6-Pole Magnetic Rotor with PPS/PTFE Bushing

2.50˝ (63.5 mm)

• Buna N or Viton

®

O-Ring

• Polysulfone Lens

Rotorflow

®

Type

Line

Size

Body

Material

1/4˝ & 1/2˝

Plastic Buna-N

Brass/SS

O-Ring

Material in Kit

Viton

®

3/4˝ & 1˝ Brass/SS Viton

®

– Stock Items.

Part Numbers

RFA/RFO/

RFS

155870

RFI

155872

167364

157186

166267

157187

RotorFlow

®

Sensor Special Capabilities are Yours for the Asking.

Gems caters to OEM needs with special configurations that go beyond the standards in this catalog. We can provide RotorFlow sensors with enhanced chemical compatibility, higher temperature and pressure capabilities, and alternate electrical terminations.

Buna N, Viton, EPDM,

Silicon or Other Material

O-Rings

Polysulfone, Stainless Steel or Polypropylene Lens

Panel Mounting

PPS Composite with Teflon

®

or Nylon

Loaded Bushing

Tabs

2.50˝ (63.5 mm)

2.50˝ (63.5 mm)

Other Capabilities Available to OEMs:

• Electrical outputs: Combined switch and frequency; transistor switching; 0-10 VDC analog.

• Custom face plate

(cast stainless steel face plate pictured)

Long-Life

Ceramic

Rotor Pin

RF-2500 Sensors

Hydrolytically Stable

Polypropylene, Stainless

Steel or Brass

We are committed to providing our customers with the product that best meets the requirements of their applications. Please call us and tell us what you need, and ask us about Swagelok

®

tube fittings, faceplate options, and 9/16˝ and 3/4˝ straight-thread versions.

Call 800-378-1600

Visit www.GemsSensors.com for most current information.

TURBOFLOW

FT-110 Series – TurboFlow

®

Economical Flow-Rate Sensors

 Low Cost Plus High Accuracy ±3% of Reading

 Measures Low Liquid Flow Rates of .1 to 8 GPM

 Lightweight Plastic Design Enables Mounting in any Position

Gems Hall Effect turbine flow rate sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Unlike existing timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. The sensor’s standard power and output specifications make it easy to retrofit to existing controllers.

Specifications

Wetted Materials

Body

Turbine

Bearings

Operating Pressure

Burst Pressure

Operating Temperature

Viscosity

Filter

Input Power

Output (Hz)

Accuracy

Repeatability

Electrical Connection

Inlet/Outlet Ports

Nylon 12

Nylon 12 Composite

PTFE/15% Graphite

200 PSIG

2500 PSIG

-4°F to 212°F (-20°C to 100°C)

32 to 81 SSU (.8 to 16 Centistokes)

<50 Microns

5 to 24 VDC @ 8mA

NPN Sinking Open Collector @ 20mA Maximum

Leakage Current 10µA (Pull-Up Resistor Required)

±3% of Reading

0.5% of Full Scale

Spade Terminals .110˝/.248˝ x .031˝

(2.8/6.3 x .8 mm) or 3 ft. cable

3/8˝ NPT Male (3/8˝ G Male also available)

How To Order – Standard Models

Specify Part Number based on flow range.

Flow Range

GPM Liters/m

.13-1.3

.13-2.0

.5-5.0

.5-7.5

.26-2.7

.26-4.0

.26-6.6

.53-9.2

1-10

1-15

1-25

2-35

Pulses per

Gallon Liter

26200

17400

6900

4600

12500

8300

3800

2650

3300

2200

1000

700

– Stock Items.

FT-110 Accessories

Consult factory for special customized OEM versions.

Description

Mating connector w/3 feet, 3 conductor, PVC pigtail cable

Mating connector w/10 feet, 3 conductor, PVC pigtail cable

Frequency

Output

58-575 Hz

38-575 Hz

55-550 Hz

37-550 Hz

3/8˝ NPT Part Number

Spade Cable

173931

173933

173932

173934

16.7-416 Hz

173935

23-408 Hz

234265

173931-C

173933-C

173932-C

173934-C

173935-C

234265-C

Part Number

173941

173942

Ro HS

GE

MS COMPLIAN

®

T

Ro HS

MS COMPLIAN

Dimensions

.866˝

(22.0 mm)

.669˝

(17.0 mm)

.110˝

.110˝

(2.8 mm)

.248˝

(6.3 mm)

.393˝

(10.0 mm)

.393˝

(10.0 mm)

.197˝

(5.0 mm)

.197˝

(5.0 mm)

.118˝

(30.0 mm)

(30.0 mm)

.197˝

(5.0 mm)

.197˝

(5.0 mm)

Wiring

FLOW

FLOW

.524˝

(13.3 mm)

(13.3 mm)

(55.0 mm)

(55.0 mm)

White

Black

3/8˝ MNPT

OR

3/8˝ G

3/8˝ MNPT

OR

3/8˝ G

White

(-)

.315˝

(8.0 mm)

.70˝

(17 mm)

OUTPUT

.70˝

(17 mm)

.315˝

(8.0 mm)

O Vdc

OUTPUT

Black

CUSTOMER

O Vdc

2k-20k ohms

Red

(+)

CUSTOMER

SUPPLIED

(+)

5-24Vdc

Red

Cable Wire Code: Red = 5 to 24 VDC

Black = Ground

Brown = Signal Output

Pressure Drop—Typical

18

16

10

8

6

4

2

0

14

12

A

B

0 .25

.50

1 2 2.5

3 4

FLOW RATE - GPM

Tests conducted with water flow at 68

°F (20°C).

5

A) Part # 173931

173932

173933

B) Part # 173934

173935

6 7 8

Visit www.GemsSensors.com for most current information.

F-9

F-10

FT-210 Series – TurboFlow

®

Low Flow Turbine Sensor

 Low Flow Rates .1 to 2.5 LPM and High Accuracy ±3% of Reading

 Lightweight Turbine Ensures Fast Startup

 Mounts In Any Orientation

Gems FT-210 features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to on/off dispensing applications. Each sensor is 100% tested, ensuring years of service life.

Specifications

Wetted Materials

Body

Turbine

Bearings

Operating Pressure

Burst Pressure

Flow Range

Pulses

Frequency Output

Operating Temperature

Viscosity

Filter

Input Power

Output (Hz)

Accuracy

Repeatability

Electrical Connection

Inlet/Outlet Ports

Nylon 12 (Grilamid TR55)

Nylon 12 Composite

PTFE/15% Graphite

350 PSI (24 bar)

1400 PSI (97 bar)

.026-.65 gallons/minute

0.1-2.5 liters/minute

3.4-84.5 ounces/minute

83,200 per gallon

22,000 per liter

650 per ounce

36.6-917 Hz

-4°F to 212°F (-20°C to 100°C)

32 to 70 SSU (.8 to 16 Centistokes)

<50 Microns

5 to 24 VDC

NPN Sinking Open Collector @ 20mA Maximum Leakage

Current 10µA (3K-30K Pull up resistor required)

±3% of Reading

0.5% of Full Scale

9.4mm Spacing 3-pole DIN Connector (1˝ high)

1/4˝ NPT (1/4˝ G Male also available)

How To Order

Specify a Part Number for the Port Connection AND a Part Number for the DIN

Electrical Connection. Two Part Numbers are required for a complete part assembly.

FT-210 Sensor

Body Material

Nylon 12

Port Size

1/4˝ NPT

1/4˝ G

Part Number

212465

212460

Electrical Connection

Description

1 meter DIN PVC Cable Assembly with 10K pull-up resistor

Mating DIN Connector

Part Number

218572

212404

Dimensions

.11˝

(2.8 mm)

.83˝

(21.2 mm)

1.11˝

(28.2 mm)

(+)

(-)

5-24Vdc

3k-30k Ohms

CUSTOMER

SUPPLIED

Ro HS

MS COMPLIAN

OUTPUT

.67˝

(17.0 mm)

.43˝

(11.0 mm)

1.77˝

(45.0 mm)

1/4˝ NPT

OR

1/4˝ G

Wiring

(+)

5-24Vdc

(-)

O Vdc

3k-30k Ohms

CUSTOMER

SUPPLIED

OUTPUT

Pin Code: 1 = Output

.11˝

(2.8 mm)

2 = Supply

4 = Common

.83˝

For Mating DIN Connector – P/N 212404

.67˝

(17.0 mm)

Function DIN Termination

V+ 1.11˝

(28.2 mm)

1

Output

.43˝

(11.0 mm)

Pressure Drop—Typical

(45.0 mm)

GPM

0.13

0.26

0.40

400

350

300

250

200

150

100

50

0

0 0.5

0.53

1 1.5

FLOW RATE - L/MIN

2

2

1/4˝ NPT

OR

1/4˝ G

0.66

2.5

3

5.0

4.4

3.6

2.9

2.2

1.5

0.7

Visit www.GemsSensors.com for most current information.

TURBOFLOW

FT-330 Series – NSF Approved Materials

 High Accuracy: ±2% of reading

 High repeatability: ±0.5% of reading

 Overmolded electronics with integral cable strain reinforcement

 Measures flow rates from .2 to 4 GPM

 Lightweight plastic design for multiple mounting positions

Ro HS

GE

MS COMPLIAN

T

®

Ro HS

MS COMPLIAN

The FT-330 is a highly accurate and repeatable, Hall Effect turbine flow sensor designed for low flow OEM applications. This low cost, NSF Std. 61 listed flow sensor is ideal for water or beverage dispensing applications or any application with water based liquids. The 316SS shaft coupled with Delrin

®

bearings allows for accurate measurements during quick dispensing cycles. The sensor’s standard power and output specifications make it easy to retrofit existing controllers.

Specifications

Materials

Body

Turbine

Axle

Bearings

Inlet/Outlet Ports

Pressure

Operating

Burst

Operating Temperature

Viscosity

Recommended Filtration

Input Power

Output (Hz)

Accuracy

Repeatability

Electrical Connection

Approvals

Glass Reinforced PPO (Noryl)

PA Composite (Nylon)

316 Stainless Steel

Delrin

®

(Polyoxymethylyne, POM)

3/8˝ NPT Male

200 PSIG

1000 PSIG

-4°F to 176°F (-20°C to 80°C)

32 to 81 SSU (1.8 to 16 Centistokes)

< 50 Microns

5 to 24 VDC @ 8mA

NPN Sinking Open Collector @ 25mA

Maximum leakage current 10µA

(5k to 30k Pull-Up Resistor Required)

±2% of reading

±0.5% of reading

3 ft PVC cable #22 AWG

NSF Std. 61 listed, RoHS

Dimensions

2.23

NSF approved

0.70

CABLE 34-36" EXTENDED

3 COND. PVC

3/8 NPT

Wiring

FT-330 SENSOR

WHITE OUTPUT

BLACK 0 VDC

10k Ohms

CUSTOMER SUPPLIED

RED 5-24 VDC

How To Order

Specify Part Number based on flow rate measuring capability.

GPM

Flow Range

LPM

0.2 to 2

0.4 to 4

0.8 to 7.6

1.5 to 15

– Stock Items.

Frquency

Out

34 to 343 Hz

29 to 343 Hz

Pulses Per

Gallon

10,313

4,994

Pulses Per

Liter

2724

1319

Part Number

226000

226100

K-factor Chart* - Part Number 226000

12000

10000

8000

6000

4000

2000

0

0 0.2

0.4

0.6

0.8

1

FLOW RATE (GPM)

* Consult factory for P/N 226100 K-factor chart

Pressure Drop—Typical

18

16

14

12

10

226000

8

6

4

2

0

0 1 2 3

Q (GPM)

4

1.2

226100

5

1.4

Visit www.GemsSensors.com for most current information.

0.89 REF.

1.6

6

F-11

NOTES

F-12

Visit www.GemsSensors.com for most current information.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
