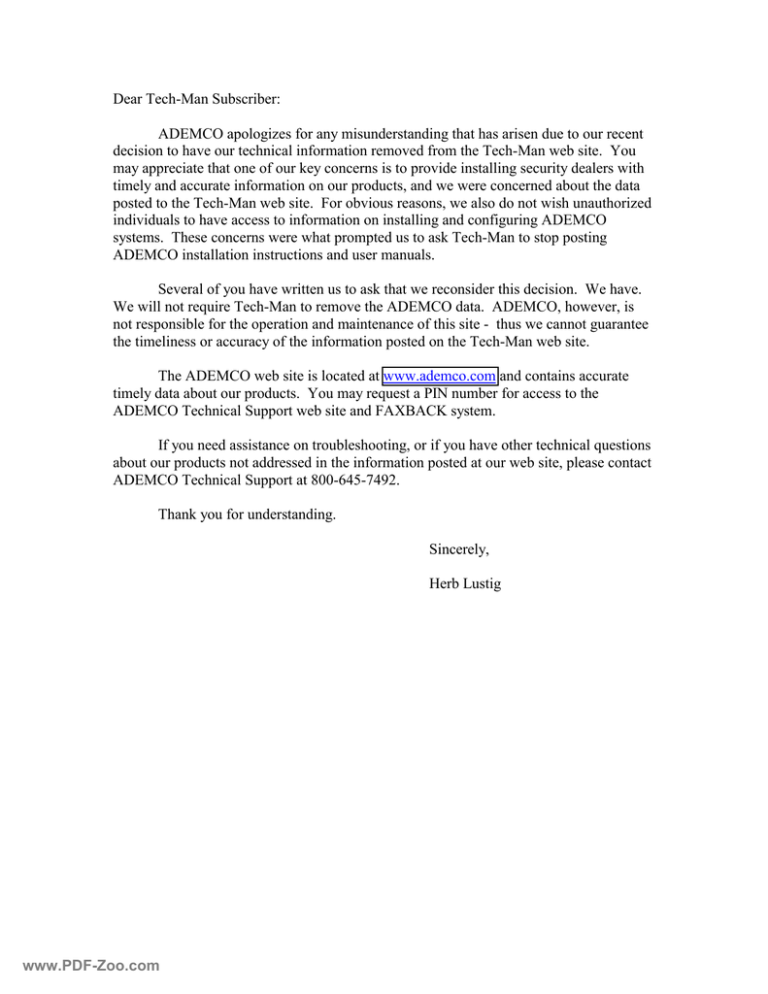

Dear Tech-Man Subscriber:
ADEMCO apologizes for any misunderstanding that has arisen due to our recent
decision to have our technical information removed from the Tech-Man web site. You
may appreciate that one of our key concerns is to provide installing security dealers with
timely and accurate information on our products, and we were concerned about the data
posted to the Tech-Man web site. For obvious reasons, we also do not wish unauthorized
individuals to have access to information on installing and configuring ADEMCO
systems. These concerns were what prompted us to ask Tech-Man to stop posting
ADEMCO installation instructions and user manuals.
Several of you have written us to ask that we reconsider this decision. We have.
We will not require Tech-Man to remove the ADEMCO data. ADEMCO, however, is
not responsible for the operation and maintenance of this site - thus we cannot guarantee
the timeliness or accuracy of the information posted on the Tech-Man web site.
The ADEMCO web site is located at www.ademco.com and contains accurate
timely data about our products. You may request a PIN number for access to the
ADEMCO Technical Support web site and FAXBACK system.
If you need assistance on troubleshooting, or if you have other technical questions
about our products not addressed in the information posted at our web site, please contact
ADEMCO Technical Support at 800-645-7492.
Thank you for understanding.
Sincerely,
Herb Lustig
www.PDF-Zoo.com
N5987V2 4/98
®
No. 5890
PASSIVE INFRARED MOTION
DETECTOR/TRANSMITTER
INSTALLATION
INSTRUCTIONS
For use with QED control panels ONLY!
GENERAL INFORMATION
The 5890 Passive Infrared Motion
Detector/Transmitter is a battery-operated
wireless device intended for use as part of a
QED 5800 series wireless alarm system.
Designed for use in commercial and residential
installations, the 5890 is a wall-mounted unit
with a standard lens that provides wide-angle
protection up to a range of 40 feet (12m). For
best coverage, mount the detector so that the
likely direction of intruder motion is a cross the
pattern.
Two optional interchangeable lenses are
available for this detector – the 199PA Pet Alley
lens, and the 199LR Long Range lens (see
PROTECTION PATTERNS FOR OPTIONAL
LENSES on last page).
This document provides installation instructions
for the 5890, but the installer must be familiar
with the Installation Instructions for the QED
5800 Wireless Alarm System with which the
5890 is intended to be used.
FEATURES
• Wireless operation for fast installation.
• Dual element pyro-electric sensor provides
positive protection while minimizing false
alarms.
• Alternate polarity pulse count option offers
greater stability in adverse environments.
• Provision to turn LED on while walk testing
(LED is turned off after testing).
• Tampered cover – unit transmits message if
cover is removed.
• Wall or corner mounting options.
• Optional Pet Alley and Long Range lenses
available.
detected change in infrared energy will trigger
an immediate alarm signal. This mode is
recommended when the detector is used to
monitor a narrow hallway where coverage is
provided by only a single zone.
Use the Pulse Count ON mode when the
detector is installed in areas where periodic
changes in infrared energy levels are normal
(for example, where forced air heating ducts are
present). In this mode, it requires at least two
detected changes in infrared energy within a
short period before an alarm will be triggered.
Important Note: If the detector is to be used in
the Pulse Count mode, be sure to walk test the
unit in this mode.
www.PDF-Zoo.com
Battery Caution:
Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 100°C, or incinerate.
Dispose of used batteries promptly. Keep away
from children.
Programming Note: If the detector’s ID has
not been programmed into the system (i.e.,
this is an initial detector installation), refer to
the PROGRAMMING section below and
perform the ID “enrolling” procedure before
mounting or testing the detector.
SPECIFICATIONS
Coverage:
Standard Lens : 40 ft x 56 ft (12 m x 17 m).
18 zones (9 long, 5 intermediate, 4 short range).
199LR Lens : 60 ft x 6 ft (18m x 1.8m).
5 zones (1 long, 2 inter
mediate, 2 short range).
199PA Lens : 40 ft x 60 ft (12m x 18m)
12 zones.
Pulse Count: Installer-selectable On/Off link.
Detectable
Walk Rate:
0.5 – 5ft/sec (0.15 – 1.5m/sec).
Mtg. Height: 7ft nominal (2.1m), but may be
mounted at other heights (see
Table 1).
Walk Test
Indicator:
Red LED with Test/Normal
(disable) link.
Batteries:
Two 3-volt Lithium batteries.
Use only Ademco No. 466,
Duracell DL123A, Panasonic
CR123A, Sanyo CR123A, or
Varta CR123A.
0perating
Temperature: 32°F – 122°F (0°C – 50°C)
Operating
Humidity:
Up to 95% RH (max.), noncondensing.
Dimensions: 2-11/16"W x 5"H x 1-7/8"D
(68mm x 127mm x 48mm).
PROGRAMMING
The QED control system must “enroll” the
detector’s ID during installation of the system.
The QED control should be programmed to
enroll the 5890 as an “RF” type unit (i.e.,
supervised RF).
To program the detector, place the LED jumper
in the TEST position (see Fig. 5), the Pulse
Count jumper in the OFF position, batteries
installed, and cover on. Temporarily cover the
lens (a cloth will do) to prevent any activation by
the detector.
With the QED control in the programming
mode, remove the cloth cover and motion your
hand over the lens to activate the detector and
cause it to send a FAULT; then cover the lens
again to send a RESTORE.
Note: Repeat this procedure to verify
"enrolling".
Return LED jumper to the NORMAL position.
INSTALLATION HINTS
¥
Do not install where the detector is exposed
to direct sunlight or directly above strong
sources of heat.
• Make sure the detection area does not have
obstructions (curtains, screens, large pieces
of furniture, plants, etc.) which may block the
pattern of coverage.
• Avoid locating a unit in areas which contain
objects likely to produce a rapid change in
temperature, such as central heating,
radiators or ducts (or heaters of any kind), air
conditioners, open flame, etc.
• Do not mount on an unstable surface.
INSTALLATION
SYSTEM DESCRIPTION
Optical System: Uses efficiently designed
Fresnel lenses.
Radio Transmitter: The built-in transmitter
serves only as the communication link to the
alarm system's Receiver/Control, and can send
alarm, tamper, supervisory, and battery status
messages
to
the
system's
QED
receiver/control. The transmitter is not used for
detection purposes. Each detector has a unique
ID code permanently assigned at the factory.
This ID needs to be "enrolled" by the QED
control system at the time of installation. This
allows each detector used in the system to be
uniquely identified. The QED control must be
programmed to "enroll" the 5890 as an "RF"
type unit (i.e., supervised RF).
To conserve battery life during normal
operation, no more than one transmission
sequence will occur within a 3-minute period.
There is no such time restriction in "test" mode.
Alternate Polarity Pulse Count: Two jumperselectable detection response modes are
provided: Instant response (Pulse Count OFF)
and Alternate Polarity Pulse Count (Pulse
Count ON). With Pulse Count OFF, any
2. Observing correct polarity, install the two
Lithium batteries (supplied) into the battery
holders, as shown in Figure. 5. Make sure
the batteries are firmly seated.
3. Replace the cover (snap fit).
Figure 1.
Standard Wide Angle Protection Pattern
BATTERY INSTALLATION
1.
Remove front cover by inserting a large
screwdriver blade (or small coin) in groove
between cover and base at the location
shown in Figure 2; rotate blade to override
snap fit, then lift cover off.
1
Radio Transmission Path Check
Verify that a strong transmission path between
the 5890 and the system's Receiver/Control
exists before permanently mounting the
detector. Do this by performing the Walk Test
(described later) with the detector temporarily
mounted in its proposed location. The 5890 will
transmit when sensing motion (waving arm or
walking into area). Sometimes, moving the
detector only a few inches means the difference
between a strong and weak transmission path.
Experiment until you are satisfied that the
location provides the strongest transmission
path, while still being practical for the protection
pattern desired. This test also verifies that the
detector has been correctly programmed into
the system.
Normal Mounting
Mount the unit to a firm vertical surface (flat on
wall or in corner).
1. Remove front cover.
2. Temporarily loosen (do not remove) the
screw holding the PC board in the detector
base (see Fig. 5 for location of this screw).
3.
4.
5.
The board can then be moved up or down
for access to the knockout mounting holes
in the base.
Refer to Figure 3 for location of knockout
holes in the base. Break out only those
holes required.
Mount the detector w ith screws, using the
selected mounting holes.
Before fully tightening the PC board holding
screw, make sure the board is positioned so
that the arrow is in line with the appropriate
setting on the graduated scale on the righthand side of the PC board (see Table 1,
and Fig. 5).
5.
Replace top and bottom lens supports and
then press downward so that the lens locks
snap into position, thus securing the lens in
place.
6. Refer to Table 1 for recommended PIR
mounting height, pulse count setting, and
pattern setting for the lens in use.
7. Replace the front cover (make sure the
cover snaps tightly).
1. Remove front cover.
2. Press inward on the upper and lower lens
locks at the left or right side only to release
the lens supports on one side. Now slide the
lens to the left or right, as needed. The lens
may be moved as much as 8° (from center)
in either direction.
3. When the lens is in the desired position,
press the lens locks downward (on the
released side) to lock the supports in place.
4. Replace the front cover (make sure the
cover snaps tightly).
After any adjustment, you must conduct a walk
test to ensure proper coverage of the area to be
protected, as indicated under "Test
Procedures".
PULSE COUNT OPTION
Figure 2. Cover Removal
Figure 3. Mounting Holes in Base
Recess Mounting
Recessed mounting requires the use of the
optional No. 1990MK Recess Mounting Kit.
Complete instructions for the use of this kit
accompany it. Note: Holes "C" in the detector
base (accessible only when PC board is
removed) are used for recessed mounting.
Changing Lenses (if required)
1. Remove front cover.
2. Squeeze upper lens lock located in front
cover to release upper Fresnel lens support.
Squeeze lower lens lock to release lower
Fresnel lens support (see Fig. 4).
3. Note how the lens supports are positioned,
then remove the supports.
4. Carefully remove the existing lens and
replace with an
optional coverage
replacement lens. The lens must be
installed with the smooth side facing
outward. Also, the lens should be oriented
with its part number on the upper right-hand
side (see Fig. 4). Be sure to center the
lens.
Note: Lens surface should be free of dirt,
foreign matter and finger-prints. Use a
clean dry soft cloth to wipe lens surfaces, if
required.
www.PDF-Zoo.com
Figure 4. Changing Lenses
Vertical Pattern Adjustment
The protection pattern provided by the lens in
use can be raised or lowered by re-positioning
the PC board in the detector. A graduated scale
to the right of the board (see Fig. 5) indicates
the approximate number of degrees by which
the pattern can be raised (max. +5°) or lowered
(max. -15°). The detector is normally shipped
with the board set to the 0° position. To make
this adjustment, remove the cover on the
detector and loosen the screw holding the PC
board (the screw is located at the approximate
center of the board). Slide the board upward or
downward by the number of degrees required,
then tighten the holding screw again. After any
adjustment, you must conduct a walk test to
ensure proper coverage of the area to be
protected, as indicated under "Test
Procedures".
Lens Masking
The masking strips that have been supplied are
designed for application to one or more lens
segments to produce a protection pattern that
suits the particular requirements of the
protected area. Individual masking strips have
been provided for each of the lens segments on
the standard lens supplied with the PIR. Simply
peel off the appropriate pressure-sensitive
adhesive strip(s) and apply over the desired
lens segment(s). Be sure to affix the masking
strips to the inside of the lens (not the outer,
smooth side). Each lens segment that is
masked results in the elimination of one zone of
protection from the coverage pattern. By
masking segments of the lens, you can adjust
the coverage to suit the area to be protected, or
eliminate coverage from areas where you
anticipate environmental disturbances that
might reduce the PIR's stability (a heater or
other heat-producing object for example).
Important: When hallway pattern masking is
used, be sure the PIR is set for instant
response.
Horizontal Adjustment of Lens
The protection pattern provided by the lens can
e moved to the left or right by horizontal
adjustment of the lens, as follows:
2
Each detector includes Pulse Count circuitry
that is designed to provide stability in adverse
environments to minimize false alarms. Pulse
count is selected by positioning a jumper across
the ON pulse count terminals (shown in Figure
5). When set for pulse count, the detector will
signal an alarm within 2 or 3 steps, since the
processing logic requires more complex motion
than just a momentary event. When the
detector verifies an intrusion, the built-in
transmitter will send an alarm message to the
QED control/receiver.
LED DISABLE
The detector is shipped with the LED disabled
(LED jumper in the "NORMAL" position). The
LED may be enabled (for the "Walk-Test") by
positioning the LED jumper in the "TEST"
position (see Fig. 5).
Note: When the jumper is in the "NORMAL"
position, the LED will not light, but the built-in
transmitter will transmit alarms when the PIR
senses motion.
Figure 5. PC Board
OPTIONAL LENSES
Two optional lenses are available which may be
used with the PIR. Information for these
lenses is provided in Table 1. Refer to
Changing Lenses in this document if one of the
optional lenses is being installed in place of the
standard lens.
TEST PROCEDURES
Important: Testing should be conducted with
the protected area cleared of all people. Place
the protective system's QED control in the Test
mode
for the walk test procedure – when the PIR
senses movement, a "beep" will be heard from
the system's console, and verify that the PIR's
transmitter signal has reached the QED
control's wireless receiver.
The absolute range of all PIR units is subject to
variation because of different types of clothing,
backgrounds and ambient temperature. For this
reason, ensure that the most likely intruder
routes are well within the PIR's protective zones
and that walk-testing is carried out along these
routes.
Walk-Test
1.
Remove front cover and set the Pulse
Count jumper in the detector in the OFF
position initially. The LED must be enabled
at this time (jumper in the TEST position).
2.
Replace front cover and walk through
protective zones, observing that the
detector's LED lights whenever motion is
detected (the LED serves as a Walk-Test
indicator during this procedure).
3. If pulse count is going to be used in this
installation, set the pulse count jumper to
the ON setting and repeat the walk test
procedure.
Note: If pulse count mode is used during
the walk test, the LED will stay lit for
approximately 1 to 3 seconds after detecting
motion.
4. After the "Walk-Test" is completed, the
LED jumper should be placed in the
NORMAL position (LED disabled).
MAINTAINING PROPER OPERATION:
In order to maintain the detector in proper
working condition, it is important that the the
user observes the following:
1. Replace both batteries within 7 days after a
"low battery" message has appeared in the
system's display.
2. Detectors should never be re-aimed or
relocated without the advice or assistance
of the alarm service company.
3. The physical surroundings of the protected
area should not be changed. If furniture or
stock is moved, or air-conditioning or
additional heating is installed, the PIR may
have to be readjusted.
4. Walk-tests should be conducted frequently
(at least weekly) to confirm continued
proper coverage.
TABLE 1. INSTALLATION GUIDE FOR FRESNEL LENSES
Lens Part
No.
5890
Standard
(No. 1000)
Description/
Coverage
WIDE ANGLE LENS
40 Ft x 56 Ft
(12m x 17m)
Pulse Count
PIR Mounting Height
Optional
6 Ft (1.8m)
7 Ft (2.1m)
8 Ft (2.4m)
Range to be
Covered
40 Ft (12m)
30 Ft (9m)
15 Ft (4.6m)
40 Ft (12m)
30 Ft (9m)
15 Ft (4.6m)
40 Ft (12m)
30 Ft (9m)
15 Ft (4.6m)
Pattern Setting
(Deg) †
–1°
–3°
–11°
–2.5°
–5°
–15°
–4°
–7°
**
O P T I O N A L FR E S N E L LE N S E S
199PA
199LR
PET ALLEY LENS
40 Ft x 60 Ft
(12m x 18m)
LONG RANGE LENS
60 Ft x 6 Ft
(18m x 1.8m)
Optional
3–4.5Ft (0.9m–1.4m)
OFF*
6 Ft (1.8m)
7 Ft (2.1m)
8 Ft (2.4m)
+7°
60 Ft (18m)
40 Ft (12m)
20 Ft (6m)
60 Ft (18m)
40 Ft (12m)
20 Ft (6m)
60 Ft (18m)
40 Ft (12m)
20 Ft (6m)
+1°
–1°
–6°
0°
–2.5°
–9°
–1°
–4°
–12°
† See Fig. 5 for location of adjustment scale on PC board (refer also to "Vertical Pattern Adjustment").
* Always set pulse count OFF with the Long Range lens.
** For distances of 20 Ft (6m) and less, adjust to maximum negative (board at highest position)
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÊ T R O U B L E S H O O T I N G Ê ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Trouble 1: INTERMITTENT ALARM
Probable Causes:
A. Rapid temperature change. Check for electric or gas heaters, open
flames, electric arcs, etc.
Remedy: Locate source and reposition detector.
B. Drafts causing drapes, light fixtures, display material to move.
Remedy: Eliminate source of motion.
Trouble 3: DETECTION AREA CHANGES
Probable Causes:
A. Repositioned furniture or equipment in the protected area.
Remedy: Caution customer about layout changes. Reposition
detector.
B. Mounting surface is unstable. A few degrees of vertical shift can
change range substantially.
Remedy: Mount on secure surface.
Trouble 2: LED INOPERATIVE DURING WALK TEST
Probable Causes:
A. LED control jumper set to NORMAL.
Remedy: Reposition jumper to TEST position.
B. LED malfunction. Check for broken/shorted leads.
Remedy: Return unit for service.
www.PDF-Zoo.com
Trouble 4: UNIT DOES NOT APPEAR TO BE OPERATING
Probable Cause:
A. Unit is not receiving power.
Remedy: Check for appropriate battery voltage. Install new
batteries if necessary. Be sure to change both batteries.
3
PROTECTION PATTERNS FOR OPTIONAL LENSES
No. 199PA, Pet Alley Lens
No. 199LR, Long Range Lens
LIMITATIONS OF THE PIR MOTION DETECTOR
While the Intrusion Detector is a highly reliable intrusion detection
device, it does not offer guaranteed protection against burglary. Any
Intrusion Detection device is subject to compromise or failure to warn for
a variety of reasons:
• Passive Infrared Motion Detectors can only detect intrusion within the
designed ranges as diagrammed in this installation manual.
• Passive Infrared Motion Detectors do not provide volumetric area
protection. They do create multiple beams of protection, and intrusion
can only be detected in unobstructed areas covered by those beams.
• Passive Infrared Detectors cannot detect motion or intrusion that
takes place behind walls, ceilings, floors, closed doors, glass
partitions, glass doors, or windows.
• Mechanical tampering, masking, painting or spraying of any material
on the lenses, windows or any part of the optical system can reduce
the detection ability of the Passive Infrared Motion Detector.
• Passive Infrared Detectors sense changes in temperature; however,
as the ambient temperature of the protected area approaches the
temperature range of 90° to 105°F (32° to 40°C), the detection
performance can decrease.
• This Passive Infrared Detector will not operate without the
appropriate battery installed, or if the battery is weak or improperly
connected (i.e., reversed polarity).
• Passive Infrared Detectors, like other electrical devices, are subject to
component failure. Even though this equipment is designed to last as
long as 10 years, the electronic components in it could fail at any
time.
We have cited some of the most common reasons that a Passive
Infrared Motion Detector can fail to catch intrusion. However, this does
not imply that these are the only reasons, and therefore it is
recommended that weekly testing of this type of unit, in conjunction with
weekly testing of the entire alarm system, be performed to ensure that
the detectors are working properly.
Installing an alarm system may make the owner eligible for a lower
insurance rate, but an alarm system is not a substitute for insurance.
Homeowners, property owners and renters should continue to act
prudently in protecting themselves and continue to insure their lives and
property.
We continue to develop new and improved protection devices. Users of
alarm systems owe it to themselves and their loved ones to learn about
these developments.
ADEMCO LIMITED WARRANTY
Alarm Device Manufacturing Company, a Division of Pittway
Corporation, and its divisions, subsidiaries and affili ates
("Seller"), 165 Eileen Way, Syosset, New York 11791, warrants
its products to be in conformance with its own plans and
specifications and to be free from defects in materials and
workmanship under normal use and service for 18 months
from the date stamp control on the product or, for products not
having an Ademco date stamp, for 12 months from date of
original purchase unless the installation instructions or catalog
sets forth a shorter period, in which case the shorter period
shall apply. Seller's obligation shall be limited to repairing or
replacing, at its op tion, free of charge for materials or labor,
any product which is proved not in compliance with Seller's
specifications or proves defective in materials or workmanship
under normal use and service. Seller shall have no obligation
under this Limited Warranty or otherwise if the product is
altered or improperly repaired or serviced by anyone other than
Ademco factory service. For warranty service, return product
transportation prepaid, to Ademco Factory Service, 165 Eileen
Way, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE HEREOF. IN NO CASE
SHALL SELLER BE LIABLE TO ANYONE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS
OR IMPLIED, OR UPON ANY OTHER BASIS OF LIABILITY
WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS
CAUSED BY THE SELLER'S OWN NEGLIGENCE OR
FAULT.
Seller does not represent that the products it sells may not be
compromised or circumvented; that the products will prevent
any personal injury or property loss by burglary, robbery, fire or
oth erwise; or that the products will in all cases provide
adequate warning or pro tection. Customer understands that a
properly installed and maintained alarm may only reduce the
risk of a burglary, robbery, fire or other events occurring
without providing an alarm, but it is not insurance or a
guarantee that such will not occur or that there will be no
personal injury or property loss as a result. CONSEQUENTLY,
SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL
INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED
ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING.
HOWEVER, IF SELLER IS HELD LIABLE, WHET HER
DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE
ARISING UNDER THIS LIMITED WARRANTY OR
OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN,
SELLER'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT,
WHICH SHALL BE THE COMPLETE AND EXCLUSIVE
REMEDY AGAINST SELLER. This warranty replaces any
previous warranties and is the only warranty made by Seller on
this product. No increase or alteration, written or verbal, of the
obligations of this Limited Warranty is authorized.
A L A R M DE V I C E MA N U F A C T U R I N G CO .
A DIVISION OF PITTWAY CORPORATION
1 65 E ilee n Wa y, Sy os se t, New York 117 91
Copyright © 1992 PITTWAY CORPORATION
àN5987V2!ä
N5987V2 4/98
www.PDF-Zoo.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
