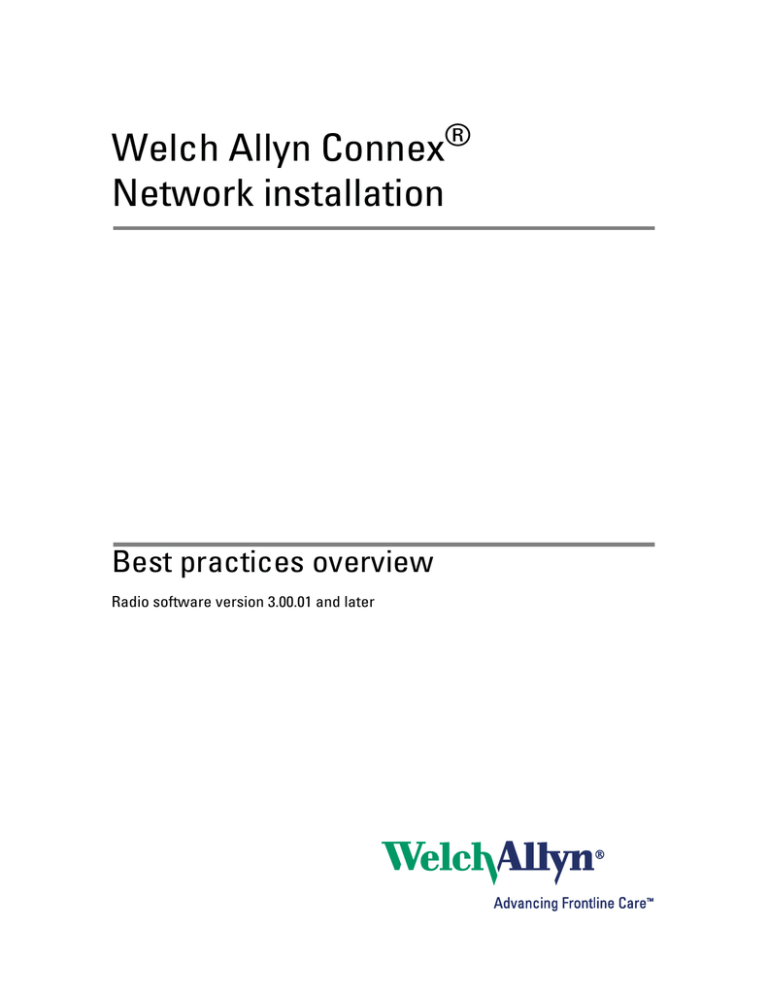

Welch Allyn Connex

®

Network installation

Best practices overview

Radio software version 3.00.01 and later

ii

Welch Allyn Network installation

© 2013 Welch Allyn. All rights are reserved. To support the intended use of the product described in this publication, the purchaser of the product is permitted to copy this publication, for internal distribution only, from the media provided by Welch Allyn. No other use, reproduction, or distribution of this publication, or any part of it, is permitted without written permission from Welch Allyn

Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of intended use published in this manual.

For patent information, please visit www.welchallyn.com/patents.

For information about any Welch Allyn product, or to contact your nearest Welch Allyn representative, go to www.welchallyn.com/about/company/locations.htm

.

Manual DIR 80018295 Ver B

Welch Allyn Protocol, Inc.

8500 SW Creekside Place

Beaverton, OR 97008-7101 USA www.welchallyn.com

Welch Allyn Limited

Navan Business Park

Dublin Road, Navan

County Meath, Republic of Ireland

Contents

1 - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Systems overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 - Best practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Required network settings and configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Recommended network settings and configurations. . . . . . . . . . . . . . . . . . . . . . 4

General network settings and configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

iii

iv

Contents Welch Allyn Network installation

1

Introduction

About this document

This document lists required, recommended, and basic settings and configurations for networks using Welch Allyn medical devices and systems. For vendor-specific required, recommended, and basic settings and configurations, go to the following web site: www.welchallyn.com/networkbestpractices .

Systems overview

It is up to you to conduct a hazards analysis per IEC 80001 to determine if any issues exist that should be mitigated to ensure patient safety.

Implementation of a stable and usable integrated network is the sole responsibility of the customer. This requirement is found in IEEE Standard 11073-00101, which states:

Ultimately, the responsibility of ensuring that both medical devices and RF wireless technologies conform to specifications that satisfy necessary and sufficient QoS requirements (conformance) as well as interoperate in a satisfactory way on a shared network system(s) (interoperability) is the responsibility of the end user.

Although it is ultimately your responsibility, Welch Allyn endeavors to participate in your successes with these best practices.

2

Introduction Welch Allyn Network installation

2

Best practices

Required network settings and configurations

These configurations and settings are required to establish a durable connection between

Welch Allyn devices and the wireless network. Failure to comply with these requirements will result in a failure to connect to the network, repeated disconnects or extended loss of telemetry data. Requirements in this section can be modified by requirements listed in the appropriate vendor-critical requirements documents.

Critical for all Connex products

Best practice

Authentication/encryption WEP 64 and 128, WPA2 Personal,

WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP [MSCHAPv2])

Channel advertisement WLANs using DFS channels must broadcast their SSID

Channel Switch Announcement (CSA) Disable

DHCP leases Must be renewable

Signal strength First wireless signal: RSSI Value

-65dBm for (802.11a APs set to 25mW)

SSID name Maximum length of 16 characters

Affected types Without best practice

Wireless Other encryption methods not supported. No connectivity.

Wireless

Wireless

Wireless and wired

Interference Signal to Noise Ratio (SNR)

15dB

Wireless

IP address assignment Must be performed through DHCP (DHCP fixed to MAC is acceptable)

Wireless and wired

Wireless

Wireless

The radio will not connect to DFS channels if the SSID is hidden.

When CSA is enabled, data loss when changing channels may occur.

Connections are lost when the lease expires (forced reconnect).

High noise level causes dropped packets.

The device cannot connect to the network without an

IP address.

Dropped packets and loss of connectivity due to poor wireless coverage.

The radio cannot be configured.

4

Best practices Welch Allyn Network installation

Critical for Connex CS and Connex RMS

Best practice

Ports allowed

• TCP: 281, 283

• UDP: 291, 7711-7719, 44435-44436 (only if Spot LXi is used with Connex)

Rendezvous Perform at least one of the following:

• Allow UDP broadcasts on ports 7711-7719, or 44435-44436

(only if Spot LXi is used with Connex)

• DNS name resolution for Connex servers using a locally configured name

• Configure the device with a fixed IP address of the Connex server

SSID/Radio settings

• a band Only

Affected types Without best practice

Wired Connections cannot be established.

Wired

Wireless

Connections cannot be established from the Welch

Allyn VLAN to the server.

Loss of connection and data, patient monitor will not connect.

Best practices Best practices

5

Recommended network settings and configurations

The best practices and configuration settings listed in the following table are recommended for best performance. Increased data packet loss or occasional disconnects are likely if these recommendations are not followed. Recommendations in this section can be modified by requirements listed in the appropriate vendor-critical requirements documents.

Best practice

Data Keep patient data and general IT data separated using a

Stateful Firewall. Rules, policies, and roles should be separated from rules, policies, and rules used for other IT data.

Affected types Without best practice

Wireless and wired

IT changes to the firewall policies that inadvertently affect patient monitoring are more likely. Patient data subject to issues on wired network such as broadcast storms. Shorter battery life for patient monitors.

Increased chance of disconnect during roaming.

802.1X Authentication When using EAP (certificates) for authentication, enable OKC (opportunistic key caching) on the controller

Wireless

Priority Welch Allyn data should have priority over other data.

Welch Allyn data is configured for 802.11e Access Category Voice.

Wireless and wired

Mixing of IT and patient data priority may result in lost data.

QoS Hardware Quality of Service (QoS) support should be configured to map 802.11e QoS bits to a hard-wired tag

Roaming across subnets Keep the Welch Allyn wireless VLAN flat (no roaming across subnets)

Rules/Firewall Use separate rules and roles for Welch Allyn patient data and other IT data. Rules and roles should be identified using Welch Allyn specific names.

Signal strength Second wireless signal: RSSI Value

(802.11a APs set to 25mW)

Separate VLAN Keep Welch Allyn patient monitors on their own

VLAN and SSID

Wireless Multimedia (WMM) Enabled

-70dBm for

Wired

Wireless

Wireless

Wireless

Wireless and wired

Wireless

Increased probability of dropped patient data packets on busy wireless networks.

Success for roaming across subnets depends on the hospital’s Layer-3 network. Hospital is responsible for validation of proper roaming across subnets.

IT changes to the wireless controller that inadvertently affect Welch Allyn patient monitoring are more likely.

Patient data subject to issues on wired network such as broadcast storms. Shorter battery life for patient monitors.

Dropped packets and loss of connectivity due to poor wireless coverage.

IT changes to the wireless controller that inadvertently affect patient monitoring are more likely. Patient data subject to issues on wired network such as broadcast storms. Shorter battery life for patient monitors.

Monitors will disconnect during movement.

6

Best practices Welch Allyn Network installation

General network settings and configurations

The following best practices should be followed to maintain a robust system suited for medical patient monitoring.

Best practice

Bandwidth

1

7% Proportional Bandwidth allocation for APs and

Welch Allyn virtual APs/Packet-Shaping

Controller redundancy Wireless controller hardware should include controller redundancy, either one to one or one to many (1:1 or N:1)

Critical IT support The customer shall provide 24/7, mission-critical support for their network

Affected types Without best practice

Wireless Increased probability of dropped patient data packets on busy wireless networks.

Wireless

Wireless and wired

Wireless

Failure of a non-redundant controller would cause the entire system to fail.

Possible extended downtime if network support cannot be reached.

Unexpected network outages.

DFS DFS channels should not be used with life-critical medical devices

DHCP Information

• Primary DHCP Server = Primary server IP address

• Secondary DHCP Server = Secondary server IP address

Jitter Packet-to-Packet jitter shall be

 400ms

Wireless Loss of connection and data.

Labeling Welch Allyn VLAN ports should be clearly marked on the physical switches

Wireless and wired

Wireless and wired

Dropped packets, data loss and dropped connections.

Harder to debug system issues. Mixing of IT and patient data could result in loss of data due to broadcast storms.

Dropped packets and data loss.

Network latency Round-trip peak network latency between a server and its patient monitor

800ms

Packet transport Packets should be passed through switches and routers in cut-through mode, or hardware based switching, not storeand-forward-only mode (applicable to older switches/hubs)

Wireless and wired

Wired Dropped packets and data loss.

Power redundancy All network equipment used for patient monitoring should have a continuous power supply and emergency power

SNMP read-only access Welch Allyn servers shall have SNMP read-only access to wireless controllers to log performance data and generate alerts

Wireless and wired

Wireless and wired

Data loss and downtime due to power outages.

Limited ability to proactively respond to system issues. Debugging by Welch Allyn Remote

Technical may not be possible. Extended troubleshooting times.

Dropped connections.

Spanning Tree Protocol (STP) STP should not run on the Welch

Allyn segment of the network. Preferably, use resilient links.

SSID/Radio settings

• Radio Beacon Interval set to =100 msec

• DTIM set to 10

• Enable short preamble

• Disable channel 165

Wireless and wired

Wireless

VoIP traffic Limit VoIP traffic on 802.11a to no more than three open connections per AP

Wired connection Interconnects between all switches and all

WLAN controllers with gigabit Ethernet

Wireless

Wired

Loss of connection and data, patient monitor will not connect.

Having more than three connections per AP has the potential to increase patient data loss.

With only 100Mbs connections dropped packets and data loss can occur.

1.

The 7% bandwidth allocation will support up to 20 connected Welch Allyn patient monitors per AP. If no Welch Allyn patient monitors are associated with the

AP the bandwidth is free to be used by other devices.
