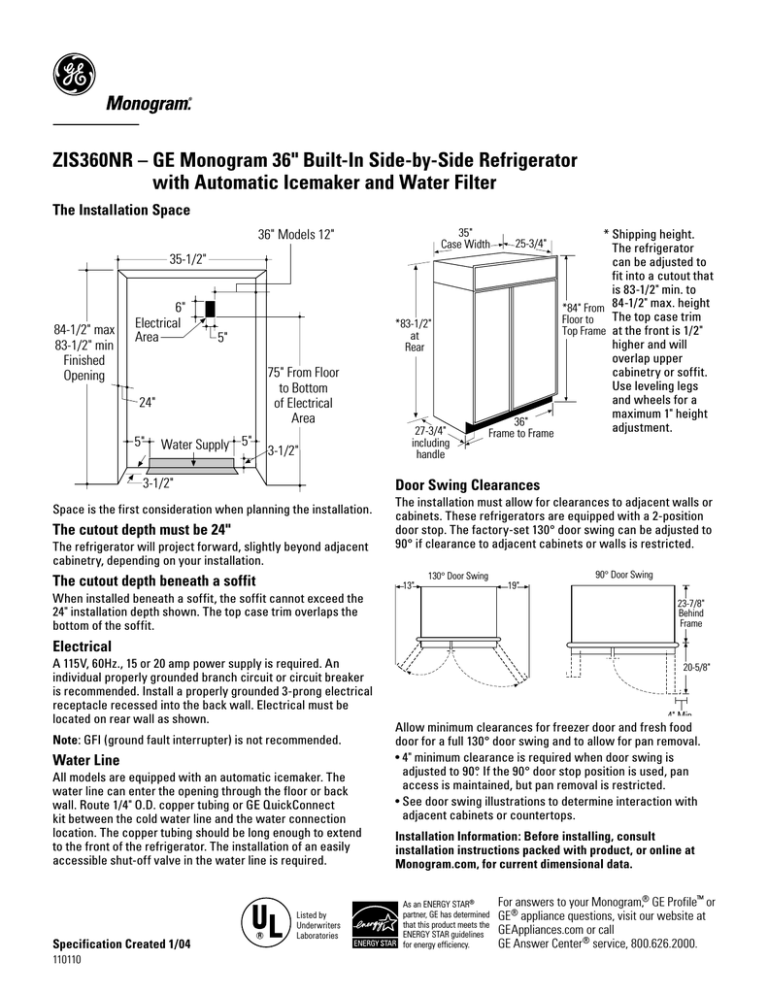

ZIS360NR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
The Installation Space
35"
Case Width
36" Models 12"
35-1/2"
84-1/2" max
83-1/2" min
Finished
Opening
6"
Electrical
Area
*83-1/2"
at
Rear
5"
75" From Floor
to Bottom
of Electrical
Area
24"
5"
Water Supply 5"
3-1/2"
3-1/2"
27-3/4"
including
handle
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
*84" From 84-1/2" max. height
The top case trim
Floor to
Top Frame at the front is 1/2"
higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for a
maximum 1" height
36"
adjustment.
Frame to Frame
25-3/4"
Door Swing Clearances
Space is the first consideration when planning the installation.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
194Dia4
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
13"
130° Door Swing
19"
90° Door Swing
23-7/8"
Behind
Frame
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route 1/4" O.D. copper tubing or GE QuickConnect
kit between the cold water line and the water connection
location. The copper tubing should be long enough to extend
to the front of the refrigerator. The installation of an easily
accessible shut-off valve in the water line is required.
Specification Created 1/04
110110
R
Listed by
Underwriters
Laboratories
20-5/8"
4" Min.
Wall
Allow minimum clearances for freezer door and fresh tofood
door for a full 130° door swing and to allow for pan removal.
• 4" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
Installation Information: Before installing, consult
installation instructions packed with product, or online at
Monogram.com, for current dimensional data.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS360NR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
Customization Basics: Framed or Overlay Panels, Custom Handles and Accessory Kits
Trimmed Refrigerators
Door Handles
ZIS360NRSS, ZISW360DRSS, ZISB360DRSS
Trimmed refrigerators are designed to be customized with decorative
panels. Field-installed custom door and grille panels are required.
The supplied handles can be adjusted to accommodate both framed
or overlay panels. Custom handles of your choice, supplied by your
cabinet maker, can also be installed. If desired, you may order ZKHSS2
Monogram stainless steel tubular handle kit for overlay panels.
Framed Panels
You may install 1/4"-thick custom panels from your cabinet
manufacturer. The decorative panels slide into the factory-installed
trim. Or, order black, white and stainless steel accessory panels
from your Monogram dealer.
Side Panels
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Secure
the panels to the refrigerator with
stick-on hook and loop fastener strips.
Order the side panels from the
cabinet manufacturer.
• Cut a notch in the top front corner
as shown to allow clearance for
*84"
corner keys in the front side trim.
24"
3/16"
1-7/8"
Framed Panel
Standard supplied handles shown in 1/4" panel position.
*3" to 4"
Overlay Panels
You may also choose to install custom overlay panels from your
cabinet manufacturer. This design provides a seamless appearance
which integrates smoothly with surrounding cabinetry.
605Dia6
2-9/16"
*Depending on installation height.
Optional Accessory Kit
ZKHSS2: Tubular Stainless Steel handles designed to fit
3/4" overlay panels.
Accessory Panels
White or black acrylic and stainless steel accessory panels are
available from your Monogram supplier. Panels are cut to size and
ready to install. These panel kits must be ordered separately.
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Models
ZISW360D
ZISB360D
ZIS360N
Standard supplied handles shown in 3/4" overlay panel position.
R
696Dia2
Specification Created 1/04
110110
White
Acrylic
ZPW360D
ZPW360N
Listed by
Underwriters
Laboratories
Black
Acrylic
ZPB360D
ZPB360N
Stainless
Steel
ZPS360D
ZPS360D
ZPS360N
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS360NR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
3/4" Overlay Panel Dimensions
For a more custom appearance, overlay
panels may be installed on trimmed
models. The overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panels.
Important Note: Maximum total
panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille panel – 18 lbs.
A
Door
.250" + .10" + .750" =
1.100" Total Panel Thickness
1/4"
Backer
Panel
B
C
.10"
Spacer
Overlay Panel
Center each panel over the other.
Assemble the panels with glue
and screws. Screws must be
countersunk into the backer panel.
Grille Panel
3/4"
Overlay
Panel
Freezer
Panel
Fresh Food
Panel
D
E
194Dia58
Spacer Panel
36" Side-by-Side (in inches)
Backer Panel
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
If you choose to install framed panels,
they must be cut to the dimensions
shown. The panels will slide into the
frame on the door and grille.
If the custom panel is less than 1/4" thick,
and it fits loosely in the door frame, it can
be backed up with a piece of filler material
or foam tape to improve the fit.
Important Note: Maximum weight for
fresh food panel is 50 pounds and 30
pounds for freezer panel.
194Dia65
Door
110110
R
5/16"
Trim
Reveal
B
9
8-3/8
9-1/4
C
68-3/8
67
68-5/8
D
14-9/16
13-1/4
14-13/16
E
18-9/16
17-1/4
18-13/16
33-7/8"
Grille Panel
9"
1/4"
Panel
68-3/8"
194Dia59
Specification Created 1/04
194Dia64
1/4" Backer Panel
.10" Spacer Panel
3/4" Spacer Panel
1/4" Framed Panel Dimensions
A
33-7/8
33
34-1/8
Listed by
Underwriters
Laboratories
Freezer
Panel
Fresh Food
Panel
14-19/16"
18-9/16"
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS360NR – GE Monogram 36" Built-In Side-by-Side
Refrigerator with Automatic Icemaker
and Water Filter
Advance Planning for Built-In Custom Side-by-Side Refrigerators
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Refrigerator
23-7/8" From
Rear of
Refrigerator
Case
Trim
3/4"
1/2"
Top View
130° Door Swing
(Factory setting)
Scale 1:1
1/4"
1"
1-3/4"
2"
2-3/4"
1-1/2"
2-1/2"
1-1/4"
2-1/4"
1/4"
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim fit
to the custom panel depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown
to accomplish a total
1.100" thickness.
1/2"
3/4"
1"
1/4"
696Dia5
Door
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
Specification Created 1/04
110110
3"
1/2"
3/4"
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
ZIS360NR – GE Monogram 36" Built-In Side-by-Side
Refrigerator with Automatic Icemaker
and Water Filter
Advance Planning for Built-In
Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Refrigerator
Case Trim
23-7/8"
From Rear of
Refrigerator
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.
Top View
90° Door Swing
(Optional setting)
Scale 1:1
1/4"
1/2"
3/4"
1"
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with two dispenser
trims, one to fit framed panels and one for overlay
panels. Dispenser trim fit to the custom panel
depends on correct panel thickness. Framed
panels must be 1/4" nominal. Overlay panels
should be constructed as shown to accomplish
a total 1.100" thickness.
1-1/4"
1-1/2"
1/4"
Door
696Dia6
1/2"
3/4"
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
Specification Created 1/04
110110
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
ZIS360NR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
Features and Benefits
• 21.6 cu. ft. total capacity
• Integrated Ice™ System – The ice bucket is integrated
into the icemaker, not the freezer door, freeing up
valuable storage space
• Upfront electronic controls with digital readout
• Multi-shelf halogen light tower (Both fresh food
and freezer section)
• Multi-shelf air management tower
• Climate control drawer with Express Chill,
Express Thaw and Select Temp
• Sealed adjustable humidity produce pan with
easy access lid and full extension slides
• 4 spill proof glass fresh food cabinet shelves
(3 adj./1 fixed)
• Model ZIS360NR – Non-dispenser model
ZIS360NR
Specification Created 1/04
110110
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
