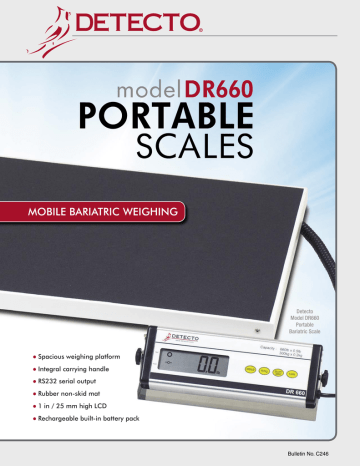

MOBILE BARIATRIC WEIGHING
Detecto
Model DR660
Portable
Bariatric Scale
● Spacious weighing platform
● Integral carrying handle
● RS232 serial output
● Rubber non-skid mat
● 1 in / 25 mm high LCD
● Rechargeable built-in battery pack
Bulletin No. C246
Integral
carrying handle
eases transport
Ideal for
home healthcare
patient weighing
Compact, mobile design
Detecto’s DR660 portable bariatric scale features a
built-in rechargeable battery pack (7.2VDC/1200mA),
which is able to provide 8 hours of continuous use, or
120 VAC 60Hz powering a 15 VDC 300mA wall plugin UL/CUL listed power supply (included).
● Remote display may be mounted on a wall
or placed on a tabletop.
● Pigtail display cable flexes from 34-126 in /
86-320 cm.
● Interface with a PC or printer via the serial
port for quick data transfer.
● Operator may select optional times for
automatic shutoff to conserve battery life.
Detecto's DR660 features a 21.5 in / 56 cm wide
platform for broad stances inherent in bariatric patients.
Less than 2 in / 5 cm high platform for minimal step.
Spacious weighing platform
HIGH 660 LB / 300 KG CAPACITY
RS232 Serial Port
EMR/EHR-ready output
of weight measurements.
TARE Key
HOLD Key
Adjustable Tilt
Position the display
for best viewing angle.
1 in / 25 mm High LCD
Large, bold weight readouts
for easy visibility.
Weight may continue to be
displayed after the patient
steps off the scale allowing
full attention to the patient
before recording measurements.
Helpful when weight from
patient-carried items need
to be removed from the
patient's weight.
Easy Set-up and Feet Alignment
The DR660's feet may easily by adjusted for
aligment with various weighing surfaces due to
transport from one location to another.
Detecto's DR660 is the best
value in the medical industry
for portable bariatric scales.
Capacity 660 lb x 0.5 lb / 300 kg x 0.2 kg
Weight Display 7 digit, 1 in / 25 mm high characters LCD
Dimensions (Display) 10.63 W x 3.54 D x 1.77 H in / 27 W x 9 D x 5 H cm
Dimensions (Platform) 21.5 W x 17.2 D x 1.97 H in / 56 W x 44 D x 5 H cm
Display Cable Length Flexes from 34 - 126 in / 86 - 320 cm
Power Built-in rechargeable battery pack (7.2VDC/1200mA)
or 120 VAC 60Hz powering a 15 VDC 300 mA wall plug-in UL/CUL listed power supply (included)
Battery Usage 8 hours of continuous use after 14 hours recharging time
Tare 100% of full scale capacity
Temperature 40° to 105°F (5° to 35°C)
Humidity 25% ~95% RH
Keys HOLD, lb/kg, ON/ZERO/OFF, TARE
Features Low battery indicator. Power-saving selectable timing auto shut-off
UPC Code 809161185607
Shipping Weight 28 lb / 12.5 kg
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2011 Cardinal Scale Mfg. Co.
• Printed in USA • ACG/4K/1111/C246
