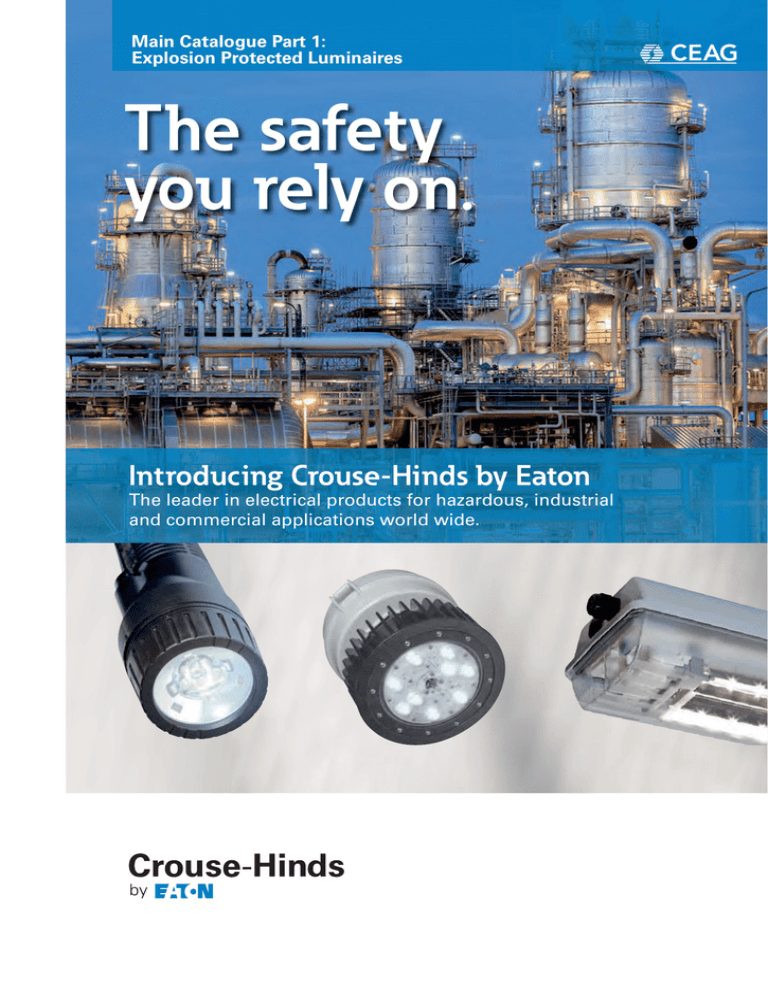

Main Catalogue Part 1:
Explosion Protected Luminaires
The safety
you rely on.
Introducing Crouse-Hinds by Eaton
The leader in electrical products for hazardous, industrial
and commercial applications world wide.
The safety you rely on.
Delivering world-class reliability and safety
in high consequence harsh and hazardous
environments
Only Eaton’s Crouse-Hinds Business can deliver...
• Protection and safety of people and assets around the world with unsurpassed
reliability and quality in every product we offer
• Industry leading innovation and product efficiency
• Product solutions designed and certified for global specifications
• Best-in-class, global sales, and customer service teams that provide local support
The Eaton advantage.
Crouse-Hinds remains the brand that stands for
safety in the harshest of environments when
power management is most critical. While it all
began with the Condulet®, the Crouse-Hinds
brand has grown into the premier name for a
comprehensive portfolio of solutions for highconsequence harsh and hazardous environments.
And now, the next phase in the evolution of the
brand you trust: Crouse-Hinds joins the leading
Eaton portfolio of reliable, efficient and safe
electrical power management solutions.
More protection. More technology.
Expect more.
Table of Content
About us ................................................................................................................................ 1.0.2
0
Principles of explosion protection .................................................................................... 1.0.4
1
Portable Ex-hand lamps ..................................................................................................... 1.1.1
2
Ex-linear light fittings .......................................................................................................... 1.2.1
3
Ex-Signal and escape sign luminaires ............................................................................ 1.3.1
4
Ex-Ceiling, pendant light fittings and floodlights .......................................................... 1.4.1
5
Index of order code ............................................................................................................. 1.5.1
The product information published in our catalogues and literature is not guaranteed. It has been compiled with care and is sufficiently accurate for most purposes. It is subject
to change without notice. Occasionally, it may be necessary to modify the materials, finishes, or other components of the product. These changes will in no way reduce the
performance or function for which the product is intended.
All statements, technical information and recommendations contained herein are based on information and test we believe to be reliable. The accuracy or completeness thereof are
not guaranteed. In accordance with Eaton’s Crouse-Hinds’ Terms and Conditions of Sale, and since conditions of use are outside our control, the purchaser should determine the
suitability of the product for his/her intended use and assumes all risk and liability whatsoever in connection therewith.
All sales of Eaton’s Crouse-Hinds products are specifically subject to the Terms and Conditions of Sale as shown in Eaton’s Crouse-Hinds distributor price sheets.
1.0.2
Explosion-Protected Solutions
- Worldwide-
Global Support &
Manufacturing
With the brand of CEAG we develop and
manufacture electrical products that provide
safety, productivity, innovation and labour
savings in hazardous, industrial and commercial
environments - for more than 100 years.
Our sales support and manufacturing facilities
are strategically positioned around the world to
deliver products close to your project. Whenever
required we are there on-site during construction,
commissioning and training.
We design, configure and manufacture explosionprotected electrical equipment for your safety. Of
course we are certified for all functional areas according to the latest quality standards ISO
9001:2008 and in addition for the necessary explosion protection according to DIN EN 13980 /
IECEx OD005.
We will implement consistently your specifications
according to current directives and standards at
the application site.
In addition to systems and components built to
ATEX Directives 94/9/EC and European Standards,
we also provides solutions approvals for internationally recognised IECEx (IEC Ex Scheme), Nepsi
(China), UL, cUL (Americas), CSA (USA, Canada),
Cepel (Brazil) as well as certification for Eastern
Europe and the new TR-CU Customs Union (EAC).
Eaton’s Crouse-Hinds Business manufactures in 5
continents and sells into more than 100 countries.
We have dedicated sales support in every major
location with local technical sales and engineering
teams to support your immediate needs. As one of
the largest oil & gas bulk electrical and instrument
material suppliers, we can easily provide you a
single source for all the components to complete
your project on time and on budget.
EATON’S CROUSE-HINDS BUSINESS
A Powerful Transformation
Rely on the names you trust for the safety you need
The CEAG brand you know is evolving. Our
products, part of Eaton’s Crouse-Hinds portfolio, are
now united with Eaton’s leading range of reliable,
efficient and safe electrical power management
solutions. Combined, we provide the world’s largest
portfolio of electrical equipment for explosive,
classified, and industrial areas.
With unsurpassed product reliability and quality,
industry-leading innovation and product efficiency,
and products designed and certified for global
specifications, Eaton’s Crouse-Hinds solutions,
including CEAG products, delivers proven solutions
for harsh and hazardous environments.
CEAG have a new look as Crouse-Hinds by Eaton,
but the products and technology you trust remain
unchanged. From explosion-proof panelboards
and lighting to connectivity and cable glands,
the broadest offering of solutions for harsh and
hazardous environments is now available from
Crouse-Hinds by Eaton.
More protection. More technology.
Expect more.
EATON’S CROUSE-HINDS BUSINESS
1.0.3
Principles of Explosion-Protection
0.1
Overview
0 We like to offer you a one-day or multi-day seminars about the
Principles of Explosion-Protection to get more detailed information on this important matter. Please see our web to find a
seminar in your proximity. www.Crouse-Hinds.de.
The following overview about the Explosion Protection is only
a small extract from our comprehensive 92-page brochure,
which you can also download from our web-page.
Hazardous area
Definition:
An area in which an explosive atmosphere is present, or may be
expected to be present, in quantities such as to require special
precautions for the construction,
installation and use of electrical
equipment (IEV 426-03-01).
NOTE:
A hazardous area is a
three-dimensional region
or space (EN 60079-14).
Zone classification
In accordance with EC-Directive
1999/92, hazardous areas are
divided into six zones. The classification is based on the probability of the occurrence of an explosive atmosphere. In addition,
distinction is made between
flammable gases, vapours and
mists on the one hand, and
Classification of hazardous areas
Zone 0
An area in which an explosive
atmosphere consisting of a
mixture of air with flammable
substances in the form of gas,
vapour or mist is present continuously or for long periods
or frequently (EN 60079-14).
Zone 1
An area in which an explosive
atmosphere consisting of a
mixture of air with flammable
substances in the form of
gas, vapour or mist is likely
to occur in normal operation
occasionally (EN 60079-14).
Zone 2
An area in which an explosive
atmosphere consisting of a
mixture of air with flammable
substances in the form of gas,
Zone 2
Zone 1
Zone classification example: Loading/discharging flammable liquids from a road transport tanker without stand-alone ventilation.
combustible dusts on the other.
Information on the zone classification can also be found in
the Explosion-Protection Rules
of the Employers‘ Liability Insurance Association for the Chemical Industry and EN 60079-10.
1.0.4
vapour or mist is not likely to
occur in normal operation, but
if it does occur, will persist for a
short period only (EN 60079-14).
Zone 20
An area in which an explosive
atmosphere in the form of a
cloud of combustible dust in air
is present continuously or for
long periods or frequently
(EN 60079-14).
EATON’S CROUSE-HINDS BUSINESS
Overview
Hazardous area ........................................................................ 1.0.4
Zone classification ................................................................... 1.0.4
Classification of hazardous areas ........................................... 1.0.4
Examples of applications and the classification of suitable
equipment: ................................................................................ 1.0.4
Classification of explosion protected apparatus in equipment
groups and categories............................................................. 1.0.6
Marking..................................................................................... 1.0.6
Declaration of Conformity....................................................... 1.0.7
Zone 21
An area in which an explosive
atmosphere in the form of a
cloud of combustible dust in air
is likely to occur occasionally in
normal operation
(EN 60079-14).
Zone 22
An area in which an explosive
atmosphere in the form of a
cloud of combustible dust in
air is not likely to occur in normal operation, but, if it does
occur, will persist for a short
period only (EN 60079-14).
NOTE:
Layers, deposits and accumulations of combustible dust are
to be considered in the same
way as any other source that
forms an explosive atmosphere.
Normal operation is understood
as being the state where installations are being used within
their design parameters.
Examples of applications
and the classification of
suitable equipment:
Zone 0
Zone 0 mainly encompasses
areas such as the inside of enclosed containers, pipes and apparatus that contain flammable
liquids. Here the respective operating temperature lies above
the flash point. The potentially
explosive atmosphere is above
the surface of the liquid and
not in the liquid. Most gases of
flammable liquids are heavier
than air and spread in a similar
way to liquids. Cavities such as
pits or pump sumps can usually
accommodate these explosive
gases for longer periods, so
that it is also necessary to expect a Zone 0 area here. With
equipment for Zone 0, ignition
sources shall be protected
against explosion even if the occurrence of failures is only rare.
Hence, the equipment shall satisfy the following requirements:
Should one type of protection
Zone 2
valve
Zone 0
flameable
liquid
Zone 1
Example of the zone classification of explosive gas atmospheres to EN 60079-10-1
Sack emptying station
Zone 22
Zone 21
Zone 20
Example of the zone classification
of explosive dust atmospheres
according to EN 60079-10-2
fail or should two faults occur
simultaneously, sufficient
protection against explosion
shall still be ensured.
The constructional requirements EN 60079-26 state that
the necessary explosion-protection is attained if the equipment
• is built in accordance with the
type of protection “ia” to EN
60079-11, Intrinsic Safety,
or
• satisfies the requirements
of two types of protection
of the series EN 60079,
which are effective independently of each other.
Thus, for example, flameproof
luminaires were additionally
pressurized or intrinsically safe
apparatus in the type of protection „ib“ were additionally potted. According to Directive
94/9/EC, equipment for Zone 0
shall satisfy the requirements
for Category 1G. In Zone 0 the
hazard of an ignition due to
electrostatic charges, even on
rare occasions, shall be safely
excluded. For this reason, the
requirements according to
Principles of Explosion-Protection
Overview
EN 60079-0 for equipment for
use in Zone 0 exceed by far
those for equipment for Zone 1.
Zone 1
Flammable or explosive substances are made, processed or
stored in Zone 1. This includes
the proximity of loading flap or
filling and discharging facilities,
the vicinity of fragile equipment, pipes and glands on
pumps and slides that do not
seal adequately. It is likely that
an ignitable concentration will
occur during normal operation.
Ignition sources that occur
during normal, trouble-free
operation and those that
usually occur in the event
of operating disturbances
shall be safely prevented.
The chapter „Electrical equipment for use in hazardous
areas” describes the individual
types of protection. According
to Directive 94/9/EC, Zone 1
equipment that shall satisfy the
requirements for Category 2G.
Zone 2
Zone 2 encompasses areas
around Zone 0 and Zone 1, as
well as areas around flanged
joints on pipes in enclosed
rooms. Furthermore, it includes
such areas in which, due to natural or forced ventilation, the
lower explosive limit is only attained in exceptional cases,
such as the environment of outdoor installations. Flammable or
explosive substances are manufactured or stored in Zone 2.
The probability of the occurrence of an ignitable concentration is rare and, if one occurs, it
only persists for a short period.
During normal, trouble-free
operation, ignition sources
shall be safely prevented.
According to Directive 94/9/
EC, apparatus for Zone 2
shall satisfy the requirements for Category 3 G. In
addition, all equipment that
satisfies the requirements for
equipment for use in Zone
0 and Zone 1 is permitted.
Zone 20
Zone 20 mainly encompasses
areas inside closed containers,
pipes and apparatus in which
combustible dust in the form of
a cloud is present continuously
or for long periods or frequently.
0.1
With equipment for Zone
20, ignition sources shall
be protected against explosions, even if the occurrence
of a malfunction is rare.
0
For this reason, equipment shall
fulfil the following requirement:
In the event of the failure of
one type of protection or the
simultaneous occurrence of two
malfunctions, it is necessary
to ensure adequate explosionprotection. According to Directive 94/9/EC, equipment for
use in Zone 20 shall satisfy the
requirements for Category 1D.
Zone 21
Among others, Zone 21 encompasses mills, warehouses
for coal or grain, and the area
surrounding filling stations.
Here explosive clouds of dust
can develop due, for example,
to the occasional escaping of
dust from the opening. The
risk of hazards due to dust
deposits is often underestimated. Explosive dust/air
mixtures can develop due to
the formation of a smoulder
spot or of a low temperature
carbonization gas, as well as
due to the deflagration of a
low temperature carbonization
gas or the whirling-up of gas
caused by glowing combustion.
Ignition sources that occur during normal, troublefree operation and those
that normally occur in the
event of malfunctions shall
be safely prevented.
The individual types of protection are described in the
chapter „Electrical equipment
for use in hazardous areas“.
According to Directive 94/9/
EC, equipment for Zone
21 shall satisfy the requirements for Category 2D.
Example of dust Ex zone 21:
Explosion-protected plug and socket and terminal box in the field
Category 3D. Detailed information on all zones can be found
in the chapter “Construction
and operation of electrical installations in hazardous areas”
of the separate brochure.
Zone 22
In Zone 22, under normal operating conditions it is unlikely
that an explosive dust/air mixture will occur, but can occur,
if there is a process failure
and dust is lifted into the air.
Ignition sources shall be
safely prevented during normal, trouble-free operation.
According to Directive 94/9/EC,
equipment for Zone 22 shall
satisfy the requirements for
EATON’S CROUSE-HINDS BUSINESS
1.0.5
Principles of Explosion-Protection
0.1
Overview
0 Classification of explosion protected apparatus in equipment groups and categories
Cat.
Equipment Group I (for use in mines liable to be endangered by firedamp)
M1
Equipment Group I is subdivided into the Categories M1 and M2. The equipment must continue to work even in the event of infrequent failures coinciding with an existing explosive atmosphere and must feature such protective measures against explosion so that
• if one constructional protective measure fails, at least one other independent constructional measure will ensure the required safety,or
• if two independent faults occur in combination, the required safety is still ensured.
M2
If an explosive atmosphere occurs, it must be possible to switch off the equipment. The constructional explosion-protection measures ensure the required degree of safety during normal operation, even under severe operating conditions and, in particular, in cases of rough handling and changing environmental influences.
Cat
Equipment Group II (for use in all other places liable to be endangered by explosive atmospheres)
1
Equipment Group II is subdivided into the Categories 1, 2 and 3. The equipment is intended for use in areas in which an
explosive atmosphere is present continuously or for long periods or frequently. Even if equipment failures only occur infrequently, the equipment must ensure the required degree of safety and feature such explosion-protection measures that
• if one constructional protective measure fails, at least one other independent constructional protective measure ensures the required degree of safety, or
• if two independent faults occur in combination, the required degree of safety is still ensured.
2
The equipment is intended for use in areas in which an explosive atmosphere occurs occasionally. Even in the case of frequent equipment failures or faulty conditions that are normally to be expected, the constructional explosion-protection measures ensure the required degree of safety.
3
The equipment is intended for use in areas in which no occurrence of an explosive atmosphere due to gases, vapours, mists or whirled-up dust is to be expected. If, however, it occurs, then in all probability only rarely or for a short period. During normal operation the equipment ensures the required degree of safety.
Equipment groups and equipment categories
Equipment is classified in
groups and categories:
• designation of the
series and type
1. Equipment group
• the special marking for
explosion protected
equipment together
with the marking showing the category
• Equipment group I
applies to equipment intended
for use in underground parts
of mines and to those parts of
surface installations of mines
liable to be endangered by firedamp and/or combustible dust.
• Equipment group II
applies to equipment intended
for use in other places liable to be endangered by
explosive atmospheres.
2. Categories
See adjacent table
Marking
Each piece of equipment
and each protective system
shall be marked in a clear and
indelible manner with the
following minimum data:
• manufacturer’s name
and address
• CE marking and number
of Notified Body, responsible for the monitoring
of the quality system
1.0.6
• serial number, if required
Examples of markings:
D II 1G
Equipment group II
Category 1 (Zone 0 equipment) (G
= gases, vapours, mists)
D II 2G
Equipment group II
Category 2 (Zone 1 equipment) (G
= gases, vapours, mists)
D II 3G
Equipment group II
Category 3 (Zone 2 equipment) (G
= gases, vapours, mists)
D II 1D
Equipment group II
Category 1 (Zone 20 equipment) D = dust)
D II 2D
Equipment group II
Category 2 (Zone 21 equipment) D = dust)
D II 3D
Equipment group II
Category 3 (Zone 22 equipment) D = dust)
• the year of construction
• the letter “G” for apparatus group II for areas in
which explosive mixtures
of gas, vapour or mist with
air mixtures are present
• and/or the letter “D”
for areas where an explosive atmosphere
can form due to dust.
In addition and where required,
any details that are indispensable for the safety of operation also have to be affixed.
Products that fall within the
scope of given directives shall
be provided with the CE mark
by the manufacturer. This applies to products that are covered by the directives according
to the new concept and include
requirements relating to the
technical properties of products.
These EC directives constitute binding regulations of the
EATON’S CROUSE-HINDS BUSINESS
Example of a type label according to the latest standards and
Directive 94/9/EC
Principles of Explosion-Protection
0.1
Overview
„European Union”. This means
that compliance with these
requirements is the condition
for marketing the products in
Europe. When a product is provided with the CE marking, the
conformity of the product with
the relevant basic requirements
of all directives applicable to
the products is confirmed.
The marking is, therefore, an
imperative requirement for the
placing on the market of products within the Community, as
well as in the country of origin.
The CE marking is only meant
as evidence of conformity with the directives for
the supervising authorities
and is not a quality mark.
Declaration of Conformity
In addition to marking products
with the CE mark, the manufacturer shall issue a Declaration
of Conformity for the product.
This Declaration of Conformity shall clearly state which
directive was applied and according to which standards
the tests were carried out.
Conformity assessment
procedures for equipment according to Directive 94/9/EC
Depending upon the conformity assessment procedure to
be applied, a notified body can
be active during the design and
engineering phase, during the
production phase or during both
phases. The applicable evaluation procedure is laid down
in Directive 94/9/EC according
to the product, the group and
the equipment category.
Equipment Groups I and II,
Equipment Categories M1
and 1
In order to be permitted to
affix the CE mark to his product, the manufacturer must
arrange for the following procedures to be carried out:
0
Conformity assessment procedure
Equipment
Group
I and II
I and II
I and II
II
Category
M 1 and 1
M 2 and 2
M 2 and 2
3
Field of Application
• any apparatus
• electrical apparatus
• other apparatus
• any apparatus
• components (*)
• safety and
control
devices
• if applicable safety
and control devices
• components (*)
• independent protective systems
• if applicable,
safety and control devices
• components (*)
• components (*)
• I.C. engines
Combination of
procedures
acc. to
Annexes
III to IX
EC type sample test to
Annex III plus quality
assurance of production acc. to Annex IV
or inspection of products acc. to Annex V
EC type sample
test to Annex III
plus quality assurance of product
acc. to Annex
VIII or conformity
with design IV
Internal production
control acc. to Annex VIII plus submitting of technical
documents to the
designated test lab
Internal production control acc.
to Annex VIII
Alternative: Individual EC test acc. to Annex IX
(*) Components without affixed CE marking
the CE mark on the product,
the manufacturer must arrange
for the following procedures
to be carried out and/or ensure
the following measures:
• EC-type examination by
a notified body and
• either guarantee of constructional conformity or
• verification of the required
quality level by means of
the quality assurance procedure for the products.
Equipment Group II,
Equipment Category 3
In order to be permitted
to affix the CE mark to the
product, the manufacturer
shall apply the internal production control procedure.
In order to place products
on the market within the
EU, the EC Declaration of
Conformity shall be included
with all products or batches
of identical products. This
does not apply to the report
issued by the notified body as
part of the audit of the quality assurance system of the
manufacturer or the EC-Type
Examination Certificate.
The internal production control
procedure shall be applied for
all other equipment in these
groups and categories.
• EC-type examination by a
notified body and either
• an audit of the quality assurance for the
production process or
• an audit of the products.
Equipment Groups I and II,
Equipment Categories M2
and 2
With internal combustion motors and electrical apparatus, in
order to be permitted to affix
EATON’S CROUSE-HINDS BUSINESS
1.0.7
0
1.0.8
EATON’S CROUSE-HINDS BUSINESS
Main Catalogue Part 1
Chapter 1
1
Portable
Ex lamps
1
1.1.1.2
EATON'S CROUSE-HINDS BUSINESS
Tragbare Ex-Leuchten
www.ceag.de
Portable Ex-lamps
Table of contents
1.1
General information on portable Ex-lamps ....................................................................... 1.1.4
1.2
Ex-torches Stabex ................................................................................................................ 1.1.8 1
Ordering details / Accessories ................................................................................................ 1.1.9
Dimension drawing / Range-diagram .................................................................................... 1.1.10
Technical data ....................................................................................................................... 1.1.11
1.3
Ex-torch system TX/CX 20/40........................................................................................... 1.1.14
Ordering details / Accessories .............................................................................................. 1.1.15
Dimension drawing / Range-diagram .................................................................................... 1.1.16
Technical data ....................................................................................................................... 1.1.17
1.4
Ex-handlamp HE 5 EN and HE 9 Basic ............................................................................. 1.1.20
Ordering details / Accessories .............................................................................................. 1.1.21
Dimension drawing / Range-diagram .................................................................................... 1.1.22
Technical data ....................................................................................................................... 1.1.23
1.5
Ex-Searchlight series SEB 8.../SEB 9.../ SEB 10... .......................................................... 1.1.24
Ordering details .................................................................................................................... 1.1.26
Accessories .......................................................................................................................... 1.1.27
Dimension drawing / Range-diagram .................................................................................... 1.1.28
Technical data ....................................................................................................................... 1.1.29
1.6
Ex-protected hand- and machine lamps HL/ML ............................................................. 1.1.32
Ordering details ................................................................................................................... 1.1.34
Accessories .......................................................................................................................... 1.1.36
Technical data ....................................................................................................................... 1.1.37
EATON’S CROUSE-HINDS BUSINESS
1.1.3
1.1
1
Portable Ex-lamps
For your personal safety
Field of application
Wherever a reliable, safe and
flexible light source is needed,
explosion-protected portable
lamps made by CEAG are used
for industrial applications such
as security patrols, inspections
and repair work. The police and
fire brigade use explosion-protected lamps to ensure safety
at the scene of an accident, in
case explosive substances are
present. Besides reliability and
safety, explosion-protected
portable lamps must meet the
standard requirements of handling, weight, lighting properties
and operating time. Explosion-protected portable lamps
must not be opened in explosive atmospheres. Similarly,
batteries may only be charged
outside the hazardous area.
1.1.4
Minimum safety standard:
minimum requirement is
Zone 1
Since there are no physical barriers between the hazardous areas, which are subdivided into
zones, special attention has to
be paid to portable electrical apparatus. For this reason, all portable lamps of our ”CEAG“
brand have been approved for
Zone 1 hazardous areas. Zone 2
is automatically included.
Eaton‘s Crouse-Hinds Business
also offers solutions for Zone 0
(which exists, for example in
closed tanks), Zone 21 and
Zone 22.
Material choice
The light fittings described in
this catalogue are mainly made
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
of high-quality impact resistant
plastic (e.g. polyamide or polycarbonate). To reduce the surface resistance of the housings,
conductive substances are added, thus preventing electrostatic charges. All plastics used can
be recycled. Housings of explosion-protected electrical equipment shall have a minimum degree of protection of IP54,
whereby CEAG portable lamps
normally meet the requirements for the degrees of protection IP 65 and IP 66. We
also offer hand lamps in the
high degree of protection IP68;
these were designed especially
for use under extreme conditions, e.g. in flood areas.
Scratchproof mineral glass is
used for the light aperture. This
ensures that, in spite of the
harsh conditions, the light aperture remains clear for the duration of its use.
Hazard warning lamps in
accordance with the StVZO
(German Road Traffic Act) and
the ADR Directive
A special version of the SEB 8
Ex searchlight has been developed for use during the transportation of hazardous goods.
This version conforms to
94/55/EC and can, therefore, be
used as a hazard warning lamp
throughout Europe.
1.1
1
Ergonomics:
Single-handed operation
All portable lamps are designed
for “single-handed operation”.
This means they can be
switched on and off with one
hand (even when wearing safety gloves), while the other hand
is free for other tasks.
Battery technology
Our explosion-protected portable lamps can be fitted with rechargeable (secondary cells) or
non-rechargeable (primary cells)
batteries. Which battery is best
from an economical point of
view depends on the respective
application. If lamps are used
on an irregular basis, high-quality primary cells (alkaline manganese batteries) to IEC 60086
should be used. If the lamps
are used frequently, it is preferable to use gas-tight, rechargeable nickel cadmium (NiCd),
nickel-metal hybrid (NiMH) or
lithium-ion (LiIon) batteries . In
addition to the fact that they are
extremely economical, the outstanding characteristics of
these batteries are the constant
voltage, the high energy density
and the suitability for use in hazardous areas. Batteries have to
be recycled and are almost 100
% reusable.
Guidance of light
In order to achieve optimum
lighting properties, all components are analysed, calculated
and measured. The development and manufacture of the
series are based on the results
of our in-house light laboratory.
The range diagrams for our
portable lamps are based on the
polar curves established by our
own in-house lighting laboratory. These diagrams provide information on the average
illuminance of the light beam in
relation to the distance.
Classic: Halogen lamps
with a double bulb:
Halogen lamps have a very
bright, white light, but, due to
their high surface temperature,
their light output has to be limited. By means of a special method, whereby the halogen lamp
is provided with a “double bulb”,
Eaton‘s Crouse-Hinds Business
has increased the useful light
output considerably. As a result,
it is also possible to make optimum use of the advantages of
halogen lamps, (high light output, pleasant light colour and
long service life), with our portable explosion-protected lamps.
Lighting technology
Depending on their use, explosion-protected portable lamps
are required to have different luminous intensity distributions,
such as a broad beam (working
light) or a spotlight. This is
achieved by the use of powerful
lamps and different systems of
focussing the light. This kind of
reflector enables focussing a
broad beam into a spotlight. Different slip-on filters enable a
change of light colour. A novel
dispersive filter composed of
many small prisms enables the
beam of light to be broadened
without a major loss of working
light.
More light with
LED technology
As a pioneer in innovative lighting systems, we have combined the latest high-power
LED technology with an optimized reflector technology.
With this highly efficient lighting technology, white high-power LEDs with a low energy requirement provide a uniform,
pin-sharp light cone and, as a
result, an optimal illumination of
the working area. In addition to
a longer service life of the lamp
and the LEDs this technique
has the great advantage of being insensitive to vibrations and
shocks. A broken filament is not
possible here - maintenance and
bulb replacements are no
longer necessary!
EXPLOSION PROTECTED LUMINAIRES
Technology Inside
BR-2236 – 0714
1.1.5
1.1
1
Charge state indication
and safety functions
Depending on the type of lamp,
the state of charge of the energy storage devices used is determined by means of a customized microprocessor
technology and is indicated by
coloured LEDs. When a minimum capacity is reached, certain lamp types switch over automatically to an energy-saving
secondary light to allow the
user to leave the hazardous
area safely before the batteries
are fully discharged. The lighting
electronics monitor the charging parameters and ensure a
gentle and life-prolonging charging of the battery. It goes without saying that all the lamps
have deep-discharge protection.
Function
Service operation of SEB 8/
SEB 9 portable searchlights:
100 %
80 %
60 %
40 %
Standby light
20 %
Operating
time
0%
100
25
80
20
60
15
40
10
20 0
5 2
Main light (%)
0 Standby light (h)
Function „Indication for residual operating
time“ SEB 8/SEB 9
0-20 % 21-40 % 41-60 % 61-80 % 81-100 %
Servicing
– for conditioning the battery
and the regeneration of the
battery capacity.
This leads to the optimization of
the battery life and a high reliability, performance and service
life of the lamp.
14 h charging
Discharging
with capacity
measurement
Recalculation
of charge
characteristics
Charging
according
to the
new characteristics
Indication of the
new battery status
Service operation
workflow of an SEB8/9
1.1.6
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1
The right light for every type
of operation
Each type of operation calls for
a specially selected light. The
requirements for lights for inspection work, where a searchlight is rarely needed or is only
needed for a short time, are different to those for lights for repair work, where a powerful, robust light with a long operating
time is needed all the time. Our
hand lamp product range provides a suitable light for almost
every application.
Due to their size and the use of
primary cells, the mini, mini II,
mini LED and the HF Stabex
torches and the HE5 pocket
torches are suited for inspections on a regular basis and
as a constant companion for security personnel.
The Stabex HF-L version with
rechargeable NC cells is suitable for frequent operations.
Here, the extra costs for the rechargeable cells and the charger unit often pay for themselves
within a relatively short time
considering the maintenance
costs for replacing empty batteries. The powerful HE 9 basic
hand lamp with its powerful lith-
ium-ion battery can be used as
a work light or searchlight.
TX 20/TX 40 torchlights are
charged using an inductive
charger CX 20/CX 40. With their
approval for Zone 0 they are ideally suitable for the maintenance and inspection of tanks,
filling stations and tank-trucks.
Thanks to their integrated emergency lighting function, this system can be used as an emergency light fitting in Zone 1.
The robust SEB 8/SEB 9/SEB 10
light series is used by the mobile task forces of fire brigades
and rescue services, as well as
for maintenance and repair
work in all hazardous areas.
It meets the requirements
1
of the fire brigade standard
DIN 14642. A luminous intensity of 15,000 cd allows light to
be projected up to 150 m. A
consistent working light can be
achieved with a diffusing lens,
which is supplied with the
lamp. Due to the battery capacity, long operation times of up to
7 hours do not pose a problem.
The special SEB 8-ADR can be
used for hazard warning during
the transportation of hazardous
goods.
Features of explosion protected hand-lamps
Type
Zone
Power supply
Page
Features
Lighting
technology
Stabex mini
1, 2, 21, 22
Primary cells 2 x R6/LR6
1.1.9
Single-handed operation
Pre-focus lamp
Stabex mini II
1, 2, 21, 22
Primary cells 2 x R6/LR6
1.1.9
can be focussed
Xenon lamp
Stabex mini LED
1, 2, 21, 22
Primary cells 3 x R6/LR6
1.1.9
can be focussed
LED
Stabex HF
1, 2, 20, 21, 22 Primary cells 2 x LR20
1.1.9
Single-handed operation, can be focussed
Halogen lamp
Stabex HF LED
0, 1, 2, 21, 22
Primary cells 2 x LR20
1.1.9
Single-handed operation, can be focussed
LED
TX 20/
CX 20
0, 1, 2,
Integrated accu,
inductive charger for Zone 1
1.1.15
Single-handed operation, for helmet mounting LED
degree of protection IP67
TX 40/
CX 40
0, 1, 2,
Integrated accu,
inductive charger for Zone 1
1.1.15
Single-handed operation,
can be focussed, degree of protection IP67
LED
HE 5 EN
1, 2
Flat battery 1 x 3 R12/3 LR12
1.1.19
extremely flat construction
Incandescent lamp
HE 9 Basic
1, 2
Battery insert with Li-Io battery, 4.8 Ah,
plug-in charger
1.1.19
can be focussed, plug-in charger
Halogen lamp
with double bulb
SEB 8
1, 2, 21, 22
Integrated NC battery 4x7Ah, LG 443 charger,
vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit
Halogen lamp
with double bulb
SEB 8 L
1, 2, 21, 22
Build-in charger with NC-Accu 4 x 7 Ah
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit,
mains charger cable with plug
Halogen lamp
with double bulb
SEB 8 DIN
1, 2, 21, 22
Integrated NC battery 4 x 5 Ah,
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit,
according to firefighting-standard
Halogen lamp
with double bulb
SEB 8 ADR
1, 2, 21, 22
Integrated NC battery 4 x 7 Ah,
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit, caution
lamp approval to German Road Traffic Act
Halogen lamp
with double bulb
SEB 9
1, 2, 21, 22
Integrated NC battery 4 x 9.5 Ah,
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit
Halogen lamp
with double bulb
SEB 9 L
1, 2, 21, 22
Build-in charger with NiMh-battery 4 x 9.5 Ah
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, can be focussed,
secondary light, servicing circuit,
mains charger cable with plug
Halogen lamp
with double bulb
SEB 10
1, 2, 21, 22
Build-in LiFePO4-battery 9.9 V 2.5 Ah,
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, searchlight,
boost function
2 high power-LED
lens systems
SEB 10 L
1, 2, 21, 22
Build-in charger with LiFePO4-battery 9.9 V 2.5 Ah,
LG 443 charger, vehicle mounting bracket 90
1.1.24
Capacity indication, searchlight,
2 high power-LED
boost function, mains charger cable with plug lens systems
Handlamp HL d 43 d ..
1, 2, 21, 22
5 m mains cord
1.1.34
Mains light fitting, robust protective tube
Fluorescent lamps
Handlamp HL d 43 .. LED
1, 2, 21, 22
5 m mains cord
1.1.34
Mains light fitting, robust protective tube
LED
Machine lamp ML .. d ..
1, 2, 21, 22
5 m mains cord
1.1.34
Mains light fitting, robust protective tube
Fluorescent lamps
Machine lamp ML .. d LED
1, 2, 21, 22
5 m mains cord
1.1.34
Mains light fitting, robust protective tube
LED
Torches
Hand lamps
Searchlights
Hand- and machine lamps
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.7
1.2
1
Ex-torchlight Stabex
(Zone 0, 1, 2, 21, 22)
The lights for all kinds
of application
Compact and powerful, this
luminaire series is particularly
suitable for use during rescue
and emergency operations, as
well as for control and inspection patrols. Depending on the
type, it has been approved for
all explosive gas atmospheres
and explosive dust atmospheres in Zones 21 and 22 and
provides optimum safety, even
in unpredictable situations.
Always ready to hand
The particularly handy Stabex
mini torch light series with fastening clip is a perfect personal
light source for all inspection
tasks. This torch light series is
available with incandescent
lamps, xenon lamps and a new
LED version. The larger Stabex
HF series features a wrist strap
and can be worn and operated
comfortably and securely with
only one hand - even while
wearing working gloves. This
series is available with both halogen lamp and LED technology.
All lamps of the series (except
Stabex mini and HF LED) can
be focussed evenly on a rotating ring at the light output for
the near and far field.
Features
• Single-handed operation even with work gloves
• High degree of protection IP 65/66
• Light cone can be focussed (except Stabex mini, HF-LED)
• Halogen lamp (Stabex HF)
• LED technology Stabex mini LED and Stabex HF LED
• Scratchproof mineral glass
1.1.8
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details
1.2
Ex-torchlight Stabex
Ordering details
Type
Scope of delivery
Order unit
Order No.
Stabex mini
with incandescent lamp,
without battery
10
1 1358 000 001
Stabex mini II
with Xenon-incandescent lamp,
without battery
10
1 1360 000 001
Stabex mini LED
with LED,
without battery
10
1 1360 000 006
Stabex HF
with halogen-incandescent lamp, without battery
1
1 1359 000 001
Stabex HF LED
with 2 W LED, without battery
1
1 1359 001 001
1
Accessories
Type
Scope of delivery
Order unit
Order No.
Incandescent lamp 2.2 V/0.4 A
for Stabex mini
10
1 1358 000 070
Halogen lamp 2.8 V/ 0.5 A
for Stabex HF
10
1 1359 000 070
Xenon lamp 2.3 V/ 0.36 A
for Stabex mini II
10
1 1360 002 001
Bumbag
for Stabex mini II
1
3 1360 001 900
Bumbag
for Stabex mini LED
1
3 1360 006 900
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.9
Dimension drawing / Range-diagram
1.2
Ex-torchlight Stabex
Range-diagram Stabex mini
Dimension drawing Stabex mini
Ø 22
Ø 32
1
63
25
4
2
5
Dimension drawing Stabex mini II
125 cm/Ø
1 Lux
154
10 m
Ø 34
25
166
Range-diagram Stabex mini II
Dimension drawing Stabex mini LED
Ø 34
228
3
2
10
80 cm/Ø
1 Lux
Dimension drawing Stabex HF/HF-LED
15 m
Range-diagram Stabex mini LED
Ø 60
53
50
Ø 44
10
220
10
53
50
3
2
10
80 cm/Ø
1 Lux
15 m
Range-diagram Stabex HF
15
48
69
6
3
10
120 cm/Ø
1 Lux
25 m
Range-diagram Stabex HF-LED
33
100
100
10
2,5
8
330 c m / Ø
1 Lux
25 m
Dimensions in mm
1.1.10
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.2
Stabex mini / Stabex mini II / Stabex mini LED
1
Technical data
EC-Type Examination Certificate
Stabex mini
Stabex mini II
Stabex mini LED
PTB 98 ATEX 2061
PTB 04 ATEX 2119
BVS 08 ATEX E 158
IECEx BKI 08.0002
IECEx BVS 11.0001
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T56 °C Db IP66
D II 2 G Ex e ib IIC T4/
D II 2 D Ex tD A21 IP66 T85 °C
Ex eib IIC T4
Ex tD A21 IP66 T56 °C
Ex ib IIC T4 Gb
Ex tb IIlC T85°C Db IP66
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
D II 2 G Ex e ib IIC T4 Gb
Marking accd. to IECEx
Permissible ambient temperature
-20 °C up to +40 °C;
specified data: 0 °C up to +30 °C (battery)
-20 °C up to +40 °C;
specified data: 0 °C up to +30 °C (battery)
-20 °C up to +40 °C;
specified data: 0 °C up to +30 °C (battery)
Battery
2 dry cell AA-size IEC 60086 R 6/LR 6
2 dry cell AA-size IEC 60086 R6 /LR6
3 dry cell AA-size IEC 60086 R 6/LR 6
Rated operating duration
approx. 8 h
approx. 8 h
approx. 8 h
Switch
ON - OFF
ON - OFF (focusable)
ON - OFF (focusable)
Protection class
III
III
III
Lamp / Illuminant
2.2 V/0.4 A incandescent lamp
2.3 V/0.36 A (XENON)
1 W Power LED
Rated luminous flux
approx. 7 lm
approx. 10 lm
approx. 20 lm
Lamp cap
E10
Max. luminous intensity
> 4000 cd
Dimensions (L x W x H)
166 x Ø 32 mm
154 x Ø 34 mm
208 x Ø 34 mm
Diameter
32 mm
34 mm
34 mm
Enclosure colour
black
black
black
Enclosure material
Polycarbonate
Aluminium
Aluminium
Weight
approx. 0.07 kg (without battery)
approx. 0.09 kg (without battery)
approx. 0.12 kg (without battery)
Light aperture
Ø 23 mm, mineral glass
Ø 24 mm, mineral glass
Ø 24 mm, mineral glass
Lenght
166 mm
154 mm
208 mm
Degree of protection accd. to EN 60529
IP65
IP66
IP66
OU
10
10
10
Scope of delivery
with incandescent lamp, without battery
(order unit 10 pcs.)
with incandescent lamp, without battery
(order unit 10 pcs.)
with LED, without battery
(order unit 10 pcs.)
Technology Inside
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.11
Technical data
1.2
Stabex HF / Stabex HF LED
1
Technical data
Stabex HF
Stabex HF LED
EC-Type Examination Certificate
BVS 11 ATEX E 174
BVS 11 ATEX E 174
IECEx Certificate of Conformity
IECEx BVS 14.0072
IECEx BVS 14.0072
Marking accd. to 94/9/EC
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T57 °C Db
D II 1 G Ex ia IIC T4 Ga
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex e ib IIC T4 / Ex tD A21 IP65 T57 °C
Ex ia IIC T4 Ga / Ex tb IIIC T80°C Db
Permissible ambient temperature
-20 °C up to +40 °C;
specified data: 0 °C up to +30 °C (battery)
-20 °C up to +40 °C;
specified data: 0 °C up to +30 °C (battery)
Battery
2 batteries IEC 60086 LR 20
2 batteries IEC 60086 LR 20
Rated operating duration
12 h
9h
Switch
ON - OFF (focusable)
ON - OFF
Protection class
III
III
Lamp / Illuminant
2.8 V/0.5 A (halogene)
2 W Power LED
Rated luminous flux
17 lm
approx. 70 lm (luminous flux of the luminaire)
Lamp cap
PX 13.5s
Dimensions (L x W x H)
220 x Ø 60 mm
220 x Ø 60 mm
Diameter
60 mm
60 mm
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
approx. 0.25 kg (without battery)
approx. 0.29 kg (without battery)
Light aperture
Ø 48 mm, mineral glass
Ø 48 mm, mineral glass
Degree of protection accd. to EN 60529
IP65
IP65
Technology Inside
1.1.12
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2
1
1
www.ceag.de
EATON'S CROUSE-HINDS BUSINESS
Tragbare Ex-Leuchten
1.1.1.13
1.3
1
Ex-Lighting systems
TX/CX 20 and TX/CX 40
(Zone 0, 1, 2)
Lighting for Zone Zero
The TX/CX 20/40 LED lighting
systems are the ultimate, multifunctional lighting solution for
use in hazardous areas. Thanks
to the improved operating properties, the reduced maintenance requirements and the
special features of an emergency lighting unit, this versatile
lighting system is ideal for operation in almost all hazardous areas.
Safety first
The charger and the torch are
continuously checked and any
faults are indicated by means of
an LED. The intelligent charging
routine allows a gentle and optimum charging of the battery,
thus guaranteeing the high performance and long service life
of the rechargeable batteries.
More light
In spite of the low power requirement, the highly efficient
and impact resistant LED lighting technology provides a very
high luminous intensity. Together with a lens (5° TX 20, 4° TX
40) and a reflector, the 3W high
efficiency LED produces a
bright and uniform light flux
(200lm TX 40, 114 lm TX 20),
thus ensuring an optimum illumination of the work area.
Contact-free charging system
The charging system features
an inductive coupling system.
When plugged into the charger,
the torch is charged contact-free by induction. Thus, insufficient contact and corrosion
of the contacts due to environmental influences are completely eliminated. Moreover,
this technology also provides an
enhanced protection of the system, which means that the
charger can be mounted and
operated in Zone 1, while the
torch can also be operated in
Zone 0.
Safety lighting included
If the power supply fails, the
emergency lighting function
switches on the torch in the
charger automatically – regardless of the position of the
switch. Optionally, to ensure
that the torch is always in its
place, there is a seal point for
securing the torch in the charger. Thus, this innovative lighting
system also forms an essential
part of stationary safety installations.
TX 40 with integrated support bracket
Features
• For hazardous areas in Zones 0, 1 and 2
• Operating cycle approx. 5 hours
• High light output due to 3 W power LED
• Maintenance-free rechargeable battery
• Emergency lighting function
• Automatic standby light when battery capacity decreases
• Inductive charger for Ex Zone 1
• Deep-discharge protection
• High degree of protection IP67
• Automatic function test of lamp & charger
1.1.14
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details
1.3
Ex-lighting systems TX/CX 20 and TX/CX 40
Ordering details
Type
Scope of delivery
Order unit
Order No.
TX 40 + CX 40
TX 40 for zone 0 with battery and LED,
with inductive charger CX 40 for zone 1
1
1 1380 000 003
3 x TX 20 + 1 x CX 20 charger
TX 20 for zone 0 with battery and LED,
with inductive charger CX 20 for zone 1
1
1 1380 000 022
Type
Scope of delivery
details
Order unit
Order No.
TX 40
with battery and LED
without charger
certified for zone 0
1
1 1380 000 001
CX 40
inductive charger with 2 m
line cord
certified for zone 1
charger for 1 x TX 40
1
1 1380 000 002
TX 20
with battery and LED
without charger
certified for zone 0
1
1 1380 000 020
CX 20
inductive charger with 2 m
line cord
certified for zone 1,
charger for 3 x TX 20
1
1 1380 000 021
1
Accessories
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.15
Dimension drawing / Range-diagram
1.3
Ex-Lighting systems TX/CX 20 and TX/CX 40
Range-diagram TX 20
Dimension drawing TX 20
34.3
1
135
10
1,3
5,5
29
30
500
44
149
430 c m / Ø
1 Lux
17,3 m
Dimension drawing CX 20
229
Ø
36
154
500
10
2
10
6.
5
280 c m / Ø
30
65
50.7
Range-diagram TX 40
1 Lux
50 m
Dimension drawing TX 40
46
Ø68
234
Dimension drawing CX 40
182.7
30
64
4xØ6
60.2
182.7
Dimensions in mm
1.1.16
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.3
Ex-Lighting systems TX/CX 20 and TX/CX 40
1
Technical data
Torch TX 20
Torch TX 40
EC-Type Examination Certificate
DNV-11-ATEX-99371
DNV-2008-OLS-ATEX-38719
Marking accd. to 94/9/EC
D II 1 G Ex ia [op is] IIC T4 Ga
D II 1 G Ex ia IIC T 3
IECEx Certificate of Conformity
IECEx DNV 11.0009
IECEx DNV 08.0010
Permissible ambient temperature
-40 °C up to 60 °C
-40 °C up to 60 °C
Lamp
high efficiency LED, 3 W
high efficiency LED, 3 W
Luminous flux
114 lm
200 lm
Luminous intensity
approx. 550 cd
approx. 5.000 cd
Light aperture
Polycarbonate with 5° lens/hardened
scratch resistant glass 3 mm
Polycarbonate with 4° lens/hardened
scratch resistant glass 3 mm
Indication lamps
red and green LED
red and green LED
Degree of protection accd. to EN 60529
IP67
IP67
Enclosure material
plastic yellow/black
plastic yellow/black
Weight
0.13 kg
0.6 kg
Dimensions (L x W x H)
150 x 42 x 34 mm
230 x70 x 70 mm
Operating time
approx. 5 h
approx. 5 h
Life expendency
more than 1000 recharge cycles
more than 1000 recharge cycles
Technology Inside
Technology Inside
Charger CX 20
Charger CX 40
EC-Type Examination Certificate
DNV-11-ATEX-99371
DNV-2008-OLS-ATEX-38719
Marking accd. to 94/9/EC
D II 2 G Ex mb II T4 Gb
D II 2 G Ex mb II T 4
IECEx Certificate of Conformity
IECEx DNV 11.0009
IECEx DNV 08.0010
Permissible ambient temperature
-40 °C up to 60 °C
-40 °C up to 60 °C
Rated voltage
100 - 250 V AC
100 - 250 V AC
Rated current
max. 1.0 A
max. 1.0 A
Frequency
50 - 60 Hz
50 - 60 Hz
Protection class
II
II
Charging duration
approx. 3 h (80% in 2 h)
approx. 3 h (80% in 2 h)
Degree of protection accd. to EN 60529
IP67
IP67
Standard cable length
2.0 m
2.0 m
Dimensions (L x W x H)
230 x 63 x 48 mm
185 x 65 x 60 mm
Weight
0.55 kg
0.6 kg
Technical data
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.17
1.4
1
Ex hand lamp/searchlight
HE 5 EN and HE 9 Basic
(Zone 1, 2)
Lots of light, little weight
Approved for Zones 1 and 2,
the HE 5 EN and HE 9 Basic are
the ideal hand lamps for security and inspection patrols, and
for inspection maintenance and
repair work where an explosive
atmosphere is to be expected.
The compact torch
The HE 5 EN with the temperature class T6 is often used for
security and control services, as
they will fit in any pocket.
Furthermore, it can be secured
with a clip on the clothing or on
the belt. The used battery is a
flat 4.5V battery according to
IEC 60086 3 R 12.
Light weight and powerful
Weighting merely 750 grams,
the explosion-protected hand
lamp HE 9 Basic can be used
for approx. 5 hours without
causing performance loss and
allows the optimal illumination
of your working area during inspection, maintenance and repair work in hazardous areas.
Perfectly prepared
The powerful and environmentally friendly lithium-ion battery
of the HE 9 Basic impresses
with its high energy density and
low weight, which allows an improved handiness of this portable lamp. Without memory effect, it always provides a
reliable power supply. The integrated electronics provides reliable protection against deep
discharge and overcharge. As a
result, you will always have the
optimum operating time available.
Simple handling - bright light
The rotary switch of the
HE 9 Basic can be operated
conveniently with one hand,
even when wearing work
gloves. The light can be focussed to your requirements by
turning the large adjusting ring
at the light output. The powerful
halogen double bulb and the
large reflector provide bright
light.
Features
• Up to temperature class T6 (HE 5 EN)
• Handy shape
• Scratchproof mineral glass
• High degree of protection up to IP65 (HE 9 Basic)
• Halogen-lamp with double bulb (HE 9 Basic)
• Li-Ion battery - no memory effect (HE 9 Basic)
• With integrated deep-discharge and overcharge protection
• Compact plug-in charger (HE 9 Basic)
1.1.18
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details
1.4
HE 5 EN / HE 9 Basic
Ordering details
Type
Scope of delivery
OU
Order No.
HE 5 EN
with incandescent lamp, without battery
1
1 1125 000 111
HE 9 Basic
with incandescent lamp, with accumulator
1
1 1118 009 010
Type
Scope of delivery
Application
OU
Order No.
Charger plug with charging indication
for HE 9 Basic
line cord 1.8 m
with plug
for HE 9 Basic
1
1 1518 009 111
Battery insert with Li-Ion-accumulator
3.75 V/4.8 Ah
for HE 9 Basic
1
2 1118 910 001
Incandescent lamp 3.7 V/ 0.3 A
for HE 5
10
1 2041 810 000
Halogen lamp with double bulb
4 V/ 0.82 A
for HE 9 Basic
1
2 2061 080 000
1
Accessories
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.19
Dimension drawing / Range-diagram
1.4
HE 5 EN / HE 9 Basic
Dimension drawing HE 5 EN
77
123
44
11
29
63
2,5
2
Dimension drawing HE 9 Basic
10
63 cm/Ø
1 Lux
16 m
Range-diagram HE 9 Basic
126
196
97
1
Range-diagram HE 5 EN
11
36
114
10
3
10
115 cm/Ø
1 Lux
32 m
Dimensions in mm
1.1.20
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.4
HE 5 EN / HE 9 Basic
1
Technical data
HE 5 EN
HE 9 Basic
EC-Type Examination Certificate
BVS 09 ATEX E 045
BVS 11 ATEX E 087
IECEx Certificate of Conformity
IECEx BVS 12.0040
Marking accd. to 94/9/EC
D II 2 G Ex e ib T6/T4
Marking accd. to IECEx
Ex e ib IIC T4 Gb or Ex e ib IIC T6 Gb
Permissible ambient temperature
-20 °C up to +40 °C; specified data: 0 °C up to +30 °C (battery)
-20 °C up to +40 °C; specified data: 0 °C up to +40 °C (battery)
Battery
1 flat battery 4.5 V / IEC 60086 3 R 12 (T6), 3 LR 12 (T4)
Li-Ion-accumulatormulator 3.75 V / 4.8 Ah
Rated operating duration
approx. 6 h
approx. 5 h
Switch
Slide switch ON - OFF
3 positions „main light - Off - main light“
Protection class
III
III
Lamp / Illuminant
3.7 V/0.3 A incandescent lamp
4 V /0.82 A halogen lamp
Dimensions (L x W x H)
77 x 123 x 44 mm
126 x 97 x 197 mm
Function
D II 2 G Ex e ib IIC T4 Gb
– Easily replaceable battery insert
– with deep-discharge protection
– Halogen lamp with double bulb
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
approx. 0.14 kg (without battery)
0.75 kg (with battery)
Light aperture
Ø 40 mm, mineral glass
Ø 71 mm, mineral glass
Degree of protection accd. to EN 60529
IP54
IP65
Scope of delivery
with incandescent lamp, without battery
with incandescent lamp, with accumulator
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.21
1.5
1
Ex-Searchlight series
SEB 8 .., SEB 9 .. and SEB 10
(Zone 1, 2, 21, 22)
Portable searchlights
for harsh conditions
The explosion-protected portable searchlight series SEB
8/9/10 provides a strong and reliable light source for inspection, maintenance and repair
work in almost all explosive gas
and dust atmospheres. In addition to this, these searchlights
with their integrated emergency
lighting function can also be
used for safety lighting, in the
ADR version as a warning light
in accordance with the traffic
regulations and in the DIN version as the preferred fire service light.
Technique for your safety
This extremely robust and
bright series of searchlights
with the high degree of protection IP 65 is ideally suited for
use in all work areas with high
mechanical requirements and a
humid environment. They reliably supply a light intensity of
more than 15,000 cd (DIN version: 12,000 cd, even after 5.5
to 7 hours operating time. Depending on the used type this is
ensured by the bright 5.5 W halogen main bulb (DIN version:
4 W xenon lamp) or the two
high-power LEDs of SEB 10 series together with the corresponding maintenance-free,
high-performance battery.
Don’t get left in the dark
Five LEDs supply information
on the current operation and
charge status at all times.
Thus, the SEB 8/SEB 9/SEB 10
shows you in good time whether the battery is discharged or
charged, or if it needs to be replaced. In addition, the circuit
protects the electronics against
deep discharge and overcharge
- only the energy actually consumed is recharged. This increases the lifetime of the battery. So that the user does not
get left in the dark, the searchlight automatically turns on the
secondary light in the event of a
filament break of the main bulb
or before the end of the battery
capacity.
Search and working light
The explosion-protected portable SEB 8/SEB 9/SEB 10 searchlights are suitable for control
and rescue operations of fire
departments and emergency
services. The electronics of the
lights is protected fully against
electromagnetic fields (EMV)
that occur, for example during
the operation of radio equipment. They also comply with
the EU Directive 95/54/EC concerning EMC requirements for
radio interference suppression
for use in motor vehicles. Especially for applications where a
consistent working light is required, the slip-on prismatic
lens (SEB8 / 9) or the separate
work light of the SEB 10 provides a square-shaped illumination with an even light distribution - without significant losses.
By fitting coloured slip-on filters
they can be used also for signalling purposes.
Features
• Operational safety due to the indication of the available duration
• Innovative LED lens system with optimized light power (SEB 10)
• Broken filament detection and automatic switch over
to secondary light
• Focussing beam - from searchlight to work light (SEB 8/9) or
2-lens system with search and work light (SEB 10)
• No overcharging of the battery due to a recharge dependent
on the used capacity
• High degree of protection IP65
1.1.22
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.5
1
SEB 10 - the LED solution
The new SEB 10 / SEB 10 L
series with innovative LED
technology offers several
innovations:
• 2-lens system for optimized
light distribution (search /
work light)
• Lithium iron phosphate battery with excellent energy
density for long life
• Searchlight boost circuit for
temporary increase of the
light flow to approx. 150 %
• Safety circuit for low battery
capacity, the current is
reduced to 50%, resulting
in a safety margin of approx.
30 - 60 min.
• Shock and vibration resistant
construction - no broken
filament possible.
Of course, all relevant standards of the latest generations
are met. The use in fire engines
is possible due to the compliance with the latest DIN 14642.
Tailor-made charging technique
Depending on the application,
we offer different charging
options for our searchlights.
All versions can be charged
by connecting them to the
10-33 V vehicle supply with our
vibration-proof Kfz.90 vehicle
charger, or the mains supply
(230 V ~) with the LG 443
charge. The types SEB 8 L /
SEB 8 L DIN / SEB 9 L /
SEB 10 L can also be charged
at 230 V ~ mains by an integrated power supply with a connection cable in the head
of the luminaire.
Warning light according to
traffic regulations and the
ADR framework directive
The SEB 8 ADR was specially
developed for safeguarding the
transport of hazardous goods by
road. This version has been
awarded a “General Type Certification” by the Federal Motor
Vehicle Department and therefore it can be used as a warning
light in accordance with the
Road Traffic Regulations. According to the ADR-Directive
94/55/EC, this light can be used
across Europe as a hazard
warning and inspection light for
the transportation of hazardous
goods on the road. This is made
possible by the use of an optimized orange filter and a special
switching technology for the
warning light.
emergency services of all kinds.
Therefore, it is listed at almost
all professional and volunteer
fire brigades in Germany and
has been very successfully for
many years.
The robust, tried and tested
technology in the high degree
of protection IP 65 ensures reliable operation even under high
mechanical stress and in a humid environment. The ergonomic one-hand operation ensures a
user-friendly handling.
With the NiCd or NiMh battery
and an operating time of 5.5
resp. 7 hours, the SEB 8/9 provides reassuring safety reserves
on site and surpasses the requirements of the relevant
standard by far. The SEB 10 has
a powerful lithium iron phosphate battery and ensures 6
hours of operation.
Depending on the type of
luminaire, the focussing from
search to stray light and a max.
luminous intensity of 15,000 cd
/ 12,000 cd or the new two-lens
technology of the LED version
is available. Thus, all required
lighting tasks are met exactly
according to the standard.
Approvals and test certificates
These searchlights are the only
ones of this kind to meet the
construction and test standards
listed below; they have been issued with the following approvals and test certificates:
• DIN14642 (German Institute
for Standardization) for explosions protected hand lamps
with motor vehicle charger,
edition 7/2011, for equipping
fire brigade vehicles.
• EC Type Examination Certificate for explosion protection
in explosive gas and dust atmospheres (ATEX Certificate)
• ECC type approval of the Federal Office for Motor Vehicles
for meeting the requirements
of the EMC Directive 95/54/
EC for use in motor vehicles
(e1 certificate)
• Shock test report according
to DIN EN 60068-2-27 for
the use of the light fittings
in fire brigade vehicles (DIN
1846-2:2001)
• General design approval of
the Federal Office for Motor
Vehicles for the use of the
SEB 8 as a warning light (type
SEB 8 ADR).
Approved searchlight
for public forces
Thanks to the universal application possibilities and the compliance with all relevant standards,
the SEB 8/SEB 9/SEB 10 is suitable for control and rescue operations of fire departments and
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.23
Ordering details
1.5
Serie SEB 8 / SEB 9 / SEB 10
Ordering details
1
1.1.24
Type
Scope of delivery
SEB 10
with twin-lens high power LED system
Lithium-Iron-Phosphate battery
(rechargeable with LG 443 or motor vehicle charger 90)
1 1147 000 820
SEB 10 L
with twin-lens high power LED system
Lithium-Iron-Phosphate battery
(rechargeable rechargeable directly about mains lead,
with LG 443 or motor vehicle charger 90)
1 1147 000 810
SEB 9
with halogen lamp with double bulb, pilot,
diffusing lens and battery
(rechargeable with LG 443 or motor vehicle charger)
1
1 1147 009 002
SEB 9 L
with halogen lamp with double bulb, pilot,
1
diffusing lens and battery (rechargeable directly about mains lead,
with LG 443 or motor vehicle charger 90)
1 1147 009 001
SEB 8
with halogen lamp with double bulb, pilot,
diffusing lens and battery
(rechargeable with LG 443 or motor vehicle charger)
1
1 1147 000 002
SEB 8 L
with halogen lamp with double bulb, pilot,
1
diffusing lens and battery (rechargeable directly about mains lead,
LG 443 or motor vehicle charger 90)
1 1147 000 001
SEB 8 DIN
with Xenon-incandescent lamp, pilot lamp,
diffusing lens and battery
(rechargeable with LG 443 or motor vehicle charger)
1
1 1147 000 004
SEB 8 L DIN
with Xenon-incandescent lamp, pilot lamp,
1
diffusing lens and battery (rechargeable directly about mains lead,
LG 443 oder motor vehicle charger 90)
1 1147 000 003
SEB 8 ADR
with halogen lamp with double bulb, pilot,
1
diffusing lens and battery
(rechargeable with LG 443 or motor vehicle charger),
warning- and inspection light for transportation of hazardous goods
1 1147 000 200
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Order unit
Order No.
Ordering details
1.5
Serie SEB 8 / SEB 9 / SEB 10
Accessories
Type
Content
Halogen lamp with double bulb
5.5 V/ 5.5 W
1 incandescent lamp 4.8 V/ 4 W
4.8 V/4 W
1 incandescent lamp 4.8 V/ 0.3 A
(pilot lamp)
Application
Order unit
Order No.
for SEB 8 and SEB 9
1
1 2061 000 040
for SEB 8 DIN and SEB 8L DIN
1
1 2061 001 400
for SEB 8/9
10
1 2041 450 000
Motor vehicle charger 90
Charger 10 V - 33 V DC
for SEB 8/9/10
1
1 1145 000 792
Wall bracket SW
console without charging
module
for SEB 8/9/10
1
1 1145 000 795
LG 443
220 V - 250 V AC
for SEB 8/9/10
1
1 1540 000 443
Slip-on filter orange with adapter and
magnet
for SEB 8 ADR
1
1 1147 080 000
Battery set
with NC battery 4.8 V/ 5 Ah, rechargeable
for SEB 8/8L DIN
1
2 1147 512 000
Battery set
with NC battery 4.8 V/ 7 Ah, rechargeable
for SEB 8/ 8L
1
2 1147 701 000
Battery set
with NiMH battery 4.8 V/ 9.5 Ah,
rechargeable
for SEB 9/ 9L
1
2 1147 791 000
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1
1.1.25
Dimension drawing / Range-diagram /
Indication of residual operating time
1.5
Series SEB 8 / SEB 9 / SEB 10
Range-diagram SEB 10
Dimension drawing SEB 8/SEB 9/ SEB 10
146,5
119
325
1
109,2
60
150
30 (45)
4 (7)
20
50
330 cm/Ø
1 (1,6) Lux
110 m
Values in brackets for boost operation
112,5
Range-diagram SEB 9 / 8
Dimension drawing SEB 8 DIN/SEB 8 L DIN
119
343
146,5
109,2
14
57
30
4
20
50
100 cm/Ø
1 Lux
110 m
112,5
Dimension drawing LG 443
163,5
111
151
Dimension drawing
motor vehicle charger 90
Dimension drawing
wall bracket SW
Indication of residual operating time (SEB 8 / SEB 9 only)
100 %
80 %
60 %
152,5
152,5
40 %
Stand-by light
Operating time
85
128
20 %
0%
145
100
25
145
80
20
60
15
40
10
20 0
5 2
main light (%)
0 pilot lamp (h)
Dimensions in mm
1.1.26
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.5
SEB 10 / SEB 10 L
1
Technical data
SEB 10
SEB 10 L
EC-Type Examination Certificate
BVS 14 ATEX ... (applied for)
BVS 14 ATEX ... (applied for)
Marking accd. to 94/9/EC
D II 2 G Ex d e ib mb IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
D II 2 G Ex d e ib mb IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
Permissible ambient temperature
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
Battery
9.9 V 2.5 Ah rechargeable LiFePO4 battery
9.9 V 2.5 Ah rechargeable LiFePO4 battery
Rated voltage (charger)
–
230 V AC
Frequency (charger)
–
50 - 60 Hz
Charging duration
max. 8 h (depends on the state of charge)
max. 8 h (depends on the state of charge)
Rated operating duration (main light)
5.5 h
5.5 h
Switch
Flashing light – Working light – OFF – Search light –
Boost function search light (max. 10 min)
Flashing light – Working light – OFF – Search light –
Boost function search light (max. 10 min)
Protection class
III
III / II
Lamp / Illuminant
2 high efficiency LED-Systems
2 high efficiency LED-Systems
Rated luminous flux
230 lm (search light)/ 365 lm (search light boost function)
230 lm (search light)/ 365 lm (search light boost function)
Max. luminous intensity
12000 cd (search light)
19000 cd (search light boost function)
1000 cd (working light)
12000 cd (search light)
19000 cd (search light boost function)
1000 cd (working light)
Dimensions (L x W x H)
325 x 119 x 146.5 mm
325 x 119 x 146.5 mm
Function
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
back-up light when low capacity, rechargeable with LG 443
or motor vehicle charger 90)
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
back-up light when low capacity,rechargeable directly with mains
cord, with LG 443 or motor vehicle charger 90)
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
1.55 kg
2.1 kg
Pilot lamp
Light aperture
Ø 98 mm, mineral glass
Ø 98 mm, mineral glass
Degree of protection accd. to EN 60529
IP65
IP65
Scope of delivery
with twin-lens LED-system, diffusing lens, battery
with twin-lens LED-system, diffusing lens, battery, internal charger
unit,
Technology Inside
Technology Inside
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.27
Technical data
1.5
SEB 9 / SEB 9 L
1
Technical data
SEB 9
SEB 9 L
EC-Type Examination Certificate
BVS 09 ATEX E 005
BVS 08 ATEX E 116
EC-Type approval acc. guideline
2009/49/EC
EMV in vehicles
035969
035969
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
Marking accd. to 94/9/EC
Permissible ambient temperature
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
Battery
4.8 V/ 9.5 Ah rechargeable NiMH battery
4.8 V/ 9.5 Ah rechargeable NiMH battery
Rated voltage (charger)
–
230 V AC
Frequency (charger)
–
50 - 60 Hz
Charging duration
max. 14 h (dep. on the state of charge)
max. 14 h (dep. on the state of charge)
Rated operating duration (main light)
7h
7h
Switch
Service – pilot lamp – OFF – main light – signal light
Service – pilot lamp – OFF – main light – signal light
Protection class
III
II/III
Lamp / Illuminant
5.5 V / 5.5 W halogen lamp with double bulb
5.5 V / 5.5 W halogen lamp with double bulb
Rated luminous flux
approx. 100 lm
approx. 100 lm
Lamp cap
BA 15d
BA 15d
Lamp cap pilot lamp
BA 9s
BA 9s
Max. luminous intensity
15000 cd
15000 cd
Pilot lamp
4.8 V/0.3 A
4.8 V/0.3 A
Dimensions (L x W x H)
325 x 119 x 146.5 mm
325 x 119 x 146.5 mm
Function
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
switching for standby light or in case of broken filament, (rechargeable with LG 443 or motor vehicle charger)
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
switching for standby light or in case of broken filament,
internal charger unit, rechargeable with LG 443 or motor vehicle
charger
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
1.9 kg
2.2 kg
Light aperture
Ø 98 mm, mineral glass
Ø 98 mm, mineral glass
Degree of protection accd. to EN 60529
IP65
IP65
Scope of delivery
with halogen lamp with double bulb, pilot,
diffusing lens and battery
with halogen lamp with double bulb, pilot,
diffusing lens and battery, internal charger unit,
1.1.28
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.5
SEB 8 / SEB 8 L
1
Technical data
SEB 8
SEB 8 L
EC-Type Examination Certificate
BVS 08 ATEX E 116
BVS 08 ATEX E 116
EC-Type approval acc. guideline
2009/19/EG
(EMV in vehicles)
035969
035969
Marking accd. to 94/9/EC
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
Permissible ambient temperature
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
Battery
4.8 V/ 7 Ah rechargeable NC battery
4.8 V/ 7 Ah rechargeable NC battery
Rated voltage (charger)
–
230 V AC
Frequency (charger)
–
50 - 60 Hz
Charging duration
max. 14 h (dep. on the state of charge)
max. 14 h (dep. on the state of charge)
Rated operating duration (main light)
5.5 h
5.5 h
Switch
Service – pilot lamp – OFF – main light – signal light
Service – pilot lamp – OFF – main light – signal light
Protection class
III
II/III
Lamp / Illuminant
5.5 V / 5.5 W halogen lamp with double bulb
5.5 V / 5.5 W halogen lamp with double bulb
Rated luminous flux
approx. 100 lm
approx. 100 lm
Lamp cap
BA 15d
BA 15d
Lamp cap pilot lamp
BA 9s
BA 9s
Max. luminous intensity
15000 cd
15000 cd
Pilot lamp
4.8 V/0.3 A
4.8 V/0.3 A
Dimensions (L x W x H)
325 x 119 x 146.5 mm
325 x 119 x 146.5 mm
Function
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
switching for standby light or in case of broken filament, (rechargeable with LG 443 or motor vehicle charger)
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
switching for standby light or in case of broken filament,
internal charger unit, rechargeable with LG 443 or motor vehicle
charger
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
2.2 kg
2.5 kg
Light aperture
Ø 98 mm, mineral glass
Ø 98 mm, mineral glass
Degree of protection accd. to EN 60529
IP65
IP65
Scope of delivery
with halogen lamp with double bulb, pilot,
diffusing lens and battery
with halogen lamp with double bulb, pilot,
diffusing lens and battery, internal charger unit,
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.29
Technical data
1.5
SEB 8 DIN / SEB 8 L DIN / SEB 8 ADR
1
Technical data
SEB 8 DIN / SEB 8 L DIN
SEB 8 ADR
Approved design of Federal Office
for motor vehicles
K 265
EC-Type Examination Certificate
BVS 08 ATEX E 116
BVS 08 ATEX E 116
EC-Type approval acc. guideline
2009/19/EC
(EMV in vehicles)
035969
035969
Marking accd. to 94/9/EC
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
D II 2 G Ex e ib IIC T4 Gb
D II 2 D Ex tb IIIC T85 °C Db
Permissible ambient temperature
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
-20 °C up to +40 °C, specified data 0 °C up to +30 °C (battery)
Battery
4.8 V/ 5 Ah rechargeable NC battery
4.8 V/ 7 Ah rechargeable NC battery
Rated voltage (charger)
– / 230 V AC
–
Frequency (charger)
– / 50 - 60 Hz
–
Charging duration
max. 14 h (dep. on the state of charge)
max. 14 h (dep. on the state of charge)
Rated operating duration (main light)
5.5 h
5.5 h
Switch
Service – pilot lamp – OFF – main light – signal light
Service – pilot lamp – OFF – main light – signal light
Protection class
III / II, III
III
Lamp / Illuminant
4.8 V / 4 W xenon lamp
5.5 V / 5.5 W halogen lamp with double bulb
Rated luminous flux
approx. 65 lm
approx. 100 lm
Lamp cap
BA 15d
BA 15d
Lamp cap pilot lamp
BA 9s
BA 9s
Max. luminous intensity
12000 cd
15000 cd
Pilot lamp
4.8 V/0.3 A
4.8 V/0.3 A
Dimensions (L x W x H)
325 x 119 x 146.5 mm
325 x 119 x 146.5 mm
Function
microprocessor-controlled operating period indication,
microprocessor-controlled operating period indication,
capacity-dependent charge flashing light, emergency light,
capacity-dependent charge flashing light, emergency light,
switching for standby light or in case of broken filament, internal switching for standby light or in case of broken filament
charger unit (SEB 8 L DIN only)
Enclosure colour
black
black
Enclosure material
Polyamide
Polyamide
Weight
1.6 kg / 2.2 kg
2.2 kg
Light aperture
Ø 98 mm, mineral glass
Ø 98 mm, mineral glass
Degree of protection accd. to EN 60529
IP65
IP65
Scope of delivery
with xenon lamp, pilot lamp,
diffusing lens, battery (internal charger unit (SEB 8 L DIN only),
with halogen lamp with double bulb, pilot,
diffusing lens and battery
1.1.30
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
1.5
Charger LG443 / Motor vehicle charger 90 / Wall bracket SW
1
Technical data
Charger LG443 for SEB 10/9/8..
Motor vehicle charger 90 for SEB 10/9/8.. Wall bracket SW for SEB 10/9/8..
Permissible ambient temperature
-0 °C up to +30 C
-0 °C up to +30 C
-0 °C up to +30 C
Rated voltage
220 - 250 V AC
10 - 33 V DC
10 - 33 V DC
Frequency
50 - 60 Hz
Protection class
II
III
III
Dimensions (L x W x H)
163.5 x 151 x 111
152.5 x 145 x 128
152.5 x 145 x 85
Enclosure colour
black
black
black
Enclosure material
ABS
ABS
ABS
Weight
1.3 kg
0.65 kg
0.65 kg
Degree of protection accd. to EN 60529
IP31
IP31
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.31
1.6
1
Ex-protected hand and
machine lamps HL/ML
(Zone 1, 2, 21, 22)
Mains powered and
still flexible
These powerful explosion-protected hand lamps with fluorescent lamps and LEDs were developed especially for use
during inspection and maintenance work in hazardous areas.
Typical applications are found,
for example in the chemical industry, offshore, in the automotive sector, in the aircraft industry or in shipyards. Due to their
small size and high light output,
these rugged lights are especially suited for lighting in tight
spaces, the interior of machinery, silos, etc. wherever a reliable portable light source is required. With the appropriate
accessories (optional) the machine lights can also be used,
for example, for lighting sampling ports or as tube gauge
lights or they can easily be
mounted on railing pipes.
Light technology
All hand and machine lamps
feature a protective polycarbonate tube with reflector. They
are available as single and twin
two-pin fluorescent lamp versions with integrated electronic
ballast (EVG) as well as in LED
technology. The outstanding
features of the white LED technology are the insensitivity to
shock and vibration, as well as
the enormous longevity that
makes a lamp change over the
lifetime of the LED hand lamp
superfluous.
Application
Because they are small in size
and, at the same time, have a
high light output and the high
degree of protection IP 68,
these rugged lights are particularly suitable for sewage treatment plants where flooding is
possible, and wherever a reliable, robust and portable light
source is required. The hand
and machine lamps are used in
engineering, printing machines,
in the petrochemical and process industries as well as in the
food industry (dusts). They are
also suitable for temporary installations where maintenance,
alteration and maintenance
work are carried out in facilities
in the oil and gas industry, for
plant construction, in shipyards,
or during the cleaning of tanks.
Thanks to the special accessories, the lamps can be mounted
by clamps on pipes (railing in
the chemical and oil rigs) or
with magnets directly to the
machine housing or tank walls.
At petrol stations, machine
lamps can be installed in the illuminated ram protection
around fuel pumps. Explosion-protected hand and machine lamps contribute to the
operational safety during the
construction of airplanes as well
as during maintenance work in
shipyards work. Here various
people are at work in confined
spaces in the cargo hold or in
the cabin, cleaning parts with
solvents, painting or preserving
surfaces. During maintenance,
the area surrounding the aircraft
hull is normally declared as
Zone 2, while empty and vented tanks are normally declared
as Zone 1.
Features
• Single and twin-lamp versions from 6 W to 58 W or
with LED-technique from 6 W to 36 W
• Rated voltage ranges 24/230 V AC/DC
• With electronic ballast
• Robust protective tube made of polycarbonate
• Suited for use in explosive gas and dust atmospheres
• High degree of protection IP68
1.1.32
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.6
1
Safe handling
For applications where, in accordance with the installation
regulations, personal protection
is required, hand lamps for low
voltages or in the “TR“ version
with an integrated isolation
transformer in the supply line or
with a residual current circuit
breaker with a rated tripping
current of 10 mA are available.
These protective devices in explosion-protected design can be
placed in the immediate vicinity
of the lamps or beside the sockets. The hand lamp has a ribbed
neoprene rubber handle with a
trumpet-shaped cable gland
made of metal and a neoprene
rubber end cap with attachment
hook for hanging up the light in
the workplace. The end caps of
the machine lamps are also
made of durable neoprene rubber. The machine lamps are
mounted directly on the machine using suitable clamps.
Optionally, all hand and machine lamps can also be fitted
with an eXLink connector for
the quick and easy disconnection of the power cord at the
lamp.
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.33
Ordering details
1.6
HL 43 d / ML 43 d / ML 50/60/70 d / ML 43/60 LED
Ordering details Hand lamps
Dimensions
1
1.1.34
Type
Lamp power
Voltage
Lamp cap
Luminous flux A
ØB
ØC
Weight
Order No.
HL43d LED6 460
6 W LED
85 - 264 V AC;
120 - 370 V DC
-
315 lm
640 mm
66 mm
43 mm
1.5 kg
1 1700 000 107
HL43d LED6 460
6 W LED
24 - 50 V AC/DC
-
315 lm
640 mm
66 mm
43 mm
1.5 kg
1 1700 000 004
HL43d LED6 460
6 W LED
12 - 24 V DC
-
315 lm
640 mm
66 mm
43 mm
1.5 kg
1 1700 000 003
HL43d LED6 460 TR
6 W LED
230 V / 24 V AC
(isolating transformer TR)
-
315 lm
640 mm
66 mm
43 mm
2.7 kg
1 1700 000 223
HL43d 6 383
1x6W
230 V AC/DC
G5
215 lm
563 mm
66 mm
43 mm
1.4 kg
1 1700 000 200
HL43d 8 460
1x8W
230 V AC/DC
G5
448 lm
640 mm
66 mm
43 mm
1.5 kg
1 1700 000 201
HL43d 6/2 383
2x6W
230 V AC/DC
G5
430 lm
563 mm
66 mm
43 mm
1.5 kg
1 1700 000 205
HL43d 8/2 460
2x8W
230 V AC/DC
G5
896 lm
640 mm
66 mm
43 mm
1.6 kg
1 1700 000 206
HL43d 13 690
1 x 13 W
230 V AC/DC
G5
949 lm
870 mm
66 mm
43 mm
1.7 kg
1 1700 000 202
HL43d 6 383
1x6W
24 V AC/DC
G5
215 lm
563 mm
66 mm
43 mm
1.4 kg
1 1700 000 000
HL43d 8 460
1x8W
24 V AC/DC
G5
448 lm
640 mm
66 mm
43 mm
1.5 kg
1 1700 000 001
HL43d 6/2 383
2x6W
24 V AC/DC
G5
430 lm
563 mm
66 mm
43 mm
1.5 kg
1 1700 000 005
HL43d 8/2 460
2x8W
24 V AC/DC
G5
896 lm
640 mm
66 mm
43 mm
1.6 kg
1 1700 000 006
HL43d 8 460 TR
1x8W
230 V / 24 V AC
(isolating transformer TR)
G5
448 lm
640 mm
66 mm
43 mm
2.7 kg
1 1700 000 221
HL43d 8/2 460 TR
2x8W
230 V / 24 V AC
(isolating transformer TR)
G5
896 lm
640 mm
66 mm
43 mm
2.7 kg
1 1700 000 226
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details
1.6
HL 43 d / ML 43 d / ML 50/60/70 d / ML 43/60 LED
Ordering details Machine lamps
Dimensions
Type
Lamp power
Voltage
Lamp cap Luminous flux A
ØB
ML43d LED6 460
6 W LED
85 - 264 V AC;
120 - 370 V DC
-
315 lm
581 mm 66 mm
ML43d LED6 460
6 W LED
24 - 50 V AC/DC
-
315 lm
ML43d LED6 460
6 W LED
12 - 24 V DC
-
ML60d LED22 1175
22 W LED
85 - 264 V AC;
120 - 370 V DC
-
ML60d LED15 870
15 W LED
85 - 264 V AC;
120 - 370 V DC
-
ML60d LED25 1480
25 W LED
85 - 264 V AC;
120 - 370 V DC
ML60d LED36 1780
36 W LED
ML43d 6 383
ML43d 8 460
ØC
Weight
Order No.
43 mm
3.4 kg
1 1700 000 113
581 mm 66 mm
43 mm
1.5 kg
1 1700 000 013
315 lm
581 mm 66 mm
43 mm
1.5 kg
1 1700 000 012
2460 lm
1296 mm 82 mm
60 mm
3.9 kg
1 1700 000 523
1296 lm
991 mm 82 mm
60 mm
3.8 kg
1 1700 000 522
-
3348 lm
1601 mm 82 mm
60 mm
4.0 kg
1 1700 000 520
85 - 264 V AC;
120 - 370 V DC
-
5220 lm
1901 mm 82 mm
60 mm
4.1 kg
1 1700 000 521
1x6W
230 V AC/DC
G5
215 lm
504 mm 66 mm
43 mm
1.4 kg
1 1700 000 210
1x8W
230 V AC/DC
G5
448 lm
581 mm 66 mm
43 mm
1.5 kg
1 1700 000 211
ML43d 13 690
1 x 13 W
230 V AC/DC
G5
949 lm
811 mm 66 mm
43 mm
1.7 kg
1 1700 000 212
ML43d 6/2 383
2x6W
230 V AC/DC
G5
430 lm
504 mm 66 mm
43 mm
1.5 kg
1 1700 000 215
ML43d 8/2 460
2x8W
230 V AC/DC
G5
896 lm
581 mm 66 mm
43 mm
1.6 kg
1 1700 000 216
ML50d 13/2 690
2 x 13 W
230 V AC/DC
G13
1892 lm
811 mm 72 mm
60 mm
2.4 kg
1 1700 000 217
ML43d 6 383
1x6W
24 V AC/DC
G5
215 lm
504 mm 66 mm
43 mm
1.4 kg
1 1700 000 010
ML43d 8 460
1x8W
24 V AC/DC
G5
448 lm
581 mm 66 mm
43 mm
1.5 kg
1 1700 000 011
ML43d 6/2 383
2x6W
24 V AC/DC
G5
430 lm
504 mm 66 mm
43 mm
1.5 kg
1 1700 000 015
G5
ML43d 8/2 460
2x8W
24 V AC/DC
896 lm
581 mm 66 mm
43 mm
1.6 kg
1 1700 000 016
ML50d 13/2 690 TR
2 x 13 W
230 V / 24 V AC
G13
(isolating transformer
TR)
1898 lm
811 mm 72 mm
50 mm
2.4 kg
1 1700 000 237
ML60d 18 870
1 x 18 W
110 - 240 V AC/DC
G13
1296 lm
991 mm 72 mm
50 mm
2.4 kg
1 1700 000 510
ML 70d 18 522 (PL)
1 x 18 W TC-L
110 - 240 V AC/DC
2G11
1200 lm
643 mm 92 mm
70 mm
2.2 kg
1 1700 000 517
ML 70d 24 617 (PL)
1 x 24 W TC-L
110 - 240 V AC/DC
2G11
1800 lm
738 mm 92 mm
70 mm
2.8 kg
1 1700 000 516
ML60d 30 1175
1 x 30 W
110 - 240 V AC/DC
G13
2460 lm
1296 mm 72 mm
50 mm
2.4 kg
1 1700 000 511
ML 60d 36 1480
1 x 36 W
110 - 240 V AC/DC
G13
3348 lm
1601 mm 72 mm
50 mm
2.8 kg
1 1700 000 512
ML 70d 36 713 (PL)
1 x 36 W TC-L
110 - 240 V AC/DC
2G11
2900 lm
834 mm 92 mm
70 mm
3.4 kg
1 1700 000 515
ML 70d 55 833 (PL)
1 x 55 W TC-L
110 - 240 V AC/DC
2G11
4780 lm
954 mm 92 mm
70 mm
3.8 kg
1 1700 000 514
ML60d 18 918
1 x 18 W
24 - 50 V AC/DC
G13
1296 lm
1041 mm 72 mm
50 mm
2.4 kg
1 1700 000 310
ML70d 18 570 (PL)
1 x 18 W TC-L
24 - 50 V AC/DC
2G11
1200 lm
691 mm 92 mm
70 mm
2.2 kg
1 1700 000 317
ML70d 24 665 (PL)
1 x 24 W TC-L
24 - 50 V AC/DC
2G11
1800 lm
786 mm 92 mm
70 mm
2.8 kg
1 1700 000 316
ML 60d 30 1223
1 x 30 W
24 - 50 V AC/DC
G13
2460 lm
1346 mm 72 mm
50 mm
2.4 kg
1 1700 000 311
ML60d 36 1528
1 x 36 W
24 - 50 V AC/DC
G13
3348 lm
1651 mm 82 mm
60 mm
2.8 kg
1 1700 000 312
ML70d 36 761 (PL)
1 x 36 W TC-L
24 - 50 V AC/DC
2G11
2900 lm
882 mm 92 mm
70 mm
3.4 kg
1 1700 000 315
ML70d 55 881 (PL)
1 x 55 W TC-L
24 - 50 V AC/DC
2G11
4780 lm
1002 mm 92 mm
70 mm
3.8 kg
1 1700 000 314
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1
1.1.35
Accessories
1.6
HL 43 d / ML 43 d / ML 50/60/70 d / ML 43/60 LED
Accessories
1
Type
Scope of
delivery
Height
in mm
Weight
kg
Diameter mm
Order unit
Order No.
Clamp
KFV 3
265
0.26
Ø 40
1
1 1700 000 900
Clamp
KFV 4
280
0.26
Ø 50
1
1 1700 000 901
Permanent magnet (adhesion 100 N) 1)
PM 1
130
0.21
Ø 50
1
1 1700 000 911
Permanent magnet (adhesion 500 N) 1)
PM 2
190
0.68
Ø 40
1
1 1700 000 915
1)
PM 2
205
0.68
Ø 50
1
1 1700 000 916
Permanent magnet (adhesion 500 N) 1)
PM 2
215
0.68
Ø 60
1
1 1700 000 918
1)
PM 2
225
0.68
Ø 70
1
1 1700 000 919
Permanent magnet (adhesion 500 N) 1)
PM 2
235
0.68
Ø 80
1
1 1700 000 920
Suspension hook with ball joint
KH 4
183
0.115
Ø 50
1
1 1700 000 921
Suspension hook with ball joint
KH 6
195
0.120
Ø 60
1
1 1700 000 923
Suspension hook with ball joint
KH 7
205
0.123
Ø 70
1
1 1700 000 924
Suspension hook with ball joint
KH 8
215
0.127
Ø 80
1
1 1700 000 925
Spring clip
FE 3
62
0.02
Ø 40
1
1 1700 000 930
Spring clip
FE 4
78
0.02
Ø 50
Luminaire key 30-50 mm
SCH 2
Eye bolt with ball joint M5
stainless steel
RS 4
58
Plastic pipe clamp
CILC 63
115
Plastic pipe clamp
CILC 71
Plastic pipe clamp
CILC 80
Fixing clip
BS 70
Permanent magnet (adhesion 500 N)
Permanent magnet (adhesion 500 N)
1)
1.1.36
1
1 1700 000 931
1
1 1700 000 940
1
1 1700 000 950
Ø 63 - 71
1
1 1700 000 960
124
Ø 71 - 80
1
1 1700 000 961
136
Ø 80 - 90
1
1 1700 000 962
Ø 70
1
1 1700 000 951
0.012
Note: dispatch only by see freight or road freight!
EXPLOSION PROTECTED LUMINAIRES
0.034
BR-2236 – 0714
Technical data
1.6
HL 43 d / ML 43 d / ML 50/60/70 d / ML 43/60 LED
1
Technical data
HL 43 d / ML 43 d
ML 50/60/70 d
ML 43/60 LED
EC-Type Examination Certificate
BVS 14 ATEX E 106 X
BVS 14 ATEX E 106 X
BVS 14 ATEX E 106 X
IECEx Certificate of Conformity
IECEx BVS 14.0068X
IECEx BVS 14.0068X
IECEx BVS 14.0068X
Marking accd. to 94/9/EC
D II 2 G Ex d IIC T5 Gb
D II 2 D Ex tb IIIC T95 °C Db
D II 2 G Ex d IIC T5 Gb
D II 2 D Ex tb IIIC T95 °C Db
D II 2 G Ex d IIC T5 Gb
D II 2 D Ex tb IIIC T95 °C Db
Marking accd. to IECEx
Ex d IIC T5 Gb
Ex t IIIC T95°C Db
Ex d IIC T5 Gb
Ex t IIIC IP68 T95°C Db
Ex d IIC T5 Gb
Ex t IIIC IP68 T95°C Db
Permissible ambient temperature
-20 °C up to +40 °C (PL-lamps)
-20 °C up to +60 °C
-20 °C up to +60 °C
-20 °C up to +60 °C
Rated voltage
2)
2)
2)
2)
max. 58 W
2)
max. 36 W 2)
Power
max. 13 W
Power factor cos
> 0.95
> 0.95
> 0.95
Circuit
EVG integrated
EVG integrated
EVG integrated
Protection class
I bzw. III
I
I
1)
Standard cable length
5 m cable 3 x 1 mm² without plug
Lamp / Illuminant
T52)
T8/TC-L2)
LED2)
Rated luminous flux
2)
2)
2)
Lamp cap
G5
2G11 (PL-lamps) / G13 (18 - 58 W)
–
Dimensions
2)
2)
2)
Weight 1
2)
2)
2)
Degree of protection accd. to EN 60529
IP683)
IP683)
IP683)
Protection tube
Polycarbonate
Polycarbonate
Polycarbonate
1)
Plug on request, optional with eXLink® coupler
2)
see ordering details
3)
2.5 m for 24 h
Technology Inside
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.37
Dimension drawing
1.6
HL 43 d / ML 43 d / ML 50/60/70 d / ML 43/60 LED
HL
A
ØC
ØB
1
ML
ØB
ØC
A
Polar curve HL/ML ... LED
90
90
1250
75
75
2500
60
60
3750
45
45
5000
30
30
15
15
0
C 0
C90
l/cd/klm
Polar curve HL/ML single lamp
90
90
40
75
75
80
60
60
120
45
45
160
30
30
15
200
15
0
C 0
C90
l/cd/klm
Polar curve HL/ML (TC-L-Lamp) twin lamp
90
90
60
75
75
80
60
60
100
45
45
120
30
30
15
C 0
C90
0
15
l/cd/klm
Dimensions in mm
1.1.38
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Dimension drawing
1.6
Accessories
KFV...
BS 70
A
FE...
A
ca. 80
Ø7
0
1
PM 1
PM 2
A
A
KH...
RS4
CLIC
E
B
C
ca. 65
A
F
D
A
15,7
G
11
11
G
1/2''
F
Dimensions in mm
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.1.39
1
1.1.40
EATON’S CROUSE-HINDS BUSINESS
Main Catalogue Part 1
Chapter 2
2
Ex-Light fittings
2
1.2.2
EATON’S CROUSE-HINDS BUSINESS
Ex-Light fittings
Table of contents
2.1
Information on Ex-linear light fittings
Ex-Linear light fittings for fluorescent lamps
Field of application and decision criteria ................................................................................ 1.2.4
Lighting technology, LED and electronic ballast (EVG) .......................................................... 1.2.8
2.2
Ex-LED-Linear light fittings
eLLK/M 92 LED 400/800 / eLLK 92 LED 400/800 CG-S/NIB ........................................... 1.2.12
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data..............1.2.13
2.3
Ex-LED-Linear light fittings for fluorescent lamps
eLLK 92 18 W – 58 W / eLLM 92 18 W – 36 W ................................................................... 1.2.18
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data..............1.2.19
2.4
Ex-Self-contained emergency light fittings for fluorescent lamps
eLLK 92 18/18 NIB / eLLK 92 36/36 NIB / eLLM 92018/18 NIB ...................................... 1.2.28
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.29
2.5
Ex-Linear light fittings made of stainless steel
eLLS 08 18/18 / eLLS 08 36/36 / eLLS 08 18/18 NIB / eLLS 08 36/36 NIB .................... 1.2.34
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.35
2.6
Ex-Recessed ceiling light fitting with metal enclosure eLLB 20… .............................. 1.2.40
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.41
2.7
Ex-Recessed ceiling emergency light fitting with metal enclosure
eLLB 20… CG-S / eLLB 20… NIB ...................................................................................... 1.2.48
Ordering details / Polar curve / Dimension drawing / Technical data .................................. 1.2.50
2.8
Ex-Recessed ceiling light fitting in a compact metal design
RLF/RLF-INOX 250 18 - 58 W / RLF/RLF-INOX 250... N 18 - 36 W /
RLF 250 18 - 58 W CG-S...................................................................................................... 1.2.58
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.59
2.9
Ex-light fitting with metal enclosure AB 12…LED / AB 12…E / AB 12…C ................... 1.2.68
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.69
2.10
Ex-Self-contained emergency light fitting with metal enclosure AB 12…Ni .............. 1.2.74
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.75
2.11
Ex-light fitting for fluorescent lamps with metal enclosure EVF…E / EVF…C ............. 1.2.78
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.79
2.12
Ex-Linear light fittings for fluorescent lamps nLLK 08 18 W - 58 W ............................... 1.2.84
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.85
2.13
Ex-Self-contained emergency luminaire for fluorescent lamps
nLLK 08…N 18 W – 36 W.................................................................................................... 1.2.92
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.93
2.14
Ex-Linear light fittings for fluorescent lamps for ambient
temperatures up to +60 °C nLLK 09 18 W - 58 W ............................................................ 1.2.96
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............. 1.2.97
2.15
Ex-Linear light fittings ffor T5 fluorescent lamps nLLK 10 14 W - 35 W ....................... 1.2.102
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............1.2.103
2.16
Ex-Photocell/twilight switch for use in zone 1 and 2................................................... 1.2.108
Ordering details / Accessories / Polar curve / Dimension drawing / Technical data............1.2.109
2.17
Assambly systems for installing light fixtures
Complete systems for light assembly and single components ...................................1.2.110
Ordering details / Accessories ............................................................................................ 1.2.111
EATON’S CROUSE-HINDS BUSINESS
1.2.3
2
2.1
Ex-Linear light fittings
2 Applications and decision criteria
The advantages:
The innovative solution
In response to the requests of
operators for robust and
high-efficient lighting solutions,
linear LED lighting concepts are
being used more and more in
hazardous areas.
• worldwide availability
The advantages:
• cost efficient
• High energy efficiency (20%
savings compared to fluorescent lamps)
The classical solution
Fluorescent light fittings with
their tried and tested technology are the best choice for many
illumination tasks in hazardous
environments.
• very good colour rendering
• easy handling
• long service life with EVG
technology
• immediate restart
• regulated disposal of fluorescent lamps
• Additional energy savings due
to on-demand operation (day/
night mode)
The best luminaire for every application
Whether for use with LED lamps or fluorescent lamps, there is
a variety to choose from:
• eLLK/M 92...: Surface and pole mounted for use in
Zones 1, 2, 21 and 22
• nLLK 08...: Surface and pole mounted for use in
Zones 2, 21 and 22
• Reduced maintenance and
operation costs
• Particularly suitable for low
ambient temperatures, e.g. in
outdoor areas
• Immediate start with max. luminous intensity
• nLLK 09 for increased ambient temperatures up to +60 °C /
nLLK 10 for energy-saving high efficient T5 HE lamps: Surface
mounted for use in Zones 2 and 22
• Shock and vibration resistant
• Extremely long lifespan without shortening due to switching cycles
• eLLB 20... and RLF 250...: Recessed ceiling mounting
for use in Zones 1, 2, 21 and 22
• Environmentally friendly,
no mercury
• Reduced disposal costs
• AB 12.../EVF..: Flameproof surface mounted for use in
Zones 1, 2, 21 and 22
1.2.4
EATON’S CROUSE-HINDS BUSINESS
2.1
Carefully designed - down
to the last detail: the
eLLK / nLLK series of linear
luminaires with plastic enclosures
Our robust series of fluorescent
light fittings with plastic enclosures and their tried and tested
technology have been in use
under tough conditions for
more than 20 years. They are
adapted continuously to keep
them up-to-date with the latest
technological developments.
The lamps feature a variety of
innovations and have set global
standards with regard to safety
and reliability in a harsh environment.
Single-ended through-wiring, type 1/6
Double-ended through-wiring Type 2/6
2
Simple and cost effective
installation
According to an independent
assessment, the standard, single-ended through wiring installation with the generously dimensioned terminal compartment can reduce installation
times by up to 30% compared
to light fittings with a conventional through-wiring! With this
method, two lines can always
be connected at one end. The
standard light fitting is fitted
with two cable glands M25, one
of which is sealed with a certified plug (red stopper). The version with twin-ended throughwiring includes one cable gland
M25 and one certified threaded
plug M25 at both ends. There
are up to 6 screw terminals for
wires up to 2 x 6 mm² (solid) or
up to 2 x 4 mm² (stranded) for
the connection of cables, thus
making it easy to connect all
conventional types of wiring
(L, L1, L2, L3, N and PE, 3/5/6
pole).
The through-wired (2/6) version
is fitted with a second mains
terminal block with 6 terminals
on the opposite side. The internal wiring of the light fitting has
been rated for 16 A. The standard screw terminals allow single-ended connection without
having to bend the wire. After
connection simply push the
cover shut and you have already
protection against contact.
Cost-savings using single-ended through-wiring
CEAG
EATON’S CROUSE-HINDS BUSINESS
1.2.5
2.1
Technical features exemplified
at the eLLK 92
The example of the eLLK 92
series is particularly well suited
2 for highlighting the common design features of these fluorescent light fittings series.
Materials
The eLLK 92 light fitting is
made of high-grade plastics
that, in addition to the excellent
mechanical properties Also it
features a high stability against
many chemicals found in industrial plants. All the materials
used for the light fitting provide
are effective protection against
corrosion and have already
been successfully tried and
tested in chemical and off-shore
installations.
Moulded plastic or brass
cable entries for twin-ended
cable connection (optional)
Double thread (MS)
for reliable PE contacting of metal gland (optional)
Standard terminal block with
6 terminals for conductors up to 2 x 6 mm2
optional twin-ended
through-wiring for cable connection
Enclosure made of polyester
reinforced with glass fibre
Special Ex-EVG in the type of protection Ex d
to meet high requirements
Locking bolt for operating the
light fitting locking mechanism on both sides
Optimized sealing system
Sealing system
The edges of the bowl and the
enclosure form a labyrinth that
protects the seal against jet water. The continuous seal is extremely elastic and, in conjunction with the 24-locking bolt
mechanism, ensures that the
light fitting is sealed tightly for a
long time. As was also confirmed by an ERA test1), this is
the only way to maintain reliably
the degree of protection IP66
for a longer period.
Bowl made of transparent,
impact-resistant polycarbonate
including glare limitation
Sockets for the hinges
of protective bowl – on both sides
Internal sealing system for IP66
Special lamp socket in the type of protection
Ex e for bi-pin lamps to IEC 81
Standard – two moulded plastic or brass (optional)
cable entries for one-ended through-wiring
1.2.6
EATON’S CROUSE-HINDS BUSINESS
2.1
Offshore-Proof
Bad weather is not a problem
for the eLLM 92. It passed
the wind tests with lateral
thrusts up to 12 Bft and the
ERA1) test specified for British
off-shore installations brilliantly.
Here, among other things, the
sealing qualities and the resistance to vibration are tested.
1) ERA-Test = UK test institute
for offshore technology
Installation of light fittings
Whether it is mounted on rails
or suspended from the sealing,
the biggest part of the overall
costs is taken up by the installation and electrical connection of
the light fitting. Here, due to
the standardized fixing clearances and the generously dimensioned terminal compartments,
the eLLK 92 provides a high
saving potential. The terminal
compartment can be opened
without removing covers or reflectors, thus allowing the easy
connection of cables.
Three ways – one solution
Depending on the type of installation, different cable entries
are required for the connection
of the light fitting.
Available for all types are the
following:
Lamp replacement made easy
Irrespective of how the light fitting is installed, the locking
mechanism can be operated on
either side. The bowl can simply
be swung open in the respective direction without tools –
this is made possible by the
hinge fasteners fitted on both
sides of the light fitting housing. A quarter turn of the locking bolt and the bowl opens up
downwards. The hinges on the
cover are fixed in such a way
that the replacement lamps can
be safely deposited in the bowl,
thus saving time when replacing lamps. The bowl cannot fall
down, even in wind and rain.
Locking mechanism
The housing and the protective
bowl are securely locked by
means of a locking mechanism
according to the „strongbox
principle“ on both sides, which
features up to 24 latch points.
This new type of locking system features stainless steel
springs that regulate the pressure applied to the seal, thus
guaranteeing the tightness of
the light fittings, even in the
event of changes due to the
ageing of the sealing material
and variable climatic influences.
Photo Bayer Leverkusen
Double safety is better
The regulations require the automatic disconnection of the
supply voltage when the light
fitting is opened. The built-in
compulsory NC contact is safeguarded against inadvertent operation and, as soon as the
locking mechanism of the light
fitting is operated, it de-energizes all parts that can be touched.
A second interlock switch increases the safety level for the
operator. Therefore, even if the
lock of the light fitting is actuated while the protective bowl is
still open, the switch cannot be
operated, as, in this case, the
circuit for the light fitting remains disconnected.
Plastic cable glands
• M25 x 1.5 Plastic cable
entries
• M20 x 1.5 Earthed metal
thread for metal cable entries
• Non-metric threads, for example Myer Hubs 3/4” NPTThread
2
Metal thread for metal cable glands
Catch points protective bowl
Myer Hubs (for Conduit-System)
opening of bowl
closing of bowl
Closing system using the ”strongbox principle guarantees a correct sealing
EATON’S CROUSE-HINDS BUSINESS
1.2.7
Principles of Ex-linear light fittings
2.1
Lighting engineering, LED and electronic ballast (EVG)
Optimized lighting
technology
Depending on the application,
the light fittings can be
2 equipped with a large variety of
lamps and reflectors. The criteria for the selection of the types
of lamps and reflectors are basically determined by the type of
lighting required (illumination of
surfaces or objects, etc.) and
the economic efficiency. When
planning a lighting installation,
the polar curves of the luminous intensity of the light fittings being used are required in
order to calculate the illumination distribution.
Polar curves
During the development phase
the lighting properties of all explosion-protected light fittings
are tested in our lighting laboratory. In the case of the linear
light fittings with fluorescent
lamps, we have succeeded in
optimizing both the illumination
of surfaces with the largest
possible light distribution and
the illumination of objects with
the highest possible axial light
intensity. The polar curve of
each light fitting can be found in
the technical data and can be
used together with the other
lighting values to calculate the
illuminance. All lighting design
data can be downloaded from
our Web page: www.crousehinds.de/.
Fluorescent lamps as
light source
All light fittings of the eLLK 92 /
nLLK 08 / eLLB 20 and
RLF 250.. series have been developed and certified for Ø 26
mm bi-pin fluorescent lamps
with a G 13 lamp cap and the
nLLK 10 for T5-lamps in accordance with IEC 60081. This
means that the lamps, which
are available all over the world,
can be used for both hazardous
and non-hazardous areas. Not
only does this simplify
stock-keeping, but the operator
also benefits from all the technical advantages in conjunction
with EVG operation. Special
thermo-lamps with 38 mm diameter can be used in all bi-pin
lamp holders of CEAG fluorescent light fittings. This allows an
economical use of fluorescent
lamps even below ambient temperatures of -5 °C.
The LED module
As a leading manufacturer of
explosion-protected light fittings, we have now designed a
revolutionary module with an
LED light source to fit into existing eLLK/M 92018/18 and
eLLK/M 92036/36 as well as
into the emergency variants
CG-S and NIB. The LED system
design and certification allow
the use in the well proven Ex e
technology of eLLK/M 92. Thus,
it can be used in all corresponding fluorescent light fittings as
an alternative to the 18 W and
36 W lamps.
Combined with our electronic
ballast EVG 09 as the driver,
we can rely on more than
20 years of reliable and successful operation in harsh
and hazardous environments.
A specially designed reflector
system directs the light output
of the high power LED module
to the working area and there is
no multi-shadowing and light
pollution.
International Ø 26 mm bi-pin
fluorescent lamp
LED-module 400
Technology Inside
CEAG products
are constanly
being advanced
and tested in the
company’s own
lighting laboratory
1.2.8
EATON’S CROUSE-HINDS BUSINESS
2.1
The advantages of the
LED Module:
• Environmentally friendly,
no mercury
• Shock and vibration resistant,
no filament or glass to break
• Immediate start, instant full
illumination
• No life time reduction due
to switching cycles
• Reduced disposal costs
• Energy and cost savings:
20% energy savings compared to fluorescent lamps
• Additional energy savings by
operating on demand (night/
day and presence-mode)
• Reduced maintenance costs
compared to standard fluorescent lamps
• Lower overall cost of
ownership
Operating life
• The expected operating life of
a Cooper Crouse-Hinds LED
module is 60,000 hours. This
is a significant improvement
compared to traditional light
sources.
Electronic ballasts (EVG)
Nowadays it is not possible to
imagine modern light fittings for
fluorescent lamps without the
EVG technology. Features such
as immediate starting, the absence of flickering during operation or the minimal heat rise are
only possible with this technology. With the CEAG EVG technology, fluorescent light fittings
for use in hazardous areas also
provide decisive advantages:
• Use with various mains
voltages from 110 V up to
254 V ± 10 %
• Regulation of luminous flux
with fluctuating mains voltage
• Safe lamp ignition at low and
high ambient temperatures
• Longer service life for lamps
• AC/DC operation possible
• Standard dual channel ballast,
that means on failure when
one lamp fails the second
lamp will continue in operation independent from the
failed one.
• Heat sinks are specifically engineered to remove heat
from the LEDs to ensure a
longer life, better lumen output and accurate colour temperature.
Versatile
• Unrestricted use with CG-S
module for connection to a
CEAG Central Battery Systems and with self-contained
emergency light fittings eLLK
92 ... NIB .
EOL issue solved
All the EVGs (electronic ballasts) supplied by CEAG since
1988 feature monitoring of the
lamp circuit, detection of the
rectifier effect, as well as a
shutdown of the circuit in the
event that the lamp does not
strike. Therefore, the CEAG
EVGs already ensures a high
level of safety at the end of the
service life of the lamps long
before the discussions on EOL
even starts. The CEAG EVG 09
also fulfils the relevant EOL requirements of the industrial
standard IEC 61347-2-3
(§ 17.2 and 17.3), as well as
those laid down in the latest
draft of IEC 60079-7 (Electrical
equipment in the type of protection Increased Safety). Thus,
the CEAG EVG 09, which is certified to BVS 09 ATEX E 054 U,
meets the latest findings and
the newest standards.
What protective circuits does
the new EVG 09 have?
The standard DIN EN 61347-2-3
(VDE 0712-33), which was issued in February 2005, only
stipulates a permanent monitoring of the lamp circuit for EOL
effects for T4 and T5 lamps (16
mm and thinner). The draft version of the standard IEC 600797, which was derived from this
standard, lays down the test re-
The advantages for you:
• Time-tested and reliable
technology
• Latest lamp circuit monitoring
as an additional safety factor 2
• Meets all requirements of the
standard draft IEC 60079-7
for luminaires with fluorescent lamps in “Increased
Safety” (EOL)
• EVG designed specially for
rough operating conditions in
Zone 1 – not just an “encapsulated industrial EVG”
• Thermally optimized circuitry
for long service life, even in
high ambient temperatures
• Wide input voltage range and
DC operation for universal
use
• Two separate lamp circuits
(autarkic switching) provide
more safety for your employees and installations
• Practically insensitive to network harmonics and over-voltage influences
• Isolation of one lamp circuit
for use in emergency lighting
installations (economic
battery use)
Electronic ballasts EVG 09
• Use as drivers for LED modules or bi-pin lamps,
Ø 26 mm
quirements for Ex-e light fittings
with cold start EVGs for T6
(26 mm) fluorescent lamps. Unlike industrial luminaires with
EVGs, Ex-e luminaires have to
meet all the relevant conditions
of this standard. The CEAG EVG
09 meets all these requirements and, thanks to the continuous lamp-monitoring, it ensures the safe operation of all
functions.
EATON’S CROUSE-HINDS BUSINESS
1.2.9
2.1
The EVG 09 in practice:
Explosion-protected
luminaires with the CEAG
trademark
2 All these functions are only one
aspect of the extensive safety
concept of the CEAG EVG 09.
The use of highly impact resistant plastic materials for the encapsulation in the type of protection Ex-d e, as well as the
additional unit fuses for the
event that a fault occurs, completes the whole package.
The CEAG EVG 09 is standard
for our fluorescent light
fittings of the series: eLLK 92
.../.., eLLM 92 .../…. NIB and
the recessed ceiling luminaires
eLLB 20… and RLF 250…
It is suitable for the operation
of LED-modules and fluorescent lamps.
Robust technology for use
under extreme conditions
The operation of explosion-protected light fittings places high
requirements on the reliability
and durability of the circuits being used. In addition to temperatures, moisture and mechanical stress, mains contamination
or voltage peaks can affect the
light fittings. Here specially developed CEAG EVGs provide
safe protection against harmful
influences. Whereas conventional industrial EVGs are designed for an ambient temperature of the light fittings of up to
+30 °C, the CEAG EVGs are designed for an ambient temperature of +55 °C. The large-scale
printed circuit board layouts en-
1.2.10
sure an even heat distribution,
through-connections and encapsulation of sensitive components provide mechanical protection. A hermetically sealed
enclosure provides protection
against undesirable substances
that could cause damage to the
PCB.
Direct or alternating voltage?
Conventional ballasts only work
with an alternating voltage and
can only be used with group or
central battery installations under certain conditions. In combination with the leading manufacturer of CEAG emergency
lighting installations, we offer
an explosion-protected ballast
that can be operated with alternating and direct voltages.
Quality cannot be left
to chance
Ensuring a consistently high
quality requires extensive testing and a largely automated production process. With our decades of experience in the
manufacture of electronic ballasts, in addition to the routine
testing of all equipment, we
also carry out stress tests on individual batches, whereby we
also obtain reliable data relating
to component specifications.
EATON’S CROUSE-HINDS BUSINESS
Computer-aided final
inspections
The uncompromising safety of
the explosion-protected eLLK/
M 92 ... light fittings is maintained throughout the various
production stages and includes
the final inspection. Each light
fitting is tested in detail by a
computer test program. All data
relating to the manufacture and
safety is stored and can still be
called up years later. This is
where our quality assurance
system, that is certified to
ISO 9001:2008, clearly makes
it mark.
Emergency lighting –
central or decentral
With regard to emergency lighting in hazardous areas, there
are two general philosophies,
which are based on the reliability of the supply source, the
costs and efforts required for
testing and maintenance work
and the economic efficiency.
Emergency light fittings
with a self-contained battery
system
Emergency light fittings with
self-contained battery systems
provide the required emergency
lighting decentrally, independent of central systems. This
means that the battery, the
charger and the electronics are
integrated in the light fitting.
With regard to the availability
and the redundancy, this system meets the highest requirements when considering the reliability of the supply source, in
particular in safety-engineering
sensitive areas. However, with
regard to economic efficiency,
the costs and efforts involved in
the testing and maintenance of
of each self-contained battery
system and the influence of the
ambient conditions on the battery life span have to be taken
into account. Taking the above
safety aspects into consideration, the use of emergency light
fittings with a self-contained
battery system is undoubtedly
the best solution for applications in large and spacious hazardous areas where the number
of fittings used is limited.
The CEAG series of emergency
light fittings with self-contained
battery systems eLLK 92 NIB,
eLLB 20... NIB feature all the
requisite monitoring functions
and perform the required functionality and operating time
tests automatically, whereby
the battery lifespan is optimized.
2.1
Centrally controlled
emergency lighting systems
with CG modules
A centrally controlled emergency lighting supply using the
CEAG group supply and a central battery system is installed
when a large number of emergency lighting are joined together and can be operated as
system light fittings. As a rule,
these battery systems are not
installed in the hazardous areas
and therefore do not have to
cope with the same environmental conditions as the light
fittings themselves. This usually
results in an extended life span
of the batteries with a minimized maintenance effort. One
must of course take the increased effort and costs involved in laying cables from the
central battery system to the
light fittings in the hazardous areas into consideration. For operation in CEAG emergency
lighting systems, we can supply
versions of our explosion-protected light fittings of the series
eLLK 92, nLLK 08, eLLB 20 and
RLF 250 with ”CG-S modules“.
Among other things, this monitoring module controls the data
exchange between the main
emergency lighting unit via the
power supply cable and reports
the operating status and any
functional errors. In conjunction
with the CG-S modules, it is
now possible to connect individually monitored emergency light
fittings to a CEAG emergency
lighting installation with monitoring system. This means that
it is now possible to integrate
explosion-protected light fittings
as system light fittings into the
practical monitoring system of
CEAG group or central battery
installations.
CEAG emergency lighting
supply unit for non-hazardous areas
2
One line, e.g. 3 x 1.5 mm2 for both the mains and the emergency power supply
1
2
3
4
5
6
10
12
20
Ex-light fittings with CG-S modul and coding
switch with a maximum of 20 light fitting per circuit
7
8
9
10
11
This combination offers the following advantages:
• Automatic performance of
the requisite function and duration tests with central record-keeping of all operation
status and functional error reports
• Enormous cost savings as
manual testing is no longer
necessary
• Two-lamp operation with
mains supply, single lamp operation with emergency
power supply. Therefore cost
savings for batteries and
apparatus
• High degree of safety of
emergency lighting due to
constant display of availability
• Simplified installation by using
line supply for data communication
• Mains and emergency
power supply have a common connection
• A separate data line is not required
• A maximum of 20 light fittings can be connected to
one circuit
• Individual switching of all
emergency light fittings in a
circuit possible
EATON’S CROUSE-HINDS BUSINESS
1.2.11
2.2
Ex-linear LED light fittings
2 eLLK/M 92 LED 400/800 / eLLK/M 92 LED 400/800 CG-S/NIB
(Zone 1, 2, 21, 22)
The efficient solution
for your explosion-protected
lighting concept
The explosion-protected linear
light fittings series eLLK /
M 92 LED 400/800 combines
the latest LED technology with
the protection of a reliable
housing solution. As a result,
this light fitting series is the ideal solution for lighting tasks in
harsh and hazardous environments.
Latest lighting technology
for a proven lighting concept
As a leading manufacturer of explosion-protected luminaires, we
have designed a revolutionary
LED module to fit into the existing eLLK/M 92018/18 and
eLLK/M 92036/36. The linear LED
module can also be used for converting existing eLLK/M 92 light
fittings with fluorescent lamps
and an electronic ballast electronic ballast (EVG 09) into LED linear
light fittings in just few simple
steps. A special designed reflector system directs the light output of the high power LEDs to
the working area without any
multi-shadowing or light pollution.
The LED system design and certification allow the use in the tried
and tested Ex e technology of the
eLLK/M 92 light fittings . With the
use of our electronic ballast EVG
09 as the driver, we can rely on
more than 20 years successful
operation in harsh and hazardous
environments.
The advantages of the
LED module:
• Environmentally friendly,
no mercury
• Shock and vibration resistant,
no filament or glass to break
• Immediate start, instant full
illumination
• No life time reduction due to
switching cycles
• Reduced disposal costs
Energy and cost savings
• 20% energy savings compared to fluorescent lamps
• Additional energy saving due
to operation on demand
(night/day and presencemode)
• Reduced maintenance costs
compared to standard fluorescent lamps
• Lower overall cost of
ownership
Operating life
• The expected operating life
of a Cooper Crouse-Hinds
LED module is 60,000 hours.
This is a significant improvement compared to traditional light sources.
• Heat sinks are specifically
engineered to remove heat
from the LEDs to ensure a
longer life, better lumen
output and accurate colour
temperature.
• Fully operational with CG-S
modules for connection to
CEAG central battery emergency lighting systems.
Easy and cost-effective
installation
Like all the luminaires in the
eLLK lighting family, our standard LED linear luminaires feature a single-ended throughwiring, which, in conjunction
with the generously dimensioned terminal compartment,
allows a cost-effective installation. The double-sided locking
facility with 10 or 20 latch points
allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Features
• 20 % energy savings compared to similar fluorescent luminaires
• Special reflector design with indirect light distribution prevents
undue glare and multi-shadowing
• Tried and tested technology; the EVG 09 has been used as a
driver for more than 20 years
• Selected LED chips with perfect binning, low power loss and
long life
• Ex-e technology for easy maintenance
• For ambient temperatures from -25 °C up to +45 °C
1.2.12
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.2
eLLK/M 92 LED 400/800
Ordering details
Type
Version Terminals ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
eLLK 92 LED 400
eLLK 92 LED 400
1/6-1K
1x6
x
–
2 x M25, plastic
eLLK 92 LED 400
2/6-2K
2x6
–
x
2 x M25, plastic
2 x M25
1 2265 500 103
eLLK 92 LED 400
1/6-1M 1 x 6
x
–
2 x M20, metal thread
1 x M20
1 2265 500 109
eLLK 92 LED 400
2/6-2M 2 x 6
–
x
4 x M20, metal thread
2 x M20
1 2265 500 111
eLLK 92 LED 800
1/6-1K
1x6
x
–
2 x M25, plastic
eLLK 92 LED 800
2/6-2K
2x6
–
x
2 x M25, plastic
2 x M25
1 2266 500 103
eLLK 92 LED 800
1/6-1M 1 x 6
x
–
2 x M20, metal thread
1 x M20
1 2266 500 109
eLLK 92 LED 800
2/6-2M 1) 2 x 6
–
x
4 x M20, metal thread
2 x M20
1 2266 500 111
eLLM 92 LED 400
1/3-1K
1x3
–
–
1 x M25, plastic
1 2268 500 101
eLLM 92 LED 800
1/3-1K
1x3
–
–
1 x M25, plastic
1 2269 500 101
2x6
–
x
2 x M25, plastic
2 x M25
1 2265 510 103
eLLK 92 LED 400 CG-S 2/6-2M 2 x 6
–
x
4 x M20, metal thread
2 x M25
1 2265 510 111
2x6
–
x
2 x M25, plastic
2 x M25
1 2266 510 103
eLLK 92 LED 800 CG-S 2/6-2M 2 x 6
–
x
1)
1
1 2265 500 101
eLLK 92 LED 800
1)
1
1 2266 500 101
eLLM 92 LED
eLLK 92 LED 400 CG-S
2)
eLLK 92 LED 400 CG-S 2/6-2K
1)
eLLK 92 LED 800 CG-S 2)
eLLK 92 LED 800 CG-S 2/6-2K
1)
Type
Version Terminals ThroughThroughwiring
wiring
single-ended twin-ended
4 x M20, metal thread
2 x M25
Cable gland/
thread
Threaded
plug
1 2266 510 111
Blanking
plug
Order No.
120-127 V AC
220-254 V AC
1
eLLK 92 LED 400 NIB 3)
eLLK 92 LED 400 NIB 1/6-1K
1x6
x
–
2 x M25, plastic
1 2260 579 401
1 2260 579 101
eLLK 92 LED 400 NIB 2/6-2K
2x6
–
x
2 x M25, plastic
2 x M25
1 2260 579 403
1 2260 579 103
eLLK 92 LED 400 NIB 1/6-1M 1 x 6
x
–
2 x M20, metal thread
1 x M20
1 2260 579 409
1 2260 579 109
eLLK 92 LED 400 NIB 2/6-2M 1) 2 x 6
–
x
4 x M20, metal thread
2 x M20
1 2260 579 411
1 2260 579 111
1)
eLLK 92 LED 800 NIB 3)
eLLK 92 LED 800 NIB 1/6-1K
1x6
x
–
2 x M25, plastic
1 2261 579 401
1 2261 579 101
eLLK 92 LED 800 NIB 2/6-2K
2x6
–
x
2 x M25, plastic
2 x M25
1 2261 579 403
1 2261 579 103
eLLK 92 LED 800 NIB 1/6-1M 1 x 6
x
–
2 x M20, metal thread
1 x M20
1 2261 579 409
1 2261 579 109
eLLK 92 LED 800 NIB 2/6-2M 1) 2 x 6
–
x
4 x M20, metal thread
2 x M20
1 2261 579 411
1 2261 579 111
–
–
2 x M25, plastic
1)
eLLM 92 LED 400 NIB
eLLM 92 LED 400 NIB 1/3-1K
1
3)
1x6
1 2273 569 101
Scope of delivery including LED-module, without fixing material
Metal cable glands see catalogue part 2: 2.3.12 ff
1)
with metal thread, without cable gland
2)
for operation with CEAG-emergency supply system
3)
Self-contained emergency light fitting
Accessories
Type
Order No.
Battery set Type 2710-3 with LED display and microprocessor-monitoring, complete
2 2710 904 000
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material
for eLLM 92 LED 400 NIB
2 2218 602 000
EATON’S CROUSE-HINDS BUSINESS
1.2.13
Polar curve / Dimension drawing
2.2
eLLK/M 92 LED 400/800
Polar curve eLLK/M 92 LED 400
2
Polar curve eLLK/M 92 LED 800 CG-S
in emergency operation
90
90
90
90
200
400
75
75
75
75
400
60
800
60
600
45
800
30
15
1000
0
60
45
30
15
2000
0
Polar curve eLLK/M 92 LED 800
l/cd
Polar curve eLLK/M 92 LED 400 NIB
in emergency operation
90
90
90
90
150
400
75
75
75
75
300
800
15
C 0
C90
2000
0
15
15
90
90
l/cd
90
90
200
150
75
300
60
600
1000
0
60
45
800
15
75
75
400
30
30
15
Polar curve eLLK/M 92 LED 800 NIB
in emergency operation
Polar curve eLLK/M 92 LED 400 CG-S
in emergency operation
45
750
0
C 0
C90
l/cd
60
45
600
30
30
75
60
450
45
45
1600
30
60
60
1200
45
30
15
C 0
C90
l/cd
60
45
1600
30
15
C 0
C90
60
1200
45
45
45
600
30
30
15
15
C 0
C90
60
450
750
0
30
15
C 0
C90
l/cd
l/cd
eLLK 92 LED 400/800
21
eLLM 92...
33
LED 400 = 732
LED 800 = 1332
LED 400 = 400
LED 800 = 700
Hexagon A/F 13
65
M8, 14 deep
130
M25 x 1.5
150
188
46
M25 x 1.5
Hexagon A/F 13
LED 400 = 900
LED 800 = 1500
20
188
46
150
65
130
21
LED 400 = 400
LED 800 = 700
M8, 14 deep
Version 1/3
33
LED 400 = 760
LED 800 = 1360
33
Version 2/6
eLLM 92 LED 400/800
188
44
1060 = LED 400
1660 = LED 800
76
130
Hexagon A/F 13
eLLM 92 LED 800
736 = LED 400
1336 = LED 800
1.2.14
Hexagon A/F 13
eLLM 92 LED 400
EATON’S CROUSE-HINDS BUSINESS
Dimensions in mm
Technical data
eLLK/M 92 LED 400 / eLLK/M 92 LED 800
2.2
2
Technical data
eLLK/M 92 LED 400
eLLK/M 92 LED 800
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +45 °C
-25 °C up to +45 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
110 V - 254 V AC
110 V - 250 V DC
110 V - 254 V AC
110 V - 250 V DC
Rated current
0.15 A
0.25 A
Frequency
50 - 60 Hz
50 - 60 Hz
Life expectancy LED module
L 70 = 60.000 h at Ta = 25 °C
L 70 = 60.000 h at Ta = 25 °C
Power factor cos
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Illuminance at measurement plane
comparable with luminaires for fluorescent lamps
comparable with luminaires for fluorescent lamps
CRI
> 80
> 80
Lamp / Illuminant
LED module 400 - 2 x 13 W
LED module 800 - 2 x 26 W
Light colour
4000 K
4000 K
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
6.9 kg
10.7 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread1)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread1)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
with dustcover if entry/thread is not closed
Technology Inside
Technology Inside
EATON’S CROUSE-HINDS BUSINESS
1.2.15
Technical data
2.2
eLLK 92 LED 400 CG-S / eLLK 92 LED 800 CG-S
2
Technical data
eLLK 92 LED 400 CG-S
eLLK 92 LED 800 CG-S
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb II T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de mb II T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de mb IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +45 °C
-25 °C up to +45 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
220 - 254 V AC
195 - 250 V DC
Rated current
0.16 A
0.26 A
Frequency
50 - 60 Hz
50 - 60 Hz
Life expectancy LED module
L 70 = 60.000 h at Ta = 25 °C
L 70 = 60.000 h at Ta = 25 °C
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S
EVG/CG-S
Protection class
I
I
Illuminance at measurement plane
comparable with luminaires for fluorescent lamps
comparable with luminaires for fluorescent lamps
CRI
> 80
> 80
Lamp / Illuminant
LED module 400 - 2 x 13 W
LED module 800 - 2 x 26 W
Light colour
4000 K
4000 K
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
7.4 kg
11.1 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
Technology Inside
1.2.16
EATON’S CROUSE-HINDS BUSINESS
Technology Inside
Technical data
eLLK/M 92 LED 400 NIB / eLLK 92 LED 800 NIB
2.2
2
Technical data
eLLK/M 92 LED 400 NIB
eLLK 92 LED 800 NIB
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +45 °C
-25 °C up to +45 °C
Battery
Battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
Battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 V - 254 V AC
110 V - 127 V AC (option)
220 V - 254 V AC
110 V - 127 V AC (option)
Rated current
0.2 A
0.31 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Life expectancy LED module
L 70 = 60.000 h at ta=25 °C
L 70 = 60.000 h at ta=25 °C
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Illuminance at measurement plane
comparable with luminaires for fluorescent lamps
comparable with luminaires for fluorescent lamps
CRI
> 80
> 80
Lamp / Illuminant
LED module 400 - 2 x 13 W
LED module 800 - 2 x 26 W
Light colour
4000 K
4000 K
Rated emergency lighting duration
2.4 h
3.5 h
Luminous flux in emergency operation
(one LED-row)
98.5 %
44.1 %
Dimensions (L x W x H)
900 x 188 x 130 mm
1500 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
10.5 kg
15.3 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 1)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 1)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
Technology Inside
Technology Inside
1)
2
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.17
2.3
2
Ex-linear light fittings for
fluorescent lamps
eLLK 92 18 W – 58 W / eLLM 92 18 W – 36 W
(Zone 1, 2, 21, 22)
The classic lighting solution
in hazardous areas
The eLLK 92 linear luminaire series for fluorescent lamps combines the latest lighting technology with the requirements
of a harsh and hazardous environment. This luminaire series
is available in various sizes as a
ceiling mounted light fitting
(eLLK) and as a pole-mounted
light fitting (eLLM).
Long-term safety
The luminaires of this robust
lighting series with plastic enclosures are equipped with a
highly-efficient electronic ballast
that features a reliable EOL circuit. Thus, the lamps are
checked for proper operation
and shut down safely in the
event of a malfunction at the
end of their service life. In addition, the dual-channel structure
of the electronic ballasts enables the safe operation of the
second lamp if one lamp fails.
Versatile
The wide input voltage range
and major international approvals enable the worldwide use of
this successful luminaire series.
DCA version without individual
monitoring. In the emergency
mode, one lamp is turned off
(AC / DC monitoring), thus reducing the required battery
power.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard, single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10, 20 or 24 latch points allows the protective bowl to be
hinged on both sides meaning
that the fitting can be mounted
on either side.
The NIB variants (Section 2.4)
are also available for use as
emergency light fittings with a
self-contained battery unit.
Just in case: the emergency
lighting version
Safety is always our top priority.
This is why we also supply the
eLLK 92 light fitting series with
a built-in CG-S module. These
luminaires with individual monitoring can be connected to a
CEAG emergency lighting
supply system.
Other country-specific approvals, such as for Brazil or the
new Eurasian Conformity (EAC)
for placing them on the market
in Russia, Belarus and Kazakhstan, are available.
International certification
Special versions according to
the NEC standards are available
for the use on the American
market. CSA certification for the
types of luminaires eLLK 92
2217 (2 x 17 W) and eLLK 92
4232 (2 x 32 W) allows their use
there.
Another option for operation
with central battery emergency
lighting systems (ZB) is the
Features
• Retrofitting of existing eLLK / M 92 018/18 or
eLLK / M 92036/36 linear luminaires (latest version) is possibl
• Standard dual channel ballast with EOL monitoring
• Can be used with CEAG LED module
• Double-sided central locking facility
• Safety interlocking system due to an integrated forced
isolating switch
• Safety standard IP66
• Connection to CEAG emergency light monitoring systems
possible (CG-S/DCA)
• Special version to NEC standards (CSA)
1.2.18
EATON’S CROUSE-HINDS BUSINESS
2.3
Ordering details
eLLK 92 ... 18 W - 58 W
Ordering details
Type
Version
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
eLLK 92018/18
1
1 2265 875 101
eLLK 92018/18 (2 x 18 W)
1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92018/18 (2 x 18 W)
2/6-K
2x6
–
x
2 x M25, plastic
2 x M25
1 2265 875 103
eLLK 92018/18 (2 x 18 W)
1/6-M 1)
1x6
x
–
2 x M20, metal thread
1 x M20
1 2265 875 109
eLLK 92018/18 (2 x 18 W)
2/6-M 1)
2x6
–
x
4 x M20, metal thread
2 x M20
eLLK 92018/18 (2 x 18 W) 2) 1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92018/18 (2 x 18 W)
1/6-M 1)
1x6
x
–
2 x M25, metal thread
2 x M25
1 2265 875 609
eLLK 92018/18 (2 x 18 W)
2/6-M 1)
2x6
–
x
4 x M25, metal thread
4 x M25
1 2265 875 611
1/6-K
1x6
x
–
2 x M25, plastic
1 2265 875 111
1
1 2265 875 126
eLLK 92036
eLLK 92036 (1 x 36 W)
1
1 2263 875 101
eLLK 92036 (1 x 36 W)
2/6-K
2x6
–
x
2 x M25, plastic
2 x M25
1 2263 875 103
eLLK 92036 (1 x 36 W)
1/6-M
1x6
x
–
2 x M20, metal thread
1 x M20
1 2263 875 109
2 x M20
1 2263 875 111
eLLK 92036 (1 x 36 W)
2/6-M
2x6
x
–
4 x M20, metal thread
eLLK 92036 (1 x 36 W) 2)
1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92036 (1 x 36 W)
1/6-M
1x6
x
–
2 x M25, metal thread
2 x M25
1 2263 875 609
eLLK 92036 (1 x 36 W)
2/6-M
2x6
x
–
4 x M25, metal thread
2 x M25
1 2263 875 611
1
1 2263 875 125
eLLK 92036/36
eLLK 92036/36 (2 x 36 W)
1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92036/36 (2 x 36 W)
2/6-K
2x6
–
x
2 x M25, plastic
1
1 2266 875 101
2 x M25
1 2266 875 103
eLLK 92036/36 (2 x 36 W)
1/6-M
1x6
x
–
2 x M20, metal thread
1 x M20
1 2266 875 109
eLLK 92036/36 (2 x 36 W)
2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
1 2266 875 111
eLLK 92036/36 (2 x 36 W)
1/6-M
1x6
x
–
2 x M25, metal thread
2 x M25
1 2266 875 609
eLLK 92036/36 (2 x 36 W)
2/6-M
2x6
–
x
4 x M25, metal thread
4 x M25
1 2266 875 611
eLLM 920…3)
eLLM 92018/18 (2 x 18 W)
1/3-K
1x3
–
–
1 x M25, plastic
1 2268 875 101
eLLM 92036/36 (2 x 36 W)
1/3-K
1x3
–
–
1 x M25, plastic
1 2269 875 101
eLLM 92036/36 (2 x 36 W)
2/6-K
2x6
x
–
2 x M25, plastic
1 2269 875 103
1 x M25
eLLK 92058
eLLK 92058 (1 x 58 W)
1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92058 (1 x 58 W)
2/6-K
2x6
–
x
2 x M25, plastic
1
1 2264 875 101
2 x M25
1 2264 875 103
1 2264 875 109
eLLK 92058 (1 x 58 W)
1/6-M
1x6
x
–
2 x M20, metal thread
1 x M20
eLLK 92058 (1 x 58 W)
2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
1 2264 875 111
eLLK 92058 (1 x 58 W)
2/6-M
2x6
–
x
4 x M25, metal thread
2 x M25
1 2264 875 611
1/6-K
1x6
x
–
2 x M25, plastic
eLLK 92058/58
eLLK 92058/58 (2 x 58 W)
1
1 2267 875 101
eLLK 92058/58 (2 x 58 W)
2/6-K
2x6
–
x
2 x M25, plastic
2 x M25
1 2267 875 103
eLLK 92058/58 (2 x 58 W)
1/6-M
1x6
x
–
2 x M20, metal thread
1 x M20
1 2267 875 109
eLLK 92058/58 (2 x 58 W)
2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
1 2267 875 111
eLLK 92058/58 (2 x 58 W)
1/6-M
1x6
x
–
2 x M20, metal thread
1 x M20
1 2267 875 609
eLLK 92058/58 (2 x 58 W)
2/6-M
2x6
–
x
4 x M25, metal thread
4 x M25
1 2267 875 611
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
with metal thread, without cable gland
Level gauge P3
3)
Pole mounted light fitting
1)
2)
EATON’S CROUSE-HINDS BUSINESS
1.2.19
Ordering details / Accessories
2.3
eLLK 92 ... 18 W - 58 W
Ordering details
Type
2
Content Terminals ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
eLLK 92018/18 CG-S/DCA
eLLK 92018/18 CG-S (2 x 18 W) 2) 2/6-K
2x6
–
x
2 x M25, plastic
2 x M25
1 2265 881 103
eLLK 92018/18 CG-S (2 x 18 W) 2) 2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
1 2265 881 211
2x6
–
x
3 x M25, plastic
1 x M25
2x6
–
x
2 x M25, plastic
2 x M25
2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
2/6-K
2x6
–
x
3 x M25, plastic
1 x M25
2x6
–
x
2 x M25, plastic
2 x M25
1 2267 881 103
2/6-M
2x6
–
x
4 x M20, metal thread
2 x M20
1 2267 881 211
eLLK 92 2217/U240 (2 x 17 W) 4)
1/6-M 1)
1x6
x
–
2 x 1/2'' NPT Myers
Hub Adapter
2 x M25
1 2265 875 310
eLLK 92 2217/U240 (2 x 17 W) 4)
2/6-M 1)
2x6
–
x
2 x 3/4'' NPT
Myers Hub Adapter,
2 x metal thread M25
2 x M25
1 2265 875 311
eLLK 924232/U240 (2 x 32 W) 4)
1/6-M 1)
1x6
x
–
2 x 1/2'' NPT
Myers Hub Adapter
2 x M25
1 2266 875 310
eLLK 924232/U240 (2 x 32 W) 4)
1/6-M 1)
2x6
–
x
2 x 3/4'' NPT
Myers Hub Adapter,
2 x metal thread M25
2 x M25
1 2266 875 311
eLLK 92018/18 DCA (2 x 18 W)
3)
2/6-K
2
1 2265 908 000
eLLK 92036/36 CG-S/DCA
eLLK 92036/36 CG-S (2 x 36 W) 2) 2/6-K
eLLK 92036/36 CG-S (2 x 36 W)
2)
eLLK 92036/36 DCA (2 x 36 W) 3)
1 2266 881 103
1 2266 881 211
2
1 2266 908 000
eLLK 92058/58 CG-S/DCA
eLLK 92058/58 CG-S (2 x 58 W) 2) 2/6-K
eLLK 92058/58 CG-S (2 x 58 W)
2)
eLLK 92 2217 4)
eLLK 92 4232 4)
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
1) with metal thread, without cable gland
2) for operation with CEAG-emergency supply system
3) for operation with CB-emergency supply systems
4) for use according to NEC-standards
Accessories
1.2.20
Type
Application
Order No.
LED module 400
for eLLK 92 018/18 / incl. conversion kit
1 2255 213 501
LED module 800
for eLLK 92 036/36 / incl. conversion kit
1 2256 226 501
Single sided through wiring 2/6
with 2 entries M25, incl. terminals and
mounting material
eLLM 92 Pole mounting light fitting
2 2218 602 000
EATON’S CROUSE-HINDS BUSINESS
Dimension drawing / Polar curve
2.3
eLLK 92 ... 18 W - 58 W
Polar curve eLLK 92058/58
Polar curve eLLK 92018/18 /
eLLK 92036/36
90
90
40
75
75
75
75
80
80
60
60
120
45
15
C 0
C90
200
0
60
30
15
15
C 0
C90
l/cd/klm
90
40
40
75
75
75
75
80
80
15
15
15
C 0
C90
l/cd/klm
30
15
eLLM 92...
33
150
188
46
65
M8, 14 deep
130
M25 x 1.5
18 W = 732
36 W = 1332
58 W = 1632
18 W = 400
36 W/58 W = 700
Hexagon A/F 13
200
0
l/cd/klm
eLLK 92018/18 / eLLK 92036 / eLLK 92036/36 / eLLK 92058 / eLLK 92058/58
21
45
160
30
30
C 0
C90
60
120
45
45
160
200
0
60
60
120
30
30
15
90
90
90
45
200
0
Polar curve eLLK92018/18 CG-S /DCA
eLLK92036/36 CG-S /DCA
eLLK92058/58 CG-S
Polar curve eLLK 92036 /
eLLK 92058
60
45
160
30
l/cd/klm
60
120
45
45
160
30
2
90
90
40
Version 1/3
33
18 W = 760
36 W = 1360
58 W = 1660
20
150
eLLM 92018/18 / eLLM 92036/36
188
44
1060 = 18 W
1660 = 36 W
33
Version 2/6
76
130
Hexagon A/F 13
eLLM 92036/36
736 = 18 W
1336 = 36 W
Hexagon A/F 13
eLLM 92018/18
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.2.21
Technical data
2.3
eLLK 92018/18 (2 x 18 W) / eLLK 92036 (1 x 36 W)
2
Technical data
eLLK 92018/18 (2 x 18 W)
eLLK 92036 (1 x 36 W) / eLLK 92036/36 (2 x 36 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
110 - 254 V AC
110 - 250 V DC
110 - 254 V AC
110 - 250 V DC
Rated current
0.18 A
0.18 A / 0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1 x T26 / 36 W (T8) / 2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
3350 lm 1) / 6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
86 %/ 78 %
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.2 kg
6.7 kg / 7.4 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.22
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLK 92036/36 (2 x 36 W) / eLLK 92058 (1 x 58 W)
2.3
2
Technical data
eLLK 92058 (1 x 58 W) / eLLK 92058/58 (2 x 58 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +40 °C
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
Rated current
0.27 A / 0.53 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG
Protection class
I
Lamp / Illuminant
1 x T26 / 58 W (T8) / 2 x T26 / 58 W (T8)
Rated luminous flux
5200 lm 1) / 10400 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
83 % / 72 %
Dimensions (L x W x H)
1660 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
Weight
8.2 kg / 8.5 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.23
Technical data
2.3
eLLM 92018/18 / eLLM 92036/36
2
Technical data
eLLM 92018/18 (2 x 18 W)
eLLM 92036 (1 x 36 W) / eLLM 92036/36 (2 x 36 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
110 - 254 V AC
110 - 250 V DC
110 - 254 V AC
110 - 250 V DC
Rated current
0.18 A
0.18 A / 0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1 x T26 / 36 W (T8) / 2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
3350 lm 1) / 6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
86 %/ 78 %
Dimensions (L x W x H)
1060 x 188 x 130 mm
1660 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
7.0 kg
9.0 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Pole socket
Ø 44 mm x150 mm
Ø 44 mm x150 mm
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.24
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLK 92018/18 CG-S/DCA / eLLK 92036/36 CG-S/DCA
2.3
2
Technical data
eLLK 92018/18 CG-S / DCA
eLLK 92036/36 CG-S / DCA
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb II T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de mb II T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de mb IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +55 °C
-25 °C up to +50 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
220 - 254 V AC
195 - 250 V DC
Rated current
0.19 A
0.35 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S / DCA
EVG/CG-S / DCA
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78%
78%
Luminous flux in emergency operation
1350 lm 1)
3350 lm 1)
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.6 kg
7.7 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.25
Technical data
2.3
eLLK 92058/58 CG-S
2
Technical data
eLLK 92058/58 CG-S
EC-Type Examination Certificate
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb II T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +40 °C
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
Rated current
0.54 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG/CG-S
Protection class
I
Lamp / Illuminant
2 x T26 / 58 W (T8)
Rated luminous flux
10400 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
72 %
Luminous flux in emergency operation
5200 lm 2)
Dimensions (L x W x H)
1660 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
Weight
8.9 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 3)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.26
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLK 92 2217/U240 (2 x 17 W) / eLLK 92 4232/U240 (2 x 32 W)
2.3
2
Technical data
eLLK 92 2217/U240 (2 x 17 W)
eLLK 92 4232/U240 (2 x 32 W)
Marking accd. to CEC 018
Ex ed IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 1 Gr. E, F and G
Ex ed IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 1 Gr. E, F and G
Marking accd. to NEC 500/505
Class I Zone 1 AEx de IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Class I Zone 1 AEx de IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Certificate of Compliance
CSA 10.2325079
CSA 10.2325079
Permissible ambient temperature
-25 °C up to +55 °C
-25 °C up to +55 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
120 - 240 V
120 - 240 V
Rated current
0.38 / 0.18 A
0.7 / 0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x F17 T8
2 x F32 T8
1)
6600 lm 1)
Rated luminous flux
2600 lm
Lamp cap
G13 accd. to IEC 60061
G13 accd. to IEC 60061
Light efficiency in operation
78 %
78 %
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.4 kg
7.4 kg
Cable glands / gland plates /
enclosure drilling
3/4’’ NPT metal thread with dustcover
3/4'' NPT metal thread with dustcover
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
2
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.27
2.4
2
Emergency light fittings with a self-contained battery system for fluorescent lamps
eLLK 92018/18 NIB / eLLK 92036/36 NIB / eLLM 92018/18 NIB
(Zone 1, 2, 21, 22)
If you need a reliable and
decentralized emergency
lighting
Emergency lighting luminaires
with a self-contained battery
system provide a decentralised
solution for the mandatory
emergency lighting, independent of central systems. In large
plants, in particular, these
luminaires offer significant
cost benefits.
More safety due to sophisticated micro-electronics
Thanks to a new charging and
monitoring technology with intelligent micro-electronics, the
NIB emergency lighting
luminaires provide reliable safety and reduced maintenance
costs. A function test lasting 5
minutes, that is carried out automatically on a weekly basis,
even during mains operation,
and a quarterly, partial duty-cycle test provide additional safety and drastically reduce the
necessary amount of manual
tests. The charging and discharging functions are monitored constantly by the micro-processor and are indicated
via a diode display. Only the
spent energy is recharged –
therefore, overcharging is not
possible. The so-called memory
effect cannot occur – the service life of the battery is optimized. The need to replace a
battery, a fault in the emergency lighting circuit or a faulty battery is indicated by the LED display. Due to a new type of
battery connection, the battery
can be replaced in the hazardous area. The emergency lighting cycle can be set locally for
1.5 or 3 hours. A remote switch
inquiry is standard.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10 or 20 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Maintenance possible even
in hazardous areas
The battery is installed in a separate, certified housing and Ex-d
connectors link the battery unit
and the luminaire. After loosening the locking screws, the battery can be taken away, whereby the Ex-d switching contact in
the flameproof compartment is
cut-off, thus disconnecting the
battery circuit. As a result, the
battery is cut off completely
from the charging circuit of the
luminaire and it can therefore,
also be replaced in the hazardous area at every time. A detachable strap protects the insert from being dropped
inadvertently.
International certification
Special versions according to
the NEC standards are available
for use on the American market. CSA certification for the
types of luminaires eLLK 92
NIB 2217 (2 x 17 W) and eLLK
92 NIB 4232 (2 x 32 W) allows
their use there.
Other country-specific approvals, such as for Brazil or the
new Eurasian Conformity (EAC)
for placing them on the market
in Russia, Belarus and Kazakhstan, are available.
Features
• Standard dual channel ballast with EOL monitoring
• Can be used with CEAG LED module
• Automatic weekly 5 minute function test
• Automatic quarterly partial duty cycle test
• LED display for indication of the charging, operation or
fault status
• Capacity-dependent charging of the battery
• Easy replacement of battery, even in Ex-area
• Double-sided central locking facility
• Safety interlocking system due to an integrated forced
isolating switch
• Safety standard IP66
1.2.28
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.4
eLLK 92018/18 NIB / eLLK 92036/36 NIB / eLLM 92018/18 NIB
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
eLLK 92018/18 NIB
eLLK 92018/18 NIB
(2 x 18 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
1
1 2260 879 101
eLLK 92018/18 NIB
(2 x 18 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
1 2260 879 103
eLLK 92018/18 NIB
(2 x 18 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2260 879 109
eLLK 92018/18 NIB
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2260 879 111
eLLK 92018/18 NIB
(2 x 18 W)
1/6-1M 1)
1x6
x
–
2 x M25,
metal thread
2 x M25
1 2260 879 609
eLLK 92018/18 NIB
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M25,
metal thread
4 x M25
1 2260 879 611
1x8
–
–
2 x M25,
plastic
1
1 2273 879 101
1
1 2261 879 101
eLLM 92018/18 NIB 2)
eLLM 92018/18 NIB
(2 x 18 W)
2/6-2K
eLLK 92036/36 NIB
eLLK 92036/36 NIB
(2 x 36 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
eLLK 92036/36 NIB
(2 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
1 2261 879 103
eLLK 92036/36 NIB
(2 x 36 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2261 879 109
eLLK 92036/36 NIB
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2261 879 111
eLLK 92036/36 NIB
(2 x 36 W)
1/6-1M 1)
1x6
x
–
2 x M25,
metal thread
2 x M25
1 2261 879 609
eLLK 92036/36 NIB
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M25,
metal thread
4 x M25
1 2261 879 611
eLLK 92 NIB 2217/U240 2/6-2M
(2 x 17 W)
2x6
–
x
2 x 3/4'' NPT
Myers Hub
Adapter, 2 x
metal thread
2 x M25
1 2260 879 311
eLLK 92 NIB 2217/U120 2/6-2M
(2 x 17 W)
2x6
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub
Adapter, 2 x M25
metal thread
1 2260 879 333
eLLK 92 NIB 4232/U240 2/6-2M
(2 x 32 W)
2x6
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub
Adapter, 2 x M25
metal thread
1 2261 879 311
eLLK 92 NIB 2432/U120 2/6-2M
(2 x 32 W)
2x6
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub
Adapter, 2 x M25
metal thread
1 2261 879 333
eLLK 92 NIB 2217 3)
eLLK 92 NIB 4232 3)
1)
with metal thread, without cable gland; 2) Pole mounting light fitting; 3) for use according to NEC-standards
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Application
Order No.
LED module 400
for eLLK 92 018/18 / eLLK 92 LED 400 conversion kit
1 2255 213 501
LED module 800
for eLLK 92 036/36 / eLLK 92 LED 800 conversion kit
1 2256 226 501
Single sided through wiring 2/6
with 2 entries M25, incl. terminals and
mounting material
for eLLM 92 018/18 NIB
2 2218 602 000
EATON’S CROUSE-HINDS BUSINESS
1.2.29
Dimension drawing / Polar curve
2.4
eLLK 92018/18 NIB / eLLK 92036/36 NIB / eLLM 92018/18 NIB
Polar curve eLLK 92018/18 NIB /
eLLK 92036/36 NIB
2
90
90
40
75
75
80
60
60
120
45
45
160
30
30
200
0
15
15
C 0
C90
l/cd/klm
Polar curve eLLK/eLLM 920../.. NIB
in emergency operation
90
90
40
75
75
80
60
60
120
45
45
160
30
30
200
0
15
15
C 0
C90
l/cd/klm
eLLK 92018/18 NIB
M25 x 1.5
Sechskant SW 13
188
46
65
130
21
400
M8, 14 tief
900
eLLK 92036/36 NIB
188
46
65
130
Hexagon SW 13
M25 x 1.5
21
700
M8, 14 deep
1500
eLLM 92...
eLLM 92018/18 NIB
20
Hexagon SW 13
76
130
1205
150
188
44
33
Version 2/6
880
Dimensions in mm
1.2.30
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLK 92018/18 NIB (2 x 18 W) / eLLK 92036/36 NIB (2 x 36 W)
2.4
2
Technical data
eLLK 92018/18 NIB (2 x 18 W)
eLLK 92036/36 NIB (2 x 36 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-20 °C up to +50 °C
(specified data: -5 °C up to +35 °C)
-20 °C up to +55 °C
(specified data: -5 °C up to +35 °C)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC / optional 110 - 127 V AC
220 - 254 V AC / optional 110 - 127 V AC
Rated current
0.23 A
0.4 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
78 %
Luminous flux in emergency operation
(1.5 h, one lamp)
1215 lm (90 %)
1507 lm (45 %)
Luminous flux in emergency operation
(3 h, one lamp)
607 lm (45 %)
837 lm (25 %)
Rated emergency lighting duration
Lamps can be set on site for an
emergency lighting duration of 1.5 or 3 hours (single lamp)
Lamps can be set on site for an
emergency lighting duration of 1.5 or 3 hours (single lamp)
Dimensions (L x W x H)
900 x 188 x 130 mm
1500 x 188 x 130 mm
2
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
8.8 kg
12 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.31
Technical data
2.4
eLLM 92018/18 NIB
2
Technical data
eLLM 92018/18 NIB (2 x 18 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb ib IIC T4
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-20 °C up to +50 °C
(specified data: -5 °C up to +35 °C)
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
Rated current
0.23 A
Frequency
50 - 60 Hz
Charging duration
t 14 h
Power factor cos M
t 0.95
Circuit
EVG with emergency lighting supply
Protection class
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
Rated luminous flux
2700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
Luminous flux in emergency operation
(1.5 h, one lamp)
1215 lm (90 %)
Luminous flux in emergency operation
(3 h, one lamp)
607 lm (45 %)
Rated emergency lighting duration
Lamps can be set on site for an
emergency lighting duration of 1.5 or 3 hours (single lamp)
Dimensions (L x W x H)
1205 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
Weight
10.5 kg
Pole socket
Ø 44 x 150 mm
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
depends on used lamps
1.2.32
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLK 92 NIB 2217/U120/240 (2 x 17 W) / eLLK 92 NIB 4232/U120/240 (2 x 32 W)
2.4
2
Technical data
eLLK 92 NIB 2217/U120/240 (2 x 17 W)
eLLK 92 NIB 4232/U120/240 (2 x 32 W)
Marking accd. to CEC 018
Ex d e ib m IIC T4
Class II Div. 1 Gr. E, F and G
Ex d e ib m IIC T4
Class II Div. 1 Gr. E, F and G
Marking accd. to NEC 500/505
Class I Zone 1 AEx de ib m IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Class I Zone 1 AEx de ib m IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Certificate of Compliance
CSA 10.2325079
CSA 10.2325079
Permissible ambient temperature
-20 °C up to +50 °C
(specified data: -5 °C up to +35 °C)
-20 °C up to +50 °C
(specified data: -5 °C up to +35 °C)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
120 V / 240 V AC
120 V / 240 V AC
Rated current
0.38 A / 0.18 A
0.70 A / 0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x F17 T8
2 x F32 T8
Rated luminous flux
2600 lm 1)
6600 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
78 %
Luminous flux in emergency operation
(1.5 h, one lamp)
1170 lm (90 %)
1485 lm (45 %)
Luminous flux in emergency operation
(3 h, one lamp)
585 lm (45 %)
825 lm (25 %)
Rated emergency lighting duration
Lamps can be set on site for an
emergency lighting duration of 1.5 or 3 hours
Lamps can be set on site for an
emergency lighting duration of 1.5 or 3 hours
Dimensions (L x W x H)
900 x 188 x 130 mm
1500 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE;
max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE;
max. 2 x 6 mm2 per terminal
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
10.2 kg
12.2 kg
Cable glands / gland plates /
enclosure drilling
3/4'' NPT metal thread with dustcover
3/4'' NPT metal thread with dustcover
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.33
2.5
2
Ex-linear light fittings made
of stainless steel
eLLS 08018/18 / eLLS 08036/36 / eLLS 08018/18 NIB / eLLS 08036/36 NIB
(Zone 1, 2, 21, 22)
Linear light fittings made
of stainless steel
The light fitting series eLLS 08
combines the latest lighting
technology with a robust construction. Thanks to a new
charging and monitoring technology with intelligent microelectronics, the NIB emergency
lighting luminaires provide reliable safety and reduced maintenance costs. Because they are
made of high-grade, seawater-
resistant stainless steel, they
are extremely robust and resistant to aggressive chemical environments and are therefore,
ideal for all hazardous areas
with extreme ambient conditions.
Long-term safety
The luminaires are equipped
with a two-channel electronic
ballast that features a reliable
EOL circuit. Thus, the lamps are
checked for proper operation
and shut down safely in the
event of a malfunction at the
end of their service life. With
the NIB-version a function test
is carried out automatically on a
weekly basis and a quarterly,
partial duty-cycle test. These
tests provide additional safety
and drastically reduce the necessary amount of manual tests.
The charging and discharging
functions are monitored constantly by the micro-processor.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10 or 20 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Features
• High-grade, seawater-resistant stainless steel housing
• Cost efficient installation due to single-ended through-wiring
• Dual channel ballast with EOL monitoring
• Automatic function test and partial duty cycle test (NIB)
• LED display for indication of the charging, operation or
fault status
• Easy replacement of battery, even in Ex-area
• High degree of protection IP66
1.2.34
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.5
eLLS 08018/18 / eLLS 08036/36 / eLLS 08018/18 NIB / eLLS 08036/36 NIB
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
eLLS 08018/18
eLLS 08018/18
(2 x 18 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
2
1 2225 218 001
eLLS 08018/18
(2 x 18 W)
1/6-1K
1x6
x
–
1 x M25,
plastic
1 x M25
1
1 2225 218 002
eLLS 08018/18
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2225 218 011
eLLS 08018/18
(2 x 18 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2225 218 012
eLLS 08036/36
(2 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
eLLS 08036/36
(2 x 36 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
eLLS 08036/36
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2226 236 011
eLLS 08036/36
(2 x 36 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2226 236 012
eLLS 08036/36
2
1 2226 236 001
1
1 2226 236 002
eLLS 08018/18 NIB
eLLS 08018/18 NIB
(2 x 18 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
2
1 2225 218 021
eLLS 08018/18 NIB
(2 x 18 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
1 x M25
2
1 2225 218 022
eLLS 08018/18 NIB
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2225 218 031
eLLS 08018/18 NIB
(2 x 18 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2225 218 032
2 x M25
eLLS 08036/36 NIB
eLLS 08036/36 NIB
(2 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
eLLS 08036/36 NIB
(2 x 36 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
eLLS 08036/36 NIB
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
3 x M20
1 2226 236 031
eLLS 08036/36 NIB
(2 x 36 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 2226 236 032
1)
2
1 2226 236 021
1
1 2226 236 022
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.35
Dimension drawing / Polar curve
2.5
eLLS 08018/18 / eLLS 08036/36 / eLLS 08018/18 NIB / eLLS 08036/36 NIB
Polar curve eLLS 08018/18
eLLS 08036/36
2
90
90
40
75
75
80
60
60
120
45
45
160
30
15
C 0
C90
200
0
30
15
l/cd/klm
Polar curve eLLS 08018/18 NIB /
eLLS 08036/36 NIB
(emergency mode)
90
90
40
75
75
80
60
60
120
45
45
160
30
15
200
0
30
15
C 0
C90
l/cd/klm
eLLS 08018/18 / eLLS 08036/36
188
46
M8
Sechskant SW 13
Hexagon S/W 13
142
18W = 732 / 36W = 1332
18W = 400 / 36W = 700
78
36
18W = 760 / 36W = 1360
eLLS 08018/18 NIB / eLLS 08036/36 NIB
Sechskant SW 13
Hexagon S/W 13
M8
188
46
142
18W = 886 / 36W = 1486
18W = 400 / 36W = 700
78
36
18W = 912 / 36W = 1512
Dimensions in mm
1.2.36
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLS 08018/18 (2 x 18 W) / eLLS 08036/36 (2 x 36 W)
2.5
2
Technical data
eLLS 08018/18 (2 x 18 W)
eLLS 08036/36 (2 x 36 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
D II 2 G Ex de IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Ex de IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
-25 °C up to +55 °C (UN t 220 V)
-25 °C up to +50 °C (UN d 220 V)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
110 - 254 V AC
110 - 250 V DC
110 - 254 V AC
110 - 250 V DC
Rated current
0.18 A
0.34
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
78 %
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE
max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE
max. 2 x 6 mm2 per terminal
Enclosure material
stainless steel 316 Ti (1.4571)
stainless steel 316 Ti (1.4571)
Weight
6.2 kg
8.9 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.37
Technical data
2.5
eLLS 08018/18 NIB (2 x 18 W) / eLLS 08036/36 NIB (2 x 36 W)
2
Technical data
eLLS 08018/18 NIB (2 x 18 W)
eLLS 08036/36 NIB (2 x 36 W)
EC-Type Examination Certificate
BVS 09 ATEX E 034
BVS 09 ATEX E 034
IECEx Certificate of Conformity
IECEx BVS 09.0033
IECEx BVS 09.0033
Marking accd. to 94/9/EC
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db
D II 2 G Ex de mb ib IIC T4 Gb
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db IP66
Ex de mb ib IIC T4 Gb
Ex tb IIIC T80 °C Db IP66
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +55 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC / optional 110 - 127 V AC
220 - 254 V AC / optional 110 - 127 V AC
Rated current
0.23 A
0.40
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
78 %
Luminous flux in emergency operation
(1.5 h, one lamp)
1215 lm (90 %)
1507 lm (45 %)
Luminous flux in emergency operation
(3 h, one lamp)
607 lm (45 %)
837 lm (25 %)
Rated emergency lighting duration
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
Dimensions (L x W x H)
900 x 188 x 130 mm
1500 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure material
stainless steel 316 Ti (1.4571)
stainless steel 316 Ti (1.4571)
Weight
10.4 kg
14.0 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
1.2.38
EATON’S CROUSE-HINDS BUSINESS
Notizen
2.5
2
www.ceag.de
EATON'S CROUSE-HINDS BUSINESS
Ex-Langfeldleuchten EATON’S CROUSE-HINDS BUSINESS
2.1.2.39
1.2.39
2.6
2
Ex-Recessed, ceiling light fittings in metal
design
eLLB 20…
(Zone 1, 2, 21, 22)
The explosion-protected lighting concept for clean rooms
The Ex-recessed ceiling light fittings of the series eLLB 20 are
equipped with EVG 09 electronic ballasts and are suitable for
two-pin fluorescent lamps.
These lamps are used for surface and flush mounting in ceilings, in particular in clean rooms
where smooth, flush surfaces,
are very important. They are often used in the pharmaceutical
and chemical industries, and experimental facilities, as well as
in paint shops and spraying cabinets.
Designed for easy installation
The housing is made of whitepainted steel sheet with an integrally moulded cover frame
or, optionally, of polished stainless steel. It is installed securely in the ceiling by means of
special fixing elements that allow a universal and simple
mounting in recessed clean
room ceilings that are 25 to 90
mm thick. In addition, it can
also be fixed by means of two
M8 drilled holes in the top of
the housing. The hinged, frameless pane made of 6 mm thick
safety glass is fixed with cap-
tive screws and has inside
hinges. The sealing material is
guaranteed silicone-leak-proof.
Together with the generously
dimensioned terminal compartment, the standard, twin-ended
through-wiring allows a
cost-saving installation.
Long-term safety
The luminaires of this robust
lighting series with plastic enclosure are equipped with a
highly-efficient electronic ballast
that features a reliable EOL circuit. Thus, the lamps are
checked for proper operation
and shut down safely in the
event of a malfunction at the
end of the service life. In addition, the dual-channel structure
of the electronic ballasts allows
the safe operation of the second lamp if one lamp fails.
Versatile
The wide input voltage range
and important national and international approvals allow the
global use of this successful
series of light fittings.
Special versions according to
the NEC standards are available
for use on the American market. CSA certification for the
types of luminaires
eLLB 202217 (2 x 17 W) and
eLLB 204232 (2 x 32 W) allows
their use there.
Features
• Standard dual channel ballast with EOL monitoring
• Flush installation, specially for clean rooms
• Available in painted sheet steel or stainless steel
• Safety interlocking due to integral automatic disconnector
• Suitable for B15 fire-resistant ceilings
• High degree of protection IP66
1.2.40
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.6
eLLB 20 ...
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
eLLB 20018/18
(2 x 18 W)
2/6-2K
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1 2190 218 001
eLLB 20018/18
(2 x 18 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1 2190 218 011
eLLB 20018/18
(2 x 18 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 101
eLLB 20018/18
(2 x 18 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 111
eLLB 20036/36
(2 x 36 W)
2/6-2K 1)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 001
eLLB 20036/36
(2 x 36 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 011
eLLB 20036/36
(2 x 36 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 101
eLLB 20036/36
(2 x 36 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 111
eLLB 20058/58
(2 x 36 W)
2/6-2K 1)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 258 001
eLLB 20058/58
(2 x 36 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 258 011
eLLB 20058/58
(2 x 36 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 258 101
eLLB 20058/58
(2 x 36 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 258 111
eLLB 20418
(4 x 18 W)
2/6-2K 1)
painted
2x6
–
x
2 x M25, plastic
2 x M25
1
1 2190 418 001
eLLB 20418
(4 x 18 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 418 011
eLLB 20418
(4 x 18 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 101
eLLB 20418
(4 x 18 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 111
eLLB 20436
(4 x 36 W)
2/6-2K 1)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 436 001
eLLB 20436
(4 x 36 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 436 011
eLLB 20436
(4 x 36 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 101
eLLB 20436
(4 x 36 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 111
eLLB 202217/U240 2/6-2M 1)
2x6
(2 x 17 W) 2)
NPT - painted
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub Adapter,
2 x metal thread
1 2190 217 101
2x6
eLLB 202217/U240 2/6-2M 1)
NPT - st. steel
(2 x 17 W) 2)
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub Adapter,
2 x metal thread
1 2190 217 111
eLLB 204232/U240 2/6-2M 1)
2x6
(2 x 32 W) 2)
NPT - painted
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub Adapter,
2 x metal thread
1 2190 232 101
2x6
eLLB 204232/U240 2/6-2M 1)
NPT - st. steel
(2 x 32 W) 2)
–
x
2 x 3/4'' NPT
2 x M25
Myers Hub Adapter,
2 x metal thread
1 2190 232 111
2
eLLB 20018/18
eLLB 20036/36
eLLB 20058/58
eLLB 20418
eLLB 20436
eLLB 202217
eLLB 204232
1)
with metal thread, without cable gland / 2) for use according to NEC-standards
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.41
Dimension drawing / Polar curve
2.6
eLLB 20 ...
Polar curve eLLB 20018/18 /
eLLB 20036/36 /
eLLB 20058/58
2
90
90
50
75
75
100
60
60
150
45
45
200
30
30
15
C 0
C90
250
0
15
l/cd/klm
Polar curve eLLB 20418
eLLB 20436
90
90
50
75
75
100
60
60
150
45
45
200
30
30
15
C 0
C90
250
0
15
l/cd/klm
eLLB ...
862 (18 W)
1460 (36 W)
1760 (58 W)
2 x 18/36/58 W
400 (18 W)
700 (36/58 W)
M8, 15 deep
~430
M25
~46
802
1400
1700
~ 340
~115
~120
ap.
30
approx.
85
~115
~120
M6
4 x 18/36 W
~280
M25
~46
~490
eLLB ...
A
B
eLLB 20018/18
315+3
832+5
eLLB 20036/36
315+3
1432+5
eLLB 20058/58
315+3
1732+5
eLLB 20418
465+3
832+5
eLLB 20436
465+3
1432+5
Dimensions in mm
1.2.42
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLB 20018/18 / eLLB 20036/36
2.6
2
Technical data
eLLB 20018/18
eLLB 20036/36
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4
D II 2 D Ex tD A21 IP66 T80 °C
D II 2 G Ex de IIC T4
D II 2 D Ex tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
110 - 254 V AC
110 - 250 V DC
110 - 254 V AC
110 - 250 V DC
Rated current
0.18 A
0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
70%
70%
Dimensions (L x W x H)
862 x 340 x 120 mm
1460 x 340 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal,
through-wiring twin-ended
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
15 kg
22 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
2
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.43
Technical data
2.6
eLLB 20058/58 / eLLB 20418
2
Technical data
eLLB 20058/58
eLLB 20418
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4
D II 2 D Ex tD A21 IP66 T80 °C
D II 2 G Ex de IIC T4
D II 2 D Ex tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
110 - 254 V AC
110 - 250 V DC
Rated current
0.53 A
0.36 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 58 W (T8)
4 x T26 / 18 W (T8)
Rated luminous flux
10400 lm 1)
5400 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
68%
69%
Dimensions (L x W x H)
1760 x 340 x 120 mm
1)
862 x 430 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal,
through-wiring twin-ended
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
Painted steel sheet, white optional polished stainless steel
Painted steel sheet, white optional polished stainless steel
Weight
26 kg
25 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
2
depends on used lamps
with dustcover if entry/thread is not closed
1.2.44
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLB 20436
2.6
2
Technical data
eLLB 20436
EC-Type Examination Certificate
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T4
D II 2 D Ex tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
110 - 254 V AC
110 - 250 V DC
Rated current
0.68 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG
Protection class
I
Lamp / Illuminant
4 x T26 / 36 W (T8)
Rated luminous flux
13400 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
69%
Dimensions (L x W x H)
1460 x 430 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2) per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
Enclosure material
Painted steel sheet, white optional polished stainless steel
Weight
34 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.45
Technical data
2.6
eLLB 202217/U 240 (2 x 17 W) / eLLB 204232/U 240 (2 x 32 W)
2
Technical data
eLLB 202217/U 240 (2 x 17 W)
eLLB 204232/U 240 (2 x 32 W)
Marking accd. to CEC 018
Ex d e ib m IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 1 Gr. E, F and G
Ex d e ib m IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 1 Gr. E, F and G
Marking accd. to NEC 500/505
Class I Zone 1 AEx de IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Class I Zone 1 AEx de IIC T4
Class I Div. 2 Gr. A, B, C, D
Class II Div. 2 Gr. F and G
Certificate of Compliance
CSA 10.2325079
CSA 10.2325079
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C
Rated voltage
120 - 240 V
120 - 240 V
Rated current
0.38/0.18 A
0.70/0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x F17 T8
2 x F32 T8
Rated luminous flux
2600 lm 1)
6600 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Dimensions (L x W x H)
862 x 340 x 120 mm
1460 x 340 x 120 mm
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
Painted steel sheet, white optional polished stainless steel
Painted steel sheet, white optional polished stainless steel
Weight
15.2 kg
22.2 kg
Cable glands / gland plates /
enclosure drilling
3/4“ NPT metal thread with dustcover
3/4“ NPT metal thread with dustcover
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
depends on used lamps
1.2.46
EATON’S CROUSE-HINDS BUSINESS
2
www.ceag.de
EATON'S CROUSE-HINDS BUSINESS
Ex-Langfeldleuchten EATON’S CROUSE-HINDS BUSINESS
2.1.2.47
1.2.47
2.7
2
Ex-recess-mounted ceiling emergency
light fittings in metal design
eLLB 20… CG-S / eLLB 20… NIB
(Zone 1, 2, 21, 22)
The explosion-protection
lighting concept for clean
rooms
The Ex recess-mounted ceiling
emergency lighting eLLB 20 fittings are equipped with EVG 09
electronic ballasts and are suitable for two-pin fluorescent
lamps. These light fittings are
used for surface and flush
mounting in ceilings, in particular in clean rooms where
smooth, flush surfaces are very
important. They are often used
in the pharmaceutical and
chemical industries, and experimental facilities, as well as in
paint shops and spraying
cabinets.
Designed for easy installation
The housing is made of whitepainted steel sheet with an integrally moulded cover frame
or, optionally, of polished stainless steel. It is installed securely in the ceiling by means of
special fixing elements that allow a universal and simple
mounting in recessed clean
room ceilings that are 25 to 90
mm thick. In addition, it can
also be fixed by means of two
M8 drilled holes in the top of
the housing. The hinged, frameless pane made of safety glass
is fixed with captive screws and
has inside hinges. The sealing
material is guaranteed siliconeleak-proof. Together with the
generously dimensioned terminal compartment, the standard,
double-ended through-wiring allows a cost-saving installation.
With central monitoring
Safety is always our top priority.
This is why we also supply the
eLLB 20 recessed ceiling
mounting light fitting series
with a built-in CG-S module.
These luminaires with individual
monitoring can be connected to
a CEAG emergency lighting
supply system and, in the event
of an emergency, they provide
a reliable illumination of your
safety and escape routes.
If you need a reliable and
decentralised emergency
lighting
Emergency lighting eLLB 20 NIB
luminaires with a self-contained
battery system provide a decentralised solution for the mandatory emergency lighting, independent of central systems. In
large plants, in particular, these
luminaires offer significant cost
benefits.
More safety due to sophisticated micro-electronics
Thanks to a new charging and
monitoring technology with intelligent microelectronics, the
NIB emergency lighting luminaires provide reliable safety
and reduced maintenance
costs. A function test lasting
5 minutes, that is carried out
automatically on a weekly basis,
even during mains operation,
and a quarterly partial duty-cycle
test provide additional safety.
Features
• Standard dual channel ballast with EOL monitoring
• Flush installation, specially for clean rooms
• Available in painted sheet steel or stainless steel
• Safety interlocking due to integral automatic disconnector
• Automatic function test and partial duty cycle test
• LED display for indication of charging, operation or fault status
• Easy replacement of battery, even in Ex-area
• High degree of protection IP66
• Connection to CEAG emergency light monitoring systems
possible (CG-S)
• Suitable for ceiling B15 fire resistance
1.2.48
EATON’S CROUSE-HINDS BUSINESS
2.7
2
and drastically reduce the necessary amount of manual tests.
The charging and discharging
functions are monitored constantly by the micro-processor
and are indicated via a diode
display. Only the spent energy
is recharged – therefore, overcharging is not possible. The socalled memory effect cannot occur – the service life of the
battery is optimized.
The need to replace a battery, a
fault in the emergency lighting
circuit or a faulty battery is indicated by the LED display. Due
to a new type of battery connection, the battery can be replaced in the hazardous area.
The emergency lighting cycle
can be set locally for 1.5 or
3 hours. A remote switch inquiry is possible in conjunction
with the twin-ended throughwiring. The separate battery
housing can be mounted directly onto the light fitting or it can
be recess-mounted up to 1.5 m
away, depending on the ceiling
raster. Connection is made using eXLink connectors and no
tools are required.
Long-term safety
The recess-mounted ceiling
luminaires of this robust lighting
series with plastic enclosure are
equipped with a highly-efficient
electronic ballast, which has a
reliable EOL circuit. Thus, the
lamps are checked for proper
operation and shut down safely
in the event of a malfunction at
the end of the service life. In addition, the dual-channel structure of the electronic ballasts allows the safe operation of the
second lamp if one lamp fails.
Battery set NIB
EATON’S CROUSE-HINDS BUSINESS
1.2.49
Ordering details
2.7
eLLB 20 ... CG-S
Ordering details
Type
2
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
eLLB 20018/18 CG-S 2/6-2K
(2 x 18 W)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 218 703
eLLB 20018/18 CG-S 2/6-2M 1)
(2 x 18 W)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 713
eLLB 20018/18 CG-S 2/6-2M 1)
(2 x 18 W)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 723
eLLB 20018/18 CG-S 2/6-2K
(2 x 18 W)
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 218 733
eLLB 20036/36 CG-S 2/6-2K
(2 x 36 W)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 703
eLLB 20036/36 CG-S 2/6-2M 1)
(2 x 36 W)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 713
eLLB 20036/36 CG-S 2/6-2M 1)
(2 x 36 W)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 723
eLLB 20036/36 CG-S 2/6-2K (2 x 36 W)
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 733
eLLB 20058/58 CG-S 2/6-2K
(2 x 58 W)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 258 703
eLLB 20058/58 CG-S 2/6-2M 1)
(2 x 58 W)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 258 713
eLLB 20058/58 CG-S 2/6-2M 1)
(2 x 58 W)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 258 723
eLLB 20058/58 CG-S 2/6-2K
(2 x 58 W)
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 258 733
1
1 2190 418 703
eLLB 20018/18 CG-S
eLLB 20036/36 CG-S
eLLB 20058/58 CG-S
eLLB 20418 CG-S
eLLB 20418 CG-S
(4 x 18 W)
2/6-2K
painted
2x6
–
x
2 x M25,
plastic
2 x M25
eLLB 20418 CG-S
(4 x 18 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 713
eLLB 20418 CG-S
(4 x 18 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 723
eLLB 20418 CG-S
(4 x 18 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 418 733
1
1 2190 436 703
eLLB 20436 CG-S
eLLB 20436 CG-S
(4 x 36 W)
2/6-2K
painted
2x6
–
x
2 x M25,
plastic
2 x M25
eLLB 20436 CG-S
(4 x 36 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 713
eLLB 20436 CG-S
(4 x 36 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 723
eLLB 20436 CG-S
(4 x 36 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1)
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
1.2.50
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1
1 2190 436 733
Ordering details
2.7
eLLB 20 ... NIB
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
eLLB 20018/18 NIB
eLLB 20018/18 NIB 2/6-2K
(2 x 18 W)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 218 002
eLLB 20018/18 NIB 2/6-2K (2 x 18 W)
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 218 012
eLLB 20018/18 NIB 2/6-2M 1)
(2 x 18 W)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 102
eLLB 20018/18 NIB 2/6-2M 1)
(2 x 18 W)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 218 112
eLLB 20036/36 NIB 2/6-2K
(2 x 36 W)
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 002
eLLB 20036/36 NIB 2/6-2K (2 x 36 W)
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 236 012
eLLB 20036/36 NIB 2/6-2M 1)
(2 x 36 W)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 102
eLLB 20036/36 NIB 2/6-2M 1)
(2 x 36 W)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 236 112
eLLB 20036/36 NIB
eLLB 20418 NIB
eLLB 20418 NIB
(4 x 18 W)
2/6-2K
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 418 002
eLLB 20418 NIB
(4 x 18 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 418 012
eLLB 20418 NIB
(4 x 18 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 102
eLLB 20418 NIB
(4 x 18 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 418 112
eLLB 20436 NIB
eLLB 20436 NIB
(4 x 36 W)
2/6-2K
painted
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 436 002
eLLB 20436 NIB
(4 x 36 W)
2/6-2K
st. steel
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 2190 436 012
eLLB 20436 NIB
(4 x 36 W)
2/6-2M 1)
painted
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 102
eLLB 20436 NIB
(4 x 36 W)
2/6-2M 1)
st. steel
2x6
–
x
4 x M20,
metal thread
2 x M20
1 2190 436 112
1)
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2.51
Dimension drawing / Polar curve
2.7
eLLB 20 ... CG-S / eLLB 20 ... NIB
Polar curve eLLB 20018/18 NIB / CG-S
eLLB 20036/36 NIB / CG-S
eLLB 20058/58 CG-S
2
90
90
50
75
75
100
60
60
150
45
45
200
30
30
15
C 0
C90
250
0
15
l/cd/klm
Polar curve eLLB 20418 CG-S / NIB
eLLB 20436 CG-S / NIB
90
90
50
75
75
100
60
60
150
45
45
200
30
30
15
C 0
C90
250
0
15
l/cd/klm
eLLB 20...
862 (18 W)
1460 (36 W)
1760 (58 W)
2 x 18/36/58 W
400 (18 W)
700 (36/58 W)
M8, 15 deep
~430
M25
~46
802
1400
1700
~ 340
~115
~120
ap.
30
approx.
85
~115
~120
M6
4 x 18/36 W
~280
M25
~46
~490
eLLB 20...
A
B
eLLB 20018/18 CG-S/NIB
315+3
832+5
eLLB 20036/36 CG-S/NIB
315+3
1432+5
eLLB 20058/58 CG
315+3
1732+5
eLLB 20418 CG-S/NIB
465+3
832+5
eLLB 20436 CG-S/NIB
465+3
1432+5
Battery housing
340
350
292+3
315+3
min.25
Thickness of
the ceiling
max. 90
143
Ceiling cut-out
Dimensions in mm
1.2.52
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLB 20018/18 CG-S
2.7
2
Technical data
eLLB 20018/18 CG-S
EC-Type Examination Certificate
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex e d m IIC T4
D II 2 D tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
Rated voltage
220 - 254 V AC
195 - 250 V DC
Rated current
0.19 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG/CG-S
Protection class
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
Rated luminous flux
2700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
70%
Luminous flux in emergency operation
1350 lm 1)
Dimensions (L x W x H)
862 x 280 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
Weight
15.5 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.53
Technical data
2.7
eLLB 20036/36 CG-S / eLLB 20058/58 CG-S
2
Technical data
eLLB 20036/36 CG-S
eLLB 20058/58 CG-S
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex e d m IIC T4
D II 2 D tD A21 IP66 T80 °C
D II 2 G Ex e d m IIC T4
D II 2 D tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C
Rated voltage
220 - 254 V AC
195 - 250 V DC
220 - 254 V AC
195 - 250 V DC
Rated current
0.35 A
0.54 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S
EVG/CG-S
Protection class
I
I
Lamp / Illuminant
2 x T26 / 36 W (T8)
2 x T26 / 58 W (T8)
1)
10400 lm 1)
Rated luminous flux
6700 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
70%
68%
1)
Luminous flux in emergency operation
3350 lm
Dimensions (L x W x H)
1460 x 280 x 120 mm
5200 lm 1)
1760 x 280 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal,
through-wiring twin-ended
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
22.5 kg
26.5 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
2
depends on used lamps
with dustcover if entry/thread is not closed
1.2.54
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
2.7
eLLB 20418 CG-S / eLLB 20436 CG-S
2
Technical data
eLLB 20418 CG-S
eLLB 20436 CG-S
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex e d m IIC T4
D II 2 D tD A21 IP66 T80 °C
D II 2 G Ex e d m IIC T4
D II 2 D tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C
Rated voltage
220 - 254 V AC
195 - 250 V DC
220 - 254 V AC
195 - 250 V DC
Rated current
0.37 A
0.69 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S
EVG/CG-S
Protection class
I
I
Lamp / Illuminant
4 x T26 / 18 W (T8)
4 x T26 / 36 W (T8)
1)
13400 lm 1)
Rated luminous flux
5400 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
69%
69%
1)
Luminous flux in emergency operation
1350 lm
Dimensions (L x W x H)
862 x 430 x 120 mm
3350 lm 1)
1460 x 430 x 120 mm
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm per terminal,
through-wiring twin-ended
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal,
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
25.5 kg
34.5 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
2
depends on used lamps
with dustcover if entry/thread is not closed
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2.55
Technical data
2.7
eLLB 20018/18 NIB / eLLB 20036/36 NIB
2
Technical data
eLLB 20018/18 NIB
eLLB 20036/36 NIB
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex e d m ib IIC T4
D II 2 D tD A21 IP66 T80 °C
D II 2 G Ex e d m ib IIC T4
D II 2 D tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-20 °C up to +50 °C (specified data: -5 °C up to +35 °C)
-20 °C up to +50 °C (specified data: -5 °C up to +35 °C)
Battery
battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
Rated voltage
220 - 254 V AC
220 - 254 V AC
Rated voltage (optional)
110 - 127 V AC
110 - 127 V AC
Rated current
0.23 A
0.40 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1)
2 x T26 / 36 W (T8)
6700 lm 1)
Rated luminous flux
2600 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
70%
70%
Luminous flux in emergency operation
(1.5 h, one lamp)
1215 lm (90 %)
1507 lm (45 %)
Luminous flux in emergency operation
(3 h, one lamp)
607 lm (45 %)
837 lm (25 %)
Rated emergency lighting duration
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
Dimensions (L x W x H)
862 x 280 x 120 mm
1460 x 280 x 120 mm
Battery housing dimensions (L x W x H)
305 x 340 x 143 mm
305 x 340 x 143 mm
Connection battery enclosure
connection via 1.5 m long connection lead with plugs
connection via 1.5 m long connection lead with plugs
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
18 kg
25 kg
Battery housing weight
5.7 kg
5.7 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
1.2.56
EATON’S CROUSE-HINDS BUSINESS
Technical data
eLLB 20418 NIB / eLLB 20436 NIB
2.7
2
Technical data
eLLB 20418 NIB
eLLB 20436 NIB
EC-Type Examination Certificate
DMT 02 ATEX E 069
DMT 02 ATEX E 069
IECEx Certificate of Conformity
IECEx BKI 08.0017
IECEx BKI 08.0017
Marking accd. to 94/9/EC
D II 2 G Ex e d m ib IIC T4
D II 2 D tD A21 IP66 T80 °C
D II 2 G Ex e d m ib IIC T4
D II 2 D tD A21 IP66 T80 °C
Marking accd. to IECEx
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Ex edmb ib IIC T4 Gb
Ex tb IIIC IP66 T 80 °C Db
Permissible ambient temperature
-20 °C up to +50 °C (specified data: -5 °C up to +35 °C)
-20 °C up to +50 °C (specified data: -5 °C up to +35 °C)
Battery
battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
battery set with 7 Ah-NC battery, with LED display
and monitoring via microprocessor
Rated voltage
220 - 254 V AC
220 - 254 V AC
Rated voltage (optional)
110 - 127 V AC
110 - 127 V AC
Rated current
0.41 A
0.74 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
4 x T26 / 18 W (T8)
1)
4 x T26 / 36 W (T8)
13400 lm 1)
Rated luminous flux
5400 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
69%
69%
Luminous flux in emergency operation
(1.5 h, one lamp)
1215 lm (90 %)
1507 lm (45 %)
Luminous flux in emergency operation
(3 h, one lamp)
607 lm (45 %)
837 lm (25 %)
Rated emergency lighting duration
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
1-lamps can be set on site
for an emergency lighting duration of 1.5 or 3 hours
Dimensions (L x W x H)
862 x 430 x 120 mm
1460 x 430 x 120 mm
Battery housing dimensions (L x W x H)
305 x 340 x 143 mm
305 x 340 x 143 mm
Connection battery enclosure
connection via 1.5 m long connection lead with plugs
connection via 1.5 m long connection lead with plugs
Connecting terminals
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
29 kg
38 kg
Battery housing weight
5.7 kg
5.7 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
single-safety glass pane of 6 mm thick
single-safety glass pane of 6 mm thick
Permissible ceiling tickness
for fixing accessories
min. 25 mm to max. 90 mm
min. 25 mm to max. 90 mm
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.57
2.8
2
Ex-recess-mounted, ceiling emergency
light fittings in compact metal design
RLF/RLF-INOX 250 18 - 58 W / RLF/RLF-INOX 250... N 18 - 36 W / RLF 250 18 - 58 W CG-S
(Zone 1, 2, 21, 22)
The explosion-protected lighting concept for clean rooms
The Ex recess-mounted, ceiling
light fittings RLF .. are equipped
with EVG 09 electronic ballasts
and are suitable for two-pin fluorescent lamps. These lamps
are used for surface and flush
mounting in ceilings, in particular in clean rooms where
smooth, flush surfaces are very
important. The area of application is in the pharmaceutical
and chemical industries, and experimental facilities, as well as
in paint shops and spraying cabinets.
Designed for easy installation
The housing comprises whitepainted steel sheet with an optional cover frame for ceiling
mounting. The type RLF-INOX is
made of polished stainless
steel. In addition, it can also be
fixed by means of two M8
drilled holes on the top of the
housing. The hinged, frameless
pane made of 5 mm thick safety glass is fixed with 3 resp.
4 captive screws and has inside
hinges. The EPDM sealing ensures the high degree of protection IP65.
Long-term safety
Thanks to its large input voltage
range, the latest generation of
electronic ballasts can be used
internationally and features an
EOL circuit. The dual-channel
structure of the electronic ballasts allows the safe operation
of the second lamp if one lamp
fails.
With central monitoring
Safety is always our top priority.
That is why we also offer the
RLF recessed ceiling light fitting
series with a CG-S module.
Here only one lamp is operated
during emergency operation.
These luminaires with individual
monitoring can be connected to
a CEAG emergency lighting
supply system and, in the event
of an emergency, they provide
a reliable illumination of your
safety and escape routes.
Versatile
In conjunction with the generously dimensioned terminal
compartment, the standard,
twin-ended through-wiring
allows a cost-effective installation. The luminaire switch reliably prevents the light from being turned on while the cover is
open.
Using mounting brackets the luminaires can
be installed adjustable on walls or ceilings
If you need a reliable and
decentralized emergency
lighting
The RLF… N emergency
luminaires with a self-contained
battery system provide a decentralised solution for the mandatory emergency lighting, independent of central systems. In
large plants, in particular, these
luminaires offer significant cost
benefits.
The emergency lighting version
with a self-contained batterysystem containing NC batteries
allows an emergency lighting
cycle of 1.5 or 3 hours.
Features
• Standard dual channel ballast with EOL monitoring
• Flush Installation, specially for clean rooms
• Available in painted sheet steel or stainless steel
• Safety interlock with integrated luminaire switch
• With self-contained battery unit (RLF 250…N)
• High degree of protection IP66
• Connection to CEAG emergency light monitoring systems
possible (CG-S)
• Suitable for B15 fire resistance ceilings
1.2.58
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.8
RLF 250 ... / RLF-INOX 250 ...
Ordering details
Type
Content
Terminals ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/ thread
Screw
plugs
Blanking Order No.
plug
2
RLF 250../.. (twin lamp)
RLF 25018/18 (2 x 18 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25018/18 (2 x 18 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 25036/36 (2 x 36 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25036/36 (2 x 36 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 25058/58 (2 x 58 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25058/58 (2 x 58 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
1
1 x M20
1 2283 218 001
1 2283 218 002
1
1 2283 236 001
1
1 2283 258 001
1 x M20
1 2283 236 002
1 x M20
1 2283 258 002
RLF 2503.. (three lamps)
RLF 250336 (3 x 36 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 250336 (3 x 36 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 250358 (3 x 58 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 250358 (3 x 58 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 250418 (4 x 18 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 250418 (4 x 18 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 250436 (4 x 36 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 250436 (4 x 36 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 250458 (4 x 58 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF 250458 (4 x 58 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
1
1 x M20
1 2283 336 011
1 2283 336 012
1
1 x M20
1 2283 358 011
1 2283 358 012
RLF 2504.. (four lamps)
1
1 x M20
1 2283 418 011
1 2283 418 012
1
1 x M20
1 2283 436 011
1 2283 436 012
1
1 x M20
1 2283 458 011
1 2283 458 012
RLF 250../.. CG-S (twin lamp)
RLF 25018/18 CG-S (2 x 18 W) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25018/18 CG-S (2 x 18 W) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
1
1 x M20
RLF 25036/36 CG-S (2 x 36 W) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25036/36 CG-S (2 x 36 W) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF 25058/58 CG-S (2 x 58 W) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF 25058/58 CG-S (2 x 58 W) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
1 x M20
1 x M20
1 2283 218 401
1 2283 218 402
1
1 x M20
1 2283 236 401
1 2283 236 402
1
1 2283 258 401
1 2283 258 402
RLF-INOX 250../.. (twin lamp, stainless steel version)
RLF-INOX 25018/18 (2 x 18 W) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF-INOX 25018/18 (2 x 18 W)) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 25036/36 (2 x 36 W) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 25036/36 (2 x 36 W)) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF-INOX 25058/58 (2 x 58 W) 2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 25058/58 (2 x 58 W) 2/5-2M1)
2x5
–
x
2 x M20, metal thread
1 2283 218 003
1
1 2283 218 004
1
1 2283 236 003
1 x M20
1 2283 236 004
1
1 x M20
1 2283 258 003
1 2283 258 004
RLF-INOX 2503.. (three lamps, stainless steel version)
RLF-INOX 250336 (3 x 36 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 250336 (3 x 36 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF-INOX 250358 (3 x 58 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 250358 (3 x 58 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
x
2 x M25, plastic
1
1 x M20
1 2283 336 001
1 2283 336 002
1
1 x M20
1 2283 358 001
1 2283 358 002
RLF-INOX 2504.. (four lamps, stainless steel version)
RLF-INOX 250418 (4 x 18 W)
2/5-2K
2x5
1)
–
RLF-INOX 250418 (4 x 18 W)
2/5-2M
2x5
–
x
2 x M20, metal thread
RLF-INOX 250436 (4 x 36 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 250436 (4 x 36 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
RLF-INOX 250458 (4 x 58 W)
2/5-2K
2x5
–
x
2 x M25, plastic
RLF-INOX 250458 (4 x 58 W)
2/5-2M1)
2x5
–
x
2 x M20, metal thread
1
1 2283 418 001
1
1 2283 436 001
1 x M20
1 2283 418 002
1 x M20
1 2283 436 002
1
1 x M20
1 2283 458 001
1 2283 458 002
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.59
Ordering details
2.8
RLF 250 ../.. N /
RLF INOX 250 ../.. N
Ordering details
Type
2
Content
Emergen- Terminals ThroughThroughcy lighting
wiring
wiring
duration
single-ended twin-ended
Cable gland/ thread
Screw
plugs
Order No.
RLF 25018/18 N (2 x 18 W) 2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 218 201
RLF 25018/18 N (2 x 18 W) 2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 218 202
RLF 25018/18 N (2 x 18 W) 2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 218 301
RLF 25018/18 N (2 x 18 W) 2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 218 302
RLF 25036/36 N (2 x 36 W) 2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 236 201
RLF 25036/36 N (2 x 36 W) 2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 236 202
RLF 25036/36 N (2 x 36 W) 2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 236 301
RLF 25036/36 N (2 x 36 W) 2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 236 302
RLF 250../.. N (twin lamp)
RLF 2504.. N (four lamps)
RLF 250418 N (4 x 18 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 418 201
RLF 250418 N (4 x 18 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 418 202
RLF 250418 N (4 x 18 W)
2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 418 301
RLF 250418 N (4 x 18 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 418 302
RLF 250436 N (4 x 36 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 436 201
RLF 250436 N (4 x 36 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 436 202
RLF 250436 N (4 x 36 W)
2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 436 301
RLF 250436 N (4 x 36 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 436 302
RLF INOX 250../.. N (twin lamp, stainless steel version)
RLF-INOX 25018/18 N
(2 x 18 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 218 203
RLF-INOX 25018/18 N
(2 x 18 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 218 204
RLF-INOX 25018/18 N
(2 x 18 W)
2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 218 303
RLF-INOX 25018/18 N
(2 x 18 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 218 304
RLF-INOX 25036/36 N
(2 x 36 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 236 203
RLF-INOX 25036/36 N
(2 x 36 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 236 204
RLF-INOX 25036/36 N
(2 x 36 W)
2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 236 303
RLF-INOX 25036/36 N
(2 x 36 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 236 304
RLF INOX 2504.. N (four lamps, stainless steel version)
RLF-INOX 250418 N
(4 x 18 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 418 203
RLF-INOX 250418 N
(4 x 18 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 418 204
RLF-INOX 250418 N
(4 x 18 W)
2/6-2K
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 418 303
RLF-INOX 250418 N
(4 x 18 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 418 304
RLF-INOX 250436 N
(4 x 36 W)
2/6-2K
1.5 h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 436 203
RLF-INOX 250436 N
(4 x 36 W)
2/6-2M
1.5 h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 436 204
RLF-INOX 250436 N
(4 x 36 W)
2/6-2M
3h
2x6
–
x
2 x M25, plastic
1 x M25
1 2283 436 303
RLF-INOX 250436 N
(4 x 36 W)
2/6-2M
3h
2x6
–
x
2 x M20 x 1.5, metal thread
1 x M20
1 2283 436 304
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
1.2.60
EATON’S CROUSE-HINDS BUSINESS
Accessories / Polar curve / Dimension drawing
2.8
RLF 250 ... / RLF-INOX 250 ...
Accessories
Type
Application
Order No.
Mounting frame for ceiling mounting
for RLF 25018/18, 2 x 18W
3 2283 000 001
Mounting frame for ceiling mounting
for RLF 250418, 4 x 18 W
3 2283 000 002
Mounting frame for ceiling mounting
for RLF 250, 2/3 x 36 W,
3 2283 000 003
Mounting frame for ceiling mounting
for RLF 250436, 4 x 36 W
3 2283 000 004
Mounting frame for ceiling mounting
for RLF 250, 2/3 x 58 W
3 2283 000 005
Mounting frame for ceiling mounting
for RLF 250458, 4 x 58 W
3 2283 000 006
Mounting frame for ceiling mounting
for RLF-INOX 25018/18, 2 x 18W
3 2283 000 008
Mounting frame for ceiling mounting
for RLF-INOX 250418, 4 x 18 W
3 2283 000 009
Mounting frame for ceiling mounting
for RLF-INOX 25, 2/3 x 36 W,
3 2283 000 010
Mounting frame for ceiling mounting
for RLF-INOX 250436, 4 x 36 W
3 2283 000 011
Mounting frame for ceiling mounting
for RLF-INOX 25, 2/3 x 58 W
3 2283 000 012
Mounting frame for ceiling mounting
for RLF-INOX 250458, 4 x 58 W
3 2283 000 013
Set of wall bracket adjustable (2 pcs.)
for RLF 250..
3 2283 000 007
2
Polar curve RLF…
90
90
50
75
75
100
60
60
150
45
45
200
30
30
15
C 0
C90
250
0
15
l/cd/klm
RLF 250...
4 lamp = 362
2/3 lamp = 302
18 W = 701
36 W = 1312
58 W = 1611
130
Ceiling cut-out
1-3 lamp 323
4 lamp 383 18 W = 743
36 W = 1353
58 W = 1653
18 W = 450
36/58 W = 800
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.2.61
Technical data
2.8
RLF 25018/18 / RLF 250418 / RLF 25036/36 / RLF 250336
2
Technical data
RLF 25018/18 / RLF 250418
RLF 25036/36 / RLF 250336
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex ed IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
D II 2 G Ex ed IIC T4
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
-20 °C up to +40 °C
-20 °C up to +40 °C
Rated voltage
110 - 254 V AC /
110 - 250 V DC
110 - 254 V AC /
110 - 250 V DC
Rated current
0.18 A / 0.36 A
0.34 A / 0.51 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8) / 4 x T26 / 18 W (T8)
2 x T26 / 36 W (T8) / 3 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1) / 5400 lm 1)
6700 lm 1) / 10050 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061
Light efficiency in operation
70 % / 69 %
70 % / 68 %
Dimensions (L x W x H)
701 x 302 x 130 mm / 701 x 362 x 130 mm
2
1312 x 302 x 130 mm
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
Weight
6.9 kg / 9.5 kg
12.9 kg / 13.4 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm, Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
single-safety glass pane of 5 mm thick
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.62
EATON’S CROUSE-HINDS BUSINESS
Technical data
RLF 250436 / RLF 25058/58
2.8
2
Technical data
RLF 250436
RLF 25058/58
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex ed IIC T4
D II 2 D Ex tb IIIC T60 °C Db
D II 2 G Ex ed IIC T4
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
-20 °C up to +40 °C
-20 °C up to +40 °C
Rated voltage
110 - 254 V AC /
110 - 250 V DC
220 - 254 V AC /
195 - 250 V DC
Rated current
0.68 A
0.53 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
4 x T26 / 36 W (T8)
2 x T26 / 58 W (T8)
Rated luminous flux
13400 lm 1)
10400 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
69 %
68 %
Dimensions (L x W x H)
1312 x 362 x 130 mm
1611 x 302 x 130 mm
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
Weight
16.5 kg
17.2 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm, Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
single-safety glass pane of 5 mm thick
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.63
Technical data
2.8
RLF 250358 / RLF 250458
2
Technical data
RLF 250358
RLF 250458
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex ed IIC T4
D II 2 D Ex tb IIIC T60 °C Db
D II 2 G Ex ed IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
-20 °C up to +40 °C
-20 °C up to +40 °C
Rated voltage
220 - 254 V AC /
195 - 250 V DC
220 - 254 V AC /
195 - 250 V DC
Rated current
0.80 A
1.06 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
3 x T26 / 58 W (T8)
4 x T26 / 58 W (T8)
Rated luminous flux
15600 lm 1)
20800 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
66 %
67 %
Dimensions (L x W x H)
1611 x 302 x 130 mm
1611 x 362 x 130 mm
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
Weight
17.8 kg
19.8 Kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm, Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
single-safety glass pane of 5 mm thick
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.64
EATON’S CROUSE-HINDS BUSINESS
Technical data
RLF 25018/18 CG-S / RLF 25036/36 CG-S
2.8
2
Technical data
RLF 25018/18 CG-S
RLF 25036/36 CG-S
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex ed mb IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
D II 2 G Ex ed mb IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
-20 °C up to +40 °C
-20 °C up to +40 °C
Rated voltage
220 - 254 V AC /
195 - 250 V DC
220 - 254 V AC /
195 - 250 V DC
Rated current
0.19 A
0.35 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S
EVG/CG-S
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061
G13 accd. to IEC 60061
Light efficiency in operation
70 %
70 %
1)
3350 lm 1)
Luminous flux in emergency operation
1350 lm
Dimensions (L x W x H)
701 x 302 x 130 mm
1312 x 302 x 130 mm
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
painted steel sheet, white
optional: polished stainless steel 304 (1.4301)
Weight
7.6 kg
13.6 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm, Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
single-safety glass pane of 5 mm thick
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.65
Technical data
2.8
RLF 25058/58 CG-S
2
Technical data
RLF 25058/58 CG-S
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex ed mb IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
-20 °C up to +40 °C
Rated voltage
220 - 254 V AC /
195 - 250 V DC
Rated current
0.54 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG/CG-S
Protection class
I
Lamp / Illuminant
2 x T26 / 58 W (T8)
Rated luminous flux
10400 lm 1)
Lamp cap
G13 accd. to IEC 60061
Light efficiency in operation
68 %
Luminous flux in emergency operation
5200 lm 1)
Dimensions (L x W x H)
1611 x 302 x 130 mm
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm2
through-wiring twin-ended
Enclosure colour
white RAL 9010
Enclosure material
painted steel sheet,
optional: polished stainless steel 304 (1.4301)
Weight
17.9 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
1.2.66
EATON’S CROUSE-HINDS BUSINESS
Technical data
RLF 25018/18 N / RLF 25036/36 N / RLF 250418 N / RLF 250436 N
2.8
2
Technical data
RLF 25018/18 N / RLF 25036/36 N
RLF 250418 N / RLF 250436 N
EC-Type Examination Certificate
FTZU 06 ATEX 0050 X
FTZU 06 ATEX 0050 X
Marking accd. to 94/9/EC
D II 2 G Ex d e ib mb IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
D II 2 G Ex d e ib mb IIC T4 Gb
D II 2 D Ex tb IIIC T60 °C Db
Permissible ambient temperature
0 °C up to +40 °C (specified data)
0 °C up to +40 °C
Battery
3.6 V/4 Ah NC-Accu / 6 V/4 Ah NC-Accu
3.6 V/4 Ah NC-Accu / 6 V/4 Ah NC-Accu
Rated voltage
230 - 240 V AC
230 - 240 V AC
Rated current
0.20 A / 0.36 A
0.36 A / 0.68 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 24 h
t 24 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8) / 2 x T26 / 36 W (T8)
1)
1)
4 x T26 / 18 W (T8) / 4 x T26 / 36 W (T8)
5400 lm 1) / 13400 lm 1)
Rated luminous flux
2700 lm / 6700 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
70 %
70 %
Luminous flux in emergency operation
(1.5 h, one lamp)
270 lm (20 %) / 603 lm (18 %)
270 lm (20 %) / 603 lm (18 %)
Luminous flux in emergency operation
(3 h, one lamp)
216 lm (16 %) / 436 lm (13 %)
216 lm (16 %) / 436 lm (13 %)
Rated emergency lighting duration
1.5 h / 3 h
1.5 h / 3 h
Dimensions (L x W x H)
701 x 302 x 130 mm / 1312 x 302 x 130 mm
701 x 362 x 130 mm / 1312 x 362 x 130 mm
Connecting terminals
L1, L2, L3, N, PE; max. 2 x 2.5 mm²
through-wiring twin-ended
L1, L2, L3, N, PE; max. 2 x 2.5 mm²
through-wiring twin-ended
Enclosure colour
white RAL 9010
white RAL 9010
Enclosure material
painted steel sheet, white optional polished stainless steel
painted steel sheet, white optional polished stainless steel
Weight
8.9 kg / 14.9 kg
11.5 kg / 18.5 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread2)
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
single-safety glass pane of 5 mm thick
single-safety glass pane of 5 mm thick
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.67
2.9
2
Ex-linear light fitting with metal housing
for surface mounting
AB 12…LED / AB 12…E / AB 12…C
(Zone 1, 2, 21, 22)
The robust lighting concept
for hazardous areas
With its flameproof housing
made of copper free aluminium
(Cu < 0.1 %), high degree of
protection IP67 and a protective
tube made of borosilicate glass
with a high mechanical and
thermal stability, this luminaire
is the ideal solution for harsh
and hazardous environments.
The luminaire for all types of
applications
The AB 12 luminaire series with
G13 sockets for fluorescent
lamps are either fitted with electronic (AB 12 .. E) or electromagnetic ballasts (AB 12 .. C).
The AB12LED series is intended for use with LED tubes for
direct connection without ballast operation. The easy-to-open
threaded cover, the large terminal compartment and the lamp
assembly on a guide carriage facilitate servicing.
An optional external reflector
ensures an application-specific
light distribution. The optional
protective wire guard made of
stainless steel provides added
safety.
Features
• Robust Ex-d housing
• For fluorescent lamps or LED-tubes
• Easy opening due to screw cover on end
• 2 individual circuits (double lamp version)
• Large terminal compartment
• High degree of protection IP67
1.2.68
EATON’S CROUSE-HINDS BUSINESS
2.9
Ordering details
AB 12…LED / AB 12…E / AB 12…C
Ordering details
Type
Content
Terminals
ThroughCable gland/
wiring
thread
single-ended
Threaded
plug
Order No.
2
AB 12… LED for retrofit LED-tubes
AB 12220 LED1E
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 331
AB 12240 LED1E
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 332
AB 12265 LED1E
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 333
AB 12220 LED1E
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 431
AB 12240 LED1E
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 432
AB 12265 LED1E
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 433
AB 12… LED for special LED-tubes
AB 12220 LED
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 334
AB 12240 LED
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 335
AB 12265 LED
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 336
AB 12220 LED
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 434
AB 12240 LED
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 435
AB 12265 LED
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 436
AB 12… E with electronic ballast (EVG)
AB 12220 E
(2 x 18 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 300
AB 12240 E
(2 x 36 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 308
AB 12265 E
(2 x 58 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 316
AB 12220 E
(2 x 18 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 500
AB 12240 E
(2 x 36 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 508
AB 12265 E
(2 x 58 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 516
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.69
2.9
Ordering details / Accessories
AB12
Ordering details
Type
2
Content
Terminals
ThroughCable gland/
wiring
thread
single-ended
Threaded
plug
Order No.
AB 12… C with electro-magnetic ballast
AB 12220 C
(2 x 18/20 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 346
AB 12240 C
(2 x 36/40 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 354
AB 12265 C
(2 x 58/65 W)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 362
AB 12220 C
(2 x 18/20 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 546
AB 12240 C
(2 x 36/40 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 554
AB 12265 C
(2 x 58/65 W)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 562
AB 12236 PL
(2 x 36 W PL)
1x3
x
2 x M25,
metal thread
1 x M25 Ex-d
NOR 000 005 060 569
AB 12236 PL
(2 x 36 W PL)
1x3
x
2 x 3/4'' NPT,
metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 669
AB 12… PL for PL-lamps
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Content
Application
Order No.
LED Rohr 9 W
720 lm / 5500 K
AB 12220 LED
NOR 000 000 506 020
LED Rohr 18 W
1440 lm / 5500 K
AB 12240 LED
NOR 000 000 506 021
LED Rohr 25 W
2000 lm / 5500 K
AB 12265 LED
NOR 000 000 506 022
Content
Application
Order No.
Accessories
Type
1.2.70
Reflector RAB 220
Reflector, AISI 304
for AB 12220 . / AB 12236 PL
NOR 003 045 060 403
Reflector RAB 240
Reflector, AISI 304
for AB 12240..
NOR 003 045 060 411
Reflector RAB 265
Reflector, AISI 304
for AB 12265..
NOR 003 045 060 429
Reflector GRAB 220
Reflector + wire guard ANSI 304
for AB 12220../AB 12236 PL
NOR 003 045 060 479
Reflector GRAB 240
Reflector + wire guard ANSI 304
for AB 12240..
NOR 003 045 060 487
Reflector GRAB 265
Reflector + wire guard ANSI 304
for AB 12265..
NOR 003 045 060 495
Reflector RAB 220
Reflector, AISI 316
for AB 12220../AB 12236 PL
NOR 003 165 060 403
Reflector RAB 240
Reflector, AISI 316
for AB 12240
NOR 003 165 060 411
Reflector RAB 265
Reflector, AISI 316
for AB 12265
NOR 003 165 060 429
Reflector GRAB 220
Reflector + wire guard ANSI 316
for AB 12220../AB 12236 PL
NOR 003 165 060 479
Reflector GRAB 240
Reflector + wire guard ANSI 316
for AB 12240..
NOR 003 165 060 487
Reflector GRAB 265
Reflector + wire guard ANSI 316
for AB 12265
NOR 003 165 060 495
EATON’S CROUSE-HINDS BUSINESS
2.9
Dimension drawing / Polar curve
AB 12…LED / AB 12…E / AB 12…C
120
AB 12...
103
Polar curve
120 AB 12...LED/E/C
90
90
25
50
60
C 0
C90
100
Reflector RAB
236
Reflector with
wire guard GRAB
2
60
75
30
236
30
125
0
l/cd/klm
Wiring diagram AB12...LED / AB 12 ... LED 1 E
L
PE
N
114
140
optional entries, on request
entries
A
M8x12mm
Type AB 12 LED
B
L
PE
N
Type AB 12 LED 1 E
AB 12220
AB 12240
AB 12265
AB 12236 PL
A
652
1265
1565
652
B
707
1320
1620
707
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.2.71
2.9
Technical data
AB12 / AB 12 LED
2
Technical data
EC-Type Examination Certificate
AB 12 LED
AB12 E
LOM 02 ATEX 2013 X
LOM 02 ATEX 2013 X
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
IECEx BKI 07.0008 X
D II 2 G Ex d IIB T6 Gb
D II 2 D Ex t IIIC T85°C Db
Marking accd. to IECEx
D II 2 G Ex d IIB T5 Gb
D II 2 D Ex t IIIC T76°C/T93°C Db
Ex d IIB T5 /Ex d IIC T5
Ex tD A21 IP67 T78°C/ T93°C
Permissible ambient temperature
-20 °C up to +40 °C (T6)
-20 °C up to + 55 °C
Rated voltage
max. 277 V
198 V - 254 V AC
175 V - 280 V DC
Frequency
0 / 50 - 60 Hz
50/60 Hz
Power factor cos ϕ
≥ 0.9
≥ 0.9
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T8 LED-tube 9 - 25 W or
2 x T8 LED-tube up to 50 W, both ends supply voltage (Retrofit)
2 x T26 / 18 - 58 W
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
90 %
73%
Connecting terminals
L, N and PE: 2 x 2, 5 mm² / PE ext. 2 x 6 mm²
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
copper-free aluminium with powder coating
copper-free aluminium with powder coating
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT or 2 x M25
1 x Ex-d blanking plug 3/4“ or M25
direct entry: 2 x 3/4“ NPT or 2 x M25
1 x Ex-d blanking plug 3/4“ or M25
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1.2.72
EATON’S CROUSE-HINDS BUSINESS
Technical data
AB12 C
2.9
2
Technical data
AB12 C
EC-Type Examination Certificate
LOM 02 ATEX 2013 X
IECEx Certificate of Conformity
IECEx BKI 07.0008 X
Marking accd. to 94/9/EC
D II 2 G Ex d IIB T5 Gb
D II 2 D Ex t IIIC T76°C/T93°C Db
Marking accd. to IECEx
Ex d IIB T5 / Ex d IIC T5
Ex tD A21 IP67 T93 °C
Permissible ambient temperature
-20 °C up to +55 °C
Rated voltage
230 V
Frequency
50 Hz
Power factor cos M
t 0.9
Circuit
conventional ballast with ignitor
Protection class
I
Lamp / Illuminant
2 x T26 / 18 - 58 W
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
70 %
Connecting terminals
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
grey
Enclosure material
copper-free aluminium with powder coating
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT or 2 x M 25
1 x Ex-d blanking plug 3/4“ or M25
Degree of protection accd. to EN 60529
IP67
Protective cover / protective bowl
borosilicate glass
EATON’S CROUSE-HINDS BUSINESS
1.2.73
2.10
2
Ex-fluorescent emergency light fitting
with metal housing
AB 12…Ni
(Zone 1, 2, 21, 22)
fluorescent emergency light
fitting with metal housing
With its flameproof housing
made of copper free aluminium
(Cu < 0.1 %), high degree of
protection IP67 and protective
tube made of borosilicate glass
with a high mechanical and
thermal stability, this luminaire
is the ideal solution for harsh
and hazardous environments.
More safety with compact
electronics
Thanks to its EVG with charging
unit and its micro-electronics for
an automatic switchover to the
emergency lighting mode and
battery monitoring, the
AB 12 .. NI emergency light
luminaire provides a reliable
safety and reduced maintenance costs. In the event of a
power failure, the luminaire
switches over automatically to
the emergency lighting mode,
whereby only one of the two
lamps is lit. You can chose between two versions with 1.5 h
or 3 h emergency operation.
The luminaires are equipped
with an electronic ballast, which
has a reliable EOL circuit. Thus,
the lamps are monitored for
their correct function and shut
down safely in the event of a
malfunction at the end of their
service life. The charge/discharge and lighting functions
are continuously monitored and
displayed via an LED-indication.
All components are mounted
compactly on a removable carrier plate inside the Ex-d housing.
The luminaire for all types of
applications
The easy-to-open threaded cover, the large terminal compartment and the lamp assembly on
a guide carriage facilitate servicing. An optional external reflector ensures an application-specific light distribution. The
optional protective wire guard
made of stainless steel providers added safety.
Features
• Robust Ex-d housing
• Two-channel EVG with EOL monitoring
• Operating status indication via LED
• Easy opening due to screw cover on end
• Large terminal compartment
• High degree of protection IP67
1.2.74
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.10
AB 12…Ni
Ordering details
Type
Emergency Terminals
light
duration
ThroughEntry /
wiring
thread
single-ended
Threaded
plug
Order No.
AB 12 Ni 18/18 1.5h (2 x 18 W)
1.5 h
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 302
AB 12 Ni 36/36 1.5h (2 x 36 W)
1.5 h
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 310
AB 12 Ni 18/18 3h (2 x 18 W)
3h
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 318
AB 12 Ni 36/36 3h (2 x 36 W)
3h
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 060 348
AB 12 Ni 18/18 1.5h (2 x 18 W)
1.5 h
1x3
x
2 x M25, metal thread
1 x M25 Ex-d
NOR 000 005 060 580
AB 12 Ni 36/36 1.5h (2 x 36 W)
1.5 h
1x3
x
2 x M25, metal thread
1 x M25 Ex-d
NOR 000 005 060 582
AB 12 Ni 18/18 3h (2 x 18 W)
3h
1x3
x
2 x M25, metal thread
1 x M25 Ex-d
NOR 000 005 060 581
AB 12 Ni 36/36 3h (2 x 36 W)
3h
1x3
x
2 x M25, metal thread
1 x M25 Ex-d
NOR 000 005 060 583
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Content
Application
Order No.
Reflector RAB 220
Reflector, AISI 304
for AB 12 Ni 18/18
NOR 003 045 060 403
Reflector RAB 240
Reflector, AISI 304
for AB 12 Ni 36/36
NOR 003 045 060 411
Reflector GRAB 220
Reflector + wire guard ANSI 304
for AB 12 Ni 18/18
NOR 003 045 060 479
Reflector GRAB 240
Reflector + wire guard ANSI 304
for AB 12 Ni 36/36
NOR 003 045 060 487
Reflector RAB 220
Reflector, AISI 316
for AB 12 Ni 18/18
NOR 003 165 060 403
Reflector RAB 240
Reflector, AISI 316
for AB 12 Ni 36/36
NOR 003 165 060 411
Reflector GRAB 220
Reflector + wire guard ANSI 316
for AB 12 Ni 18/18
NOR 003 165 060 479
Reflector GRAB 240
Reflector + wire guard ANSI 316
for AB 12 Ni 36/36
NOR 003 165 060 487
EATON’S CROUSE-HINDS BUSINESS
1.2.75
2
Dimension drawing / Polar curve
2.10
AB 12…Ni
AB 12...
103
Polar curve AB 12...Ni
90
90
2
25
236
50
60
Reflector RAB
60
75
30
C 0
C90
100
30
125
0
l/cd/klm
236
Reflector with
wire guard GRAB
114
140
optional entries, on request
entries
M8x12mm
652 (18 W)
1265 (36 W)
707
Dimensions in mm
1.2.76
EATON’S CROUSE-HINDS BUSINESS
Technical data
AB 12 Ni 18/18 / AB 12 Ni 36/36
2.10
2
Technical data
AB 12 Ni 18/18
AB 12 Ni 36/36
EC-Type Examination Certificate
LOM 09 ATEX 2062X
LOM 09 ATEX 2062X
Marking accd. to 94/9/EC
D II 2 G Ex d e ib IIB T5/T6
D II 2 D Ex tD A21 IP67 T100°C
D II 2 G Ex d e ib IIB T5/T6
D II 2 D Ex tD A21 IP67 T100°C
Permissible ambient temperature
-20 °C up to +40 °C (T6)
-20 °C up to +55 °C (T5)
(specified data -5 °C up to +30 °C)
-20 °C up to +40 °C (T6)
-20 °C up to +55 °C (T5)
(specified data -5 °C up to +30 °C)
Battery
6 V / 4 Ah NiCd
6 V / 4 Ah NiCd
Rated voltage
220 - 240 V AC
220 - 240 V AC
Rated current
0.17 A
0.33 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 14 h
t 14 h
Power factor cos M
t 0.9
t 0.9
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W
1)
2 x T26 / 36 W
6700 lm 1)
Rated luminous flux
2700 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
73%
73%
1)
1072 lm 1)
Luminous flux in emergency operation
(1.5 h, one lamp)
675 lm
Luminous flux in emergency operation
(3 h, one lamp)
392 lm 1)
Dimensions (L x W x H)
707 x 140 x 144 mm
1320 x 140 x 144 mm
Connecting terminals
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
copper-free aluminium with powder coating
copper-free aluminium with powder coating
Weight
7 kg
12 kg
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT or 2 x M 25
1 x Ex-d blanking plug 3/4“ or M25
direct entry: 2 x 3/4“ NPT or 2 x M 25
1 x Ex-d blanking plug 3/4“ or M25
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
392 lm 1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.77
2.11
Ex-linear light fitting with metal housing
2 EVF…E / EVF…C
(Zone 1, 2, 21, 22)
The robust lighting fixture for
Ex-areas
With its flameproof housing
made of copper free aluminium
(Cu < 0.1 %), high degree of
protection IP67 and protective
tube made of borosilicate glass
with a high mechanical and
thermal stability, this luminaire
is the ideal solution for harsh
and hazardous environments.
The luminaire for all types of
applications
The EVF luminaire series with
G13 sockets for fluorescent
lamps are either fitted with an
electronic (EVF .. E) or electromagnetic ballasts (EVF .. C).
Two types are available: single
lamp or double lamp versions.
The easy-to-open threaded
cover, the large terminal
compartment and the lamp
assembly on a guide carriage
facilitate servicing.
Features
• Robust Ex-d housing
• Temperature class T6
• Electronic or electromagnetic ballast
• Easy opening due to screw cover on end
• Large terminal compartment
• High degree of protection IP67
1.2.78
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.11
EVF…E / EVF…C
Ordering details
Type
Terminals
Throughwiring
single-ended
Entry /
thread
Threaded plug
Order No.
EVF 120 E (1 x 18 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 300
EVF 140 E (1 x 36 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 308
EVF 165 E (1 x 58 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 316
EVF 240 E (2 x 36 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 328
EVF 265 E (2 x 58 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 333
EVF 120 C (1 x 18/20 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 064
EVF 140 C (1 x 36/40 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 030
EVF 165 C (1 x 58/65 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 402
EVF 240 C (2 x 36/40 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 022
EVF 265 C (2 x 58/65 W)
1x3
x
2 x 3/4'' NPT, metal thread
1 x 3/4'' Ex-d
NOR 000 005 070 428
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Content
Application
Order No.
Wire guard REVF 65
steel, white epoxid coated 1)
for EVF 165/265
NOR 000 000 507 319
Wire guard REVF 20
steel, white epoxid coated
for EVF 120
NOR 000 000 507 385
Wire guard REVF 40
steel, white epoxid coated 1)
for EVF 140/240
NOR 000 000 507 393
1)
EVF 240 and EVF 265 2 pcs. per luminaire.
EATON’S CROUSE-HINDS BUSINESS
1.2.79
2
Dimension drawing / Polar curve
2.11
EVF ... E / EVF ... C
Polar curve EVF 1…
90
90
2
50
100
60
60
150
200
30
250
30
0
C 0
C90
l/cd/klm
Polar curve EVF 2…
90
90
50
100
60
60
150
200
30
250
30
0
C 0
C90
l/cd/klm
EVF 120 E / 120 C
60
132
950
35
990
120
9,5
275
EVF 1
910
EVF 2
Entries
EVF 140 E / 140 C
EVF 240 E / 240 C
60
132
1560
35
1598
120
9.5
275
EVF 1
1530
EVF 2
entries
EVF 165 E/165 C /
EVF 265 E / 265 C
60
9.5
132
1870
35
1908
120
275
EVF 1
EVF 2
1840
1.2.80
EATON’S CROUSE-HINDS BUSINESS
entries
Dimensions in mm
Technical data
EVF 120 E / EVF 140 E / EVF 240 E
2.11
2
Technical data
EVF 120 E
EVF 140 E / EVF 240 E
EC-Type Examination Certificate
LOM 02 ATEX 2019 X
LOM 02 ATEX 2019 X
IECEx Certificate of Conformity
IECEx BKI 07.0033 X
IECEx BKI 07.0033 X
Marking accd. to 94/9/EC
D II 2 G Ex d IIC T6
D II 2 G Ex d IIC T6
Marking accd. to IECEx
Ex d IIC T6/ T5
Ex tD A21 IP67 T 76°C/92°C
Ex d IIC T6/ T5
Ex tD A21 IP67 T 76°C
Permissible ambient temperature
-20 °C up to +55 °C
-20 °C up to +55 °C
Rated voltage
198 V - 254 V AC
175 V - 280 V DC
198 V - 254 V AC
175 V - 280 V DC
Rated current
0.09 A
0.16 A / 0.32 A
Frequency
50/60 Hz
50/60 Hz
Power factor cos M
> 0.9
> 0.9
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
1 x T26 / 18 W
1 x T26 / 36 W / 2 x T26 / 36 W
Rated luminous flux
1350 lm 1)
3350 lm 1) / 6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
83%
83%
Dimensions (L x W x H)
990 x 120 x 145 mm
1598 x 120 x 145 mm
1598 x 275 x 150 mm
Connecting terminals
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
Polyester finish grey
Polyester finish grey
Enclosure material
copper-free aluminium
copper-free aluminium
Weight
6.2 kg
9 kg / 16.9 kg
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.81
Technical data
2.11
EVF 165 E / EVF 265 E / EVF 120 C
2
Technical data
EVF 165 E / EVF 265 E
EVF 120 C
EC-Type Examination Certificate
LOM 02 ATEX 2019 X
LOM 02 ATEX 2019 X
IECEx Certificate of Conformity
IECEx BKI 07.0033 X
IECEx BKI 07.0033 X
Marking accd. to 94/9/EC
D II 2 G Ex d IIC T6/T5
D II 2 G Ex d IIC T6
Marking accd. to IECEx
Ex d IIC T6/ T5
Ex tD A21 IP67 T 76°C
Ex d IIC T6/ T5
Ex tD A21 IP67 T 92°C
Permissible ambient temperature
-20 °C up to +40 °C (T6)
-20 °C up to +55 °C (T5)
-20 °C up to +55 °C
Rated voltage
198 V - 254 V AC
175 V - 280 V DC
230 V
Rated current
0.25 A / 0.49 A
0.15 A
Frequency
50/60 Hz
50 Hz
Power factor cos M
> 0.9
> 0.90
Circuit
EVG
conventional ballast with ignitor
Protection class
I
I
Lamp / Illuminant
1 x T26 / 58 W / 2 x T26 / 58 W
1)
1)
1 x T26 / 18 W
1350 lm 1)
Rated luminous flux
5200 lm / 10400 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
83% / 73%
81%
Dimensions (L x W x H)
1908 x 120 x 145 mm
1908 x 275 x 150 mm
990 x 120 x 145 mm
Connecting terminals
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
Polyester finish grey
Polyester finish grey
Enclosure material
copper-free aluminium
copper-free aluminium
Weight
14.6 kg / 26.4 kg
6.2 kg
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
depends on used lamps
1.2.82
EATON’S CROUSE-HINDS BUSINESS
Technical data
EVF 140 C / EVF 240 C / EVF 165 C / EVF 265 C
2.11
2
Technical data
EVF 140 C / EVF 240 C
EVF 165 C / EVF 265 C
EC-Type Examination Certificate
LOM 02 ATEX 2019 X
LOM 02 ATEX 2019 X
IECEx Certificate of Conformity
IECEx BKI 07.0033 X
IECEx BKI 07.0033 X
Marking accd. to 94/9/EC
D II 2 G Ex d IIC T6
D II 2 G Ex d IIC T6/T5
Marking accd. to IECEx
Ex d IIC T6/ T5
Ex tD A21 IP67 T 92°C
Ex d IIC T6/ T5
Ex tD A21 IP67 T 76°C/92°C
Permissible ambient temperature
-20 °C up to +55 °C
-20 °C up to +55 °C (T5)
-20 °C up to +40 °C (T6)
Rated voltage
230 V
230 V
Rated current
0.25 A / 0.50 A
0.39 A / 0.78 A
Frequency
50 Hz
50 Hz
Power factor cos M
> 0.90
> 0.90
Circuit
conventional ballast with ignitor
conventional ballast with ignitor
Protection class
I
I
Lamp / Illuminant
1 x T26 / 36 W
1 x T26 / 58 W
Rated luminous flux
3350 lm 1) / 6700 lm 1)
5200 lm 1) / 10400 lm 1)
Lamp cap
G13 accd. to IEC 60061
G13 accd. to IEC 60061
Light efficiency in operation
81% / 71%
81% / 71%
Dimensions (L x W x H)
1598 x 120 x 145 mm / 1598 x 275 x 150 mm
1908 x 120 x 145 mm / 1908 x 275 x 150 mm
Connecting terminals
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
L1, N and PE: 2 x 2.5 mm2 / PE ext. 2 x 6 mm2
Enclosure colour
Polyester finish grey
Polyester finish grey
Enclosure material
copper-free aluminium
copper-free aluminium
Weight
9 kg / 16.9 kg
14.6 kg / 26.4 kg
Cable glands / gland plates /
enclosure drilling
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
direct entry: 2 x 3/4“ NPT
1 x Ex-d blanking plug 3/4“
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.83
2.12
2
Ex-linear light fittings for
fluorescent lamps
nLLK 08 18 W - 58 W
(Zone 2, 21, 22)
The lighting solution for
hazardous areas in Zones 2,
21 and 22
The linear luminaires series
nLLK 08 for fluorescent lamps
combines the latest lighting
technology with the requirements of a harsh and hazardous
environment. This luminaire is
available both as a ceiling
mounted luminaire (nLLK), as
well as a pole mounted light
fitting (nLLM) in 3 sizes (18,
36 or 58 W).
Long-term safety
The luminaires of this robust
lighting series with plastic enclosure are equipped with a
highly-efficient electronic ballast, which has a reliable EOL
circuit. Thus, the lamps are
checked for proper operation
and shut down safely in the
event of a malfunction at the
end of their service life. With
these luminaires, you are always on the safe side.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10 or 20 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Just in case: The emergency
lighting version
Safety is always our top priority.
That is why we offer the
nLLK 08 light fitting series with
a built-in CG-S module. These
luminaires can be connected to
a CEAG emergency supply system with individual function
monitoring. In the event of an
emergency, they provide a reliable illumination of your safety
and escape routes. The N variants (Section 1.2.92).are available as emergency light fittings
with a self-contained battery
unit.
NEC Standards
The tried and tested luminaires
of the types nLLK 982217
(2 x 17 W) and nLLK 924232
(2 x 32 W) are available for use
according to NEC-standards.
Features
• Cost-effective installation due to single-ended through-wiring
• EVG with EOL monitoring
• Double-sided safety lock
• Safety interlocking system due to an integrated forced isolating
switch
• High degree of protection IP66
• Connection to CEAG emergency light monitoring systems
possible (CG-S)
1.2.84
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.12
nLLK 08 18 W - 58 W
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
nLLK 08018/18
nLLK 08018/18
(2 x 18 W)
1/3-1K
1x3
x
–
1 x M25,
plastic
1 x M25
1 3465 218 001
nLLK 08018/18
(2 x 18 W)
2/5-2K
2x5
–
x
2 x M25,
plastic
2 x M25
nLLK 08018/18
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3465 218 021
nLLK 08018/18
(2 x 18 W)
1/3-1M 1)
1x3
x
–
2 x M20,
metal thread
1 x M20
1 3465 218 031
nLLK 08036
(1 x 36 W)
1/3-1K
1x3
x
–
1 x M25,
plastic
1 x M25
1 3465 136 001
nLLK 08036
(1 x 36 W)
2/5-2K
2x5
–
x
2 x M25,
plastic
2 x M25
nLLK 08036
(1 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3465 136 021
nLLK 08036/36
(2 x 36 W)
1/3-1K
1x3
x
–
1 x M25,
plastic
1 x M25
1 3465 236 001
nLLK 08036/36
(2 x 36 W)
2/5-2K
2x5
–
x
2 x M25,
plastic
2 x M25
nLLK 08036/36
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3465 236 021
nLLK 08036/36
(2 x 36 W)
1/6-1M 1)
1x3
x
–
2 x M20
metal thread
1 x M20
1 3465 236 031
1
1 3465 218 011
nLLK 08036
1
1 3465 136 011
nLLK 08036/36
1
1 3465 236 011
nLLM 080… Pole mounting light fitting
nLLM 08018/18
(2 x 18 W)
1/3-1K
1x3
–
–
1 x M25,
plastic
–
1 3465 218 101
nLLM 08036/36
(2 x 36 W)
1/3-1K
1x3
–
–
1 x M25,
plastic
–
1 3465 236 101
nLLK 08058
(1 x 58 W)
1/3-1K
1x3
x
–
1 x M25,
plastic
1 x M25
1 3465 158 001
nLLK 08058
(1 x 58 W)
2/5-2K
2x5
–
x
2 x M25,
plastic
2 x M25
nLLK 08058
(1 x 58 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3465 158 021
nLLK 08058/58
(2 x 58 W)
1/3-1K
1x3
x
–
1 x M25,
plastic
1 x M25
1 3465 258 001
nLLK 08058/58
(2 x 58 W)
2/5-2K
2x5
–
x
2 x M25,
plastic
2 x M25
nLLK 08058/58
(2 x 58 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
nLLK 08058
1
1 3465 158 011
nLLK 08058/58
1
1 3465 258 011
1 3465 258 021
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
1)
with metal thread, without cable gland
EATON’S CROUSE-HINDS BUSINESS
1.2.85
Ordering details
2.12
nLLK 08 18 W - 58 W / nLLK 98 ...
Ordering details
Type
2
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/ thread Threaded
plug
Blanking
plug
Order No.
nLLK 08018/18 CG-S
(2 x 18 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
1
1 3465 218 912
nLLK 08018/18 CG-S
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
nLLK 08036/36 CG-S
(2 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
nLLK 08036/36 CG-S
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
nLLK 08058/58 CG-S
(2 x 58 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
nLLK 08058/58 CG-S
(2 x 58 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3465 258 922
nLLK 98 2217/UNV
(2 x 17 W)
2/5-2M 1)
2x5
–
x
2 x 3/4'' NPT
Myers Hub Adapter
4 x M25
1 3465 217 021
nLLK 98 2217/347
(2 x 17 W - 347 V AC)
2/5-2M 1)
2x5
–
x
2 x 3/4'' NPT
Myers Hub Adapter
4 x M25
1 3465 217 347
nLLK 98 4232/UNV
(2 x 32 W)
2/5-2M 1)
2x5
–
x
2 x 3/4'' NPT
Myers Hub Adapter
4 x M25
1 3465 232 021
nLLK 98 4232/347
(2 x 32 W - 347 V AC)
2/5-2M 1)
2x5
–
x
2 x 3/4'' NPT
Myers Hub Adapter
4 x M25
1 3465 232 347
nLLK 08... CG-S 2)
1 3465 218 922
1
1 3465 236 912
1 3465 236 922
1
1 3465 258 912
nLLK 98... 3)
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
1)
with metal thread, without cable gland
2)
for operation with CEAG-emergency supply system
3)
for use accord. NEC-standards
Accessories
1.2.86
Type
Application
Order No.
Single sided through wiring 2/6 with 2 entries M25,
incl. terminals and mounting material
for nLLM 08
pole mounting light fitting
2 2218 602 000
EATON’S CROUSE-HINDS BUSINESS
Dimension drawing / Polar curve
2.12
nLLK 08 18 W - 58 W / nLLK 98 ...
nLLK 08...
90
90
40
75
75
M25 x 1.5
M8, 14 deep
188
46
80
60
60
120
45
30
15
C 0
C90
200
0
18 W = 760
36 W = 1360
58 W = 1660
45
160
2
130
18 W = 732
36 W = 1332
58 W = 1632
18 W = 400
36 W/58 W = 700
Hexagon A/F 13
21
65
Polar curve nLLK/M 08018/18 /
nLLK/M 08036/36
30
15
nLLM 08...
l/cd/klm
Hexagon A/F 13
eLLM 92036/36
76
130
Polar curve nLLK/M 08036 / nLLK 08058
Hexagon A/F 13
eLLM 92018/18
736 = 18 W
1336 = 36 W
90
90
188
44
1060 = 18 W
1660 = 36 W
40
75
75
80
60
120
45
15
200
0
33
150
45
160
30
nLLM 08...
60
30
15
Version 1/3
C 0
C90
l/cd/klm
33
Polar curve nLLK 08058/58
20
Version 2/6
90
90
150
40
75
75
80
60
60
120
45
15
C 0
C90
45
160
30
200
0
33
30
15
l/cd/klm
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.2.87
Technical data
2.12
nLLK 08018/18 (2 x 18 W) / nLLK 08036 (1 x 36 W) / nLLK 08036/36 (2 x 36 W)
2
Technical data
nLLK 08018/18 (2 x 18 W)
nLLK 08036 (1 x 36 W) / nLLK 08036/36 (2 x 36 W)
Type Examination Certificate
BVS 09 ATEX E 147
BVS 09 ATEX E 147
EC-Type Examination Certificate
BVS 09 ATEX E 162
BVS 09 ATEX E 162
IECEx Certificate of Conformity
IECEx BVS 11.0065
IECEx BVS 12.0069
IECEx BVS 11.0065
IECEx BVS 12.0069
Marking accd. to 94/9/EC
D II 3 G Ex nA e IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
D II 3 G Ex nA e IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex nA e IIC T4 Gc
Ex tb IIIC T80°C Db
Ex nA e IIC T4 Gc
Ex tb IIIC T80°C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +50 °C /
-25 °C up to +50 °C
-25 °C up to +45 °C (with through-wiring)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 240 V AC
220 - 240 V DC
220 - 240 V AC
220 - 240 V DC
Rated current
0.16 A
0.16 A / 0.34 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1 x T26 / 36 W (T8) / 2 x T26 / 36 W (T8)
Rated luminous flux
2700 lm 1)
3350 lm 1) / 6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
86 % / 78 %
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, N, PE (optional L1, L2, L3, N, PE) max. 2 x 2.5 mm2,
cage clamp; optional screw terminal max. 2 x 6 mm2
single wire (L1, L2, L3, L, N, PE)
L1, N, PE (optional L1, L2, L3, N, PE) max. 2 x 2.5 mm2,
cage clamp; optional screw terminal max. 2 x 6 mm2
single wire (L1, L2, L3, L, N, PE)
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
3.6 kg
5.6 kg / 5.8 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
2)
depends on used lamps
with dustcover if entry/thread is not closed
1.2.88
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 08058 (1 x 58 W) / nLLK 08058/58 (2 x 58 W)
2.12
2
Technical data
nLLK 08058 (1 x 58 W) / nLLK 08058/58 (2 x 58 W)
Type Examination Certificate
BVS 09 ATEX E 147
EC-Type Examination Certificate
BVS 09 ATEX E 162
IECEx Certificate of Conformity
IECEx BVS 11.0065
IECEx BVS 12.0069
Marking accd. to 94/9/EC
D II 3 G Ex nA e IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex nA e IIC T4 Gc
Ex tb IIIC T80°C Db
Permissible ambient temperature
-25 °C up to +50 °C / -25 °C up to +40 °C
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 240 V AC
220 - 240 V DC
Rated current
0.27 A / 0.53 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG
Protection class
I
Lamp / Illuminant
1 x T26 / 58 W (T8) / 2 x T26 / 58 W (T8)
Rated luminous flux
5200 lm 1) / 10400 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
Light efficiency in operation
83 % / 72 %
Dimensions (L x W x H)
1660 x 188 x 130 mm
Connecting terminals
L1, N, PE (optional L1, L2, L3, N, PE) max. 2 x 2.5 mm2,
cage clamp; optional screw terminal max. 2 x 6 mm2
single wire (L1, L2, L3, L, N, PE)
Enclosure colour
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
Weight
6.7 kg / 6.9 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.89
Technical data
2.12
nLLK08018/18 CG-S / nLLK08036/36 CG-S / nLLK08058/58 CG-S
2
Technical data
nLLK 08018/18 CG-S (2 x 18 W)
nLLK 08036/36 CG-S (2 x 36 W) / nLLK 08058/58 CG-S (2 x 58 W)
Type Examination Certificate
BVS 09 ATEX E 147
BVS 09 ATEX E 147
EC-Type Examination Certificate
BVS 09 ATEX E 162
BVS 09 ATEX E 162
IECEx Certificate of Conformity
IECEx BVS 11.0065
IECEx BVS 12.0069
IECEx BVS 11.0065
IECEx BVS 12.0069
Marking accd. to 94/9/EC
D II 3 G Ex nA e IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
D II 3 G Ex nA e IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex nA e IIC T4 Gc
Ex tb IIIC T80°C Db
Ex nA e IIC T4 Gc
Ex tb IIIC T80°C Db
Permissible ambient temperature
-25 °C up to +50 °C
-25 °C up to +45 °C /
-25 °C up to +45 °C
-25 °C up to +40 °C (with through-wiring)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC
195 - 250 V DC
220 - 254 V AC
195 - 250 V DC
Rated current
0.19 A
0.35 A / 0.54 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG/CG-S
EVG/CG-S
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1)
2 x T26 / 36 W (T8) / 2 x T26 / 58 W (T8)
6700 lm 1) / 10400 lm 1)
Rated luminous flux
2700 lm
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78 %
78 % / 72 %
1)
3350 lm 1) / 5200 lm 1)
Luminous flux in emergency operation
1350 lm
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm / 1660 x 188 x 130 mm
Connecting terminals
L1, L2, L3, N, PE screw-type terminals
max. 2 x 6 mm2, single wire
L1, L2, L3, N, PE screw-type terminals
max. 2 x 6 mm2, single wire
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.6 kg
7.2 kg / 8.9 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.90
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 98 2217 / nLLK 98 4232
2.12
2
Technical data
nLLK 98 2217 (2 x 17 W)
nLLK 98 4232 (2 x 32 W)
Marking accd. to CEC 018
Ex nA II T4
Class II Div. 1 Gr. E, F and G
Ex nA II T4
Class II Div. 1 Gr. E, F and G
Marking accd. to NEC 500/505
Class I, Zone 2, AEx nA II T4
Class II, Division 2, Groups F and G
Class I, Zone 2, AEx nA II T4
Class II, Division 2, Groups F and G
Certificate of Compliance
CSA 10.2325079
CSA 10.2325079
Permissible ambient temperature
-25 °C up to +40 °C
-25 °C up to +40 °C
Rated voltage
120 - 277 V AC
option: 347 V AC
120 - 277 V AC
option: 347 V AC
Rated current
0.21 A / 0.12 A
0.34 A / 0.17 A
Frequency
60 Hz
60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x F17 T8
2 x F32 T8
Rated luminous flux
2600 lm 1)
6600 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78%
78%
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Connecting terminals
L1, L2, L3, L, N, PE screw-type terminals
max. 2 x 6 mm2 single wire
L1, L2, L3, L, N, PE screw-type terminals
max. 2 x 6 mm2 single wire
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
3.8 kg
6 kg
Cable glands / gland plates /
enclosure drilling
3/4‘‘ NPT metal thread with dustcover
3/4‘‘ NPT metal thread with dustcover
Degree of protection accd. to EN 60529
IP65
IP65
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.2.91
2.13
2
Ex-linear emergency light fittings
for fluorescent lamps
nLLK 08018/18 N / nLLK 08036/36 N
(Zone 2, 21, 22)
The lighting solution
for hazardous areas in
Zones 2, 21 and 22
systems. In large plants, in particular, these luminaires offer
significant cost benefits.
The linear emergency luminaires
series nLLK 08 .. N for fluorescent lamps combines the latest
lighting technology with the requirements of a harsh and hazardous environment.
The luminaire nLLK08 ... N with
a NC self-contained battery and
maintained and non-maintained
mode emergency lights provide
a reliable safety and reduced
maintenance costs. The careful
charging optimizes battery
lifespan. The variants 1/6 the
battery is easy to maintain below the reflector flap. With the
variants 2/6 a separate battery
enclosure is used and the battery can easily be replaced with
a plug in the hazardous area.
The emergency lighting duration is 1.5 or 3 h.
If you need a reliable and
decentralized emergency
lighting
The emergency luminaires with
a self-contained battery system
provide a decentralise solution
for the mandatory emergency
lighting, independent of central
Long-term safety
The luminaires of this robust
lighting series with plastic housings are equipped with a highly-efficient electronic ballast,
which has a reliable EOL circuit.
Thus, the lamps are checked for
proper operation and shut down
safely in the event of a malfunction at the end of the service
life. With these luminaires, you
are always on the safe side.
Easy-to-maintain design
The nLLK08 ... N luminaires
provide a reliable safety and
reduced maintenance costs.
The careful charging optimizes
battery lifespan. The plug-in connector allows easy disconnection of the battery, which can
then be replaced whenever
necessary.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10 or 20 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Features
• Cost-effective installation due to single-ended through-wiring
• EVG with EOL monitoring
• Double-sided safety lock
• With self-contained NC battery for 1.5 h or 3 h emergency
lighting operation
• Battery can be replaced in the hazardous area
• High degree of protection IP66
1.2.92
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.13
nLLK 08…N 18 W – 36 W
Ordering details
Type
Content
Rated
Terminals
emergency
lighting duration
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
nLLK 0801818 N
nLLK 08018/18 N 1/6-1K
(2 x 18 W)
3
1x6
x
–
2 x M25,
plastic
1
1 3469 218 001
nLLK 08018/18 N 2/6-2K
(2 x 18 W)
3
2x6
–
x
2 x M25,
plastic
2 x M25
1 3469 218 011
nLLK 08018/18 N 1/6-1M 1)
(2 x 18 W)
3
1x6
x
–
2 x M20,
metal thread
1 X M20
1 3469 218 031
nLLK 08018/18 N 2/6-2M 1)
(2 x 18 W)
3
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3469 218 131
nLLK 08018/18 N 1/6-1K
(2 x 18 W)
1.5
1x6
x
–
2 x M25,
plastic
nLLK 08018/18 N 2/6-2K
(2 x 18 W)
1.5
2x6
–
x
2 x M25,
plastic
2 x M25
1 3470 218 011
nLLK 08018/18 N 1/6-1M 1)
(2 x 18 W)
1.5
1x6
x
–
2 x M20,
metal thread
1 x M20
1 3470 218 031
nLLK 08018/18 N 2/6-2M 1)
(2 x 18 W)
1.5
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3470 218 131
nLLK 08036/36 N 1/6-1K
(2 x 36 W)
3
1x6
x
–
2 x M25,
plastic
nLLK 08036/36 N 2/6-2K
(2 x 36 W)
3
2x6
–
x
2 x M25,
plastic
2 x M25
1 3469 236 011
nLLK 08036/36 N 1/6-1M 1)
(2 x 36 W)
3
1x6
x
–
2 x M20,
metal thread
1 X M20
1 3469 236 031
nLLK 08036/36 N 2/6-2M 1)
(2 x 36 W)
3
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3469 236 131
nLLK 08036/36 N 1/6-1K
(2 x 36 W)
1.5
1x6
x
–
2 x M25,
plastic
nLLK 08036/36 N 2/6-2K
(2 x 36 W)
1.5
2x6
–
x
2 x M25,
plastic
2 x M25
1 3470 236 011
nLLK 08036/36 N 1/6-1M 1)
(2 x 36 W)
1.5
1x6
x
–
2 x M20,
metal thread
1 X M20
1 3470 236 031
nLLK 08036/36 N 2/6-2M 1)
(2 x 36 W)
1.5
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3470 236 131
1
1 3470 218 001
nLLK 08036/36 N
1)
1
1 3469 236 001
1
1 3470 236 001
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Application
Order No.
Battery block 6 V, 4 Ah (internal)
for nLLK 08 N 1/6 (2 x 18 W, 1.5 h and 3 h; 2 x 36 W, 1.5 h)
2 3468 236 902
Battery block 6 V, 4 Ah (external)
for nLLK 08 N 2/6 (2 x 18 W, 1.5 h and 3 h; 2 x 36 W, 1.5 h)
2 3468 236 903
Battery block 6 V, 7 Ah (external)
for nLLK 08 N 2/6 (2 x 36 W, 3 h)
2 3468 236 904
EATON’S CROUSE-HINDS BUSINESS
1.2.93
Dimension drawing / Polar curve
2.13
nLLK 08 18/18 N / nLLK 0836/36 N
Polar curve nLLK 08018/18 N /
nLLK 08036/36 N
2
90
90
40
75
75
80
60
60
120
45
45
160
30
15
200
0
30
15
C 0
C90
l/cd/klm
Polar curve nLLK 08018/18 N /
nLLK 08036/36 N in emergency operation
90
90
40
75
75
80
60
60
120
45
45
160
30
15
C 0
C90
200
0
30
15
l/cd/klm
nLLK 08018/18 N / nLLK 08036/36 N – 1/6
18 W = 732
36 W = 1332
M8, 14 deep
188
46
65
M25 x 1.5
18 W = 400
36 W = 700
hexagon A/F 13
130
3.5
18 W = 760
36 W = 1360
nLLK 08036/36 N 2/6 + nLLK 08018/18 N 2/6
Hexagon A/F 13
188
46
65
130
21
18 W = 400
36 W = 700
M25 x 1.5
M8, 14 deep
18 W = 900
36 W = 1500
Dimensions in mm
1.2.94
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 08 18/18 N / nLLK 0836/36 N
2.13
2
Technical data
nLLK 0818/18 N
nLLK 0836/36 N
Type Examination Certificate
BVS 09 ATEX E 147
BVS 09 ATEX E 147
EC-Type Examination Certificate
BVS 09 ATEX E 162
BVS 09 ATEX E 162
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
D II 3 G Ex nA de IIC T4 Gc
D II 2 D Ex tb IIIC T80 °C Db
Marking accd. to IECEx
Ex nA de IIC T4 Gc
Ex tb IIIC T80°C Db
Ex nA de IIC T4 Gc
Ex tb IIIC T80°C Db
Permissible ambient temperature
-25 °C up to +45 °C
(specified data: -5 °C up to +35 °C)
-25 °C up to +45 °C
-25 °C up to +40 °C (2 x 36 W with through-wiring)
(specified data -5 °C up to 35 °C)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Battery
6 V/4 Ah NC-accumulator
6 V/4 Ah or 6 V/7 Ah NC-accumulator
Rated voltage
220 V - 240 V AC
220 V - 240 V AC
Rated current
0.18 A
0.36 A
Frequency
50 - 60 Hz
50 - 60 Hz
Charging duration
t 24 h
t 24 h
Power factor cos M
t 0.95
t 0.95
Circuit
EVG with emergency lighting supply
EVG with emergency lighting supply
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
2 x T26/ 36 W (T8)
Rated luminous flux
2700 lm 1)
6700 lm 1)
Lamp cap
G13 accd. to IEC 60061-1
G13 accd. to IEC 60061-1
Light efficiency in operation
78%
78%
Luminous flux in emergency operation
(1.5 h, one lamp)
1)
880 lm (65 %)
1200 lm1) (36 %)
Luminous flux in emergency operation
(3 h, one lamp)
415 lm1) (30 %)
1040 lm1) (31 %)
Rated emergency lighting duration
1.5 h / 3 h
1.5 h / 3 h
Dimensions (L x W x H)
900 x 188 x 130 mm
1500 x 188 x 130 mm
Connecting terminals
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Enclosure colour
RAL 7035 light grey
RAL 7035 light grey
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.4 kg
9.3 kg
Cable glands / gland plates /
enclosure drilling
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Ex-e cable glands M25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm,
option: M20 x 1.5 metal thread 2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.95
2.14
2
Ex-linear light fittings for
fluorescent lamps
nLLK 09 18 W - 58 W for ambient temperatures up to 60 °C
(Zone 2 and 22)
The lighting solution for high
temperatures up to 60 °C
The linear luminaires series
nLLK 09 for fluorescent lamps
has been specially designed for
areas with high ambient temperatures up to 60 °C. This
makes it especially suitable for
use in areas with high temperatures, such as in refineries,
chemical plants, etc. in hot climates and in indoor areas with
a high heat load. It combines
the latest lighting technology
with the requirements of a
harsh and hazardous environment.
Long-term safety
The luminaires of this robust
lighting series with plastic housings are equipped with a highly-efficient electronic ballast,
which has a reliable EOL circuit.
Thus, the lamps are checked for
proper operation and shut down
safely in the event of a malfunction at the end of the service
life. With these luminaires, you
are always on the safe side.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10, 20 or 24 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Features
• Certified for ambient temperatures up to +60 ° C
• Cost-effective installation due to single-ended through-wiring
• Standard dual channel ballast (2-lamp version) with
EOL monitoring
• Double-sided safety lock
• High degree of protection IP66
1.2.96
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.14
nLLK 09 18 W - 58 W
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
nLLK 09018/18
nLLK 09018/18
(2 x 18 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
1
1 3473 218 001
nLLK 09018/18
(2 x 18 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
1 3473 218 011
nLLK 09018/18
(2 x 18 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3473 218 021
nLLK 09036
(1 x 36 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 09036
(1 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
2 x M25
1 3473 136 011
nLLK 09036
(1 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3473 136 021
nLLK 09036/36
(2 x 36 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 09036/36
(2 x 36 W)
2/6-2K
2x6
–
x
2 x M25,
plastic
1 x M25
1 3473 236 011
nLLK 09036/36
(2 x 36 W)
2/6-2M 1)
2x6
–
x
4 x M20,
metal thread
2 x M20
1 3473 236 021
nLLK 09058
(1 x 58 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 09058
(1 x 58 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
nLLK 09058/58
(2 x 58 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 09058/58
(2 x 58 W)
1/6-1M1)
1x6
x
–
2 x M20,
metal thread
nLLK 09036
1
1 3473 136 001
nLLK 09036/36
1
1 3473 236 001
nLLK 09058
1
1 x M20
1 3473 158 001
1 3473 158 020
nLLK 09058/58
1)
1
1 x M20
1 3473 258 001
1 3473 258 020
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.97
Dimension drawing / Polar curve
2.14
nLLK 09 18 W - 58 W
nLLK 09...
2
90
90
40
75
75
M25 x 1.5
18 W = 732
36 W = 1332
58 W = 1632
18 W = 400
36 W/58 W = 700
Hexagon A/F 13
80
60
60
120
45
30
15
C 0
C90
200
0
188
46
18 W = 760
36 W = 1360
58 W = 1660
45
160
M8, 14 deep
65
21
130
Polar curve nLLK 09018/18 /
nLLK 09036/36
30
15
l/cd/klm
Polar curve nLLK 09036 /
nLLK 09058
90
90
40
75
75
80
60
60
120
45
45
160
30
15
200
0
30
15
C 0
C90
l/cd/klm
Polar curve nLLK 09058/58
90
90
40
75
75
80
60
45
45
160
30
15
C 0
C90
60
120
200
0
30
15
l/cd/klm
Dimensions in mm
1.2.98
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 09018/18 / nLLK 09036
2.14
2
Technical data
nLLK 09018/18
nLLK 09036
EC-Type Examination Certificate
BVS 10 ATEX E 038
BVS 10 ATEX E 038
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4
D II 3 D Ex tD A22 IP66 T80 °C
D II 3 G Ex nA de IIC T4
D II 3 D Ex tD A22 IP66 T80 °C
Permissible ambient temperature
-25 °C up to +60 °C
-25 °C up to +60 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC / 195 V - 250 V DC
220 - 254 V AC / 195 V - 250 V DC
Rated current
0.18 A
0.18 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 18 W (T8)
1)
1 x T26 / 36 W (T8)
3350 lm 1)
Rated luminous flux
2700 lm
Lamp cap
G 13 accord. to IEC 60081-1
G 13 accord. to IEC 60081-1
Light efficiency in operation
78 %
86 %
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130
Connecting terminals
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
5.2 kg
7.2 kg
Cable glands / gland plates /
enclosure drilling
Ex e cable glands M 25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
(optional M 20 x 1.5 metal thread)2)
Ex e cable glands M 25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
(optional M 20 x 1.5 metal thread)2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.99
Technical data
2.14
nLLK 09036/36 / nLLK 09058
2
Technical data
nLLK 09036/36
nLLK 09058
EC-Type Examination Certificate
BVS 10 ATEX E 038
BVS 10 ATEX E 038
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4
D II 3 D Ex tD A22 IP66 T80 °C
D II 3 G Ex nA de IIC T4
D II 3 D Ex tD A22 IP66 T80 °C
Permissible ambient temperature
-25 °C up to +60 °C
-25 °C up to +60 °C
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC / 195 V - 250 V DC
220 - 254 V AC / 195 V - 250 V DC
Rated current
0.34 A
0.27 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T26 / 36 W (T8)
1 x T26 / 58 W (T8)
Rated luminous flux
6700 lm 1)
5200 lm 1)
Lamp cap
G 13 accord. to IEC 60081-1
G 13 accord. to IEC 60081-1
Light efficiency in operation
78 %
83 %
Dimensions (L x W x H)
1360 x 188 x 130 mm
1660 x 188 x 130 mm
Connecting terminals
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
7.4 kg
8.2 kg
Cable glands / gland plates /
enclosure drilling
Ex e cable glands M 25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
(optional M 20 x 1.5 metal thread)2)
Ex e cable glands M 25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
(optional M 20 x 1.5 metal thread)2)
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
1.2.100
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 09058/58
2.14
2
Technical data
nLLK 09058/58
EC-Type Examination Certificate
BVS 10 ATEX E 038
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4
D II 3 D Ex tD A22 IP66 T80 °C
Permissible ambient temperature
-25 °C up to +60 °C
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 254 V AC / 195 V - 250 V DC
Rated current
0.53 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG
Protection class
I
Lamp / Illuminant
2 x T26 / 58 W (T8)
Rated luminous flux
10.400 lm 1)
Lamp cap
G 13 accord. to IEC 60081-1
Light efficiency in operation
72 %
Dimensions (L x W x H)
1660 x 188 x 130 mm
Connecting terminals
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Enclosure material
glass-fibre reinforced polyester
Weight
9.1 kg
Cable glands / gland plates /
enclosure drilling
Ex e cable glands M 25 x 1.5 (plastic)
for cables from Ø 8 - 17 mm
(optional M 20 x 1.5 metal thread)2)
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
depends on used lamps
2)
with dustcover if entry/thread is not closed
EATON’S CROUSE-HINDS BUSINESS
1.2.101
2.15
2
Ex-linear luminaires for
T5 HE-fluorescent lamps
nLLK 10 14 W - 35 W
(Zone 2 and 22)
The energy-saving lighting
solution
Certified for use in hazardous
areas in Zone 2 and 22, the linear luminaires series nLLK 10 for
T5 fluorescent lamps
(Ø 16 mm) combines a cuttingedge lighting technology with
the requirements of a harsh and
hazardous environment.
Energy-saving lighting
technology
The nLLK 10 luminaires for T5
fluorescent lamps help to improve safety and to save energy. The use of T5 HE lamps with
improved efficiency and high
quality lighting results in a significant energy saving, which in
turn reduces your operating
costs significantly.
Long-term safety
The luminaires of this robust
lighting series with plastic housings are equipped with a highly-efficient electronic ballast,
which has a reliable EOL circuit.
Thus, the lamps are checked for
proper operation and shut down
safely in the event of a malfunction at the end of the service
life. With these luminaires, you
are always on the safe side.
Simple and cost-effective
installation
In conjunction with the generously dimensioned terminal
compartment, the standard single-ended through-wiring allows
a cost-effective installation. The
double-sided locking facility
with 10, 20 or 24 latch points allows the protective bowl to be
hinged on both sides, meaning
that the fitting can be mounted
on either side.
Features
• Energy savings by modern, efficient T5 fluorescent
lamps (Ø 16 mm)
• Cost-effective installation due to single-ended through-wiring
• High safety due to EVG with EOL monitoring
• Double-sided safety lock
• High degree of protection IP66
1.2.102
EATON’S CROUSE-HINDS BUSINESS
Ordering details
2.15
nLLK 10 14 W - 35 W
Ordering details
Type
Content
Terminals
ThroughThroughwiring
wiring
single-ended twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
2
nLLK 10014/14
nLLK 10014/14
(2 x 14 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
1
1 3467 214 001
nLLK 10014/14
(2 x 14 W)
2/5-2K
2x6
x
–
2 x M25,
plastic
2 x M25
1
1 3467 214 011
nLLK 10014/14
(2 x 14 W)
1/6-1M 1)
1x6
x
–
2 x M25,
plastic
1 x M20
1 3467 214 021
nLLK 10014/14
(2 x 14 W)
2/6-2M 1)
2x6
x
–
4 x M20,
metal thread
2 x M20
1 3467 214 031
nLLK 10028/28
(2 x 28 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 10028/28
(2 x 28 W)
2/5-2K
2x6
x
–
2 x M25,
plastic
2 x M25
nLLK 10028/28
(2 x 28 W)
1/6-1M 1)
1x6
x
–
2 x M25,
plastic
1 x M20
1 3467 228 021
nLLK 10028/28
(2 x 28 W)
2/6-2M 1)
2x6
x
–
4 x M20,
metal thread
2 x M20
1 3467 228 031
nLLK 10035/35
(2 x 35 W)
1/6-1K
1x6
x
–
2 x M25,
plastic
nLLK 10035/35
(2 x 35 W)
2/5-2K
2x6
x
–
2 x M25,
plastic
2 x M25
nLLK 10035/35
(2 x 35 W)
1/6-1M 1)
1x6
x
–
2 x M20,
metal thread
1 x M20
1 3467 235 021
nLLK 10035/35
(2 x 35 W)
2/6-2M 1)
2x6
x
–
4 x M20,
metal thread
2 x M20
1 3467 235 031
nLLK 10028/28
1
1 3467 228 001
1
1 3467 228 011
nLLK 10035/35
1)
1
1 3467 235 001
1
1 3467 235 011
with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.2.103
Dimension drawing / Polar curve
2.15
nLLK 10 14 W - 35 W
21
90
90
M25 x 1.5
40
18 W = 732
36 W = 1332
58 W = 1632
18 W = 400
36 W/58 W = 700
Hexagon A/F 13
75
75
80
60
45
45
160
30
15
C 0
C90
60
120
200
0
M8, 14 deep
188
46
65
2
nLLK 10...
130
Polar curve nLLK 10014/14 /
nLLK 10028/28 /
nLLK 10035/35
18 W = 760
36 W = 1360
58 W = 1660
30
15
l/cd/klm
Dimensions in mm
1.2.104
EATON’S CROUSE-HINDS BUSINESS
Technical data
nLLK 10014/14 / nLLK 10028/28
2.15
2
Technical data
nLLK 10014/14
nLLK 10028/28
Type Examination Certificate
BVS 10 ATEX E 149
BVS 10 ATEX E 149
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4 Gc
D II 3 D Ex tc IIIC T80 °C Dc IP66
D II 3 G Ex nA de IIC T4 Gc
D II 3 D Ex tc IIIC T80 °C Dc IP66
Permissible ambient temperature
-25 °C up to + 50 °C (to +45 °C with DGV)
-25 °C up to + 50 °C (to +45 °C with DGV)
IK-class according to EN 50102
IK 10 ^= 20 J
IK 10 ^= 20 J
Rated voltage
220 - 240 V AC / DC
220 - 240 V AC / DC
Rated current
0.13 A
0.26 A
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.95
t 0.95
Circuit
EVG
EVG
Protection class
I
I
Lamp / Illuminant
2 x T5 / 14 W HE
1)
2 x T5 / 28 W HE
5200 lm 1)
Rated luminous flux
2400 lm
Lamp cap
G5 accord. IEC 60061-1
G5 accord. IEC 60061-1
Light efficiency in operation
86%
85%
Dimensions (L x W x H)
760 x 188 x 130 mm
1360 x 188 x 130 mm
Enclosure material
glass-fibre reinforced polyester
glass-fibre reinforced polyester
Weight
3.6 kg
5.8 kg
Cable glands / gland plates /
enclosure drilling
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
1)
depends on used lamps
DGV: Through-wiring 2/6
EATON’S CROUSE-HINDS BUSINESS
1.2.105
Technical data
2.15
nLLK 10035/35
2
Technical data
nLLK 10035/35
Type Examination Certificate
BVS 10 ATEX E 149
Marking accd. to 94/9/EC
D II 3 G Ex nA de IIC T4 Gc
D II 3 D Ex tc IIIC T80 °C Dc IP66
Permissible ambient temperature
-25 °C up to + 45 °C (bis +40 °C with through-wiring 2/6)
IK-class according to EN 50102
IK 10 ^= 20 J
Rated voltage
220 - 240 V AC / DC
Rated current
0.33 A
Frequency
50 - 60 Hz
Power factor cos M
t 0.95
Circuit
EVG
Protection class
I
Lamp / Illuminant
2 x T5 / 35 W HE
Rated luminous flux
6600 lm 1)
Lamp cap
G5 accord. IEC 60061-1
Light efficiency in operation
85%
Dimensions (L x W x H)
1660 x 188 x 130 mm
Enclosure material
glass-fibre reinforced polyester
Weight
7.3 kg
Cable glands / gland plates /
enclosure drilling
L, L1, L2, L3, N, PE screw-type terminals
max 6 mm2 single wire
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Polycarbonate
1)
depends on used lamps
1.2.106
EATON’S CROUSE-HINDS BUSINESS
Notizen
2.15
2
EATON’S CROUSE-HINDS BUSINESS
1.2.107
2.16
Ex-photocells / twilight switch
2 For use in Zones 1 and 2
For the comfortable and automatic control of lighting in hazardous areas. This screw-in photocell has been approved for
direct installation in Ex-d and
Ex-e enclosures. The electronics
and the light-sensitive sensor
are encapsulated in a
flameproof light alloy enclosure
with a M32 x 1.5 mm² threaded
connection. The encapsulated
connection cables are 1.5 mm²
and 500 mm long. The photocell
has an electronic circuit with a
low power consumption of approximately 0.3 W and a
voltage range of 105 V AC to
305 V AC 50/60Hz and switches
a rated current of 10 A or a max.
power of up to 1800 VA.
The electronics switch on immediately if the light falls below
the threshold values. However,
there is a 2 to 5 second switching-off delay to avoid accidental
switching due to light flashes.
Features
• Switching capacity up to 1000 W (1800 VA)
• High degree of protection IP66
• Easy to install
1.2.108
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details / Technical data / Dimension drawing
2.16
Photocell SG-Ex RFE
Ordering details
Type
Content
Order No.
Sensitivity 4 - 15 lux
GHG 640 9601 P0003
SG-Ex RFE
Photocell SG-Ex RFE
2
Technical data
Photocell SG-Ex RFE
Marking accd. to 94/9/EC
D II 2 G Ex d II C T6
EC-Type Examination Certificate
PTB 06 ATEX 1017 X
Permissible ambient temperature
-40 °C up to +70 °C
Rated voltage
105 V to 305 V AC
Rated current
max. 10 A
Frequency
50 - 60 Hz
Power consumption
1W
Rated switching capacity
1000 W (1800 VA)
Standard cable length
approx. 0.5 m, 1.5 mm2
Protection class
I
Degree of protection accd. to EN 60529
IP66
Weight
0.25 kg
Type of mounting
Screw in thread M32 x 1.5
Enclosure material
Aluminium
Enclosure colour
grey
67
16
78
29.3
M32 x 1.5
Dimensions in mm
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2.109
2.17
2
Fixing systems
for installing luminaires
Complete systems and single components
The one-off manufacture of individual assembly systems for installing lighting systems is often
very costly. The patented Complete Assembly System is a
low-cost, standard fixing system for light fittings on industrial rails, walls or steel beam
constructions.
Stability and material
A specially developed shaping
method that ensures a high degree of stability is used for this
programme. Stainless steel
with optimised material
strength is used in environments with aggressive media.
Components that are not made
of stainless steel are hot-dip
galvanised after manufacture in
accordance with DIN EN ISO
1461.
Assembly
The assembly systems have
been designed for inside and
outside areas. The compact system kits can be assembled by
just one person in a very short
time. All individual parts are
simply fitted together and fas-
tened by screws. Since there is
no need for drilling or welding,
it is possible to work in hazardous areas without a „hot work
permit”.
Safety
The assembly system is always
installed from the safe side of
the work platform, i.e. without
scaffolding! The specified handrail height and the avoidance of
protruding metal parts or
screws in the construction provides a high standard of safety.
Cost-saving maintenance
The use of tilting luminaire
masts results in decisive cost
advantages due to minimised
maintenance. Thus, for example, changing a lamp without
scaffolding or assembly aids is
possible for just one person in a
very short time. The costs for
cleaning and repair work can
also be minimised.
Features
• Easy to install
• Corrosion protected (stainless steel or hot-dip galvanized)
• Extra solid construction ensures high wind load resistance
1.2.110
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Ordering details
2.17
Fixingsystems
Ordering details
Type
OU
Order No.
Light pole, 90° bend and drilling hole f. LTR 48 and LTRS 48: type LM 48 - 2300/300 - FT, hot-dip galvanized
1
2 2480 520 001
Light pole 90° bend and drilling hole f. LTR 48 and LTRS 48: type LM 48 - 1900/300 - FT, hot-dip galvanized
1
2 2480 520 002
Pole-system bent 90°
Light fitting support pipe with cable outlet: type LTR 48 - 600 - FT, hot-dip galvanized
1
2 2480 530 001
Light fitting support pipe with cable outlet: type LTR 48 - 1200 - FT, hot-dip galvanized
1
2 2480 530 002
Light fitting support pipe with cable outlet: type LTR 48 - 1500 - FT, hot-dip galvanized
1
2 2480 530 003
Light fitting support pipe clamp 90° twisted: type LTRS 48 - FT, hot-dip galvanized
1
2 2480 550 012
1
2 2480 520 006
Pole-system bent 45°
Light pole, 45° bend, for pole-mounting light fittings: type LMZ 48 - 1900/190 - FT, hot-dip galvanized
Light pole, 45° bend, , e.g. for floodlights: type LM 48 - 1900/190 - FT, hot-dip galvanized
1
2 2480 520 007
Light pole whip form, 45° bend: type LMP 48 - 1900/1300 - FT, hot-dip galvanized
1
2 2480 520 003
Light pole whip form, 45° bend: type LMP 48 - 2100/1300 - FT, hot-dip galvanized
1
2 2480 520 004
Light pole whip form, 45° bend: type LMP 48 - 2100/800 - FT, hot-dip galvanized
1
2 2480 520 005
Wall-mounted light pole whip form, 45° bend, with cable outlet: type LMW 48 - 500/1300 - FT, hot-dip galvanized
1
2 2480 520 008
Wall-mounted light pole whip form, 45° bend, with cable outlet: type LMW 48 - 500/800 - FT, hot-dip galvanized
1
2 2480 520 009
Light pole fixture for wall mounting, set 2 pcs.: type LMHW 48 - FT, hot-dip galvanized
1
2 2480 550 001
Light pole clamp, fixed, UMHS 48/48 - FT, hot-dip galvanized
1
2 2480 550 002
Light pole clamp, fixed, with pole slip protection UMHSD 48/48 - FT, hot-dip galvanized
1
2 2480 550 003
Light pole clamp
Light pole clamp, swivel, with pole slip protection, UMHK 48/48 - ER, stainless steel
1
2 2480 550 004
Light pole clamp, fixed, UMHS 48/48 - ER, stainless steel
1
2 2480 550 005
Light pole clamp, fixed, with pole slip protection UMHSD 48/48 - ER, stainless steel
1
2 2480 550 006
Light pole clamp, swivel, with pole slip protection, UMHK 48/48 - FT, hot-dip galvanized
1
2 2480 550 007
End caps for poles and pipes
End cap with cable outlet Ø 15 mm: type SEL 48 - K, plastic
1
2 2480 550 015
End cap closed: type SEG 48 - K, plastic
1
2 2480 550 016
End cap open: type SEO 48 - K, plastic
1
2 2480 550 115
Canopy for fluorescent light fittings 18 W LSD 1200 - ER 1200 mm length, hole spacing: 400 mm
1
2 2480 540 001
Canopy for fluorescent light fittings 18 W LSD 1600 - ER 1600 mm length, hole spacing: 700 mm
1
2 2480 540 002
Canopy for fluorescent light fittings
0
70
00
12
25
0
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2.111
2
2.17
Ordering details
Fixingsystems / Accessories
Ordering details
Type
OU
Order No.
Pipe clamps
2
2 pcs. pipe clamps R12 (1 1/4”), Ø 38 - 42 mm with screws and polyamide washer, hot-dip galvanized
1
2 2480 462 000
2 pcs. pipe clamps R14 (1 1/4”), Ø 38 - 42 mm with screws and polyamide washer, stainless steel
1
2 2480 464 000
2 pcs. pipe clamps R22 (1 1/2”), Ø 47 - 51 mm with screws and polyamide washer, hot-dip galvanized
1
2 2480 472 000
2 pcs. pipe clamps R24 (1 1/2”), Ø 47 - 51 mm with screws and polyamide washer, stainless steel
1
2 2480 474 000
2 pcs. pipe clamps R32 (2''), Ø 56 - 60 mm with screws and polyamide washer, hot-dip galvanized
1
2 2480 482 000
2 pcs. pipe clamps R34 (2''), Ø 56 - 60 mm with screws and polyamide washer, stainless steel
1
2 2480 484 000
1 pcs. pipe clamp A8 (1 1/2") D 47 - 51 mm for AB 12.. with screws and polyamide washer, hot-dip galvanized
1
NOR 000 005 009 211
1 pcs. pipe clamp A9 (2") D 56 - 60 mm for AB 12.. with screws and polyamide washer, hot-dip galvanized
1
NOR 000 005 009 229
2 pcs. pipe clamp, two-part, for pipe mounting LB 48 - FT with screws and polyamide washer, hot-dip galvanized
1
2 2480 550 010
2 pcs. luminaire mounting bracket with 30° angle, wall mounting LH 30 - FT, hot-dip galvanized
1
2 2480 550 013
Fixing accessories
2 pcs. luminaire mounting bracket with 45° angle, wall mounting LH 45 - FT, hot-dip galvanized
1
2 2480 550 014
2 pcs. wall mounting bracket with 30° angle, with screws and polyamide washer, hot-dip galvanized
1
2 2480 000 122
1 pcs. wall bracket 45° with screws and polyamide washer, hot-dip galvanized
1
NOR 000 005 009 196
1 pcs. wall bracket W 27, 15°, for pole-mounting fitting Ø 42 mm, hot-dip galvanized
1
2 2483 027 000
2 2480 092 000
2 pcs. ceiling mounting bracket D 92 with screws and polyamide washer, stainless steel
1
1 pcs. ceiling mounting bracket A5 with screws and polyamide washer, hot-dip galvanized
1
NOR 000 005 009 162
2 pcs. C-bracket for luminaire mounting LAB-C50 - ER, stainless steel
1
2 2480 550 011
2 pcs. hexagon screw M8 x 20 for luminaire mounting, with polyamide washer
1
2 2480 054 000
2 pcs. eye bolt M8 for luminaire mounting, hot-dip galvanized
1
2 2480 002 000
2 pcs. eye bolt M8 for luminaire mounting, stainless steel
1
2 2480 004 000
1 pcs. eye bolt M8 - A1 for luminaire mounting, hot-dip galvanized
1
NOR 000 005 009 261
Accessories
1.2.112
Type
Application
Order No.
LED module 400
for eLLK 92 018/18 LED Ready / eLLK 92 LED 400
1 2255 213 101
LED module 800
for eLLK 92 036/36 LED Ready / eLLK 92 LED 800
1 2256 226 101
LED module 400
for eLLK 92 018/18 with conversion kit
1 2256 226 501
LED module 800
for eLLK 92 036/36 with conversion kit
1 2256 226 501
Single-ended through-wiring 2/6 with
2 entries M25, incl. terminals and
mounting material
for eLLM 92 pole mounting light fitting
2 2218 602 000
Fluorescent lamp G13 T8/Ø 26 mm
18 W 840 - 1350 lm
3 2475 900 001
Fluorescent lamp G13 T8/Ø 26 mm
36 W 840 - 3350 lm
3 2475 900 002
Fluorescent lamp G13 T8/Ø 26 mm
58 W 840 - 5200 lm
3 2475 900 003
Fluorescent lamp Fa6 T8 18 W Long-Life
3 2475 900 084
Fluorescent lamp Fa6 T8 36 W Long-Life
3 2475 900 085
Fluorescent lamp G13 T8 18 W Ultimate 840
3 2475 900 087
Fluorescent lamp G13 T8 36 W Ultimate 840
3 2475 900 088
Fluorescent lamp G13 T8 58 W Ultimate 840
3 2475 900 089
Hexagon box spanner SW 13 for opening/closing fluorescent light fittings eLLK/M and nLLK/M
3 2485 000 005
EXPLOSION PROTECTED LUMINAIRES BR-2236 – 0714
Dimension drawing
2.17
Fixingsystems
Light pole 90° bended
0
Ø
8,5
Ø 48,3 x 3,25
70
Light fitting support pipe
clamp 90° twisted:
Light fitting support pipe
with cable outlet
Ø 48,3 x 3,25
Ø 30
2
300
600
Ø 48,3 x 3,25
Ø 30
1900
1200
Ø 30
Ø 48,3 x 3,25
1500
LMZ 48 - 1900/190 - FT
LM 48 - 1900/190 - FT
LMW 48 - 500/800 - FT LMW 48 - 500/1300 - FT
0
Ø 8,50
0
20
20
Ø 42
80
13
45°
190
00
0
Ø 48
45°
A
500
18
A
30
30
45°
A
500
45°
1900
1900
70
18
Ø 48,3 x 3,25
LMP 48 - 1900/1300 - FT/
LMP 48 - 2100/1300 - FT/
LMP 48 - 2100/800 - FT
LMHW 48 - FT
00
13
Ø 48,3 x 3,25
UMHS 48/48 - FT/ER - UMHSD 48/48 - FT/ER
Bohrung Ø 9
drilling Ø 9
Bohrung Ø 11
drilling Ø 11
6
Ø 48,3
Ø 48,3
A
85
165
30
1900/ 45
°
2100
62
80
0/
A
A
63,5 +0,5
18
Ø 48,3 x 3,25
UMHK 48/48 - ER / FT
End cap SEL 48 / SEG / SEO
LSD 1200 - ER/ LSD 1600 - ER
Ø 48,3
Ø 48,3
Ø 48
Länge 30
lenght 30
0
70
00
12
25
0
Dimensions in mm
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.2.113
2.17
Dimension drawing
Pipe clamp
Pipe clamp LB 48 - FT
Fixingsystems / Accessories
Leuchtenmontagebügel 30 °
LH 30 - FT
(85)
2xØ9
9
D
45°
LH 45 - FT
2
(115)
85
M8
15
M8
11
5
22
0
D
38 -42 mm
47-51 mm
56-60 mm
Ø48.3
30°
40
(68)
45°
3
Type
R12/R14
R22/R24/A8
R32/R34/A9
50
Wandarm W27
15°
Ceiling bracket D92
65x5
Ø 42.4
C-bracket
Eye bolt
30
225
20
15
M8
175 215
165
30
40
200
9,5
8
9 30
Ø 10
50
Ø 9,5
13
M8x16
Ceiling bracket A5
18
3
30
11
5
89
100
20
Ø9
15
Ø
9
45°
157
178
Ø9
90
R7
30
Wandbügel 45°
Dimensions in mm
1.2.114
EATON’S CROUSE-HINDS BUSINESS
Main Catalogue Part 1
Chapter 3
3
Emergency and
safety light fittings
3.1.3.2
3
1.3.2
3.1.3.2
EATON’S CROUSE-HINDS
EATON'S
BUSINESS
CROUSE-HINDS BUSINESS
Ex-Signal- and Rettungszeichenleuchten
www.ceag.de
Emergency and safety light fittings
Table of contents
3.1
Informationen on Ex-Signal- and Escape Sign Luminaires .............................................. 1.3.4
3.2
Ex-Escape sign luminaire EXIT ........................................................................................... 1.3.6
Ordering details / Dimension drawing ..................................................................................1.3.10
Technical data .......................................................................................................................1.3.12
3.3
Ex-Escape Sign Luminaire Ex-Lite .................................................................................... 1.3.14 3
Ordering details / Dimension drawing ..................................................................................1.3.18
Technical data ...................................................................................................................... 1.3.20
3.4
Ex-Emergency luminaires Planete 400 AD DL / AB 12 108 / EE 11 PL ........................... 1.3.22
Ordering details / Accessories ............................................................................................. 1.3.23
Dimension drawing / polar curves ....................................................................................... 1.3.24
Technical data ...................................................................................................................... 1.3.25
3.5
Ex-Signal- and escape sign luminaires dKLK 23 / dKLK 23 LED .................................... 1.3.26
Ordering details / Accessories ............................................................................................. 1.3.27
Dimension drawing / polar curves ....................................................................................... 1.3.28
Technical data ...................................................................................................................... 1.3.29
EATON’S CROUSE-HINDS BUSINESS
1.3.3
3.1
Ex-signal and escape sign luminaires
Applications and decision criteria
3
Escape sign luminaire EXIT
Emergency lighting –
central or decentral
With regard to emergency lighting in hazardous areas, there
are two general philosophies,
which are based on the reliability of the supply source, the
costs and efforts required for
testing and maintenance work
and the economic efficiency.
Emergency light fittings
with a self-contained battery
system
Emergency light fittings with
self-contained battery systems
provide the required emergency
1.3.4
lighting decentrally, independent of central systems. This
means that the battery, the
charger and the electronics are
integrated into each emergency
light fitting. With regard to the
availability and the redundancy,
this system meets the highest
requirements regarding the reliability of the supply source, in
particular in safety-related sensitive areas.
However, with regard to economic efficiency, the costs and
efforts involved in the testing
and maintenance of each
self-contained battery system
and the influence of the ambient conditions on the battery
life span have to be taken into
account.
Taking the above safety aspects
into consideration, the use of
emergency light fittings with a
self-contained battery system is
EATON’S CROUSE-HINDS BUSINESS
undoubtedly the best solution
for applications in large and spacious hazardous areas where
the number of fittings used is
limited.
The CEAG emergency light fittings with self-contained battery
systems of the series EXIT N
and Ex-Lite N have been designed for a 3 h emergency
lighting duration. The series
EE11 PL and Planete 400 are designed for a rated emergency
lighting duration of 1.5 h/1 h and
features partly a device for carrying out automatic function and
duration tests.
Escape sign luminaire Ex-Lite
Planete 400
The new LED emergency light
fitting Planete 400
The new Planete 400 AD DL
completes our lighting portfolio
with a robust emergency light
fitting with self-contained battery system and state-of-the-art
LED technology. An integrated
micro-processor monitors the
automatic function and duration
test and green and yellow LEDs
indicate the lighting status. The
Planete 400 AD DL is equipped
with 32 LEDs and has an emergency light duration of more
than one hour.
???
3.1
???
3
3
Central emergency lighting
supply using system light
fittings with CG-S-Modules
A centrally monitored emergency light system using the CEAG
group supply and a central battery system is employed when
a large number of emergency
lights can be combined and
used as system light fittings.
As a rule, these battery systems
are not installed in the hazardous areas and, therefore, do not
have to cope with the same environmental conditions as the
light fittings themselves. This
usually results in an extended
life span of the batteries with a
minimized maintenance effort.
One must, of course, take the
increased effort and costs involved in laying cables from the
central supply system to the
light fittings in the hazardous areas into consideration.
For operation in CEAG emergency lighting systems, we supply
versions of our explosion-protected emergency and signal
light fittings with CG-S modules.
Amongst other things, this monitoring module controls the data
exchange with the central emergency lighting unit and reports
the operating status and any
malfunctions.
Together with this CG-S module, all CEAG light fittings that
are equipped accordingly as individually monitored light fittings
can also be connected to a
CEAG emergency lighting installation with monitoring facility.
This means that explosion-protected light fittings of the series
EXIT CG-S, Ex-Lite CG-S, dKLK
23 CG-S and AB 12108-EVG can
also be integrated as system
light fittings in the practical
monitoring system.
This combination offers the following significant advantages:
• Automatic performance of the
necessary function and duration tests with a central recording of all operating functions and error reports
• Enormous cost savings as
manual testing is no longer
necessary
• Freely programmable switching mode for mixed operation
with one end circuit; i.e. a
choice of permanent or standby modus as well as a switching with the general lighting.
• High degree of safety of
emergency lighting due to
constant display of availability
Non-hazardous area CEAG
Emergency supply system
• Simplified installation by using
line supply for data communication
• Mains and emergency power
supply have a common connection
- No separate data line
is required
One line, e.g. 3 x 1.5 mm2, for both the
mains and the emergency power supply
1
2
3
4
5
6
10
12
20
- Up to 20 light fittings can
be connected and addressed to one circuit.
Ex-light fittings with CG and coding switch
with a maximum of 20 light fittings per circuit
7
8
9
10
11
EATON’S CROUSE-HINDS BUSINESS
1.3.5
3.2
Ex-escape sign luminaires
EXIT for Zone 1 and Zone 21 / Exit 2 for Zone 2 and Zone 22
3 Moulded plastic version with LED-technique
Leading the way in hazardous
areas
The EXIT series of explosionprotected escape sign luminaires fulfils the requirements
of ATEX Directive 94/9/EC and
EN 60598, Section 2.22 for
emergency lighting luminaires.
The luminaires are suited for
marking escape routes and exits in hazardous areas.
Only white, high-efficiency
LEDs are used as illuminants
for these luminaires. This guarantees maintenance free operation, as the illuminants do not
need replacing throughout the
complete service life of the
luminaire.
The supply electronics is also
laid out for this service life; the
LED circuits are intrinsically
safe.
The wide input voltage range allows international use. The
housing of these luminaires is
made of high-grade polycarbonate: the escape signs comply with the latest standards.
Thanks to the robust design and
high degree of protection, these
luminaires are suited for both
indoor and outdoor use.
As an emergency lighting
luminaire with self-contained
battery system for maintained
operation, the EXIT N and the
EXIT 2 N features an NC battery
and automatic function monitoring with operating time test.
With the optional built-in CG-S
monitoring module with coding
switch for max. 20 addresses,
this luminaire can also be used
as an individually monitored
emergency lighting luminaire
that is connected to a CEAG
emergency lighting supply system. With this, the operator can
programme the switching mode
according to the respective requirements. Thus, as many as
20 luminaires with different
switching modes can be connected to one end circuit.
Pictogram accord. to ISO 7010
Pictogram accord. to DIN 4844
Pictogram accord. to EN 1838
Features
• All-plastic polycarbonate housing
• Power-saving LED technology, maintenance-free throughout service life
• High degree of protection IP66
• Luminaire with self-contained battery unit and automatic
function monitoring
• Connection and monitoring with CEAG emergency lighting
supply systems possible
1.3.6
EATON’S CROUSE-HINDS BUSINESS
3.2
STOP
3
For all types of application
The escape sign luminaires of
the „EXIT“ series are available
as mains luminaires “EXIT” and
„EXIT 2“, e.g. for specially safeguarded industrial networks
in production plants, as “EXIT
CG-S” and „EXIT 2 CG-S“
emergency lighting luminaires
with individual function monitoring for use in CEAG emergency
lighting supply systems, as well
as “EXIT-N” and „EXIT 2 N“
emergency lighting luminaires
with self-contained battery systems and automatic function
and operating time tests.
Green light for all zones
On account of the robust, allplastic polycarbonate housing in
the high degree of protection
IP66, the EXIT luminaire can be
installed almost anywhere, both
indoors and out. The luminaire
is designed in the type of protection Ex e m ib IIC up to T6 as
well as Ex tb IIIC T80 °C and, in
accordance with the ATEX Directive. It can be used in hazardous areas with explosive gas
atmospheres (Zones 1 and 2)
and explosive dust atmospheres (Zones 21 and 22). The
EXIT 2 series can be used in
hazardous areas with explosive
gas atmospheres (Zones 2) and
explosive dust atmospheres
(Zones 22).
Conformity to standards
The EXIT explosion-protected
escape sign luminaire series fulfils the requirements of ATEX
Directive 94/9/EC and EN
60598, Part 2.22 for emergency
lighting luminaires. It is suited
for marking escape routes and
exits in potentially explosive atmospheres. The housing of this
luminaire is made of high-grade
polycarbonate and it goes without saying that the escape
signs comply with the latest
standards.
For international use
The LED escape sign luminaire
of the EXIT series was designed to meet the requirements of a large number of different safety concepts. Thanks
to the wide input voltage range
from 110 V to 277 V AC and up
to 250 V DC, this luminaire can
be used internationally, whereby the supply circuits of the
LED circuits are intrinsically
safe.
Maintenance-free operation
The white LED technology used
as the light source allows maintenance-free operation without
replacement of the illuminant.
The lighting values required for
the escape sign are maintained
throughout the complete service life of the LEDs, namely
approx. 50,000 hours. It goes
without saying that the supply
electronics are also designed
for this extremely long operating time. This reduces operating
costs and increases the operating safety considerably, in particular in locations that are difficult to access.
The luminaire has a visibility
range of 25 metres and it is
available with a wide variety of
pictograms, where country-specific solutions can be created
without any problems.
The internationally valid certificate „IECEx“ enhances the
scope of this light fitting.
Double safety
Whenever the operational safety of explosion- protected safety
and escape sign luminaires is
involved, there is no room for
compromises, as only a
luminaire that is fully functional
at all times can save human
lives. The new series of explosion-protected LED escape sign
luminaires not only fulfils the
extremely high explosion protection requirements, but it also
fulfils the legal requirements for
emergency and safety lighting
installations. The new EXIT is
capable of safely showing the
right way to go at all times,
even in complex and often badly laid out industrial installations
with hazardous areas.
pluggable connection for an easy
replacement of components
EATON’S CROUSE-HINDS BUSINESS
1.3.7
Ex luminaires with CG-S module and
coding switch for max.
20 luminaires per circuit
3
Hazardous
Area
Connection for mains-/
emergency power supply
CEAG emergency lighting supply unit
(non-hazardous area)
1.3.8
Central emergency
lighting supply via system
luminaires with CG-S module
A central emergency lighting
supply using CEAG group supply and central battery systems
is used wherever a large number of emergency lighting
luminaires can be combined
and operated as system luminaires. These battery systems
are generally installed outside
the hazardous areas and, therefore, they are not subjected to
the ambient conditions of the
luminaires in the field. As a result, the operating life of the
battery is relatively long and the
amount of maintenance required is minimal. The mains
and emergency lighting supplies of these luminaires are fed
via separate circuits from the
emergency lighting power supply installation to the escape
sign luminaire in the hazardous
area. Various luminaires with
CG-S function can be operated
in these circuits.
EATON’S CROUSE-HINDS BUSINESS
Better safe than sorry
In addition to the EXIT/EXIT 2
for use as a mains luminaire,
Address switch of EXIT CG-S
e.g. for specially safeguarded
industrial networks in production plants, there is also the
EXIT CG-S/EXIT 2 CG-S version
with easy function monitoring.
In conjunction with the CG-S
monitoring module with coding
switch up to 20 addresses, this
luminaire can be operated as
emergency lighting luminaire
with individual monitoring. The
operator can programme the
switching mode according to
his individual requirements,
thus allowing the operation of
up to 20 luminaires with differ-
ent switching modes in one end
circuit.
No additional installation work is
required. The central control
unit monitors all the functions
of the luminaire, checks the
feed line for shorts or open circuits and indicates any incidents clearly on the display.
Thus, even with highly complex
installations, troubleshooting
and eliminating faults are not a
problem. Another considerable
advantage: all the function and
operating time tests are carried
out automatically and recorded
by the central control unit. This
saves lots of time and money.
During this function test, the
correct functioning of the
luminaire is monitored by the
built-in CG-S module and any
faults are reported to the central control unit. Thus, for example, the failure of LED groups is
indicated automatically.
3.2
Emergency lighting
luminaires with selfcontained battery systems
Emergency lighting luminaires
with self-contained battery systems provide the required
emergency lighting from a decentralized source, independent
of central systems. These
luminaires are particularly economical when used in extensive
plants. Until now, compared to
centrally operated and monitored installations, the disadvantage of the emergency lighting
luminaires with self-contained
battery systems was that they
did not provide any information
on the state of the luminaire.
However, this monitoring function has been incorporated in
the EXIT N/EXIT 2 N escape
sign luminaire. Five green LEDs
supply constant information on
the charge status and available
battery capacity. A yellow LED
indicates the emergency lighting operation mode and an additional red LED indicates any
faults.
Monitoring functions
The extended self-monitoring
with automatic function and
partial duty cycle test is also
new. The five green LEDs behind the protective cover provide continuous indication of
the charge status and the current battery capacity. Charging
is signalized by a flashing green
LED. The charged capacity is indicated in 20% stages. The yellow LED indicates emergency
lighting operation. An automatic
function test lasting 5 minutes
is carried out on a weekly basis.
For this, the luminaire is
switched electronically from
mains to battery operation. The
emergency lighting function is
tested and any faults are indicated by the flashing red LED.
After approx. 3 months a partial
operating time test (35 mins.) is
initiated automatically. If a minimum emergency lighting operating time of 30 minutes is not
reached, it is signalized by the
flashing red LED. After the
cause of the fault has been
eliminated, e.g. by charging or
replacing the battery, the fault
indication is reset during the
next emergency lighting operation (manual or automatic)
when the minimum operating
time of > 30 minutes has been
reached.
81-100 %
61-80 %
41-60 %
3
7
21-40 %
0-20 %
7
Fault/
maintenance
Emergency
lighting operation
Mains operation:
capacity more
than 40 %,
charging (flashing)
no fault
Emergency
lighting operation:
capacity more
than 60 %
Emergency
lighting operation:
capacity 100 %,
fault after function
or partial operating
time test
LED:
77
Flashing
Off
EATON’S CROUSE-HINDS BUSINESS
On
1.3.9
Ordering details / Dimension drawing
3.2
EXIT / EXIT 24 V / EXIT N / EXIT CG-S for Zone 1/21
Ordering details
Cable gland/Thread
Metal
thread
M20
Standard
pictogram
ISO 7010
optional pictogram according to
DIN 4844
EN 1838
Order No.
Order No.
Order No.
Type
Scope of delivery
Plastic
cable
glands
M20
Screw
plug
M20
EXIT
including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2191 000 021 1 2191 000 001 1 2191 000 011
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2191 000 022 1 2191 000 002 1 2191 000 012
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2191 000 023 1 2191 000 003 1 2191 000 013
including cover, clear, without pictogram
1 x M20
1 x M20
3
1 2191 000 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2191 000 121 1 2191 000 101 1 2191 000 111
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2191 000 122 1 2191 000 102 1 2191 000 112
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2191 000 123 1 2191 000 103 1 2191 000 113
including cover, clear, without pictogram
2 x M20
1 2191 000 104
EXIT 24 V including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2191 024 021 1 2191 024 001 1 2191 024 011
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2191 024 022 1 2191 024 002 1 2191 024 012
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2191 024 023 1 2191 024 003 1 2191 024 013
including cover, clear, without pictogram
1 x M20
1 x M20
1 2191 024 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2191 024 121 1 2191 024 101 1 2191 024 111
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2191 024 122 1 2191 024 102 1 2191 024 112
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2191 024 123 1 2191 024 103 1 2191 024 113
2 x M20
1 2191 024 104
including cover, clear, without pictogram
EXIT N
including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2191 030 021 1 2191 030 001 1 2191 030 011
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2191 030 022 1 2191 030 002 1 2191 030 012
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2191 030 023 1 2191 030 003 1 2191 030 013
including cover, clear, without pictogram
1 x M20
1 x M20
1 2191 030 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2191 030 121 1 2191 030 101 1 2191 030 111
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2191 030 122 1 2191 030 102 1 2191 030 112
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2191 030 123 1 2191 030 103 1 2191 030 113
including cover, clear, without pictogram
2 x M20
1 2191 030 104
EXIT CG-S including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2191 020 021 1 2191 020 001 1 2191 020 011
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2191 020 022 1 2191 020 002 1 2191 020 012
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2191 020 023 1 2191 020 003 1 2191 020 013
including cover, clear, without pictogram
1 x M20
1 x M20
1 2191 020 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2191 020 121 1 2191 020 101 1 2191 020 111
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2191 020 122 1 2191 020 102 1 2191 020 112
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2191 020 123 1 2191 020 103 1 2191 020 113
including cover, clear, without pictogram
2 x M20
1 2191 020 104
Other silk-screen pictograms or inscriptions available on request
A wide selection of cable glands can be found at www.crouse-hinds.de/products or in the catalogue Part 2, Section 3
EXIT / EXIT CG-S / EXIT N
arrow 9 h
arrow 6 h
380,5
356
76
1
arrow 3h
350
355,7
Dimensions in mm
1.3.10
EATON’S CROUSE-HINDS BUSINESS
175
170
36
23
Ordering details / Dimension drawing
3.2
EXIT 2 / EXIT 2 24 V / EXIT 2 N / EXIT 2 CG-S for Zone 2/22
Ordering details
Cable gland/Thread
Type
Scope of delivery
Plastic
cable
glands
M20
Screw
plug
M20
EXIT 2
including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
Standard
pictogram
ISO 7010
Metal thread
M20
Order No.
EXIT 2
24 V
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2193 000 022
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2193 000 023
including cover, clear, without pictogram
1 x M20
1 x M20
1 2193 000 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2193 000 121
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2193 000 122
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2193 000 123
including cover, clear, without pictogram
2 x M20
1 2193 000 104
including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2193 024 021
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2193 024 022
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2193 024 023
including cover, clear, without pictogram
1 x M20
1 x M20
1 2193 024 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2193 024 121
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2193 024 122
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2193 024 123
2 x M20
1 2193 024 104
including cover, clear, without pictogram
EXIT 2 N including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2193 030 021
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2193 030 022
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2193 030 023
including cover, clear, without pictogram
1 x M20
1 x M20
including cover with silk-screen pictogram (arrow 3h)
EXIT 2
CG-S
3
1 2193 000 021
1 2193 030 004
2 x M20
1 2193 030 121
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2193 030 122
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2193 030 123
including cover, clear, without pictogram
2 x M20
1 2193 030 104
including cover with silk-screen pictogram (arrow 3h)
1 x M20
1 x M20
1 2193 020 021
including cover with silk-screen pictogram (arrow 9h)
1 x M20
1 x M20
1 2193 020 022
including cover with silk-screen pictogram (arrow 6h)
1 x M20
1 x M20
1 2193 020 023
including cover, clear, without pictogram
1 x M20
1 x M20
1 2193 020 004
including cover with silk-screen pictogram (arrow 3h)
2 x M20
1 2193 020 121
including cover with silk-screen pictogram (arrow 9h)
2 x M20
1 2193 020 122
including cover with silk-screen pictogram (arrow 6h)
2 x M20
1 2193 020 123
including cover, clear, without pictogram
2 x M20
1 2193 020 104
Other silk-screen pictograms or inscriptions available on request
A wide selection of cable glands can be found at www.crouse-hinds.de/products or in the catalogue Part 2, Section 3
EXIT 2 / EXIT 2 CG-S / EXIT 2 N
arrow 9 h
380,5
356
arrow 6 h
76
1
arrow 3h
350
355,7
175
170
36
23
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.3.11
Technical data
3.2
EXIT / EXIT 24 V / EXIT N / EXIT CG-S for Zone 1/21
3
Technical data
EXIT / EXIT 24 V
EXIT N
EXIT CG-S
EC-Type Examination Certificate
BVS 09 ATEX E 029
BVS 09 ATEX E 029
BVS 09 ATEX E 029
IECEx Certificate of Conformity
IECEx BVS 13.0017
IECEx BVS 13.0017
IECEx BVS 13.0017
Marking accd. to 94/9/EC
D II 2 G Ex e ib mb IIC T6/T5 Gb
D II 2 D Ex tb IIIC T80°C Db
D II 2 G Ex e ib mb IIC T5/T4 Gb
D II 2 D Ex tb IIIC T80°C Db“
D II 2 G Ex e ib mb IIC T6/T5 Gb
D II 2 D Ex tb IIIC T80°C Db
Marking accd. to IECEx
Ex e ib mb IIC T6/T5 Gb
Ex tb IIIC T80°C Db
Ex e ib mb IIC T5/T4 Gb
Ex tb IIIC T80°C Db
Ex e ib mb IIC T6/T5 Gb
Ex tb IIIC T80°C Db
Permissible ambient temperature
-20 °C up to +40°C (T6)
-20 °C up to +50°C (T5)
-20 °C up to +40°C (T5)
-20 °C up to +50°C (T4)
+5 °C up to +35 °C
-20 °C up to +40°C (T6)
-20 °C up to +50°C (T5)
specified data
Battery
12 V/600 mAh NC-Accu
Rated power consumption
approx. 6 VA
approx. 8 VA
approx. 6 VA
Rated voltage
110 V - 277 V AC
110 V - 250 V DC
110 V - 277 V AC
110 V - 250 V DC
220 V - 254 V AC
195 V - 250 V DC
Rated voltage EXIT 24 V
12 - 24 V DC (-15 % / + 20 %)
Rated current AC/DC
220 V = 20 mA,
110 V = 40 mA
220 V = 27 mA,
110 V = 54 mA
220 V = 20 mA,
110 V = 40 mA
Frequency
DC and 50 - 60 Hz (AC)
DC and 50 - 60 Hz (AC)
DC and 50 - 60 Hz (AC)
Charging duration for capacity > 90 %
24 h
Power factor cos M
t 0.95
t 0.95
t 0.95
Circuit
electronic power supply
electronic power supply
electronic power supply
Protection class
I
I
I
Viewing distance
25 m
25 m
25 m
Lamp / Illuminant
high output-LEDs, white
high output-LEDs, white
high output-LEDs, white
Rated emergency lighting duration
approx. 3 h
Dimensions (L x W x H)
356 x 175 x 76 mm
356 x 175 x 76 mm
356 x 175 x 76 mm
Connecting terminals
3 x loop terminal 2.5 mm²
3 x loop terminal 2.5 mm²
3 x loop terminal 2.5 mm²
Enclosure colour
grey, RAL 7035
grey, RAL 7035
grey, RAL 7035
Enclosure material
Polycarbonate
Polycarbonate
Polycarbonate
Weight
2 kg
2.5 kg
2.2 kg
Cable glands / gland plates /
enclosure drilling
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
Type of mounting
wall mounting
wall mounting
wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
Polycarbonate
1.3.12
EATON’S CROUSE-HINDS BUSINESS
Technical data
3.2
EXIT 2/ EXIT 2 24 V / EXIT 2 N / EXIT 2 CG-S for Zone 2/22
3
Technical data
EXIT 2/ EXIT 2 24 V
EXIT 2 N
EXIT 2 CG-S
EC-Declaration of Conformity
CCH 13 ATEX 1019
CCH 13 ATEX 1019
CCH 13 ATEX 1019
Marking accd. to 94/9/EC
D II 3 G Ex e ic mc IIC T6/T5 Gc
D II 3 D Ex tc IIIC T80°C Dc
D II 3 G Ex e ic mc IIC T5/T4 Gc
D II 3 D Ex tc IIIC T80°C Dc
D II 3 G Ex e ic mc IIC T6/T5 Gc
D II 3 D Ex tc IIIC T80°C Dc
Permissible ambient temperature
-20 °C up to +40°C (T6)
-20 °C up to +50°C (T5)
-20 °C up to +40°C (T5)
-20 °C up to +50°C (T4)
+5 °C up to +35 °C
-20 °C up to +40°C (T6)
-20 °C up to +50°C (T5)
specified data
Battery
12 V/600 mAh NC-Accu
Rated power consumption
approx. 6 VA
approx. 8 VA
approx. 6 VA
Rated voltage
110 V - 277 V AC
110 V - 250 V DC
110 V - 277 V AC
110 V - 250 V DC
220 V - 254 V AC
195 V - 250 V DC
Rated voltage EXIT 24 V
12 - 24 V DC (-15 % / + 20 %)
Rated current AC/DC
220 V = 20 mA,
110 V = 40 mA
220 V = 27 mA,
110 V = 54 mA
220 V = 20 mA,
110 V = 40 mA
Frequency
DC and 50 - 60 Hz (AC)
DC and 50 - 60 Hz (AC)
DC and 50 - 60 Hz (AC)
Charging duration for capacity > 90 %
24 h
Power factor cos M
t 0.95
t 0.95
t 0.95
Circuit
electronic power supply
electronic power supply
electronic power supply
Protection class
I
I
I
Viewing distance
25 m
25 m
25 m
Lamp / Illuminant
high output-LEDs, white
high output-LEDs, white
high output-LEDs, white
Rated emergency lighting duration
approx. 3 h
Dimensions (L x W x H)
356 x 175 x 76 mm
356 x 175 x 76 mm
356 x 175 x 76 mm
Connecting terminals
3 x loop terminal 2 x 2.5 mm²
3 x loop terminal 2 x 2.5 mm²
3 x loop terminal 2 x2.5 mm²
Enclosure colour
grey, RAL 7035
grey, RAL 7035
grey, RAL 7035
Enclosure material
Polycarbonate
Polycarbonate
Polycarbonate
Weight
2 kg
2.5 kg
2.2 kg
Cable glands / gland plates /
enclosure drilling
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex-e cable glands
M20 x 1.5 (plastic) /
1 x Ex-e-screw plug M20 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
Type of mounting
wall mounting
wall mounting
wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
Polycarbonate
EATON’S CROUSE-HINDS BUSINESS
1.3.13
3.3
Ex-Escape sign luminaires
Ex-Lite
3 Metal version with LED technology for Zone 1 and Zone 21 / NEC applications
The robust escape sign
luminaire
plete service life of the
luminaire.
The Ex-Lite series of explosion-protected escape sign
luminaire fulfils the requirements of ATEX Directive 94/9/
EC and EN 60598, Section 2.22
for emergency lighting
luminaires. The luminaires are
suited for marking escape
routes and exits in potentially
explosive atmospheres. Only
white, high-efficiency LEDs are
used as illuminants for these
luminaires. This guarantees
maintenance-free operation, as
the illuminants do not need replacing throughout the com-
The supply electronics are also
laid out for this service life; the
LED circuits are intrinsically
safe.
The wide input voltage range allows international use. The
housing of these luminaires is
made of robust light alloy: the
escape signs comply with the
latest standards. Thanks to the
very robust design and high degree of protection, these
luminaires are suited for both
indoor and outdoor use, even
under extreme conditions. As
an emergency lighting luminaire
for maintained operation with
self-contained battery system,
the Ex-Lite N features an NC
battery and automatic function
monitoring with operating time
test.
With the optional built-in CG-S
monitoring module with coding
switch for max. 20 addresses,
this luminaire can also be used
as an individually monitored
emergency lighting luminaire
that is connected to a CEAG
emergency lighting supply system. With this, the operator can
programme the switching mode
according to the respective requirements. Thus, as many as
20 luminaires with different
switching modes can be connected to one end circuit.
Features
• Robust light alloy housing
• Power-saving LED technology, maintenance-free
throughout service life
• High degree of protection IP66
• Luminaire with self-contained battery unit and automatic
function monitoring
• Connection and monitoring with CEAG emergency lighting
supply systems possible
1.3.14
EATON’S CROUSE-HINDS BUSINESS
3.3
STOP
3
For all types of application
The escape sign luminaires of
the „Ex-Lite“ and Ex-Lite Z series are available as mains
luminaires e.g. for specially
safeguarded industrial networks
in production plants, as “Ex-Lite
CG-S” emergency lighting
luminaires with individual function monitoring for use in CEAG
emergency lighting supply systems, as well as “Ex-Lite N”
and Ex-Lite ZE emergency lighting luminaires with self-contained battery systems and automatic function and operating
time tests.
Green light for all zones
On account of the very robust,
light alloy housing in the high
degree of protection IP66, the
Ex-Lite luminaire can be installed almost anywhere, both
indoors and out. The luminaire
is designed in the type of protection Ex e m ib IIC up to T6 as
well as Ex tb IIIC T80 °C and in
accordance with the ATEX Directive. It can be used in hazardous areas with explosive gas
atmospheres (Zones 1 and 2)
and explosive dust atmospheres (Zones 21 and 22).
Conformity to standards
The Ex-Lite explosion-protected
escape sign luminaire series fulfils the requirements of ATEX
Directive 94/9/EC and EN
60598, Part 2.22 for emergency
lighting luminaires. It is suited
for marking escape routes and
exits in hazardous areas. The
housing of this luminaire is
made of light alloy and it goes
without saying that the escape
sign comply with the latest
standards.
Maintenance-free operation
The white LED technology used
as the light source allows maintenance-free operation without
replacement of the illuminant.
The lighting values required for
the escape sign are maintained
throughout the complete service life of the LEDs, namely
ca. 50,000 hours. It goes without saying that the supply electronics are also designed for
this extremely long operating
time. This reduces operating
costs and increases the operating safety considerably, in particular in locations that are not
easily accessible.
For international use
The LED escape sign luminaire
of the Ex-Lite series was designed to meet the requirements of a large number of different safety concepts. Thanks
to the wide input voltage range
from 110 V to 277 V AC and up
to 250 V DC, this luminaire can
be used internationally, whereby the supply circuits of the
LED circuits are intrinsically
safe.
The internationally valid certificate „IECEx“ enhances the
scope of this light fitting.
With the version Ex-Lite Z and
Ex-Lite ZE a special version is
available for use in the scope of
the NEC regulations
Double safety
Whenever the operational safety of explosion- protected safety
and escape sign luminaires is
involved, there is no room for
compromises, as only a
luminaire that is fully functional
at all times can save human
lives. The new series of explosion-protected LED escape sign
luminaires not only fulfils the
extremely high explosion protection requirements, but it also
fulfils the legal requirements for
emergency and safety lighting
installations. The new Ex-Lite is
capable of safely showing the
right way to go at all times,
even in complex and often badly laid out industrial installations
with hazardous areas.
The luminaire has a visibility
range of 25 metres and it is
available with a wide variety of
pictograms, where country-specific solutions can be created
without any problems.
Ex-Lite ZE for NEC-application
EATON’S CROUSE-HINDS BUSINESS
1.3.15
3.3
3
Central emergency
lighting supply via system
luminaires with CG-S module
A central emergency lighting
supply using CEAG group supply and central battery systems
are used wherever a large number of emergency lighting
luminaires can be combined
and operated as system
luminaires. These battery systems are generally installed outside the hazardous areas and,
therefore, they are not subjected to the ambient conditions of
the luminaires in the field. As a
result, the operating life of the
battery is relatively long and the
amount of maintenance required is minimal. The mains
and emergency lighting supplies of these luminaires are fed
via separate circuits from the
emergency lighting power supply installation to the escape
sign luminaire in the hazardous
area. Various luminaires with
CG-S function can be operated
in these circuits.
1.3.16
Better safe than sorry
In addition to the Ex-Lite for use
as a mains luminaire, e.g. for
specially safeguarded industrial
networks in production plants,
there is also the Ex-Lite CG-S
version with a convenient monitoring function. In conjunction
with the CG-S monitoring module with coding switch for max.
20 addresses, this luminaire
can be operated as an emergency lighting luminaire with individual monitoring. The operator can programme the
switching mode according to
his individual requirements,
thus allowing the operation of
up to 20 luminaires with different switching modes in one end
circuit.
EATON’S CROUSE-HINDS BUSINESS
Addressing switch in the Ex-Lite CG-S
No additional installation work is
required. The central control
unit monitors all the functions
of the luminaire, checks the
feed line for shorts or open circuits and indicates any incidents clearly on the display.
Thus, even with highly complex
installations, troubleshooting
and eliminating faults are not a
Safe Area
problem. Another considerable
advantage: all the function and
operating time tests are carried
out automatically and recorded
by the central control unit. This
saves lots of time and money.
During this function test, the
correct functioning of the
luminaire is monitored by the
built-in CG-S module and any
faults are reported to the central control unit. Thus, for example, the failure of LED groups is
indicated automatically.
Hazardous Area
3.3
3
5 green LEDs
Charging state
red LED
Fault
Yellow LED
Emergency
lighting
Emergency lighting
luminaires with selfcontained battery systems
Emergency lighting luminaires
with self-contained battery systems provide the required
emergency lighting from a decentralized source, independent
of central systems. These
luminaires are particularly economical when used in extensive
plants. Until now, compared to
centrally operated and monitored installations, the disadvantage of the emergency lighting
luminaires with self-contained
battery systems was that they
did not provide any information
on the state of the luminaire.
However, this monitoring function has been incorporated in
the Ex-Lite N escape sign
luminaire. Five green LEDs supply constant information on the
charge state and available bat-
tery capacity. A yellow LED indicates the emergency lighting
operation mode and an additional red LED indicates any
faults.
Monitoring functions
The extended self-monitoring
with automatic function and
partial duty cycle test is also
new. The five green LEDs behind the protective cover provide continuous indication of
the charge state and the current
battery capacity. Charging is signalized by a flashing green LED.
The charged capacity is indicated in 20% stages. The yellow
LED indicates emergency lighting operation. An automatic
function test lasting 5 minutes
is carried out on a weekly basis.
For this, the luminaire is
switched electronically from
LED:
77
81-100 %
Flashing
61-80 %
Off
On
41-60 %
mains to battery operation. The
emergency lighting function is
tested and any faults are indicated by the flashing red LED.
After ca. 3 months a partial operating time test (35 mins.) is
initiated automatically. If a minimum emergency lighting operating time of 30 minutes is not
reached, it is signalized by the
flashing red LED. After the
cause of the fault has been
eliminated, e.g. by charging or
replacing the battery, the fault
indication is reset during the
next emergency lighting operation (manual or automatic)
when the minimum operating
time of > 30 minutes has been
reached.
Low temperature version
down to -40 °C
A new version extending the
temperature range from
-40 °C up to +50 °C is available
for the Ex-Lite LT and from
-40 °C to +40 °C for the Ex-Lite
NLT.
This means that the requirements for countries with extremely low ambient temperatures can be fulfilled.
7
A special luminaire heating system allows a safe charging /
discharging of the Ex-Lite NLT,
even at temperatures below the
physically determined limit of
-10 ° C.
21-40 %
0-20 %
7
Fault/
maintenance
Emergency
lighting operation
Mains operation:
capacity more than
40 %, less than
80 % charging
(flashing) no fault
Emergency
lighting operation:
capacity more
than 60 %, less
than 80 %
Emergency
lighting operation:
capacity 100 %,
fault after function
or partial operating
time test
EATON’S CROUSE-HINDS BUSINESS
1.3.17
Ordering details / Dimension drawing
3.3
Ex-Lite / Ex-Lite CG-S / Ex-Lite N / Ex-Lite Z / Ex-Lite ZE
Ordering details standard temperature
Cable gland/Thread
Metal
thread
Standard
Pictogram
ISO 7010
optional pictogram accord. to
DIN 4844
EN 1838
Order No.
Order No.
Order No.
Type
Scope of delivery
Plastic
cable
glands
Screw
plug
Ex-Lite
including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 011 021 1 2191 011 001 1 2191 011 011
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 011 022 1 2191 011 002 1 2191 011 012
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 011 023 1 2191 011 003 1 2191 011 013
including cover, clear, without pictogram
1 x M25
1 x M25
3
Ex-Lite
CG-S
1 2191 011 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 011 121 1 2191 011 101 1 2191 011 111
including cover with pictogram (arrow 9h)
2 x M20
1 2191 011 122 1 2191 011 102 1 2191 011 112
including cover with pictogram (arrow 6h)
2 x M20
1 2191 011 123 1 2191 011 103 1 2191 011 113
including cover, clear, without pictogram
2 x M20
1 2191 011 104
including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 021 021 1 2191 021 001 1 2191 021 011
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 021 022 1 2191 021 002 1 2191 021 012
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 021 023 1 2191 021 003 1 2191 021 013
including cover, clear, without pictogram
1 x M25
1 x M25
1 2191 021 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 021 111 1 2191 021 101 1 2191 021 112
including cover with pictogram (arrow 3h)
2 x M20
1 2191 021 121 1 2191 021 102 1 2191 021 113
including cover with pictogram (arrow 9h)
2 x M20
1 2191 021 122 1 2191 021 103 1 2191 021 123
2 x M20
1 2191 021 104
including cover, clear, without pictogram
Ex-Lite N including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 031 021 1 2191 031 001 1 2191 031 011
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 031 022 1 2191 031 002 1 2191 031 012
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 031 023 1 2191 031 003 1 2191 031 013
including cover, clear, without pictogram
1 x M25
1 x M25
1 2191 031 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 031 121 1 2191 031 101 1 2191 031 111
including cover with pictogram (arrow 9h)
2 x M20
1 2191 031 122 1 2191 031 102 1 2191 031 112
including cover with pictogram (arrow 6h)
2 x M20
1 2191 031 123 1 2191 031 103 1 2191 031 113
including cover, clear, without pictogram
2 x M20
1 2191 031 104
Cable gland/Thread
Type
Scope of delivery
Screw
plug
Pictogram
Metal
thread
Order No
1)
Ex-Lite Z including cover with red inscription „EXIT“,
with CSA-certification
1 x M20
1 x 3/4“
Ex-Lite ZE including cover with red inscription „EXIT“, selfcontained emergency version with CSA-certification
1 x M20
1 x 3/4“ 1) 1 2191 130 005
1)
1 2191 001 005
1 x 3/4” Myer Hub, 1 x M20 screw plug
Other silk-screen pictograms or inscriptions available on request
A wide selection of cable glands can be found at www.crouse-hinds.de/products or in the catalogue Part 2, Section 3
Ex-Lite / Ex-Lite CG-S / Ex-Lite N / Ex-Lite Z / Ex-Lite ZE
422
400
115
arrow 9 h
arrow 6 h
180
230
arrow 3h
380
Dimensions in mm
1.3.18
EATON’S CROUSE-HINDS BUSINESS
Ordering details / Dimension drawing
3.3
Ex-Lite LT/ Ex-Lite CG-S / Ex-Lite NLT
Ordering details deep temperature down to -40 °C
Cable gland/Thread
Type
optional Pictogram accord. to
DIN 4844
EN 1838
Order No.
Order No.
Order No.
Screw
plug
Ex-Lite LT including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 013 021 1 2191 013 001 1 2191 013 011
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 013 022 1 2191 013 002 1 2191 013 012
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 013 023 1 2191 013 003 1 2191 013 013
including cover, clear, without pictogram
1 x M25
1 x M25
3
1 2191 013 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 013 121 1 2191 013 101 1 2191 013 111
including cover with pictogram (arrow 9h)
2 x M20
1 2191 013 122 1 2191 013 102 1 2191 013 112
including cover with pictogram (arrow 6h)
2 x M20
1 2191 013 123 1 2191 013 103 1 2191 013 113
including cover, clear, without pictogram
2 x M20
1 2191 013 104
including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 021 121 1 2191 021 001 1 2191 021 111
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 021 122 1 2191 021 002 1 2191 021 112
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 021 123 1 2191 021 003 1 2191 021 113
including cover, clear, without pictogram
1 x M25
1 x M25
1 2191 021 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 021 111 1 2191 021 101 1 2191 021 111
including cover with pictogram (arrow 9h)
2 x M20
1 2191 021 121 1 2191 021 102 1 2191 021 112
including cover with pictogram (arrow 6h)
2 x M20
1 2191 021 122 1 2191 021 103 1 2191 021 113
2 x M20
1 2191 021 104
including cover, clear, without pictogram
Ex-Lite
NLT
Metal
thread
Standard
Pictogram
ISO 7010
Plastic
cable
glands
Ex-Lite
CG-S
Scope of delivery
including cover with pictogram (arrow 3h)
1 x M25
1 x M25
1 2191 033 021 1 2191 033 001 1 2191 033 011
including cover with pictogram (arrow 9h)
1 x M25
1 x M25
1 2191 033 022 1 2191 033 002 1 2191 033 012
including cover with pictogram (arrow 6h)
1 x M25
1 x M25
1 2191 033 023 1 2191 033 003 1 2191 033 013
including cover, clear, without pictogram
1 x M25
1 x M25
1 2191 033 004
including cover with pictogram (arrow 3h)
2 x M20
1 2191 033 121 1 2191 033 101 1 2191 033 111
including cover with pictogram (arrow 9h)
2 x M20
1 2191 033 122 1 2191 033 102 1 2191 033 112
including cover with pictogram (arrow 6h)
2 x M20
1 2191 033 123 1 2191 033 103 1 2191 033 113
including cover, clear, without pictogram
2 x M20
1 2191 033 104
Other silk-screen pictograms or inscriptions available on request
A wide selection of cable glands can be found at www.crouse-hinds.de/products or in the catalogue Part 2, Section 3
Ex-Lite LT / Ex-Lite CG-S / Ex-Lite NLT
422
400
115
arrow 9 h
arrow 6 h
180
230
arrow 3h
380
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.3.19
Technical data
3.3
Ex-Lite / Ex-Lite LT / Ex-Lite N / Ex-Lite NLT / Ex-Lite CG-S
3
Technical data
Ex-Lite / Ex-Lite LT / Ex-Lite 24 V
Ex-Lite CG-S
Ex-Lite N / Ex-Lite NLT
EC-Type Examination Certificate
PTB 02 ATEX 2111
PTB 02 ATEX 2111
PTB 02 ATEX 2111
Marking accd. to 94/9/EC
D II 2 G Ex e ib mb IIC T6/T5 Gb
D II 2 D Ex tb IIIC T80°C Db
D II 2 G Ex e ib mb IIC T6/T5 Gb
D II 2 D Ex tb IIIC T80°C Db
D II 2 G Ex e ib mb IIC T5/T4 Gb
D II 2 D Ex tb IIIC T80°C Db
IECEx Certificate of Conformity
IECEx BVS 13.0016
IECEx BVS 13.0016
IECEx BVS 13.0016
Marking accd. to IECEx
Ex e ib mb IIC T6/T5 Gb
Ex tb IIIC T80°C Db
Ex e ib mb IIC T5/T4 Gb
Ex tb IIIC T80°C Db
Ex e ib mb IIC T6/T5 Gb
Ex tb IIIC T80°C Db
Permissible ambient temperature
-20 °C up to +50 °C (T5) Ex-Lite/Ex-Lite 24 V -40 °C up to +50 °C (T5)
-20 °C up to +40 °C (T6) Ex-Lite/Ex-Lite 24 V -40 °C up to +40 °C (T6)
-40 °C up to +50 °C Ex-Lite LT
-20 °C up to +50 °C (T4) Ex-Lite N
-20 °C up to +40 °C (T5) Ex-Lite N
-40 °C up to +40 °C Ex-Lite NLT
+5 °C up to +35 °C / -40 °C up to +35 °C
specified data
Battery
NC-Accu 12 V/600 mAh
Rated power consumption
approx. 6 VA
Rated voltage
AC: 110 V - 277 V / 110 V - 254 V 50/60 Hz AC: 220 V - 254 V, 50/60 Hz
DC: 195 V - 250 V
DC: 110 V - 250 V
DC: 12 V - 24 V ±20 % (Ex-Lite 24 V)
approx. 6 VA
approx. 8 VA
Rated current
DC: 220 V = 20 mA, 110 V = 40 mA
DC: 220 V = 20 mA, 110 V = 40 mA
Power factor cos M
t 0.95
t 0.95
t 0.95
Protection class
I
I
I
Viewing distance
up to 28 m
up to 28 m
up to 28 m
Lamp / Illuminant
high output LEDs, white
high output LEDs, white
AC: 110 V - 277 V / 110 - 240 V, 50/60 Hz
DC: 110 V - 250 V
Charging duration (capacity > 90 %)
24 h
high output LEDs, white
Rated emergency lighting duration
Dimensions (L x W x H)
3h
400 x 230 x 115
400 x 230 x 115
400 x 230 x 115
Connecting terminals
4 x cage clamp loop-terminal max. 2.5 mm 4 x cage clamp loop-terminal max. 2.5 mm 4 x cage clamp loop-terminal max. 2.5 mm2
Enclosure colour
grey, RAL 7035
grey, RAL 7035
grey, RAL 7035
Enclosure material
light alloy
light alloy
light alloy
Weight
6.2 kg
6.4 kg
6.7 kg
Cable glands / gland plates /
enclosure drilling
1 x Ex e-cable gland M25 x 1.5
(plastic), 1 x Ex e-screw plug M25 x 1.5 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex e-cable gland M25 x 1.5
(plastic), 1 x Ex e-screw plug M25 x 1.5 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
1 x Ex e-cable gland M25 x 1.5
(plastic), 1 x Ex e-screw plug M25 x 1.5 or
2 x M20 x1.5 metal thread,
1 x screw plug M20
Type of mounting
wall mounting
wall mounting
wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
IP66
Protective cover / protective bowl
mineral glass
mineral glass
mineral glass
1.3.20
2
EATON’S CROUSE-HINDS BUSINESS
2
Technical data
Ex-Lite Z / Ex-Lite ZE
3.3
3
Technical data
Ex-Lite Z
EX-Lite ZE
Marking accd. to NEC 505/CEC 018
Class I, Zone 1, AEx em ib IIC T4/T5/T6
Ex em ib IIC T4/T5/T6
Class I, Zone 1 AEx em ib IIC T4/T5/T6
Class I, Zone 1 Ex em ib IIC T4/T5/T6
Marking accd. to NEC 500
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups E, F and G
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups E, F and G
UL/CSA Listing
1944328
1944328
Permissible ambient temperature
-20 °C up to +40°C (T6) /
-20 °C up to +50°C (T5)
-20 °C up to +40°C (T5)
-20 °C up to +50°C (T4)
-5 °C up to +35 °C
specified data
Battery
12 V/600 mAh NC-Accu
Rated power consumption
approx. 6 VA
approx. 8 VA
Rated voltage
110 V - 277 V AC /
110 V - 250 V DC
110 V - 277 V AC /
110 V - 250 V DC
Rated current AC/DC
220 V = 20 mA,
110 V = 40 mA
220 V = 27 mA,
110 V = 54 mA
Frequency
DC and 50 - 60 Hz (AC)
DC and 50 - 60 Hz (AC)
Charging duration (capacity > 90 %)
24 h
Power factor cos M
t 0.95
t 0.95
Circuit
electronic power supply
electronic power supply
Protection class
I
I
Viewing distance
28 m
Lamp / Illuminant
high output LEDs, red
Rated emergency lighting duration
high output LEDs, red
approx. 3 h (specified data +5 °C up to
+35 °C)
Dimensions (L x W x H)
400 x 230 x 115 mm
400 x 230 x 115 mm
Connecting terminals
3 x loop terminal 2.5 mm²
3 x loop terminal 2.5 mm²
Enclosure colour
grey, RAL 7035
grey, RAL 7035
Enclosure material
light alloy
light alloy
Weight
6.2 kg
6.7 kg
Cable glands / gland plates /
enclosure drilling
1 x adapter M25/ Meyer Hub 3/4'',
1 x screw plug M20
1 x adapter M25/ Meyer Hub 3/4’’,
1 x screw plug M20
Type of mounting
wall mounting
wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
mineral glass
mineral glass
EATON’S CROUSE-HINDS BUSINESS
1.3.21
3.4
Ex-emergency luminaires
Planete 400 AD DL LED emergency lighting luminaire with a self-contained battery system made of metal for Zone 1 and 21
3 AB 12108-EVG safety luminaire made of metal for Zone 1 and 21
EE 11 PL emergency lighting luminaire with a self-contained battery system made of metal for Zone 1 and 21
The robust safety concept for
hazardous areas
With its robust flameproof enclosure made of copper-free aluminium (Cu < 0.1%), the high
degree of protection IP67 and
the protective tube made of borosilicate glass with high mechanical and thermal resistance,
this luminaire series is ideal for
use in areas with adverse environmental conditions.
Central monitoring
The Ex luminaire AB 12108-EVG
is equipped with an electronic
ballast and with an 8-W fluorescent lamp for mains and emergency lighting. With the optional
built-in CG-S monitoring module
with coding switch for max. 20
addresses, this luminaire can
also be used as an individually
monitored emergency lighting
luminaire that is connected to a
CEAG emergency lighting supply system. With this, the operator can programme the switching mode according to the
respective requirements. Thus,
as many as 20 luminaires with
different switching modes can
be connected to one end circuit.
LED emergency lighting
luminaires with a selfcontained battery system
The new Planete 400 AD DL
completes our lighting portfolio
with a robust light fitting in
modern LED technology. An integrated micro-processor monitors the automatic function and
duration test and green and yellow LEDs indicate the lighting
status. The Planete 400 AD DL
is equipped with 32 LEDs and
ensures emergency duration of
more than an hour. During
mains supply (maintained operation) all LED will be on with reduced light output.
is suitable for non-maintained
operation. It has an additional
3 W for permanent lighting and
is designed for a 1.5 hour emergency lighting duration. The
charge status and the mains
supply are also indicated by
LEDs. The housing is made of a
copper-free aluminium and has
a borosilicate glass tube.
They are used for illuminating
emergency exit routes, as well
as an emergency light fitting for
the identification of exits.
The classic solution for decentralized use
The Ex light fitting EE 11 PL
with a self-contained battery
system is fitted with an 11 W
compact fluorescent lamp and
Features
• Housing made of copper-free aluminium with a borosilicate
glass tube
• High degree of safety IP67
• 8 W fluorescent lamp for main and emergency lighting
(AB 12 108-EVG)
• Maintenance-free LED illuminant with long lifespan (Planete 400)
• 11 W compact fluorescent lamp for emergency lighting (EE11 PL)
• Operation and monitoring possible from CEAG emergency
lighting system
1.3.22
EATON’S CROUSE-HINDS BUSINESS
3.4
Bestellangaben / Zubehör
Planete 400 AD DL / AB 12108 EVG / EE 11 PL
Bestellangaben
Typ
Bemessungsspannung
Bohrung
Ex-d Verschlussstopfen
Bestell-Nr
Planete 400 AD DL
220 - 240 V AC
2 x 3/4“ NPT, Metallgewinde
1
NOR 000 005 160 055
Planete 400 AD DL
2 x M25, Metallgewinde
1
NOR 000 005 160 056
AB 12108-EVG
2 x 3/4“ NPT, Metallgewinde
1
NOR 000 005 060 820
EE 11 PL 220 - 240 V, 1,5 h
220 - 240 V AC
2 x 3/4“ NPT, Metallgewinde
1
NOR 000 005 160 013
EE 11 PL 108 - 127 V, 1,5 h
108 - 127 V AC
2 x 3/4“ NPT, Metallgewinde
1
NOR 000 005 160 014
Weitere Piktogramme und Beschriftungen können auf Anfrage erstellt werden
Eine große Auswahl an Kabel- und Leitungseinführungen finden sie unter www.crouse-hinds.de/products oder im Katalogteil 2 Abschnitt 3.
Zubehör
EXIT
Typ
Bestelleinheit
Bestell-Nr.
Piktogrammfolie Pfeil 3 h
1
400 71 354 381
Piktogrammfolie Pfeil 9 h
1
400 71 354 380
Piktogrammfolie Pfeil 6 h
1
400 71 354 382
Piktogrammfolie Pfeil 12 h
1
400 71 354 383
Piktogrammfolie „EXIT“
1
400 71 348 175
Reflektor RAB 108 (AISI 304)
1
NOR 003 045 060 471
Reflektor RAB 108 (AISI 304) + Schutzkorb (Stahl mit weißer Epoxyd Beschichtung)
1
NOR 003 045 060 819
Reflektor RAB 108 (AISI 316)
1
NOR 003 165 060 471
Reflektor RAB 108 (AISI 316) + Schutzkorb (Stahl mit weißer Epoxyd Beschichtung)
1
NOR 003 165 060 819
EATON’S CROUSE-HINDS BUSINESS
1.3.23
3
Polar curves / dimension drawing
3.4
AB 12108 EVG / Planete 400 AD DL / EE 11 PL
90
90
90
90
60
150
60
30
30
250
0
C 0
C90
60
150
100
60
l/cd/klm
Polar curve
AB 12108-EVG
250
C 0
C90
Polar curve
EE11 PL
300
30
15
0
l/cd/klm
45
C 0
C90
400
0
30
15
l/cd/klm
Polar curve
Planete 400
Reflector / Reflector with guard
144
103
AB 12108-EVG / EE11 PL / Planete 400
30
60
200
45
200
200
30
3
75
75
100
100
60
90
90
50
50
50
236
140
entry
optional entry, on request
M8 x 12
405
M8 x 12
236
460
Dimensions in mm
1.3.24
EATON’S CROUSE-HINDS BUSINESS
Technical data
3.4
Planete 400 AD DL /AB 12108 EVG / EE 11 PL
3
Technical data
EC-Type Examination Certificate
Planete 400 AD DL
AB 12108 EVG
EE 11 PL
LOM 03 ATEX 2036 X
LOM 02 ATEX 2013 X
LOM 03 ATEX 2036 X
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
IECEx BKI 07.0008 X
D II 2 G Ex d IIC T6 Gb
D II 2 D Ex tb IIIC T85 °C Db
Marking accd. to IECEx
D II 2 G Ex de IIC T6/T5 Gb/
D II 2 D Ex tb IIIC T58 °C/T73 °C Db
D II 2 G Ex de IIC T6 Gb
D II 2 D Ex tb IIIC T85 °C Db
Ex de IIC T6/T5 Gb
Ex tb IIIC T58 °C/T73 °C Db
Permissible ambient temperature
-20 °C up to +55 °C
specified data
-5 °C up to +35 °C
-20 °C up to +55 °C (temperature class T5), -20 °C up to +55 °C
-20 °C up to +40 °C (temperature class T6)
-5 °C up to +35 °C
-5 °C up to +35 °C
Battery
1.7 Ah NC-accumulator
Rated power consumption
1.1 W
approx. 16 VA
approx. 16 VA
Rated voltage
220 - 240 V AC
220 - 230 V AC
220 V DC +25 %/-20 %
220 - 240 V AC
Rated voltage (optional)
108 V - 127 V AC
Frequency
50 -60 Hz
Charging duration
t 14 h
Power factor cos M
0.95
Rated operating duration
1.0 h
Circuit
4 Ah NC-accumulator
108 V - 127 V AC
50 Hz
t 24 h
0.95
0.95
1.5 h
EVG
Protection class
I
I
I
Viewing distance
12 m
12 m
12 m
Lamp / Illuminant
32 LEDs , 5.5 W
1 x 8 W/T5-fluorescent lamp
for mains- and emergency operation
1 x 11 W compact fluorescent lamp
for emergency operation
Lamp cap
--
G5 accord. IEC 60061
2G7 accord. IEC 60061
Luminous flux in emergency operation
330 lm 1)
337 lm (75 %) 1)
630lm 1)
Dimensions (L x W x H)
460 x 144 x 140 mm
460 x 144 x 140 mm
460 x 144 x 140 mm
Connecting terminals
3 x loop terminal 2.5 mm²
3 x loop terminal 2.5 mm²
3 x loop terminal 2.5 mm²
Weight
5.0 kg
5.3 kg
5.6 kg
Cable glands / gland plates /
enclosure drilling
2 x 3/4“ thread, 1 x 3,/4“
screw plug or 2 x M25 thread,
1 x M25 screw plug
2 x 3/4“ thread, 1 x 3,/4“
screw plug or 2 x M25 thread,
1 x M25 screw plug
2 x 3/4“ thread, 1 x 3,/4“
screw plug or 2 x M25 thread,
1 x M25 screw plug
Type of mounting
ceiling-/wall mounting
ceiling-/wall mounting
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP67
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
borosilicate glass
Pilot lamp
1)
3 W incandescent lamp (Netzbetrieb)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.3.25
3.5
Ex-signal- and escape sign luminaire
dKLK 23 / dKLK 23 LED
3 Plastic design for Zone 1 and 21
Securing and signalling
These light fittings meet the requirements of ATEX-Directive
94/9/EC for temperature class
T6. They are certified for use in
hazardous areas in Zones 1 and
2 with a temperature class up
to T6, as well as for explosive
dust atmospheres in Zones 21
and 22. What is more, they also
meet the requirements in accordance with EN 60598, Part
2.22 for emergency lighting.
The Ex light fittings dKLK 23 are
suited for compact fluorescent
lamps with an integrated electronic ballast and outputs of 5-8
W. If a flash module is fitted in
the housing (optional), the light
fitting can be used also as a
strobe light.
The dKLK 23 LED version is
supplied with a 6 W LED lamp.
This combines the innovative
LED technology with main features, such as:
• Energy saving
• Environmentally friendly because mercury free
• Long service life
• Cost-saving due to long maintenance intervals
• Ideally suited for intermittent
operation as flashing light
The housing is made of a fibreglass reinforced polyester and
the protective globe of a transparent or coloured polycarbonate.
When fitted with coloured protective cover, they are also used
as signal lights. In combination
with the exit cubes, they are
used as emergency lighting
luminaires.
The luminaire is connected using a flameproof eXLink coupler
plug or via a flameproof cable
gland.
With the optional CG-S monitoring module with coding switch
for max. 20 addresses, they can
be connected as individually
monitored emergency lighting
luminaires to the CEAG emergency lighting supply system
(dKLK 23 CG-S).
Features
• Signal light fitting, also with coloured protective globe,
for use in environments in temperature class T6
• For compact fluorescent lamps with integrated EVG
• Optionally, LED-lamp
• For ceiling and wall mounting
• High degree of protection IP66
• Connection to the CEAG emergency lighting supply systems
with individual monitoring possible
• Optional flash module
1.3.26
EATON’S CROUSE-HINDS BUSINESS
Ordering details / Accessories
3.5
dKLK 23 / dKLK 23 LED / dKLK 23 CG-S
Ordering details
Type
Scope of delivery
Colour of protective cover
Order No.
dKLK 23/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
clear
GHG 871 1001 R0001
dKLK 23/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
red
GHG 871 1101 R0001
dKLK 23/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
green
GHG 871 1201 R0001
dKLK 23/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
blue
GHG 871 1301 R0001
dKLK 23 CG-S /eXLink 1)
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm,
with CG-S-module and address-switch
clear
GHG 871 2001 R0001
dKLK 23/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
clear
GHG 871 1001 R0101
dKLK 23/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
red
GHG 871 1101 R0101
dKLK 23/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
green
GHG 871 1201 R0101
dKLK 23/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
blue
GHG 871 1301 R0101
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
with CG-S-module and address-switch
clear
GHG 871 2001 R0101
dKLK 23 LED/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
clear
GHG 871 4021 R0001
dKLK 23 LED/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
red
GHG 871 4121 R0001
dKLK 23 LED/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
green
GHG 871 4221 R0001
dKLK 23 LED/eXLink
1 x eXLink coupler 2-pol. + PE for cable Ø 7.5 - 11 mm
blue
GHG 871 4321 R0001
dKLK 23 LED/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
clear
GHG 871 4021 R0101
dKLK 23 LED/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
red
GHG 871 4121 R0101
dKLK 23 LED/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
green
GHG 871 4221 R0101
dKLK 23 LED/Ex d
1 x Ex-d-cable gland M20 x 1.5 for Ø 8.5 -13.5 mm
blue
GHG 871 4321 R0101
dKLK 23 CG-S /Ex d
1)
1) For connection to CEAG emergency supply systems, with address switch for 20 addresses.
A wide selection of cable glands can be found at www.crouse-hinds.de/products or in the catalogue Part 2, Section 3
Accessories
Type
Order No.
Flash module Eurolite E27 Strobe
GHG 870 1912 R0001
Exit sign cube (242 x 227 x 242 mm)
4 0071 344 115
Compact fluorescent lamp 7 W with EVG
GHG 870 9302 P0002
Philips Master LED lamp 6W E27 CW 55
GHG 870 1914 R0001
EATON’S CROUSE-HINDS BUSINESS
1.3.27
3
Dimension drawing / Polar curve
3.5
dKLK 23 / dKLK 23 LED / dKLK 23 CG-S
dKLK 23
Mounting bracket
40
50
Ø6.5
40
3
80
189
128
142
65
30 8
Exit sign cube
227
164.5
242
90
90
25
50
60
60
75
100
30
125
C 0 / C 90
30
0
l/cd/klm
Polar curve
dKLK 23 / dKLK 23 CG-S
Dimensions in mm
1.3.28
EATON’S CROUSE-HINDS BUSINESS
Technical data
3.5
dKLK 23 / dKLK 23 LED / dKLK 23 CG-S
3
Technical data
dKLK 23
dKLK 23 LED
dKLK 23 CG-S
EC-Type Examination Certificate
BVS 10 ATEX E 003
BVS 10 ATEX E 003
BVS 10 ATEX E 003
IECEx Certificate of Conformity
IECEx BVS 10.0003
IECEx BVS 10.0003
IECEx BVS 10.0003
Marking accd. to 94/9/EC
D II 2G Ex d IIC T6 Gb
D II 2D Ex tb IIIC T80°C Db IP66
D II 2G Ex d IIC T6 Gb
D II 2D Ex tb IIIC T80°C Db IP66
D II 2G Ex d IIC T6 Gb
D II 2D Ex tb IIIC T80°C Db IP66
Marking accd. to IECEx
Ex d IIC T6 Gb
Ex tb IIIC T80°C Db
Ex d IIC T6 Gb
Ex tb IIIC T80°C Db
Ex d IIC T6 Gb
Ex tb IIIC T80°C Db
Permissible ambient temperature
-20 °C up to +45 °C (dept. on lamp power
and operating position)
-20 °C up to +40 °C
-20 °C up to +45 °C (dept. on lamp power
and operating position)
Rated voltage
230 V AC /
230 V DC
230 V AC
230 V AC /
230 V DC
Rated current
approx. 30 mA
approx. 30 mA
approx. 40 mA
Frequency
50 - 60 Hz (AC)
50 - 60 Hz (AC)
50 - 60 Hz (AC)
Power factor cos M
≥ 0.95
≥ 0.95
≥ 0.95
Protection class
I
I
I
Lamp / Illuminant
Compact-fluorescent lamp with integrated Philips Master LED 6 W
electr. ballast, lamp cap E27, lamp power
5-8 W, manufacturer Philips MASTER PL
Electronic 5W/8 W or equivalent;
flashmodule (see accessories)
Compact-fluorescent lamp with integrated
electr. ballast, lamp cap E27, lamp power
5-8 W, manufacturer Philips MASTER PL
Electronic 5W/8 W or equivalent;
Rated luminous flux
approx. 400 lm (7/8 W) 1)
approx. 470 lm 1)
approx. 400 lm (7/8 W) 1)
Lamp cap
E27 accord. IEC 60238
E27 accord. IEC 60238
E27 accord. IEC 60238
Dimensions (L x W x H)
164.5 x 189 x 128 mm
164.5 x 189 x 128 mm
164.5 x 189 x 128 mm
Connecting terminals
flameproof inlet eXLink, 3-pole, 2 + PE,
cage clamp terminal for cable Ø 8-11 mm,
max. 1.5 mm² or flameproof cable gland
M20 x 1.5 for cable Ø 8.5-13.5 mm;
terminal L, N, PE max. 2.5 mm²
clamp terminal
flameproof inlet eXLink, 3-pole, 2 + PE,
cage clamp terminal for cable Ø 8-11 mm
max. 1.5 mm² or flameproof cable gland
M20 x 1.5 for cable Ø 8.5-13.5 mm,
terminal L, N, PE max. 2.5 mm²
clamp terminal
flameproof inlet eXLink, 3-pole, 2 + PE,
cage clamp terminal for cable Ø 8-11 mm
max. 1.5 mm² or flameproof cable gland
M20 x 1.5 for cable Ø 8.5-13.5 mm,
terminal L, N, PE max. 2.5 mm²
clamp terminal
Enclosure material
Glass-fibre reinforced polyester
Glass-fibre reinforced polyester
Glass-fibre reinforced polyester
Weight
1.7 kg
1.7 kg
1.7 kg
Degree of protection accd. to EN 60529
IP66
IP66
IP66
Protective cover / protective bowl
Polycarbonate
Polycarbonate
Polycarbonate
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.3.29
3
1.3.30
EATON#S CROUSE-HINDS BUSINESS
Main Catalogue Part 1
Chapter 4
Ex-Ceiling, pendant light
fittings and floodlights
2
1.4.2
EATON’S CROUSE-HINDS BUSINESS
Ex-Ceiling, pendant light fittings and floodlights
Table of contents
4.1
General information on explosion protected pendant light fittings and floodlights .... 1.4.4
4.2
Ex-ceiling light fittings AB 80 / AB 05 LED / AB 05 / AB 12 NAV 70 ................................ 1.4.6
Ordering details / Accessories ............................................................................................... 1.4.8
Polar curve / Dimension drawing ..........................................................................................1.4.10
Technical data ....................................................................................................................... 1.4.11
4.3
Ex-pendant light fittings AB 50 / SPG 1N / AB 51 / EVI 200 / EVI 500 / EVQ 55 /
EVQ 85 / EV35 LED ............................................................................................................ 1.4.14 4
Ordering details / Accessories ..............................................................................................1.4.16
Polar curve / Dimension drawing ..........................................................................................1.4.18
Technical data ...................................................................................................................... 1.4.21
4.4
Ex-pendant light fittings for high-pressure discharge lamps EV. / dHLS / EVZ ........... 1.4.24
Ordering details / Accessories ............................................................................................. 1.4.25
Polar curve / Dimension drawing ......................................................................................... 1.4.27
Technical data ...................................................................................................................... 1.4.29
4.5
Ex-floodlight for high-pressure discharge lamps PX 04, FLT 10 ................................... 1.4.32
Ordering details / Accessories ............................................................................................. 1.4.33
Polar curve / Dimension drawing ......................................................................................... 1.4.34
Technical data ...................................................................................................................... 1.4.35
4.6
Ex-floodlight for high-pressure discharge lamps FZD 04 / FZD EN ............................... 1.4.38
Ordering details / Accessories ............................................................................................. 1.4.39
Polar curve ........................................................................................................................... 1.4.41
Dimension drawing.............................................................................................................. 1.4.42
Technical data ...................................................................................................................... 1.4.43
4.7
Ex-floodlight for high-pressure discharge lamps dTLS 85 ............................................. 1.4.44
Ordering details / Accessories ............................................................................................. 1.4.45
Polar curve / Dimension drawing ......................................................................................... 1.4.46
Technical data ...................................................................................................................... 1.4.47
4.8
Ex-LED floodlight LPL LED ................................................................................................ 1.4.48
Ordering details ................................................................................................................... 1.4.49
Polar curve / Dimension drawing ......................................................................................... 1.4.50
Technical data ...................................................................................................................... 1.4.51
4.9
Ex-vessel light fittings KFL................................................................................................ 1.4.52
Ordering details / Accessories ............................................................................................. 1.4.53
Polar curve / Dimension drawing ......................................................................................... 1.4.54
Technical data ...................................................................................................................... 1.4.55
4.10
Ex-pendant light fittings and floodlight series VMV LED / NVMV ............................... 1.4.56
Ordering details / Accessories ............................................................................................. 1.4.57
Polar curve / Dimension drawing ......................................................................................... 1.4.59
Technical data ...................................................................................................................... 1.4.62
4.11
Ex-floodlight series NFMV ................................................................................................ 1.4.64
Ordering details / Accessories ............................................................................................. 1.4.65
Polar curve / Dimension drawing ......................................................................................... 1.4.66
Technical data ...................................................................................................................... 1.4.67
EATON’S CROUSE-HINDS BUSINESS
1.4.3
4.1
Explosion- protected pendant
light fittings and floodlights
4 Fields of application and decision criteria
ciency, it enables a higher intensity of light with lower power
consumption. The compact design and the relatively low heat
generation allows the use of
this technology in small
luminaire housings.
The suitable lighting technology for your application
Normally high pressure discharge lamps are used in combination with pendant light fittings and floodlights. They
provide a high light output and a
relatively long life span. Depending on the required light
colour, HP metal halide lamps
or HP sodium vapour lamps are
usually fitted. Induction lamps
have a very long life expectancy
of > 60,000 hours.
The innovating white high-power LED technology has a very
long life span too. Moreover, it
is insensitive to vibrations and
shocks. With its very high effi-
1.4.4
EATON’S CROUSE-HINDS BUSINESS
Field of application
For this reason, these are the
preferred light fittings for use in
areas that are hard to access
and where replacing lamps is
time-consuming and difficult.
Pendant light fittings and floodlights are the ideal solution for
the illumination of locations
with high suspension heights
that require a high illumination
4.1
4
level or the illumination of large
complexes, surfaces or objects.
Explosion-protected light fittings are used in both indoor
and outdoor hazardous areas,
on- and offshore areas, in production plants and storage
buildings, in the chemical, petrochemical and pharmaceutical
industry, as well as for the illumination of outside areas such
as loading zones, harbour areas
and petrol depots. Particularly in
offshore areas, lighting solutions with LED technology are
being used more and more because of their resistance to vibration.
Harsh operating conditions
Explosion-protected CEAG pendant light fittings and floodlights
for the Zones 1, 2, 21 and 22
guarantee a safe and reliable
operation, even under difficult
operating conditions such as extremely high or low ambient
temperatures, high humidity,
dusts or aggressive explosive
atmospheres. Among other
things, the high ingress protection level of the light fittings,
which are required for these
conditions is assured even after
a long period of use. A long service life and a high reliability of
the used electrical and mechanical components make these
lamps extremely cost-effective.
Replacing lamps made easy
We also have an efficient solution if under certain conditions a
replacement of the lamps on
site is not possible, e.g. when
ambient temperatures at very
low or due to the presence of
an explosive atmosphere. With
the CEAG floodlights series
FZD, you simply replace the
complete lamp cartridge. This
speeds up the lamp replacement and helps to keep down
the maintenance costs. A fast
re-availability of the light fixture
is ensured even under extreme
environmental conditions and
low ambient temperatures of
-40 ° C. The actual replacement
of the lamps in the lamp cartridge can be carried out later,
for example in the workshop.
Even at extreme
temperatures
We have developed suitable
solutions specifically for use in
environmental conditions with
extremely low temperatures.
The AB 12 NAV 70 Arctic ceiling
light fitting has been certified
for use at ambient temperatures down to minus 50 °C and
the FLT 10 floodlight for an extreme temperature range from
minus 55 ° C to plus 55 ° C.
EATON’S CROUSE-HINDS BUSINESS
1.4.5
4.2
Ex-ceiling light fittings AB 80 / AB 05
LED / AB 05 / AB 12 NAV 70
4 (Zone 1, 2, 21, 22)
The wall and ceiling light fixtures for particularly difficult
operating conditions
The impact-resistant and
flameproof luminaires of the
series AB 80, AB 05 and AB 12
provide a safe and reliable light
- even at extreme ambient temperatures and under extreme
environmental conditions, such
as those encountered in the oil
and gas production industry,
in- and outdoor areas of chemical plants or in heavy industry.
This is due to the robust powder-coated light metal housing,
stainless steel screws and a
cover or tube made of scratchresistant borosilicate glass.
AB 80 - the standard solution
This light fitting can be fitted
with incandescent lamps with
an E27 socket up to 100 W and
is used as a wall or ceiling light
The proper illuminant for
your application
The AB 05 LED luminaire has
an innovative 22 W LED module. The outstanding features
are not only the high energy
efficiency but also the resistance to shock and vibration. The
luminaires of the series
AB 05 and AB 80 can be fitted
with incandescent or energysaving lamps and they are used
for lighting outdoor pathways
or walkways and corridors.
High-pressure discharge lamps
are used in the luminaire series
AB 05 and AB 12 NAV for lighting applications requiring a high
illumination level at particularly
low ambient temperatures.
in the chemical industry. Due
to the robust enclosure and
the ambient temperature range
up to +55°C, this light fitting
is suitable for a wide variety of
applications.
vibrations, has an extremely
long lamp life and has also
been approved for extremely
low ambient temperatures as
low as minus 40 ° C. Due to an
optimized light distribution for
low and medium suspension
heights, the AB 05 LED is ideal
for illuminating walkways, corridors, stairways and storage
rooms and for use in all areas
with limited space.
AB 05 - solid and reliable
The winning features of the robust housing with integral wire
guard are its light weight and
easy installation. The ballast for
high pressure discharge lamps
is mounted on a removable
frame. This simplifies maintenance. An internal aluminium
reflector provides a uniform
light distribution.
AB 05 LED - robust against
vibrations
This extremely robust luminaire
with integral wire guard and its
high-efficiency LED module is
resistant against shocks and
Features
• Extremely rugged design for extremely harsh environments
• Various illuminants can be used
• Wide ambient temperature range depending on the version
(-55 ° C to +55 ° C )
• High degree of protection up to IP 67
1.4.6
EATON’S CROUSE-HINDS BUSINESS
4.2
4
AB 12 NAV 70 - even in extreme cold
This compact Ex-d light fixture
for high pressure sodium lamps
is suitable for individual lighting
solutions for areas with limited
mounting space. Lamp, ballast
and ignitor are incorporated on
a compact module, which allows easy re-lamping and maintenance work. An optional external reflector allows individual
illumination of working places.
The Arctic version even allows
the use of this versatile light
fitting in extreme temperature
ranges from minus 50 °C up to
plus 50 °C within the highest
explosion group IIC, e.g. for hydrogen atmospheres.
EATON’S CROUSE-HINDS BUSINESS
1.4.7
Ordering details
4.2
AB 80 / AB 05 LED / AB 05 ...
Ordering details
Type
Lamp/
Illuminant
Rated
luminous
flux 1)
Weight
Metal thread
Plug
Dust
cap
Order No.
AB 80
IGA 60 W, 100 W /
TC-DSE 11 W
710 lm /
1360 lm /
660 lm
6.6 kg
2 x 3/4‘‘ NPT
1 x 3/4‘‘ screw plug
AB 80
IGA 60 W, 100 W /
TC-DSE 11 W
710 lm
6.6 kg
2 x M25
1 x M25 screw plug
x
NOR 000 005 120 123
2000 lm
7.0 kg
1 x M20
-
x
AB05 251 011 0301
AB 80
4
NOR 000 005 120 124
AB05 LED including LED-module
AB05 LED
LED module 22 W
AB05 LED
LED module 22 W
2000 lm
7.0 kg
1 x M25
-
x
AB05 251 021 0301
AB05 LED
LED module 22 W
2000 lm
7.0 kg
2 x M20
1 x M20 Ex-d
x
AB05 251 111 0301
AB05 LED
LED module 22 W
2000 lm
7.0 kg
2 x M25
-
x
AB05 251 221 0301
IGA 60 W
710 lm
5.9 kg
1 x M20
-
x
AB05 531 011 0001
AB05 Ex-e
AB05 Ex-e
AB05 Ex-e
IGA 60 W
710 lm
5.9 kg
1 x M25
-
x
AB05 531 021 0001
AB05 Ex-e
IGA 60 W
710 lm
5.9 kg
2 x M25
1 x M25 Ex-d
x
AB05 531 111 0001
AB05 Ex-e
IGA 60 W
710 lm
5.9 kg
1 x M25
-
x
AB05 531 221 0001
AB05 Ex nR
AB05 Ex nR
HSE 70 W
5600 lm
5.4 kg
1 x M20
-
x
AB05 611 011 0001
AB05 Ex nR
HSE 70 W
5600 lm
6.9 kg
1 x M25
-
x
AB05 611 021 0002
AB05 611 111 0001
AB05 Ex nR
HSE 70 W
5600 lm
5.4 kg
2 x M20
1 x M20 Ex-d
x
AB05 Ex nR
HSE 70 W
5600 lm
5.4 kg
2 x M25
1 x M25 Ex-d
x
AB05 611 221 0001
AB05 Ex nR
HME 80 W
3800 lm
6.9 kg
2 x M25
1 x M25 Ex-d
x
AB05 621 221 0001
AB05 Ex nR
IGA 200 W
3100 lm
6.9 kg
1 x M25
-
x
AB05 631 021 0001
AB05 Ex-d IIB +H2
HSE 70 W
5600 lm
6.9 kg
1 x M20
-
x
AB05 111 011 0001
AB05 Ex-d IIB +H2
HSE 70 W
5600 lm
6.9 kg
1 x NPT 1/2“
-
x
AB05 111 031 0001
AB05 Ex-d IIB
HSE 70 W
5600 lm
6.9 kg
1 x M20
-
x
AB05 211 011 0001
AB05 Ex-d IIB
HSE 70 W
5600 lm
6.9 kg
1 x M20
1 x M20 Ex-d
x
AB05 211 111 0001
AB05 Ex-d IIB +H2
AB05 Ex-d IIB
1)
depends on used lamps
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
1.4.8
EATON’S CROUSE-HINDS BUSINESS
Ordering details / Accessories
4.2
AB 12 NAV ...
Ordering details
Type
Lamp/
Illuminant
Rated
luminous
flux 1)
Weight
Metal thread
Plug
Dust
cap
Order No.
AB 12 NAV 70, IIC
-20 °C up to +40 °C
HSE 70 W
5600 lm
5.3 kg
2 x 3/4” NPT
1 x 3/4'' Ex-d
x
NOR 000 005 060 070
AB 12 NAV 70, IIB
-45 °C up to +55 °C
HSE 70 W
5600 lm
5.3 kg
2 x 3/4” NPT
1 x 3/4'' Ex-d
x
NOR 000 005 060 072
AB 12 NAV 70 Arctic IIC, HSE 70 W
-50 °C up to +40 °C
5600 lm
5.6 kg
2 x 3/4” NPT
1 x 3/4'' Ex-d
x
1 1750 000 353
AB 12 NAV 70 Arctic IIC, HSE 70 W
-50 °C up to +40 °C
5600 lm
5.6 kg
2 x M25
1 x M25 Ex-d
x
1 1750 000 354
AB 12 NAV 70 ...
AB 12 NAV 70 Arctic ...
1)
depends on used lamps
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Content
Application
OU
Order No.
GAB 80
Wire guard, galvanized
AB 80
1
NOR 000 005 120 439
Lamp HSE 70 W
High pressure sodium lamp 70 W E27
AB 05, AB 12 NAV 70
1
3 2475 900 010
D92
Ceiling mounting bracket incl. srews and
polyamide washer - Stainless steel (2 pcs.)
AB 12 NAV 70
1
2 2480 092 000
A5
Ceiling bracket hot galvanized (1 pc.)
AB 12 NAV 70
1
NOR 000 005 009 196
1
NOR 003 045 060 471
BFP 45
Wall bracket 45° hot galvanized (1 pc.)
AB 12 NAV 70
Reflector RAB 108
Material: AISI 304
AB 12 NAV 70
NOR 003 045 060 471
Reflector RAB 108
Material: AISI 304 with wire guard white
AB 12 NAV 70
1
NOR 003 045 060 819
Reflector RAB 108
Material: AISI 316
AB 12 NAV 70
1
NOR 003 165 060 471
Reflector RAB 108
Material: AISI 316 with wire guard white
AB 12 NAV 70
1
NOR 003 165 060 819
Metal cable glands see catalogue part 2, page 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.9
4
Dimension drawing / Polar curve
4.2
AB ...
Polar curve AB 05 LED
AB 05 LED
360
87
230
282
208
90
90
60
75
75
60
4
60
180
45
15
300
0
>40
>40
45
240
30
175
120
30
15
C 0
C90
l/cd/klm
AB 80
Polar curve AB 05 Ex de
205
140
90
90
40
75
75
60
120
45
45
160
30
15
C 0
C90
200
0
282
60
9
80
30
15
l/cd/klm
Polar curve AB 05 nR
Einführungen
AB 12 NAV
103
90
90
40
M8x12mm
405
75
75
140
236
80
60
60
120
45
160
30
15
C 0
C90
200
0
144
45
30
15
optional entry,
on request
entry
460
l/cd/klm
Polar curve AB 12 NAV 70 without reflector
236
Polar curve AB 12 NAV 70 with reflector
90
90
40
75
75
80
90
90
60
75
75
60
60
45
45
80
30
15
C 0
C 90
15
60
100
0
C 0
C 90
45
160
30
40
60
120
45
20
200
0
30
15
l/cd/klm
30
15
l/cd/klm
Dimensions in mm
1.4.10
EATON’S CROUSE-HINDS BUSINESS
Technical data
AB 80 / AB 05 LED
4.2
4
Technical data
EC-Type Examination Certificate
AB 80
AB 05 LED
LOM 01 ATEX 2041 X
BVS 09 ATEX E 014 X
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
IECEx BVS 09.0032X
D II 2 G Ex d IIB T4 (up to 100 W) / T6 (11 W)
D II 2 G Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb
D II 2 D Ex tb IIIC T80 °C (Tu ≤ +40°C)/T100 °C Db IP66
Ex d IIB T6 (Tu ≤ +40°C)/T5 Gb
Ex tb IIIC T80°C (Tu ≤ +40°C)/T100°C Db
Marking accd. to IECEx
Permissible ambient temperature
-20 °C up to +55 °C
-55 °C up to +55 °C
Rated voltage
max. 250 V
230 V AC
Frequency
50 - 60 Hz
Power consumption
approx. 23 W
Protection class
I
Lamp / Illuminant
E 27
Rated luminous flux
710 lm
I
LED module 22 W
1)
2000 lm
Lamp cap
LED module
Light efficiency in operation
60 %
70 %
Dimensions (L x W x H)
282 x 205 x 150 mm
360 x 230 x 175 mm
L1, N, PE: 2 x 2.5 mm2
Connecting terminals
Enclosure earth
2
2 x 6 mm
Enclosure colour
2 x 6 mm2
grey
Enclosure material
cast iron
light alloy
Weight
6.6 kg
7.0 kg
Cable glands / gland plates /
enclosure drilling
2 x M20/M25 x 1.5 or 2 x 3/4“ NPT
1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4“ NPT or 2 x 3/4'' NPT
Type of mounting
ceiling/wall mounting
ceiling/wall mounting
Degree of protection accd. to EN 60529
IP55
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Screw plugs
1 x 3/4“ Ex-d screw plug
1 x M20/M25 or 3/4“ NPT Ex-d screw plug
1)
depends on used lamps
Technology Inside
EATON’S CROUSE-HINDS BUSINESS
1.4.11
Technical data
4.2
AB 05 Ex-e / AB 05 Ex nR
4 Technical data
AB 05 Ex-e
AB 05 Ex nR
Type Examination Certificate
BVS 07 ATEX E 151
EC-Type Examination Certificate
BVS 07 ATEX E 152 X
IECEx Certificate of Conformity
IECEx BVS 10.0070X
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T3 /T2 Gb
D II 2 D Ex tb IIIC T125 °C Db IP66
D II 3 G nR II T4/T3 Gc
D II 3 D Ex tc IIIC T100°C/ T125°C/ T140°C Dc IP66
Marking accd. to IECEx
Ex de IIC T3 2)/T2 Gb
Ex tb IIIC T125 °C Db IP66
Ex nR IIC T4/T3 Gc
Ex tc IIIC T100°C/T125°C/T140°C Dc IP66
Permissible ambient temperature
-20 °C up to +55 °C
-55 °C up to +55 °C
Rated voltage
max. 250 V
230 V AC
Frequency
50 - 60 Hz
50 - 60 Hz
IECEx BVS 10.0071
2)
Power factor cos M
t 0.9
Protection class
I
I
Lamp / Illuminant
Incandescent lamp max. 60 W
incandescent lamp max. 200 W,
high pressure sodium lamp HSE 70 W,
mercury vapour HME 80 W, compact fluorescent lamp max. 23 W
Rated luminous flux
710 lm 1)
1)
Lamp cap
E27 accord. IEC 60238
E27 accord. IEC 60238
Light efficiency in operation
70 %
70 %
Dimensions (L x W x H)
360 x 230 x 175 mm
360 x 230 x 175 mm
2
Connecting terminals
L1, N, PE: 2 x 2.5 mm2
L1, N, PE: 2 x 2.5 mm
2
Enclosure earth
2 x 6 mm
2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
5.9 kg
6.9 kg
Cable glands / gland plates /
enclosure drilling
1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4“ NPT or 2 x 3/4“ NPT
1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4“ NPT or 2 x 3/4“ NPT
Type of mounting
ceiling-/wall mounting
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Screw plugs
max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug
max. 1 x M20/M25 or 3/4“ NPT Ex-d screw plug
1)
depends on used lamps
2)
T3 when using a 60 W incandescent lamp accord. to EN 60064 and DIN 49810 with“T”-marking
Additional luminaire data AB 05 Ex nR
Power
Luminous flux 1)
Temperature class II 2 G
max. surface temp. II 2 D
2)
23 W
1450 lm
T4
T 1300 °C
High pressure sodium lamp
70 W
5600 lm
T4
T 125 °C
Mercury vapour HME
80 W
3800 lm
T4
T 125 °C
Incandescent lamp IGA
200 W
3150 lm
T3
T 140 °C
Lamp
Compact fluorescent lamp
1)
depends on used lamps / 2) TU ≤ 30 °C
1.4.12
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.2
AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB
AB12 NAV70 / AB 12 NAV 70 Arctic
4
Technical data
EC-Type Examination Certificate
AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB
AB12 NAV70 / AB 12 NAV 70 Arctic
PTB 08 ATEX 1001 X
LOM 02 ATEX 2013X
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
IECEx BKI 07.0008X
D II 2 G Ex d IIB (+H2) T4/T3 Gb / D II 2 G Ex d IIB T4/T3 Db
Marking accd. to IECEx
D II 2 G Ex d IIB/IIC T3 Gb
D II 2 D Ex t IIIC T155 °C Db
D II 2 G Ex d IIC T3 Gb
D II 2 D Ex t IIIC T155 °C Db
Ex d IIB T3 / Ex d IIC T3
Ex tD A21 IP66 T150°C
Permissible ambient temperature
-20 °C up to +55 °C
-20 °C up to +55 °C (gas-group IIC);
-45 °C up to +55 °C (gas-group IIB) /
-50 °C up to +40 °C (Arctic)
Rated voltage
230 V AC
230 V AC
Rated current
0.36 A
Frequency
50 - 60 Hz / 50 Hz
50 Hz
Power factor cos M
t 0.9
t 0.9
Protection class
I
I
Lamp name
incandescent lamp up to 200 W, high pressure sodium
lamp HSE 70 W, mercury vapour HME 80 W
High pressure mercury vapour HSE 70 W
Rated luminous flux
1)
5600 lm 1)
Lamp cap
E27 accord. IEC 60238
E27 accord. IEC 60238
Light efficiency in operation
70 %
51%
Dimensions (L x W x H)
360 x 230 x 175 mm
460 x 140 x 144 / 530 x 140 x 144
Connecting terminals
L1, N, PE: 2 x 2.5 mm2
L1, N, PE: 2 x 2.5 mm², PE: 2 x 6 mm²
Enclosure earth
2 x 6 mm2
2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
6.9 kg
5.3 kg / 5.6 kg
Cable glands / gland plates /
enclosure drilling
1 x M20/M25 x 1.5, 2 x M20/M25 x 1.5,
1 x 3/4” NPT or 2 x 3/4” NPT
2 x 3/4“ thread (Ex-d) /
2 x 3/4“ or 2 x M25 thread (Ex-d)
Type of mounting
ceiling-/wall mounting
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP66
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Screw plugs
max. 1 x M20/M25 or 3/4” NPT Ex-d screw plug
1 x 3/4'' Ex-d screw plug
1)
depends on used lamps
Additional luminaire data AB 05 Ex-d IIB +H2 / AB 05 Ex-d IIB
Lamp
Power
Luminous flux 1) Permissible ambient temperature
Temperature class II 2 G
Incandescent lamp IGA
40 W
430 lm
-20 °C up to +55 °C
T4
Incandescent lamp IGA
60 W
3100 lm
-20 °C up to +55 °C
T4
Incandescent lamp IGA
100 W
1380 lm
-20 °C up to +55 °C
T4
Incandescent lamp IGA
200 W
3150 lm
-20 °C up to +55 °C
T4
High pressure sodium lamp
70 W
5600 lm
-20 °C up to +40 °C
T4
Mercury vapour HME
80 W
3800 lm
-20 °C up to +40 °C
T3
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.13
4.3
4
Ex-pendant light fittings
AB 50 / SPG 1N / AB 51 / EVI 200 /
EVI 500 / EVQ 55 /EVQ 85 / EV35 LED
(Zone 1, 2, 21, 22)
The pendant light fitting
series for a wide variety of
applications
The explosion-protected pendant light fittings for incandescent and energy-saving lamps,
high intensity discharge and induction lamps can be used with
their different housing solutions
in different areas. The robust
flameproof luminaires have
been in use in many industrial
plants for many years and have
stood the test of time.
AB 50 /SPG 1N and AB 51
This larger series of pendant
light fittings is suitable for
incandescent and mixed-light
lamps. The robust light alloy
enclosure allows a wide range
of applications. The protective
glass dome is made of borosilicate glass and is extremely
impact and heat resistant. The
reflector and all external screws
are made of stainless steel.
Easy replacement of lamps is
made possible by opening the
PTFE-coated connection ring.
Both devices (the protective
glass dome and connection
ring) are provided with hinges
to allow easy access. Thanks to
their robust design, these light
fittings are suitable for use in
the chemical industry and are
certified for ambient temperatures from - 55 ° C to + 55 ° C.
EVI the powerful pendant
light fitting series
This larger series of pendant
light fittings is suitable for
incandescent and mixed-light
lamps. The robust light alloy
enclosure allows a wide range
of applications. The protective
glass dome is made of borosilicate glass and is extremely
impact and heat resistant. The
reflector and all external screws
are made of stainless steel.
Easy replacement of lamps is
made possible by opening the
PTFE-coated connection ring.
Both devices (the protective
glass dome and connection
ring) are provided with hinges
to allow easy access. Thanks to
their robust design, these light
fittings are suitable for use in
the chemical industry and are
certified for ambient temperatures from - 55 ° C to + 55 ° C.
Features
• Different housing solutions with different light sources for nearly
every application
• Robust design for harsh environments
• With large Ex-d or Ex-e terminal compartment
• Wide ambient temperature range depending on the version from
-50 °C up to +55 °C
• High degree of protection IP 67
• Meets the highest corrosion protection and mechanical strength
requirements
1.4.14
EATON’S CROUSE-HINDS BUSINESS
4
EVQ - efficient with extremely
long lamp life
The EVQ housing with induction lamps and high frequency
generators was developed specifically for re-lamping intervals
of > 60,000 hours. Because
of the extreme long service
life of the lamps, these light
fittings are suited for use in
areas that are difficult to access
or areas where disconnection
or maintenance work is very
time-consuming . Also induction
lamps are very efficient and
economical.
EV 35 - the efficient solution
for your illumination concept
for hazardous areas
The robust Ex-pendant light
fitting EV 35 LED with energy
saving LED-module combines
state-of-the-art lighting engineering with the requirements
of harsh and hazardous environments. With an efficient
LED technology and with no
harmful UV radiation, this series of light fittings provides a
perfect illumination. Together
with an internal reflector, this
light fitting can also be used as
a downlight. And, last but not
least, the long life and the low
power consumption of the LED
module helps to keep down
running costs. Thanks to the
extremely solid construction of
the housing, this series of pendant light fittings is resistant to
impact, vibrations and shocks.
As a result, they provide an
ideal lighting concept for applications in harsh and hazardous
environments.
Even extreme ambient temperatures from -40°C up to +55 °C
are no problem for the robust
LED technology of the light
fittings.“
EATON’S CROUSE-HINDS BUSINESS
1.4.15
Ordering details
4.3
Pendant light fittings
Ordering details
Type
Lamp /
Illuminant
Rated
luminous
flux 2)
Weight
Metal thread
Threaded
plug
Dust
cap
Order No.
AB 50 ... (IU = direct entry, IXM = indirect entry)
4
AB 50 IU
IGA 60 W, 100 W,
75 W halogen
710 lm /
1360 lm
1.6 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 289
AB 50 IXM
IGA 60 W, 100 W,
75 W halogen
710 lm /
1360 lm
2.2 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 320
AB 50 IU,
-50 °C up to +55 °C
60 W, 100 W, 75 W halogen 710 lm /
1360 lm
1.6 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 389
AB 50 IXM,
-50 °C up to +55 °C
60 W, 100 W, 75 W halogen 710 lm /
1360 lm
2.2 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 420
AB 51 ... (IU = direct entry, IX = indirect entry)
AB 51 IU
1)
3.6 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 396
AB 51 IU, -50 °C up to +55 °C
1)
3.6 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 497
AB 51 IU
1)
3.6 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 496
AB 51 IU, -50 °C up to +55 °C
1)
3.6 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 397
AB 51 IX
(indirect entry)
1)
4.5 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 437
AB 51 IX
(indirect entry)
1)
4.5 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 438
AB 51 ... (direct entry)
AB 51 M 80 V
HME 80 W
3800 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 893
AB 51 M 80 V,
-45 °C up to +55 °C
HME 80 W
3800 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 863
AB 51 M 80 V,
-45 °C up to +55 °C
HME 80 W
3800 lm
7.5 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 864
AB 51 M 125 V
HME 125W
6300 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 890
AB 51 M 125 V,
-45 °C up to +55 °C
HME 125W
6300 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 891
AB 51 S 70 V2 NI
HSE/HIE 70 W
5600 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 905
AB 51 S 70 V2 MI
HSE/HIE 70 W
5600 lm
7.5 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 904
AB 51 S 70 V2 NLTI,
-45 °C up to +55 °C
HSE/HIE 70 W
5600 lm
7.5 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 907
AB 51 S 70 V2 MLTI,
-45 °C up to +55 °C
HSE/HIE 70 W
5600 lm
7.5 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 906
AB 51 M 125 V
HME 125W
6300 lm
7.5 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 990
AB 51 M 125 V,
-45 °C up to +55 °C
HME 125W
6300 lm
7.5 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 991
EVI 200 ... (UD = direct entry, XM = indirect entry)
EVI 200 UD
1)
1)
8.2 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 005 110 753
EVI 200 XM,
1)
1)
9 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 941
EVI 200 UD,
-50 °C up to +55 °C
1)
1)
8.2 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 753
EVI 200 XM,
-50 °C up to +55 °C
1)
1)
9 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-e
x
NOR 000 115 110 943
EVI 500 ... (UD = direct entry, XM = indirect entry)
EVI 500 UD
1)
1)
12.8 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 005 110 761
EVI 500 UD,
-50 °C up to +55 °C
1)
1)
12.8 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 005 110 763
EVI 500 XM
1)
1)
13.6 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 942
EVI 500 XM,
-50 °C up to +55 °C
1)
1)
13.6 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-e
x
NOR 000 115 110 944
1)
2)
1.4.16
see table luminaire data S. 1.4.21
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
4.3
Ordering details
Pendant light fittings
Ordering details
Type
Lamp /
Illuminant
Rated
luminous
flux 2)
Weight
Metal thread
Threaded
plug
Dust
cap
Order No.
EVQ 55/85 including lamp (UD = direct entry, XM = indirect entry)
EVQ 55 UD
Induction lamp 55/85 W
with HF-driver
3500 lm
9 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 850
EVQ 85 UD
Induction lamp 55/85 W
with HF-driver
6000 lm
12.8 kg
2 x 3/4“ NPT
1 x 3/4“ Ex-d
x
NOR 000 115 110 852
EVQ 55 XM
Induction lamp 55/85 W
with HF-driver
3500 lm
9.8 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 854
EVQ 85 XM
Induction lamp 55/85 W
with HF-driver
6000 lm
13.6 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 856
1 x M25 Ex-d
x
NOR 000 115 110 600
EV 35 ... including LED-module (UD = direct entry, XM = indirect entry)
EV 35 UD LED
LED module 22 W
2000 lm
9.1 kg
2 x M25
EV 35 XM LED
LED module 22 W
2000 lm
10.05 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 605
EV 35 UD LED R0
LED module 22 W
with internal relector
2000 lm
9.1 kg
2 x M25
1 x M25 Ex-d
x
NOR 000 115 110 610
EV 35 XM LED R0
LED module 22 W
with internal relector
2000 lm
10.05 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 630
1)
2)
see table luminaire data S. 1.4.21
depends on used lamps
Accessories
Type
Content
Application
OU
Order No.
ER
External reflector painted steel
AB 50
1
NOR 000 115 110 718
PC. EV 200
External reflector
AB 51/EVI 200 / EVQ 55
1
NOR 000 005 110 894
PC. EV 500
External reflector
EVI 500 / EVQ 85
1
NOR 000 005 110 901
BC. EV
Pole mounting bracket
EV ...
1
NOR 000 005 110 836
AS.EV/AB
Ceiling mounting bracket
EV ...
1
NOR 000 005 110 828
SP. EV 200
Wall mounting bracket
EVQ 55
1
NOR 000 005 110 935
SP. EV 500
Wall mounting bracket
EVQ 85
1
NOR 000 005 110 943
AS.AB51
Ceiling bracket AISI 316
AB 51
1
NOR 003 165 110 000
SPU.EV/AB
Wall mounting bracket, adjustable
EV ...
1
NOR 000 005 110 951
G. EV 200
Wire guard
AB 51 EVQ 55
1
NOR 000 005 110 860
G. EV 500
Wire guard
EVQ 85
1
NOR 000 005 110 878
KEY, EV
Luminaire key
EV ...
1
NOR 000 005 110 886
CEV/AB
Eye bolt
AB 50/ EV ...
1
NOR 000 005 110 852
C.AB51
Eye bolt AISI 316
AB 51
1
NOR 003 165 110 001
WG
Wire guard, galvanized
AB 50
1
NOR 000 115 110 875
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.17
4
Polar curve
4.3
Pendant light fittings
Polar curve EVQ 55/85 without
external reflector
Polar curve AB 50 IU
90
90
90
90
25
20
50
60
40
60
75
60
30
30
l/cd/klm
0
C 0
C90
l/cd/klm
Polar curve EVQ 55/85
with external reflector
Polar curve AB 51 IU
90
90
90
90
25
75
75
100
50
60
60
15
C 0
125
0
30
400
30
15
l/cd/klm
Polar curve EVI 200/500 without
external reflector
30
0
C 0
C90
l/cd/klm
Polar curve EV 35 LED
without internal reflector
90
90
90
90
75
20
75
75
150
40
60
60
60
60
15
0
C 0
C90
375
0
30
15
C 0 / C90
l/cd/klm
l/cd/klm
Polar curve EVI 200/500
with external reflector
Polar curve EV 35 LED
with internal reflector
90
90
90
90
150
200
75
75
75
75
300
400
60
60
600
45
45
800
30
15
C 0
45
300
30
30
100
60
225
45
80
30
60
300
45
100
30
200
60
75
45
1000
0
60
60
450
45
15
15
45
600
30
30
750
0
30
15
C 0 / C90
l/cd/klm
1.4.18
30
100
0
C 0
C90
4
80
30
125
60
60
100
EATON’S CROUSE-HINDS BUSINESS
l/cd/klm
Dimension drawing
4.3
Pendant light fittings
AB 50 IXM
SPG 1N
358
400
254
AB 50 IU
Ø125
4
Ø125
125
Ei füh
AB 51 ..V
260
430
AB 51 IX
406
AB 51 IU
Ø210
i
l Ei füh
Ø210
Ø210
EVQ 85 UD
EVQ 85 XM
460
400
340
EVQ 55 XM
280
EVQ 55 UD
Ø 245
ti
l
t
t
Ø 300
Ø 245
Einführung
Ø 300
entry
optional entry, on request
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.4.19
4.3
Dimension drawing
EVI 200 UD
EVI 200 XM
4
EVI 500 UD
EVI 500 XM
340
460
400
280
Pendant light fittings
Ø 245
Ø 300
optional entry, on request
entry
Ø 245
optionale Einführung, auf Anfrage
Einführung
SPU EV/AB
Einführung
optionale Einführung, auf Anfrage
Ø 300
entry
optional entry, on request
SP.EV 200/500
235
285
350
140
170
100
45
245
300
ø
340
11.5
12
KEY.EV
CEV/AB
AS.EV/AB
50
3/4´´
12.7
3/4´´
140
ø 12
Ø 300
entry
optional entry, on request
Dimensions in mm
1.4.20
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.3
AB 50 / SPG 1N / AB 51
4
Technical data
AB 50 / SPG 1N
AB 51
EC-Type Examination Certificate
LOM 02 ATEX 2018 X
LOM 02 ATEX 2020 X
IECEx Certificate of Conformity
IECEx BKI 07.0032X
IECEx BKI 07.0028X
Marking accd. to 94/9/EC
D II 2 D Ex d IIC T3 / T4 with 60 W (+40 °C) /
D II 2 D Ex tD A21 IP67 T180 °C, T130 with 60 W (+40 °C)
D II 2 D Ex d IIC T 1)
D II 2 D Ex de IIC T 1) (Indirect entry)
D II 2 D IP67 T 1)
Marking accd. to IECEx
Ex d IIC T3…T6 or Ex de IIC T3…T6 (indirect entry)
Ex tD A21 IP66 T145°...T85°C
Ex de IIC T3…T6
Ex tD A21 IP67 T152°C...T86°C
Permissible ambient temperature
-20 °C up to +55 °C
-50 °C up to +55 °C (option: AB 50)
-20 °C up to +55 °C / -50 °C up to +55 °C option: IGA /
-45 °C up to +55 °C option: HS./HI.
Rated voltage
max. 250 V
max. 250 V (AB 51..); 230 V AC (AB 51 M/S)
Frequency
50 Hz
50 Hz
Power consumption
max.100 VA
max.200 VA
Protection class
I
I
Lamp / Illuminant
60 W, 100 W, 75 W halogen
1)
Rated luminous flux
1)
1)
Lamp cap
E27 accord. IEC 60238
E27 accord. IEC 60238
Light efficiency in operation
68 %
75 %
Connecting terminals
L, N, PE: 1 x 2.5 mm2 or 2 x 1.5 mm2,
PE ext. 2 x 6 mm2
L, N, PE: 1 x 2.5 mm2 or 2 x 1.5 mm2 (IU), 2 x 2.5 mm2
(IX and M/S), PE ext. 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
1.6 kg
3.6 kg
Cable glands / gland plates /
enclosure drilling
2 x 3/4” or M25 thread (Ex-d),
1 x plugged (UI and M/S) /
2 x M25 x 1.5, 1 x plugged (IX)
2 x 3/4” or M25 thread (Ex-d),
1 x plugged (UI and M/S) /
2 x M25 x 1.5, 1 x plugged (IX)
Type of mounting
ceiling-/wall mounting (AB 50), portable light fixture (SPG 1N)
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP66
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
see table luminaire data
Additional luminaire data AB 51
Temperature class II 2 G
Lamp
Power
max. surface temp. II 2 D
Luminous flux 2) TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
Incandescent lamp IGA 65
150 W
2200 lm
T3
T3
T 132 °C
T 147 °C
Incandescent lamp IGA 80
200 W
3100 lm
T3
T3
T 137 °C
T 152 °C
Halogen lamp IQT
75 W
1100 lm
T5
T4
T 88 °C
T 103 °C
Halogen lamp IQT
150 W
2500 lm
T4
T3
T 123 °C
T 138 °C
3)
Compact fluorescent lamp
max 32 W
T6
–
T 85 °C
–
Self-ballasted mercury lamp HME-SB
100 W
1100 lm
T4
T4
T 110 °C
T 125 °C
Self-ballasted mercury lamp HME-SB
160 W
3100 lm
T3
T3
T 127 °C
T 142 °C
Mercury vapour HME
80 W
3800 lm
T4
T4
T 112 °C
T 127 °C
Mercury vapour HME
125 W
6300 lm
T3
T3
T 127 °C
T 142 °C
High pressure sodium lamp HSE
50 W
3400 lm
T5
T4
T 86 °C
T 101 °C
High pressure sodium lamp HSE
70 W
5600 lm
T4
T4
T 97 °C
T 112 °C
Metal halide lamp HIE
70 W
5900 lm
T4
T4
T 110 °C
T 125 °C
2)
depends on used lamps / 3) TU ≤ 30 °C
EATON’S CROUSE-HINDS BUSINESS
1.4.21
Technical data
4.3
EVI 200 / EVI 500
4 Technical data
EVI 200
EVI 500
EC-Type Examination Certificate
LOM 02 ATEX 2012 X
LOM 02 ATEX 2012 X
IECEx Certificate of Conformity
IECEx BKI 07.0031X
IECEx BKI 07.0031X
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T (XM = indirect entry)
D II 2 G Ex d IIC T1) (UD = direct entry)
D II 2 D Ex tD A21 IP67 T1) °C
D II 2 G Ex de IIC T1) (XM = indirect entry)
D II 2 G Ex d IIC T1) (UD = direct entry)
D II 2 D Ex tD A21 IP67 T1) °C
Marking accd. to IECEx
Ex de IIC T1)
Ex tD A21 IP67 T1) °C
Ex d / de IIC T 1)
Ex tD A21 IP67 T 1)
Permissible ambient temperature
-20 °C up to +55 °C
-50/-45 °C up to +55 °C (option)
-20 °C up to +55 °C
-50/-45 °C up to +55 °C (option)
1)
Rated voltage
max. 250 V
max. 250 V
Frequency
50 - 60 Hz
50 - 60 Hz
Power consumption
max. 200 VA
max. 500 VA
Protection class
I
I
Lamp / Illuminant
1)
1)
Rated luminous flux
1)
1)
Lamp cap
E27 accord. IEC 60238
E40 accord. IEC 60238
Light efficiency in operation
75 %
75 %
Dimensions (L x W x H)
280 mm x Ø 245 mm (200 UD), 400 x Ø 225 mm (200 XM)
2
340 x Ø 300 mm (500 UD), 460 x Ø 300 mm (500 XM)
Connecting terminals
L, N, PE: 1 x 2.5 mm or 2 x 1.5 mm (UD), 2 x 2.5 mm (XM);
PE ext. 2 x 6 mm2
L, N, PE: 1 x 2.5 mm2 or 2 x 1.5 mm2 (UD), 2 x 2.5 mm2 (XM);
PE ext. 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
8.2 kg (UD/ 9 kg (XM)
12.8 kg (UD)/ 13.6 kg (XM)
Cable glands / gland plates /
enclosure drilling
2 x 3/4” or M25 thread (Ex-d), 1 x plugged (UD),
2 x M25 thread Ex-e, 1 x plugged (XM)
2 x 3/4” or M25 thread (Ex-d), 1 x plugged (UD),
2 x M25 thread Ex-e, 1 x plugged (XM)
Type of mounting
ceiling-/wall mounting
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
2
2
see table luminaire data
Additional luminaire data EVI
Temperature class II 2 G
max. surface temp. II 2 D
Lamp
Power
Luminous flux 2) Type
TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
Incandescent lamp IGA 65
150 W
2200 lm
EVI 200
T4
T4
T 105 °C
T 120 °C
Incandescent lamp IGA 80
200 W
3100 lm
EVI 200
T4
T4
T 115 °C
T 130 °C
Incandescent lamp IGA 90
300 W
5000 lm
EVI 500
T4
T4
T 115 °C
T 130 °C
Incandescent lamp IGA 110
500 W
8400 lm
EVI 500
T3
T3
T 155 °C
T 170 °C
Self-ballasted mercury lamp HME-SB
160 W
3100 lm
EVI 200
T3
T3
T 125 °C
T 140 °C
Self-ballasted mercury lamp HME-SB
250 W
5600 lm
EVI 500
T4
T4
T 125°C
T 140 °C
2)
depends on used lamps
1.4.22
EATON’S CROUSE-HINDS BUSINESS
Technical data
EVQ 55/85 / EV 35 LED
4.3
4
Technical data
EVQ 55 / EVQ 85
EV 35 LED
EC-Type Examination Certificate
LOM 02 ATEX 2012 X
LOM 10 ATEX 2075
IECEx Certificate of Conformity
IECEx BKI 07.0031X
Marking accd. to 94/9/EC
D Ex d IIC T6 (direct entry UD) /
D Ex de IIC T6 (indirect entry XM)
D II 2 D IP67 T85 °C
Marking accd. to IECEx
Ex d IIC T6 (direct entry UD) /
Ex de IIC T6 (indirect entry XM)
Ex tD A21 IP67 T85 °C
Permissible ambient temperature
-20 °C up to +55 °C
-50 °C up to +55 °C
Rated voltage
230 V AC/DC
max. 250 V
Rated current
0.26 A (55 W)
0.40 A (85 W)
Frequency
50 - 60 Hz
50 - 60 Hz
Power factor cos M
t 0.96
t 0.96
Circuit
electronic HF driver
electronic driver
Protection class
I
I
Lamp / Illuminant
Induction lamp 55/85 W with electronic driver
LED module 22 W
Rated luminous flux
3500 lm / 6000 lm
2000 lm
Light efficiency in operation
66 %
75 %
Dimensions (L x W x H)
280 mm x Ø 245 mm / 340 mm x Ø 300 mm
2
D II 2 G Ex d/de IIC T6 Gb
D II 2 D Ex t IIIC T85°C Db
2
280 mm x Ø 245 mm
2
Connecting terminals
L, N, PE: 1 x 2.5 mm or 2 x 1.5 mm (UD), 2 x 2.5 mm (XM)
PE ext. 2 x 6 mm2
L, N, PE: 1 x 2.5 mm2 or 2 x 1.5 mm2 (UD), 2 x 2.5 mm2 (XM)
PE ext. 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
9 kg / 12.8 kg
9.1 kg
Cable glands / gland plates /
enclosure drilling
2 x 3/4” or M25 thread (Ex-d), 1 x plugged (UD)
2 x M25 thread (Ex-e), 1 x plugged (XM)
M25 thread (Ex-d), 1 x plugged (UD)
2 x M25 thread (Ex-e), 1 x plugged (XM)
Type of mounting
ceiling-/wall mounting
ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP67
IP67
Protective cover / protective bowl
borosilicate glass, opaque (clear on request)
borosilicate glass, clear
Technology Inside
EATON’S CROUSE-HINDS BUSINESS
1.4.23
4.4
Ex pendant light fittings for high-pressure
discharge lamps EV. / dHLS / EVZ
4 (Zone 1, 2, 21, 22)
Ex pendant light fittings
for high-pressure discharge
lamps
These EV, dHLS and EVZ
luminaire series are designed
for the use of high-pressure
discharge lamps. Ballasts and
lamps are located in a common housing. The flameproof
enclosures are connected via
an easy-to-mount Ex-e terminal
compartment. The protective
cover is made of borosilicate
glass and is extremely impact
and heat resistant. All external
screws are made of stainless
steel. The lamp replacement is
done by opening the PTFE coated connection ring. Both the
glass dome and the connection
ring are hinged for easy access.
Depending on the type, the
light fittings are certified for ambient temperatures from
- 45 °C up to 55 °C.
EV pendant light fitting
with 2 housing sizes
The EV pendant light series is
suitable for use with sodium or
metal halide high-pressure discharge lamps. The small enclosure solution can be used with
lamps up to 125 W. The large
enclosure solution is suitable
for lamps with a power consumption of up to 250 W.
dHLS –
the robust pendant light
The robust dHLS pendant light
fitting has been certified for
hazardous areas in Zones 1 and
2 and is suitable for 250 W and
400 W high pressure lamps .
The housing is made of a light
alloy with a powder coating.
Because of its high operation-
al safety, it has been used in
chemical plants and on- and offshore platforms for illuminating
large areas and selective large
objects for many years now.
The light fitting is fitted with a
dome-shaped glass cover and
can also be fitted with an external reflector.
EVZ - highly versatile
The EVZ pendant light fittings
are available in 2 versions for
70 W to 150 W and 150 W to
400 W. The luminaire can be
fitted with a swivel bracket
for wall or pole mounting. Two
external reflectors and a protective guard are available as an
option.
Features
• Various enclosure-size solutions
• For high-pressure discharge lamps
• Robust design for harsh environments
• Large Ex-e terminal compartment
• Wide ambient temperature range depending on the version
from -45 ° C up to +55 ° C
• Meets the highest standards of corrosion protection and mechanical strength
1.4.24
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.4
Pendant light fittings
Ordering details
Type
Lamp /
Illuminant
Rated
luminous
flux 2)
Weight
Metal thread
Threaded
plug
Dust
cap
Order No.
EV. ...
EVS 70 ZM
HSE 70 W
5600 lm
14 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 880
EVS 70 ZM,
-45 °C up to +55 °C
HSE 70 W
5600 lm
14 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 886
EVM 125 ZM
HME 125 W
6300 lm
14 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 879
EVM 125 ZM,
-45 °C up to +55 °C
HME 125 W
6300 lm
14 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 884
EVS 150 ZM
HSE 150 W
14000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 883
EVS 150 ZM
-45 °C up to +55 °C
HSE 150 W
14000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 887
4
EVM 250 ZM
HME 250 W
13000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 881
EVM 250 ZM,
-45 °C up to +55 °C
HME 250 W
13000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 885
EVS 250 ZM
HSE 250 W
25000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 882
EVS 250 ZM,
-45 °C up to +55 °C
HSE 250 W
25000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 888
EVH 250 ZM
HIE 250 W
17000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 945
EVH 250 ZM,
-45 °C up to +55 °C
HIE 250 W
17000 lm
22.4 kg
2 x M25
1 x M25 Ex-e
x
NOR 000 115 110 889
dHLS 85 ...
dHLS 85250 HME IND
HME 250 W
13000 lm
30 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8688 P0001
dHLS 85250 HME KOMP 1)
HME 250 W
13000 lm
37 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8688 P1001
dHLS 85250 HSE IND
HSE 250 W
25000 lm
30 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8688 P2001
dHLS 85250 HSE KOMP 1)
HSE 250 W
25000 lm
37 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8688 P3001
CGS 123 8788 P0001
dHLS 85400 HME IND
HME 400 W
22000 lm
30 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
dHLS 85400 HME KOMP 1)
HME 400 W
22000 lm
37 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8788 P1001
dHLS 85400 HSE IND
HSE 400 W
48000 lm
30 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8788 P2001
dHLS 85400 HSE KOMP 1)
HSE 400 W
48000 lm
37 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8788 P3001
dHLS 85400 HSE IND
-50 °C up to +50 °C
HSE 400 W
48000 lm
30 kg
1 x M25 Ex-e
1 x M25 Ex-e
x
CGS 123 8788 P2002
EVZ small enclosure
EVZIS2M075 - 230 V AC
HSE 70 W
5600 lm
10 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 028 /S6E
EVZIS2M076 - 240 V AC
HSE 70 W
5600 lm
10 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 040 /S6E
EVZIS2M105 - 230 V AC
HSE 100 W
8800 lm
11 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 088 /S6E
EVZIS2M106 - 240 V AC
HSE 100 W
8800 lm
11 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 100 /S6E
EVZIS2M155 - 230 V AC
HSE 150 W
14000 lm
12 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 148 /S6E
EVZIS2M156 - 240 V AC
HSE 150 W
14000 lm
12 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 160 /S6E
EVZIM2M075 - 230 V AC
HIE 70 W
5100 lm
10 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 034 /S6E
EVZIM2M076 - 240 V AC
HIE 70 W
5100 lm
10 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 046 /S6E
EVZIM2M105 - 230 V AC
HIE 100 W
7800 lm
11 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 094 /S6E
EVZIM2M106 - 240 V AC
HIE 100 W
7800 lm
11 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 106 /S6E
EVZIM2M155 - 230 V AC
HIE 150 W
11000 lm
12 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 154 /S6E
EVZIM2M156 - 240 V AC
HIE 150 W
11000 lm
12 kg
2 x M25
1 x M25 Ex-e
x
CCL 1077 166 /S6E
1)
with installed ballast enclosure on top cos M t 0.9
2)
depends on used lamps
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.25
4.4
Ordering details / Accessories
Pendant light fittings
Ordering details
Type
Lamp /
Illuminant
Rated
luminous
flux 2)
Weight
Metal thread
Threaded
plug
Dust
cap
Order No.
EVZ large enclosure
4
EVZIS2M255 - 230 V AC
HSE 250 W
25000 lm
16 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 088 /S6E
EVZIS2M256 - 240 V AC
HSE 250 W
25000 lm
16 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 100 /S6E
EVZIS2M405 - 230 V AC
HSE 400 W
48000 lm
18 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 136 /S6E
EVZIS2M406 - 240 V AC
HSE 400 W
48000 lm
18 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 142 /S6E
EVZIS2M605 - 230 V AC
HST 600 W
90000 lm
20 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 196 /S6E
EVZIS2M606 - 240 V AC
HST 600 W
90000 lm
20 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 202 /S6E
EVZIM2M255 - 230 V AC
HIE 250 W
17000 lm
16 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 094 /S6E
EVZIM2M256 - 240 V AC
HIE 250 W
17000 lm
16 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 106 /S6E
EVZIM2M405 - 230 V AC
HIT 400 W
33000 lm
18 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 166 /S6E
EVZIM2M406 - 240 V AC
HIT 400 W
33000 lm
18 kg
2 x M25
1 x M25 Ex-e
x
CCL 1075 172 /S6E
2)
depends on used lamps
Accessories
Type
Content
Application
OU
Order No.
G. EV 200
Wire guard
EV.. 70-125 ..
1
NOR 000 005 110 860
G. EV 500
Wire guard
EV.. 150-250 ..
1
NOR 000 005 110 878
PC. EV 200
External reflector
EV.. 70-125 ..
1
NOR 000 005 110 894
PC. EV 500
External reflector
EV.. 150-250 ..
1
NOR 000 005 110 901
KEY, EV
Luminaire key
EV..
1
NOR 000 005 110 886
CEV/AB
Eye bolt
EV..
1
NOR 000 005 110 852
SPU.EV/AB
Wall mounting bracket, adjustable
EV..
1
NOR 000 005 110 951
AS.EV
Ceiling bracket
EV..
1
NOR 000 005 110 828
BC. EV Ø 44 – 64 mm
Pole mounting bracket
EV..
1
NOR 000 005 110 836
SP. EV 200
Wall mounting bracket
EV 70..-125 ..
1
NOR 000 005 110 935
SP. EV 500
Wall mounting bracket
EV 150..-250 ..
1
NOR 000 005 110 943
RS
Eye bolt M10 (10 pcs.) galvanised
dHLS 85
1
GHG 690 1921 R0003
L 218
Mounting bracket for inductive version
dHLS 85
1
GHG 690 1913 R0001
L 430
Mounting bracket for compensated version
dHLS 85
1
GHG 690 1913 R0002
AR
External reflector metal, powder coating white
dHLS 85
1
CGS 223 7990 P1000
U-bracket for ceilingand wall mounting
EVZ - small enclosure
1
CCL1076001
U-bracket for ceilingand wall mounting
EVZ - large enclosure
1
CCL1076002
U-bracket for pole mounting
EVZ
1
CCL1076003
EVZ - small enclosure
1
750283
RA725
Asymmetrical external reflector
RD725
Symmetrical external reflector
EVZ - small enclosure
1
750286
RA
Asymmetrical external reflector
EVZ - large enclosure
1
CHR9973
RD
Symmetrical external reflector
EVZ - large enclosure
1
CHR9972
Wire guard
Stainless steel SS316
EVZ - small enclosure
1
CHR8138
Wire guard
Stainless steel SS316
EVZ - large enclosure
1
CHR7870
Eye bolt
EVZ
1
CHR6196
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
1.4.26
EATON’S CROUSE-HINDS BUSINESS
4.4
Dimension drawing / Polar curve
Pendant light fittings
dHLS 85 ... ind.
dHLS 85 ... comp.
344
120 M10, 18 deep
Compensation
box
570
570
325
48
210
2 ring bolts
Ø 320
Ø 500
Polar curve without external reflector dHLS
4
Ø 320
Ø 500
EV ... 70 - 125 ZM
EV ... 150 - 250 ZM
90
90
40
60
560
460
20
60
60
80
30
30
100
Ø 245
0
C 0
C90
Ø 300
l/cd/klm
entries
entries
optional cable entries, on request
SPU EV/AB
Polar curve EV 200/500
without
120external reflector
120
350
90
90
20
40
60
60
60
80
30
30
100
100
0
C 0
C90
l/cd/klm
45
11.5
Polar curve EV 200/500
with external reflector
SP.EV 200/500
90
90
200
75
75
400
60
60
600
45
15
C 0
45
800
30
1000
0
235
285
140
30
15
170
12
l/cd/klm
245
300
ø
KEY.EV
CEV/AB
AS.EV
50
3/4´´
12.7
Dimensions in mm
3/4´´
ø 12
140
EATON’S CROUSE-HINDS BUSINESS
1.4.27
Polar curve / Dimension drawing
4.4
Pendant light fittings
Polar curve EVZ small enclosure
Polar curve EVZ large enclosure
90
90
90
90
25
25
75
75
75
75
50
60
60
75
45
60
45
45
100
30
125
0
30
15
30
15
l/cd/klm
C 0
C90
l/cd/klm
90
90
90
40
50
75
75
75
75
80
100
60
120
60
160
30
15
30
15
l/cd/klm
C 0
C90
l/cd/klm
90
90
90
40
50
75
75
75
75
100
80
60
150
200
250
0
15
EVZ large enclosure
15
l/cd/klm
U-bracket
Bracket pole mounting
Ø 25
44.5
22
300
290
277
200
Hole Ø17
336
80
2 Holes Ø13
48-58
Ø 215
28
649
599
550
480
200
0
C 0
C90
80
30
30
15
62.5
185
Ø 25
45
160
30
l/cd/klm
EVZ small enclosure
60
120
45
30
C 0
C90
40
60
45
30
15
15
Polar curve EVZ
large enclosure with reflector RA
90
45
250
0
C 0
C90
Polar curve EVZ
small enclosure with reflector RA
60
45
200
30
15
60
150
45
45
30
200
0
15
Polar curve EVZ
large enclosure with reflector RD
90
45
125
0
C 0
C90
Polar curve EVZ
small enclosure with reflector RD
60
45
100
30
15
60
75
40
4
50
Dimensions in mm
1.4.28
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.4
EVS/EVM d 125 W / EVS/EVM/EVH d 250 W
4
Technical data
EV. ≤ 125 W (small enclosure)
EV. ≤ 250 W (large enclosure)
EC-Type Examination Certificate
LOM 02 ATEX 2012 X
LOM 02 ATEX 2012 X
IECEx Certificate of Conformity
IECEx BKI 07.0031X
IECEx BKI 07.0031X
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T
D II 2 D IP67 T1) °C
D II 2 G Ex de IIC T1)
D II 2 D IP67 T1) °C
Marking accd. to IECEx
Ex de IIC T1)
Ex tD A21 IP67 T1)
Ex de IIC T1)
Ex tD A21 IP67 T1)
Permissible ambient temperature
-20 °C up to +55 °C
-45 °C up to +55 °C (option)
-20 °C up to +55 °C
-45 °C up to +55 °C (option)
Rated voltage
230 V AC
230 V AC
Frequency
50 Hz
50 Hz
Power factor cos M
t 0.85
t 0.85
Circuit
electromagnetical
electromagnetical
Protection class
I
I
Lamp / Illuminant
HME 125 W, HSE 70 W
HME 250 W, HSE 150 - 250 W, HIE 250 W
Lamp name
Mercury vapour,
high pressure sodium lamp
Mercury vapour,
high pressure sodium lamp, Metal-halide lamp
Rated luminous flux
1)
1)
Lamp cap
E27 accord. IEC 60238
E40 accord. IEC 60238
Light efficiency in operation
76 %
76 %
Dimensions (L x W x H)
480 mm x Ø 245 mm
1)
560 mm x Ø 300 mm
Connecting terminals
L, N, PE: 2 x 2.5 mm
PE external 2 x 6 mm2
L, N, PE: 2 x 2.5 mm2
PE external 2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy
light alloy
Weight
14.1 kg
22.4 kg
Cable glands / gland plates /
enclosure drilling
2 x M25 thread (Ex-e),
1 x plugged
2 x M25 thread (Ex-e),
1 x plugged
Type of mounting
ceiling mounting
ceiling mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
1)
2
see table luminaire data
Additional luminaire data EV.
Enclosure size
Temperature class II 2 G
max. surface temp. II 2 D
Type
small
TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
X
T4
T4
T115°C
T130°C
T4
T3
T125°C
T140°C
T5
T4
T95°C
T110°C
Lamp
Power
luminous
flux2)
Mercury vapour HME
125 W
6300 lm
EVM 125 ZM
Mercury vapour HME
large
250 W
13000 lm
EVM 250 ZM
High pressure sodium lamp HSE
70 W
5600 lm
EVS 70 ZM
High pressure sodium lamp HSE
150 W
14000 lm
EVS 150 ZM
X
T5
T4
T90°C
T105°C
High pressure sodium lamp HSE
250 W
25000 lm
EVS 250 ZM
X
T4
T4
T115°C
T130°C
Metal halide lamp HIE
250 W
17000 lm
EVH 250 ZM
X
T4
T3
T125°C
T140°C
2)
X
X
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.29
Technical data
4.4
dHLS 85
4 Technical data
dHLS 85
EC-Type Examination Certificate
DMT 03 ATEX E 039
IECEx Certificate of Conformity
IECEx BVS 11.0066
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T3 Gb
Marking accd. to IECEx
Ex de IIC T3 Gb
Permissible ambient temperature
-20 °C up to +50 °C / -20 °C up to +55 °C (250 W)
-50 °C up to +50 °C (option)
Rated voltage
230 V AC
Frequency
50 Hz
Power factor cos
0.5 ind. / 0.9 comp. 2)
Circuit
inductive circuit / compensated circuit 2)
Protection class
I
Lamp / Illuminant
HSE/HME 250 - 400 W
Lamp name
Mercury vapour,
high pressure sodium lamp
Rated luminous flux
1)
Lamp cap
E40 accord. IEC 60238
Connecting terminals
L, N, PE max. 2 x 2.5 mm2
Enclosure material
light alloy with powder coating
Weight
30 kg
Cable glands / gland plates /
enclosure drilling
1 x M25 x 1.5 for cables from Ø 8 - 17 mm
1 x M25 x 1.5 with blanking plug
Type of mounting
ceiling mounting
Degree of protection accd. to EN 60529
IP65
Protective cover / protective bowl
borosilicate glass
1)
2)
see table luminaire data
with installed ballast enclosure on top
Additional luminaire data dHLS 85
Lamp
Power
luminous flux2)
Type
High pressure sodium lamp HSE
250 W
25000 lm
dHLS 85250
High pressure sodium lamp HSE
400 W
48000 lm
dHLS 85400
Mercury vapour HME
250 W
13000 lm
dHLS 85250
Mercury vapour HME
400 W
22000 lm
dHLS 85400
1.4.30
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.4
EVZ
4
Technical data
EVZ (small enclosure)
EVZ (large enclosure)
EC-Type Examination Certificate
TÜV 12 ATEX 7169X
TÜV 12 ATEX 7169X
IECEx Certificate of Conformity
IECEx CQM 11.0002
Marking accd. to 94/9/EC
D II 2 G Ex d e IIC T* Gb
D II 2 D Ex tD A21 IP66 T* 1)
D II 2 G Ex d e IIC T* Gb 1)
D II 2 D Ex tD A21 IP66 T* 1)
Marking accd. to IECEx
Ex d e IIC T* Gb 1)
Ex tD A21 IP66 T* 1)
Ex d e IIC T* Gb 1)
Ex tD A21 IP66 T* 1)
Permissible ambient temperature
-40 °C up to +55 °C
-40 °C up to +55 °C
Frequency
50 Hz
50 Hz
Power factor cos M
t 0.9
t 0.9
Protection class
I
I
Lamp / Illuminant
HSE 70 - 150 W, HIE 70 - 150 W
HSE 250 - 600 W, HIE 250 - 400 W
IECEx CQM 11.0002
1)
Lamp name
High pressure sodium lamp, Metal halide lamp
High pressure sodium lamp, Metal halide lamp
Rated luminous flux
1)
1)
Lamp cap
E27 accord. IEC 60238 (HSE 70 W, HIE. 70 - 150 W)
E40 accord. IEC 60238 (HSE 100 - 150 W)
E40 accord. IEC 60238
Dimensions (L x W x H)
Ø 215 mm x 480 mm
Ø 300 mm x 599 mm
Connecting terminals
3 x 2 x 4 mm² (L, N, PE) max. 2 Leiter
3 x 2 x 4 mm² (L, N, PE) max. 2 Leiter
Enclosure colour
grey
grey
Enclosure material
copper free aluminium
copper free aluminium
Weight
14.1 kg
22.4 kg
Cable glands / gland plates /
enclosure drilling
2 x M25 thread, 1 x M25 Ex-e screw plug
2 x M25 thread, 1 x M25 Ex-e screw plug
Type of mounting
ceiling mounting
ceiling mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
toughened glass
toughened glass
1)
see table luminaire data
Additional luminaire data EVZ
Lamp
Power
Temperature class II 2 G
max. surface temp. II 2 D
luminous flux2)
Type
TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
High pressure sodium lamp HSE
70 W
5600 lm
EVZIS*07*
T5
T4
83 °C
98 °C
High pressure sodium lamp HSE
100 W
8800 lm
EVZIS*10*
T5
T4
94 °C
109 °C
High pressure sodium lamp HSE
150 W
14000 lm
EVZIS*15*
T4
T4
113 °C
128 °C
High pressure sodium lamp HSE
250 W
25000 lm
EVZIS*25*
T3
T3
134 °C
149 °C
High pressure sodium lamp HSE
400 W
48000 lm
EVZIS*40*
T3
T3
146 °C
161 °C
High pressure sodium lamp HSE
600 W
90000 lm
EVZIS*60*
T3
T3
167 °C
182 °C
Metal halide lamp HIE
70 W
5100 lm
EVZIM*07*
T5
T4
83 °C
98 °C
Metal halide lamp HIE
100 W
7800 lm
EVZIM*10*
T4
T4
97 °C
112 °C
Metal halide lamp HIE
150 W
11000 lm
EVZIM*15*
T4
T4
111 °C
126 °C
Metal halide lamp HIE
250 W
17000 lm
EVZIM*25*
T3
T3
132 °C
147 °C
Metal halide lamp HIE
400 W
33000 lm
EVZIM*40*
T3
T3
167 °C
182 °C
2)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.31
4.5
Ex floodlights for high-pressure discharge
lamps, series PX 04 and FLT 10
4 (Zone 1, 2, 21, 22)
The powerful floodlights
for harsh environments
Thanks to the high degree of
protection IP66, the robust
floodlights of the series PX 04
and FLT 10 for hazardous areas
are suitable for the illumination
of large areas and objects under
harsh environmental conditions,
such as those found in industrial, chemical and petrochemical
plants, on- and offshore oil and
gas production plants, pipelines,
refineries and loading ramps.
High-pressure discharge lamps
from 70 W to 600 W provide a
high illuminance level.
PX 04 - multifunctional
The PX 04 light fitting enclosure
is made of copper-free aluminium. The protective glass cover
is made of scratchproof borosilicate glass; it protects the internal reflector against harmful
environmental conditions.
Depending on the application,
a wide beam or a narrow beam
reflector can be chosen. All external screws are made of stainless steel. The easy-to-maintain
electrical connection is made
via a flanged-on Ex-e connection
compartment. The ballast with
thermal protection and a pulse
ignitor with automatic shut off
provide additional safety. The
floodlight features an adjustable
mounting bracket that allows an
optimum focussing of the light.
+55 °C, the FLT 10 is the ideal
light source for use in extreme
climates.
FLT 10 - for Arctic conditions
Specially designed for use in
areas with extremely low temperatures, the FLT 10 was developed as a version of the tried
and tested PX 04 floodlight.
Thanks to its highly polished
aluminium reflector, the FLT 10
has a high lighting efficiency
of 62%. Depending on the
application, a wide beam or a
narrow beam reflector can be
chosen. The housing design
and connections are the same
as those of the PX 04. As it
has been certified for ambient
temperatures from -55 °C up to
Features
• Floodlight for high-pressure discharge lamps
• Robust design for harsh environments
• High degree of protection IP 66
• With large Ex-e terminal compartment
• Depending on the version, large ambient temperature range from
-55 °C up to +55 °C
• Meets the highest corrosion protection and mechanical strength
requirements
1.4.32
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.5
PX 04 / FLT 10
Ordering details
Type
Content
Lamp /
Illuminant
Reflector
Rated
luminous flux 1)
Weight
Metal
thread
Threaded
plug
Order No.
PX
PX 0405
-20 °C up to +55 °C IQT - 500 W
narrow beam
10000 lm
23 kg
2 x M25,
1 x M25
NOR 000 115 170 209
PX 0405
-20 °C up to +55 °C IQT 500 W
wide beam
10000 lm
23 kg
2 x M25,
1 x M25
NOR 000 115 170 309
PX 0407
-20 °C up to +55 °C HIT / HST 70 W narrow beam
7500/6000 lm
23 kg
2 x M25,
1 x M25
NOR 000 115 170 230
PX 0415
-20 °C up to +55 °C HIT / HST 150 W narrow beam
14000/15000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 233
PX 0415
-20 °C up to +55 °C HIT / HST 150 W wide beam
14000/15000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 333
PX 0425
-20 °C up to +55 °C HIT / HST 250 W narrow beam
25000/28000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 227
PX 0425
-20 °C up to +55 °C HIT / HST 250 W wide beam
25000/28000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 327
PX 0425M -20 °C up to +55 °C HME 400 W
narrow beam
13000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 257
PX 0440H -20 °C up to +55 °C HIT 400 W
narrow beam
35000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 222
PX 0440H -20 °C up to +55 °C HIT 400 W
wide beam
35000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 322
PX 0440M -20 °C up to +55 °C HME 400 W
narrow beam
22000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 251
PX 0440S
-20 °C up to +55 °C HST 400 W
narrow beam
48000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 221
PX 0440S
-20 °C up to +55 °C HST 400 W
wide beam
48000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 321
PX 0460
-20 °C up to +55 °C HST 600 W
narrow beam
90000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 215
PX 0460
-20 °C up to +55 °C HST 600 W
wide beam
90000 lm
31 kg
2 x M25,
1 x M25
NOR 000 115 170 315
FLT
FLT 1007
-55°C up to +55 °C HIT / HST 70 W wide beam
7500/6000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 07271 W002
FLT 1007
-55°C up to +55 °C HIT / HST 70 W narrow beam
7500/6000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 07271 N002
FLT 1010
-55°C up to +55 °C HIT / HST 100 W wide beam
10000/9000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 10401 W002
FLT 1010
-55°C up to +55 °C HIT / HST 100 W narrow beam
10000/9000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 10401 N002
FLT 1015
-55°C up to +55 °C HIT / HST 150 W wide beam
14000/15000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 15401 W002
FLT 1015
-55°C up to +55 °C HIT / HST 150 W narrow beam
14000/15000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 15401 N002
FLT 1025
-55°C up to +55 °C HIT / HST 250 W wide beam
25000/28000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 25401 W002
FLT 1025
-55°C up to +55 °C HIT / HST 250 W narrow beam
25000/28000 lm
41 kg
2 x M25,
1 x M25
FLT10 0 25401 N002
FLT 1040
-55°C up to +40 °C HIT 400 W
wide beam
35000 lm
41 kg
2 x M25,
1 x M25
FLT10 I 40401 W002
FLT 1040
-55°C up to +40 °C HIT 400 W
narrow beam
35000 lm
41 kg
2 x M25,
1 x M25
FLT10 I 40401 N002
FLT 1040
-55°C up to +40 °C HST 400 W
wide beam
48000 lm
41 kg
2 x M25,
1 x M25
FLT10 S 40401 W002
FLT 1040
-55°C up to +40 °C HST 400 W
narrow beam
48000 lm
41 kg
2 x M25,
1 x M25
FLT10 S 40401 N002
1)
depends on used lamps
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type
Content
Application
OU
Order No.
SB
2 St pipe clamp Ø 48 mm up to Ø 64 mm
incl. fixing screws
PX 04 / FLT 10
1
NOR 000 005 170 583
ATP
portable stand, painted steel
PX 04 / FLT 10 ..
1
NOR 000 005 170 715
PAH
horizontal steel shade, painted steel
PX 04 / FLT 10 ..
1
NOR 000 005 170 608
PAV
vertical steel shade, painted steel
PX 04 / FLT 10 ..
1
NOR 000 005 170 591
HIT 250 W
Metal halide lamp 250 W E40
PX 04 / FLT 10 ..
1
CGS 323 7990 P1007
HIT 400 W
Metal halide lamp 400 W E40
PX 04 / FLT 10 ..
1
CGS 323 7990 P1008
HST 250 W
High pressure sodium lamp 250 W E40
PX 04 / FLT 10 ..
1
CGS 323 8600 P1009
HST 400 W
High pressure sodium lamp 400 W E40
PX 04 / FLT 10 ..
1
CGS 323 8700 P1009
HST 70 W
High pressure sodium lamp 70 W E40
PX 04 / FLT 10
3 1750 301 070
EATON’S CROUSE-HINDS BUSINESS
1.4.33
4
Dimension drawing / Polar curve
4.5
PX 04 / FLT 10
Polar curve with narrow beam reflector
PX 04 and FLT 10
546
90
90
175
75
75
350
4
60
525
45
45
700
30
15
C 0
C90
875
0
443
60
30
15
l/cd/klm
Ø 14
Polar curve with wide beam reflector
Ø 26
180
Ø 14
180
347
403
90
90
50
75
75
100
60
45
200
30
15
C 0
C90
60
150
45
250
0
30
15
M25
M25
l/cd/klm
optional entry, on request
entry
without ballast for QT- and HME-SB-lamps
with ballast for all high pressure discharge lamps
Dimensions in mm
1.4.34
EATON’S CROUSE-HINDS BUSINESS
Technical data
PX 04 / FLT 10
4.5
4
Technical data
PX 04
FLT 10
EC-Type Examination Certificate
BVS 09 ATEX E 050 X
BVS 09 ATEX E 050 X
IECEx Certificate of Conformity
IECEx BVS-10.0009X
Marking accd. to 94/9/EC
D II 2G Ex de IIB T2-T4 Gb
D II 20 Ex tb IIIC T85°C-T210°C 1) Db IP66
D II 2G Ex de IIB T3-T4 1) Gb
D II 20 Ex tb IIIC T130°C-T190°C 1) Db IP66
Marking accd. to IECEx
Ex de IIB T2-T4
Ex tD A21 IP66 T85°C - 210°C
Ex de IIB T3-T4
Ex tD A21 IP66 T130°C - 190°C
Permissible ambient temperature
-20 °C up to +55 °C
-55°C up to +55 °C
Rated voltage without control gear
≤ 250 V AC
--
Rated voltage with control gear
230 V AC
230 V AC
IECEx BVS-10.0009X
1)
Frequency
50 Hz
50 Hz
Power factor cos M
> 0.85
> 0.85
Circuit
compensated circuit
compensated circuit
Protection class
I
I
Lamp name
High pressure sodium lamp HST, Metal halide lamp HIT, Mercury High pressure sodium lamp HST, Metal halide lamp HIT, Mercury
vapour lamp HME
vapour lamp HME
Rated luminous flux
2)
2)
Lamp cap
E40 accord. IEC 60238
E40 accord. IEC 60238
Light efficiency in operation
62 %
60 %
Dimensions (L x W x H)
546 x 443 x 396 mm
546 x 443 x 403 mm
Connecting terminals
L1, N: 2 x 4 mm ; PE: 2 x 6 mm
L1, N: 2 x 4 mm2; PE: 2 x 6 mm2
Enclosure earth
2 x 6 mm2
2 x 6 mm2
Enclosure colour
grey
grey
Enclosure material
Light alloy
Light alloy
Weight
31 kg
41 kg
Cable glands / gland plates /
enclosure drilling
Indirect entries 2 x M25 x 1.5 thread
1 x plugged M25 screw plug
Indirect entries: 2 x M25 x 1.5 thread
1 x plugged M25 screw plug
Type of mounting
ceiling mounting
ceiling mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Reflector
polished aluminium reflector
polished aluminium reflector
1)
2)
2
2
see table page 1.4.36
see table luminaire data S. 1.4.36
EATON’S CROUSE-HINDS BUSINESS
1.4.35
Technical data
4.5
PX 04 / FLT 10
Additional luminaire data PX 04
4
Temperature class II 2 G
max. surface temp. II 2 D
Lamp
Power
Rated luminous
flux1)
TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
PX 0407
HS - 70 W
6000 lm
T4
T4
T85 °C
T100 °C
PX 0407
HI. - 70 W
5100 lm
T4
T4
T90 °C
T105 °C
PX 0415
HS. - 150 W
15000 lm
T4
T4
T115 °C
T130 °C
PX 0415
HI. - 150 W
11000 lm
T4
T4
T105 °C
T120 °C
PX 0425
HS. - 250 W
28000 lm
T4
T3
T130 °C
T145 °C
PX 0425
HI. - 250 W
19000 lm
T4
T3
T130 °C
T145 °C
PX 0425
HME - 250 W
13000 lm
T3
T3
T150 °C
T165 °C
PX 0440
HST - 400 W
48000 lm
T3
T3
T175 °C
T190 °C
PX 0440
HIT - 400 W
33000 lm
T3
T3
T170 °C
T185 °C
PX 0440
HME - 400 W
22000 lm
T3
T2
T186 °C
T201 °C
PX 0460
HST - 600 W
90000 lm
T3
T2
T195 °C
T210 °C
PXI 0405
IQT - 500 W
10000 lm
T3
T2
T185 °C
T200 °C
Temperature class II 2 G
max. surface temp. II 2 D
Power
rated luminous
flux1)
TU ≤ 40 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 55 °C
1)
depends on used lamps
Additional luminaire data FLT 10
Lamp
FLT 1007
HS - 70 W
6000 lm
T4
T4
T115 °C
T130 °C
FLT 1007
HI. - 70 W
5100 lm
T4
T4
T115 °C
T130 °C
FLT 1015
HS. - 150 W
15000 lm
T4
T4
T115 °C
T130 °C
FLT 1015
HI. - 150 W
11000 lm
T4
T4
T115 °C
T130 °C
FLT 1025
HS. - 250 W
28000 lm
T4
T3
T145 °C
T160 °C
FLT 1025
HI. - 250 W
19000 lm
T4
T3
T145 °C
T160 °C
FLT 1040
HST - 400 W
48000 lm
T3
--
T190 °C
--
FLT 1040
HIT - 400 W
33000 lm
T3
--
T190 °C
--
1)
depends on used lamps
1.4.36
EATON’S CROUSE-HINDS BUSINESS
4.5
4
EATON’S CROUSE-HINDS BUSINESS
1.4.37
4.6
Ex-floodlights for high-pressure discharge
lamps, series FZD 04 / FZD EN
4 (Zone 1, 2, 21, 22)
The maintenance- and
installation-friendly FZD 04
Floodlights for harsh
operating conditions
module is simply plugged in
and locked. This allows a oneman installation without a crane
or other lifting tools.
Due to the spatial separation
of the lamp module, lamp base
and ballast, this powerful and
robust spotlight for high-pressure discharge lamps can be
installed and maintained in an
easy and quick way. The Ex-e
ballast enclosure with the
compensation capacitor can be
mounted within arm‘s reach.
Only the light Ex-e enclosure
made of copper-free aluminium
for the ignitor is mounted at
the desired mounting height of
the floodlight and the Ex-d lamp
Flexibility due to modular
design
All the components of the
modular Ex floodlight have
been certified separately as
components. The flameproof
lamp module can be easily separated from the housing once
the locking screw has been
loosened. Two sealing systems
in the degree of protection IP66
ensure permanently protected
Ex-d contacts.
There is no need to switch off
the mains voltage to separate the module from the
luminaire.
This means that a simple lamp
change and easy cleaning of the
lamp modules is possible, even
outside the hazardous area.
Optionally, the module can be
fitted with narrow-angle and
wide-angle reflectors – these
can even be fitted retrospectively and without any additional
installation work.
A special advantage
The simple and quick exchanging of the lamp module means
that changing the lamp is not a
problem, even under extreme
weather or climate conditions
(snow, ice, and particularly low
ambient temperatures).
The compact version
The FZD EN combines easy
lamp replacement with a compact enclosure. All components
are protected in one Ex-d enclosure.
For extreme environmental
conditions
The FZD 04 floodlight series
with its maintenance-friendly
replaceable lamp module and
its large operating/ambient temperature range from -45 °C up
to +45 °C is the ideal solution
for illuminating large areas and
plants in challenging climates.
Features
• Easy lamp replacement due to the Ex-d lamp module
• Modular design of housing Ex-e/Ex-d
• High degree of protection IP 66
• Optional internal wide beam or narrow beam reflector
• Can be used in ambient temperatures as low as -45 °C
1.4.38
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.6
Floodlights
Ordering details
Type
Version2)
Lamp /
Illuminant
Reflector
Rated
luminous
flux 1)
Weight
Cable gland/
thread
Screw plug
Order No.
FZD 04 with cable gland
FZD 04 250 W
GRP
HIT / HST 250 W
narrow beam
19000 /
28000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 192 505
FZD 04 250 W
GRP
HIT / HST 250 W
wide beam
19000 /
28000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 192 506
FZD 04 400 W
GRP
HIT 400 W
narrow beam
33000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 105
FZD 04 400 W
GRP
HIT 400 W
wide beam
33000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 106
FZD 04 400 W
GRP
HST 400 W
narrow beam
48000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 005
FZD 04 400 W
GRP
HST 400 W
wide beam
48000 lm
23.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 006
FZD 04 250 W
st. steel
HIT / HST 250 W
narrow beam
19000 /
28000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 192 501
FZD 04 250 W
st. steel
HIT / HST 250 W
wide beam
19000 /
28000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 192 502
FZD 04 400 W
st. steel
HIT 400 W
narrow beam
33000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 101
FZD 04 400 W
st. steel
HIT 400 W
wide beam
33000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 102
FZD 04 400 W
st. steel
HST 400 W
narrow beam
48000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 001
FZD 04 400 W
st. steel
HST 400 W
wide beam
48000 lm
24.9 kg
1 x M25 for
Ø 8-17 mm
1 x M25
NOR 000 005 194 002
FZD 04 without cable gland
FZD 04 250 W
GRP
HIT / HST 250 W
narrow beam
19000 /
28000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 192 507
FZD 04 250 W
GRP
HIT / HST 250 W
wide beam
19000 /
28000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 192 508
FZD 04 400 W
GRP
HIT 400 W
narrow beam
33000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 107
FZD 04 400 W
GRP
HIT 400 W
wide beam
33000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 108
FZD 04 400 W
GRP
HST 400 W
narrow beam
48000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 007
FZD 04 400 W
GRP
HST 400 W
wide beam
48000 lm
23.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 008
FZD 04 250 W
st. steel
HIT / HST 250 W
narrow beam
19000 /
28000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 192 503
FZD 04 250 W
st. steel
HIT / HST 250 W
wide beam
19000 /
28000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 192 504
FZD 04 400 W
st. steel
HIT 400 W
narrow beam
33000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 103
FZD 04 400 W
st. steel
HIT 400 W
wide beam
33000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 104
FZD 04 400 W
st. steel
HST 400 W
narrow beam
48000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 003
FZD 04 400 W
st. steel
HST 400 W
wide beam
48000 lm
24.9 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 194 004
1)
2)
depends on used lamps
GRP: ballast enclosure made from GRP-material / St.S: ballast enclosure made from stainless steel 316L
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.39
4
Ordering details
4.6
Floodlights
Ordering details
Type
Lamp /
Illuminant
Reflector
Rated
luminous
flux 1)
Weight
Cable gland/
thread
Screw plug
Order No.
FZD EN 250 W
HST 250 W /
HIT 250 W
wide beam
19000 lm /
25000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 200 012
FZD EN 250 W
HST 250 W /
HIT 250 W
narrow beam
19000 lm /
25000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 200 011
FZD EN 400 W
HIT 400 W
wide beam
35000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 210 012
FZD EN 400 W
HIT 400 W
narrow beam
35000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 210 011
FZD EN 400 W
HST 400 W
wide beam
48000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 205 012
FZD EN 400 W
HST 400 W
narrow beam
48000 lm
39 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
1 3041 205 011
FZD EN
4
1)
depends on used lamps
Accessories FZD 04 and FZD EN
Type
Content
FZD 04
FZD EN
Lamp module
Lamp module 250 W/400 W complete with internal reflector,
narrow beam
X
X
1
1 3041 000 011
Order No.
wide beam
1
X
X
1
1 3041 000 012
Slip fitter
Adapter for 1 1/4” pole mounting (Innen-Ø = 47.5 mm) compl. with X
fixing screws
–
1
NOR 000 005 190 021
Slip fitter
Adapter for 2” pole mounting (Innen-Ø = 66 mm) compl. with fixing X
screws
–
1
NOR 000 005 190 022
Swivel bracket
Adjustable hinge for wall-/pole mounting
X
–
1
NOR 000 005 190 023
Mounting plate
Stainless steel for wall-/pole mounting (pipe clamps not included) X
–
1
NOR 000 005 190 026
Pipe clamp
1 1/4” pipe clamp (1 pcs.) galvanized Ø 38 - 42 mm²
X
–
1
2 2480 462 000
Pipe clamp
1 1/4” pipe clamp (1 pcs.) Stainless steel Ø 38 - 42 mm²
X
–
1
2 2480 464 000
Pipe clamp
1 1/2” pipe clamp (1 pcs.) galvanized Ø 47 - 51 mm²
X
–
1
2 2480 472 000
Pipe clamp
2” pipe clamp (1 pcs.) galvanized Ø 56 - 60 mm²
X
–
1
2 2480 482 000
HIT 250 W
Metal halide lamp 250 W E40
x
x
1
CGS 323 7990 P1007
HIT 400 W
Metal halide lamp 400 W E40
x
x
1
CGS 323 7990 P1008
HST 250 W
High pressure sodium lamp 250 W E40
x
x
1
CGS 323 8600 P1009
HST 400 W
High pressure sodium lamp 400 W E40
x
x
1
CGS 323 8700 P1009
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
1.4.40
OU
EATON’S CROUSE-HINDS BUSINESS
Polar curve
Floodlights
4.6
FZD … with reflector wide beam
90
90
50
75
75
100
60
60
150
45
200
30
15
C 0
C90
250
0
4
45
30
15
l/cd/klm
FZD … with reflector narrow beam
90
90
200
75
75
400
60
45
800
30
15
C 0
C90
60
600
45
1000
0
30
15
l/cd/klm
EATON’S CROUSE-HINDS BUSINESS
1.4.41
Dimension drawing
4.6
FZD 04 / FZD EN
FZD 04 250/400 W
Ballast enclosure: plastic version
136
116
271
X 247
250/400 W: Ø 245
600 W: Ø 325
271
X 247
589
604
4
326
293
Ø9
145
X362.5
312.5
14
125
250
274
Ballast enclosure: stainless steel version
151
135
62
127
165
312.5
X247
12
186
FZD EN 250/400 W
573
151
135
390
570
36
Swivel bracket
316
160,9
87,3
76,6
9
62
250
294
37
3
200
110
276
Slip fitter
Mounting plate
310
380
247
180
Ø9
210
276
9
50
298,8
18
204
280
Dimensions in mm
1.4.42
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.6
FZD 04 / FZD EN
4
Technical data
FZD 04
FZD EN
EC-Type Examination Certificate
BVS 10 ATEX E 139 X
BVS 10 ATEX E 139 X
IECEx Certificate of Conformity
IECEx BKI 07.0002
IECEx BKI 07.0002
Marking accd. to 94/9/EC
D II 2 G Ex de mb q IIC T3/T4 1) Gb
D II 2 D Ex tb IIIC T 1) Db
D II 2 G Ex de mb q IIC T3/T4 1) Gb
D II 2 D Ex tb IIIC T 1) Db
Permissible ambient temperature
-45 °C up to +45 °C
-45 °C up to +45 °C
Rated voltage
230 V AC 2)
230 V AC
Rated current
150 W: 0.8 A / 250 W: 1.3 A / 400 W: 2.10 A
250 W: 1.3 A / 400 W: 2.1 A
Frequency
50 Hz 2)
50 Hz
Power factor cos M
> 0.9
> 0.9
Circuit
Compensated circuit
Compensated circuit
Protection class
I
I
Lamp / Illuminant
HST / HIT
HST / HIT
Lamp name
High pressure sodium lamp / metal halide lamp
High pressure sodium lamp / metal halide lamp
Rated luminous flux
3)
3)
Lamp cap
E40 accord. IEC 60238
E40 accord. IEC 60238
Light efficiency in operation
66 %
66 %
Dimensions (L x W x H)
See dimension drawing
573 x 390 x 570 mm
Connecting terminals
L, N, PE: 2 x 4 mm2 + 4 mm2 PE (Ballast enclosure)
L, N, PE: 2 x 2.5 mm2 + 2.5 mm2 PE (lamp module)
L, N, PE: 2 x 4 mm2 + 4 mm2 PE enclosure earth
Enclosure colour
Grey
Grey
Enclosure material
Ballast enclosure: glass-fibre reinforced polyester
or stainless steel, floodlight enclosure: light alloy
Llight alloy
Weight
Lamp module: approx. 10.6 kg
Floodlight enclosure: approx. 4.3 kg
Ballast enclosure: 9 kg (glass-fibre reinforced polyester)
Ballast enclosure: 10 kg (stainless steel)
28 kg (enclosure); 10.6 kg lamp module
Cable glands / gland plates /
enclosure drilling
1 x M25 x 1.5 with plastic-cable glands Ex-e M25
for non-amoured cable Ø 8 - 17 mm (floodlight enclosure) 4)
3 x M25 x 1.5, 2 x M25 plastic cable gland Ex-e
for cable Ø 8 - 17 mm 1 x M25 plugged (ballast enclosure)5)
2 x M25 x 1.5 with plastic cable gland Ex-e M25
for non-amoured cable Ø 8 - 17 mm, other plugged
option: with metal thread M20, without cable gland
Type of mounting
Ceiling-/wall mounting
Ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Borosilicate glass
Borosilicate glass
Reflector
Polished aluminium reflector
Polished aluminium reflector
1)
see table
other voltages and frequencies on request
see table luminaire data
4)
Connection for ballast
5)
one for connection of the floodlight enclosure, two for line supply
2)
3)
Additional luminaire data FZD 04 / FZD EN
Temperature class II 2 G
max. surface temp. II 2 D
Lamp
Luminous flux1)
TU ≤ 40 °C
TU ≤ 45 °C
TU ≤ 40 °C
TU ≤ 45 °C
HST / HIT 150 W
15000 lm
T4
T4
T 125 °C
T 130 °C
HST / HIT 250 W
28000 lm
T3
T3
T 145 °C
T 150 °C
HST / HIT 400 W
48000 lm
T3
–
T 190 °C
–
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.43
4.7
Ex-floodlight for high-pressure
discharge lamps dTLS 85
4 (Zone 1, 2)
Ex-floodlight for highpressure discharge lamps
The robust dTLS 85 floodlight
and the GHG 664 emergency
pack for use in hazardous areas
in Zones 1 and 2 are suitable for
illuminating large areas and objects. Due to the high degree of
protection IP66, they are best
suited for harsh environments,
such as offshore oil and gas
production plants or industrial,
chemical and petrochemical
plants, oil and gas production
plants, pipelines, refineries
and loading ramps. High-pressure discharge lamps from 70
W to 250 W provide a high
illuminance level.
dTLS 85 - versatile
The dTLS 85 floodlight has a
robust Ex-d enclosure made of
powder copper-free aluminium
with a powder-coating. The
pressed-in, threaded ring for
the flameproof joints made
of brass. This facilitates the
replacement of lamps, even
after a longer operating period.
The protective glass is made of
scratchproof borosilicate glass;
it protects the lighting technology against harmful environmental influences. The floodlight
has been designed for outdoor
use. The vaporized reflectors
are designed for various angles
of light diffusion. The easy-to-
maintain electrical connection
is made via an Ex-e terminal
compartment. The floodlight
features an adjustable mounting
bracket that allows an optimum
focussing of the light.
GHG 664 emergency pack
This robust and extremely reliable emergency supply unit
was developed specifically for
use on offshore installations
and ships. In the event of a
power failure, the GHG 664
emergency pack allows the
battery-back-up operation of the
dTLS 85070 P floodlight with
a 70W high pressure sodium
lamp for a period of 1.5 hours.
When used in combination with
the powerful explosion-protected dTLS 85070 P floodlight,
escape routes and evacuation
equipment (life boats, life rafts,
abseiling equipment or rescue
cushions, etc.) can be safely
illuminated, even from larger
distances. The GHG 664 emergency pack has a flameproof
enclosure for electronics components and a flanged-on, increased safety enclosure for the
battery and the terminals. The
dTLS 85070 floodlight, which
is to be mounted separately,
features a powerful lighting
technology, with which, for example, at a mounting height of
9 m, an area of 15 x 15 m can
be illuminated with 1 lux.
Features
• For the efficient illumination of large objects
• Robust housing made of light alloy with powder coating
• Easy lamp replacement, even after a long period of use
• High-gloss reflectors for different diffusion angles
• Large Ex-e connection box for easy installation
• GHG664 emergency pack: safe light for evacuation equipment
in hazardous areas with an emergency light duration
• Of 1.5 hrs. during power failure; maintained and non-maintained
with switch-off device (only 220 - 240 V)
• Suitable for use on offshore platforms and ships
1.4.44
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.7
dTLS 85, GHG 664
Ordering details
Type
Content
Lamp /
illuminant
Reflector
Rated
luminous
flux 1)
Weight
Cable gland/
thread
Screw plug
Order No.
dTLS 85
dTLS 85250 S
with
HIT-DE /
wide beam
diffuser lens, HST-DE 250 W reflector
inductive
20000 lm
/28000 lm
25 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P0001
dTLS 85250 S
-40 °C up to
+40 °C
with
HIT-DE /
wide beam
diffuser lens, HST-DE 250 W reflector
inductive
20000 lm
/28000 lm
25 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P0004
dTLS 85250 S
with diffuser HIT-DE /
wide beam
lens, compen- HST-DE 250 W reflector
sated circuit
20000 lm
/28000 lm
32 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P1001
dTLS 85250 P
with parabolic HIT-DE /
narrow beam
reflector,
HST-DE 250 W
inductive
20000 lm
/28000 lm
25 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P0002
dTLS 85250 P
with parabolic HIT-DE /
narrow beam
reflector,
HST-DE 250 W
comp.
20000 lm
/28000 lm
32 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P1002
dTLS 85070 P
with parabolic HST-DE 70 W
reflector,
comp.
6800 lm
22 kg
1 x M25 for
Ø 8-17 mm,
plastic
1 x M25
CGS 123 8588 P0003
narrow beam
Emergency power supply unit GHG 664
Power supply unit incl. battery
230 - 240 V AC with dTLS
85070 P
HST-DE 70 W
narrow beam
6800 lm
48 kg
2 x M20,
metal
1 x M20 screw plug GHG 660 1915 R0001
(metal)
Power supply unit incl. battery
120 V AC
with dTLS
85070 P
HST-DE 70 W
narrow beam
6800 lm
48 kg
2 x M20,
metal
1 x M20 screw plug GHG 660 1915 R0002
(metal)
48 kg
2 x M20,
metal
1 x M20 screw plug GHG 664 5001 R0001
(metal)
Power supply unit incl. battery,
230 -240 V AC
without light
fitting
Accessories dTLS 85250 and dTLS 85070
Type
Content
dTLS 85250
dTLS 85070
OU
Order No.
RS
Eye bolt M10 (10 pcs.) galvanised
x
x
1
GHG 690 1921 R0003
L 218
Mounting bracket for inductive version
x
x
1
GHG 690 1913 R0001
L 430
Mounting bracket for compensazrd version
x
1
GHG 690 1913 R0002
HST-DE 250 W
High pressure sodium lamp 250 W-DE Fc2
x
1
CGS 323 8500 P1009
HIT-DE 250 W
Metal halide lamp 250 W-DE Fc2
x
1
CGS 323 7990 P1009
HST-DE 70 W
High pressure sodium lamp 70 W-DE Rx 7s
1
GHG 690 9216 P0001
x
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.45
4
Dimension drawing / Polar curve
4.7
dTLS 85
Polar curve
with reflector narrow beam dTLS 85250
dTLS 85250 ind.
dTLS 85250 comp.
344
120
90
90
M10, 18 de
750
2 ring bolts
60
2250
48
4
Compensation
box
210
1500
60
3000
30
30
l/cd/klm
325
0
C 0
C90
325
3750
Ø 320
Ø 320
Polar curve
with reflector wide beam reflector dTLS 85250
L 218
L 430
90
150
60
225
430
60
300
304
30
30
11
354
375
50
X 120
0
C 0
C90
18
218
75
18
90
l/cd/klm
11
304
11
354
50
X 120
Polar curve
with reflector dTLS 85070
11
90
90
1000
75
75
GHG 664
2000
60
15
C 0
45
4000
30
5000
0
252
60
3000
45
30
15
320
X 255
634
l/cd/klm
X 295
320
246
327
Dimensions in mm
1.4.46
EATON’S CROUSE-HINDS BUSINESS
Technical data
dTLS 85 250, dTLS 85070 / emergency power supply unit GHG 664
4.7
4
Technical data
dTLS 85 250 / dTLS 85070
Emergency power supply unit GHG 664
EC-Type Examination Certificate
DMT 03 ATEX E 039
DMT 03 ATEX E 039
IECEx Certificate of Conformity
IECEx BVS 11.0066
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T3 Gb (dTLS 85250)
D II 2 G Ex de IIC T4 Gb (dTLS 85070)
Marking accd. to IECEx
Ex de IIC T3 Gb / ---
Permissible ambient temperature
-50 °C up to +55 °C dTLS 85250 ind.
-20 °C up to +55 °C dTLS 85250 comp.
-20 °C up to +55 °C dTLS 85070
Output voltage
D II 2 G Ex de IIC T6
-5 °C up to +40 °C
230 -240 V AC/ 120 V AC
Battery
2 x 12 V, 12 Ah Pb (sealed lead acid accumulator)
Rated voltage
230 V AC
230 V / 120 V
Rated current
3 A (ind.)/ 1.5 A (comp.)
Power factor cos M
0.4 (ind.)/ t 0.9 (comp.)
t 0.9
Frequency
50 Hz
50 - 60 Hz
Charging duration
d 24 h
Power consumption
d 40 VA (charging)
Max. output power
80 VA
Circuit
Inductive circuit / compensated circuit
Electronic driver
Protection class
I
I
Lamp / Illuminant
HIT-DE 250 W/HST-DE 250 W (dTLS 85250)
HST-DE 70 W (dTLS 85070)
Rated luminous flux 1)
HIT-DE 250 W: 19000 lm /
HST-DE 250 W: 25000 lm
HST-DE 70 W: 6800 lm
Lamp cap
Fc2 / RX7s accord. IEC 60061
Light efficiency in operation
72 %
46 % with diffuser lens
Rated emergency lighting duration
Dimensions (L x W x H)
1)
1.5 h
Ø 320 x 325 mm
320 x 327 x 634 mm
2
Connecting terminals
L, N, PE max. 2 x 2.5 mm
L, L1, N, PE max. 2 x 6 mm2 mains supply
3 x 2.5 mm² connection to light fitting
Enclosure colour
grey
grey
Enclosure material
light alloy with powder coating,
light alloy with sea water resistant powder coating
Weight
25 kg / 32 kg (with compensation box)
48 kg
Cable glands / gland plates /
enclosure drilling
1 x M25 x 1.5 for cables from Ø 8 - 17 mm
1 x M25 x 1.5 with blanking plug
2 x M20 x 1.5 for cables from Ø 7 - 12 mm (mains supply)
1 x M25 x 1.5 for cables from Ø 11.5- 18 mm (connection to light
fitting)
Type of mounting
Ceiling-/wall mounting
Floor/wall monting
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Borosilicate glass
Reflector
Polished aluminium reflector
1)
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.47
4.8
Ex-LED-floodlight LPL LED
Technology Inside
(Zone 1, 2, 21, 22)
4
The powerful LED floodlight
for harsh operating
conditions
highest corrosion protection
and mechanical resistance
requirements.
Due to the particularly robust
and solid design of the enclosure in combination with the
vibration resistance of the LED
module, the LPL LED floodlight
is insensitive to impact, shocks,
and vibrations. As a result, the
LPL LED represents the ideal
lighting concept for use in areas
with difficult environmental conditions. Thanks to the non-sensitive LED technology, extreme
temperatures from - 35 °C up to
+ 50 °C are not a problem. The
rugged, flameproof light metal
enclosure in the degree of
protection IP 66 and impact-resistant light output meets the
An efficient lighting
technology
The LPL LED lighting series
offers the latest lighting technology with a high luminous
flux and, at the same time,
an extremely low energy requirement. The efficient 10 -30
W COB (chip on board) LED
modules provide a long service
life combined with a high level
of efficiency. With a power consumption of 60 W to 150 W, the
LPL LED lighting series is ideal
for replacing 70 W to 250 W
light fittings with high pressure
discharge lamps, whereby, the
low energy consumption and
the long service life (> 50,000
h) of the LED module keep operating costs pleasantly low.
Multiple applications
The LPL LED lighting series is
suitable for medium and high
suspension heights. It is the
ideal solution for the illumination of open spaces, indoor
areas and roads in industrial installations. Further applications
include on- and offshore plants
in the oil and gas industry,
chemical plants, waste disposal
facilities, shipyards, power stations and mills where extreme
amounts of dirt and moisture
and increased mechanical
hazard are to be expected. A
U-shaped mounting bracket for
wall and ceiling installation of
the LPL LED is included.
Features
• High-power LED modules with up to 63% energy saving
• Flameproof enclosure for Zones 1, 2, 21 and 22 and temperature
class T6
• ATEX and IECEx certification for Ex II 2 G and 2 D
• Wide temperature range from -36 ° C to +50 ° C
• High degree of protection IP 66 for harsh environments
• Large Ex-e terminal compartment for ease of installation
1.4.48
EATON’S CROUSE-HINDS BUSINESS
4.8
Ordering details
LPL LED
Ordering details
Type
Content
Lamp /
illuminant
rated
Weight
luminous
flux of the
luminaire 1)
Metal thread
Screw plug
Order No.
LPL06-C57-5L
with mounting
bracket
High power LED-module
53 W (scope of delivery)
5127 lm
17 kg
2 x M25
2 x M25
CCL 121 4001 AE
LPL06-C57-7L
with mounting
bracket
High power LED-module
70 W (scope of delivery)
6998 lm
17 kg
2 x M25
2 x M25
CCL 121 4003 AE
LPL06-C57-9L
with mounting
bracket
High power LED-module
87 W (scope of delivery)
8645 lm
17 kg
2 x M25
2 x M25
CCL 121 4004 AE
LPL06-C57-10L
with mounting
bracket
High power LED-module
105 W (scope of delivery)
10272 lm 17 kg
2 x M25
2 x M25
CCL 121 4005 AE
LPL LED
Accessories
40
336
48-58
Type
Content
OU
Order No.
PMB
Pole mounting bracket with fixing screws for use with mounting bracket
1
CCL 107 6003
Scope of delivery without fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 f
EATON’S CROUSE-HINDS BUSINESS
1.4.49
4
4.8
Dimension drawing / Polar curve
LPL LED
Polar curve LPL LED-C60-150W, 6000 K
LPL LED C60-150W, 6000 K
230
30˚
90
90
75
75
60
4
75
150
60
225
45
300
30
15
C 0 / C 90
45
375
0
240.2
70
45
Ø302.9
30
15
l/cd/klm
Mounting bracket
R25
R15
250
230
40
160
277
Ø17
2-Ø13
Pole mounting bracket
40
336
48-58
M16
Dimensions in mm
1.4.50
EATON’S CROUSE-HINDS BUSINESS
4.8
Technical data
LPL LED
4
Technical data
LPL LED
EC-Type Examination Certificate
ITS 14 ATEX 18105X
Marking accd. to 94/9/EC
D II 2 G Ex d e IIC T5/T6 Gb
D II 2 D Ex tb IIIC T80°C/T95 °C Db IP66
Permissible ambient temperature
-36 °C up to +55 °C / -36 °C up to +50 °C (LPL06-C57-10L)
Rated voltage
100 V - 277 V AC
Frequency
50 - 60 Hz
Fixture lifetime
50.000 h at ta = + 55 °C
Power consumption
max. 105 W (see table luminaire data)
Power factor cos ϕ
≥ 0.9
Circuit
Electronic driver
Protection class
I
Lamp name
High power LED-module 1)
Light colour
5700 K cool white (CRI 70) / 3000 K (CRI 80) on request
Dimensions (L x W x H)
Ø 350 x 240 mm
Connecting terminals
3 x 0.5 mm² up to 4.0 mm², max 6.0 mm² single wire
Enclosure colour
Grey
Enclosure material
Copper free aluminium
Weight
17 kg
Cable glands / gland plates /
enclosure drilling
2 x M25 x 1.5 thread,
1 x with Ex-e screw plug 2)
Type of mounting
Ceiling-/wall mounting
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Toughened glass
1)
2)
Scope of delivery
M20 on request
Additional luminaire data
Type
Rated luminous flux
of the luminaire
Rated power
Permissible ambient
temperature
Temperature Class
Te Gas
Temperature Class
T °C Dust
-36 °C up to + 55 °C
T6
T 80 °C
LPL06 LED
LPL06-C57-5L
5127 lm
53 W
LPL06-C57-7L
6998 lm
70 W
-36 °C up to + 55 °C
T6
T 80 °C
LPL06-C57-9L
8645 lm
87 W
-36 °C up to + 55 °C
T6
T 80 °C
LPL06-C57-10L
10272 lm
105 W
-36 °C up to + 50 °C
T5
T 95 °C
EATON’S CROUSE-HINDS BUSINESS
1.4.51
4.9
Ex-tank inspection luminaire KFL
(Zone 1, 2, 21, 22)
4
The compact luminaire for
the process industry
The robust and compact explosion-protected KFL tank inspection light fitting is used in all
sectors of the process industry
for the illumination of boiler interiors, tanks and agitators. The
light features special mounting
feet which can be attached to
different inspection windows
of sizes DN 40 to DN 80 in accordance with DIN 28120. The
housing is made of copper-free
aluminium and has a lens made
of impact-resistant borosilicate
glass. The aluminium collar has
a PTFE coating (Teflon) and is
sealed with a Viton seal.
Multifunctional use
In addition to the use for illuminating boilers, this tank
inspection light fitting can be
used in combination with a special handle as a maintenance
and repair light. High-voltage
halogen reflector lamps as well
as high-power LED lamps can
be used. The extremely robust
design of this fitting, the resistance to chemicals and UV and
the high degree of protection
IP 67 allow the use of this light
fitting even under extremely
harsh conditions.
Features
• Compact design
• Ready to connect for 230 V AC
• With 50 W halogen reflector lamp or 7 W high-power LED lamp
• High luminous efficacy
• Generously dimensioned terminal compartment
• Mounting onto inspection windows according to DIN 28120
• High degree of protection IP67
1.4.52
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.9
KFL
Ordering details
Type
Content
Lamp /
Illuminant
Weight
Cable gland/
thread
Screw plug
Order No.
KFL
KFL 50
-20 °C up to +55 °C 230 V 50 W (incl.)
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 010
KFL 50
-50 °C up to +55 °C 230 V 50 W (incl.)
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 900
KFL 50 TIM
-20 °C up to +55 °C 12 V 50 W reflector lamp
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 897
KFL 50 TIM
-50 °C up to +55 °C 12 V 50 W reflector lamp
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 919
KFL 20 TIM
-20 °C up to +55 °C 12 V 20 W reflector lamp
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 898
KFL 7 LED
-20 °C up to +55 °C 7 W PHILIPS Master LED
(incl.)
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 011
KFL 7 LED
-50 °C up to +55 °C 7 W PHILIPS Master LED
(incl.)
3 kg
2 x M25,
metal thread
1 x M25
NOR 000 005 140 906
4
Accessories
Type
Content
Application
Order unit
Order No.
Lamp
Halogen reflector lamp 230 V/50 W, socket GZ 10
KFL 50
1
NOR 000 000 514 529
Lamp
Halogen reflector lamp 12 V/50 W, socket BA 15d
KFL 50 TIM
1
NOR 000 000 514 687
LED-lamp
Philips Master LED 7 W socket GU 10
KFL 7 W LED
1
NOR 000 000 514 530
AT
Transport grip
KFL..
1
NOR 000 005 140 809
PAD
Antiglare shield
KFL..
1
NOR 000 005 140 700
PI
Mounting legs bended
KFL..
1
NOR 000 005 140 776
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.53
Dimension drawing / Polar curve
4.9
KFL
Polar curve KFL 50
KFL 50 / 7 LED
90
90
500
75
75
60
60
1500
45
4
172
1000
45
2000
30
30
15
2500
15
0
124
C 0
C90
180
l/cd
Light fixing facitity PR
9
Polar curve KFL 50 / 7 LED
90
90
150
115
75
75
300
60
60
450
45
120
45
600
30
180
30
15
750
15
0
C 0
C90
l/cd/klm
Windows, nominal width
DIN 40/50
DIN 80
DIN 100
DIN 125
Dimensions in mm
1.4.54
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
Technical data
4.9
KFL
4
Technical data
KFL 50
KFL 7 LED
EC-Type Examination Certificate
LOM 02 ATEX 2035
LOM 02 ATEX 2035
IECEx Certificate of Conformity
IECEx BKI 07.0009
I
Marking accd. to 94/9/EC
D II 2 G Ex de IIC T3
D II 2 D Ex tD A21 IP67 T140 °C
D II 2 G Ex de IIC T6
D II 2 D Ex tD A21 IP67 T80 °C
Marking accd. to IECEx
Ex de IIC T3
Ex tD A21 IP67 T140 °C
Permissible ambient temperature
-20 °C up to +55 °C, -50 °C up to +55 °C option
-20 °C up to +55 °C, -50 °C up to +55 °C option
Rated voltage
230 V
230 - 240 V
Frequency
50 - 60 Hz
50 - 60 Hz
Protection class
I
I
Lamp name
50 W high-voltage type Sylvania, others on request 1))
7 W Philips MASTER LED ))
Lamp cap
Ba15d accord. IEC 60061
GZ10 accord. IEC 60061
Dimensions (L x W x H)
180 x 124 x 172 mm
180 x 124 x 172 mm
Connecting terminals
2 x 2.5 mm², PE internal and external 6.0 mm²
2 x 2.5 mm², PE internal and external 6.0 mm²
Enclosure colour
Grey
Grey
Enclosure material
Light alloy with powder coating
Light alloy with powder coating
Weight
3 kg
3 kg
Cable glands / gland plates /
enclosure drilling
1 x M25 x 1.5 thread,
1 x M25 Ex-e screw plug
1 x M25 x 1.5 thread,
1 x M25 Ex-e screw plug
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
Toughened glass
Toughened glass
1)
Scope of delivery
Technology Inside
EXPLOSION PROTECTED LUMINAIRES
BR-2236 – 0714
1.4.55
4.10
Ex-pendant light fittings and floodlights
of the series VMV LED / NVMV
4 (Zone 2, 21, 22)
The powerful floodlight
with LED technology
VMV LED 3/5/7/9/11L
The energy-saving VMV pendant
light fittings and floodlights with
LED technology are ideal for all
general lighting applications in
hazardous areas in Zone 2 and
hazardous dust areas in Zones
21 and 22. With the integrated
high-power LED technology,
these lights can be used to replace comparable conventional
light sources with an equivalent
capacity of up to 250 W.
LED technology for
heavy-duty use
Due to the particularly solid construction of the housing and the
vibration resistance of the LED
module, the VMV floodlight is
resistant to impact, shock and
vibration. As a result, it represents the ideal lighting concept
for use in areas with difficult environmental conditions. Thanks
to the non-sensitive LED technology, even extreme temperatures from - 40 °C up to +55 °C
are not a problem. The robust,
powder-coated light metal housing in the degree of protection
IP66 and the impact-resistant
lens meet the highest corrosion protection and mechanical
resistance requirements. The
advantages of the integrated,
advanced LED technology with
a high luminous flux and, at
the same time, an extremely
low energy consumption are
a long service life and a high
level of efficiency. With a power
consumption of 41 W to 118 W,
it is ideal for replacing 70 W to
250 W light fittings with high
pressure lamps.
The best lighting technology
for every application
The VMV LED pendant light
fittings and floodlights series
are available with 3 different
custom optics:
• Type V has a symmetric light
distribution and is optimized
for general area illumination.
• Type III has an asymmetrical
light distribution and is, therefore, suitable for near-edge
mounting (wall mounting) for
surface illumination
• Type I has a narrow light distribution and is ideal for lighting roads and pathways.
NVMV pendant light fittings
for high-pressure discharge
lamps
The NVMV series of pendant
light fittings for high-pressure
discharge lamps in IEC metallic
design is suitable for operation
in hazardous areas in Zone 2
and Zones 21/22, in particular in
harsh environments with high
mechanical load, moisture and
dust. The lights are available
in 2 sizes: The small enclosure
for lamps from 70 W to 250 W
(preferably 70 -150 W); the large
enclosure for lamps of 250 W
and 400 W. All versions can be
operated with both HSE and
HIE lamps and are suitable for
low and medium suspension
heights. Thanks to their high degree of ingress protection and
wide temperature range, this
series can also be used under
extreme conditions.
Wide range of applications
The NVMV lighting series is
suitable for wall, ceiling and
pole mounting. This makes
them the ideal solution for almost any industrial applications,
such as the illumination of open
spaces, indoor areas and roadways in industrial plants in the
oil and gas industry, chemical
plants, waste disposal facilities,
shipyards, power stations and
mills.
Features
• VMV 5/7/9/11 L floodlights for high power LED modules
• NVMV S / M pendant light fittings for high pressure discharge
lamps
• From 70 W to 400 W
• Wide temperature range from -45 °C up to +55 °C
• High degree of ingress protection IP66 for harsh environments
1.4.56
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.10
VMV LED / NVMV
Ordering details
Type
Lamp /
Illuminant
Rated luminous
flux of the
luminaire
Weight
Cable gland/ thread
Screw plug
Order No.
VMV LED lamp module with LEDs (without top mounting module, please order separately)
VMV LED 3L
41 W Type V
3515 lm
8.1 kg
–
–
1 2364 745
VMV LED 5L
67 W Type V
5288 lm
8.1 kg
–
–
1 2364 746
VMV LED 7L
94 W Type V
7404 lm
8.1 kg
–
–
1 2365 201
VMV LED 9L
114 W Type V
9515 lm
8.1 kg
–
–
1 2365 202
VMV LED 11L
118 W Type V
10935 lm
8.1 kg
–
–
1 2396 576
VMV LED 3L
41 W Type I
3515 lm
8.1 kg
–
–
1 2374 698
VMV LED 5L
67 W Type I
5288 lm
8.1 kg
–
–
1 2375 046
VMV LED 7L
94 W Type I
7404 lm
8.1 kg
–
–
1 2375 106
VMV LED 9L
114 W Type I
9515 lm
8.1 kg
–
–
1 2375 186
VMV LED 11L
118 W Type I
10935 lm
8.1 kg
–
–
1 2401 259
VMV LED 3L
41 W Type III
3515 lm
8.1 kg
–
–
1 2374 782
VMV LED 5L
67 W Type III
5288 lm
8.1 kg
–
–
1 2375 047
VMV LED 7L
94 W Type III
7404 lm
8.1 kg
–
–
1 2375 107
VMV LED 9L
114 W Type III
9515 lm
8.1 kg
–
–
1 2375 187
VMV LED 11L
118 W Type III
10935 lm
8.1 kg
–
–
1 2402 998
4
VMV LED top mounting module, (without lamp module, please order separately)
JM5
top mounting module
for 11/2“ pole mounting, 25°
1.6 kg
1 x 3/4'' thread
–
22 250
PM5
top mounting module
for 11/2“ pole mounting, straight
2.5 kg
1 x 3/4'' thread
–
00 080
CM25
top mounting module with M25
ceiling mounting
1.3 kg
4 x M25 thread
4 x M25
1 1669 290
TWM25
top mounting module with M25
wall mounting
2.0 kg
4 x M25 thread
4 x M25
1 2455 089
S812
mounting bracket (can only be used
with top mounting module CM25)
1.0 kg
–
–
1 2268 927
Type
Lamp /
Illuminant
Weight
Cable gland/ thread
Screw plug
Order No.
Rated luminous
flux 1)
NVMV small enclosure, with ceiling mounting
S2MC 075 O 00
70 W HSE
5600 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 178E
S2MC 105 O 00
100 W HSE
8500 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 184E
1)
S2MC 155 O 00
150 W HSE
14500 lm
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 190E
S2MC 255 O 00
250 W HSE
27000 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 196E
M2MC 075 O 00
70 W HIE
5200 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 113E
M2MC 105 O 00
100 W HIE
8500 lm
1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 119E
M2MC 155 O 00
150 W HIE
12500 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 125E
M2MC 255 O 00
250 W HIE
19000 lm 1)
7.6 kg
4 x M25 x 1.5
4 x M25
CCL 0807 137E
NVMV small enclosure, with wall mounting
S2MW 075 O 00
70 W HSE
5600 lm 1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 202E
S2MW 105 O 00
100 W HSE
8500 lm 1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 208E
1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 214E
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 220E
1)
S2MW 155 O 00
150 W HSE
14500 lm
S2MW 255 O 00
250 W HSE
27000 lm 1)
M2MW 075 O 00
70 W HIE
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 143E
M2MW 105 O 00
100 W HIE
8500 lm 1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 149E
M2MW 155 O 00
150 W HIE
12500 lm 1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 155E
250 W HIE
1)
8 kg
4 x M25 x 1.5
4 x M25
CCL 0807 167E
M2MW 255 O 00
1)
5200 lm
19000 lm
depends on used lamps
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.57
Ordering details
4.10
NVMV
Ordering details
Type
Lamp /
illuminant
Rated luminous
flux
Weight
Cable gland/ thread
Screw plug
Order No.
NVMV small enclosure, for pole mounting
4
S5NJ 075 O 00
70 W HSE
5600 lm 1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 225E
S5NJ 105 O 00
100 W HSE
8500 lm 1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 226E
S5NJ 155 O 00
150 W HSE
14500 lm 1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 227E
S5NJ 255 O 00
250 W HSE
27000 lm
1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 228E
M5NJ 075 O 00
70 W HIE
5200 lm 1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 172E
M5NJ 105 O 00
100 W HIE
8500 lm 1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 173E
1)
8 kg
1 x 1 1/2“ NPT
CCL 0807 174E
8 kg
1 x 1 1/2“ NPT
CCL 0807 176E
M5NJ 155 O 00
150 W HIE
12500 lm
M5NJ 255 O 00
250 W HIE
19000 lm 1)
NVMV large enclosure, for ceiling mounting
S2MC 255 OL 0
250 W HSE
27000 lm 1)
21 kg
4 x M25 x 1.5
4 x M25
CCL 1030 119E
S2MC 405 OL 0
400 W HSE
48000 lm 1)
21 kg
4 x M25 x 1.5
4 x M25
CCL 1030 145E
1)
21 kg
4 x M25 x 1.5
4 x M25
CCL 1030 106E
21 kg
4 x M25 x 1.5
4 x M25
CCL 1030 132E
M2MC 255 OL 0
250 W HIE
19000 lm
M2MC 405 OL 0
400 W HIE
34000 lm 1)
NVMV large enclosure, for wall mounting
S2MW 255 OL 0
250 W HSE
27000 lm 1)
21.4 kg
4 x M25 x 1.5
4 x M25
CCL 1030 125E
S2MW 405 OL 0
400 W HSE
48000 lm 1)
21.4 kg
4 x M25 x 1.5
4 x M25
CCL 1030 151E
M2MW 255 OL 0
250 W HIE
19000 lm 1)
21.4 kg
4 x M25 x 1.5
4 x M25
CCL 1030 112E
400 W HIE
1)
21.4 kg
4 x M25 x 1.5
4 x M25
CCL 1030 138E
M2MW 405 OL 0
34000 lm
NVMV large enclosure, for pole mounting
250 W HSE
27000 lm 1)
21.4 kg
1 x 1 1/2“ NPT
CCL 1030 130E
S5NJ 405 OL 0
400 W HSE
48000 lm
1)
21.4 kg
1 x 1 1/2“ NPT
CCL 1030 156E
M5NJ 255 OL 0
250 W HIE
19000 lm 1)
21.4 kg
1 x 1 1/2“ NPT
CCL 1030 117E
400 W HIE
1)
21.4 kg
1 x 1 1/2“ NPT
CCL 1030 143E
S5NJ 255 OL 0
M5NJ 405 OL 0
1)
34000 lm
depends on used lamps
Accessories for NVMV…
Type
Content
small enclosure
P 22
Wire guard made from stainless steel
X
X
RD 70
External reflector, symmetrically
RD 739
External reflector, symmetrically
RA 70
External reflector, asymmetrically
X
X
RA 739
External reflector, asymmetrically
S 890
Quick installation bracket
X
CHR
Installation bracket for rope/chain fixing method
X
P 33
Wire guard made from stainless steel
X
OU
Order No.
1
7824
1
11718
1
2590
1
9620
1
2588
1
11923847
X
1
CHR7326
X
1
26249
HSE 150 W
High pressure sodium lamp 150 W E40
1
NOR 000 000 511 300
HSE 250 W
High pressure sodium lamp 250 W E40
1
CGS 3238 600 P1009
HSE 400 W
High pressure sodium lamp 400 W E40
1
CGS 3238 700 P1009
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
1.4.58
large enclosure
EATON’S CROUSE-HINDS BUSINESS
Polar curve
4.10
VMV LED
Polar curve VMV LED Type V
Polar curve VMV LED Type I
90
90
90
90
150
75
75
80
300
75
75
160
60
60
45
45
45
320
30
400
0
l/cd/klm
C 0
C90
4
30
15
15
C 0 / C90
45
600
30
30
15
60
450
60
240
750
0
15
l/cd/klm
Polar curve VMV LED Type III
90
90
80
75
75
160
60
60
240
45
45
320
30
30
15
C 0
C90
400
0
15
l/cd/klm
EATON’S CROUSE-HINDS BUSINESS
1.4.59
Polar curve
4.10
NVMV
NVMV small enclosure
NVMV large enclosure
Polar curve NVMV 70 - 250 W
(with external reflector RD 70)
Polar curve NVMV 250 - 400 W
(with external reflector RD 739)
105
105
90
90
4
90
90
30
25
75
75
60
60
50
60
90
45
15
150
0
100
30
30
l/cd/klm
Polar curve NVMV 70 - 250 W
(with external reflector RA 70)
0
C 0
C 90
l/cd/klm
Polar curve NVMV 250 - 400 W
(with external reflector RA 739)
105
105
90
90
40
75
75
90
90
30
75
80
60
60
45
160
30
200
0
Polar curve NVMV 70 - 250 W
(without external reflector)
105
90
90
20
75
40
C 0/90
60
60
100
0
C 0
C 90
l/cd/klm
90
90
40
60
15
EATON’S CROUSE-HINDS BUSINESS
C 0
C 90
45
80
30
15
60
60
45
30
l/cd/klm
75
75
45
80
15
15
20
75
30
30
150
0
Polar curve NVMV 250 - 400 W
(without external reflector)
105
45
120
15
l/cd/klm
60
45
30
15
C 0
C 90
60
90
45
30
15
75
60
60
120
45
1.4.60
30
125
15
C 0
C 90
60
75
45
120
30
60
100
0
30
15
l/cd/klm
Dimension drawing
4.10
NVMV
NVMV small enclosure
Pole mounting 25 °
355
8
Reflector RD70
448
Ø 429
94.5
118
429
422
392
4x
94.5
295
133
Wall mounting
Ceiling mounting
Reflector RD70
4
25°
254
30°
Ø 370
276
69
Mounting bracket
300
NVMV large enclosure
Pole mounting 25 °
Wall mounting
295
4
94.5
518
355
x8
Reflector RD 739
135
Ceiling mounting
Ø 429
634
602
609
94.5
118
25°
Reflector RD 739
254
251
30°
Ø 370
276
VMV LED
with top mounting
module JM5
with top mounting
module PM5
407
with top mounting
module CM25
273,5
280
53,5
282
326
45
300
51,6
88,7
383
284
with top mounting
module TWM25
248
25°
Mounting bracket S812
Montagebügel
Deckel für
Deckenmontage
Sicherungstift
LED Modul
Dimensions in mm
EATON’S CROUSE-HINDS BUSINESS
1.4.61
Technical data
4.10
VMV LED 3 - 11L
4 Technical data
VMV LED 3L - 11L
Type Examination Certificate
DEMKO 13 ATEX 1305741X
EC-Type Examination Certificate
DEMKO 13 ATEX 1475031X
IECEx Certificate of Conformity
IECEx UL 13.0052X
Marking accd. to 94/9/EC
D II 3 G Ex nA nR IIC T6/T5 Gc
D II 2 D Ex tb IIIC T87/72°C Db IP66
Marking accd. to IECEx
Ex nA nR IIC T5 Gc /
Ex tb IIIC T87°C/T72 °C Db IP66
Permissible ambient temperature
-40 °C up to +55 °C
Rated voltage
120 - 277 V AC
Frequency
50 - 60 Hz
Power
41 - 118 W
Power factor cos M
0.9
Circuit
electronic driver
Protection class
I
Lamp / Illuminant
LED System, scope of delivery
Rated luminous flux of the luminaire
1)
Dimensions (L x W x H)
280 x 295 x 230 mm
Connecting terminals
L, N, PE max. 2 x 2.5 mm2
Enclosure colour
grey/black
Enclosure material
Copper-free aluminium with epoxy-powder coating
Weight
9.1 kg
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
Heat- and impact-resistant glass
1)
see table luminaire data
Technology Inside
Additional luminaire data
Type
Power
luminous flux of
the luminaire
Temperature class II 3 G
TU ≤ 40 °C
TU ≤ 55 °C
max. surface temp. II 2 D
TU ≤ 40 °C
TU ≤ 55 °C
VMV LED
VMV 3L LED
41 W
3515 lm
T6
T5
T72 °C
T87 °C
VMV 5L LED
67 W
5288 lm
T6
T5
T72 °C
T87 °C
VMV 7L LED
94 W
7404 lm
T6
T5
T72 °C
T87 °C
VMV 9L LED
114 W
9515 lm
T6
T5
T72 °C
T87 °C
VMV 11L LED
118 W
10935 lm
T6
T5
T72 °C
T87 °C
1.4.62
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.10
NVMV small enclosure / NVMV large enclosure
4
Technical data
NVMV - small enclosure
NVMV - large enclosure
Type Examination Certificate
LCIE 10 ATEX 1005 (Gas)
LCIE 10 ATEX 3029 (Dust)
LCIE 10 ATEX 1005 (Gas)
LCIE 10 ATEX 3029 (Dust)
EC-Type Examination Certificate
D II 3 G Ex nR IIC T 1)
D II 2 D Ex tb IIIC T 1) °C Db IP66
D II 3 G Ex nR IIC T 1)
D II 2 D Ex tb IIIC T 1) °C Db IP66
Permissible ambient temperature
-45 °C up to +55 °C
-45 °C up to +55 °C
Rated voltage
230 V AC 2)
230 V AC 2)
Frequency
50 Hz 2)
50 Hz 2)
Power factor cos M
> 0.9
> 0.9
Circuit
conventional ballast
conventional ballast
Protection class
I
I
Lamp / Illuminant
HSE / HIE 70 - 150 W
HSE / HIE 250 - 400 W
Lamp name
High pressure sodium lamp / Metal-Halide lamp
High pressure sodium lamp / Metal-Halide lamp
Rated luminous flux
1)
1)
Lamp cap
E27 / E40
E40
Light efficiency in operation
74 %
78 %
2
Connecting terminals
L, N, PE max. 2 x 2.5 mm
L, N, PE max. 2 x 2.5 mm2
Enclosure colour
grey
grey
Enclosure material
light alloy with powder coating
light alloy with powder coating
Weight
7.6 kg
21 kg
Cable glands / gland plates /
enclosure drilling
thread 4 x M25 x 1.5 with Blanking
plug
thread 4 x M25 x 1.5 with Blanking
plug
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Additional luminaire data
Type
Power
luminous flux of
the luminaire 3)
Temperature class II 2 G
max. surface temp. II 2 D
without reflector
with reflector
without reflector
with reflector
T4
T4
114 °C
119 °C
NVMV... (small enclosure - SE)
HSE
70 W
5600 lm
HSE
100 W
8800 lm
T4
T4
114 °C
119 °C
HSE
150 W
14000 lm
T3
T3
137 °C
155 °T
HSE
250 W
25000 lm
T3
T2
183 °C
204 °C
HIE
70 W
5100 lm
T4
T4
114 °C
119 °C
HIE
100 W
7800 lm
T4
T4
114 °C
119 °C
HIE
150 W
11000 lm
T3
T3
137 °C
155 °C
HIE
250 W
19000 lm
T3
T2
183 °C
204 °C
T3
T3
152 °C
152 °C
NVMV... (large enclosure - LE)
HSE
250 W
25000 lm
HSE
400 W
48000 lm
T3
T3
174 °C
190 °C
HIE
250 W
33000 lm
T3
T3
152 °C
152 °C
HIE
400 W
34000 lm
T3
T2
174 °C
208 °C
1)
2)
3)
see table luminaire data
other voltages and Frequencies on request
depends on used lamps
EATON’S CROUSE-HINDS BUSINESS
1.4.63
4.11
Ex-floodlights of the series
NFMV / NSSFMV
4 (Zone 2, 22)
The powerful LED floodlights
NFMV…LED
The energy-saving NFMV
floodlights in LED technology
are ideal for all general lighting
applications in explosive gas
atmospheres in Zone 2 and in
explosive dust atmospheres
in Zone 22. These light fittings
with the integrated high-power
LED technology can be used to
replace comparable conventional light sources with an equivalent power of 100 W to 250 W.
LED technology for harsh
environments
Due to the particularly solid construction of the housing and the
vibration resistance of the LED
module, the NFMV floodlight is
resistant to impact, shock and
vibration. As a result, it repre-
sents the ideal lighting concept
for use in areas with difficult environmental conditions. Thanks
to the non-sensitive LED technology, even extreme temperatures from -40 °C up to +55 °C
are not a problem. The robust,
powder coated light metal
housing in the degree of protection IP 66 and an impact-resistant lens meet the highest corrosion protection and mechanical
resistance requirements. The
advantages of the integrated,
advanced LED technology with
a high luminous flux and, at the
same time, an extremely low
energy consumption are a long
service life and a high level of
efficiency. With a power consumption of 64 W to 179 W, it is
ideal for the replacement of 100
W to 250 W light fittings with
high pressure lamps.
NFMV floodlights for highpressure discharge lamps
The NFMV floodlights with
high-gloss internal reflectors
for high-pressure discharge
lamps from 150 W up to 400
W are suited for operation in
hazardous areas in Zone 2 and
Zone 21 and ambient temperatures of -25 °C to +50 / 45 °C.
The light metal housing with an
epoxy resin powder coating and
a glass that is resistant to temperature changes and impacts
meets the requirements for the
degree of protection IP66. The
modular design allows a fast
and economical installation. A
durable sealing system for use
in extreme ambient conditions
offers additional security. The
restricted breathing design
allows high light outputs and,
at the same time, a favourable
temperature class T3.
Stainless steel NSSFMV
floodlights for particularly
harsh environments
The NSSFMV floodlights with
high-gloss internal reflectors for
high-pressure discharge lamps
from 150 W to 400 W fulfil the
requirements for hazardous
areas in Zone 2 and Zone 22
and ambient temperatures
from -25 °C to +55 / 50 °C particularly in harsh environments
with a high level of mechanical
load, moisture and dust. The
stainless steel enclosure with
a temperature-change and impact-resistant glass meets the
requirements of the degree of
protection IP66. The modular
design allows a fast and economical installation. A durable
sealing system for use in extreme ambient conditions offers
additional security. The restricted breathing design allows high
light outputs and, at the same
time, a favourable temperature
class T3.
Wide range of applications
The particularly rugged construction, the high degree of
protection and the wide temperature range make these light
fittings particularly suitable for
offshore applications, in the oil
and gas industry and in chemical plants, where explosive atmospheres are to be expected.
Further applications include use
in explosive gas atmospheres
in Zone 2 areas such as oil refineries, ships and drilling platforms, chemical, petrochemical
and LNG facilities, waste and
wastewater facilities, as well as
industrial applications indoors
and outdoors. Applications in
explosive dust atmospheres in
Zone 22 include flour mills, sugar mills, food production, wood
processing and other plants
with combustible dusts. The
NFMV / NSSFMV floodlights
feature an adjustable mounting
bracket and are suitable for wall
and ceiling mounting in medium
and large suspension heights.
Accessories for pole mounting
are also available.
Features
• NFMV5/7/9/13L floodlights for high power LED modules
• NFMV and NSSFMV luminaires for high-pressure discharge
lamps from 70 W to 400 W
• Wide temperature range according to type from -45 °C up to
+55 °C
• High degree of protection IP66 for harsh environments
1.4.64
EATON’S CROUSE-HINDS BUSINESS
Ordering details
4.11
NFMV / NSSFMV
Ordering details
Type
Lamp /
illuminant
Rated luminous
flux of the
luminaire
Weight
Cable gland/ thread
Screw plug
Order No.
NFMV 5L CY/UNV1 76
M20
LED System
64 W 1)
4386 lm
17.7 kg
2 x M20, metal thread,
1 x M20 cable gland
Ø 10 - 16 mm
1 x M20
1 2340 323
NFMV 7L CY/UNV1 76
M20
LED System
89 W 1)
6720 lm
17.7 kg
2 x M20, metal thread,
1 x M20 cable gland
Ø 10 - 16 mm
1 x M20
1 2313 518
NFMV 9L CY/UNV1 76
M20
LED System
121 W 1)
8478 lm
18.0 kg
2 x M20, metal thread,
1 x M20 cable gland
Ø 10 - 16 mm
1 x M20
1 2311 134
NFMV 11L CY/UNV1 76 LED System
M20
149 W 1)
10420 lm
18.3 kg
2 x M20, metal thread,
1 x M20 cable gland
Ø 10 - 16 mm
1 x M20
1 2263 524
NFMV 13L CY/UNV1 76 LED System
M20
179 W 1)
12940 lm
18.3 kg
2 x M20, metal thread,
1 x M20 cable gland
Ø 10 - 16 mm
1 x M20
1 2340 329
Type
Lamp /
illuminant
Rated luminous
flux
Weight
Cable gland/ thread
Screw plug
Order No.
NFMV HSE 150 W,
230 V 50 Hz
HSE 150 W
14000 lm
15.5 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 021
NFMV HSE 150 W,
240 V 50 Hz
HSE 150 W
14000 lm
15.5 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 022
NFMV HSE/HIE 250 W,
230 V 50 Hz
HSE/HIE 250 W
25000 lm /
19000 lm
16.9 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 024
NFMV HSE/HIE 250 W,
240 V 50 Hz
HSE/HIE 250 W
25000 lm /
19000 lm
16.9 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 025
NFMV HSE/HIE 400 W,
230 V 50 Hz
HSE/HIE 400 W
48000 lm /
33000 lm
15.5 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 027
NFMV HSE/HIE 400 W,
240 V 50 Hz
HSE/HIE 400 W
48000 lm /
33000 lm
15.5 kg
2 x M20,
metal thread
1 x M20
NOR 000 005 180 028
NSSFMV SY 150
230 50 M25
150 W HSE
14000 lm
16.9 kg
2 x M25,
metal thread
2 x M25
CCL 110 3421
NSSFMV MY 150
230 50 M25
150 W HIE
11000 lm
17.5 kg
2 x M25,
metal thread
2 x M25
CCL 110 3422
NSSFMV SY 250
230 50 M25
250 W HSE
25000 lm
17.5 kg
2 x M25,
metal thread
2 x M25
CCL 110 3469
NSSFMV MY 250
230 50 M25
250 W HIE
19000 lm
17.5 kg
2 x M25,
metal thread
2 x M25
CCL 110 3470
NSSFMV SY 400
230 50 M25
400 W HSE
48000 lm
18.6 kg
2 x M25,
metal thread
2 x M25
CCL 110 3517
NSSFMV MY 400
230 50 M25
400 W HIE
33000 lm
18.9 kg
2 x M25,
metal thread
2 x M25
CCL 110 3518
NFMV LED
4
NFMV
NSSFMV
1)
scope of delivery
Accessories
Type
Content
Slip fitter 2” for pole mounting
OU
Rated luminous flux
1
Order No.
3 2346 001 002
HSE 150 W
high pressure sodium lamp 150 W E40
1
14000 lm
NOR 000 000 511 300
HSE 250 W
high pressure sodium lamp 250 W E40
1
25000 lm
CGS 3238 600 P1009
HSE 400 W
high pressure sodium lamp 400 W E40
1
48000 lm
CGS 3238 700 P1009
HIE 150 W
Metal-halide lamp 150 W
1
11000 lm
on request
HIE 250 W
Metal-halide lamp 250 W
1
17000 lm
CGS 323 7990 P1007
HIE 400 W
Metal-halide lamp 400 W
1
33000 lm
CGS 323 7990 P1008
Scope of delivery without lamp and fixing accessories, if not stated otherwise.
Metal cable glands see catalogue part 2: 2.3.12 ff
EATON’S CROUSE-HINDS BUSINESS
1.4.65
Dimension drawing / Polar curve
4.11
NFMV / NSSFMV
Polar curve NFMV LED
NFMV LED
552,5
90
90
150
75
75
Ø14
120,7
300
60
45
533
167
45
600
30
30
15
750
0
15
C 0
C90
406
4
60
450
l/cd/klm
NFMV
Polar curve NFMV 150 - 400 W
173
458
90
90
60
120
60
60
180
45
600
508
75
75
45
240
30
30
15
300
0
15
486
C 0
C90
l/cd/klm
120.7
Ø 14.3
NSSFMV
Polar curve NSSFMV
536
2.5
15
90
90
40
80
15
200
0
254
495
30
15
20
30
M20 ISO
70
45
160
171.5
45
C 0
C90
38
60
120
592
60
Ø 1/2”-1 3 UNC
0
12
75
75
+1
-0
3.5
ˉ 6 83
l/cd/klm
195,5
175
Ø 12,7
12,7Montagelöcher
mounting holes
Ø
120,6
Dimensions in mm
1.4.66
EATON’S CROUSE-HINDS BUSINESS
Technical data
4.11
NFMV LED
4
Technical data
NFMV LED
Type Examination Certificate
DEMKO 12 ATEX 115535X
IECEx Certificate of Conformity
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
D II 3 G Ex nA nR IIC T4/T5 Gc
D II 3 D Ex tc IIIC T68°C Dc IP66
Marking accd. to IECEx
Ex nA nR IIC T4/T5 Gc
Ex tc IIIC T68°C Dc IP66
Permissible ambient temperature
-30 °C up to +55 °C
Rated voltage
100 - 277 V AC /
108 - 250 V DC
Frequency
50 - 60 Hz
Power factor cos M
t 0.85
Circuit
electronic driver
Protection class
I
Lamp / Illuminant
LED System 64 - 179 W
Light colour
5600 K
Dimensions (L x W x H)
533 x 167 x 406 mm
Connecting terminals
L, N and PE; 2 x 4 mm2
Enclosure colour
grey
Enclosure material
light alloy with powder coating
Weight
see table luminaire data
Cable glands / gland plates /
enclosure drilling
2 x M20 x 1.5, 1 x M20 plugged
Type of mounting
mounting bracket
Degree of protection accd. to EN 60529
IP66
Protective cover / protective bowl
borosilicate glass
Technology Inside
Additional luminaire data
Type
Power
Weight
Rated luminous flux
of the luminaire
Temperature class II 2 G
TU ≤ 40 °C
TU ≤ 55 °C
NFMV LED
NFMV 5L LED
64 W
17.7 kg
4386 lm
T5
T4
NVMV 7L LED
89 W
17.7 kg
6720 lm
T5
T4
NVMV 9L LED
121 W
18.0 kg
8478 lm
T5
T4
NVMV 11L LED
149 W
18.3 kg
10420 lm
T5
T4
NVMV 13L LED
179 W
18.3 kg
12940 lm
T5
T4
EATON’S CROUSE-HINDS BUSINESS
1.4.67
Technical data
4.11
NFMV / NSSFMV
4 Technical data
NFMV
NSSFMV
Type Examination Certificate
DEMKO 10 ATEX 0907694
LCIE 11 ATEX 1014 X (Gas)
LCIE 11 ATEX 3101 X (Staub)
EC-Type Examination Certificate
DEMKO 10 ATEX 147285
IECEx Certificate of Conformity
Marking accd. to 94/9/EC
IECEx CQM 12.0004X
D II 3 G Ex nR II T3
D II 2 D Ex tD A21 IP66 T 2)
D II 3 G Ex nR II T3/T2
D II 3 D Ex tb IIIC T 2) Db
Marking accd. to IECEx
Ex nR IIC T3/T2 Gc
Ex tb IIIC T125°C/T205°C IP66
Permissible ambient temperature
-25 °C up to +55 °C (< 400 W)
-25 °C up to +50 °C (400 W)
Rated voltage
230 V
-45 °C up to +55 °C (≤ 250 W)/ -45 °C up to +50 °C (400 W)
1)
230 V 1)
1)
50 Hz 1)
Frequency
50 Hz
Power factor cos M
t 0.9
t 0.9
Protection class
I
I
Lamp / Illuminant
HSE/HIE lamp 150 - 400 W
HSE/HIE lamp 150 - 400 W
Lamp cap
E40 accord. IEC 60238
E40 accord. IEC 60238
Rated luminous flux
1)
1)
Light efficiency in operation
60 %
68 %
Dimensions (L x W x H)
600 x 458 x 173 mm
592 x 535 x 193 mm
Connecting terminals
L, N and PE; 2 x 4 mm2
L, N, PE max. 2 x 2.5 mm2
Enclosure colour
grey
natual
Enclosure material
light alloy with powder coating
stainless steel
Weight
15.5 kg
16.9 kg
Cable glands / gland plates /
enclosure drilling
2 x M20 x 1.5 thread, 1 x M20 plugged
2 x M20 x 1.5 thread, 1 x M20 plugged
Type of mounting
mounting bracket
mounting bracket
Degree of protection accd. to EN 60529
IP66
IP66
Protective cover / protective bowl
borosilicate glass
borosilicate glass
Additional luminaire data NFMV and NSSFMV
Type
Power
Rated luminous flux 3)
Temperature class II 2 G
max. surface temp. II 2 D
TU ≤ 40 °C
TU ≤ 50 °C
TU ≤ 55 °C
TU ≤ 40 °C
TU ≤ 50 °C
TU ≤ 55 °C
T5
T3
--
T100 °C
T200 °C
--
T3
T200 °C
NFMV...
HSE
150 W
14000 lm
HSE
250 W
25000 lm
T5
HIE
250 W
19000 lm
T3
HSE / HIE
400 W
48000 lm / 33000 lm
T3
T3
--
T100 °C
T3
T200 °C
--
T200 °C
-T200 °C
T200 °C
--
NSSFMV...
HSE / HIE
150 W
14000 lm / 11000 lm
T4
T3
T3
T125 °C
T135 °C
T140 °C
HSE / HIE
250 W
25000 lm / 19000 lm
T3
T3
T3
T160 °C
T170 °C
T175 °C
HSE / HIE
400 W
48000 lm / 33000 lm
T3
T2
--
T195 °C
T205 °C
--
1)
other frequencies on request
see table luminaire data
3)
depends on used lamps
2)
1.4.68
EATON’S CROUSE-HINDS BUSINESS
Index of order code
00 080...............................................1.4.57
2588..................................................1.4.58
2590..................................................1.4.58
7824..................................................1.4.58
9620..................................................1.4.58
11 718...............................................1.4.58
22 250...............................................1.4.57
26 249...............................................1.4.58
750283..............................................1.4.26
750286..............................................1.4.26
1 1669 290........................................1.4.57
1 1923 847........................................1.4.58
1 2263 524........................................1.4.65
1 2268 927........................................1.4.57
1 2311 134........................................1.4.65
1 2313 518........................................1.4.65
1 2340 323........................................1.4.65
1 2340 329........................................1.4.65
1 2364 745........................................1.4.57
1 2364 746........................................1.4.57
1 2365 201........................................1.4.57
1 2365 202........................................1.4.57
1 2374 698........................................1.4.57
1 2374 782........................................1.4.57
1 2375 046........................................1.4.57
1 2375 047........................................1.4.57
1 2375 106........................................1.4.57
1 2375 107........................................1.4.57
1 2375 186........................................1.4.57
1 2375 187........................................1.4.57
1 2396 576........................................1.4.57
1 2401 259........................................1.4.57
1 2402 998........................................1.4.57
1 2455 089........................................1.4.57
1 1118 009 010.................................1.1.19
1 1125 000 111.................................1.1.19
1 1145 000 792.................................1.1.25
1 1145 000 795.................................1.1.25
1 1147 000 001.................................1.1.24
1 1147 000 002.................................1.1.24
1 1147 000 003.................................1.1.24
1 1147 000 004.................................1.1.24
1 1147 000 200.................................1.1.24
1 1147 000 810.................................1.1.24
1 1147 000 820.................................1.1.24
1 1147 009 001.................................1.1.24
1 1147 009 002.................................1.1.24
1 1147 080 000.................................1.1.25
1 1358 000 001...................................1.1.9
1 1358 000 070...................................1.1.9
1 1359 000 001...................................1.1.9
1 1359 000 070...................................1.1.9
1 1359 001 001...................................1.1.9
1 1360 000 001...................................1.1.9
1 1360 000 006...................................1.1.9
1 1360 002 001...................................1.1.9
1 1380 000 001.................................1.1.15
1 1380 000 002.................................1.1.15
1 1380 000 003.................................1.1.15
1 1380 000 020.................................1.1.15
1 1380 000 021.................................1.1.15
1 1380 000 022.................................1.1.15
1 1518 009 111.................................1.1.19
1 1540 000 443.................................1.1.25
1 1700 000 000.................................1.1.34
1 1700 000 001.................................1.1.34
1 1700 000 003.................................1.1.34
1 1700 000 004.................................1.1.34
1 1700 000 005.................................1.1.34
1 1700 000 006.................................1.1.34
1 1700 000 010.................................1.1.35
1 1700 000 011.................................1.1.35
1 1700 000 012.................................1.1.35
1 1700 000 013.................................1.1.35
1 1700 000 015.................................1.1.35
1 1700 000 016.................................1.1.35
1 1700 000 107.................................1.1.34
1 1700 000 113.................................1.1.35
1 1700 000 200.................................1.1.34
1 1700 000 201.................................1.1.34
1 1700 000 202.................................1.1.34
1 1700 000 205.................................1.1.34
1 1700 000 206.................................1.1.34
1 1700 000 210.................................1.1.35
1 1700 000 211.................................1.1.35
1 1700 000 212.................................1.1.35
1 1700 000 215.................................1.1.35
1 1700 000 216.................................1.1.35
1 1700 000 217.................................1.1.35
1 1700 000 221.................................1.1.34
1 1700 000 223.................................1.1.34
1 1700 000 226.................................1.1.34
1 1700 000 237.................................1.1.35
1 1700 000 310.................................1.1.35
1 1700 000 311.................................1.1.35
1 1700 000 312.................................1.1.35
1 1700 000 314.................................1.1.35
1 1700 000 315.................................1.1.35
1 1700 000 316.................................1.1.35
1 1700 000 317.................................1.1.35
1 1700 000 510.................................1.1.35
1 1700 000 511.................................1.1.35
1 1700 000 512.................................1.1.35
1 1700 000 514.................................1.1.35
1 1700 000 515.................................1.1.35
1 1700 000 516.................................1.1.35
1 1700 000 517.................................1.1.35
1 1700 000 520.................................1.1.35
1 1700 000 521.................................1.1.35
1 1700 000 522.................................1.1.35
1 1700 000 523.................................1.1.35
1 1700 000 900.................................1.1.36
1 1700 000 901.................................1.1.36
1 1700 000 911.................................1.1.36
1 1700 000 915.................................1.1.36
1 1700 000 916.................................1.1.36
1 1700 000 918.................................1.1.36
1 1700 000 919.................................1.1.36
1 1700 000 920.................................1.1.36
1 1700 000 921.................................1.1.36
1 1700 000 923.................................1.1.36
1 1700 000 924.................................1.1.36
1 1700 000 925.................................1.1.36
1 1700 000 930.................................1.1.36
1 1700 000 931.................................1.1.36
1 1700 000 940.................................1.1.36
1 1700 000 950.................................1.1.36
1 1700 000 951.................................1.1.36
1 1700 000 960.................................1.1.36
1 1700 000 961.................................1.1.36
1 1700 000 962.................................1.1.36
1 1750 000 353...................................1.4.9
1 1750 000 354...................................1.4.9
1 2041 450 000.................................1.1.25
1 2041 810 000.................................1.1.19
1 2061 000 040.................................1.1.25
1 2061 001 400.................................1.1.25
1 2190 217 101.................................1.2.41
1 2190 217 111.................................1.2.41
1 2190 218 001.................................1.2.41
1 2190 218 002.................................1.2.51
1 2190 218 011.................................1.2.41
1 2190 218 012.................................1.2.51
1 2190 218 101.................................1.2.41
1 2190 218 102.................................1.2.51
1 2190 218 111.................................1.2.41
1 2190 218 112.................................1.2.51
1 2190 218 703.................................1.2.50
1 2190 218 713.................................1.2.50
1 2190 218 723.................................1.2.50
1 2190 218 733.................................1.2.50
1 2190 232 101.................................1.2.41
1 2190 232 111.................................1.2.41
1 2190 236 001.................................1.2.41
1 2190 236 002.................................1.2.51
1 2190 236 011.................................1.2.41
1 2190 236 012.................................1.2.51
1 2190 236 101.................................1.2.41
1 2190 236 102.................................1.2.51
1 2190 236 111.................................1.2.41
1 2190 236 112.................................1.2.51
1 2190 236 703.................................1.2.50
1 2190 236 713.................................1.2.50
1 2190 236 723.................................1.2.50
1 2190 236 733.................................1.2.50
1 2190 258 001.................................1.2.41
1 2190 258 011.................................1.2.41
1 2190 258 101.................................1.2.41
1 2190 258 111.................................1.2.41
1 2190 258 703.................................1.2.50
1 2190 258 713.................................1.2.50
1 2190 258 723.................................1.2.50
1 2190 258 733.................................1.2.50
1 2190 418 001.................................1.2.41
1 2190 418 002.................................1.2.51
1 2190 418 011.................................1.2.41
1 2190 418 012.................................1.2.51
1 2190 418 101.................................1.2.41
1 2190 418 102.................................1.2.51
1 2190 418 111.................................1.2.41
1 2190 418 112.................................1.2.51
1 2190 418 703.................................1.2.50
1 2190 418 713.................................1.2.50
1 2190 418 723.................................1.2.50
1 2190 418 733.................................1.2.50
1 2190 436 001.................................1.2.41
1 2190 436 002.................................1.2.51
1 2190 436 011.................................1.2.41
1 2190 436 012.................................1.2.51
1 2190 436 101.................................1.2.41
1 2190 436 102.................................1.2.51
1 2190 436 111.................................1.2.41
1 2190 436 112.................................1.2.51
1 2190 436 703.................................1.2.50
1 2190 436 713.................................1.2.50
1 2190 436 723.................................1.2.50
1 2190 436 733.................................1.2.50
1 2191 000 001.................................1.3.10
1 2191 000 002.................................1.3.10
1 2191 000 003.................................1.3.10
1 2191 000 004.................................1.3.10
1 2191 000 011.................................1.3.10
1 2191 000 012.................................1.3.10
1 2191 000 013.................................1.3.10
1 2191 000 021.................................1.3.10
1 2191 000 022.................................1.3.10
1 2191 000 023.................................1.3.10
1 2191 000 101.................................1.3.10
1 2191 000 102.................................1.3.10
1 2191 000 103.................................1.3.10
1 2191 000 104.................................1.3.10
1 2191 000 111.................................1.3.10
1 2191 000 112.................................1.3.10
1 2191 000 113.................................1.3.10
1 2191 000 121.................................1.3.10
1 2191 000 122.................................1.3.10
1 2191 000 123.................................1.3.10
1 2191 011 001.................................1.3.18
1 2191 011 002.................................1.3.18
1 2191 011 003.................................1.3.18
1 2191 011 004.................................1.3.18
1 2191 011 011.................................1.3.18
1 2191 011 012.................................1.3.18
1 2191 011 013.................................1.3.18
1 2191 011 021.................................1.3.18
1 2191 011 022.................................1.3.18
1 2191 011 023.................................1.3.18
1 2191 011 101.................................1.3.18
1 2191 011 102.................................1.3.18
1 2191 011 103.................................1.3.18
1 2191 011 104.................................1.3.18 5
1 2191 011 111.................................1.3.18
1 2191 011 112.................................1.3.18
1 2191 011 113.................................1.3.18
1 2191 011 121.................................1.3.18
1 2191 011 122.................................1.3.18
1 2191 011 123.................................1.3.18
1 2191 013 001.................................1.3.19
1 2191 013 002.................................1.3.19
1 2191 013 003.................................1.3.19
1 2191 013 004.................................1.3.19
1 2191 013 011.................................1.3.19
1 2191 013 012.................................1.3.19
1 2191 013 013.................................1.3.19
1 2191 013 021.................................1.3.19
1 2191 013 022.................................1.3.19
1 2191 013 023.................................1.3.19
1 2191 013 101.................................1.3.19
1 2191 013 102.................................1.3.19
1 2191 013 103.................................1.3.19
1 2191 013 104.................................1.3.19
1 2191 013 111.................................1.3.19
1 2191 013 112.................................1.3.19
1 2191 013 113.................................1.3.19
1 2191 013 121.................................1.3.19
1 2191 013 122.................................1.3.19
1 2191 013 123.................................1.3.19
1 2191 020 001.................................1.3.10
1 2191 020 002.................................1.3.10
1 2191 020 003.................................1.3.10
1 2191 020 004.................................1.3.10
1 2191 020 011.................................1.3.10
1 2191 020 012.................................1.3.10
1 2191 020 013.................................1.3.10
1 2191 020 021.................................1.3.10
1 2191 020 021.................................1.3.18
1 2191 020 022.................................1.3.10
1 2191 020 023.................................1.3.10
1 2191 020 101.................................1.3.10
1 2191 020 102.................................1.3.10
1 2191 020 103.................................1.3.10
1 2191 020 104.................................1.3.10
1 2191 020 111.................................1.3.10
1 2191 020 112.................................1.3.10
1 2191 020 113.................................1.3.10
1 2191 020 121.................................1.3.10
1 2191 020 122.................................1.3.10
1 2191 020 123.................................1.3.10
1 2191 021 001.................................1.3.18
1 2191 021 001.................................1.3.19
1 2191 021 002.................................1.3.18
1 2191 021 002.................................1.3.19
1 2191 021 003.................................1.3.18
1 2191 021 003.................................1.3.19
1 2191 021 004.................................1.3.18
1 2191 021 004.................................1.3.19
1 2191 021 011.................................1.3.18
1 2191 021 011.................................1.3.19
1 2191 021 012.................................1.3.18
1 2191 021 012.................................1.3.19
1 2191 021 013.................................1.3.18
1 2191 021 013.................................1.3.19
EATON’S CROUSE-HINDS BUSINESS
1.5.1
Index of order code
1 2191 021 021.................................1.3.18
1 2191 021 021.................................1.3.19
1 2191 021 022.................................1.3.18
1 2191 021 022.................................1.3.19
1 2191 021 023.................................1.3.18
1 2191 021 023.................................1.3.19
1 2191 021 101.................................1.3.18
1 2191 021 101.................................1.3.19
1 2191 021 102.................................1.3.18
1 2191 021 102.................................1.3.19
1 2191 021 103.................................1.3.18
5 1 2191 021 103.................................1.3.19
1 2191 021 104.................................1.3.18
1 2191 021 104.................................1.3.19
1 2191 021 111.................................1.3.18
1 2191 021 111.................................1.3.19
1 2191 021 112.................................1.3.18
1 2191 021 112.................................1.3.19
1 2191 021 113.................................1.3.18
1 2191 021 113.................................1.3.19
1 2191 021 121.................................1.3.18
1 2191 021 121.................................1.3.19
1 2191 021 122.................................1.3.18
1 2191 021 122.................................1.3.19
1 2191 021 123.................................1.3.18
1 2191 021 123.................................1.3.19
1 2191 024 001.................................1.3.10
1 2191 024 002.................................1.3.10
1 2191 024 003.................................1.3.10
1 2191 024 004.................................1.3.10
1 2191 024 011.................................1.3.10
1 2191 024 012.................................1.3.10
1 2191 024 013.................................1.3.10
1 2191 024 021.................................1.3.10
1 2191 024 022.................................1.3.10
1 2191 024 023.................................1.3.10
1 2191 024 101.................................1.3.10
1 2191 024 102.................................1.3.10
1 2191 024 103.................................1.3.10
1 2191 024 104.................................1.3.10
1 2191 024 111.................................1.3.10
1 2191 024 112.................................1.3.10
1 2191 024 113.................................1.3.10
1 2191 024 121.................................1.3.10
1 2191 024 122.................................1.3.10
1 2191 024 123.................................1.3.10
1 2191 030 001.................................1.3.10
1 2191 030 002.................................1.3.10
1 2191 030 003.................................1.3.10
1 2191 030 004.................................1.3.10
1 2191 030 011.................................1.3.10
1 2191 030 012.................................1.3.10
1 2191 030 013.................................1.3.10
1 2191 030 021.................................1.3.10
1 2191 030 022.................................1.3.10
1 2191 030 023.................................1.3.10
1 2191 030 101.................................1.3.10
1 2191 030 102.................................1.3.10
1 2191 030 103.................................1.3.10
1 2191 030 104.................................1.3.10
1 2191 030 104.................................1.3.18
1 2191 030 111.................................1.3.10
1 2191 030 112.................................1.3.10
1 2191 030 113.................................1.3.10
1 2191 030 121.................................1.3.10
1 2191 030 122.................................1.3.10
1 2191 030 123.................................1.3.10
1 2191 031 001.................................1.3.18
1 2191 031 002.................................1.3.18
1 2191 031 003.................................1.3.18
1 2191 031 004.................................1.3.18
1 2191 031 011.................................1.3.18
1 2191 031 012.................................1.3.18
1.5.2
1 2191 031 013.................................1.3.18
1 2191 031 021.................................1.3.18
1 2191 031 022.................................1.3.18
1 2191 031 023.................................1.3.18
1 2191 031 101.................................1.3.18
1 2191 031 102.................................1.3.18
1 2191 031 103.................................1.3.18
1 2191 031 104.................................1.3.18
1 2191 031 111.................................1.3.18
1 2191 031 112.................................1.3.18
1 2191 031 113.................................1.3.18
1 2191 031 121.................................1.3.18
1 2191 031 122.................................1.3.18
1 2191 031 123.................................1.3.18
1 2191 033 001.................................1.3.19
1 2191 033 002.................................1.3.19
1 2191 033 003.................................1.3.19
1 2191 033 004.................................1.3.19
1 2191 033 011.................................1.3.19
1 2191 033 012.................................1.3.19
1 2191 033 013.................................1.3.19
1 2191 033 021.................................1.3.19
1 2191 033 022.................................1.3.19
1 2191 033 023.................................1.3.19
1 2191 033 101.................................1.3.19
1 2191 033 102.................................1.3.19
1 2191 033 103.................................1.3.19
1 2191 033 104.................................1.3.19
1 2191 033 111.................................1.3.19
1 2191 033 112.................................1.3.19
1 2191 033 113.................................1.3.19
1 2191 033 121.................................1.3.19
1 2191 033 122.................................1.3.19
1 2191 033 123.................................1.3.19
1 2191 130 005.................................1.3.18
1 2193 000 004.................................1.3.11
1 2193 000 021.................................1.3.11
1 2193 000 022.................................1.3.11
1 2193 000 023.................................1.3.11
1 2193 000 104.................................1.3.11
1 2193 000 121.................................1.3.11
1 2193 000 122.................................1.3.11
1 2193 000 123.................................1.3.11
1 2193 020 004.................................1.3.11
1 2193 020 021.................................1.3.11
1 2193 020 022.................................1.3.11
1 2193 020 023.................................1.3.11
1 2193 020 104.................................1.3.11
1 2193 020 121.................................1.3.11
1 2193 020 122.................................1.3.11
1 2193 020 123.................................1.3.11
1 2193 024 004.................................1.3.11
1 2193 024 021.................................1.3.11
1 2193 024 022.................................1.3.11
1 2193 024 023.................................1.3.11
1 2193 024 104.................................1.3.11
1 2193 024 121.................................1.3.11
1 2193 024 122.................................1.3.11
1 2193 024 123.................................1.3.11
1 2193 030 004.................................1.3.11
1 2193 030 021.................................1.3.11
1 2193 030 022.................................1.3.11
1 2193 030 023.................................1.3.11
1 2193 030 104.................................1.3.11
1 2193 030 121.................................1.3.11
1 2193 030 122.................................1.3.11
1 2193 030 123.................................1.3.11
1 2225 218 001.................................1.2.35
1 2225 218 002.................................1.2.35
1 2225 218 011.................................1.2.35
1 2225 218 012.................................1.2.35
1 2225 218 021.................................1.2.35
1 2225 218 022.................................1.2.35
EATON’S CROUSE-HINDS BUSINESS
1 2225 218 031.................................1.2.35
1 2225 218 032.................................1.2.35
1 2226 236 001.................................1.2.35
1 2226 236 002.................................1.2.35
1 2226 236 011.................................1.2.35
1 2226 236 012.................................1.2.35
1 2226 236 021.................................1.2.35
1 2226 236 022.................................1.2.35
1 2226 236 031.................................1.2.35
1 2226 236 032.................................1.2.35
1 2255 213 101...............................1.2.112
1 2255 213 501.................................1.2.20
1 2255 213 501.................................1.2.29
1 2256 226 101...............................1.2.112
1 2256 226 501.................................1.2.20
1 2256 226 501.................................1.2.29
1 2260 579 101.................................1.2.13
1 2260 579 103.................................1.2.13
1 2260 579 109.................................1.2.13
1 2260 579 111.................................1.2.13
1 2260 579 401.................................1.2.13
1 2260 579 403.................................1.2.13
1 2260 579 409.................................1.2.13
1 2260 579 411.................................1.2.13
1 2260 879 101.................................1.2.29
1 2260 879 103.................................1.2.29
1 2260 879 109.................................1.2.29
1 2260 879 111.................................1.2.29
1 2260 879 311.................................1.2.29
1 2260 879 333.................................1.2.29
1 2260 879 609.................................1.2.29
1 2260 879 611.................................1.2.29
1 2261 579 101.................................1.2.13
1 2261 579 103.................................1.2.13
1 2261 579 109.................................1.2.13
1 2261 579 111.................................1.2.13
1 2261 579 401.................................1.2.13
1 2261 579 403.................................1.2.13
1 2261 579 409.................................1.2.13
1 2261 579 411.................................1.2.13
1 2261 879 101.................................1.2.29
1 2261 879 103.................................1.2.29
1 2261 879 109.................................1.2.29
1 2261 879 111.................................1.2.29
1 2261 879 311.................................1.2.29
1 2261 879 333.................................1.2.29
1 2261 879 609.................................1.2.29
1 2261 879 611.................................1.2.29
1 2263 875 101.................................1.2.19
1 2263 875 103.................................1.2.19
1 2263 875 109.................................1.2.19
1 2263 875 111.................................1.2.19
1 2263 875 125.................................1.2.19
1 2263 875 609.................................1.2.19
1 2263 875 611.................................1.2.19
1 2264 875 101.................................1.2.19
1 2264 875 103.................................1.2.19
1 2264 875 109.................................1.2.19
1 2264 875 111.................................1.2.19
1 2264 875 611.................................1.2.19
1 2265 500 101.................................1.2.13
1 2265 500 103.................................1.2.13
1 2265 500 109.................................1.2.13
1 2265 500 111.................................1.2.13
1 2265 510 103.................................1.2.13
1 2265 510 111.................................1.2.13
1 2265 875 101.................................1.2.19
1 2265 875 103.................................1.2.19
1 2265 875 109.................................1.2.19
1 2265 875 111.................................1.2.19
1 2265 875 126.................................1.2.19
1 2265 875 310.................................1.2.20
1 2265 875 311.................................1.2.20
1 2265 875 609.................................1.2.19
1 2265 875 611.................................1.2.19
1 2265 881 103.................................1.2.20
1 2265 881 211.................................1.2.20
1 2265 908 000.................................1.2.20
1 2266 500 101.................................1.2.13
1 2266 500 103.................................1.2.13
1 2266 500 109.................................1.2.13
1 2266 500 111.................................1.2.13
1 2266 510 103.................................1.2.13
1 2266 510 111.................................1.2.13
1 2266 875 101.................................1.2.19
1 2266 875 103.................................1.2.19
1 2266 875 109.................................1.2.19
1 2266 875 111.................................1.2.19
1 2266 875 310.................................1.2.20
1 2266 875 311.................................1.2.20
1 2266 875 609.................................1.2.19
1 2266 875 611.................................1.2.19
1 2266 881 103.................................1.2.20
1 2266 881 211.................................1.2.20
1 2266 908 000.................................1.2.20
1 2267 875 101.................................1.2.19
1 2267 875 103.................................1.2.19
1 2267 875 109.................................1.2.19
1 2267 875 111.................................1.2.19
1 2267 875 609.................................1.2.19
1 2267 875 611.................................1.2.19
1 2267 881 103.................................1.2.20
1 2267 881 211.................................1.2.20
1 2268 500 101.................................1.2.13
1 2268 875 101.................................1.2.19
1 2269 500 101.................................1.2.13
1 2269 875 101.................................1.2.19
1 2269 875 103.................................1.2.19
1 2273 569 101.................................1.2.13
1 2273 879 101.................................1.2.29
1 2283 218 001.................................1.2.59
1 2283 218 002.................................1.2.59
1 2283 218 003.................................1.2.59
1 2283 218 004.................................1.2.59
1 2283 218 201.................................1.2.60
1 2283 218 202.................................1.2.60
1 2283 218 203.................................1.2.60
1 2283 218 204.................................1.2.60
1 2283 218 301.................................1.2.60
1 2283 218 302.................................1.2.60
1 2283 218 303.................................1.2.60
1 2283 218 304.................................1.2.60
1 2283 218 401.................................1.2.59
1 2283 218 402.................................1.2.59
1 2283 236 001.................................1.2.59
1 2283 236 002.................................1.2.59
1 2283 236 003.................................1.2.59
1 2283 236 004.................................1.2.59
1 2283 236 201.................................1.2.60
1 2283 236 202.................................1.2.60
1 2283 236 203.................................1.2.60
1 2283 236 204.................................1.2.60
1 2283 236 301.................................1.2.60
1 2283 236 302.................................1.2.60
1 2283 236 303.................................1.2.60
1 2283 236 304.................................1.2.60
1 2283 236 401.................................1.2.59
1 2283 236 402.................................1.2.59
1 2283 258 001.................................1.2.59
1 2283 258 002.................................1.2.59
1 2283 258 003.................................1.2.59
1 2283 258 004.................................1.2.59
1 2283 258 401.................................1.2.59
1 2283 258 402.................................1.2.59
1 2283 336 001.................................1.2.59
1 2283 336 002.................................1.2.59
Index of order code
1 2283 336 011.................................1.2.59
1 2283 336 012.................................1.2.59
1 2283 358 001.................................1.2.59
1 2283 358 002.................................1.2.59
1 2283 358 011.................................1.2.59
1 2283 358 012.................................1.2.59
1 2283 418 001.................................1.2.59
1 2283 418 002.................................1.2.59
1 2283 418 011.................................1.2.59
1 2283 418 012.................................1.2.59
1 2283 418 201.................................1.2.60
1 2283 418 202.................................1.2.60
1 2283 418 203.................................1.2.60
1 2283 418 204.................................1.2.60
1 2283 418 301.................................1.2.60
1 2283 418 302.................................1.2.60
1 2283 418 303.................................1.2.60
1 2283 418 304.................................1.2.60
1 2283 436 001.................................1.2.59
1 2283 436 002.................................1.2.59
1 2283 436 011.................................1.2.59
1 2283 436 012.................................1.2.59
1 2283 436 201.................................1.2.60
1 2283 436 202.................................1.2.60
1 2283 436 203.................................1.2.60
1 2283 436 204.................................1.2.60
1 2283 436 301.................................1.2.60
1 2283 436 302.................................1.2.60
1 2283 436 303.................................1.2.60
1 2283 436 304.................................1.2.60
1 2283 458 001.................................1.2.59
1 2283 458 002.................................1.2.59
1 2283 458 011.................................1.2.59
1 2283 458 012.................................1.2.59
1 3041 000 011.................................1.4.40
1 3041 000 012.................................1.4.40
1 3041 200 011.................................1.4.40
1 3041 200 012.................................1.4.40
1 3041 205 011.................................1.4.40
1 3041 205 012.................................1.4.40
1 3041 210 011.................................1.4.40
1 3041 210 012.................................1.4.40
1 3465 136 001.................................1.2.85
1 3465 136 011.................................1.2.85
1 3465 136 021.................................1.2.85
1 3465 158 001.................................1.2.85
1 3465 158 011.................................1.2.85
1 3465 158 021.................................1.2.85
1 3465 217 021.................................1.2.86
1 3465 217 347.................................1.2.86
1 3465 218 001.................................1.2.85
1 3465 218 011.................................1.2.85
1 3465 218 021.................................1.2.85
1 3465 218 031.................................1.2.85
1 3465 218 101.................................1.2.85
1 3465 218 912.................................1.2.86
1 3465 218 922.................................1.2.86
1 3465 232 021.................................1.2.86
1 3465 232 347.................................1.2.86
1 3465 236 001.................................1.2.85
1 3465 236 011.................................1.2.85
1 3465 236 021.................................1.2.85
1 3465 236 031.................................1.2.85
1 3465 236 101.................................1.2.85
1 3465 236 912.................................1.2.86
1 3465 236 922.................................1.2.86
1 3465 258 001.................................1.2.85
1 3465 258 011.................................1.2.85
1 3465 258 021.................................1.2.85
1 3465 258 912.................................1.2.86
1 3465 258 922.................................1.2.86
1 3467 214 001...............................1.2.103
1 3467 214 011...............................1.2.103
1 3467 214 021...............................1.2.103
1 3467 214 031...............................1.2.103
1 3467 228 001...............................1.2.103
1 3467 228 011...............................1.2.103
1 3467 228 021...............................1.2.103
1 3467 228 031...............................1.2.103
1 3467 235 001...............................1.2.103
1 3467 235 011...............................1.2.103
1 3467 235 021...............................1.2.103
1 3467 235 031...............................1.2.103
1 3469 218 001.................................1.2.93
1 3469 218 011.................................1.2.93
1 3469 218 031.................................1.2.93
1 3469 218 131.................................1.2.93
1 3469 236 001.................................1.2.93
1 3469 236 011.................................1.2.93
1 3469 236 031.................................1.2.93
1 3469 236 131.................................1.2.93
1 3470 218 001.................................1.2.93
1 3470 218 011.................................1.2.93
1 3470 218 031.................................1.2.93
1 3470 218 131.................................1.2.93
1 3470 236 001.................................1.2.93
1 3470 236 011.................................1.2.93
1 3470 236 031.................................1.2.93
1 3470 236 131.................................1.2.93
1 3473 136 001.................................1.2.97
1 3473 136 011.................................1.2.97
1 3473 136 021.................................1.2.97
1 3473 158 001.................................1.2.97
1 3473 158 020.................................1.2.97
1 3473 218 001.................................1.2.97
1 3473 218 011.................................1.2.97
1 3473 218 021.................................1.2.97
1 3473 236 001.................................1.2.97
1 3473 236 011.................................1.2.97
1 3473 236 021.................................1.2.97
1 3473 258 001.................................1.2.97
1 3473 258 020.................................1.2.97
2 1118 910 001.................................1.1.19
2 1147 512 000.................................1.1.25
2 1147 701 000.................................1.1.25
2 1147 791 000.................................1.1.25
2 2061 080 000.................................1.1.19
2 2218 602 000.................................1.2.13
2 2218 602 000.................................1.2.20
2 2218 602 000.................................1.2.29
2 2218 602 000.................................1.2.86
2 2218 602 000...............................1.2.112
2 2480 000 122...............................1.2.112
2 2480 002 000...............................1.2.112
2 2480 004 000...............................1.2.112
2 2480 054 000...............................1.2.112
2 2480 092 000...............................1.2.112
2 2480 092 000...................................1.4.9
2 2480 462 000...............................1.2.112
2 2480 462 000.................................1.4.40
2 2480 464 000...............................1.2.112
2 2480 464 000.................................1.4.40
2 2480 472 000...............................1.2.112
2 2480 472 000.................................1.4.40
2 2480 474 000...............................1.2.112
2 2480 482 000...............................1.2.112
2 2480 482 000.................................1.4.40
2 2480 484 000...............................1.2.112
2 2480 520 001...............................1.2.111
2 2480 520 002...............................1.2.111
2 2480 520 003...............................1.2.111
2 2480 520 004...............................1.2.111
2 2480 520 005...............................1.2.111
2 2480 520 006...............................1.2.111
2 2480 520 007...............................1.2.111
2 2480 520 008...............................1.2.111
2 2480 520 009...............................1.2.111
2 2480 530 001...............................1.2.111
2 2480 530 002...............................1.2.111
2 2480 530 003...............................1.2.111
2 2480 540 001...............................1.2.111
2 2480 540 002...............................1.2.111
2 2480 550 001...............................1.2.111
2 2480 550 002...............................1.2.111
2 2480 550 003...............................1.2.111
2 2480 550 004...............................1.2.111
2 2480 550 005...............................1.2.111
2 2480 550 006...............................1.2.111
2 2480 550 007...............................1.2.111
2 2480 550 010...............................1.2.112
2 2480 550 011...............................1.2.112
2 2480 550 012...............................1.2.111
2 2480 550 013...............................1.2.112
2 2480 550 014...............................1.2.112
2 2480 550 015...............................1.2.111
2 2480 550 016...............................1.2.111
2 2480 550 115...............................1.2.111
2 2483 027 000...............................1.2.112
2 2710 904 000.................................1.2.13
2 3468 236 902.................................1.2.93
2 3468 236 903.................................1.2.93
2 3468 236 904.................................1.2.93
3 1360 001 900...................................1.1.9
3 1360 006 900...................................1.1.9
3 2283 000 001.................................1.2.61
3 2283 000 002.................................1.2.61
3 2283 000 003.................................1.2.61
3 2283 000 004.................................1.2.61
3 2283 000 005.................................1.2.61
3 2283 000 006.................................1.2.61
3 2283 000 007.................................1.2.61
3 2283 000 008.................................1.2.61
3 2283 000 009.................................1.2.61
3 2283 000 010.................................1.2.61
3 2283 000 011.................................1.2.61
3 2283 000 012.................................1.2.61
3 2283 000 013.................................1.2.61
3 2299 002 250.................................1.4.40
3 2299 002 400.................................1.4.40
3 2346 001 002.................................1.4.65
3 2475 900 001...............................1.2.112
3 2475 900 002...............................1.2.112
3 2475 900 003...............................1.2.112
3 2475 900 010...................................1.4.9
3 2475 900 084...............................1.2.112
3 2475 900 085...............................1.2.112
3 2475 900 087...............................1.2.112
3 2475 900 088...............................1.2.112
3 2475 900 089...............................1.2.112
3 2485 000 005...............................1.2.112
4 0071 344 115.................................1.3.27
400 71 354 380.................................1.3.23
400 71 354 381.................................1.3.23
400 71 354 382.................................1.3.23
400 71 354 383.................................1.3.23
AB05 111 011 0001 ............................1.4.8
AB05 111 031 0001 ............................1.4.8
AB05 211 011 0001 ............................1.4.8
AB05 211 111 0001 ............................1.4.8
AB05 251 011 0301 ............................1.4.8
AB05 251 021 0301 ............................1.4.8
AB05 251 111 0301 ............................1.4.8
AB05 251 221 0301 ............................1.4.8
AB05 531 011 0001 ............................1.4.8
AB05 531 021 0001 ............................1.4.8
AB05 531 111 0001 ............................1.4.8
AB05 531 221 0001 ............................1.4.8
AB05 611 011 0001 ............................1.4.8
AB05 611 021 0002 ............................1.4.8
AB05 611 111 0001 ............................1.4.8
AB05 611 221 0001 ............................1.4.8
AB05 621 221 0001 ............................1.4.8
AB05 631 021 0001 ............................1.4.8
CCL 0807 113E .................................1.4.57
CCL 0807 119E .................................1.4.57
CCL 0807 125E .................................1.4.57
CCL 0807 137E .................................1.4.57
CCL 0807 143E .................................1.4.57
CCL 0807 143E .................................1.4.58
CCL 0807 149E .................................1.4.57
CCL 0807 149E .................................1.4.58 5
CCL 0807 155E .................................1.4.57
CCL 0807 155E .................................1.4.58
CCL 0807 167E .................................1.4.57
CCL 0807 167E .................................1.4.58
CCL 0807 178E .................................1.4.57
CCL 0807 184E .................................1.4.57
CCL 0807 190E .................................1.4.57
CCL 0807 196E .................................1.4.57
CCL 0807 202E .................................1.4.57
CCL 0807 202E .................................1.4.58
CCL 0807 208E .................................1.4.57
CCL 0807 208E .................................1.4.58
CCL 0807 214E .................................1.4.57
CCL 0807 214E .................................1.4.58
CCL 0807 220E .................................1.4.57
CCL 0807 220E .................................1.4.58
CCL 1030 106E .................................1.4.58
CCL 1030 112E .................................1.4.58
CCL 1030 117E .................................1.4.58
CCL 1030 119E .................................1.4.58
CCL 1030 125E .................................1.4.58
CCL 1030 130E .................................1.4.58
CCL 1030 132E .................................1.4.58
CCL 1030 138E .................................1.4.58
CCL 1030 143E .................................1.4.58
CCL 1030 145E .................................1.4.58
CCL 1030 151E .................................1.4.58
CCL 1030 156E .................................1.4.58
CCL 1075 088 /S6E...........................1.4.26
CCL 1075 094 /S6E...........................1.4.26
CCL 1075 100 /S6E...........................1.4.26
CCL 1075 106 /S6E...........................1.4.26
CCL 1075 136 /S6E...........................1.4.26
CCL 1075 142 /S6E...........................1.4.26
CCL 1075 166 /S6E...........................1.4.26
CCL 1075 172 /S6E...........................1.4.26
CCL 1075 196 /S6E...........................1.4.26
CCL 1075 202 /S6E...........................1.4.26
CCL 1077 028 /S6E...........................1.4.25
CCL 1077 034 /S6E...........................1.4.25
CCL 1077 040 /S6E...........................1.4.25
CCL 1077 046 /S6E...........................1.4.25
CCL 1077 088 /S6E...........................1.4.25
CCL 1077 094 /S6E...........................1.4.25
CCL 1077 100 /S6E...........................1.4.25
CCL 1077 106 /S6E...........................1.4.25
CCL 1077 148 /S6E...........................1.4.25
CCL 1077 154 /S6E...........................1.4.25
CCL 1077 160 /S6E...........................1.4.25
CCL 1077 166 /S6E...........................1.4.25
CCL 109 0001 A ................................1.4.49
CCL 109 0002 A ................................1.4.49
CCL 109 0003 A ................................1.4.49
CCL 109 0004 A ................................1.4.49
CCL 109 0005 A ................................1.4.49
CCL 110 3421 ...................................1.4.65
CCL 110 3422 ...................................1.4.65
CCL 110 3469 ...................................1.4.65
CCL 110 3470 ...................................1.4.65
CCL 110 3517 ...................................1.4.65
CCL 110 3518 ...................................1.4.65
EATON’S CROUSE-HINDS BUSINESS
1.5.3
Index of order code
CCL1076001 .....................................1.4.26
CCL1076002 .....................................1.4.26
CCL1076003 .....................................1.4.26
CGS 123 8588 P0001........................1.4.45
CGS 123 8588 P0002........................1.4.45
CGS 123 8588 P0003........................1.4.45
CGS 123 8588 P0004........................1.4.45
CGS 123 8588 P1001........................1.4.45
CGS 123 8588 P1002........................1.4.45
CGS 123 8688 P0001........................1.4.25
CGS 123 8688 P1001........................1.4.25
5 CGS 123 8688 P2001........................1.4.25
CGS 123 8688 P3001........................1.4.25
CGS 123 8788 P0001........................1.4.25
CGS 123 8788 P1001........................1.4.25
CGS 123 8788 P2001........................1.4.25
CGS 123 8788 P2002........................1.4.25
CGS 123 8788 P3001........................1.4.25
CGS 223 7990 P1000........................1.4.26
CGS 323 7990 P1007........................1.4.40
CGS 323 7990 P1007 ......................1.4.65
CGS 323 7990 P1008........................1.4.40
CGS 323 7990 P1008........................1.4.65
CGS 323 7990 P1009........................1.4.45
CGS 323 7990 P1009........................1.4.45
CGS 3238 600 P1009........................1.4.58
CGS 3238 600 P1009........................1.4.65
CGS 3238 700 P1009........................1.4.58
CGS 3238 700 P1009........................1.4.65
CHR6196...........................................1.4.26
CHR7326...........................................1.4.58
CHR7870...........................................1.4.26
CHR8138...........................................1.4.26
CHR9972...........................................1.4.26
CHR9973...........................................1.4.26
FLT10 0 07271 N002.........................1.4.33
FLT10 0 07271 W002........................1.4.33
FLT10 0 10401 N002.........................1.4.33
FLT10 0 10401 W002........................1.4.33
FLT10 0 15401 N002.........................1.4.33
FLT10 0 15401 W002........................1.4.33
FLT10 0 25401 N002.........................1.4.33
FLT10 0 25401 W002........................1.4.33
FLT10 I 40401 N002..........................1.4.33
FLT10 I 40401 W002.........................1.4.33
FLT10 S 40401 N002 ........................1.4.33
FLT10 S 40401 W002 .......................1.4.33
GHG 640 9601 P0003 .....................1.2.109
GHG 660 1915 R0001 .......................1.4.45
GHG 660 1915 R0002 .......................1.4.45
GHG 664 5001 R0001 .......................1.4.45
GHG 690 1913 R0001 .......................1.4.26
GHG 690 1913 R0001 .......................1.4.45
GHG 690 1913 R0002 .......................1.4.26
GHG 690 1913 R0002 .......................1.4.45
GHG 690 1921 R0003 .......................1.4.26
GHG 690 1921 R0003 .......................1.4.45
GHG 690 9216 P0001 .......................1.4.45
GHG 870 1914 R0001 .......................1.3.27
GHG 870 1912 R0001 .......................1.3.27
GHG 870 9302 P0002 .......................1.3.27
GHG 871 1001 R0001 .......................1.3.27
GHG 871 1001 R0101 .......................1.3.27
GHG 871 1101 R0001 .......................1.3.27
GHG 871 1101 R0101 .......................1.3.27
GHG 871 1201 R0001 .......................1.3.27
GHG 871 1201 R0101 .......................1.3.27
GHG 871 1301 R0001 .......................1.3.27
GHG 871 1301 R0101 .......................1.3.27
GHG 871 2001 R0001 .......................1.3.27
GHG 871 2001 R0101 .......................1.3.27
GHG 871 4021 R0001 .......................1.3.27
GHG 871 4021 R0101 .......................1.3.27
1.5.4
GHG 871 4121 R0001 .......................1.3.27
GHG 871 4121 R0101 .......................1.3.27
GHG 871 4221 R0001 .......................1.3.27
GHG 871 4221 R0101 .......................1.3.27
GHG 871 4321 R0001 .......................1.3.27
GHG 871 4321 R0101 .......................1.3.27
NOR 000 000 506 020 ......................1.2.70
NOR 000 000 506 021 ......................1.2.70
NOR 000 000 506 022 ......................1.2.70
NOR 000 000 507 319 ......................1.2.79
NOR 000 000 507 385 ......................1.2.79
NOR 000 000 507 393 ......................1.2.79
NOR 000 000 511 300 ......................1.4.58
NOR 000 000 511 300 ......................1.4.65
NOR 000 000 514 529 ......................1.4.53
NOR 000 000 514 530 ......................1.4.53
NOR 000 000 514 687 ......................1.4.53
NOR 000 005 009 162 ....................1.2.112
NOR 000 005 009 196 ....................1.2.112
NOR 000 005 009 196 ........................1.4.9
NOR 000 005 009 211 ....................1.2.112
NOR 000 005 009 229 ....................1.2.112
NOR 000 005 009 261 ....................1.2.112
NOR 000 005 060 070 ........................1.4.9
NOR 000 005 060 072 ........................1.4.9
NOR 000 005 060 300 ......................1.2.69
NOR 000 005 060 302 ......................1.2.75
NOR 000 005 060 308 ......................1.2.69
NOR 000 005 060 310 ......................1.2.75
NOR 000 005 060 316 ......................1.2.69
NOR 000 005 060 318 ......................1.2.75
NOR 000 005 060 334 ......................1.2.69
NOR 000 005 060 335 ......................1.2.69
NOR 000 005 060 336 ......................1.2.69
NOR 000 005 060 346 ......................1.2.69
NOR 000 005 060 348 ......................1.2.75
NOR 000 005 060 354 ......................1.2.69
NOR 000 005 060 362 ......................1.2.69
NOR 000 005 060 434 ......................1.2.69
NOR 000 005 060 435 ......................1.2.69
NOR 000 005 060 436 ......................1.2.69
NOR 000 005 060 500 ......................1.2.69
NOR 000 005 060 508 ......................1.2.69
NOR 000 005 060 516 ......................1.2.69
NOR 000 005 060 546 ......................1.2.69
NOR 000 005 060 554 ......................1.2.69
NOR 000 005 060 562 ......................1.2.69
NOR 000 005 060 569 ......................1.2.69
NOR 000 005 060 580 ......................1.2.75
NOR 000 005 060 581 ......................1.2.75
NOR 000 005 060 582 ......................1.2.75
NOR 000 005 060 583 ......................1.2.75
NOR 000 005 060 669 ......................1.2.69
NOR 000 005 060 820 ......................1.3.23
NOR 000 005 070 022 ......................1.2.79
NOR 000 005 070 030 ......................1.2.79
NOR 000 005 070 064 ......................1.2.79
NOR 000 005 070 300 ......................1.2.79
NOR 000 005 070 308 ......................1.2.79
NOR 000 005 070 316 ......................1.2.79
NOR 000 005 070 328 ......................1.2.79
NOR 000 005 070 333 ......................1.2.79
NOR 000 005 070 402 ......................1.2.79
NOR 000 005 070 428 ......................1.2.79
NOR 000 005 110 753 ......................1.4.16
NOR 000 005 110 761 ......................1.4.16
NOR 000 005 110 763 ......................1.4.16
NOR 000 005 110 828 ......................1.4.17
NOR 000 005 110 828 ....................1.4.17
NOR 000 005 110 828 ....................1.4.26
NOR 000 005 110 836 ....................1.4.17
NOR 000 005 110 836 ....................1.4.26
NOR 000 005 110 852 ....................1.4.17
EATON’S CROUSE-HINDS BUSINESS
NOR 000 005 110 852 ....................1.4.26
NOR 000 005 110 860 ......................1.4.26
NOR 000 005 110 860 ....................1.4.17
NOR 000 005 110 878 ....................1.4.17
NOR 000 005 110 878 ....................1.4.26
NOR 000 005 110 886 ....................1.4.17
NOR 000 005 110 886 ....................1.4.26
NOR 000 005 110 894 ......................1.4.26
NOR 000 005 110 894 ....................1.4.17
NOR 000 005 110 901 ....................1.4.17
NOR 000 005 110 901 ....................1.4.26
NOR 000 005 110 935 ......................1.4.26
NOR 000 005 110 935 ....................1.4.17
NOR 000 005 110 943 ....................1.4.17
NOR 000 005 110 943 ....................1.4.26
NOR 000 005 110 951 ....................1.4.17
NOR 000 005 110 951 ....................1.4.26
NOR 000 005 120 123 ........................1.4.8
NOR 000 005 120 124 ........................1.4.8
NOR 000 005 120 439 ........................1.4.9
NOR 000 005 140 010 ......................1.4.53
NOR 000 005 140 011 ......................1.4.53
NOR 000 005 140 700 ......................1.4.53
NOR 000 005 140 776 ......................1.4.53
NOR 000 005 140 809 ......................1.4.53
NOR 000 005 140 897 ......................1.4.53
NOR 000 005 140 898 ......................1.4.53
NOR 000 005 140 900 ......................1.4.53
NOR 000 005 140 906 ......................1.4.53
NOR 000 005 140 919 ......................1.4.53
NOR 000 005 160 013 ......................1.3.23
NOR 000 005 160 014 ......................1.3.23
NOR 000 005 160 055 ......................1.3.23
NOR 000 005 160 056 ......................1.3.23
NOR 000 005 170 583 ......................1.4.33
NOR 000 005 170 591 ......................1.4.33
NOR 000 005 170 608 ......................1.4.33
NOR 000 005 170 715 ....................1.4.33
NOR 000 005 180 021 ......................1.4.65
NOR 000 005 180 022 ......................1.4.65
NOR 000 005 180 024 ......................1.4.65
NOR 000 005 180 025 ......................1.4.65
NOR 000 005 180 027 ......................1.4.65
NOR 000 005 180 028 ......................1.4.65
NOR 000 005 190 021 ......................1.4.40
NOR 000 005 190 022 ......................1.4.40
NOR 000 005 190 023 ......................1.4.40
NOR 000 005 190 026 ......................1.4.40
NOR 000 005 192 501 ......................1.4.39
NOR 000 005 192 502 ......................1.4.39
NOR 000 005 192 503 ......................1.4.39
NOR 000 005 192 504 ......................1.4.39
NOR 000 005 192 505 ......................1.4.39
NOR 000 005 192 506 ......................1.4.39
NOR 000 005 192 507 ......................1.4.39
NOR 000 005 192 508 ......................1.4.39
NOR 000 005 194 001 ......................1.4.39
NOR 000 005 194 002 ......................1.4.39
NOR 000 005 194 003 ......................1.4.39
NOR 000 005 194 004 ......................1.4.39
NOR 000 005 194 005 ......................1.4.39
NOR 000 005 194 006 ......................1.4.39
NOR 000 005 194 007 ......................1.4.39
NOR 000 005 194 008 ......................1.4.39
NOR 000 005 194 101 ......................1.4.39
NOR 000 005 194 102 ......................1.4.39
NOR 000 005 194 103 ......................1.4.39
NOR 000 005 194 104 ......................1.4.39
NOR 000 005 194 105 ......................1.4.39
NOR 000 005 194 106 ......................1.4.39
NOR 000 005 194 107 ......................1.4.39
NOR 000 005 194 108 ......................1.4.39
NOR 000 115 110 289 ......................1.4.16
NOR 000 115 110 320 ......................1.4.16
NOR 000 115 110 389 ......................1.4.16
NOR 000 115 110 396 ......................1.4.16
NOR 000 115 110 397 ......................1.4.16
NOR 000 115 110 420 ......................1.4.16
NOR 000 115 110 437 ......................1.4.16
NOR 000 115 110 438 ......................1.4.16
NOR 000 115 110 496 ......................1.4.16
NOR 000 115 110 497 ......................1.4.16
NOR 000 115 110 600 ......................1.4.17
NOR 000 115 110 605 ......................1.4.17
NOR 000 115 110 610 ......................1.4.17
NOR 000 115 110 630 ......................1.4.17
NOR 000 115 110 718 ......................1.4.17
NOR 000 115 110 753 ......................1.4.16
NOR 000 115 110 850 ......................1.4.17
NOR 000 115 110 852 ......................1.4.17
NOR 000 115 110 854 ......................1.4.17
NOR 000 115 110 856 ......................1.4.17
NOR 000 115 110 863 ......................1.4.16
NOR 000 115 110 864 ......................1.4.16
NOR 000 115 110 875 ......................1.4.17
NOR 000 115 110 879 ......................1.4.25
NOR 000 115 110 880 ......................1.4.25
NOR 000 115 110 881 ......................1.4.25
NOR 000 115 110 882 ......................1.4.25
NOR 000 115 110 883 ......................1.4.25
NOR 000 115 110 884 ......................1.4.25
NOR 000 115 110 885 ......................1.4.25
NOR 000 115 110 886 ......................1.4.25
NOR 000 115 110 887 ......................1.4.25
NOR 000 115 110 888 ......................1.4.25
NOR 000 115 110 889 ......................1.4.25
NOR 000 115 110 890 ......................1.4.16
NOR 000 115 110 891 ......................1.4.16
NOR 000 115 110 893 ......................1.4.16
NOR 000 115 110 904 ......................1.4.16
NOR 000 115 110 905 ......................1.4.16
NOR 000 115 110 906 ......................1.4.16
NOR 000 115 110 907 ......................1.4.16
NOR 000 115 110 941 ......................1.4.16
NOR 000 115 110 942 ......................1.4.16
NOR 000 115 110 943 ......................1.4.16
NOR 000 115 110 944 ......................1.4.16
NOR 000 115 110 945 ......................1.4.25
NOR 000 115 110 990 ......................1.4.16
NOR 000 115 110 991 ......................1.4.16
NOR 000 115 170 209 ......................1.4.33
NOR 000 115 170 215 ......................1.4.33
NOR 000 115 170 221 ......................1.4.33
NOR 000 115 170 222 ......................1.4.33
NOR 000 115 170 227 ......................1.4.33
NOR 000 115 170 230 ......................1.4.33
NOR 000 115 170 233 ......................1.4.33
NOR 000 115 170 251 ......................1.4.33
NOR 000 115 170 257 ......................1.4.33
NOR 000 115 170 309 ......................1.4.33
NOR 000 115 170 315 ......................1.4.33
NOR 000 115 170 321 ......................1.4.33
NOR 000 115 170 322 ......................1.4.33
NOR 000 115 170 327 ......................1.4.33
NOR 000 115 170 333 ......................1.4.33
NOR 003 045 060 403 ......................1.2.70
NOR 003 045 060 403 ......................1.2.75
NOR 003 045 060 411 ......................1.2.70
NOR 003 045 060 411 ......................1.2.75
NOR 003 045 060 429 ......................1.2.70
NOR 003 045 060 429 ......................1.2.75
NOR 003 045 060 471 ........................1.4.9
NOR 003 045 060 471 ........................1.4.9
NOR 003 045 060 479 ......................1.2.70
NOR 003 045 060 479 ......................1.2.75
NOR 003 045 060 487 ......................1.2.70
Index of order code
NOR 003 045 060 487 ......................1.2.75
NOR 003 045 060 495 ......................1.2.70
NOR 003 045 060 495 ......................1.2.75
NOR 003 045 060 819 ........................1.4.9
NOR 003 165 060 403 ......................1.2.70
NOR 003 165 060 403 ......................1.2.75
NOR 003 165 060 411 ......................1.2.70
NOR 003 165 060 411 ......................1.2.75
NOR 003 165 060 429 ......................1.2.70
NOR 003 165 060 429 ......................1.2.75
NOR 003 165 060 471 ........................1.4.9
NOR 003 165 060 479 ......................1.2.70
NOR 003 165 060 479 ......................1.2.75
NOR 003 165 060 487 ......................1.2.70
NOR 003 165 060 487 ......................1.2.75
NOR 003 165 060 495 ......................1.2.70
NOR 003 165 060 495 ......................1.2.75
NOR 003 165 060 819 ........................1.4.9
NOR 003 165 110 000 ......................1.4.17
NOR 003 165 110 001 ......................1.4.17
5
EATON’S CROUSE-HINDS BUSINESS
1.5.5
Eaton’s Crouse-Hinds Business
The safety you rely on.
See the complete offering of Hazardous and Industrial Products at www.crouse-hinds.de.
U.S. (Global Headquarters):
Eaton's Crouse-Hinds
Business
1201 Wolf Street
Syracuse, NY 13208
(866) 764-5454
FAX: (315) 477-5179
FAX Orders Only:
(866) 653-0640
crouse.customerctr@
cooperindustries.com
For more information:
If further assistance is
required, please contact
an authorized Eaton
Distributor, Sales Office,
or Customer Service
Department.
Australia
Phone +61-2-8787-2777
Fax
+61-2-9609-2342
CEASales@
cooperindustries.com
Korea
Phone +82-2-3484-6783
Fax
+82-2-3484-6778
CCHK-sales@
cooperindustries.com
The Netherlands
Phone +31-10-2452145
Fax
+31-10-2452121
sales.CCH.nl@
cooperindustries.com
China
Phone +86-21-2899-3600
Fax
+86-21-2899-4055
cchsales@cooperindustries.com
Mexico/Latin America/
Caribbean
Phone +52-555-804-4000
Fax
+52-555-804-4020
mxmercadotecnia@
cooperindustries.com
Norway
Phone +47-32-244600
Fax
+47-32-244646
sales.CCH.no@
cooperindustries.com
Great Britain
Phone +44-247-630-89 30
Fax
+44-247-630-10 27
sales.CCH.gb@
cooperindustries.com
India
Phone +91-124-4683888
Fax
+91-124-4683899
cchindia@cooperindustries.com
Canada
Toll Free +1-800-265-0502
Fax
+1-800-263-9504
Fax orders only:
+1-866-653-0645
Spain
Phone +34-9-37362710
Fax
+34-9-37835055
sales.CCH.es@
cooperindustries.com
Middle East (Dubai)
Phone +971-4-427-2522 / 2500
Fax
+971-4-429-8521
sales.CCH.me@
cooperindustries.com
Singapore:
Phone +65-6645-9888
Fax
+65-6297-4819
chsi-sales@
cooperindustries.com
Turkey
Phone +90-216-464-20-20
Fax
+90-216-464-20-10
infoEGTurkey@eaton.com
Russia
Phone +7-495 510-24-27
Fax
+7-495 510-24-28
info@cooper.ru.com
www.cooper-russia.ru
Eaton’s Crouse-Hinds Business
Neuer Weg – Nord 49
D-69412 Eberbach
Phone +49 (0) 6271/806-500
Fax +49 (0) 6271/806-476
E-mail info-ex@eaton.com
Internet www.crouse-hinds.de
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2014 Eaton Corporation
All Rights Reserved
Printed in USA
Publication No. BR 2236
August 2014
Changes to the products, to the information contained in this document, and to prices are
reserved; so are errors and omissions. Only order confirmations and technical documentation
by Eaton is binding. Photos and pictures also do not warrant a specific layout or functionality.
Their use in whatever form is subject to prior approval by Eaton. The same applies to
Trademarks (especially Eaton, Moeller, and Cutler-Hammer). The Terms and Conditions of
Eaton apply, as referenced on Eaton Internet pages and Eaton order confirmations.
Eaton’s Crouse-Hinds Business
1201 Wolf Street
Syracuse, NY 13208
(866) 764-5454
crouse.customerctr@cooperindustries.com
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
