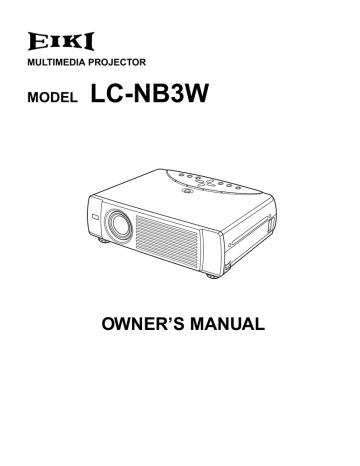

MULTIMEDIA PROJECTOR
MODEL
LC-NB3W
OWNER’S MANUAL
TO THE OWNER
Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible.
Eye damage could result. Be especially careful that children do not stare directly into the beam.
● This projector should be set in the way indicated. If not, it may result in a fire hazard.
● Take appropriate space on the top, sides and rear of the projector
cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.
SIDE and TOP
REAR
20cm
50cm
50cm
50cm
● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.
● Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser
Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate
laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye
damage may result.
● If the projector is not to be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
2
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Follow all warnings and instructions marked on the projector.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
3
COMPLIANCES
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number
Trade Name
Responsible party
Address
Telephone No.
: LC-NB3W
: EIKI
: EIKI International, Inc.
: 26794 Vista Terrace Drive, Lake Forest, CA 92630-8113
: 800-242-3454 (949-457-0200)
AC POWER CORD REQUIREMENT
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be
sure that the plug will fit into the power outlet. Do not try to defeat this safety feature.
Should you be unable to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
4
TABLE OF CONTENTS
FEATURES AND DESIGN
PREPARATION
6
7
COMPUTER INPUT
SELECTING INPUT SOURCE
SELECTING COMPUTER SYSTEM
COMPATIBLE COMPUTER SPECIFICATIONS
PC ADJUSTMENT
NAME OF EACH PART OF PROJECTOR
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
POSITIONING PROJECTOR
ADJUSTABLE FEET
MOVING PROJECTOR
7
8
8
9
9
10
CONNECTING PROJECTOR
11
TERMINALS OF PROJECTOR
CONNECTING TO COMPUTER
CONNECTING TO VIDEO EQUIPMENT
11
12
13
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
LASER POINTER FUNCTION
REMOTE CONTROL BATTERIES INSTALLATION
TOP CONTROLS AND INDICATORS
OPERATING ON-SCREEN MENU
HOW TO OPERATE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
MENU BAR
BASIC OPERATION
TURNING ON / OFF PROJECTOR
ADJUSTING SCREEN
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
KEYSTONE ADJUSTMENT
PICTURE FREEZE FUNCTION
NO SHOW FUNCTION
P-TIMER FUNCTION
SOUND ADJUSTMENT
14
14
14
15
16
17
17
17
18
19
19
20
20
20
20
20
21
21
AUTO PC ADJUSTMENT
MANUAL PC ADJUSTMENT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
VIDEO INPUT
SELECTING INPUT SOURCE
SELECTING VIDEO SYSTEM
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
SETTING
SETTING MENU
APPENDIX
OPERATING WIRELESS MOUSE
MAINTENANCE
22
22
22
23
24
24
25
27
27
28
29
30
30
31
32
32
33
34
35
35
37
37
38
WARNING TEMP. INDICATOR
AIR FILTER CARE AND CLEANING
CLEANING PROJECTION LENS
LAMP REPLACEMENT
LAMP REPLACE COUNTER
38
38
38
39
39
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
40
42
21
TRADEMARKS
● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
● Windows and PowerPoint are registered trademarks of Microsoft Corporation.
● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
5
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
◆
Compact Design
This projector is extremely compact in size and weight.
It is designed to carry and work anywhere you wish to
use.
◆
Compatibility
This projector widely accepts various video and
computer input signals including;
● Computers
IBM-compatible or Macintosh computer up to 1280
x 1024 resolution.
● 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.
● Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
● S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
◆
High Resolution Image
This projector provides 800 x 600 dots resolution for
computer input and 750 horizontal TV lines. Resolution
from a computer between SVGA (800 x 600) and SXGA
(1280 x 1024) is compressed into 800 x 600 dots. This
projector cannot display image of over 1280 x 1024 dots.
When resolution of your computer is over than 1280 x
1024, reset a computer output for lower resolution.
◆
Multi-Scan System
This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.
◆
One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.
◆
Digital Zoom (for Computer)
Digital Zoom function adjusts the image size to approx.
1/4 ~ 49 times of original image size, allowing you to
focus on crucial information at a presentation.
◆
Keystone Correction
Positioning height of a projector may result in distorted
image being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
◆
Power Management
Power Management function is provided to reduce power
consumption while a projector is not in use.
This Power Management function operates to turn
Projection Lamp off when a projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when a projector detects signal or any operation
button is pressed.
This projector is shipped with this function ON.
◆
Digital Visual Interface
This projector is equipped with DVI 24-pin terminal for
connecting DVI output from a computer.
◆
Laser Pointer Function
Remote Control Unit supplied with this projector includes
Laser Pointer function. This function helps you to make
a smart presentation on a projected screen.
◆
Wireless Mouse
Remote Control Unit supplied with this projector has
Wireless Mouse function for a connected computer. This
function enables you to operate both projector and
computer with Remote Control Unit only.
◆
Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Chinese, Korean or Japanese.
◆
Media Card Imager (Optional)
Optional Media Card Imager is available for this
projector. Contact the sales dealer where you
purchased this projector for optional parts.
6
PREPARATION
NAME OF EACH PART OF PROJECTOR
FRONT
EXHAUST VENTS
HOT AIR EXHAUSTED !
Air blown from Exhaust Vents is hot.
When using or installing projector,
following precautions should be taken.
● Do not put any flammable object near
these vents.
● Keep front grills at least 3’(1m) away
from any object, especially heatsensitive object.
● Do not touch this area, especially screw
and metallic part. This area will become
hot while a projector is used.
This projector detects internal
temperature and automatically controls
operating power of Cooling Fans.
CARRY HANDLE
INFRARED
REMOTE RECEIVER
PROJECTION LENS
LENS COVER
BACK
TOP CONTROLS
AND INDICATORS
INFRARED
REMOTE RECEIVER
SPEAKER
TERMINALS
AND CONNECTORS
POWER CORD CONNECTOR
BOTTOM
AIR FILTER
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
AIR INTAKE VENTS
(Back and Bottom)
This projector is equipped with Cooling
Fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.
● Do not cover vent slots.
● Keep back and bottom clear of any
object. Obstructions may block
cooling air.
7
PREPARATION
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being in use.
Connect a projector with a peripheral equipment before turning a
projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug AC Power Cord when an appliance is not
used.
When this projector is connected to the outlet with AC Power
Cord, an appliance is in Stand-by Mode and consumes a little
electric power.
Connect AC Power Cord (supplied) to a projector.
The AC outlet must be near this equipment and
must be easily accessible.
NOTE ON THE POWER CORD
The AC Power Cord must meet the requirement of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.
Projector side
AC Outlet side
For the U.S.A. and Canada
For Continental Europe
Ground
To the POWER CORD
CONNECTOR on the
projector.
8
To the AC Outlet.
(120 V AC)
To the AC Outlet.
(200 - 240 V AC)
PREPARATION
POSITIONING PROJECTOR
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 5.3’(1.6m) ~ 40.0’(12.2m).
● Refer to the figure below to adjust a screen size.
ROOM LIGHT
The brightness in a room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide the best
image.
40.0’ (12.2m)
300”
26.6’ (8.1m)
Max. Zoom
20.0’ (6.1m)
200”
230”
13.1’ (4.0m)
Min. Zoom
150”
5.3’ (1.6m)
H1
153”
100”
115”
77”
40”
H2
31”
Screen Size
(W x H) mm
31”
40”
100”
150”
200”
300”
629.9 x 472.4
812.8 x 609.6
2032 x 1524
3048 x 2286
4064 x 3048
6096 x 4572
Height (H1)
16.7”(425.16mm)
21.6”(548.64mm)
54”(1371.6mm)
81”(2057.4mm)
108”(2743.2mm)
162”(4114.8mm)
Height (H2)
1.9”(47.24mm)
2.4”(60.96mm)
6”(152.4mm)
9”(228.6mm)
12”(304.8mm)
18”(457.2mm)
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by rotating
ADJUSTABLE FEET. Projection angle can be adjusted to 15.6
degrees.
1
Lift the front of a projector and pull FEET LOCK LATCHES
on the both sides of a projector.
2
Release FEET LOCK LATCHES to lock ADJUSTABLE FEET
and rotate ADJUSTABLE FEET to fine tune position and tilt.
3
To retract ADJUSTABLE FEET, lift the front of a projector
and pull and undo FEET LOCK LATCHES.
Keystone distortion of a projected image can be adjusted by
Menu Operation. (Refer to P20 and 35.)
CAUTION
Avoid positioning a projector with the angle of more than 20
degrees. Projection Lamp may malfunction.
ADJUSTABLE FEET
FEET LOCK
LATCHES
9
PREPARATION
MOVING PROJECTOR
Use Carry Handle when moving a projector.
When moving a projector, replace Lens Cover and retract
Adjustable Feet to prevent damage to the lens and cabinet.
When a projector is not in use for an extended period, put it into
the case (carrying bag) supplied with a projector.
CAUTION
Carrying Bag (supplied) is intended for protection from dust and
scratches on the surface of a cabinet, and it is not designed to
protect an appliance from external forces. Do not transport a
projector through a courier or transport services with this bag. The
projector can be damaged. When handling a projector, do not
drop, bump, subject it to strong forces or put other things on the
cabinet.
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
● Do not drop or bump a projector, otherwise damages or malfunctions may result.
● When carrying a projector, use a suitable carrying case.
● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause
damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best
way.
10
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on
pages 11 to 13 and connect properly.
S-VIDEO INPUT JACK
AUDIO INPUT JACKS
VIDEO INPUT JACKS
AUDIO OUTPUT JACKS
Connect the S-VIDEO
output from video
equipment to this
jack. (Refer to P12.)
Connect the audio output
from video equipment to
these jacks.
(Refer to P12.)
● When the audio output
is monaural, connect it
to L (MONO) jack.
Connect the composite video
output from video equipment
to VIDEO/Y jack or connect
the component video outputs
to VIDEO/Y, Pb/Cb and
Pr/Cr jacks. (Refer to P12.)
Connect an external
audio amplifier to these
jacks.
(Refer to P12, 13.)
RESET BUTTON
COMPUTER IN
DIGITAL
R – AUDIO IN – L (MONO)
S – VIDEO
VIDEO
Y – Pb / Cb – Pr / Cr
AUDIO IN
COMPUTER
R – AUDIO OUT – L
RESET
This projector uses a micro
processor to control this unit,
and occasionally, this micro
processor may malfunction
and need to be reset. This
can be done by pressing
RESET button with a pen,
which will shut down and
restart the unit. Do not use
RESET function excessively.
MCI
COMPUTER IN
ANALOG
USB
CONTROL PORT
CONTROL PORT CONNECTOR
When controlling the computer
with Remote Control Unit of
this projector, connect the
mouse port of your personal
computer to this connector.
(Refer to P13.)
COMPUTER INPUT
TERMINALS (DIGITAL/ANALOG)
COMPUTER AUDIO
INPUT JACK
Connect the computer
(digital/analog) output to
one of these terminals.
(Refer to P13.)
Connect the audio output
(stereo) from computer to
this jack. (Refer to P13.)
USB CONNECTOR (Series B)
When controlling the computer
with Remote Control Unit of this
projector, connect USB port of
your personal computer to this
connector. (Refer to P13.)
✽ Do not press this button. This button
is used for our optional accessories.
11
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
Cables used for connection
(✽ = Cable or adapter is not supplied with this projector.)
• VGA Cable (HDB 15 pin)
• USB Cable ✽
• MAC Adapter (When connecting to Macintosh computer)
• Control Cable for PS/2 Port
• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1) ✽
• DVI-Digital Cable (for Single Link T.M.D.S.) ✽
• Control Cable for Serial Port ✽, or ADB Port ✽
✽
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)
Desktop type
Monitor Output
Monitor Output
Laptop type
Audio Output
USB port
MAC Adapter ✽
Set slide switches
according to the
chart below.
Audio
Cable ✽
(stereo)
DVI
Cable ✽
USB
Cable ✽
Serial port
Control Cable
for Serial Port ✽
Terminal
PS/2 port
Control Cable
for PS/2 Port
Terminal
ADB port
Control Cable
for ADB Port ✽
Terminal
VGA Cable
COMPUTER IN DIGITAL
COMPUTER IN
DIGITAL
COMPUTER AUDIO IN
R – AUDIO IN – L (MONO)
Use one of these Control
Cables corresponding with
the terminal of your
computer.
USB
VIDEO
Y – Pb / Cb – Pr / Cr
CONTROL PORT
COMPUTER IN ANALOG
AUDIO IN
COMPUTER
S – VIDEO
R – AUDIO OUT – L
RESET
MCI
COMPUTER IN
ANALOG
USB
CONTROL PORT
Terminals
of the Projector
AUDIO OUT
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet. Turn the projector and
peripheral equipment on before the
computer is switched on.
Audio Cable
(stereo) ✽
◆ MAC ADAPTER (Not supplied)
Set switches as shown in the table
below depending on RESOLUTION MODE that you want to use
before you turn on projector and
computer.
1
13" MODE (640 x 480)
ON
16" MODE (832 x 624) OFF
19" MODE (1024 x 768) OFF
21" MODE (1152 x 870) ON
12
2
ON
ON
ON
ON
ON
ON
Audio Input
DIP
1 2 3 4 5 6
External Audio Equipment
OFF
3
4
5
6
OFF OFF OFF OFF
OFF ON OFF OFF
ON OFF OFF OFF
ON ON OFF OFF
Audio Amplifier
Audio Speaker
(stereo)
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Cables used for connection
(✽ = Cable is not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3) ✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
Video Source (example)
Component video output equipment.
Video Cassette Recorder
Composite
Video Output
S-VIDEO Output
S-VIDEO
Cable ✽
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Video Cable
(RCA x 1) ✽
S-VIDEO
Video Cable
(RCA x 3) ✽
Y - Pb/Cb - Cr/Pr
VIDEO
COMPUTER IN
DIGITAL
R – AUDIO IN – L (MONO)
Audio Output
(R, L)
Audio Cable
(RCA x 2) ✽
AUDIO IN
VIDEO
Y – Pb / Cb – Pr / Cr
AUDIO IN
COMPUTER
S – VIDEO
Use any of VIDEO jack Y-Pb/CbPr/Cr jacks or S-VIDEO jack.
• When both VIDEO jack and SVIDEO jack are connected, SVIDEO jack has priority over
VIDEO jack.
• When both Y-Pb/Cb-Pr/Cr jacks
and S-VIDEO jack are connected,
Y-Pb/Cb-Pr/Cr jacks has priority
over S-VIDEO jack.
(such as DVD player or high-definition TV source.)
Video Disc Player
R – AUDIO OUT – L
RESET
MCI
COMPUTER IN
ANALOG
USB
CONTROL PORT
AUDIO OUT
Terminals
of the Projector
Audio Cable
(Stereo) ✽
Audio Input
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet.
External Audio Equipment
Audio Speaker
Audio Amplifier
(stereo)
13
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
Left Side
LASER POINTER INDICATOR
POWER ON-OFF BUTTON
ON
Lights red while laser beam
is emitted from Laser Light
Window.
ON-OFF
ZOOM
Used to turn projector on or
off. (P19)
FOCUS VOLUME
LOCK
F
ALL OF
INPUT BUTTON
Used to select input source.
(P22, 30)
MUTE D.ZOOM INPUT
MENU BUTTON
POINT BUTTON
Used to select MENU
operation. (P17, 18)
Used to move a pointer on ONSCREEN MENU, adjust each
item, or pan image in DIGITAL
ZOOM +/– mode. (P29)
It is also used as a PC mouse
in Wireless Mouse Operation.
(P37)
MENU
SELECT BUTTON
ALL-OFF SWITCH
When using Remote Control Unit,
turn this switch to “ON.” And turn it
to “ALL OFF” when it is not used.
Used to execute the item
selected, or to expand or
compress the image in
DIGITAL ZOOM +/– mode.
(P29)
It is also used as a PC
mouse in Wireless Mouse
Operation. (P37)
LASER BUTTON
LASER
RIGHT CLICK BUTTON
KEYSTONE
NO SHOW
FREEZE
AUTO PC ADJ.
Used to operate Laser Pointer
Function. Laser beam is
emitted while pressing this
button within 1 minute.
When using this Laser Pointer
for more than 1 minute, release
LASER button and press it
again.
✽ When pressing the center of this
button, it works as SELECT
button.
Used as a PC mouse in
Wireless Mouse Operation.
(P37)
P-TIMER
P-TIMER BUTTON
Used to operate P-TIMER
function. (P21)
LASER POINTER FUNCTION
This Remote Control Unit emits a laser beam as the laser pointer function from Laser Light Window. When LASER button is
pressed, the laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is
released, light goes off. LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser
beam is being emitted.
The laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine the laser beam on yourself or
other people. The three marks bellow are the caution labels for the laser beam.
CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result
hazardous radiation exposure.
These caution labels are put on the remote control.
LASER POINTER INDICATOR
Laser Light Window
14
BEFORE OPERATION
Operating Range
ZOOM BUTTON
ON-OFF
Used to adjust zoom.
(P20)
ZOOM
FOCUS VOLUME
LOCK
FOCUS BUTTON
VOLUME BUTTON
Used to adjust volume.
(P21)
MUTE D.ZOOM INPUT
Used to adjust focus.
(P20)
Point Remote Control Unit toward
projector (Receiver Window)
whenever pressing any button.
Maximum operating range for
Remote Control Unit is about 16.4’
(5m) and 60° in front and rear of the
projector.
D.ZOOM BUTTON
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P29)
MENU
MUTE BUTTON
16.4’
(5 m)
Used to mute sound.(P21)
60°
LASER
NO SHOW BUTTON
FREEZE BUTTON
Used to turn the picture
into black image. (P21)
AUTO PC ADJ. BUTTON
KEYSTONE
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
Use to operate AUTO PC
Adjustment function. (P24)
Used to freeze the picture.
(P21)
IMAGE BUTTON
Used to select image
level. (P27, 32)
KEYSTONE BUTTON
Used
to
correct
keystone distortion.
(P20, 35)
60°
16.4’
(5 m)
Remote Control Batteries Installation
1
Remove the battery
compartment lid.
Press the lid downward and slide it.
2
Slide the batteries into
the compartment.
3
Replace the compartment
lid.
Two AA size batteries
For correct polarity (+
and –), be sure the
battery terminals are in
contact with the pins in
the compartment.
To insure safe operation, please observe the following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace two batteries at the same time.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose Remote Control Unit to moisture, or heat.
● Do not drop Remote Control Unit.
● If a battery has leaked on Remote Control Unit, carefully wipe the case clean and load new batteries.
15
BEFORE OPERATION
TOP CONTROLS AND INDICATORS
This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.
POWER ON–OFF BUTTON
Used to turn the projector
on or off. (P19)
WARNING TEMP. INDICATOR
READY INDICATOR
Flashes red when
internal
projector
temperature is too
high. (P38)
Lights green when the
projector is ready to be
turned on.
And it
flashes green in Power
Management mode.
(P36)
ON -- OFF
LAMP REPLACE INDICATOR
Turns to yellow when
the life of the projection
lamp draws to an end.
(P39)
LAMP INDICATOR
READY
WARNING
TEMP.
P
LAM ACE
L
REP
VOLUME –
Becomes dim when the
projector is turned on.
And bright when the
projector is in stand-by
mode.
LAM
P
VOLUME +
MENU BUTTON
Used to open or close
MENU operation. (P17,
18)
INPUT
MENU
SELECT
ZOOM
FOCUS
FOCUS BUTTON
Used to adjust focus.
(P20)
INPUT BUTTON
Used to select input
source. (P22, 30)
IMAGE BUTTON
Used to select image
level. (P27, 32)
16
POINT (VOLUME + / – ) BUTTONS
SELECT BUTTON
ZOOM BUTTON
Used to select an item or adjust
value in ON-SCREEN MENU. They
are also used to pan the image in
DIGITAL ZOOM +/– mode. (P29)
POINT LEFT/RIGHT buttons are
also used as VOLUME +/– buttons.
Used to execute the item
selected. It is also used
to expand / compress
the image in DIGITAL
ZOOM mode. (P29)
Used to adjust zoom.
(P20)
OPERATING ON-SCREEN MENU
HOW TO OPERATE ON-SCREEN MENU
You can control and adjust this projector through ON-SCREEN
MENU. Refer to the following pages to operate each adjustment
on ON-SCREEN MENU.
WIRELESS REMOTE CONTROL
POINT BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
1 DISPLAY MENU
Press MENU button to display ON-SCREEN MENU.
ON -- OFF
2 MOVING POINTER
Move the pointer (✽ see below) or adjust the value of item by
pressing POINT button(s) on Top Control or on Remote Control
Unit.
✽ Pointer is the icon on ON-SCREEN MENU to select the item.
See the figures on the section "FLOW OF ON-SCREEN MENU
OPERATION" below.
3 SELECT ITEM
Select the item or set selected function by pressing SELECT
button.
SELECT BUTTON
Used to select the item.
TOP CONTROL
WARNING
TEMP.
VOLUME –
READY
VOLUME +
POINT BUTTONS
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
SELECT
MENU
SELECT BUTTON
Used to select the item.
FLOW OF ON-SCREEN MENU OPERATION
Display ON-SCREEN MENU
1
MENU ICON
Press MENU button to display ON-SCREEN MENU (MENU
BAR). A red frame is POINTER.
Select Menu to be adjusted
2
MENU BAR
Move POINTER (red frame) to MENU ICON that you want to
select by pressing POINT RIGHT / LEFT buttons.
POINTER (red frame)
Press POINT DOWN button to
move POINTER.
POINTER
(red frame)
ITEM
Control or adjust item through ON-SCREEN MENU
3
4
Press POINT DOWN button and move POINTER (red frame
or red arrow) to ITEM that you want to adjust, and then press
SELECT button to show ITEM DATA.
SELECT
BUTTON
Adjust ITEM DATA by pressing POINT RIGHT / LEFT
buttons.
Refer to the following pages for details of respective
adjustments.
ITEM DATA
Press POINT LEFT/RIGHT
buttons to adjust value or
set function.
17
BEFORE OPERATION
MENU BAR
FOR PC SOURCE
Press MENU BUTTON while connecting to PC input source.
IMAGE SELECT MENU
SCREEN MENU
SETTING MENU
Used to adjust size
of image. [Normal
/ True / Wide /
Digital zoom +/–]
(Refer to P29)
Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P35, 36)
GUIDE WINDOW
PC SYSTEM MENU
Shows selected
item of ONSCREEN MENU.
Used to select
computer system.
(Refer to P22, 23)
Used to select
image level among
Standard, Real
and Image 1 ~ 4.
(Refer to P27)
INPUT MENU
PC ADJUST MENU
IMAGE ADJUST MENU
SOUND MENU
Used to select
input source either
Computer or
Video.
(Refer to P22)
Used to adjust
parameters to
match with input
signal format.
(Refer to P24-26)
Used to adjust
computer image.
[Contrast / Brightness
/ White Balance
(R/G/B) / Gamma]
(Refer to P28)
Used to adjust
volume or mute
sound.
(Refer to P21)
FOR VIDEO SOURCE
Press MENU BUTTON while connecting to VIDEO input source.
INPUT MENU
IMAGE SELECT MENU
Used to select
input source
either Video or
Computer.
(Refer to P30)
Used to select image
level among
Standard, Cinema
and Image 1 ~ 4.
(Refer to P32)
Same function as
Menu for PC source.
AV SYSTEM MENU
Used to select
system of selected
video source.
(Refer to P31)
Used to set size of
image to Normal
or Wide.
(Refer to P34)
IMAGE ADJUST MENU
Used to adjust picture image.
[Contrast / Brightness / Color /
Tint / White balance (R/G/B) /
Sharpness / Gamma]
(Refer to P33, 34)
18
SCREEN MENU
Same function as
Menu for PC source.
BASIC OPERATION
TURNING ON / OFF PROJECTOR
TURNING ON PROJECTOR
1
Complete peripheral connections (with Computer, VCR, etc.)
before turning on projector. (Refer to "CONNECTING TO
PROJECTOR" on pages 11~13 for connecting that equipment.)
2
Connect the projector's AC Power Cord into an AC outlet. LAMP
Indicator lights RED, and READY Indicator lights GREEN.
NOTE : When “On start” function is ON, this projector is turned
on automatically by connecting AC Power Cord to an
AC outlet. (Refer to pages 35, 36.)
3
30
Preparation Display disappears after 30 seconds.
Press POWER ON-OFF button on Top Control or on Remote
Control Unit to ON. LAMP Indicator dims, and Cooling Fans
start to operate. Preparation Display appears on a screen and
the count-down starts. The signal from PC or Video source
appears after 30 seconds.
TURNING OFF PROJECTOR
1
Press POWER ON-OFF button on Top Control or on Remote
Control Unit, and a message "Power off?" appears on a screen.
2
Press POWER ON-OFF button again to turn off projector. LAMP
Indicator lights bright and READY Indicator turns off. After
projector is turned off, Cooling Fans operate (for 90 seconds).
During this "Cooling Down" period, this appliance cannot be
turned on.
3
When projector has cooled down, READY Indicator lights
GREEN again and you can turn projector on. After cooling down
completely, disconnect AC Power Cord.
Power off?
Message disappears after 4 seconds.
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE
TURNING IT OFF.
When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically.
Refer to “Power Management” on pages 35 and 36.
When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on
projector again.
When WARNING TEMP. Indicator continues to flash, follow procedures below:
1. Press POWER ON-OFF button to turn a projector off and disconnect AC Power Cord from an AC outlet.
2. Check Air Filters for dust accumulation.
3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 38.)
4. Turn a projector on again.
If WARNING TEMP. Indicator should still continue to flash, contact the sales dealer where you purchased this projector or
service center.
19
BASIC OPERATION
ADJUSTING SCREEN
ZOOM ADJUSTMENT
1
Press ZOOM button on Top Control or ZOOM ▲/▼ button on
Remote Control Unit. The message “Zoom” is displayed.
2
Press ZOOM ▲ button or POINT UP button to make image
larger, and press ZOOM ▼ button or POINT DOWN button to
make image smaller.
Zoom
Message disappears after 4 seconds.
FOCUS ADJUSTMENT
1
Press FOCUS button on Top Control or FOCUS ▲/▼ button on
Remote Control Unit. The message “Focus” is displayed.
2
Adjust focus of image by pressing FOCUS ▲/▼ button or
POINT UP/DOWN button(s) .
Focus
Message disappears after 4 seconds.
KEYSTONE ADJUSTMENT
If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.
1
Press KEYSTONE ▲/▼ button on Remote Control Unit or select
Keystone on SETTING menu. (Refer to page 35.) Keystone
dialog box appears.
2
Correct keystone distortion by pressing KEYSTONE ▲/▼ button
or POINT UP/DOWN button(s). Press KEYSTONE ▲ button or
POINT UP button to reduce the upper part of image, and press
KEYSTONE ▼ button or POINT DOWN button to reduce the
lower part.
Reduce the upper width with KEY STONE ▲ button
or POINT UP button.
Reduce the lower width with KEY STONE ▼ button
or POINT DOWN button.
PICTURE FREEZE FUNCTION
Press FREEZE button on Remote Control Unit to freeze the picture
on-screen. To cancel FREEZE function, press FREEZE button again
or press any other button.
20
BASIC OPERATION
NO SHOW FUNCTION
Press NO SHOW button on Remote Control Unit to black out the
image. To restore to normal, press NO SHOW button again or press
any other button.
No show
Message disappears after 4 seconds.
P-TIMER FUNCTION
Press P-TIMER button on Remote Control unit. The timer display “00
: 00” appears on the screen and the timer starts to count time (00 : 00
~ 59 : 59).
To stop P-TIMER display, press P-TIMER button. And then, press PTIMER button again to cancel P-TIMER function.
SOUND ADJUSTMENT
Indicates roughly level of
volume.
DIRECT OPERATION
Volume
Press VOLUME (+/–) button(s) on Top Control or on Remote Control
Unit to adjust volume. Volume dialog box appears on the screen for a
few seconds.
(+) button to increase volume, and (–) button for decreasing.
Mute
Press MUTE button on Remote Control Unit to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–) button(s).
Press MUTE button to set
Mute function On or Off.
The display disappears after 4 seconds.
MENU OPERATION
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SOUND Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to select, and then press SELECT button.
SOUND MENU
SOUND Menu icon
Indicates roughly
level of volume.
Volume
To increase volume, press POINT RIGHT button, and press POINT
LEFT button for decreasing.
Close SOUND Menu.
Mute
Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box
display is changed to “On” and sound is cut off. To restore sound to
its previous level, press POINT LEFT/RIGHT button(s) again.
21
COMPUTER INPUT
SELECTING INPUT SOURCE
DIRECT OPERATION
INPUT button
Computer
Choose Computer by pressing INPUT button on Top Control or on
Remote Control Unit.
If projector cannot reproduce proper image, select correct input source
through MENU OPERATION (see below).
Video
MENU OPERATION
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to
Computer and then press SELECT button. Source Select Menu
will appear.
3
Move a pointer to either RGB (Digital) or RGB (Analog) and then
press SELECT button.
RGB (Digital)
When your computer is connected to COMPUTER
INPUT (DIGITAL) terminal, select RGB (Digital).
RGB (Analog)
When your computer is connected to COMPUTER
INPUT (ANALOG) terminal, select RGB (Analog).
INPUT MENU
INPUT Menu icon
Move a pointer (red arrow)
to Computer and press
SELECT button.
Computer
Source Select Menu
Move a pointer to RGB
(Digital) or RGB (Analog)
and press SELECT button.
SELECTING COMPUTER SYSTEM
This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to
“COMPATIBLE COMPUTER SPECIFICATION” on page 23). When selecting Computer, this projector automatically tunes
to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)
Note : Projector may display one of the following messages.
Auto
––––
When projector cannot recognize connected signal as PC
system provided in this projector, Auto PC Adjustment
function operates to adjust projector and the message
“Auto” is displayed on SYSTEM Menu icon. (Refer to
P24.) When image is not provided properly, manual
adjustment is required. (Refer to P25 and 26.)
PC SYSTEM MENU
SYSTEM Menu icon
Displays system being
selected.
There is no signal input from computer. Make sure the
connection of computer and a projector is set correctly.
(Refer to TROUBLESHOOTING on page 40.)
SELECT COMPUTER SYSTEM MANUALLY
This projector automatically selects PC system among those provided
in this projector and PC system can be also selected manually.
1
2
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
SYSTEM Menu icon.
Press POINT DOWN button to move a red arrow pointer to the
system that you want to set, and then press SELECT button.
PC SYSTEM MENU
SYSTEM Menu icon
Displays system being selected.
The systems on this dialog box
can be selected.
Custom Mode (1~5) set in PC
ADJUST Menu. (P25, 26)
22
COMPUTER INPUT
COMPATIBLE COMPUTER SPECIFICATIONS
Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100
MHz of Dot Clock.
ON-SCREEN
DISPLAY
VGA 1
VGA 2
VGA 3
VGA 4
VGA 5
VGA 6
VGA 7
MAC LC13
MAC 13
RGB
RGB
SVGA 1
SVGA 2
SVGA 3
SVGA 4
SVGA 5
SVGA 6
SVGA 7
SVGA 8
SVGA 9
SVGA 10
SVGA 11
MAC 16
XGA 1
XGA 2
RESOLUTION
640 x 480
720 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
––––––––
––––––––
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
H-Freq.
(kHz)
31.47
31.47
31.47
37.86
37.86
37.50
43.269
34.97
35.00
15.625
15.734
35.156
37.88
46.875
53.674
48.08
37.90
34.50
38.00
38.60
32.70
38.00
49.72
48.36
68.677
V-Freq.
(Hz)
59.88
70.09
70.09
74.38
72.81
75.00
85.00
66.60
66.67
50
(Interlace)
60
(Interlace)
56.25
60.32
75.00
85.06
72.19
61.03
55.38
60.51
60.31
51.09
60.51
74.55
60.00
84.997
ON-SCREEN
DISPLAY
XGA 3
XGA 4
XGA 5
XGA 6
XGA 7
XGA 8
XGA 9
XGA 10
XGA 11
XGA 12
XGA 13
XGA 14
XGA 15
MAC 19
MAC 21
SXGA 1
SXGA 11
SXGA 13
SXGA 14
SXGA 17
SXGA 18
720p (HDTV)
1035i (HDTV)
1080i (HDTV)
RESOLUTION
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 870
1152 x 864
1152 x 900
1280 x 1024
1280 x 1024
1152 x 900
1280 x 1024
––––––––
––––––––
––––––––
H-Freq.
(kHz)
60.023
56.476
60.31
48.50
44.00
63.48
36.00
62.04
61.00
35.522
46.90
47.00
58.03
60.24
68.68
64.20
61.20
50.00
50.00
61.85
46.43
45.00
33.75
33.75
V-Freq.
(Hz)
75.03
70.07
74.92
60.02
54.58
79.35
87.17
(Interlace)
77.07
75.70
86.96
(Interlace)
58.20
58.30
72.00
75.08
75.06
70.40
65.20
86.00
(Interlace)
94.00
(Interlace)
66.00
86.70
(Interlace)
60.00
60.00
(Interlace)
60.00
(Interlace)
When the input signal is from the COMPUTER INPUT DIGITAL terminal, refer to the chart below.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-VGA
D-SVGA
D-XGA
640 x 480
800 x 600
1024 x 768
31.469
37.879
48.363
59.940
60.317
60.004
D-SXGA2
D-SXGA3
1280 x 1024
1280 x 1024
60.276
31.65
58.069
29.8
(Interlace)
NOTE : Specifications are subject to change without notice.
23
COMPUTER INPUT
PC ADJUSTMENT
AUTO PC ADJUSTMENT
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your
computer. Auto PC Adjustment function can be operated as follows.
Auto PC Adj.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to
AUTO PC Adj. icon and then press SELECT button twice.
This Auto PC Adjustment can be also executed by pressing
AUTO PC ADJ. button on Remote Control Unit.
Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in PC SYSTEM Menu (P22). Refer to
step 3 of MANUAL PC ADJUSTMENT section (P26).
NOTE
● Fine sync, Total dots and Picture Position of some computers can
not be fully adjusted with this Auto PC Adjustment function. When
the image is not provided properly through this function, manual
adjustments are required. (Refer to page 25, 26.)
● Auto PC Adjustment function cannot be operated when “RGB,”
“720p (HDTV),” “1035i (HDTV)” or “1080i (HDTV)” is selected on PC
SYSTEM Menu (P22).
24
PC ADJUST MENU
PC ADJUST Menu icon
Move a red frame pointer to AUTO PC
Adj. icon and press SELECT button.
COMPUTER INPUT
MANUAL PC ADJUSTMENT
This projector can automatically tune to the display signals from most personal computers currently distributed. However,
some computers employ special signal formats which are different from the standard ones and may not be tuned by MultiScan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized
as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.
This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special
signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This
enables you to recall the setting for a specific computer whenever you use it.
Note : This PC ADJUST Menu cannot be operated when the input signal is from COMPUTER IN DIGITAL terminal or “RGB”
is selected on PC SYSTEM MENU (P22).
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SELECT button.
Adjustment dialog box will appear. Press POINT LEFT/RIGHT
button to adjust value.
Fine sync
PC ADJUST MENU
PC ADJUST Menu icon
Move a red frame icon to the item and
press SELECT button.
Adjusts an image as necessary to eliminate flicker from the display.
Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)
Total dots
The number of total dots in one horizontal period. Press POINT
LEFT/RIGHT button(s) and adjust number to match your PC image.
Selected Mode
Shows status
(Stored / Free) of the
selected Mode.
Horizontal
Adjusts horizontal picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Vertical
Adjusts vertical picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Press POINT LEFT/RIGHT
button to adjust the value.
Press SELECT button at this icon to
adjust “Clamp,” “Display area (H/V)” or
set “Full screen.”
Current mode
Press SELECT button to show the information of computer selected.
Clamp
Current mode
Adjusts clamp level. When the image has a dark bar(s), try this
adjustment.
Press SELECT button at
Current mode icon to show
the information of computer
connected.
25
COMPUTER INPUT
Display area
Selects area displayed with this projector. Select the resolution at
Display area dialog box.
Press SELECT button at
Display area icon and Display
area dialog box appears.
Display area H
Adjustment of horizontal area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SELECT button.
Display area
Display area V
Adjustment of vertical area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SELECT button.
Full screen
Press POINT LEFT
/RIGHT button(s) to
adjust value and then
press SELECT button.
Press POINT LEFT/RIGHT button(s) to switch Full screen function to
“On” or “Off.” Set “On” to resize the image with 4 x 3 aspect ratio to
fit the screen.
NOTE : Fine sync, Total dots, Display area (H/V) and Full screen
cannot be adjusted when “1035i (HDTV)” or “1080i (HDTV)”
is selected on PC SYSTEM Menu (P22).
3
To store adjustment data.
This Mode has parameters being stored.
Store
To store adjustment parameters, move a red frame pointer to
Store icon and then press SELECT button. Move a red arrow
pointer to any of Mode 1 to 5 that you want to store to and then
press SELECT button.
Mode free
To clear adjustment parameters previously set, move a red
frame pointer to Mode free icon and then SELECT button. Move
a red arrow pointer to the Mode that you want to clear and then
press SELECT button.
Other icons operates as follows.
Vacant Mode
Shows values of “Total dots,”
“Horizontal,” “Vertical,” “Display
area H,” and “Display area V.”
Store icon
Reset
Reset all adjust parameters on adjustment dialog box to previous
figure.
To clear adjustment data.
Quit
Closes PC ADJUST MENU.
Close this dialog box.
Mode free icon
26
COMPUTER INPUT
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, Real, Image 1, Image 2, Image 3
and Image 4 by pressing IMAGE button on Top Control or on Remote
Control Unit.
IMAGE button
Standard
Real
Standard
Normal picture level preset on this projector.
Image 1
Real
Picture level with improved halftone for graphics.
Image 2
IMAGE 1~4
User preset picture adjustment in IMAGE ADJUST Menu (P28).
Image 3
Image 4
IMAGE LEVEL SELECT (MENU)
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SELECT button.
IMAGE SELECT MENU
IMAGE SELECT
Menu icon
Standard
Normal picture level preset on this projector.
Real
Move a red frame pointer to the level
and press SELECT button.
Picture level with improved halftone for graphics.
IMAGE 1~4
The level being selected.
User preset picture adjustment in IMAGE ADJUST Menu (P28).
27
COMPUTER INPUT
IMAGE LEVEL ADJUSTMENT
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
IMAGE ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust. and then press SELECT button.
The level of each item is displayed. Adjust each level by
pressing POINT LEFT/RIGHT button(s).
IMAGE ADJUST MENU
Move a red frame pointer to
the item to be selected and
then press SELECT button.
IMAGE ADJUST
Menu icon
Contrast
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Brightness
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Selected Image level
White balance (Red)
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Press POINT LEFT/RIGHT buttons
to adjust value.
White balance (Blue)
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Gamma
Store icon
Press SELECT button at this icon to
store the adjustment.
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
3
Store
To store manually preset image, move a red frame pointer to
Store icon and press SELECT button. Image Level Menu will
appear. Move a red frame pointer to the Image 1 to 4 where you
want to set and then press SELECT button.
Other icons operates as follows.
Reset
Reset all adjustment to previous figure.
Quit
Closes IMAGE MENU.
28
Image Level Menu
Move a red frame pointer to any
of Image 1 to 4 where you want
to set and then press SELECT
button.
COMPUTER INPUT
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
2
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SELECT button.
SCREEN MENU
SCREEN Menu icon
Move the red frame to the function and
press SELECT button.
Normal
Provides image to fit screen size.
True
Provides image in its original size. When the original image size is
larger than screen size (800 x 600), this projector enters “Digital
zoom +” mode automatically.
Wide
Provides image to fit wide video aspect ratio (16 : 9) by expanding
image width uniformly. This function can be used for providing a
squeezed video signal at 16 : 9.
Digital zoom +
When Digital zoom + is selected, ON-SCREEN MENU disappears
and the message “D. Zoom +” is displayed. Press SELECT button to
expand image size. And press POINT UP/DOWN/LEFT/RIGHT
button(s) to pan the image. Panning function can work only when
the image is larger than screen size.
A projected image can be also expanded by pressing D.ZOOM ▲
button on Remote Control Unit.
Digital Zoom –
NOTE
● This SCREEN Menu cannot be operated when
“1035i (HDTV)” or “1080i (HDTV)” is selected on
PC SYSTEM Menu (P22).
● Wide cannot be selected when “720p (HDTV)” is
selected on PC SYSTEM Menu (P22).
● True and Digital zoom +/– cannot be selected
when “RGB” is selected on PC SYSTEM Menu
(P22).
● This projector cannot display any resolution higher
than 1280 X 1024. If your computer’s screen
resolution is higher than 1280 X 1024, reset the
resolution to the lower before connecting projector.
● The image data in other thanSVGA (800 x 600) is
modified to fit the screen size in initial mode.
● Panning function may not operate properly if the
computer system prepared on PC ADJUST Menu
is used.
When Digital zoom – is selected, ON-SCREEN MENU disappears
and the message “D. Zoom –” is displayed. Press SELECT button to
compress image size.
A projected image can be also compressed by pressing D.ZOOM ▼
button on Remote Control Unit.
To cancel Digital Zoom +/– mode, press any button except D.ZOOM
▲/▼, SELECT, POINT and LASER buttons.
29
VIDEO INPUT
SELECTING INPUT SOURCE
DIRECT OPERATION
INPUT button
Video
Choose Video by pressing INPUT button on Top Control or on Remote
Control Unit.
If projector cannot reproduce proper video source, select correct input
source through MENU OPERATION (see below).
Computer
MENU OPERATION
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to
Video and then press SELECT button. Source Select Menu will
appear.
3
Move a pointer to the source that you want to select and then
press SELECT button.
Auto
Projector automatically detects incoming Video signal,
and adjusts itself to optimize its performance.
• When both VIDEO jack and S-VIDEO jack are
connected, S-VIDEO jack has priority over VIDEO jack.
• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are
connected, Y-Pb/Cb-Pr/Cr jacks have priority over SVIDEO jack.
Video
When video input signal is connected to VIDEO jack,
select Video.
S-Video
When video input signal is connected to S-VIDEO jack,
select S-Video.
Y,Pb/Cb,Pr/Cr
30
When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
INPUT MENU
Move a pointer to Video and
press SELECT button.
VIDEO
Source Select Menu (VIDEO)
Move a pointer to the source and press SELECT button.
VIDEO INPUT
SELECTING VIDEO SYSTEM
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to AV
SYSTEM Menu icon.
2
Press POINT DOWN button to move a red arrow pointer to the
system that you want to select and then press SELECT button.
VIDEO JACK OR S-VIDEO JACK
Auto
Projector automatically detects incoming Video system, and adjusts
itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system manually.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
If projector cannot reproduce proper video image, it is necessary to
select a specific broadcast signal format among PAL, SECAM, NTSC,
NTSC 4.43, PAL-M, and PAL-N.
AV SYSTEM MENU (VIDEO OR S-VIDEO)
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press
SELECT button.
Y, Pb/Cb, Pr/Cr JACKS
Auto
Projector automatically detects incoming Video signal, and adjusts
itself to optimize its performance.
COMPONENT VIDEO SIGNAL FORMAT
If projector cannot reproduce proper video image, it is necessary to
select a specific component video signal format among 480i, 575i,
480p, 575p, 720p, 1035i and 1080i.
AV SYSTEM MENU (COMPONENT VIDEO)
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press
SELECT button.
31
VIDEO INPUT
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, Cinema, Image 1, Image 2,
Image 3 and Image 4 by pressing IMAGE button on Top Control or on
Remote Control Unit.
IMAGE button
Standard
Cinema
Standard
Normal picture level preset on this projector.
Image 1
Cinema
Picture level adjusted for the picture with fine tone.
Image 2
IMAGE 1~4
User preset picture adjustment in IMAGE ADJUST Menu (P34).
Image 3
Image 4
IMAGE LEVEL SELECT (MENU)
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SELECT button.
IMAGE SELECT MENU
IMAGE SELECT
Menu icon
Standard
Normal picture level preset on this projector.
Cinema
Picture level adjusted for the picture with fine tone.
IMAGE 1~4
User preset picture adjustment in IMAGE ADJUST Menu (P34).
32
Move the red frame pointer to the
level and press SELECT button.
The level being selected.
VIDEO INPUT
IMAGE LEVEL ADJUSTMENT
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
IMAGE ADJUST Menu icon.
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SELECT button.
The level of each item is displayed. Adjust each level by
pressing POINT LEFT/RIGHT button(s).
IMAGE ADJUST MENU
Move a red frame pointer to
the item to be selected and
then press SELECT button.
IMAGE ADJUST
Menu icon
Contrast
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Brightness
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Color
Press POINT LEFT button to lighten color, and POINT RIGHT button
to deeper color. (From 0 to 63.)
Press POINT LEFT/RIGHT buttons
to adjust value.
Tint
Press POINT LEFT button or POINT RIGHT button to obtain proper
color. (From 0 to 63.)
Press SELECT button at this icon to
display other items.
White balance (Red)
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press SELECT button at this icon to
display previous items.
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Blue)
Press POINT LEFT/RIGHT buttons
to adjust value.
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
Sharpness
Press POINT LEFT button to soften the image, and POINT RIGHT
button to sharpen the image. (From 0 to 31.)
Gamma
Press SELECT button at this icon to
store the value.
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
NOTE : Tint cannot be adjusted when the video system is PAL,
SECAM, PAL-M or PAL-N.
33
VIDEO INPUT
3
Store
To store the adjustment data, move a red frame pointer to Store
icon and press SELECT button. Image Level Menu will appear.
Move a red frame pointer to the Image Level 1 to 4 and then
press SELECT button.
Image Level Menu
Move a red frame pointer to
the image icon to be set
and then press SELECT
button.
Other icons operates as follows.
Reset
Reset all adjustment to previous figure.
Quit
Store icon
Closes IMAGE MENU.
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
2
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SELECT button.
Normal
SCREEN MENU
SCREEN Menu icon
Move the red frame to the function and
press SELECT button.
Provides image at a normal video aspect ratio of 4 : 3.
Wide
Provides image at a wide screen ratio of 16 : 9.
34
NOTE : SCREEN Menu cannot be operated when
“720p,” “1035i,” or “1080i” is selected on AV
SYSTEM Menu (P30).
SETTING
SETTING MENU
1
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red-frame pointer to
SETTING icon.
2
Press POINT DOWN button to move a red-frame pointer to the
item that you want to set and then press SELECT button.
Setting dialog box appears.
SETTING MENU
Set a red frame
pointer to the item
and press SELECT
button.
SETTING Menu icon
Language
Language used in ON-SCREEN MENU is selectable from among
English, German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Chinese, Korean and Japanese.
Keystone
When the image is distorted vertically, select Keystone. ONSCREEN MENU disappears and Keystone dialog box is displayed.
Correct keystone distortion by pressing POINT UP/DOWN button(s).
Refer to KEYSTONE ADJUSTMENT on page 20.
When pressing SELECT
button at Language,
Language Menu appears.
Blue back
When this function is “On,” this projector will produce a blue image
instead of the video noise on the screen when any input source is
unplugged or turned off.
Display
This function decides whether to display On-Screen Displays.
On ··· shows all the On-Screen Displays.
Off ···· sets On-Screen Displays disappeared except;
● ON-SCREEN MENU
● “Power off?” message
Logo
When this function is “On,” projector displays our logo when starting
up.
Move a pointer to the item
and then press POINT
LEFT/RIGHT button(s).
Ceiling
When this function is “On,” picture is top / bottom and left / right
reversed. This function is used to project the image from a ceiling
mounted projector.
Ceiling function
Rear
When this function is “On,” picture is left / right reversed. This
function is used to project the image to a rear projection screen.
Rear function
35
SETTING
Power management
This function turns Projection Lamp off when this projector detects
signal interruption and is not used for a certain period in order to
reduce power consumption and maintain the Lamp-life. (This
projector is shipped with this function ON.)
Power Management function operates to turn Projection Lamp off
when the input signal is interrupted and any button is not pressed
over 5 minutes. This function operates as follows;
1. When any input signal is interrupted, “No signal” and the
counting down display appears (for 5 minutes).
2. When Projection Lamp turned off, READY Indicator turns off.
Cooling Fans operate and Projection Lamp is turned off for 90
seconds. (During this "Cooling Down" period, projector cannot
be turned on.)
3. When Projection Lamp has cooled down, READY Indicator
flashes and Projection Lamp can be turned on again (Power
Management mode).
In this Power Management mode, Projection Lamp is
automatically turned on when the input signal connected or
projector is operated with any button on Top Control or on
Remote Control Unit again.
Time left until Lamp off.
Press SELECT button at this icon to
display other items.
On start
When this function is “On,” projector is automatically turned on just
by connecting AC Power cord to a wall outlet.
Note ; Be sure to turn projector off properly (refer to the section
“TURNING OFF THE PROJECTOR” on P19). If projector is
turned off in the wrong steps, On Start function does not
operate properly.
Remote control
Press SELECT button at this icon to
display previous items.
Move the pointer to the item and
then press POINT LEFT/RIGHT
button(s).
This projector has two different remote control codes; the factory-set
normal code (Code 1) and the secondary code (Code 2). This
switching function prevents remote control operation mixture (jam)
when operating several projectors or video equipment together.
When operating projector in “Code 2,” both projector and Remote
Control Unit must be switched to “Code 2.”
To change the code of Projector;
Set Remote control in the SETTING MENU to “Code 2.”
To change the code of the Remote Control Unit;
Press both MENU and IMAGE buttons on Remote Control Unit
together for over 10 seconds.
After changing the code, make sure Remote Control operates
properly.
To return to the normal code (Code 1), operate both projector and
Remote Control in the ways above again.
NOTE : When batteries of Remote Control Unit are replaced or ALLOFF switch is turned to “ALL-OFF,” the remote transmit
code automatically returns to the normal code (Code 1).
Lamp counter reset
This function is used to reset Lamp Replace Counter. When
replacing Projection Lamp, reset Lamp Replace Counter by using
this function. Refer to page 39 for operation.
36
Move the pointer to Lamp counter reset and then press
SELECT button. The message “Lamp replace counter
reset?” is displayed.
APPENDIX
OPERATING WIRELESS MOUSE
Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most
Personal Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation.
This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ONSCREEN MENU or any message / dialog box is displayed on the screen instead of PC mouse pointer, this Wireless Mouse
function cannot be used.
INSTALLATION
To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not
supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse
port (or USB port) of a Personal Computer is activated.
1
Connect the mouse port (or USB port) of your computer to
Control Port (or USB connector) of this projector with Control
Cable (or USB cable). (Refer to page 11, 12 for connection.)
2
Turn the projector on first, and then turn on your computer.
When the computer is switched on first, Wireless Mouse may not
work properly.
Note : When your computer has no mouse
port, connect Serial Port of your
computer to Control Port of the
projector with Control Cable for Serial
Port (not supplied).
OPERATING WIRELESS MOUSE
When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK
button on Wireless Remote Control Unit.
POINT button
POINT button (Move the pointer)
Used to move PC mouse pointer. The pointer is moved
corresponding with the direction you are pressing.
SELECT (LEFT CLICK) button
This button has the same function as the left button in a PC mouse.
RIGHT CLICK button
This button has the same function as the right button in a PC mouse.
This button is not available for controlling this projector.
SELECT button
(left button of the
mouse)
RIGHT CLICK button
(right button of the mouse)
37
APPENDIX
MAINTENANCE
WARNING TEMP. INDICATOR
WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds the normal temperature. This
Indicator stops flashing when the temperature of a projector returns to normal.
When WARNING TEMP. Indicator continues to flash, check the items listed below.
1
2
3
Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots
are not obstructed.
Air Filter may be clogged with dust particles. Clean Air Filter by following the section AIR FILTER CARE AND
CLEANING below.
If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or the Internal Circuits may
be malfunctioning. Contact service personnel from an authorized dealer or a service station.
AIR FILTER CARE AND CLEANING
Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air
Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up
and adversely affect the life of the projector. Clean Air Filter following the steps below:
1
Turn off the projector, and disconnect AC power cord from the
AC outlet.
2
Turn the projector upside down and remove Air Filter by pulling
the latches upward.
3
4
Clean Air Filter with a brush or wash out dust and particles.
Replace Air Filter properly. Make sure that Air Filter is fully
inserted.
CAUTION
Do not operate the projector with Air Filter removed. Dust
may accumulate on LCD Panel and Projection Mirror
degrading picture quality.
Do not put small parts into Air Intake Vents. It may result in
malfunction of the projector.
AIR FILTER
Pull up and remove.
RECOMMENDATION
We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments
may cause poor image quality.
When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements
inside the projector. This condition may degrade the quality of a projected image.
When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.
CLEANING PROJECTION LENS
Follow these steps to clean Projection Lens:
38
1
Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.
2
3
Lightly wipe a cleaning cloth over Projection Lens.
When the projector is not in use, replace Lens Cover.
APPENDIX
LAMP REPLACEMENT
When the life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a
projected image becomes dark or the color of an image becomes unnatural, replacement of Projection Lamp is required.
CAUTION
CAUTION
For continued safety, replace with a lamp
assembly of the same type.
Allow a projector to cool for at least 45
minutes before you open Lamp Cover. The
inside of a projector can become very hot.
Do not drop a lamp assembly or touch a glass
bulb! The glass can shatter and may cause
injury.
Follow these steps to replace the lamp assembly.
1
Turn off the projector and disconnect AC plug. Allow the
projector to cool for at least 45 minutes.
2
3
Remove a screw with a screwdriver to remove Lamp Cover.
4
Replace Lamp Assembly with a new one and tighten 3 screws
back. Make sure that Lamp Assembly is set properly. Replace
Lamp Cover and tighten a screw.
5
6
Connect AC Power Cord to the projector and turn it on.
LAMP COVER
Remove 3 screws with a screwdriver and pull out Lamp
Assembly by grasping Handle.
LAMP
ASSEMBLY
HANDLE
Reset Lamp Replace Counter (refer to the section “Lamp
Replace Counter” below).
NOTE : Do not reset Lamp Replace Counter when Projection
Lamp is not replaced.
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering Projection Lamp, give the following
information to the dealer.
● Model No. of your projector : LC-NB3W
● Replacement Lamp Type No. : POA-LMP35
(Service Parts No. 610 293 2751)
LAMP REPLACE COUNTER
Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP
REPLACE Indicator stops lighting.
1
Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to
move a red frame pointer to SETTING Menu icon (refer to page 35, 36).
2
Press POINT DOWN button to move a red frame pointer to “Lamp counter reset” and then press SELECT button. The
message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.
3
Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.
Do not reset Lamp Replace Counter except after Projection Lamp is replaced.
39
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check the matters below once again.
1. Make sure you have connected a projector to your computer or video equipment as described in the section
"CONNECTING THE PROJECTOR" on pages 11 ~ 13.
2. Check cable connection. Verify that all computer, video and power cord are properly connected.
3. Verify that all power is switched on.
4. If a projector still does not produce an image, re-start your computer.
5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. The
problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to
turn the computer and monitor off before you power up the projector. Power the equipment back on in order of : Projector
and computer.)
6. If the problem still exists, check following chart.
Problem:
No power.
Try these Solutions
● Plug a projector into your AC outlet.
● Make sure READY Indicator lights.
● Wait 90 seconds after a projector is turned OFF when turning the projector back on.
NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as
follows:
1. LAMP indicator lights bright and READY indicator turns off.
2. After 90 seconds, READY indicator lights green again and a projector may be
turned on by pressing Power ON-OFF button.
● Check WARNING TEMP. indicator. If the indicator flashes red, the projector cannot be
turned on.
(See "TURNING ON/OFF PROJECTOR" section on page 19.)
● Check Projection Lamp. (Refer to page 39.)
Image is out of
focus.
● Adjust focus of a projector.
● Make sure a projection screen is at least 5.3’ (1.6m) from the projector.
● Check Projection Lens to see if it needs cleaning.
NOTE : Moving a projector from a cool temperature location to a warm temperature location
may result in moisture condensation on Projection Lens. In such an event, leave a
projector OFF and wait until condensation disappears.
Picture is Left/Right
reversed.
● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)
Picture is
Top/Bottom
reversed.
● Check Ceiling feature. (See “SETTING” section on page 35.)
Some displays are
not seen during the
Operation.
● Check Display feature.(See “SETTING” section on page 35.)
No image.
● Check the connection between your computer or video equipment and a projector.
● When turning a projector on, it takes about 30 seconds to display an image.
● Check the system that you select is corresponding with your computer or video
equipment.
● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).
No sound.
40
● Check audio cable connection from audio input source.
● Adjust the audio source.
● Press VOLUME (+) button.
● Press MUTE button.
APPENDIX
Problem:
Try these Solution
Remote Control Unit
does not work.
●
●
●
●
Wireless Mouse
function does not
work.
● Check cable connection between a projector and your computer.
● Check the mouse setting on your computer.
● Turn a projector on before turning on a computer.
Check the batteries.
Check ALL-OFF switch on Remote Control Unit is set to “ON.”.
Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.
Make sure you are not too far from a projector when using Remote Control Unit.
Maximum operating range is 16.4’ (5m).
● Make sure the code of Remote Control is set to conform to projector.
(See “SETTING” section on page 35, 36.)
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If the problem still persists after following all operating instructions, contact the sales dealer where you purchased the
projector or the service center. Give the model number and explain the difficulty. We will advise you how to obtain service.
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
41
APPENDIX
TECHNICAL SPECIFICATIONS
Projector Type
Dimensions (W x H x D)
Net Weight
LCD Panel System
Panel Resolution
Number of Pixels
Color System
High Definition TV Signal
Scanning Frequency
Projection Image size (Diagonal)
Horizontal Resolution
Projection Lens
Throw Distance
Projection Lamp
Video Input Jacks
Audio Input Jacks
Computer Input Terminals
Computer Audio Input Jack
Control Port Connector
USB Connector
Audio Output Jacks
Internal Audio Amp
Built-in Speakers
Feet Adjustment
Voltage and
Power Consumption
Operating Temperature
Storage Temperature
Remote Control Transmitter
Accessories
Multi-media Projector
13.11" x 3.52" x 9.25" (333mm x 89.5mm x 235mm) (not including Adjustable Feet )
8.6 lbs (3.9 kg)
0.9" TFT Active Matrix type, 3 panels
800 x 600 dots
1,440,000 (800 x 600 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz
Adjustable from 31” to 300”
750 TV lines
F 1.7 ~ 2.0 lens with f 37.4 mm ~ 48.3 mm with motor zoom and focus
5.3’ ~ 40.0’ (1.6 m ~ 12.2 m)
200 W
RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)
RCA Type x 2
(VGA) HDB 15 Terminal x 1 and DVI 24 pin x 1
Mini Jack (stereo) x 1
Mini DIN 8 pin x 1
USB Series B receptacle x 1
RCA Type x 2
1.0 W RMS
1 speaker, 1.18" x 1.57" (30mm x 40mm)
0˚ to 15.6˚
AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe)
41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)
Power Source
Operating Range
Dimensions
Net Weight
Laser Pointer
:
:
:
:
:
AA, UM3 or R06 Type x 2
16.4’ (5m) / ±30˚
2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)
0.36 lbs (165 g) (including batteries)
Class II Laser (Max. Output : 1mW / Wave length : 650±20nm)
Owner’s Manual
AC Power Cord
Wireless Remote Control Transmitter and Batteries
VGA Cable
Control Cable for PS/2 port
Carrying Bag
Lens Cover
● The specifications are subject to change without notice.
OPTIONAL PARTS
The parts listed below are optionally supplied. When ordering those parts, give name and Type No. of it to the sales dealer.
● Control Cable for Serial Port Type No. : POA-MCSRL
● Control Cable for ADB Port Type No. : POA-MCMAC
42
● MAC Adapter
● Media Card Imager Kit
Type No. : POA-MACAP
Type No. : EVW-100
APPENDIX
CONFIGURATIONS OF THE TERMINALS
COMPUTER INPUT TERMINAL (ANALOG)
Terminal : HDB15-PIN
Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the
Macintosh computer, MAC Adapter (not supplied) is required.
Pin Configuration
4
5
10
15
14
2
3
9
8
13
1
7
12
6
11
1
2
3
4
5
6
7
8
Red Input
Green Input
Blue Input
Sense 2
Ground (Horiz.sync.)
Ground (Red)
Ground (Green)
Ground (Blue)
9
10
11
12
13
14
15
+5V Power
Ground (Vert.sync.)
Sense 0
DDC Data
Horiz. sync.
Vert. sync.
DDC Clock
COMPUTER INPUT TERMINAL (DIGITAL)
Terminal : DVI 24-pin
Connect the display output terminal of the computer to this terminal with DVI cable (for Single Link T.M.D.S. / not supplied).
Pin Configuration
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
1
2
3
4
5
6
7
8
T.M.D.S. Data2–
T.M.D.S. Data2+
T.M.D.S. Data2 Shield
No Connect
No Connect
DDC Clock
DDC Data
No Connect
9
10
11
12
13
14
15
16
T.M.D.S. Data1–
T.M.D.S. Data1+
T.M.D.S. Data1 Shield
No Connect
No Connect
+5V Power
Ground (for +5V)
Hot Plug Detect
17
18
19
20
21
22
23
24
T.M.D.S. Data0–
T.M.D.S. Data0+
T.M.D.S. Data0 Shield
No Connect
No Connect
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
CONTROL PORT CONNECTOR
Terminal : Mini DIN 8-PIN
Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable.
(Control Cable for PS/2 port is supplied, and Control Cables for Serial port and ADB port are not supplied.)
Pin Configuration
8
5
7 6
4 3
2 1
1
2
3
4
5
6
7
8
PS/2
----CLK
DATA
GND
--------GND
-----
Serial
RXD
--------GND
RTS / CTS
TXD
GND
GND
ADB
----ADB
----GND
------------GND
USB CONNECTOR (Series B)
Connect USB port terminal on your computer or peripheral equipment to this connector with USB Cable (not supplied).
Pin Configuration
2
1
3
4
1
2
3
4
Vcc
- Data
+ Data
Ground
43
A-key to better communications
U.S.A.
Canada
EIKI International, Inc.
26794 Vista Terrace Drive
Lake Forest, CA, USA 92630-8113
Tel : 800-242-3454 (949-457-0200)
Fax : 800-457-3454 (949-457-7878)
E-Mail : [email protected]
EIKI CANADA - Eiki International, Inc.
(310 First Street - Unit 2)
P.O. Box 156, Midland, ON, Canada L4R 4K8
Tel : 800-563-3454 (705-527-4084)
Fax : 800-567-4069 (705-527-4087)
E-Mail : [email protected]
EIKI Deutschland GmbH
Am Frauwald 12
65510 Idstein
Deutschland
Tel : 06126-9371-0
Fax : 06126-9371-11
E-Mail : [email protected]
Eastern Europe
EIKI CZECH spol. s.r.o.
Umelecká 15
170 00 Praha 7
Czech Republic
Tel : +42 02 20570024
+42 02 20571413
Fax : +42 02 20571411
E-Mail : [email protected]
ˆ
Deutschland & Österreich
Japan & Worldwide
EIKI Industrial Company Limited.
4-12 Banzai-Cho, Kita-Ku, Osaka,
530-0028 Japan
Tel : +81-6-6311-9479
Fax : +81-6-6311-8486
E-Mail : [email protected]
WorldWide Website <http://www.eiki.com> http://www.eiki.com
