Bariatric Freestanding Trapeze Owner’s Manual by ConvaQuip

Bariatric Freestanding Trapeze Owner’s Manual  by ConvaQuip

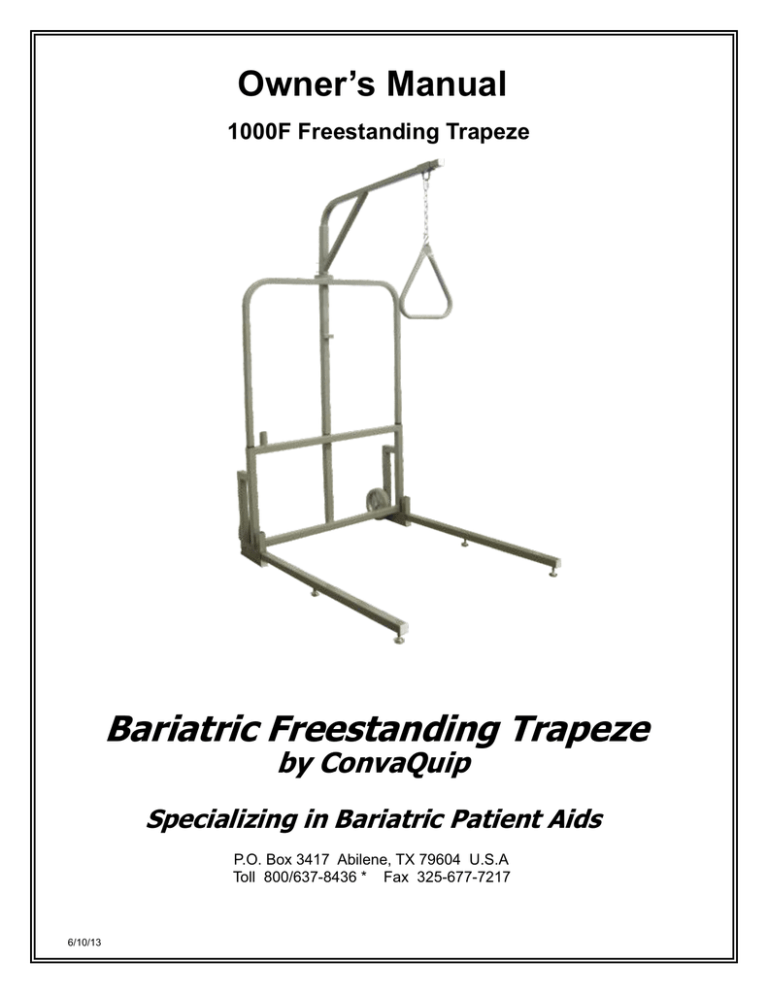

Owner’s Manual
1000F Freestanding Trapeze
Bariatric Freestanding Trapeze
by ConvaQuip
Specializing in Bariatric Patient Aids
P.O. Box 3417 Abilene, TX 79604 U.S.A
Toll 800/637-8436 * Fax 325-677-7217
6/10/13
ConvaQuip Ind., Inc.
PLEASE READ CAREFULLY!
•
•
Do not install this trapeze while patient is in the bed !!
•
Slide trapeze legs under the head end of the bed making sure the trapeze legs to not interfere with
the bed frame and any electrical or manual/mechanical moving parts.
Position trapeze frame in center of the bed.
•
•
•
•
•
Once trapeze has been assembled, be sure leg levelers are set to level the trapeze so it does not
rock back and forth.
Position boom in center locator position so it is centered over the bed.
Adjust boom length using slider on top of boom and secure with snap button.
Adjust chain length to the desired position, making sure quick link is secured and chain can not
disengage from handle.
Boom can swivel 0 to180 degrees. Be sure whatever position you choose, that the position pin is
is seated into slot so boom will not swivel while in use by the patient.
Caution!
Note:
Position 0 and 180 Degrees are primarily used to get
boom out of the way when entering and exiting the bed.
The 45 degree settings are commonly used for when the
patient needs assistance when rolling over and not for
entering and exiting the bed.
The 90 degree setting is commonly used to help the
patient lift up or assist in sitting upright.
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
Toll 800-637-8436
Fax 325-677-7217
www.convaquip.com
[email protected]
Thank you for choosing ConvaQuip !
MAINTENANCE AND CLEANING
Capacity 1000 lbs.
Cleaning:
* For infection control, clean all parts with one part bleach and 9
parts water. Rinse and allow to air dry or wipe with a clean, dry
cloth.
* Pail may be steam cleaned or use Beaucoup disinfectant
(made by EcoLab)
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
Toll 800-637-8436
Fax 325-677-7217
www.convaquip.com
[email protected]
ConvaQuip Ind., Inc.
Assembly Instructions for Model 1000F Freestanding Trapeze
Toll 800-637-8436 Fax 325-677-7217
Tools needed:Rubber Mallet
3/4” Wrench & Drill
Parts: 2 Wheels, 2 Bolt Axles
4 Levelers,4 Self Tapping Screws
and Socket Cap Screw
Lay base down as pictured
and bolt on both wheels
securely.
Set base in upright position.
Align button on each leg and
insert into top opening.
Make sure button secures
in place.
Use rubber mallet to tap
down until it bottoms out.
Using drill and socket cap
screw provided, screw in the
4 self tapping screws.
Insert Boom into slot on top
of the M-Shaped piece.
Make sure it bottoms out.
Unscrew the Quick-Link and
hook over the Boom slider,
then screw Quick-link closed
Trapeze is designed to tilt and
roll. It is recommended to remove the boom prior to moving.
Trapeze shown in most
compact configuration
Screw each leveler all the
way in. Do not over tighten.
Insert M-Shaped part into
the 3 slots. Adjust all
levelers so they touch floor.
You can change positions of
the boom by lifting pin
Easiest configuration for
transporting from room
to room.
ConvaQuip Ind., Inc.
LIMITED WARRANTY
This limited warranty is extended to the original purchaser/user and cannot be transferred.
The trapeze frame is warranted for Lifetime against defects in material and workmanship.
All other components are warranted for 1 year against defects in material and workmanship
Defective parts will be repaired or replaced by the company or its appointed agent. The
warranty does not cover damage caused by misuse or negligence, nor does it cover
defects or damages by use of unauthorized parts or service by an unauthorized person.
This warranty gives you specific legal rights, and you may also have other rights that vary
from state to state.
Do not return merchandise without prior authorization. All correspondence relating to this
warranty must indicate Model number and Serial number and be addressed to:
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
NOTICE
FREIGHT DAMAGE -The carrier who delivers merchandise to your door is responsible for
loss and damages. Acceptance of the shipment by you is acknowledgment that all articles
delivered were in good condition and properly packed. Therefore, all claims for loss or
damage must be filed immediately with the freight carrier. Then notify us. We will mark our
records accordingly. After settling clai m, damaged merchandise will be picked up by the
freight carrier and returned. Should you need assistance with the claim, call our customer
service at 800-637-8436
RETURN GOODS - Within 60 days from date of purchase returns will be subject to a
handling and re-stocking charge plus any additional costs resulting from damage or use.
After 60 days from date of purchase: ConvaQuip Inc. reserves the right to not accept return
goods for any reason. If accepted, the amount of credit will be at the discretion of
ConvaQuip Inc. Returned merchandise without prior authorization will not be accepted.
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
Toll 800-637-8436
Fax 325-677-7217
www.convaquip.com
[email protected]
Was this manual useful for you? yes no
Thank you for your participation!
