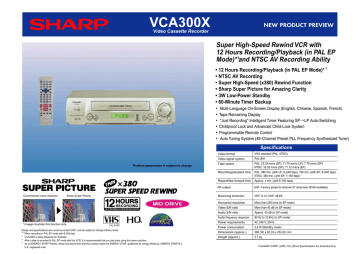

VCA300X Brochure
Video Cassette Recorder
Super High-Speed Rewind VCR with
12 Hours Recording/Playback (in PAL EP
Mode)* 1and NTSC AV Recording Ability
• 12 Hours Recording/Playback (in PAL EP Mode)* 1
• NTSC AV Recording
• Super High-Speed (x380) Rewind Function
• Sharp Super Picture for Amazing Clarity
• 3W Low-Power Standby
• 60-Minute Timer Backup
Multi-Language On-Screen Display (English, Chinese, Spanish, French)
Tape Remaining Display
"Just Recording" Intelligent Timer Featuring SP LP Auto-Switching
Childproof Lock and Advanced Child-Lock System
Programmable Remote Control
Auto Tuning System (48-Channel Preset PLL Frequency Synthesized Tuner)
Product appearance is subject to change.
Conventional noise reduction
Sharp Super Picture
* Images illustrate this function only.
Design and specifications are current as of April 2001, but are subject to change without notice.
*1 When recording in PAL EP mode with E-240 tape.
* VCA300X is being designed for Australia
* After a tape is recorded in PAL EP mode with this VCR, it is recommended that you play back using this same machine.
* As an ENERGY STAR ® Partner, Sharp has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR ®is a
U.S. registered mark.
Video format
VHS standard (PAL, NTSC)
Video signal system
Tape speed
PAL: 23.39 mm/s (SP), 11.70 mm/s (LP), 7.79 mm/s (EP)
NTSC: 33.35 mm/s (SP), 11.12 mm/s (EP)
Recording/playback time
PAL: 480 min. (with LP, E-240 tape), 720 min. (with EP, E-240 tape)
NTSC: 480 min. (with EP, T-160 tape)
Rewind/fast forward time
Approx. 1 min. (with E-180 tape)
RF output
UHF: Factory preset to channel 37 (channels 28-69 available)
Receiving channels
VHF: 0-12, UHF: 28-69
Horizontal resolution
More than 250 lines (in SP mode)
Video S/N ratio
More than 45 dB (in SP mode)
Audio S/N ratio
Approx. 43 dB (in SP mode)
Audio frequency response
80 Hz to 10 kHz (in SP mode)
Power requirements
AC 240 V, 50 Hz
Power consumption
2.6 W (Standby mode)
Dimensions (approx.)
360 (W) x 92 (H) x 253 (D) mm
Weight (approx.)
2.7 kg
© SHARP CORP. (APR. '01) (SCA) Specifications for Australia Only
