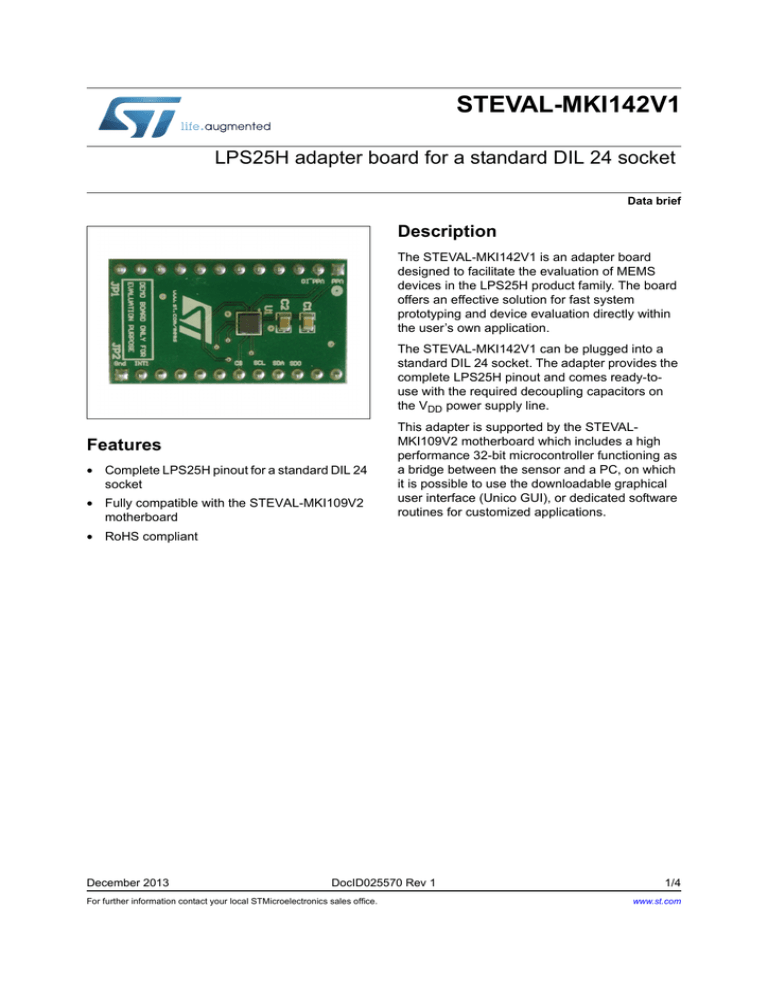

STEVAL-MKI142V1

STEVAL-MKI142V1
STEVAL-MKI142V1
LPS25H adapter board for a standard DIL 24 socket
Data brief
Description
The STEVAL-MKI142V1 is an adapter board
designed to facilitate the evaluation of MEMS
devices in the LPS25H product family. The board
offers an effective solution for fast system
prototyping and device evaluation directly within
the user’s own application.
The STEVAL-MKI142V1 can be plugged into a
standard DIL 24 socket. The adapter provides the
complete LPS25H pinout and comes ready-touse with the required decoupling capacitors on
the VDD power supply line.
Features
• Complete LPS25H pinout for a standard DIL 24
socket
• Fully compatible with the STEVAL-MKI109V2
motherboard
This adapter is supported by the STEVALMKI109V2 motherboard which includes a high
performance 32-bit microcontroller functioning as
a bridge between the sensor and a PC, on which
it is possible to use the downloadable graphical
user interface (Unico GUI), or dedicated software
routines for customized applications.
• RoHS compliant
December 2013
DocID025570 Rev 1
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
Schematic diagram
1
STEVAL-MKI142V1
Schematic diagram
Figure 1. STEVAL- MKI142V1 circuit schematic
9GG
&
X)
&
Q)
9GG
-3
9GGB,2
9GG
-3
6'2
6'$
6&/
&6
,17
8
/36+
*1'
9GGB,2
,17
6&/
,17
&6
6'2
6'2
6'$
&6
5HV
6&/
6'$
9GGB,2
*1'
9GG
+HDGHU +HDGHU
*63*',
2/4
DocID025570 Rev 1
STEVAL-MKI142V1
2
Revision history
Revision history
Table 1. Document revision history
Date
Revision
01-Dec-2013
1
Changes
Initial release.
DocID025570 Rev 1
3/4
4
