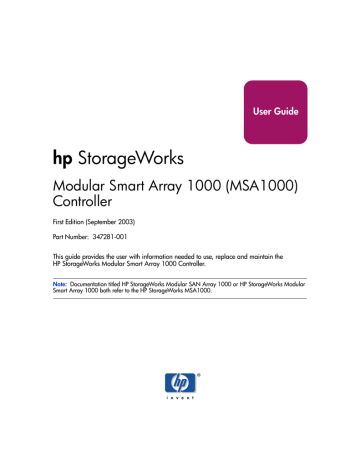

User Guide

hp StorageWorks

Modular Smart Array 1000 (MSA1000)

Controller

First Edition (September 2003)

Part Number: 347281-001

This guide provides the user with information needed to use, replace and maintain the

HP StorageWorks Modular Smart Array 1000 Controller.

Note: Documentation titled HP StorageWorks Modular SAN Array 1000 or HP StorageWorks Modular

Smart Array 1000 both refer to the HP StorageWorks MSA1000.

© Copyright 2003 Hewlett-Packard Development Company, L.P.

Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard.

The information contained in this document is subject to change without notice.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements for such products.

Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

MSA1000 Controller User Guide

First Edition (September 2003)

Part Number: 347281-001

Contents

Contents

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

HP Website. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1 MSA1000 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MSA1000 Controller Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Array Accelerator (Battery-backed Cache) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Array Accelerator Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Array Accelerator Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Replacing the MSA1000 Controller Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the Controller Cache Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Recovery ROM and ROM Cloning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Recovery ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

ROM Cloning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

MSA1000 Controller Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Replacing the MSA1000 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Updating the Controller Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2 Controller Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

About the LCD Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MSA1000 Controller User Guide

3

Contents

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Informational Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

User Input Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

User Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Deleting Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Redundancy Link Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

LCD Message Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

A Regulatory Compliance Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Regulatory Compliance Identification Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Federal Communications Commission Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Canadian Notice (Avis Canadien) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

BSMI Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Laser Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Battery Replacement Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

B Electrostatic Discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

4

MSA1000 Controller User Guide

Replace the MSA1000 controller

“About this Guide” topics include:

Overview , page 6

Conventions , page 7

Getting Help , page 9

About This

Guide

MSA1000 Controller User Guide

5

About this Guide

Overview

This section covers the following topics:

Intended Audience

Related Documentation

Intended Audience

This book is intended for use by administrators with a moderate amount of

SAN-management experience.

Related Documentation

In addition to this guide, refer to the HP StorageWorks MSA1000 Installation

Guide that ships with this system.

6

MSA1000 Controller User Guide

About this Guide

Conventions

Conventions consist of the following:

Document Conventions

Text Symbols

Equipment Symbols

Document Conventions

The document conventions included in

Table 1

apply in most cases.

Table 1: Document Conventions

Element

Cross-reference links

Key and field names, menu items, buttons, and dialog box titles

File names, application names, and text emphasis

User input, command and directory names, and system responses (output and messages)

Figure 1

Bold

Italics

Convention

Monospace font

COMMAND NAMES are uppercase monospace font unless they are case sensitive

Variables

Website addresses

<monospace, italic font>

Underlined sans serif font text: http://www.hp.com

Text Symbols

The following symbols may be found in the text of this guide. They have the following meanings:

WARNING: Text set off in this manner indicates that failure to follow directions in the warning could result in bodily harm or death.

MSA1000 Controller User Guide

7

About this Guide

Caution: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or data.

Note: Text set off in this manner presents commentary, sidelights, or interesting points of information.

Equipment Symbols

The following equipment symbols may be found on hardware for which this guide pertains. They have the following meanings:

Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts.

WARNING: To reduce the risk of personal injury from electrical shock hazards, do not open this enclosure.

Any RJ-45 receptacle marked with these symbols indicates a network interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to the equipment, do not plug telephone or telecommunications connectors into this receptacle.

Any surface or area of the equipment marked with these symbols indicates the presence of a hot surface or hot component. Contact with this surface could result in injury.

WARNING: To reduce the risk of personal injury from a hot component, allow the surface to cool before touching.

8

MSA1000 Controller User Guide

About this Guide

Power supplies or systems marked with these symbols indicate the presence of multiple sources of power.

WARNING: To reduce the risk of personal injury from electrical shock, remove all power cords to completely disconnect power from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manually handling material.

Getting Help

If you still have a question after reading this guide, contact an HP authorized service provider or access our website: http://www.hp.com

.

MSA1000 Controller User Guide

9

About this Guide

HP Technical Support

In North America, call technical support at 1-800-652-6672, available 24 hours a day, 7 days a week.

Note: For continuous quality improvement, calls may be recorded or monitored.

Outside North America, call technical support at the nearest location. Telephone numbers for worldwide technical support are listed on the HP website under support: http://www.hp.com.

Be sure to have the following information available before calling:

Technical support registration number (if applicable)

Product serial numbers

Product model names and numbers

Applicable error messages

Operating system type and revision level

Detailed, specific questions

HP Website

The HP website has the latest information on this product, as well as the latest drivers. Access storage at: www.hp.com/go/msa1000

. From this website, select the appropriate product or solution.

HP Authorized Reseller

For the name of your nearest HP Authorized Reseller:

In the United States, call 1-800-345-1518

In Canada, call 1-800-263-5868

Elsewhere, see the HP website for locations and telephone numbers: http://www.hp.com

.

10

MSA1000 Controller User Guide

MSA1000 Controller

1

Components

The MSA1000 Controller is a drive array controller specifically designed for installation in the MSA1000. The MSA1000 comes equipped with one MSA1000

Controller installed. An additional controller for redundancy can be purchased separately.

To ensure uninterrupted service, two copies of the controller firmware are stored in Read Only Memory (ROM) on the controller. See the “

Recovery ROM ” and

ROM Cloning ” sections for more information.

Additional information about the following topics is included in this section:

MSA1000 Controller Display

Array Accelerator (Battery-backed Cache)

MSA1000 Controller User Guide

11

MSA1000 Controller

MSA1000 Controller Display

Each array controller in an MSA1000 contains an integrated Liquid Crystal

Display (LCD). This module is used for displaying informational and error messages, showing the status of the module, and for providing user input when required. Traditional Power-On Self-Test (POST) messages issued by PCI-based array controllers have been combined with runtime event notification messages to create a new set of controller display messages.

1 2 3 4 5

12

7 6

\

Figure 1: Controller display

Controller Display

1

2

3

4

5

6

7

Description

Fault indicator (amber)

Display

Left push button

Up push button

Right push button

Down push button

Redundancy Link indicator (green)

For more information about the MSA1000 Controller display, see the “

Controller

Display Messages ” chapter.

MSA1000 Controller User Guide

MSA1000 Controller

Array Accelerator (Battery-backed Cache)

The Array Accelerator is a high-performance, upgradeable 256-MB SDRAM

DIMM read/write battery-backed cache that can increase performance in database and fault-tolerant configurations. It performs both protected posted-write caching and read-ahead caching, allowing data to be accessed much faster than from disk storage.

In protected posted-write caching, data is written to the cache memory on the

Array Accelerator rather than directly to the drives. Later, when the MSA1000 storage system is idle, the controller writes the cached data to the drive array.

The read-ahead cache detects sequential accesses to the array, reads ahead data, and stores the data in the cache until the next read access arrives. If the data is of a sequential nature, the data can be loaded immediately into memory, avoiding the latency of a disk access.

If the MSA1000 Controller fails before cached data is stored on the disk, the

Array Accelerator and its integrated batteries may be removed from one

MSA1000 Controller and installed on a replacement controller. Any data in the

Array Accelerator that has not been written to the hard drive will be transferred to the replacement MSA1000 Controller.

Array Accelerator Features

Other features of the Array Accelerator:

Mounted on a removable daughterboard (allows stored data to be moved to another controller if the original controller fails)

Backed up with replaceable batteries

Upgradable to 512 MB (256 MB per controller)

Adjustable read/write ratio - usually set during array configuration but can be changed at any time

16-bit Error Checking and Correcting (ECC) SDRAM memory

ECC detects and corrects all single-bit memory errors. It also detects all two-bit memory errors in any position, and most three- and four-bit memory errors in a single SDRAM. With ECC, an entire memory chip can also fail without data loss. This provides a high level of data integrity by ensuring the correction of common memory errors without affecting performance.

MSA1000 Controller User Guide

13

MSA1000 Controller

Array Accelerator Batteries

The Array Accelerator has two rechargeable and replaceable Nickel Metal

Hydride (NiMH) battery packs. Under normal operating conditions, these should last for three years before replacement is necessary. They are continuously recharged via a “trickle” charging process whenever the MSA1000 storage system is powered on.

The battery packs protect data on the Array Accelerator against equipment failure or power outage for up to four continuous days.

Note: Temperature, age, and cache size may affect battery life.

This also applies if the Array Accelerator is removed from the MSA1000

Controller. When power is restored to the MSA1000 storage system, an initialization process writes the preserved data to the disk drives. This is particularly important for data that has been cached by a posted-write operation, but has not yet been written to the hard drives.

Note: The batteries on a new MSA1000 Controller may be discharged when the board is first installed. In this case, a Power-On Self-Test (POST) message will be displayed on the controller display panel when the controller is powered on, indicating that the Array Accelerator is temporarily disabled. No action is required on your part, since the internal circuitry will automatically recharge the batteries. Recharging the batteries can take up to 4 hours. The MSA1000 Controller will function properly during this time, although without the performance advantage of the Array Accelerator. When the batteries are charged to 90 percent of their capacity, the Array Accelerator is automatically enabled.

Depending on the status of the array accelerator, including a low battery charge, informational or error messages may be displayed on the controller’s LCD panel.

For a listing of cache module LCD messages, see the definitions for LCD messages 60 through 79 in the “

Controller Display Messages ” chapter.

14

MSA1000 Controller User Guide

MSA1000 Controller

Replacing the MSA1000 Controller Cache

Caution: It is important to follow these instructions when replacing components in the MSA1000. If the procedure is done improperly, it is possible to lose data or damage equipment. Refer to Appendix B,

“ Electrostatic Discharge ,” for important information on using the proper

procedures.

Note: If your system is equipped with a single controller, and you must replace the controller cache, you must power down the system first. If your system is equipped with two controllers, and you want to replace a failed cache module with another of the same size, you can replace the module while the system is running. If your system is equipped with two controllers, and you are replacing the cache module with a module of a different size, you must power down the system first, and then change the cache module on both controllers at the same time.

1. Press the controller’s thumb latch and pull the latch handle towards you 1.

See

Figure 2 .

2. Remove the MSA1000 Controller by pulling it straight out of the chassis 2.

2

1

Figure 2: Removing the controller

MSA1000 Controller User Guide

15

MSA1000 Controller

3. As illustrated in

Figure 3 , unlatch the controller cover clips 1 on the rear of

the controller and then raise the cover 2.

Note:

The controller in Figure 3

has been rotated so the side and rear of the controller are visible.

4. Simultaneously unlatch the clips that are holding the MSA1000 Controller cache in place 3.

5. Carefully pull the cache away from the controller board 4.

2

1

3

4

Figure 3: Removing the cache module

16

MSA1000 Controller User Guide

MSA1000 Controller

6. Install the new MSA1000 Controller cache by sliding the new MSA1000

Controller cache into the controller 1. Be sure the side latches are fully

engaged 2. See Figure 4 .

2

1

Figure 4: Installing the cache module

7. Push the controller in as far as it will go 1; press the latch inward until it is

flush against the front panel 2. See Figure 5 .

1

2

Figure 5: Installing the controller

MSA1000 Controller User Guide

17

MSA1000 Controller

Replacing the Controller Cache Battery Pack

WARNING: There is a risk of explosion, fire, or personal injury if the battery pack is replaced incorrectly or mistreated. To reduce the risk:

Do not attempt to recharge the battery outside of the controller.

Do not expose to water, or to temperatures higher than 60°C.

Do not abuse, disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace only with the spare designated for this product.

Array Accelerator battery disposal should comply with local regulations.

Alternatively, return them by established parts return methods to

Hewlett- Packard Corporation for disposal.

Caution: It is important to follow these instructions when replacing components in the MSA1000. If the procedure is done improperly, it is possible to lose data or damage equipment. Refer to the “

Electrostatic

Discharge ” appendix for important information on using the proper

procedures.

To remove the old NiMH battery pack:

1. Remove the MSA1000 Controller Cache, as instructed in the previous section, “

Replacing the MSA1000 Controller Cache .”

2. Push down on the bottom clip of the battery pack, attached near the lower corner of the Array Accelerator.

See

Figure 6 for an illustration.

18

MSA1000 Controller User Guide

MSA1000 Controller

Figure 6: Bottom clip on battery pack

3. Swing the battery pack away from the Array Accelerator to about a 30-degree angle.

Figure 7: Angling the battery pack

MSA1000 Controller User Guide

19

MSA1000 Controller

4. Lift the pack upward to unhook the top of the battery pack.

Figure 8: Removing the battery pack

Wait about 15 seconds after removing the old battery packs to allow the battery charge monitor to reset.

Note: Repeat the replacement procedure for any batteries that were installed at the same time as the batteries that were removed.

20

MSA1000 Controller User Guide

MSA1000 Controller

5. Install the new NiMH battery pack by hooking the top of the battery pack to the top of the Array Accelerator with the pack held at a 30-degree angle to the plane of the Array Accelerator board.

See

Figure 9 for an illustration.

Figure 9: Installing the battery pack

MSA1000 Controller User Guide

21

MSA1000 Controller

6. After the pack is hooked in position, swing the pack downward making sure the bottom clip and two pegs line up with the holes in the Array Accelerator.

7. Make sure that the top hook 1 and bottom clip 2 on the battery pack are securely attached to the Array Accelerator.

1

2

Figure 10: Securing the battery pack

8. Installation of the new battery pack is complete. Repeat for the second battery on this battery pack.

22

MSA1000 Controller User Guide

MSA1000 Controller

Recovery ROM and ROM Cloning

Recovery ROM

Each MSA1000 Controller contains ROM (Read-Only Memory), which holds the firmware that operates the controller. The Recovery ROM feature stores two complete firmware images in the ROM: one active image and one backup image.

When the controller is powering up, it checks both firmware images to ensure they are valid. If either one is not, the valid image will be copied on top of the invalid image to correct it. This is referred to as auto-flashing. All of this functionality is done automatically by the controller and does not require any user intervention.

ROM Cloning

Note: For an MSA1000 to operate in a redundant controller configuration, it must contain two controllers that are executing the same version of firmware. During power up (or if an optional controller is hot-plugged while the MSA1000 is already operating) the firmware versions on both controllers are compared. If they are not the same, then the ROM Cloning feature will attempt to copy one version of firmware onto the other controller. After the copy has been completed, the controller that was modified will be automatically reset. Once the reset controller has powered up the two controllers should then start redundant operation. All of this functionality is done automatically by the controllers and does not require any user intervention.

The determination as to which firmware version will be used is based on the following criteria:

If the MSA1000 is being powered up with both controllers inserted, then the most recent version of firmware will be used regardless of which controller it resides.

If the MSA1000 is already operating and an optional controller is hot-plugged, then the version of firmware that is on the original

(non-hot-plugged) controller will be used regardless of its version. This ensures that any host initiated I/O to the controller is not interrupted.

There is the possibility that a specific version of firmware may not be compatible with certain hardware revisions of a controller. In this scenario, the most recent firmware version that is compatible with both controllers will be copied to the controller with the incompatible firmware version. However, if the controller that

MSA1000 Controller User Guide

23

MSA1000 Controller is updated is already operating and processing I/O, then it will not be reset. The

MSA1000 will not enter redundant operation and an appropriate message will be shown on the display. After the MSA1000 has been shutdown and powered back on, the controllers will then be able to enter redundant operation. On a subsequent power cycle, both controllers will enter redundant mode.

MSA1000 Controller Indicators

During normal runtime, the MSA1000 Controller has 18 indicators that indicate activity or malfunction of the controller. They are labeled 0-17, as shown in the following figure. The table that follows describes the purpose and function of each indicator.

15 14 13 12 11 10 9 8 17

7 6 5 4 3 2 1 0 16

Figure 11: MSA1000 Controller indicators

24

MSA1000 Controller User Guide

MSA1000 Controller

Table 2: MSA1000 Controller Indicator Descriptions

Indicator Function

0

-2

Busy status

3

-7

8

9

q

Fibre Channel ID

Idle Heartbeat

Active/Standby

Direct Memory Access

(DMA) active

Logical I/O active

Description

These three LEDs are used to progressively represent the processing load on the controller.

ON = the controller is idle.

OFF = the controller is operating at full capacity.

Indicates the 5-bit Arbitrated Loop

Physical Address (ALPA) assigned to this array controller (not applicable when in fabric mode).

Indicates the controller is idle and functioning.

ON=Controller is active.

OFF=Controller is in standby.

ON = DMA transfers are active.

w e r t

@

A

SCSI Port A (SCSI Bus 2)

SCSI Port B (SCSI Bus 3)

Cache Activity

Drive failure

Redundancy Active

Fault

ON = Currently processing logical requests from the Host Adapter.

ON = Indicates requests are outstanding on the first SCSI bus.

ON = Indicates requests are outstanding on the second SCSI bus.

ON = Cache active.

OFF = No cache activity.

Blinking = Cache transfer pending.

ON = A configured hard drive has failed in the array.

Green indicates two controllers are in a redundant mode of operation.

Amber indicates an error message has been sent to the controller display.

MSA1000 Controller User Guide

25

MSA1000 Controller

Replacing the MSA1000 Controller

If an MSA1000 Controller is failing, informational or error messages will be displayed on the LCD panel of that controller, depending on the condition.

The following steps detail how to replace a failed MSA1000 Controller but can also be used to re-seat the controller.

Note: Redundancy is supported during a hard drive expansion, migration, or extension process and during regular drive rebuilds.

Note: Replacement MSA1000 Controllers include a new cache module. Remove this new module from the replacement MSA1000 Controller and replace it with the cache module from the failed controller. Using the same cache module will complete the disk writes that may have been trapped in the controller’s cache. See “

Replacing the

MSA1000 Controller Cache

” for procedural instructions.

1. Press the controller’s thumb latch and pull the latch handle toward you 1.

2. Remove the MSA1000 Controller by pulling it straight out of the chassis 2, as illustrated in

Figure 12

.

26

1

Figure 12: Removing the MSA1000 Controller

2

MSA1000 Controller User Guide

MSA1000 Controller

3. As illustrated in

Figure 13

, insert the replacement controller into the chassis 1.

2

1

Figure 13: Installing the replacement controller

4. Push the controller in as far as it will go; press the latch inward until it is flush against the front panel 2.

MSA1000 Controller User Guide

27

MSA1000 Controller

Updating the Controller Firmware

To load the latest version of the firmware for the MSA1000 Controller, go to the

HP website at www.hp.com/go/msa1000

.

From the HP StorageWorks MSA1000 page, select the Software, Firmware & Drivers option.

Note: All supported operating systems obtain MSA1000 Controller firmware upgrades from the HP website.

Installation instructions are available on the website.

You can use several methods to find out the version of the controller firmware you are currently running:

On the MSA1000 Controller LCD panel, use the arrow keys to scroll backwards through the messages.

Each time the MSA1000 storage system is restarted, the first message that is displayed includes the firmware version.

In the CLI, use the

SHOW VERSION

command.

In the ACU, highlight the controller and view the details.

28

MSA1000 Controller User Guide

Controller Display Messages

2

Each array controller in an MSA1000 contains an integrated display. This module is used for displaying informational and error messages, showing the current status of the module, and for providing user input when required. Traditional

Power-On-Self-Test (POST) messages issued by PCI-based array controllers have been combined with runtime event notification messages to create a new set of controller display messages.

The display module consists of the following components:

A two-line, twenty-column display text display window

Four push buttons arranged in a circular “pie” shape

Two status indicator lights

MSA1000 Controller User Guide

29

Controller Display Messages

About the LCD Messages

The display module is capable of holding up to 100 messages. Once this maximum size has been reached, older messages will be removed to make room for newer ones. Messages can be of three types: error, informational, and user input.

The display message may specify a box number. The following box numbers are defined.

Box 1 is the MSA1000 chassis.

Box 2 is the storage enclosure attached to SCSI port A of the MSA1000.

Box 3 is the storage enclosure attached to SCSI port B of the MSA1000.

Error Messages

Error messages indicate that a problem has occurred and may require user action to correct it. A complete list of possible messages and their meanings is contained in this appendix.

An amber indicator to the left of the display text display window will be turned on when ever an error message is currently being viewed. This indicator will also be turned on if an error message was sent to the display module but has not been viewed because non-error type messages were sent to the display module afterwards. By scrolling backwards and viewing all error messages, the indicator will return to only lighting up when currently on an error message.

Informational Messages

Informational messages indicate non-critical changes in the system that are provided as feedback to the user. A complete list of possible messages and their meanings is contained in this appendix.

The amber indicator to the left of the display text display window will normally be turned off whenever an informational message is currently being viewed unless an unviewed error message was previously sent to the display module. By scrolling backwards and viewing all error messages, the indicator will return to only lighting up when currently on an error message.

User Input Messages

User input messages indicate that the system has encountered an issue that can be handled in two different ways. It allows the user to either choose which way to handle the issue or it will default to a standard choice after a set period of time.

30

MSA1000 Controller User Guide

Controller Display Messages

These user input messages will only occur during system power on and not during run time. A complete list of possible messages and their meanings is contained in this appendix.

The amber indicator to the left of the display text display window will blink on and off when a user input message is currently being viewed and is available for input. If the user has not provided input within the time-out period, the message will remain but the indicator will stop blinking.

Scrolling

Older messages can be viewed by scrolling backwards using the up push button

(with the up arrow on it). Messages that are more recent can be viewed by scrolling forwards using the down push button (with the down arrow on it). The last message can be viewed by pressing the left button. When a new message is sent to the LCD, the display will show that message and ignore any previous scrolling position. This new message is now the most recent message available.

User Input

User input messages will allow the user two options, which are selected by either pushing the left push button (with the left arrow on it) or the right push button

(with the right arrow on it). The meaning of each button will be defined in the display text display window.

Deleting Messages

The currently displayed message can be deleted from the display module by pressing the left push button and the right push button at the same time.

Redundancy Link Light

There is a green indicator to the left of the display text display window that will be lit when two array controllers have been inserted into the MSA1000 and they have enabled controller redundancy. The indicator will not be lit if there is only one array controller inserted or if the array controllers are not redundant due to some type of failure.

Note: You must have redundant cables connected to enable redundancy.

MSA1000 Controller User Guide

31

Controller Display Messages

LCD Message Descriptions

The following table contains the defined messages and their components.

Table 3: LCD Message Descriptions

Message

00 ARRAY

CONTROLLER

FIRMWARE VER

<version>

Type Description

Informational Displays the current version of the firmware running on the array controller.

01 MSA1000

STARTUP COMPLETE

02 ENABLE VOLUME

<n>? ‘<’=NO,

‘>’=YES

Informational The array controller has completed its power on sequence and is now operational.

User Input An issue has been found with a configured volume that may result in data loss.

The exact nature of the issue will be detailed in a previous display message.

03 CRITICAL

LOCK-UP

DETECTED.

CODE=<n>h

04 ENABLE

VOLUMES ?

‘<’=NO, ‘>’=YES

Error

User Input

A critical error has been detected by the array controller firmware. In order to prevent any possible data loss, the firmware has entered a lock-up state. The code contains engineering specific information about the lock-up condition. HP support should be contacted.

An issue has been found with all of the configured volumes that may result in data loss. The exact nature of the issue will be detailed in a previous display message.

Action

Selecting the

Selecting the no result in the volume being disabled so the user can attempt to fix the issue.

yes

option will

option will result in the volume being enabled regardless of the issue.

Remove the failing array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

Should the issue persist please contact HP support.

An issue has been found with all of the configured volumes that may result in data loss. The exact nature of the issue will be detailed in a previous display message.

32

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

05 SYSTEM NAME:

<name>

06 RESTARTING

SYSTEM

20 INITIALIZING

SCSI SUBSYSTEM

21 SCANNING FOR

SCSI DEVICES

22 INITIALIZING

SCSI DEVICES

23 SCSI

SUBSYSTEM

HARDWARE FAILURE

24 BAD SCSI BUS

MODE NON-LVD

DEVICE FOUND

Type Description

Informational Displays the user assigned name for the MSA1000 system. This name can be assigned using the Array

Configuration Utility

(ACU).

Informational Indicates that the system has been reset and is being restarted.

Informational The SCSI subsystem is being initialized as part of the power on sequence.

Informational The firmware is searching for SCSI devices attached to the system as part of the power on sequence.

Informational The firmware is initializing all SCSI devices attached to the system as part of the power on sequence.

Error The SCSI subsystem on

MSA1000 has experienced a hardware failure and is not operating correctly. The array controller has halted itself and cannot continue.

Error The MSA1000 does not support SCSI Single Ended

(SE) devices, it only supports SCSI Low Voltage

Differential (LVD) devices.

Action

Please contact HP support.

The MSA1000 should be powered off and then all

SCSI devices attached to it should be examined. Any

SE devices found should be removed and replaced with

LVD devices.

MSA1000 Controller User Guide

33

Controller Display Messages

Table 3: LCD Message Descriptions

Message

30 I2C READ

FAILURE <I2C device name>

31 I2C WRITE

FAILURE <I2C device name>

32 CHASSIS NVRAM

CONTENTS

CORRUPTED

40 BEGIN

REDUNDANCY

SUPPORT

Error

Type Description

The MSA1000 has a number of internal devices that are accessed via an

I2C hardware bus. One of these devices failed when attempting to read from it.

Certain I2C devices are considered critical and will result in a failure of the array controller while others may result in some loss of functionality (such as lost display messages).

Error

Error

The MSA1000 has a number of internal devices that are accessed via an

I2C hardware bus. One of these devices failed when attempting to write to it.

Certain I2C devices are considered critical and will result in a failure of the array controller while others may result in some loss of functionality (such as lost display messages).

The MSA1000 has non-volatile memory on it that contains required information which is needed to operate. This non-volatile memory appears to be corrupted and the information is not valid. The MSA1000 cannot continue to operate and will halt.

Informational The array controllers are attempting to enter redundant mode.

Action

Should the issue persist please contact HP support.

Should the issue persist please contact HP support.

Please contact HP support.

34

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

41 REDUNDANCY

ACTIVE ACTIVE

CONTROLLER

42 REDUNDANCY

ACTIVE STANDBY

CONTROLLER

43 REDUNDANCY

FAILED HARDWARE

FAILURE

Type Description

Informational The array controllers are now in redundant mode and this array controller is active

which means that it is allowed to access the configured volumes on the

MSA1000.

Informational The array controllers are now in redundant mode and this array controller is standby

which means that active it can be made should the current active array controller fail, assuming you have all cables, I/O module or embedded switch installed.

Error While either attempting to enter redundant mode or already operating in redundant mode, one of the array controllers encountered a hardware failure on the communication channel between the two array controllers. Redundancy is disabled at this time.

Action

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

MSA1000 Controller User Guide

35

Controller Display Messages

Table 3: LCD Message Descriptions

Message

44 REDUNDANCY

FAILED MISMATCH

HARDWARE

Error

Type

45 REDUNDANCY

FAILED MISMATCH

FIRMWARE

Error

Description

Both array controllers must contain the same hardware for them to successfully enter redundant mode. The current array controllers do not contain the same hardware, possibly because one has an attached fibre daughter card and the other does not.

Both array controllers must be running the same version of firmware for them to successfully enter redundant mode. A process called firmware cloning that attempts to make them both the same firmware level has failed.

Action

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, add or remove the fibre daughter card as needed, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers, add or remove fibre daughter cards as needed on both, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

Manually update the firmware on the older array controller.

36

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

47 REDUNDANCY

FAILED CACHE

SIZE MISMATCH

Error

Type Description

Both array controllers must have the same size of cache memory for them to successfully enter redundant mode.

Action

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, add or remove cache memory as needed, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers, add or remove cache memory as needed on both, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

48 REDUNDANCY

HALTED FIRMWARE

CLONED

Informational Both array controllers must be running the same version of firmware for them to successfully enter redundant mode. A process called firmware cloning has been successfully completed in order to make them both the same firmware level.

The standby array controller will now be restarted automatically so they can attempt to achieve redundancy again.

MSA1000 Controller User Guide

37

Controller Display Messages

Table 3: LCD Message Descriptions

Message

49 REDUNDANCY

FAILED FIRMWARE

LOCKUP

Error

Type

50 REDUNDANCY

FAILED OUT OF

MEMORY

Error

Description

While either attempting to enter redundant mode or already operating in redundant mode, one of the array controllers encountered a critical condition resulting in a firmware lockup.

Redundancy is disabled at this time.

While either attempting to enter redundant mode or already operating in redundant mode, one of the array controllers failed to allocate required memory. Redundancy is disabled at this time.

Action

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then you wait until down-time is available.

Power off the MSA1000, remove both array controllers, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

38

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

51 REDUNDANCY

FAILED I/O

REQUEST ERROR

Error

Type

52 REDUNDANCY

FAILED PCI BUS

ERROR

Error

53 REDUNDANCY

FAILED NO SECOND

CONTROLLER

Error

Description

While either attempting to enter redundant mode or already operating in redundant mode, one of the array controllers encountered an error while sending I/O between the two array controllers over the communication channel between them. Redundancy is disabled at this time.

While either attempting to enter redundant mode or already operating in redundant mode, one of the array controllers encountered a PCI bus error on the communication channel used between the two array controllers.

Redundancy is disabled at this time.

While operating in redundant mode, one of the array controllers was removed. Redundancy is disabled at this time.

Action

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

If the MSA1000 is currently involved in host I/O, remove the standby

array controller, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

If this does not resolve the issue then wait until down-time is available.

Power off the MSA1000, remove both array controllers, and reinsert them insuring they are fully seated in the chassis.

Should the issue persist please contact HP support.

Reinsert the missing array controller insuring that it is fully seated in the chassis.

MSA1000 Controller User Guide

39

Controller Display Messages

Table 3: LCD Message Descriptions

Message

54 REDUNDANCY

FAILED CACHE

DIMMS MISMATCH

60 NO CACHE

MODULE FOUND

61 DUAL CACHE

MODULE SIZE

MISMATCH

Error

Error

Error

Type Description

The cache memory modules on two different controllers are not the same size. All cache memory modules must be the same size for redundancy to operate.

The array controller requires at least one cache module in order to operate.

Either there is not one present or it has failed.

The array controller has two cache modules attached but they are of different sizes. Both cache modules must be the same size.

Action

Remove the array controller that has been halted, replace the cache modules with the appropriately sized ones, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

Remove the failed array controller, either add a cache module or replace the failed one, wait 10 seconds, and then reinsert it insuring that it is fully seated in the chassis.

Should the issue persist please contact HP support.

Remove the failed array controller, replace one of the cache modules with a different one that is of the correct size, wait 10 seconds, and then reinsert it, insuring that it is fully seated in the chassis.

62 CACHE MODULE

#<n> <n>MB

63 VALID CACHE

DATA FOUND AT

POWER-UP

64 CACHE DATA

LOST BATTERY

DEAD

Informational Displays the size of the cache module inserted into the respective cache module slot.

Informational Valid host data was found in the battery backed cache memory at power up. This data has been flushed to the drives.

Error The battery on the cache memory was no longer charged. If there was data in the cache memory then it has been lost.

40

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

65 CACHE

HARDWARE ENABLED

66 CACHE

HARDWARE FAILED

AND DISABLED

Informational The cache hardware had been temporarily disabled but is now enabled again.

This may have been due to insufficient charge on the batteries that have now charged up to capacity.

Error

Type Description

The cache memory has experienced a hardware failure.

Action

If the failure has occurred on the standby

array controller, then remove the standby

array controller, replace the cache modules, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

If the failure has occurred on the active

array controller, then wait until downtime is available.

Power off the MSA1000, remove the array controller, replace the cache modules, and reinsert the array controller insuring it is fully seated in the chassis.

Should the issue persist please contact HP support

67 CACHE

HARDWARE

TEMPORARILY

DISABLED

Informational The cache memory hardware has temporarily been disabled typically because either the battery is not charged up or a capacity expansion operation is occurring. The cache will automatically be enabled once the condition has been corrected.

MSA1000 Controller User Guide

41

Controller Display Messages

Table 3: LCD Message Descriptions

Message

68 OBSOLETE

CACHE DATA

DELETED

69 CACHE

BATTERIES LOW,

RECHARGING

70 CACHE

DISABLED NO

CONFIGURATION

Type Description

Informational Old data that no longer belongs to any current configured volumes was found in the cache memory at power up. This data has been deleted. This typically happens if cache modules are moved between array controllers.

Informational The batteries on the cache module are low and are being recharged.

Informational The cache has not been configured and therefore is disabled. The cache can be configured by using the

Array Configuration Utility

(ACU).

Action

42

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

71 SYSTEM HALTED

FOR CACHE ERROR

Error

Type

MSA1000 Controller User Guide

Description

This message is generated if the user chooses to ignore a critical cache error condition. It is always preceded by message #72

(although message #72 is removed from the LCD display once it has accepted user input).

Action

The no

Error

option will cause the array controller to halt itself, providing the user an opportunity to resolve the issue. Selecting the

Error

1.1 only one cache board in the array controller at present but it was previously configured with a second cache board that is now missing (dual cache module configuration).

2.1 and and

1.2

2.2

yes option will result in the second cache board that

(dual cache module configuration). Error cache data being erased.

Operation of the array controller will continue normally.

: There is

: A contained valid data was removed from its original array controller and added to this array controller

2.3

: A cache board that contained valid data was removed from its original array controller and added to this array controller

(single cache module configuration). Return all cache boards to their original array controllers.

Power up the systems without allowing any host

I/O and wait for the cache data to be written to the drives. This will take a few minutes after the systems have finished the power on sequence. The systems can be powered off and cache boards moved to their new locations.

43

Controller Display Messages

Table 3: LCD Message Descriptions

72 CACHE ERROR

<n> IGNORE? <=NO

>=YES

Message Type

User Input

44

Description

During power up, data was found in the cache that could not be flushed to the drives. The reason is either because the data does not belong to this array controller (the cache board was moved from a different array controller) or the cache data is partial (the rest of the data is in another cache board that was removed from the array controller). This error could occur if cache boards are moved improperly.

Action

The no

Error

option will cause the array controller to halt itself, providing the user an opportunity to resolve the issue. Selecting the

Error

1.1 only one cache board in the array controller at present but it was previously configured with a second cache board that is now missing (dual cache module configuration).

2.1 and and

1.2

2.2

yes option will result in the second cache board that

(dual cache module configuration). Error cache data being erased.

Operation of the array controller will continue normally.

: There is

: A contained valid data was removed from its original array controller and added to this array controller

2.3

: A cache board that contained valid data was removed from its original array controller and added to this array controller

(single cache module configuration). Return all cache boards to their original array controllers.

Power up the systems without allowing any host

I/O and wait for the cache data to be written to the drives. This will take a few minutes after the systems have finished the power on sequence. The systems can be powered off and cache boards moved to their new locations.

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

Error

Type

73 CACHE

HARDWARE

BATTERIES

MISSING

Description

The cache memory does not have its required batteries attached to it.

Action

If the failure has occurred on the standby

array controller, then remove the standby

array controller, replace the cache modules, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

If the failure has occurred on the active

array controller, then wait until down-time is available.

Power off the MSA1000, remove the array controller, replace the cache modules, and reinsert the array controller insuring it is fully seated in the chassis.

Should the issue persist please contact HP support.

80 REPLACEMENT

DRIVE FOUND BOX

#<n> BAY <n>

81 SMART DRIVE

ALERT BOX #<n>,

BAY <n>

Informational A SCSI drive that was previously missing or failed has now been replaced with a working SCSI drive.

Informational A SCSI drive may be close to failing. This was determined either by the drive firmware itself using

SMART technology or by the array controller using monitor and performance testing.

The drive should be replaced as soon as possible following the guidelines in Appendix E,

“Recovering from Hard

Drive Failure” in this guide.

82 DRIVE HOT

ADDED BOX #<n>,

BAY <n>

Informational A SCSI drive has been added to the MSA1000 or one of the storage enclosures attached to it.

MSA1000 Controller User Guide

45

Controller Display Messages

Table 3: LCD Message Descriptions

Message

83 DRIVE HOT

REMOVED BOX

#<n>, BAY <n>

Type Description

Informational A SCSI drive has been removed from the

MSA1000 or one of the storage enclosures attached to it.

Action

84 DRIVE FAILURE

BOX #<n>, BAY

<n> 84

85 BAD DRIVE

FRMWARE BOX

#<n>, BAY <n>

Error

Error

A SCSI drive in the

MSA1000 or one of the storage enclosures attached to it has failed. If the drive was part of a configured volume, then the state of the volume will depend on the fault tolerance used.

A SCSI drive has been detected that has known, bad firmware on it.

Continued usage of this drive could result in drive failure, decreased performance or data loss.

The drive should be replaced as soon as possible following the guidelines in the

“Recovering from Hard

Drive Failure” section in this guide (Appendix E).

Either the drive firmware should be updated or the drive should be replaced as soon as possible following the guidelines in the “Recovering from Hard

Drive Failure” (Appendix E) in this guide.

86 DRIVE

POSITION CHANGE

DETECTED

87 DRIVE

POSITION CHANGE

INVALID

Informational The SCSI drives that make up a configured volume have been physically moved within the

MSA1000 or an attached storage enclosure. The array controller has updated its configuration information accordingly.

Informational The SCSI drives that make up a configured volume have been physically moved in such a way that the array controller can no longer access the configured volume.

The MSA1000 should be powered off and the drives restored to their original positions.

46

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

100 VOLUME #<n>

STATE OK

101 VOLUME #<n>

STATE FAILED

102 VOLUME #<n>

STATE INTERIM

RECOVERY

103 VOLUME #<n>

STATE REBUILDING

104 VOLUME #<n>

STATE DISABLED

Type Description

Informational The configured volume has returned to its normal operating state. This typically occurs after a rebuild operation has completed.

Error The configured volume has been failed because too many SCSI drives that it is composed of have failed exceeding the fault tolerance level. The data on the configured volume is no longer available.

Informational The array controller has failed one or more SCSI drives that the configured volume is composed of but no data loss has occurred because fault tolerance is allowing the data to be recovered.

Informational The configured volume is rebuilding data on a SCSI drive that replaced a previously failed drive.

Error The configured volume has been disabled because too many of the SCSI drives that it is composed of are missing.

Action

The failed drives should be replaced as soon as possible following the guidelines in the

Recovering from Hard

Drive Failure

(Appendix E) section in this guide.

Power off the MSA1000 and then all attached storage enclosures. Unplug and reinsert all SCSI drives insuring they are fully seated in their bays. Check the cables connecting the

MSA1000 to any attached storage enclosures. Power on the attached storage enclosures and then the

MSA1000.

105 VOLUME #<n>

STATE EXPANSION

ACTIVE

Informational The configured volume is currently performing a volume expansion operation.

MSA1000 Controller User Guide

47

Controller Display Messages

Table 3: LCD Message Descriptions

Message

106 VOLUME #<n>

STATE WAITING TO

REBUILD

107 VOLUME #<n>

STATE WAITING TO

EXPAND

108 VOLUME #<n>

STATE MISSING

DRIVES

109 VOLUME #<n>

STATE WRONG

DRIVE REPLACED

Informational The configured volume is waiting to start rebuilding data on a SCSI drive that replaces a previously failed drive. The rebuild may not have started yet because the array controller is already performing a rebuild on another configured volume.

Informational The configured volume is waiting to start a volume expansion operation. The expansion may have not started yet because another configured volume is undergoing expansion or a rebuild is occurring on the configured volume.

Error

Error

Type Description

The configured volume is missing too many of the

SCSI drives that it is composed of making it unusable. The volume will be disabled.

The configured volume appears to have had known, good SCSI drives replaced instead of known, failed drives.

Action

Power off the MSA1000 and then all attached storage enclosures. Unplug and reinsert all SCSI drives insuring they are fully seated in their bays. Check the cables connecting the

MSA1000 to any attached storage enclosures. Power on the attached storage enclosures and then the

MSA1000.

The MSA1000 should be powered off and the good drives should be restored while the failed drives should be replaced.

48

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

110 VOLUME #<n>

EXPANSION

DISABLED

111 VOLUME #<n>

INITIALIZING

PARITY

112 VOLUME #<n>

REBUILD FAILURE

Type Description

Informational The volume expansion operation on the configured volume has been disabled. This may be because a rebuild operation is ongoing, another expansion is already running, or the cache memory is disabled due to a low battery. The expansion will start once the condition has been cleared.

Informational The array controller is calculating and storing parity information for the configured volume and therefore performance may be lower until it completes.

Error The rebuild operation on the configured volume has failed.

113 VOLUME #<n>

EXPANSION

FAILURE

Error The volume expansion operation on the configured volume has failed.

Action

If the volume is still operating in regenerative mode, remove the new

SCSI drive that was added as a replacement for the original failed drive and replace it with a different new drive.

Run the Array

Configuration Utility (ACU) and use it to determine the state of the volume. If the volume is still operational then it is possible to reattempt the operation.

114 VOLUME #<n>

STATE DELETED

120 CONFIGURED

VOLUMES <n>

Informational The configured volume has been deleted and is no longer available. Volumes are deleted by using the

Array Configuration Utility

(ACU).

Informational The specified number of configured volumes were detected at power up.

MSA1000 Controller User Guide

49

Controller Display Messages

Table 3: LCD Message Descriptions

Message

121 NO VOLUMES

DETECTED

Type Description

Informational No configured volumes were detected at power up.

Action

If there are supposed to be configured volumes, power off the MSA1000 and then all attached storage enclosures. Unplug and reinsert all SCSI drives insuring they are fully seated in their bays. Check the cables connecting the

MSA1000 to any attached storage enclosures. Power on the attached storage enclosures and then the

MSA1000.

122 NEW

VOLUME(S)

DETECTED

123 TOO MANY

VOLUMES DETECTED

Informational Configured volumes from another array controller were migrated to this array controller. The configuration information has been updated.

Error The array controller only supports a maximum of 32 configured volumes. More volumes then that were detected at power up. This typically occurs when migrating a set of volumes from one array controller to a different array controller that already has configured volumes on it. The migrated volumes have not been added.

Remove the migrated drives and run the Array

Configuration Utility

(ACU). Delete any unneeded volumes until the number of existing volumes plus the number of migrated volumes is 32 or less. Add the migrated drives back.

50

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

125 ACCESS

CONTROL CONFLICT

DETECTED

126 ACCESS

CONTROL

RESOURCES

EXCEEDED

201 ARRAY

CONTROLLER

TEMPERATURE OK

Error

Type Description

A set of volumes have been migrated from one array controller to a different array controller that already has configured volumes on it. The migrated volumes have access controls defined for them that conflicts with the existing configuration. The access controls has been modified so as to allow the migration to proceed.

Error A set of volumes have been migrated from one array controller to a different array controllers that already has configured volumes on it. The migrated volumes have access controls defined for them that conflicts with the existing configuration. The access controls has been modified so as to allow the migration to proceed.

Informational The temperature sensor on the array controller indicates that the temperature which was previously exceeding the normal operating range is now back within the range.

Action

Run the Array

Configuration Utility (ACU) to check the new access controls and modify them if needed.

Run the Array

Configuration Utility (ACU) to check the new access controls and modify them if needed.

MSA1000 Controller User Guide

51

Controller Display Messages

Table 3: LCD Message Descriptions

Message

202 ARRAY

CONTROLLER

OVERHEATING

203 ARRAY

CONTROLLER

OVERHEATED

204 ARRAY

CONTROLLER

DISABLED

205 ARRAY

CONTROLLER

RESTARTING

Error

Error

Error

Type Description

The temperature sensor on the array controller indicates that the array controller is starting to exceed the normal operating range.

The temperature sensor on the array controller indicates that the array controller has exceeded the safe operating range.

The array controller has been disabled due to a redundancy failure.

Action

Check all MSA1000 fans and insure they are operating. Any failed fans should be replaced. Insure that there are drive blank cartridges in any empty drive bays of the

MSA1000 chassis. If only one array controller is inserted, insure that there are cover plates installed in the empty array controller bay and the fibre bay of the MSA1000 chassis.

The MSA1000 should be powered off as soon as possible to avoid hardware failure.

Check all MSA1000 fans and insure they are operating. Any failed fans should be replaced. Insure that there are drive blank cartridges in any empty drive bays of the

MSA1000 chassis. If only one array controller is inserted, insure that there are cover plates installed in the empty array controller bay and the fibre bay of the MSA1000 chassis.

Remove the failed array controller, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

Should the issue persist please contact HP support.

Informational The array controller has completed firmware cloning and will be restarted automatically.

52

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

300 RECOVERY ROM

AUTOFLASH

STARTED

301 RECOVERY ROM

AUTOFLASH DONE

302 RECOVERY ROM

AUTOFLASH FAILED

Type Description

Informational Indicates that the array controller has detected that the firmware’s backup recovery ROM image is invalid and is copying the current active firmware image into the backup recovery ROM.

Informational Indicates that the array controller has successfully completed the process of copying the current active firmware image into the backup recovery ROM.

Error Indicates that the array controller failed to copy the current active firmware image into the backup recovery ROM. Recovery

ROM support is disabled.

Action

Remove the failing array controller, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

The ROM autoflash process will be attempted again.

Should the issue persist please contact HP support.

MSA1000 Controller User Guide

53

Controller Display Messages

Table 3: LCD Message Descriptions

Message

303 ROM CLONING

STARTED

304 ROM CLONING

DONE

305 ROM CLONING

FAILED

Type Description

Informational Indicates that the two array controllers in an MSA1000 do not have the same version of firmware on them. Therefore, one array controller’s version of the firmware will be copied on to the other array controller. Both controllers must be running the same version of firmware in order for controller redundancy to operate.

If both array controllers are in the power up sequence, then the most recent version of firmware will be used.

If one array controller has already completed the power up sequence and is now active

, then its version of firmware will be used even if less recent.

Informational Indicates that the two array controllers in an MSA1000 have finished copying one array controller’s version of firmware to the other array controller. Both controllers must be running the same version of firmware in order for controller redundancy to operate.

Error Indicates that the two array controllers in an MSA1000 failed to copy one array controller’s version of firmware to the other array controller. Both controllers must be running the same version of firmware in order for controller redundancy to operate.

Action

Remove the standby

array controller, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

The ROM cloning process will be attempted again.

Should the issue persist please contact HP support.

54

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

306 FIRMWARE

FLASH STARTED

307 FIRMWARE

FLASH DONE

308 FIRMWARE

FLASH FAILED

309 EMU FLASH

STARTED

310 EMU FLASH

DONE

311 EMU FLASH

FAILED

Type Description

Informational Indicates that the array controller in the MSA1000 has started the firmware flash process. Do not turn off power to the system until it has completed. This could take several minutes.

Informational Indicates that the array controller in the MSA1000 has completed the firmware flash process. It is now safe to turn off power to the system.

Error Indicates that the array controller in the MSA1000 has failed the firmware flash process.

Informational Indicates that the EMU in the MSA1000 has started the firmware flash process.

Do not turn off the power to the system until it has completed. This could take five minutes.

Informational Indicates that the EMU in an MSA1000 has completed the firmware flash process. It is now safe to turn off power to the system.

Error Indicates that the EMU in an MSA1000 has failed the firmware flash process.

Action

Attempt the flash process again.

Should the issue persist, please contact HP support.

Attempt the flash process again.

Should the issue persist, please contact HP support.

400 STORAGE BOX

#<n> FAN OK

Informational The specified storage enclosure indicates that one of its fans which previously had been failed or degraded is now operating normally.

MSA1000 Controller User Guide

55

Controller Display Messages

Table 3: LCD Message Descriptions

405 STORAGE BOX

#<n> TEMPERATURE

OK

Message

401 STORAGE BOX

#<n> FAN FAILED

402 STORAGE BOX

#<n> FAN

DEGRADED

403 STORAGE BOX

#<n> FAN HOT

INSERTED

404 STORAGE BOX

#<n> FAN HOT

REMOVED

406 STORAGE BOX

#<n> OVERHEATING

Error

Type Description

The specified storage enclosure indicates that one of its fans has failed. The storage enclosure and any devices in it may now be susceptible to overheating if corrective action is not taken.

Error The specified storage enclosure indicates that one of its fans is not operating at full efficiency. The fan may eventually fail.

Informational The specified storage enclosure indicates that a fan has been added.

Informational The specified storage enclosure indicates that a fan has been removed.

Informational The temperature sensor in the storage enclosure indicates that the temperature is now back in the normal operating range.

Error The temperature sensor in the storage enclosure indicates that the enclosure is starting to exceed the normal operating range.

Action

Check all fans and insure they are operating. Any failed fans should be replaced.

Check all fans and insure they are operating. Any failed fans should be replaced.

Check all fans and insure they are operating. Any failed fans should be replaced. Insure that there are drive blank cartridges in any empty drive bays in the enclosure. If the enclosure is an MSA1000 and only one array controller is inserted, insure that there are cover plates installed in the empty array controller bay and the fibre bay in the chassis.

56

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

Message

407 STORAGE BOX

#<n> OVERHEATED

Error

Type Description

The temperature sensor in the storage enclosure indicates that the enclosure has exceeded the safe operating range.

408 STORAGE BOX

#<n> POWER

SUPPLY OK

409 STORAGE BOX

#<n> POWER

SUPPLY FAILED

Informational The specified storage enclosure indicates that one of its power supplies which previously had been failed is now operating normally.

Error The specified storage enclosure indicates that one of its power supplies has failed.

Check all power supplies and insure they are operating. Any failed power supplies should be replaced.

410 STORAGE BOX

#<n> POWER

SUPPLY ADDED

411 STORAGE BOX

#<n> POWER

SUPPLY REMOVED

Informational The specified storage enclosure indicates that a power supply has been added.

Informational The specified storage enclosure indicates that a power supply has been removed.

Action

The MSA1000 should be powered off as soon as possible and immediately after that, the enclosure should be powered off, to avoid hardware failure.

Check all fans and insure they are operating. Any failed fans should be replaced. Insure that there are drive blank cartridges in any empty drive bays in the enclosure. If the enclosure is an MSA1000 and only one array controller is inserted, insure that there are cover plates installed in the empty array controller bay and the fibre bay in the chassis.

MSA1000 Controller User Guide

57

Controller Display Messages

Table 3: LCD Message Descriptions

Message

412 STORAGE BOX

#<n> EMU NOT

RESPONDING

Error

Type Description

The specified storage enclosure is not responding to commands.

Action

Insure the storage box is powered on. Insure all cables are connected securely. Power of the

MSA1000 and the storage box. Power on the storage box first and then the

MSA1000.

Should the issue persist, please contact HP support.

413 STORAGE BOX

#<n> EMU VERSION

<version>

415 STORAGE BOX

#2 OR #3 HOT

ADDED

500 INITIALIZING

PCI SUBSYSTEM

501 PCI

SUBSYSTEM

HARDWARE FAILURE

Informational The version of the firmware running on the EMU. This is only displayed for the internal EMU of the

MSA1000. It is not displayed for externally connected storage boxes.

Informational A HP StorageWorks SCSI expansion storage enclosure has been hot-added to the

MSA1000.

Informational The array controller’s PCI subsystem is being initialized as part of the power up sequence.

Error The array controller’s PCI subsystem has encountered a critical error during the power up sequence.

502 PCI BRIDGE

ASIC SELF TEST

FAILURE

Error The array controller’s PCI bridge ASIC has encountered a critical error during the power up sequence.

Remove the failed array controller, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

Should the issue persist please contact HP support.

Remove the failed array controller, wait 10 seconds, and then reinsert the array controller insuring that it is fully seated in the chassis.

Should the issue persist please contact HP support.

58

MSA1000 Controller User Guide

Controller Display Messages

Table 3: LCD Message Descriptions

513 UNCORRECTED

ECC MEMORY ERROR

SEEN

Message

510 INITIALIZING

FIBRE SUBSYSTEM

514 FIBRE SWITCH

HARDWARE FAILURE

Type Description

Informational The array controller’s fibre subsystem is being initialized as part of the power up sequence.

Error

Error

The array controller has detected an uncorrectable error in the ECC memory on the memory cache board.

The MSA SAN Switch 2/8 that is installed in the

MSA1000 failed to establish a connection with the array controller over fibre channel.

Action

Remove the failed array controller and replace the memory cache board with a new one.

Remove the MSA Fabric

Switch 6 switch, wait one minute and then reinsert it insuring it is fully seated in the chassis. Wait one minute and check the LCD to see if a new copy of this error message is created.

The service indicator LED on the back of the switch should turn solid green if the switch is operating normally. The service indicator LED will flash amber if it has failed again.

Should the issue persist please contact HP support.

MSA1000 Controller User Guide

59

Controller Display Messages

Table 3: LCD Message Descriptions

517 FIBRE

SUBSYSTEM LINK

OK

Message

515 FIBRE DEVICE

HARDWARE FAILURE

516 FIBRE

SUSBYSTEM LINK

FAILURE

Error

Type Description

The fibre device that is installed in the MSA1000 fibre bay was not recognized by the array controller.

Error There is no active fibre connection to this

MSA1000 array controller

(Laser OFF).

If the Fibre connection is a direct-connect from an

HBA to the MSA1000, this message is expected when the server is powered off or restarted.

Informational There is an active fibre connection to this

MSA1000 array controller

(Laser On).

This message is only displayed when preceded by message 516.

Action

Verify the fibre device is supported by the

MSA1000 by checking the documentation that came with it. If it is supported then remove the fibre device, wait one minute and then reinsert it insuring it is fully seated in the chassis. Wait one minute and check the LCD to see if a new copy of this error message is created. The service indicator LED on the back of the switch should turn solid green if the device is operating normally. The service indicator LED will flash amber if it has failed again.

Should the issue persist, please contact HP support.

Power on the server and load the HBA drivers.

If the status does not change to OK, check cables, fibre bay board,

SFP, and HBA.

60

MSA1000 Controller User Guide

Table 3: LCD Message Descriptions

Message

518 PERSISTENT

MEM ENABLED

Type Description

Informational Global variables such as system prompts and profile information remain persistent in cache over power cycles of the

MSA1000.

This message is displayed each time the MSA1000 is powered up.

Controller Display Messages

Action

MSA1000 Controller User Guide

61

Controller Display Messages

62

MSA1000 Controller User Guide

Regulatory Compliance

Notices

A

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your

HP StorageWorks MSA1000 is assigned an HP Series number. The Storage

System Series number can be found on the product label, along with the required approval markings and information. The product label is located on the right side of the chassis. When requesting certification information for this product, always refer to this Series number. This Series number should not be confused with the marketing name or model number for your Storage System.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic

RFI/EMI connector hoods in order to comply with FCC Rules and Regulations.

MSA1000 Controller User Guide

63

Regulatory Compliance Notices

Canadian Notice (Avis Canadien)

This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Notice

Products with the CE Marking comply with both the EMC Directive

(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the

Commission of the European Community.

Compliance with these directives implies conformity to the following European

Norms (in brackets are the equivalent international standards):

EN55022 (CISPR 22) - Electromagnetic Interference

EN50082-1 (IEC801-2, IEC801-3, IEC801-4) - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Japanese Notice

64

MSA1000 Controller User Guide

Regulatory Compliance Notices

BSMI Notice

Laser Compliance

The SFP Module contains a laser diode of either gallium aluminum arsenide

(GaALAs) emitting in the wavelength range of 770-860 nm, or indium gallium arsenide phosphide (InGaAsP) emitting in the wavelength range of 1270-1355 nm. All HP systems equipped with a laser device comply with safety standards, including International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment complies with laser product performance standards set by government agencies as a Class 1 laser product. The product does not emit hazardous laser radiation.

WARNING: Use of controls or adjustments or performance of procedures other than those specified herein or in the laser product’s installation guide may result in hazardous radiation exposure. To reduce the risk of exposure to hazardous radiation:

Do not try to open the unit enclosure. There are no user-serviceable components inside.

Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein.

Allow only HP Authorized Service technicians to repair the unit.

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and

Drug Administration implemented regulations for laser products on August 2,

1976. These regulations apply to laser products manufactured from August 1,

1976. Compliance is mandatory for products marketed in the United States. This device is classified as a Class 1 laser product as defined by IEC 825.

MSA1000 Controller User Guide

65

Regulatory Compliance Notices

This indicates that the product is classified as a

CLASS 1 LASER PRODUCT.

Battery Replacement Notice

Your MSA1000 is provided with a Nickel Metal Hydride, Lithium Manganese

Dioxide, or a Vanadium Pentoxide, batteries. There is a danger of explosion and risk of personal injury if the array is incorrectly replaced or mistreated. Replace only with the HP spare designated for this product. For more information about battery replacement or proper disposal, contact your HP Authorized Reseller or your Authorized Service Provider.

WARNING:

Your Accelerator Array contains Lithium manganese Dioxide, or

Vanadium Pentoxide batteries. There is risk of fire and burns if the battery pack is not handled properly. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

Do not expose to temperatures higher than 60 C.

Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace only with HP spare designated for this product.

Caution: Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP, your authorized HP Partners, or their agents.

66

MSA1000 Controller User Guide

Electrostatic Discharge

B

To prevent damage to the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.

To prevent electrostatic damage, observe the following precautions:

Avoid hand contact by transporting and storing products in static-safe containers.

Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

Place parts on a grounded surface before removing them from their containers.

Avoid touching pins, leads, or circuitry.

Always make sure you are properly grounded when touching a static-sensitive component or assembly.

MSA1000 Controller User Guide

67

Electrostatic Discharge

Grounding Methods

There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:

Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm

± 10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.

Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats.

Use conductive field service tools.

Use a portable field service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an

Authorized HP Reseller install the part.

Note: For more information on static electricity, or assistance with product installation, contact your HP Authorized Reseller.

68

MSA1000 Controller User Guide

A array accelerator batteries, installing

18

array accelerator

described 13

features of

13

audience

6

B batteries replacement notice

66

replacing

18 warnings 18

C

chassis 26

Controller removing

26

Controller display box numbering

30

components

29

defined

29

deleting messages

31

error messages 30

informational messages

30 message types 30

redundancy link light

31

user input messages

30 ,

31

Controller display messages

access control conflict detected 51

access control resources exceeded

51

array Controller disabled 52

MSA1000 Controller User Guide

Index

array Controller overheated

52 array Controller overheating 52

array Controller restarting

52

array Controller temperature ok

51

bad drive firmware box, bay

46

bad SCSI bus mode non-lvd device found 33

begin redundancy support 34

cache batteries low recharging

42

cache data lost battery dead

40

cache disabled no configuration

42

cache error

44

cache hardware batteries missing

45

cache hardware enabled

41

cache hardware temporarily disabled

41

cache module size

40

chassis nvram contents corrupted 34

configured volumes

49

critical lockup detected

32

drive failure box, bay

46

drive hot added box, bay

45

drive hot removed box, bay 46

drive position change detected

46

drive position change invalid

46

dual cache module size mismatch

40

EMU flash done

55

EMU flash failed

55

EMU flash started

55

enable volume

32 enable volumes 32

fibre switch hardware failure

59

firmware flash done

55 firmware flash failed 55

firmware flash started

55

69

Index

70 firmware version

32

initializing fibre subsystem 59

initializing PCI subsystem

58

initializing SCSI devices 33

initializing SCSI subsystem

33

new volume(s) detected

50

no cache module found 40

no volumes detected

50

obsolete cache data deleted

42

PCI bridge ASIC self-test failure

58

PCI subsystem hardware failure

58

read failure

34

recovery ROM autoflash done

53

recovery ROM autoflash failed

53

recovery ROM autoflash started

53

redundancy active active Controller

35

redundancy active standby Controller

35

redundancy failed cache DIMMS mismatch

40

redundancy failed cache size mismatch

37

redundancy failed firmware lockup

38

redundancy failed hardware failure

35

redundancy failed I/O request error

39

redundancy failed mismatch firmware

36

redundancy failed mismatch hardware

36

redundancy failed no second Controller

39

redundancy failed out of memory

38

redundancy failed PCI bus error

39

redundancy halted firmware cloned

37

replacement drive found box 45

restarting system 33

ROM cloning done

54

ROM cloning failed

54

ROM cloning started 54

scanning for SCSI devices

33

SCSI subsystem hardware failure 33

smart drive alert box

45

startup complete 32

storage box

55

storage box EMU not responding

58

storage box EMU version

58

storage box fan failed 56

storage box fan hot inserted

56

storage box fan hot removed

56

storage box overheated

57

storage box overheating 56

storage box power supply added

57 storage box power supply failed 57

storage box power supply ok

57 storage box power supply removed 57

storage box temperature ok

56

storage fan degraded

56

system halted for cache error 43

system name

33

too many volumes detected

50

uncorrected ECC memory error seen

59

valid cache data found at power-up

40

volume expansion disabled 49

volume expansion failure

49 volume initializing parity 49

volume rebuild failure

49

volume state deleted

49

volume state disabled 47 volume state expansion active 47

volume state failed

47 volume state ok 47

volume state rebuilding

47

volume state waiting to expand 48 volume state waiting to rebuild 48 volume state wrong drive replaced 48

volumestate interim recovery

47

volumestate missing drives 48

write failure

34

conventions

document 7

equipment symbols

8

text symbols

7

D document conventions

7

documentation, related 6

MSA1000 Controller User Guide

E electrostatic discharge

67

equipment symbols

8

F

FCC notice

63

firmware updating

28

G

getting help 10

grounding methods 68

H help, obtaining

9

hp authorized reseller

10

technical support

10

website

10

I installing batteries

18

M

MSA1000 Controller

array accelerator 13 array accelerator features 13

ejector levers 15 ,

26 failure 26

indicators

24

installing

27

latches 15 ,

26 ,

27

removing

26

Index replacing

26

securing

27

P panels rear

27

R

rack stability, warning 9

recovery ROM

23

regulatory compliance identification numbers

63

regulatory compliance notices 64

related documentation

6

replacing batteries

18

ROM

cloning 11

recovery

11

S

symbols in text 7

symbols on equipment 8

T technical support, hp

10

text symbols

7

W warning rack stability

9

symbols on equipment

8

websites hp storage

10

MSA1000 Controller User Guide

71

Index

72

MSA1000 Controller User Guide

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
