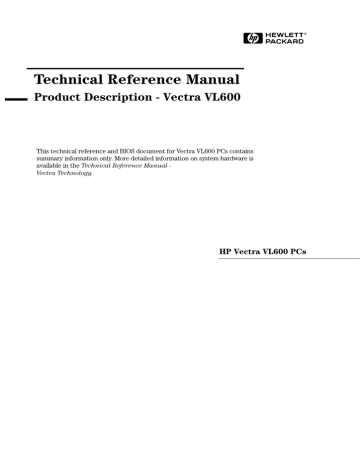

Technical Reference Manual
Product Description - Vectra VL600
This technical reference and BIOS document for Vectra VL600 PCs contains
summary information only. More detailed information on system hardware is
available in the Technical Reference Manual Vectra Technology.
HP Vectra VL600 PCs
Contents
1 System Overview
Package Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
VL600 Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
VL600 Minitower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Acoustic Noise Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2 System Features
VL600 System Board Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Architectural View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Memory Types Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RDRAM Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
19
Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Hard Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Floppy Disk Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CD-ROM and DVD Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DVD Region Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Matrox Millennium G250 AGP 2X Graphics Card . . . . . . . . . . . . . . . 26
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported Refresh Rates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
26
27
Matrox Millennium G400 AGP 4X Graphics Card . . . . . . . . . . . . . . . 28
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supported Refresh Rates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
28
29
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
English 3
Accessory Boards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
3 Serviceability
VL600 Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
VL600 Minitower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
4 BIOS Overview
BIOS Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
Using the HP Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Power Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Power Saving and Ergonometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
Soft Power Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
44
BIOS Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
System Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
HP I/O Port Map (I/O Addresses Used by the System) . . . . . . . . . . . . . . 45
DMA Channel Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Interrupt Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
PCI Interrupt Request Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Order in Which the POST Tests are Performed . . . . . . . . . . . . . . . .
49
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
56
5 Drivers and Software
Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
58
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
58
BIOS Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
59
4 English
About this Document
This technical reference and BIOS document for Vectra VL600 PCs contains
summary information only. More detailed information on system hardware is
available in the Technical Reference Manual - Vectra Technology.
VL600 Bibliography
❒ HP Vectra VL600 (D8610-90001) User’s Guides manual
HP Vectra VL600 (D8610-UPG-ABA) Troubleshooting and Upgrade
Guide manual at:
www.hp.com/go/vectrasupport
❒ Technical Reference Manual -Vectra Technology
www.hp.com/go/vectrasupport
❒ HP Vectra PC Service Handbook Chapter at:
www.hp.com/go/vectrasupport.
❒ HP Support Assistant CD-ROM (by subscription).
Data sheets can be obtained at:
❒ Pentium Processors
www.intel.com/design/pentiumIII/datashts
❒ Product Data Sheet
www.hp.com/vectra
5
6
1
System Overview
This chapter introduces the internal and external features, and lists the
specifications of the HP Vectra VL600 PC models.
1 System Overview
Package Features
Package Features
VL600 Desktop
Keyboard Lock Hard Disk Drive
Status Light
Activity Light
Power on
Status Light
(flashes in
sleep mode)
Front view
Power On/
Off Button
Processor
Front view with
cover removed
Main memory
Expansion card slots
System board switches
CD-ROM, DVD or CD-RW drive
Floppy disk drive
8
1 System Overview
Package Features
Rear view
Voltage selection switch
Monitor
Rear connectors
Parallel Port
Mouse
Keyboard
A
USB
B
Serial Ports A & B
Speaker
Line In
Microphone
9
1 System Overview
Package Features
VL600 Minitower
Front view
Front view with
cover removed
Floppy disk
drive
Main
Memory
Power On/
Off Button
CD-ROM,
DVD or
CD-RW drive
Processor
Power On
Status Light (flashes
in sleep mode)
Keyboard Lo ck
Status Light
System board
switches
Hard Disk Drive
Activity Light
Keyboard
Rear view
Mouse
Rear connectors
Voltage selection switch
USB
A
Serial Ports A & B
B
Monitor
Speaker
Line In
Microphone
10
Parallel Port
1 System Overview
Specifications
Specifications
Physical Characteristics
VL600 Desktop
Characteristic
Description
Weight
(excluding display and keyboard)
10 kg (22 pounds)
Dimensions
Width: 43.5cm (17.13 inches)
Height: 13.5cm (5.32 inches)
Depth: 43 cm (16.93 inches)
Footprint
0.187 m2 (2.01 ft.2)
HP Windows 95 Keyboard
18.3 (W) by 7 inches (D) by 1.3 inches (H), when flat, or
18.3 (W) by 7 inches (D) by 2 inches (H), when standing
(46.4 cm x 17.8 cm x 3.3 cm [5.1 cm])
Power Supply
Input voltage: 100 - 127 V 4.0A, 200 - 240 V 2.0A ac
(voltage selection switch)
Input frequency: 50/60 Hz
+12V=4A
-12V=0.3A
+5V=15A
+3.3V=8A
+5V standby 2A
Maximum output power: 120 W continuous
+5V and +3.3V total output must not exceed 80W
Power Consumption (components)
Processor: 30 W
Video: 10 - 15 W
Hard Disk Drive: 12 W (typical)
CD-ROM Drive: 15.6 W
PCI accessory slots: up to 25 W per slot
ISA accessory slots: 10 W (max. per slot)
11
1 System Overview
Specifications
VL600 Minitower
Characteristic
12
Description
Weight
(excluding display and keyboard)
13.4 kg (29.5 pounds)
Dimensions
Width: 20.6 cm (8.1 inches)
Height: 46.9cm (18.5 inches)
Depth: 45.5cm (17.9 inches)
Footprint
0.094 m2 (1.01 ft.2)
HP Windows 95 Keyboard
18.3 (W) by 7 inches (D) by 1.3 inches (H), when flat, or
18.3 (W) by 7 inches (D) by 2 inches (H), when standing
(46.4 cm x 17.8 cm x 3.3 cm [5.1 cm])
Power Supply
Input voltage: 100 - 127 V 6.0A, 200 - 240 V 3.0A ac
(voltage selection switch)
Input frequency: 50/60 Hz
+12V=6A
-12V=0.3A
+5V=22A
+3.3V=14A (combined +5V and 3.3V cannot exceed 25A)
+5V standby 2A
-5V=0.3A
Maximum output power: 200 W continuous
+5V and +3.3V total output must not exceed 120W
Power Consumption (components)
Processor: 30 W
Video: 10 - 15 W
Hard Disk Drive: 12 W (typical)
CD-ROM Drive: 15.6 W
PCI accessory slots: up to 25 W per slot
ISA accessory slots: 10 W (max. per slot)
1 System Overview
Specifications
Both Platforms
Power Consumption
As an ENERGY STAR partner, HP has determined that this product meets the
ENERGY STAR guidelines for energy efficiency (standard base models).
Power Consumption
(PC running Windows98)
115V/60Hz
230V/50Hz
Operating with input/output:
75W
75W
Operating without input/output:
45W
45W
Suspend:
30W
30W
Off:
2.7W
2.7W
These are “typical” values given for the standard base models.
When the computer is turned off with the power button on the front panel,
the power consumption falls below 3W but is not zero. The special on/off
method used by these computers considerably extends the lifetime of the
power supply. To reach zero power consumption in “off” mode, either unplug
the power outlet or use a power block with a switch.
Acoustic Noise Emission
Acoustic Noise Emission
(ISO 7779)
Sound Power
(Average)
Sound Power
(ISO 9296)
Sound Pressure
(ISO 9296)
Operating (idle)
LwA = 37 dB
LwAd = 4.0 B
LpA = 29 dB
Operating with disk access
LwA = 42 dB
LwAd = 4.5 B
LpA = 33 dB
Operating with floppy access
LwA = 43 dB
LwAd = 4.6 B
LpA = 37 dB
The values are given for the standard configuartion as shipped.
13
1 System Overview
Specifications
Electrical Specifications
Any attempt to draw too much current (such as a short circuit across edgeconnector pins, or an accessory board that is not suitable for these PCs), will
cause the overload protection in the power supply to be triggered, and the PC
could fail to boot. To get out of the power supply protection mode, remove
the power cord, wait for 10 seconds, then replace the cord.
The power supply delivers 2A at the V standby level. This extra current is
required by the 100TX hardware layer so it can perform a remote power-on at
reception of a magic frame. An older power supply should not be used as a
replacement.
NOTE
When the PC is turned off with the power button on the front panel, the power
consumption falls below 5 Watts, but is not zero. The special on/off method
used by this PC extends the lifetime of the power supply. To reach zero power
consumption in “off” mode, either unplug the PC from the power outlet or use
a power block with a switch. If the PC is turned off, the time settings are
maintained by the battery indefinitely (until the battery runs out of power).
Environmental Specifications
Environmental Specifications (System Processing Unit, with Hard Disk)
Operating Temperature
+10°C to +35°C (+ 50°F to 95° F)
Storage Temperature
-40°F to +70°F (-40°C to +158°C)
Operating Humidity
15% to 80% (relative)
Storage Humidity
8% to 85% (relative), non-condensing at 40°C (104°F)
Acoustic noise emission:
VL600 Desktop
VL600 Minitower
(as defined ISO 7779)
Sound level (LwA) ≤ 37 db (operating)
Sound level (LwA) ≤ 37 db (operating)
Operating Altitude
10000 ft (3100m) max
Storage Altitude
15000ft (4600m) max
Operating temperature and humidity ranges may vary depending upon the
mass storage devices installed. High humidity levels can cause improper
operation of disk drives. Low humidity levels can aggravate static electricity
problems and cause excessive wear of the disk surface.
14
2
System Features
This chapter describes core components of the PC such as processors,
chipsets, mass storage devices, graphics controllers, audio controllers,
network features and input devices.
2 System Features
VL600 System Board Layout
VL600 System Board Layout
All HP Vectra VL600 PC system boards have a Pentium III processor slot.
System Board
Status panel
ISA Slot # 2
ISA Slot # 1
System Board
switches
SCSI LED conn.
Crystal
Audio
PCI Slot # 4
Battery Socket
PCI Slot # 3
WOL (Wake On
LAN) conn.
PCI Slot # 2
ICH
chip
PCI Slot # 1
AGP Slot
IDE
connectors
CD audio conn.
RIMM1
RIMM2
Floppy connector
The parallel port is
located above
Serial Port A and
B, and the mouse
connector above
the keyboard
connector.
Processor
slot
Power protection
device connector
Kbd
Power connector
USB
Serial A
Power Fan
connector
Serial B
Memory
slots
MCH chip
chassis
intrusion conn.
16
2 System Features
VL600 System Board Layout
VL600 PCI Mapping
VL600 PCI Mapping Table
Slot#
Bus
Device
PCI Device
0
0
MCH chip
0
1
MCH chip: AGP bridge
0
30
ICH chip: PCI bridge
0
31
ICH chip
1
0
AGP device
2
1
Integrated audio
2
6
ISA bridge
2
15
PCI slot 1
1
2
13
PCI slot 2
2
2
11
PCI slot 3
3
2
9
PCI slot 4
4
AGP slot
17
2 System Features
Architectural View
Architectural View
Pentium III
Processor
Host Bus
AGPGraphic
4X AGP Bus
1X, 2X, 4X
MCH
300/400
MHz
Host Bridge
RDRAM
Monitor
Graphics
Local
Memory
Video BIOS
2 IDE Ports
Ultra DMA/66
ICH chip
serial eeprom
2 USB Ports
CODEC audio/
modem
PCI Slots
PCI Bus
Super I/O
FWH (Flash)
ISA Bridge
ISA Slots
Serial (2)/Parallel/FDD/PS2
18
2 System Features
Main Memory
Main Memory
There are two 184-pin RIMM slots on the system board for installing main
memory: RIMM slots 1 and 2. All HP Vectra VL600 PC models are supplied
with one memory module (128 MB Rambus DRAM) in RIMM slot 1, the slot
nearest the processor. Only HP memory modules are supported.
If only one RDRAM module is used, it must be installed in the slot nearest the
processor. Any slot not filled with an RDRAM module must contain a
continuity module. Memory upgrades are available in single modules of 128
MB, 256 MB or 512MB modules (when these become available). Replacement
of the supplied memory module may be necessary to obtain the 1024 MB
maximum memory.
Memory Types Supported
Memory detection: RDRAM (Rambus DRAM) support only, no SDRAM or
EDO support.
•
Minimum memory configuration supported is 64MB.
•
Maximum memory supported by the system is 1GB using 256Mbit RDRAM
technology. This will be available from early 2000.
•
Continuity RIMM modules must be installed in slots without RIMMs.
•
The BIOS supports PC600, PC700 and PC800 RIMMs, and a mixture of
these RIMMs but it will program the Rambus frequency to the lowest
frequency if a mixture is detected.
RDRAM Modules
Direct RDRAM components exist in three speeds. These components are
referred to as:
•
PC600 RDRAM
•
PC700 RDRAM
•
PC800 RDRAM.
The PCxxx nomenclature provides consistency with the current PC100
SDRAM naming. The numbers 600, 700 and 800 provide the speed indication
for the module. Speed in this case relates to Mega data transfers per second
(Mt/s), which is twice the clock frequency in MHz.
19
2 System Features
Main Memory
Example: PC700 RDRAM, the number 700 is not exactly the Mt/s capability if
the part, actual Mt/s rate is about 711 Mt/s.
Table with possible mixes, but not recommended:
FSB
PC600
PC700
PC800
PC600+PC700
PC700+PC800
100 MHz
✔
(600 MHz)
✔, speed down
to PC600
✔
(800MHz)
✔, runs like
PC600
✔, runs like PC600
133 MHz
✔
(533 MHz)
✔
(700MHz)
✔
(800MHz)
✔, runs like
PC600
✔, runs like PC700
20
2 System Features
Processors
Processors
All models come with a single Pentium III processor and level 2 cache
memory packaged in a self-contained, pre-sealed SECC2 module, installed on
the system board. The latest Pentium III processors have either 256KB level 2
cache on die or 512KB of out-of-chip level 2 cache.
The position of system board switches is shown below:
SWITCH BLOCK (SW 1)
Switch
Switch function:
1
BIOS Crisis Recovery
Should normally be kept in the OFF position. Used in case of power loss during BIOS
update. Refer to flash.txt in the BIOS package downloadable from the HP Web site.
2
CMOS
OFF = normal (default)
ON = clear CMOS and reload default values in Setup
3
Password
OFF = enabled (default)
ON = disabled / clear User and Administrator passwords
Processor speed is recognized automatically.
For more information on processor technology, refer to the Technical
Reference Manual - Vectra Technology.
21
2 System Features
Mass Storage Devices
Mass Storage Devices
Hard Disk Drives
A 3.5-inch hard disk drive is supplied on an internal shelf in some models.
These hard drives can be provided with the PC. To see which other hard disk
drives can be purchased as accessories for the VL600, refer to www.hp.com/
go/pcaccessories.
10 GB
Ultra-ATA 66
15 GB
Ultra-ATA 66
30 GB
Ultra-ATA 66
9.1 GB
Ultra-SCSI
Average
9.5
8.5
<9.0
6.8
Track-to-Track
2.0
0.8
<1.0
0.9
Full Stroke
18.0
15.0
<20.0
15.0
Rotational Speed (RPM)
5 400
7 200
7 200
7 200
Internal Data Rate (Mb/s)
Up to 194
235
191 to 298
Up to 257
Buffer Size (KB) Ultra ATA
512
512
2048
2048
Typical Seek Times (ms)
To find out about Ultra-ATA DMA/ 66 hard disk drive technology, refer to the
Technical Reference Manual - Vectra Technology.
Floppy Disk Drives
All models are supplied with a 3.5-inch floppy disk drive.
CD-ROM and DVD Drives
Models may be fitted with a 48✕ Max IDE CD-ROM drive. It can play standard
CD-ROM discs, conforming to optical and mechanical standards as specified
in the Red and Yellow Book. This drive can also be purchased as an accessory.
Refer to www.hp.com/go/pcaccessories.
To find out about CD-ROM and DVD drive technology, refer to Technical
Reference Manual - Vectra Technology.
22
2 System Features
Mass Storage Devices
Features of the
CD-ROM Drive
(D9444A)
•
•
•
•
•
•
CD-ROM Mode-1 data disc.
CD-ROM Mode-2 data disc (Mode 1 and Mode 2).
Photo-CD Multisession.
CD Audio disc.
Mixed mode CD-ROM disc (data and audio).
CD-ROM XA, CD-I, CD-Extra, CD-R, CD-RW.
Description
HP product number
D9444A
Disc Diameter
120 mm
Data Block Size
2,055 bytes (14X, Mode-1)
4,800 bytes (32X, Mode-2)
Storage Capacity
650 Mbytes (Mode-1)
742 Mbytes (Mode-2)
Read Mode
Full CAV1 10.3X to 24X
Burst Transfer Rate
PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum.
Access Time
Average Stroke (1 / 3) 110 ms
Full Stroke 180 ms
Buffer Memory Size
128 kbytes
Rotational speed
Approx. 11,100 rpm maximum
1.
CAV = Constant Angular Velocity
Features of the
CD-RW Drive
(D9524A)
•
•
•
•
•
•
CD-ROM Mode-1 data disc.
CD-ROM Mode-2 data disc (Mode 1 and Mode 2).
Photo-CD Multisession.
CD Audio disc.
Mixed mode CD-ROM disc (data and audio).
CD-ROM XA, CD-I, CD-Extra, CD-R, CD-RW.
Description
HP product number
D9524A
Disc Diameter
120 mm
23
2 System Features
Mass Storage Devices
Description
Data Block Size
2,055 bytes (14X, Mode-1)
4,800 bytes (32X, Mode-2)
Storage Capacity
650 Mbytes (Mode-1)
742 Mbytes (Mode-2)
Read Mode
Full CAV1 10.3X to 20X
Burst Transfer Rate
PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum.
Access Time
Average Stroke (1 / 3) 110 ms
Full Stroke 180 ms
Buffer Memory Size
128 kbytes
Rotational speed
Approx. 7,300 rpm maximum
1.
Features of the
DVD-ROM Drive
(D7521A)
•
•
•
•
•
•
•
CAV = Constant Angular Velocity
CD-ROM Mode-1 data disc.
CD-ROM Mode-2 data disc (Mode 1 and Mode 2).
Photo-CD Multisession.
CD Audio disc.
Mixed mode CD-ROM disc (data and audio).
CD-ROM XA, CD-I, CD-Extra, CD-R, CD-RW.
DVD-ROM, DVD-Video, DVD Audio, DVD-RAM.
Description
HP product number
Disc Diameter
Storage Capacity
Read Mode
Burst Transfer Rate
Access Time
Buffer Memory Size
Rotational speed
24
D7521A
120 mm
650 MB to 17 GB (depending on disk type)
8 X max (DVD), 40X max CD-ROM
PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum.
Average Stroke (1 / 3) 110 ms
Full Stroke 180 ms
128 kbytes
Approx. 7,300 rpm maximum
2 System Features
Mass Storage Devices
NOTE
If a disk is still in the drive after power failure or drive failure, the disk can be
reclaimed by inserting a straightened paper-clip into the small hole at the
bottom of the door.
DVD Region Codes
The DVD-ROM drive is only able to play DVD video discs from regions 1 and 2
(see table below). DVD region settings can be changed up to 5 times.
Region Codes
Supported by the
D4388A DVD Drive
Region
1
USA & Canada
Yes
2
Europe & Japan
Yes
3
South East Asia
No
4
Latin America & Australia
No
5
Russia, Rest of Asia, Africa
No
6
China
No
25
2 System Features
Matrox Millennium G250 AGP 2X Graphics Card
Matrox Millennium G250 AGP 2X Graphics Card
Some HP Vectra VL600 PC models are supplied with a Matrox Millennium
G250 AGP 2X graphics card.
The Matrox Millennium G250 is aimed at business users who want highresolution support coupled with high performance.
For more information, refer to the Technical Reference Manual - HP Vectra
Technology available in PDF (Acrobat) format from www.hp.com/go/
vectrasupport.
Key Features
• 128-bit DualBus graphics chip
• Full AGP 2X support featuring Symmetrical Rendering Architecture
• Advanced 2D, 3D and software DVD video acceleration
• High-quality 32-bit color 3D rendering engine
• 8MB of graphics memory, upgradeable to 16MB
• High-speed 250 MHz RAMDAC with ultra sharp image quality. Provides fast
screen refresh to eliminate screen flicker
• Support for high resolutions and colors.
Video Memory
All Matrox Millennium G250 graphics cards are supplied with 8 MB of video
memory (upgradeable to 16MB).
The video RAM (also known as the frame buffer) is a local block of 6 ns
166MHz SGRAM for holding both the on-screen surface (reflecting what is
currently displayed on the screen), and the off-screen surface (video frame,
fonts, double buffer, bitmaps, textures).
26
2 System Features
Matrox Millennium G250 AGP 2X Graphics Card
Supported Refresh Rates
Max. Horizontal Refresh Rates (kHz)1
Vertical Refresh Rates (Hz)1
Resolution
8-bit
16-bit
24-bit
32-bit
8-bit
16-bit
24-bit
32-bit
640x480
200
200
200
200
101.8
101.8
101.8
101.8
800x600
180
180
180
180
113.55
113.55
113.55
113.55
1024x768
140
140
140
140
113.15
113.15
113.15
113.15
1152x864
120
120
120
120
109.38
109.38
109.38
109.38
1280x1024
100
100
100
90
107.23
107.23
96.47
74.59
1600x1200
90
90
85
65
112.50
112.50
100.00
81.25
1920x1080
80
80
75
60
93.75
93.75
87.89
70.31
1920x1200
76
76
70
-
96.88
96.88
90.42
-
1800x1440
70
70
65
-
96.88
96.88
96.98
-
1.
These are the maximum refresh rates with 166Mhz SGRAM, 250MHz
Integrated RAMDAC.
83/166 @ 8, 24 and 32 bpp, 105/140 @ 16 bpp
27
2 System Features
Matrox Millennium G400 AGP 4X Graphics Card
Matrox Millennium G400 AGP 4X Graphics Card
Some Vectra VL600 PC models are supplied with a Matrox Millennium G400
AGP 4X graphics controller.
The Matrox Millennium G400 is a very high performance 2D/3D graphics
card.
For more information, refer to the Technical Reference Manual - HP Vectra
Technology available in PDF (Acrobat) format from www.hp.com/go/
vectrasupport.
Key Features
• 256-bit DualBus graphics chip
• AGP 4X host interface with 1GB/s bandwidth and Symmetrical Rendering
Architecture
• High performance 2D, 3D and software DVD video acceleration
• High-quality 32-bit color 3D rendering engine
• Upgradeable with Matrox Dual Head modules
• 32MB of local graphics memory, non-upgradeable
• High-speed 300 MHz RAMDAC with ultra sharp image quality. Provides fast
screen refresh to eliminate screen flicker
• Support for high resolutions and colors.
Video Memory
Single Head Matrox Millennium G400 graphics cards are supplied with 32 MB
of video memory (non-upgradeable). Dual Head cards are supplied with
16MB of video memory.
The video RAM (also known as the frame buffer) is a local block of 6 ns 128bit 166MHz SGRAM for holding both the on-screen surface (reflecting what is
currently displayed on the screen), and the off-screen surface (video frame,
fonts, double buffer, bitmaps, textures).
28
2 System Features
Matrox Millennium G400 AGP 4X Graphics Card
Supported Refresh Rates
Resolution
Max. Vertical Refresh Rates
(Hz)
Max. Horizontal Refresh Rates (kHz)
4:3 aspect ratios
8/16 bpp
24 bpp
32 bpp
8/16 bpp
24 bpp
32 bpp
640x480
200
200
200
130
130
130
800x600
200
200
200
130
130
130
1024x768
160
160
160
130
130
130
1152x864
140
140
140
130
130
130
1280x1024
120
120
120
130
130
130
1600x1200
100
100
100
130
130
130
1600x1280
90
90
90
130
130
130
1800x1440
80
80
80
120
120
120
1920x1440
75
75
75
115
115
115
2048x1536
70
70
70
110
110
110
1600x1024
120
120
120
130
130
130
1920x1035
100
100
100
115
115
115
1920x1080
100
100
100
115
115
115
1920x1200
90
90
90 H
115
115
115
16:9 aspect ratios
29
2 System Features
Audio
Audio
The Crystal® integrated PCI audio solution (not upgradeable) in your PC is a
two-chip solution made up of the CrystalClear™ CS4280 PCI audio controller
and the CrystalClear CS4297 Audio Codec ‘97. The audio controller interfaces
with the PCI bus and performs all digital operations such as sample rate
conversions and synthesis. The CS4297 chip mixes and processes all the
analog signals.
All models have a Line In jack, Line Out jack and Mic In jack connector
located on the rear panel. These external jacks are standard connectors.
Line In
Speaker
Microphone
Adding an Audio
Accessory Board
The integrated PCI audio can be disabled in the Advanced menu of the Setup
program, if an audio accessory board is installed.
For more information on audio technology, refer to the Technical Reference
Manual - Vectra Technology.
30
2 System Features
Network
Network
Some HP Vectra VL600 PC models are supplied with a 10/100 3Com 3C905CTX network solution.
This network solution is a 32-bit PCI Ethernet Controller with advanced
manageability capabilities. It features full-duplex, automatic 10/100 BT port
selection, Remote Power-On (RPU), and, depending on OS support, Remote
Wake-Up (RWU).
On HP Vectra VL600 PC models, the network solution is deployed as an
accessory board (part number D7522A), installed in PCI slot #4. The card has
an optional Boot ROM for diskless node operation.
NOTE
A 3COM LAN Boot ROM is integrated in the BIOS ROM chip on the system
board. As a result, it is not necessary to insert a Boot ROM chip into the LAN
card to perform a Remote Boot.
Connectors
The 10/100BT connector is located on the rear of the PC.
31
2 System Features
Network
A Wake On LAN (WOL) connector is located on the system board as shown
here. It is not required for PCI 2.2-compliant LAN cards such as the 3Com
3C905CTX LAN card but can be useful for other cards.
For more information on network technology, refer to the Technical
Reference Manual - Vectra Technology.
32
2 System Features
Accessory Boards
Accessory Boards
Your PC uses logical slot numbers in the BIOS Setup program. You need to
know these logical slot numbers if you want to change the PCI slot
configuration in the Setup program (refer to the system board diagram on
page 16 for their location). PCI slot numbers are also indicated on the
motherboard silkscreen.
The VL600 has seven accessory board slots: four PCI slots, two ISA slots and
one AGP slot (refer to the system board diagram on page 16 for their location).
• PCI slots #1, #2, #3 and #4 can be used for full-length 32-bit PCI boards.
• ISA slots #1 and #2 can be used for a full length 16-bit ISA board.
The PC may come preloaded with a 3COM Network card installed in PCI
slot #4.
33
2 System Features
Accessory Boards
34
3
Serviceability
This chapter introduces the enhanced serviceability features of the
HP Vectra VL600 PC. It shows how easily you can open the PC and remove
or add system components using the serviceability features developed for
these PC models.
3 Serviceability
VL600 Desktop
VL600 Desktop
Removing the cover
4
5
Shows how to
disconnect the front
access drive
Shows how to remove an
accessory board
5
Shows how to remove
the DVD, CD-RW, or CDROM drive
6
Shows how to remove
the drive bay
Shows how to remove
the front panel
36
3 Serviceability
VL600 Minitower
VL600 Minitower
Removing the cover
Shows how to remove
the floppy drive
Shows how to
remove the DVD, CD-RW, or CDROM drive
Shows how to remove
the front panel
Shows how to remove
accessory boards
Shows how to remove
the hard disk drive
Shows how to
disconnect the front
access drive
37
3 Serviceability
VL600 Minitower
38
4
BIOS Overview
This chapter describes the BIOS features for the HP Vectra VL600 PC
models.
4 BIOS Overview
BIOS Summary
BIOS Summary
HP Vectra VL600 PCs contain an HP/Phoenix BIOS (Basic Input Output
System). The system ROM contains the POST (power-on self-test) routines,
and the BIOS: the System BIOS, video BIOS, and 3Com LAN option ROM.
The system BIOS is identified by the version number hy.xx.xx. The latest
BIOS version for your PC and instructions for updating the BIOS can be
downloaded from the HP’s Support Web site at:
www.hp.com/go/vectrasupport.
This section covers:
•
•
•
•
•
The BIOS Setup program
Power saving
BIOS addresses
The order in which POST tests are performed
Beep codes.
Using the HP Setup Program
Press F2 to run the Setup program, when the “Vectra” logo is displayed
immediately after restarting the PC.
Press F8 to enter the Boot menu. Use the boot menu to select the order of
the devices the PC will use to start (boot) from.
Alternatively, press Esc to view the summary configuration screen. By
default, this remains on the screen for 20 seconds, but by pressing the Pause
key once, it can be held on the screen indefinitely until any key is pressed.
The Setup screen offers five menus: Main, Advanced, Security, Boot, Power
and Exit. These are selected using the left and right arrow keys.
40
4 BIOS Overview
BIOS Summary
Main Menu
The Main Menu contains the following fields:
•
•
•
•
•
•
•
•
•
•
PnP Operating System
Reset Configuration Data
PS/2 Mouse
System time
System date
Numlock
Key click
Keyboard auto-repeat rate
Keyboard auto-repeat delay
Processor serial number
Advanced Menu
The Advanced Menu does not have the same structure as the Main Menu and
Power Menu. Instead of presenting a list of fields, it offers a list of
sub-menus. The Advanced Menu contains the following sub-menus:
• Memory and Cache. Define how to configure the specified block of
memory.
• Flexible Disk Drives. Enable or disable the on-board floppy disk
controller.
• IDE Devices. Configure IDE Primary and Secondary devices.
• I/O Device Configuration. Enable or disable the on-board parallel and
serial ports at the specified address.
• Integrated USB Interface. Enable or disable the integrated USB
(Universal Serial Bus) interface.
• Integrated Audio Interface. Enable or disable the integrated PCI Audio
interface. This feature must be disabled if an accessory board is installed.
• PCI Configuration. Configure a specific PCI device.
• ISA Resource Exclusion. Reserve interrupts for legacy ISA devices to
prevent conflict with PCI/PnP devices.
• VGA PCI/AGP Config. Configure PCI or AGP as the boot display device
(set to PCI if you have added a PCI video card).
41
4 BIOS Overview
BIOS Summary
Security
Sub-menus are presented for changing the characteristics and values of the
System Administrator Password, User Password, Hardware Protection and
Boot Device Security, the amount of protection against the system’s drives
and network connections, and the amount of protection against being able to
boot from the system’s drives and network connections. The Security Menu
contains the following sub-menus:
• User Password. This password can only be set when an administrator
password has been set. The User Password prevents unauthorized use of
the computer, protects stored data.
• Administrator Password. This password prevents unauthorized access to
the computer’s configuration. It can also be used to start the computer.
• Hardware protection. The following devices can be unlocked/locked:
Integrated Flexible Disk Controller, Integrated IDE Controller, and
Integrated Data Communications Ports.
• Boot Devices Security. Select which devices are to be used for booting the
system. The option Disabled prevents unauthorized use of a device to start
the computer.
Boot Menu
Boot Device Priority allows you to select the order of the devices from which
the BIOS attempts to boot the operating system. During POST, if the BIOS is
unsuccessful at booting from one device, it will then try the next one on the
list until an operating system is found.
Hard Disk Drives allows you to choose the hard drive you want to boot from.
Removable Devices allows you to choose which drive letters you want to
assign to removable devices.
The QuickBoot Mode option allows the system to skip certain tests while
booting. This decreases the time needed to boot the system.
The Boot-time Diagnostics screen enables the user to display either the
Vectra logo or diagnostic’s screen during POST.
42
4 BIOS Overview
BIOS Summary
Power Menu
This menu allows you to set the Suspend and Standby delays. It enables the
user to decide if an IRQ can reactivate the system when in suspend mode. It
also allows the system administrator to decide whether the network interface
is enabled as a means of reactivating the system from Suspend
or Off.
43
4 BIOS Overview
Power Saving and Ergonometry
Power Saving and Ergonometry
Soft Power Down
Soft Power Down is available with the Windows NT operating system. If users
want to shut down their PC, they are able to do so directly from the Windows
NT interface. There is no longer any need to physically switch off the PC.
The hardware to do this is contained in the ICH chipset. This chipset is
described in detail in Technical Reference Manual - HP Vectra Technology.
Safe Off
Safe Off is available with the Windows 95 and Windows 98 operating systems.
If users attempt to shut down the operating system when an application is
open and has not been saved, they are requested to save their work before
the computer can be powered off.
The hardware to do this is contained in the ICH chipset. This chipset is
described in detail in Technical Reference Manual - HP Vectra Technology.
44
4 BIOS Overview
BIOS Addresses
BIOS Addresses
This section provides a summary of the main features of the HP system BIOS.
This is software that provides an interface between the computer hardware
and the operating system.
System Memory Map
Reserved memory used by accessory boards must be located in the area from
C8000h to EFFFFh.
0000 0000 - 0000 03FF
Real-mode IDT
0000 0400 - 0000 04FF
BIOS Data Area
0000 0500 - 0009 FC00
Used by OS
0009 FC00 - 0009 FFFF
Extended BIOS Data Area
000A_0000 - 000B_FFFF
Video RAM or
SMRAM (not visible unless in SMM)
000C 0000 - 000C 7FFF
Video ROM
000C 8000 - 000F FFFF
Adapter ROM, RAM, memory-mapped registers
000E 0000 - 000F FFFF
System BIOS (Flash/Shadow)
10 0000 - FF FFFF
Memory (1 MB to 16 MB)
100 0000 - 1FF FFFF
Memory (16 MB to 32 MB)
200 0000 -3FF FFFF
Memory (32 MB to 64 MB)
400 0000 -1FFF FFFF
Memory (64 MB to 512 MB)
FFF80000 - FFFF FFFF
512 KB BIOS (Flash)
HP I/O Port Map (I/O Addresses Used by the System)
Peripheral devices, accessory devices and system controllers are accessed via
the system I/O space, which is not located in system memory space. The 64
KB of addressable I/O space comprises 8-bit and 16-bit registers (called
I/O ports) located in the various system components. When installing an
accessory board, ensure that the I/O address space selected is in the free area
of the space reserved for accessory boards (100h to 3FFh).
45
4 BIOS Overview
BIOS Addresses
Although the Setup program can be used to change some of the settings, the
following address map is not completely BIOS dependent, but is determined
partly by the operating system. Note that some of the I/O addresses are
allocated dynamically.
I/O Address Ports
0000 - 000F
0020 - 0021
002E - 002F
0040 - 0043
0060, 0064
0061
0070
0070 - 0071
0080
0081 - 0083, 008F
0092
00A0 - 00A1
00C0 - 00DF
00F0 - 00FF
0170 - 0177
01F0 - 01F7
0278 - 027F
02E8 - 02EF
02F8 - 02FF
0372 - 0377
0378 - 037A
03B0 - 03DF
03E8 - 03EF
03F0h- 03F5
03F6
03F7
03F8 - 03FF
04D0 - 04D1
0678 - 067B
0778 - 077B
0CF8 - 0CFF
46
Function
DMA controller 1
Master interrupt controller (8259)
NS364 Configuration registers
Timer 1
Keyboard controller (reset, slow A20)
Port B (speaker, NMI status and control)
Bit 7: NMI mask register
RTC and CMOS data
Manufacturing port (POST card)
DMA low page register
PS/2 reset and Fast A20
Slave interrupt controller
DMA controller 2
Co-processor error
IDE secondary channel
IDE primary channel
LPT 2
Serial port 4 (COM4)
Serial port 2 (COM2)
IDE secondary channel, secondary floppy disk drive
LPT1
VGA
COM3
Floppy disk drive controller
IDE primary channel
Floppy disk drive controller
COM1
Interrupt edge/level control
LPT2 ECP
LPT1 ECP
PCI configuration space
4 BIOS Overview
BIOS Addresses
DMA Channel Controllers
Only “I/O-to-memory” and “memory-to-I/O” transfers are allowed.
“I/O-to-I/O” and “memory-to-memory” transfers are disallowed by the
hardware configuration.
The system controller supports seven DMA channels, each with a page
register used to extend the addressing range of the channel to 16 MB. The following table
summarizes how the DMA channels are allocated.
DMA controller
Channel
Function
0
Free
1
Free if not used for parallel port in Setup
2
Floppy disk controller
3
Free if not used for parallel port in Setup
4
Used to cascade DMA channels 0-3
5
Free
6
Free
7
Free
47
4 BIOS Overview
BIOS Addresses
Interrupt Controllers
The Interrupt Requests (IRQ) are numbered sequentially, starting with the master controller, and
followed by the slave.
IRQ
(Interrupt Vector)
Interrupt Request Description
INTR
IRQ0
System Timer
IRQ1
Keyboard Controller
IRQ3
Used by serial port if enabled
IRQ4
Used by serial port if enabled
IRQ5
Free if not used for parallel port or audio
IRQ6
Floppy Disk Controller
IRQ7
LPT1
IRQ8
RTC
IRQ9
Available for PCI devices, if not used by ISA board or USB port
IRQ10
Available for PCI devices, if not used by ISA board or USB port
IRQ11
Available for PCI devices, if not used by ISA board or USB port
IRQ12
Mouse
IRQ13
Co-processor
IRQ14
IDE Primary channel
IRQ15
IDE Secondary channel. Free unless disabled
PCI Interrupt Request Lines
PCI devices generate interrupt requests using up to four PCI interrupt
request lines (INTA#, INTB#, INTC#, and INTD#). PCI interrupts can be
shared; several devices can use the same interrupt. However, optimal system
performance is reached when minimizing the sharing of interrupts.
48
4 BIOS Overview
Order in Which the POST Tests are Performed
Order in Which the POST Tests are Performed
Each time the system is powered on, or a reset is performed, the POST is
executed. The POST process verifies the basic functionality of the system
components and initializes certain system parameters.
The POST starts by displaying a graphic screen of the Hewlett-Packard logo
when the PC is started.
Devices, such as memory and newly installed hard disks, are configured
automatically. The user is not requested to confirm the change. Newly
removed hard disks are detected, and the user is prompted to confirm the
new configuration by pressing
. Note, though, that the POST does not
detect when a hard disk drive has been otherwise changed.
During the POST, the BIOS and other ROM data is copied into high-speed
shadow RAM. The shadow RAM is addressed at the same physical location as
the original ROM in a manner which is completely transparent to applications.
It therefore appears to behave as very fast ROM. This technique provides
faster access to the system BIOS firmware.
The following table lists the POST checkpoint codes written at the start of
each test.
Checkpoint
Code
POST Routine Description
02h
Verify Real Mode
03h
Disable Non-Maskable Interrupt (NMI)
04h
Get CPU type
06h
Initialize system hardware
08h
Initialize chipset with initial POST values
09h
Set IN POST flag
0Ah
Initialize CPU registers
0Bh
Enable CPU cache
0Ch
Initialize caches to initial POST values
0Eh
Initialize I/O component
49
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
50
POST Routine Description
0Fh
Initialize the local bus IDE
10h
Initialize Power Management
11h
Load alternate registers with initial POST values
12h
Restore CPU control word during warm boot
13h
Initialize PCI Bus Mastering devices
14h
Initialize keyboard controller
17h
Initialize cache before memory autosize
18h
8254 timer initialization
1Ah
8237 DMA controller initialization
1Ch
Reset Programmable Interrupt Controller
24h
Set ES segment register to 4 GB
26h
Enable A20 line
28h
Autosize DRAM
29h
Initialize POST Memory Manager
2Ah
Clear 512 KB base RAM
32h
Test CPU bus-clock frequency
33h
Initialize POST Dispatch Manager
34h
Test CMOS RAM
35h
Initialize alternate chipset registers
36h
Warm start shutdown
37h
Reinitialize the chipset (MB only)
38h
Shadow system BIOS ROM
39h
Reinitialize the cache (MB only)
3Ah
Autosize cache
3Ch
Configure advanced chipset registers
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
POST Routine Description
3Dh
Load alternate registers with CMOS values
40h
Set initial CPU speed
42h
Initialize interrupt vectors
44h
Initialize BIOS interrupts
45h
POST device initialization
47h
Initialize manager for PCI Option ROMs (Rel. 5.1 and earlier)
48h
Check video configuration against CMOS
49h
Initialize PCI bus and devices
4Ah
Initialize all video adapters in system
4Bh
Display QuietBoot screen
4Ch
Shadow video BIOS ROM
4Eh
Display BIOS copyright notice
50h
Display CPU type
51h
Initialize EISA board
52h
Test keyboard
54h
Set key click if enabled
56h
Enable keyboard
59h
Initialize POST display service
5Ah
Display prompt “Press F2 to enter SETUP”
5Bh
Disable CPU cache
5Ch
Test RAM between 512 and 640 KB
60h
Test extended memory
62h
Test extended memory address lines
64h
Jump to UserPatch1
66h
Configure advanced cache registers
51
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
52
POST Routine Description
67h
Initialize Multi Processor APIC
68h
Enable external and CPU caches
69h
Setup System Management Mode (SMM) area
6Ah
Display external L2 cache size
6Ch
Display shadow-area message
6Eh
Display possible high address for UMB recovery
70h
Display error messages
72h
Check for configuration errors
74h
Test real-time clock
76h
Check for keyboard errors
7Ah
Test for key lock on
7Ch
Set up hardware interrupt vectors
7Eh
Initialize coprocessor if present
80h
Disable onboard Super I/O ports and IRQs
81h
Late POST device initialization
82h
Detect and install external RS 232 ports
83h
Configure non-MCD IDE controllers
84h
Detect and install external parallel ports
85h
Initialize PC-compatible PnP ISA devices
86h
Re-initialize onboard I/O ports
87h
Configure Motherboard Configurable Devices
88h
Initialize BIOS Data Area
89h
Enable Non-Maskable Interrupts (NMIs)
8Ah
Initialize Extended BIOS Data Area
8Bh
Test and initialize PS/2
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
POST Routine Description
8Ch
Initialize floppy controller
8Fh
Determine number of ATA drives
90h
Initialize hard disk controllers
91h
Initialize local-bus hard disk controllers
92h
Jump to UsersPatch2
93h
Build MPTABLE for multi-processor boards
94h
Disable A20 address line (Rel. 5.1 and earlier)
95h
Install CD ROM for boot
96h
Clear huge ES segment register
97h
Fixup Multi Processor table
99h
Check for SMART drive
9Ah
Shadow option ROMs
9Ch
Set up Power Management
9Eh
Enable hardware interrupts
9Fh
Determine number of ATA drives
A0h
Set time of day
A2h
Check key lock
A4h
Initialize typematic rate
A8h
Erase F2 prompt
AAh
Scan for F2 key stroke
ACh
Enter SETUP
AEh
Clear IN POST flag
B0h
Check for errors
B2h
POST done - prepare to boot operating system
B5H
Terminate QuietBoot
53
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
POST Routine Description
B6h
Check password (optional)
B8h
Clear global descriptor table
B9h
Clean up all graphics
BAh
Initialize DMI parameters
BBh
Initialize PnP Option ROMs
BCh
Clear parity checkers
BDh
Display MultiBoot menu
BEh
Clear screen optional
BFh
Check virus and backup reminders
C0h
Try to boot with INT 19
C1h
Initialize POST Error Manager (PEM)
C2h
Initialize error logging
C3h
Initialize error display function
C4h
Initialize system error handling
The following are for boot block in Flash ROM
54
E0h
Initialize the chipset
E1h
Initialize the bridge
E2h
Initialize the CPU
E3h
Initialize system timer
E4h
Initialize system I/O
E5h
Check force recovery boot
E6h
Checksum BIOS ROM
E7h
Go to BIOS
E8h
Set Huge Segment
E9h
Initialize Multi Processor
4 BIOS Overview
Order in Which the POST Tests are Performed
Checkpoint
Code
POST Routine Description
EAh
Initialize OEM special code
EBh
Initialize PIC and DMA
ECh
Initialize Memory type
EDh
Initialize Memory size
EEh
Shadow Boot Block
EFh
System memory test
F0h
Initialize interrupt vectors
F1h
Initialize Run Time Clock
F2h
Initialize video
F3h
Initialize beeper
F4h
Initialize boot
F5h
Clear Huge segment
F6h
Boot to Mini DOS
F7h
Boot to Full DOS
55
4 BIOS Overview
Beep Codes
Beep Codes
If a terminal error occurs during POST, the system issues a beep code before
attempting to display the error in the upper left corner of the screen. Beep
codes are useful for identifying the error when the system is unable to display
the error message.
Beep Pattern
Beep
Code
Numeric
Code
Description
—
-- -- ---
1-2-2-3
16h
BIOS ROM checksum failure
—
--- — —
1-3-1-1
20h
DRAM refresh test failure
—
--- — ---
1-3-1-3
22h
8042 Keyboard controller test failure
— --- --- —
1-3-3-1
28h
RAM module missing or not installed correctly1
—
--- ---- —
1-3-4-1
2Ch
RAM failure on address line xxxx
—
--- ---- ---
1-3-4-3
2Eh
RAM failure on data bits xxxx2 of low byte of memory bus
—
--- ---- ---
1-4-1-1
30h
RAM failure on data bits xxxx2 of high byte of memory bus
-- ---
2-1-2-3
46h
ROM copyright notice check failure
-- -- --- —
2-2-3-1
58h
Unexpected interrupts test failure
—
1-2
98h
Video configuration failure or option ROMs check-sum
failure
-
1
B4h
This does not indicate an error
---
3
-- —
--
1.
This does not indicate an error under Windows NT 4.0. If
the HP Soft Power Down utility is installed, the PC
generates 3 short beeps at Windows NT boot.
Non-HP memory modules are not supported. Only HP memory
modules should be used.
56
5
Drivers and Software
This chapter describes the drivers and software preloaded with
HP Vectra VL600 PCs.
5 Drivers and Software
Drivers
Drivers
You can download up-to-date versions of drivers required for VL600 PCs from
the “Software and Drivers” section of HP’s Support web site at
www.hp.com/go/vectrasupport.
Software
VL600 models come preloaded with the following software. You can download
the most up-to-date versions from the “Software and Drivers” section of HP’s
Support web site at www.hp.com/go/vectrasupport.
Operating Systems:• Either Windows 95 OSR 2.51, Windows 98 SE or Windows NT4 SP5.
Software:• DiagTools
• NT Lock
• Online documentation
• SoftOff
• TopTools
• UDF Reader
• + Euro & Y2K patches
• SafeOff
1.
58
The service release number may be different on different language versions.
5 Drivers and Software
BIOS Updates
BIOS Updates
The system BIOS is identified by the version number hy.xx.xx. The latest
BIOS version for your PC and instructions for updating the BIOS can be
downloaded from the HP support Web site at:
www.hp.com/go/vectrasupport.
59
5 Drivers and Software
BIOS Updates
60
The Technical Reference Manual contains the following
documents available on the HP Information CD-ROM or
downloadable from the Web in PDF format:
•
Introduction & HP Vectra Product Line Overview
Describes how to use the Technical Reference Manual and provides
a brief overview of VEi, VLi and VL600 PCs.
•
Product Description
The document you are reading. A separate document exists for VEi
7 models, VEi 8 models, VL600 models and VLi 8/VLi 8SF models,
providing detailed BIOS information and summary information on
the hardware components in the PC.
•
HP Vectra Technology
A detailed look at the hardware components in all the PCs in the
product line. Includes information on processors, chip sets, graphics
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
