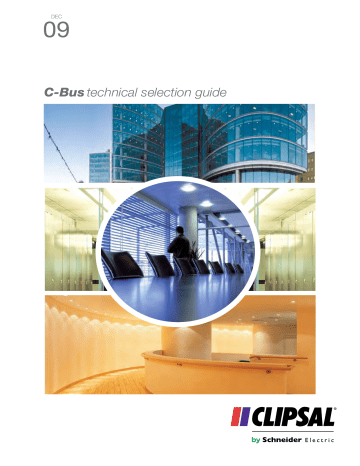

DEC

09

C-Bus

technical selection guide

1

2

Contents

Page

n

Introduction

..................................................................................................................... 4

n

Key Input Units

................................................................................................................ 5

n

Input Units

.......................................................................................................................21

n

System Units

...................................................................................................................38

n

Output Units

..................................................................................................................45

n

Software Packages

......................................................................................................65

3

4

Introduction

Clipsal, a brand of Schneider Electric, is dedicated to supplying end-to-end building management and integrated control with the products, solutions and programs to help meet customers expectations.

Utilising the Schneider Electric product basket, complete end-to-end solutions are possible with products catering for any type or size of installation.

With solutions ranging from power and lighting control, dimming, energy management, for home automation and commercial applications.

The Clipsal C-Bus® system is a microprocessor based wiring system to control lighting and other electrical services.

Whether on/off control of a lighting circuit or analogue type control such as dimming electronic fluorescent ballasts, C-Bus can be used to control and automate virtually any type of electrical load.

To ensure fast and reliable operation, each device has its own inbuilt microprocessor, which can be individually programmed via ‘point and click’ PC based software, or via ‘learn mode’ which doesn’t require a PC.

C-Bus information is held within individual units rather than one central point. This ensures optimum communication speed and reliability.

Whilst a computer is not necessary for normal

C-Bus operation, PC based control and management software is available and provides additional flexibility to clients requiring this type of control. Clipsal C-Bus is suitable for a wide range of applications, for example:

Commercial Lighting Control

• Fluorescent lighting control for energy cost saving in high rise buildings

• High-bay control in warehouses for energy cost saving

• Mood lighting in restaurants and retail outlets

• Flexible and integrated control of lighting and audio visual equipment in board rooms

• Architectural lighting control for hotel foyers, ballrooms, art galleries and museums

Standalone Room Lighting Control

• Integrated automation via touch screen user interfaces for conference rooms and home theatres

• Multiple scene / mood setting

Residential Automation

• Home entertainment - Integrated audio visual, lighting control, and other electrical services

• Security - Integrated security, lighting and other electrical services

• Comfort - Dimming and scene setting

• Convenience - Multiple point control, central point control from touch screens, automated time based control, automated ‘goodbye’ and ‘welcome home’ moods

Key Input Units

5

KEY INPUT UNITS

|

Dynamic Labelling Technology, Saturn Series

Square

The square Saturn series dynamic labelling technology switches are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network. The dynamic labelling technology allows the function of the key to be programmed and displayed onto an LCD display next to the switch button.

The display found on the DLT switch, supports multi language text and user defined bitmaps, such as sliders and bar graphs. The LCD display incorporates back lighting that can be enabled for night operation. In addition, the DLT switch features a page scroll button that permits the user to navigate between pages, to access all control options.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

The Saturn DLT switches feature a glass fascia and are available in a range of colour backgrounds, including white, black, mid brown and cream.

Key input units communicate with all other units and obtain power via a single twisted pair of connections to the C-Bus unit. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

E5084DLGF

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Button Indicator

Timer Range

Timer Resolution

Dimmer Control

Number of Scenes

Standard Colours

Operating Temperature Range

Operating Humidity Range

15-36V DC @ 22mA

50

Programmable, Blue

1 sec to 18 hrs

1 sec

255 possible levels

8

White and Black

0˚C to 45˚C

10 - 95% RH

P R O D U C T F E A T U R E S

• Available with 4 buttons

• Features blue light indicator with night light function

• Supports text labels and user defined bitmaps

• Ignore first press option

• Fallback to page 1 and 2 option

• Programmable using learn mode or via the C-Bus

configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• CE (European Community) compliant

6

CATALOGUE NUMBER DESCRIPTION

Saturn Dynamic Labelling Technology

E5084DL

4 Gang Saturn DLT

Cover Selection: (GF)

White

, *(380)

Cream,

(680)

Black,

*(780)

Mid-Brown

Saturn DLT Fascia

*5084DF

4 Gang Saturn DLT fascia

Cover Selection: *(GF)

White

, *(38)

Cream,

*(68)

Black,

*(78)

Mid-Brown

*Ask for availability

KEY INPUT UNITS

|

Dynamic Labelling Technology, Saturn Series

Rectangular

The rectangular Saturn series dynamic labelling technology switches are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network. The dynamic labelling technology allows the function of the key to be programmed and displayed onto an LCD display next to the switch button.

The display found on the DLT switch, supports multi language text and user defined bitmaps, such as sliders and bar graphs. The LCD display incorporates back lighting that can be enabled for night operation. In addition, the DLT switch features a page scroll button that permits the user to navigate between pages, to access all control options.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

The Saturn DLT switches feature a glass fascia and are available in a range of colour backgrounds, including white, black, mid brown and cream.

Key input units communicate with all other units and obtain power via a single twisted pair of connections to the C-Bus unit. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Button Indicator

Timer Range

Timer Resolution

Dimmer Control

Number of Scenes

Standard Colours

Operating Temperature Range

Operating Humidity Range

15-36V DC @ 22mA

50

Programmable, Blue

1 sec to 18 hrs

1 sec

255 possible levels

8

White and Black

0˚C to 45˚C

10 - 95% RH

5085DL680

P R O D U C T F E A T U R E S

• 5 buttons

• Features blue light indicator with night light function

• Supports text labels and user defined bitmaps

• Ignore first press option

• Fallback to page 1 option

• Programmable using learn mode or via the C-Bus

configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• CE (European Community) compliant

76

13

28

116 70

5085DL illustrated

42

CATALOGUE NUMBER DESCRIPTION

Saturn Dynamic Labelling Technology

5085DL

5 Gang Saturn DLT

Cover Selection: (GF)

White

, *(380)

Cream,

(680)

Black,

*(780)

Mid-Brown

Saturn DLT Fascia

*5085DF

5 Gang Saturn DLT fascia

Cover Selection: *(GF)

White

, *(30)

Cream,

*(60)

Black,

*(70)

Mid-Brown

*Ask for availability

7

KEY INPUT UNITS

|

Saturn Input Switches

Square

The square Saturn series key input units are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network.

Suitable for exclusive interiors, the Saturn series features an impact resistant glass fascia with white, mid brown, black or cream backing. The round silver finish push buttons feature a dual coloured light indicator, providing a visual indication of the switch state.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

E5084NLGF

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Standard Colours

Operating Temperature Range

Operating Humidity Range

87

12

25

15-36VDC @ 22mA

50

Programmable, Dual, Orange and Blue

1 sec to 18 hrs

1 sec

255 possible levels

84mm

White and Black

0˚C to 45˚C

0 - 95% RH, non-condensing

87 66

E5084NL illustrated

47

8

CATALOGUE NUMBER DESCRIPTION

Saturn Input Units

E5082NL

E5084NL

E5086NL

2 Gang Saturn input square

4 Gang Saturn input square

6 Gang Saturn input square

Cover Selection: (GF)

White

, *(380)

Cream,

(680)

Black,

*(780)

Mid-Brown

*Ask for availability

P R O D U C T F E A T U R E S

• Available as 2, 4 or 6 key configuration

• Features bi-colour light indicator with night light

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Features, 60.3mm mounting centres

• Available in glass finish with white, black, cream or

mid-brown background

• CE (European Community) compliant

KEY INPUT UNITS

|

Saturn Input Switches

Rectangular

The rectangular Saturn series key input units are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus Network.

Suitable for exclusive interiors, the Saturn series features an impact resistant glass fascia with white, mid brown, black or cream backing. The round silver finish push buttons feature a dual coloured light indicator, providing a visual indication of the switch state.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Standard Colours

Operating Temperature Range

Operating Humidity Range

76

12

25

15-36VDC @ 22mA

50

Programmable, Dual, Orange and Blue

1 sec to 18 hrs

1 sec

255 possible levels

84mm

White and Black

0˚C to 45˚C

0 - 95% RH, non-condensing

116 66

5084NLGF

P R O D U C T F E A T U R E S

• Available as 2, 4 or 6 key configuration

• Features bi-colour light indicator with night light

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Features, 84mm mounting centres, compatible with Clipsal

Mounting Boxes

• Available in glass finish with white, black, cream or

mid-brown background

• CE (European Community) compliant

5084NL

47

CATALOGUE NUMBER DESCRIPTION

Saturn Input Units

5082NL

5084NL

5086NL

2 Gang Saturn input square

4 Gang Saturn input square

6 Gang Saturn input square

Cover Selection: (GF)

White

, *(380)

Cream,

(680)

Black,

*(780)

Mid-Brown

*Ask for availability

9

KEY INPUT UNITS

|

Saturn Accessories

Saturn Fascia

E5086F30 E5086F60 E5086F70

5086F30

CATALOGUE NUMBER DESCRIPTION

*E5082F

*E5084F

*E5086F

2 Gang Saturn Fascia Square

4 Gang Saturn Fascia Square

6 Gang Saturn Fascia Square

Cover Selection: *White (GF), *Cream (30), *Black (60), *Mid-Brown (70)

*5082F

*5084F

*5086F

2 Gang Saturn Fascia Rectangular

4 Gang Saturn Fascia Rectangular

6 Gang Saturn Fascia Rectangular

Cover Selection: *White (GF), *Cream (30), *Black (60), *Mid-Brown (70)

*Ask for availability

Pre-labelled Button Caps

5086F60

5080LC

10

CATALOGUE NUMBER DESCRIPTION

5080LC

Pre-labelled Button Caps

5086F70

INPUT UNITS

|

Neo Dynamic Labelling Technology

Square

The square Neo series dynamic labelling technology switches are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network. The dynamic labelling technology allows the function of the key to be programmed and displayed onto a LCD display next to the switch button.

The display found on the DLT switch, supports multi language text and user defined bitmaps, such as sliders and bar graphs. The LCD display incorporates back lighting that can be enabled for night operation. In addition, the DLT switch features a page scroll button that permits the user to navigate between pages, to access all control options.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair of connections to the C-Bus.

In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Button Indicator

Timer Range

Timer Resolution

Dimmer Control

Number of Scenes

Standard Colours

Operating Temperature Range

Operating Humidity Range

15-36V DC @ 22mA

50

Programmable, Blue

1 sec to 18 hrs

1 sec

255 possible levels

8

Grey/Silver

0˚C to 45˚C

10 - 95% RH

E5054DLGB

P R O D U C T F E A T U R E S

• Available with 4 buttons

• Features blue light indicator with night light function

• Supports text labels and user defined bitmaps

• Ignore first press option

• Fallback to page 1 and 2 option

• Programmable using learn mode or via the C-Bus

configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• CE (European Community) compliant

CATALOGUE NUMBER DESCRIPTION

E5054DLGB

4 Gang Neo Square DLT Grey/Silver

11

INPUT UNITS

|

Neo Dynamic Labelling Technology

Rectangular

The rectangular Neo series dynamic labelling technology switches are learn enabled, surface switches designed to control lighting and other electrical services connected to a C-Bus network. The dynamic labelling technology allows the function of the key to be programmed and displayed onto a LCD display next to the switch button.

The display found on the DLT switch, supports multi language text and user defined bitmaps, such as sliders and bar graphs. The LCD display incorporates back lighting that can be enabled for night operation. In addition, the DLT switch features a page scroll button that permits the user to navigate between pages, to access all control options.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair of connections to the C-Bus.

In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

5055DLGB

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Button Indicator

Timer Range

Timer Resolution

Dimmer Control

Number of Scenes

Standard Colours

Operating Temperature Range

Operating Humidity Range

76

13

28

15-36V DC @ 22mA

50

Programmable, Blue

1 sec to 18 hrs

1 sec

255 possible levels

8

Grey/Silver

0˚C to 45˚C

10 - 95% RH

116

70

P R O D U C T F E A T U R E S

• 5 buttons

• Features blue light indicator with night light function

• Supports text labels and user defined bitmaps

• Ignore first press option

• Fallback to page 1 option

• Programmable using learn mode or via the C-Bus

configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• CE (European Community) compliant

5055DL illustrated

42

12

CATALOGUE NUMBER DESCRIPTION

5055DLGB

5 Gang Neo input rectangular DLT Grey/Silver

KEY INPUT UNITS

|

Neo Input Switches

Square

The Neo key input units are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network.

Suitable for exclusive interiors, the Neo features large, flat, tactile rocker action switches that have been designed to blend in with the fascia. The Neo switches feature a bi-colour light indicator that provides a visual indication of switch status.

The Neo switches feature a night light function, and incorporate an infrared receiver in the body of the unit, so the switch may be used with a remote control.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus.

In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

The Neo switches are available in a wide range of finishes.

E5058NLGB

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Standard Colours

Standard Colours (Inner Surround)

Operating Temperature Range

Operating Humidity Range

15-36VDC @ 22mA

50

Programmable, Dual, Orange and Blue

1 sec to 18 hrs

1 sec

255 possible levels

60.3mm

Grey/Silver

0˚C to 45˚C

0 - 95% RH, non-condensing

22

65

P R O D U C T F E A T U R E S

• Available as 2, 4 or 8 key configuration

• Features bi-colour light indicator with night light function

• Built in infrared receiver

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Features 60.3mm mounting centres

• CE (European Community) compliant

87 sq.

22

65

50

E5058NL illustrated

50

CATALOGUE NUMBER

E5052NLGB

E5054NLGB

E5058NLGB

DESCRIPTION

2 Gang Neo Input Square Grey/Silver

4 Gang Neo Input Square Grey/Silver

8 Gang Neo Input Square Grey/Silver

13

KEY INPUT UNITS

|

Neo Input Switches

Rectangular

The rectangular Neo key input units are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network.

Suitable for exclusive interiors, the Neo features large, flat, tactile rocker action switches that have been designed to blend in with the fascia. The Neo switches feature a bi-colour light indicator that provides a visual indication of switch status.

The Neo switches feature a night light function, and incorporate an infrared receiver in the body of the unit, so the switch may be used with a remote control.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus.

In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

The Neo switches are available in a wide range of colours and finishes.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Standard Colours

Standard Colours (Inner Surround)

Operating Temperature Range

Operating Humidity Range

76 22

15-36VDC @ 22mA

50

Programmable, Dual, Orange and Blue

1 sec to 18 hrs

1 sec

255 possible levels

60.3mm

Grey/Silver

Grey/Silver

0˚C to 45˚C

0 - 95% RH, non-condensing

5058NLGB

P R O D U C T F E A T U R E S

• Available as 2, 4 or 8 key configuration

• Features bi-colour light indicator with night light function

• Built in infrared receiver

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Features 84mm mounting centres, compatible with Clipsal

Mounting Boxes

• CE (European Community) compliant

116 65

5058NL illustrated

50

14

CATALOGUE NUMBER

5052NLGB

5054NLGB

5058NLGB

DESCRIPTION

2 Gang Neo Input Rectangular Grey/Silver

4 Gang Neo Input Rectangular Grey/Silver

8 Gang Neo Input Rectangular Grey/Silver

KEY INPUT UNITS

|

Neo Accessories

E50500IS

E5050OS

5050OS

5052NRIBK

5052NRPWE

5050IS

CATALOGUE NUMBER DESCRIPTION

*E5050IS †

*5050IS †

Square inner surround - pack of 5

Rectangular inner surround - pack of 5

† Available in *Grey/Silver (GB), *White (WE), *Cream (CR), *Desert Sand (DS), *Soft Grey (SG), *Black (BK), *Brown (BR)

*E5050ISBA

*5050ISBA

Square inner surround - brushed aluminium - pack of 5

Rectangular inner surround - brushed aluminium - pack of 5

*E5050ISGD

*5050ISGD

Square inner surround - gold - pack of 5

Rectangular inner surround - gold - pack of 5

*E5050OS †

*5050OS †

Square outer surround - pack of 5

Rectangular outer surround - pack of 5

† Available in *Grey/Silver (GB), *White (WE), *Cream (CR), *Desert Sand (DS), *Soft Grey (SG), *Black (BK), *Brown (BR)

*5052NRP †

*5054NRP †

Rocker Switch Covers and Spacers for 2 Gang input unit

Rocker Switch Covers and Spacers for 4 Gang input unit

*5058NRP †

Rocker Switch Covers and Spacers for 8 Gang input unit

† Available in *Grey/Silver (GB), *White (WE), *Cream (CR), *Desert Sand (DS), *Soft Grey (SG), *Black (BK), *Brown (BR)

*5052NRI †

Rocker Switch with ID Window - pack of 10

† Available in *Grey/Silver (GB), *White (WE), *Cream (CR), *Black (BK)

*Ask for availability

5052NRIGB

15

KEY INPUT UNITS

|

Moulding Frames

5850FBK

5850FBR

5850FCM

16

CATALOGUE NUMBER DESCRIPTION

Moulding Frames

*5850FBK

*5850FBR

*5850FCM

*5850FWE

Moulding frame rectangular - Black 5pk

Moulding frame rectangular - Brown 5pk

Moulding frame rectangular - Cream 5pk

Moulding frame rectangular - White 5pk

Wall boxes

1571

1571P

*E5050MF

*Ask for availability

Wall box J type metal

Wall box J type plastic

Mounting flange

5850FWE

KEY INPUT UNITS

|

E-Series Range Input Switches

The E-Series key input units are learn enabled surface switches designed to control lighting and other electrical services connected to a C-Bus network.

Key input units are fully programmable and may be configured as toggle, dimmer, type functions. With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Standard Colours

Operating Temperature Range

Operating Humidity Range

15-36VDC @ 18mA

100

Programmable, Orange LED

1 sec to 18 hrs

1 sec

255 possible levels

60.3mm

White

0˚C to 45˚C

0 - 95% RH, non-condensing

E5034NLWE

P R O D U C T F E A T U R E S

• Available as 1, 2 or 4 key configuration

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Features 60.3mm mounting centres

• CE (European Community) compliant

87 sq.

23

67

E5034NL illustrated

52

CATALOGUE NUMBER DESCRIPTION

*E5031NLWE

*E5032NLWE

*E5032VNLWE

*E5034NLWE

1 Gang key vertical

2 Gang key horizontal

2 Gang key vertical

4 Gang key vertical

*Ask for availability

17

KEY INPUT UNITS

|

Reflection Range Input Switches

The Reflections series key input units are learn enabled, ultra flat, surface switches designed to control lighting and other electrical services connected to a C-Bus network.

Suitable for exclusive interiors, the Reflection switches feature a screwless, high grade, stainless steel metal cover. The screwless design means that the aesthetics and architectural finish of the product provides a clean, stylish appearance.

The Reflection series also feature square, backlit, metal finish switches to maintain the aesthetics of the switch plate.

Key input units are fully programmable and may be configured as toggle, dimmer, timer or scene control type functions.

With C-Bus switches it is possible to realise multi-way, multi-function switching or dimming control.

Key input units communicate with all other units and obtain power via a single twisted pair connection to the C-Bus. In the event of C-Bus power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Timer Range

Timer Resolution

Dimmer Control

Mounting Centres

Operating Temperature Range

Operating Humidity Range

15-36VDC @ 20mA

50

Programmable, Blue LED

1 sec to 18 hrs

1 sec

255 possible levels

84mm

0˚C to 45˚C

0 - 95% RH, non-condensing

70 31

115

72

R5068NL

R5050WB

P R O D U C T F E A T U R E S

• Available as 1, 2, 3, 4, 6 and 8 key configuration

• Features blue light indicator with night light

• Programmable using learn mode or via the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Features 84mm mounting centres (requires special wallbox

for mounting)

• CE (European Community) compliant

R5068NL illustrated

50

18

CATALOGUE NUMBER DESCRIPTION

*R5061NL

*R5062VNL

*R5063NL

*R5064VNL

*R5066NL

*R5068NL

1 Gang input reflection range

2 Gang input reflection range

3 Gang input reflection range

4 Gang input reflection range

6 Gang input reflection range

8 Gang input reflection range

R5050WB

*Ask for availability

Back box for reflection range

Input Units

19

INPUT UNITS

|

Black & White Touch Screen

HIGH RESOLUTION IMAGE

REQUIRED

The Black and White Touch Screen builds on the success of the Monochrome Touch Screen, with many enhancements made in this innovative product developed by Clipsal engineers.

Designed to be quicker, easier and more flexible to install and commission, the new unit has significant enhancements to its predecessor. Compatible with Version 4 of Clipsal’s Windows® based drag and drop programming software (PICED), commissioning is now possible through a standard USB port located underneath the fascia that can be utilised as a PC interface. A separate RS-232 port is included within the logic versions to allow integration to third party devices.

The touch screen requires a custom wall box, which is supplied separately but does not require an external power supply.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Control Functions

Screen Type

Resolution

Screen Size viewing area

Real Time Clock

Backlighting

Network Burden

System Clock

C-Bus Connection

Programming Port

Surround Colours

Operating Temperature Range

Operating Humidity Range

Maximum number of controller loads

Maximum number of C-Touch

Units on a single C-Bus Network

Third Party interface

15-36VDC @ 65mA

Load switching & dimming

Scene control

Logic (Logic engine versions only)

Scheduling

Black & White, Backlit

Screen size, QVGA 320 x 240 pixels

100mm x 75mm (119mm Diagonal)

365 day

Yes, programmable

Software selectable

Software selectable

Screw terminals

USB Type B

Saturn, Neo, Stainless Steel, Plastic

10˚C to 45˚C

10 – 95% RH

255 Group Addresses on each of the 10 C-Bus Applications

10

RS-232 port (supported by Logic Engine versions only)

5080CT26

BS5000CT2

P R O D U C T F E A T U R E S

• Larger screen than monochrome model with enhanced

contrast and superior backlighting

• Compatible with Version 4 of Clipsal’s Windows® based drag

and drop programming software (PICED)

• Available with or without C-Bus Logic Engine features

• A separate RS-232 port is included on the rear of the unit

for third party device integration (supported by Logic Engine

versions only)

• Programmed via a standard USB port on the unit

• USB programming port accessible from the front of the unit

• Does not require additional power supply

• CE (European Community) compliant

20

BLACK AND WHITE TOUCH SCREEN

CATALOGUE NUMBER DESCRIPTION

Saturn Touch Screen w/o Logic Engine

5080CT2GF

*5080CT23

*5080CT27

5080CT26

Black & White Touch Screen White

Black & White Touch Screen Cream

Black & White Touch Screen Mid-Brown

Black & White Touch Screen Black

Neo Touch Screen w/o Logic Engine

5050CT2GB

*5050CT2WE

*5050CT228

*5050CT2BK

Black & White Touch Screen Neo Grey/Silver

Black & White Touch Screen Neo White

Black & White Touch Screen Neo White Brushed Aluminium

Black & White Touch Screen Neo Black

Flat Plate Series w/o Logic Engine

*BS5000CT2

Black & White Touch Screen Stainless Steel

Plastic Series w/o Logic Engine

SC5000CT2WE

*SC5000CT2CM

*SC5000CT2BK

Black & White Touch Screen Plastic White

Black & White Touch Screen Plastic Cream

Black & White Touch Screen Plastic Black

* Ask for availability

INPUT UNITS

|

Black & White Touch Screen

5080CTL2GF 5080CTL27

CATALOGUE NUMBER DESCRIPTION

Saturn Touch Screen with Logic Engine

5080CTL2GF

*5080CTL23

*5080CTL27

5080CTL26

Black & White Touch Screen Logic Saturn White

Black & White Touch Screen Logic Saturn Cream

Black & White Touch Screen Logic Saturn Mid-brown

Black & White Touch Screen Logic Saturn Black

Neo Touch Screen with Logic Engine

5050CTL2GB

*5050CTL2WE

*5050CTL228

*5050CTL2BK

Black & White Touch Screen Logic Neo Grey/Silver

Black & White Touch Screen Logic Neo White

Black & White Touch Screen Logic Neo White Brushed Aluminium

Black & White Touch Screen Logic Neo Black

Flat Plate Touch Screen with Logic Engine

*BS5000CTL2

Black & White Touch Screen Logic S/Steel

Plastic Series Touch Screen with Logic Engine

SC5000CTL2WE

*SC5000CTL2CM

*SC5000CTL2BK

Black & White Touch Screen Logic Plastic White

Black & White Touch Screen Logic Plastic Cream

Black & White Touch Screen Logic Plastic Black

ACCESSORIES FOR BLACK & WHITE TOUCH SCREEN

CATALOGUE NUMBER DESCRIPTION

Wall box

5000CT2WB

Black & White Touch Screen Wall Box

Third Party Interface Lead

5000CT2RS232

Black & White Touch Screen RS232 Lead

Fascia

*5080CT2F

Saturn glass fascia

Cover Selection: (GF)

White,

(3)

Cream,

(6)

Black,

(7)

Mid-Brown

*5050CT2F

Neo fascia

Cover Selection: (28)

White & Brushed Aluminium,

(BK)

Black,

(GB)

Grey/Silver,

(WE)

White

Flat Plate

*BS5000CT2F

Black & White Touch Screen Metal Fascia Stainless Steel

Plastic Series

*SC5000CT2FWE

*SC5000CT2FCM

*SC5000CT2FBK

* Ask for availability

Black & White Touch Screen Plastic Fascia White

Black & White Touch Screen Plastic Fascia Cream

Black & White Touch Screen Plastic Fascia Black

5080CTL23

21

22

INPUT UNITS

|

Colour Touch Screens

The colour touch screen provides a simple, elegant and functional interface to a C-Bus management and control system.

The touch screen provides a focal point to control and monitor a building’s electrical systems, such as lighting, irrigation and entertainment services.

The touch screen is a wall mounted, touch sensitive, high resolution LCD screen that supports user defined graphics such as sliders, bitmaps and images and text characters, including English, Chinese, Arabic and other languages. The menus are fully customised at the time of installation, and may be changed at any time thereafter.

The touch screen incorporates an astronomical, real time clock for event scheduling and calendar functions, based on time of day, week, month or year. The colour touch screen features a logic engine module, that facilitates the development of logic based routines and scenarios, providing additional functionality of the installed system.

In addition, the colour touch screen is supplied with powerful configuration software that allows the installer to develop custom pages and menus to suit any installation of any size.

Available in either Neo or S aturn style, to complement the existing C-Bus wall switches. In addition, the touch screen features backlighting, that is controlled from a light level sensor located on the unit. The touch screen requires a custom wall box and power supply, which are supplied separately.

BS5000CTC2

5050CTC2

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

External Power Supply

Control Functions

Screen Type

Touch Overlay Type

Resolution

Screen Size

15 - 36VDC @ 22mA

5VDC @ 10A (supplied)

Switching, dimming, scene control, event scheduling or logic module

LCD active matrix, backlit

Resistive membrane

VGA, 640 x 480 pixels

16.25cm (diagonal)

Screen Viewing Area

Horizontal Viewing Angles

130mm(W) x 97mm(H)

+/- 70˚

Vertical Viewing Angles

Luminance

Backlight

Memory

Real Time Clock

Network Burden

System Clock

C-Bus Connection

Ethernet Connection

Serial Connection

40˚ up and 70˚ down

300 cd/m2

Cold cathode with light sensor

256MB compact flash

365 day

Software selectable

Software selectable

2 x RJ45 sockets

2 x RJ45 sockets, 10/100MHz

DB9 plug

Composite Video

Styles

RCA socket

NEO (ABS), SATURN (Glass), Brass and Stainless Steel

Dimensions

Operating Temperature Range

248mm(W) x 175mm(H) x 60mm(D)

0˚C to 30˚C

Operating Humidity Range

10 - 95% RH, non-condensing

P R O D U C T F E A T U R E S

• Programmable using the C-Bus touch screen configuration

software, via the serial or Ethernet connection

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Controls and monitors devices connected to the C-Bus,

Ethernet or serial connections

• Functions include; scheduling, scene control, irrigation

control, logic and scenario management

• Astronomical clock for scheduling and time management

of events

• Graphical user based drag and drop configuration software,

plus free form logic programming language

• Software interface design supports 101 levels of alpha

blending

• Animated buttons with up to 256 animation frames

supported

• Fully customized graphics, including bar graphs, sliders,

percentage indicators, images, gauges and clocks, with any

border and background style

• Supports embedded web pages

• Supports audio WAV files

• Password access control

• External power supply included

• CE (European Community) compliant

INPUT UNITS

|

Colour Touch Screens

248

14

71

175 148

5050CTC2 illustrated

202

CATALOGUE NUMBER DESCRIPTION

Saturn Touch Screen

5080CTC2GF

Colour touch screen with white saturn

Neo Touch Screen

5050CTC2

Colour touch screen with white neo

Flat Plate Series

BS5000CTC2

Colour touch screen with stainless steel

199

202

246

256

150 157 173 178

19

5

54

78

5080CTC2GF illustrated

Accessories for Colour Touch Screen

CATALOGUE NUMBER DESCRIPTION

Wallbox

5000CTCWB

Colour Touch screen wall box

Power Supply

5000CTCPS2

Colour Touch screen Power Supply

23

INPUT UNITS

|

Thermostats

Enjoy the perfect temperature all year round with C-Bus Thermostats. C-Bus Thermostats are programmable and will control heating, ventilation, and air conditioning (HVAC) equipment.

The Thermostat range allows the user to manually set the mode of operation (heating, cooling and ventilation) as well as control fan speed and setback or economy modes. The easy to use operater interface includes an integral LCD to display the current temperature and mode of operation. Thermostat is compatible with equipment that supports SELV contact

(RWG) control.

Wall mounted, Single Zone Thermostats include support for control of HVAC units via C-Bus or the internal HVAC relays.

They also allow the user to manuallyu set the temperature and mode of operation (heating, cooling or ventilation). The easy to use operator interface includes fan speed control, set back or economy mode and an integral LCD to display the current temperature and mode of operation.

Programmable 4 Zone Thermostats include on-board 7-day HVAC time scheduling (user programmable) manual fan speed control, set back mode and an easy to use interface, comprising of an LCD, manual control buttons and a rotating dial with an integral press switch. From the unit, the user can manually adjust the temperature set point, the mode of operation (heating, cooling, ventilation) and time schedules.

Single Zone

4 Zone

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

C-Bus AC Input Impedance

Relays (5070THPR model)

C-Bus Connection

Temperature Sensor Accuracy

C-Bus System Clock

Network Burden

Operating Temperature

Operating Humidity Range

15 - 36VDC, 40mA

Does not supply current to the C-Bus network

50k

W

@ 1kHz

Each relay rated at 2A @ 24V ac 3750V isolation between terminals and C-Bus

One terminal block to accommodate 0.2 to 1.3mm

=/- 0.5°C (+/- 0.9°F)

Software selectable

Software selectable

-10 to 50°C (14 to 122°F)

10 to 95% R.H.

2

(24 to 16 AWG)

P R O D U C T F E A T U R E S

• Support for control of HVAC units via C-Bus or internal relays

(‘RWG’ control)

• Control of up to four switched Zones for ducted systems plus

the common zone (4 zone unit only)

• 7 day programmable HVAC schedules (4 zone unit only)

• Support for remote temperature sensing by other C-Bus

devices

• Optional manual fan speed (for HVAC plant that supports

variable fan speeds)

• Setback capability for reducing energy consumption.

• CE (European Community) compliant

24

CATALOGUE NUMBER DESCRIPTION

*5070THBRPGWE

*5070THBRBK

*5070THBRSS

*5070THBPGWE

*5070THBBK

*5070THBSS

Single Zone White

Single Zone Black

Single Zone Stainless Steel

Single Zone no relays White

Single Zone no relays Black

Single Zone no relays Stainless Steel

*Ask for availability

CATALOGUE NUMBER DESCRIPTION

*5070THPRPGWE

*5070THPRBK

*5070THPRSS

*5070THPPGWE

*5070THPBK

*5070THPSS

E5031RDTSL

4 Zone White

4 Zone Black

4 Zone Stainless Steel

4 Zone no relays White

4 Zone no relays Black

4 Zone no relays Stainless Steel

C-Bus remote digital temperature sensor

INPUT UNITS

|

General Input Unit

The 4 channel general input units are DIN rail mounted units designed to measure digital, voltage, current loop and thermistor inputs and generate messages to the C-Bus network.

The unit is designed to broadcast the actual measured value to the C-Bus network, which in turn may be displayed on other C-Bus devices such as the touch screen, C-Gate or C-Lution. In addition, the unit may trigger a group address as a function of the input level, up to eight trigger points may be assigned to a single input channel.

The general input unit is designed to interface to third party products, such as light level sensors, temperature sensors, power, frequency, moisture, rate sensors and others. In this way, the general input may be used to extend the functionality of the C-Bus and its ability to integrate with other systems such as HVAC and power monitoring systems. The general input also generates 24VDC to power the external sensors.

The general input units are available as passive models only, hence do not source current to the C-Bus network.

E5504GI

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Supply Voltage

Supply Frequency

C-Bus Supply Voltage

E5504GI

24VAC +/- 10% @ 500mA, power pack not supplied with the unit

50/60Hz

Auxiliary Output

Voltage Inputs

Current Inputs

Impedance Inputs

15-36VDC @ 18mA

24VDC @ 250mA

0 - 1V, 0 - 5V, 0 - 10V and 0 - 20V

0 - 20mA and 4 - 20mA

Digital Inputs

Broadcast Rate

Maximum Number of Units on a Single C-Bus Network

0 - 500Ω, 0-1kΩ and 0-3kΩ

Yes

2 to 1,024 seconds

10

Status Indicators

A/D Conversion

Accuracy

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

Unit and C-Bus

8 - bit

0.5%

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm2 or 1 x 2.5mm2

0˚C to 45˚C

0 - 95% RH, non-condensing

P R O D U C T F E A T U R E S

• Provides 4 channels of input, compatible with a range of third party sensor products

• Capable of threshold switching or broadcasting value onto

the network

• Programmable via the C-Bus Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Designed to fit standard 35mm top hat DIN rail

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

Unit-

Comm

C-Bus

General Input

V IN

24

24

VDC OUT

COM 24

COM

A 1 B A 2 B A 3 B A 4 B

85 68 45

V IN

24 24

VDC OUT

COM 24 COM A 1 B A 2 B A 3 B A 4 B

15

18

65

32

CATALOGUE NUMBER DESCRIPTION

*E5504GI

4 channel general input module

*Ask for availability

E5504GI illustrated

25

INPUT UNITS

|

Auxiliary Input Unit

Learn Enabled

The auxiliary input unit is a DIN rail mounted unit that provides four isolated inputs for voltage free, mechanical switches to interface to the C-Bus network. The auxiliary input supports momentary and latching switch types.

The auxiliary input unit features learn mode, Channel, C-Bus and unit status indicators.

The auxiliary input unit may be programmed with the same functions as a key input, including toggle, timer, dimmer and scene control.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Switch Isolation

Maximum Switch and Cable Impedance

Switch Open Voltage

Switch Closed Current

Maximum Number of Units on a

Single C-Bus Network

Status Indicators

Warm Up Time

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

1A 1B 2A 2B 3A 3B 4A 4B

85 68

45

C-Bus CONNECTIONS

Auxiliary Input

1 2 3 4

72

15

18

65

32

L5504AUX illustrated

L5504AUX

15-36VDC @ 18mA

500V

1000Ω

5V

0.4mA

100

Channel (4), Unit and C-Bus

5 seconds

2 x RJ45 Sockets

2 x 1.5mm2 or 1 x 2.5mm2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5504AUX

P R O D U C T F E A T U R E S

• Provides 4 channels of input, compatible with voltage free

mechanical switches

• Isolated inputs, up to 500V isolation

• Programmable by learn mode or using the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Designed to fit standard 35mm top hat DIN rail

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

26

CATALOGUE NUMBER DESCRIPTION

*L5504AUX

4 channel auxiliary input unit

*Ask for availability

INPUT UNITS

|

Bus Coupler

Learn Enabled

The bus couplers provide non-isolated inputs for voltage free, mechanical switches to interface to the C-Bus network. The bus couplers support momentary and latching switch types.

The bus coupler units may be programmed with the same functions as a key input, including toggle, timer, dimmer and scene control.

The four channel bus coupler provides support for 4 switches which are programmed to report the state of the switch.

The bus couplers are small in size and volume and are designed to fit into any wallbox.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Maximum Distance between

Switch and Bus Coupler

Number of Channels

LED Drive Output

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Warm Up Time

C-Bus Termination

Load Termination

Operating Temperature

Operating Humidity

5104BCL

Bus Coupler

1 2 3 4

1 C 2 C 3 C 4 C

5104BCL

15-36VDC @ 18mA

1m

4

0mA

100

Channel (4)

5 seconds

Screw terminals

Push Terminals, 1 x 1.5mm2

0˚C to 45˚C

0 - 95% RH, non condensing

49

5104BCLWE

P R O D U C T F E A T U R E S

• Provides 4 channels of input, compatible with voltage

free mechanical switches

• Programmable by learn mode or using the C-Bus

configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Small in size and volume, designed to fit into any wallbox

• CE (European Community) compliant

18

55

CATALOGUE NUMBER DESCRIPTION

5104BCLWE

Bus coupler auxiliary input

5104BCLWE illustrated

27

INPUT UNITS

|

Pascal Automation Controller

The Pascal Automation Controller (PAC) is a DIN rail mounted device that provides sophisticated and affordable control of a Clipsal C-Bus system. The PAC can perform operations in response to monitored events by executing custom written embedded programs. These programs are written by installers to suit individual application needs using the Microsoft

Windows™ based programming interface for C-Bus embedded devices or ‘PICED’ software.

The PAC provides a USB interface through which programs are downloaded. The USB connection can also be used to communicate directly with a C-Bus installation via a PC. This allows the PAC to function as a PC Interface and can be used by the C-Bus Toolkit Software when configuring a C-Bus installation.

5500PACA

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Battery Backup Supply Voltage

Network Clock

Network Burden

Maximum Number of C-Bus

Applications Supported

C-Bus Connections

RS-232 Port Connectors

Dimensions

Operating Temperature Range

Operating Humidity Range

Status

Indicators

User Port 1

RS232

Port 2

Unit/

Comm

C-Bus

USB

Pascal Automation Controller

C-Bus CONNECTIONS

V IN

-12VDC+

BATT

V IN

24VAC

85 68 45

5500PACA

15-36VDC @ 32mA

12VDC @ 30mA

Software selectable

Software selectable

10

2 x RJ45 Sockets

2 x RJ45

72mm(W) x 92mm(H) x 63mm(D)

0˚C to 45˚C

10 - 95% RH

72

15

18

65

32

5500PACA illustrated

28

CATALOGUE NUMBER DESCRIPTION

5500PACA

Pascal Automation Controller

P R O D U C T F E A T U R E S

• Conditional and real-time events programming for C-Bus

• Dedicated scheduling, logic and scene programming modules

• Connects to and powered by C-Bus

• Programmable using the C-Bus Toolkit Software

• Includes a built-in real time clock

• Compact size

• 2 x RS-232 ports for third party device control

• CE (European Community) compliant

INPUT UNITS

|

Indoor Motion Sensor, 90 Degrees

The indoor occupancy sensors are surface mounted, input units used to detect movement by sensing natural thermal radiation emitted from any moving body. When movement is detected, the unit issues commands over the

C-Bus network to control C-Bus output devices. In addition, the unit features a light level sensor to automatically switch lighting on, under low light conditions.

The sensor has a detection field that covers an area up to 8.5 metres from the unit, with a field of view of 90 degrees.

The unit features a ‘lens less’ design with 12 overlapping zones forming a continuous detection field, therefore resulting in uniform sensitivity across the whole of the detection field, with no dead zones. This features allows the sensor to be ceiling or wall mounted.

The sensor features learn mode, which permits the unit to be programmed without the need for a PC connected to the system.

The sensor features an environmental rating of IP44 and is suitable for indoor applications. The sensor is designed for surface mount applications, and located in the corner of the room where detection is required.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Base, Mounting Centres

C-Bus Supply Voltage

Timer Range

Timer Resolution

Light Threshold Adjustment

Mounting Height

Field of View

Detection Area

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

IP Rating

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

5751LWE

84mm

E5751L

60.3mm

15-36VDC @ 18mA

Programmable, 1 sec - 18 hrs

1 sec

User adjustable, 1 Lux to full sunlight

2.4m nominal, (2.0 to 3.2m)

90 degrees

6m x 6m

100

Walk test LED

5 seconds

IP44

Fly lead x 2

0˚C to 45˚C

0 - 95% RH, non-condensing

5751LWE

P R O D U C T F E A T U R E S

• Programmable by learn mode or using the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Programmable walk test LED for commissioning

• User adjustable light level threshold, from low light (1 Lux)

to full sunlight

• Dual element detectors to minimise false triggering.

• Optical bandpass filter minimises unwanted heat sources

from triggering the circuitry

• CE (European Community) compliant

70

18

R48

90∞ Field of View

5751LWE illustrated

108

CATALOGUE NUMBER DESCRIPTION

5751LWE

PIR indoor occupancy sensor-learn

29

INPUT UNITS

|

Indoor Motion Sensor, 360 Degrees

The indoor occupancy sensors are flush mounted, input units used to detect movement by sensing natural thermal radiation emitted from any moving body. When movement is detected, the unit issues commands over the

C-Bus network to control C-Bus output devices. In addition, the unit features a light level sensor to automatically switch lighting on, under low light conditions.

The sensor has a detection field that covers an elliptical area up to 12m x 14m, with a field of view of 360 degrees. The unit features a multi-segmented Fresnel lens design, for superior detection capability.

The sensor features learn mode, which permits the unit to be programmed without the need for a PC connected to the system.

The sensor features an environmental rating of IP44 and is suitable for indoor applications. The sensor is compact in size, and is designed for flush mount applications, located at the centre of the detection area.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Timer Range

Timer Resolution

Light Threshold Adjustment

Mounting Height

Field of View

Detection Area

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

IP Rating

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

5753L

15-36VDC @ 18mA

Programmable, 1 sec - 18 hrs

1 sec

User adjustable, 1 Lux to full sunlight

2.4m nominal, (2.0 to 3.2m)

360 degrees

12m x 14m

100

Walk test LED

5 seconds

IP44

Screw terminals

0˚C to 45˚C

0 - 95% RH, non-condensing

72 36 47 50

5753L

P R O D U C T F E A T U R E S

• Programmable by learn mode or using the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Programmable walk test LED for commissioning

• User adjustable light level threshold, from low light (1 Lux)

to full sunlight

• Dual element detectors to minimise false triggering

• Optical bandpass filter minimises unwanted heat sources

from triggering the circuitry

• Designed for flush mount applications, protrudes only 8mm

• CE (European Community) compliant

15

103

88

5753L illustrated

30

CATALOGUE NUMBER DESCRIPTION

5753L

Indoor occupancy sensor, 360 degrees

INPUT UNITS

|

Outdoor Motion Sensor, 110 Degrees

The outdoor occupancy sensors are surface mounted, input units used to detect movement by sensing natural thermal radiation emitted from any moving body. When movement is detected, the unit issues commands over the C-Bus network to control C-Bus output devices. In addition, the unit features a light level sensor to automatically switch lighting on, under low light conditions.

The sensor has a detection field that covers an area up to 18 metres from the unit, with a field of view of 110 degrees.

Advanced microprocessor circuit technology and a flat multi-segmented lens, divide the field of view into 28 zones located at four different levels. This ensures immediate reaction of body movement and reduces the number of ‘dead zones’ that can be penetrated.

The sensor features learn mode, which permits the unit to be programmed without the need for a PC connected to the system.

The sensor features an environmental rating of IP66 and is suitable for outdoor applications.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Base, Mounting Centres

C-Bus Supply Voltage

Timer Range

Timer Resolution

Light Threshold Adjustment

Mounting Height

Field of View

Detection Area

Lens Type

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

C-Bus Termination

IP Rating

Operating Temperature Range

74 20

58

38

E5750WPL

60.3mm

15-36VDC @ 18mA

Programmable, 1 sec - 18 hrs

1 sec

User adjustable, 1 Lux to full sunlight

2.4m nominal, (2.0 to 3.2m)

110 degrees

18m radius x 110 degrees

Frensel, multi-segmented

100

Walk test LED

5 seconds

Fly lead x 2

IP66

0˚C to 45˚C

138

InFRASCAN

111

E5750WPL illustrated

E5750WPL

P R O D U C T F E A T U R E S

• Programmable by learn mode or using the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Programmable walk test LED for commissioning

• User adjustable light level threshold, from low light (1 Lux)

to full sunlight

• Dual element detectors to minimise false triggering

• Optical bandpass filter minimises unwanted heat sources

from triggering the circuitry

• CE (European Community) compliant

CATALOGUE NUMBER DESCRIPTION

E5750WPL

Outdoor PIR

31

15

103

88

INPUT UNITS

|

Indoor Multi-Sensor, 360 Degrees

The indoor occupancy sensors are surface mounted, input units used to detect movement by sensing natural thermal radiation emitted from any moving body. When movement is detected, the unit issues commands over the C-Bus network to control C-Bus output devices. In addition, the unit features a light level sensor to automatically switch lighting on, under low light conditions.

The sensor has a detection field that covers an area up to 8.5 metres from the unit, with a field of view of 90 degrees.

The unit features a ‘lens less’ design with 12 overlapping zones forming a continuous detection field, therefore resulting in uniform sensitivity across the whole of the detection field, with no dead zones. This feature allows the sensor to be ceiling or wall mounted.

The sensor features learn mode, which permits the unit to be programmed without the need for a PC connected to the system.

The sensor features an environmental rating of IP44 and is suitable for indoor applications. The sensor is designed for surface mount applications, and located in the corner of the room where detection is required.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Timer Range

Timer Resolution

Light Threshold Adjustment

Light Regulation

Mounting Height

Field of View

Detection Area

IR Receiver

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

IP Rating

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

5753PEIRL

15-36VDC @ 18mA

Programmable, 1 sec - 18 hrs

1 sec

Programmable, 1 Lux to full sunlight

40 - 3000 Lux

2.4m nominal, (2.0 to 3.2m)

360 degrees

Programmable, up to 12m x 8.5m

Remote enabled/disable control

100

Walk test and IR receive LED

5 seconds

IP44

Screw terminals

0˚C to 45˚C

0 - 95% RH, non-condensing

5753PEIRL

P R O D U C T F E A T U R E S

• Programmable by learn mode or using the C-Bus Toolkit

Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Programmable walk test LED for commissioning

• User adjustable light level threshold, from low light (1 Lux)

to full sunlight

• Dual element detectors to minimise false triggering

• Optical bandpass filter minimises unwanted heat sources

from triggering the circuitry

• CE (European Community) compliant

72 36 47 50

5753PEIRL illustrated

32

CATALOGUE NUMBER DESCRIPTION

5753PEIRL

PIR light level IR combination sensor

INPUT UNITS

|

Light Level Sensors

The light level sensors are surface mounted input units used to measure ambient light levels and regulate lighting loads.

The sensor has a field of view of 180 degrees and is capable of measuring lighting levels in the range of 20 to 3000 lux and regulating lighting in the range of 40 to 1600 lux, which is suitable for most commercial applications.

The light level sensor may be used in conjunction with non-dimmable ballasts to bank switch luminairies or with dimmable electronic ballasts to regulate lighting levels continuously, within a programmed target range.

The unit features built in lag, to prevent rapid changes in output, due to changes in environmental conditions, such as cloud cover or rapid movement through the detection area.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Light Level (measure)

Light Level (regulate)

Field of View

Time Constant

Mounting Height

Field of View

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

C-Bus Termination

Standard Colours

Operating Temperature

Operating Humidity

87 sq.

15-36VDC @ 18mA

20 - 3000 lux

40 - 1600 lux

180 degrees

Approx. 90 seconds

2.4m nominal, (2.0 to 3.2m)

180 degrees

100

Programmable

5 seconds

Screw terminals

White

0˚C to 45˚C

0 - 95% RH, non condensing

23

E5031PE

P R O D U C T F E A T U R E S

• Programmable using the C-Bus configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Programmable target light level and margin

• Bank switching or light level regulation

• CE (European Community) compliant

67

E5031PE illustrated

52

CATALOGUE NUMBER DESCRIPTION

E5031PE

Light level sensor, 40-1600 lux

IP66 Weatherproof Series

*5031PEWPGY

Light level sensor, IP66

*Ask for availability

33

INPUT UNITS

|

Clock Modules

The clock modules are surface mounted, input units used to provide basic timing functions and convenient control of

C-Bus output units.

The clock modules are 7-day timers, featuring 42 program storage locations for event programming. Events may be programmed up to 6 days in advance and event durations may be up to 99 days.

The clock modules are powered from the two wire C-Bus connection, they feature a rechargeable power storage that maintains the clock for up to 24 hours, in the event of loss of the C-Bus power supply.

The clock modules also feature a daylight saving option and random check generator from 5 to 60 minutes.

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Timer

Number of Channels

Memory Locations

Accuracy

Timer Resolution

Running Reserve

Reserve Charge Time

Daylight Saving Mode

Random Event Generator

Display

Maximum Number of Units on a Single C-Bus Network

Status Indicator

Warm Up Time

C-Bus Termination

Standard Colours

Operating Temperature

Operating Humidity

87 sq.

15-36VDC @ 18mA

7 day

2

42

2.5 sec/day @ 20˚C

1 minute

24 hours (without C-Bus power)

2 minutes

Yes

5 to 60 minutes

Iconic LCD display, grey scale

100

Programmable

5 seconds

Screw terminals

White

0˚C to 45˚C

0 - 95% RH, non condensing

23

E50312TC7

P R O D U C T F E A T U R E S

• Programmable using the C-Bus configuration software

• Programmed variables are stored in non-volatile memory and are retained in case of loss of mains or

C-Bus power

• Reserve power backup in case of loss of C-Bus supply

• CE (European Community) compliant

67

52

34

CATALOGUE NUMBER DESCRIPTION

*E50312TC7

Clock module 7day vertical

*Ask for availability

E50312TC7 illustrated

INPUT UNITS

|

Telephone Interface

The telephone interface unit provides a remote telephone interface to the C-Bus network. The dial in, dial out facility permits the user to dial in and navigate a voice prompt menu to monitor and control devices on the C-Bus network from a remote location. Control is exercised using the DTMF keypad on the phone.

The telephone interface facilities a connection to the C-Bus network for remote programming of the units using the

C-Bus Toolkit Software.

An audio output is also included so that C-Bus events can be audibly announced. The telephone interface connects to either the public switched telephone network (PSTN) or to a local PABX.

The telephone interface unit includes the facility to issue voice prompts, send commands, report status and to obtain operator responses using DTMF tones. The responses are turned into actions on a C-Bus network.

For added security, the telephone interface requires the telephone user to enter a user profile number and password to access the voice prompt menus. Upon receipt of the correct password, the unit activates a voice prompt menu and directs the user to available actions or more menus.

The telephone interface incorporates a history log, is supplied pre-loaded with a standard library of words and phrases and supports multiple languages.

T E C H N I C A L I N F O R M A T I O N

Catalogue Numbers

C-Bus Supply Voltage

CBTI Power Supply

Status Indicators

Modes

C-Bus Connection

PC Interface Connection

Telephone Connection

Audio Connection

Network Burden

System Clock

Voice Library

Operating Temperature Range

Operating Humidity Range

E5100TAU

15 - 36VDC @ 20mA

12VDC or 15VAC, 50/60Hz power pack not included

C-Bus, Line Grab, Serial Comms. and Internal Comms.

Home and Away

2 x RJ45 sockets

DB9 socket

3 x RJ12 sockets (1 incoming/2 outgoing)

2 RCA sockets (in/out)

Software selectable

Software selectable

User programmable

0˚C to 45˚C

0 - 95% RH, non-condensing

E5100TAU

P R O D U C T F E A T U R E S

• Programmable using the C-Bus telephone interface configuration

software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Audio out (line out) to annunciate messages

• Includes user profile number and password to access voice

prompt menus

• Remote programming of the C-Bus devices

• Supports communication through C-Bus network bridges

• CE (European Community) compliant

145 sq.

30

UNIT COMMS C-BUS

RS-232

C-BUS C-BUS

AUDIO

IN

AUDIO

OUT

POWER

12V DC

SECONDARY

PHONE-OUT

PRIMARY

PHONE-OUT

PHONE

IN

TELEPHONE INTERFACE

E5100TAU illustrated

CATALOGUE NUMBER DESCRIPTION

*E5100TAU

Telephone interface module

*Ask for availability

35

36

System Units

SYSTEM UNITS

|

Ethernet Network Interface

The Ethernet network interface is a C-Bus device designed to provide an isolated communications path between an

Ethernet 10 Base-T network and C-Bus network. This allows high-speed control and monitoring of a C-Bus installation via the TCP/IP protocols used in computer networks and by the Internet.

The network interface is a near instantaneous connection to a C-Bus network. It provides a gateway between high-speed, high bandwidth Ethernet communication and the robust, time tested Clipsal C-Bus control system.

In addition to programming, the network interface provides similar convenience for third party applications to issue commands to a C-Bus network and monitor the behavior of units on the network. The network interface is assigned an IP address, just like a PC on a computer network. Once an IP address is assigned it is possible for a myriad of applications, applets and third party system to send C-Bus commands to the C-Bus network remotely.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Ethernet Supply Voltage

Network Speed

Network Protocol

Status Indicators

Network Burden

System Clock

C-Bus Termination

Ethernet Termination

Power Pack

Operating Temperature Range

Operating Humidity Range

9 - 12V ETHERNET

Ethernet

C-Bus/Unit/Comms

C-Bus CONNECTIONS

Network Interface

85 68 45

E5500CN

15-36VDC @ 22mA

9-12VAC/DC

10 Base-T

TCP/IP

Network and C-Bus

Software selectable

Software selectable

2 x RJ45 sockets

1 x RJ45 socket, shielded

Not included

0˚C to 45˚C

0 - 95% RH, non-condensing

72

15

18

65

32

E5500CN illustrated

E5500CN

P R O D U C T F E A T U R E S

• Provides a TCP/IP interface to the C-Bus network

• Provides high-speed backbone communications path

• Permits any size C-Bus networks, overcomes restrictions of

network size when Network Bridges are used

• Programmable via the C-Bus configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Designed to fit standard 35mm top hat DIN rail, measures just 4M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

CATALOGUE NUMBER DESCRIPTION

E5500CN

Computer network interface, 10 Base-T

37

SYSTEM UNITS

|

PC Interface

The PC Interface is a C-Bus device designed to provide an isolated, bi-directional, interface between the PC and the C-Bus network. Through the PC Interface, C-Bus units can be programmed, commands can be issued and activity on the C-Bus network can be monitored.

Installation of the PC Interface on the C-Bus network requires connection to the Category 5 unshielded twisted pair network cable.

5500PC

5500PCU

P R O D U C T F E A T U R E S

• Provides a serial interface to the C-Bus network

• C-Bus units may be configured, monitored or controlled via

the serial connection

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Designed to fit standard 35mm top hat DIN rail, measures just 4M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

T E C H N I C A L I N F O R M A T I O N

C-Bus Supply Voltage

Status Indicators

Network Burden

System Clock

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

15-36VDC @ 32mA

Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 sockets

0˚C to 45˚C

0 - 95% RH, non-condensing

RS232

Unit/

Comms

C-Bus

C-Bus CONNECTIONS

PC Interface

85 68 45

72

15

18

65

32

5500PC illustrated

38

CATALOGUE NUMBER DESCRIPTION

5500PC

PC Interface RS232

5500PCU

PC Interface USB

SYSTEM UNITS

|

Network Bridge

The network bridge is a network support device that provides an isolated communications channel between C-Bus units on separate networks. Both sides of the network bridge are optically isolated, providing electrical isolation between adjacent networks.

Network bridges are required to manage networks to particular units in particular zones, or to extend the network past system limitations of 100 passive units and 1000 metres of C-Bus cable in any one network.

5500NB

P R O D U C T F E A T U R E S

• Provides an isolated communications path between networks

• Programmable via the C-Bus configuration software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of C-Bus power

• Designed to fit standard 35mm top hat DIN rail, measures just 4M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Electrical Isolation rating

(between networks)

Maximum Number of Units on a Single C-Bus Network

Status Indicators

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

5500NB

15-36VDC @ 20mA

3,500V RMS (opto-isolated, 1 minute)

100

Network 1 and Network 2

4 x RJ45 sockets (Network 1 and 2)

0˚C to 45˚C

0 - 95% RH, non-condensing

C-Bus CONNECTIONS

Network A

Network B

C-Bus CONNECTIONS

Network Bridge

85 68 45

72

15

18

65

32

5500NB illustrated

CATALOGUE NUMBER DESCRIPTION

*5500NB

Network bridge DIN rail

*Ask for availability

39

SYSTEM UNITS

|

Power Supply

The power supply converts the line voltage input to 36VDC output, required for correct operation by C-Bus devices. The power supply can source up to 350mA to the network and power supplies may be added in parallel as more C-Bus devices are added to the network, under these conditions the power supplies share the load current equally.

The power supplies feature short circuit and reverse polarity protection and the line voltage is galvonically isolated from the C-Bus output side.

5500PS

P R O D U C T F E A T U R E S

• Delivers up to 350mA to the C-Bus network

• High efficiency switched mode power supply design

• Units may be operated in parallel on the same network

• Does not require programming on installation

• Designed to fit standard 35mm top hat DIN rail, measures just 4M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

T E C H N I C A L I N F O R M A T I O N

Catalogue Numbers

Line Supply Voltage

Supply Frequency

Output Voltage

Output Current

Duration of Short Circuit on Output

AC Isolation Mains/C-Bus

Warm-Up Time

Number of C-Bus Units,

Supported by one Power Supply

(Standard passive unit = 18mA)

Maximum Number of Units on a Single C-Bus Network

Maximum Voltage Drop measured between Power Supply and Passive

C-Bus Unit for correct operation

Status Indicators

C-Bus Termination

Line Termination

Operating Temperature Range

Operating Humidity Range

N A/L

Unit

C-Bus

C-Bus CONNECTIONS

Power Supply

85 68 45

5500PS

220-240VAC

47-53Hz

32-39VDC

350mA (maximum)

Indefinite

3,750V RMS

3 seconds

19

5

10VDC

Unit and C-Bus

2 x RJ45 sockets

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

72

5500PS illustrated

15

18

65

32

40

CATALOGUE NUMBER DESCRIPTION

5500PS

Power supply 350mA

SYSTEM UNITS

|

Network Analyser

The network analyser is a field diagnostic tool designed to measure and report the status of various network parameters.

The network analyser connects to the C-Bus network and is used to measure the network voltage, active clock and network impedance and determine if these are within acceptable limits for correct operation.

The unit displays the results by illuminating LEDs located on the unit.

Note: The network analyser should be used in conjunction with the C-Bus Calculator software application.

T E C H N I C A L I N F O R M A T I O N

Catalogue Numbers

C-Bus Supply Voltage

Status Indicators

C-Bus Termination

Operating Temperature Range

Operating Humidity Range

5100NA

15-36VDC @ 20mA

Power available

Clock not present

Excess voltage

Remove burden

Add burden

Excess cable

2 x Alligator clips

0˚C to 45˚C

0 - 95% RH, non-condensing

30

CAT No.5100NA

Network Analyser

Power Available

Clock Not Present

Excess Voltage

Remove Burden

Add Burden

Excess Cable

Network

Burden

Hold down to add to network

60

5100NA illustrated

118

*5100NA

CATALOGUE NUMBER DESCRIPTION

*5100NA

Network analyser

*Ask for availability

41

42

SYSTEM UNITS

|

Network Cable

The C-Bus network cable is a Category 5, unshielded twisted pair cable specifically developed for use with the C-Bus control network. The cable features a unique pink coloured outer sheath for ease of identification.

The cable is recommended for all C-Bus installations, and is mandatory for certified sites. The cable provides immunity to induced noise from external sources and superior crosstalk performance.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Data Grade Insulation

Length

DC Resistance

Sheath

SRL

Power Sum NEXT

Construction

5005C305B

100 +/- 15 Ohms

305m (boxed)

<93.8 Ohms/1000m @ 20˚C

Coloured PVC (pink), type V75 C, nominal diameter 5.2mm

24.69dB at 33.11MHz

53.84dB at 7.59MHz

4-Pair 1/0.51 (0.2mm

2

), 24AWG

CATALOGUE NUMBER DESCRIPTION

5005C305B

Cable, 4-Pair, UTP, Cat 5, 305m

5005C305B

Network Burden

45

12

5500BURDEN illustrated

CATALOGUE NUMBER DESCRIPTION

5500BURDEN

Network burden RJ45 (pack of 10)

11

5500BURDEN

Output Units

43

OUTPUT UNITS

|

8 Channel Dimmer Range

Learn Enabled

The 8 channel dimmer units are DIN rail mounted units employing leading edge phase control circuitry for dimming control.

These dimmer units feature learn mode, local and remote overrides for on/off control, channel, C-Bus and unit status indicators.

Each dimmer channel is rated at 1 Amp and is suitable for incandescent and low voltage lighting using magnetic and leading edge compatible transformers. The dimmer output is controllable over the range of 2-98%, while frequency tracking algorithms ensure flicker-free operation and smooth dimming control.

The dimmer units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

L5508D1A L5508D1AP

Line Supply Voltage

Supply Frequency

Frequency Drift

Frequency Step Change

220-240VAC

47-53Hz and 57-63Hz

3Hz/minute (maximum)

0.1Hz (maximum)

C-Bus Supply Voltage

Load Rating per Channel

15-36VDC @ 0mA

1A

15W per channel

Minimum Load

Control Range

2 - 98%

Compatible Loads

Incandescent and low voltage lighting.

Ensure compatible leading edge electronic transformers are used.

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

200mA

10

0mA

100

Status Indicators

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

Channel Status (8), Unit and C-Bus

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5508D1A

P R O D U C T F E A T U R E S

• Provides 8 x 1A channels of dimming control

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling.

• Logic states (max/min) programmable using the C-Bus

Toolkit Software

• Employs frequency-tracking algorithms for smooth flicker

free operation

• Designed to fit standard 35mm top hat DIN rail, measures just 12M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L

1 2 3 4

Unit

C-Bus

5 6 7 8

Dimmer

C-Bus CONNECTIONS

1 2 3 4 5

216

6 7 8 A/L N

85 68 45

15

18

65

32

L5508D1A illustrated

44

CATALOGUE NUMBER DESCRIPTION

L5508D1AP

L5508D1A

8 Channel dimmer 1A, 220/240VAC 50/60Hz

8 Channel dimmer 1A, 220/240VAC 50/60Hz, C-Bus 200mA

OUTPUT UNITS

|

4 Channel Dimmer Range

Learn Enabled

The 4 channel dimmer units are DIN rail mounted units employing leading edge phase control circuitry for dimming control. These dimmer units feature learn mode, local and remote overrides for on/off control, channel,

C-Bus and unit status indicators.

Each dimmer channel is rated at 2 Amps and is suitable for incandescent and low voltage lighting using magnetic and leading edge compatible transformers. The dimmer output is controllable over the range of 2-98%, while frequency tracking algorithms ensure flicker-free operation and smooth dimming control.

The dimmer units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

L5504D2A

220-240VAC

L5504D2AP

47-53Hz and 57-63Hz

Supply Frequency

Frequency Drift

3Hz/minute (maximum)

Frequency Step Change

0.1Hz (maximum)

C-Bus Supply Voltage

15-36VDC @ 0mA

Load Rating per Channel

2A

Minimum Load

15W per channel

Control Range

2 - 98%

Compatible Loads

Incandescent and low voltage lighting.

Ensure compatible leading edge electronic transformers are used.

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

200mA

10

0mA

100

Status Indicators

Warm Up Time

Network Clock

Network Burden

Channel Status (4), Unit and C-Bus

5 seconds

Software selectable

Software selectable

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5504D2A

P R O D U C T F E A T U R E S

• Provides 4 x 2A channels of dimming control

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (max/min) programmable using the C-Bus

Toolkit Software

• Employs frequency-tracking algorithms for smooth flicker

free operation

• Designed to fit standard 35mm top hat DIN rail, measures just 12M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

Unit

N A/L

1 2 3 4

C-Bus

Dimmer

C-Bus CONNECTIONS

1 2 3 4 A/L N

85 68 45

216

15

18

65

32

L5504D2A illustrated

CATALOGUE NUMBER DESCRIPTION

L5504D2AP

L5504D2A

4 Channel dimmer 2A, 220/240VAC 50/60Hz

4 Channel dimmer 2A, 220/240VAC 50/60Hz, C-Bus 200mA

45

OUTPUT UNITS

|

Universal Dimmer Range

Learn Enabled

The Universal dimmers are DIN rail mounted C-Bus dimmers with automatic load sensing. These units can be used with leading edge or trailing edge compatible low voltage electronic transformers, as well as incandescent lamps and low voltage lamps with iron-core transformers. The units feature 4 independent channels of 2.5A output per channel, and are available with and without on-board 200mA C-Bus Power

Supply and provide a software selectable Network Burden and C-Bus System Clock.

T E C H N I C A L I N F O R M A T I O N

Catalogue number

L5504D2U

AC supply voltage

220 – 240V

AC supply frequency

47 – 53Hz & 53 – 63Hz

Single or 3 phase supply

1,2 or 3 phase

AC supply frequency

47 – 53Hz & 53 – 63Hz

Number of channels

4

C-Bus learn enabled

Yes

Maximum incandescent load per channel

2.5A

Maximum iron core transformer load per channel

2.5A

Maximum electronic transformer load per channel

2.5A

Wall or DIN mounted

DIN

No. of DIN modules wide

12 DIN modules

Mains terminals

2 x 1.5mm² or 1 x 2.5mm²

Dimensions

215 x 85 x 65mm

Maximum units on a network (255 networks)

10

C-Bus connections

2 x RJ45

L5504D2UP

Single phase

100

P R O D U C T F E A T U R E S

• Provides 4 x 2.5A channels of dimming control.

• Programmable via the learn mode feature or using the C-Bus Toolkit software.

• Provides 4 universal phase controlled dimming channels in a 12M wide

DIN rail enclosure.

46

CATALOGUE NUMBER DESCRIPTION

L5504D2U

L5504D2UP

4 Channel 2.5A per channel dimmer, 200mA Power Supply

4 Channel 2.5A per channel dimmer without power

OUTPUT UNITS

|

3 Channel Professional Dimmers

The 3 channel Professional Dimmers designed for commercial applications such as hotels, restaurants and office buildings.

The dimmers are C-Bus controlled, high power, multi phase control units, compatible with a wide range of load types, including neon. Dimming is achieved through phase control techniques creating a highly efficient range of dimmers.

The Professional Dimmers provide on-board MCB protection and thermal overload protection, and contain modular output channel cards of various ratings, allowing customisation to suit site needs.

A maintained active output is provided on each channel for emergency lighting. Each channel card has a bypass switch which permits direct local override of the lighting circuit. In the event of an overtemperature condition, such as one caused by excessive load current, the dimmer channel reduces the output power.

The Professional Dimmer is designed and tested for a wide range of international markets with comprehensive EMC and electrical safety testing and is fully ROHS compliant.

T E C H N I C A L I N F O R M A T I O N

Load terminal standby leakage current

< 10 mA leading edge

AC supply voltage

240/415 V AC

AC supply frequency

47 to 53 Hz

Number of input phases

1 Phase (5 Amp model)

1 or 3 Phase (10 Amp model)

3 Phase (other models)

Minimum load/channel

20 W for incandescent

Compatible Loads

Incandescent and low voltage lighting.

Ensure compatible leading edge electronic transformers

Dimming technology

Soft-start ramp time

are used.

Leading edge 5 Amp; Triac

Leading edge 10-20 Amp; SCR

0.5 sec

Load current rise time

Power control range

Standby AC supply current

Short circuit withstand strength

Rated insulation voltage

Dielectric test voltage

200 μs

1.5% to 95%

90 mA base current

75 mA each LE Channel

6 kA

500 V

2500 V

P R O D U C T F E A T U R E S

• Soft start load turn-on protects lamp filaments.

• Voltage compensation to minimise load brightness variation if the AC supply voltage drifts.

• Filtering reduces supply voltage signalling effects.

• Linear output load power following input control.

• C-Bus network burden and system clock generator.

• After mains fail, dimmers return to previous or preset values.

• Local C-Bus override switches on front panel.

• Channel Status indicators on front control panel.

• On-board MCB and optional RCD protection.

• Mounting brackets included for ease of installation.

• Generous load and mains supply terminals.

• Emergency lighting output for each channel.

• Manual dimmer bypass switch on all channels.

• Fan-free operation, reduces maintenance requirements.

• Suitable for single or three phase track lighting applications with optional three phase MCBs and RCDs

• CE (European Community) compliant

Contact Schneider Electric on 0870 608 8 608 for more information.

47

OUTPUT UNITS

|

6 Channel Professional Dimmers

The 6 channel Professional Dimmers are designed for commercial applications such as hotels, restaurants and office buildings.

The dimmers are C-Bus controlled, high power, multi phase control units, compatible with a wide range of load types, including neon. Dimming is achieved through phase control techniques creating a highly efficient range of dimmers.

The Professional Dimmers provides on-board MCB protection and thermal overload protection, and contain modular output channel cards of various ratings, allowing customisation to suite site needs.

A maintained active output is provided on each channel for emergency lighting. Each channel card has a bypass switch which permits direct local override of the lighting circuit. In the event of an over-temperature condition, such as one caused by excessive load current, the dimmer channel reduces the output power.

The Professional Dimmer is designed and tested for a wide range of international markets with comprehensive EMC and electrical safety testing and is fully ROHS compliant.

T E C H N I C A L I N F O R M A T I O N

Load terminal standby leakage current

< 10 mA leading edge

AC supply voltage

AC supply frequency

Number of input phases

< 1mA trailing edge

240/415 V AC

47 to 53 Hz

1 Phase (3 Amp model)

1 or 3 Phase (10 Amp model)

3 Phase (other models)

Minimum load/channel

20 W for incandescent

Compatible Loads

Incandescent and low voltage lighting.

Ensure compatible leading edge electronic transformers are used.

Leading edge 3-5 A Triac

Dimming technology

Soft-start ramp time

Load current rise time

Leading edge 10-20 A Dual SCR

0.5 sec

200 μs

1.5% to 95%

Power control range

Standby AC supply current

90 mA base current

75 mA each LE Channel

Short circuit withstand strength

Rated insulation voltage

Dielectric test voltage

6 kA*

500 V

2500 V

*Note for 3 A model installer must connect dimmer to mains with protection rated at 20 A per phase 6 kA short circuit withstand strength

P R O D U C T F E A T U R E S

• Soft start load turn-on protects lamp filaments.

• Voltage compensation to minimise load brightness variation if the AC supply voltage drifts.

• Filtering reduces supply voltage signalling effects.

• Linear output load power following input control.

• C-Bus network burden and system clock generator.

• After mains fail, dimmers return to previous or preset values.

• Local C-Bus override switches on front panel.

• Channel Status indicators on front control panel.

• On-board MCB and optional RCD protection.

• Mounting brackets included for ease of installation.

• Generous load and mains supply terminals.

• Emergency lighting output for each channel.

• Manual dimmer bypass switch on all channels.

• Fan-free operation, reduces maintenance requirements.

• Suitable for single or three phase track lighting applications with optional three phase MCBs and RCDs

• CE (European Community) compliant

48

Contact Schneider Electric on 0870 608 8 608 for more information.

OUTPUT UNITS

|

12 Channel Professional Dimmers

The 12 channel Professional Dimmers are designed for commercial applications such as hotels, restaurants and office buildings.

The dimmers are C-Bus controlled, high power, multi phase control units, compatible with a wide range of load types, including neon. Dimming is achieved through phase control techniques creating a highly efficient range of dimmers.

The Professional Dimmers provide on-board MCB protection and thermal load protection, and contain modular output channel cards of various ratings, allowing customisation to suite site needs.

A maintained active output is provided on each channel for emergency lighting. Each channel card has a bypass switch which permits direct local override of the lighting circuit. In the event of an over-temperature condition, such as one caused by excessive load, the dimmer channel reduces the output power.

The Professional Dimmer is designed and tested for a wide range of international markets with comprehensive

EMC and electrical safety testing and is fully ROHS compliant.

T E C H N I C A L I N F O R M A T I O N

Load terminal standby leakage current

< 10 mA leading edge

AC supply voltage

AC supply frequency

240/415 V AC

47 to 53 Hz

Number of input phases

Minimum load/channel

Compatible Loads

3 Phase

1 or 2 Phase (3 Amp model)

20 W for incandescent

Incandescent and low voltage lighting.

Ensure compatible leading edge electronic transformers

Dimming technology

Soft-start ramp time

Load current rise time

Power control range

Standby AC supply current

are used.

Leading Edge 3-5A Triac

Leading Edge 10-20A Dual SCR

0.5 sec

200 μs

1.5% to 95%

90 mA base current

75 mA each LE Channel

Short circuit withstand strength

Rated insulation voltage

Dielectric test voltage

6 kA

500 V

2500 V

*Note for 3A model installer must connect dimmer to mains with protection rated at 20A per phase 6kA short circuit withstand strength

P R O D U C T F E A T U R E S

• Soft start load turn-on protects lamp filaments.

• Voltage compensation to minimise load brightness variation if the AC supply voltage drifts.

• Mounting brackets included for ease of installation.

• Suitable for single or three phase track lighting applications with optional 3 phase MCB’s and RCD’s

• Filtering to reduce supply voltage signalling effects.

• After mains fail, dimmer returns to previous or preset values.

• Linear output load power following input control.

• C-Bus network burden and network clock generator.

• Emergency lighting output for each channel.

• On-board MCB and/or RCD protection.

• Fan free operation, reduces maintenance requirements.

• Manual dimmer bypass switch on all channels.

• Local C-Bus override switches on front panel.

• Generous mains supply terminals and load terminals.

• Channel Status indicators on front control panel.

• CE (European Community) compliant

Contact Schneider Electric on 0870 608 8 608 for more information.

49

OUTPUT UNITS

|

Single and Two Channel Relay Range

Non Learn Mode

The 1 and 2 channel relay units are panel mounted units suitable for switching resistive, inductive and fluorescent loads.

The units are ideally suited for mounting inside fluorescent lighting products, street lighting columns and adjacent HID luminaires due to their small size and volume.

These relay units feature a remote override for on/off control and a C-Bus status indicator.

Load control is provided by a special dual contact relay designed for extreme long life with lighting loads, even with power factor corrected fluorescent lamps. One contact is tungsten designed to withstand high in-rush currents and arcing when opening and the other contact is silver alloy for steady state current operation.

The single channel relay also features a 0-10V output, and is compatible with dimmable electronic ballasts, hence the relay may be used to switch line voltage to the ballast as well as dim the output using the 0-10V output.

The relay units are available as passive models only, hence do not source current to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

Analog Output

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

5101R

220-240VAC

5102RVF

47-53Hz and 57-63Hz

15-36VDC @ 0mA

10A AC3

Switched active Voltage free, normally open, non latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

0 - 10VDC, compatible with up to

2 x 36W immable electronic ballasts

-

0mA

100

C-Bus power available

Screw terminals

Push connectors, 1 x 2.5mm

0˚C to 45˚C

0 - 95% RH, non-condensing

2

5102RVF

P R O D U C T F E A T U R E S

• Programmable via the C-Bus Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Remote on/off control independent of C-Bus

communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus

Toolkit Software

• Panel mounted, small size and volume

• CE (European Community) compliant

198

ACTIVE

NEUTRAL

RELAY 1A

RELAY 1B

EARTH

RELAY 2A

RELAY 2B

CAT. No. 5102RVF

2 CHANNEL VOLTAGE FREE RELAY

SUPPLY: 220-240VAC 3W

RELAY: 250VAC 10A

Suitable for 10A fluorescent loads

C-Bus INPUT: 0mA

MAX. AMBIENT TEMP: 50˚C

WARNING: This unit must be used with Clipsal C-Bus System Only

LED STATUS

ON -OK

FLASHING

-No C-Bus

OFF

-No Mains

Common

Manual

C-Bus Positive

Made in Australia

39

42

5102RVF illustrated

50

CATALOGUE NUMBER DESCRIPTION

*5101R

*5102RVF

1 Channel relay, 10A, Non Learn Enabled, non DIN

2 Channel relay, 10A, Non Learn Enabled, non DIN

*Ask for availability

OUTPUT UNITS

|

4 Channel 10A Relay Range

Learn Enabled

The 4 channel relay units are DIN rail mounted units suitable for switching resistive, inductive and fluorescent loads.

These relay units feature learn mode, local and remote overrides for on/off control, Channel, C-Bus and unit status indicators.

Load control is provided by a special dual contact relay designed for extreme long life with lighting loads, even with power factor corrected fluorescent lamps. One contact is tungsten designed to withstand high in rush currents and arcing when opening and the other contact is silver alloy for steady state current operation.

The relay units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5504RVF

220-240VA

L5504RVFP

47-53Hz and 57-63Hz

15-36VDC @ 0mA

10A

Voltage free, normally open, magnetically latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

200mA 0mA

10 100

Channel Status (4), Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5504RVF

P R O D U C T F E A T U R E S

• Provides 4 x 10A channels of switching output

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus

communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus Toolkit

Software

• Features magnetically latched relays that hold state in case of

loss of C-Bus communications

• Designed to fit standard 35mm top hat DIN rail, measures just

8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

Unit

N A/L

1 2 3 4

C-Bus

Voltage Free Relay

C-Bus CONNECTIONS

143

1A 1B 2B 2A

3A 3B 4B 4A

85 68 45

15

18

65

32

L5504RVF illustrated

CATALOGUE NUMBER DESCRIPTION

L5504RVFP

L5504RVF

4 Channel relay 10A, 220/240VAC 50/60Hz

4 Channel relay 10A, 220/240VAC 50/60Hz, C-Bus 200mA

51

OUTPUT UNITS

|

8 Channel 10A Relay Range

Learn Enabled

The 8 channel relay units are DIN rail mounted units suitable for switching resistive, inductive and fluorescent loads.

These relay units feature learn mode, local and remote overrides for on/off control, channel, C-Bus and unit status indicators.

Load control is provided by a special dual contact relay designed for extreme long life with lighting loads, even with power factor corrected fluorescent lamps. One contact is tungsten designed to withstand high in-rush currents and arcing when opening and the other contact is silver alloy for steady state current operation.

The relay units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5508RVF L5508RVFP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

10A

Voltage free, normally open, magnetically latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

200mA 0mA

10 100

Channel Status (8), Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5508RVF

P R O D U C T F E A T U R E S

• Provides 8 x 10A channels of switching output

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus Toolkit

Software

• Features magnetically latched relays that hold state in case of

loss of C-Bus communications

• Designed to fit standard 35mm top hat DIN rail, measures just

12M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L 1A 1B 2A 2B 3B 3A 4A 4B 5A 5B 6B 6A

1 2 3 4

Unit

5 6 7 8

C-Bus

Voltage Free Relay

C-Bus CONNECTIONS

7A 7B 8A 8B

216

85 68 45

15

18

65

32

L5508RVF illustrated

52

CATALOGUE NUMBER DESCRIPTION

L5508RVFP

L5508RVF

8 Channel relay 10A, 220/240VAC 50/60Hz

8 Channel relay 10A, 220/240VAC 50/60Hz, C-Bus 200mA

OUTPUT UNITS

|

12 Channel 10A Relay Range

Learn Enabled

The 12 channel relay units are DIN rail mounted units suitable for switching resistive, inductive and fluorescent loads.

These relay units feature learn mode, local and remote overrides for on/off control, Channel, C-Bus and unit status indicators.

Load control is provided by a special dual contact relay designed for extreme long life with lighting loads, even with power factor corrected fluorescent lamps. One contact is tungsten designed to withstand high in-rush currents and arcing when opening and the other contact is silver alloy for steady state current operation.

The relay units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5512RVF L5512RVFP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

10A

Voltage free, normally open, magnetically latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

200mA 0mA

10 100

Channel Status (12), Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5512RVF

P R O D U C T F E A T U R E S

• Provides 12 x 10A channels of switching output

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling.

• Logic states (and/or) programmable using the C-Bus

Toolkit Software

• Features magnetically latched relays that hold state in case of

loss of C-Bus communications

• Designed to fit standard 35mm top hat DIN rail, measures just 12M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L 1A 1B 2A 2B 3B 3A 4A 4B 5A 5B 6B 6A

Unit

1 2 3 4 5 6

7 8 9 10 11 12

C-Bus

Voltage Free Relay

C-Bus CONNECTIONS

7A 7B 8A 8B 9B 9A 10A 10B 11A 11B 12B 12A

85 68 45

216

15

18

65

32

L5512RVF illustrated

CATALOGUE NUMBER DESCRIPTION

L5512RVFP

L5512RVF

12 Channel relay 10A, 220/240VAC 50/60Hz

12 Channel relay 10A, 220/240VAC 50/60Hz, C-Bus 200mA

53

OUTPUT UNITS

|

4 Channel 20A Relay Range

Learn Enabled

The 4 channel relay units are DIN rail mounted units suitable for switching resistive, inductive and fluorescent loads.

These relay units feature learn mode, local and remote overrides for on/off control, Channel, C-Bus and unit status indicators.

Load control is provided by a special mechanically latched relay, with local mechanical override on the unit, independent of the C-Bus communications. Each relay is rated at 20A, and is compatible with resistive, inductive, incandescent and fluorescent load types.

The relay units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5504RVF20 L5504RVF20P

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

20A

Voltage free, normally open, magnetically latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

200mA 0mA

10 100

Channel Status (4), Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5504RVF20

P R O D U C T F E A T U R E S

• Provides 4 x 20A channels of switching output

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Mechanical override independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus

Toolkit Software

• Features mechanically latched relays that hold state in case

of loss of C-Bus communications

• Designed to fit standard 35mm top hat DIN rail, measures just 12M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L

1 2 3 4

Unit

C-Bus

Voltage Free Relay

C-Bus CONNECTIONS

1A 1B 2A 2B 3A 3B 4A 4B

85 68 45

216

15

18

65

32

L5504RVF20 illustrated

54

CATALOGUE NUMBER DESCRIPTION

*L5504RVF20P

*L5504RVF20

4 Channel relay 20A, 220/240VAC 50/60Hz

4 Channel relay 20A, 220/240VAC 50/60Hz, C-Bus 200mA

*Ask for availability

OUTPUT UNITS

|

4 Channel Relay Driver Range

Non Learn Mode

The 4 channel relay units are DIN rail mounted units designed to control up to four channels of external latching relay loads. The relay driver is used in conjunction with the relay modules type 5000RL20 (single channel 20A) and

5002RL20 (dual channel 20A).

These relay driver units feature a remote override for on/off control, C-Bus and unit status indicators. These units are low cost and do not feature learn mode or local override control.

The relay units are available as passive models only, and do not source current to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Driver Circuit

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

5504RDP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

Use only with 5000RL20 or 5002RL20

0mA

100

Unit and C-Bus

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm2 or 1 x 2.5mm2

0˚C to 45˚C

0 - 95% RH, non-condensing

5504RDP

P R O D U C T F E A T U R E S

• Capable of controlling up to four channels of external latching

relay loads

• Programmable via the C-Bus Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus Toolkit

Software

• Designed to fit standard 35mm top hat DIN rail, measures just 8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L

Unit

C-Bus

Latching Relay Driver

C-Bus CONNECTIONS

R

1

B R

2

B R

3

B R

4

B

85 68 45

143

15

18

65

32

5504RDP illustrated

CATALOGUE NUMBER DESCRIPTION

*5504RDP

4 Channel relay Driver

*Ask for availability

55

OUTPUT UNITS

|

4 Channel Relay Driver Range

Learn Enabled

The DIN Driver is a 8M DIN rail mounted product designed to operate in conjunction with the relay units, 5000RL20 and

5002RL20. The relay driver is a C-Bus device, learn enabled which supplies control signal (pulse output) to drive the external relay.

The advantages of the relay driver are, the external relay may be remotely mounted, and if a relay unit fails it may be replaced without the need to replace the relay drivers.

The relay driver features local overrides so the state of the external relay may be toggled from the unit.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Voltage

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

L5504RDP

220-240VAC

0mA

100

L5504RDP

P R O D U C T F E A T U R E S

• Units available both with and without a 200mA C-Bus power

supply on-board

• Configured via either the C-Bus Installation Software or via

the Learn Enabled Features

• Local on/off toggle buttons allow individual channels to be

manually overridden at each unit

• Remote on and off facilities permit all channels to be

turned on or off without C-Bus network communication

• Incorporates C-Bus Network Status, Mains Power Status, and

Load Status indicators

• Capable of generating a C-Bus clock signal if enabled

• CE (European Community) compliant

• Designed to fit standard 35mm top hat DIN rail, measures just 8M in size

Unit

N A/L

1 2 3 4

C-Bus

Latching Relay Driver

C-Bus CONNECTIONS

R

1

B R

2

B R

3

B R

4

B

85 68 45

143

15

18

65

32

L5504RDP illustrated

56

CATALOGUE NUMBER DESCRIPTION

*L5504RDP

4 Channel relay Driver, C-Bus 200mA

*Ask for availability

OUTPUT UNITS

|

Single Relay Module

The single channel relay, is a heavy duty, mechanically latched, DIN rail mounted relay and is rated at 20 Amps continuous use.

The relay can withstand high in-rush currents and is suitable for incandescent, high intensity discharge lamps and fluorescent loads.

The relay module features a set of auxiliary contacts (normally open) and mechanical on/off control for manual operation.

The single channel relay must be used in conjunction with the 5504RDP or L5504RDP relay driver products.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

Load Rating per Channel

Contact Type

Switch Operations

Auxiliary Contacts

In-Rush Current

Compatible Loads

Load Termination

Dimensions

Operating Temperature Range

Operating Humidity Range

Compliances

5000RL20

220-240VAC

47-53Hz and 57-63Hz

20A AC3

Voltage free, normally open, mechanically latched

Greater than 30,000 operations

Normally open

300A (80msec)

Resistive, inductive, incandescent and fluorescent

2 x 1.5mm2 or 1 x 2.5mm2

1.5M (M = 17.5mm)

0˚C to 45˚C

0 - 95% RH, non-condensing

RCM, CE

96 60

25

96

60

5000RL20 illustrated

CATALOGUE NUMBER DESCRIPTION

*5000RL20

Single relay, 20A (High In-Rush Current)

*Ask for availability

5000RL20

57

OUTPUT UNITS

|

Dual Relay Module

The dual channel relay, is a heavy duty, mechanically latched, DIN rail mounted relay and is rated at 20 Amps continuous use. The relay can withstand high in-rush currents and is suitable for incandescent, high intensity discharge lamps and fluorescent loads.

The relay module features mechanical on/off control for manual operation.

The dual channel relay must be used in conjunction with the 5504RDP or L5504RDP relay driver products.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

Load Rating per Channel

Contact Type

Switch Operations

In-Rush Current

Compatible Loads

Load Termination

Dimensions

Operating Temperature Range

Operating Humidity Range

Compliance

5002RL20

220-240VAC

47-53Hz and 57-63Hz

20A AC3

Voltage free, normally open, mechanically latched

Greater than 60,000 operations

120A (20msec)

Resistive, inductive, incandescent and fluorescent

2 x 1.5mm2 or 1 x 2.5mm2

4M (M = 17.5mm)

0˚C to 45˚C

0 - 95% RH, non-condensing

RCM, CE

1A 1B 2A 2B

85 68 45

2 x 20A Latching Relay

R

1

B R

2

B

72

15

18

65

32

5002RL20 illustrated

5002RL20

58

CATALOGUE NUMBER DESCRIPTION

*5002RL20

Dual relay, 20A

*Ask for availability

OUTPUT UNITS

|

4 Channel Changeover Relay Range

Learn Enabled

The 4 channel changeover relay units are DIN rail mounted units suitable for switching resistive, inductive and fluorescent loads.

These relay units feature learn mode, local and remote overrides for on/off control, Channel, C-Bus and unit status indicators.

Load control is provided by non-latched, changeover relays that feature both normally open (N.O.) and normally closed

(N.C.) contacts. The changeover relays can be interlocked and have applications in curtain and blind controls (up/down) or 3 speed air-conditioning controls (on/off, low, medium and high).

The relay units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Contact Type

Switch Operations

Compatible Loads

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5504RVFC L5504RVFCP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

10A resistive, 5A inductive and incandescent, 1A fluorescent

Voltage free, normally open, magnetically latched

Greater than 60,000 operations

Resistive, inductive, incandescent and fluorescent

200mA 0mA

10 100

Channel Status (4), Unit and C-Bus

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

0˚C to 45˚C

2

0 - 95% RH, non-condensing

L5504RVFC

P R O D U C T F E A T U R E S

• Provides 4 channels of changeover, non-latched relay outputs

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control, independent of C-Bus

communications

• Programmable power up state following power cycling

• Logic states (and/or) programmable using the C-Bus Toolkit

Software

• Relays may be interlocked for curtain, blinds and 3 speed

air-conditioning controls

• Designed to fit standard 35mm top hat DIN rail, measures

just 8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L C

1

NO NC C

2

NO NC

1 2 3 4

Unit

C-Bus

Changeover Relay

C-Bus CONNECTIONS

NC NO

3

C NC NO

4

C

85

68

45

143

15

18

65

32

L5504RVFC illustrated

CATALOGUE NUMBER DESCRIPTION

*L5504RVFCP

*L5504RVFC

4 Channel changeover, relay 220/240VAC 50/60Hz

4 Channel changeover, relay 220/240VAC 50/60Hz, C-Bus 200mA

*Ask for availability

59

OUTPUT UNITS

|

4 Channel Analogue Output Range

Learn Enabled

The 4 channel analogue output units are DIN rail mounted units designed to control 0 - 10V and 1 - 10V compatible dimmable electronic ballasts used in the lighting industry.

These analogue output units feature learn mode, local and remote overrides for on/off control, Channel, C-Bus and unit status indicators.

Each channel is capable of sourcing or sinking current and the number of ballasts that may be connected to the analogue output unit is a function of the current drain of that particular ballast.

The analogue control signal typically regulates lighting output over the range of 3 - 100%. The dimming transitions are smooth and flicker free.

The analogue output units are available as passive models only, hence do not source current to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Output Control Range

Control Range

Source Current

Sink Current

Maximum Number of Units on

Single C-Bus Network

Status Indicators

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5504AMP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

0-10VDC

3 - 100%

2.5mA

15mA at Vout = 0V, 8.0mA at Vout = 10V i.e. I = 15 - (0.7 Vout) mA

100

Channel Status (4), Unit and C-Bus

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5504AMP

P R O D U C T F E A T U R E S

• Provides 4 channels of 0 - 10V dimming control

• Programmable via the learn mode feature or using the C-Bus

Toolkit Software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (max/min) programmable using the C-Bus

Toolkit Software

• Designed to fit standard 35mm top hat DIN rail, measures just 8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L

1 2 3 4

Unit

C-Bus

0-10V Analogue Output

C-Bus CONNECTIONS

85 68 45

72

15

18

65

32

L5504AMP illustrated

60

CATALOGUE NUMBER DESCRIPTION

*L5504AMP

4 Channel Analogue Output, 0-10V, 220/240VAC 50/60Hz

*Ask for availability

OUTPUT UNITS

|

Blind Control Relay

The Blind Control Relay units are designed to directly drive the motors for soft furnishing components like motorised blinds, curtains, shutters and awnings. The relay unit can be easily installed in the switchboard or in the field in the optional din-rail mount enclosure.

Designed with the installer in mind, this unit provides a easy to install module with features required to make direct motor control safe and simple.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

AC Input Impedance

Electrical Isolation

Max. Units per Network

Load Current Rating

Load Voltage Rating

Warm Up Time

Network Clock Software

Network Burden Software

Class of Switch

Rated Impulse Withstand Voltage

Operating Temperature

Operating Humidity

Dimensions (W x H x D)

Weight

Mains terminals

L5501RBCP

15-36V DC @ 22mA required for normal operation.

Does not provide current to the C-Bus Network

80kΩ @ 1kHz

3.75kV RMS from C-Bus to mains

80

2A (motor load)

24V DC, 24-240V AC

5 seconds

Selectable

Selectable

Class II

4 kV

0° to 45° C

10 to 95% RH

36 x 93 x 63mm

250g

Accommodates 2 x 1.5mm2 or 1 x 2.5mm2

(2 x 15AWG or 1 x 13AWG)

Catalogue Number

Dimensions (W x H x D)

Mounting Centres

Weight

5501RE

159 x 75 x 47mm

84mm

116g

L5501RBCP

P R O D U C T F E A T U R E S

• Internally electrically interlocked directional contacts

• One, two or three button control from C-Bus switchplates or touchscreens

• Programmable time delays (0.5 – 4.0 seconds) between motor direction change

• Din-rail mounting or optional enclosure for field installation of unit

• Local manual override buttons to assist with setting endlimits.

L5501RBCP illustrated

CATALOGUE NUMBER DESCRIPTION

*L5501RBCP

*5501RE

Blind Control Relay

Enclosure for Blind Control Relay

*Ask for availability

5501RE illustrated

61

OUTPUT UNITS

|

8 Channel DSI Gateway Range

Learn Enabled

The 8 channel DSI gateway units are DIN rail mounted units designed to control Atco-Tridonic brand dimmable electronic ballasts featuring the digital serial interface. These DSI units feature learn mode, local and remote overrides for on/off control, channel, C-Bus and unit status indicators.

Each DSI channel can drive up to 100 DSI ballasts allowing a total of 800 DSI ballasts to be connected to a single

C-Bus/DSI gateway module.

The DSI gateway is capable of detecting faulty lamps connected to its terminals and issuing a message onto the C-Bus network. These messages can be read by C-Gate server application, when integrated as part of an overall building management system, lamp status may be reported to a central location.

The DSI units are available as passive and current sourcing models that source up to 200mA to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

Line Supply Voltage

Supply Frequency

C-Bus Supply Voltage

Load Rating per Channel

Minimum Load

Control Range

Compatible Loads

Channel Output Voltage

C-Bus Source Current

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

L5508DSI L5508DSIP

220-240VAC

47-53Hz and 57-63Hz

15-36VDC @ 0mA

200mA (100 ballasts)

15W per channel

0 - 100%

Tridonic DSI dimmable ballasts or equivalent

0.0 - 0.8V (low) to 11.0 - 13.0V (high)

200mA 0mA

10 100

Channel Status (8), Unit and C-Bus

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

L5508DSI

P R O D U C T F E A T U R E S

• Provides 8 channels of DSI dimming control

• Programmable via the learn mode feature or using the C-Bus

Toolkit software

• Programmed variables are stored in non-volatile memory

and are retained in case of loss of mains or C-Bus power

• Local and remote on/off control independent of C-Bus communications

• Programmable power up state following power cycling

• Logic states (max/min) programmable using the C-Bus

Toolkit Software

• Monitors and reports lamp state

• Designed to fit standard 35mm top hat DIN rail, measures just 8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

N A/L

1 2 3 4

Unit

C-Bus

5 6 7 8

DSI Gateway

C-Bus CONNECTIONS

N A/L

85 68 45

0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8

216

15

18

65

32

L5508DSI illustrated

62

CATALOGUE NUMBER DESCRIPTION

L5508DSIP

L5508DSI

8 Channel dimmer for DSI Ballast, 20A

8 Channel dimmer for DSI Ballast, 20A, C-Bus 200mA

OUTPUT UNITS

|

2 Channel DALI Gateway Range

Learn Enabled

The 2 channel DALI gateway units are DIN rail mounted units designed to control DALI compatible dimmable electronic ballasts and low voltage transformers.

Each DALI channel can drive up to 64 DALI devices allowing a total of 128 DALI devices to be connected to a single

C-Bus/DALI gateway module.

With the DALI gateway each of the DALI devices are individually addressable. The DALI gateway also supports 16 groups of devices and 16 scenes, as well as global control over all devices.

The DALI gateway provides two-way communications between C-Bus and DALI devices, in this way C-Bus messages may be routed to DALI devices and visa versa. In addition, the DALI gateway constantly monitors the state of lamps and

DALI devices and reports their state to the C-Bus network. These messages can be read by C-Gate server application, when integrated as part of an overall building management system, device status may be reported to a central location.

The DALI units are available as passive units only, hence do not source current to the C-Bus network.

T E C H N I C A L I N F O R M A T I O N

Catalogue Number

C-Bus Supply Voltage

Load Rating per Channel

Control Range

Compatible Loads

Maximum Number of Units on a Single C-Bus Network

Status Indicators

Warm Up Time

Network Clock

Network Burden

C-Bus Termination

Load Termination

Operating Temperature Range

Operating Humidity Range

5502DAL

15-36VDC @ 32mA

64 DALI devices

0 - 100%

Digital Addressable Lighting Interface (DALI) electronic ballasts and low voltage transformers

50

Unit and C-Bus

5 seconds

Software selectable

Software selectable

2 x RJ45 Socket

2 x 1.5mm

2

or 1 x 2.5mm

2

0˚C to 45˚C

0 - 95% RH, non-condensing

5502DAL

P R O D U C T F E A T U R E S

• Provides 2 channels of DALI interface, each channel can

connect to 64 DALI devices

• Hard coded mapping between C-Bus group addresses and

DALI device addresses

• Stored variables located in non-volatile memory and are

retained in case of loss of C-Bus or DALI power

• Monitors and reports lamp and DALI device states

• Designed to fit standard 35mm top hat DIN rail, measures just 8M in size

• Designed to fit into standard electrical switchboards

• CE (European Community) compliant

DAL1 DAL2

Unit

C-Bus

DALI Gateway

C-Bus CONNECTIONS

85 68 45

72

15

18

65

32

5502DAL illustrated

CATALOGUE NUMBER DESCRIPTION

5502DAL

2 Channel DALI Gateway

63

64

Software Packages

SOFTWARE PACKAGES

|

Software Packages

Please note all C-Bus Software Packages need to be programmed via a PC running the Microsoft Windows® operating system. All Installers will require an appropriate level of training and experience before they can program Clipsal C-Bus software packages to customer requirements. A C-Bus accredited

System Integrator or approved C-Bus installer with the appropriate level of accreditation should therefore be used for software commissioning. Please

contact your C-Bus specialist or Schneider Electric for further information.

Toolkit Software

The C-Bus Toolkit Software includes the new version of the C-Bus Installation Software, Project Manager, and C-Bus Calculator. The software works under

Windows™ 98, ME, 2000 and XP and supports a unique barcode scanning feature. This allows the Installer to scan the C-Bus packaging of each new unit to add the unit to the database. This ensures the correct unit type is added and saves the Installer having to select from a list of unit types. The software prints adhesive labels that can be affixed to building plans. These labels include the Unit Address and the physical location that the unit is to be installed at. Labels are duplicated so that one label can be affixed to the unit and one to the electrical plan for the installation. The labels have barcodes on them so that units can be easily re-identified if required.

Please note: The latest version of the C-Bus Toolkit software is freely downloadable from the CIS website at www.clipsal.

com/cis

Version 1 OPC Server Software

A C-Bus OPC Server Version 1 allows multiple software applications to share C-Bus data. The OPC Server will primarily be used to provide an interface between third party Building Management Systems or Process Control Presentation (SCADA) Systems and a Clipsal C-Bus system. Therefore experience in such third party systems is essential for s successful integrated C-Bus solution. The USB Dongle works under Windows® XP Home, XP Professional, Server

2003, Vista Ultimate, Vista Business and Vista Enterprise.

Version 4 Schedule Plus Software

C-Bus Schedule Plus Version 4 includes a number of major features, including enhanced scheduling features, support for monitoring load run times, load power and energy consumed, support for fully customizable multilevel, password protected, access level control, support for sunrise and sunset times, support for daylight saving times, support for 128 bit encrypted secure internet connectivity allowing control and monitoring via any Web Browser. The

software also includes a fully featured programmable logic engine. The C-Bus USB Key works under Windows® XP Home, XP Professional, Server 2003,

Vista Ultimate, Vista Business and Vista Enterprise.

Version 4 HomeGate Software

C-Bus HomeGate Version 4 includes a number of major features, including support for 128 bit encrypted secure internet connectivity allowing control

and monitoring via any Web Browser, irrigation system control feature, enhanced scheduling features, support for sunrise and sunset times, and support

for daylight saving times. The software also includes a fully featured programmable logic engine. The C-Bus USB Key works under Windows® XP Home,

XP Professional, Server 2003, Vista Ultimate, Vista Business and Vista Enterprise.

65

INDEX

|

66

5070THPRSS

5070THPPGWE

5070THPBK

5070THPSS

5080CTCF

5080CTC2GF

5080LC

5080CT2F

5080CT2GF

5080CT23

5080CT27

5080CT26

5080CTL2GF

5080CTL23

5050CT228

5050CT2BK

5052NLGB

5052NRI

5052NRP

5054NLGB

5054NRP

5055DLGB

5058NLGB

5058NRP

5070THBRBK

5070THBRPGWE

5070THBRSS

5070THBPGWE

5070THBBK

5070THBSS

5070THPRPGWE

5070THPRBK

5050CTC2

5050CTCF

5050IS

5050ISBA

5050ISGD

5050OS

5050CT2F

5050CT2GB

5050CT2WE

1571

1571P

5000CTCPS2

5000CTCWB

5000RL20

5002RL20

5000CT2WB

5000CT2RS232

5005C305B

5031PEWPGY

Product reference Page Product reference Page Product reference Page Product reference Page Product reference Page

BS5000CTL2

BS5000CT2F

E50312TC7

E5031NLWE

E5031PE

E5032NLWE

E5032VNLWE

E5034NLWE

E5050IS

E5050ISBA

E5050ISGD

E5050MF

E5050OS

E5052NLGB

5500BURDEN

5500NB

5500PACA

5500PC

5500PCU

5500PS

5501RE

5502DAL

5504RDP

5751LWE

5753L

5753PEIRL

5850FBK

5850FBR

5850FCM

5850FWE

BS5000CTC2

BS5000CT2

5084NL

5085DF

5085DL

5086F

5086NL

5100NA

5101R

5102RVF

5104BCLWE

5080CTL27

5080CTL26

5050CTL2GB

5050CTL2WE

5050CTL228

5050CTL2BK

5082F

5082NL

5084DF

5084F

15

15

15

16

15

13

33

17

17

17

21

21

34

17

16

16

23

20

30

32

16

16

61

63

55

29

28

38

42

39

38

40

50

50

27

9

41

7

9

7

10

9

10

6

10

21

21

21

21

21

21

R5061NL

R5062VNL

R5063NL

R5064VNL

R5066NL

R5068NL

SC5000CT2WE

SC5000CT2CM

SC5000CT2BK

SC5000CTL2WE

SC5000CTL2CM

SC5000CTL2BK

SC5000CT2FWE

SC5000CT2FCM

L5508D1AP

L5508DSI

L5508DSIP

L5508RVF

L5508RVFP

L5512RVF

L5512RVFP

R5050WB

L5504D2U

L5504D2UP

L5504RDP

L5504RVF

L5504RVF20

L5504RVF20P

L5504RVFC

L5504RVFCP

L5504RVFP

L5508D1A

E5100TAU

E5500CN

E5504GI

E5750WPL

L5501RBCP

L5504AMP

L5504AUX

L5504D2A

L5504D2AP

E5054DLGB

E5054NLGB

E5058NLGB

E5082F

E5082NL

E5084DL

E5084F

E5084NL

E5086F

E5086NL

20

20

20

20

21

21

23

23

10

21

24

24

24

24

24

24

24

24

24

24

24

24

15

12

14

15

14

15

20

20

15

14

21

20

20

15

15

23

23

15

15

21

21

42

33

23

23

16

16

57

58

SC5000CT2FBK 21

20

21

21

21

21

21

18

18

20

20

18

18

18

18

52

53

53

18

44

62

62

52

59

59

51

44

56

51

46

46

54

54

26

45

45

61

60

35

37

25

31

8

10

8

10

13

10

11

13

6

8

Clipsal

Stafford Park 5, Telford

Shropshire TF3 3BL

SE6155.V3

Nationwide support on one number – call the Customer Information Centre on

0870 608 8 608

Fax 0870 608 8 606

DEC 2009

67

10

E3112SAWE

E321SAWE

E3312SAWE

E341SAWE

E351SAWE

ET361SAWE

E31D20GEWE

E32D20GEWE

10A & 15A FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E3112SAWE

10A 1 gang 1 way 2 terminal switch

E3123SAWE

10A 1 gang 2 way 3 terminal switch

E31IAWE

10A 1 gang intermediate switch

E321SAWE

10A 2 gang 1 way 2 terminal switch

E322SAWE

10A 2 gang 2 way 3 terminal switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E331SAWE

10A 3 gang 1 way 2 termnial switch

E332SAWE

10A 3 gang 2 way 3 terminal switch

E33AWE

10A 3 gang 2 way 4 terminal switch

E341SAWE

10A 4 gang 1 way 2 terminal switch

E342SAWE

10A 4 gang 2 way 3 terminal switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E351SAWE

10A 5 gang 1 way 2 terminal switch

E352SAWE

10A 5 gang 2 way 3 terminal switch

15A & 20A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E31D20GEWE

20A 1 gang DP switch

E32D20GEWE

20A DP switch with neon

E32D20NGEWE

20A DP switch with neon & bottom cable outlet

ET361SAWE

10A 6 gang 1 way 2 terminal switch

ET362SAWE

10A 6 gang 2 way 3 terminal switch

ED32WE, ED45WE

ED32NWE, ED45NWE

30WE

32AWE

3625WE, 362WE, 3622WE, 36213WE,

362133WE, 36215WE, 36313WE,

363133WE

33AWE

ETDR45NWE

32A & 45A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ED32WE

32A DP switch

ED45WE

45A DP switch

10A ARCHITRAVE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

30WE

10A 1 gang 2 way 4 terminal switch

ED32NWE

32A DP switch with neon

ED45NWE

45A DP switch with neon

ETDR45NWE

45A 250V DP vertical switch with neon

32AWE

10A 2 gang 2 way 4 terminal switch

33AWE

10A 3 gang 2 way 4 terminal switch

10A ARCHITRAVE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

34AWE

10A 4 gang 2 way 4 terminal switch

5A, 13A & 15A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

3625WE

5A 1 way 2 terminal switch

362WE

10A 1way 3 terminal switch

3622WE

10A 1way 2 terminal switch

36213WE

13A 1 way 2 terminal switch

362133WE

13A 1 way 3 terminal switch

36215WE

15A 1way 3 terminal switch

36313WE

13A 2 way 4 terminal switch

363WE

10A 2 way 3 terminal switch white

363BR

10A 2 way 3 terminal switch brown

11

12

342WE

360WE

E319WE

E31ETR60WE, E31ETRF60WE,

E31ETR720WE, E31ETRF720WE

E30T6AWE

E31RD250LVWE

E31RD400WE

E32RD160LVWE

CEILING & FOOT

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

342WE

10A 1 way 3 terminal ceiling switch

360WE

DP foot switch - cord line WE

360BK

DP foot switch - cord line BK

10A & 16A TIME DELAY

SWITCHES

(Designed to IEC60669-2-1)

E319WE

10A 1 gang pneumatic time delay switch - adjustable prior to installation

6A TP FAN ISOLATOR

(Designed to IEC60947-3)

E30T6AWE

6A 240V TP fan isolator

E31ETR60WE

16A 1 gang 1- 60 minutes electronic time delay switch

E31ETRF60WE

16A 1 gang 1- 60 minutes electronic time delay switch for fl uorescent loads

E31ETR720WE

16A 1 gang 1-12 hours electronic time delay switch

E31ETRF720WE

16A 1 gang 1-12 hours electronic time delay for fl uorescent loads

E32RD250WE

ROTARY DIMMERS

E31RD250LVWE

1 gang LV 250W

1 way dimmer

E31RD400WE

1 gang 240V 400W

1 way dimmer

E32RD160LVWE

2 gang LV

2 x 160W 1 way

E32RD250WE

2 gang 240V

2 x 250W 1 way

E32E450L

E15WE E251BPWE

E426WE

E34E450L

E15NWE E25DF32WE

ET426WE

E25WE

E25SFWE, E25CESFWE

31V1000WE

E25NWE

E25CESFNWE

DIMMER SWITCHES

(Designed to BS5518)

E32E450L

450W 1 gang dimmer

13A SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589,

SS145)

E15WE

13A 1 gang 3 pin switched socket outlet

E34E450L

450W 2 gang dimmer

31V1000WE

1000W dimmer (For incandescent lamps only)

E15NWE

13A 1 gang 3 pin switched socket outlet with neon

E25WE

13A 2 gang 3 pin switched socket outlet

13A SWITCHED

CONVERTA

SOCKET OUTLETS

(Designed to BS1363, MS589,

SS145)

E251BPWE

13A 2 into 1 switched socket outlet

E25DF32WE

13A 3 into 2 switched socket outlet

E25NWE

13A 2 gang 3 pin switched socket outlet with neon

13A SOCKET OUTLETS

(Designed to BS1363, MS589,

SS145)

E426WE

13A 1 gang 3 pin socket outlet

ET426WE

13A 2 gang 3 pin socket outlet

E25SFWE

13A 2 gang 3 pin switched socket outlet with surge protection

E25CESFWE

13A 2 gang clean earth fi ltered switched socket outlet with surge protection

E25CESFNWE

13A 2 gang clean earth fi ltered switched socket outlet with surge protection & neon

13

14

ED4513WE

E155WE

E4262WE

E727WE

ED4513NWE

E155NWE

E4265WE

E1515WE

E42615WE

E1515NWE

32A & 45A COOKER

CONTROL UNITS

(Designed to BS4177, BS1363,

MS616, SS227)

ED4513WE

45A DP main switch & 13A switched socket outlet

ED4513NWE

45A DP switch & 13A switched socket outlet with neon indicator

5A & 15A SWITCHED

SOCKET OUTLETS

(Designed to BS546)

E155WE

5A 1 gang 3 pin switched socket outlet

2A, 5A & 15A SOCKET

OUTLETS

(Designed to BS546)

E4262WE

2A 1 gang 3 pin socket outlet

E155NWE

5A 1 gang 3 pin switched socket outlet with neon

E4265WE

5A 1 gang 3 pin socket outlet

E1515WE

15A 1 gang 3 pin switched socket outlet

E42615WE

15A 1 gang 3 pin socket outlet

E1515NWE

15A 1 gang 3 pin switched socket outlet with neon

UNIVERSAL SHAVER

SOCKET OUTLETS

(Designed to BS3535, IEC61558-

2-5)

E727WE

115 240V shaver unit

E42616WE, EC42616WE

E31TBWE

E554WE

E30FSGWE

E31DFSGWE

E32DNFSGWE

E31NFSGWE, E30FSGNWE

E31TBFSGWE

10A & 16A SCHUKO

SOCKET OUTLETS

(Designed to IEC884)

E42616WE

16A 1 gang schuko socket outlet

EC42616WE

16A 1 gang schuko socket outlet with claw fi xing

25A & 45A CONNECTION

UNITS

(Designed to BS5733)

E31TBWE

25A 1 gang connection unit

E554WE

45A connection unit

13A FUSED

CONNECTION UNITS

(Designed to BS1363)

E30FSGWE

13A 1 gang fused connection unit

E31DFSGWE

13A 1 gang fused connection unit with DP switch

13A FUSED

CONNECTION UNIT

(Designed to BS1363)

E32DNFSGWE

13A 1 gang fused connection unit with DP switch & neon indicator

E31NFSGWE

13A 1 gang fused connection unit with neon indicator

E30FSGNWE

13A 1 gang fused connection unit with neon indicator

E31TBFSGWE

13A 1 gang fused connection unit with front fl exible outlet

15

16

E31DNFSGWE E31TV75WE

E34061MWE, E34061SWE

E31TVFWE

E32TVFWE E31DFSGMSWE

E31FSGWE

E32TV75WE

E32TV75FMWE

ET31TVFM11WE

E30NFSGSWE

15A FUSED

CONNECTION UNITS

E31DNFSGWE

15A 1 gang DP with neon

TVFM CO-AXIAL

OUTLETS

E31TV75WE

1 gang co-axial outlet

E31DFSGMSWE

15A 1 gang DP fused connection unit medium security

E32TV75WE

2 gang co-axial outlet

E31FSGWE

15A 1 gang blank

E32TV75FMWE

2 gang TVFM splitter

E30NFSGSWE

15A 1 gang fused connection unit high security with neon

Note:

2 A, 3 A, 5 A fuse link are available on request

TELEPHONE OUTLETS

E34061MWE

1 gang 6 pin (master unit, BT standard) telephone outlet

E34061SWE

1 gang 6 pin (slave unit) telephone outlet

“F” TYPE CONNECTOR

E31TVFWE

1 gang “F” Type connector

E32TVFWE

2 gang “F” Type connector

ET31TVFM11WE

2 gang TVFM SCV socket outlet

E31KTWE

EKT TRWE

E31WE

E32WE

E35WE

ET36WE

E31XWE

E312XWE

E33WE ET31TVFM10WE

E34WE

HOTEL SERIES

(Designed to BS5733,

IEC60669-1)

E31KTWE

20A DP energy saving switch with neon

FLUSH PLATES

(Designed to BS5733)

E31WE

1 gang fl ush plate

E32WE

2 gang fl ush plate

EKT TRWE

Key tag (without assembling)

Note: Hotel Series are available in

Chinese & English text

E33WE

3 gang fl ush plate

E34WE

4 gang fl ush plate

FLUSH PLATES

(Designed to BS5733)

E35WE

5 gang fl ush plate

ET36WE

6 gang fl ush plate

ET31TVFM10WE

2 gang TVFM fl ush plate

FLUSH PLATES

(Designed to BS5733)

E31XWE

1 gang blank fl ush plate

E312XWE

2 gang blank fl ush plate

17

18

E31WPWE

31WE, 31DWE

32WE

34WE

33WE

FLUSH PLATES

(Designed to BS5733, IEC60529)

E31WPWE

1 gang IP54 fl ush plate

ARCHITRAVE PLATES

(Designed to BS5733)

31WE

1 gang architrave plate

31DWE

1 gang architrave surface plate

ARCHITRAVE PLATES

(Designed to BS5733)

34WE

4 gang architrave plate

32WE

2 gang architrave plate

33WE

3 gang architrave plate

22

E10311AWE, E10312AWE, E1031IAWE E1031D20WE, E1031D20AEWE E10311BPRBAWE, E1031BP2A3WE,

E1031BP2A4WE, E1031BPAWE

E1031E1NAWE, E1031E2NAWE

E10321AWE, E10322AWE E1032D20NAWE, E1032D20NAEWE

E10311BPRPAWE, E1031BPRAWE

E1032E1NAWE, E1032E2NAWE

E10331AWE

,

E10332AWE E1031DR32NWE, E1031DR45NWE E1033E1NAWE, E1033E2NAWE

E10341AWE, E10342AWE

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E10311AWE

10A 1 gang 1 way switch

E10312AWE

10A 1 gang 2 way switch

E1031IAWE

10A 1 gang intermediate switch

E10321AWE

10A 2 gang 1 way switch

E10322AWE

10A 2 gang 2 way switch

E10331AWE

10A 3 gang 1 way switch

E10332AWE

10A 3 gang 2 way switch

E10341AWE

10A 4 gang 1 way switch

E10342AWE

10A 4 gang 2 way switch

20A, 32A & 45A DP

FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1031D20WE

20A DP switch

E1031D20AEWE

20A DP switch with earth

E1032D20NAWE

20A DP switch with neon

E1032D20NAEWE

20A DP switch with neon & earth

E1031DR32NWE

32A DP switch with neon

E1031DR45NWE

45A DP switch with neon

BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E10311BPRBAWE

2A bell push switch marked with bell symbol

E1031BP2A3WE

3A bell push switch marked with bell symbol

E1031BP2A4WE

4A bell push switch marked with bell symbol

E1031BPAWE

15A bell push switch marked with bell symbol

10A ELONGATED DOLLY

SWITCHES WITH NEON

(Designed to IEC60669-1,

MS616, SS227)

E1031E1NAWE

10A 1 gang 1 way switch

E1031E2NAWE

10A 1 gang 2 way switch

E1032E1NAWE

10A 2 gang I way switch

E1032E2NAWE

10A 2 gang 2 way switch

E10311BPRPAWE

2A bell press switch marked with

“PRESS”

E1031BPRAWE

10A change-over press switch marked with “PRESS”

E1033E1NAWE

10A 3 gang 1 way switch

E1033E2NAWE

10A 3 gang 2 way switch

E1031E1AWE, E1031E2AWE E1031M1AWE

,

E1031M2AWE

E1032E1AWE, E1032E2AWE E1032M1AWE

,

E1032M2AWE

E1033E1AWE, E1033E2AWE E1033M1AWE

,

E1033M2AWE

E1031V250FWE

E1032E500F

E1031VE400WE, E1031V600WE

E1032V4002KWE, E1032V5002KWE

E1034V4002KWE, E1034V5002KWE

10A ELONGATED

DOLLY SWITCHES WITH

LUMINOUS INDICATOR

(Designed to IEC60669-1,

MS616, SS227)

E1031E1AWE

10A 1 gang 1 way switch

E1031E2AWE

10A 1 gang 2 way switch

10A MID DOLLY

SWITCHES WITH

LUMINOUS INDICATOR

(Designed to IEC60669-1,

MS616, SS227)

E1031M1AWE

10A 1 gang 1 way switch

E1031M2AWE

10A 1 gang 2 way switch

E1032E1AWE

10A 2 gang 1 way switch

E1032E2AWE

10A 2 gang 2 way switch

E1033E1AWE

10A 3 gang 1 way switch

E1033E2AWE

10A 3 gang 2 way switch

E1032M1AWE

10A 2 gang 1 way switch

E1032M2AWE

10A 2 gang 2 way switch

E1033M1AWE

10A 3 gang 1 way switch

E1033M2AWE

10A 3 gang 2 way switch

FAN CONTROL

SWITCHES

(Designed to BS5518)

E1031V250FWE

250VA 1 gang fan control

E1032E500F

500VA 1 gang fan control

DIMMER SWITCHES

(Designed to BS5518)

E1031VE400WE

400W 1 gang dimmer

(EMC compliance)

E1031V600WE

600W 1 gang dimmer

E1032V4002KWE

400W 1 gang dimmer with switch

E1032V5002KWE

500W 1 gang dimmer with switch

E1034V4002KWE

400W 2 gang dimmer with switch

E1034V5002KWE

500W 2 gang dimmer with switch

23

24

E1015WE, E1015DWE

E1015DNWE

ET1025WE

,

ET1025DWE

E1426WE

ET1426WE

E14265WE

E142615WE

E1031TBWE

ET1025DNWE

13A SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589,

SS145)

E1015WE

13A 1 gang switched socket outlet

E1015DWE

13A 1 gang DP switched socket outlet

13A SOCKET OUTLETS

(Designed to BS1363, MS589,

SS145)

E1426WE

13A 1 gang socket outlet

ET1426WE

13A 2 gang socket outlet

E1015DNWE

13A 1 gang DP switched socket outlet with neon

ET1025WE

13A 2 gang switched socket outlet

ET1025DWE

13A 2 gang DP switched socket outlet

ET1025DNWE

13A 2 gang DP switched socket outlet with neon

5A & 15A SOCKET

OUTLETS

(Designed to BS546)

E14265WE

5A 1 gang socket outlet

E142615WE

15A 1 gang socket outlet

CONNECTION UNIT

(Designed to BS5733)

E1031TBWE

25A 3 terminal connection unit

E1030FSGWE E1031TV75WE

E1031WE E1031XWE

E1030FSGNWE

E1032A75MWE

E1032WE ET1031XWE

E1031DFSGWE

E1033WE

E1031DFSGNWE

E1034WE

13A FUSED

CONNECTION UNITS

(Designed to BS1363)

E1030FSGWE

13A fused connection unit

TELECOMMUNICATION

ACCESSORIES

E1031TV75WE

1 gang TV co-axial outlet

E1030FSGNWE

13A fused connection unit with neon

E1031DFSGWE

13A DP fused connection unit with switch

E1031DFSGNWE

13A DP fused connection unit with neon & switch

E1032A75MWE

2 gang TV co-axial outlet

FLUSH PLATES

(Designed to BS5733)

E1031WE

1 gang fl ush plate

E1032WE

2 gang fl ush plate

E1033WE

3 gang fl ush plate

E1034WE

4 gang fl ush plate

FLUSH PLATES

(Designed to BS5733)

E1031XWE

1 gang blank plate

ET1031XWE

2 gang blank plate

25

28

E20311SAWE, E20312SAWE, E2031IAWE, E20321SAWE, E20322SAWE E203312AWE, E203323AWE ET20361SAWE, ET20362SAWE

E203412AWE, E203423AWE ET20381SAWE, ET20382SAWE

10A, 15A & 20A FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E20311SAWE

10A 1 gang 1 way 2 terminal switch

E20312SAWE

10A 1 gang 1 way 3 terminal switch

E2031IAWE

10A 1 gang intermediate switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E20321SAWE

10A 2 gang 1 way 2 terminal switch

E20322SAWE

10A 2 gang 2 way 3 terminal switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E203312AWE

10A 3 gang 1 way 2 terminal switch

E203323AWE

10A 3 gang 2 way 3 terminal switch

E203412AWE

10A 4 gang 1 way 2 terminal switch

E203423AWE

10A 4 gang 2 way 3 terminal switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ET20361SAWE

10A 6 gang 1 way 2 terminal switch

ET20362SAWE

10A 6 gang 2 way 3 terminal switch

ET20381SAWE

10A 8 gang 1 way 2 terminal switch

ET20382SAWE

10A 8 gang 2 way 3 terminal switch

E2031D20AWE

E2031D20GNAWE

E2031D32WE, E2031D45WE

E2031D32NWE, E2031D45NWE

ET2031VDR45WE

E2031BP23AWE, E2031BPNAWE

E20311RBPRBAWE

E2031DR45WE E20311RBPRPAWE

ET2031VDR45NWE

15A & 20A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031D20AWE

20A 1 gang DP switch

E2031D20GNAWE

20A DP switch with neon & bottom outlet

E2031DR45NWE

32A & 45A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031D32WE

32A 1 gang DP switch

(Dolly Switch)

E2031D45WE

45A 1 gang DP switch

(Dolly Switch)

E2031D32NWE

32A 1 gang DP switch with neon

(Dolly Switch)

E2031D45NWE

45A 1 gang DP switch with neon

(Dolly Switch)

E2031DR45WE

45A 1 gang DP switch

(Rocker Switch)

E2031DR45NWE

45A 1 gang DP switch with neon

(Rocker Switch)

45A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ET2031VDR45WE

45A 1 gang DP vertical switch

ET2031VDR45NWE

45A 1 gang DP vertical switch

BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031BP23AWE

3A bell push switch with bell symbol

E2031BPNAWE

10A 1 gang illuminated bell push

E20311RBPRBAWE

10A 1 gang bell press with bell symbol

E20311RBPRPAWE

10A 1 gang bell press marked

“PRESS”

29

30

E234216DWE

EP20312SAWE, EP2031IAWE EA203112AWE, EA203123AWE

EA203212AWE, EA203223AWE

EA203312AWE, EA203323AWE

E203412AWE, E203423AWE

16A PULL SWITCH

(Designed to IEC60669-1,

MS616, SS227)

E234216DWE

16A 1 gang 1 way DP pull switch

E242610WE

10A 1 gang 1 way DP pull switch

10A FLUSH SWITCHES

(PRESTIGE)

(Designed to IEC60669-1,

MS616, SS227)

EP20312SAWE

10A 1 gang 2 way 4 terminal switch

EP2031IAWE

10A 1 gang intermediate switch

10A ARCHITRAVE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EA203112AWE

10A 1 gang 1 way 2 terminal switch

EA203123AWE

10A 1 gang 2 way 3 terminal switch

EA203212AWE

10A 2 gang 1 way 2 terminal switch

EA203223AWE

10A 2 gang 2 way 3 terminal switch

10A ARCHITRAVE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EA203312AWE

10A 3 gang 1 way 2 terminal switch

EA203323AWE

10A 3 gang 2 way 3 terminal switch

E203412AWE

10A 4 gang 1 way 2 terminal switch

E203423AWE

10A 4 gang 2 way 3 terminal switch

E2032E500FWE, E2032E500WE E2030T6AWE E2032V500WE

E2015WE, E2015DWE

E2034E500FWE, E2034E500WE E2034V500WE

E2015NWE

E2032V1800WE, E2032V2400WE,

E2032V3600WE

ET2025WE, ET2025DWE, ET2025RCWE

500VA FAN

CONTROLLERS

(Designed to BS5518)

E2032E500FWE

500VA 1 gang universal fan controller

E2032E500WE

500VA 1 gang ceiling sweep

E2034E500FWE

500VA 2 gang universal fan controller

E2034E500WE

500VA 2 gang ceiling sweep

240V TP FAN ISOLATOR

(Designed to IEC60947-3)

E2030T6AWE

240V 1 gang TP fan isolator

LIGHT DIMMERS

(Designed to BS5518)

E2032V500WE

500W 1 gang light dimmer

E2034V500WE

500W 2 gang light dimmer

E2032V1800WE

1800W 1 gang high power dimmer

(EMC compliant)

E2032V2400WE

2400W 1 gang high power dimmer

(EMC compliant)

E2032V3600WE

3600W 1 gang high power dimmer

(EMC compliant)

ET2025NWE

13A SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589.

SS145)

E2015WE

13A 1 gang switched socket outlet

E2015DWE

13A 1 gang DP switched socket outlet

E2015NWE

13A 1 gang switched socket outlet with neon

ET2025WE

13A 2 gang switched socket outlets

ET2025DWE

13A 2 gang DP switched socket outlets

ET2025RCWE

13A 2 gang switched socket outlets with 30mA RCD protection

ET2025NWE

13A 2 gang switched socket outlets with neon

31

32

E2426WE

ET2426WE

ET2031D4513NWE

E24265WE

E242615WE

ET2727WE

ET2727HWE

13A SOCKET OUTLETS

(Designed to BS1363, MS589.

SS145)

E2426WE

13A 1 gang socket outlet

ET2426WE

13A 2 gang socket outlet

COOKER CONTROL

UNIT

(Designed to BS1363, SS145,

MS589, BS4177)

ET2031D4513NWE

45A DP main switch & 13A switched socket outlet with neon

5A & 15A SOCKET

OUTLETS

(Designed to BS546, SS472)

E24265WE

5A 1 gang socket outlet

E242615WE

15A 1 gang socket outlet

UNIVERSAL SHAVER

SOCKET OUTLETS

(Designed to IEC61558-2-5,

BS3535)

ET2727WE

115240V ~ 20VA universal shaver outlet

ET2727HWE

115240V ~ 20VA universal shaver outlet with thermal cut-off

E2426165WE E2031TBWE E2030FSGWE E2030FSGMSWE

E2030FSGNWE

E2031DFSGWE

E2031DFSGMSWE

E2031DFSGNWE

SCHUKO SOCKET

OUTLETS

(Designed to IEC884)

E2426165WE

16A 1 gang schuko socket outlet

25A CONNECTION UNIT

(Designed to BS5733)

E2031TBWE

25A 1 gang connection unit with front fl exible outlet

13A FUSED

CONNECTION UNITS

(Designed to BS1363)

E2030FSGWE

13A 1 gang fused connection unit

13A FUSED

CONNECTION UNITS

MEDIUM SECURITY

LOCK

(Designed to BS1363)

E2030FSGMSWE

13A 1 gang fused connection unit

E2030FSGNWE

13A 1 gang fused connection with neon

E2031DFSGMSWE

13A 1 gang fused connection unit with DP switch

E2031DFSGWE

13A 1 gang fused connection unit with DP switch

E2031DFSGNWE

13A 1 gang fused connection unit with DP switch & neon

33

34

E2030FSGSWE

E2030DNFSGSWE

E2031DFSGSWE

E24061MWE, E24061SWE

E2406MRJ88WE

E2031TVWE

E2302TVWE

E2032VTVWE

E2032TVFMWE, E2032TVFM2WE

E2032VTVFMWE, E2032VTVFMSWE,

E2032VTVFM2WE

E2031DNFSGSWE

13A FUSED

CONNECTION UNITS

HIGH SECURITY LOCK

(Designed to BS1363)

E2030FSGSWE

13A 1 gang fused connection unit

E2030DNFSGSWE

13A 1 gang fused connection unit with neon

TELEPHONE SOCKET

OUTLETS

E24061MWE

1 gang 6 pin master unit BT telephone outlet

(Designed to British standard)

E24061SWE

1 gang 6 pin slave unit telephone outlet

(Designed to British standard)

75 OHM TV ANTENNA

OUTLETS

E2031TVWE

75 ohm 1 gang TV antenna outlet

E2302TVWE

75 ohm 2 gang TV antenna outlet

E2032VTVWE

75 ohm 2 gang TV antenna outlet

E2031DFSGSWE

13A 1 gang fused connection unit with DP switch

E2406MRJ88WE

Dual telecommunication socket

British telecom master & RJ45

E2031DNFSGSWE

13A 1 gang fused connection unit with DP switch & neon

75 OHM TVFM CO-AXIAL

OUTLETS

E2032TVFMWE

75 ohm 2 gang TVFM splitter

E2032TVFM2WE

75 ohm 2 gang TVFM splitter for multi-outlet system with 2 cord grip

E2032VTVFMWE

75 ohm 2 gang TVFM splitter

E2032VTVFMSWE

75 ohm 2 gang TVFM splitter with screw fi xing

E2032VTVFM2WE

75 ohm 2 gang TVFM splitter for multi-outlet system with 2 cord grip

E2031TVFWE

E2032VTVFWE

E2031EKTWE

E2031EKTHWE

E2031BPDWE E2033LBPDMWE

E2031BPMWE

E2032VDMWE

E2031EKTH-KC

E2032DMHWE

F-TYPE CONNECTORS

E2031TVFWE

1 gang F-type connector

E2032VTVFWE

1 gang F-type connector

16A CARD KEY

SWITCHES

(Designed to IEC60669-2-1)

E2031EKTWE

16A 230V 50Hz 1 gang DP card key switch

10A BELL PRESS

MESSAGE INDICATORS

E2031BPDWE

10A 230V 50Hz 1 gang bell press with “DO NOT DISTURB” symbol

(Designed to IEC60669-1)

10A BELL PRESS

MESSAGE INDICATORS

(Designed to IEC60669-1)

E2033LBPDMWE

10A entrance bell press & message panel

E2031EKTHWE

16A 230V 50Hz 1 gang DP switch

(Suit standard credit card size)

E2031BPMWE

10A 230V 50Hz 1 gang bell press with “PLEASE CLEAN ROOM” symbol

(Designed to IEC60669-1)

E2031EKT-KC

Card key, only for E2031EKT

E2032VDMWE

10A 230V 50Hz message indicators with “DO NOT

DISTURB” & “PLEASE CLEAN

ROOM” symbol (vertical)

(Designed to BS5733)

E2032DMHWE

10A 230V 50Hz message indicators with “DO NOT

DISTURB” & “PLEASE CLEAN

ROOM” symbol

(Designed to BS5733)

35

36

E2031L12AWE, E2031L23AWE,

E2031LIAWE

E2031L13NAWE, E2031LNAWE

E2032L12A, E2032L23AWE

E2032L13NAWE, E2032LNAWE

E2031LBPRAWE

E2032LBPRAWE

E2032L1BPRAWE

E2032L1NBPRAWE

E2032BPRAL1AWE

E2033L12A, E2033L23AWE

10A C-COSMO MEGA

FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031L12AWE

10A 1 gang 1 way 2 terminal switch

E2031L23AWE

10A 1 gang 2 way 3 terminal switch

E2031LIAWE

10A 1 gang intermediate switch

E2032L12AWE

10A 2 gang 1 way 2 terminal switch

E2032L23AWE

10A 2 gang 2 way 3 terminal switch

E2033L12AWE

10A 3 gang 1 way 2 terminal switch

E2033L23AWE

10A 3 gang 2 way 3 terminal switch

10A C-COSMO MEGA

FLUSH SWITCHES

WITH NEON

(Designed to IEC60669-1,

MS616, SS227)

E2031L13NAWE

10A 1 gang 1 way 3 terminal switch with neon

E2031LNAWE

10A 1 gang 2 way 4 terminal switch with neon

E2032L13NAWE

10A 2 gang 1 way 3 terminal switch with neon

E2032LNAWE

10A 2 gang 2 way 4 terminal switch with neon

E2032BPRAL1NAWE

10A C-COSMO MEGA

BELL PRESS SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031LBPRAWE

10A 1 gang bell press with bell symbol

10A C-COSMO MEGA

BELL PRESS SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2032L1BPRAWE

10A 2 gang 1 way 2 terminal switch (L) & bell press with bell symbol (R)

E2032LBPRAWE

10A 2 gang bell press with bell symbol

E2032L1NBPRAWE

10A 2 gang 1 way 2 terminal switch with neon (L) & bell press with bell symbol (R)

E2032BPRAL1AWE

10A 2 gang bell press with bell symbol (L) & 1 way 2 terminal switch (R)

E2032BPRAL1NAWE

10A 2 gang bell press with bell symbol (L) & 1 way 2 terminal switch with neon (R)

E2031LD20NAWE E2031LPD600WE

E2032LPD400WE

E2015LWE

E2015LNWE

E2031WE

E2032VWE

E2033WE

E2034WE

20A C-COSMO MEGA

DP FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E2031LD20NAWE

20A 1 gang DP switch with neon

250V C- COSMO MEGA

PRESS DIMMERS

(Designed to BS5518)

E2031LPD600WE

250V 600W 1 gang press dimmer

E2032LPD400WE

250V 400W 2 gang press dimmer

13A C-COSMO MEGA

SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589,

SS145)

E2015LWE

13A 1 gang switched socket outlet

FLUSH PLATES

(Designed to BS5733)

E2031WE

1 gang fl ush plate

E2032VWE

2 gang fl ush plate

E2015LNWE

13A 1 gang switched socket outlet with neon

E2033WE

3 gang fl ush plate

E2034WE

4 gang fl ush plate

37

38

ET2036WE

EA2031WE

EA2000WE

EA2034WE

ET2038WE

EA2032WE

ET2031TVFM10WE

EA2002WE

E2030XWE

EA2033WE

ET2030XWE

FLUSH PLATES

(Designed to BS5733)

ET2036WE

6 gang fl ush plate

ET2038WE

8 gang fl ush plate

E2030XWE

1 gang blank plate

ET2030XWE

2 gang blank plate

FLUSH PLATES

(Designed to BS5733)

EA2031WE

1 gang architrave plate

EA2032WE

2 gang architrave plate

EA2033WE

3 gang architrave plate

FLUSH PLATES

(Designed to BS5733)

EA2034WE

4 gang architrave plate

ET2031TVFM10WE

2 gang TVFM cable outlet fl ash plate

ARCHITRAVE

SURROUNDS

(Designed to BS5733)

EA2000WE

1 gang architrave surround

EA2002WE

2 gang architrave surround

E2000 WE

E2000 SG E2000 MY E2000 CM

E2000 BK

E2000 PB E2000 TQ E2000 BG

E2000 RD

E2000 DO E2000 BY E2000 DS

E2000 GY

E2000 SH

COLOURED

SURROUNDS

(Designed to BS5733)

E2000 WE

White surround

E2000 BK

Black surround

E2000 RD

Red surround

E2000 GY

Grey surround

Note: Surrounds are available in 1 gang (E2000 xxx) & 2 gang

(E2000 xxx)

COLOURED

SURROUNDS

(Designed to BS5733)

E2000 SG

Soft grey surround

E2000 PB

Polar blue surround

E2000 DO

Magnolia surround

E2000 SH

Silver shadow surround

E2000 BR

COLOURED

SURROUNDS

(Designed to BS5733)

E2000 MY

Majestic yellow surround

E2000 TQ

Turquoise surround

E2000 BY

Burgundy surround

E2000 BR

Brown surround

E2000 NU

COLOURED

SURROUNDS

(Designed to BS5733)

E2000 CM

Cream surround

E2000 BG

Beige surround

E2000 DS

Desert sand surround

E2000 NU

Nutmeg surround

39

E2000PS

E2000C MW

E2000C CA

E2000 BA

E2000 VI

E2000C BW

E2000C DA E2000 BB

E2000C WM

E2000C PA E2000C GE

COLOURED

SURROUNDS

(Designed to BS5733)

E2000 PS

Pale salmon surround

E2000 VI

Vanilla surround

E2000C GM

C - GRAPHIC

SURROUNDS

(Designed to BS5733)

E2000C MW

Mahogany surround

E2000C BW

Bird’s eye surround

E2000C WM

Ajax white marble surround

E2000C GM

Alpine green marble surround

E2000C UE E2000C SE

C - GRAPHIC

SURROUNDS

(Designed to BS5733)

E2000C CA

Checkers surround

E2000C DA

Dancing rain surround

E2000C PA

Purple dream surround

C - GRAPHIC

SURROUNDS

(Designed to BS5733)

E2000 BA

Brushed aluminium surround

E2000 BB

Brushed brass surround

E2000C GE

Sun gold electroplated surround

E2000C UE

Gun metal electroplated surround

E2000C SE

Silver mirror electroplated surround

40

Note: Surrounds are available in 1 gang (E2000 xxx) & 2 gang (E2000 xxx)

ET2000C RW

ET2000C BM

C - GRAPHIC

SURROUNDS

(Designed to BS5733)

ET2000C RW

Red mahogany surround

ET2000C BM

Brazilian black marble surround

41

44

E2031L23AS WE, E2031LD20NAS WE E2031LBPRAS WE E2031L23AS BK, E2031LD20NAS BK E2031L23AS C1, E2031LD20NAS C1

E2032L23AS WE E2031LPD600S WE E2032L23AS BK E2032L23AS C1

E2033L23AS WE E2032LPD400S WE E2033L23AS BK E2033L23AS C1

CLASSIC SERIES

(Designed to IEC60669-1,

MS616, SS227)

White

E2031L23AS WE

10A 1 gang 2 way switch

E2031LD20NAS WE

20A 1 gang DP switch

E2032L23AS WE

10A 2 gang 2 way switch

E2033L23AS WE

10A 3 gang 2 way switch

CLASSIC SERIES

White

E2031LBPRAS WE

10A 1 gang bell press

(Designed to IEC60669-1,

MS616, SS227)

CLASSIC SERIES

(Designed to IEC60669-1,

MS616, SS227)

Black

E2031L23AS BK

10A 1 gang 2 way switch

E2031LD20NAS BK

20A 1 gang DP switch

E2031LPD600S WE

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032L23AS BK

10A 2 gang 2 way switch

E2032LPD400S WE

2 gang dimmer

(Speci fi cally designed to BS5518)

E2033L23AS BK

10A 3 gang 2 way switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Smoke

E2031L23AS C1

10A 1 gang 2 way switch

E2031LD20NAS C1

20A 1 gang DP switch

E2032L23AS C1

10A 2 gang 2 way switch

E2033L23AS C1

10A 3 gang 2 way switch

E2031LBPRAS BK

10A 1 gang bell press

E2031LPD600S BK

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S BK

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C1

10A 1 gang bell press

E2031LPD600S C1

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C1

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031L23AS C2, E2031LD20NAS C2 E2031L23AS C3, E2031LD20NAS C3 E2031L23AS C4, E2031LD20NAS C4 E2031L23AS C5, E2031LD20NAS C5

E2032L23AS C2 E2032L23AS C3 E2032L23AS C4 E2032L23AS C5

E2033L23AS C2 E2033L23AS C3 E2033L23AS C4 E2033L23AS C5

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Blue

E2031L23AS C2

10A 1 gang 2 way switch

E2031LD20NAS C2

20A 1 gang DP switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Red

E2031L23AS C3

10A 1 gang 2 way switch

E2031LD20NAS C3

20A 1 gang DP switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Green

E2031L23AS C4

10A 1 gang 2 way switch

E2031LD20NAS C4

20A 1 gang DP switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Silver Smoke

E2031L23AS C5

10A 1 gang 2 way switch

E2031LD20NAS C5

20A 1 gang DP switch

E2032L23AS C2

10A 2 gang 2 way switch

E2033L23AS C2

10A 3 gang 2 way switch

E2032L23AS C3

10A 2 gang 2 way switch

E2033L23AS C3

10A 3 gang 2 way switch

E2032L23AS C4

10A 2 gang 2 way switch

E2033L23AS C4

10A 3 gang 2 way switch

E2032L23AS C5

10A 2 gang 2 way switch

E2033L23AS C5

10A 3 gang 2 way switch

E2031LBPRAS C2

10A 1 gang bell press

E2031LPD600S C2

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C2

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C3

10A 1 gang bell press

E2031LPD600S C3

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C3

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C4

10A 1 gang bell press

E2031LPD600S C4

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C4

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C5

10A 1 gang bell press

E2031LPD600S C5

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C5

2 gang dimmer

(Speci fi cally designed to BS5518)

45

46

E2031L23AS C6, E2031LD20NAS C6 E2031L23AS C7, E2031LD20NAS C7 E2031L23AS C8, E2031LD20NAS C8 E2031L23AS P1, E2031LD20NAS P1

E2032L23AS C6 E2032L23AS C7 E2032L23AS C8 E2032L23AS P1

E2033L23AS C6 E2033L23AS C7 E2033L23AS C8 E2033L23AS P1

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Silver Blue

E2031L23AS C6

10A 1 gang 2 way switch

E2031LD20NAS C6

20A 1 gang DP switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Silver Red

E2031L23AS C7

10A 1 gang 2 way switch

E2031LD20NAS C7

20A 1 gang DP switch

CYBER SERIES

(Designed to IEC60669-1,

MS616, SS227)

Silver Green

E2031L23AS C8

10A 1 gang 2 way switch

E2031LD20NAS C8

20A 1 gang DP switch

PEARL SERIES

(Designed to IEC60669-1,

MS616, SS227)

Blue

E2031L23AS P1

10A 1 gang 2 way switch

E2031LD20NAS P1

20A 1 gang DP switch

E2032L23AS C6

10A 2 gang 2 way switch

E2033L23AS C6

10A 3 gang 2 way switch

E2032L23AS C7

10A 2 gang 2 way switch

E2033L23AS C7

10A 3 gang 2 way switch

E2032L23AS C8

10A 2 gang 2 way switch

E2033L23AS C8

10A 3 gang 2 way switch

E2032L23AS P1

10A 2 gang 2 way switch

E2033L23AS P1

10A 3 gang 2 way switch

E2031LBPRAS C6

10A 1 gang bell press

E2031LPD600S C6

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C6

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C7

10A 1 gang bell press

E2031LPD600S C7

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C7

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS C8

10A 1 gang bell press

E2031LPD600S C8

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S C8

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS P1

10A 1 gang bell press

E2031LPD600S P1

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S P1

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031L23AS P2, E2031LD20NAS P2 E2031L23AS P3, E2031LD20NAS P3 E2031L23AS D1, E2031LD20NAS D1 E2031L23AS D2, E2031LD20NAS D2

E2032L23AS P2

E2032L23AS D1

E2033L23AS P2

E2032L23AS P3

E2033L23AS P3 E2033L23AS D1

E2032L23AS D2

E2033L23AS D2

PEARL SERIES

(Designed to IEC60669-1,

MS616, SS227)

Red

E2031L23AS P2

10A 1 gang 2 way switch

E2031LD20NAS P2

20A 1 gang DP switch

PEARL SERIES

(Designed to IEC60669-1,

MS616, SS227)

Green

E2031L23AS P3

10A 1 gang 2 way switch

E2031LD20NAS P3

20A 1 gang DP switch

DECO SERIES

(Designed to IEC60669-1,

MS616, SS227)

Champagne

E2031L23AS D1

10A 1 gang 2 way switch

E2031LD20NAS D1

20A 1 gang DP switch

DECO SERIES

(Designed to IEC60669-1,

MS616, SS227)

Gold

E2031L23AS D2

10A 1 gang 2 way switch

E2031LD20NAS D2

20A 1 gang DP switch

E2032L23AS P2

10A 2 gang 2 way switch

E2033L23AS P2

10A 3 gang 2 way switch

E2032L23AS P3

10A 2 gang 2 way switch

E2033L23AS P3

10A 3 gang 2 way switch

E2032L23AS D1

10A 2 gang 2 way switch

E2033L23AS D1

10A 3 gang 2 way switch

E2032L23AS D2

10A 2 gang 2 way switch

E2033L23AS D2

10A 3 gang 2 way switch

E2031LBPRAS P2

10A 1 gang bell press

E2031LPD600S P2

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S P2

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS P3

10A 1 gang bell press

E2031LPD600S P3

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S P3

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS D1

10A 1 gang bell press

E2031LPD600S D1

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S D1

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS D2

10A 1 gang bell press

E2031LPD600S D2

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S D2

2 gang dimmer

(Speci fi cally designed to BS5518)

47

48

E2031L23AS D3, E2031LD30NAS D3 E2031L23AS D4, E2031LD40NAS D4 E2031L23AS L1, E2031LD20NAS L1 E2031L23AS L2, E2031LD20NAS L2

E2032L23AS D3 E2032L23AS D4

E2033L23AS D3 E2033L23AS D4

E2032L23AS L1

E2033L23AS L1

E2032L23AS L2

E2033L23AS L2

DECO SERIES

(Designed to IEC60669-1,

MS616, SS227)

Silver

E2031L23AS D3

10A 1 gang 2 way switch

E2031LD30NAS D3

20A 1 gang DP switch

DECO SERIES

(Designed to IEC60669-1,

MS616, SS227)

Champagne Gun Metal

E2031L23AS D4

10A 1 gang 2 way switch

E2031LD40NAS D4

20A 1 gang DP switch

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Shadow Gold

E2031L23AS L1

10A 1 gang 2 way switch

E2031LD20NAS L1

20A 1 gang DP switch

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Shadow Silver

E2031L23AS L2

10A 1 gang 2 way switch

E2031LD20NAS L2

20A 1 gang DP switch

E2032L23AS D3

10A 2 gang 2 way switch

E2033L23AS D3

10A 3 gang 2 way switch

E2032L23AS D4

10A 2 gang 2 way switch

E2033L23AS D4

10A 3 gang 2 way switch

E2032L23AS L1

10A 2 gang 2 way switch

E2033L23AS L1

10A 3 gang 2 way switch

E2032L23AS L2

10A 2 gang 2 way switch

E2033L23AS L2

10A 3 gang 2 way switch

E2031LBPRAS D3

10A 1 gang bell press

E2031LPD600S D3

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S D3

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS D4

10A 1 gang bell press

E2031LPD600S D4

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S D4

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS L1

10A 1 gang bell press

E2031LPD400S L1

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L1

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS L2

10A 1 gang bell press

E2031LPD600S L2

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L2

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031L23AS L3, E2031LD20NAS L3 E2031L23AS L4, E2031LD20NAS L4 E2031L23AS L5, E2031LD20NAS L5 E2031L23AS L6, E2031LD20NAS L6

E2032L23AS L3

E2033L23AS L3

E2032L23AS L4

E2033L23AS L4

E2032L23AS L5

E2033L23AS L5

E2032L23AS L6

E2033L23AS L6

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Black Diamond

E2031L23AS L3

10A 1 gang 2 way switch

E2031LD20NAS L3

20A 1 gang DP switch

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Sun Gold

E2031L23AS L4

10A 1 gang 2 way switch

E2031LD20NAS L4

20A 1 gang DP switch

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Sun Silver

E2031L23AS L5

10A 1 gang 2 way switch

E2031LD20NAS L5

20A 1 gang DP switch

LUXOR SERIES

(Designed to IEC60669-1,

MS616, SS227)

Sun Silver Gold

E2031L23AS L6

10A 1 gang 2 way switch

E2031LD20NAS L6

20A 1 gang DP switch

E2032L23AS L3

10A 2 gang 2 way switch

E2033L23AS L3

10A 3 gang 2 way switch

E2032L23AS L4

10A 2 gang 2 way switch

E2033L23AS L4

10A 3 gang 2 way switch

E2032L23AS L5

10A 2 gang 2 way switch

E2033L23AS L5

10A 3 gang 2 way switch

E2032L23AS L6

10A 2 gang 2 way switch

E2033L23AS L6

10A 3 gang 2 way switch

E2031LBPRAS L3

10A 1 gang bell press

E2031LPD600S L3

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L3

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS L4

10A 1 gang bell press

E2031LPD600S L4

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L4

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS L5

10A 1 gang bell press

E2031LPD600S L5

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L5

2 gang dimmer

(Speci fi cally designed to BS5518)

E2031LBPRAS L6

10A 1 gang bell press

E2031LPD600S L6

1 gang dimmer

(Speci fi cally designed to BS5518)

E2032LPD400S L6

2 gang dimmer

(Speci fi cally designed to BS5518)

49

E2000S WE

E2000S BK

E2000S C5

E2000S C6

E2000S C7

E2000S P1

E2000S P2

E2000S P3

E2000S D1

E2000S D3

E2000S D4

CLASSIC SERIES

SURROUNDS

(Designed to BS5733)

E2000S WE

White surround

E2000S BK

Black surround

E2000S C8

CYBER SERIES

SURROUNDS

(Designed to BS5733)

E2000S C5

Silver smoke surround

E2000S C6

Silver blue surround

E2000S C7

Silver red surround

E2000S C8

Silver green surround

PEARL SERIES

SURROUNDS

(Designed to BS5733)

E2000S P1

Blue surround

E2000S P2

Red surround

E2000S P3

Green surround

DECO SERIES

SURROUNDS

(Designed to BS5733)

E2000S D1

Champagne surround

E2000S D3

Silver surround

E2000S D4

Champagne gun metal surround

50

Note: C-Spectra surrounds are also applicable to C-Cosmo Switches, Socket Outlets & Accessories

E2000S L1

E2000S L2

E2000S L3

E2000S L5

E2000S L6

E2000S L4

LUXOR SERIES

SURROUNDS

(Designed to BS5733)

E2000S L1

Shadow gold surround

E2000S L2

Shadow silver surround

E2000S L3

Black diamond surround

E2000S L4

Sun gold surround

LUXOR SERIES

SURROUNDS

(Designed to BS5733)

E2000S L5

Sun silver surround

E2000S L6

Sun silver gold surround

Note: C-Spectra surrounds are also applicable to C-Cosmo Switches, Socket Outlets & Accessories

51

54

E3031H1 EBGS

E3031H1 FWWW E3031HBP GS E3031HD20 EBGS

E3032H1 EBGS

E3033H1 EBGS

E3032H1 FWWW

E3033H1 FWWW

E3031HBP WW E3031HD20 EWWW

E3034H1 EBGS

FLUSH SWITCHES

WITH LED

E3031H1 EBGS or EWWW

10A 1 gang 1 way switch

E3031H2 EBGS or EWWW

10A 1 gang 2 way switch

E3032H1 EBGS or EWWW

10A 2 gang 1 way switch

E3032H2 EBGS or EWWW

10A 2 gang 2 way switch

E3033H1 EBGS or EWWW

10A 3 gang 1 way switch

E3033H2 EBGS or EWWW

10A 3 gang 2 way switch

E3034H1 EBGS or EWWW

10A 4 gang 1 way switch

E3034H2 EBGS or EWWW

10A 4 gang 2 way switch

E3034H1 FWWW

WHITE FLUSH

SWITCHES WITH

FLUORESCENT

INDICATOR

E3031H1 FWWW

10A 1 gang 1 way switch

E3031H2 FWWW

10A 1 gang 2 way switch

E3032H1 FWWW

10A 2 gang 1 way switch

E3032H2 FWWW

10A 2 gang 2 way switch

E3033H1 FWWW

10A 3 gang 1 way switch

E3033H2 FWWW

10A 3 gang 2 way switch

E3034H1 FWWW

10A 4 gang 1 way switch

E3034H2 FWWW

10A 4 gang 2 way switch

BELL PUSH BUTTON

SWITCHES

E3031HBP GS or WW

4A bell push marked with bell symbol

DOUBLE POLE

SWITCHES WITH LED

E3031HD20 EBGS or EWWW

20A double pole fl ush switch

E3031DR32 GS

E3031DR 45 WW

E3031DR32 EBGS

E3031TB GS

E3031TB WW

E3426 GS

E3015 WW

ET3426 GS

ET3025 WW

E3031DR45 EWWW

APPLIANCE SWITCHES

WITH/WITHOUT LED

E3031DR32 GS or WW

32A double pole switch without

LED

E3031DR45 GS or WW

45A double pole switch without

LED

E3031DR32 EBGS or EWWW

32A double pole switch with LED

E3031DR45 EBGS or EWWW

45A double pole switch with LED

CONNECTION UNIT

E3031TB GS or WW

25A connection unit

FLUSH SINGLE SOCKET

OUTLETS

E3426 GS or WW

13A 3 pin socket outlet

E3015 GS or WW

13A 3 pin switched socket outlet

E3015D EBGS or EWWW

13A 3 pin switched socket outlet with LED

FLUSH TWIN SOCKET

OUTLETS

ET3426 GS or WW

13A twin 3 pin socket outlet

ET3025 GS or WW

13A twin 3 pin switched socket outlet

ET3025D EBGS or EWWW

13A twin 3 pin switched socket outlet with LED

55

56

E3031TV GS

E3032VTV WW

E3030X GS

ET3030X WW

TV/FM CO-AXIAL

OUTLETS

E3031TV GS or WW

1 gang TV socket outlet

E3032VTV GS or WW

2 gang vertical TV socket outlet

FLUSH PLATES

E3030X GS or WW

1 gang blank plate

ET3030X GS or WW

2 gang blank plate

EGGH3112A, EGGH3123A,

EGGH31IA, EGGH3115A

EGSH3112A, EGSH3123A,

EGSH31IA

EGGH3212A, EGGH3223A EGSH3212A, EGSH3223A,

EGSH3215A

EGGM3112A, EGGM3123A,

EGGM31IA, EGGM3120A

EGSM3112A, EGSM3123A,

EGSM31IA

EGGM3212A, EGGM3223A EGSM3212A, EGSM3223A,

EGSM3220A

60

10A, 15A & 20A FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH3112A

10A 1 gang 1 way gold hairline switch

EGGH3123A

10A 1 gang 2 way gold hairline switch

EGGH31IA

10A 1 gang intermediate gold hairline switch

EGGH3115A

15A 1 gang 2 way gold hairline switch

EGGM3112A

10A 1 gang 1 way gold mirror switch

EGGM3123A

10A 1 gang 2 way gold mirror switch

EGGM31IA

10A 1 gang intermediate gold mirror switch

EGGM3120A

20A 1 gang 2 way gold mirror switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGSH3112A

10A 1 gang 1 way stainless steel hairline switch

EGSH3123A

10A 1 gang 2 way stainless steel hairline switch

EGSH31IA

10A 1 gang intermediate stainless steel hairline switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH3212A

10A 2 gang 1 way gold hairline switch

EGGH3223A

10A 2 gang 2 way gold hairline switch

EGSM3112A

10A 1 gang 1 way stainless steel mirror switch

EGSM3123A

10A 1 gang 2 way stainless steel mirror switch

EGSM31IA

10A 1 gang intermediate stainless steel mirror switch

EGGM3212A

10A 2 gang 1 way gold mirror switch

EGGM3223A

10A 2 gang 2 way gold mirror switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGSH3212A

10A 2 gang 1 way stainless steel hairline switch

EGSH3223A

10A 2 gang 2 way stainless steel hairline switch

EGSH3215A

15A 2 gang 2 way stainless steel hairline switch

EGSM3212A

10A 2 gang 1 way stainless steel mirror switch

EGSM3223A

10A 2 gang 2 way stainless steel mirror switch

EGSM3220A

20A 2 gang 2 way stainless steel mirror switch

EGGH3312A, EGGH3323A,

EGGH3315A

EGSH3312A, EGSH3323A EGGH3412A, EGGH3423A,

EGGH3415A

EGSH3412A, EGSH3423A

EGGM3312A, EGGM3323A,

EGGM3320A

EGSM3312A, EGSM3323A EGGM3412A, EGGM3423A,

EGGM3420A

EGSM3412A, EGSM3423A

10A, 15A & 20A FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH3312A

10A 3 gang 1 way gold hairline switch

EGGH3323A

10A 3 gang 2 way gold hairline switch

EGGH3315A

15A 3 gang 2 way gold hairline switch

EGGM3312A

10A 3 gang 1 way gold mirror switch

EGGM3323A

10A 3 gang 2 way gold mirror switch

EGGM3320A

20A 3 gang 2 way gold mirror switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGSH3312A

10A 3 gang 1 way stainless steel hairline switch

EGSH3323A

10A 3 gang 2 way stainless steel hairline switch

10A, 15A & 20A FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH3412A

10A 4 gang 1 way gold hairline switch

EGGH3423A

10A 4 gang 2 way gold hairline switch

EGGH3415A

15A 4 gang 2 way gold hairline switch

EGSM3312A

10A 3 gang 1 way stainless steel mirror switch

EGSM3323A

10A 3 gang 2 way stainless steel mirror switch

EGGM3412A

10A 4 gang 1 way gold mirror switch

EGGM3423A

10A 4 gang 2 way gold mirror switch

EGGM3420A

20A 4 gang 2 way gold mirror switch

10A FLUSH SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGSH3412A

10A 4 gang 1 way stainless steel hairline switch

EGSH3423A

10A 4 gang 2 way stainless steel hairline switch

EGSM3412A

10A 4 gang 1 way stainless steel mirror switch

EGSM3423A

10A 4 gang 2 way stainless steel mirror switch

61

62

EGGH31D20A

EGGM31D20A

EGGH32D20NA

EGGM32D20NA

EGSH32D20NA

EGGH31BPR

EGGM31BPR

EGSH31BPR

EGGH31BPA

EGGM31BPA

EGSH31BPA

EGSH31D20A

EGSM31D20A EGSM32D20NA EGSM31BPR EGSM31BPA

20A DP FLUSH

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH31D20A

20A 1 gang DP gold hairline switch

EGGM31D20A

20A 1 gang DP gold mirror switch

EGSH31D20A

20A 1 gang DP stainless steel hairline switch

EGSM31D20A

20A 1 gang DP stainless steel mirror switch

20A DP FLUSH

SWITCHES WITH NEON

(Designed to IEC60669-1,

MS616, SS227)

EGGH32D20NA

20A 1 gang DP gold hairline with neon switch

BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH31BPR

10A gold hairline change-over contact marked “PRESS”

EGGM32D20NA

20A 1 gang DP gold mirror switch with neon

EGGM31BPR

10A gold mirror change-over contact marked “PRESS”

EGSH32D20NA

20A 1 gang DP stainless steel hairline switch with neon

EGSH31BPR

10A stainless steel hairline change-over contact marked

“PRESS”

EGSM32D20NA

20A 1 gang DP stainless steel mirror switch with neon

BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

EGGH31BPA

1 gang gold hairline with bell symbol

EGGM31BPA

1 gang gold mirror with bell symbol

EGSH31BPA

1 gang stainless steel hairline with bell symbol

EGSM31BPR

10A stainless steel mirror changeover contact marked “PRESS”

EGSM31BPA

1 gang stainless steel mirror with bell symbol

EGGH32V400F

EGGM32V400F

EGSH32V400F, EGSH32V400

EGGH32V500

EGGM32V500

EGSH32V500

EGGH15

EGGM15

EGSH15

EGGH15N

EGGM15N

EGSH15N

EGSM32V400F EGSM32V500 EGSM15 EGSM15N

FAN CONTROL

SWITCHES

(Designed to BS5518)

EGGH32V400F

400VA gold hairline fan control regulator

DIMMER SWITCHES

(Designed to BS5518)

EGGH32V500

500W gold hairline dimmer

(For incandescent lamps only)

EGGM32V400F

400VA gold mirror fan control regulator

EGGM32V500

500W gold mirror dimmer

(For incandescent lamps only)

EGSH32V400F

400VA stainless steel hairline fan control regulator

EGSH32V400

400VA 1 stainless steel hairline ceiling sweep

EGSH32V500

500W stainless steel hairline dimmer

(For incandescent lamps only)

EGSM32V500

500W stainless steel mirror dimmer

(For incandescent lamps only)

EGSM32V400F

400VA stainless steel mirror fan control regulator

13A SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589,

SS145)

EGGH15

13A 1 gang 3 pin gold hairline switched socket outlet

13A SWITCHED SOCKET

OUTLETS WITH NEON

(Designed to BS1363, MS589,

SS145)

EGGH15N

13A 1 gang 3 pin gold hairline switched outlet with neon

EGGM15

13A 1 gang 3 pin gold mirror switched socket outlet

EGGM15N

13A 1 gang 3 pin gold mirror switched socket outlet with neon

EGSH15

13A 1 gang 3 pin stainless steel hairline switched socket outlet

EGSM15

13A 1 gang 3 pin stainless steel mirror switched socket outlet

EGSH15N

13A 1 gang 3 pin stainless steel hairline switched socket outlet with neon

EGSM15N

13A 1 gang 3 pin stainless steel mirror switched socket outlet with neon

63

64

EGGH25

EGGM25

EGGH25N

EGGM25N

EGSH25N

EGGH1515

EGGM1515

EGSH1515

EGGH1515N

EGGM1515N

EGSH1515N EGSH25

EGSM25 EGSM25N EGSM1515 EGSM1515N

13A SWITCHED SOCKET

OUTLETS

(Designed to BS1363, MS589,

SS145)

EGGH25

13A 2 gang 3 pin gold hairline switched socket outlet

EGGM25

13A 2 gang 3 pin gold mirror switched socket outlet

EGSH25

13A 2 gang 3 pin stainless steel hairline switched socket outlet

EGSM25

13A 2 gang 3 pin stainless steel mirror switched socket outlet

13A SWITCHED SOCKET

OUTLETS WITH NEON

(Designed to BS1363, MS589,

SS145)

EGGH25N

13A 2 gang 3 pin gold hairline switched socket outlet with neon

15A SWITCHED SOCKET

OUTLETS

(Designed to BS546, SS472)

EGGH1515

15A 1 gang 3 pin gold hairline switched socket outlet

15A SWITCHED SOCKET

OUTLETS WITH NEON

(Designed to BS546, SS472)

EGGH1515N

15A 1 gang 3 pin gold hairline switched socket outlet with neon

EGGM25N

13A 2 gang 3 pin gold mirror switched socket outlet with neon

EGGM1515

15A 1 gang 3 pin gold mirror switched socket outlet

EGGM1515N

15A 1 gang 3 pin gold mirror switched socket outlet with neon

EGSH25N

13A 2 gang 3 pin stainless steel hairline switched socket outlet with neon

EGSH1515

15A 1gang 3 pin stainless steel hairline switched socket outlet

EGSH1515N

15A 1 gang 3 pin stainless steel hairline switched socket outlet with neon

EGSM25N

13A 2 gang 3 pin stainless steel mirror switched socket outlet with neon

EGSM1515

15A 1 gang 3 pin stainless steel mirror switched socket outlet

EGSM1515N

15A 1 gang 3 pin stainless steel mirror switched socket outlet with neon

EGGMW1475 EGGH31TBA

EGGM31TBA

EGSH31TBA

EGGH31FSA

EGGM31FSA

EGSH31FSA

EGGH32D15FS

EGGM32D15FS

EGSH32D15FS

EGSM31TBA EGSM31FSA EGSM32D15FS

10A UNIVERSAL

SOCKET OUTLET

(Designed to IEC884)

EGGMW1475

10A 1 gang gold mirror socket outlet

* Available in other fi nishes: gold hairline

- EGGHW1475, stainless steel hairline

- EGSHW1475, stainless steel mirror

- EGSMW1475.

25A CONNECTION UNITS

(Designed to BS5733)

EGGH31TBA

25A gold hairline connection unit

EGGM31TBA

25A gold mirror connection unit

EGSH31TBA

15A stainless steel hairline connection unit

EGSM31TBA

15A stainless steel mirror connection unit

13A FUSED

CONNECTION UNITS

(Designed to BS1363)

EGGH31FSA

13A 1 gang gold hairline fused connection unit

13A FUSED

CONNECTION UNITS

WITH DP SWITCH

(Designed to BS1363)

EGGH32D15FS

13A 2 gang gold hairline fused connection unit with DP switch

EGGM31FSA

13A 1 gang gold mirror fused connection unit

EGGM32D15FS

13A 2 gang gold mirror fused connection unit with DP switch

EGSH31FSA

13A 1 gang stainless steel hairline fused connection unit

EGSH32D15FS

13A 2 gang stainless steel hairline fused connection unit with DP switch

EGSM31FSA

13A 1 gang stainless steel mirror fused connection unit

EGSM32D15FS

13A 2 gang stainless steel mirror fused connection unit with DP switch

65

66

EGGH33D15NFS

EGGM33D15NFS

EGSH33D15NFS

EGGH32FSHD

EGGM32FSHD

EGSH32FSHD

EGGH33D15FSHD

EGGM33D15FSHD

EGSH33D15FSHD

EGGH34D15FSHD

EGGM34D15FSHD

EGSH34D15FSHD

EGSM33D15NFS EGSM32FSHD EGSM33D15FSHD EGSM34D15FSHD

13A FUSED

CONNECTION UNITS

WITH DP SWITCH &

NEON

(Designed to BS1363)

EGGH33D15NFS

13A 2 gang gold hairline fused connection unit with DP switch & neon

EGGM33D15NFS

13A 2 gang gold mirror fused connection unit with DP switch & neon

EGSH33D15NFS

13A 2 gang stainless steel hairline fused connection unit with DP switch & neon

EGSM33D15NFS

13A 2 gang stainless steel mirror fused connection unit with DP switch & neon

13A FUSED

CONNECTION UNITS

WITH CABLE OUTLET

(Designed to BS1363)

EGGH32FSHD

13A 1 gang gold hairline fused connection unit with cable outlet

13A DP FUSED

CONNECTION UNITS

WITH DP SWITCH &

CABLE OUTLET

(Designed to BS1363)

EGGH33D15FSHD

13A 2 gang gold hairline fused connection unit with DP switch & cable outlet

EGGM32FSHD

13A 1 gang gold mirror fused connection unit with cable outlet

EGSH32FSHD

13A 1 gang stainless steel hairline fused connection unit with cable outlet

EGGM33D15FSHD

13A 2 gang gold mirror fused connection unit with DP switch & cable outlet

EGSM32FSHD

13A 1 gang stainless steel mirror fused connection unit with cable outlet

EGSH33D15FSHD

13A 2 gang stainless steel hairline fused connection unit with DP switch & cable outlet

EGSM33D15FSHD

13A 2 gang stainless steel mirror fused connection unit with DP switch & cable outlet

13A DP FUSED

CONNECTION UNITS

WITH DP SWITCH, NEON

& CABLE OUTLET

(Designed to BS1363)

EGGH34D15FSHD

13A 2 gang gold hairline fused connection unit with DP switch, neon & cable outlet

EGGM34D15FSHD

13A 2 gang gold mirror fused connection with DP switch, neon

& cable outlet

EGSH34D15FSHD

13A 2 gang stainless steel hairline fused connection unit with DP switch, neon & cable outlet

EGSM34D15FSHD

13A 2 gang stainless steel mirror fused connection unit with DP switch, neon & cable outlet

EGGM32D15FS

EGSM33D15NFS

EGGH31TV75

EGGM31TV75

EGSH31TV75

EGGH32TV75

EGGM32TV75

EGSH32TV75

EGGH31RJ66, EGGH31RJ88

EGGM31RJ66, EGGM31RJ88

EGSH31RJ66, EGSH31RJ88

EGSM31TV75 EGSM32TV75 EGSM31RJ66, EGSM31RJ88

15A DP FUSED

CONNECTION UNITS

EGGM32D15FS

15A 2 gang gold mirror DP fused connection unit with switch

75 OHM TV CO-AXIAL

OUTLETS

EGGH31TV75

75 ohm 1 gang gold hairline TV co-axial outlet

75 OHM TV CO-AXIAL

OUTLETS

EGGH32TV75

75 ohm 2 gang gold hairline

TVFM co-axial outlet

EGSM33D15NFS

15A 3 gang stainless steel mirror

DP fused connection unit with switch & neon

* Available in following fi nishes: gold hairline

- EGGHXXXX, gold mirror

- EGGMXXXX, stainless steel hairline

- EGSHXXXX, stainless steel mirror

- EGSMXXXX.

EGGM31TV75

75 ohm 1 gang gold mirror TV coaxial outlet

EGSH31TV75

75 ohm 1 gang stainless steel hairline TV co- axial outlet

EGSM31TV75

75 ohm 1 gang stainless steel mirror TV co-axial outlet

EGGM32TV75

75 ohm 2 gang gold mirror

TVFM co-axial outlet

EGSH32TV75

75 ohm 2 gang stainless steel hairline TVFM co-axial outlet

EGSM32TV75

75 ohm 2 gang stainless steel mirror TVFM co-axial outlet

TELEPHONE SOCKET

OUTLETS

EGGH31RJ66

1 gang 6 wire gold hairline telephone socket outlet

EGGH31RJ88

1 gang 8 wire gold hairline telephone socket outlet

EGGM31RJ66

1 gang 6 wire gold mirror telephone socket outlet

EGGM31RJ88

1 gang 8 wire gold mirror telephone socket outlet

EGSH31RJ66

1 gang 6 wire stainless steel hairline telephone socket outlet

EGSH31RJ88

1 gang 8 wire stainless steel hairline telephone socket outlet

EGSM31RJ66

1 gang 6 wire stainless steel mirror telephone socket outlet

EGSM31RJ88

1 gang 8 wire stainless steel mirror telephone socket outlet

67

68

EGGH32RJ66, EGGH32RJ88

EGGM32RJ66, EGGM32RJ88

EGSH32RJ66, EGSH32RJ88

EGGHW1417

EGGMW1417

EGSHW1417

EGGHW1438 EGGHH4M

EGGMH4MV

EGSM32RJ66, EGSM32RJ88 EGSHW1417

TELEPHONE SOCKET

OUTLETS

EGGH32RJ66

2 gang 6 wire gold hairline telephone socket outlet

EGGH32RJ88

2 gang 8 wire gold hairline telephone socket outlet

EGGM32RJ66

2 gang 6 wire gold mirror telephone socket outlet

EGGM32RJ88

2 gang 8 wire gold mirror telephone socket outlet

EGSH32RJ66

2 gang 6 wire stainless steel hairline telephone socket outlet

EGSH32RJ88

2 gang 8 wire stainless steel hairline telephone socket outlet

EGSM32RJ66

2 gang 6 wire stainless steel mirror telephone socket outlet

EGSM32RJ88

2 gang 8 wire stainless steel mirror telephone socket outlet

TELEPHONE SOCKET

OUTLETS

(Designed to British Standard)

EGGHW1417

1 gang 6 pin (BT) gold hairline master unit telephone socket outlet with shutter

EGGMW1417

1 gang 6 pin (BT) gold mirror master unit telephone socket outlet with shutter

EGSHW1417

1 gang 6 pin (BT) stainless steel hairline master unit telephone socket outlet with shutter

EGSHW1417

1 gang 6 pin (BT) stainless steel mirror master unit telephone socket outlet with shutter

TELEPHONE SOCKET

OUTLET

EGGHW1438

1 gang gold hairline telephone socket outlet with shutter

HOTEL MESSAGE

INDICATOR

(Designed to IEC60669-1)

EGGHH4M

2 gang “DO NOT DISTURB” &

“PLEASE CLEAN UP” with push button gold hairline

EGGMH4MV

2 gang “DO NOT DISTURB” &

“PLEASE CLEAN UP” with push button gold mirror-vertical

EGSHH4M

EGSMH4MV

EGGH31X

EGGM31X

EGSH31X

EGGH31X2

EGGM31X2

EGSH31X2

EGSM31X EGMH31X2

HOTEL MESSAGE

INDICATOR

(Designed to IEC60669-1)

EGSHH4M

2 gang “DO NOT DISTURB” &

“PLEASE CLEAN UP” with push button stainless steel hairline

FLUSH PLATES

(Designed to BS5733)

EGGH31X

1 gang gold hairline blank plate

EGGM31X

1 gang gold mirror blank plate

EGSMH4MV

2 gang “ DO NOT DISTURB” &

PLEASE CLEAN UP” with push button stainless steel mirrorvertical

EGSH31X

1 gang stainless steel hairline blank plate

EGSM31X

1 gang stainless steel mirror blank plate

FLUSH PLATES

(Designed to BS5733)

EGGH31X2

2 gang gold hairline blank plate

EGGM31X2

2 gang gold mirror blank plate

EGSH31X2

2 gang stainless steel hairline blank plate

EGMH31X2

2 gang stainless steel mirror blank plate

69

72

E192030, E192030MI

E1920A30, E1920A30MI

E1920C30, E1920C30MI

E1920F30, E1920F30MI

E192031

E1920A31

E1920C31

E1920R30, E1920R30MI

E1920R30P

E1920AR30, E1920AR30MIE

E1920F31

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E192030

10A toggle surface switch with polished brass cover & porcelain base

E192030MI

10A intermediate surface switch with polished brass cover & porcelain base

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920C30

10A toggle surface switch with chrome cover & porcelain base

E1920C30MI

10A intermediate surface switch with chrome cover & porcelain base

E1920A30

10A toggle surface switch with antique brass cover & porcelain base

E1920A30MI

10A intermediate surface switch with antique brass cover & porcelain base

E1920F30

10A toggle surface switch with fl orentine bronze cover & porcelain base

E1920F30MI

10A intermediate surface switch with fl orentine bronze cover & porcelain base

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E192031

10A 30 Series surface grid assembly with polished brass cover & porcelain base

E1920A31

10A 30 Series surface grid assembly with antique brass cover & porcelain base

E1920C31

10A 30 Series surface grid assembly with chrome cover & porcelain base

E1920F31

10A 30 Series surface grid assembly with fl orentine bronze cover & porcelain base

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920R30

10A toggle surface switch with ribbed polished brass cover & porcelain base

E1920R30MI

10A intermediate surface switch with ribbed polished brass cover

& porcelain base

E1920R30P

10A 2 way toggle surface switch with ribbed polished brass cover, brown dolly & porcelain base

E1920AR30

10A toggle surface switch with ribbed antique brass cover & porcelain base

E1920AR30MI

10A intermediate surface switch with ribbed antique brass cover & porcelain base

E1920CR30, E1920CR30MI E1920S30, E1920S30MI E1920SC30, E1920SC30MI E1920SR30, E1920SR30MI

E1920FR30, E1920FR30MI

E1920SA30, E1920SA30MI

E1920SF30, E1920SF30MI E1920SAR30, E1920SAR30MI

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920CR30

10A toggle surface switch with ribbed chrome cover & porcelain base

E1920CR30MI

10A intermediate surface switch with ribbed chrome cover & porcelain base

E1920FR30

10A toggle surface switch with ribbed fl orentine bronze cover & porcelain base

E1920FR30MI

10A intermediate surface switch with ribbed fl orentine bronze cover & porcelain base

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920S30

10A shallow surface switch with polished brass cover

E1920S30MI

10A shallow intermediate surface switch with polished brass cover

E1920SA30

10A shallow surface switch with antique brass cover

E1920SA30MI

10A shallow intermediate surface switch with antique brass cover

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920SC30

10A shallow surface switch with chrome cover

E1920SC30MI

10A shallow intermediate surface switch with chrome cover

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920SR30

10A shallow surface switch with ribbed polished brass cover

E1920SR30MI

10A shallow intermediate surface switch with ribbed polished brass cover

E1920SF30

10A shallow surface switch with fl orentine bronze cover

E1920SF30MI

10A shallow intermediate surface switch with fl orentine bronze cover

E1920SAR30

10A shallow surface switch with ribbed antique brass cover

E1920SAR30MI

10A shallow intermediate surface switch with ribbed antique brass cover

73

74

E1920SRC30, E1920SRC30MI

E1920SFR30, E1920SFR30MI

E192030MD

E1920A30MD

E1920C30MD

E1920R30MD

E1920AR30MD

E1920CR30MD

E1920S30MD

E1920SA30MD

E1920SC30MD

E1920F30MD E1920FR30MD E1920SF30MD

10A SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920SRC30

10A shallow surface switch with ribbed chrome cover

E1920SRC30MI

10A shallow intermediate surface switch with ribbed chrome cover

10A DP SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E192030MD

10A DP surface switch with polished brass cover & porcelain base

E1920SFR30

10A shallow surface switch with ribbed fl orentine bronze cover

E1920SFR30MI

10A shallow intermediate surface switch with ribbed fl orentine bronze cover

E1920A30MD

10A DP surface switch with antique brass cover & porcelain base

E1920C30MD

10A DP surface switch with chrome cover & porcelain base

E1920F30MD

10A DP surface switch with fl orentine bronze cover & porcelain base

10A DP SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920R30MD

10A DP surface switch with ribbed polished brass cover & porcelain base

10A DP SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920S30MD

10A shallow DP surface switch with polished brass cover

E1920AR30MD

10A DP surface switch with ribbed antique brass cover & porcelain base

E1920SA30MD

10A shallow DP surface switch with antique brass cover

E1920CR30MD

10A DP surface switch with ribbed chrome cover & porcelain base

E1920SC30MD

10A shallow DP surface switch with chrome cover

E1920SF30MD

10A shallow DP surface switch with fl orentine bronze cover

E1920FR30MD

10A DP surface switch with ribbed fl orentine bronze cover & porcelain base

E1920SR30MD

E1920SAR30MD

E1920SRC30MD

E1920343

E1920A343

E1920C343

E192030MBPR

E1920A30MBPR

E1920C30MBPR

E1920R30MBPR

E1920AR30MBPR

E1920CR30MBPR

E1920SFR30MD E1920F343 E1920F30MBPR E1920FR30MBPR

10A DP SURFACE

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920SR30MD

10A shallow DP surface switch with ribbed polished brass cover

E1920SAR30MD

10A shallow DP surface switch with ribbed antique brass cover

E1920SRC30MD

10A shallow DP surface switch with ribbed chrome cover

E1920SFR30MD

10A shallow DP surface switch with ribbed fl orentine bronze cover

10A CEILING SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920343

10A pullcord ceiling switch

(2 way) with polished brass cover

10A BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E192030MBPR

10A bell press return surface switch with polished brass cover

& porcelain base

E1920A343

10A pullcord ceiling switch

(2 way) with antique brass cover

10A BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920R30MBPR

10A bell press return surface switch with ribbed polished brass cover & porcelain base

E1920A30MBPR

10A bell press return surface switch with antique brass cover & porcelain base

E1920AR30MBPR

10A bell press return surface switch with ribbed antique brass cover & porcelain base

E1920C343

10A pullcord ceiling switch

(2 way) with chrome cover

E1920C30MBPR

10A bell press return surface switch with chrome cover & porcelain base

E1920CR30MBPR

10A bell press return surface switch with ribbed chrome cover

& porcelain base

E1920F343

10A pullcord ceiling switch

(2 way) with fl orentine bronze cover

E1920F30MBPR

10A bell press return surface switch with fl orentine bronze cover & porcelain base

E1920FR30MBPR

10A bell press return surface switch with ribbed fl orentine bronze cover & porcelain base

75

76

E1920S30MBPR

E1920SA30MBPR

E1920SC30MBPR

E1920400F

E1920A400F

E1920C400F

E1920R400F

E1920AR400F

E1920CR400F

E1920S500F

E1920SR500F

E1920SF30MBPR E1920F400F E1920FR400F

10A BELL SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

E1920S30MBPR

10A shallow bell press return surface switch with polished brass cover

FAN CONTROL

SWITCHES

(Designed to BS5518,

EMC compliant)

E1920400F

400VA fan control with polished brass cover & porcelain base

E1920SA30MBPR

10A shallow bell press return surface switch with antique brass cover

E1920A400F

400VA fan control with antique brass cover & porcelain base

E1920SC30MBPR

10A shallow bell press return surface switch with chrome cover

E1920C400F

400VA fan control with chrome cover & porcelain base

E1920SF30MBPR

10A shallow bell press return surface switch with fl orentine bronze cover

E1920F400F

400VA fan control with fl orentine bronze cover & porcelain base

FAN CONTROL

SWITCHES

(Designed to BS5518,

EMC compliant)

E1920R400F

400VA fan control with ribbed polished brass cover & porcelain base

E1920AR400F

400VA fan control with ribbed antique brass cover & porcelain base

E1920CR400F

400VA fan control with ribbed chrome cover & porcelain base

E1920FR400F

400VA fan control with ribbed fl orentine bronze cover & porcelain base

FAN CONTROL

SWITCHES

(Designed to BS5518,

EMC compliant)

E1920S500F

500VA shallow base fan control with polished brass cover

E1920SR500F

500VA shallow base fan control with ribbed polished brass cover

E1920450L, E1920450LLV E1920C400, E1920C400LV E1920R400, E1920R400LV E1920CR400, E1920CR400LV

E1920A450L, E1920A450LLV E1920F400, E1920F400LV E1920AR400, E1920AR400LV E1920FR400, E1920FR400LV

DIMMER SWITCHES

(Designed to BS5518,

EMC compliant)

E1920450L

450W dimmer with polished brass cover & porcelain base

E1920450LLV

450W low voltage dimmer with polished brass cover & porcelain base

DIMMER SWITCHES

(Designed to BS5518,

EMC compliant)

E1920C400

400W dimmer with chrome cover

& porcelain base

E1920C400LV

400W low voltage dimmer with chrome cover & porcelain base

E1920A450L

450W dimmer with antique brass cover & porcelain base

E1920A450LLV

450W low voltage dimmer with antique brass cover & porcelain base

E1920F400

400W dimmer with fl orentine bronze cover & porcelain base

E1920F400LV

400W low voltage dimmer with fl orentine bronze cover & porcelain base

DIMMER SWITCHES

(Designed to BS5518,

EMC compliant)

E1920R400

400W dimmer with ribbed polished brass cover & porcelain base

E1920R400LV

400W low voltage dimmer with ribbed polished brass cover & porcelain base

DIMMER SWITCHES

(Designed to BS5518,

EMC compliant)

E1920CR400

400W dimmer with ribbed chrome cover & porcelain base

E1920CR400LV

400W low voltage dimmer with ribbed chrome cover & porcelain base

E1920AR400

400W dimmer with ribbed antique brass cover & porcelain base

E1920AR400LV

400W low voltage dimmer with ribbed antique brass cover & porcelain base

E1920FR400

400W dimmer with ribbed fl orentine bronze cover & porcelain base

E1920FR400LV

400W low voltage dimmer with ribbed fl orentine bronze cover & porcelain base

77

78

E1920S450L, E1920S450LLV E1920ES13 BS E1920STV75 BS E1920SRTV75 BS

E1920SR450L, E1920SR450LLV E1920ES13 AB

E1920ES13 CH

E1920STV75 AB

E1920STV75 CH

E1920SRTV75 AB

E1920SRTV75 CH

E1920ES13 FB E1920STV75 FB E1920SRTV75 FB

DIMMER SWITCHES

(Designed to BS5518,

EMC compliant)

E1920S450L

450W surface mounted shallow base dimmer with polished brass cover

E1920S450LLV

450W low voltage shallow base dimmer with ribbed polished brass cover

10A SOCKET OUTLETS

(Designed to BS1363, MS589,

SS227)

E1920ES13 BS

13A surface socket outlet with polished brass cover

E1920ES13 AB

13A surface socket outlet with antique brass cover

E1920ES13 CH

13A surface socket outlet with chrome cover

E1920SR450L

450W surface mounted shallow base dimmer with ribbed chrome cover

E1920SR450LLV

450W low voltage shallow base dimmer with ribbed chrome cover

E1920ES13 FB

13A surface socket outlet with fl orentine bronze cover

75 OHM TV OUTLETS

E1920STV75 BS

75 ohm surface mount TV outlet with polished brass cover

75 OHM TV SOCKET

OUTLETS

E1920SRTV75 BS

75 ohm surface mount TV socket outlet with ribbed polished brass cover

E1920STV75 AB

75 ohm television surface socket switch with antique brass cover

E1920STV75 CH

75 ohm television surface socket switch with chrome cover

E1920SRTV75 AB

75 ohm TV surface socket outlet with ribbed antique brass cover

E1920SRTV75 CH

75 ohm TV surface socket outlet with ribbed chrome cover

E1920STV75 FB

75 ohm television surface socket switch with fl orentine bronze cover

E1920SRTV75 FB

75 ohm TV surface socket outlet with ribbed fl orentine bronze cover

E1920MB1-NH

E1920MB1

E1920MB42-NH

E1920MB42

E1920MB2-NH

E1920MB2

E1920MB2L

E1920MB

MOUNTING BLOCKS

E1920MB1-NH

Classic range timber mounting block. 1 gang 90x90mm, square, blank (no holes).

MOUNTING BLOCKS

E1920MB42-NH

Classic range timber mounting block. 4 gang 155x155mm, square, blank (no holes).

E1920MB1

Classic range timber mounting block. 1 gang 90x90mm, square

E1920MB42

Classic range timber mounting block. 4 gang 155x155mm, square

MOUNTING BLOCKS

E1920MB2-NH

Classic range timber mounting block. 2 gang 90x155mm, rectangular, blank.

E1920MB2L

Classic range timber mounting block. 2 gang 90x155mm, with large hole for dimmer

E1920MB2

Classic range timber mounting block. 2 gang 90x155mm, rectangular.

MOUNTING BLOCKS

E1920MB

Classic range timber mounting block. 150x107mm, mounting centres 84 mm

79

80

E1920MB3-NH

E1920MB4-NH

E1920MB3

E1920MB4

E1920MBR-NH

E1920MB2OV-NH

E1920MB2OV

MOUNTING BLOCKS

E1920MB3-NH

Classic range timber mounting block. 3 gang 90x255mm, rectangular, blank.

E1920MB4-NH

Classic range timber mounting block. 4 gang 90x280mm, rectangular, blank.

MOUNTING BLOCKS

E1920MB3

Classic range timber mounting block. 3 gang 90x255mm, rectangular.

E1920MB4

Classic range timber mounting block. 4 gang 90x280mm, rectangular.

MOUNTING BLOCKS

E1920MBR-NH

Classic range timber mounting block. 1 gang 88mm diameter, blank (no holes).

MOUNTING BLOCKS

E1920MB2OV-NH

Classic range timber mounting block. 2 gang 90x155mm, oval type, blank (no holes).

E1920MB2OV

Classic range timber mounting block. 2 gang 90x155mm, oval type.

84

ESM3112A, ESM3123A,

ESM3115A, ESM3120A

ESM3212A, ESM3223A ESM3312A, ESM3323A

ESM3412A, ESM3423A

ESM31D20A

ESM32D20NA

10A, 15A & 20A

SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ESM3112A

10A ac 1 gang 1 way 2 terminal surface mounted switch

ESM3123A

10A ac 1 gang 2 way 3 terminal surface mounted switch

ESM3115A

15A 1 gang 2 way 4 terminal switch

ESM3120A

20A 1 gang 2 way 4 terminal switch

10A SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ESM3212A

10A ac 2 gang 1 way 2 terminal surface mounted switch

ESM3223A

10A ac 2 gang 2 way 3 terminal surface mounted switch

10A SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ESM3312A

10A 3 gang 1 way 2 terminal surface mounted switch

ESM3323A

10A 3 gang 2 way 3 terminal surface mounted switch

ESM3412A

10A ac 4 gang 1 way 2 terminal surface mounted switch

ESM3423A

10A ac 4 gang 2 way 3 terminal surface mounted switch

20A DP SWITCHES

(Designed to IEC60669-1,

MS616, SS227)

ESM31D20A

20A DP switch

ESM32D20NA

20A DP switch with neon

ESM15

ESM1515

ESM25

ESM31FSA

ESM32FSA

ESM32FSHDA

ESM31

ESM32

ESM34

ESM32FSNA

13A & 15A SWITCHED

SOCKET OUTLETS

ESM15

13A ac 1 gang switched socket outlet

(Designed to BS1363, MS589,

SS145)

ESM1515

15A ac 1gang switched socket outlet

(Designed to BS546, SS472)

ESM25

13A ac 2 gang switched socket outlet

(Designed to BS1363, MS589,

SS145)

10A & 13A FUSED

CONNECTION UNITS

(Designed to British Standard)

ESM31FSA

13A 1 gang 30FS fused connection unit

(Designed to BS1363)

MOUNTING GRIDS

(Designed to BS5733)

ESM31

1 gang grid with epoxy powder coated metal plate & box

ESM32FSA

10A 2 gang grip with 2 way 4 terminal switch & 30FS fused connection unit

ESM32FSHDA

2 gang grip with 30FS fused connection unit & 30HD cord grip

ESM32

2 gang grid with epoxy powder coated metal plate & box

ESM34

4 gang grid with epoxy powder coated metal plate & box

ESM32FSNA

2 gang grip with 30FS connection unit & 30N red neon

85

CSS116, CSS120, CSS125,

CSS132, CSS140

CSS116N, CSS120N, CSS125N,

CSS132N, CSS140N

CSS216, CSS220, CSS225,

CSS232, CSS240

CSS216N, CSS220N, CSS225N,

CSS232N, CSS240N

88

IP66 16A, 20A, 25A, 32A

& 40A SURFACE MOUNT

ISOLATORS

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS116

16A 250V surface mount isolator

CSS120

20A 250V surface mount isolator

CSS125

25A 250V surface mount isolator

CSS132

32A 250V surface mount isolator

CSS140

40A 250V surface mount isolator

IP66 16A, 20A, 25A, 32A

& 40A SURFACE MOUNT

ISOLATORS WITH NEON

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS116N

16A 250V surface mount isolator with neon

CSS120N

20A 250V surface mount isolator with neon

CSS125N

25A 250V surface mount isolator with neon

CSS132N

32A 250V surface mount isolator with neon

CSS140N

40A 250V surface mount isolator with neon

IP66 16A, 20A, 25A, 32A

& 40A DP SURFACE

MOUNT ISOLATORS

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS216

16A 500V DP surface mount isolator

CSS220

20A 500V DP surface mount isolator

CSS225

25A 500V DP surface mount isolator

CSS232

32A 500V DP surface mount isolator

CSS240

40A 500V DP surface mount isolator

IP66 16A, 20A, 20A, 32A

& 40A DP SURFACE

MOUNT ISOLATORS

WITH NEON

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS216N

16A 500V DP surface mount isolator with neon

CSS220N

20A 500V DP surface mount isolator with neon

CSS225N

25A 500V DP surface mount isolator with neon

CSS232N

32A 500V DP surface mount isolator with neon

CSS240N

40A 500V DP surface mount isolator with neon

CSS316, CSS320, CSS325,

CSS332, CSS340

CSS316N, CSS320N, CSS325N,

CSS332N, CSS340N

CSW110, CSW110BPR,

CSW120, CSW120

CSW110N, CSW110BPRN, SW120N,

CSW120N

CSW1102, CSW1202, CSW1202 CSW1102N, CSW1202N, CSW1202N

IP66 16A, 20A, 25A, 32A

& 40A TP SURFACE

MOUNT ISOLATORS

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS316

16A 500V TP surface mount isolator

CSS320

20A 500V TP surface mount isolator

CSS325

25A 500V TP surface mount isolator

CSS332

32A 500V TP surface mount isolator

CSS340

40A 500V TP surface mount isolator

IP66 16A, 20A, 25A, 32A

& 40A TP SURFACE

MOUNT ISOLATORS

WITH NEON

- CSS SERIES

(Designed to IEC60529,

IEC60947-3)

CSS316N

16A 500V TP surface mount isolator with neon

CSS320N

20A 500V TP surface mount isolator with neon

CSS325N

25A 500V TP surface mount isolator with neon

CSS332N

32A 500V TP surface mount isolator with neon

CSS340N

40A 500V TP surface mount isolator with neon

IP66 10A, 16A & 20A

SURFACE MOUNT

SWITCHES

- CSW SERIES

(Designed to IEC60669-1,

IEC60529)

CSW110

10A 250V 1 gang 2 way surface mount switch with looping terminal

CSW110BPR

10A 250V 1 gang 2 way surface mount bell press switch with looping terminal

CSW120

16A 250V 1 gang 2 way surface mount switch with looping terminal

CSW120

20A 250V 1 gang 2 way surface mount switch with looping terminal

CSW1102

10A 250V 2 gang 2 way surface mount switch with looping terminal

CSW1202

16A 250V 2 gang 2 way surface mount switch with looping terminal

CSW1202

20A 250V 2 gang 2 way surface mount switch with looping terminal

IP66 10A, 16A & 20A

SURFACE MOUNT

SWITCHES WITH NEON

- CSW SERIES

(Designed to IEC60669-1,

IEC60529)

CSW110N

10A 250V 1 gang 2 way surface mount switch with looping terminal with neon

CSW110BPRN

10A 250V 1 gang 2 way surface mount bell press switch with lopping terminal with neon

CSW120N

16A 250V 1 gang 2 way surface mount switch with looping terminal with neon

CSW120N

20A 250V 1 gang 2 way surface mount switch with looping terminal with neon

CSW1102N

10A 250V 2 gang 2 way surface mount switch with looping terminal with neon

CSW1202N

16A 250V 2 gang 2 way surface mount switch with looping terminal with neon

CSW1202N

20A 250V 2 gang 2 way surface mount switch with looping terminal with neon

89

90

CSW220

CSW2202

CSW220N

CSW2202N

CS0313, CSO315RP, CSO316RP

CSC313, CSC315RP, CSC316RP

IP66 20A DP SURFACE

MOUNT SWITCHES

- CSW SERIES

(Designed to IEC60669-1,

IEC60529)

CSW220

20A 500V 1 gang DP surface mount isolator switch

CSW2202

20A 500V 2 gang DP surface mount isolator switch

IP66 20A DP SURFACE

MOUNT SWITCHES WITH

NEON

- CSW SERIES

(Designed to IEC60669-1,

IEC60529)

CSW220N

20A 500V 1 gang DP surface mount isolator switch with neon

CSW2202N

20A 500V 2 gang DP surface mount isolator switch with neon

IP56 13A, 15A &16A

SURFACE MOUNT

SOCKET OUTLETS

- CSO SERIES

CS0313

13A 250V surface mount socket outlet

(Designed to BS1363-2,

IEC60529)

CSO3132

13A 250V surface mount twin socket outlet

(Designed to BS1363-2)

CSO315RP

15A 250V surface mount socket outlet

(Designed to BS546, IEC60529)

CSO316RP

16A 250V surface mount socket outlet

(Designed to IS1293, IEC60529)

IP56 13A, 15A & 16A

SURFACE MOUNT

SWITCHED SOCKET

OUTLETS

- CSC SERIES

CSC313

13A single pole switched socket outlet

(Designed to BS1363-2,

IEC60529)

CSC315RP

15A single pole switched socket outlet

(Designed to BS546, IEC60529)

CSC316RP

16A single pole switched socket outlet

(Designed to IS1293, IEC60529)

E551US

CSC313N, CSC315RPN, CSC316RPN CSC313D, CSC315RPD, CSC316RPD CSC313DN, CSC315RPDN,

CSC316RPDN

E552US

IP56 13A, 15A & 16A

SURFACE MOUNT

SWITCHED SOCKET

OUTLETS WITH NEON

- CSC SERIES

CSC313N

13A single pole switched socket outlet with neon

(Designed to BS1363-2,

IEC60529)

CSC315RPN

15A single pole switched socket outlet with neon

(Designed to BS546, IEC60529)

CSC316RPN

16A single pole switched socket outlet with neon

(Designed to IS4615, IEC60529)

IP56 13A, 15A & 16A

DP SURFACE MOUNT

SWITCHED SOCKET

OUTLETS

- CSC SERIES

CSC313D

13A DP surface mount switched socket outlet

(Designed to BS1363-2,

IEC60529)

CSC315RPD

15A DP surface mount switched socket outlet

(Designed to BS546, IEC60529)

CSC316RPD

16A DP surface mount switched socket outlet

(Designed to IS4615, IEC60529)

IP56 13A, 15A & 16A

DP SURFACE MOUNT

SWITCHED SOCKET

OUTLETS WITH NEON

- CSC SERIES

CSC313DN

13A DP surface mount switched socket outlet with neon

(Designed to BS1363-2,

IEC60529)

CSC315RPDN

15A DP surface mount switched socket outlet with neon

(Designed to BS546, IEC60529)

CSC316RPDN

16A DP surface mount switched socket outlet with neon

(Designed to IS4615, IEC60529)

IP55 13A SOCKETS

E551US

IP55 230V 13A 1 gang unswitched socket

E551SS

IP55 230V 13A 1 gang switched socket

E552US

IP55 230V 13A 2 gang unswitched socket

91

E5512S E55CB

56SW110, 56SW110HD, 56SW1102,

56SW110I, 56SW115, 56SW115HD,

56SW1152

56SW120, 56SW132, 56SW150,

56SW163

E5522S

IP 20AX SWITCH

E5512S

IP55 20AX 1 gang 2 way switch

E5522S

IP55 20AX 2 gang 2 way switch

E55PB

IP55 20AX push button

ACCESSORIES

E55CB

Connection box

E55GP

Grommet (pack of 10)

E55BC

Box coupler

IP66 10A & 15A

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW110

10A 250V 1 gang 1 way 3 terminal surface rotary switch

56SW110HD

10A 250V 1 gang surface rotary switch

56SW1102

10A 250V 1 gang 2 way 4 terminal surface rotary switch

56SW110I

10A 250V 1 gang surface rotary switch

56SW115

15A 250V 1 gang 1 way 3 terminal surface rotary switch

56SW115HD

15A 250V 1 gang surface rotary switch

56SW1152

15A 250V 1 gang 2 way 4 terminal surface rotary switch

IP66 20A, 32A, 50A & 63A

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW120

20A 250V 1 gang surface rotary switch

56SW132

32A 250V 1 gang surface rotary switch

56SW150

50A 250V 1 gang surface rotary switch

56SW163

63A 250V 1 gang surface rotary switch

92

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

56SW220, 56SW232, 56SW250,

56SW263

56SW310, 56SW320, 56SW320C,

56SW332, 56SW332C

56SW350, 56SW350C, 56SW363

56SW3632

56SW420

IP66 20A, 32A, 50A & 63A

DP SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW220

20A 500V 1 gang DP surface rotary switch

56SW232

32A 500V 1 gang DP surface rotary switch

56SW250

50A 500V 1 gang DP surface rotary switch

56SW263

63A 500V 1 gang DP surface rotary switch

IP66 10A, 20A & 32A TP

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW310

10A 500V 1 gang TP surface rotary switch

56SW320

20A 500V 1 gang TP surface rotary switch

56SW320C

20A 500V 1 gang TP surface rotary switch with 2A control circuit

56SW332

32A 500V 1 gang TP surface rotary switch

56SW332C

32A 500V 1 gang TP surface rotary switch with 2A control circuit

IP66 50A & 63A TP

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW350

50A 500V 1 gang TP surface rotary switch

56SW350C

50A 500V 1 gang TP surface rotary switch with 2A control circuit

56SW363

63A 500V 1 gang TP surface rotary switch

56SW3632

63A 500V 1 gang TP surface rotary switch with 2 gang enclosure

IP66 20A FOUR POLE

SURFACE SWITCH

(Designed to IEC60669-1,

IEC60529)

56SW420

20A 440V 1 gang 4 pole surface rotary switch

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

93

56K1SW115, 56K1SW120, 56K1SW132,

56K1SW150

56K1SW220, 56K1SW232, 56K1SW250

56K1SW310, 56K1SW320, 56K1SW332,

56K1SW350

56K2SW115, 56K2SW120, 56K2SW132,

56K2SW150

IP66 15A, 20A, 32A &

50A KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K1SW115

15A 250V key operated switch

56K1SW120

20A 250V key operated switch

56K1SW132

32A 250V key operated switch

56K1SW150

50A 250V key operated switch

* For locking in the ‘OFF’ position only

IP66 20A, 32A & 50A

DP KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K1SW220

20A 500V DP key operated switch

56K1SW232

32A 500V DP key operated switch

56K1SW250

50A 500V DP key operated switch

* For locking in the ‘OFF’ position only

IP66 10A, 20A, 32A &

50A TP KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K1SW310

10A 500V TP key operated switch

56K1SW320

20A 500V TP key operated switch

56K1SW332

32A 500V TP key operated switch

56K1SW350

50A 500V TP key operated switch

* For locking in both ‘ON’ & ‘OFF’ position only

IP66 15A, 20A, 32A &

50A KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K2SW115

15A 250V key operated switch

56K2SW120

20A 250V key operated switch

56K2SW132

32A 250V key operated switch

56K2SW150

50A 250V key operated switch

* For locking in both ‘ON’ & ‘OFF’ position only

94

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

56K2SW220, 56K2SW232, 56K2SW250 56K2SW310, 56K2SW320, 56K2SW332,

56K2SW350

56K1SW115MS, 56K1SW132MS,

56K1SW310MS

56K2SW115MS, 56K2SW132MS,

56K2SW310MS

IP66 20A, 32A & 50A

DP KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K2SW220

20A 500V DP key operated switch

56K2SW232

32A 500V DP key operated switch

56K2SW250

50A 500V DP key operated switch

* For locking in both ‘ON’ & ‘OFF’ position only

IP66 10A, 20A, 32A &

50A TP KEY OPERATED

STANDARD SECURITY

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K2SW310

10A 500V TP key operated switch

56K2SW320

20A 500V TP key operated switch

56K2SW332

32A 500V TP key operated switch

56K2SW350

50A 500V TP key operated switch

* For locking in both ‘ON’ & ‘OFF’ position only

IP66 10A, 15A & 32A KEY

OPERATED MEDIUM

SECURTY SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K1SW115MS

15A 250V key operated switch

56K1SW132MS

32A 250V key operated switch

56K1SW310MS

10A 500V TP key operated switch

IP66 10A, 15A & 32A KEY

OPERATED MEDIUM

SECURTY SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K2SW115MS

15A 250V key operated switch

56K2SW132MS

32A 250V key operated switch

56K2SW310MS

10A 500V TP key operated switch

* For locking in the ‘OFF’ position only

* For locking in both ‘ON’ & ‘OFF’ position only

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

95

56K1SW115HS, 56K1SW132HS,

56K1SW310HS

56SWH325, 56SWH340, 56SWH363,

56SWH380

56SWH425, 56SWH440, 56SWH463

M56SW110HD, M56SW120, M56SW132,

M56SW150, M56SW163

IP66 10A, 15A & 32A

KEY OPERATED HIGH

SECURTY SWITCHES

(Designed to IEC60669-1,

IEC60529)

56K1SW115HS

15A 250V key operated switch

56K1SW132HS

32A 250V key operated switch

56K1SW310HS

10A 500V TP key operated switch

* For locking in the ‘OFF’ position only

IP56 25A, 40A, 63A &

80A TP HEAVY - DUTY

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SWH325

25A 500V TP heavy - duty surface switch

56SWH340

40A 500V TP heavy - duty surface switch

56SWH363

63A 500V TP heavy - duty surface switch

56SWH380

80A 500V TP heavy - duty surface switch

IP56 25A, 40A & 63A

FOUR POLE HEAVY

- DUTY SURFACE

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SWH425

25A 500V 4 pole heavy - duty surface switch

56SWH440

40A 500V 4 pole heavy - duty surface switch

56SWH463

63A 500V 4 pole heavy - duty surface switch

M56 SERIES - 10A,

20A, 32A, 50A & 63A

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

M56SW110HD

10A 250V surface switch

M56SW120

20A 250V surface switch

M56SW132

32A 250V surface switch

M56SW150

50A 250V surface switch

M56SW163

63A 250V surface switch

96

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

M56SW220, M56SW232, M56SW250,

M56SW263

M56SW310, M56SW320, M56SW332,

M56SW350A, M56SW350B,

M56SW363A, M56SW363B

M56SW420, M56SW432 56SW220CO

56SW420CO

M56 SERIES - 20A, 32A,

50A & 63A DP SURFACE

SWITCHES

(Designed to IEC60669-1,

IEC60529)

M56SW220

20A 500V DP surface switch

M56SW232

32A 500V DP surface switch

M56SW250

50A 500V DP surface switch

M56SW263

63A 500V DP surface switch

M56 SERIES - 10A,

20A, 32A, 50A & 63A TP

SURFACE SWITCHES

(Designed to IEC60669-1,

IEC60529)

M56SW310

10A 500V TP surface switch

M56SW320

20A 500V TP surface switch

M56SW332

32A 500V TP surface switch

M56SW350A

50A 500V TP surface switch

M56SW350B

50A 500V TP surface switch

M56SW363A

63A 500V TP surface switch

M56SW363B

63A 500V TP surface switch

M56 SERIES - 20A & 32A

FOUR POLE SURFACE

SWITCHES

(Designed to IEC60669-1,

IEC60529)

M56SW420

20A 500V 4 pole surface switch

M56SW432

32A 500V 4 pole surface switch

IP66 20A CHANGE -

OVER & REVERSING

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56SW220CO

20A 500V DP change - over switch

56SW420CO

20A 500V 4 pole change - over switch

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

97

56SSW10, 56SSW10I

56SSW15

56PB

56PBS

562PB

562PBS1

M56PBS1

56SSW210, 56SSW215 56PBS1

56PBS2

IP56 10A & 15A

SWITCHES WITH

SLIDING SWITCH

DOLLIES

(Designed to IEC60669-1,

IEC60529)

56SSW10

10A 250V single sliding switch

56SSW10I

10A 250V intermediate sliding switch

56SSW15

15A 250V single sliding switch

56SSW210

10A 250V DP double sliding switch

56SSW215

15A 250V DP double sliding switch

IP66 10A PUSH BUTTON

CONTROL STATIONS

(Designed to IEC60669-1,

IEC60529)

56PB

10A 250V start control station with green push button

IP66 10A PUSH BUTTON

CONTROL STATIONS

(Designed to IEC60669-1,

IEC60529)

562PB

10A 250V stopstart control station with a red extended head push button & green fl ush head start button

56PBS

10A 250V stop control station with red push button

56PBS1

10A 250V emergency stop station with mushroom head twist reset & red push button

562PBS1

10A 250V stopstart control station with a red mushroom head push button & green fl ush head start button

M56 10A PUSH BUTTON

(Designed to IEC60669-1,

IEC60529)

M56PBS1

10A 240V emergency stop station with mushroom head twist reset & red push button

56PBS2

10A 250V stop station with mushroom head twist reset & red push button labelled stop only

98

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

56TC, 56TC7 56P21532

56P310RP 56P315RP, 56P320

56TCB, 56TCB7

56P310

56TCDB

56P313

56SWT216

56P315

IP66 10A, 15A & 16A

SURFACE MOUNT TIMER

SWITCHES

(Designed to IEC60669-1,

IEC60529)

56TC

15A 250V 24 hour synchronous surface mount timer

56TC7

15A 250V 7 days synchronous surface mount timer

IP66 10A & 15A 2 PIN

PLUGS

56P21532

15A 250V 2 fl at pin polarised straight plug

(Designed to IEC60529, BS546,

SS227)

IP66 10A, 13A & 15A

3 PIN STRAIGHT PLUGS

56P310RP

10A 250V 3 round pin straight plug

(Designed to Australian Standard)

56P310

10A 250V 3 fl at pin straight plug

(Designed to Australian Standard)

IP66 15A & 20A 3 PIN

STRAIGHT PLUGS

56P315RP

15A 250V 3 pin straight plug

(Designed to IEC60529, BS546,

SS472)

56P320

20A 250V 3 round pin straight plug

(Designed to Australian Standard)

56P313

13A 250V 3 pin straight plug

(Designed to IEC60529, BS1363,

MS616, SS227)

56TCB

15A 250V 24 hour quartz synchronous surface mount timer with battery backup

56TCB7

15A 250V 7 days quartz synchronous surface mount timer with battery backup

56TCDB

10A 250V digital surface mount timer

56SWT216

16A 250V ac DP 2 hour surface mount timer - rated IP56

56P315

15A 250V 3 pin straight plug

(Designed to IEC60529, BS546,

SS472)

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

99

56PA320, 56PA332 56P410, 56P420, 56P432,

56P440, 56P450

66P450, 66P463

56PC, 56PCI

56PC2

M56CP20, M56CP25, M56CP32,

M56CP40

IP66 20A & 32A 3 PIN

ANGLE PLUGS

(Designed to Australian Standard)

56PA320

20A 250V 3 round pin angle plug

56PA332

32A 250V 3 round pin angle plug

IP66 10A, 16A, 20A, 32A,

40A, 50A & 63A 4 PIN

STRAIGHT PLUGS

(Designed to Australian Standard)

56P410

10A 500V 4 round pin straight plug

56P420

20A 500V 4 round pin straight plug

56P432

32A 500V 4 round pin straight plug

56P440

40A 500V 4 round pin straight plug

56P450

50A 500V 4 round pin straight plug

PLUG CAPS

56PC

10A - 20A 3 phase plug cap

56PCI

32A - 50A 3 phase plug cap

56PC2

10A - 20A 1 phase plug cap

66P450

50A 500V 66P series 4 round pin straight plug

66P463

63A 500V 66P series 4 round pin straight plug

M56 CONDUIT PLUGS

M56CP20

20mm conduit plug

M56CP25

25mm conduit plug

M56CP32

32mm conduit plug

M56CP40

40mm conduit plug

100

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

56SC2

56SO313

56SO315, 56SO315RP

56SO320, 56SO332

56SO3164, 56SO3166

56SO3324, 56SO3326

56SO4166, 56SO4326

SOCKET CAPS

56SC2

10A - 15A socket cap

IP66 13A, 15A, 20A & 32A

3 PIN SURFACE SOCKET

OUTLETS

56SO313

13A 250V 1 gang 3 pin surface socket outlet

(Designed to IEC60529, BS1363,

MS589, SS145)

IP66 3 PIN SURFACE

SOCKET OUTLETS

(Designed to IEC60309)

56SO3164

1 gang 3 pin 110130V 16A - 4h surface socket outlet

56SO3166

1 gang 3 pin 220250V 16A - 6h surface socket outlet

56SO315

15A 250V 1 gang 3 pin surface socket outlet

(Designed to IEC60529, BS546,

SS472)

56SO315RP

15A 250V 1 gang 3 pin surface socket outlet

(Designed to IEC60529, BS546,

SS472)

56SO3324

1 gang 3 pin 110130V 32A - 4h surface socket outlet

56SO3326

1 gang 3 pin 220250V 16A - 6h surface socket outlet

56SO320

20A 250V 1 gang 3 pin surface socket outlet

(Designed to IEC60529)

56SO332

32A 250V 1 gang 3 pin surface socket outlets

(Designed to IEC60529)

IP66 4 PIN SURFACE

SOCKET OUTLETS

(Designed to IEC60309)

56SO4166

1 gang 4 pin 380415V 16A - 6h surface socket outlet

56SO4326

1 gang 4 pin 380415V 32A - 6h surface socket outlet

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

101

56SO5166, 56SO5326

56C313H2

56C315RP2

56C313

56C315RPH2

56C3132

56C315RP

56C320, 56C332

IP66 5 PIN SURFACE

SOCKET OUTLETS

(Designed to IEC60309)

56SO5166

1 gang 5 pin 380415V 16A - 6h surface socket outlet

56SO5326

1 gang 5 pin 380415V 32A - 6h surface socket outlet

IP66 13A 3 PIN

COMBINATION SURFACE

SWITCHED SOCKET

OUTLETS

(Designed to IEC60529, BS1363,

MS589, SS145)

56C313

13A 250V 1 gang 3 pin combination surface switched socket outlet

IP66 13A & 15A 3 PIN

COMBINATION SURFACE

SWITCHED SOCKET

OUTLETS

56C313H2

13A 250V 2 gang 3 pin combination surface switched socket outlet

(Horizontal mounting)

(Designed to IEC60529, BS1363,

MS589, SS145)

56C3132

13A 250V 2 gang 3 pin combination surface switched socket outlet

56C315RP

15A 250V 1 gang 3 pin combination surface switched socket outlet

(Designed to IEC60529, BS546,

SS472)

IP66 15A, 20A & 32A

3 PIN COMBINATION

SWITCHED SOCKET

OUTLETS

56C315RP2

15A 250V 2 gang 3 pin combination surface switched socket outlet

(Designed to IEC60529, BS546,

SS472)

56C315RPH2

15A 250V 2 gang 3 pin combination surface switched socket outlet

(Horizontal mounting)

(Designed to IEC60529, BS546,

SS472)

56C320

20A 250V 1 gang 3 pin combination surface switched socket outlet

(Designed to IEC60529)

56C332

32A 250V 1 gang 3 pin combination surface switched socket outlet

(Designed to IEC60529)

102

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

56C410, 56C420, 56C432,

56C440, 56C450

56C510, 56C520, 56C532,

56C540, 56C550

56C3134EL, 56C31324ELGY

56C3154EL

56C315RP4EL

IP66 10A, 20A, 32A,

40A & 50A 4 PIN

COMBINATION

SWITCHED SOCKET

OUTLETS

(Designed to IEC60529)

56C410

10A 500V 1 gang 4 pin combination surface switched socket outlet

56C420

20A 500V 1 gang 4 pin combination surface switched socket outlet

56C432

32A 500V 1 gang 4 pin combination surface switched socket outlet

56C440

40A 500V 1 gang 4 pin combination surface switched socket outlet

56C450

50A 500V 1 gang 4 pin combination surface switched socket outlet

IP66 10A, 20A, 32A,

40A & 50A 5 PIN

COMBINATION

SWITCHED SOCKET

OUTLETS

(Designed to IEC60529)

56C510

10A 500V 1 gang 5 pin combination surface switched socket outlet

56C520

20A 500V 1 gang 5 pin combination surface switched socket outlet

56C532

32A 500V 1 gang 5 pin combination surface switched socket outlet

56C540

40A 500V 1 gang 5 pin combination surface switched socket outlet

56C550

50A 500V 1 gang 5 pin combination surface switched socket outlet

IP56 13A 3 PIN

COMBINATION SOCKET

OUTLETS WITH RCD

PROTECTION

(Designed to IEC60529,

BSEN61008)

56C3134EL

13A 250V 1 gang 3 pin combination surface socket outlet with RCD protection

56C31324ELGY

13A 250V 2 gang 3 pin combination surface socket outlet with RCD protection

* Tripping sensitivity : 30mA

IP56 15A 3 PIN

COMBINATION SOCKET

OUTLETS WITH RCD

PROTECTION

(Designed to IEC60529,

BSEN61008)

56C3154EL

15A 250V 1 gang 3 pin combination surface socket outlet with RCD protection

56C315RP4EL

15A 250V 1 gang 3 pin combination surface socket outlet with RCD protection

(Designed to BS546)

*Tripping sensitivity : 30mA

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

103

56C420RC, 56C432RC

66CV450, 66CV463, 66CV550,

66CV750, 66CV563, 66CV763

56DOL9, 56DOL12, 56DOL16

56ROL9, 56ROL12, 56ROL16

56ROL22, 56ROL32, 56ROL38

56DOL22, 56DOL32, 56DOL38

56C520RC, 56C532RC

IP56 20A & 32A 4 PIN

& 5 PIN COMBINATION

SOCKET OUTLETS

WITH RCD PROTECTION

(Designed to IEC60529,

BSEN61008)

56C420RC

20A 500V 1 gang 4 pin combination surface socket outlet with RCD protection

56C432RC

32A 500V 1 gang 4 pin combination surface socket outlet with RCD protection

56C520RC

20A 500V 1 gang 5 pin combination surface socket outlet with RCD protection

56C532RC

32A 500V 1 gang 5 pin combination surface socket outlet with RCD protection

*Tripping sensitivity : 30mA

IP66 66CV SWITCHED

SOCKET OUTLETS

(Designed to IEC60529)

66CV450

50A 500V TP 4 round pin switched socket outlet

66CV463

63A 500V TP 4 round pin switched socket outlet

66CV550

50A 500V 4 pole 5 pin switched socket outlet

66CV563

63A 500V 4 pole 5 pin switched socket outlet

66CV750

50A 500V 4 pole 7 pin switched socket outlet

66CV763

63A 500V 4 pole 7 pin switched socket outlet

IP66 MOTOR STARTERS

- 56 DOL RANGE

(Designed to IEC60529)

56DOL9

Direct online motor starter, 9A

AC3 rated, 16A AC1 rated. 4.0kW at 415V

56DOL12

Direct online motor starter, 12A

AC3 rated, 25A AC1 rated. 5.5kW at 415V

56DOL16

Direct online motor starter, 16A

AC3 rated, 36A AC1 rated. 7.5kW at 415V

56DOL22

Direct online motor starter, 25A

AC3 rated, 40A AC1 rated. 11kW at 415V

56DOL32

Direct online motor starter, 32A

AC3 rated, 55A AC1 rated. 15kW at 415V

56DOL38

Direct online motor starter, 38A

AC3 rated, 60A AC1 rated.

18.5kW at 415V

IP66 MOTOR STARTERS

- 56 ROL RANGE

(Designed to IEC60529)

56ROL9

Reversing motor starter, rated 3 phase. 4.0kW at 415V

56ROL12

Reversing motor starter, rated 3 phase. 5.5kW at 415V

56ROL16

Reversing motor starter, rated 3 phase. 7.5kW at 415V

56ROL22

Reversing motor starter, rated 3 phase. 11kW at 415V

56ROL32

Reversing motor starter, rated 3 phase. 15kW at 415V

56ROL38

Reversing motor starter, rated 3 phase. 18.5kW at 415V

104

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

5632

56JB1

56YD9 56E1

56ES1

56YD12, 56YD20

56JB2

56YD26, 56YD33

56E2

56JB3

IP66 MOTOR STARTERS

- 56YD RANGE

(Designed to IEC60529)

56YD9

Star-Delta motor starter, rated max. 7.5kW at 415V. Max. 30 starts per hour.

IP66 APERTURE

ENCLOSURE

(Designed to IEC60529, BS5733)

5632

2 aperture enclosure

56YD12

Star-Delta motor starter, rated max. 11kW at 415V. Max. 30 starts per hour.

56YD20

Star-Delta motor starter, rated max. 20kW at 415V. Max. 30 starts per hour.

IP66 JUNCTION BOXES

(Designed to IEC60529, BS5733)

56JB1

1 gang junction box

107x101x91mm

IP66 MOUNTING

ENCLOSURES

(Designed to IEC60529, BS5733)

56E1

1 gang mounting enclosure

101x101x63mm

56JB2

2 gang junction box

204x101x91mm

56ES1

1 gang mounting enclosure

101x101x38mm

56JB3

3 gang junction box

294x101x91mm

56E2

2 gang mounting enclosure

198x101x63mm

56YD26

Star-Delta motor starter, rated max. 26kW at 415V. Max. 30 starts per hour.

56YD33

Star-Delta motor starter, rated max. 30kW at 415V. Max. 30 starts per hour.

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

105

56ED2

56E6 56E9

56E3

56E16

56ES2

56E4

56E8

56E24EL

56E4VH

IP66 MOUNTING

ENCLOSURES

(Designed to IEC60529, BS5733)

56ED2

2 gang mounting enclosure

198x101x100mm

IP66 MOUNTING

ENCLOSURES

(Designed to IEC60529, BS5733)

56E3

3 gang mounting enclosure

294x101x63mm

IP66 MOUNTING

ENCLOSURES

(Designed to IEC60529, BS5733)

56E6

6 gang mounting enclosure

294x198x63mm

IP66 MOUNTING

ENCLOSURES

(Designed to IEC60529, BS5733)

56E9

9 gang mounting enclosure

294x294x63mm

56ES2

2 gang mounting enclosure

198x101x38mm

56E24EL

2 gang mounting enclosure

198x101x105mm

56E4

4 gang mounting enclosure

198x198x63mm

56E4VH

4 gang mounting enclosure

391x101x63mm

56E8

8 gang mounting enclosure

391x198x63mm

56E16

16 gang mounting enclosure

391x391x63mm

106

Note: Products are available in grey or chemical resistant orange

GY

Grey

RO

Resistant Orange

WS226, WS226D, WS22620

WS226N, WS22620N

WS2262

WS2262N

WS226PB

WS226PBS

WS2262PB

WHT20, WHT35, WHT55, WHT5532,

WHT63, WHT80

IP56 15A & 20A

SURFACE SWITCHES

(Designed to IEC60669-1,

BSEN60529)

WS226

15A 250V 1 gang 12 way surface switch

WS226D

15A 250V 1 gang DP surface switch

WS22620

20A 250V 1 gang 12 way surface switch

IP56 15A SURFACE

SWITCHES

(Designed to IEC60669-1,

BSEN60529)

WS2262

15A 250V 2 gang 12 way surface switch

WS2262N

15A 250V 2 gang 12way surface switch with neon

WS226N

15A 250V 1 gang 12 way surface switch with neon

WS22620N

20A 250V 1 gang 12 way surface switch with neon

IP56 10A PUSH BUTTON

CONTROL STATIONS

(Designed to IEC60529,

IEC60669-1)

WS226PB

10A 440V push button station

WS226PBS

10A 440V stop button station

WS2262PB

10A 440V startstop button station

IP56 20A, 35A, 55A, 63A

& 80A TP SURFACE

MOUNT ISOLATORS

(Designed to IEC60529,

IEC60947-3)

WHT20

20A 440V TP surface mount isolator

WHT35

35A 440V TP surface mount isolator

WHT55

55A 440V TP surface mount isolator

WHT5532

55A 440V TP surface mount isolator with 32mm conduit entry at each end

WHT63

63A 440V TP surface mount isolator with 32mm conduit entry at each end

WHT80

80A 440V TP surface mount isolator with 32mm conduit entry at each end

107

108

E31WP E223V

56WL GY

56FA1 GY

WS229G E223DV

56FA2 GY

W226JB

56FWL

56FA4 GY

WEATHER PROTECTED

FLUSH PLATES &

BOXES

(Designed to IEC60529)

E31WP

IP54 1 gang fl ush plate with surround (87 x87mm)

WS229G

IP54 1 gang weather protected surface box, suit for 30 series mechanism

W226JB

IP66 Junction box

(88(L) x 78(W) x 53(D)mm)

WEATHER PROTECTED

FLUSH PLATES &

BOXES

(Designed to IEC60529)

E223V

IP54 weather protected accessory cover

E223DV

IP13 weather protected socket cover

LIGHTS

56WL GY

Wall light, surface mount

(PL5-PL7 lamp) IP56

250V, 0.175A, 9W max.

2 module 50Hz.

Dims: 198x101x91mm. Fixing

Ctrs: 181x84mm.

Mtg box: (surface) 56E2 included.

Material: polycarbonate.

Standard: BS 5733:1995

56FWL

Wall light, fl ush mount

(PL5-PL7 lamp) IP43

250V, 0.175A, 9W max.

2 module 50Hz.

Dims: 254x157x84mm.

Fixing Ctrs: 181x84mm.

Mtg box: (fl ush) kit included (WE).

Material: polycarbonate.

Standard: BS 5733:1995

SURROUNDS

56FA1 GY

Flush surround IP56, 1 module

Dims: 157x157x13mm,

Fix Ctrs: 84x84mm

Mtg Box: (surface) 56E1

Material: PVC

Standard: IEC 670:1989

56FA2 GY

Flush surround IP56, 2 module

Dims: 254x157x13mm,

Fix Ctrs: 181x84mm

Mtg Box: (surface) 56E2

Material: PVC

Standard: IEC 670:1989

56FA3 GY

Flush surround IP56, 3 module

Dims: 350x157x13mm,

Fix Ctrs: 277x84mm

Mtg Box: (surface) 56E3

Material: PVC

Standard: IEC 670:1989

56FA4 GY

Flush surround IP56, 4 module

Dims: 254x254x13mm,

Fix Ctrs: 181x181mm

Mtg Box: (surface) 56E4

Material: PVC

Standard: IEC 670:1989

56FA1B

56FA3B

56JB1 GY

56B BK

56FA2B

56FA4B

SURROUNDS AND

MOUNTING PLATES

56FA1B

Mounting plate-fl ush surround

IP56, 1 module

Dims: 141x141mm,

Fix Ctrs: 84x84mm

Mtg Box: (surface) 56E1

Material: Steel

Standard: IEC 670:1989

56FA2B

Mounting plate-fl ush surround

IP56, 2 module

Dims: 242x141mm,

Fix Ctrs: 181x84mm

Mtg Box: (surface) 56E2

Material: Steel

Standard: IEC 670:1989

MOUNTING PLATES

56FA3B

Mounting plate-fl ush surround

IP56, 3 module

Dims: 338x141mm,

Fix Ctrs: 277x84mm

Mtg Box: (surface) 56E3

Material: Steel

Standard: IEC 670:1989

56FA4B

Mounting plate-fl ush surround

IP56, 4 module

Dims: 242x242mm,

Fix Ctrs: 181x181mm

Mtg Box: (surface) 56E4

Material: Steel

Standard: IEC 670:

ACCESSORIES

20MALE/20FEMALE

Adapter-earth lead

Dims: M20(Male)/M20(Female)

Material: Brass

56B BK

Bridging piece to fi t enclosure

Material: Polycarbonate

56DV BK

Divider to fi t enclosure

Material: Polycarbonate

56/3E10 GR

Terminal block-Earth

(accepts 3x6mm ¸ )

Material: Polycarbonate/Brass

56/3N10 BK

Terminal block-Neutral

(accepts 3x6mm ¸ )

Material: Polycarbonate/Brass

ACCESSORIES

56JB1 GY

Junction box + enclosure(accepts

3x6mm ¸ ) IP66, 1 module

Dims: 101x101x91mm,

Fix Ctrs: 55x70&74x45mm

Surface mounting

Material: Polycarbonate

Standard: IEC 670:1989

109

56C31324ELGY

56SW120LE RO

56SW220LE RO

56SW320LE RO 56SW320CLE RO

56SW332LE RO

110

56SW232LE RO

RCD SOCKET OUTLETS

56C3134EL GY

RCD socket outlet with enclosure

IP66, DP 250V 13A 30mA 25A

RCD 3 module 50Hz

Dims: 294x101x63mm,

Fix Ctrs: 55x260&75x235mm

Surface mounting

Material: Polycarbonate/PVC

Standard: BS EN 61008:1994,BS

1363 Pt2:1995

56C31324EL GY

RCD socket outlet with enclosure

IP66, DP 250V 2x13A 30mA 40A

RCD 4 module 50Hz

Dims: 198x198x91mm,

Fix Ctrs: 152x165&172x140mm

Surface mounting

Material: Polycarbonate/PVC

Standard: BS EN 61008:1994,BS

1363 Pt2:1995

SWITCHES AND SWITCH

DISCONNECTORS

56SW120LE RO

Switch IP66, SP 250V 20A AC23

1 way 1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60669-1

56SW220LE RO

Switch disconnector IP66,

DP 500/690V 20A AC23

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

56SW232LE RO

Switch disconnector IP66,

DP 500/690V 32A AC22

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

SWITCHES AND SWITCH

DISCONNECTORS

56SW320LE RO

Switch disconnector IP66,

TP 500/690V 20A AC23

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

56SW332LE RO

Switch disconnector IP66,

TP 500/690V 32A AC22

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

56SW363LE RO

Switch disconnector IP66,

TP 500/690V 63A AC22

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

SWITCHES AND SWITCH

DISCONNECTORS

56SW320CLE RO

Switch disconnector+2A auxiliary contact IP66, TP 500/690V 20A

AC23 1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60947-3:1992

56P313 RO

56ES1 RO

56E1 RO

ACCESSORIES

56PBS1LE RO

Push button station IP66,

SP 250V 10A [email protected] 1 way

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1,

(fl ush) 56E1+56FA1+56FA1B

Material: Polyester

Standard: BS EN 60669-1:1996

56SO313LE RO

Socket outlet IP66, 250V 13A

1 module 50Hz

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56ES1,

(fl ush) 56ES1+56FA1+56FA1B

Material: Polyester

Standard: BS 1363 Pt.2:1995

56P313 RO

Plug IP66, 250V 13A cord grip

50Hz

Dims: Dia.78x110mm

Material: Polyester

Standard: BS 1363/A Pt1:1995

ENCLOSURES

56ES1 RO

Enclosure (surface mounting box)

1 module

Dims: 101x101x38mm,

Fix Ctrs: 74x45mm

Surface mounting

Material: Polyester

Standard: IEC 670:

56E1 RO

Enclosure (surface mounting box)

1 module

Dims: 101x101x63mm,

Fix Ctrs: 55x70&74x45mm

Surface mounting

Material: Polyester

Standard: IEC 670:1989

56E20 RO

Enclosure (surface mounting box)

2 module

Dims: 198x101x63mm,

Fix Ctrs: 55x165&75x140mm

Surface mounting

Material: Polyester

Standard: IEC 670:1989

56ES2 RO

Enclosure (surface mounting box)

2 module

Dims: 198x101x38mm,

Fix Ctrs: 74x140mm

Surface mounting

Material: Polyester

Standard: IEC 670:1989

TERMINAL BLOCK

56SOX KIT

Universal mounting kit

Dims: 95x95mm,

Fix Ctrs: 84x84mm

Mtg.Box: (surface) 56E1, (fl ush)

56E1+56FA1+56FA1B

Material: Polycarbonate

Standard: IEC 670:1989

111

114

E2431LC2 E2400/3MCU5H

E2400HTX

E2400PB1200 E2400AM

SCENEMASTER

ENTRANCE SWITCH

(Designed to IEC60669-1,

MS616, SS227)

E2431LC2

10A 1 gang 2 way entrance switch

SCENEMASTER

LIGHTING CONTROLLER

(Designed to BS5518)

E24003MCU5H

Master control unit for 3 zones, 5 scenes of lighting

SCENEMASTER POWER

BOOSTER

(Designed to BS5733)

E2400PB1200

1200W power booster

SCENEMASTER

FLUORESCENT

INTERFACE

(Designed to IEC60928)

E2400AM

Fluorescent interface

E2400HTX

Infrared remote control

E2752D400T, E2752D500T, E2752D600T E2751/2, E2751

E2752T

E2031ETRF60, E2031ETRF720

E751, E751R

E750WPRGY

E751MB

REMOTE CONTROL

DIMMER

(Designed to IEC60669-2-1,

EMC Compliant)

E2752D400T

400W 1 gang IR remote control dimmer

E2752D500T

500W 1 gang IR remote control dimmer

E2752D600T

600W 1 gang IR remote control dimmer

E2752T

Infrared remote control transmitter

MOTION CONTROL

SWITCHES

(Designed to IEC60669,

BSEN60730-1)

E2751/2

1 gang 2 wire motion control switch

(For incandescent load)

E2751

1 gang 3 wire motion control switch

(For fl uorescent load)

16A ELECTRONIC TIME

DELAY SWITCHES

(Designed to IEC60669-2-1)

E2031ETRF60

Electronic time delay switch

(1 - 60 minutes adjustable)

E2031ETRF720

Electronic time delay switch

(1 - 12 hours adjustable)

INFRARED DETECTOR

(Designed to IEC60669-2-1)

E751

2A 250V ceiling type infrascan

(indoor)

E751R

10A 250V ceiling type infrascan

(indoor)

E750WPRGY

10A 250V ceiling & wall type infracan (outdoor)

E751MB

Mounting base for 751

115

118

3012MWE, 301ELMWE, 3012LMWE,

30MDWE

30MWE, 30MCOWE, 305MWE 30MIWE, 30FLMWE 302NMSENWE

30MRDWE 39MWE

302NMOSWE

301NMWE

302NMWE 39MAOMWE

30HMDWE

30MD2WE 39MSONWE

10A SWITCH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

301SMWE

10A 1 way 2 terminal

302SMWE

10A 2 way

301ELMWE

10A 1 way 4 terminal including 1 earth & 1 looping

3012LMWE

10A 1 way 4 terminal including 2 looping

30MDWE

10A 1 way DP

301NMWE

10A 1 way with neon

10A SWITCH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MWE

10A 2 way 4 terminal

30MCOWE

10A 2 way 4 terminal change over

305MWE

10A 2 way 5 terminal

10A SWITCH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MIWE

10A intermediate

30FLMWE

10A switch mechanism

(For fl uorescent loads only)

30MRDWE

10A 2 way - come with red dolly dot

39MWE

10A 3 position 4 terminal

“LO - OFF - HI”

302NMWE

10A 2 way with neon

39MAOMWE

10A 3 position 4 terminal

“AUTO - OFF - MAN”

30MD2WE

10A 2 way DP

39MSONWE

10A 3 position 4 terminal

“SENSOR - OFF - ON”

30HMDWE

10A 1 way DP marked “HEAT”

10A ILLUMINATED

SWITCH MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

302NMSENWE

10A 2 way with neon & marked

“SENSOR”

302NMOSWE

10A 2 way with neon & marked

“OUTSIDE”

30M15WE, 30FLM15WE, 30MD15WE 30M20WE, 30MD20WE

30TKMWE

30M35WE

30MBP23JWE, 30MBPJWE 30MBPWE

30MBPNWE, 30MBPN12WE,

30MBPN24WE

15A SWITCH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30M15WE

15A 2 way 4 terminal

30FLM15WE

15A switch mechanism

(For fl uorescent loads only)

30MD15WE

15A DP

20A & 35A SWITCH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30M20WE

20A 2 way 4 terminal

30MD20WE

20A DP

30TKMWE

20A 2 way toggle key actuated

30M35WE

35A 2 way 4 terminal

30TK3WE

Spare key for 30TKM

3A & 15A BELL PUSH

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MBP23JWE

3A 250V bell push button

30MBPJWE

15A 440V bell push button

15A BELL PUSH

MECHANISMS

(Designed to

IEC60669-1, MS616, SS227)

30MBPWE

15A 440V bell push button

30MBPNWE

15A 250V push button with neon

30MBPN12WE

15A 12V push button with neon

30MBPN24WE

15A 24V bell push button with neon

119

120

30MBPRWE 30N, 30N12, 30N24, 30N110 30RSM2WE, 30RSM3WE

30N, 30N12, 30N24, 30N110

30N, 30N12, 30N24, 30N110

30ACMWE

30AMWE

30AUMWE

10A BELL PRESS

MECHANISM

(Designed to IEC60669-1,

MS616, SS227)

30MBPRWE

10A bell press button marked

“PRESS”

NEON INDICATOR

MECHANISMS

(Designed to BS5733)

30N

250V neon indicator mechanism

30N12

12V neon indicator mechanism

30N24

24V neon indicator mechanism

30N110

110V neon indicator mechanism

Note: Neon indicator mechanisms are available in red (RD), green

(GR), blue (BU), clear (TR) & amber (AM).

15A ROTARY

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30RSM2WE

15A 2 position - 2 ON, 2 OFF

30RSM3WE

15A 3 position - 3 ON, 1 OFF

30BMWE

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30ACMWE

10A 2 way marked “AIR CON”

30AMWE

10A 2 way marked “ALARM”

30AUMWE

10A 2 way marked “AUTO”

30BMWE

10A 2 way marked “BATH”

30BDMWE

30BD1MWE

30BD2MWE

30BD4MWE

30COMWE

30DNMWE

30PMWE

30EMWE

30FAMWE

30MFRWE

30MFDWE

30HMWE

30BD3MWE

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30BDMWE

10A 2 way marked “BED”

30BD1MWE

10A 2 way marked “BED 1”

30BD2MWE

10A 2 way marked “BED 2”

30BD3MWE

10A 2 way marked “BED 3”

30DMWE 30FMWE 30LHMWE

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30BD4MWE

10A 2 way marked “BED 4”

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30PMWE

10A 2 way marked “DISPOSAL”

30COMWE

10A 2 way marked “COOL”

30EMWE

10A 2 way marked “EXHAUST”

30DNMWE

10A 2 way marked “DAY NIGHT”

30FAMWE

10A 2 way marked “FAMILY”

30DMWE

10A 2 way marked “DINE”

30FMWE

10A 2 way marked “FAN”

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MFRWE

10A 2 way marked “FORWARD

REVERSE”

30MFDWE

10A 2 way marked “FRIDGE”

30HMWE

10A 2 way marked “HEAT”

30LHMWE

10A 2 way marked “HI LO”

121

122

30KMWE

30LMWE

30LOMWE

30MMWWE

30FNMWE

30MOSWE

30RUMWE

30MSENWE

30STMWE

30XMWE

30YMWE

30MZ1WE

30MAMWE 30PUMWE 30TMWE 30MZ2WE

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30KMWE

10A 2 way marked “KITCHEN”

30LMWE

10A 2 way marked “LIGHT”

30LOMWE

10A 2 way marked “LOUNGE”

30MAMWE

10A 2 way marked “MAN-AUTO”

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MMWWE

10A 2 way marked

“MICROWAVE”

30FNMWE

10A 2 way marked “ON OFF”

30MOSWE

10A 2 way marked “OUTSIDE”

30PUMWE

10A 2 way marked “PUMP”

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30RUMWE

10A 2 way marked “RUMPUS”

30MSENWE

10A 2 way marked “SENSOR”

30STMWE

10A 2 way marked “STUDY”

30TMWE

10A 2 way marked “TV”

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30XMWE

10A 2 way marked “WASTE”

30YMWE

10A 2 way marked “WASH”

30MZ1WE

10A 2 way marked “ZONE 1”

30MZ2WE

10A 2 way marked “ZONE 2”

30MZ3WE

30MZ4WE

30M16FRWE

30M16FDWE

30M16MWWE

30M16SENWE 30M20HWWE

30M35HOBWE

30M35OVWE

10A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30MZ3WE

10A 2 way marked “ZONE 3”

30MZ4WE

10A 2 way marked “ZONE 4”

30M16OSWE

16A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30M16FRWE

16A marked “FORWARD

REVERSE”

30M16FDWE

16A marked “FRIDGE”

30M16MWWE

16A marked “MICROWAVE”

30M16OSWE

16A marked “OUTSIDE”

16A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30M16SENWE

16A marked “SENSOR”

30M35RWE

20A & 35A MESSAGE

MECHANISMS

(Designed to IEC60669-1,

MS616, SS227)

30M20HWWE

20A marked “HOT WATER”

30M35HOBWE

35A marked “HOB”

30M35OVWE

35A marked “OVEN”

30M35RWE

35A marked “RANGE”

123

124

30ENLMWE 32400M, 32400FM 30P

30ET36MWE

30ET6HMWE

30POTFM

32V400F-KB

30PID

30EDMWE 32V400FM K

SMARTMEKS

MECHANISMS

(For incandescent only)

30ENLMWE

250V 24 minute dimming night switch

FAN MECHANISMS

(Designed to BS5518)

32400M

400VA ceiling sweep fan controller mechanism

32400FM

400VA universal fan speed controller mechanism

30ET36MWE

250V 36 minute timer auto - off

30ET6HMWE

250V 6 hour timer (“Courtesy” on

- off)

30POTFM

400VA remote fan speed control potentiometer

30EDMWE

250V 4 stage dimmer night switch

32V400F-KB

400VA fan speed controller knob

32V400FMK

400VA fan controller unit

LIGHT MECHANISMS

(Designed to BS5518)

32E450LMWE

400VA dimmer to suit low voltage lighting transformer

32E450TMWE

400VA dimmer to suit low voltage transformer trailing edge

32500M

500VA incadescent

32V500M2K

500W dimmer mechanism

30POTDM

Remote dimmer control with potentiometer mechanism

MOULDED REMOVABLE

PLUGS

30P

Plain

30PID

10A 2 way ID circuit plug (Tamper proof)

38TB

38, 38Z

38HD

B30GFZ

F30Z1, F30Z1.5, F30Z2, F30Z3, F30Z4

9

30RJ88SMB5SH

CABLE CONNECTION

ACCESSORIES

(Designed to BS5733)

38TB

Grommet with 25A terminal block

MOUNTING CLIPS

B30GFZ

Back mounting clip moulded surround

38

Cord grommet for up to 2.5mm

2 light duty fl ex

38Z

Cord grommet for up to 0.75mm

2 light duty fl ex

38HD

Cord grommet for up to 2.5mm

2 ordinary duty with clamp

F30Z1

Suits 1mm metal plate - front mounting

F30Z1.5

Suits 1.5mm metal plate - front mounting

F30Z2

Suits 2mm metal plate - front mounting

F30Z3

Suits 3mm metal plate - front mounting

F30Z4

Suits 4mm metal plate - front mounting

SCREW AND CAPS

31J

Security screws

9

White screw caps - plain

30RJ SERIES SOCKET

MECHANISM

CATEGORY 5

30RJ88SMB5SH

Voice data mechanism with shutter

125

126

30RJA5CT

30RJA5CTB

30TV75M

30TV75MS

30TV75P

30TV75S

30TV75MF

30TV75MACF

30RJ SERIES SOCKET

MECHANISM -

CATEGORY 5

30RJA5CT

Connection tool with blade

TV ACCESSORIES

30TV75M

75 ohm crimp type TV antenna socket

30RJA5CTB

Connection tool with spare blade

30TV75MS

75 ohm crimp type - screw fi xed

TV antenna socket

TV ACCESSORIES

30TV75P

75 ohm coaxial cable plug

30PFM

TV ACCESSORIES

30TV75S

75 ohm coaxial cable surface socket

30TV75MF

75 ohm “F” type connection TV antenna socket

30TV75MACF

75 ohm TV antenna socket with

3 kV AC isolation

30PFM

75 ohm with “F” type connection for “PAY TV”

30SFM

SURGE FILTER

MECHANISM

30SFM

250V metal oxide varistor surge fi lter

127

130

B4302

B6303

B8304

B10305

B12306

16301624

20301625

12301623

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

4 GANG TO 8 GANG

B4302

4 gang 2x2 switch plate only

B6303

6 gang 3x2 switch plate only

B8304

8 gang 4x2 switch plate only

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

10 GANG TO 12 GANG

B10305

10 gang 5x2 switch plate only

B12306

12 gang 6x2 switch plate only

12301623

12 gang 3x4 switch plate only

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

14 GANG TO 18 GANG

14307

14 gang 7x2 switch plate only

16308

16 gang 8x2 switch plate only

16301624

16 gang 4x4 switch plate only

18309

18 gang 9x2 switch plate only

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

20 GANG TO 28 GANG

203010

20 gang 10x2 switch plate only

20301625

20 gang 5x4 switch plate only

223011

22 gang 11x2 switch plate only

243012

24 gang 12x2 switch plate only

24301626

24 gang 6x4 switch plate only

24301634

24 gang 4x6 switch plate only

263013

26 gang 13x2 switch plate only

283014

28 gang 14x2 switch plate only

28301627

28 gang 7x4 switch plate only

30301635 42301637 723016312

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

30 GANG TO 40 GANG

303015

30 gang 15x2 switch plate only

30301635

30 gang 5x6 switch plate only

32301628

32 gang 8x4 switch plate only

36301629

36 gang 9x4 switch plate only

36301636

36 gang 6x6 switch plate only

403016210

40 gang 10x4 switch plate only

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

42 GANG TO 50 GANG

403016210

40 gang 10x4 switch plate only

42301637

42 gang 7x6 switch plate only

443016211

44 gang 11x4 switch plate only

483016212

48 gang 12x4 switch plate only

48301638

48 gang 8x6 switch plate only

STAINLESS STEEL

MULTI-GANG SWITCH

PLATES

(Designed to BS5733)

52 GANG TO 72 GANG

523016213

52 gang 13x4 switch plate only

54301639

54 gang 9x6 switch plate only

563016214

56 gang 14x4 switch plate only

603016215

60 gang 15x4 switch plate only

603016310

60 gang 10x6 switch plate only

663016311

66 gang 11x6 switch plate only

723016312

72 gang 12x6 switch plate only

131

501S

501ES

E94 WE

535ES

E93PS6 WE

E93PS9 WE

E501SS WE

134

BC LAMP HOLDERS

(Designed to BS5042, IEC61184)

501S

3A 250V 3 piece cord grip lamp holder with short skirt

501ES

4A 250V Edison screw lamp holder

BC BATTEN HOLDERS

E94 WE

BC batten lampholder

T2 rated IP4X,

250V 6A Earth terminal 50Hz

Dims: Dia.86x76mm,

Fix Ctrs: 50&59mm

Ceiling mounting

Material: Polycarbonate

Standard: BS EN 61184:1997

ES BATTEN HOLDERS

535ES

ES batten type adjustable lamp holder

E93 WE

PENDANTS

E93PS6 WE

Pendant set 6” T2 rated IP4X

250V 6A Earth terminal 50Hz

Dims: Dia.86x250mm,

Fix Ctrs: 50&59mm

Ceiling mounting

Material: Polycarbonate

Standard: BS EN 61184:1997,

BS 67:1987

E93PS9 WE

Pendant set 9” T2 rated IP4X

250V 6A Earth terminal 50Hz

Dims: Dia.86x330mm,

Fix Ctrs: 50&59mm

Ceiling mounting

Material: Polycarbonate

Standard: BS EN 61184:1997,

BS 67:1987

E501SS WE

BC pendant lampholder

T2 rated IP4X

250V 6A 50Hz

Dims: Dia34x58mm

Material: Polycarbonate

Standard: BS EN 61184:1997

(BS 5042:1987,T2)

E93 WE

Ceiling rose IP4X

250V 6A Earth terminal 50Hz

Dims: Dia.86x32mm,

Fix Ctrs: 50&59mm

Ceiling mounting

Material: Polycarbonate

Standard: BS 67:1987

755, 755L

756

EP5

EP15

E417

EPB4NSF

SMOKE DETECTORS

755

250V smoke detector with battery backup

755L

250V smoke detector with lithium battery backup

PLUGS

EP5

250V 5A plug

(Designed to BS546)

EP15

250V 15A plug

(Designed to BS546)

756

Isolation unit for smoke detector

SAFETY COVER

E417

13A safety cover

TRAILING SOCKETS

(Designed to BS5733)

EPB4NSF

13A 4 gang main switched & surge-protected trailing socket with shutter, neon & 3 metre cable

135

136

438, 438/15

E157, E157E

E238E

2655

157/1 E23820, E23820H

2657

158

E2382

2657D

ET157DE

CORD EXTENSION

SOCKETS

438

10A 3 pin cord extension socket

438/15

15A 3 pin cord extension socket

METAL MOUNTING

BOXES

(Designed to BS4662)

E157

1 gang metal mounting box

E157E

1 gang metal mounting box with earth

157/1

1 gang 54 x 94 x 43mm metal mounting box

158

1 gang 28 x 67 x 32mm architrave metal mounting box

ET157DE

2 single gang deep metal mounting with earth

RIGID PVC ADAPTABLE

BOXES

2655

211(L) x 108(W) x 81(D)mm rigid

PVC adaptable box with sealing gasket

SURFACE MOUNTED

BOXES

(Designed to BS4662)

E238E

35mm deep surface mounted box with earth terminal

2657

300(L) x 200(W) x 152(D)mm rigid PVC adaptable box with sealing gasket

2657D

300(L) x 200(W) x 200(D)mm rigid PVC adaptable box with sealing gasket

E23820

35mm deep surface mounted box with 4 lockouts (20mm)

E23820H

35mm deep surface mounted box with 3 lockouts & 1 entry (20mm)

E2382

2 single gang surface mounted box

238

ET238E, ET238D

E449AS

701

702

703

E702

E704

E257SBE, E257DBE, E257DBE20

ET257BE, ET257DBE

SURFACE MOUNTED

BOXES

(Designed to BS4662)

238

1 gang surface mounted box

(Australia Standard)

ARCHITRAVE

MOUNTING BLOCKS

701

1 gang mounting block

ET238E

2 gang surface mounted box

ET238D

Surface mounted box

(For shaver outlet)

E449AS

Converts 1 gang fl ush to 2 gang surface mounted spacer

702

2 gang mounting block

703

3 gang mounting block

ARCHITRAVE

MOUNTING BLOCKS

E702

Mounting block

(For EA2031, EA2032)

E704

Mounting block

(For EA2033, EA2034)

PVC FLUSH MOUNTING

WALL BOXES

(Designed to BS4662)

E257SBE

1 gang wall box with brass insert

& earth, depth 35mm

E257DBE

1 gang wall box with brass insert, earth, 20mm & 25mm knockouts, depth 47mm

E257DBE20

1 gang wall box with brass insert, earth & 20mm knockouts, depth

47mm

ET257BE

2 gang wall box with brass insert

& earth, depth 35mm

ET257DBE

2 gang wall box with brass insert

& earth, depth 47mm

137

Colour

White

Red

Black

Dark blue

Yellow

Beige

Desert sand

Dark brown

Classic gold

Marble green

Gun metal

Checkers

Mahogany wood

Burgandy

Rose pink

Polar blue

Mirror silver

Purple dream

Soft grey

Brazilian black marble

White marble

Birdseye wood

Dancing rain

Polished brass

Antique brass

Chrome

Pine

Cedar

Primed

Stainless steel

Gold

Brass

Resistant orange

Grey battleship

Glass front

Code

BR

CGE

CGM

CUE

CCA

CMW

BGD

PS

WE

RD

BK

DB

YL

BG

DS

PB

CSE

CPA

SG

CBM

CWM

CBW

CDA

PN

CD

UC

RO

GB

GF

Product

E-Series Mechs

E-1000

Series

E-2000

Series

E-3000

Series

E-2000

Frames

Spectra

***

Classic range bases

✓ ✓

Classic range housings

Classic mounting

56

Range * blocks

Converta Gainsborough

Metalclad inserts

C-Bus Saturn

Neos **

✓ ✓

*

56 Series colours are resistant speci fi c, please contact Clipsal

**

For inner and outer surrounds and rocker packs, please contact

Clipsal

***

Spectra is on a bespoke order basis only, please contact

Clipsal

140

FLUSH SWITCHES

FLUSH SWITCHES

141

142

FLUSH SWITCHES

1

1

ELECTRONIC SWITCHES

1

142

FLUSH SWITCHES

1

1

ELECTRONIC SWITCHES

1

ELECTRONIC SWITCHES

143

144

ELECTRONIC SWITCHES

ELECTRONIC SWITCHES

145

146

DIMMER SWITCHES

DIMMER SWITCHES

147

148

DIMMER SWITCHES

DIMMER SWITCHES

149

150

DIMMER & FAN CONTROL SWITCHES

SOCKER OUTLETS

151

152

MECHANISMS

MECHANISMS

153

154

WEATHER PROOF RANGE

AQUASEAL IP56 & IP66

TECHNICAL CSC

SPECIFICATIONS

VOLTAGE

AMPERAGE

DIMENSIONS

COMPLIANCE

250V

13A

80mm x 160mm x 85mm

BS 1363-2

CSO

250V

CSW

250V

CSS

Single pole - 250V

Double and triple pole - 500V

40A 13A

80mm x 103mm x 85mm

Single pole - 20A/16AX

Double pole 20A

80mm x 103mm x 85mm

80mm x 160mm x 85mm

BS 1363-2 BS EN 60669-1

IEC 60669-1

IS 3854

SABS 163

IEC 60947.3 &

BS EN 60529

AS/NZ 3000

AS/NZ 3100

3133

IEC

IP56 for plugs with cables ø5-14mm

IP66 IP66

INTERNATIONAL

PROTECTION

RATING

MOTOR

RATING

IP56 for plugs with cables ø5-14mm

N/A

TERMINAL

5mm

BORES

TERMINAL

4 x 2.5mm

ACCOMMODATION

2

ENTRIES

Threaded conduit

Entries - 4 x M25 at 33mm centres

Plain cut-out

- 1 x 25

(25 - 20mm

(reducer included)

N/A

5mm

N/A Single pole - M120

Double &

4.1mm 7.45mm

triple pole - M100

4 x 2.5mm

2 3 x 2.5mm

2 1 x 10mm 2

Threaded conduit

Entries - 4 x M25 at 33mm centres

Plain cut-out

Threaded conduit

Entries - 4 x M25 at 33mm centres

Plain cut-out

Threaded conduit

Entries - top & bottom

4 x M25 at 33mm centres

- 1 x 25

(25 - 20mm

- 1 x 25

(25 - 20mm

Plain cut-out - rear of base 2 x 25

(reducer included) (reducer included) (25 - 25mm reducer

included)

155

56 & 66 SERIES

Surface Switches

Cat.no

56SW110

56SW110/2

56SW115

56SW115/2

56SW110/I

No.of

Switched

Poles

1

1

1

1

1

I the

(A) U e

(V)

10

10

15

15

10

250

250

250

250

250

Utilidation Category (A)

AC21 AC22 AC23

10 8 8

10

15

8

8

8

8

15

10

8

8

8

8

M rating

Conductor size (mm

2

)

M80

M80

M80

M80

M80

Min

1.5

1.5

1.5

1.5

1.5

Max.

6

6

6

6

6

Cat.no

56SW110HD

56SW115HD

56SW120

56SW220

56SW310

56SW320

No.of

Switched

Poles

1

1

3

3

1

2

I the

(A) U e

(V)

10

15

20

20

10

20

250

250

250

500

500

500

Utilidation Category (A)

AC21 AC22 AC23

10 10 10

15

20

15

20

15

20

20

10

20

20

10

20

20

10

20

M rating

Conductor size (mm

2

)

M260

M260

M260

M220

M100

M100

Min

6

6

2.5

2.5

1.5

2.5

Max.

25

25

25

25

25

25

Dimensions Wiring Diagrams Dimensions Wiring Diagrams

156

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

56 & 66 SERIES

Surface Switches

Cat.no

56SW132

56SW232

56SW332

No.of

Switched

Poles

I the

(A) U e

(V)

1

2

3

32

32

32

250

500

500

Utilidation Category (A)

AC21 AC22 AC23

32 32 20

32

32

32

32

20

20

M rating

Conductor size (mm

2

)

M260

M220

M100

Min

4

4

4

Max.

25

25

25

Cat.no

56SW150

56SW163

56SW250

56SW263

56SW350

56SW363

No.of

Switched

Poles

1

1

3

3

2

2

I the

(A) U e

(V)

50

63

50

63

50

63

250

250

500

500

500

500

Utilidation Category (A)

AC21 AC22 AC23

50 50 25

63

50

63

50

25

25

63

50

63

63

50

63

25

25

25

M250

M250

M220

M220

M200

M200

M rating

Conductor size (mm

2

)

16

10

16

Min

10

16

10

Max.

25

25

25

25

25

25

Dimensions Wiring Diagrams Dimensions Wiring Diagrams

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

157

56 & 66 SERIES

Surface Switches

Cat.no

56SW363/2

No.of

Switched

Poles

3

I the

(A) U e

(V)

63 500

Utilidation Category (A)

AC21 AC22 AC23

63 63 25

M rating

Conductor size (mm

2

)

M200

Min

16

Max.

25

Cat.no

56SW320C

No.of

Switched

Poles

I the

(A) U e

(V)

Utilidation Category (A)

AC21 AC22 AC23

M rating

AS 56SW320 + 2A CHANGEOVER AUX. LATE MAKE EARLY BREAK

Conductor size (mm

2

)

Min

16

Max.

25/2.5

Dimensions Wiring Diagrams Dimensions Wiring Diagrams

158

Remark :

I the

-

U e

-

AC21 -

AC22 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

Switching of mixed resistive and inductive loads,

AC23 - including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

56 & 66 SERIES

Surface Switches

Cat.no

56SW332C

56SW332C

No.of

Switched

Poles

I the

(A) U e

(V)

Utilidation Category (A)

AC21 AC22 AC23

M rating

AS 56SW320 + 2A CHANGEOVER AUX. LATE MAKE EARLY BREAK

AS 56SW332 + 2A CHANGEOVER AUX. LATE MAKE EARLY BREAK

Conductor size (mm

2

)

Min

16

16

Max.

25/2.5

25/2.5

Cat.no

56SW420

No.of

Switched

Poles

4

I the

(A) U e

(V)

20 440

Utilidation Category (A)

AC21 AC22 AC23

20 20 20

M rating

Conductor size (mm

2

)

-

Min

2.5

Max.

6

Dimensions Wiring Diagrams Dimensions Wiring Diagrams

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

159

56 & 66 SERIES

Heavy-Duty Surface Switches

Cat.no

56SWH325

56SWH340

56SWH363

56SWH380

56SWH425

56SWH440

56SWH463

4

4

3

3

4

No.of

Switched

Poles

3

3

I the

(A) U e

(V)

25

40

63

80

25

40

63

500

500

500

500

500

500

500

Utilidation Category (A)

80

25

40

63

AC21

25

40

63

AC22

25

40

63

80

25

40

63

63

25

25

40

AC23

25

25

63

Conductor size (mm

2

)

1.5

1.5

1.5

1.5

Min

1.5

1.5

1.5

35

25

25

25

Max.

16

16

35

Dimensions

Wiring Diagrams

160

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

56 & 66 SERIES

Changeover and Reversing Switches Key Operated Switches

Cat.no

56SW220CO

Changeover

Switch

56SW420CO

Changeover

Switch

No.of

Switched

Poles

I the

(A) U e

(V)

Utilidation Category (A)

AC21 AC22 AC23

2

4

20

20

500

500

20

20

-

-

15

15

AC15

Conductor size (mm

2

)

Min Max.

8/6

8/6

1.5

1.5

2x4

2x4

Cat.no

56K1SW120

56K1SW220

56K1SW310

56K1SW320

56K2SW120

56K2SW220

56K2SW310

56K2SW320

No.of

Switched

Poles

STANDARD SECURITY SWITCH

Utilidation Category (A)

I the

(A) U e

(V)

AC21 AC22 AC23

1

2

3

3

1

2

3

3

M rating

20

20

10

For locking in only the ‘off’ position

250

500

500

20

20

10

20

20

10

20

20

10

20 500 20 20 20

For locking in only both ‘on’ & ‘off’ positions

M250

M220

M200

M200

20

20

250

500

20

20

20

20

20

20

M250

M220

10

20

500

500

10

20

10

20

10

20

M200

M200

Conductor size (mm

2

)

Min Max.

2.5

2.5

1.5

2.5

2.5

2.5

1.5

2.5

25

25

25

25

25

25

25

25

Dimensions & Wiring Diagrams Dimensions Wiring Diagrams

Remark :

I the

-

U e

-

AC21 -

AC22 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

Switching of mixed resistive and inductive loads,

AC23 - including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

161

56 & 66 SERIES

Key Operated Switches

Cat.no

56K1SW132

56K1SW150

56K1SW232

56K1SW250

56K1SW332

56K1SW350

56K2SW132

56K2SW150

56K2SW232

56K2SW250

56K2SW332

56K2SW350

2

2

1

1

3

3

2

2

1

1

3

3

No.of

Switched

Poles

STANDARD SECURITY SWITCHES

Utilidation Category (A)

I the

(A) U e

(V)

AC21 AC22 AC23

M rating

32

50

32

50

32

50

32

50

32

50

32

For locking in only the ‘off’ position

250

250

500

500

500

32

50

32

50

32

32

50

32

50

32

25

25

25

25

25

50 500 50 50 25

For locking in only both ‘on’ & ‘off’ positions

M250

M250

M220

M220

M200

M200

250

250

500

500

500

500

32

50

32

50

32

50

32

50

32

50

32

50

25

25

25

25

25

25

M250

M250

M220

M220

M200

M200

Conductor size (mm

2

)

Min

4

10

4

10

4

10

4

10

4

10

4

10

Max.

25

25

25

25

25

25

25

25

25

25

25

25

Cat.no

56K1SW132MS

56K2SW132MS

56K1SW132HS

No.of

Switched

Poles

MEDIUM SECURITY SWITCHES

Utilidation Category (A)

I the

(A) U e

(V)

AC21 AC22 AC23

1

1

M rating

32

For locking in only the ‘off’ position

250 32 32 25 M250

For locking in only both ‘on’ & ‘off’ positions

32 250 32 32 25 M250

1 32

HIGH SECURITY SWITCHES

For locking in only the ‘off’ position

250 32 32 25 M250

Conductor size (mm

2

)

Min Max.

4

4

4

25

25

25

Dimensions

Wiring Diagrams

162

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

56 & 66 SERIES

Key Operated Switches

Cat.no

56K1SW115

56K2SW115

No.of

Switched

Poles

STANDARD SECURITY SWITCHES

Utilidation Category (A)

I the

(A) U e

(V)

AC21 AC22 AC23

1

1

M rating

15

For locking in only the ‘off’ position

250 15 10 8 M80

For locking in only both ‘on’ & ‘off’ positions

15 250 15 10 8 M80

Conductor size (mm

2

)

Min Max.

1.5

1.5

6

6

56K1SW115MS

56K2SW115MS

56K1SW115HS

1

1

1

MEDIUM SECURITY SWITCHES

For locking in only the ‘off’ position

15 250 15 10 8

For locking in only both ‘on’ & ‘off’ positions

M80

15 250 15 10 8 M80

15

HIGH SECURITY SWITCHES

For locking in only the ‘off’ position

250 15 10 8 M80

1.5

1.5

1.5

6

6

6

Remark :

I the

-

U e

-

AC21 -

AC22 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

Switching of mixed resistive and inductive loads,

AC23 - including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

163

56 & 66 SERIES

Push-Button Control Stations

Cat.no

56PB

56PBS

56PBS1

56PBS2

56/2PB

56/2PBS1

I the

(A)

10

10

10

10

10

10

U e

(V)

250

250

250

250

250

250

Utilidation Category (A)

AC15 240V

6

6

6

6

6

6

AC13 24V

8

8

8

8

8

8

Conductor size (mm

2

)

1

1

1

Min

1

1

1

4

4

4

Max.

4

4

4

Dimensions & Wiring Diagrams

164

Remark:

I the

-

U e

-

Conventional enclosed thermal current

Operational voltage

56 & 66 SERIES

Switches with Sliding Switch Dollies & Two Aperture Enclosure IP66

Cat.no

Cat.no

56SSW10

56SSW15

56SSW10/I

56SSW2/10

56SSW2/15

No.of

Switched

Poles

1

1

1

2

2

I the

(A)

10

15

10

10

15

U e

(V)

250

250

250

250

250

M rating

M80

M80

M100

M80

M80

Conductor size (mm

2

)

Min

1.5

1.5

1.5

1.5

1.5

Max.

6

6

6

6

6

56/32

Dimensions

O/A Dims. (H)x(W)x(D)

107x101x75

Wiring Diagrams

Dimensions

Remark:

I the

-

U e

-

Conventional enclosed thermal current

Operational voltage

M rating - For switching of locked rotor current

165

56 & 66 SERIES

Timer Switches

Cat.no

Switching I the

(A) U e

(V)

56TC

56TC7

56TCB

56TCB7

56SWT216

1 C/O

1 C/O

1 C/O

1 C/O

2 Pole

15

15

15

15

16

** Nicad rechargeable battery takes 70 hours to fully charges

250

250

250

250

250

Utilidation Category (A)

AC21

15

15

15

15

AC2A

10

10

10

10

AC2A

8

8

8

8

16 10 10

Dimensions

M rating

M90

M90

M90

M90

M120

Battery Running

Reserve (Hrs)

N/A

N/A

**150

**150

**150

Min. Switch Time (Min.)

15

120

15

120

10 mins Minimum

120 mins Maximum

Conductor size (mm

2

)

Min

2.5

2.5

2.5

2.5

Max.

6

6

6

6

2.5

4

Wiring Diagrams

Dimensions

Wiring Diagrams

166

Remark :

I the

-

U e

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 -

AC23 -

Switching of mixed resistive and inductive loads, including moderate overloads

Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

56 & 66 SERIES

New Timer Switches

Cat.no

Switching I the

(A) U e

(V)

56TCDB 1 C/O 10

** Nicad rechargeable battery takes 70 hours to fully charges

250

Utilidation Category (A)

AC21

10

AC22

10

AC23

8

Dimensions

M rating

M100

Battery Running

Reserve (Hrs)

**150

Min. Switch Time (Min.)

1

Conductor size (mm

2

)

Min

2.5

Max.

6

Wiring Diagrams

I

Remark : the

U e

-

-

AC21 -

Conventional enclosed thermal current

Operational voltage

Switching of resistive loads, including moderate overloads

AC22 - Switching of mixed resistive and inductive loads, including moderate overloads

AC23 - Switching of motor loads or highly inductive loads

M rating - For switching of locked rotor current

167

56 & 66 SERIES

Angle & Straight Plugs

Cat.no (Straight) Cat.no (Angle)

56P510

56P520

56P532

56P540

56P550

56P610

56P710

56P720

56P210

56P215/32

56P3/110

56P310RP

56P310

56P310L

56P320F

56P315

56P320

-

56P410

56P416K

56P420

56P432

56P440

56P450

Dimensions

56PA510

56PA520

56PA532

56PA540

56PA550

56PA610

56PA710

56PA720

-

-

-

-

-

-

-

-

56PA320

56PA332

56PA410

56PA416K

56PA420

56PA432

56PA440

56PA450

I the

(A)

16

20

32

40

50

20

15

20

32

10

10

15

10

10

10

10

50

10

10

20

10

20

32

40

U i

(V) No. of Pins

500

500

500

500

500

250

250

250

250

500

250

32

110

250

250

250

500

500

500

500

500

500

500

500

5 Round

5 Round

5 Round

5 Round

5 Round

6 Round

7 Round

7 Round

2 Parallel Flat

2 Polarised

2 Round & Flat Earth

3 Round

3 Flat

2 Flat & Round Earth

3 Flat

3 Flat

3 Round

3 Round

4 Round

4 Round (unique key confi guration)

4 Round

4 Round

4 Round

4 Round

Conductor size (mm

2

)

2.5

2.5

2.5

2.5

2.5

2.5

1.5

2.5

2.5

2.5

1

1

1

Min

1

1.5

1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

4

4

16

16

25

2.5

2.5

4

16

4

Max.

2.5

2.5

2.5

4

2.5

2.5

25

4/2.5

4/2.5

4/2.5

4

4

16

16

Cable Nominal Diameter

9

9

6

6

9

7

7

6

9.5

6

7

7

7

Min

7

7

7

6

6

9

6

9

9

6

6

15.7

15.7

28

28

28

12.5

12.5

15.7

28

15.7

Max.

12.5

12.5

12.5

12.5

12.5

12.5

15.7

15.7

28

28

28

15.7

15.7

15.7

37

23

23

23

25

25

37

37

25

23

25

37

37

37

Gland Nut Thread (mm)

Straight

20

20

20

20

20

25

20

20

20

Angled

37

23

23

23

23

23

37

37

23

23

37

37

37

23

37

23

168

Remark :

I the

-

U i

-

Conventional enclosed thermal current

Insulated voltage

56 & 66 SERIES

Mounting Enclosures (Back Boxes)

56E1

56ES1

56E2

56ED2

Cat.no

No. of

Gangs

1

1

2

2

Dims.

(H)x(W)x(D)

101x101x63

101x101x38

198x101x63

198x101x100

Mounting

Point

8

4

8

8

No. of Condult

Entries (mm)

2x25, 1x32

1x25, 1x20

2x25, 1x32

2x40

Cut Out Provision (mm)

1x25/32

1x20/25

1x25, 1x32

1x25, 1x32

Dimensions

169

170

56 & 66 SERIES

Mounting Enclosures (Back Boxes)

Cat.no

56ES2

56E2/4EL

56E3

No. of

Gangs

2

2

3

Dims.

(H)x(W)x(D)

198x101x38

198x101x105

294x101x63

Mounting

Point

4

8

16

No. of Condult

Entries (mm)

1x25, 2x20

2x25, 1x32

2x25, 1x32

Cut Out Provision (mm)

2x20/25

1x25, 1x32

2x25, 1x32

Dimensions

56 & 66 SERIES

Mounting Enclosures (Back Boxes)

Cat.no

56E4

56E4VH

No. of

Gangs

4

4

Dims.

(H)x(W)x(D)

198x198x63

391x101x63

Mounting

Point

16

16

No. of Condult

Entries (mm)

Cut Out Provision (mm)

2x25, 2x32

2x25, 1x32

2x25, 1x32, 1x40

2x25, 1x32, 1x40

Dimensions

171

172

56 & 66 SERIES

Mounting Enclosures (Back Boxes)

56E6

56E8

56E9

56E16

Cat.no

No. of

Gangs

6

8

9

16

Dims.

(H)x(W)x(D)

294x198x63

391x198x63

294x294x63

391x391x63

Mounting

Point

24

28

28

48

No. of Condult

Entries (mm)

2x25, 2x32

2x25, 2x32

3x25, 3x32

2x25, 2x32

Cut Out Provision (mm)

2x25, 2x32, 2x40

4x25, 2x32, 2x40

4x25, 2x32, 2x40

6x25, 6x32, 4x40

Dimensions

56 & 66 SERIES

173

174

56 & 66 SERIES

56 & 66 SERIES

175

176

56 & 66 SERIES

56 & 66 SERIES

66CV Switched Socket Outlets

Cat.no

66CV450

66CV550

66CV750

66CV463

66CV563

66CV763

No.of

Switched

Poles

3

4

4

4

4

3

I the

(A) U i

(V)

50

50

50

63

63

63

500

500

500

500

500

500

Utilidation Category (A)

AC21 AC22 AC23

50 50 40

50

50

50

50

40

40

63

63

63

63

63

63

50

50

50

7

4

4

5

5

7

No. of

Sockets

Conductor size (mm

2

)

16

16

16

Min

10

10

10

Max.

25

25

25/2.5

35

35

25/2.5

Dimensions

Wiring Diagrams

Remark :

I the

-

U i

-

Conventional enclosed thermal current

Insulated voltage

177

178

56 & 66 SERIES

56 & 66 SERIES

179

180

56 & 66 SERIES

56 & 66 SERIES

181

182

PVC CONDUIT & FITTING

APPENDIX 1

)NTERNATIONAL0ROTECTION2ATINGS

)0 2ATINGS OR )NTERNATIONAL 0ROTECTION #ODE IS A STANDARD RATING SYSTEM THAT

INDICATES THE TYPE OF ENVIRONMENTS IN WHICH A PARTICULAR INSTRUMENT IS CAPABLE OF

OPERATING

4HE )0 2ATING TAKES THE FORM OF )088 WHERE 88 ARE NUMBERS CORRESPONDING TO A

PARTICULAR RATING 4HE FIRST DIGIT IS FOR SOLID PARTICLE INGRESS AND THE SECOND IS FOR

LIQUIDSINGRESS

4%34

.O4ESTAPPLIED

&)234$)')4

02/4%#4)/.

)NHERENTDEGREEOFPROTECTION

/ /

0ROTECTEDAGAINSTSOLIDOBJECTSLARGER

THANMM

EGACCIDENTALCONTACTWITHHAND

4%34

.O4ESTAPPLIED

3%#/.$$)')4

02/4%#4)/.

)NHERENTDEGREEOFPROTECTION

0ROTECTEDAGAINSTDROPSOFWATERFALLING

VERTICALLY

0ROTECTEDAGAINSTSOLIDOBJECTSLARGER

THANMM

EGFINGEROFTHEHAND

0ROTECTEDAGAINSTSOLIDOBJECTSLARGER

THANMM

EGTOOLSWIRES

0ROTECTEDAGAINSTSOLIDOBJECTSLARGERTHAN

MM

EGFINETOOLSANDWIRES

4

0ROTECTEDAGAINSTDUST0REVENTENTRYIN

SUFFICIENTQUANTITYTOINTERFEREWITH

SATISFACTORYOPERATION

#OMPLETELYPROTECTEDAGAINSTDUST

0ROTECTEDAGAINSTDROPSOFWATERFALLINGAT

UPTOFROMTHEVERTICAL

0ROTECTEDAGAINSTSPRAYINGWATERATUPTO

FROMTHEVERTICAL

0ROTECTEDAGAINSTSPLASHINGWATERFROMALL

DIRECTIONS

0ROTECTEDAGAINSTJETSOFWATERFROMALL

DIRECTIONS

0ROTECTEDAGAINSTJETSOFWATEROFSIMILAR

FORCETOHEAVYSEAS

0ROTECTEDAGAINSTTHEEFFECTSOFIMMERSION

0ROTECTEDAGAINSTTHEEFFECTSOF

SUBMERSION

183

184

APPENDIX 2

3EQUENCE/PTIONS

3EQUENCEISDEFINEDASTHEORDERINWHICHTHEINCOMINGPAIRSARETERMINATED

INTOTHEMODULARINTERFACEPINS%ACHPAIRISDESIGNATEDASAg4IPgCONDUCTORAND

Ag2INGgCONDUCTOR

4 2 4 2 4 2 4 2

%)!!

4 2 4 2 4 2 4 2

%)!"

2 4 4 2 4 2 2 4

4 4 2 4 2 2

53/#

4 2 4 2

4 2 4 NC NC 2 NC NC

"!3%4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
