SLP 88
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com

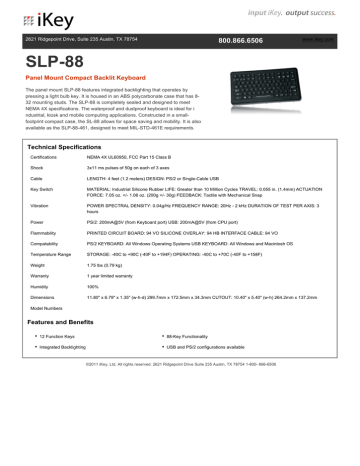

SLP-88
Panel Mount Compact Backlit Keyboard
The panel mount SLP-88 features integrated backlighting that operates by
pressing a light bulb key. It is housed in an ABS polycarbonate case that has 832 mounting studs. The SLP-88 is completely sealed and designed to meet
NEMA 4X specifications. The waterproof and dustproof keyboard is ideal for i
ndustrial, kiosk and mobile computing applications. Constructed in a smallfootprint compact case, the SL-88 allows for space saving and mobility. It is also
available as the SLP-88-461, designed to meet MIL-STD-461E requirements.
Technical Specifications
Certifications
NEMA 4X UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 4 feet (1.2 meters) DESIGN: PS/2 or Single-Cable USB
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION
FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS/2: [email protected] (from Keyboard port) USB: [email protected] (from CPU port)
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatability
PS/2 KEYBOARD: All Windows Operating Systems USB KEYBOARD: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
1.75 lbs (0.79 kg)
Warranty
1 year limited warranty
Humidity
100%
Dimensions
11.80" x 6.79" x 1.35" (w-h-d) 299.7mm x 172.5mm x 34.3mm CUTOUT: 10.40" x 5.40" (w-h) 264.2mm x 137.2mm
Model Numbers
Features and Benefits
12 Function Keys
88-Key Functionality
Integrated Backlighting
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
