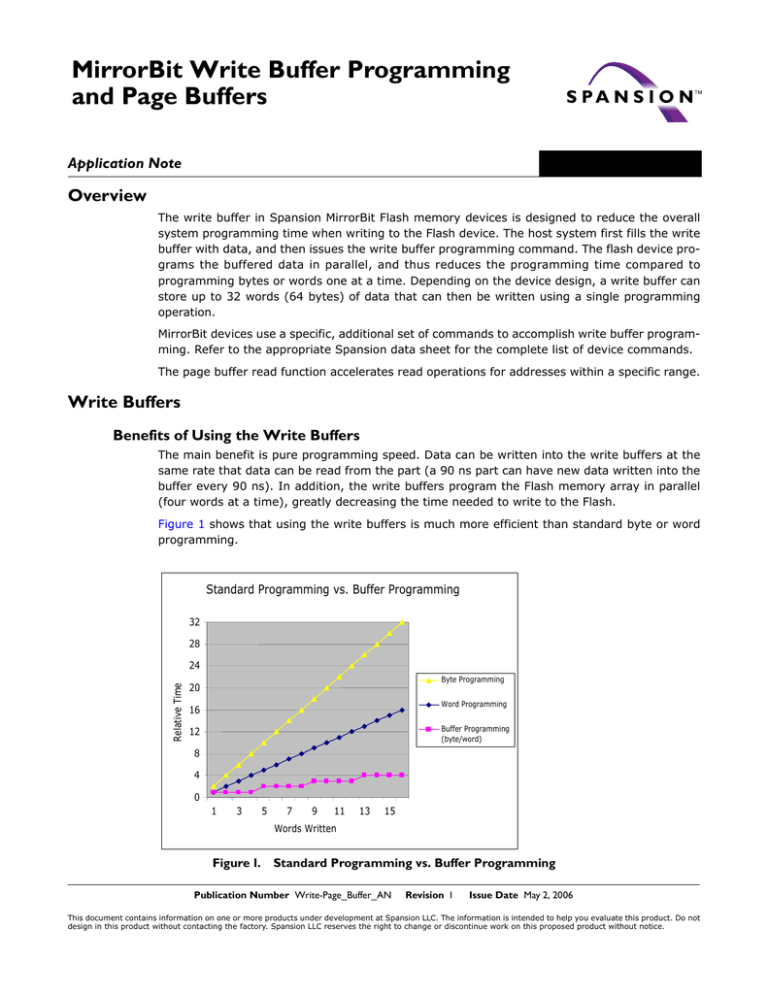

MirrorBit Write Buffer Programming
and Page Buffers
Application Note
Overview
The write buffer in Spansion MirrorBit Flash memory devices is designed to reduce the overall
system programming time when writing to the Flash device. The host system first fills the write
buffer with data, and then issues the write buffer programming command. The flash device programs the buffered data in parallel, and thus reduces the programming time compared to
programming bytes or words one at a time. Depending on the device design, a write buffer can
store up to 32 words (64 bytes) of data that can then be written using a single programming
operation.
MirrorBit devices use a specific, additional set of commands to accomplish write buffer programming. Refer to the appropriate Spansion data sheet for the complete list of device commands.
The page buffer read function accelerates read operations for addresses within a specific range.
Write Buffers
Benefits of Using the Write Buffers
The main benefit is pure programming speed. Data can be written into the write buffers at the
same rate that data can be read from the part (a 90 ns part can have new data written into the
buffer every 90 ns). In addition, the write buffers program the Flash memory array in parallel
(four words at a time), greatly decreasing the time needed to write to the Flash.
Figure 1 shows that using the write buffers is much more efficient than standard byte or word
programming.
Standard Programming vs. Buffer Programming
32
28
Relative Time
24
Byte Programming
20
Word Programming
16
Buffer Programming
(byte/word)
12
8
4
0
1
3
5
7
9
11
13
15
Words Written
Figure 1.
Standard Programming vs. Buffer Programming
Publication Number Write-Page_Buffer_AN
Revision 1
Issue Date May 2, 2006
This document contains information on one or more products under development at Spansion LLC. The information is intended to help you evaluate this product. Do not
design in this product without contacting the factory. Spansion LLC reserves the right to change or discontinue work on this proposed product without notice.
A p p l i c a t i o n
N o t e
Write Buffer Operation
Write buffer programming is only available through the Write to Buffer and Program Buffer to
Flash command sequences. The Write-to-Buffer Abort Reset command sequence is used to exit
out of the Write-Buffer-Abort state. Table 1 lists all software program sequences associated with
the write buffer.
Table 1.
Write Buffer Operation
Bus Cycles
Command Sequence
Interface
First
Addr
Write to Buffer
Program Buffer to Flash
(Confirm)
Write-to-BufferAbort
Reset
Word
555
Byte
AAA
Both
SA
Word
555
Byte
AAA
Second
Data
AA
Addr
2AA
555
Third
Fourth
Fifth
Sixth
Data
Addr
Data
Addr
Data
Addr
Data
Addr
Data
55
SA
25
SA
WC
(Note)
PA
PD
WBL
(Note)
PD
55
XXX
F0
29
AA
2AA
555
Note: The sixth cycle must be repeated to complete the number of buffer writes specified by the WC in cycle four.
Legend
PA = Program Address of the memory location to be programmed. This can be any address within the target write buffer page.
PD = Program Data to be programmed at location PA.
SA = Sector Address containing locations to be programmed. This can be any valid address within the sector.
WC = Write Count is the number of write buffer locations to load minus one (to load 7 locations the WC would be 6).
WBL = Write Buffer Location. The address must be within the same write buffer page (32-byte range located on a 32-byte
boundary) as PA.
In Table 1, the host system first loads data at any location in the target write buffer page. Subsequent write buffer locations do not need to be loaded in any particular order as long as they
reside in the same write buffer page and sector (the S29WS-P family is the only exception to this
rule; it requires that addresses be loaded sequentially) . A write buffer page, for a device with a
32-word write buffer, is defined as the address from xxx0h to xx1Fh (any sequence of address
where AMAX – A5 do not change).
Note that the internal write counter decrements for every data load operation, not for each
unique write buffer address location. If the same write buffer location is loaded multiple times,
the internal write counter will decrement after each load operation. The last data loaded into a
given write-buffer location will be programmed into the device after the Program Buffer to Flash
command. The host system must therefore account for the effects of loading a write-buffer location more than once.
When the Write to Buffer command programming sequence has been completed, the Program
Buffer to Flash command must be issued to move the data from the write-buffer into the flash
memory array.
Write Buffer Programming Abort
As stated earlier, write buffer programming cannot be performed across multiple write buffer
pages or across multiple sectors. If this is attempted, the write buffer programming operation
will be automatically aborted. The abort condition is detected by performing a status read operation, in which the data shows DQ1 = 1, DQ7 = DATA# (for the “Last Loaded Address”), DQ6 =
TOGGLE, DQ5=0 .
The write buffer programming sequence aborts in the following cases:
2
MirrorBit Write Buffer Programming and Page Buffers
Write-Page_Buffer_AN_1 May 2, 2006
A p p l i c a t i o n
N o t e
„ Loading a value that is greater than the write buffer size (write-buffer-page)
during the “fourth cycle (WC) Numbers of Locations to Program” step.
„ Writing to an address in a sector that is different than the one specified during
the Write-Buffer-Load command.
„ Writing an Address/Data pair to a different write buffer page than the one selected by the starting address during the “write buffer data loading” stage of
the operation.
„ Writing data other than the Program Buffer to Flash command after loading
the specified number of write buffer locations.
Note that the Write-to-Buffer Abort Reset command sequence must be written to the device to
return to READ mode.
Page Buffer Read Introduction
Whenever the host system changes a “page address” (or toggles CE# during a read), the device
performs a “random access”. During this “random access” the read page buffer is loaded in parallel with data within the selected read-page boundaries. Subsequent intra-page accesses are 3
to 4 times faster than random accesses because the data are already available in the buffer.
Therefore, read performance is significantly improved.
Same Page
A22-A3
A2-A0
Aa
tACC
Data Bus
Ab
tPACC
Qa
Ad
Ac
tPACC
Qb
tPACC
Qc
Qd
CE#
OE#
AVD#
Note: Figure shows device in word mode. Addresses A1–A-1 are used during byte mode.
Figure 2.
Page Buffer Read Timing Diagram
Read Buffer Operation with a 4-word Page Buffer
Most Spansion page mode flash devices use a 4-word (8-byte) page buffer. For page buffer read
operation, the user must issue a read address, or “RA”, for any memory location. During the initial access time (tCE/tACC) a page of 4-words (8-bytes), starting from an 8-byte boundary, is read
into the page buffer. If the device is in word mode, address bits A1 and A0 can then be used to
access any of the four words within the page with a reduced page access time (tPACC). If the
device is in byte mode in a x8/x16 device, A1 through A-1 can be used to access any of the eight
bytes in the page. If the device is a x8-only device, A2 through A0 can be used to access any of
the eight bytes within the page.
The appropriate page is selected by the higher address bits: A(MAX)-A2 for x16-only and x8/x16
devices, and A(MAX)-A3 for x8-only devices. Fast page mode accesses are obtained by keeping
the high-order “read page address” bits constant and changing the “intra-read page” address
bits: A0 to A1 for x16-only and x8/x16 in word mode; A-1 to A1 for x8/x16 in byte mode; and
May 2, 2006 Write-Page_Buffer_AN_1
MirrorBit Write Buffer Programming and Page Buffers
3
A p p l i c a t i o n
N o t e
A0 to A2 for x8-only. This is an asynchronous operation with the host system supplying the specific byte or word location.
A depiction of the command sequence definition for read accesses is shown in Table 2.
Table 2. Read Access
Bus Cycles
First
Second
Third
Fourth
Fifth
Command
Sequence
Interface
Addr
Data
Addr
Data
Addr
Data
Addr
Data
Addr
Data
Read
Both
RA
RD
RA
RD
RA
RD
RA
RD
Note
Note
Note: For reading bytes, eight consecutive memory locations can be read, compared to four memory locations for reading words.
“Intra-read page” locations can be accessed in any order.
Legend
RA = Read Address
RD = Read Data
A depiction of the device bus operation for read accesses is shown in Table 3.
Table 3.
Device Bus Operation for Read Access
Operation
CE#
OE#
WE#
RESET#
WP#/ACC
Address
Data
Read
L
L
H
H
X
AIN
DOUT
During page buffer read operations, the CE# pin must be kept at voltage level VIL during all fast
page mode accesses. If the CE# pin toggles or changes state during a page buffer read operation, the current data transfer will automatically be aborted and another initial page access is
started. This will result in an unnecessary delay in read timings.
Read Buffer Operation with an 8-word Page Buffer
The Spansion S29GL-N family of devices uses an 8-word (16-byte) page buffer. The feature
works the same way as devices with a 4-word page buffer, except that page boundaries on these
devices are on 16-byte increments. If the device is in word mode address bits A2–A0 can be used
to access any of the eight words within the page with a reduced page access time (tPACC). Hardware and software that was designed to work with 4-word page buffers will work just as well on
devices with an 8-word page buffer without any changes.
Write Buffer Programming in S29PL-N Devices
In Spansion S29PL-N devices, write buffer programming with program and erase suspend/resume functionality allows the system to write to a maximum of 32 words in one programming
operation. This provides increased programming performance up to four times faster than word
programming. Table 4 lists the programming steps. Please refer to the appropriate Spansion data
sheet for a review of the full write buffer operation.
4
MirrorBit Write Buffer Programming and Page Buffers
Write-Page_Buffer_AN_1 May 2, 2006
A p p l i c a t i o n
Table 4.
N o t e
Write Buffer Programming Procedure in PL-N Devices
Cycle#
Description
Address
Data
1
Unlock
Base + 555h
00AAh
2
Unlock
Base + 2AAh
0055h
3
Write Buffer Load
Command
Program Address
0025h
4
Write Word Count
Program Address
Word Count (N-1)h
5
Load Buffer Word N
Program Address, Word N
Word N
Comment
AMAX to A15 is latched in
this command cycle and
must not change in
subsequent cycles
AMAX to A5 is latched in this
command cycle and must
not change in subsequent
command cycles
Note: For maximum efficiency, it is recommended that the write buffer be loaded with the highest number of words (N words)
possible.
The following is an example of write buffer programming Command:
/* Example: Write Buffer Programming Command */
/* NOTES: Write buffer programming limited to 16 words. */
/* All addresses to be written to the flash in */
/* one operation must be within the same flash */
/* page. A flash page begins at addresses */
/* evenly divisible by 0x20. */
UINT16 *src = source_of_data;
/* address of source data
volatile UINT16 *dst = destination_of_data;
/* flash destination address
int wc = words_to_program-1;
/* word count (minus 1)
*( (volatile UINT16 *)base_addr + 0x555 ) = 0x00AA; /* write unlock cycle 1
*( (volatile UINT16 *)base_addr + 0x2AA ) = 0x0055; /* write unlock cycle 2
*( (volatile UINT16 *)sector_address ) = 0x0025; /* write write buffer load command
*( (volatile UINT16 *)sector_address ) = wc;
/* write word count (minus 1)
while (wc >= 0)
/* ALL dst MUST BE SAME PAGE */
{
*dst = *src;
/* write source data to destination */
dst++;
/* increment destination pointer
*/
src++;
/* increment source pointer
*/
wc--;
/* decrement word count
*/
}
*( (volatile UINT16 *)sector_address ) = 0x0029; /* write confirm command */
*/
*/
*/
*/
*/
*/
*/
/* insert code to poll for completion */
/*
*(
*(
*(
Example: Write Buffer Abort Reset
(volatile UINT16 *)addr + 0x555 )
(volatile UINT16 *)addr + 0x2AA )
(volatile UINT16 *)addr + 0x555 )
*/
= 0x00AA; /* write unlock cycle 1 */
= 0x0055; /* write unlock cycle 2 */
= 0x00F0; /* write buffer abort reset */
The write buffer page is selected by using the addresses Amax - A5. The write buffer page addresses must be the same for all address/data pairs loaded into the write buffer. Write buffer
programming cannot be performed across multiple write buffer pages and sectors. If a write
buffer address is loaded multiple times, the address/data pair counter decrements for every data
load operation. The software takes care of the ramifications of loading a write buffer location
more than once.
Write buffer programming operation can be suspended using the suspend/resume command. If
the write buffer command sequence is entered incorrectly the device enters write buffer abort.
May 2, 2006 Write-Page_Buffer_AN_1
MirrorBit Write Buffer Programming and Page Buffers
5
A p p l i c a t i o n
N o t e
Write Unlock Cycles:
Address 555h, Data AAh
Address 2AAh, Data 55h
Unlock Cycle 1
Unlock Cycle 2
Issue
Write Buffer Load Command:
Program Address Data 25h
Load Word Count to Program
Program Data to Address:
SA = wc
wc = number of words – 1
Yes
Confirm command:
SA 29h
wc = 0?
No
Wait 4 µs (recommended)
Write Next Word,
Decrement wc:
PA data , wc = wc – 1
No
Perform Polling Algorithm
(see Write Operation Status
flowchart)
Polling Status
= Done?
Yes
No
No
Yes
Write Buffer
Abort?
Error?
Yes
No
RESET. Issue Write Buffer
Abort Reset Command
6
FAIL. Issue reset command
to return to read array mode.
MirrorBit Write Buffer Programming and Page Buffers
PASS. Device is in
read mode.
Write-Page_Buffer_AN_1 May 2, 2006
A p p l i c a t i o n
N o t e
Conclusion
The write buffer programming feature of MirrorBit Flash memory devices can decrease the programming time by over 75%, when compared to single word programming. Write buffer
programming is enabled via a simple addition of three commands to the standard embedded algorithm bus command set.
The read page buffer feature of MirrorBit Flash memories can increase performance significantly.
Following each random (inter-page) access all locations of the referenced 4- or 8-word page are
available for fast access. When read accesses can be grouped within a page the average read
performance can be increased by 3 to 4 times.
May 2, 2006 Write-Page_Buffer_AN_1
MirrorBit Write Buffer Programming and Page Buffers
7
A p p l i c a t i o n
N o t e
Revision History
Revision 1 (May 2, 2006)
Initial Release.
Colophon
The products described in this document are designed, developed and manufactured as contemplated for general use, including without limitation, ordinary
industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as contemplated (1) for any use that
includes fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal
injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control,
medical life support system, missile launch control in weapon system), or (2) for any use where chance of failure is intolerable (i.e., submersible repeater and
artificial satellite). Please note that Spansion will not be liable to you and/or any third party for any claims or damages arising in connection with above-mentioned uses of the products. Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures
by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other
abnormal operating conditions. If any products described in this document represent goods or technologies subject to certain restrictions on export under
the Foreign Exchange and Foreign Trade Law of Japan, the US Export Administration Regulations or the applicable laws of any other country, the prior authorization by the respective government entity will be required for export of those products.
Trademarks and Notice
The contents of this document are subject to change without notice. This document may contain information on a Spansion product under development by
Spansion LLC. Spansion LLC reserves the right to change or discontinue work on any product without notice. The information in this document is provided
as is without warranty or guarantee of any kind as to its accuracy, completeness, operability, fitness for particular purpose, merchantability, non-infringement
of third-party rights, or any other warranty, express, implied, or statutory. Spansion LLC assumes no liability for any damages of any kind arising out of the
use of the information in this document.
Copyright © 2006 Spansion LLC.
All rights reserved. Spansion, the Spansion logo, MirrorBit, combinations thereof, and ExpressFlash are trademarks of Spansion LLC. Other company and
product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
8
MirrorBit Write Buffer Programming and Page Buffers
Write-Page_Buffer_AN_1 May 2, 2006
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
