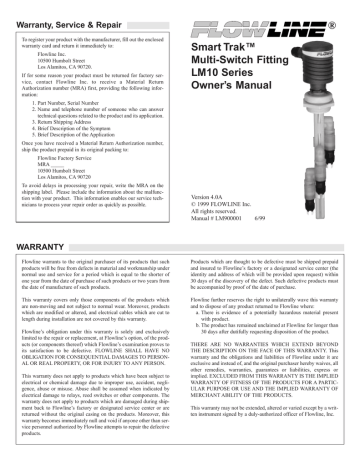

Warranty, Service & Repair
To register your product with the manufacturer, fill out the enclosed
warranty card and return it immediately to:
Flowline Inc.
10500 Humbolt Street
Los Alamitos, CA 90720.
If for some reason your product must be returned for factory service, contact Flowline Inc. to receive a Material Return
Authorization number (MRA) first, providing the following information:
®
Smart Trak™
Multi-Switch Fitting
LM10 Series
Owner’s Manual
1. Part Number, Serial Number
2. Name and telephone number of someone who can answer
technical questions related to the product and its application.
3. Return Shipping Address
4. Brief Description of the Symptom
5. Brief Description of the Application
Once you have received a Material Return Authorization number,
ship the product prepaid in its original packing to:
Flowline Factory Service
MRA _____
10500 Humbolt Street
Los Alamitos, CA 90720
To avoid delays in processing your repair, write the MRA on the
shipping label. Please include the information about the malfunction with your product. This information enables our service technicians to process your repair order as quickly as possible.
Version 4.0A
© 1999 FLOWLINE Inc.
All rights reserved.
Manual # LM900001
6/99
WARRANTY
Flowline warrants to the original purchaser of its products that such
products will be free from defects in material and workmanship under
normal use and service for a period which is equal to the shorter of
one year from the date of purchase of such products or two years from
the date of manufacture of such products.
Products which are thought to be defective must be shipped prepaid
and insured to Flowline’s factory or a designated service center (the
identity and address of which will be provided upon request) within
30 days of the discovery of the defect. Such defective products must
be accompanied by proof of the date of purchase.
This warranty covers only those components of the products which
are non-moving and not subject to normal wear. Moreover, products
which are modified or altered, and electrical cables which are cut to
length during installation are not covered by this warranty.
Flowline further reserves the right to unilaterally wave this warranty
and to dispose of any product returned to Flowline where:
a. There is evidence of a potentially hazardous material present
with product.
b. The product has remained unclaimed at Flowline for longer than
30 days after dutifully requesting disposition of the product.
Flowline’s obligation under this warranty is solely and exclusively
limited to the repair or replacement, at Flowline’s option, of the products (or components thereof) which Flowline’s examination proves to
its satisfaction to be defective. FLOWLINE SHALL HAVE NO
OBLIGATION FOR CONSEQUENTIAL DAMAGES TO PERSONAL OR REAL PROPERTY, OR FOR INJURY TO ANY PERSON.
This warranty does not apply to products which have been subject to
electrical or chemical damage due to improper use, accident, negligence, abuse or misuse. Abuse shall be assumed when indicated by
electrical damage to relays, reed switches or other components. The
warranty does not apply to products which are damaged during shipment back to Flowline’s factory or designated service center or are
returned without the original casing on the products. Moreover, this
warranty becomes immediately null and void if anyone other than service personnel authorized by Flowline attempts to repair the defective
products.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE OF THIS WARRANTY. This
warranty and the obligations and liabilities of Flowline under it are
exclusive and instead of, and the original purchaser hereby waives, all
other remedies, warranties, guarantees or liabilities, express or
implied. EXCLUDED FROM THIS WARRANTY IS THE IMPLIED
WARRANTY OF FITNESS OF THE PRODUCTS FOR A PARTICULAR PURPOSE OR USE AND THE IMPLIED WARRANTY OF
MERCHANT ABILITY OF THE PRODUCTS.
This warranty may not be extended, altered or varied except by a written instrument signed by a duly-authorized officer of Flowline, Inc.
SPECIFICATIONS
Step One
Track lengths:
Adjustability:
Mixer velocity:
Temperature range:
Pressure range:
Track material:
Mounting thread:
Mounting gasket:
2’, 4’, 6’, 8', 10’ or 12’ (1m, 2m or 3m)
Entire track length
Up to 1.5 fps (.45 mps)
F: -40° to 194°
C: -40° to 90°
Atmospheric
Polypropylene (PP), 20% glass filled
2" NPT (2” G)
Viton (2”) metric only
Enclosure rating:
Enclosure material:
Enclosure rotation:
Conduit connection:
Termination:
Temperature range:
NEMA 4X (IP65)
Polypropylene, U.L. 94 VO
300° swivel base
1/2" NPT
12 pole socket terminal strip
F: -40° to 158°
C: -40° to 70°
(71mm)
LM10 - 1 _ _ 1
Track Length
2 - 2 feet
4 - 4 feet
6 - 6 feet
8 - 8 feet
0 - 10 feet
1 - 1 meter
3 - 2 meter
7 - 3 meter
Mounting Thread
0 - 2” NPT
6 - 2” G
Junction Box:
2.8"
Smart Trak Fitting
5.7" (145mm)
4.2" (106mm)
Smart Trak Fitting:
0.6"
(16mm)
2" NPT
(2" G)
Side Mount Bracket:
Polypropylene
2" NPT (2” G)
Bold or plastic weld
About Smart Trak™:
Flowline’s Smart Trak™ is an adjustable mounting system for
installing multiple level sensors vertically within a tank. Mounted
through a single point at the top of the tank, up to 6 different sensors
can be located at any depth on Smart Trak. Flowline’s LC05 or LC06
compact junction boxes, and LC10, LC11 or LC30 compact relay
controllers are designed to be mounted directly to the 3/4" NPT fitting
at the top of the assembly. Smart Trak mounts vertically through a
standard 2" NPT tank adapter, or on a side mount bracket (such as the
LM50-1001). Unlike prefabricated “trees” or pipes, Smart Trak
allows you to experiment with sensor position to account for variations in the point of actuation of each sensor during process testing.
Track:
The track itself is approximately 1" square, and is from 2' to 12' long
depending on model. The track may be cut to length if desired. Four
separate grooves run the length of the track, one on each side of the
square. These grooves hold the sensor cars that attach to Flowline
sensors, and also serve to contain the sensor wire. The bottom of the
track is capped with an end cap. About 3/8" from the top of the track
is a hole for a locking pin that holds the track in position in the top fitting.
2’, 4’, 6’ or 8’ Standard Track Lengths
Bracket material:
Mounting thread:
Installation:
3.4"
(86mm)
1.0"
(25mm)
2" NPT to Smart Trak fitting:
The track slides into the square center of a large fitting which has
coarse threads on the top, and 2" NPT-standard threads on the bottom.
A slot inside the fitting mates with the locking pin to hold the track in
position.
1.0"
(25mm)
Top compression fitting and wire gasket:
Once the track is in the 2" fitting, the wires pass through a thrust plate
and a thick rubber gasket, and the assembly is held firmly in place by
a top compression fitting that screws onto the coarse threads. The top
fitting has a 3/4" NPT threaded outlet for connecting to conduit or for
direct mounting of a Flowline LC05/06 terminal strip housing, LC10,
LC11, or LC30 series controller. Make sure the seal plug has been
installed for added protection.
Note: The wire gasket is not a vapor or water seal.
FLOWLINE Compact Controller /
Compact Junction Box Mounted on
smart Trak
SAFETY PRECAUTIONS
Step Two
About this Manual:
PLEASE READ THE ENTIRE MANUAL PRIOR TO
INSTALLING OR USING THIS PRODUCT. This manual
includes information on five different models of Smart Trak:
LM10-1201, LM10-1401, LM10-1601, LM10-1801 and LM101X01. The units are identical except for the length of the track.
User's Responsibility for Safety:
Flowline manufactures a wide range of liquid level sensors, controllers, and mounting systems. It is the user's responsibility to
select components that are appropriate for the application, install
them properly, perform tests of the installed system, and maintain
all components. The failure to do so could result in property damage or serious injury.
Proper Installation and Handling:
Use a proper sealant with all installations. Never overtighten the
components. Always check for leaks prior to system start-up.
ASSEMBLY OF SMART TRAK
Step Three
Smart Trak Assembly Drawing (Side View)
Sensor Wire
Seal Plug
Top Compression
Fitting
Wire Gasket
Thrust Plate
Locking Pin
2” NPT
Fitting
Material Compatibility:
The track, end cap, wire retainer clips, bayonet adapter and sensor
car for all the LM10 models are made of glass filled PP
(Polypropylene, a polyolefin). The sensor car locking bolt and
screw are made of PCTFE (polychlorotrifluoroethylene, a fluoroplastic), the top compression fitting, thrust plate, locking pin and 2"
NPT fitting are made of PP and the O-ring is made of Viton (a fluorocarbon). The wire gasket is made of Neoprene, the seal plug is
made of Santoprene and both have a silicon gel for lubrication.
Make sure that the application liquids are compatible with the
materials that will be wetted. To determine the chemical compatibility between the components and its application liquids, refer to
the Compass Corrosion Guide, available from Compass
Publications (phone 619-589-9636).
Track
End cap
Inventory:
One smart trak kit (LM10-1__1) includes the following parts:
1 Seal Plug
1 Top compression fitting
1 Wire gasket
1 Thrust Plate
1 Locking pin
1 2" NPT fitting
1 Track
1 End cap
2 Wire retainer clips (not shown)
Smart Trak Assembly Drawing (Top View):
Cable
Temperature and Pressure:
Smart Trak is designed for use in application temperatures up to
90° C (194° F). It is not designed for pressurized applications due
to the wiring that must travel through a gasket at the head.
Wiring and Electrical:
Electrical wiring of any liquid level control system should be performed in accordance with all applicable national, state, and local
codes. Take care not to cut or break the outer insulation jacket of
wiring that may be immersed while routing cables in the Smart
Trak system. Such breaks of the liquid seal of the sensor system
may lead to component failure.
Cable
must fit
into side of
track next
to locking pin
Seal Plug Assembly Drawing (Side View)
Flammable, Explosive and Hazardous Applications:
Smart Trak may be used within flammable or explosive applications
only if the associated components are rated intrinsically safe for
such use. In hazardous applications, use redundant measurement
and control points, each having a different sensing technology.
Seal Plug
Wires
Top Compression
Fitting
Make a Fail-Safe System:
Design a fail-safe system that accommodates the possibility of
transmitter or power failure. In critical applications, Flowline recommends the use of redundant backup systems and alarms in addition to the primary system.
2” NPT
Fitting
ASSEMBLY OF SWITCH CAR
INSTALLATION
Step Four
Step Five
Sensor car and bayonet adapter:
Smart Trak™, In-Tank Installation:
The sensor car assembly is the heart of the Smart Trak system. It
slides in the grooves of the track, and is locked into position by a plastic bolt and screw. The bayonet to 3/4" NPT adapter has a female 3/4"
NPT fitting on one end where the sensor (not included) will screw in,
and a bayonet fitting on the other end that attaches it onto the sensor
car with a slight turn, with an O-ring in-between to provide tension
for the push-and-turn connection.
Flowline's Smart Trak mounting system is an in-tank fitting, which
enables users to install any technology, along the entire length of
track. Smart Trak may be installed thru the top wall of any tank or
flange, using a standard 2" NPT tank adapter or blind flange. If tank
top is not available, Flowline's side mount bracket, LM50-1001,
enables Smart Trak to be installed directly to the side wall or lip of the
tank.
Switch Car Kit Assembly Drawing (Side View)
Tank Adapter:
Sensor
Wire
Shoe
Sensor Lock
Bolt & Nut
Sensor
Car
O-ring
Bayonet to
3/4” NPT
Adapter
Flange Mounting:
Flowline
Sensor
Inventory:
One switch car kit (LM30-10_1) consists of the following parts:
1 Locking bolt
1 Locking Nut
1 Sensor car
1 O-ring
1 Bayonet to 3/4” NPT adapter
Switch Car Kit to Smart Trak
(Top View)
Side Mount Bracket:
(Side View)
Lip of Tank
Determine the Proper Wire Length:
Don’t make the mistake of trimming the sensor wires too short before
the process is tested. If the sensors might need to be lowered in the
future, leave sufficient slack in the wires to allow for future adjustment. This extra wire may be stored in the bottom of the terminal strip
housing, or elsewhere above the compression fitting.
Side-Wall
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
