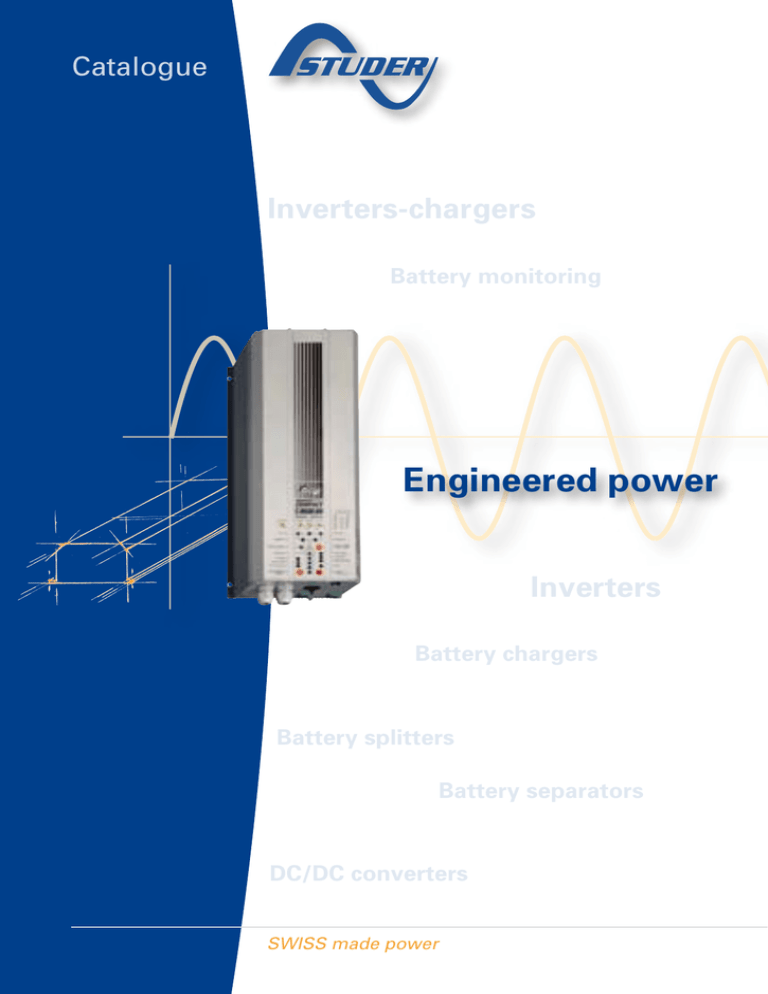

STUDER ürünleri genel katalog

Catalogue

Inverters-chargers

Battery monitoring

Engineered power

Inverters

Battery chargers

Battery splitters

Battery separators

DC/DC converters

SWISS made power

Summary

T he company

A pplications

- Applications in remote areas

- Mobile applications

- Backup applications

P roducts

- Sine wave inverters-chargers

- Sine wave inverters

- Battery chargers

- DC/DC converters

- Battery splitters

- Battery separators

- Battery protection

- Battery monitoring

A ppendices

- Technical sheets

- How to find us

3

12

12

22

23

23

16

20

21

22

8

10

6

6

24

24

32

Photos credits

Robert Hofer : Studer’s products ; Perspective : 4, 5, 20 ; Steca : p. 6 bottom ; Jeanneau : p. 8 top ;

Meteorisk : p. 3, 8, 32 ; Siblik : p. 17.

Graphism

Atelier Perspective, R. Gigon, Sion.

October 2007

2

C ompany

Experience and competences

Studer Innotec was founded in 1987 by

Roland Studer, current General Director.

From 1987 to 1991, the company developed its areas of competences in the solar photovoltaics and in the energy conversion, with the first inverters (DC/AC).

In 2005, the Sommet Prize, organized among others by the Union Bank of Switzerland was awarded to Studer Innotec, for its capabilities to innovate as well as to export its inverters.

90% of the turnover exported

The launch in 1994 of the Twinpower, then in 1995 of the SI, both sine wave inverters with unbeaten performances so far, makes Studer Innotec’s offer very attractive to demanding export markets.

This is the start of an export business which represents now some 90% of its turnover.

3

4

Leadership

Studer Innotec is today the leader of the inverter market in

Switzerland and in Europe, and a major actor in the rest of the

World.

It employs 40 people and manages a network of more than one hundred distributors in more than 70 countries.

Thanks to a large range of products, it is the only inverter manfacturer to cover the solar photovoltaic market as well as the nautical, the mobile, the backup and the telecom markets.

Integration and flexibility of the production

The philosophy of the company has been, from the very beginning, to master the process from A to Z, so from the development to the sales of the products. This is why Studer Innotec has started as a vertically integrated manufacturer, therefore more flexible than its competitors.

In other respects, to turn the markets expectations into products and services, an 8 people team is fully dedicated to Research &

Development.

The choice of the performance

The high-tech design of its products, as well as the choice of the performance and of the reliability, brings Studer Innotec to select its components with the highest care. This is the reason why it has chosen the latest technologies, like the digital signal processors (DSP) which provide better performances and a higher efficiency to its inverters.

C ompany

Comfort and versatility of the products

In future, this choice for quality and for service will continue to guide our strategic axes.

Beyond the performances, the next inverters will provide more comfort and will offer a greater versatility to their users.

Closeness to the clients

From research to industrial implementation, Studer Innotec intends to keep on investing financially and also in human resources, in order to maintain its lead in terms of the offer and of the closeness to the clients. This closeness expresses itself also by a network of partners qualified to service its products. The addresses of these partners, as well as the distributors, will be found on the company’s website, under the heading « Distributors ».

5

Applications in remote areas

Far from any electrical grid, by choice or by force, security and comfort (lighting, heating, household appliances, leisure electronics, telecoms…) can yet be provided by autonomous energy systems. These systems consist firstly of an energy source, normally a genset, a solar generator, a wind turbine or a combination of them, secondly of a battery storage, and then thirdly of devices (inverter-charger, battery charger) able to charge the battery from this energy source and to supply the users with AC voltage (inverter, inverter-charger).

The examples below show the products in some stand-alone applications.

A complete solar system

DC AC

This is a complete solar system that the combination of the inverter and of the optional built-in solar charge controller function allows to create. The inverter supplies the appliances with AC voltage and charges the battery with

DC voltage from the solar generator.

AJ serie

(200 - 2000 VA)

p. 16

Quality AC voltage for all electrical appliances

DC

REGULAT0R

DC

AC

The inverter supplies, exclusively from a battery, any kind of appliance using AC voltage, without exception.

It does convert the battery DC voltage into AC voltage with a better quality than from the public grid.

Xtender serie

p. 12

(2500 - 63000 VA)

Compact series

p. 14

(1100 - 7000 VA)

AJ serie

(200 - 2000 VA)

p. 16

SI serie

(600 - 10500 VA)

p. 18

6

A pplications

Increase of the power

GENERATOR

AC or

INVERTER

DC AC

AC

DC

AC

Thanks to the ingenious system Smart-Boost, it is possible to use an existing energy source in order to increase the power available. It allows therefore to add the inverter power to another one or to a genset. It is also possible to set several in parallel to increase even more the power.

Xtender serie

p. 12

(2500 - 63000 VA)

Hybrid system: more autonomy and flexibility

GENERATOR

AC AC

DC

This hybrid system provides a great flexibility in supply and an increased autonomy in relation to each source of energy.

The AC voltage supply to the appliances is done directly from the energy source through the transfer relay, or from the battery through the inverter function.

The charger function allows to charging the battery with the genset. The size of the genset can be reduced thanks to the function Smart-Boost.

Xtender serie

p. 12

(2500 - 63000 VA)

Compact series

p. 14

(1100 - 7000 VA)

3-phase grid 3 x 400Vac for high power appliances

AC

GENERATOR

AC

AC

AC

REGULATOR

DC

A 3 x 400Vac 3-phase grid can be built with

3 inverters for the supply of high power appliances. In case of an increased need of power it is possible to set up to 3 inverters in parallel on each phase (Xtender only).

Xtender serie

p. 12

(2500 - 63000 VA)

SI serie

(600 - 10500 VA)

p. 18

7

Mobile applications

An energy system on-board is often necessary to power the

AC voltage users, while the vehicle or the boat is away from the electrical grid (port, garage, camping…). In that case the energy is stored in the battery, which is actually charged by power sources on-board, like genset, solar generator, wind turbine, alternator or a combination of them. Studer Innotec offers the range of products that secure the management and the conversion of this energy, while securing an optimal supply of the appliances on-board.

The examples below show our products in some mobile applications.

A simple and reliable system on-board

AC

AC

The inverter-charger charges the battery from the grid or from a genset, and powers any kind of electrical appliance.

It converts the battery DC voltage to AC voltage.

The models equiped with the system Smart-Boost enable to add the power of the source to the inverter one.

Xtender serie

p. 12

(2500 - 63000 VA)

Compact series

p. 14

(1100 - 7000 VA)

An upgradeable power

AC

AC

AC

AC

DC DC

The power available for the users can be adapted in the course of time by adding inverters in parallel or by creating additional phases. It is therefore possible to install up to 9 inverters in a 3-phase power system.

Xtender serie

p. 12

(2500 - 63000 VA)

8

A pplications

3 x 400Vac 3-phase grid on-board

AC

AC

DC DC

Successive charge of the batteries

AC

A 3-phase grid can be built with 3 inverters. The serie

Xtender enables to create a 3-phase grid and to charge simultaneously the battery, even if only a single phase is available as a power source

Xtender serie

p. 12

(2500 - 63000 VA)

SI serie

(600 - 10500 VA)

p. 18

AC

AC

DC

DC

DC

DC

MOTOR

In this system, a battery separator enables the charge of one or several auxiliary batteries once the primary battery is charged.

Simultaneous charge of batteries

MOTOR

DC

DC

AC

DC

DC

A MOSFET splitter, with almost no voltage losses, enables to split the charge current to and in between several batteries. From the battery pack, a DC/DC converter will step up or step down the voltage according to the voltage of the users, 12, 24 or 48Vdc.

9

MBR serie

p. 22

MBC serie

p. 20

MBI serie

p. 22

MBC serie

p. 20

MDCI-MDC series

p. 21

Backup applications

Supplied by the public grid, the users like fridges, PCs, emergency lights, etc. which can not afford any power cut, are electrically securitized. An inverter-charger with transfer relay or a combination of an inverter and a charger guarantees to maintain well the battery and to keep uninterrupted the supply of strategic appliances.

Studer Innotec offers solutions from 200W up to 63kW with a product choice unchallenged on the market.

Some examples of backup applications are described below.

A pplications

Uninterruptible power supply on-line

AC

DC

AC

In this system, the functions of battery charge and of users supply are separated, with on one side a battery charger, and on the other an inverter. The fluctuations of the grid current have no impact on the users.

AJ serie

(200 - 2000 VA)

SI serie

(600 - 10500 VA)

p. 16 p. 18

MBC serie

p. 20

Solsafe – a backup system for grid connected solar installations

Uninterruptible power supply off-line

AC

AC

In this configuration the grid supplies directly the users thanks to the by-pass function of the inverter-charger. In case of a drop or a cut of the grid, the inverter-charger guarantees the supply of the users.

Xtender serie

p. 12

(2500 - 63000 VA)

Compact series

p. 14

(1100 - 7000 VA)

10

Compteur

DC

GRID

INVERTER

AC

Securitized

Not securitized

The installation of our solution Solsafe (inverter-charger from the Compact series + module type ARM-01) in a grid connected solar system enables to securitize totally or partially the power supply in case of a power cut, and so to keep on using the solar energy being produced.

11

Compact series

p. 14

(1100 - 7000 VA)

Sine wave inverters-chargers

Xtender

XTH 3000-12

XTH 5000-24

XTH 6000-48

XTH 8000-48

Xtender Serie

The Xtender serie provides an unmatched freedom of use thanks to its many functions. In a basic application, it offers together the functions of inverter, battery charger, transfer system and assistance to the source.

These functions can be combined and controlled in a totally automatic way for an exceptional comfort and an optimal management of the energy available.

Its programmable auxiliary contacts allow as well the interconnection with existing systems or the implementation of extended functions. Fully programmable by means of its remote control, it enables the update of the software, thus making it an upgradeable product to which new functions may be added further on.

By the implementation of several units, it is possible to create a

3-phase source or to set them in parallel to increase the power available. Up to 9 inverters of the Xtender serie shall therefore be combined together.

AC

AC

Features and performances

• True sine wave voltage.

• Reliable and silent with any kind of load.

AC

• Outstanding overload capabilities.

• Function Smart-Boost for assistance to the source

even with difficult loads.

• Automatic reduction of peak loads (power shaving).

• Automatic allocation of the power available (power sharing).

DC DC

• Stand-by level adjustable over a large range and from a very low threshold.

• Multi-stage programmable battery charger with PFC.

• Ultra-fast transfer relay.

• High efficiency.

• Control by digital signal processors (DSP).

AC

Xtender range

XTH 3000-12

XTH 5000-24

XTH 6000-48

XTH 8000-48

Battery voltage

12V

24V

48V

48V

Inverter

Power

P30/Pnom

Power

Smart-Boost

3000VA / 2500VA

5000VA / 4500VA

6000VA / 5000VA

8000VA / 7000VA

3000VA

5000VA

6000VA

8000VA

Charger

Charge current

160A

140A

100A

120A

Transfer

Maximum current

50A / 11.5kVA

50A / 11.5kVA

50A / 11.5kVA

50A / 11.5kVA

Complete technical specifications on page 24.

P roducts

Function Smart-Boost

The function Smart-Boost enables to add the inverter power to another source, like for instance a genset or the shorepower, even in case of asymetric loads. It is possible to add an Xtender to almost any other existing inverter in order to increase the power available.

Generator or Grid

Generator or Grid

Charger

Xtender

Battery

Inverter

Xtender

Battery

Xtender

Charge

Battery

Multifunctional contacts

The potential free contacts can be programmed to provide many supplementary functions.

They can react to each event, inside or outside of the inverter (presence of the grid, battery thresholds, alarm signal…). The contacts can also be programmed as time switch or can be disabled during sensitive periods (night, week-end…). They allow therefore the implementation of functions like the automatic start of gensets, the automatic disconnection of second priority users, the alarm signal, the conditional charge of the battery…

Accessories

Remote control and programming centre RCC-02 or RCC-03

Thanks to its graphic display it provides many understandable indications on the state of the system.

The remote control memorizes and displays the events that occurred on an installation and so it does anticipate the problems that might appear.

It gives access to the many adjustable parameters of the Xtender like the setting of the charge curve of the battery, the programming of the auxiliary relays or even, among others, to a lot of operation options.

A place is dedicated to a SD card which will allow the parameters memorizing, the data transfer or the software update.

Cables for RCC-02 and RCC-03 :

CAB-RJ45-5 (5 m), CAB-RJ45-20 (20 m), CAB-RJ45-50 (50 m)

Battery temperature sensor BTS-01 (3 m)

This sensor enables to accurately adapt the charge thresholds to the battery temperature.

Communication cable for 3ph and parallel CAB-RJ45-2 (2 m)

Allows the setting in parallel or the implementation of a 3-phase system even when only a single-phase source is available.

13

Sine wave inverters-chargers

XP COMPACT

XPC 1400-12

XPC 2200-24

XPC 2200-48

COMPACT

C 1600-12

C 2600-24

C 4000-48

Compact series

The models of the Compact series consist of 3 fully automatic functions : a sine wave inverter, a battery charger and a transfer system. Equiped with a high-end technology, they carry our long experience in the field of electrical supply.

Features and performances

• True sine wave voltage.

• Suitable for any kind of electrical appliance.

• Reliable and silent working with all kind of loads.

• Outstanding overload capabilities.

• Stand-by level adjustable over a large range and from

a very low threshold.

• 4 STEP battery charger with PFC.

• Ultra-fast transfer relay.

• High efficiency.

• Full internal protection.

• Ultra-fast regulation.

• Microprocessor controlled.

HP COMPACT

HPC 2800-12

HPC 4400-24

HPC 6000-48

HPC 8000-48

Norm E certification

The XPC 1400-12, XPC 2200-24, C 1600-12 and

C 2600-24 are certified to the ECE-R 10 norm. This certification is mandatory in the European Union for all electrical equipments on board of vehicles.

Compact range

XPC 1400-12

XPC 220O-24

XPC 2200-48

C 1600-12

C 2600-24

C 4000-48

HPC 2800-12

HPC 4400-24

HPC 6000-48

HPC 8000-48

Function inverter

Power 30 min. / continuous at 25°C

Battery voltage

1400VA / 1100VA

2200VA / 1600VA

2200VA / 1600VA

1600VA / 1300VA

2600VA / 2300VA

4000VA / 3500VA

2800VA / 2500VA

4400VA / 4000VA

6000VA / 5000VA

8000VA / 7000VA

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

48Vdc

Function charger

Adjustable charge current

0 - 45A

0 - 37A

0 - 20A

0 - 55A

0 - 55A

0 - 50A

0 - 110A

0 - 100A

0 - 70A

0 - 90A

Transfer relay

Maximum current

16A/3.7kVA

16A/3.7kVA

16A/3.7kVA

16A/3.7kVA

16A/3.7kVA

16A/3.7kVA

30A/6.9kVA

30A/6.9kVA

30A/6.9kVA

50A/11.5kVA

Complete technical specifications on page 25.

14

P roducts

Multifunctional contact

The 16 A. potential free contact can be programmed according to the user wishes. It can react according to the battery levels as well as to the system status (alarm conditions, presence of the public grid, sunlight’s presence…), and it enables for example :

1/ Automatic disconnection of

second priority users (condi-

tional supply).

2/ Alarm signalisation, acoustic

signal, MODEM, radio alarm etc.

3/ Conditional battery charge.

GENERATOR

AC

DC

3

2

1

AC

AC

Accessories

Remote control RCC-01

Comprehensive LED display. Also for the programming of the COMPACT series (supplied with 20m cable).

Temperature sensor CT-35

This sensor adapts charge levels to the temperature variations of the battery (supplied with 3m cable).

Remote control RPS-01

The setting of the power sharing can be remotely controlled by means of the remote control supplied with a

20m cable.

Auxiliary relay module ARM-01

Equiped with 4 programmable relays, this module enables to implement the system Solsafe (see page 11).

Cover CFC-01

This cover provides an additional protection to the connections by means of glands.

Cover C-IP23

Cover for a protection against intrusions or projections, installed after the mounting of the device. It extends the protection index from IP 20 to IP 23.

XP COMPACT COMPACT HP COMPACT

l l l l l l l l l l l l l l l

Optional built-in solar charge controller (-S)

The models XP Compact and Compact are available with an optional built-in charge controller (I/U/Uo) making the invertercharger an « all in one » device for a solar installation.

DC AC

15

Sine wave inverters

AJ serie

The AJ range consists of sine wave inverters that convert the DC voltage of a battery into AC voltage which can be used by all electrical appliances.

Features and performances

• High and steady efficiency.

• Outstanding overload capabilities.

• Digital regulation and control by microprocessor.

• Electrical supply to any kind of appliance.

• Full internal protection.

• Stand-by level adjustable from a very low threshold.

AJ serie

AJ 275-12

AJ 350-24

AJ 400-48

AJ serie

AJ 500-12

AJ 600-24

AJ 700-48

AJ serie

AJ 1000-12

AJ 1300-24

AJ serie

AJ 2100-12

AJ 2400-24

AJ range

Power 30 min. / continuous at 25°C

Battery voltage

AJ 275-12

AJ 350-24

AJ 400-48

AJ 500-12

AJ 600-24

AJ 700-48

AJ 1000-12

275VA / 200VA

350VA / 300VA

400VA / 300VA

500VA / 400VA

600VA / 500VA

700VA / 500VA

1000VA / 800VA

1300VA / 1000VA

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

AJ 1300-24

AJ 2100-12

AJ 2400-24

2100VA / 2000VA

2400VA / 2000VA

12Vdc

24Vdc

Complete technical specifications on pages 26-27.

16

Norm E certification

The AJs in 12 and 24Vdc are certified to the ECE-R

10 norm. This certification is mandatory in the

European Union for all electrical equipments on board of vehicles.

AC

P roducts

Options and accessories

Remote control JT8

Enables to control the inverter remotely

(supplied with 10m cable).

Plug for remote control RCM :

RCM 01 : ON when a contact is closed ;

RCM 02 : ON when a voltage is present (key controlled) on the

remote control ;

RCM 03 : ON when a contact is open.

AJ 275-12, AJ 350-24

AJ 400-48, AJ 500-12

AJ 600-24, AJ 700-48

AJ 1000-12, AJ 1300-12

AJ 2100-12, AJ 2400-24

l l

DC AC

Optional built-in solar charge controller (-S)

An optional 3 STEP charge controller

(I/U/Uo) can be supplied built-in making the inverter AJ an « all in one » device for a solar installation.

Rural electrification (Solar Home System)

The rural electrification and the inverters of the AJ serie : excellence to the benefit of the development of remore areas and populations. Choosing AC voltage for the rural electrification systems is going for simplicity, reliability and cost saving. Indeed, compared with a DC voltage one, a system with an inverter is often more efficient from 100W of solar power, and is always since 200W.

The AJ serie, due to its overload capability and to its very reliable stand-by system adjustable from 1W, is the most suitable range of inverters to meet the rural electrification technical and economical requirements.

17

SI serie

SI 612

SI 624

SI 648

SI 812

SI 824

SI serie

SI 1212

SI 1224

SI 1248

SI 1624

SI 2324

SI 2348

SI 3324

SI 3548

SI range

SI 612

SI 624

SI 648

SI 812

SI 824

SI 1212

SI 1224

SI 1248

SI 1624

SI 2324

SI 2348

SI 3324

SI 3548

Continuous power at 25°C

Battery voltage

600VA

600VA

600VA

800VA

800VA

1200VA

1200VA

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

12Vdc

24Vdc

1200VA

1600VA

2300VA

48Vdc

24Vdc

24Vdc

2300VA

3300VA

48Vdc

24Vdc

3500VA 48Vdc

Complete technical specifications on page 28.

Sine wave inverters

SI serie

The SI range consists of sine wave inverters that convert the DC voltage of a battery into AC voltage which can be used by all electrical appliances.

Features and performances

• High efficiency.

• Outstanding overload capabilities thanks to the combi-

ned use of a toroidal transformer, of an oversized

power stage and of an ultra-fast regulation.

• Electrical supply to any kind of appliance.

• Full internal protection.

• Stand-by level adjustable over a large range and from

a very low threshold.

• Reliable and silent working with all kind of loads.

• Possibility in option to connect 3 inverters together in

an autonomous 3 x 400Vac 3-phase grid.

• Built-in solar charge controller in option for solar

systems (only SI 600 and 800).

• A range in 19’’ rack is also available from 1200 to 3500W

(see option SIxxxxIND).

AC

P roducts

Options and accessories

Cover C-IP23

Cover for a protection against intrusions or projections, installed after the mounting of the device. It extends the protection index from IP 20 to IP 23.

Option Twinpower SI xxxxTP, without stand-by, no-load consumption < 0.5W.

Option 3-phase SI xxxxPE, for 3 x 400V applications.

Option 19’’ SI xxxxIND, inverter in 19’’ rack.

Alarm contact SI xxxxA, potential free contact 60V/0.5A.

Solar charge controller SI xxxS, built in the SI, 16A max. current.

SI 612 to SI 824 SI 1212 and up

l l l l l l l l

Option TWINPOWER

From 1200W there is a possible choice between a stand-by system (load detection adjustable from 0.3 to 20W) and the unique TWINPOWER option.

The TWINPOWER option enables the permanent use of very small loads (like alarms or security systems) with an outstanding efficiency, 10 times higher than any other inverter, and a no-load consumption

< 0.5W (see above Options and accessories).

100

90

80

70

60

50

40

30

20

10

0 5

60

50

40

30

20

10

100

90

80

70

0 20 40 60 80 100 120 140

Power (% de Pnom)

160 180

10 15 20 25

Power (W)

30 35 40 45 50

SI + Twinpower

SI

Conventional

Industrial casing in 19’’ rack

The availability of the inverters in 19’’ rack, from the SI 1200, is a direct evolution of the sine wave SI series and it meets particularly well the industrial applications (see above Options and accessories).

3-phase

With the PE option, and from the SI 1200, it is possible to connect 3 inverters together to build a 3 x 400Vac 3-phase grid. This extends the SI range up to 10500VA (3 x SI 3548

PE). Such a configuration enables to supply motors and other

3-phase equipments, even with asymetrical powers on the phases (see above Options and accessories).

L1

L2

L3

N

19

Battery chargers

MBC serie

The MBC chargers enable to charge a battery from an AC voltage source of supply (genset, public grid, shore power...). These chargers are also IP65 and therefore especially designed for outdoor applications.

Features and performances

• Universal input voltage.

• Charge of lead-acid or GEL batteries.

• Protection against battery overcharge.

AC

GENERATOR

AC

MBC range

MBC 12-06/1

MBC 12-15/1

MBC 24-03/1

MBC 24-08/1

Battery voltage

12 Vdc

12 Vdc

24 Vdc

24 Vdc

Input voltage

100-260 Vac

100-260 Vac

100-260 Vac

100-260 Vac

Output current

6 A

15 A

3 A

8 A

Output

1

1

1

1

Complete technical specifications on page 29.

20

P roducts

DC/DC converters

MDCI and MDC series

The DC/DC converters type MDCI and MDC are used, depending on the model, either to step up or to step down a DC voltage.

The converters of the MDCI range are electrically isolated.

Features and performances

• High efficiency.

• Low consumption.

• Protection against short-circuit, overheat,

overvoltage and reverse polarity.

• Great stability of the output voltage for a more

reliable system.

DC DC

MDCI range

MDCI 100

MDCI 200

MDCI 360

MDCI 360 A24

Charger

A = 9-18 Vdc

Power

100 W

200 W

360 W

330 W

Input variant

A/B/C/D

A/B/C/D

A/B/C/D

A

Output variant

12/24 Vdc

12/24 Vdc

12/24 Vdc

24 Vdc

B = 20-35 Vdc C = 30-60 Vdc D = 60-120 Vdc

Isolated

Yes

Yes

Yes

Yes

MDC range

MDC 1224-7

MDC 2412-5

MDC 2412-8

MDC 2412-12

MDC 2412-20

MDC 2412-30

Current

7 A

5 A

8 A

12 A

20 A

30 A

Input voltage

9-18 Vdc

18-35 Vdc

18-35 Vdc

20-35 Vdc

20-35 Vdc

20-35 Vdc

Output voltage

24 Vdc

13.2 Vdc

13.2 Vdc

13.2 Vdc

13.8 Vdc

13.8 Vdc

Isolated

No

No

No

No

No

No

Complete technical specifications on page 29.

The MDC 2412-20 and 2412-30, as well as the MDCI 360 A24 « Charger » can also be used to charge a battery from a source at their input terminal to a battery at their output terminal.

21

MOSFET battery splitters

MBI serie

The MOSFET battery splitters MBI generate an insignificant voltage drop. They supply the current of a charger or of an alternator to several batteries. All batteries are thus charged in the same time and therefore will not charge or discharge each others.

MBI range

MBI 100/2

MBI 150/2

MBI 100/3

MBI 150/3

MBI 200/3

MBI 2-100/3

Features and performances

• Automatic adjustment to the batteries voltage.

• Possible charge of the battery from an alternator

• Voltage drop < 0.4 V at 100 Amp. charge current.

• Suitable for electronic alternators.

Input

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

Charge current

100 A

150 A

100 A

150 A

200 A

100 A

Charge input

1

1

1

1

1

2

Outputs

2

2

3

3

3

3

Complete technical specifications on page 30.

AC

MOTOR

DC

DC

Batteries separators

Features and performances

• Insignificant voltage drop.

• Protects the auxiliary battery from any

overvoltage coming from the charge.

MBR serie

The batteries separators MBR are microprocessor controlled.

They charge first the primary battery, from a charger or an alternator, then the other batteries by connecting them in parallel.

Batteries

MBR range

MBR 12-80

MBR 24-80

MBR 12-160

MBR 24-160

MBR 12-400

MBR 24-400

Battery voltage

12 Vdc

24 Vdc

12 Vdc

24 Vdc

12 Vdc

24 Vdc

Charge current

80 A

80 A

160 A

160 A

400 A

400 A

2

2

2

2

2

2

Complete technical specifications on page 30.

MOTOR

DC

DC DC

DC

AC

22

P roducts

Battery protection

MBW serie

The Battery Watch protects the battery from an excessive discharge and also the users in case of overvoltage.

Features and performances

• Programming of the connection and disconnection voltages

by jumpers.

• MOSFET switches, therefore no sparks.

• Alarm output to indicate excessive voltage drops.

DC

DC

MBW range

MBW 30

MBW 60

Current maximum/nominal

30/25

60/50

Operating voltage range (Vdc)

6-35

6-35

Complete technical specifications on page 31.

Battery monitoring

SBM-01

The SBM-01 is a highly accurate battery monitor with a history data memory. It is supplied together with a 500A/50mV shunt.

This device is designed for 12 and 24V batteries. The voltage pre-scaler

SBM-PS-01 in option extends the use of the SBM-01 to 27-175V batteries.

Features and performances

• Digital display of the 6 most important

parameters of a DC power system :

1. Battery voltage (V)

2. Current (A)

3. Consumed Ampere-hours (Ah)

4. Sate-of-charge (%)

5. Time-to-go (h:m)

6. Temperature (°C or °F)

Optional accessories

• Connection kit, type SBM-CAB-20, including 20m of twisted pair cable (3 x 2 x 0.5mm2) and

2 fuseholders.

• Communication kit, type SBM-COM, including RS232 interface box, 1.8m of 9p DSUB serial cable

and software.

• Temperature kit, type SBM-TEMP-20, with a temperature sensor and 20 m cable.

23

Technical sheets

Xtender serie

Model

Inverter (factory setting/range adjustable with RCC-02 or RCC-03)

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power Smart-Boost

Power 30 min. @ 25°C

Power 5 sec. @ 25°C

Maximum load

Maximum asymmetric load

Load detection (stand-by)

Cos j

Maximum efficiency

Consumption OFF/Stand-by/ON

Output voltage

Output frequency

Harmonic distortion

Dynamic behaviour

Overload and short-circuit protection

Overheat protection

Battery charger 6 step adjustable : I-U-Uo-Equalize-Uo(low)-U(periodic)

Charging current adjustable

Input current balance adjustment

Maximum input voltage

Input AC voltage range

Input frequency

Power Factor Correction (PFC)

Detection of short-circuited battery cell

Battery control (factory setting/range adjustable with RCC-02 or RCC-03)

Absorption end

Absorption voltage

Periodic absorption voltage

Floating voltage

Reduced floating voltage

Equalization

Equalization end

Equalization voltage

Deep-discharge protection

Reduced floating time

Periodic absorption time

Temperature compensation (optional BTS-01)

General data

Multifunction contact adjustable

Max. current on transfer relay

Transfer time

Weight

Dimension hxlxL [mm]

Protection index

Conformity

Operating temperature range

Ventilation

Acoustic level

Warranty

Options

Remote control and programmation centre RCC-02 or RCC-03

Communication cable for 3ph and parallel CAB-RJ45-2 (2 m)

Battery temp. Sensor BTS-01 (3 m)

Data may change without any notice.

24

XTH 3000-12

12V

9.5 - 17V

2500VA

3000VA

3000VA

93%

1.7W/2.2W/14W

24V

19 - 34V

4500VA

5000VA

5000VA

3 x Pnom

Up to short-circuit

Up to Pcont.

2 to 25 W

0.1-1

38 - 68V

5000VA

6000VA

6000VA

94%

1.8W/2.5W/20W

96%

2.2W/3W/22W

Sine wave 230Vac (+0/- 10%) / 190-245Vac

48V

50 Hz adjustable 45-65Hz +/- 0.05% (crystal controlled)

<2%

0.5 ms (on load change 0 to 100%)

Automatic disconnection with 3 time restart attempt

Warning before shut-off - with automatic restart

38 - 68V

7000VA

8000VA

8000VA

96%

2.2W/3.8W/34W

0 - 160A l

XTH 5000-24 XTH 6000-48

0 - 140A 0 - 100A

1 - 50A

265Vac

Adjustable threshold from 150 to 230Vac

45 - 65Hz

EN 61000-3-2 l l

XTH 8000-48

0 - 120A l

14.4 / 9.5 - 18V

- / 9.5 - 18V

13.6 / 9.5 - 18V

- / 9.5 - 18V

- / 9.5 - 18V

10.8 / 9.5 - 18V

By duration 4 / 0.25 - 10h or by current - / 4 - 30A

28.8 / 19 - 36V 57.6 / 38 - 72V

- / 19 - 36V - / 38 - 72V

27.2 / 19 - 36V

- / 19 - 36V

54.4 / 38 - 72V

- / 38 - 72V

By number of cycles ( - / 1 - 100) or at set interval ( - / 52 weeks)

By duration 4 / 0.25 - 10h or by current - / 4 - 30A

- / 19 - 36V

21.6 / 19 - 36V

- / 38 - 72V

43.2 / 38 - 72V

- / 0 - 32 days

- / 0 - 10 hours

-5 / 0 to -8mV/°C/Cell

57.6 / 38 - 72V

- / 38 - 72V

54.4 / 38 - 72V

- / 38 - 72V

- / 38 - 72V

43.2 / 38 - 72V

2 independent contacts 16A 250Vac (potential free 3 points)

50A / 11.5kVA

<20ms

34kg 40kg

220x290x500

42kg

IP23

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC

-20 to 55°C

46kg

220x310x500

Forced from 55°C

<10dB / <35dB (without/with ventilation)

2 years l l l l l l l l l l l l

A ppendices

COMPACT series

Model

Inverter

XPC 1400-12 XPC 2200-24 XPC 2200-48 C 1600-12 C 2600-24 C 4000-48 HPC 2800-12 HPC 4400-24 HPC 6000-48 HPC 8000-48

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 sec. @ 25°C

Maximum power

Maximum asymmetric load

Stand-by adjustment

Cos j

Maximum efficiency

Consumption OFF/Stand-by/ON

Output voltage

Output frequency

Total harmonic distortion

Dynamic behaviour

12V

9.5 – 16V

1100VA

1400VA

94%

< 4%

24V

19 - 32V

1600VA

2200VA

95%

48V

38 - 64V

1600VA

2200VA

12V

9.5 - 16V 19 - 32V 38 - 64V

1300VA

1600VA

0 - 55A

24V

2300VA

2600VA

Up to short-circuit

Up to Pcont.

1 to 25W

0.1 - 1

48V

3500VA

4000VA

3 x Pnom

1 - 16A

0 - 50A

265Vac

12V

9.5 - 17V

2500VA

2800VA

24V

19 - 34V

4000VA

4400VA

0.5/0.6/4W 0.8/0.9/7W 1.2/1.3/7W 0.5/0.6/6W 0.8/0.9/9W 1.2/1.4/12W 1.4/1.8/10W 1.7/2/16W

Overload and short-circuit protection

Overheat protection

Battery charger (4 STEP) I-U-Uo-Equalize (every 25 cycles)

Charging current adjustable 0 - 45A 0 - 37A

Input current balance adjustment

Maximum input voltage

Not available

0 - 20A

94% 95%

Sine wave 230Vac

50Hz +/- 0.05% (crystal controlled)

< 2%

0.5 ms (on load change 0 to 100%)

93%

Automatic disconnection with 3 time restart attempt

Acoustic warning before shut-off - with automatic restart

0 - 110A

94%

0 - 100A

1 - 30A

Input AC voltage range

Input frequency

Power Factor Correction (PFC)

Optional solar charger (4 stages) I-U-Uo-Equalize (every 25 cycles)

Maximum PV open circuit voltage (V)

Maximum charge current (A)

25V

30A

45V

30A

90V

20A

Adjustable threshold from 150 to 230Vac

25V

30A

45V

30A

Charging curve I-U-Uo-Equalize (every 25 cycles) / Not available

Battery control (thresholds and times adjustable by the user)

45 - 65Hz

EN 61000-3-2

90V

20A

Absorption time

End charge cycle voltage*

Floating voltage

Equalization time

Equalization voltage

Deep-discharge protection

Temparature compensation

(optional CT-35)

General data

14.4V

13.6V

15.6V

10.8V

28.8V

27.2V

31.2V

21.6V

57.6V

54.4V

62.4V

43.2V

14.4V

13.6V

15.6V

10.8V

28.8V

27.2V

31.2V

21.6V

0-4 h

0-4 h

57.6V

54.4V

62.4V

43.2V

-3mV / ° C / Cell

14.4V

13.6V

15.6V

10.8V

Multifunction contact programmable

Max. current on transfer relay

Transfer time

Weight

Dimension h x lx L [mm]

Protection index

Certification ECE-R 10 (E24)

EC conformity

Operating temperature range

Ventilation

Accoustic level

Warranty

Options

Solar charge controller l l l l l l

Not available

Not available

Not available

28.8V

27.2V

31.2V

21.6V

5000VA

6000VA

48V

38 - 68V

2/2.5/18W

0 - 70A

11.7 kg

16A/3.7kVA

16A - 250Vac (potential free 3 points)

12.6 kg

124x215x410

16 kg

IP20 (IP23 with top cover C-IP23)

17.1 kg

124x215x480

< 40 ms

29.4 kg

124x215x670

33 kg

30A/6.9kVA

39 kg

242x288x480

IP 23 l l

Not available l l

Not available

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +55°C

From 45°C

<10dB / <35dB (without/with ventilation)

2 years

XPC 1400-12-S XPC 2200-24-S XPC 2200-48-S C 1600-12-S C 2600-24-S C 4000-48-S

41 kg

96%

57.6V

54.4V

62.4V

43.2V

7000VA

8000VA

2/3/30W

0 - 90A

1 - 50A

50A/11.5kVA

45 kg

242x288x500

* Factory settings

Data may change without any notice.

25

Technical sheets

AJ serie

Model

Inverter

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 min. @ 25°C

Power 5 sec. @ 25°C

Maximum asymmetric load

Max. efficiency (%)

Cos j max.

Detection of the load

Current of short-circuit 2 sec. (exit)

Output voltage

Frequency

Distortion THD (resistive load)

Consumption Stand-by

Consumption «ON» no load

Overheat protection (+/-5°C)

Overload and short circuit protection

Reverse polarity protection

Major discharge battery protection

Cut overpressure

Accoustic alarm

General data

Weight

Dimensions

Protection index IP

Certification ECE-R 10 (E24)

EC conformity

Operating temperature

Ventilation forced

Noise

Warranty

Approximate correction of Pnom

Recommended battery capacity

Length cables (Battery/left AC)

Options

Voltage max.

Current max.

Solar regulator

Principle

Absorption voltage

Floating voltage

Plug for remote control (RCM)

* 115Vac/60Hz on request

** Standby with solar option -S

AJ 275-12 AJ 350-24 AJ 400-48 AJ 500-12 AJ 600-24 AJ 700-48

12V 24V 48V 12V 24V 48V

10.5 – 16V (24V max.) 21 – 32V (44V max.) 42 – 64V (64V max.) 10.5 – 16V (24V max.) 21 –32V (44V max.) 42 –64V (64V max.)

200VA 300VA 300VA 400VA 500VA 500VA

275VA

350VA

450VA

350VA

500VA

650VA

400VA

600VA

1000VA

500VA

575VA

1000VA

600VA

675VA

1200VA

700VA

900VA

1400VA

150VA

93%

150VA

94%

200VA

94%

250VA

93%

0.1 – 1 up to 200 VA 0.1 – 1 up to 300 VA 0.1 – 1 up to 300 VA 0.1 – 1 up to 400VA

300VA

94%

300VA

0.1 – 1 up to 500VA 0.1 – 1 up to 500VA

Adjustable : 1 g 20W

5.7A (11.4A*)

94%

7A (14A*) 2.3A (4.6A*)

2W (only with the solar option -S)

3.2A (6.4A*)

1.9W

0.3W**

3.3W

4.6A (9.2A*) 5.2A (10.4A*)

Sine wave 230Vac (115Vac*) 0 / - 10%

50Hz (60Hz*) ± 0.05% (crystal controlled)

< 5% (@ Pnom.)

0.4W**

5W

0.3W

3.8W

0.4W

8.5W

1W

10W

Shut down @ 75°C - Auto-restart @ 70°C

Automatic disconnection with 2 time restart attempt

Protected by internal fuse

Shut off @ 0.87 x Unom - Automatic restart @ Unom

Shut off @ >1.33 x Unom - Automatic restart @ < Umax

Before low battery or overheating disconnection

2.4 kg l

AJ 275-12-S

25V

14.4V

13.6V

l

2.6 kg

142mm x 163mm x 84mm

AJ 400-48-S

90V

AJ 500-12-S

25V

4.5 kg

142mm x 240mm x 84mm l

IP 30 conforms to DIN 40050

Not available l l

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +50°C

From 45°C ± 5°C

< 45 dB (fans)

2 years

-1.5%/°C since +25°C

> 5 x Pnom/Unom (recommended value in Ah)

1.2m / 1m

AJ 350-24-S

45V

10A

1.5m / 1m

AJ 600-24-S

45V

15A

28.8V

27.2V

Floating 3 stages (I/U/UO)

57.6V

14.4V

54.4V

13.6V

28.8V

27.2V

l l l l

Not available

AJ 700-48-S

90V

57.6V

54.4V

l

A ppendices

AJ serie

Model

Inverter

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 min. @ 25°C

Power 5 sec. @ 25°C

Maximum asymmetric load

Max. efficiency (%)

Cos j max.

Detection of the load

Current of short-circuit 2 sec. (exit)

Output voltage

Frequency

Distortion THD (resistive load)

Consumption Stand-by

Consumption «ON» no load

Overheat protection (+/-5°C)

Short circuit protection

Inversion of polarity protection

Major discharge battery protection

Cut overpressure

Accoustic alarm

General data

Weight

Dimensions

Protection index IP

Certification ECE-R 10 (E24)

EC conformity

Operating temperature

Ventilation forced

Noise

Warranty

Approximate correction of Pnom

Recommended battery capacity

Length cables (Battery/left AC)

Options

Voltage max.

Current max.

Solar regulator

Principle

Absorption voltage

Floating voltage

* 115Vac/60Hz on request

AJ 1000-12 AJ 1300-24 AJ 2100-12 AJ 2400-24

12V

10.5 – 16V (24V max.)

800VA

1000VA

1200VA

2200VA

500VA

93%

0.1 – 1 up to 800VA

24V

21–32V (44V max.)

1000VA

1300VA

2000VA

2800VA

600VA

94%

0.1 – 1 up to1000VA

Adjustable : 1 g 20W

12V

10.5 – 16V (20V max.)

2000VA

2100VA

2450VA

5000VA

1000VA

92% @ 300VA

0.1 – 1 up to 2000VA

10A (20A*)

0.3W

9.0W

13A (26A*) 26A (52A*)

Sine wave 230Vac (115Vac*) 0 / -10%

50 Hz (60Hz*) ± 0.05% (crystal controlled)

< 5% (@ Pnom. & Uin nom.)

0.4W

10.0W

0.5W

13W

Shut down @ 75°C - Auto-restart @ 70°C

Automatic disconnection with 2 time restart attempt

Protected by internal fuse 125A Protected by internal fuse 100A Not protected

Shut off @ 0.87 x Unom - Automatic restart @ Unom

Shut off @ >1.33 x Unom - Automatic restart @ < Umax

Before low battery or overheating disconnection

24V

21–32V (40V max.)

2000VA

2400VA

2800VA

5200VA

1200VA

94% @ 300VA

0.1 – 1 up to 2000VA

30A (60A*)

< 3% (@ Pnom & Uin nom.)

0.4W

18W

Protected by internal fuse 150A l

AJ 1000-12-S

25V

14.4V

13.6V

8.5 kg

142mm x 428mm x 84mm

IP 30 conforms to DIN 40050

19 kg l

273mm x 399mm x 117mm

18 kg

IP 20 conforms to DIN 40050 l l

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +50°C

From 45°C ± 5°C

< 45 dB (fans)

2 years

-1.5%/°C since +25°C

> 5 x Pnom/Unom (recommended value in Ah)

1.5m / 1m 1.7m / 1m

AJ 1300-24-S

45V

AJ 2100-12-S

25V

25A 30A

Floating 3 stages (I/U/UO)

28.8V

27.2V

14.4V

13.6V

AJ 2400-24-S

45V

28.8V

27.2V

Data may change without any notice. Data may change without any notice.

26 27

Technical sheets

SI serie

Model

Inverter

Voltage input (Unom) [V]

Input voltage range

Dynamic correction of Umin.

Nominal power [VA]

Maximum power 15 min.

Maximum power 3 min.

Peak power 5 sec.

Asymmetric load

Load detection (stand-by)

Cos j

Maximum Efficiency [%]

«Stand-by» current [mA]

Power «ON» no load [W]

Power «ON» no load [W]

TWINPOWER system

Output voltage

Frequency

Distortion

Dynamic behaviour

Protections

Overheating protection

General data

Weight

Length L x 124 (H) x 215 (W) [mm]

IP protection index

EC conformity

Forced ventilation

Acoustic level

Options

3-phase system (per unit) (-PE)

TwinPower system (-TP)

Top cover IP 23 (C-IP23)

Potential free alarm contact

(60V/0.5A) (-A)

Solar charge controller

16A/12-24V (-S)

Industrial casing in 19’’ rack - 3U x

400 mm (-IND)

SI 612, 624, 648

12/24/48

600

91

25/21/10

2.6

6.9

l l l

Other output specifications on request (Ex: 115V/60Hz)

276

SI 812, 824

12/24

800

92

25/21

2.8

10.4

l l l

SI 1212,1224, 1248 SI 1624 SI 2324, 2348

12/24/48 24 24V/48

Min. - Max. : < Unom x 0.95 to Unom x 1.33

1200

93 - 95

25/21/12

4.8

< 0.5

Sine wave 230 Vac ± 3%

50 Hz ± 0.01% (crystal controlled)

< 2% (at Pnom)

From 0% fo 100% load change. Normalization : 0.5 ms

Overload/Overheat/Short-circuit/Reverse polarity by internal fuse

75°C ± 3°C

13.2

391

15.2

27

591

IP 20 complies with DIN 40050 / IP 23 with top cover C-IP23

With ventilation : < 10 dB Without : < 35 dB l l l l l

- 10% @ Pnom

1600

1.3 – 1.6 x Pnom / 25°C

1.6 – 2 x Pnom / 25°C

3.5 x Pnom

Up to 2 x Pnom

Adjustable : 0.3 g 20W

0.1 – 1

93 - 95

21

5.8

< 0.5

l l l l l

2300

95

25/17

9

< 0.6

l l l l l

SI 3324

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, Dir. 89/336/EEC, LVD 73/23/EEC

From 45°C +- 3°C

24

3300

95

25

13

< 0.7

30

636 l l l l l

SI 3548

48

3500

95

30

17

< 0.8

38

791 l l l l l

Data may change without any notice.

28

A ppendices

MBC serie

Model

Battery voltage (Vdc)

Input voltage (Vac)

Charge voltage (boost) (Vdc)

Charge voltage (float) (Vdc)

Output (A)

Cooling

Outputs

Efficiency

Ambient temp. range

Dimensions lxwxh (mm)

Weight (kg)

Recommended batt. capacity (Ah)

Switch to Floating mode (A)

Secondary fuse (A)

Input wired

Ouput wired

Warranty

MBC 12-06/1

12

14.4

13.8

6

155x80x36

0.9

18-60

0.2

7.5

l l

MBC 12-15/1

12

100-260 (40 - 60 Hz)

14.4

13.8

15

Heat sink

1

> 85 %

-25 to 50°C

195x100x47

1.8

45-150

0.8

20 l l

2 years

MBC 24-03/1

24

28.8

27.6

155x80x36

0.9

9-30

0.2

7.5

l l

3

MBC 24-08/1

24

28.8

27.6

8

195x100x46

1.8

24-80

0.4

15 l l

MDCI and MDC series

MDCI – DC/DC converter, switch-mode, isolated

Model

Power (W)

Input variants (Vdc)

Output variants (Vdc/A) +- 2

Galvanic isolation

Isolation voltage (V)

Efficiency @ full load (%)

Off-load current (mA)

Operating temperature

Ambiant temp. (20°) increase after

30 min. @ full load

Cooling

Dimensions HxWxD (mm)

Weight (gr)

* A = 9-18 Vdc B = 20-35 Vdc

MDCI 100

100

A-B-C-D

12.5/8-24/4 l

25°C

Convection

49x88x152

500

C = 30-60 Vdc

MDCI 200

200

A-B-C-D

12.5/16-24/8 l

D = 60-120 Vdc

49x88x182

600

400

± 85

< 25

-20 / +45°C

MDC –DC/DC converter, switch-mode, not-isolated

Model

Current (A)

Input (Vdc)

Output (Vdc)

Efficiency @ full load (%)

Off-load current (mA)

Operating temperature

Ambiant temp. (20°) increase after 30 min. @ full load

Cooling

Dimensions HxWxD (mm)

Weight (gr)

MDC 1224-7 MDC 2412-5 MDC 2412-8 MDC 2412-12 MDC 2412-20 MDC 2412-30

7

9-18

24

5.5

18-35

8

13.2

12 20

20-35

13.8

30

90

< 15 < 5 25

-20 / +40°C

30°C

49x88x98

300

49x88x68

170

20°C 30°C

Convection

49x98x88

250 260

33°C

Fan

49x88x126 49x88x151

480 600

Data may change without any notice.

MDCI 360

360

A-B-C-D

12.5/30-24/15 l

30°C

Fan

64x163x160

1400

MDCI 360 Charger

330

A

27,6/12 l

Common features MDCI & MDC

Paralleling

Humidity

Protection

Overload

Overheating

Overvoltage

Max. 2 converters

Max. 95% non condensing

Up to short-circuit

Output voltage reduction

Transient protection by Varistor

Reverse polarity

Fuse

Casework Anodized aluminium

Connections

Warranty

Norms

6.3 mm Faston

2 years

EN 50081-1 (emission) EN

50082-1 (immunity) 95/45/EC

(automotive directive)

29

Technical sheets

MBI serie

MBI – Battery isolator, voltage drop free

Model

Input nominal voltage (Vdc)

Input voltage range (Vdc)

Charge current max. (A)

Input number

Battery banks

Voltage drop @ 10a/20A (V)

Consumption (mA)

Alternator start

Operating temperature (°C)

Dimensions LxHxD (mm)

Weight (gr)

Nominal voltage 12 or 24V

Insulation to ground

Warranty

Norms

MBI 100/2 IG

100 l

780

2

146x85x92

MBI 150/2 IG MBI 100/3 IG MBI 150/3 IG MBI 200/3 IG

12/24

8-30

150 100

1

150 200

3

0.0 / 0.1

0 l l l l

-40 / +85

810

146x85x152

780

Automatic detection

810

> 500V @ 60Hz

2 years

EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety)

815

MBI 2-100/3

100

2

780

A ppendices

MBW serie

MBW – Battery watch

Model

Nominal voltage (Vdc) depends on jumpers

Nominal current (Amp)

Max. continuous current 5’ (Amp)

Peak current (Amp)

Operating voltage range (Vdc)

Consumption (mA)

Alarm output delay

Alarm output max. current (mA)

Load disconnect delay

Voltage level accuracy

Casework

Weight (gr)

Dimensions HxDxL (mm)

Battery protection

Users protection

MOSFET switches

Norms

MBW 30 MBW 60

12/24

25

30

40

50

60

70

6-35

< 7

15 seconds

500

1 minute

0.2V

2%

Anodized aluminium, black

200

49x88x68 80x60x40

Against excessive discharge

Against overvoltages 16 / 32 Vdc)

No sparks

EN 50081-1 (emission) EN 50082-1 (immunity) Automotive Directive 95/54/CE

Jumper selectable voltage

Disengage (V)

10

10.5

11

11.5

21.5

22

22.5

23

Engage (V)

11.5

12

13

13.8

24.5

25

25.5

26.5

MBR serie

MBR – Microprocessor controlled battery separator

Model

Nominal voltage (Vdc)

Charge current max. (Amp)

Connection threshold (Vdc)

Disconnection threshold (Vdc)

Battery banks

Alternator start

Start contact for batteries paralleling

Micro switch for remote status indication

Dimensions LxHxD (mm)

Weight (gr)

Consumption

Voltage stability

Protection of the auxiliary battery against overvoltage

Connection on the battery side

Other connections

Warranty

Norms

MBR 12-80

12

13.2

12.8

l

80

46x46x80

110

MBR 24-80

24

MBR 12-160

12

MBR 24-160

24

MBR 12-400

12

160

26.4

25.6

13.2

12.8

26.4

25.6

13.2

12.8

2 l l l l l l l l

46x93x96

300

< 5mA

6

2%

16 / 32Vdc

M6

6.3 mm Faston

2 years

EN 50081-1 (emission) EN 50082-1 (immunity) Automotive Directive 95/54/CE

400

78x102x110

900

MBR 24-400

24

26.4

25.6

l l l

Data may change without any notice.

30

SBM-01

SBM-01 – Battery monitor 12 and 24Vdc

Model

Supply voltage range

Supply currant @ 12Vdc, without BL

Supply currant @ 24Vdc, without BL

Input voltage range

Input current range

Battery capacity range

Operating temperature range

Dimensions

Front panel

Body diameter

Total depth

SBM-01

9-35 Vdc

8 mA

6 mA

0-35 Vdc

-500…+500 A

20…2000 Ah

0…50°C

65 mm x 65 mm

Ø 52 mm

72 mm

Data may change without any notice.

Standart equipment SBM-01

Potential free alarm contact

500A/50mV current shunt

Optional accessories

SBM-PS-01-Voltage pre-scaler (adapting the SBM-01 to input voltage 27-175Vdc)

Connection kit, type SBM-CAB-20, including 20m of twisted pair cable (3x2x0.5mm2) and 2 fuseholders

Communication kit, type SBM-COM, including RS232 interface box, 1.8m of 9p DSUB serial cable and a sortware

Temperature kit, type SBM;-TEMP-20, with 20 m cable

31

London

Studer Europe

Brussels

Francfort

Paris

Lyon

Geneva

Sion

Zurich

Milan

Barcelona

STUDER INNOTEC

Rue des Casernes 57

1950 Sion - Switzerland

Tél : +41 (0) 27 205 60 80

Fax : +41 (0) 27 205 60 88 [email protected]

www.studer-innotec.com

SWISS made power

Rome

Vienna

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
