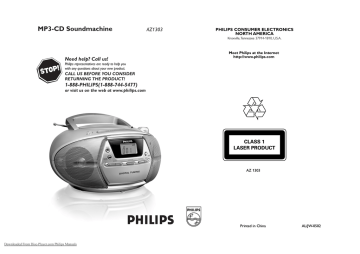

MP3-CD Soundmachine

Need help? Call us!

Philips representatives are ready to help you with any questions about your new product.

CALL US BEFORE YOU CONSIDER

RETURNING THE PRODUCT!

1-888-PHILIPS(1-888-744-5477)

or visit us on the web at www.philips.com

AZ1303

PHILIPS CONSUMER ELECTRONICS

NORTH AMERICA

Knoxville,Tennessee 37914-1810, U.S.A.

Meet Philips at the Internet http://www.philips.com

W

CLASS 1

LASER PRODUCT

AZ 1303

Printed in China AL/JW-0502

Downloaded From Disc-Player.com Philips Manuals

Return your Product Registration Card today to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:

*Proof of

Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety

Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional

Benefits of

Product

Ownership

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safety

symbols

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet.

Retain this information for future reference.

C A U T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Model No. ______________________

Serial No. ______________________

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

IMPORTANT SAFETY INSTRUCTIONS

Clean only with a piece of dry cloth.

materials

Class II equipment symbol

This symbol indicates that the unit has a double insulation system

Downloaded From Disc-Player.com Philips Manuals

1

2 1

MONO STEREO OFF

TUNER

CD

Downloaded From Disc-Player.com Philips Manuals

7 6 5 4 3

PROG

PRESET

SEARCH STOP/BAND PLAY/PAUSE MODE

DIGITAL TUNIN G

8 9 0 ! @ #

2

* & ^ % $

#

X

6

7

3

4

5

!

@

8

9

0

Downloaded From Disc-Player.com Philips Manuals

English Controls

Supplied accessories

– AC power cord

Right panel (See

1)

1 Source selector: CD,TUNER, OFF

– selects CD/MP3 or radio source of sound

– switches off the set

2 MONO•STEREO

– selects mono or stereo FM reception

Top and front panels (See

1)

3 VOLUME – adjusts volume level

4 LIFT TO OPEN– lift here to open the disc door

5 Display – shows the status of the set

6 PROG

CD/MP3: programs tracks and reviews the program;

TUNER: programs preset radio stations

7 DBB – turns the bass enhancement on / off

8 ALBUM/PRESET -

MP3 only: selects albums (down);

TUNER: selects preset stations (down)

9 SEARCH

∞ , §

CD/MP3: – searches back and forward within a track;

– skips to the beginning of a current track/ previous/ later track

TUNER: tunes to radio stations

0 STOP/BAND

9

CD/MP3: – stops playback;

– erases a program.

TUNER: selects wavebands

! PLAY/PAUSE

2/; – starts/ pauses CD playback

@ MODE – selects different play modes: e.g. REPEAT or RANDOM

(random order)

# ALBUM/PRESET +

MP3 only: selects albums (up);

TUNER: selects preset stations (up)

Back panel (See

2)

$ Telescopic antenna - improves FM reception.

% AC ~ - inlet for power cord

^ RESET – use ball-point pen to press the hole if the set or display does not react to any of the controls

& p PHONES- 3.5mm stereo headphone jack

* Battery door - open to insert 8 x 1.5V

R-14 / UM2/ C-cells.

Power Supply Basic Functions

Power supply

Whenever convenient, use AC power if you want to conserve battery life. Make sure you remove the plug from the set and wall outlet before inserting batteries.

Batteries (not included)

• Insert 8 batteries, type R-14, UM2 or

C-cells (preferably alkaline) with the correct polarity (See 2)

Batteries contain chemical substances, so they should be disposed of properly.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst:

• Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries with the new ones.

• Remove the batteries if the set is not to be used for a long time.

Basic functions

Switching on and off and selecting functions

1 To switch on, push the Source selector slider to CD or TUNER as desired.

➜ The display lights up blue

2 To switch off, push the Source selector slide to OFF.

Helpful hints:

– The radio presets will be retained in the set’s memory.

Adjusting volume and sound

1 Adjust the volume with the VOLUME control.

2 Press DBB once or more to select dynamic bass boost on or off.

Using AC power

1 Check if the power voltage, as shown on the type plate located on the back of the set, corresponds to your local power supply. If it does not, consult your dealer or service center.

2 Connect the power cord to the AC ~ inlet and the wall socket.The power cord is now connected and ready for use.

3 To switch the set off completely, withdraw the power cord from the wall socket.

• Disconnect the power cord from the wall socket to protect your set during heavy thunderstorms.

The type plate is located on the back of the set.

Downloaded From Disc-Player.com Philips Manuals

Digital Tuner

Digital tuner

Tuning to radio stations

1 Push the Source selector slider to

TUNER .

➜ The display lights up blue and if programmed, a preset number appears

(see 3)

➜ Then, the display shows radio station frequency and waveband. If programmed,

MEMORY appears. (see 4)

2 Press STOP/BAND 9 to select your desired waveband, FM or AM.

• FM: adjust MONO•STEREO to

STEREO .

3 Press and hold

∞ or § until the frequency in the display starts running.

➜ The radio automatically tunes to a station of sufficient reception.The frequency keeps running during automatic tuning.

STEREO lights up for stereo FM reception.

4 Repeat step 3 if necessary until you find the desired station.

• To tune to a weak station, press

∞ or § briefly and repeatedly until you have found optimal reception.

To improve radio reception:

• For FM, extend, incline and turn the telescopic aerial. Reduce its length if the signal is too strong.

– To tune to a weak FM station, adjust

MONO •STEREO to MONO.

• For AM, the set uses a built-in aerial. Direct this aerial by turning the whole set.

Programming radio stations

You can store up to a total of 20 radio stations in the memory (10 FM and 10 AM), manually or automatically (Autostore).

Manual programming

1 Tune to your desired station (see Tuning to radio stations ).

2 Press PROG to activate programming.

➜ Display: P01. MEMORY flash.

3 Press ALBUM/PRESET -/+ once or more to allocate a number from 1 to 10.

4 Press PROG to confirm.

5 Repeat steps 1-4 to store other stations.

Helpful hints: You can erase a preset station by storing another frequency in its place.

Autostore

Autostore automatically starts programming radio stations from preset 1. Any previous presets e.g.

manually programmed will be erased.

1 In TUNER mode, press STOP/BAND

9 to select FM or AM.

2 Press and hold PROG until the frequency and MEMORY flash.

➜ Available stations are programmed (FM or

AM). P and a preset number (1 - 10) appears when a station is stored.

➜ After all stations are stored, the first autostore preset station automatically plays.

To listen to a preset station

Press the ALBUM/PRESET -/+ button once or more until the desired preset station is displayed.

CD/MP3 Player

CD/MP3 player

About MP3

The music compression technology MP3

(MPEG1 Audio Layer 3) significantly reduce the digital data of an audio CD while maintaining CD quality sound.

• Getting MP3 files: you can either download legal music files from the internet to your computer hard disc, or create such files by converting audio CD files in your computer through appropriate encoder software.

(128kbps bit rate or higher is recommended for MP3 files.)

Creating a MP3 CD: burn the music files from your computer hard disc on a CDR or

CDRW using your CD burner.

Helpful hints:

– Make sure that the file names of the MP3 files end with .mp3.

– Total number of music files and albums: around

350 (with a typical file name length of 20 characters)

– The length of file names affects the number of tracks for playback. With shorter file names, more files can be burned on a disc.

Playing a disc

This player plays Audio Discs including CD-R/

CD-RW, and MP3 CD. Do not try to play a

CD-ROM, CD-I, CDV,VCD, DVD or computer CD.

IMPORTANT!

CDs encoded with copyright protection technologies by some record companies may be unplayable by this product.

For a disc with CD Audio tracks and

MP3 files, only the CD Audio tracks will be played.

1 Lift the CD door at LIFT TO OPEN. Insert a CD with the printed facing up and press the CD door gently.

2 Push the Source selector slider to CD.

➜The display lights up blue, and --- is displayed as the player scans the contents of a disc.Then,

Audio CD: total number of tracks appears

MP3: total number of file folders appears.

(Note: only MP3 files can be played)

3 Press PLAY/PAUSE

2/; to start playback.

Audio CD: current track number appears

MP3: The display shows current album number briefly, then a track number in the album (see 5, 6)

4 To pause playback, press PLAY/PAUSE

2/;.

Press PLAY/PAUSE

2/; again to resume play..

5 To stop playback, press STOP/BAND

9.

Helpful hints: CD play will also stop when:

– the CD door is opened

– the CD has reached the end

– you select Radio or tape source.

Downloaded From Disc-Player.com Philips Manuals

CD/MP3 Player

Selecting a different track

Press SEARCH

∞ or § once or repeatedly until the desired track number appears in the display.

For MP3: first press ALBUM/PRESET -/+ to find your album.

In the pause/stop position, press

PLAY/PAUSE

2/; to start playback.

Finding a passage within a track

1 During playback, press and hold

∞ or §.

2

1

➜The CD is played at high speed and low volume.

When you recognize the passage you want, release

∞ or § to resume normal playback.

Different play modes: RANDOM and

REPEAT (see 7 – 9)

RANDOM – tracks of the entire disc are played in random order

– plays the current track continuously

REPEAT ALL – repeats the entire disc/

For MP3 only: program

REPEAT ALBUM – all tracks of current album play repeatedly.

To select play mode, press MODE once or more.

For RANDOM: select the mode before playback

2 Press

2/; to start playback. if in the stop position.

3 To select normal playback, press MODE repeatedly until the various modes are no longer displayed.

Helpful hints: In RANDOM mode, press

to go to the beginning of current track.

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

For Audio CD:

1 In the stop position, press PROG to activate programming.

➜ Display: MEMORY and 00 flash.

2 Press

∞ or § to select your desired track number.

➜ Display: MEMORY and your desired track number flash.

3 Press PROG to store the desired track number.

➜ Display: MEMORY and 00 flash for you to programme the next track.

4 Repeat steps 2 to 3 to select and store all desired tracks in this way.

➜ Display shows --after 20 tracks are stored

5 To play your programme, press

2/;.

For MP3:

1 In the stop position, press PROG to activate programming.

➜ Display: ALBUM and current album number

➜ Then, MEMORY and 000 flash.

2 If necessary, press ALBUM/PRESET -/+ to select another album

➜ Display: ALBUM and the selected album number (see 0)

➜ Then, MEMORY and 001 flash (see !)

3 Press

∞ or § to select your desired track number.

➜ Display: MEMORY and the selected track number in current album

CD/MP3 Player

4 Press PROG to store the desired track number.

➜ Display: MEMORY and 000 flash for you to programme the next track (see

@)

5 Repeat steps 2 to 4 to select and store all desired tracks in this way.

➜ Display shows --after 20 tracks are stored.

6 To play your programme, press

2/;.

Helpful hints:

When playback of your programme comes to the stop position, your set will return to normal playback.To re-enter

program mode, press PROG in the stop position.

When the program or RANDOM mode is active, use

of the ALBUM/PRESET -/+ keys are void.

Reviewing the program

In the stop position, press PROG repeatedly to see your stored track numbers.

Audio CD: a stored track number appears

MP3: ALBUM and an album number appear, then a stored track number in the album is displayed

– only track number appears if in the same album

Erasing the program

You can erase the contents of the memory by:

– selecting TUNER sound source;

– opening the disc door;

– in the stop position, press PROG to enter program mode and then, press

9.

Downloaded From Disc-Player.com Philips Manuals

Maintenance & safety (see

#)

CD player and CD handling

• If the CD player cannot read CDs correctly, use a cleaning CD to clean the lens before taking the set to repair.

• The lens of the CD player should never be touched!

• Sudden changes in the surrounding temperature can cause condensation on the lens of your CD player. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.

• Always close the CD-tape door to avoid dust on the lens.

• To clean the CD, wipe in a straight line from the center towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.

• Never write on a CD or attach any stickers to it.

Safety information

• Place the set on a flat, hard and stable surface so that the system does not tilt.

• Do not expose the set, batteries, CDs to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

• The apparatus shall not be exposed to dripping or splashing.

• Adequate ventilation with a minimum gap of

15cm (6 inches) between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.

• Do not cover the ventilation openings with items such as newspapers, table-cloths, curtains, etc.

• No objects filled with liquids, such as vases, shall be placed on the apparatus.

• No naked flame sources, such as lighted candles, should be placed on the apparatus.

• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.

• To clean the set, use a dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING:

Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.

Problem

Possible cause

• Remedy

No sound /power

Volume not adjusted

• Adjust the VOLUME

Power cord not securely connected

• Connect the AC power cord properly

Batteries dead/ incorrectly inserted

• Insert (fresh) batteries correctly

– Headphones connected to the set

• Disconnect headphones.

Display does not function properly/ No reaction to operation of any of the controls

Electrostatic discharge

• Switch off and unplug the set. Reconnect after a few seconds

Severe radio hum or noise

– Electrical interference: set too close to TV, VCR or computer

• Increase the distance

Poor radio reception

– Weak radio signal

• FM: Adjust the FM telescopic aerial

---indication

No disc inserted

• Insert asuitable disc

CD badly scratched or dirty

• Replace/ clean CD, see Maintenance & Safety

Laser lens steamed up

• Wait until lens has cleared

CD-R/CD-RW is blank or not finalized

• Use a finalized CD-R or CD-RW only

Note:

Make sure the CD is not encoded with

Copyright protection technologies, as some do not conform to the Compact Disc standard.

The CD skips tracks

CD damaged or dirty

• Replace or clean CD

Programme/RAMDOM is active

• Quit programme/RANDOM mode

Note:

For a disc with CD Audio tracks and MP3 files, only the CD Audio tracks will be played.

The MP3-CD skips albums

– CD contains non-MP3 file folders

• Check your disc contains suitable files.

Downloaded From Disc-Player.com Philips Manuals

This product complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

Environmental information

All unnecessary packaging material has been omitted.The packaging can be easily separated into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging, dead batteries and old equipment.

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français :

Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

PHILIPS LIMITED WARRANTY

One (1) Year Free Product Exchange

PHILIPS CONSUMER ELECTRONICS warrants this product against defect in material or workmanship, subject to any conditions set forth as follows:

PROOF OF PURCHASE:

You must have proof of the date of purchase to exchange the product. A sales receipt or other document showing the product, the date that you purchased the product, as well as the authorized retailer included, is considered such proof.

COVERAGE:

Warranty coverage begins the day you buy your product. For a period of one (1) year from the date of purchase, if the product is determined to be defective, Philips will exchange the defective product with a new or renewed product, at its option, at no charge.The replacement product is covered only for the warranty period of the original product.When the warranty on the original product expires, the warranty on all replaced products also expires.When it is necessary for you to ship the product to Philips for exchange, you will pay the shipping cost for shipment to Philips. Philips will pay the shipping costs when returning a product to you.

Note:The exchange model supplied will be the most comparable one in Philips current inventory. Shipping of your product to

Philips implies intent to follow the specified requirements of the warranty and exchange program. Product received by Philips cannot be returned. Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay of exchange process.

EXCLUDED FROM WARRANTY COVERAGE

Your warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• Product repair and/or part replacement because of improper installation, connections to improper voltage supply, abuse, neglect, misuse, accident, unauthorized repair or other cause not within the control of Philips.

• Damage occurring to product during shipping when improperly packaged or cost associated with packaging.

• A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• A product used for commercial or institutional purposes

(including but not limited to rental purposes).

• Products lost in shipment and no signature verification of receipt can be provided.

• Products sold AS IS or RENEWED.

WHERE WARRANTY EXCHANGE IS AVAILABLE:

Exchange is available in all countries where Philips officially distributes the product. In countries where Philips does not distribute the product, the local Philips organization will attempt to exchange the product, although there may be a delay if the appropriate product is not readily available, or special customs processes are implied.

FOR EXCHANGE IN THE U.S.A., PUERTO RICO, OR

U.S.VIRGIN ISLANDS…

Contact Philips Customer Care Center at:

1-888-PHILIPS (1-888-744-5477)

FOR EXCHANGE IN CANADA…

1-800-661-6162 (French Speaking)

1-888-PHILIPS (1-888-744-5477) - (English or Spanish

Speaking)

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS

THE EXCLUSIVE REMEDY OF THE CONSUMER. PHILIPS

SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSE-

QUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR

IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE

EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN

DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, if you enter into a service contract agreement with the PHILIPS partnership within ninety (90) days of the date of sale, the limitation on how long an implied warranty lasts does not apply.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 671539, Marietta, GA. 30006-0026

(Warranty: 4835 710 27325)

Downloaded From Disc-Player.com Philips Manuals

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
