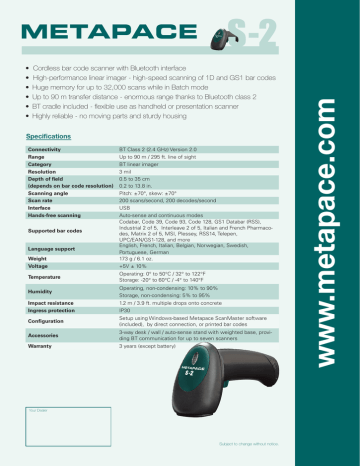

• Cordless bar code scanner with Bluetooth interface

•  Cordless bar code scanner with Bluetooth interface
Specifications
Connectivity
Range
Category
Resolution
Depth of field
(depends on bar code resolution)
Scanning angle
Scan rate
Interface
Hands-free scanning
Supported bar codes
Language support
Weight
Voltage
BT Class 2 (2.4 GHz) Version 2.0
Up to 90 m / 295 ft. line of sight
BT linear imager
3 mil
0.5 to 35 cm
0.2 to 13.8 in.
Pitch: ±70°, skew: ±70°
200 scans/second, 200 decodes/second
USB
Auto-sense and continuous modes
Codabar, Code 39, Code 93, Code 128, GS1 Databar (RSS),
Industrial 2 of 5, Interleave 2 of 5, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, RSS14, Telepen,
UPC/EAN/GS1-128, and more
English, French, Italian, Belgian, Norwegian, Swedish,
Portuguese, German
173 g / 6.1 oz.
+5V ± 10%
Temperature
Operating: 0° to 50°C / 32° to 122°F
Storage: -20° to 60°C / -4° to 140°F
Humidity
Operating, non-condensing: 10% to 90%
Storage, non-condensing: 5% to 95%
Impact resistance
Ingress protection
1.2 m / 3.9 ft. multiple drops onto concrete
IP30
Configuration
Setup using Windows-based Metapace ScanMaster software
(included), by direct connection, or printed bar codes
Accessories
3-way desk / wall / auto-sense stand with weighted base, providing BT communication for up to seven scanners
Warranty
3 years (except battery)
Your Dealer
Subject to change without notice.
www.metapace.com
• Cordless bar code scanner with Bluetooth interface
• High-performance linear imager - high-speed scanning of 1D and GS1 bar codes
• Huge memory for up to 32,000 scans while in Batch mode
• Up to 90 m transfer distance - enormous range thanks to Bluetooth class 2
• BT cradle included - flexible use as handheld or presentation scanner
• Highly reliable - no moving parts and sturdy housing
