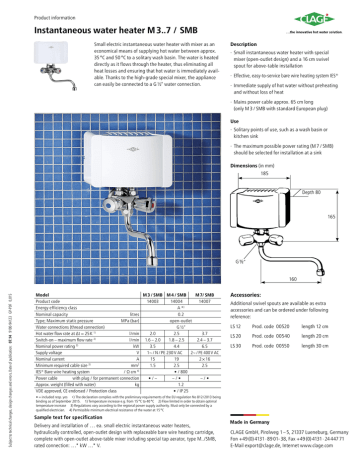

Product information
Instantaneous water heater M 3..7 / SMB
Small electric instantaneous water heater with mixer as an
economical means of supplying hot water between approx.
35 °C and 50 °C to a solitary wash basin. The water is heated
directly as it flows through the heater, thus eliminating all
heat losses and ensuring that hot water is immediately available. Thanks to the high-grade special mixer, the appliance
can easily be connected to a G ½“ water connection.
Description
· Small instantaneous water heater with special
mixer (open-outlet design) and a 16 cm swivel
spout for above-table installation
· Effective, easy-to-service bare wire heating system IES®
· Immediate supply of hot water without preheating
and without loss of heat
· Mains power cable approx. 65 cm long
(only M 3 / SMB with standard European plug)
Use
· Solitary points of use, such as a wash basin or
kitchen sink
· The maximum possible power rating (M 7 / SMB)
should be selected for installation at a sink
Dimensions (in mm)
185
Depth 80
165
G ½“
Subject to technical changes, design changes and errors. Date of publication: 07.14 9100-94123 GP-PDF 0,015
160
Model
M 3 / SMB M 4 / SMB
M 7/ SMB
Product code
14003
14004
14007
Energy efficiency class
A *)
Nominal capacity
litres
0.2
Type; Maximum static pressure
MPa (bar)
open-outlet
Water connections (thread connection)
G ½“
Hot water flow rate at ∆t = 25 K 1)
l/min
2.0
2.5
3.7
Switch-on – maximum flow rate 2)
l/min 1.6 – 2.0
1.8 – 2.5
2.4 – 3.7
Nominal power rating 3)
kW
3.5
4.4
6.5
Supply voltage
V
1~ / N / PE 230 V AC
2~ / PE 400 V AC
Nominal current
A
15
19
2 × 16
Minimum required cable size 3)
mm2
1.5
2.5
2.5
IES® Bare wire heating system
/ Ω cm 4)
• / 800
Power cable
with plug / for permanent connection
•/–
–/•
–/•
Approx. weight (filled with water)
kg
1.2
VDE approved, CE endorsed / Protection class
• / IP 25
Accessories:
Additional swivel spouts are available as extra
accessories and can be ordered under following
reference:
LS 12
Prod. code 00520
length 12 cm
LS 20
Prod. code 00540
length 20 cm
LS 30
Prod. code 00550
length 30 cm
• = included resp. yes *) The declaration complies with the preliminary requirements of the EU regulation No 812/2013 being
binding as of September 2015. 1) Temperature increase e.g. from 15 °C to 40 °C 2) Flow limited in order to obtain optimal
temperature increase 3) Regulations vary according to the regional power supply authority. Must only be connected by a
qualified electrician. 4) Permissible minimum electrical resistance of the water at 15 °C
Sample text for specification
Delivery and installation of … ea. small electric instantaneous water heaters,
hydraulically controlled, open-outlet design with replaceable bare wire heating cartridge,
complete with open-outlet above-table mixer including special tap aerator, type M../SMB,
rated connection: …* kW …* V.
CLAGE GmbH, Pirolweg 1 – 5, 21337 Lueneburg, Germany
Fon +49 (0) 4131 · 89 01- 38, Fax +49 (0) 4131 · 24 447 71
E-Mail [email protected], Internet www.clage.com
