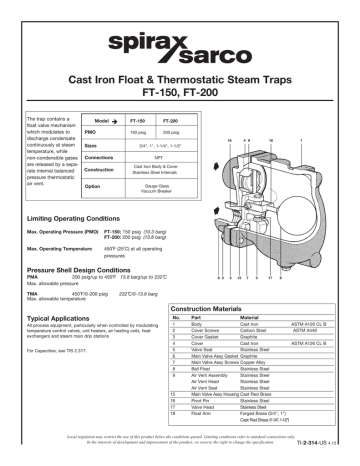

Cast Iron Float & Thermostatic Steam Traps
FT-150, FT-200
The trap contains a
Model float valve mechanism which modulates to
PMO discharge condensate
continuously at steam
Sizes
temperature, while
non-condensible gases Connections
are released by a sepaConstruction
rate internal balanced
pressure thermostatic
air vent.
Option
FT-150FT-200
150 psig
200 psig
16
4 9
18
1
3/4", 1", 1-1/4", 1-1/2"
NPT
Cast Iron Body & Cover
Stainless Steel Internals
Gauge Glass
Vacuum Breaker
Limiting Operating Conditions
Max. Operating Pressure (PMO) FT-150: 150 psig (10.3 barg)
FT-200: 200 psig (13.8 barg)
Max. Operating Temperature 450˚F (25˚C) at all operating pressures
Pressure Shell Design Conditions
PMA
200 psig/up to 450˚F 13.8 barg/up to 232˚C
Max. allowable pressure
TMA
450˚F/0-200 psig
Max. allowable temperature
6 2
3
15
7
5
17
8
232˚C/0-13.8 barg
Construction Materials
Typical Applications
All process equipment, particularly when controlled by modulating
temperature control valves, unit heaters, air heating coils, heat
exchangers and steam main drip stations
For Capacities, see TIS 2.317.
No. 1
Part Material
Body
Cast Iron
ASTM A126 CL B
2
Cover Screws
Carbon Steel
ASTM A449
3
Cover Gasket
Graphite
4
Cover
Cast Iron
ASTM A126 CL B
5
Valve Seat
Stainless Steel
6
Main Valve Assy Gasket Graphite
7
Main Valve Assy ScrewsCopper Alloy
8
Ball Float
Stainless Steel
9
Air Vent Assembly
Stainless Steel
Air Vent Head
Stainless Steel
Air Vent Seat
Stainless Steel
15
Main Valve Assy HousingCast Red Brass
16
Pivot Pin
Stainless Steel
17
Valve Head
Stainless Steel 18
Float Arm
Forged Brass (3/4", 1")
Cast Red Brass (1-1/4",1-1/2")
Local regulation may restrict the use of this product below the conditions quoted. Limiting conditions refer to standard connections only.
In the interests of development and improvement of the product, we reserve the right to change the specification.
TI-2-314-US
4.12
Iron Float & Thermostatic Steam Traps
FT-150, FT-200
D
Dimensions
F
(nominal) in inches and millimeters
C
Size
A B C D EF Weight
3/4", 1" 8.5
3.9
2.6
0.4
6.9 1.8
15 lb
216
100
65
9
175 46
6.8 kg
E
1-1/4", 1-1/2"10.75 5.75
273
146
A
B
3
76
0.6
14
9.1
232
2.5
64
30 lb
13.6 kg
Maintenance
Sample Specification
This product can be maintained without disturbing
the piping connections. Complete isolation from
both supply and return line is required before any
servicing is performed.
The trap should be disassembled periodically for
inspection and cleaning of the valve head and seat,
operating mechanism and air vent.
Worn or damaged parts should be replaced using
a complete valve mechanism assembly and/or air
vent assembly.
Complete installation and maintenance instructions are given in IMI 2.300, which accompanies
the product.
Steam traps shall be of the mechanical ball float type having cast iron bodies,
NPT connections, and stainless steel valve heads and seats. Incorporated into
the trap body shall be a stainless steel balanced pressure thermostatic air vent
capable of withstanding 450˚F steam temperature and resisting waterhammer
without sustaining damage. Internals of the trap shall be completely servicable
without disturbing the piping.
Installation
A pipeline strainer should be installed ahead of any steam trap. Full port isolating valves should be placed to permit servicing. The trap should be installed
below the drainage point of the equipment with a collecting leg before the trap,
in a position so that the float arm is in a horizontal plane and the float rises and
falls vertically, with the flow direction as indicated on the cover. Refer to IMI
2.300 for complete instructions.
Spare Parts
Air V
N
ent A
J
ssem
bly
M
H
A
F
D
E
L
P
Gasket Kit (3 of each)
B, F
Air Vent Kit
H, J, L, M, N
Valve Mechanism D, E, F
Kit (less float)
Float KitP
© Spirax Sarco, Inc. 2012
Valve Mechanism
Assembly
B
TI-2-314-US
Spirax Sarco, Inc., 1150 Northpoint Blvd, Blythewood, SC 29016
Telephone: (803) 714-2000 FAX (803) 714-2222
4.12
