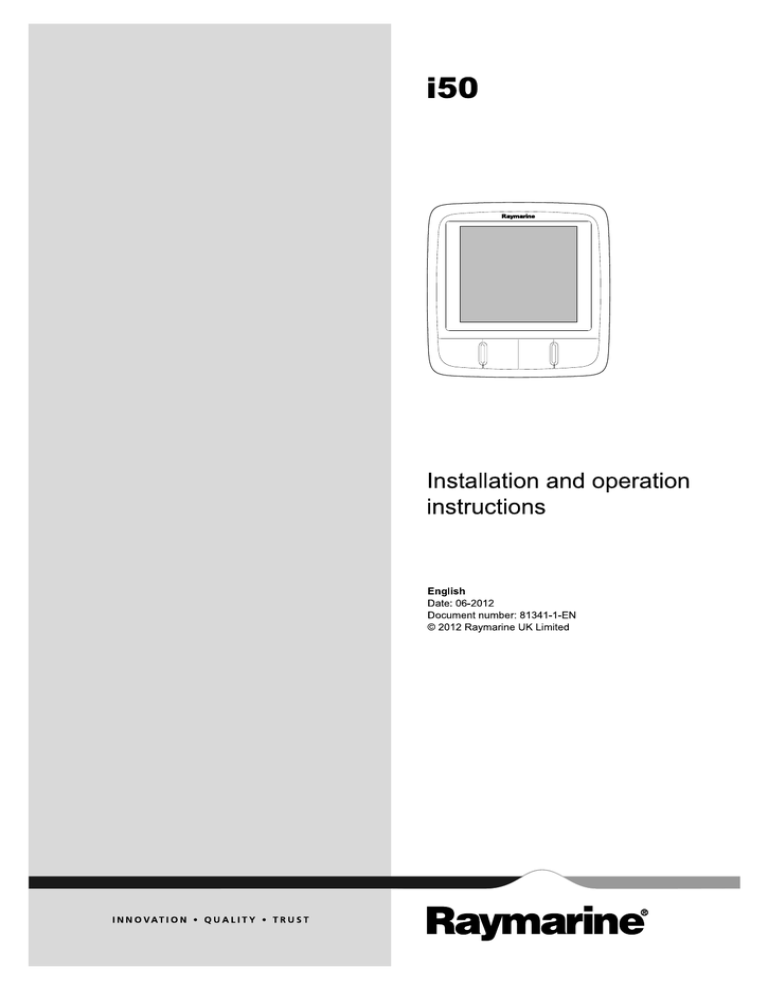

i5 0
Ins ta lla tion a nd ope ra tion
ins tructions
En g lis h
Da te : 06-2012
Docume nt numbe r: 81341-1-EN
© 2012 Ra yma rine UK Limite d
Trademark and patents notice
Autohelm, hsb2, RayTech Navigator, Sail Pilot, SeaTalk, SeaTalkNG, SeaTalkHS and Sportpilot are registered trademarks of Raymarine
UK Limited. RayTalk, Seahawk, Smartpilot, Pathfinder and Raymarine are registered trademarks of Raymarine Holdings Limited.
FLIR is a registered trademark of FLIR Systems, Inc. and/or its subsidiaries.
All other trademarks, trade names, or company names referenced herein are used for identification only and are the property of
their respective owners.
This product is protected by patents, design patents, patents pending, or design patents pending.
Fair Use Statement
You may print no more than three copies of this manual for your own use. You may not make any further copies or distribute or use the
manual in any other way including without limitation exploiting the manual commercially or giving or selling copies to third parties.
Software updates
Check the website www.raymarine.com for the latest software releases for your product.
Product handbooks
The latest versions of all English and translated handbooks are available to download in PDF format from the website www.raymarine.com.
Please check the website to ensure you have the latest handbooks.
Copyright ©2012 Raymarine UK Ltd. All rights reserved.
ENGLISH
Document number: 81341-1
Date: 06-2012
Contents
Chapter 1 Important information............................. 7
9.4 Cleaning................................................................... 49
Safety notices................................................................. 7
9.5 Cleaning the display case .......................................... 50
Water ingress ................................................................. 7
Disclaimer ...................................................................... 7
9.6 Cleaning the display screen ....................................... 50
EMC installation guidelines ............................................. 7
Suppression ferrites ........................................................ 7
Connections to other equipment ...................................... 8
Declaration of conformity................................................. 8
Product disposal ............................................................. 8
Warranty registration....................................................... 8
IMO and SOLAS............................................................. 8
Technical accuracy ......................................................... 8
Chapter 2 Handbook information............................ 9
2.1 Handbook information ............................................... 10
Chapter 3 Planning the installation ........................ 11
Chapter 10 Troubleshooting.................................... 51
10.1 Troubleshooting ...................................................... 52
10.2 Instrument troubleshooting....................................... 53
10.3 Power up troubleshooting ........................................ 54
10.4 Miscellaneous troubleshooting ................................. 55
10.5 Self-test .................................................................. 56
Chapter 11 Technical support ................................. 57
11.1 Raymarine customer support.................................... 58
11.2 Checking the software version.................................. 58
Chapter 12 Technical specification......................... 59
12.1 Technical specification ............................................. 60
3.1 Installation checklist .................................................. 12
Chapter 13 Spares and accessories ....................... 61
3.2 System integration .................................................... 13
13.1 i50 transducers ....................................................... 62
3.3 Typical systems ........................................................ 14
3.4 System protocols ...................................................... 16
13.2 Spares.................................................................... 62
3.5 Parts supplied........................................................... 16
13.4 Converters.............................................................. 64
3.6 Tools required ........................................................... 17
13.3 SeaTalkng cables and accessories ............................ 63
Appendix A NMEA 2000 sentences ........................ 65
Chapter 4 Cables and connections......................... 19
4.1 General cabling guidance .......................................... 20
4.2 Connections overview ............................................... 20
Chapter 5 Location and mounting .......................... 25
5.1 Selecting a display location........................................ 26
5.2 Mounting .................................................................. 27
5.3 Front bezel ............................................................... 27
5.4 Selecting a transducer location .................................. 28
Chapter 6 Getting started ........................................ 29
6.1 Controls.................................................................... 30
6.2 Power ...................................................................... 30
6.3 Data master.............................................................. 31
6.4 Illumination ............................................................... 31
6.5 Calibration ................................................................ 32
Chapter 7 Using your display.................................. 39
7.1 Pages ...................................................................... 40
7.2 i50 Depth operation ................................................... 40
7.3 i50 Speed operation .................................................. 41
7.4 i50 Tridata operation ................................................. 43
7.5 Group illumination ..................................................... 44
Chapter 8 Using alarms ........................................... 45
8.1 Alarms...................................................................... 46
Chapter 9 Maintaining your display........................ 47
9.1 Service and maintenance .......................................... 48
9.2 Condensation ........................................................... 48
9.3 Routine equipment checks......................................... 49
5
6
i50
Chapter 1: Important information
Caution: Condensation
Safety notices
Certain atmospheric conditions may cause a small
amount of condensation to form on the unit's window.
This will not damage the unit and will clear after the
unit has been switched on for a short period.
Warning: Product installation and
operation
This product must be installed and operated in
accordance with the instructions provided. Failure to
do so could result in personal injury, damage to your
vessel and/or poor product performance.
Warning: Potential ignition source
This product is NOT approved for use in
hazardous/flammable atmospheres. Do NOT install in
a hazardous/flammable atmosphere (such as in an
engine room or near fuel tanks).
Warning: High voltage
This product contains high voltage. Adjustments
require specialized service procedures and tools only
available to qualified service technicians. There are no
user serviceable parts or adjustments. The operator
should never remove the cover or attempt to service
the product.
Warning: Positive ground systems
Do not connect this unit to a system which has positive
grounding.
Warning: Switch off power supply
Ensure the vessel’s power supply is switched OFF
before starting to install this product. Do NOT connect
or disconnect equipment with the power switched on,
unless instructed in this document.
Caution: Transducer cable
Water ingress
Water ingress disclaimer
Although the waterproof rating capacity of this product meets the
IPX6 standard, water intrusion and subsequent equipment failure
may occur if the product is subjected to commercial high-pressure
washing. Raymarine will not warrant products subjected to
high-pressure washing.
Disclaimer
Raymarine does not warrant that this product is error-free or that it
is compatible with products manufactured by any person or entity
other than Raymarine.
Raymarine is not responsible for damages or injuries caused by
your use or inability to use the product, by the interaction of the
product with products manufactured by others, or by errors in
information utilized by the product supplied by third parties.
EMC installation guidelines
Raymarine equipment and accessories conform to the appropriate
Electromagnetic Compatibility (EMC) regulations, to minimize
electromagnetic interference between equipment and minimize the
effect such interference could have on the performance of your
system
Correct installation is required to ensure that EMC performance is
not compromised.
For optimum EMC performance we recommend that wherever
possible:
• Raymarine equipment and cables connected to it are:
Do NOT cut, shorten, splice the transducer cable or
remove the connector. If the cable is cut, it cannot be
repaired. Cutting the cable will also void the warranty.
– At least 1 m (3 ft) from any equipment transmitting or cables
carrying radio signals e.g. VHF radios, cables and antennas.
In the case of SSB radios, the distance should be increased
to 7 ft (2 m).
Caution: Power supply protection
– More than 2 m (7 ft) from the path of a radar beam. A radar
beam can normally be assumed to spread 20 degrees above
and below the radiating element.
When installing this product ensure the power source
is adequately protected by means of a suitably-rated
fuse or automatic circuit breaker.
Caution: Service and maintenance
This product contains no user serviceable
components. Please refer all maintenance and repair
to authorized Raymarine dealers. Unauthorized repair
may affect your warranty.
Caution: Cleaning
When cleaning this product:
• Do NOT wipe the display screen with a dry cloth, as
this could scratch the screen coating.
• The product is supplied from a separate battery from that used
for engine start. This is important to prevent erratic behavior
and data loss which can occur if the engine start does not have
a separate battery.
• Raymarine specified cables are used.
• Cables are not cut or extended, unless doing so is detailed in
the installation manual.
Note: Where constraints on the installation prevent any of
the above recommendations, always ensure the maximum
possible separation between different items of electrical
equipment, to provide the best conditions for EMC performance
throughout the installation
• Do NOT use abrasive, or acid or ammonia based
products.
Suppression ferrites
• Do NOT use a jet wash.
Raymarine cables may be fitted with suppression ferrites. These
are important for correct EMC performance. If a ferrite has to be
removed for any purpose (e.g. installation or maintenance), it must
be replaced in the original position before the product is used.
Use only ferrites of the correct type, supplied by Raymarine
authorized dealers.
Important information
7
Connections to other equipment
Requirement for ferrites on non-Raymarine cables
If your Raymarine equipment is to be connected to other equipment
using a cable not supplied by Raymarine, a suppression ferrite
MUST always be attached to the cable near the Raymarine unit.
Declaration of conformity
Raymarine UK Ltd. declares that this product is compliant with the
essential requirements of EMC directive 2004/108/EC.
The original Declaration of Conformity certificate may be viewed on
the relevant product page at www.raymarine.com.
Product disposal
Dispose of this product in accordance with the WEEE Directive.
The Waste Electrical and Electronic Equipment (WEEE)
Directive requires the recycling of waste electrical and electronic
equipment. Whilst the WEEE Directive does not apply to some
Raymarine products, we support its policy and ask you to be aware
of how to dispose of this product.
Warranty registration
To register your Raymarine product ownership, please visit
www.raymarine.com and register online.
It is important that you register your product to receive full warranty
benefits. Your unit package includes a bar code label indicating the
serial number of the unit. You will need this serial number when
registering your product online. You should retain the label for future
reference.
IMO and SOLAS
The equipment described within this document is intended for use
on leisure marine boats and workboats not covered by International
Maritime Organization (IMO) and Safety of Life at Sea (SOLAS)
Carriage Regulations.
Technical accuracy
To the best of our knowledge, the information in this document
was correct at the time it was produced. However, Raymarine
cannot accept liability for any inaccuracies or omissions it may
contain. In addition, our policy of continuous product improvement
may change specifications without notice. As a result, Raymarine
cannot accept liability for any differences between the product
and this document. Please check the Raymarine website
(www.raymarine.com) to ensure you have the most up-to-date
version(s) of the documentation for your product.
8
i50
Chapter 2: Handbook information
Chapter contents
•
2.1 Handbook information on page 10
Handbook information
9
2.1 Handbook information
This handbook contains important information regarding your
Raymarine instrument display.
i50 Handbooks
The following handbooks are applicable to your product:
Handbooks
Description
Part number
Mounting and getting started
88009
Installation and operation instructions
81341
Mounting template
87130
i50 instrument range
Raymarine's i50 instrument range consists of the following variants:
1
2
Depth
Alarm
Off set
Reset
Speed
Trip
Timer
Reset
3
Depth
Speed
Trip
Reset
D12529-1
Item
Description
Part number
1
i50 Depth
E70058
2
i50 Speed
E70059
3
i50 Tridata
E70060
10
i50
Chapter 3: Planning the installation
Chapter contents
•
3.1 Installation checklist on page 12
•
3.2 System integration on page 13
•
3.3 Typical systems on page 14
•
3.4 System protocols on page 16
•
3.5 Parts supplied on page 16
•
3.6 Tools required on page 17
Planning the installation
11
3.1 Installation checklist
Installation includes the following activities:
Installation Task
1
Plan your system.
2
Obtain all required equipment and tools.
3
Site all equipment.
4
Route all cables.
5
Drill cable and mounting holes.
6
Make all connections into equipment.
7
Secure all equipment in place.
8
Power on and test the system.
12
i50
3.2 System integration
1
2
3
6
5
4
7
8
Dxxxxx-1
Item
Device type
Maximum Quantity
Suitable Devices
Connections
1
i50 Depth, Speed or Tridata
instrument.
As determined by the
SeaTalkng bus bandwidth
and power loading.
• i50 Depth
• SeaTalkng
• i50 Speed
• i50 Tridata
2
SeaTalk instrument displays.
As determined by the SeaTalk
bus bandwidth and power
loading.
• i40
• ST40
• SeaTalkng via the optional
SeaTalk1 to SeaTalkng
converter
• ST60+
3
SeaTalkng Instrument displays.
As determined by the
SeaTalkng bus bandwidth
and power loading.
• i50
• SeaTalkng
• i60
• i70
• ST70
• ST70+
4
SeaTalkng pilot controller.
As determined by the
SeaTalkng bus bandwidth
and power loading.
• ST70
• SeaTalkng
• ST70 +
• p70
• p70R
5
SeaTalkng Multifunction
displays.
6
• Raymarine multifunction
displays.
• SeaTalkng
6
Raymarine speed and
temperature transducer
(i50 Speed).
1
• P120 Low profile through
hull speed/temp transducer
Raymarine transducer
connection.
Raymarine depth transducer
(i50 Depth).
1
7
• Other compatible
transducers — Please
contact your local
Raymarine dealer for
details.
• P19 Through hull depth
transducer
Raymarine transducer
connection.
• Other compatible
transducers — Please
contact your local
Raymarine dealer for
details.
8
Raymarine speed and depth
transducers (i50 Tridata).
• 1 x depth and 1 x
Speed/Temp transducers,
or
• 1 x depth, speed and
temperature (DST)
transducer.
Planning the installation
• P120 Low profile through
hull speed/temp transducer
Raymarine transducer
connections.
• P19 Through hull depth
transducer
• Other compatible
transducers — Please
contact your local
Raymarine dealer for
details.
13
3.3 Typical systems
S
M
A
R
T
IP
L
O
The instrument range can be connected directly to a SeaTalkng network. The instrument range can also be connected to a SeaTalk
system using the SeaTalk to SeaTalkng adaptor cable.
Basic SeaTalkng system example
4
1
2
5
3
SeaTalkng
8
9
SMARTPILOT
6
7
10
12 V / 24 V dc
11
12 V dc
D12373-1
1
2
3
4
5
6
7
8
9
10
11
14
SeaTalkng instrument display
SeaTalkng pilot controller
i60 Wind instrument
Raymarine wind vane transducer
Raymarine multifunction display
12 / 24 V dc power supply
Raymarine course computer (providing 12 V dc power supply to the SeaTalkng
network.)
i50 Speed instrument
i50 Depth instrument
Speed transducer
Depth transducer
i50
S
M
A
R
T
IP
L
O
Extended SeaTalkng system example
1
2
2
3
4
5
6
8
12 V
SMARTPILOT
9
7
16
10
13
11
11
14
15
17
18
12
11
19
D12374-1
1
SeaTalkng pilot controller
2
SeaTalkng instrument displays
3
Fluxgate compass
4
Rudder reference
5
Raymarine course computer (providing 12 V dc power supply to SeaTalkng
network.)
6
12 / 24 V dc power supply
7
Raymarine AIS transceiver
8
Raymarine SeaTalkng GPS
9
Man over board
10
SeaTalk to SeaTalkng converter
11
SeaTalkng 5 way blocks
12
Raymarine multifunction display
13
Engine data (via devicenet adaptor cable.)
14
i60 Wind instrument
15
i50 Depth instrument
16
i50 Speed instrument
17
Raymarine wind vane transducer
18
Depth transducer
19
Speed transducer
Planning the installation
15
3.4 System protocols
3.5 Parts supplied
Your product can be connected to various products and systems to
share information and so improve the functionality of the overall
system. These connections may be made using a number of
different protocols. Fast and accurate data collection and transfer is
achieved by using a combination of the following data protocols:
1
2
3
4
• SeaTalkng
• NMEA 2000
• SeaTalk
Note: You may find that your system does not use all of the
connection types or instrumentation described in this section.
5
6
7
8
Seatalkng
SeaTalkng (Next Generation) is an enhanced protocol for connection
of compatible marine instruments and equipment. It replaces the
older SeaTalk and SeaTalk2 protocols.
SeaTalkng utilizes a single backbone to which compatible
instruments connect using a spur. Data and power are carried within
the backbone. Devices that have a low draw can be powered from
the network, although high current equipment will need to have a
separate power connection.
9
SeaTalkng is a proprietary extension to NMEA 2000 and the proven
CAN bus technology. Compatible NMEA 2000 and SeaTalk /
SeaTalk2 devices can also be connected using the appropriate
interfaces or adaptor cables as required.
1
i50 instrument
2
Front bezel
NMEA 2000
3
SeaTalk to SeaTalkng adaptor cable
NMEA 2000 offers significant improvements over NMEA 0183, most
notably in speed and connectivity. Up to 50 units can simultaneously
transmit and receive on a single physical bus at any one time,
with each node being physically addressable. The standard
was specifically intended to allow for a whole network of marine
electronics from any manufacturer to communicate on a common
bus via standardized message types and formats.
4
SeaTalkng spur cable
5
Gasket
6
Sun cover
7
Documentation pack
8
SeaTalkng blanking plug
SeaTalk
9
4 x fixing screws
D12388-1
SeaTalk is a protocol which enables compatible instruments to
connect to each other and share data.
The SeaTalk cable system is used to connect compatible
instruments and equipment. The cable carries power and data and
enables connection without the need for a central processor.
Additional instruments and functions can be added to a SeaTalk
system, simply by plugging them into the network. SeaTalk
equipment can also communicate with other non-SeaTalk equipment
via the NMEA 0183 standard, provided a suitable interface is used.
16
i50
3.6 Tools required
Tools required for installation
1
3
2
4
5
D12530-1
1
Pozi-drive screwdriver
2
File
3
92 mm (3.62 in) hole cutter
4
Adhesive tape
5
Power drill
Planning the installation
17
18
i50
Chapter 4: Cables and connections
Chapter contents
•
4.1 General cabling guidance on page 20
•
4.2 Connections overview on page 20
Cables and connections
19
4.1 General cabling guidance
4.2 Connections overview
Cable types and length
Connections are made using the provided SeaTalkng and transducer
cable connectors on the rear of the unit.
It is important to use cables of the appropriate type and length
• Unless otherwise stated use only standard cables of the correct
type, supplied by Raymarine.
• Ensure that any non-Raymarine cables are of the correct quality
and gauge. For example, longer power cable runs may require
larger wire gauges to minimize voltage drop along the run.
SeaTalkng connections
The unit has 2 x SeaTalkng connectors on the rear for connecting
to a SeaTalkng network.
Routing cables
Cables must be routed correctly, to maximize performance and
prolong cable life.
• Do NOT bend cables excessively. Wherever possible, ensure a
minimum bend diameter of 200 mm (8 in) / minimum bend radius
of 100 mm (4 in).
200 mm (8 in)
100 mm (4 in)
• Protect all cables from physical damage and exposure to heat.
Use trunking or conduit where possible. Do NOT run cables
through bilges or doorways, or close to moving or hot objects.
• Secure cables in place using tie-wraps or lacing twine. Coil any
extra cable and tie it out of the way.
• Where a cable passes through an exposed bulkhead or deckhead,
use a suitable watertight feed-through.
• Do NOT run cables near to engines or fluorescent lights.
D12056-1
Connecting SeaTalkng cables
• antennae.
1. Rotate the locking collar on the back of the unit to the
UNLOCKED position.
2. Ensure the spur cable end connector is correctly oriented.
3. Fully insert the cable connector.
4. Rotate locking collar clockwise (2 clicks) until it snaps into the
LOCKED position.
Strain relief
Transducer connections
Ensure adequate strain relief is provided. Protect connectors from
strain and ensure they will not pull out under extreme sea conditions.
i50 Depth connection
Always route data cables as far away as possible from:
• other equipment and cables,
• high current carrying ac and dc power lines,
Cable shielding
Ensure that all data cables are properly shielded that the cable
shielding is intact (e.g. hasn’t been scraped off by being squeezed
through a tight area).
1
2
3
D12376-1
20
Item
Cable color
Signal name
1
Black
Piezoceramic –
2
Blue
Piezoceramic +
3
Screen
0 V (shield)
i50
i50 Speed connection
routed through narrow apertures. 1/8th spade terminals will be
required (not supplied), to replace those removed. When fitting the
new spade connectors, prepare the cables as detailed below:
6 mm
50 mm
1
2
5
3 mm
4
D12359-1
3
2
1
D12390-1
Item
Cable color
Signal name
1
Brown
Temperature 0 V
2
White
Temperature (signal)
3
Screen
Speed 0 V (shield)
4
Green
Speed (signal)
5
Red
Speed V+
1. Prepare the cable as shown in 1 above.
2. Fold back the wire strands and insert into the new spade
connector as shown in 2 above.
3. Ensure the wire strands do not extend beyond the rear of the
spade connector insulation.
4. Crimp the connector to the wire.
iTC-5 connection
Transducers can be connected to a SeaTalkng network using
Raymarine's Instrument transducer converter (iTC-5) and an i70
instrument, the data can then be repeated on an i50 / i60 unit.
1
2
3
4
i50 Tridata connection
8
12 V
1
7
2
5
6
5
4
3
D12393-1
Item
Cable color
Signal name
1
Black (Depth)
Piezoceramic –
2
Blue (Depth)
Piezoceramic +
3
Screen (Depth)
0 V (shield)
4
Brown (Speed)
Temperature 0 V
5
White (Speed)
Temperature (signal)
6
Screen (Speed)
Speed 0 V (shield)
7
Green (Speed)
Speed (signal)
8
Red (Speed)
Speed V+
6
7
8
D12033-3
1
i50 Depth (Repeater)
2
i70 Instrument (Master)
3
i50 Speed (Repeater)
4
i60 Wind (Repeater)
5
iTC-5
6
Depth transducer
Making transducer connections
7
Wind vane transducer
Although the transducer cable is fitted with spade connectors for
direct connection to the rear of the unit, it may be necessary to
remove these to facilitate installation, e.g. if the cable has to be
8
Speed transducer
Note: Transducers connected to the iTC-5 must be calibrated
using an i70 (master) unit. Transducers connected to the iTC-5
cannot be calibrated using an i50 / i60.
Making iTC-5 transducer connections
For instructions on connecting transducers to your iTC-5 refer to
the iTC-5 handbook.
Cables and connections
21
Power connection
SeaTalkng connection
Power is supplied to the product over the SeaTalkng network.
The unit can be connected as part of a SeaTalkng network.
A SeaTalkng system requires one 12 V dc supply, connected to the
SeaTalkng backbone. This can be provided:
1
1
2
3
• By a battery via the distribution panel, or
• From a Raymarine course computer, via a SeaTalk or a SeaTalkng
system.
Power connection example
SeaTalkng power connection
SeaTalkng
2
1
12 V dc
4
SeaTalkng
3
5
12 V
6
D12391-1
1
SeaTalkng instrument.
2
SeaTalkng instrument.
3
12 V dc vessel power supply.
Warning: Grounding not required
This product is fully insulated and does NOT require
separate grounding.
Warning: Positive ground systems
Do not connect this unit to a system which has positive
grounding.
7
8
D12531-1
1
i70 instrument displays (SeaTalk)ng)
2
i60 Wind instrument (SeaTalk)ng)
3
Raymarine wind vane transducer
4
12 V dc power supply
5
i50 Speed instrument (SeaTalk)ng)
6
i50 Depth instrument (SeaTalk)ng)
7
Speed transducer
8
Depth transducer
SeaTalk power protection
The power supply must be protected by a 5 A fuse or a circuit
breaker providing equivalent protection.
Raymarine recommends that the power is connected to a SeaTalk
system in such a way that the current drawn on each side of the
power connection point is equal.
SeaTalkng cabling
SeaTalkng cables and connectors
Connection / Cable
Notes
Backbone cables (various lengths)
The main cable carrying data. Spurs
from the backbone are used to
connect SeaTalkng devices.
T-piece connectors
Used to make junctions in the
backbone to which devices can then
be connected.
SeaTalkng power protection
Terminators
The power supply must be protected by a 5 A fuse or a circuit
breaker providing equivalent protection.
Required at either end of the
backbone.
Spur cables
Used to connect devices. Devices
may be daisy chained or connected
directly to the T-pieces
SeaTalkng 5–way connector
Used to branch, split, or make
additional connections in SeaTalkng
networks.
SeaTalk power cables
Part number
Description
D229
SeaTalk power cable.
Raymarine recommends that the power is connected to a SeaTalkng
system in such a way that the current drawn on each side of the
power connection point is equal.
SeaTalkng
power cables
Part number
Description
A06049
SeaTalkng power cable
SeaTalkng power
The SeaTalkng bus requires a 12 V power supply. This may be
provided from:
• Raymarine SPX course computer, or
• Other separate regulated 12 V supply.
Note: SeaTalkng does NOT supply power to multifunction displays
and other equipment with a dedicated power supply input.
22
i50
SeaTalk connection
NMEA2000 connection
Connections to an existing SeaTalk system must be made using a
SeaTalk to SeaTalkng adaptor cable.
You can either:
Basic SeaTalk system example
• Use your SeaTalkng backbone and connect each NMEA2000
device on a spur, OR
• connect the instrument display on a spur into an existing
NMEA2000 backbone.
1
2
3
4
Connecting NMEA2000 equipment to the SeaTalkng backbone
5
7
6
8
10
6
Important: You cannot have any 2 terminated backbones
connected together, unless you have an isolation gateway
between the two backbones.
7
1
4
12V
NMEA2000
9
11
2
12
12 / 24 V dc
3
SeaTalkng
12 V dc
D12380-1
D12058-2
1. 12 V dc power supply into backbone.
1
i70 Instrument display (SeaTalkng)
2
i50 Speed instrument
(SeaTalkng)
3. SeaTalkng to DeviceNet adaptor cable.
3
i50 Depth instrument
(SeaTalkng)
4. NMEA2000 equipment.
4
Raymarine wind vane transducer
5
i60 Wind instrument (SeaTalkng)
6
SeaTalkng cables
7
SeaTalk to SeaTalkng adaptor cables
8
Speed transducer
9
Depth transducer
10
12 / 24 V dc power supply
11
SeaTalk Course computer (providing
12 V dc power to SeaTalk network.)
12
ST6002 pilot controller (SeaTalk)
2. SeaTalkng backbone.
Connecting the unit to an existing NMEA2000 (DeviceNet)
backbone
1
2
SeaTalk accessories
4
SeaTalk cables and accessories for use with compatible products.
Description
Part No
3–way SeaTalk junction
box
D244
1 m (3.28 ft) SeaTalk
extension cable
D284
3 m (9.8 ft) SeaTalk
extension cable
D285
5 m (16.4 ft) SeaTalk
extension cable
D286
9 m (29.5 ft) SeaTalk
extension cable
D287
12 m (39.4 ft) SeaTalk
extension cable
E25051
20 m (65.6 ft) SeaTalk
extension cable
D288
Cables and connections
Notes
3
D12377-1
1. SeaTalkng instrument display
2. SeaTalkng to DeviceNet adaptor cable.
3. DeviceNet backbone.
4. NMEA2000 equipment.
23
24
i50
Chapter 5: Location and mounting
Chapter contents
•
5.1 Selecting a display location on page 26
•
5.2 Mounting on page 27
•
5.3 Front bezel on page 27
•
5.4 Selecting a transducer location on page 28
Location and mounting
25
5.1 Selecting a display location
Product dimensions
Warning: Potential ignition source
D
E
This product is NOT approved for use in
hazardous/flammable atmospheres. Do NOT install in
a hazardous/flammable atmosphere (such as in an
engine room or near fuel tanks).
B
F
General location requirements
When selecting a location for the unit it is important to consider a
number of factors.
Ventilation requirements
To provide adequate airflow:
A
• Ensure that equipment is mounted in a compartment of suitable
size.
• Ensure that ventilation holes are not obstructed.
• Ensure adequate separation of equipment.
Mounting surface requirements
C
G
D12389-1
A
110 mm (4.22”)
B
115 mm (4.52”)
C
14 mm (0.55”)
D
30 mm (1.18”)
Ensure units are adequately supported on a secure surface. Do
NOT mount units or cut holes in places which may damage the
structure of the vessel.
E
35 mm (1.38”)
F
90 mm (3.54”)
Cable routing requirements
G
17 mm (0.67”)
Ensure the unit is mounted in a location which allows proper routing
and connection of cables:
• Minimum cable bend radius of 100 mm (3.94 in) is required unless
otherwise stated.
• Use cable supports to prevent stress on connectors.
Water ingress
This unit is suitable for mounting both above and below decks. It is
waterproof to IPX6 standard. Although the unit is waterproof, it is
good practice to locate it in a protected area away from prolonged
and direct exposure to rain and salt spray.
Electrical interference
Select a location that is far enough away from devices that
may cause interference, such as motors, generators and radio
transmitters/receivers.
Magnetic compass
When choosing a suitable location you should aim to maintain the
maximum possible distance between the unit and any compasses.
To prevent potential interference with the vessel's magnetic
compasses, ensure that a minimum distance of 230 mm (9 in)
between the unit and any installed compasses is maintained.
Viewing angle considerations
As display contrast, color and night mode performance are all
affected by the viewing angle, Raymarine recommends you
temporarily power up the display when planning the installation, to
enable you to best judge which location gives the optimum viewing
angle.
Viewing angle
70°
70°
70°
70°
Dxxxxx-1
26
i50
5.2 Mounting
5.3 Front bezel
Pre-mounting check
Removing the front bezel
The product is designed to be surface mounted. Before mounting
the unit, ensure you have:
1
2
3
4
• Selected a suitable location.
• Identified the cable connections and route that the cables will take.
• Detached the front bezel.
• Remove the keypad mat.
Mounting diagram
D12379-1
Mounting instructions
1. Check the selected location for the unit, a clear, flat area with
suitable clearance behind the panel is required.
2. Fix the mounting template supplied with the product, to the
selected location, using masking or self adhesive tape.
3. If possible use an appropriate size hole cutting saw and cut
out the centre hole cut out area as indicated on the mounting
template, or
4. Using a suitable hole cutting saw, make pilot holes in each
corner of the cut out area and using a jigsaw cut along the inside
edge of the cut out line.
5. Ensure that the unit fits into the removed area and then file
around the cut edge until smooth.
6. Drill any required holes as indicated on the mounting template
for the securing screws.
7. Connect the relevant cables to the unit.
8. Peel the backing off of the supplied gasket and place the
adhesive side of the gasket onto the display unit and press firmly
onto the flange.
9. Slide the unit into place and secure using the screws provided.
10. Refit keypad mat and front bezel.
D12372-1
Note: Use care when removing the bezel. Do not use any tools
to lever the bezel, doing so may cause damage.
1. Using your fingers pull the bezel away from the unit at the top
and side, as shown in 2.
The bezel will start to come away from the unit at the top and
side.
2. Now pull the bezel away from the unit on the opposite side, as
shown in 3.
The bezel will now come free from the unit, as shown in 4.
Note: Drill, tap size and tightening torques are dependant upon
the material type and thickness of the mounting surface.
Note: The supplied gasket provides a seal between the unit and
a suitably flat and stiff mounting surface or binnacle. The gasket
should be used in all installations. It may also be necessary to
use a marine-grade sealant if the mounting surface or binnacle is
not entirely flat and stiff or has a rough surface finish.
Location and mounting
27
5.4 Selecting a transducer location
General speed and depth transducer location
requirements
When selecting a location for your transducer it is important to
consider a number of factors.
The transducer should be mounted within the clear water flow areas
indicated by the shaded areas in the image below.
1
2
3
D 4349-2
1
Sailing vessel
2
Planing power vessel
3
Displacement power vessel
Each transducer should also:
• Be ahead of the propellers (by a minimum of 10% of the water
line length).
• Be at least 150 mm (6 in) away from the keel (ideally ahead of the
keel on a sailing yacht).
• Be as near as possible to the center line of the vessel.
• Be clear of other through-hull fittings or projections.
• Have sufficient clearance inside the hull to fit the nut.
• Have 100 mm (4 in) of headroom to allow for withdrawal.
Note: In addition to the above requirements, the depth transducer
must be mounted within 10º of the vertical.
D4350-5
Speed and depth transducer mounting
Ensure transducers are installed in accordance with the instructions
supplied with the transducer.
28
i50
Chapter 6: Getting started
Chapter contents
•
6.1 Controls on page 30
•
6.2 Power on page 30
•
6.3 Data master on page 31
•
6.4 Illumination on page 31
•
6.5 Calibration on page 32
Getting started
29
6.2 Power
6.1 Controls
Powering on the unit
With power to the unit turned on but the unit switched off:
1. Press and hold the Power button until the unit powers on and
data is displayed (approximately 2 seconds).
Note: When power to the unit is turned on the unit will switch
on automatically.
Powering off the unit
1. Press and hold the Power button until the power count down
timer is displayed and reaches zero (approximately 6 to 8
seconds).
1
2
3
4
D12375-1
i50 Depth
i50 Speed
i50 Tridata
1
Depth (Power)
— Select to
access depth
information,
backlight adjust,
contrast adjust
and power on/off
modes.
Speed (Power)
— Select to
access speed
information,
backlight adjust,
contrast adjust
and power on/off
modes
Depth (Power)
— Select to
access depth
information,
backlight adjust,
contrast adjust
and power on/off
modes.
2
Alarm — Select
to access alarm
levels and alarm
settings.
Trip — Select
to access log,
trip and water
temperature
information.
Speed —
Select to access
speed and VMG
information
3
Offset — Select
to access depth
offset settings.
Timer — Select
to access count
up and start
timers.
Trip— Select
to access log,
trip and water
temperature
information.
4
Reset — Select
and hold down
for 3 seconds
to reset data to
current values.
Reset — Select
and hold down
for 3 seconds
to reset data to
current values.
Reset — Select
and hold down
for 3 seconds
to reset data to
current values.
30
i50
6.3 Data master
6.4 Illumination
Where a system contains more than one unit capable of displaying
a data type, the unit physically connected to the transducer must be
set as the data master and any other units set as a repeater.
Adjusting the backlight level
Setting a unit as data master
1. Refer to the Intermediate calibration section for details on how to
set your unit as data master.
The backlighting level can be accessed using the power button.
During normal operation:
1. Press and hold the Power button for approximately 1 second
to display the backlight page.
2. Depending on your display variant follow the steps below to
adjust the backlight level:
i. i50 Depth — Use the Offset or Reset buttons to adjust the
backlight level to the required setting.
ii. i50 Speed — Use the Timer or Reset buttons to adjust the
backlight level to the required setting.
iii. i50 Tridata — Use the Trip or Reset buttons to adjust the
backlight level to the required setting.
Note: The backlight page will time-out after 8 seconds of
inactivity.
Adjusting the contrast
The contrast level can be accessed using the power button.
During normal operation:
1. Press and hold the Power button for approximately 3 seconds
to display the contrast page.
2. Depending on your display variant follow the steps below to
adjust the contrast level:
i. i50 Depth — Use the Offset or Reset buttons to adjust the
contrast level to the required setting.
ii. i50 Speed — Use the Timer or Reset buttons to adjust the
contrast level to the required setting.
iii. i50 Tridata — Use the Trip or Reset buttons to adjust the
contrast level to the required setting.
3. Selecting the Power button with the contrast page displayed will
cycle through the available contrast settings.
Note: The contrast page will time-out after 8 seconds of inactivity.
Getting started
31
6.5 Calibration
6. Press the Depth button to display the shallow alarm lock page.
Before first use calibration procedures must be carried out to ensure
optimum performance of the instrument with the vessel.
De pth
The calibration procedures are:
D12424-1
• User calibration
7. Use the Offset or Reset buttons to turn the shallow alarm lock
on and off.
8. To exit the user calibration pages at any time, press and hold the
Depth and Alarm buttons simultaneously for 2 seconds.
• Intermediate calibration
• Group setup
• Dealer calibration
Note: Group setup is for group illumination and is not part of
the calibration process.
User calibration
Calibration procedures are dependant on instrument display variant.
User calibration options include:
i50 Depth
i50 Speed
i50 Tridata
Setting required units for
depth readings.
Setting required units for
speed readings.
Setting required units for
depth readings.
Setting the required
depth offset.
Setting required speed
resolution.
Setting the required
depth offset.
Locking shallow alarm.
Set required log distance
units.
Locking shallow alarm.
Setting correct speed
readings.
Setting required units for
speed readings.
Setting required
temperature units.
Setting required speed
resolution.
Setting required
temperature readings.
Set required log distance
units.
Setting timer buzzer on
or off.
Setting correct speed
readings.
Depth Offset
Depths are measured from the transducer to the sea bed, but you
can apply an offset value to the depth data, so that the displayed
depth reading represents the depth to the sea bed from either the
keel or the water line.
Before attempting to set a waterline or keel offset, find out the
vertical separation between the transducer and either the waterline
or the bottom of the keel on your vessel, as appropriate. Then set
the appropriate depth offset value.
1
2
D9343--2
1
Waterline offset
2
Transducer / Zero offset
3
Keel offset
Setting required
temperature units.
If an offset is not applied, displayed depth readings represent the
distance from the transducer to the sea bed.
Setting required
temperature readings
Calibrating i50 Speed
During normal operation:
1. Press and hold down the Speed and Trip buttons simultaneously
for approximately 2 seconds to display the user cal entry page.
Setting timer buzzer on
or off
55
Calibrating i50 Depth
50
45
40
During normal operation:
1. Press and hold down the Depth and Alarm buttons
simultaneously for approximately 2 seconds to display the user
calibration entry page.
55
35
10
15
20
30 25
+
Trip
D12426-1
Note: The user calibration entry screen will time-out after 8
seconds of inactivity.
60 5
2
S pe e d
60 5
2
35
50
45
40
3
10
15
20
30 25
2. Press the Speed button to display the speed units page.
De pth
+
Ala rm
D12421-1
S pe e d
Note: The user calibration entry screen will time-out after 8
seconds of inactivity.
D12427-1
3. Use the Timer or Reset buttons to select the required speed
units.
4. Press the Speed button to display the speed resolution page.
2. Press the Depth button to display the depth units page.
De pth
S pe e d
D12422-1
3. Use the Offset or Reset buttons to select the required depth
units.
4. Press the Depth button to display the depth offset page.
D12428-1
5. Use the Timer or Reset buttons to set the required speed
resolution.
6. Press the Speed button to display the speed log units page.
De pth
S pe e d
D12423-1
5. Use the Offset or Reset buttons to set the required depth offset.
32
D12429-1
i50
7. Use the Timer or Reset buttons to select the required speed
log units.
8. Press the Speed button to display one of the current speed
pages, if SOG data is available over SeaTalk then the SOG page
is displayed, if SOG data is not available then the cal factor
page is displayed.
1. Press the Depth button to display the depth units page.
De pth
D12439-1
2. Use the Trip or Reset buttons to select the required depth units.
3. Press the Depth button to display the depth offset page.
SOG
S pe e d
De pth
SOG
S pe e d
D12440-1
D12430-1
9. Press the Timer and Reset buttons simultaneously to switch
between the cal factor and SOG pages.
Time r
+
4. Use the Trip or Reset buttons to set the required depth offset.
5. Press the Depth button to display the shallow alarm lock page.
De pth
D12441-1
Re s e t
D12431-1
10. If the SOG page is displayed and the tide conditions are slack,
press and hold the Reset button for 3 seconds to accept SOG
as the current speed.
6. Use the Trip or Reset buttons to switch the shallow alarm lock
on and off.
7. To exit the user calibration pages at any time, press and hold the
Depth and Speed buttons simultaneously for 2 seconds.
Calibrating i50 Tridata speed
55
50
45
40
3
35
During normal operation:
1. Press the Speed button to display the speed units page.
60 5
10
Re s e t
15
20
30 25
D12432-1
11. Alternatively, with the cal factor page displayed use the Timer
or Reset buttons to set the cal factor to your vessel's estimated
current speed.
12. Press the Speed button to display the temperature units page.
S pe e d
D12442-1
2. Use the Trip or Reset buttons to set the required speed units.
3. Press the Speed button to display the speed resolution page.
S pe e d
D12434-1
13. Use the Timer or Reset buttons to select the required
temperature units.
14. Press the Speed button to display the temperature calibration
page.
S pe e d
D12443-1
4. Use the Trip or Reset buttons to set the required speed
resolution.
5. Press the Speed button to display the speed log units page.
S pe e d
S pe e d
D12435-1
15. Use the Timer or Reset buttons to set the unit to show the
current water temperature.
16. Press the Speed button to display the Timer buzzer page.
D12444-1
S pe e d
D12436-1
17. Use the Timer or Reset buttons to switch the count-up and race
start timer buzzers on and off.
18. To exit the user calibration pages at any time, press and hold the
Speed and Trip buttons simultaneously for 2 seconds.
Calibrating i50 Tridata
1. Press and hold down the Depth and Speed buttons
simultaneously for approximately 2 seconds to display the user
calibration entry page.
55
50
45
40
De pth
10
15
20
30 25
+
SOG
S pe e d
S pe e d
SOG
D12445-1
8. Press and hold down the Trip and Reset buttons simultaneously
to switch between the cal factor and SOG pages.
60 5
2
35
6. Use the Trip or Reset buttons to select the required speed log
units.
7. Press the Speed button to display one of the current speed
pages, if SOG data is available over SeaTalk then the SOG page
is displayed, if SOG data is not available then the cal factor
page is displayed.
S pe e d
Trip
+
Re s e t
D12438-1
D12446-1
Note: The user calibration entry screen will time-out after 8
seconds of inactivity.
Calibrating i50 Tridata depth
From the User calibration entry page:
Getting started
33
9. If the SOG page is displayed and the tide conditions are slack,
press and hold the Reset button for 3 seconds to accept SOG
as the current speed.
55
50
45
40
35
Checking i50 Speed software version and status
60 5
3
4. To exit the Intermediate calibration settings at any time, press
and hold the Depth and Alarm buttons simultaneously for 4
seconds.
10
Re s e t
15
20
30 25
55
50
45
40
D12447-1
10. Alternatively, with the cal factor page displayed use the Trip or
Reset buttons to set the cal factor to your vessel's estimated
current speed.
11. Press the Speed button to display the temperature units page.
S pe e d
D12448-1
12. Press the Speed button to display the temperature calibration
page.
S pe e d
D12449-1
13. Use the Trip or Reset buttons to set the unit to show the current
water temperature.
14. Press the Speed button to display the Timer buzzer page.
S pe e d
D12450-1
15. Use the Trip or Reset buttons to switch the count-up and race
start timer buzzers on and off.
16. To exit the user calibration pages at any time, press and hold the
Depth and Speed buttons simultaneously for 2 seconds.
35
Speed
60 5
4
10
15
20
30 25
+
Trip
Speed
D12452-1
During normal operation:
1. Press and hold the Speed and Trip buttons simultaneously for
4 seconds:
The software version is displayed.
2. Press the Speed button to display the instrument status.
Master (transducer connected) or Repeater (No transducer
connected).
3. Press the Speed button again to begin speed run calibration.
4. To exit the Intermediate calibration settings at any time, press
and hold the Speed and Trip buttons simultaneously for 4
seconds.
Performing speed run calibration – i50 Speed
This speed calibration involves carrying out up to 2 runs over a
measured distance, to enable a calibration factor to be determined
and applied to your unit. Each run consists of an outward and a
return leg, to minimize the effect of tidal drift when the calibration
factor is determined.
From the Intermediate calibration page:
Note: This procedure is not required if current speed is set to
SOG.
1. Press the Speed button until you reach the Calibration run
length page.
Intermediate calibration
Intermediate calibration allows you to:
S pe e d
i50 Depth
i50 Speed
i50 Tridata
Check instrument
software version.
Check instrument
software version.
Check instrument
software version.
Check and if necessary
change the instrument
status (either master or
repeater).
Check the instrument
status (either master or
repeater).
Check and if necessary
change the instrument
status (either master or
repeater).
Carry out a calibration
run over a measured
distance to ensure
accurate speed
readings.
Carry out a calibration
run over a measured
distance to ensure
accurate speed
readings.
D12453-1
Checking i50 Depth software version and status
55
50
45
40
Depth
60 5
4
35
10
15
20
30 25
+
Alarm
Time r
+
Re s e t
D12454-1
In adjust mode the run length flashes.
3. Use the Timer or Reset button to set the run length to the
required value (between 0.25 and 2.50).
4. Press the Timer and Reset buttons simultaneously to commence
the speed run calibration
The calibration status page is displayed. The text at the top of
the page alternates between START 1 and the calibration factor
currently applied.
Depth
D12451-1
During normal operation:
1. Press and hold the Depth and Alarm buttons simultaneously
for 4 seconds:
The software version is displayed.
2. Press the Depth button to display the instrument status.
Master (transducer connected) or Repeater (No transducer
connected).
3. To change the status:
i. Press the Offset and Reset buttons simultaneously to enter
adjust mode.
The status flashes when in adjust mode.
ii. Press either Offset or Reset to switch the status between
Master or Repeater.
34
2. Press the Timer and Reset buttons simultaneously to enter
adjust mode.
Time r
+
Re s e t
D12455-1
5. Start the outward leg of the calibration run and as you pass the
start point, press the Trip button, so the page shows OUTWARD
at the top. As the calibration run proceeds, the displayed value
will change.
Trip
D12456-1
i50
6. At the end of the outward leg press Trip again.
Trip
D12457-1
The text RETURN will flash at the top of the page and the
displayed distance freezes.
ii. Press either Trip or Reset to switch the status between
Master or Repeater.
4. Press the Speed button again to begin speed run calibration.
5. To exit the Intermediate calibration settings at any time, press
and hold the Depth and Speed buttons simultaneously for 4
seconds:
Performing speed run calibration – i50 Tridata
Note: The displayed distance value may not be the same as the
measured distance, due to errors introduced by tidal flow.
7. Turn your vessel round, start the return leg and as you do
so, press the Trip button so RETURN stops flashing and the
displayed value increments.
This speed calibration involves carrying out up to 2 runs over a
measured distance, to enable a calibration factor to be determined
and applied to your unit. Each run consists of an outward and a
return leg, to minimize the effect of tidal drift when the calibration
factor is determined.
From the Intermediate calibration page:
Note: This procedure is not required if current speed is set to
SOG.
Trip
D12458-1
8. At the end of the return leg, press the Trip button.
At this point:
1. Press the Speed button until you reach the Calibration run
length page.
S pe e d
• The text START 2 alternating with the new calibration factor is
displayed at the top of the page.
• The displayed distance freezes
D12462-1
2. Press the Trip and Reset buttons simultaneously to enter adjust
mode.
Trip
Trip
+
Re s e t
D12463-1
D12459-1
Note: The displayed distance should be very close to the actual
(measured) distance of the calibration run.
9. If you are satisfied with the results of the first calibration run,
press the Speed and Trip buttons simultaneously to save the
new calibration factor and exit speed calibration.
10. If you want to carry out a second calibration run, press the Trip
button.
11. Follow steps 5 to 7 above again to complete a second calibration
run.
12. At the end of the return leg press the Trip button
At this point:
• The text END alternating with the new calibration factor is
displayed at the top of the page.
• The displayed distance freezes
In adjust mode the run length flashes.
3. Use the Trip or Reset button to set the run length to the required
value (between 0.25 and 2.50).
4. Press the Trip and Reset buttons simultaneously to commence
the speed run calibration
The calibration status page is displayed. The text at the top of
the page alternates between START 1 and the calibration factor
currently applied.
Trip
+
Re s e t
D12464-1
5. Start the outward leg of the calibration run and as you pass
the start point, press the Speed button, so the page shows
OUTWARD at the top. As the calibration run proceeds, the
displayed value will change.
Trip
S pe e d
D12460-1
D12465-1
13. To exit the speed calibration run at any time, press and hold the
Speed and Trip buttons simultaneously for 4 seconds.
6. At the end of the outward leg press Speed again.
Checking i50 Tridata software version and status
S pe e d
55
50
45
40
4
35
Speed
60 5
10
15
20
30 25
+
D12466-1
Depth
The text RETURN will flash at the top of the page and the
displayed distance freezes.
Speed
D12461-1
During normal operation:
1. Press and hold the Depth and Speed buttons simultaneously
for 4 seconds:
The software version is displayed.
2. Press the Speed button to display the instrument status.
Master (transducer connected) or Repeater (No transducer
connected).
3. To change the depth status:
i. Press the Trip and Reset buttons simultaneously to enter
adjust mode.
The status flashes when in adjust mode.
Getting started
Note: The displayed distance value may not be the same as the
measured distance, due to errors introduced by tidal flow.
7. Turn your vessel round, start the return leg and as you do so,
press the Speed button so RETURN stops flashing and the
displayed value increments.
S pe e d
D12467-1
8. At the end of the return leg, press the Speed button.
At this point:
35
• The text START 2 alternating with the new calibration factor is
displayed at the top of the page.
4. Press the Depth button to display the depth response page.
• The displayed distance freezes
De pth
D12472-1
S pe e d
D12468-1
5. Use the Offset or Reset buttons to set the required depth
response setting.
6. Press the Depth button to display the boat show mode page.
Note: The displayed distance should be very close to the actual
(measured) distance of the calibration run.
De pth
D12473-1
9. If you are satisfied with the results of the first calibration run,
press the Depth and Speed buttons simultaneously to save the
new calibration factor, exit speed calibration and return to the
status page.
10. If you want to carry out a second calibration run, press the
Speed button.
11. Follow steps 5 to 7 above again to complete a second calibration
run.
12. At the end of the return leg press the Speed button
At this point:
• The text END alternating with the new calibration factor is
displayed at the top of the page.
• The displayed distance freezes.
7. Press the Depth button to display the factory reset page.
De pth
D12474-1
8. Use the Offset or Reset buttons to reset the units settings to
factory default values.
9. To exit the dealer calibration pages at any time, press and hold
the Depth and Alarm buttons simultaneously for approximately
2 seconds.
Setting dealer calibration options - i50 Speed
During normal operation:
1. Press and hold the Speed and Trip buttons simultaneously
for approximately 14 seconds to display the dealer calibration
entry page.
S pe e d
55
60 5
10
50
45
40
14
15
20
35
30 25
D12469-1
13. To exit the speed calibration run at any time, press and hold the
Depth and Speed buttons simultaneously for 4 seconds.
S pe e d
+
Trip
D12475-1
2. Press the Timer and Reset buttons simultaneously to display
the user calibration access page.
Dealer calibration
The dealer calibration procedures include:
Time r
i50 Depth
i50 Speed
i50 Tridata
Setting User calibration
options on or off.
Setting User calibration
options on or off.
Setting User calibration
options on or off.
Setting required depth
response.
Setting required speed
response.
Setting data source for
speed information.
Setting boat show mode
on or off.
Setting required VMG
response.
Setting required speed
response.
Restore factory default
Setting boat show mode
on or off.
Setting required depth
response.
Restore factory default
Setting boat show mode
on or off.
+
Re s e t
D12476-1
3. Press the Speed button to display the speed response page.
S pe e d
D12477-1
4. Use the Timer or Reset buttons to set the required speed
response value.
5. Press the Speed button to display the speed VMG response
page.
S pe e d
Restore factory default
D12478-1
Setting dealer calibration options – i50 Depth
During normal operation:
1. Press and hold the Depth and Alarm buttons simultaneously
for approximately 14 seconds to display the dealer calibration
entry page.
55
S pe e d
60 5
D12479-1
10
50
45
40
14
15
20
35
De pth
6. Use the Timer or Reset buttons to set the required VMG
response value.
7. Press the Speed button to display the boat show mode page.
8. Use the Timer or Reset buttons to switch boat show mode on
and off.
9. Press the Speed button to display the factory reset page.
30 25
+
Ala rm
D12470-1
2. Press the Offset and Reset buttons simultaneously to display
the user calibration access page.
S pe e d
D12480-1
Offs e t
+
Re s e t
D12470-1
3. Use the Offset or Reset buttons to switch the user calibration
on and off.
36
10. Use the Timer or Reset buttons to reset the units settings to
factory default values
11. To exit the dealer calibration pages at any time, press and hold
the Speed and Trip buttons simultaneously for approximately
2 seconds.
i50
Setting dealer calibration options - i50 Tridata
During normal operation:
1. Press and hold the Depth and Speed buttons simultaneously
for approximately 14 seconds to display the dealer calibration
entry page.
55
60 5
10
50
45
40
14
15
20
35
De pth
30 25
+
S pe e d
D12481-1
2. Press the Trip and Reset buttons simultaneously to display the
user calibration access page.
Trip
+
Re s e t
D12482-1
3. Press the Depth button to display the speed select page.
De pth
D12483-1
4. Use the Trip or Reset buttons to switch the speed data source
on and off.
5. Press the depth button to display the speed response page.
De pth
D12484-1
6. Use the Trip or Reset buttons to set the required speed
response value.
7. Press the Depth button to display the depth response page.
De pth
D12485-1
8. Use the Trip or Reset buttons to set the required depth response
value.
9. Press the Depth button to display the boat show mode page.
De pth
D12486-1
10. Use the Trip or Reset buttons to switch boat show mode on
and off.
11. Press the Depth button to display the factory reset page.
De pth
D12487-1
12. Use the Trip or Reset buttons to reset the units settings to
factory default values
13. To exit the Dealer calibration pages at any time, press and hold
the Depth and Speed buttons simultaneously for approximately
2 seconds.
Getting started
37
38
i50
Chapter 7: Using your display
Chapter contents
•
7.1 Pages on page 40
•
7.2 i50 Depth operation on page 40
•
7.3 i50 Speed operation on page 41
•
7.4 i50 Tridata operation on page 43
•
7.5 Group illumination on page 44
Using your display
39
7.1 Pages
7.2 i50 Depth operation
The pages available depend on the display variant and are shown
in the table below:
When connected to the relevant depth transducer, your i50 depth
instrument:
i50 Depth
i50 Speed
i50 Tridata
• Provides current depth information, in either feet (ft), metres (M)
or fathoms (FA).
Current depth
Boat speed
Current depth
*Maximum depth
Speed over ground
(SOG)
Shallow alarm threshold
• Records the minimum and maximum depth encountered during
the period the unit is switched on.
Velocity made good
(VMG)
Deep alarm threshold
*Average speed
Anchor shallow alarm
threshold
*Minimum depth
Shallow alarm
• Enables you to define alarm thresholds for shallow alarm, deep
alarm, shallow anchor alarm and deep anchor alarm.
• Enables you to see what offset has been applied to the depth
reading.
Note: Depth information is obtained from the depth transducer
connected to the unit. However, when the instrument is connected
to a SeaTalk network, which contains a compatible sonar module
(fishfinder) the depth information is provided by the sonar module,
whilst it is switched on.
Deep anchor alarm
*Maximum speed
Anchor deep alarm
threshold
Shallow anchor alarm
Boat log
Boat speed Maximum
speed
Deep alarm
Water temperature
*Average speed
• The required depth units are selected during User calibration.
Trip distance
VMG to windward
Count up timer
Water temperature
• Up / Down depth-trend arrows are displayed, if the seabed is
rising or falling.
Race start timer 1
Count up timer
Race start timer 2
Race start timer 1
Race start timer 2
Boat log
It should be noted that:
• If for any reason depth information is lost, the depth title will flash
and the displayed value will be the last known depth reading.
Using the depth pages
To cycle through the depth pages follow the steps below.
1
Trip distance
Note: These pages are temporary pages and will time-out to the
previous permanent page after 5 seconds of inactivity.
De pth
3
2
De pth
55
50
45
40
60 5
8
35
55
10
50
45
40
15
20
8
35
30 25
60 5
10
15
20
30 25
Changing pages
During normal operation:
1. Depending on unit variant press either the Depth, Speed, Timer
or Trip buttons to cycle through the pages.
55
Re s e t
50
45
40
60 5
3
35
55
10
15
20
30 25
Re s e t
50
45
40
60 5
3
35
10
De pth
15
20
30 25
D12532-1
With the Current depth page display:
1. Press the Depth button to display the Minimum depth page.
2. From the Minimum depth page:
i. Press the Depth button to display the Maximum depth
page, or
ii. Press and hold the Reset button for 3 seconds to reset the
minimum depth to the current depth reading.
3. From the Maximum depth page:
i. Press the Depth button to display the Current depth page, or
ii. Press and hold the Reset button for 3 seconds to reset the
maximum depth to the current depth reading.
Note: Only the Current depth page is a permanent page, all
other pages will time-out after 8 seconds and revert back to the
Current depth page.
Viewing the depth offset
To view the offset value currently applied to your instrument follow
the steps below.
During normal operation:
1. Press the Offset button to display the Depth offset page.
The display shows the value of the offset applied and identifies:
• If a positive offset value is applied W/L is displayed to denote
a waterline offset.
• If a negative offset value is applied KEEL is displayed to
denote a keel offset.
• If a zero offset value is applied OFFSET is displayed to denote
that there is a zero offset from the transducer.
40
i50
Note: Depth offset information is only available on units set as
data masters (see Data master section for details.
7.3 i50 Speed operation
When connected to the relevant speed or speed and temperature
transducer, your i50 Speed instrument provides:
• Current, maximum and average speed information, in either knots
(KTS), mile per hour (MPH) or kilometers per hour (KPH).
• Log and trip information, in either nautical miles (NM), statute
miles (M) or kilometers (KM).
• Water temperature information, in either degrees celsius (ºC) or
fahrenheit (ºF).
• Velocity made good (VMG) information, VMG is only available
when connected to SeaTalk or SeaTalkng network which also
contains a compatible wind transducer.
• Speed over ground (SOG) information, SOG is only available
when connected to SeaTalk or SeaTalkng network which also
contains a suitable GPS.
• Count-up and race start timers
Note: The required speed, distance and temperature units are
selected during User calibration.
It should be noted that:
• The maximum speed, average speed and trip reading are reset to
zero at power up.
• The log screen shows the total distance covered by the vessel
since the unit was fitted.
Using the speed pages
To cycle through the speed pages follow the steps below:
1
5
S pe e d
2
S pe e d
55
35
55
Re s e t
50
45
40
10
15
20
30 25
60 5
10
3
35
60 5
8
50
45
40
15
20
30 25
S pe e d
4
3
S pe e d
55
50
45
40
8
35
55
Re s e t
50
45
40
10
15
20
30 25
60 5
3
35
60 5
10
15
20
30 25
S pe e d
D12533-1
With the Current speed page displayed:
1. Press the Speed button to display the Maximum speed page.
2. From the Maximum speed page:
i. Press the Speed button to display the Average speed page,
or
ii. Press and hold the Reset button for 3 seconds to set the
maximum speed value to the vessel's current speed.
3. From the Average speed page:
i. Press the Speed button to display the VMG page, or
Note: The VMG information is only available if your unit is part
of a SeaTalk or SeaTalkng network which has a compatible wind
instrument connected.
ii. Press and hold the Reset button for 3 seconds to set the
average speed value to zero.
Using your display
41
4. From the VMG page, press the Speed button to display the
SOG page:
Setting the race start timer
The race start timers can be set from 1 to 15 minutes.
Note: SOG information is only available if your unit is part
of a SeaTalk or SeaTalkng network which has a suitable GPS
connected.
1
5. From the SOG page, press the Speed button to display the
Current speed page.
2
Time r
+
Time r
Time r
Using the log, trip and temperature pages
Trip
4
Trip
3
Trip
+
Re s e t
D12536-1
To cycle through the available log, trip and water temperature pages
follow the steps below.
2
Re s e t
Re s e t
Note: The Maximum speed and Average speed pages are
temporary pages and will time-out after 8 seconds and revert
back to the Current speed page.
1
+
With a race timer displayed
1. Press and hold the Timer and Reset buttons simultaneously to
enter adjust mode.
2. In adjust mode:
i. Use the Reset button to increment the race timer start value,
or
ii. Use the Timer button to decrease the race timer start value.
iii. Press and hold the Timer and Reset buttons simultaneously
to exit adjust mode.
Timer buzzer
The Timer buzzer is enabled or disabled during calibration see the
User calibration section.
55
Re s e t
50
45
40
35
When using a race timer with the timer buzzer enabled, the buzzer
will:
60 5
3
10
15
20
30 25
Trip
D12534-1
During normal operation:
1. Press the Trip button to display the Log page.
2. Press the Trip button to display the Trip page.
3. From the Trip page:
i. Press the Trip button to display the Water temperature
page, or
ii. Press and hold the Reset button for 3 seconds to reset the
trip reading to zero.
4. Press the Trip button to display the Log page.
• Double beep every minute.
• Beep 3 times at the start of the last 30 seconds.
• Beep once for each of the last 10 seconds.
• Beep for 2 seconds at zero.
Using the timers
To cycle through and use the count-up and race timer pages follow
the steps below.
Time r
Time r
Time r
D12535-1
During normal operation:
1. Press the Timer button to cycle through the available timers.
2. Press the Reset button to start the timer.
3. With the timer running, press the Reset button to pause the timer.
4. With the timer running, press and hold the Reset button for 1
second to reset the timer.
Note: After a race start timer has counted down to zero it will
then start to count up.
42
i50
7.4 i50 Tridata operation
Using Tridata depth pages
When connected to the relevant transducer(s) your i50 Tridata
instrument:
To cycle through the depth pages follow the steps below.
• Provides depth information in either feet (FT) or metres (M).
• Enables you to define alarm thresholds for shallow alarm, deep
alarm, shallow anchor alarm and deep anchor alarm.
De pth
De pth
• Provides speed information (current, maximum and average), in
either knots (KTS), miles per hour (MPH) or kilometers per hour
(KPH).
De pth
• Velocity made good (VMG) information, VMG is only available
when connected to SeaTalk or SeaTalkng network which also
contains a compatible wind transducer.
De pth
• Provides log and trip information. These are given in either
nautical miles (NM), statute miles (M) or kilometers (KM).
De pth
• Provides water temperature information. This is given in either
degrees celsius (ºC) or degrees fahrenheit (ºF).
D12538-1
• Provides count up and race start timer functions.
Note: Depth information is obtained from the depth transducer
connected to the unit. However, when the instrument is connected
to a SeaTalk network, which contains a compatible sonar module
(fishfinder) the depth information is provided by the sonar module
whilst it is switched on.
1. Use the Depth button to cycle through the available depth pages.
Available depth pages are:
• Current depth
• Shallow depth alarm
• Deep depth alarm
It should be noted that:
• The required units of measurement are set during User calibration.
• Up / Down depth-trend arrows are displayed, if the seabed is
rising or falling at a significant rate.
• The log screen shows the total distance covered by the vessel
since the unit was fitted.
• Maximum speed, average speed and trip reading are reset to
zero at power up.
• If for any reason depth information is lost, the depth title will flash
and the displayed value will be the last known depth reading.
• Shallow anchor alarm
• Deep anchor alarm
Note: Alarm pages are temporary pages will time-out after 8
seconds and revert to the Current depth page.
To enable / disable alarms or to adjust alarm thresholds please refer
to the Alarms section.
Using Tridata speed pages.
To cycle through the speed pages follow the steps below.
S pe e d
1
i50 Tridata display layout
The i50 Tridata display is divided into 3 separate areas, each of
which displays a separate type of information, as shown below.
S pe e d
4
55
50
45
40
60 5
3
35
10
15
20
Re s e t
2
30 25
1
2
S pe e d
3
55
50
45
40
60 5
3
35
10
15
20
Re s e t
30 25
3
De pth
S pe e d
Trip
Re s e t
S pe e d
D12537-1
1
Depth information
2
Speed information
3
Trip, log, water temperature and timer
Using the Tridata pages
1. Use the Depth button to access depth information.
2. Use the Speed button to access speed information.
3. Use the Trip button to access the log, trip, water temperature
and timer information.
Using your display
D12539-1
With the Current speed page displayed:
1. Press the Speed button to display the Maximum speed page.
2. With the Maximum speed page displayed:
i. Press the Speed button to display the Average speed page,
or
ii. Press and hold the Reset button for 3 seconds to reset the
maximum speed reading to the vessel's current speed.
3. With the Average speed page displayed:
i. Press the Speed button to display the VMG page, or
ii. Press and hold the Reset button for 3 seconds to reset the
average speed to zero.
4. From the VMG page, press the Speed button to display the
Current speed page.
43
Note: The Maximum speed, Average speed and VMG pages
are temporary pages and will time-out after 8 seconds and revert
to the Current speed page.
Using Tridata trip pages
To cycle through the trip, log, water temperature and timer pages
follow the steps below.
7.5 Group illumination
Group illumination is used to synchronizes and control the
backlighting level of multiple units assigned to the same group.
The unit can participate in shared illumination via a SeaTalk network
or group illumination via a SeaTalkng network.
When connected on a SeaTalk network all compatible units will
share their backlight level (when 1 unit's backlighting level is
adjusted all other units backlight level will also change).
Trip
When connected on a SeaTalkng network the unit can participate in
group illumination and be assigned to a group of units which will
share their backlighting levels. Available groups are as follows:
• Helm 1
Trip
• Helm 2
Trip
• Cockpit
• Flybridge
• Mast
• grP1 to grP5
Trip
Trip
When assigned to a group, when the backlighting of 1 unit is
adjusted the backlighting level of all units assigned to the same
group will also change.
Assigning the i50 Depth to a group
To assign the i50 Depth as part of a group so that it can participate
in group illumination follow the steps below.
D12540-1
1. Press the Trip button to cycle through the Trip, Log, Water
temperature and Timer pages.
Setting the race start timer
The race start timers can be set from 1 to 15 minutes.
Note: The Group brightness entry page is a temporary page
and will time-out to the previous page after 8 seconds.
+
1
2
Time r
+
2. Press the Depth button to display the Group page.
3. Use the Offset or Reset buttons to select the group the unit
will be assigned to.
Re s e t
Re s e t
During normal operation:
1. Press and hold the Depth and Alarm buttons simultaneously
for 6 seconds.
The Group brightness entry page is displayed.
Time r
Assigning the i50 Speed to a group
Time r
+
To assign the i50 Speed as part of a group so that it can participate
in group illumination follow the steps below.
Re s e t
D12541-1
With a race timer displayed
1. Press and hold the Timer and Reset buttons simultaneously to
enter adjust mode.
2. In adjust mode:
i. Use the Reset button to increment the race timer start value,
or
ii. Use the Timer button to decrease the race timer start value.
iii. Press and hold the Timer and Reset buttons simultaneously
to exit adjust mode.
Note: After a race start timer has counted down to zero it will
then start to count up.
Timer buzzer
The Timer buzzer is enabled or disabled during calibration see the
User calibration section.
When using a race timer with the timer buzzer enabled, the buzzer
will:
During normal operation:
1. Press and hold the Speed and Trip buttons simultaneously for
6 seconds.
The Group brightness entry page is displayed.
Note: The Group brightness entry page is a temporary page
and will time-out to the previous page after 8 seconds.
2. Press the Speed button to display the Group page.
3. Use the Timer or Reset buttons to select the group the unit will
be assigned to.
Assigning the i50 Tridata to a group
To assign the i50 Tridata as part of a group so that it can participate
in group illumination follow the steps below.
During normal operation:
1. Press and hold the Depth and Speed buttons simultaneously
for 6 seconds.
The Group brightness entry page is displayed.
• Double beep every minute.
• Beep 3 times at the start of the last 30 seconds.
• Beep once for each of the last 10 seconds.
• Beep for 2 seconds at zero.
44
Note: The Group brightness entry page is a temporary page
and will time-out to the previous page after 8 seconds.
2. Press the Depth button to display the Group page.
3. Use the Trip or Reset buttons to select the group the unit will
be assigned to.
i50
Chapter 8: Using alarms
Chapter contents
•
8.1 Alarms on page 46
Using alarms
45
8.1 Alarms
Setting alarm thresholds — i50 Depth
Alarms alert you to a situation or hazard requiring your attention.
You can adjust the threshold at which alarms are triggered by
following the steps below.
You can set up alarms to alert you to certain conditions.
+
Alarms are raised by system functions, and also external equipment
connected to your display.
When an alarm event occurs an audible and visual alarm is activated
which indicates the alarm state.
Re s e t
Offs e t
Alarm thresholds can be configured from the relevant alarm page /
menu.
Instrument alarms
The alarms available for the i50 Depth and i50 Tridata are listed
below.
• Shallow depth alarm
• Deep depth alarm
• Shallow anchor alarm
• Deep anchor alarm
+
Re s e t
Offs e t
-
D12546-1
With the relevant alarm page displayed:
1. Press the Offset and Reset buttons simultaneously to enter
adjust mode.
The current threshold will start to flash.
2. Use the Reset button to increase the alarm threshold.
3. Use the Offset button to decrease the alarm threshold.
4. Press the Offset and Reset buttons simultaneously to save the
new alarm threshold and exit adjust mode.
Note: The illustration above is an example depicting setting the
Deep anchor alarm threshold.
Alarm indications
An alarm event is indicated by both audible and visual warnings.
Setting alarm thresholds — i50 Tridata
Shallow alarm
You can adjust the threshold at which alarms are triggered by
following the steps below.
+
D12542-1
Re s e t
Deep alarm
Trip
+
Re s e t
Trip
D12543-1
Shallow anchor alarm
D12545-1
Deep anchor alarm
D12547-1
With the relevant alarm page displayed:
1. Press the Trip and Reset buttons simultaneously to enter adjust
mode.
The current threshold will start to flash.
2. Use the Reset button to increase the alarm threshold.
3. Use the Trip button to decrease the alarm threshold.
4. Press the Trip and Reset buttons simultaneously to save the
new alarm threshold and exit adjust mode.
Note: The illustration above is an example depicting setting the
Deep anchor alarm threshold.
D12544-1
Alarms are sounded when the set alarm threshold value is crossed.
Alarms will sound until silenced.
Silencing alarms
1. Press any button to silence an active alarm.
Enabling / Disabling alarms
Alarms can be enabled or disabled at any time.
With the relevant alarm page displayed:
1. Press and hold the Reset button for 1 second to switch the
alarm on or off.
46
i50
Chapter 9: Maintaining your display
Chapter contents
•
9.1 Service and maintenance on page 48
•
9.2 Condensation on page 48
•
9.3 Routine equipment checks on page 49
•
9.4 Cleaning on page 49
•
9.5 Cleaning the display case on page 50
•
9.6 Cleaning the display screen on page 50
Maintaining your display
47
9.1 Service and maintenance
9.2 Condensation
This product contains no user serviceable components. Please
refer all maintenance and repair to authorized Raymarine dealers.
Unauthorized repair may affect your warranty.
Certain atmospheric conditions may cause a small amount of
condensation to form on the unit's window. This will not damage the
unit and will clear after the unit has been switched on for a short
period.
48
i50
9.3 Routine equipment checks
9.4 Cleaning
Raymarine strongly recommends that you complete a number of
routine checks to ensure the correct and reliable operation of your
equipment.
Best cleaning practices.
Complete the following checks on a regular basis:
• Do NOT wipe the display screen with a dry cloth, as this could
scratch the screen coating.
• Examine all cables for signs of damage or wear and tear.
• Check that all cables are securely connected.
When cleaning this product:
• Do NOT use abrasive, or acid or ammonia based products.
• Do NOT use a jet wash.
Maintaining your display
49
9.5 Cleaning the display case
9.6 Cleaning the display screen
The display unit is a sealed unit and does not require regular
cleaning. If it is necessary to clean the unit, follow this basic
procedure:
1. Switch off the power to the display.
2. Wipe the display with a clean, soft cloth (a microfibre cloth is
ideal).
3. If necessary, use isopropyl alcohol (IPA) or a mild detergent to
remove grease marks.
A coating is applied to the display screen. This makes it water
repellent, and prevents glare. To avoid damaging this coating, follow
this procedure:
1. Switch off the power to the display.
2. Rinse the screen with fresh water to remove all dirt particles
and salt deposits.
3. Allow the screen to dry naturally.
4. If any smears remain, very gently wipe the screen with a clean
microfibre cleaning cloth (available from an opticians).
Note: Do NOT use IPA or any other solvent or detergent on the
screen itself.
Note: In certain conditions, condensation may appear inside the
display screen. This will not harm the unit, and can be cleared by
powering on the display for a short time.
50
i50
Chapter 10: Troubleshooting
Chapter contents
•
10.1 Troubleshooting on page 52
•
10.2 Instrument troubleshooting on page 53
•
10.3 Power up troubleshooting on page 54
•
10.4 Miscellaneous troubleshooting on page 55
•
10.5 Self-test on page 56
Troubleshooting
51
10.1 Troubleshooting
The troubleshooting information provides possible causes and
corrective action required for common problems associated with
marine electronics installations.
All Raymarine products are, prior to packing and shipping, subjected
to comprehensive test and quality assurance programs. However,
if you experience problems with the operation of your product this
section will help you to diagnose and correct problems in order to
restore normal operation.
If after referring to this section you are still having problems with your
unit, please contact Raymarine Technical Support for further advice.
52
i50
10.2 Instrument troubleshooting
Fault
Cause
Action
Blank display.
No power supply.
• Check fuse / circuit breaker.
• Check power supply.
• Check SeaTalk / SeaTalkng cabling and connector
security.
SeaTalk / SeaTalkng information not being transferred
between instruments.
SeaTalk / SeaTalkng cabling or connector fault.
• Check security of SeaTalk / SeaTalkng connections
between units.
• Check condition of SeaTalk / SeaTalkng cables.
• Isolate faulty unit by disconnecting units one by
one.
A group of SeaTalk / SeaTalkng units not working.
SeaTalk / SeaTalkng cabling or connector fault.
• Check the security of SeaTalk / SeaTalkng
connectors between functioning and
non-functioning units.
• Check the condition of SeaTalk / SeaTalkng cable
between functioning and non-functioning units.
LAST flashing or dashes displayed continuously
(depth greater than 3 feet).
Transducer cable or connector fault.
• Check condition of the transducer cable(s) and the
security of the connections.
LAST flashes when under way.
Aerated water due to vessel wakes, propeller wash
etc.
• Ensure reading stabilizes when clear of disturbed
water.
Troubleshooting
53
10.3 Power up troubleshooting
Problems at power up and their possible causes and solutions are described here.
Problem
Possible causes
Possible solutions
The system (or part of it) does not start up.
Power supply problem.
Check relevant fuses and breakers.
Check that the power supply cable is sound and that all connections are
tight and free from corrosion.
Check that the power source is of the correct voltage and sufficient current.
54
i50
10.4 Miscellaneous troubleshooting
Miscellaneous problems and their possible causes and solutions are described here.
Problem
Possible causes
Possible solutions
Display behaves erratically:
Intermittent problem with power to the
display.
Check relevant fuses and breakers.
• Frequent unexpected resets.
• System crashes or other erratic
behavior.
Check that the power supply cable is sound and that all connections are
tight and free from corrosion.
Check that the power source is of the correct voltage and sufficient current.
Software mismatch on system (upgrade
required).
Go to www.raymarine.com and click on support for the latest software
downloads.
Corrupt data / other unknown issue.
Perform a factory reset.
Important: This will result in the loss of any settings and data (such as
waypoints) stored on the product. Save any important data to a memory
card before resetting.
Troubleshooting
55
10.5 Self-test
The unit has a built in self-test to aid fault diagnosis. The resulting
failures and / or fault codes should be used when contacting
Raymarine customer support.
Starting self-test — i50 Depth
1
i50 Depth, i50 Speed
2
i50 Tridata
While the test is progressing, press each of the display buttons and
check that the buzzer sounds as each button is pressed.
The table below shows possible problems that may be encountered:
1. Press and hold the Depth and Reset buttons simultaneously for
4 seconds, until the unit beeps.
2. When the unit beeps immediately press Offset and Reset
buttons simultaneously to start self test stage 1.
3. To progress to the next self-test stage press the Depth and
Alarm buttons simultaneously.
Failure
No illumination.
Button illumination failure.
No beep when button pressed.
LCD segment(s) missing completely.
Starting self-test — i50 Speed
1. Press and hold the Speed and Reset buttons simultaneously for
4 seconds, until the unit beeps.
2. When the unit beeps immediately press Timer and Reset
buttons simultaneously to start self test stage 1.
3. To progress to the next self-test stage press the Speed and Trip
buttons simultaneously.
Faint LCD segment(s).
Self-test stage 3
Note: After Self-Test stage 3 is not supported on this unit,
progressing from Self-test stage 2 will start Self-test stage 4.
Self-test stage 4
Starting self-test — i50 Tridata
1. Press and hold the Depth and Reset buttons simultaneously for
4 seconds, until the unit beeps.
2. When the unit beeps immediately press Trip and Reset buttons
simultaneously to start self test stage 1.
3. To progress to the next self-test stage press the Depth and
Speed buttons simultaneously.
A known good transducer must be connected for Self-test stage 4,
and the vessel must be underway at sufficient speed for the tests to
be performed.
When entering Self-test stage 4, the unit beeps and the display
shows TEST 4, for 1 second.
Self-test stage 4 will perform a transducer test
If the test is satisfactory then PASS is shown on the display.
Self-test stages
If the test is not satisfactory then a fail code will be shown on the
display:
The self-test comprises of the following stages
Self-test stage 1
When entering Self-test stage 1, the unit beeps and the display
shows TEST 1, for 1 second.
Self-test stage 1 will perform the following tests:
Fault code
Transducer
FAIL 10
Speed
FAIL 8
Depth
To exit self-test stage 4, press the Up and Down buttons
simultaneously.
• SeaTalk / SeaTalkng self-test, which checks the receive and
transmit circuits.
• EEPROM test (read and write).
If the tests are satisfactory, PASS is shown on the display.
If the tests are not satisfactory, the following failure codes may be
generated:
Fault code
FAIL 1
FAIL 2
Self-test stage 2
When entering Self-test stage 2, the unit beeps and the display
shows TEST 2, for 1 second.
Self-test stage 2 will perform the following tests:
• Backlighting test, which cycles between on and off every second.
• Any button press sounds a beep.
• Display test, which tests the LCD segments in the following
sequence, changing once per second:
1
2
D12548-1
56
i50
Chapter 11: Technical support
Chapter contents
•
11.1 Raymarine customer support on page 58
•
11.2 Checking the software version on page 58
Technical support
57
11.1 Raymarine customer support
11.2 Checking the software version
Raymarine provides a comprehensive customer support service.
You can contact customer support through the Raymarine website,
telephone and email. If you are unable to resolve a problem, please
use any of these facilities to obtain additional help.
Depending on the instrument display variant follow the steps below
to identify the software version of your unit.
Web support
Please visit the customer support area of our website at:
www.raymarine.com
This contains Frequently Asked Questions, servicing information,
e-mail access to the Raymarine Technical Support Department and
details of worldwide Raymarine agents.
During normal operation:
1. i50 Depth — Press and hold the Depth and Alarm buttons
simultaneously for 4 seconds.
2. i50 Speed — Press and hold the Speed and Trip buttons
simultaneously for 4 seconds.
3. i50 Tridata — Press and hold the Depth and Speed buttons
simultaneously for 4 seconds.
The software version will be displayed on the screen.
Telephone and email support
In the USA:
• Tel: +1 603 324 7900
• Toll Free: +1 800 539 5539
• Email: [email protected]
In the UK, Europe, the Middle East, or Far East:
• Tel: +44 (0)13 2924 6777
• Email: [email protected]
Product information
If you need to request service, please have the following information
to hand:
• Product name.
• Product identity.
• Serial number.
• Software application version.
You can obtain this product information using the menus within your
product.
58
i50
Chapter 12: Technical specification
Chapter contents
•
12.1 Technical specification on page 60
Technical specification
59
12.1 Technical specification
Nominal supply voltage
12 V dc
Operating voltage range
10 V dc to 16 V dc
Power consumption
• < 1 W Typical (Display only)
• 2.4 W Maximum (Transducer connected)
Current
• 45 to 65 mA Typical (Display only)
• 200 mA Maximum (Transducer connected)
LEN (Refer to SeaTalkng reference manual for further information.)
4
Environmental
Operating temperature: –20ºC to +55ºC
Storage temperature: –30ºC to +70ºC
Relative humidity: 93%
Water proofing: IPX6
Connections
• 2 x SeaTalkng connections (compliant with SeaTalk)
• Transducer connections
Conformance
60
Europe 2004/108/EC
i50
Chapter 13: Spares and accessories
Chapter contents
•
13.1 i50 transducers on page 62
•
13.2 Spares on page 62
•
13.3 SeaTalkng cables and accessories on page 63
•
13.4 Converters on page 64
Spares and accessories
61
13.1 i50 transducers
13.2 Spares
The following transducers are available for the i50 range:
The table below lists the spare parts available for i50 instrument
displays
Description
Part number
Depth transducer
M78713–PZ
Speed transducer
E26031
Notes
Note: Other transducers are available please check with your
local Raymarine dealer.
62
Description
Part number
i50 / i60 / i70 front bezel
R22168
i50 / i60 / i70 Sun cover
R22169
i50 Depth keypad
R70131
i50 Speed keypad
R70130
i50 Tridata keypad
R70132
Note
i50
13.3 SeaTalkng cables and accessories
Description
Part No
Notes
SeaTalkng cables and accessories for use with compatible products.
DeviceNet adaptor cable
(Male)
A06046
Allows the connection of
NMEA 2000 devices to
a SeaTalkng system.
DeviceNet adaptor cable
(Female) to bare ends.
E05026
Allows the connection of
NMEA 2000 devices to
a SeaTalkng system.
DeviceNet adaptor cable
(Male) to bare ends.
E52027
Allows the connection of
NMEA 2000 devices to
a SeaTalkng system.
Description
Part No
Notes
Backbone Kit
A25062
Includes:
• 2 x 5 m (16.4 ft)
Backbone cable
•
1 x 20 m (65.6 ft)
Backbone cable
• 4 x T-piece
•
2 x Backbone
terminator
• 1 x Power cable
SeaTalkng 0.4 m (1.3 ft)
spur
A06038
SeaTalkng 1 m (3.3 ft)
spur
A06039
SeaTalkng 3 m (9.8 ft)
spur
A06040
SeaTalkng 5 m (16.4 ft)
spur
A06041
SeaTalkng 0.4 m (1.3 ft)
backbone
A06033
SeaTalkng 1 m (3.3 ft)
backbone
A06034
SeaTalkng 3 m (9.8 ft)
backbone
A06035
SeaTalkng 5 m (16.4 ft)
backbone
A06036
SeaTalkng 9 m (29.5 ft)
backbone
A06068
SeaTalkng 20 m (65.6 ft)
backbone
A06037
SeaTalkng to bare ends
1 m (3.3 ft) spur
A06043
SeaTalkng to bare ends
3 m (9.8 ft) spur
A06044
SeaTalkng Power cable
A06049
SeaTalkng
Terminator
A06031
SeaTalkng
T-piece
A06028
Provides 1 x spur
connection
SeaTalkng 5–way
connector
A06064
Provides 3 x spur
connections
SeaTalk to SeaTalkng
converter
E22158
Allows the connection
of SeaTalk devices to a
SeaTalkng system.
SeaTalkng Inline
terminator
A80001
Provides direct
connection of a spur
cable to the end of a
backbone cable. No
T-piece required.
SeaTalkng Blanking plug
A06032
SeaTalk (3 pin) to
SeaTalkng adaptor cable
0.4 m (1.3 ft)
A06047
SeaTalk2 (5 pin) to
SeaTalkng adaptor cable
0.4 m (1.3 ft)
A06048
DeviceNet adaptor cable
(Female)
A06045
Spares and accessories
Allows the connection of
NMEA 2000 devices to
a SeaTalkng system.
63
13.4 Converters
Part number
Description
E22158
SeaTalk to SeaTalkng Converter
64
i50
Appendix A NMEA 2000 sentences
The i50 instrument range supports the following NMEA 2000 Parameter Group Number (PGN) sentences.
i50 Depth
Transmit
i50 Depth
Receive
i50 Speed
Transmit
i50 Speed
Receive
i50 Tridata
Transmit
i50 Tridata
Receive
PG name
PGN
ISO Acknowledgement
59392
ISO Request
59904
ISO Address
claim
60928
ISO Commanded
address
65240
●
●
●
NMEA Request
group function
126208
●
●
●
NMEA Command
group function
126208
●
NMEA
Acknowledge
group function
126208
PGN list —
Transmit PGN's
group function
126464
PGN list —
Received PGN's
groupfunction
126464
Product
information
126996
Speed
128259
Water depth
128267
Distance log
128275
COG & SOG rapid
update
129026
●
●
GNSS Position
data
129029
●
●
Wind data
130306
●
●
Environmental
parameters
130310
Environmental
parameters
130311
Temperature
130312
NMEA 2000 sentences
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
65
66
i50
www.ra ym a rin e .c o m
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
