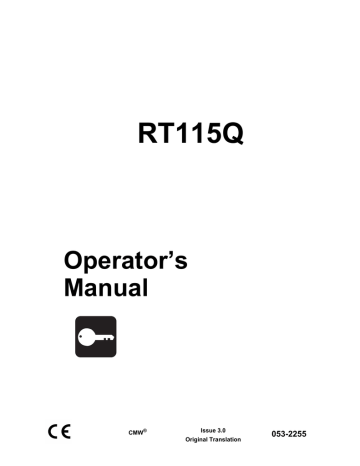

RT115Q
Operator’s
Manual
CMW®
Issue 3.0
Original Translation
053-2255
RT115Q Operator’s Manual
Overview - 1
Overview
Chapter Contents
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Equipment Modification . . . . . . . . . . . . . . . . . . . . . . 3
Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•
Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•
Numbered Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CMW
RT115Q Operator’s Manual
Overview - 2
Serial Number Location
Serial Number Location
Record serial numbers and date of purchase in spaces provided. RT115Q (1) and engine serial numbers
(2) are located as shown.
Date of manufacture
Date of purchase
RT115Q serial number
Front attachment serial number
Rear attachment serial number
Trailer serial number
Engine serial number
CMW
RT115Q Operator’s Manual
Overview - 3
Intended Use
Intended Use
The RT115Q is a riding trencher designed to install buried service lines of various sizes using a variety of
Ditch Witch attachments.
Attachment
Max. width/diameter
Max. depth
H910 trencher
24” (610 mm)
96” (2.4 m)
H911 trencher
24” (610 mm)
92” (2.3 m)
H1032 plow
3” (80 mm)
42” (1.07 m)
A920 backhoe
24” (610 mm)
105” (2.7 m)
This unit is designed for operation in temperatures typically experienced in earth moving and construction
work environments. Provisions may be required to operate in extreme temperatures. Contact your Ditch
Witch dealer. Use in any other way is considered contrary to the intended use.
The RT115Q should be used with genuine Ditch Witch chain, teeth, and sprockets. It should be operated,
serviced, and repaired only by persons familiar with their particular characteristics and acquainted with the
relevant safety procedures.
Equipment Modification
This equipment was designed and built in accordance with applicable standards and regulations.
Modification of equipment could mean that it will no longer meet regulations and may not function properly
or in accordance with the operating instructions. Modification of equipment should only be made by
competent personnel possessing knowledge of applicable standards, regulations, equipment design
functionality/requirements and any required specialized testing.
The protection offered by the Rollover Protective System (ROPS) will be imparied if it has been subjected
to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be
replaced after a roll-over.
CMW
Overview - 4
RT115Q Operator’s Manual
Unit Components
Unit Components
1. Rollover Protective Structure (ROPS)
4. Engine compartment
2. Operator station
5. Backfill blade (optional)
3. Control console
NOTICE: The protection offered by the Rollover Protective System (ROPS) will be imparied if it has
been subjected to any modification, structural damage, or has been involved in an overturn accident.
The ROPS must be replaced after a roll-over.
CMW
RT115Q Operator’s Manual
Overview - 5
Operator Orientation
Operator Orientation
1. Front of unit
3. Rear of unit
2. Right of unit
4. Left of unit
Right and left sides of machine are determined by
facing front of unit while seated at the controls.
About This Manual
This manual contains information for the proper use of this machine. See Operation Overview for basic
operating procedures. Cross references such as “See page 50” will direct you to detailed procedures.
Bulleted Lists
Bulleted lists provide helpful or important information or contain procedures that do not have to be
performed in a specific order.
Numbered Lists
Numbered lists contain illustration callouts or list steps that must be performed in order.
CMW
Overview - 6
RT115Q Operator’s Manual
About This Manual
CMW
RT115Q Operator’s Manual
Foreword - 7
Foreword
This manual is an important part of your equipment. It provides safety information and operation
instructions to help you use and maintain your Ditch Witch equipment.
Read this manual before using your equipment. Keep it with the equipment at all times for future reference.
If you sell your equipment, be sure to give this manual to the new owner.
If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a
dealer, visit our website at www.ditchwitch.com or write to the following address:
The Charles Machine Works, Inc.
Attn: Marketing Department
PO Box 66
Perry, OK 73077-0066
USA
The descriptions and specifications in this manual are subject to change without notice. The Charles
Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have
taken place after this manual was published. For the latest information on Ditch Witch equipment, see your
Ditch Witch dealer.
Thank you for buying and using Ditch Witch equipment.
CMW
RT115Q Operator’s Manual
Foreword - 8
RT115 Quad-Track
Operator’s Manual
Issue number 3.0/OM-10/11
Part number 053-2255
Copyright 2010, 2011
by The Charles Machine Works, Inc.
, Ditch Witch, CMW, AutoCrowd, Jet Trac, Roto Witch, Subsite, Fluid Miser,
Power Pipe, Super Witch, Pierce Airrow, The Underground, The Underground Authority Worldwide, and
Zahn are registered trademarks of The Charles Machine Works, Inc.
CMW
RT115Q Hydrostat Operator’s Manual
Contents - 9
Contents
Overview
1
machine serial number, information about the type of work this machine is designed
to perform, basic machine components, and how to use this manual
Foreword
7
part number, revision level, and publication date of this manual, and factory contact
information
Safety
11
machine safety alerts and emergency procedures
Controls
21
machine controls, gauges, and indicators and how to use them
Operation Overview
53
an overview for completing a job with this machine: planning, setting up, installing
product, and restoring the jobsite; with cross references to detailed procedures
Prepare
57
procedures for inspecting and classifying the jobsite, planning the installation path,
and preparing the jobsite for work
Drive
63
procedures for startup, cold start, driving, and shutdown
Transport
69
procedures for lifting, hauling, and towing
Trench
81
procedures for trenching
Plow
87
procedures for plowing
Reel Winder
97
procedures for using reel winder
Backhoe
101
procedures for digging with backhoe
CMW
Contents - 10
RT115Q Hydrostat Operator’s Manual
Drill
107
procedures for drilling
Systems and Equipment
115
chain, teeth, sprockets, and optional equipment
Complete the Job
121
procedures for backfilling and restoring the jobsite and rinsing and storing
equipment
Service
185
service intervals and instructions for this machine including lubrication, replacement
of wear items, and basic maintenance
Specifications
167
machine specifications including weights, measurements, power ratings, and fluid
capacities
Support
187
the warranty policy for this machine, and procedures for obtaining warranty
consideration and training
Service Record
a record of major service performed on the machine
CMW
185
RT115Q Operator’s Manual
Safety - 11
Safety
Chapter Contents
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Alert Classifications . . . . . . . . . . . . . . . . . . 13
Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 17
•
Electric Strike Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
•
If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
•
If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•
If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
•
If Machine Catches on Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CMW
Safety - 12
RT115Q Operator’s Manual
Guidelines
Guidelines
Follow these guidelines before operating any jobsite equipment:
•
Complete proper training and read operator’s manual before using equipment.
•
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
•
Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work
methods for jobsite.
•
Mark jobsite clearly and keep spectators away.
•
Wear personal protective equipment.
•
Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all
personnel before work begins. Safety videos are available from your Ditch Witch dealer.
•
Replace missing or damaged safety shields and safety signs.
•
Use equipment carefully. Stop operation and investigate anything that does not look or feel right.
•
Do not operate unit where flammable gas may be present.
•
Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment
use.
CMW
RT115Q Operator’s Manual
Safety - 13
Safety Alert Classifications
Safety Alert Classifications
These classifications and the icons defined on the following pages work together to alert you to situations
which could be harmful to you, jobsite bystanders or your equipment. When you see these words and
icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT
STAKE.
Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level
means.
indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Watch for two other words: NOTICE and IMPORTANT.
NOTICE can keep you from doing something that might damage the machine or someone's property. It
can also alert you against unsafe practices.
IMPORTANT can help you do a better job or make your job easier in some way.
CMW
RT115Q Operator’s Manual
Safety - 14
Safety Alerts
Safety Alerts
Moving digging teeth will kill you or cut off arm or leg. Stay
away.
Turning shaft will kill you or crush arm or leg. Stay away.
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
Deadly gases. Lack of oxygen or presence of gas will cause sickness or
death. Provide ventilation.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
Moving parts could cut off hand or foot. Stay away.
CMW
RT115Q Operator’s Manual
Safety - 15
Safety Alerts
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Fall possible. Riders can fall from machine and be injured or killed. Only
operator is allowed on machine.
Rollover possible. If machine rolls over, you could be thrown from seat and
killed or crushed. Wear seat belt.
Improper control function could cause death or serious injury. If control does
not work as described in instructions, stop machine and have it serviced.
Looking into fiber optic cable could result in permanent vision damage. Do
not look into ends of fiber optic or unidentified cable.
Pressurized fluid or air could pierce skin and cause injury or
death. Stay away.
Runaway possible. Machine could run over you or others. Learn how to use
all controls. Start and operate only from operator’s position.
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
CMW
RT115Q Operator’s Manual
Safety - 16
Safety Alerts
Moving traffic - hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
Hot pressurized cooling system fluid could cause serious burns. Allow to
cool before servicing.
Flying objects may cause injury. Wear hard hat and safety glasses.
Hot parts may cause burns. Do not touch until cool.
Exposure to high noise levels may cause hearing loss. Wear hearing
protection.
Fall possible. Slips or trips may result in injury. Keep area clean.
Battery acid may cause burns. Avoid contact.
Improper handling or use of chemicals may result in illness, injury, or
equipment damage. Follow instructions on labels and in material safety data sheets
(MSDS).
CMW
RT115Q Operator’s Manual
Safety - 17
Emergency Procedures
Emergency Procedures
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Before operating any equipment, review emergency procedures and check that all safety precautions have
been taken.
EMERGENCY SHUTDOWN - Turn ignition switch to stop position or push remote engine stop button (if
equipped).
Electric Strike Description
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
When working near electric cables, remember the following:
•
Electricity follows all paths to ground, not just path of least resistance.
•
Pipes, hoses, and cables will conduct electricity back to all equipment.
•
Low voltage current can injure or kill. Many work-related electrocutions result from contact with less
than 440 volts.
Most electric strikes are not noticeable, but indications of a strike include:
•
power outage
•
smoke
•
explosion
•
popping noises
•
arcing electricity
If any of these occur, assume an electric strike has occurred.
CMW
Safety - 18
RT115Q Operator’s Manual
Emergency Procedures
If an Electric Line is Damaged
If you suspect an electric line has been damaged and you are on tractor, DO NOT MOVE. Remain on
tractor and take the following actions. The order and degree of action will depend upon the situation.
•
Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact
utility.
•
Raise attachments and drive from immediate area.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
If you suspect an electric line has been damaged and you are off tractor, DO NOT TOUCH TRACTOR.
Take the following actions. The order and degree of action will depend upon the situation.
•
LEAVE AREA. The ground surface may be electrified, so take small steps with feet close together to
reduce the hazard of being shocked from one foot to the other. For more information, contact your
Ditch Witch dealer.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
CMW
RT115Q Operator’s Manual
Safety - 19
Emergency Procedures
If a Gas Line is Damaged
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
If you suspect a gas line has been damaged, take the following actions. The order and degree of action will
depend on the situation.
•
Immediately shut off engine(s), if this can be done safely and quickly.
•
Remove any ignition source(s), if this can be done safely and quickly.
•
Warn others that a gas line has been cut and that they should leave the area.
•
Leave jobsite as quickly as possible.
•
Immediately call your local emergency phone number and utility company.
•
If jobsite is along street, stop traffic from driving near jobsite.
•
Do not return to jobsite until given permission by emergency personnel and utility company.
CMW
Safety - 20
RT115Q Operator’s Manual
Emergency Procedures
If a Fiber Optic Cable is Damaged
Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.
If Machine Catches on Fire
Perform emergency shutdown procedure and then take the following actions. The order and degree of
action will depend on the situation.
•
Immediately move battery disconnect switch (if equipped) to disconnect position.
•
If fire is small and fire extinguisher is available, attempt to extinguish fire.
•
If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.
CMW
RT115Q Operator’s Manual
Controls - 21
Controls
Chapter Contents
Center Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
•
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
•
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
•
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Right Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Seat Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Rear Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
•
Optional Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
•
Trencher Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
•
Plow Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
•
Combo Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backhoe Console . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
CMW
RT115Q Operator’s Manual
Controls - 22
Center Console
Center Console
Gauges
1. Voltmeter
4. Engine oil pressure gauge
2. Fuel gauge
5. Engine temperature gauge
3. Tachometer/Hourmeter
Item
Description
Notes
1. Voltmeter
Displays system voltage.
Should show 12-14V with engine
running.
2. Fuel gauge
Displays fuel level in tank.
RT115Q fuel tank holds 38 gal (144
L).
CMW
RT115Q Operator’s Manual
Controls - 23
Center Console
Item
Description
Notes
3. Tachometer/Hourmeter
Displays engine speed and
records engine operating
time.
Use engine operating times to
schedule service.
4. Engine oil pressure
gauge
Displays engine oil pressure.
Normal operating pressure is 15-50
psi (1.03 - 3.45 bar).
Indicator will light and alarm
will sound if pressure is too
low.
5. Engine coolant
temperature gauge
If pressure is low:
•
Check oil level.
•
If pressure is still low, consult
engine manual.
Displays engine coolant
temperature.
Normal temperature is 180°-220° F
(82°-104° C).
Engine temperature indicator
will light and alarm will sound
if temperature is too high.
If temperature is high:
•
Turn off engine and let it cool.
•
Check cooling system for low fluid
level, seal damage, or leaks.
CMW
RT115Q Operator’s Manual
Controls - 24
Center Console
Indicators
1. Operator presence indicator
7. Low speed indicator
2. Attachment speed/direction indicator
8. High speed indicator
3. Ground drive indicator
9. Operator alert indicator
4. Cruise control indicator
10. Cold start wait indicator
5. Hydraulic fluid temperature indicator
11. Engine shutdown indicator
6. Hydraulic filter restriction indicator
12. Parking brake indicator
Item
Description
Notes
1. Operator presence
indicator
Lights when operator is in
seat.
IMPORTANT: This indicator is part of
the start interlock system. All three
start interlock indicators must be on to
start engine.
CMW
RT115Q Operator’s Manual
Controls - 25
Center Console
Item
Description
Notes
2. Attachment speed/
direction indicator
Lights when attachment
speed/direction control is in
neutral.
IMPORTANT: This indicator is part of
the start interlock system. All three
start interlock indicators must be on to
start engine.
3. Ground drive indicator
Lights when ground drive
hand or foot control is in
neutral.
IMPORTANT: This indicator is part of
the start interlock system. All three
start interlock indicators must be on to
start engine.
4. Cruise control indicator
Lights when cruise control is
enabled.
IMPORTANT: Contact your Ditch
Witch dealer if a fault condition is
detected.
Flashes when a controller
fault condition is detected.
See “Cruise Control” on page 116.
c00ic030t.eps
5. Hydraulic fluid
temperature indicator
Lights and alarm sounds if
hydraulic fluid overheats.
•
Turn off engine and let it cool.
•
Check hydraulic fluid level.
•
Check front of hydraulic fluid
cooler for debris.
CMW
RT115Q Operator’s Manual
Controls - 26
Center Console
Item
Description
Notes
6. Hydraulic filter
restriction indicator
Lights when hydraulic filter is
restricted.
When indicator lights, change filter.
May also light in when fluid is
extremely cold.
Run tractor at low engine speed until
hydraulic fluid warms. Indicator may
turn off after hydraulic fluid warms.
Lights when ground drive
motor is in low.
IMPORTANT:
7. Low speed indicator
•
If neither the high or low speed
indicator is lighted, the ground
drive motor is in medium.
•
Contact your Ditch Witch dealer if
a fault condition is detected.
Flashes when a controller
fault condition is detected.
8. High speed indicator
Lights when ground drive
motor is in high.
IMPORTANT: If neither the high or
low speed indicator is lighted, the
ground drive motor is in medium.
9. Operator alert indicator
Lights when a non-critical
engine fault occurs.
A fault code will be stored in the
diagnostic gauge.
See “Tier 3 Engine” on page 162.
CMW
RT115Q Operator’s Manual
Controls - 27
Center Console
Item
Description
Notes
10. Cold start wait indicator
Lights when intake air preheater is operating.
See page 65 for more information.
Wait until light goes off before
starting engine.
11. Engine shutdown
indicator
Lights when engine shutdown
sequence is activated.
12. Parking brake indicator
Lights when parking brake is
engaged.
IMPORTANT: Ground drive is
disabled when brake is engaged.
CMW
RT115Q Operator’s Manual
Controls - 28
Center Console
Controls
1. Engine shutdown override button
6. Steering column tilt control
2. Horn
7. Auxiliary outlet
3. Drilling attachment control*
8. Reel carrier control*
4. Ignition switch
*optional
5. Ground drive foot control
Item
Description
Notes
1. Engine shutdown
override button
Press to delay engine
shutdown for 30 seconds
after cycling ignition switch to
OFF.
See engine manufacturer’s manual
for more information.
After 30 seconds, engine will
again shut down unless fault
condition has been cleared
on the diagnostic gauge.
2. Horn
CMW
To sound horn, press.
RT115Q Operator’s Manual
Controls - 29
Center Console
Item
Description
Notes
3. Drilling attachment
control
To rotate clockwise, press
top.
IMPORTANT: Always rotate
clockwise during drilling and
backreaming. Rotate
counterclockwise only to dislodge a
dry bore bit or reamer that has seized
in the bore hole.
To rotate counterclockwise,
press bottom.
Switch returns to neutral
when released.
For more information about drilling
attachment, see page 107.
c00ic218h.eps
4. Ignition switch
To start engine, insert key and
turn clockwise.
To stop engine, turn
counterclockwise.
IMPORTANT: If engine does not start
on first attempt, check that all
interlock requirements have been
met, return switch to STOP, and try
again.
To move tractor forward, push
top of pedal.
Pedal should automatically return to
neutral when released.
To move tractor backward,
push bottom of pedal.
For more information, see page 66.
c00ic217h.eps
5. Ground drive foot
control
To increase speed in either
direction, push pedal farther
from center.
To reduce speed in either
direction, release pedal.
6. Steering column tilt
control
To adjust tilt, pull.
IMPORTANT: Tilt steering column up
before pivoting operator’s seat.
To secure steering column in
position, release.
CMW
RT115Q Operator’s Manual
Controls - 30
Center Console
Item
Description
Notes
7. Auxiliary outlet
Provides power for other
equipment.
Power output is 12V, 5A.
To raise, press top.
Optional.
c00ic179h.eps
8. Reel carrier control
To lower, press bottom.
c00ic205h.eps
CMW
RT115Q Operator’s Manual
Controls - 31
Right Console
Right Console
1. Backfill blade/reel winder* control
6. Auxiliary circuit pressure gauge
2. Reel winder selector switch*
7. Axle lock switch
3. Frame tilt switch
8. Manual rear steer switch
4. Throttle lever
9. Rear steer auto/center/manual switch
5. Ground drive motor speed switch
*optional
CMW
RT115Q Operator’s Manual
Controls - 32
Right Console
Item
Description
Notes
1. Backfill blade/reel
winder control
Backfill blade mode:
NOTICE: Ensure that intended
function is selected before operating.
•
To lower, move forward.
•
To float, move forward to
end.
•
To raise, move backward.
•
To tilt right side down,
move right.
•
To tilt left side down,
move left.
•
To angle left, twist left.
•
To angle right, twist right.
Reel winder mode:
NOTICE:
•
To unwind, move forward.
•
•
To wind, move backward.
Ensure that intended function is
selected before operating.
•
To lower reel winder arm,
move right.
•
Do not continue to push lift control
after track makes contact with
reel.
•
To raise reel winder arm,
move left.
c00ic207h.eps
2. Reel winder selector
switch
c00ic206h.eps
CMW
IMPORTANT: Control works in this
mode when reel winder selector
switch is in backfill blade position.
IMPORTANT: Control works in this
mode when reel winder selector
switch is in reel winder position. For
more information on reel winder
operation, see page 97.
For reel winder function,
press right.
NOTICE: Ensure that intended
function is selected before operating.
For backfill blade function,
press left.
IMPORTANT:
•
Backfill blade control converts to
reel winder function when reel
winder is selected.
•
For more information on reel
winder operation see page 97.
RT115Q Operator’s Manual
Controls - 33
Right Console
Item
Description
3. Frame tilt switch
To tilt right, press top.
Notes
To tilt left, press bottom.
4. Ground drive motor
switch
To select high speed, press 3.
High speed indicator will light.
To select medium speed, set
to position 2.
To select low speed, press 1.
Low speed indicator will light.
5. Throttle lever
To increase speed, move left.
To decrease speed, move
right.
6. Auxiliary circuit
pressure gauge
Displays auxiliary circuit
pressure.
Maximum operating pressure is 3200
psi (221 bar).
c00ic191h.eps
CMW
RT115Q Operator’s Manual
Controls - 34
Right Console
Item
Description
Notes
7. Axle lock switch
To lock rear axle, press top.
IMPORTANT: After pressing switch to
unlock axle, It may be necessary to
move tractor 6’ (2 m) in reverse to
fully unlock.
To unlock rear axle, press
bottom.
8. Rear steer switch
To move rear tracks left,
press left.
NOTICE:
•
Tracks move when you press the
switch. To stop movement,
release switch.
•
Visually verify track position
To move rear tracks right,
press right.
9. Rear steer manual/auto
switch
To center tracks, press right.
To manually steer rear tracks,
press left.
CMW
Use manual mode and the manual
rear steer switch to bypass auto
mode.
RT115Q Operator’s Manual
Controls - 35
Left Console Controls
Left Console Controls
1. Parking brake
Item
Description
Notes
1. Parking Brake
To set brake, pull handle up.
IMPORTANT: Ground drive will not
engage if parking brake is set.
To release brake, push button
and lower handle.
CMW
RT115Q Operator’s Manual
Controls - 36
Seat Deck
Seat Deck
1. Ground drive hand control
2. Attachment speed/direction control
Item
Description
Notes
1. Ground drive hand
control
To go forward, push.
Lever does not automatically return to
neutral when released.
To go backward, pull.
For more information, see page 66.
To go faster in either
direction, move farther from
neutral.
To stop, return to center.
CMW
RT115Q Operator’s Manual
Controls - 37
Seat Deck
Item
Description
Notes
2. Attachment speed/
direction control
To rotate attachment forward
or to start plow vibrator box,
push.
NOTICE: In plow mode, controller will
not allow attachment to operate in
reverse.
To rotate attachment
backward, pull.
To go faster in either
direction, move farther from
center.
To stop attachment rotation or
plow vibrator box, move to
neutral.
CMW
RT115Q Operator’s Manual
Controls - 38
Seat
Seat
1. Seat belt
4. Seat pivot control
2. Armrest adjustment control
5. Seat height adjustment lock
3. Seat slide control
Item
Description
1. Seat belt
To fasten, insert latch into
buckle. Adjust until seat belt
is low and tight.
To release, lift top of buckle.
2. Armrest adjustment
control
CMW
To raise or lower armrests:
•
Remove knob.
•
Adjust armrest to desired
position.
•
Replace knob.
Notes
RT115Q Operator’s Manual
Controls - 39
Seat
Item
Description
3. Seat slide control
To slide seat forward or
backward, pull, then adjust
seat.
Notes
To lock seat in place, release.
4. Seat pivot control
To pivot seat to the right, pull.
To lock seat in position,
release.
To return seat to front-facing
position, swing seat left.
5. Seat height adjustment
lock
Seat pivots only to the right and can
be locked in any position from 0-90°.
IMPORTANT: Drive tractor with
operator’s seat facing front. If desired,
operate rear attachments with seat
pivoted.
To lock seat height, turn
clockwise.
To unlock seat height, turn
counterclockwise.
CMW
RT115Q Operator’s Manual
Controls - 40
Rear Console
Rear Console
Optional Controls
1. Cruise control selector
3. Trench Depth Meter
2. Cruise control RPM control
Item
Description
Notes
1. Cruise control selector
To turn on, press once.
Turn on cruise control only when:
To turn off, press again.
•
ground drive motor control is in 1 /
low
•
ground drive is in neutral
For more information about cruise
control, see page 116.
2. Cruise control RPM
control
To increase engine speed
while using cruise control,
turn clockwise.
This typically decreases ground drive
speed temporarily.
To decrease engine speed
while using cruise control,
turn counterclockwise.
This typically increases ground drive
speed temporarily.
For more information about cruise
control, see page 116.
CMW
RT115Q Operator’s Manual
Controls - 41
Rear Console
Item
Description
Notes
3. Trench Depth Meter
Measures and records trench
depth.
For more information, see page 118.
c00ic201h.eps
CMW
RT115Q Operator’s Manual
Controls - 42
Rear Console
Trencher Controls
1. Trencher slide control*
3. Boom lift control
2. Trench cleaner lift control*
*optional
Item
Description
Notes
1. Trencher slide control
To slide trencher right, push.
IMPORTANT: If slide sticks:
To slide trencher left, pull.
•
Lower trencher to ground.
•
Operate trencher slide until
trencher moves slightly.
•
Raise trencher and slide it into
position.
c00ic198h.eps
2. Trench cleaner lift
control
To lower, push.
To raise, pull.
CMW
RT115Q Operator’s Manual
Controls - 43
Rear Console
Item
Description
3. Boom lift control
To lower, push.
Notes
To raise, pull.
CMW
RT115Q Operator’s Manual
Controls - 44
Rear Console
Plow Controls
1. Plow swing control
3. Plow lift control
2. Blade steer control
4. Stow lock control
Item
Description
Notes
1. Plow swing control
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
•
Do not raise plow with control in
float position.
To float, push to end.
c00ic202h.eps
2. Blade steer control
To steer right, push.
To steer left, pull.
c00ic203h.eps
CMW
RT115Q Operator’s Manual
Controls - 45
Rear Console
Item
Description
Notes
3. Plow lift control
To raise, pull.
NOTICE:
To lower, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
To float, push to end.
c00ic204h.eps
4. Stow lock control
To lock:
•
Raise plow fully.
•
Pull stow lock handle.
•
Lower plow slightly to
engage lock.
Use this control to lock plow in the up
position.
To unlock:
•
Raise plow slightly.
•
Push stow lock handle to
release lock.
CMW
RT115Q Operator’s Manual
Controls - 46
Rear Console
Combo Controls
1. Plow swing control
4. Boom lift control
2. Blade steer control
5. Plow stow lock control
3. Plow lift control
6. Trench / Plow switch
Item
Description
Notes
1. Plow swing control
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
•
Do not raise plow with control in
float position.
To float, push to end.
c00ic202h.eps
2. Blade steer control
To steer right, push.
To steer left, pull.
c00ic203h.eps
CMW
RT115Q Operator’s Manual
Controls - 47
Rear Console
Item
Description
Notes
3. Plow lift control
To raise, pull.
NOTICE:
To lower, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
To float, push to end.
c00ic204h.eps
4. Boom lift control
To lower, push.
To raise, pull.
5. Plow stow lock control
To lock:
•
Raise plow fully.
•
Pull stow lock handle.
•
Lower plow slightly to
engage lock.
Use this control to lock plow in the up
position.
To unlock:
6. Trench / Plow switch
•
Raise plow slightly.
•
Push stow lock handle to
release lock.
To trench, set switch to trench
position.
To plow, set switch to plow
position.
CMW
RT115Q Operator’s Manual
Controls - 48
Backhoe Console
Backhoe Console
1. Remote backfill blade* control
7. Swing lock pin
2. Left stabilizer control
8. Ground drive switch
3. Boom/Swing control
9. Remote engine stop switch
4. Remote throttle
10. Bucket/dipper control
5. optional
11. Stow lock control
6. Work light switch*
12. Right stabilizer control
*optional
CMW
RT115Q Operator’s Manual
Controls - 49
Backhoe Console
Item
Description
1. Remote backfill blade
control
To lower, push.
Notes
To raise, pull.
2. Left stabilizer control
To lower, push out.
To raise, pull in.
3. Boom/Swing control
To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
To lower boom, push.
4. Remote throttle
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position. Component failure could
occur.
To increase engine speed,
turn counterclockwise.
To decrease engine speed,
turn clockwise.
To lock, push button, pull up,
then release button.
To unlock, push button, then
push down.
5. Optional
CMW
RT115Q Operator’s Manual
Controls - 50
Backhoe Console
Item
Description
6. Work light switch
To turn on, press right.
Notes
To turn off, press left.
7. Swing lock pin
To lock:
•
Engage stow lock.
•
Insert swing lock pin into
hole (1).
To release:
8. Remote ground drive
control
•
Remove pin and store in
hole (2).
•
Release stow lock.
To move tractor forward,
push.
To move tractor backward,
pull.
c00ic216h.eps
9. Remote engine stop
switch
CMW
Stops engine immediately.
This pin locks boom from swinging
during transport.
NOTICE: Do not store pin in holes
marked with an “X.” Backhoe could
swing and destroy pin.
NOTICE:
•
This control is disabled if tractor
seat is occupied.
•
Ensure that backfill blade, if
equipped, and stabilizers are
raised before operating this
control.
•
Do not move more than 30’ (10
m) at a time.
IMPORTANT: For normal engine
shutdown, use ignition switch.
RT115Q Operator’s Manual
Controls - 51
Backhoe Console
Item
Description
Notes
10. Bucket/dipper control
To open bucket, move right.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
To close bucket, move left.
To move dipper in, pull.
To move dipper out, push.
11. Stow lock control
To lock:
•
Raise boom fully.
•
Pull stow lock handle.
•
Lower boom slightly to
engage lock.
•
Insert swing lock pin.
To unlock:
12. Right stabilizer control
•
Remove swing lock pin.
•
Raise boom slightly.
•
Push stow lock handle to
release lock.
Use this control to lock boom in the up
position.
NOTICE: Always use stowlock and
install swing lock pin during transport.
NOTICE: When unlocked, store swing
lock pin in holder located on left
stabilizer support.
To lower, push out.
To raise, pull in.
CMW
RT115Q Operator’s Manual
Controls - 52
Battery
Battery
1. Battery disconnect switch
Item
Description
1. Battery disconnect
switch
To connect, move right.
To disconnect, move left.
CMW
Notes
RT115Q Operator’s Manual
Operation Overview - 53
Operation Overview
Chapter Contents
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Trenching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Plowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Drilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Digging with Backhoe . . . . . . . . . . . . . . . . . . . . . . 55
Leaving Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
CMW
Operation Overview - 54
RT115Q Operator’s Manual
Planning
Planning
1. Gather information about jobsite. See page 58.
2. Inspect jobsite. See page 59.
3. Classify jobsite. See page 60.
4. Select chain and teeth to match your soil type, if necessary. See page 118.
5. Check supplies and prepare equipment. See page 62.
6. Haul equipment to jobsite. See page 76.
Trenching
1. Start unit. See page 64.
2. Position tractor and controls. See page 82.
3. Begin trenching. See page 82.
4. Engage cruise control if desired. See page 116.
5. Engage optional Trench Depth Meter if desired. See page 118.
6. Complete the installation. See page 86.
7. Shut down tractor. See page 67.
Plowing
1. Start unit. See page 64.
2. Position tractor and controls. See page 89.
•
offset plowing - page 95
•
coordinated plowing - page 95
•
crabbing - page 95
3. Attach product. See page 89.
4. Begin plowing. See page 92.
5. Engage cruise control if desired. See page 116.
6. Complete the installation. See page 121.
7. Shut down tractor. See page 67.
CMW
RT115Q Operator’s Manual
Operation Overview - 55
Drilling
Drilling
1. Start unit. See page 64.
2. Dig approach trench and target trench. See page 109.
3. Assemble drill string and position tractor. See page 109.
4. Begin drilling. See page 111.
5. Use drill string guide as needed. See page 111.
6. Add rod. See page 112.
7. Backream. See page 112.
8. Shut down tractor. See page 67.
9. Disassemble joints. See page 113.
Digging with Backhoe
1. Start unit. See page 64.
2. Set stabilizers and unstow backhoe. See page 102.
3. Excavate. See page 103.
4. Stow backhoe properly. See page 104.
5. Shut down tractor. See page 67.
Leaving Jobsite
1. Backfill if necessary. See page 122.
2. Rinse equipment. See page 122.
3. Stow tools. See page 122.
4. Haul equipment from jobsite. See page 76.
CMW
Operation Overview - 56
RT115Q Operator’s Manual
Leaving Jobsite
CMW
RT115Q Operator’s Manual
Prepare - 57
Prepare
Chapter Contents
Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . 58
•
Review Job Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
•
Notify One-Call Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
•
Arrange for Traffic Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
•
Plan for Emergency Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Inspect Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
•
Identify Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Classify Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
•
Inspect Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
•
Select a Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
•
Apply Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Check Supplies and Prepare Equipment . . . . . . . 62
•
Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
•
Fluid Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
•
Condition and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
•
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
CMW
Prepare - 58
RT115Q Operator’s Manual
Gather Information
Gather Information
A successful job begins before you dig. The first step in planning is reviewing information already available
about the job and jobsite.
Review Job Plan
Review blueprints or other plans. Check for information about existing or planned structures, elevations, or
proposed work that may be taking place at the same time.
Notify One-Call Services
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
Arrange for Traffic Control
If working near a road or other traffic area, contact local authorities about safety procedures and
regulations.
Plan for Emergency Services
Have the telephone numbers for local emergency and medical facilities on hand. Check that you will have
access to a telephone.
CMW
RT115Q Operator’s Manual
Prepare - 59
Inspect Site
Inspect Site
Inspect jobsite before transporting equipment. Check for the following:
•
changes in elevation such as hills or other open trenches
•
obstacles such as buildings, railroad crossings, or streams
•
signs of utilities (See “Inspect Jobsite” on page 60.)
•
traffic
•
access
•
soil type and condition
Identify Hazards
Identify safety hazards and classify jobsite. See “Classify Jobsite” on page 60.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE:
•
Wear personal protective equipment including hard hat, safety eye wear, and hearing protection.
•
Do not wear jewelry or loose clothing.
•
Notify One-Call and companies which do not subscribe to One-Call.
•
Comply with all utility notification regulations before digging or drilling.
•
Verify location of previously marked underground hazards.
•
Mark jobsite clearly and keep spectators away.
Remember, jobsite is classified by hazards in place -- not by line being installed.
CMW
Prepare - 60
RT115Q Operator’s Manual
Classify Jobsite
Classify Jobsite
Inspect Jobsite
•
Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and
other similar regulations.
•
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
•
Inspect jobsite and perimeter for evidence of underground hazards, such as:
– “buried utility” notices
– utility facilities without overhead lines
– gas or water meters
– junction boxes
– drop boxes
– light poles
– manhole covers
– sunken ground
•
Have an experienced locating equipment operator sweep area within 20’ (6 m) to each side of trench
path. Verify previously marked line and cable locations.
•
Mark location of all buried utilities and obstructions.
•
Classify jobsite.
Select a Classification
Jobsites are classified according to underground hazards present.
If working . . .
then classify jobsite as . . .
within 10’ (3 m) of a buried electric line
electric
within 10’ (3 m) of a natural gas line
natural gas
in sand, granite, or concrete which is capable of producing
crystalline silica (quartz) dust
crystalline silica (quartz) dust
within 10’ (3 m) of any other hazard
other
NOTICE: If you have any doubt about jobsite classification, or if jobsite might contain unmarked
hazards, take steps outlined previously to identify hazards and classify jobsite before working.
CMW
RT115Q Operator’s Manual
Prepare - 61
Classify Jobsite
Apply Precautions
Once classified, precautions appropriate for jobsite must be taken.
Electric Jobsite Precautions
Use one or both of these methods.
•
Expose line by careful hand digging or soft excavation.
•
Have service shut down while work is in progress. Have electric company test lines before returning
them to service.
Natural Gas Jobsite Precautions
In addition to positioning equipment upwind from gas lines, use one or both of these methods.
•
Expose lines by careful hand digging or soft excavation.
•
Have gas shut off while work is in progress. Have gas company test lines before returning them to
service.
Crystalline Silica (Quartz) Dust Precautions
Jobsite hazards could cause death or serious injury. Use correct
equipment and work methods. Use and maintain proper safety equipment.
NOTICE: Cutting, drilling or working materials such as, concrete, sand or rock containing quartz may
result in exposure to silica dust. Use water spray or other means to control dust. If workers are exposed
to dust they must wear appropriate breathing protection. Silica dust may cause lung disease and is
known to the State of California to cause cancer..
Other Jobsite Precautions
You may need to use different methods to safely avoid other underground hazards. Talk with those
knowledgeable about hazards present at each site to determine which precautions should be taken or if
job should be attempted.
CMW
Prepare - 62
RT115Q Operator’s Manual
Check Supplies and Prepare Equipment
Check Supplies and Prepare Equipment
Supplies
•
fuel
•
keys
•
personal protective equipment, such as hard hat and safety glasses
Fluid Levels
•
fuel
•
hydraulic fluid
•
battery charge
•
engine oil
Condition and Function
•
digging chain and teeth
•
brake pads and disc
•
fan belts
•
light bulbs
•
filters (air, oil, hydraulic)
•
tracks
•
pumps and motors
•
hoses and valves
•
signs, guards, and shields
Accessories
Fire Extinguisher
If required, mount a fire extinguisher near the power unit but away from possible points of ignition. The fire
extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory
requirements.
CMW
RT115Q Operator’s Manual
Drive - 63
Drive
Chapter Contents
Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
CMW
RT115Q Operator’s Manual
Drive - 64
Start Unit
Start Unit
Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow
instructions for new engine break-in.
Runaway possible. Machine could run over you or others. Learn how to
use all controls. Start and operate only from operator’s position.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Read operator’s manual before operating equipment. Follow instructions carefully. Contact Ditch
Witch dealership for operation information or demonstration.
•
Wear hard hat, safety glasses, and other protective equipment required by job. Do not wear jewelry
or loose clothing that can catch on controls.
CMW
RT115Q Operator’s Manual
Drive - 65
Start Unit
1. Fasten and adjust seatbelt.
2. Check that ground drive control and attachment speed/direction control are in neutral.
3. Move throttle to idle.
4. Check that parking brake is engaged.
5. If starting in weather where temperature is below 32° F (0° C):
•
Turn key to on position, but do not start engine.
•
Press button for up to 30 seconds.
•
Continue pressing cold start button and start engine.
6. Turn ignition switch to start tractor. Warning alarm will sound. Indicators will light.
Improper control function could cause death or serious injury. If
control does not work as described in instructions, stop machine and have it
serviced.
NOTICE:
•
If warning alarm does not sound, have machine serviced.
•
Machine will not start if start interlock requirements are not met. See page 24 for start
interlock information.
•
If engine turns but does not start within 10 seconds, allow starter to cool before trying to
start again.
7. Run engine at half-throttle or less for five minutes before operating tractor. During warm-up, check that
all controls work properly.
CMW
RT115Q Operator’s Manual
Drive - 66
Drive
Drive
General Operation
Moving traffic – hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
NOTICE:
•
Drive carefully in congested areas. Know machine’s clearance and turning radius.
•
Keep attachments low when operating on slope. Drive slowly and cautiously.
•
Apply service brake to stop tractor.
EMERGENCY SHUTDOWN: Turn ignition switch to STOP.
The ground drive foot pedal and ground drive speed/direction hand control perform the same function and
override each other. This override feature is intended to be used while digging. While driving or backfilling,
use only the foot pedal to control speed. While digging, use the hand control to set travel speed. Use the
foot pedal to temporarily adjust travel speed if digging conditions change for a short distance. For example,
if soil becomes sticky or tight, press the reverse foot pedal to slow travel speed. When optimal soil
condition returns, release foot pedal to return to original speed.
1. Fasten and adjust seatbelt.
2. Turn on lights and warning flasher as needed.
3. Raise backfill blade, if equipped, and all attachments.
4. Release parking brake and verify parking brake indicator is off.
NOTE: Machine will not move if parking brake indicator is on.
5. Move gearbox motor switch to high.
6. Adjust throttle.
7. Move ground drive control to forward or reverse.
CMW
RT115Q Operator’s Manual
Drive - 67
Drive
Safe Slope Operation
Tipover possible. Machine can tip over and crush you.
• Always operate with heavy end uphill.
• Drive cautiously at all times.
• Never jerk control levers. Use a steady even motion.
• Do not park unit on slope without lowering digging attachment to the
ground, returning all controls to neutral position, shutting down unit, and
applying parking brake.
Operating safely on a slope depends upon many factors including:
•
Distribution of machine weight, including front loading and absence of load
•
Height of load
•
Even or rough ground conditions
•
Potential for ground giving way causing unplanned tilt forward, reverse or sideways
•
Nearness of ditches, ruts, stumps or other obstructions and sudden changes in slope
•
Speed
•
Turning
•
Braking performance
•
Operator skill
These varying factors make it impractical to specify a maximum safe operating angle in this manual. It is
therefore important for the operator to be aware of these conditions and adjust operation accordingly.
Maximum engine angle and braking performance are two absolute limits which must never be exceeded.
These maximums are stated below since they are design limits. These design limits usually exceed the
operating limits and must never be used alone to establish safe operating angle for variable conditions.
Maximum engine lubrication angle – 30°
Maximum service brake retarding force – equal to traction of both tracks.
Maximum secondary brake retarding force – equal to traction of one track.
Maximum park brake holding force – equal to traction of both tracks.
CMW
Drive - 68
RT115Q Operator’s Manual
Shut Down
Shut Down
1. When job is complete, move ground drive control to neutral.
2. Engage parking brake and verify parking brake indicator is on.
3. Lower all attachments to ground and let machine idle for three minutes to cool.
4. Turn ignition switch to STOP. If leaving machine unattended, remove key.
5. For maintenance or long-term storage, turn battery disconnect switch to disconnect position.
CMW
RT115Q Operator’s Manual
Transport - 69
Transport
Chapter Contents
Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
•
Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Tie Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
•
Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
•
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
CMW
RT115Q Operator’s Manual
Transport - 70
Lift
Lift
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Points
Lifting points are identified by lifting decals. Lifting at other points is unsafe
and can damage machinery.
Procedure
Tractor
Use a crane capable of supporting the
equipment's size and weight. See
“Specifications” on page 179. Use indicated lift
points. Do not attempt to lift tractor with
attachments installed.
CMW
RT115Q Operator’s Manual
Transport - 71
Lift
Centerline Trencher
Use crane capable of supporting the
equipment's size and weight. See page 183 or
measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
Traversing Trencher
Use crane capable of supporting the
equipment's size and weight. See page 185 or
measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
Combo
Use crane capable of supporting the equipment’s
size and weight. See page 177 or measure and
weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
CMW
Transport - 72
RT115Q Operator’s Manual
Lift
Plow
Use crane capable of supporting the
equipment's size and weight. See page 187 or
measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
Reel Carrier
Use crane capable of supporting the
equipment's size and weight. See page 199 or
measure and weigh equipment before lifting.
NOTICE: Do not lift tractor with installed
attachment.
CMW
RT115Q Operator’s Manual
Transport - 73
Tie Down
Tie Down
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Points
Tiedown points are identified by tiedown decals. Securing to trailer at other
points is unsafe and can damage machinery.
Procedure
Tractor
Attach chains at front and rear tiedown points.
Make sure chains are tight before transporting
unit.
Centerline Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with
a trench cleaner, ensure that trench
cleaner shoe is fully up and extra bolt
(found in operator’s manual compartment)
is installed in appropriate hole for
additional support.
CMW
Transport - 74
RT115Q Operator’s Manual
Tie Down
Traversing Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with
a trench cleaner, ensure that trench
cleaner shoe is fully up and extra bolt
(found in operator’s manual compartment)
is installed in appropriate hole for
additional support.
Combo
Lower attachment to trailer deck and chain at
attachment frame and vibrator box. Make sure
chains are tight before transporting.
NOTICE:
•
Engage attachment stow lock and swing
lock devices in addition to securing at
tiedowns.
•
Unsecured plow can swing outside the
trailer and become a traffic hazzard.
Lower plow and chain to trailer deck
before hauling.
•
If trencher is equipped with a trench
cleaner, ensure that trench cleaner shoe
is fully up and extra bolt (found in
operator’s manual compartment) is
installed in appropriate hole for additional
support.
CMW
RT115Q Operator’s Manual
Transport - 75
Tie Down
Plow
Lower plow to trailer deck and chain at
attachment frame and vibrator box. Make sure
chains are tight before transporting.
NOTICE:
•
Engage attachment stow lock and
swing lock devices in addition to
securing at tiedowns.
•
Unsecured plow can swing outside
the trailer and become a traffic
hazard. Lower plow and chain to
trailer deck before hauling.
Reel Carrier
Lower reel carrier to lowest position and tie down
at attachment arms. Make sure chains are tight
before transporting.
CMW
RT115Q Operator’s Manual
Transport - 76
Haul
Haul
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded
machine can slip or cause trailer sway.
•
Attach trailer to tow vehicle before loading or unloading.
•
Park, load, and unload trailer on level ground.
•
Check that unit and trailer do not exceed size or weight regulations.
•
Ensure that tow vehicle has proper tow capacity rating.
•
Ten to fifteen percent of total vehicle weight (equipment plus trailer) must be on tongue to help
prevent trailer sway.
•
Connect safety chains to tow vehicle. Attach left chain to right side of tow vehicle and vice versa to
cradle hitch. Do not connect to pintle hook or hitch ball.
•
Connect breakaway switch cable to tow vehicle. Do not connect to pintle hook or hitch ball.
Procedure
Inspect Trailer
1. Check hitch for wear and cracks. Lubricate if needed.
2. Check battery for 12V charge.
3. Inspect lights for cleanliness and correct operation. Inspect reflectors and replace if needed.
4. Check trailer tire pressure. Check lug nut torque with a torque wrench. Adjust if needed.
5. Ensure trailer brakes are adjusted to come on in synchronization with tow vehicle brakes.
6. Check ramps and trailer bed for cracks.
CMW
RT115Q Operator’s Manual
Transport - 77
Haul
Load
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
NOTICE:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Put ground drive control into park. Turn off ignition. Set parking brake.
•
Block trailer wheels.
•
Incorrect loading can cause trailer swaying.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Fasten and adjust seat belt.
2. Tilt steering column down.
3. Start tractor. See page 66 for proper start-up procedures.
4. Raise attachments, but keep them low and centered. Check that they are not in float.
5. Release parking brake and verify that parking brake indicator is off.
6. Move ground drive switch to low.
7. Slow engine to low throttle and slowly drive tractor onto trailer.
8. Position tractor on trailer deck for proper weight distribution.
9. Engage parking brake and verify that parking brake indicator is on.
10. Lower attachments to trailer bed and turn tractor off. See page 66 for proper shutdown procedures.
11. Attach chains to tractor and attachments where tiedown decals are located. See page 73.
CMW
RT115Q Operator’s Manual
Transport - 78
Haul
Unload
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
NOTICE:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Position tow vehicle:
1. Put ground drive control into park.
2. Turn off ignition.
3. Set parking brake.
•
Block trailer wheels.
•
Incorrect loading can cause trailer swaying.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Lower trailer or ramps.
2. Check that parking brake is engaged and verify that parking brake indicator is on.
3. Check that ground drive controls are in neutral.
4. Remove chains from tiedowns.
5. Fasten and adjust seat belt.
6. Tilt steering column down.
7. Start tractor. See page 66 for proper start-up procedures.
8. Raise attachments, but keep them low and centered. Check that they are not in float.
9. Release parking brake and verify that parking brake indicator is off.
10. Slow engine to low throttle and slowly back unit down trailer or ramps.
CMW
RT115Q Operator’s Manual
Transport - 79
Tow
Tow
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Under normal conditions, tractor should not be towed. If tractor becomes disabled and towing is
necessary:
•
Do not tow for more than 200 yd (180 m).
•
Tow at less than 1 mph (1.6 km/h).
•
Steering will be very difficult.
Procedure
1. Engage parking brake.
2. Block front and rear tracks to prevent unit
from rolling.
3. Attach tow line to all available tie-down
points facing towing vehicle.
4. Activate the tow valve (shown).
•
Remove floor plate.
•
Locate two hex-shaped relief valves.
•
Turn each valve (whole hex)
counterclockwise three complete
revolutions.
NOTICE: Do not turn tow valve
more than three revolutions.
•
Replace floor plate.
5. Remove blocks.
6. Fasten seatbelt and adjust seatbelt.
7. Disengage parking brake.
8. After towing, turn tow valve clockwise three complete revolutions.
CMW
Transport - 80
RT115Q Operator’s Manual
Tow
CMW
RT115Q Operator’s Manual
Trench - 81
Trench
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
CMW
RT115Q Operator’s Manual
Trench - 82
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE: The RT115Q is programmed to operate with the original attachment (trencher or plow)
configuration. If you change attachments, contact your Ditch Witch dealer to make sure the electronic
programming is updated. If you change attachments without updating the electronic programming, your
attachment may not function correctly.
1. If using optional trench cleaner, remove bolt installed for transport.
2. Fasten and adjust seatbelt.
3. Start tractor. See page 64 for start-up procedures.
4. Drive to starting point. Move in line with planned trench. See page 66 for driving procedures.
5. Engage parking brake and verify parking brake indicator is on.
6. Move ground drive switch to low.
7. Turn seat to the desired position.
8. Engage axle lock.
9. Lower boom to just above ground.
10. Engage optional Trench Depth Meter, if equipped. See page 118.
11. Check that attachment speed/direction control is in neutral.
12. Check that boom is in line with planned trench.
CMW
RT115Q Operator’s Manual
Trench - 83
Operation
Operation
Jobsite hazards could cause death or serious injury. Use correct
equipment and work methods. Use and maintain proper safety equipment.
NOTICE: Cutting or drilling concrete containing sand or rock containing quartz may result in exposure to
silica dust. Use respirator, water spray or other means to control dust. Silica dust can cause lung
disease and is known to the State of California to cause cancer.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Comply with all utility notification regulations before digging or drilling.
•
Notify companies that do not subscribe to One-Call.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
NOTICE: Cutting high voltage cable can cause electrocution. Expose lines by hand before
digging.
Flying objects thrown by machine may strike people. Wear hard hat and
safety glasses.
CMW
RT115Q Operator’s Manual
Trench - 84
Operation
Start Trench
1. Lower backfill blade, if equipped, to reduce shock when trenching begins.
2. Set Trench / Plow switch to the trench position.
3. Move attachment speed/direction control to desired speed. DIGGING CHAIN WILL MOVE.
Moving digging teeth will cause death or serious injury. Stay away.
NOTICE:
•
Machine might jerk when digging starts. Allow 3’ (1 m) between digging teeth and obstacle.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
4. Set throttle to full engine speed.
5. Lift trench cleaner, if equipped.
6. Slowly lower digging boom to desired trench depth.
CMW
RT115Q Operator’s Manual
Trench - 85
Operation
Move Forward
1. Raise backfill blade, if equipped.
2. Release parking brake, if set, and verify parking brake indicator is off.
3. If using trench cleaner:
•
Use ground drive foot control to move forward about 1 foot (30 cm), or until there is enough room
for trench cleaner to enter trench.
•
Return ground drive control to neutral to stop forward movement.
•
Raise boom slightly, then fully lower trench cleaner to lock it in place.
•
Lower boom to desired trench depth.
NOTICE:
•
Do not have trench cleaner in working position when starting a trench.
•
Do not back up with trench cleaner in working position.
•
Do not use trench cleaner in working position in conditions where large rocks can get
between chain and cleaner.
4. Move ground drive hand control to desired speed. Always start trenching with ground drive speed set
at low. Increase ground drive speed only as soil conditions permit.
IMPORTANT:
•
The ground drive foot pedal and ground drive hand control perform the same function and
override each other. While digging, use the hand control to set travel speed. Use the foot
pedal to temporarily adjust travel speed if digging conditions change for a short distance.
For example, if soil becomes sticky or tight, press the reverse foot pedal to slow travel
speed. When optimal soil condition returns, release foot pedal to return to original speed.
•
For cruise control operation, see page 116.
5. Operate engine at full throttle when working.
IMPORTANT:
•
Do not make sharp turns. Lower boom to full depth when turning.
•
If an object becomes lodged in chain, move attachment speed/direction control to neutral
and raise boom slightly. Reverse chain direction. If object must be removed manually, turn
engine off and engage parking brake.
CMW
Trench - 86
RT115Q Operator’s Manual
Operation
Finish Trenching
1. When trench is complete, move ground drive hand control to neutral.
2. Adjust throttle to low idle.
3. Raise boom.
4. As boom clears top of trench, move attachment speed/direction control to neutral.
5. Raise trench cleaner.
6. Swivel seat to the drive position.
7. Disengage axle lock.
IMPORTANT: Drive tractor in reverse 6’ (2 m) while turning steering wheel left to right to fully
disengage axle lock.
8. Drive a short distance away from work site. See page 66 for driving procedures.
9. Shut down tractor. See page 67 for proper shutdown procedures.
10. Stow trench cleaner.
CMW
RT115Q Operator’s Manual
Plow - 87
Plow
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
•
Position Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
•
Attach Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
•
Special Plowing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
CMW
RT115Q Operator’s Manual
Plow - 88
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE:
•
Plow will swing freely in float.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Use attachments or counterweights to make front and rear loads balance when all attachments are
raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
•
Do not operate vibrator unless plow is in the ground.
•
The RT115Q is programmed to operate with the original attachment (trencher or plow) configuration.
If you change attachments, contact your Ditch Witch dealer to make sure the electronic
programming is updated. If you change attachments without updating the electronic programming,
your attachment may not function correctly.
CMW
RT115Q Operator’s Manual
Plow - 89
Setup
Position Tractor
IMPORTANT: If material must be at a constant depth, dig starting and target trenches.
1. Fasten and adjust seat belt.
2. Start tractor. See page 64 for start-up procedures.
3. Drive to starting point. Move in line with planned trench.
4. Engage parking brake and verify parking brake indicator is on.
5. Lower backfill blade, if equipped.
6. Set Trench / Plow switch to the plow position.
7. Lower plow to starting point of trench.
8. Turn ignition switch to STOP.
Attach Product
To Pull Product
1. Insert material into pulling grip.
2. Tape grip with duct tape.
CMW
Plow - 90
RT115Q Operator’s Manual
Setup
To Feed Product
IMPORTANT: ROPS-attached cable guide
should be a genuine Ditch Witch cable guide
manufactured for this purpose.
1. Remove cable guide.
2. Feed cable through tube from top to
bottom.
3. Replace cable guide and tighten
fasteners.
4. Secure cable.
NOTICE: Keep everyone away from
material being installed.
CMW
RT115Q Operator’s Manual
Plow - 91
Operation
Operation
Jobsite hazards could cause death or serious injury. Use correct
equipment and work methods. Use and maintain proper safety equipment.
NOTICE: Cutting or drilling concrete containing sand or rock containing quartz may result in exposure to
silica dust. Use respirator, water spray or other means to control dust. Silica dust can cause lung
disease and is known to the State of California to cause cancer.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
NOTICE: Cutting high voltage cable can cause electrocution. Expose lines by hand before digging.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE:
•
Comply with all utility notification regulations before digging or drilling.
•
Notify companies that do not subscribe to One-Call.
•
Do not drive backward with plow in the ground.
CMW
Plow - 92
RT115Q Operator’s Manual
Operation
Prepare
1. Fasten and adjust seat belt.
2. Start tractor.
3. Adjust throttle to low idle.
4. Check that ground drive hand and foot controls are in neutral.
5. Release parking brake and verify parking brake indicator is off.
6. Move ground drive switch to low.
7. Lower reel carrier to lowest position possible, if equipped.
NOTICE: Use extreme caution when operating reel carrier on sloped surfaces.
8. Raise backfill blade, if equipped.
9. Swivel seat to the desired position.
10. Engage axle lock.
CMW
RT115Q Operator’s Manual
Plow - 93
Operation
Lower Plow
1. Ensure that the Trench / Plow switch is in the plow position.
2. Move ground drive hand control forward to plowing speed and lower plow blade into ground.
NOTICE:
•
Lower plow into ground before moving plow lift control or plow swing control to float.
•
Do NOT move ground drive to reverse with plow blade in the ground.
3. Move plow lift control to float.
4. Move plow swing control to float.
5. Increase engine speed to full throttle.
IMPORTANT: Keep sod cutter edge sharp when plowing in areas with heavy grass cover or
surface clutter.
6. Move attachment speed/direction control forward to start plow vibration. PLOW WILL VIBRATE.
7. Reduce attachment speed to a point with the least tractor vibration and the highest ground drive speed
possible without track slippage. Adjust vibrator speed if ROPS vibrates excessively.
Note: In some soil conditions, changing vibrator weights can improve plow performance.
Contact your Ditch Witch dealer for details.
8. Check cable for damage during plowing. Run continuity checks on electric cable and check pipe
pressure. Damage can result from improper operation, incorrect blade choice, striking underground
obstructions, or other conditions.
CMW
Plow - 94
RT115Q Operator’s Manual
Operation
Finish Plowing
1. When installation is complete, move plow swing out of float.
2. With vibrator running, raise plow to ground level.
NOTICE: Do not operate vibrator when plow is out of the ground. This will cause excessive
vibration resulting in rapid wear, and possible damage to the unit and product being installed.
3. Move attachment speed/direction control to neutral.
4. Swivel seat to the drive position.
5. Engage parking brake and verify parking brake indicator is on.
6. Lower backfill blade, if equipped.
7. Turn ignition switch to STOP and remove product from plow.
8. Swing plow to center position and engage swing lock and stow lock.
9. Raise backfill blade, if equipped.
10. Disengage axle lock.
IMPORTANT: Drive tractor in reverse 6’ (2 m) while turning steering wheel left to right to fully
disengage axle lock.
11. Drive a short distance away from work site.
12. Shut down tractor. See page 67 for proper shutdown procedures.
CMW
RT115Q Operator’s Manual
Plow - 95
Operation
Special Plowing
Your Ditch Witch equipment allows you to
plow four ways: normal plowing, offset plowing
(1), coordinated plowing (2), and crabbing (3).
NOTICE: Oversteering blade may damage
blade or cable.
Offset Plow
Offset plowing can be used to plow next to a
road while keeping tracks on a more stable surface or in similar conditions.
1. Use plow swing to move plow to planned trench line.
2. Use blade steer to position blade parallel to direction of tractor frame.
Coordinated Plow
Coordinated plowing can be used to turn a tight circle around a jobsite obstacle or in similar conditions.
1. Move rear steer/center switch to the rear steer position.
2. Use the rear steer switch to position the tracks as shown above (2).
3. Slowly move tractor forward.
4. Plow as normal.
IMPORTANT: When coordinated plowing, keep plow blade straight or in the same angle position as rear
tracks.
Crab Plow
Crab can be used to plow along edge of jobsite or in similar conditions.
1. Move rear steer/center switch to the rear steer position.
2. Use the rear steer switch to position the tracks as shown above (3).
3. Slowly move tractor forward.
4. Plow as normal.
CMW
Plow - 96
RT115Q Operator’s Manual
Operation
CMW
RT115Q Operator’s Manual
Reel Winder - 97
Reel Winder
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
•
Adjust Reel Winder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
CMW
RT115Q Operator’s Manual
Reel Winder - 98
Setup
Setup
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Adjust Reel Winder
1. Lower reel carrier.
2. Turn ignition switch to STOP.
3. Remove reel.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
4. While supporting lever arm (3), remove
bolt (1) that attaches hydraulic lift cylinder
to lever arm.
5. Attach cylinder rod to the correct mounting
hole for your diameter reel:
•
For 2-5’ (61-152 cm ) diameter reels,
attach to bottom mounting hole (1).
•
For 5-7’ (152-213 cm ) diameter reels,
attach to top mounting hole (2).
CMW
RT115Q Operator’s Manual
Reel Winder - 99
Operation
Operation
1. Fasten and adjust seat belt.
1. Drive to beginning of planned plow path.
2. Engage parking brake.
3. Lower backfill blade, if equipped.
4. Lower plow attachment.
5. Adjust throttle.
6. Attach service line to reel.
Moving parts could cut off hand or foot. Stay
away.
7. Move reel winder selector switch to activate reel winder control functions.
8. Lower reel winder arm until track meets reel flange.
9. Wind service line.
10. When finished winding, raise reel winder arm.
11. Adjust throttle.
12. Move reel winder selector switch to activate backfill blade controls.
13. Raise backfill blade, if equipped.
14. Release parking brake.
15. Follow directions in “Plow” on page 87 to begin plowing.
CMW
Reel Winder - 100
RT115Q Operator’s Manual
Operation
CMW
RT115Q Operator’s Manual
Backhoe - 101
Backhoe
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Stowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
CMW
Backhoe - 102
RT115Q Operator’s Manual
Setup
Setup
1. Move attachment speed/direction control to neutral position.
2. Move ground drive control to neutral position.
3. Set ground drive motor speed to low.
4. Lower rear attachment to 6” (150 mm) above ground.
5. Check that backfill blade, if equipped is straight and lower it to ground.
6. Decrease engine speed to low throttle.
7. Move to backhoe operator’s station.
8. Lower stabilizers enough to lift front tracks.
IMPORTANT: For more information about stabilizer controls, see page 49.
9. Remove swing lock pin from hole (1) and
store in hole (2).
10. Raise boom to release tension on stow
lock.
11. Release stow lock by pushing handle
forward.
IMPORTANT: For more information
about stow lock, see page 51.
12. Adjust engine speed to 1/2 to 3/4 throttle
for digging.
NOTICE: Engine speed affects
speed of backhoe operation.
CMW
RT115Q Operator’s Manual
Backhoe - 103
Operation
Operation
Use boom/swing control and bucket/dipper control to dig hole or trench.
IMPORTANT: For more information about backhoe controls, see page 48.
•
Keep dipper and boom at right angles as
much as possible for maximum power.
•
Keep bucket in line with dipper as much
as possible.
•
Position bucket so teeth cut soil. As soil is
cut, curl bucket under dipper.
•
Move dipper and bucket together.
Increasing engine speed will not increase
backhoe force.
CMW
Backhoe - 104
RT115Q Operator’s Manual
Stowing
Stowing
NOTICE: Before returning to tractor operator station, raise stabilizers, return remote throttle to low idle,
and stow and lock boom.
1. When hole or trench is complete, lift boom
while keeping dipper pointed at ground.
2. Curl bucket closed and move dipper fully
toward boom.
3. Lift boom to highest position and latch
stow lock.
4. Lower boom slightly to engage lock.
5. Engage swing lock. See page 102.
CMW
RT115Q Operator’s Manual
Backhoe - 105
Stowing
6. Raise stabilizers.
7. Return remote throttle to low idle.
CMW
Backhoe - 106
RT115Q Operator’s Manual
Stowing
CMW
RT115Q Operator’s Manual
Drill - 107
Drill
Chapter Contents
Prepare Jobsite and Equipment . . . . . . . . . . . . . 109
•
Approach Trench (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
•
Target Trench (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
•
Drill Pipe and Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Drill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
•
Using Drill String Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Add Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Backream. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Disassemble Joints . . . . . . . . . . . . . . . . . . . . . . . 113
CMW
RT115Q Operator’s Manual
Drill - 108
Turning shaft will kill you or crush arm or leg. Stay away.
NOTICE: Keep everybody at least 10’ (3 m) away from drill pipe during operation. Do not straddle
trench or drill pipe while drilling.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Set up warning barriers and keep people away from equipment and jobsite while drilling.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Improper control function could cause death or serious injury. If control
does not work as described in instructions, stop machine and have it serviced.
NOTICE: Do not tape or tie down switch or lever.
CMW
RT115Q Operator’s Manual
Drill - 109
Prepare Jobsite and Equipment
Prepare Jobsite and Equipment
Approach Trench (1)
1. Mark path where you intend to drill.
2. Dig an approach trench (1) along the
intended bore path.
IMPORTANT: The approach trench
should be at least:
•
deep enough for pipe to lay flat
and enter soil at correct angle
•
20’ (6 m) long
•
4” (100 mm) wide
Target Trench (2)
1. Select a completion point for the drilling project.
2. Dig a target trench (2) across the anticipated completion point.
IMPORTANT: The actual length of the target trench depends on soil conditions and length of pipe
sections. Make it deep enough for drill bit to enter slightly above the trench floor.
CMW
Drill - 110
RT115Q Operator’s Manual
Prepare Jobsite and Equipment
Drill Pipe and Equipment
1. Assemble at least 20’ (6 m), but not more than 30’ (9 m), of drill rod.
NOTICE: More than 10-15’ (3-4.5 m) of drill rod out of the trench increases the tendency of drill
rod to bend.
2. Install drill bit to the cutting end of the drill string.
3. Put drill string in approach trench.
4. Move tractor to the approach trench and align the drilling attachment with the intended bore path.
5. Turn off engine.
6. Attach drill string to drilling attachment.
CMW
RT115Q Operator’s Manual
Drill - 111
Drill
Drill
IMPORTANT: For location and description of drilling controls see page 29.
EMERGENCY SHUTDOWN: Release drilling control and turn ignition switch to STOP.
1. Start tractor’s engine and begin clockwise (forward) rotation.
2. Slowly advance tractor while maintaining clockwise rotation.
NOTICE:
•
Drilling too quickly causes bit to drift off course and may bend drill rod. After bore path is
established, speed may be slightly increased.
•
If drill rod starts to bend, stop forward movement of unit and back the unit slightly until rod
straightens. Do not drill with bent rod.
•
If drill rod hits an obstruction, rotate drill string counterclockwise to back up slightly.
Using Drill String Guide
Turning shaft will kill you or crush arm or leg. Stay away.
NOTICE: Keep everybody at least 10’ (3 m) away from drill rod during operation. Do not
straddle trench or drill rod while drilling.
Use drill string guide to align drill string as it
enters the soil. When using drill string guide,
follow these guidelines:
•
Use only approved Ditch Witch drill string
guide
(p/n 179-737).
•
Stand only on the left side of the approach
trench.
•
Keep drill string guide at least 3’ (1 m)
behind bit.
•
Use drill string guide to control only the
first 5’ (1.5 m) of the bore path.
•
After drilling 5’ (1.5 m), stop unit and
remove drill string guide.
•
Do not use drill string guide during
backreaming or any time the drill string is
being pulled back.
CMW
Drill - 112
RT115Q Operator’s Manual
Add Rod
Add Rod
1. Stop drilling attachment.
2. Back up tractor 6" (150 mm) to loosen drill rod in ground.
3. Disconnect drill rod from drilling attachment.
4. Move tractor away from bore.
5. Add one drill rod to continue bore.
Backream
After drill bit enters target trench, the bore hole may be enlarged by changing the drill bit to a backreamer
and drawing it back through the initial bore.
1. Turn tractor ignition switch to STOP.
2. Replace drill bit with backreamer.
3. Start tractor engine and begin clockwise rotation.
IMPORTANT: Always rotate clockwise during backreaming. Rotate counterclockwise only to
dislodge a dry bore bit or reamer that has siezed in the bore hole.
4. Slowly back up tractor while maintaining rotation.
5. When backreamer exits the bore hole, stop rotation immediately.
IMPORTANT:
CMW
•
Do not try to increase hole size too much in one pass. Several passes using successively
larger reamers will save wear on machine.
•
During backreaming, keep drill string straight. Sharp bends in the drill rod at the motor
coupling can cause rod failure.
RT115Q Operator’s Manual
Drill - 113
Disassemble Joints
Disassemble Joints
1. Press tab through hole in female side of
joint using special tool or screwdriver.
2. Pull rods apart.
CMW
Drill - 114
RT115Q Operator’s Manual
Disassemble Joints
CMW
RT115Q Operator’s Manual
Systems and Equipment - 115
Systems and Equipment
Chapter Contents
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
•
Operate Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Trench Depth Meter . . . . . . . . . . . . . . . . . . . . . . . 118
Chain, Teeth, and Sprockets . . . . . . . . . . . . . . . . 118
•
Chain and Tooth Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
•
Chain Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
•
Chain Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . 120
•
RT115Q Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
•
H910/H911 Trencher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
•
H932 Plow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Systems and Equipment - 116
RT115Q Operator’s Manual
Cruise Control
Cruise Control
Cruise control is a standard feature that allows the unit to automatically adjust ground drive speed
according to digging conditions. In easier soil conditions, the ground drive speed will increase. When the
unit encounters difficult soil conditions, the ground drive speed will decrease. The unit does this by
adjusting ground drive pump output to maintain a preset engine speed.
Operate Cruise Control
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Plowing
1. First set the following controls:
•
ground drive controls to neutral
•
ground drive switch to low
•
ensure cruise control is off
•
all other controls set as desired
2. Set ground drive hand control to max speed suitable for digging conditions.
3. Press cruise control switch once and ensure that cruise control indicator lights.
4. Use RPM control to select optimum engine speed for digging conditions.
5. When finished plowing, move ground drive control to neutral and press cruise control switch again to
turn off cruise control.
RT115Q Operator’s Manual
Systems and Equipment - 117
Cruise Control
Trenching
1. First set the following controls:
•
ground drive controls to neutral
•
ground drive switch to low
•
ensure cruise control is off
•
all other controls set as desired
2. Move cruise control RPM control to arrow at center.
3. Press cruise control switch once and ensure that cruise control indicator lights.
4. Following procedures on page 83, begin trenching to desired depth.
5. When desired depth is reached, ensure throttle is fully open.
6. Slowly move ground drive control forward.
7. Slowly adjust cruise control RPM control to match digging conditions.
IMPORTANT:
•
In harder digging conditions, higher cruise control rpm setting may improve digging
performance.
•
In easier digging conditions, lower cruise control rpm setting may increase ground drive
speed.
8. When finished trenching, move ground drive control to neutral and press cruise control switch again to
turn off cruise control.
9. Allow chain to dig itself free before stopping attachment.
RT115Q Operator’s Manual
Systems and Equipment - 118
Trench Depth Meter
Trench Depth Meter
Trench Depth Meter (TDM) is an optional electronic system for measuring and recording trench depth.
TDM also displays productivity and distance while trenching. Two lines of information are displayed on the
LED screen. If the system detects error conditions, diagnostic codes will be displayed on the second line.
IMPORTANT: For more information about TDM see the TDM Operator’s Manual (p/n 054-117).
Chain, Teeth, and Sprockets
Chain and Tooth Maintenance
•
Always replace sprockets at the same time you replace the digging chain. Sprockets and chain are
designed to work together. Replacing one without the other will cause premature wear of the new part.
•
Keep digging teeth sharp. Using dull, worn teeth will decrease production and increase shock load to
other trencher components. It can also cause chain stretch, which leads to premature chain wear and
failure.
•
Maintain the proper amount of tension on the digging chain. Overtightening will cause chain stretch
and loss of machine performance. For correct tightening procedure, see page 136.
•
Use the tooth pattern most appropriate for your digging conditions. If you move to a different soil type,
contact your Ditch Witch dealer for information about the most effective chain type and tooth pattern.
Chain Types
Chain type
Features
4-pitch
standard chain
2-pitch
more teeth for smoother cutting
alternating side bar
prevents spoil compaction on chain
bolt-on adapters
allow easy configuration changes
Shark Chain II
versatile, virtually maintenance-free
combination
provides pick and shovel effect
RT115Q Operator’s Manual
Systems and Equipment - 119
Chain, Teeth, and Sprockets
Chain Selection
These charts are meant as a guideline only. No one chain type works well in all conditions. See your Ditch
Witch dealer for soil conditions and chain recommendations for your area. Ask for the latest Chain, Teeth,
and Sprockets Parts Catalog.
•
1 = best
•
2 = better
•
3 = good
•
4 = not recommended
Chain
Sandy
Soil
Soft Soil
Medium
Soil
Hard Soil
Rocky
Soil
Sticky
Soil
4-pitch cup tooth
3
1
2
3
4
1
2-pitch cup tooth
2
3
1
1
3
4
bolt-on adaptor, 2-pitch
4
4
3
2
1
4
bolt-on adaptor/cup tooth
combo
4
3
2
1
2
4
Shark Chain II
4
3
2
1
1
4
alternating side bar
4
4
4
4
4
1
Soil
Description
sandy soil
sugar sand, blow sand, or other soils where sand is the predominant component
soft soil
sandy loam
medium soil
loams, loamy clays
hard soil
packed clays, gumbo, all compacted soils
rocky soil
chunk rock, glacial till, cobble, rip rap, gravel
sticky soil
gumbo, sticky clays
Systems and Equipment - 120
RT115Q Operator’s Manual
Optional Equipment
Optional Equipment
See your Ditch Witch dealer for more information about the following optional equipment.
RT115Q Tractor
Equipment
Description
backup alarm
for use with saws or other low visibility situations
light kit
mounts to ROPS and includes work lights and hazard light
H910/H911 Trencher
Equipment
Description
booms
several boom length options are available
hydraulic trench cleaner
removes spoils from the trench floor
long auger extensions
for conditions that require spoils to be moved farther from the trench
H1032 Plow
Equipment
Description
blades
several blade options are available
RC115 reel carrier
designed to fit your Ditch Witch equipment and speed cable installation
toes
stabilize the plow for more constant depth
bullets
allow a larger cavity for the material being installed
RT115Q Operator’s Manual
Complete the Job - 121
Complete the Job
Chapter Contents
Restore Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
•
Backfilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rinse Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 122
Stow Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
CMW
Complete the Job - 122
RT115Q Operator’s Manual
Restore Jobsite
Restore Jobsite
After product is installed, return spoils to the
trench with optional backfill blade.
Backfilling
1. Position unit at end of trench, several feet
from spoils. Aim tractor at outer edge of
spoils.
2. Adjust backfill blade to fit land contour.
3. Move outer edge of spoils toward trench.
Take two or more passes at spoils rather
than moving all spoils at once.
4. Repeat on other side of trench, if necessary.
5. Engage float and make final pass over
trench.
Rinse Equipment
Spray water onto equipment to remove dirt and mud.
NOTICE: Do not spray water onto operator’s console. Electrical components could be damaged. Wipe
down instead.
Stow Tools
Make sure all tools and accessories are loaded and properly secured on trailer.
CMW
RT115Q Operator’s Manual
Service - 123
Service
Chapter Contents
Service Precautions . . . . . . . . . . . . . . . . . . . . . . . 124
Lubrication Overview . . . . . . . . . . . . . . . . . . . . . . 125
Recommended Lubricants/Service Key . . . . . . 125
•
Approved Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
•
Engine Oil Temperature Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
10 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
50 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
250 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
500 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
1000 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
2000 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
5000 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
As Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Tier 3 Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
RT115Q Operator’s Manual
Service - 124
Service Precautions
Service Precautions
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICES:
•
Unless otherwise instructed, all service should be performed with engine off.
•
Refer to engine manufacturer’s manual for engine maintenance instructions.
•
Before servicing equipment, lower unstowed attachments to ground.
Welding
NOTICE: Welding can damage electronics.
•
Disconnect battery at battery disconnect switch, if equipped, or disconnect battery cables before
welding to prevent damage to battery. Do not turn off battery disconnect switch with engine
running or alternator and other electronic devices may be damaged.
•
Connect welder ground clamp close to welding point and make sure no electronic components
are in the ground path.
•
Always disconnect the ECU ground connection from the frame, harness connections to the ECU,
and other electronic components prior to welding on machine or attachments.
Cleaning
NOTICE: When cleaning equipment, do not spray electrical components with water.
Changing Attachments
The RT115Q is programmed to operate with the original attachment configuration. If you change
attachments, contact your Ditch Witch dealer to make sure the electronic programming is updated. If you
change attachments without updating the electronic programming, your attachment may not function
correctly.
RT115Q Operator’s Manual
Lubrication Overview
Lubrication Overview
Service - 125
RT115Q Operator’s Manual
Service - 126
Recommended Lubricants/Service Key
Recommended Lubricants/Service Key
Item
Description
DEO
John Deere Plus-50® or eqivalent multi-viscosity diesel engine oils meeting ACEA
specification E4/E5. Other multi-viscosity diesel engine oils meeting API classifications
CI++0, CH-4, or ACEA E3 may be used, but only with 250 hour change intervals.
MPG
Multipurpose grease meeting ASTM D217 and NLGI 5
EPG
Extreme pressure grease meeting ASTM D217 and NLGI 5
MPL
Multipurpose gear oil meeting API service classification GL-5 (SAE 80W90)
THF
Tractor hydraulic fluid, similar to Phillips 66 HG, Mobilfluid 423, Chevron Tractor
Hydraulic Fluid, Texaco TDH Oil, or equivalent
DEAC
Diesel engine Antifreeze/Coolant meeting ASTM D4985 with SCAs meeting John
Deere JDM H24A2
Check level of fluid or lubricant
Check condition
Filter
Change, replace.
Adjust, service, or test
Proper lubrication and maintenance protects Ditch Witch equipment from damage and failure. Service
intervals listed are for minimum requirements. In extreme conditions, service machine more frequently.
Use only recommended lubricants. Fill to capacities listed in “Fluid Capacities” on page 182.
For more information on engine lubrication and maintenance, see your John Deere® engine manual.
NOTICE:
•
Use only genuine Ditch Witch parts, filters, approved lubricants, TJC, and approved coolants to
maintain warranty.
•
Use the “Service Record” on page 185 to record all required service to your machine.
RT115Q Operator’s Manual
Service - 127
Recommended Lubricants/Service Key
Approved Fuel
The engine is this unit is designed to run on diesel fuel. Use only high-quality fuel meeting ASTM D975 No.
2D, EN590, or equivalent. At temperatures below 32°F (0°C), winter fuel blends are acceptable. See
engine operation manual for more information.
IMPORTANT: Fuel sulfur content should be less than 5000 ppm (0.5%). Worldwide, fuel sulfur
regulations vary widely. Fuel used should always comply with local regulations. If using fuel with sulfur
content above 5000 ppm (0.05%, low sulfur diesel in the U.S.), reduce oil change interval by half.
Biodiesel blends up to 5% (B5) are approved for use in this unit. The fuel used must meet the
specifications for diesel fuel shown above. Extra attention is needed when using biodiesel, especially when
operating in cold weather or storing fuel. Contact your Ditch Witch dealer or the engine manufacturer for
more information.
Approved Coolant
This unit was filled with John Deere Cool-Gard coolant before shipment from factory. Add only John Deere
Cool-Gard (p/n 255-006) or any fully-formulated, ethylene glycol based, low-silicate, heavy-duty diesel
engine coolant meeting ASTM specification D5345 (prediluted) or D4985 (concentrate) and containing
supplemental coolant additives (SCAs) meeting John Deere specification JDM H24A2.
NOTICE: Do not use water or high-silicate automotive-type coolant. This will lead to engine damage or
premature engine failure.
NOTICE: Do not mix heavy-duty diesel engine coolant and automotive-type coolant. This will lead
coolant breakdown and engine damage.
Engine Oil Temperature Chart
Temperature range anticipated before next oil change
RT115Q Operator’s Manual
Service - 128
10 Hour
10 Hour
Location
Task
Notes
TRACTOR
Check engine oil
DEO
Check air filter indicator and clean dust trap
Check water separators and fuel filter
Check hydraulic fluid
THF
Check hydraulic reservoir fill
Check hydraulic hoses
Check coolant level
DEAC
Check hoses
Check radiator fins
Check track tension and inspect track undercarriage
TRENCHER
Check lug nuts
295 ft•lb (400 N•m)
Lube trencher tail roller
EPG
Lube trencher pivot
EPG
Lube trencher auger bearings
EPG
Lube trencher auger shaft
EPG
Check trencher auger bolts
Check digging chain teeth and bits
Check digging chain tension
PLOW
Check boom mounting bolts
250 ft•lb (339 N•m)
Check attachment mounting bolts
200 ft•lb (271 N•m)
Check personnel restraint bar bolts
350 ft•lb (475 N•m)
Lube plow pivots
EPG
Check plow vibrator oil
MPL
Check plow arm pins and bushings
Check plow connector pivots
Check attachment mounting bolts
200 ft•lb (271 N•m)
RT115Q Operator’s Manual
10 Hour
Tractor
Check Engine Oil Level
Check engine oil at dipstick (1) before operation
and every 10 hours thereafter. Add DEO at fill (2)
as necessary to keep oil level at highest line on
dipstick.
IMPORTANT: If adding oil before the initial
oil change at 250 hours, add only SAE
10W30. After 250 hours, see page 125 for
DEO specifications.
Check Air Filter Indicator and Clean
Dust Trap
Check air filter indicator (1) and clean dust trap
every 10 hours. Red band indicates filter must be
changed. Push button (2) to re-set indicator.
NOTICE: Only open the air filter canister when
air restriction is indicated. Change the elements,
do not attempt to clean them.
•
Compressed air or water may damage
filter elements.
•
Tapping filter elements to loosen dirt
may damage the elements.
Wipe dust from trap every 10 hours.
Service - 129
Service - 130
RT115Q Operator’s Manual
10 Hour
Check Water Separators and Fuel
Filter
Check water separators and fuel filter every 10
hours. Drain at plug as needed until water is
removed and fuel runs from drain.
Check Hydraulic Fluid
With frame level, check fluid at sight glass every
10 hours. (Remove cover to see sight glass.) Add
THF at fill as necessary. Fluid capacity up to
sight glass is 24 gal (91 L).
Clean dust from cap by blowing with low-pressure
air.
IMPORTANT:
•
Open cap slowly, tank may be under
pressure. Fill cap includes a 3 psi check
valve.
•
Do not open unless adding hydraulic fluid.
RT115Q Operator’s Manual
Service - 131
10 Hour
Check Hydraulic Hoses
Fluid or air pressure could pierce skin and cause injury or death. Stay
away.
NOTICE: Escaping pressurized fluid can cause injury or pierce skin and poison.
•
Before disconnecting a hydraulic line, turn engine off and operate all controls to relieve pressure.
Lower, block, or support any raised component with a hoist. Cover connection with heavy cloth and
loosen connector nut slightly to relieve residual pressure. Catch all fluid in a container.
•
Before using system, check that all connections are tight and all lines are undamaged.
•
Fluid leaks can be hard to detect. Use a piece of cardboard or wood, rather than hands, to search for
leaks.
•
Wear protective clothing, including gloves and eye protection.
•
If you are injured, seek immediate medical attention from a doctor familiar with this type of injury.
Check all hydraulic hoses every 10 hours.
Service - 132
RT115Q Operator’s Manual
10 Hour
Check Coolant Level
With engine cool, check coolant level in auxiliary
tank sight glass every 10 hours. Maintain level so
that coolant is visible in sight glass and no higher
than bottom of fill neck. If low, add approved
coolant. Do not overfill.
IMPORTANT: See page 127 for information
on approved coolants.
Check Radiator Fins
Check radiator for dirt, grass, and other foreign
matter every 10 hours. Clean out with
compressed air or spray wash if required. Be
careful not to damage fins with high pressure air
or water. Check more often if operating in dusty
or grassy conditions.
RT115Q Operator’s Manual
10 Hour
Trencher
Lube Trencher Tail Roller
Wipe zerks clean and lube every 10 hours with
EPG. Lube roller zerks on both sides of boom.
Lube Trencher Pivot
Wipe five zerks located on right of trencher pivot
clean and lube every 10 hours with EPG.
Wipe four zerks located on left of trencher pivot
clean and lube every 10 hours with EPG.
Service - 133
Service - 134
RT115Q Operator’s Manual
10 Hour
Lube Trencher Auger Bearings
Lube two auger bearing zerks (one on each side)
every 10 hours with EPG.
Lube Trencher Auger Shaft
Lube four auger shaft zerks (two on each side)
every 10 hours with EPG.
Check Trencher Auger Bolts
Check trencher auger bolts every 10 hours. For
optimal spoils delivery, adjust augers to match
terrain and digging depth.
RT115Q Operator’s Manual
10 Hour
Check Digging Chain Teeth and Bits
Check teeth (1) for wear every 10 hours. Replace
worn teeth, using Ditch Witch replacement parts
and maintaining original tooth pattern.
For more efficient digging, contact your Ditch
Witch dealer for information about the tooth
pattern best suited to your jobsite.
If using rock chain bits, check that bits rotate
freely. Clean chain and check bits after each use.
Replace bit when carbide cap or insert is worn or
adapter can be damaged.
Check chain every 10 hours. Replace worn or
broken chains. If sidebars (2) are bent or loose
on chain pins (3), chain spacers should be used to join sidebars.
Check Boom Mounting Bolts
Check 14 bolts (7 on each side) every 10 hours
and torque as necessary to keep bolts and other
fasteners tight. Check for looseness or wear.
Check that bolts are torqued to 250 ft•lb (28
N•m).
Check Attachment Mounting Bolts
Check bolts every 10 hours and torque as
necessary to keep bolts and other fasteners tight.
Check for looseness or wear. Apply Loctite 271®
adhesive. Check that bolts are torqued to 200
ft•lb (271 N•m).
Service - 135
RT115Q Operator’s Manual
Service - 136
10 Hour
Check Personnel Restraint Bar/
Trench Cleaner
Check all bolts that mount restraint bar/trench
cleaner to arm every 10 hours and torque as
necessary to keep bolts tight. Check for
looseness or wear. Apply Loctite 271® adhesive.
Check that bolts holding personnel restraint bar/
trench cleaner to arm are torqued to 350 ft•lb
(475 N•m). Bolts mounting arm to boom should
be torqued to 400 ft•lb (542 N•m).
Check Digging Chain Tension.
Fluid pressure could pierce skin and cause injury or death. Stay away.
NOTICE: Service digging boom grease cylinder only while standing on opposite side of
boom. Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure
in cylinder.
Check digging chain tension every 10 hours.
With boom horizontal, measure distance from
bottom of boom to chain. When properly
adjusted, distance should be 4.5 - 5.5” (114 - 140
mm).
To tighten chain, loosen six bolts on trencher
boom and pump EPG into cylinder. To relieve
chain tension, loosen plug on grease cylinder
RT115Q Operator’s Manual
10 Hour
Plow
Lube Plow Pivots
Lube pivots every 10 hours with EPG.
Check Plow Vibrator Oil
Check plow vibrator oil on each side of vibrator
every 10 hours. With vibrator horizontal, oil
should be halfway up sight glass (2). Add MPL as
needed at fill (1).
IMPORTANT: Do not add oil to plow vibrator
when hot. Let plow vibrator cool before
removing fill plug.
Service - 137
Service - 138
RT115Q Operator’s Manual
10 Hour
Check Plow Arm Pins and Bushings
Check plow arm pins and bushings every 10
hours. Tighten as needed.
Check Plow Connector Pivots
Visually check pivots every 10 hours for wear or
damage.
Check Attachment Mounting Bolts
Check mounting bolts every 10 hours and torque
as necessary to keep bolts and other fasteners
tight. Check for looseness or wear. Apply Loctite
271® adhesive. Check that bolts are torqued to
200 ft•lb (271 N•m).
RT115Q Operator’s Manual
Service - 139
50 Hour
50 Hour
Location
Task
TRACTOR
Check drive belt
Notes
Lube track pivot bearings
MPG
TRENCHER
Check trencher gearbox oil
MPL
PLOW
Change plow vibrator oil (initial)
MPL
Tractor
Check Drive Belt
Check belt every 50 hours for damage or wear.
Replace worn belt. Belt is properly tensioned
when long span (2) moves about 1/2" (13 mm)
when pushed. If needed, loosen alternator bolts
(1) and adjust idler pulley.
Lube Track Pivot Bearings
Lube track pivot bearings at zerk (shown) every 50
hours. Use MPG.
Service - 140
RT115Q Operator’s Manual
50 Hour
Trencher
Check Trencher Gearbox Oil
Check oil at sight tube every 50 hours. Keep oil
level at horizontal line on housing. If necessary,
add MPL at fill plug.
Plow
Change Plow Vibrator Oil
Change plow vibrator oil after first 50 hours of
operation. Drain oil at drain plug (2). Replace
plug and move plow vibrator to horizontal
position. Add MPL at fill (1) until oil is halfway up
sight glass (2). Refill capacity is 4 qt (3.8 L).
IMPORTANT: Do not drain oil from plow
vibrator when hot. Let plow vibrator cool
before removing drain plug.
RT115Q Operator’s Manual
Service - 141
100 HOUR
100 HOUR
Location
Task
Notes
TRACTOR
Change engine oil and filter
DEO, initial
Check track tension
Inspect track rollers and sprocket
PLOW
Check plow shear mounts
Test plow connector pivots
Tractor
Change Engine Oil and Filter (Initial)
Change engine oil and filter after first 100 hours
of operation.
To change:
1. While oil is warm, remove drain plug (3).
Drain oil and replace plug.
2. Remove filter (1) and replace with new filter
each time oil is changed. Refill with DEO at
fill neck (2).
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See "Recommended Lubricants" for more information about DEO specifications.
Service - 142
RT115Q Operator’s Manual
100 HOUR
Check Track Tension
Check track tension every 100 hours.
To check:
1. Elevate unit on jackstands, or lifting devices
capable of holding the weight of the tractor.
2. Measure tension using one of the methods
below. Track is tensioned correctly when:
•
the track just comes into contact with the
middle rollers,
•
when there is a 1/4” gap between the
tracks and the middle rollers,
•
or when grease pressure is 1400-1600
psi.
To adjust:
1. Loosen bolts on each cylinder end (2).
2. Pump MPG into zerk (1) until track is correctly tensioned.
3. Tighten bolts on cylinder end (2).
Inspect Track Rollers and Sprocket
Inspect track rollers and sprocket for wear every
100 hours. Replace as needed.
RT115Q Operator’s Manual
Service - 143
100 HOUR
Plow
Check Shear Mounts
Check shear mounts for wear every 100 hours.
Replace as needed.
IMPORTANT: When replacing shear mounts,
it is important to compress the shear mounts
with the washers to prevent the shear mount
from tearing.
Test Plow Connector Pivots
Test upper and lower connector pivots every 100
hours.
To test upper pivot:
1. Lower plow to ground.
2. Use plow lift control to put hydraulic load on
pivot joints. Do not raise plow.
3. As hydraulic load is applied and released,
visually check joints for motion. If motion is
observed, contact your Ditch Witch dealer.
To test lower pivot:
1. Lower plow to ground.
2. Use hydraulic jack to place load on lower arm.
3. As hydraulic load is applied and released, visually check joints for motion. If motion is observed,
contact your Ditch Witch dealer.
IMPORTANT: Lower plow blade to ground and visually inspect bushings and joints. Replace bushings if
there is excessive motion.
RT115Q Operator’s Manual
Service - 144
250 Hour
250 Hour
Location
Task
Notes
TRACTOR
Lube driveshaft U-joints
EPG
Lube axle spindle pins
EPG
Check ground drive gearbox oil
MPL
Check differential oil
MPL
Lube planetary wheel ends
MPL
Tractor
Lube Driveshaft U-joints
Lube driveshaft U-joints every 250 hours with 3-4
shots of EPG.
Lube Axle Spindle Pins
Lube axle spindle pins every 250 hours with 3-4
shots of EPG.
RT115Q Operator’s Manual
250 Hour
Check Ground Drive Gearbox Oil
Check oil level at fill (shown) every 250 hours.
Keep level at raised horizontal line on gearbox.
Add MPL as needed.
Check Differential Oil
Check oil level at fill (shown) every 250 hours.
Add MPL as needed.
Lube Planetary Wheel Ends
Remove track to check oil level in planetary
wheel ends every 250 hours. Add MPL as
needed.
Service - 145
RT115Q Operator’s Manual
Service - 146
500 Hour
500 Hour
Location
Task
TRACTOR
Change fuel filters
Notes
Change engine oil and filter
DEO
Change hydraulic fluid and filter
THF
Check radiator SCA level
PLOW
Change plow vibrator oil
TRENCHER
Adjust headshaft bearings
Tractor
Change Fuel Filters
Change fuel filters (shown) every 500 hours.
MPL
RT115Q Operator’s Manual
Service - 147
500 Hour
Change Engine Oil and Filter
Regular engine oil and filter change interval is
500 hours only if using John Deere Plus-50® or
ACEA E4/E5.
To change:
1. While oil is warm, remove drain plug (3).
Drain oil and replace plug.
2. Remove filter (1) and replace with new filter
each time oil is changed. Refill with DEO at
fill neck (2).
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See "Recommended Lubricants" for more information about DEO specifications.
Service - 148
RT115Q Operator’s Manual
500 Hour
Change Hydraulic Fluid and Filter
Change hydraulic fluid and filter every 500 hours.
Change hydraulic fluid and filter every 250 hours
if jobsite temperature exceeds 100°F (38°C)
more than 50% of the time.
To change:
1. Remove drain plug (3).
2. Drain fluid and replace plug.
3. Change filter (2).
4. Refill with THF at fill (1).
RT115Q Operator’s Manual
Service - 149
500 Hour
Test Radiator SCA Level
IMPORTANT:
•
Always check expiration date on 3-Way Heavy Duty Coolant Test Kit. An expired kit will not give
accurate readings.
•
See page 127 for more information on approved coolants.
Test SCA level every 500 hours using 3-Way
Heavy Duty Coolant Test Kit (p/n 256-032). If
SCA levels do not fall within appropriate range,
replenish with a heavy-duty coolant conditioner
such as John Deere coolant conditioner (p/n 256033).
Service - 150
RT115Q Operator’s Manual
500 Hour
Plow
Change Plow Vibrator Oil
Change plow vibrator oil every 500 hours. If
normal operating temperature exceeds 100° F
(38° C), change plow vibrator oil every 250
hours.
Drain oil at drain plug (2). Replace plug and
move plow vibrator to horizontal position. Add
MPL at fill until oil is halfway up sight glass (1).
Refill capacity is 4 qts (3.8 L).
IMPORTANT: Do not drain oil from plow
vibrator when hot. Let plow vibrator cool
before removing drain plug.
Trencher
Adjust Headshaft Bearing
Adjust headshaft bearing every 500 hours.
To adjust:
1. Remove cover. Remove bolts attaching
trenching attachment motor to gearbox.
2. Remove bolt and washers in left end of
headshaft.
3. Support gearbox with hoist and slide it off
headshaft.
4. Install spacer (p/n 184-044) in place of
gearbox while checking bearings.
5. Replace bolt on end of headshaft.
6. Remove chain from headshaft sprocket.
7. Turn chain sprocket until headshaft sprocket turns. When properly adjusted, it will take two hands and
some effort. If it turns easily, remove a shim.
RT115Q Operator’s Manual
Service - 151
1000 Hour
1000 Hour
Location
Task
Notes
TRACTOR
Change differential oil
MPL
Change ground drive gearbox oil
MPL
Change planetary wheel end oil
MPL
Change trencher gearbox oil
MPL
TRENCHER
Tractor
Change Differential Oil
Change differential oil every 1000 hours.
To change:
1. Remove drain plug (2).
2. Drain fluid and replace plug.
3. Add MPL at fill (1).
Change Ground Drive Gearbox Oil
Change ground drive gearbox oil every 1000
hours.
To change:
1. Remove drain plug (2).
2. Drain oil and replace plug.
3. Fill gearbox with MPL at fill (1).
Service - 152
RT115Q Operator’s Manual
1000 Hour
Change Planetary Wheel End Oil
Change wheel end oil every 1000 hours.
To change:
1. Position wheel with plug at bottom.
2. Remove plug.
3. Drain oil.
4. Reposition wheel with plug at midway
position.
5. Fill with MPL to plug opening.
6. Replace plug.
Trencher
Change Trencher Gearbox Oil
Change trencher gearbox oil every 1000 hours.
Drain at plug. Replace drain plug and fill with
MPL to lowest line on sight tube.
RT115Q Operator’s Manual
Service - 153
2000 Hour
2000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are not maintained when using
Cool-Gard or if using approved coolant other than
Cool-Gard; see “5000 Hour” on page 154 if proper
SCA levels are maintained when using Cool-Gard
Tractor
Change Engine Coolant
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read notes carefully above to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See “Approved Coolant” on page 127 for list of approved coolants.
If proper SCA levels are not maintained when
using Cool-Gard or if using approved coolant
other than Cool-Gard, drain cooling system at
drain (2) every two years or 2000 hours. Refill at
fill (1) with approved coolant.
RT115Q Operator’s Manual
Service - 154
5000 Hour
5000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are maintained when using CoolGard; see “2000 Hour” on page 153 if proper SCA
levels are not maintained when using Cool-Gard or if
using approved coolant other than Cool-Gard
Tractor
Change Engine Coolant
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read notes carefully above to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See “Approved Coolant” on page 127 for list of approved coolants.
If proper SCA levels are not maintained when
using Cool-Gard or if using approved coolant
other than Cool-Gard, drain cooling system at
drain (2) every two years or 2000 hours. Refill at
fill (1) with approved coolant.
RT115Q Operator’s Manual
Service - 155
As Needed
As Needed
Location
Task
TRACTOR
Adjust parking brake
Notes
Clean radiator fins
Check seatbelt and seatbelt mounting hardware
TRENCHER
Replace digging chain
PLOW
Clean feed tube
Replace sod cutter and blade
Check plow blade bolts
BACKHOE
Replace pins and bushings
210 ft•lb (285 N•m)
Service - 156
RT115Q Operator’s Manual
As Needed
Tractor
Adjust Parking Brake
Adjust parking brake every 1000 hours.
To adjust:
1. Release parking brake.
2. Remove orange sleeve.
3. Twist lever clockwise to tighten.
4. Engage parking brake to test tension. If
tension is too tight, the brake lever will not
engage fully. Repeat steps 1-3 as necessary.
5. Replace orange sleeve.
Clean Radiator Fins
Clean out radiator fins with compressed air or
spray wash if required. Be careful not to damage
fins with high-pressure air or water. Check more
often if operating in dusty or grassy conditions.
RT115Q Operator’s Manual
As Needed
Trencher
Replace Digging Chain
Visually check digging chains for wear on teeth
(1), rollers, and sidebars (2). Check pins (3) and
bushing wear by measuring distance between
chain pins and comparing it with a new chain.
IMPORTANT: Replace sprockets when a new
chain is installed.
To remove chain:
1. Fasten and adjust seat belt.
2. Start tractor. See page 66 for proper start-up
procedures.
3. Move attachment direction/speed control
until digging chain connector pin is on top of boom.
4. Lower boom to ground.
5. Engage parking brake and verify parking brake indicator is on.
6. Turn ignition switch to STOP.
7. Secure chain by clamping links on either side
of connector pin with chain jaws. Squeeze
jaws to reduce pressure on connector pin.
Service - 157
RT115Q Operator’s Manual
Service - 158
As Needed
8. Loop cable through links nearest connector
pin.
Fluid pressure could pierce skin and cause injury or death. Stay
away.
NOTICE: Service digging boom grease cylinder only while standing on opposite side of boom.
Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
9. Loosen plug on grease cylinder to relieve chain tension.
10. Stand clear of chain and remove lock key from connector pin. Drive connector pin out of link.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
11. Unclamp links. Slowly release cable and lower chain to ground.
12. Lay chain on ground with teeth down.
RT115Q Operator’s Manual
Service - 159
As Needed
To install chain:
1. Lay chain on ground with teeth down and pointed toward unit.
2. Fasten and adjust seatbelt.
3. Start tractor. See page 64 for start-up procedures.
4. Disengage parking brake and verify parking brake indicator is off.
5. Move ground drive control to reverse.
6. Back unit up until chain extends past head shaft about 1’ (305 mm).
7. Move ground drive control to neutral.
8. Lower backfill blade, if equipped, to ground.
9. Lower boom to horizontal position.
10. Engage parking brake and verify parking brake indicator is on.
11. Turn ignition switch to STOP.
12. Pull rear end of chain over and about 10" (260 mm) past tail roller.
13. Use hoist to pull front end of chain over head shaft sprocket.
14. Move chain down boom until chain connector pin and lock key can be installed. Install connector pin
and lock key.
15. Tighten chain by pumping EPG into grease cylinder.
Time Augers
Ensure that augers are balanced, as shown. If
auger timing is off, unit will bounce from side to
side even in normal digging conditions.
To adjust timing:
1. Remove bolts holding augers to auger shaft
and rotate either auger as needed until
augers are balanced.
2. Reinstall bolts and tighten securely.
Service - 160
RT115Q Operator’s Manual
As Needed
Plow
Clean Feed Tube
Clean feed tube as needed.
Replace Sod Cutter and Blade
Replace worn sod cutter and plow blade as
needed.
RT115Q Operator’s Manual
As Needed
Check Plow Blade Bolts
Check plow blade bolts as needed. If loose, use
Loctite® 242 (blue) and torque bolts to 210 ft•lb
(285 N•m).
Backhoe
Replace Pins and Bushings
Replace pins (1) and bushings (2) when worn or
damaged.
Service - 161
Service - 162
RT115Q Operator’s Manual
Tier 3 Engine
Tier 3 Engine
Tier 3 is a computer-controlled fuel management system. A variety of sensors send input data to an ECU
(Electronic Control Unit) that compares inputs with pre-programed memory and sends output voltage to a
variety of actuators to adjust and operate the engine within specified parameters.
The system is self-diagnostic with stored trouble codes displayed on the tachometer/diagnostic gauge or
read directly from a diagnostic connector. For more information about the diagnostic system and trouble
codes see "Troubleshooting" in the repair guide.
An operator alert indicator tells the operator when warning faults or engine shutdown faults develop.
Warning faults occur when engine sensors indicate moderate trouble with coolant temperature, oil
pressure, charge air temperature, or fuel temperature. Warning faults cause the operator alert indicator to
flash, and the engine will begin a slow power derate. In some situations an alarm may also sound. A
trouble code is stored in the ECU. If the fault corrects itself, the engine will gradually return to normal
power. The alert indicator will continue to flash until the trouble goes away, but a trouble code will remain
stored.
Engine shutdown will occur due to severe faults in engine coolant temperature, oil pressure, or fuel
temperature. Before shutdown, the operator alert indicator will light continuously and the engine will begin
a rapid power derate. If the fault does not improve in 30 seconds the engine will shut down.
Engine Diagnostic Codes
Problems with the Tier 3 engine usually are indicated by the operator alert indicator and by a diagnostic
code displayed on the tachometer/hourmeter/diagnostic gauge.
RT115Q Operator’s Manual
Tier 3 Engine
Operator Alert Indicator
When a non-critical engine fault occurs, the operator alert indicator on the
gauge cluster will light. A fault code will be stored in the diagnostic gauge.
Engine Shutdown Indicator
When an critical engine fault occurs, the engine shutdown indicator will
light. A fault code will be stored in the diagnostic gauge, and the engine will
shut down within 30 seconds.
Tachometer/Hourmeter/Diagnostic Gauge
To display codes:
1. Press the selection switch to scroll through the gauge parameters until
FMI SPN code is displayed.
2. Press the selection switch to scroll through all codes.
To clear active codes:
1. Turn ignition switch to STOP.
2. Turn ignition switch back to START.
To change display options:
1. Turn the ignition switch to STOP.
2. Press and hold the selection switch.
3. Turn the ignition switch to ON.
4. Press and hold the selection switch to scroll through display options.
5. Release the switch to stop scrolling.
6. To turn options off or on, press the selection switch twice.
7. To save changes, continue scrolling until EXIT CFG is displayed, then press and hold.
Service - 163
RT115Q Operator’s Manual
Service - 164
Tier 3 Engine
Engine Diagnostic Codes
To read a step-by-step troubleshooting sequence for each code, see repair guide.
Diagnostic code
Definition
Possible cause
SPN 28, FMI 3
attachment throttle input high
check sensor (E2) and wiring
SPN 28, FMI 4
attachment throttle input low
SPN 29, FMI 3
primary throttle input high
SPN 29, FMI 4
primary throttle input low
SPN 100, FMI 1
engine oil pressure extremely low
oil pressure sensor (R1)
SPN 100, FMI 3
engine oil pressure input voltage high
oil pressure sensor (R1)
SPN 100, FMI 4
engine oil pressure input voltage low
oil pressure sensor (R1)
SPN 100, FMI 18
engine oil pressure moderately low
oil pressure sensor (R1)
SPN 105, FMI 3
manifold air temp input voltage high
manifold air temp sensor (R2)
SPN 105, FMI 4
manifold air temp input voltage low
manifold air temp sensor (R2)
SPN 105, FMI 16
manifold air temp moderately high
manifold air temp sensor (R2)
SPN 110, FMI 0
engine coolant temp extremely high
coolant temp sensor (R3)
SPN 110, FMI 3
engine coolant temp input voltage high
coolant temp sensor (R3)
SPN 110, FMI 4
engine coolant temp input voltage low
coolant temp sensor (R3)
SPN 110, FMI 15
engine coolant temp high least severe
coolant temp sensor (R3)
SPN 110, FMI 16
engine coolant temp moderately high
coolant temp sensor (R3)
SPN 158, FMI 17
ECU power down error
ignition switch (S2), ignition circuit
SPN 174, FMI 3
fuel temperature input voltage high
fuel temperature sensor (R4)
SPN 174, FMI 4
fuel temperature input voltage low
fuel temperature sensor (R4)
SPN 174, FMI 16
fuel temperature moderately high
fuel temperature sensor (R4)
SPN 190, FMI 0
engine overspeed extreme
crank position sensor (MT1)
SPN 190, FMI 16
engine overspeed moderate
crank position sensor (MT1)
SPN 620, FMI 3
sensor supply voltage high
wire 17 BLU/GRN, ECU (U1)
SPN 620, FMI 4
sensor supply voltage low
wire 17 BLU/GRN, ECU (U1)
SPN 627, FMI 1
all injector currents low
check battery voltage and wiring
SPN 629, FMI 13
ECU error
ECU (U1)
RT115Q Operator’s Manual
Service - 165
Tier 3 Engine
Diagnostic code
Definition
Possible cause
SPN 636, FMI 2
engine position sensor signal unreliable
engine position sensor or wiring
SPN 636, FMI 8
engine position sensor signal missing
SPN 636, FMI 10
engine position sensor signal rate of
change abnormal
SPN 637, FMI 2
engine timing sensor signal unreliable
timing sensor or wiring
SPN 637, FMI 7
engine timing and position sensors out
of sync
check sensors and wiring
SPN 637, FMI 8
engine timing sensor signal missing
timing sensor or wiring
SPN 637, FMI 10
engine timing signal rate of change
abnormal
SPN 639, FMI 13
CAN error
ECU (U1), diagnostic gauge (M1),
wiring connections
SPN 651, FMI 5
injector #1circuit has high resistance
check wiring and injector solenoid
SPN 651, FMI 6
injector #1circuit has low resistance
SPN 651, FMI 7
injector #1 not responding
check injector and flow limiter
SPN 652, FMI 5
injector #2 circuit has high resistance
check wiring and injector solenoid
SPN 652, FMI 6
injector #2 circuit has low resistance
SPN 652, FMI 7
injector #2 not responding
check injector and flow limiter
SPN 653, FMI 5
injector #3 circuit has high resistance
check wiring and injector solenoid
SPN 653, FMI 6
injector #3 circuit has low resistance
SPN 653, FMI 7
injector #3 not responding
check injector and flow limiter
SPN 654, FMI 5
injector #4 circuit has high resistance
check wiring and injector solenoid
SPN 654, FMI 6
injector #4 circuit has low resistance
SPN 654, FMI 7
injector #4 not responding
check injector and flow limiter
SPN 655, FMI 5
injector #5 circuit has high resistance
check wiring and injector solenoid
SPN 655, FMI 6
injector #5 circuit has low resistance
SPN 655, FMI 7
injector #5 not responding
check injector and flow limiter
SPN 656, FMI 5
injector #6 circuit has high resistance
check wiring and injector solenoid
SPN 656, FMI 6
injector #6 circuit has low resistance
SPN 656, FMI 7
injector #6 not responding
check injector and flow limiter
SPN 898, FMI 9
speed or torque signal unreliable
contact Product Support
RT115Q Operator’s Manual
Service - 166
Tier 3 Engine
Diagnostic code
Definition
Possible cause
SPN 970, FMI 31
engine shutdown signal (not engine
fault)
check other shutdown devices
SPN 971, FMI 31
external fuel derate switch active (not
engine fault)
SPN 1079, FMI 3
sensor supply voltage high
wire 17 BLU/GRN, ECU (U1)
SPN 1079, FMI 4
sensor supply voltage low
ECU (U1), wiring
SPN 1080, FMI 3
fuel rail pressure sensor supply voltage
high
check wiring
SPN 1080, FMI 4
fuel rail pressure sensor supply voltage
low
SPN 1109, FMI 31
engine shutdown warning
various
SPN 1110, FMI 31
engine shutdown
various
SPN 1347, FMI 3
high pressure fuel pump control valve
signal high
contact Product Support
SPN 1347, FMI 5
high pressure fuel pump solenoid #1
circuit has high resistance
check pump wiring
SPN 1347, FMI 7
inadequate fuel pump pressure
check fuel filter and lines
SPN 1568, FMI 2
torque curve signal unreliable
contact Product Support
SPN 1569, FMI 31
fuel derate
various
SPN 2000, FMI 13
security violation
ECU (U1) programming
RT115Q Operator’s Manual
Specifications - 167
RT115Q Tractor
Specifications
RT115Q Tractor
Dimensions
U.S.
Metric
A2
Angle of approach
34°
34°
H1
Height
117 in
2.97 m
L1
Nose to rear mount length
128 in
3.25 m
L2
Length - transport
160 in
4.06 m
L4
Wheelbase
73 in
1.85 m
W2
Width
89 in
2.26 m
W4
Tread
71 in
1.80 m
General
Ditch Witch model RT115Q tractor, 4-wheel drive, rigid frame, hydrostatic ground drive through rubber
tracks, 4-wheel steering, hydrostatic attachment drive, riding unit.
Specifications - 168
RT115Q Operator’s Manual
RT115Q Tractor
Operation
U.S.
Metric
Low
2.1 mph
3.4 km/h
Medium
4.0 mph
6.4 km/h
High
7.2 mph
11.6 km/h
Low
2.1 mph
3.4 km/h
Medium
4.0 mph
6.4 km/h
High
4.2 mph
6.8 km/h
Front steer only
39.5 ft
12 m
Coordinated steer
27 ft
8.2 m
Ground clearance
15.5 in
6.91 mm
Basic unit weight
15240 lb
6913 kg
Maximum allowable tractor weight
25000 lb
11340 kg
Front counterweight
2100 lb
950 kg
Backfill Blade (optional)
U.S.
Metric
Blade width
80 in
2.03 m
Blade height
17 in
430 mm
Lift height above ground
26 in
660 mm
Blade drop below ground
10 in
254 mm
Maximum swing angle (left/right)
30°
30°
Tilt angle (up/down)
24°
24°
Forward speeds
Reverse speeds
Vehicle clearance circle (SAE) wall to wall with optional backfill blade
RT115Q Operator’s Manual
Specifications - 169
RT115Q Tractor
Power Plant
U.S.
Metric
Displacement
275 in3
4.5 L
Bore
4.19 in
106 mm
Stroke
5.00 in
127 mm
Engine manufacturer’s gross power rating per SAE J1349
115 hp
86 kW
Estimated net power per SAE J1349
103 hp
77 kW
Rated speed
2400 rpm
2400 rpm
Longitudinal
30°
30°
Lateral
30°
30°
Engine: John Deere 4045HF285, diesel, liquid cooled, 4 cyl, direct injection,
turbocharged with charge air cooling
Maximum engine tilt angles*
*Exceeding these operating angles will cause engine damage. This DOES NOT IMPLY machine is
stable to maximum angle of safe engine operation.
Power Train
Ground drive: hydrostatic
Differentials: planetary front and rear with rear steering
Service brake: hydrostatic
Parking brake: disc, hand operated
Tracks: 450x86x42 rubber track, chevron pattern
Attachment drive: hydrostatic, lever-operated speed infinitely variable from zero to maximum
Hydraulic System
U.S.
Metric
Ground drive pump capacity at 2400 rpm
51.5 gpm
195 L/min
Ground drive pump relief pressure at 2400 rpm
6200 psi
427.5 bar
Attachment pump capacity at 2400 rpm
51.5 gpm
195 L/min
Attachment pump relief pressure at 2400 rpm
6200 psi
427.5 bar
Auxiliary pump capacity at 2400 rpm
14.96 gpm
56.6 L/min
Auxiliary pump relief pressure at 2400 rpm
3300 psi
227.5 bar
Specifications - 170
RT115Q Operator’s Manual
RT115Q Tractor
Fluid Capacities
U.S.
Metric
Fuel tank
38 gal
144 L
Engine oil
16 qt
15 L
Hydraulic reservoir
20 gal
76 L
Hydraulic system
25 gal
95 L
Cooling system
18 qt
16.8 L
Battery (2 used)
Group 65, SAE res. cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp
Auxiliary power outlet - 12 volt, 10 amp
Vibration Level
Average vibration transmitted to the operator’s hand and whole body while plowing is 8.12 and 1.44 m/
sec2 respectively.
Operator seat complies with ISO 7096.
Noise Levels
Operator ear sound pressure level is 94 dBa per ISO 6394.
Exterior sound power level is 110 dBa per ISO 6393.
Unless otherwise specified, all figures are for standard equipment only.
Specifications are called out according to SAE recommended procedures. Specifications are general and subject to change without
notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered
equipment may not necessarily match that described.
RT115Q Operator’s Manual
Specifications - 171
H910 Trencher
H910 Trencher
Dimensions
U.S.
Metric
A3
Angle of departure
30°
30°
A
Trench depth, maximum
93 in
2.36 m
B
Trench width, maximum
24 in
610 mm
C
Boom travel down
65°
65°
C1
Boom travel up
50°
50°
E1
Centerline of trench to outside edge, left
45.5 in
1.12 m
E2
Centerline of trench to outside edge, right
36.5 in
927 mm
F
Headshaft height, digging chain
36 in
914 mm
H1
Transport height
128 in
3.25 m
L2
Transport length
120 in
3.05 m
L
Headshaft overhang
48.5 in
1.2 m
N
Soil discharge reach
33 in
843 mm
Attachment weight
1750 lb
794 kg
Specifications - 172
RT115Q Operator’s Manual
H910 Trencher
Operation
U.S.
Metric
Ratio low
239 rpm
239 rpm
Ratio standard
293 rpm
293 rpm
Ratio high (not recommended)
394 rpm
394 rpm
Ratio low
683 ft/min
208 m/min
Ratio standard
834 ft/min
254 m/min
Ratio high (not recommended)
1122 ft/min
342 m/min
Headshaft speeds with RT115Q at 2500 engine rpm
Digging chain speeds with RT115Q
RT115Q Operator’s Manual
Specifications - 173
H911 Trencher
H911 Trencher
Dimensions
U.S.
Metric
A3
Angle of departure
27°
27°
A
Trench depth, maximum
90 in
2.29 m
B
Trench width, maximum
24 in
610 mm
C
Boom travel down
65°
65°
C1
Boom travel up
50°
50°
E1
Centerline of trench to outside edge, left
30.5 in
775 mm
E2
Centerline of trench to outside edge, right
19 in
483 mm
F
Headshaft height, digging chain
39 in
991 mm
H1
Transport height
130 in
3.30 m
L2
Transport length
134.5 in
3.42 m
L
Headshaft overhang
62.5 in
1.59 m
N
Soil discharge reach
33 in
838 mm
Attachment weight
2350 lb
1066 kg
Specifications - 174
RT115Q Operator’s Manual
H911 Trencher
Operation
U.S.
Metric
Ratio low
239 rpm
239 rpm
Ratio standard
293 rpm
293 rpm
Ratio high (not recommended)
394 rpm
394 rpm
Ratio low
683 ft/min
208 m/min
Ratio standard
834 ft/min
254 m/min
Ratio high (not recommended)
1122 ft/min
342 m/min
Headshaft speeds with RT115Q at 2500 engine rpm
Digging chain speeds with RT115Q
RT115Q Operator’s Manual
Specifications - 175
H1032 Plow
H1032 Plow
Dimensions
U.S.
Metric
A
Cover depth*
36 in
915 mm
A’
Penetration*
40 in
1.02 m
A3’
Angle of departure, transport, no blade
47.5°
47.5°
A3
Angle of departure, transport, 24” (610-mm) blade
30°
30°
Angle of departure, transport, 30” (760-mm) blade
24°
24°
H
Angle of depression, plow max.
25°
25°
H2
Height transport
93 in
2.36 m
J
Blade ground clearance, 30” (760-mm) blade
24 in
610 mm
L2
Attachment length, fully lowered, no blade
97 in
2.46 m
L2’
Attachment length, fully raised, no blade
78 in
1.98 m
Plow swing angle
43°
43°
Inclusive blade steer angle
89°
89°
Center of plow to outside edge of machine, left
43.5 in
1.11 m
Specifications - 176
RT115Q Operator’s Manual
H1032 Plow
Center of plow to outside edge of machine, right
45.5 in
1.16 m
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions
Operation
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
157 kN
Pulled
3 in
80 mm
Fed
2 in
50 mm
General
U.S.
Metric
Attachment weight, without plow blade
2600 lb
1180 kg
Maximum material diameter
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
RT115Q Operator’s Manual
Specifications - 177
H1052 Combo
H1052 Combo
Trencher
Dimensions
U.S.
Metric
A
Trench depth, maximum
70 in
1.78 m
A3
Angle of departure
26°
26°
B
Trench width
6-12 in
150-300 mm
C1
Boom travel up
44°
44°
C
Boom travel down
60°
60°
F
Headshaft height, digging chain
31 in
790 mm
L2
Transport length (48” boom)
111 in
2.19 m
D
Transport height (48” boom)
96 in
2.44 m
E1
Center of trench to outside edge, left*
13 in
330 mm
E2
Center of trench to outside edge, right
76 in
1.93 m
N
Spoil discharge reach, minimum
19 in
480 mm
Specifications - 178
RT115Q Operator’s Manual
H1052 Combo
L
Headshaft overhang
48 in
1.22 m
*Left edge of machine is defined as outside of digging chain guard
Operation
U.S.
Metric
Ratio low
239 rpm
239 rpm
Ratio standard
293 rpm
293 rpm
Ratio high (not recommended)
394 rpm
394 rpm
Ratio low
621 ft/min
189 m/min
Ratio standard
761 ft/min
232 m/min
Ratio high
1024 ft/min
312 m/min
Maximum headshaft speed
Maximum digging chain speed
RT115Q Operator’s Manual
Specifications - 179
H1052 Combo
Plow
Dimensions
U.S.
Metric
A
Cover depth*
36 in
915 mm
A’
Penetration*
40 in
1.02 m
A3
Angle of departure, transport, 24” (610-mm) blade
30°
30°
Angle of departure, transport, 30” (760-mm) blade
24°
24°
A3’
Angle of departure, transport, no blade
47.5°
47.5°
H
Angle of depression, plow max.
25°
25°
H2
Height, transport
93 in
2.36 m
J
Blade ground clearance, 30” (760-mm) blade
24 in
610 mm
L2
Attachment length, fully lowered, no blade
97 in
2.46 m
L2’
Attachment length, fully raised, no blade
78 in
1.98 m
Plow swing angle, left
0°
0°
Plow swing angle, right
43°
43°
Inclusive blade steer angle
89°
89°
Center of plow to outside edge of machine, left
41 in
1.04 m
Specifications - 180
RT115Q Operator’s Manual
H1052 Combo
Center of plow to outside edge of machine, right
48 in
1.22 mm
* Suggested maximum. Plow blade used will be determined by job requirements and soil conditions.
Operational
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
156 644 kN
Pulled
3 in
76 mm
Fed
2 in
51 mm
General
U.S.
Metric
Attachment weight without boom, chain, or plow blade
3465 lb
1567 kg
Maximum material diameter
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
RT115Q Operator’s Manual
Specifications - 181
A920 Backhoe
A920 Backhoe
Dimensions
U.S.
Metric
A
Transport height
122 in
3.10 m
C
Ground clearance
33 in
838 mm
D
Backhoe length, stowed
117 in
2.97 m
F
Digging depth, max.
108 in
2.74 m
G
Digging depth, 2” (0.6 m) flat bottom
105 in
2.67 m
J
Operating height, fully raised
160 in
4.06 m
K
Loading height
108 in
2.74 m
L
Loading reach
78 in
1.98 m
M
Reach from swing pivot
158 in
4.01 m
N
Swing pivot to centerline axle
57 in
1.45 m
P
Bucket rotation
170°
170°
B
Stabilizer spread, transport
86 in
2.18 m
Specifications - 182
RT115Q Operator’s Manual
A920 Backhoe
E
Backhoe or basic unit width
82 in
2.08 m
R
Stabilizer spread, operating
121 in
3.07 m
U
Leveling angle
10°
10°
U.S.
Metric
Width
12-24 in
305-610
mm
Capacity
1.7-3.5 ft3
0.05-.1 m3
3300 lb
1497 kg
@ 48” (1.2 m)
1170 lb
530 kg
@ ground level
1250 lb
567 kg
@ 72” (1.8 m)
1184 lb
537 kg
@ 52” (1.3 m)
3184 lb
1444 kg
@ 96” (2.4 m)
2242 lb
1017 kg
180°
180°
Using bucket cylinder
6600 lb
2994 kg
Using dipperstick cylinder
4475 lb
2030 kg
General
Bucket
Backhoe weight with 18” (686 mm) bucket
Lift capacity, boom over end and swing arc, SAE*
Lift capacity, dipperstick over end and swing arc, SAE*
Swing arc
Digging force
*Lift capacities are for a stationary machine supported by stabilizers.
RT115Q Operator’s Manual
Specifications - 183
RC115 Reel Carrier
RC115 Reel Carrier
Dimensions
U.S.
Metric
L5
Distance from backfill blade to outside edge of reel carrier with
maximum diameter reel
74 in
1.88 m
N
Maximum reel diameter
84 in
2.13 m
Internal width
54 in
1.37 m
Capacity
2500 lb
1134 kg
Attachment weight with six 90-lb (41-kg) counterweights
1600 lb
726 kg
Specifications - 184
RT115Q Operator’s Manual
RC115 Reel Carrier
RT115Q Operator’s Manual
Service Record - 185
Service Record
Service Performed
Date
Hours
CMW
Service Record - 186
Service Performed
CMW
RT115Q Operator’s Manual
Date
Hours
RT115Q Operator’s Manual
Support - 187
Procedure
Support
Procedure
Notify your dealer immediately of any malfunction or failure of Ditch Witch equipment.
Always give model, serial number, and approximate date of your equipment purchase. This information
should be recorded and placed on file by the owner at the time of purchase.
Return damaged parts to dealer for inspection and warranty consideration if in warranty time frame.
Order genuine Ditch Witch replacement or repair parts from your authorized Ditch Witch dealer. Use of
another manufacturer's parts may void warranty consideration.
Resources
Publications
Contact your Ditch Witch dealer for publications and videos covering safety, operation, service, and repair
of your equipment.
Ditch Witch Training
For information about on-site, individualized training, contact your Ditch Witch dealer.
CMW
RT115Q Operator’s Manual
Warranty - 188
Warranty
Ditch Witch Equipment and Replacement Parts
Limited Warranty Policy
Subject to the limitation and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for
any Ditch Witch equipment or parts manufactured by The Charles Machine Works, Inc. (CMW) that fail due to a defect in material or
workmanship within one (1) year of first commercial use (Exception: 2 years for all SK5 attachments). Free labor will be provided at
any authorized Ditch Witch dealership for installation of parts under this warranty during the first year following “initial commercial”
use of the serial-numbered Ditch Witch equipment on which it is installed. The customer is responsible for transporting their
equipment to an authorized Ditch Witch dealership for all warranty work.
Exclusions from Product Warranty
•
All incidental or consequential damages.
•
All defects, damages, or injuries caused by misuse, abuse, improper installation, alteration, neglect, or uses other than those for
which products were intended.
•
All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with
manufacturer’s recommendations.
•
All engines and engine accessories (these are covered by original manufacturer’s warranty).
•
Tires, belts, and other parts which may be subject to another manufacturer’s warranty (such warranty will be available to
purchaser).
•
ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY.
IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES, AS DEFINED BY THE UNIFORM COMMERCIAL
CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPLIED
WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED
WARRANTY APPLY INCLUDING THE DUTIES IMPOSED.
Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver
acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working
conditions prior to purchase.
Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part by CMW or its authorized
dealer. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon inquiry. CMW reserves the right
to supply remanufactured replacements parts under this warranty as it deems appropriate.
Extended warranties are available upon request from your local Ditch Witch dealer or CMW.
Some states do not allow exclusion or limitation of incidental or consequential damages, so above limitation of exclusion may not
apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may
not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary
from state to state.
For information regarding this limited warranty, contact CMW’s Product Support department, P.O. Box 66, Perry, OK 73077-0066, or
contact your local Ditch Witch dealer.
First version: 1/91; Latest version: 7/05
CMW
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
