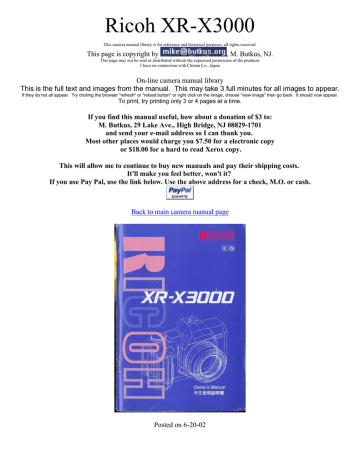

Ricoh XR-X3000
This camera manual library is for reference and historical purposes, all rights reserved.
This page is copyright by
, M. Butkus, NJ.
This page may not be sold or distributed without the expressed permission of the producer
I have no connection with Chinon Co., Japan
On-line camera manual library
This is the full text and images from the manual. This may take 3 full minutes for all images to appear.
If they do not all appear. Try clicking the browser "refresh" or "reload button" or right click on the image, choose "view image" then go back. It should now appear.
To print, try printing only 3 or 4 pages at a time.
If you find this manual useful, how about a donation of $3 to:
M. Butkus, 29 Lake Ave., High Bridge, NJ 08829-1701
and send your e-mail address so I can thank you.
Most other places would charge you $7.50 for a electronic copy
or $18.00 for a hard to read Xerox copy.
This will allow me to continue to buy new manuals and pay their shipping costs.
It'll make you feel better, won't it?
If you use Pay Pal, use the link below. Use the above address for a check, M.O. or cash.
Back to main camera manual page
Posted on 6-20-02
1. LOCATING THE CONTROLS
When reading this manual, refer to "locating the controls" (fold out the front and back covers)
Click here for LOCATING THE CONTROLS page
Click here for LOCATING THE CONTROLS page - 2
Click here for the FUNCTION MAP
Click here for the FUNCTION MAP - page 2
Click here for the FUNCTION MAP - page 3
Click here for the FUNCTION MAP - page 4
Click here for the FUNCTION MAP - page 5
Click here for the LCD INFORMATION page
Reading the Exposure Indicator The exposure indicator is displayed in the viewfinder display and the exposure
compensation value is displayed on the LCD panel in the following conditions:
· In Manual operation
· When the exposure compensation has been set.
· When the exposure compensation is being set.
4www.butkus.org
In Manual operation or for exposure compensation, the exposure indicator in the viewfinder display indicates the
difference between the correct exposure value (EV) and the current exposure compensation setting.
Click here for the VIEWFINDER DISPLAY page
Click here for the VIEWFINDER DISPLAY page -2
The * mark flashes when the value exceeds -1 EV or +1 EV.
Exposure compensation can be set within the range of +/- 4 EV in 0.5 EV increments. The shutter speed in the
viewfinder display flashes when the current exposure setting is beyond the exposure metering range. However, the
overexposure or underexposure can still be taken deliberately to capture a particular creative effect. Nevertheless, to
avoid incorrect exposure, select a larger or smaller aperture, select a faster or slower shutter speed, or use a flash unit
as necessary.
4. QUICK GUIDE IN AUTO OPERATION
The following is a quick overview of the Auto Operation. For more detailed information, refer to "A (AUTO) AND
M (MANUAL) OPERATIONS" on page 17.
5. CONTENTS
8. MOUNTING AND REMOVING THE LENS 13
1. LOCATING THE CONTROLS 3
9. MAIN SWITCH SELECTOR ; 14
2. FUNCTION MAP 4
10. MONITORING THE CONDITION OF THE BATTERIES 14
3. LCD INFORMATION 6
11. LOADING THE FILM 15
Viewfinder Display 7
Reading the Exposure Indicator 7
4. QUICK GUIDE IN AUTO OPERATION 8
12. SETTING THE FILM SPEED AUTOMATICALLY 16
DX Films 16
Non-DX Films 16
5. CONTENTS 10
A (AUTO) AND M (MANUAL) OPERATIONS
6. ATTACHING THE STRAP 12
13. MAIN SWITCH SELECTOR--UA/M 17
7. INSERTING THE BATTERIES 12
Auto Power Off Function 18
14. A (AUTO) OPERATION 18
26. EXPOSURE METERING USER SETTING MODE 29
15. M (MANUAL) OPERATION 19
27. PREVIEW/AK LOCK USER SETTING MODE 30
Bulb Function 20
16. HOLDING THE CAMERA 21
17. FOCUSING 22
Types of Focusing 22
18. SHOOTING 23
19. REWINDING THE FILM 24
Midroll Rewind 24
MODES
28. ISO USER SETTING MODE 32
29. EXPOSURE COMPENSATION 33
Shooting in Backlit Conditions 33
Dominantly White Subjects 34
Dominantly Dark-colored Subjects 34
FLASH PHOTOGRAPHY
30. FLASH PHOTOGRAPHY WITH SL-303P, SL-403P 36
31. FLASH PHOTOGRAPHY WITH FLASH UNITS OTHER
THAN RICOH 37
20. SETTING THE MODES 25
OTHERS
21 SELF-TIMER MODE 26
32. INFRARED FILM 38
22. MULTI EXPOSURE MODE 27
33. DIOPTRIC LENSES 38
23. AUTO BRACKETING MODE 28
34. INTERCHANGEABLE VIEWFINDER SCREENS 39
24. CONTINUOUS SHOOTING MODE 28
35. RELEASE SWITCH 39
25. NORMAL MODE 29
36. CARE OF BATTERIES 40
37. DATA BACK 7 40
38. PROPER CARE OF YOUR CAMERA 44
39. MAJOR SPECIFICATIONS 45
6. ATTACHING THE STRAP
1. Remove the battery holder by turning the battery holder screw
counterclockwise with a coin. (Fig. 1)
2. Slip the viewfinder cap and shoulder pad onto the strap. (Fi 9. 2)
3. Run the strap through the strap eyelet as shown. (Fig. 3)
4www.butkus.org
4. Secure the battery holder to the camera body by turning the battery holder
screw clockwise with a coin. (Fig. 4)
5. Adjust the strap length as desired.
7. INSERTING THE BATTERIES
1. Remove the battery holder.
2. Insert four new M-size alkaline batteries and make sure that the + and - on the
batteries are aligned according to the polarity diagram inside the battery holder.
(Fig. 5)
<<< update - I have been told a Olympus eyecup and other accessories will work on XR cameras >>>
3. Secure the battery holder to the camera body by turning the battery holder
screw clockwise with a coin. (Fig. 6)
Notes on Batteries
· The condition of the batteries should be monitored frequently. For more
information, refer to "MONITORING THE CONDITION OF THE
BATTERIES" on page 14.
· Be sure to replace all four batteries at once. Replace with the same brand of
batteries.
· Do not use AA-size lithium batteries.
8. MOUNTING AND REMOVING THE LENS
1. Remove the camera body cap. (Fig. 7)
4www.butkus.org
2. Align the red dot on the camera with the red dot An the lens and mount the
lens on the camera. (Fig. 8)
3. Turn the lens in the direction shown by the arrow until it clicks into place.
(Fig. 9)
· If the lens is to be removed from the camera for a certain period of time, use
the camera body cap to avoid dust and foreign particles from entering your
camera. Likewise, use the front and rear lens caps to protect your lens also.
4. To remove the lens, press the lens release button, then turn the lens in the
direction shown by the arrow. (Fig. 10)
· For best results, use Ricoh lenses only. Optimum performance of the camera
may be compromised by using other lenses.
9. MAIN SWITCH SELECTOR
1. Set the main switch selector to A (Auto) or M (Manual). (Fig. 11 )
· If the camera is left unattended for about 30 seconds, the power switches off
automatically and the display on the LCD panel disappears. The Auto Power
Off function prevents unnecessary waste of the battery power. The current
information contained in the camera memory is retained.
4www.butkus.org
Lightly press the shutter button to turn on the power and update the LCD
panel. For maximum battery life, always set the mainswitch selector to L
(Lock) when the camera is not used.
10. MONITORING THE CONDITION OF THE BATTERIES
When the main switch selector is set to A (Auto) or M (Manual), the battery
condition is displayed on the LCD panel.
1. Batteries are in good condition when the I symbol appears on the LCD
panel. (Fig. 12)
2. When the batteries are nearly exhausted, the a symbol is displayed on the
LCD panel. (Fig. 13) Replace with four new M-size alkaline batteries.
3. When the batteries are virtually exhausted, the n symbol appears on the
LCD panel. Replace with four new AA-size alkaline batteries. (Fig. 14)
· In extremely cold temperatures, the n symbol may appear on the LCD panel.
(In cold temperatures, the battery voltage is reduced.) You may be able to use
the camera if you remove and warm up the batteries.
11. LOADING THE FILM
Always avoid direct sunlight when loading the film.
1. Press the back cover lock release button and slide the back cover latch down
to open the back cover. (Fig. 15)
4www.butkus.org
2. Load the film cassette into the film chamber and pull out the film leader so
that it extends past the film leader index. (Fig. 16)
· If the film leader is pulled out more than necessary when loading, the total
number of exposures may be reduced.
3. Make sure that the film stays within the film guides, and that the upper
sprocket edge is under the guide plate. (Fig. 17)
The film may not load properly if the film leader does not lie flat. Make sure that the film lies flat as shown. (Fig. 18)
4. Close the back cover so that the back cover latch snaps shut and returns to
the original position. (Fig. 19) If the film has been properly loaded, the film
speed appears on the LCD panel for about 2 seconds. Then, the exposure
counter displays "1". (Fig. 20)
· If the display on the LCD panel disappears, lightly press the shutter button
to turn on the power and update the LGD panel.
· The ISO setting on the LCD panel can be checked by looking through the
film loaded window on the back cover of the camera (applicable when the
Data Back is not attached). The current ISO setting can be determined also
by turning the mode dial to select the ISO User Setting mode.
5. If the film has not advanced properly or is not taken up onto the film
take-up spool, the exposure counter flashes "0". The shutter will lock also to
prevent you from taking a picture until the film is loaded properly.
(Applicable for DX coded films only.) Reload the film by repeating steps 14 as described above. (Fig. 21)
· If non-Ding films are loaded in this camera, no LCD warnings will appear
and the shutter can be released. (The film speed must be set manually also.
If not, non DX films will be set to the default 100 film speed setting.)
4www.butkus.org
12. SETTING THE FILM SPEED AUTOMATICALLY
DX-coded films have black-and-silver patterns corresponding to film speeds
that the camera reads and sets automatically. Your camera accepts DX films
with speeds ranging from ISO 25-5000. (Fig. 22)
DX Films
The film speed and the "ISO" indicator are briefly displayed on the LCD
panel.
For advanced applications, you may wish to raise or lower the ISO speed of
a DX-coded film. You can override the automatic ISO setting manually
between ISO 12 to 6400.
Refer to "lSO USER SETTING MODE" on page 32.
Non-DX Films
Non-DX films must be set manually. If not, the film will be set to the
default 100 film speed setting. For more information on loading non-Ding
films, refer to page 32.
A (AUTO) AND M (MANUAL) OPERATIONS
13. MAIN SWITCH SELECTOR--L/A/M
1. Set the main switch selector to the desired operation.
(Fig. 23)
L (Lock)
Locks the operations and turns off the camera. Set to L
(Lock) when the camera is not used.
A (Auto ~ P. 18)
Selects optimum shutter speed automatically according to the user-selected aperture for creative control of the depth
of field.
4www.butkus.org
M (Manual ~ P. 19)
Enables manual user-selected aperture and shutter speed settings for individual creative effects or difficult lighting
conditions.
· The LCD panel and the viewfinder display operate when A (Auto) or M (Manual) is selected.
· If there is a film loaded in the camera, the film speed will be displayed for the first 2 seconds.
2. Check the batteries.
· Refer to "MONITORING THE CONDITION OF THE BATTERIES" on page 14.
· If the main switch selector is set to L (Lock), the power will be completely cut off. The LCD panel and the
viewfinder display will not operate.
· The following modes will be canceled when the main switch selector is set to L (Lock).
· AE Lock setting (in the Preview/AE Lock User Setting mode)
· Self-timer mode
· To prevent unnecessary battery depletion, set the main switch selector to L (Lock) when you are not using the
camera.
Auto Power Off Function
If the camera controls. are not operated or camera operations** are not performed for about 30 seconds, the display
will disappear on the LCD panel. At this time, if the shutter button is pressed lightly halfway, the display will appear
again. ~ All buttons, mode dial, and main switch selector. ** Shooting, film loading, and film rewinding.
· The mode settings selected before the display disappears, will not be canceled.
· When the Auto Power Off function operates and the display disappears on the LCD panel, only the following can be
operated so that the display will appear again: shutter button, manual rewind button and the main switch selector. To
set or change the mode settings, press the shutter button halfway to operate the LCD panel.
· If the camera is not operated for about 10 seconds, the display inside the viewfinder will disappear. By pressing the
shutter button halfway, the display will appear.
14. A (AUTO) OPERATION
The camera is set to A (Auto) operation when the following viewfinder
display appears. Note that the viewfinder display may vary slightly according
to the current shutter speed and settings (i.e., AE lock, exposure metering,
flash, bulb, and exposure compensation settings). (Fig. 24)
· If the LCD panel or viewfinder display is not operating, press the shutter
button halfway and the display will appear.
1. Set the main switch selector to A (Auto). (Fig. 25)
Make sure that the mode dial is set to either Self-timer
4www.butkus.org
Multi Exposure, Auto Bracketing, Continuous Shooting, or Normal mode.
2. Set to the desired lens aperture. (Fig. 26)
· If the aperture is set to "P" or "A", turn the aperture ring while pressing the
~ P" or "A" lock pin.
3. Check the LCD panel and look through the viewfinder and make sure that
the viewfinder display is operating. (Fig. 27)
· The shutter speed appears in the viewfinder display.
· The shutter speed flashes in the viewfinder display when the subject is
underexposed or overexposed. Under certain conditions, a subject may be
underexposed even when the slowest shutter speed (i.e., 32 seconds) is set.
"L32" flashes in the viewfinder display. Use a flash unit, the Bulb function,
or simply select a larger aperture (smaller number aperture setting) as
necessary. Likewise, a subject may be overexposed even when the fastest
shutter speed (i.e., 1/2000 th second) is set. "2000" flashes in the viewfinder
display. Use a neutraldensity filter or simply select a smaller aperture (larger
number aperture setting) as necessary. (Fig. 28, 29)
15. M (MANUAL) OPERATION
The camera is set to M (Manual) operation when the following viewfinder
display appears. Note that the viewfinder display may vary slightly according
to the current shutter speed and settings (i.e., AE lock, exposure metering,
flash, bulb, and exposure compensation settings). (Fig. 30) Make sure that "M"
is displayed in the viewfinder display and that the lens aperture is not set to
"P" or "A".
4www.butkus.org
1. Set the main switch selector to M (Manual). (Fig. 31)
Make sure that the mode dial is set to either Self-timer,
Multi Exposure, Auto Bracketing, Continuous Shooting, or Normal mode.
2. Press the up/down buttons to display the shutter speed you wish to set. (Fig.
32)
3. Look through the viewfinder and adjust the aperture setting by turning the
aperture ring. To change the shutter speed, press the up/down buttons. The
exposure indicator appears in the viewfinder display. Look at the exposure
indicator when setting the aperture and shutter speed. When the dot (a) of the
exposure indicator is under the "O", the correct exposure is set. (Fig. 33) The
subject is underexposed when the dot (O) of the exposure indicator is towards
-1. Likewise, the subject is overexposed when the dot (O) of the exposure
indicator is towards +1. For underexposed pictures, set a larger aperture
(smaller number aperture setting) or slower shutter speed. For overexposed
pictures, set a smaller aperture (large number aperture setting) or faster shutter
speed.
· If the viewfinder display is not operating, press the shutter button halfway
and the display will appear.
· Naturally, exposure compensation cannot be set in Manual operation because
the desired compensation can be deliberately selected by looking at the
exposure indicator when setting the aperture and shutter speed.
Bulb Function
If the shutter speed is set to "bulb" in Manual operation, the shutter will
remain open for as long as you keep the shutter button pressed. This is
referred to as bulb photography. Bulb photography is used for shooting night
scenes, or other images with long exposure times.
4www.butkus.org
1. Set the main switch selector to M (Manual) (Fig. 34) Make sure that the
mode dial is set to either Multi Exposure, or Normal mode.
2. Press the up/down buttons to display "bulb" on the LCD
Panel. (Fig. 35)
· The Self-timer and Auto Bracketing modes are not applicable when the
shutter speed is set to "bulb".
· The "B" mark is also displayed in the viewfinder display.
3. Set to the desired lens aperture.
· If the aperture is set to "P" or "A", turn the aperture ring while pressing the
"P" or "A" lock pin.
4. Keep the shutter button pressed for as long as you wish the shutter to
remain open. (Fig. 36)
· If you remove your finger from the shutter button, the shutter will close
· The exposure counter on the LCD panel will display the time (in seconds)
that the shutter has been open.
· To avoid camera shake, use a tripod and a release switch.
· If the battery runs out of power, the shutter may prematurely close.
16. HOLDING THE CAMERA
To prevent camera shake, be sure to hold the camera properly when shooting.
Support the camera on the palm of your left hand so that you can turn the
focusing ring'with your fingers. (Fig. 37)
With your right hand lightly grasp the grip and place your index finger lightly
over the shutter button. When pressing the shutter button, grasp the grip
firmly. Place your elbows against your body.when shooting with the camera
in a horizontal position, or place your left elbow against your body when
shooting with the camera in a vertical position. (Fig. 38)
4www.butkus.org
Place your forehead against the camera and look through the viewfinder.
17. FOCUSING
Focusing is achieved with the Split-image, Microprism or Matte focusing
screen in the viewfinder. The viewfinder image is crucial for accurate
focusing of the lens, and therefore greatly influences image sharpness.
Different photographic applications often require different focusing screens.
The optimum type of focusing depends on the subject and the lens being
used. (Fig. 39, 40)
While looking through the viewfinder, focus by turning the focusing ring.
(Fig. 41)
Types of Focusing
A. Split-image The area inside the central circle is the split image. When both
images in the split-image area form a single clear image, the subject is in
focus. The split-image helps you focus quickly and easily on subjects with
clear lines or contours. (Fig. 42)
B. Micropasm The area inside the outer circle is the microprism. When the
image stops "flickering" and is sharp and clearly visible, the subject is in
focus. The microprism allows fast and precise focusing on subjects without
recognizable lines or contours. (Fig. 42)
C. Matte screen
The area outside the microprism is the matte screen. Focusing is done by sight and requires practice as the transition
from unsharp to sharp is gradual rather than abrupt. The matte screen helps you focus precisely with lenses of longer
focal lengths as well as in the macro range. (Fig. 42)
· When you use a small aperture (large number aperture setting) with a lens such as a zoom lens, half of the split
image becomes dark. In this case, use the matte screen to focus.
18. SHOOTING
1. Press the shutter button halfway. (Fig. 43)
· The LCD panel and viewfinder display operate.
· The shutter button can be pressed in two ways. If it is pressed halfway, the
LCD panel and the viewfinder display operate. If it is pressed fully, the shutter
is released.
4www.butkus.org
· If the camera is not operated for about 10 seconds, the display inside the
viewfinder will disappear. By pressing the shutter button halfway, the display
will appear.
· If the camera is not operated for about 30 seconds, the display on the LCD
panel will disappear. By pressing the shutter button halfway, the display will
appear.
2. Confirm that the viewfinder display is operating. (Fig. 44)
Fig. 44 indicates the viewfinder display in Auto operation.
The number denotes the current shutter speed. Note that the viewfinder display
may vary slightly according to the current operation (i.e., Auto or Manual) and
settings (i.e.,
AE lock, exposure metering, flash, bulb, and exposure compensation settings).
· When a slow shutter speed has been set, use a tripod to prevent camera shake.
3. Press the shutter button. (Fig. 45)
· The film advances when the shutter is released.
19. REWINDING THE FILM
1. When the film has reached the end, the film rewinds to completion
automatically while the exposure counter counts down. (Fig. 46)
· When the film is completely rewound, the exposure counter displays "E".
(Fig. 47)
2. While pressing the back cover lock release button, slide the back cover
latch down and open the back cover.
3. Remove the film.
· When you are in a quiet location and the noise produced during film
rewinding is disturbing, set the main switch selector to L (Lock) to turn off
the power. Rewinding will be temporarily stopped. When the main switch
selector is set to A (Auto) or M (Manual), the film will resume rewinding.
· If the manual rewind button is pressed while the film is rewinding, the
film leader will not be rewound completely so that a portion of the film
leader protrudes from the film cassette.
Midroll Rewind
Press the manual rewind button. (Fig. 48)
· When removing the film, be careful not to touch the shutter with your
fingers or with the edge of the film.
4www.butkus.org
· The shutter cannot be released when "E" is displayed on the LCD panel.
· It is sometimes possible to take more exposures than the specified
number indicated on the box of the film. However, these "extra" exposures
may be overlapped or cut off.
MODES
20. SETTING THE MODES
Use the mode dial to select the desired mode (i.e., Self timer, Multi
Exposure, Auto Bracketing, Continuous Shooting, Normal, Exposure
Metering User Setting, Preview/ AE Lock User Setting, and ISO User
Setting modes). Press the up/down buttons to select the desired setting (i.e.,
Exposure Metering User Setting, Preview/AE Lock User Setting, and ISO
User Setting) and to set the shutter speed in Manual operation or exposure
compensation in Auto operation. A For a brief explanation, refer to the
"FUNCTION MAP" on pages 4-5.
For more information on modes and settings, refer to the appropriate
sections for each mode.
The settings are displayed on the LCD panel. (Fig. 49)
· If the LCD panel or viewfinder display is not operating, press the shutter
button halfway and the display will appear. The modes cannot be set when
the display is not operating
1. Turn the mode dial to select the mode you wish to set. (Fig. 50)
2. Press the up/down buttons and set or adjust the value of the mode you
have selected. (Fig. 51 ) For more information, refer to "Up/Down Buttons
Operations" on page 5.
21. SELF-TIMER MODE
1. After focusing, slip the viewfinder cap attached to the
strap over the viewfinder eyepiece as necessary. (Fig. 52)
· The viewfinder cap is used to avoid incorrect exposure due to stray light
which may enter the viewfinder eyepiece. This is to ensure that the metering
system is not adversely affected.
· The Self-timer mode is not only useful for self-portraits but also for shakefree exposures with slow shutter speeds.
2. Turn the mode dial to select A) (Self-timer mode).
(Fig. 53)
3. Press the shutter button.
4www.butkus.org
· When the self-timer has been activated, the self-timer LED will start
flashing and about 10 seconds later, the shutter will be released. The selftimer LED remains lit for the last 2 seconds before the shutter is released.
(Fig. 54)
· To cancel the Self-timer mode after pressing the shutter button, turn the
mode dial to select another mode, or set the main switch selector to L
(Lock) to turn off the power.
· The exposure counter on the LCD panel indicates the number of seconds
remaining before the shutter is released. (Fig. 55)
· The Self-timer mode is not applicable when the shutter speed is set to
"bulb".
22. MULTI EXPOSURE MODE
1. Turn the mode dial to select (Multi Exposure mode). (Fig. 56)
2. Press the shutter button as many times as necessary to take several
exposures on the same frame.
· The film will not advance and the exposure counter number will remain
the same.
· To cancel the Multi Exposure mode, turn the mode dial to select another
mode, or set the main switch selector to L (Lock) to turn off the power.
· When developing negative films, make sure that you indicate that the
film contains multi exposure shots where applicable. The multi exposed
shot may be mistaken for an error and may not be printed.
23. AUTO BRACKETING MODE
When the shutter button is pressed in the Auto Bracketing mode, the
camera will take 3 frames of an underexposed, a correctly exposed, and an
overexposed picture in 0.5 EV increments. Auto Bracketing is especially
effective when using a reversal (slide) film.
1. Turn the mode dial to select (Auto Bracketing mode). (Fig. 57)
2. Press the shutter button.
· The camera will take 3 frames in the following order: underexposed (-0.5
EV), correctly exposed (O EV), and overexposed (+0.5 EV).
· To cancel the Auto Bracketing mode, turn the mode dial to select another
mode.
· When the Auto Bracketing mode is combined with exposure
compensation or AE lock, the exposure range will be based on the selected
exposure compensation value or the locked exposure value respectively.
For example, when exposure compensation or the locked exposure value is
-1.0 EV: the exposure range will be -1.5 EV, -1.0 EV, and -0.5 EV.
· The Auto Bracketing mode is applicable for Manual operation also.
4www.butkus.org
· The Auto Bracketing mode cannot be combined with flash photography
(i.e., Ricoh flash units such as the Speedlite 303P, 323, 403P, etc.).
· The Auto Bracketing mode is not applicable when the shutter speed is set
to "bulb".
24. CONTINUOUS SHOOTING MODE
Continuous shooting occurs for as long as you press the shutter button in the
Continuous Shooting mode.
1. Turn the mode dial to select
(Continuous Shooting mode). (Fig. 58)
2. Press the shutter button. Continuous shooting is enabled as long as the
shutter button is pressed.
· To cancel the Continuous Shooting mode, turn the mode dial to select
another mode, or set the main switch selector to L (Lock) to turn off the
power.
25. NORMAL MODE
When done with using other modes, set the camera to the Normal mode.
Under normal conditions, the camera should be set to the Normal mode.
4www.butkus.org
--
1. Turn the mode dial to select
(Normal mode). (Fig. 59) When you do
not wish to operate the Self-timer, Multi Exposure, Auto Bracketing, or
Continuous Shooting mode, and do not require to change the Exposure
Metering User Setting, Preview/AE Lock User Setting, or ISO User Setting
mode, set the camera to the Normal mode.
2. Press the shutter button.
26. EXPOSURE METERING USER SETTING MODE
This camera has 2 types of exposure metering systems: center-weighted
average metering and spot metering. Choose the appropriate metering system
according to the situation or subject you are shooting.
Center-weighted average metering This system measures the viewing area,
emphasizing the center portion. This metering system is ideal for general
shooting and landscape shooting. (Fig. 60)
4www.butkus.org
Spot metering This system only measures the central spot (inside the
microprism area). This metering system is effective when there is a wide
contrast between the subject and the background, or when you wish to
emphasize a section of the subject (i.e., portrait shooting in backlit
conditions, subjects on a stage, etc.). (Fig. 61)
1. Turn the mode dial to select
(Fig. 62)
(Exposure Metering User Setting mode).
2. Press the up/down buttons to select either [ ] (spot l metering) or [*]
(center-weighted average metering). (Fig. 63)
3. To change the current exposure metering setting, repeat steps 1 and 2
again.
27. PREVIEW/AE LOCK USER SETTING MODE
The Preview/AE Lock User Setting mode allows setting for the Preview
mode or the AE Lock mode. The Preview mode enables the preview of the
depth of field for the selected aperture. The AE Lock mode locks the
exposure value for precise exposure metering.
1. Turn the mode dial to select PV/AEL (Preview/AE Lock User Setting
mode). (Fig. 64)
2. Press the up/down buttons to select either PV (Preview) or AEL (AE
Lock). (Fig. 65) To change the current Preview/AE Lock setting, repeat steps
1 and 2 again.
4www.butkus.org
Preview
Normally, the image seen through the viewfinder is an image with the
aperture open. The Preview mode sets the actual aperture you have selected
allowing you to confirm the depth of field of the image.
1. Make sure that PV (Preview) is selected for the Preview/ AE Lock User
Setting mode as described above. "PV" is displayed on the LCD panel in all
modes except the Exposure Metering User Setting and ISO User Setting
modes when Preview is selected. (Fig. 66)
2. While looking through the viewfinder, press the preview/ AE lock button.
(Fig. 67)
· The aperture will be set to the aperture opening you have selected and you
can confirm the areas that are focused.
· The viewfinder image will darken when the Preview/AE lock button is
pressed.
AE Lock
The AE Lock mode locks the exposure value for precise exposure metering.
With the AE Lock mode, you can precisely meter a subject detail that is not
located in the center of the viewfinder, and cope with high-contrast subjects
and backlit situations when used in combination with exposure compensation.
· If you cannot get close to the subject, it is recommended that the Exposure
Metering User Setting mode be set to spot metering for optimum AE lock
results.
1. Make sure that AEL (AK Lock) is selected for the Preview/ AE Lock User
Setting mode as described above.. "AEL" is displayed on the LCD panel in all
modes except the Exposure Metering User Setting and ISO User Setting
modes when AE lock is selected.
2. Bring the camera as close to the subject as necessary so that the exposure
will not be affected by the background. (Fig. 68)
4www.butkus.org
· If the LCD panel is not operating, press the shutter button halfway and the
display will appear. The mode cannot be set when the LCD panel is not
operating.
3. Press the Preview/AE lock button. (Fig. 69) The exposure value is locked.
The "AEL" mark flashes in the viewfinder display and "AEL" remains lit on
the LCD panel in all modes except the Exposure Metering User Setting and
ISO User Setting modes.
4. Compose your picture and press the shutter button.
The picture is taken with the locked exposure value. When the picture is taken, AE lock will be canceled and the
"AEL" mark will disappear.
· If the aperture is changed while an exposure value is locked in Auto operation, the camera will adjust the shutter
speed to correspond to the exposure value that is locked.
· To cancel AE lock before releasing the shutter, press the preview/AE lock button again or set the main switch
selector to L (Lock) to turn off the power.
· If the preview/AE lock button is kept pressed while shooting, it is possible to shoot repeatedly with the locked
exposure value.
28. ISO USER SETTING MODE
The ISO User Setting mode is set when "ISO" is displayed on the LCD panel.
(Fig. 70)
The ISO User Setting mode allows setting for ISO manual override of the film
for advanced applications. Under normal conditions, the camera sets the ISO
film speed for DX-coded films ranging from ISO 25 to 5000 automatically
(ISO 12 to 6400 for manual override setting).
4www.butkus.org
The manual ISO setting has priority over the automatic DX coded setting.
This mode is used to set the film speed for non-Ding films, or to set a different
film speed than that specified for DX-coded films.
1. Turn the mode dial to select ISO (ISO User Setting mode). (Fig. 71)
2. Press the up/down buttons to set the desired film speed. (Fig. 72)
· The exposure difference between the automatic DXcoded setting and the
manual override film speed setting is indicated by the "+" and "-".
· The film speed you have set will be displayed for about 2 seconds when the
main switch selector is set to A (Auto) or M (Manual), and when the film is
loaded.
· Non-DX films must be set manually. If not, the film will be set to the default
100 film speed setting.
29. EXPOSURE COMPENSATION
Exposure compensation is applicable for the Self-timer mode, Multi Exposure
mode, Auto Bracketing mode, Continuous Shooting mode and Normal mode
in Auto operation only. For more information, refer to "Up/Down Buttons
Operations" on page 5. When there is excessive contrast between the subject
and the background, the subject may be underexposed (dark) or overexposed
(light). When this occurs, or when you cannot bring the camera close to the
subject, exposure compensation can be used. (Use the AE lock when you can
bring the camera close to the subject. Refer to page 31.) Also, an image may
come out gray when white or black is dominant. The light and dark colors of
your picture can be shot correctly by using this mode. You can also shoot
underexposed or overexposed pictures intentionally. Exposure compensation
can be set within the range of _4.0 EV in 0.5 EV increments
4www.butkus.org
· Naturally, exposure compensation cannot be set in Manual operation because
the desired compensation can be deliberately selected by looking at the
exposure indicator when setting the aperture and shutter speed.
Shooting in Backlit Conditions In backlit conditions the subject will be
underexposed because of the very bright background. Set the exposure
compensation to a plus (+) value depending on the lighting conditions.
Dominantly White Subjects
If a dominantly white subject is photographed, it will be underexposed and
appear dark. In addition, white areas will turn out gray. Set the exposure
compensation to a plus (+) value depending on the lighting conditions.
4www.butkus.org
Dominantly Dark-colored Subjects
If a dominantly dark-colored subject is shot, the whole image will be
overexposed, making the subject light (white) and dark-colored areas will come
out gray. Set the exposure compensation to a minus (-) value depending on the
lighting conditions.
· When the exposure indicator is displayed in the viewfinder display as shown
in the illustration, the exposure compensation is set. The exposure indicator
displays the selected exposure compensation value. (Fig. 73) The LCD panel
displays the exposure compensation value also. Press the shutter button halfway
and press the up/down button to display the exposure indicator in the
viewfinder display and the exposure compensation value on the LCD panel.
1. Press the up/down buttons until the exposure indicator is displayed. (Fig. 74)
The exposure indicator is displayed in the viewfinder display. The exposure
compensation value is displayed on the LCD panel also.
· The exposure indicator appears flashing in the viewfinder display. This allows
you to set the exposure compensation while looking through the viewfinder.
· If you do not make any changes (i.e., exposure compensation remains set to 0
EV) within 5 seconds after pressing the up/down buttons, the exposure indicator
in the viewfinder display will disappear. If you are adjusting a previous
exposure compensation value, the exposure indicator will remain in the
viewfinder display.
2. Press the up/down buttons to set the desired exposure compensation value.
Each time the up or down button is pressed, the exposure compensation value
increases or decreases in 0.5 EV increments. Press and hold down the up or
down button to increase or decrease the exposure compensation value
continuously within the range of +4 EV in 0.5 EV increments.
4www.butkus.org
· The dot (A) of the exposure indicator flashes when the exposure compensation
exceeds +1 EV or-1 EV. (Fig. 75)
· When you have finished shooting with exposure compensation, be sure to
restore the exposure compensation value to 0 EV.
A (AUTO) AND M (MANUAL) OPERATIONS
13. MAIN SWITCH SELECTOR--L/A/M
1. Set the main switch selector to the desired operation.
(Fig. 23)
L (Lock)
Locks the operations and turns off the camera. Set to L
(Lock) when the camera is not used.
A (Auto ~ P. 18)
Selects optimum shutter speed automatically according to the user-selected aperture for creative control of the depth
of field.
4www.butkus.org
M (Manual ~ P. 19)
Enables manual user-selected aperture and shutter speed settings for individual creative effects or difficult lighting
conditions.
· The LCD panel and the viewfinder display operate when A (Auto) or M (Manual) is selected.
· If there is a film loaded in the camera, the film speed will be displayed for the first 2 seconds.
2. Check the batteries.
· Refer to "MONITORING THE CONDITION OF THE BATTERIES" on page 14.
· If the main switch selector is set to L (Lock), the power will be completely cut off. The LCD panel and the
viewfinder display will not operate.
· The following modes will be canceled when the main switch selector is set to L (Lock).
· AE Lock setting (in the Preview/AE Lock User Setting mode)
· Self-timer mode
· To prevent unnecessary battery depletion, set the main switch selector to L (Lock) when you are not using the
camera.
Auto Power Off Function
If the camera controls. are not operated or camera operations** are not performed for about 30 seconds, the display
will disappear on the LCD panel. At this time, if the shutter button is pressed lightly halfway, the display will appear
again. ~ All buttons, mode dial, and main switch selector. ** Shooting, film loading, and film rewinding.
· The mode settings selected before the display disappears, will not be canceled.
· When the Auto Power Off function operates and the display disappears on the LCD panel, only the following can be
operated so that the display will appear again: shutter button, manual rewind button and the main switch selector. To
set or change the mode settings, press the shutter button halfway to operate the LCD panel.
· If the camera is not operated for about 10 seconds, the display inside the viewfinder will disappear. By pressing the
shutter button halfway, the display will appear.
14. A (AUTO) OPERATION
The camera is set to A (Auto) operation when the following viewfinder
display appears. Note that the viewfinder display may vary slightly according
to the current shutter speed and settings (i.e., AE lock, exposure metering,
flash, bulb, and exposure compensation settings). (Fig. 24)
· If the LCD panel or viewfinder display is not operating, press the shutter
button halfway and the display will appear.
1. Set the main switch selector to A (Auto). (Fig. 25)
Make sure that the mode dial is set to either Self-timer
4www.butkus.org
Multi Exposure, Auto Bracketing, Continuous Shooting, or Normal mode.
2. Set to the desired lens aperture. (Fig. 26)
· If the aperture is set to "P" or "A", turn the aperture ring while pressing the
~ P" or "A" lock pin.
3. Check the LCD panel and look through the viewfinder and make sure that
the viewfinder display is operating. (Fig. 27)
· The shutter speed appears in the viewfinder display.
· The shutter speed flashes in the viewfinder display when the subject is
underexposed or overexposed. Under certain conditions, a subject may be
underexposed even when the slowest shutter speed (i.e., 32 seconds) is set.
"L32" flashes in the viewfinder display. Use a flash unit, the Bulb function,
or simply select a larger aperture (smaller number aperture setting) as
necessary. Likewise, a subject may be overexposed even when the fastest
shutter speed (i.e., 1/2000 th second) is set. "2000" flashes in the viewfinder
display. Use a neutraldensity filter or simply select a smaller aperture (larger
number aperture setting) as necessary. (Fig. 28, 29)
15. M (MANUAL) OPERATION
The camera is set to M (Manual) operation when the following viewfinder
display appears. Note that the viewfinder display may vary slightly according
to the current shutter speed and settings (i.e., AE lock, exposure metering,
flash, bulb, and exposure compensation settings). (Fig. 30) Make sure that "M"
is displayed in the viewfinder display and that the lens aperture is not set to
"P" or "A".
4www.butkus.org
1. Set the main switch selector to M (Manual). (Fig. 31)
Make sure that the mode dial is set to either Self-timer,
Multi Exposure, Auto Bracketing, Continuous Shooting, or Normal mode.
2. Press the up/down buttons to display the shutter speed you wish to set. (Fig.
32)
3. Look through the viewfinder and adjust the aperture setting by turning the
aperture ring. To change the shutter speed, press the up/down buttons. The
exposure indicator appears in the viewfinder display. Look at the exposure
indicator when setting the aperture and shutter speed. When the dot (a) of the
exposure indicator is under the "O", the correct exposure is set. (Fig. 33) The
subject is underexposed when the dot (O) of the exposure indicator is towards
-1. Likewise, the subject is overexposed when the dot (O) of the exposure
indicator is towards +1. For underexposed pictures, set a larger aperture
(smaller number aperture setting) or slower shutter speed. For overexposed
pictures, set a smaller aperture (large number aperture setting) or faster shutter
speed.
· If the viewfinder display is not operating, press the shutter button halfway
and the display will appear.
· Naturally, exposure compensation cannot be set in Manual operation because
the desired compensation can be deliberately selected by looking at the
exposure indicator when setting the aperture and shutter speed.
Bulb Function
If the shutter speed is set to "bulb" in Manual operation, the shutter will
remain open for as long as you keep the shutter button pressed. This is
referred to as bulb photography. Bulb photography is used for shooting night
scenes, or other images with long exposure times.
4www.butkus.org
1. Set the main switch selector to M (Manual) (Fig. 34) Make sure that the
mode dial is set to either Multi Exposure, or Normal mode.
2. Press the up/down buttons to display "bulb" on the LCD
Panel. (Fig. 35)
· The Self-timer and Auto Bracketing modes are not applicable when the
shutter speed is set to "bulb".
· The "B" mark is also displayed in the viewfinder display.
3. Set to the desired lens aperture.
· If the aperture is set to "P" or "A", turn the aperture ring while pressing the
"P" or "A" lock pin.
4. Keep the shutter button pressed for as long as you wish the shutter to
remain open. (Fig. 36)
· If you remove your finger from the shutter button, the shutter will close
· The exposure counter on the LCD panel will display the time (in seconds)
that the shutter has been open.
· To avoid camera shake, use a tripod and a release switch.
· If the battery runs out of power, the shutter may prematurely close.
16. HOLDING THE CAMERA
To prevent camera shake, be sure to hold the camera properly when shooting.
Support the camera on the palm of your left hand so that you can turn the
focusing ring'with your fingers. (Fig. 37)
With your right hand lightly grasp the grip and place your index finger
lightly over the shutter button. When pressing the shutter button, grasp the
grip firmly. Place your elbows against your body.when shooting with the
camera in a horizontal position, or place your left elbow against your body
when shooting with the camera in a vertical position. (Fig. 38)
4www.butkus.org
Place your forehead against the camera and look through the viewfinder.
17. FOCUSING
Focusing is achieved with the Split-image, Microprism or Matte focusing
screen in the viewfinder. The viewfinder image is crucial for accurate
focusing of the lens, and therefore greatly influences image sharpness.
Different photographic applications often require different focusing screens.
The optimum type of focusing depends on the subject and the lens being
used. (Fig. 39, 40)
While looking through the viewfinder, focus by turning the focusing ring.
(Fig. 41)
Types of Focusing
A. Split-image The area inside the central circle is the split image. When both
images in the split-image area form a single clear image, the subject is in
focus. The split-image helps you focus quickly and easily on subjects with
clear lines or contours. (Fig. 42)
B. Micropasm The area inside the outer circle is the microprism. When the
image stops "flickering" and is sharp and clearly visible, the subject is in
focus. The microprism allows fast and precise focusing on subjects without
recognizable lines or contours. (Fig. 42)
C. Matte screen
The area outside the microprism is the matte screen. Focusing is done by sight and requires practice as the transition
from unsharp to sharp is gradual rather than abrupt. The matte screen helps you focus precisely with lenses of longer
focal lengths as well as in the macro range. (Fig. 42)
· When you use a small aperture (large number aperture setting) with a lens such as a zoom lens, half of the split
image becomes dark. In this case, use the matte screen to focus.
18. SHOOTING
1. Press the shutter button halfway. (Fig. 43)
· The LCD panel and viewfinder display operate.
· The shutter button can be pressed in two ways. If it is pressed halfway, the
LCD panel and the viewfinder display operate. If it is pressed fully, the shutter
is released.
4www.butkus.org
· If the camera is not operated for about 10 seconds, the display inside the
viewfinder will disappear. By pressing the shutter button halfway, the display
will appear.
· If the camera is not operated for about 30 seconds, the display on the LCD
panel will disappear. By pressing the shutter button halfway, the display will
appear.
2. Confirm that the viewfinder display is operating. (Fig. 44)
Fig. 44 indicates the viewfinder display in Auto operation.
The number denotes the current shutter speed. Note that the viewfinder display
may vary slightly according to the current operation (i.e., Auto or Manual) and
settings (i.e.,
AE lock, exposure metering, flash, bulb, and exposure compensation settings).
· When a slow shutter speed has been set, use a tripod to prevent camera shake.
3. Press the shutter button. (Fig. 45)
· The film advances when the shutter is released.
19. REWINDING THE FILM
1. When the film has reached the end, the film rewinds to completion
automatically while the exposure counter counts down. (Fig. 46)
· When the film is completely rewound, the exposure counter displays "E".
(Fig. 47)
2. While pressing the back cover lock release button, slide the back cover
latch down and open the back cover.
3. Remove the film.
· When you are in a quiet location and the noise produced during film
rewinding is disturbing, set the main switch selector to L (Lock) to turn off
the power. Rewinding will be temporarily stopped. When the main switch
selector is set to A (Auto) or M (Manual), the film will resume rewinding.
· If the manual rewind button is pressed while the film is rewinding, the
film leader will not be rewound completely so that a portion of the film
leader protrudes from the film cassette.
Midroll Rewind
Press the manual rewind button. (Fig. 48)
· When removing the film, be careful not to touch the shutter with your
fingers or with the edge of the film.
4www.butkus.org
· The shutter cannot be released when "E" is displayed on the LCD panel.
· It is sometimes possible to take more exposures than the specified
number indicated on the box of the film. However, these "extra" exposures
may be overlapped or cut off.
MODES
20. SETTING THE MODES
Use the mode dial to select the desired mode (i.e., Self timer, Multi
Exposure, Auto Bracketing, Continuous Shooting, Normal, Exposure
Metering User Setting, Preview/ AE Lock User Setting, and ISO User
Setting modes). Press the up/down buttons to select the desired setting (i.e.,
Exposure Metering User Setting, Preview/AE Lock User Setting, and ISO
User Setting) and to set the shutter speed in Manual operation or exposure
compensation in Auto operation. A For a brief explanation, refer to the
"FUNCTION MAP" on pages 4-5.
For more information on modes and settings, refer to the appropriate
sections for each mode.
The settings are displayed on the LCD panel. (Fig. 49)
· If the LCD panel or viewfinder display is not operating, press the shutter
button halfway and the display will appear. The modes cannot be set when
the display is not operating
1. Turn the mode dial to select the mode you wish to set. (Fig. 50)
2. Press the up/down buttons and set or adjust the value of the mode you
have selected. (Fig. 51 ) For more information, refer to "Up/Down Buttons
Operations" on page 5.
21. SELF-TIMER MODE
1. After focusing, slip the viewfinder cap attached to the
strap over the viewfinder eyepiece as necessary. (Fig. 52)
· The viewfinder cap is used to avoid incorrect exposure due to stray light
which may enter the viewfinder eyepiece. This is to ensure that the metering
system is not adversely affected.
· The Self-timer mode is not only useful for self-portraits but also for shakefree exposures with slow shutter speeds.
2. Turn the mode dial to select A) (Self-timer mode).
(Fig. 53)
3. Press the shutter button.
4www.butkus.org
· When the self-timer has been activated, the self-timer LED will start
flashing and about 10 seconds later, the shutter will be released. The selftimer LED remains lit for the last 2 seconds before the shutter is released.
(Fig. 54)
· To cancel the Self-timer mode after pressing the shutter button, turn the
mode dial to select another mode, or set the main switch selector to L
(Lock) to turn off the power.
· The exposure counter on the LCD panel indicates the number of seconds
remaining before the shutter is released. (Fig. 55)
· The Self-timer mode is not applicable when the shutter speed is set to
"bulb".
22. MULTI EXPOSURE MODE
1. Turn the mode dial to select (Multi Exposure mode). (Fig. 56)
2. Press the shutter button as many times as necessary to take several
exposures on the same frame.
· The film will not advance and the exposure counter number will remain
the same.
· To cancel the Multi Exposure mode, turn the mode dial to select another
mode, or set the main switch selector to L (Lock) to turn off the power.
· When developing negative films, make sure that you indicate that the
film contains multi exposure shots where applicable. The multi exposed
shot may be mistaken for an error and may not be printed.
23. AUTO BRACKETING MODE
When the shutter button is pressed in the Auto Bracketing mode, the
camera will take 3 frames of an underexposed, a correctly exposed, and an
overexposed picture in 0.5 EV increments. Auto Bracketing is especially
effective when using a reversal (slide) film.
1. Turn the mode dial to select (Auto Bracketing mode). (Fig. 57)
2. Press the shutter button.
· The camera will take 3 frames in the following order: underexposed (-0.5
EV), correctly exposed (O EV), and overexposed (+0.5 EV).
· To cancel the Auto Bracketing mode, turn the mode dial to select another
mode.
· When the Auto Bracketing mode is combined with exposure
compensation or AE lock, the exposure range will be based on the selected
exposure compensation value or the locked exposure value respectively.
For example, when exposure compensation or the locked exposure value is
-1.0 EV: the exposure range will be -1.5 EV, -1.0 EV, and -0.5 EV.
· The Auto Bracketing mode is applicable for Manual operation also.
4www.butkus.org
· The Auto Bracketing mode cannot be combined with flash photography
(i.e., Ricoh flash units such as the Speedlite 303P, 323, 403P, etc.).
· The Auto Bracketing mode is not applicable when the shutter speed is set
to "bulb".
FLASH PHOTOGRAPHY
30. FLASH PHOTOGRAPHY WITH SL-303P, SL-403P
When you use any of the above Ricoh dedicated flash systems, you can enjoy
flash photography.*
1. Set the flash unit to "A" and set the main switch selector to A (Auto). (Fig.
76)
2. Set the lens aperture to the aperture value designated by the flash unit
according to the ISO setting of your camera
· Be sure to stay within the recommended flash range for the speed of the
film you are using. If you are too close to the subject, your pictures may look
too light; if you are beyond the maximum distance, your pictures may look
too dark
3. When the flash unit is fully charged, the flash-ready lamp on the flash unit
lights and the ~ (Flash) mark in the viewfinder display appears. (Fig. 77)
When the flash unit is charged in Auto operation, the shutter speed is set to
1/100 automatically.
· The subject may be overexposed when "100" flashes in the viewfinder
display.
4www.butkus.org
4. Press the shutter button.
· Make sure that the camera is not perpendicular to reflective backgrounds such as mirrors or other shiny surfaces.
The flash will be reflected back to the camera and cause a bright glare spot in your picture. The reflected glare may
also cause underexposure. Take pictures at an angle to shiny surfaces to minimize flash reflections.
· For manual flash photography, slide the switch lever of the flash unit to "M", and set the shutter speed between L32
to 90. (If the shutter speed is set between 1/125 - 1/2000, the shutter speed will be set to 1/100 automatically.) The
user-selected shutter speed flashes on the LCD panel, and "100" appears in the viewfinder display. The dot (A) of the
exposure indicator below +1 flashes in the viewfinder display for manual flash photography.
For Ricoh SL-323, follow the instructions for "FLASH PHOTOGRAPHY WITH FLASH UNITS OTHER THAN
RICOH".
31. FLASH PHOTOGRAPHY WITH FLASH UNITS OTHER THAN RICOH
1. Set the flash unit to Auto mode and set the shutter speed below 1/90.
2. Set the lens aperture to the aperture value designated by the flash unit according to the ISO setting of your camera.
OTHERS
32. INFRARED FILM
Always readjust your focus to the infrared focusing mark when using infrared
films and infrared filters. This is necessary because the infrared rays have
longer wave lengths than the visible light rays you see and focus with, and
the camera lens focuses them slightly further back inside the camera.
Therefore visual focusing cannot be accurate without adjustment.
4www.butkus.org
1. Attach the infrared filter and focus on the subject. Read the indicated
distance off the lens barrel. (Fig. 78)
2. Shift that distance setting over to the red infrared index mark. Set the
exposure in accordance with the instructions for the film. (Fig. 79)
33. DIOPTRIC LENSES
The viewfinder eyepiece has a built-in -1 correction lens (suitable for most normal vision). If a dioptric lens is fitted,
you would not have to wear eyeglasses when taking pictures. Slip the lens in the groove of the viewfinder eyepiece.
Dioptric lenses are available in 7 types: -4, -3, -2, -1, +1, +2 and +3.
· Some forms of astigmatism, etc., may make dioptric eyepiece correction not possible. Please check with your
optician for a recommendation based on your prescription.
34. INTERCHANGEABLE VIEWFINDER SCREENS
Ricoh offers a choice of 3 viewfinder screens to suit your needs or
preference. Each features Ricoh's Acu-Bright mat for optimum brightness
and easier focusing in dim light.
Horizontal Split Type Screen (MH type) This screen is normally installed.
Recommended for general shooting. (Fig. 80)
Grid Matte Type Screen (MS type) A matte screen with horizontal and
vertical lines. This screen facilitates composition of your photograph. (Fig.
81)
All Matte Type Screen (MB type) For general shooting and close-up
photography. Also recommended when focusing is difficult with a split
image. (Fig. 82)
35. RELEASE SWITCH
By using the separately sold release switch, the shutter can be released from a distance.
1. Set the main switch selector to L (Lock) to turn off the power.
· The shutter may release if the release cable is connected to the camera when the power is on.
2. Connect the release switch to the remote control socket of the camera.
3. Set the main switch selector to A (Auto) or M (Manual).
4. Press the release switch to shoot.
36. CARE OF BATTERIES
· This camera is equipped with precision electronic parts. To ensure optimum performance, use high quality alkaline
batteries.
4www.butkus.org
· The capacity of the batteries depends on the brand and type of batteries used.
· Before installing, be sure to clean all moisture, oil, and grease off all battery contact surfaces in order to avoid future
problems of corrosion and poor electrical contact.
· Remove batteries when the camera is not used for a long period of time.
· Dispose of batteries properly. Do not throw them into fire or expose to high temperature.
· In cold conditions, battery power decreases and may not be sufficient to operate the camera. Avoid using the camera
in low temperatures.
Notes on Film
· Use a loaded film promptly and have it developed as soon as it is removed. Leaving a film loaded inside the camera
for an extended period of time will lead to the deterioration of the film, etc.
37. DATA BACK 7
The Ricoh XR-X3000D is standard equipped with the Data
Back 7. To use the date imprinting feature for the Ricoh XR-X3000, purchase
the separately sold Data Back 7.
Nomenclature of the Date Imprinting Feature
(Fig. 83, 84)
(1) Display Panel
(2) Month Indication (M)
(3) imprint Mark ( _ )
(4) Mode Button
4www.butkus.org
(5) Select Button
(6) Set Button
(7) Locating Pin (Connecting pin)
(8) Battery Cover
(9) Battery Cover Retaining Screws
(10) Data Back Contacts
Attaching the Data Back 7
1. Open the back cover and push down the release pin on the back cover to
remove. (Fig. 85)
2. Attach the Data Back 7 to the camera while pushing down the release pin
on the Data Back 7. (Fig. 86)
· To remove the Data Back 7, follow the same instruction in step 1.
Selecting the Imprinting Mode
Each time the Mode button is pressed, the display changes as shown below.
<Examples of Date Imprinting>
Date imprinting can be divided into five types: date, time, and no
imprinting.
(a) No imprinting
4www.butkus.org
(b) Date (Year/Month/Day)
1998 July 21st
(c) Time (Day/Hour/Minute)
21st 15:59
(d) Date (Month/Day/Year)
July21st, 1998
(e) Date (Day/Month/Year)
21 st July, 1998
Date Imprinting Location
Date imprinting appears on the lower right hand corner of the photograph.
(Fig. 87)
Checking Imprinting
After shooting, the imprint mark -- flashes on the display panel for a few seconds to confirm proper imprinting. The
imprint mark -- and the letter "M" are not imprinted on the photograph.
Resetting the Date and Time (Fig. 88, 89, 90)
1. Each time the Select button is pressed, the flashing digits change in the
following order: Year, Month, Day, Hour, Minute and Colon (:).
2. When the digits to be reset flash, press the Set button until the desired
digits appear. When the Set button is kept pressed, the digits change rapidly.
3. Imprinting is not possible while the Data Back is being reset. When
resetting is complete, press the Mode button until the imprint mark _ appears
on the display panel.
4www.butkus.org
Accurately Setting the Seconds
1. Press the Mode button to display the time (Day/Hour/ Minute).
2. Press the Select button so that the colon (:) flashes.
3. Press the Set button accordingly to set the seconds to 0.
4. Press the Mode button.
Battery Replacement
1. Open the back cover.
2. Remove the battery cover retaining screws from the Data Back battery
cover with a small (+) or (-) screwdriver.
Remove the battery cover. (Fig. 91)
3. Remove the battery.
4. Load the new battery with the side marked (+) facing upwards. Then, close
the battery cover using the (+) or (-) screwdriver. (Use lithium battery
CR2025. The service life is about 3 years.) (Fig. 92)
· When the battery is exhausted, the imprinted digits become faint. At that
time, replace the battery.
· Do not open the battery cover except when replacing the battery.
· Keep the battery out of reach of children. If a child swallows the battery,
contact your doctor immediately.
Notes on Date Imprinting Feature
· At temperatures below 0°C (32° F), the battery ,performance deteriorates. The date imprinting feature may not
function correctly and imprinting may become impossible.
· When the battery is replaced, the display panel sometimes shows the wrong digits. Reset the digits for correct
indication.
· The date is sometimes illegible if it is imprinted on the following objects.
(1 ) "Warm" colored objects, such as red, yellow, orange, etc.
(2) Objects with details similar in size to the imprinted date (gravel, leaves, etc.)
(3) Objects of high luminance (sky, white wall, etc.)
· Imprinting is not possible in the following modes. (1 ) Print Off mode (2) Reset mode
38. PROPER CARE OF YOUR CAMERA
· If there is dirt on the lens or mirror surface, do not attempt to remove it with your fingers. Use a blower to blow the
dust away, or wipe the surface gently with a camera lens tissue or a soft cloth.
4www.butkus.org
· Excessive shock, humidity or salt may cause camera malfunction. When you use the camera at the beach, in a
corrosive atmosphere, or in a place where chemicals are used, wipe it off carefully.
· Do not expose the camera and film to extreme temperatures.
· Do not leave your camera in your car at the beach, in the desert, or in other extremely high temperature conditions to
prevent possible damage to the camera.
· When using a tripod, do not try to force a long screw into the socket. (The screw length should be less than 5.7 mm
(1 /4 ).
· Store the camera away from humidity and in a dust-free place.
· This camera is not waterproof. If it comes into contact with any kind of liquid (i.e., water, rain, drink, etc.), the
electrical and metal parts will rust and cause damage to the camera. Contact a Ricoh Camera Service Center if your
camera has been exposed to any liquid.
· Take care not to expose the camera to sudden changes in temperature, as this may cause condensation on the lens,
film, or inside the camera which may lead to the malfunction of the camera.
· Do not place the camera near equipment that has strong magnetic fields such as a television or radio.
39. MAJOR SPECIFICATIONS .
Type: 35mm SLR camera with focal plane shutter, Automatic and Manual exposure controls
Mount: Ricoh system K mount
Shutter: Electronically controlled, vertically moving focal plane shutter;
Automatic: 1/2000 sec.-32 sec.
Manual: 1/2000 sec.-32 sec., Bulb
Exposure Coupling Range: EV 0-18 (ISO 100 with standard F1.4 lens)
Photographic Modes: Aperture-priority automatic exposure mode Manual exposure mode
Self-timer: Electronically operated 10 sec. delay with LED indicator
Viewfinder: Field of view: 91% horizontally and vertically Magnification: 0.80x (with 50mm standard lens)
4www.butkus.org
Finder display: AE lock, exposure indicator, flash mark, exposure metering modes, shutter speed, bulb, and Manual
operation
Focusing Screen: Interchangeable type, horizontal split-image spot in microprism band surrounded by mat.
Exposure Metering System: Two selectable TTL full open metering systems
(1) Center-weighted average metering (LV 0-LV 18.0: F1.4 lens)
(2) Spot metering (LV 4.0-LV 18.0: F1.4 lens)
Sync Speed: 1/100 sec.
Exposure Compensation: +4 EV
Flash Contact: Hot shoe
Film Loading: Ricoh Auto-load system, automatic 1 st frame setting
Film Advance: Automatic with a built-in motor, two selectable modes:
Normal (single) and Continuous Shooting (approx. 0.7 sec./frame)
Film Rewind: Automatic rewind at the end of film, manual rewind possible, film can be rewound so that a portion of
the film leader protrudes from the film cassette
ISO Setting: ISO 25-5000 DX-coded,
ISO 12-6400 Manual (Manual override possible)
Preview: - Electronic preview button
Remote Control: Remote control socket
Automatic Bracket Mode: +0.5 EV
Back Cover: Removable (Data Back 7 or Data Back 3 for date imprinting)
LCD Display: Exposure counter, ISO, battery indicator, shutter speed, center-weighted average/spot metering mark,
time for bulb, remaining seconds for self-timer, AEL (AK Lock), PV (Preview), exposure compensation value (+4.0
EV in 0.5 EV steps)
Main Switch Selector:
(1) L (Lock)
(2) A (Auto)
(3) M (Manual)
Mode Dial: (1) Self-timer
(2) Multi Exposure
(3) Auto Bracketing
(4) Continuous Shooting
(5) Normal
(6) Exposure Metering User Setting
(7) Preview/AE Lock User Setting
(8) ISO User Setting
Power Source: Four alkaline batteries
Dimensions: Approx. 151 x 94.5 x 62 mm/ 5.9 x 3.7 x 2.4 inches (WxHxD)
Mass Weight: Approx. 480 g/17 oz. without batteries
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
