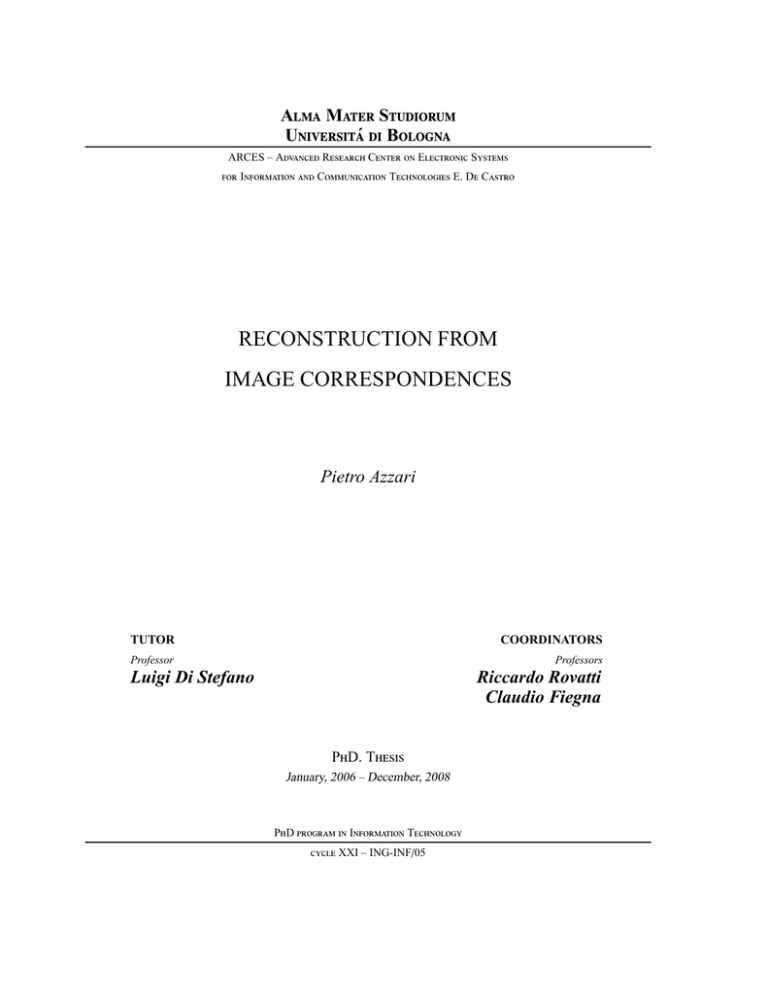

RECONSTRUCTION FROM
IMAGE CORRESPONDENCES
Pietro Azzari
TUTOR
COORDINATORS
Professor
Professors
Luigi Di Stefano
Riccardo Rovatti
Claudio Fiegna
PhD. Thesis
January, 2006 – December, 2008
PhD program in Information Technology
cycle XXI – ING-INF/05
Contents
1
Introduction
3
1.1
Reconstruction from multiple views . . . . . . . . . . . . . . . . . .
4
1.2
Fields of application . . . . . . . . . . . . . . . . . . . . . . . . . .
6
1.3
Structure of the thesis . . . . . . . . . . . . . . . . . . . . . . . . . .
7
1.4
Summary of contributions . . . . . . . . . . . . . . . . . . . . . . .
9
2 Theoretical background
11
2.1
Image matching with keypoint correspondences . . . . . . . . . . . .
11
2.2
Planar image registration . . . . . . . . . . . . . . . . . . . . . . . .
16
3 Real-time image mosaicing
23
3.1
On-line image mosaicing for visual surveillance . . . . . . . . . . . .
23
3.2
A fast and exact histogram specification method . . . . . . . . . . . .
48
4 Evaluation methodology for image mosaicing algorithms
65
4.1
Introdution and related work . . . . . . . . . . . . . . . . . . . . . .
65
4.2
Evaluation methodology . . . . . . . . . . . . . . . . . . . . . . . .
67
4.3
Experimental results . . . . . . . . . . . . . . . . . . . . . . . . . .
73
5 Camera pose reconstruction
81
5.1
Markerless augmented reality using image mosaics . . . . . . . . . .
82
5.2
Vision-based markerless gaming interface . . . . . . . . . . . . . . .
90
6 3D reconstruction of deformable surfaces
103
6.1
Shape recovery of non-rigid objects . . . . . . . . . . . . . . . . . .
104
6.2
Deformable shape recovery . . . . . . . . . . . . . . . . . . . . . . .
106
6.3
Detailed approach . . . . . . . . . . . . . . . . . . . . . . . . . . . .
108
6.4
Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
111
i
ii
7
CONTENTS
Closing words
119
7.1
Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
119
7.2
Future directions . . . . . . . . . . . . . . . . . . . . . . . . . . . .
121
Abstract
A single picture provides a largely incomplete representation of the scene one is looking at. Usually it reproduces only a limited spatial portion of the scene according to
the standpoint and the viewing angle, besides it contains only instantaneous information. Thus very little can be understood on the geometrical structure of the scene, the
position and orientation of the observer with respect to it remaining also hard to guess.
When multiple views, taken from different positions in space and time, observe the
same scene, then a much deeper knowledge is potentially achievable. Understanding
inter-views relations enables construction of a collective representation by fusing the
information contained in every single image.
Visual reconstruction methods confront with the formidable, and still unanswered,
challenge of delivering a comprehensive representation of structure, motion and appearance of a scene from visual information. Multi-view visual reconstruction deals
with the inference of relations among multiple views and the exploitation of revealed
connections to attain the best possible representation. This thesis investigates novel
methods and applications in the field of visual reconstruction from multiple views.
Three main threads of research have been pursued: dense geometric reconstruction,
camera pose reconstruction, sparse geometric reconstruction of deformable surfaces.
Dense geometric reconstruction aims at delivering the appearance of a scene at every single point. The construction of a large panoramic image from a set of traditional
pictures has been extensively studied in the context of image mosaicing techniques.
An original algorithm for sequential registration suitable for real-time applications has
been conceived. The integration of the algorithm into a visual surveillance system has
lead to robust and efficient motion detection with Pan-Tilt-Zoom cameras. Moreover,
an evaluation methodology for quantitatively assessing and comparing image mosaicing algorithms has been devised and made available to the community.
Camera pose reconstruction deals with the recovery of the camera trajectory across
an image sequence. A novel mosaic-based pose reconstruction algorithm has been conceived that exploit image-mosaics and traditional pose estimation algorithms to deliver
more accurate estimates. An innovative markerless vision-based human-machine inter1
2
CONTENTS
face has also been proposed, so as to allow a user to interact with a gaming applications
by moving a hand held consumer grade camera in unstructured environments.
Finally, sparse geometric reconstruction refers to the computation of the coarse geometry of an object at few preset points. In this thesis, an innovative shape reconstruction algorithm for deformable objects has been designed. A cooperation with the Solar
Impulse project [56] allowed to deploy the algorithm in a very challenging real-world
scenario, i.e. the accurate measurements of airplane wings deformations.
Chapter 1
Introduction
An individual picture provides a largely incomplete representation of the scene one is
looking at. Usually it reproduces only a limited spatial portion of the scene depending
on the viewing angle and the position of the observer. The spatial amount of visible scene can be, to some extent, traded with the level of detail; i.e. a full mountain
landscape can be grabbed from far away at the cost of missing fine grain details of
trees, bushes and skiers, whilst zooomed in snapshots preserve small features but lack
mountain peaks and valleys.
The amount of tonal information that can be recorded is severely restricted by the
dynamic range of traditional imaging devices, think of a washed out picture of a bright
morning light panorama or a dark snapshot of a dimly lit indoor environment. The dynamic range may be adapted to the lighting conditions at hand by configuring exposure
settings properly, nonetheless the photometric richess of a real scene greatly exceeds
the capability of nowadays CCD sensors.
As the temporal dimension is concerned, only instantaneous information can be
recorded, any movement is frozen inside a picture, none can be known about what
happens inside the scene immediately after or before the shot is taken. Leaving the
shutter open for a while does not usually help since letting the camera integrating over
time yields blurred regions where non stationary processes take place.
Moreover, since projective geometry admits many different shapes to exhibit identical projections, very little can be inferred on the 3D geometrical structure of a generic
scene from a single view, unless specific prior assumptions are made. Because of that,
position and orientation of an observer with respect to the scene remain also hard to
guess.
Visual reconstruction methods confront with the formidable, and still unanswered,
challenge of delivering a comprehensive representation of structure, motion and appearance of a scene from visual information. Nonetheless, apart for special cases
3
CHAPTER 1
4
where single view metrology approaches obtained remarkable results, a comprehensive reconstruction of a given scene is out of reach for single-view algorithms. It is
well understood that visual reconstruction approaches relying on multiple views may
provide answers to that demanding calls.
1.1 Reconstruction from multiple views
The concept underpinning multiple views reconstruction algorithms is the extraction
and combination of information coming from several overlapping views, i.e. taken
from multiple locations and different instants. When information contained into single views are properly fused together, the collective reconstruction is superior to that
possibly attainable by analysing every single image individually.
Visual reconstruction can be ideally split up in many branches depending on the
aspect of a scene it aims at retrieving:
• geometric reconstruction, it refers to the computation of the 3D structure of
a scene. This area can be further subdivided in sparse or dense reconstruction.
Sparse reconstruction encompasses a vast number of algorithms knwon as “shape
from X”, where X stands for the visual cues employed to perform reconstruction,
i.e. motion, shading, defocus, ... These methods usually recover the 3D shape of
an object by triangulating rays passing through corresponding points in several
calibrated images, namely images whose positions with respect to each other
is known. Sparsity refers to the fact the geometric structure is known only at a
finite number of points, the structure in between to be inferred with the use of additional constraints, usually reinforcing continuity or smoothness. An example
of sparse shape reconstruction is retrieval of a triangulated mesh model of a deformable surface depicted in Fig. 1.1. Conversely, dense reconstruction attempts
Figure 1.1: 2 frames taken from a sequence of 18 portraying an airplane model outlined with
the backprojection (green line) of the retrieved 3D structure of its wings.
at delivering the 3D shape at every point in the scene, such description typically
INTRODUCTION
5
coming along with appearance information such as color or brightness. It is usually deployed in simpler geometric scenarios and some representative family of
algorithms are image mosaicing and two-view dense stereo. Intuitively, a dense
reconstruction of the appearance of a scene may be obtained by combining several images taken from different viewpoints and properly stitched together so that
common parts of the scene overlap in the final picture, usually dubbed mosaic
(see Fig. 1.2).
Figure 1.2: (Top) 8 frames from a sequence of 680 captured by a hand-held camera. (Bottom)
All 680 frames combined in a mosaics with much greater field of view.
• photometric reconstruction, it aims at recovering the photometric content of
a scene that might be lost due to limited dynamic range of the imaging device
or unfavorable lighting conditions. Along the same line, reconstruction takes
place by composing many snapshots taken with variable exposure settings, each
of them capturing a different range of radiance. The combination of several overlapping ranges allow to extend the collective dynamic range, leading to images
with typical range resolution of 16 or 24 bits per channel.
• camera pose reconstruction is usually referred to as calibration and sometimes
is included in sparse geometric reconstruction algorithms as an early phase. It
addresses the problem of recovering the relative position and orientation of set
of images with respect to a given coordinate frame. For example, the reconstruction of the motion trajectory of an object throughout a sequence can be accomplished by comparing a reference view of the object in its rest position with
all the frames of the sequence. The displacements of corresponding structures
across the sequence hint at the trajectory the camera has followed. The knowl-
CHAPTER 1
6
edge of the position of the camera with respect to the scene triggers a variety
of applications; among the most popular stands Augmented Reality (AR). An
example of Augmented Reality is displayed in Fig. 1.3) where 3 virtual objects
are realistically rendered as they were laying on top of the showcase counter
according to the reconstructed pose of the camera.
Figure 1.3: 3 frames from a sequence of 420 captured by a hand held camera. The accurate
retrieval of camera motion allows the virtual objects to realistically lay at the same places in
every frame.
Every visual reconstruction algorithm, irrespective of the class it belongs to, requires some kind of relations to be established among the set of analyzed images. In
order to accomplish this task two key steps are invariably present: image matching and
image registration. The former step refers to the detection and matching of salient features (points, areas or structures) among images. The identification of corresponding
features in multiple views hints at the presence of spatial, tonal or temporal relation
among the set of images. Image registration is concerned with the quantitative computation of the inter-images relations given a set of corresponding salient features. Both
image matching and registration are very active fields of research and some of the most
relevant achievements will be discussed respectively in chapter 2.1 and chapter 2.2.
This thesis investigates on novel methods and applications in the field of reconstruction from multiple views. Three main threads directed the investigation: dense
geometric reconstruction in the context of image mosaicing and its applications, motion trajectory recovery applied to mixed reality and vision-based human-machine interfaces, sparse structure and motion reconstruction for deformable surfaces. All the
algorithms conceived have been tested on both synthetic and real image sequences, and
data sets have been made available for researchers active in the same field.
1.2 Fields of application
Visual reconstruction encompasses a wide number of concepts, ideas and algorithms
enabling established as well as emerging technologies and applications. Dense geometric reconstruction, in the form of image mosaicing, has already made an impact
INTRODUCTION
7
into the digital photography market with the continual release of new products which
allow a handful of photos or even video stream from an hand-held camera to be stitched
together into a wide field mosaic. Interactive 360 mosaic is routinely used to illustrate
and promote holiday resorts, museums, historical and archeological sites. Recently image mosaics have found application in visual surveillance systems that deliver motion
detection using pan-tilt-zoom cameras, as discussed in chapter 3. On the other hand,
dense two-view stereo reconstruction has become a cornerstone for robust navigation
of unmanned vehicle and robots and will probably hit the market soon.
Sparse geometric reconstruction is making its way inside commercial software for
vision-based shape computation tailored for architect and engineers studios. On a more
precompetitive stage of development, a pair of applications addressing non contact
shape retrieval of complex deformable surfaces in uncontrolled environment such as
airplane wings and boat sails are described in chapter 6.
Camera motion reconstruction has become a valuable tool for visual effects technology such as match moving, namely the insertion of virtual objects into real footage.
Automatic computation of the correct position, scale, orientation and motion in relation
to the photographed objects in the scene greatly simplifies and speed up match moving
tasks. The same functionality has found useful applications in mixed or augmented
reality, see 5.1, and human machine interface, refer to 5.2 for gaming related applications. Another fertile field of application is automatic steering, landing and docking of
unmanned vehicles.
1.3 Structure of the thesis
This thesis is subdivided into three main parts focusing on different aspects of visual reconstruction. As mentioned before, any multiple views visual reconstruction approach
builds on top of two pillars: an image matching method to infer the relations among the
set of images and image registration algorithms to numerically appraise them. For this
reason, chapter 2 is devoted to the presentation of principles and algorithms dealing
with image matching and image registration.
As far as research activities are concerned, dense structure reconstruction has been
investigated first during this thesis work. In particular the focus has been on the demanding problem of reconstructing the appearance of a scene through image mosaicing
in the context of visual surveillance. Basically, given several shots taken by a pan-tiltzoom (PTZ) camera, a mosaicing algorithm aims at the generation of a unique image
of higher resolution and field of view, called mosaic. A visual surveillance based on a
PTZ camera can then use a mosaic as reference image (i.e. background) so as to rely
on standard and well established motion detection techniques developed for the static
CHAPTER 1
8
camera scenario. Other than the unknown motion of the camera, other difficulties such
as changes in lighting, exposure, independently moving objects and optical distortions
compete to render this problem a hard one. Moreover, the use in the context of visual
surveillance imposes real-time computation requirements. In chapter 3 an original algorithm for real-time image mosaicing is detailed with validation tests accomplished
on real image sequences taken by a PTZ surveillance cameras.
It soon became clear that both visual inspection and other statistical measures,
such as residual fitting error, were not discriminant nor reliable indicators of the quality of a mosaicing algorithm. Nonetheless, to the best of our knowledge, no established or widely employed data sets, performance metrics or evaluation methodologies
have been proposed in literature to quantitatively appraise the performance of mosaicing algorithms. Such a shortage is very detrimental to the development of this
research field, for it hinders the objective assessment and comparison of different proposals meanwhile complicating communications and collaborations efforts among researchers. Chapter 4 addresses this issue and describes a proposal of an evaluation
methodology for image mosaicing algorithms comprehensive of standard data sets,
performance metrics and comparison procedure. The methodology has been made
available to the scientific community through a publicly accessible website.
Camera pose reconstruction has been the second field of investigation. This topic
is concerned with the determination of the position and the orientation of a camera
with respect to a given scene. When a scene or parts of it can be assumed flat, several
theoretical analogies arise with image mosaicing techniques whereas in place of the
appearance of the scene the focus is on the position of the cameras observing it. In this
context, two applications that would greatly benefit from automatic pose estimation
have been examinated: Augmented Reality and Human-Machine Interfaces (HMI). In
chapter 5.1 an original use of mosaics in a AR context is proposed; the point is to show
how image mosaicing can boost the performance of established planar pose estimation
algorithms. Chapter 5.2 deals with the introduction of vision-based pose estimation in
the field of interfaces for gaming applications. Two videogames, built on top of the
camera-based interface have been developed .
The third and last research direction has been sparse geometric reconstruction of
deformable objects. Here the scope is to estimate a low-dimensional geometrical representation, for instance a triangulated mesh, of the 3D structure of a flexible surface
such as journals, cloths, flags and so on. While the piecewise planar assumption about
the structure of the object is usually a reasonable approximation in this case too, the
capability of the object to deform introduces a whole new family of projection ambiguities. While the theoretical implications have been extensively studied, real-world
demonstrations have been much less compelling being limited only to reconstruction
INTRODUCTION
9
of sheet of papers and napkins. Chapter 6 reports on a novel vision-based method for
measuring airplane wings deformations using a single camera. Both synthetic and real
images have been employed to assess the performance of the conceived algorithm.
The last chapter 7 summarizes achievementes and lessons, draws conclusions and
traces future directions and foreseeable developments and advances.
1.4 Summary of contributions
The principal contributions and the scientific results, in terms of peer-reviewed publications on international conferences and journals and unpublished tech reports, originated
from the research activities carried out during the PhD course is as follows:
Chapter 3: Real-time mosaicing for visual surveillance
• An original near real-time registration algorithm for the construction of globally
coherent image mosaics apt to detect motion in visual surveillance systems.
• A fast and exact histogram specification algorithm for handling photometric registration of differently exposed images during the construction of image mosaics.
1. P. Azzari. General purpose real-time image mosaicing. In Proc. of ICVSS 2007,
July 2007.
2. A. Bevilacqua and P. Azzari. A high performance exact histogram specification
algorithm. In Proc. of ICIAP 2007, pages 501-512, September 2007.
3. A. Bevilacqua and P. Azzari. A fast and reliable image mosaicing technique
with application to wide area motion detection. In Proc. of ICIAR 2007, pages
501-512, August 2007.
4. A. Bevilacqua and P. Azzari. High-quality real time motion detection using PTZ
cameras. In Proc. of Intl. Conf. on AVSS 2006, pages 23, November 2006.
5. P. Azzari and A. Bevilacqua. Joint spatial and tonal mosaic alignment for motion
detection with PTZ camera. In Proc. of ICIAR 2006, pages 764-775, September
2006 (oral).
Chapter 4: Evaluation methodology for image mosaicing algorithms
• A comprehensive evaluation methodology for image mosaicing algorithms designed to objectively compare and rank approaches within a busy and, until then,
inordinate research field. Evaluation procedures and data sets have been released
for public use through freely accesible webpages.
CHAPTER 1
10
1. P. Azzari, L. Di Stefano, S. Mattoccia. An evaluation methodology for image
mosaicing algorithms. In Proc. of Intl. Conf. on ACIVS 2008, pages. , October
2008 (oral).
Chapter 5: Camera pose reconstruction and its applications
• Original usage of image mosaics for the enhancement of accuracy and steadiness
of pose estimation algorithms. The approach has been successfully integrated
into an existing augmented reality system aimed at aereonautical maintenaince.
• An innovative vision-based interface for videogames designed for easier and
more pleasant gaming experience.
• Two original gaming applications built on top of the interface have been developed.
1. P. Azzari, L. Di Stefano. Vision-based markerless gaming interface. In Proc. of
Intl. Conf. on Image Analysis and Processing, 2009 (submitted).
2. P. Azzari, Robust image registration using linear and quadratic programming.
Tech report, CV Lab, University of Bologna, Italy, 2008.
3. P. Azzari, Image registration using SVM regression.
Tech report, CV Lab,
University of Bologna, Italy, 2008.
4. P. Azzari, L. Di Stefano, F. Tombari, S. Mattoccia. Markerless augmented reality
using image mosaics. In Proc. of ICISP 2008, pages , July 2008 (oral).
Chapter 6: 3D reconstruction of deformable surfaces
• Thorough design and test of a monocular measurement system for wing deformations. Full and precise 3D reconstruction of the shape is delivered regardless
of the position or deformations of the analyzed surface.
1. K. Startchev, P. Azzari, P. Lagger, A. Varol, and P. Fua. Video-based measurements of deformable surfaces. In Journal of Machine Vision and Applications,
(in preparation).
2. P. Azzari, P. Fua and P. Lagger, Video-based measurements of wing deformations. Tech report, CV Lab, Ecole Polytechnique Federal Lausanne, Switzerland,
2008.
Chapter 2
Theoretical background
A reasoning process dealing with more than one view requires firstly to reveal and
quantify the relationships subsisting among the set of images at hand. Visual reconstruction from multiple view algorithms make no exception, for they always build on
top of reliable image matching and registration techniques. Since these techniques are
essential and unfailing, the present chapter is devoted to illustrate the concepts and
algorithms mostly recurring in the remainder of the thesis.
2.1 Image matching with keypoint correspondences
Image matching is a research area mainly concerned with the discovery of connections
among a set of images. In its wider meaning, the nature of such connections could refer
to relationships as diverse as geometric, photometric, temporal and so on. For example,
a pair of partially overlapping images could be surely cast in some kind of geometric
relationships for they are both observing the same scene probably from slight different
viewpoint or with different cameras. If the latter is the case, photometric relationships
among corresponding pixels could probably hold since different cameras usually have
different responses to incoming radiance. Moreover, temporal relations can be revealed
when dynamic events are observed in multiple images, for instance, the amount of
daylight could hint at the time and the order pictures have been taken.
Although several methods have been conceived to reveal inter-image connections
the concept of salient features extraction is widespread. Feature extraction is most of
the time inevitable since using an entire image as an observation is difficult or impossible due the high dimensionality (typically the order of a hundred thousand pixels).
Nonetheless salient features could be anything ranging from points, lines, curves to
textures, image structures, blobs and so on.
11
CHAPTER 2
12
In this section only keypoints-based image matching algorithms are treated. The
ultimate goal of such class of algorithms is to deliver a set of image point correspon0
0
dences xi ↔ xi , where xi in R2 are the keypoints detected in one image and xi in R2 are
those detected in a second image.
Three performance figures are important for image matching algorithms based on
keypoints:
• repeatability refers to the ability to select the same points of a scene in different
images independently of the changes in viewpoint, lighting, scale and so on.
• distinctiveness is concerned with the discriminative power of the description;
different points should always exhibit very diverse descriptors so that mismatch
probability is minimized.
• accuracy pertains to the precise localization of a keypoints inside an image,
subpixel methods have become common in order to increase performance.
Ideally, the best image matching algorithm is the one that find discriminative descriptors that can be matched with high reliability and accuracy between frames, while also
finding a large number of features per frame.
Inside the class of keypoints-based image matching algorithms the focus will be
on the three most popular and representative feature extractors used nowadays in computer vision: the Harris corner detector, the Kanade-Lucas-Tomasi tracker (KLT), and
the Scale-Invariant Feature Transform (SIFT). The term feature extractor is used to
describe the combination of a feature detector, or keypoints detector, and a feature descriptor. Detectors are used to find keypoints in an image, after which a descriptor is
created that describes the local neighborhood around the points. An overview of the
state of the art in feature extractors is given by Mikolajczyk and Schmid [10]. A feature tracker establish correspondence among keypoints detected in different images by
comparing their respective descriptors. A keypoints-based image matching algorithm
is the ensemble of a feature extractor and a feature tracker.
2.1.1 Harris corner detector
The Harris corner detector, named after the authors that presented it in the first place
[5], is one of the most widely used and established keypoint detectors. Harris keypoints
or corners, sometimes also referred to as interest points, are image features characterized by high intensity changes in two orthogonal directions. For instance, if a square
object is present in the image then its four corners are usually very good interest points.
A formal statement of corners requires the introduction of the Harris local structure
THEORETICAL BACKGROUND
13
matrix C which is defined as
 P P 2
∂I

R
C = wG (σ) ∗  P P ∂x
∂I ∂I
R ∂x ∂y
where I is the image at hand and
∂I ∂I
∂x , ∂y
PP
∂I ∂I
R ∂x ∂y
P P ∂I 2
R ∂y




(2.1)
its partial derivatives, R is a (2 × d + 1) × (2 × d +
1) neighboring image region around (x, y), wG (σ) is a Gaussian kernel with standard
deviation σ and * denotes convolution.
Let λ1 ≥ λ2 be the two eigenvalues of the matrix C. Since C is symmetric and
positive semi-definite, both λ1 and λ2 are non-negative. The values of these eigenvalues
directly admit some useful interpretations:
• in a uniform and homogeneous region, λ1 = λ2 = 0.
• at the location of a step edge, λ1 > λ2 = 0. The corresponding eigenvector for
λ1 is associated with the direction that is orthogonal to the edge.
• at the location of a corner, λ1 ≥ λ2 > 0. The larger are the values of λ1 and
λ2 , the higher are the contrasts of the edges orthogonal to the directions of the
corresponding eigenvectors.
Given the previous definition, the Harris corner detector proceeds as follows:
1. for each image point (x, y):
• construct the local structure matrix (x, y)
• compute the response to the “cornerness” filter r defined at each pixel coordinates (x, y) defined as
r (x, y) = det (C (x, y)) − k (trace(C (x, y))2 ;
(2.2)
where k is an adjustable constant.
2. perform a non-maximal suppression on the “cornerness” filter r response to suppress weak corners around the stronger ones.
3. threshold the residual response according to a threshold value t.
Altogether, the Harris corner detector requires three additional parameters to be
specified: the constant k, the radius d, of the neighbourhood region for suppressing
weak corners, and the threshold value t. Different configurations of such parameters
may yield very diverse outcomes, nonetheless this is out of the scope of this section,
for further investigation please refer to the original work [5].
The descriptor associated to each detected corner is just the image intensity neighborhood around the interest point. The matching phase is accomplished by comparing
the descriptors using the L2 norm, a low score, originated by similar image patches,
signaling probably correspondent pair of corners.
CHAPTER 2
14
Figure 2.1: Two test images showing the keypoints detected by the Harris detector.
2.1.2 Lucas-Kanade-Tomasi feature tracker
The Kanade-Lucas-Tomasi (KLT) corner detector [9] is almost contemporary to Harris
proposal and shares many concepts with it. For instance, the KLT detector relies on the
local structure matrix C defined in Eq. 2.1
The KLT feature detector consists of these steps:
1. for each image point (x, y):
• construct the local structure matrix C around (x, y).
• compute the smallest eigenvalue, λ2 , of the matrix C KLT (x, y);
• if λ2 > λmin , save (x, y) into a potential corner list, L.
2. sort L in decreasing order of λ2
3. scan the sorted list from top to bottom and select points in the list in sequence.
Points that fall inside the neighborhood R of any selected points are removed. The
output produced by the KLT corner detector is a list of corner points that have λ2 > λmin
and the neighborhood R of these points do not overlap. Similarly to Harris detector, the
KLT algorithm admits two parameters:
• threshold value, λmin , on the second eigenvalue λ2 , and
• a neighborhood window radius d.
Indeed, results are very similar to the Harris technique, as may be noticed by comparing
figures 2.1 and 2.2.
Like Harris, the KLT descriptor consists of a neighboring image patch and point
correspondences are established according to the correlation score among patches. A
THEORETICAL BACKGROUND
15
Figure 2.2: Two test images showing the keypoints detected by the KLT detector.
novel matching algorithm, introduced later by Lucas and Kanade, uses a gradient descent method to iteratively align image intensity patches using an affine warping model
[2, 11].
2.1.3 Scale Invariant Feature Transform
The SIFT (Scale Invariant Feature Transform) keypoint detector/descriptor was proposed by Lowe in 1999 [7, 8]. The SIFT features are feature vectors that represent
local image measurements, which have been reported to be invariant to image translation, scaling and rotation and partially invariant to changes in illumination and local
image deformations.
The SIFT detector locates keypoints as follows (see Figure 2.3):
• the input image, I (x, y), is convolved with a number of Gaussian filters whose
standard deviations {σ1 , σ2 , ...} differ by a fixed scale factor. The convolutions
yield a small number of smoothed images, denoted by Gσ1 (x, y) , Gσ2 (x, y) ; ...
• adjacent smoothed images are pairwise subtracted to yield DoG (Difference-ofGaussian) images, according to
Dσ j (x, y) = Gσ j+1 (x, y) − Gσ j (x, y)
(2.3)
• smoothed images from Step 1 are subsampled and the procedure in Step 2 is
repeated on the subsampled images, yielding a number of DoG images over the
scale space.
• each point in these DoG images is examined. A keypoint is marked at a location
where the point is a local minimum or maximum of its 8 neighbours on the same
scale and of its 9 neighbours on the scales above and below.
CHAPTER 2
16
Figure 2.3: The DoG image pyramid used by the SIFT detector to locate keypoints.
The surrounding intensity and gradient information around each keypoint are encoded in the SIFT descriptor. The neighborhood region around the keypoint is subdivided in a regular grid of 4 × 4 cells. Image gradients are computed within each cell
and classified into 8 orientations (see Fig.2.4), giving a SIFT descriptor of 128 elements
long for each keypoint.
Unlike Harris and KLT, SIFT keypoints are not always located at corner points as
may be noticed in fig. 2.5. Nonetheless, SIFT keypoints have shown high repeatability
and distinctiveness in some of the most challenging computer vision applications such
as wide-baseline stereo and multi-view reconstruction.
The matching phase is accomplished by computing the euclidean distance between
normalized feature descriptors, with the addition constraint that the nearest neighbor
must be sufficiently closer than the second closest neighbor. The idea stems from the
observation that false matches caused by noise ought to have multiple noisy matches at
similar distances [8].
2.2 Planar image registration
0
A pair of corresponding image points xi ↔ xi are projections in two images of the same
0
pre-image point Xi . A set of corresponding image points xi ↔ xi for i = 1, 2, ..., n,
detected in a pair of images, hints at the fact that the views are related to some extent.
The explicitation and quantification of the subsisting relations is demanded to image
THEORETICAL BACKGROUND
17
Figure 2.4: This figure shows a simplified example of a 2 × 2 descriptor array computed from
an 8 × 8 window of image gradient vectors. The SIFT detector reported in [8] works on 16 × 16
windows of image gradient vectors, giving descriptors of 128 elements in length.
registration algorithms. In this section a number of concepts regarding the geometry
of two views are treated, in particular registration of images of planar structures is
emphasized, for it is a useful approximation in many circumstances and oftentimes
used throughout the thesis. The extension to an a arbitrary number of views has been
treated by iteratively applying two views algorithms to a shifting pair of images.
Hereinafter, it is assumed that an image point x = [u, v] is projection of a 3D space
point X = [X, Y, Z] imaged by the camera according to the perspective projection matrix
P:
e=K
se
x = PX
h
R


 α c u0 


i
e with K =  0 β v0 
t X




0 0 1
(2.4)
e = [X, Y, Z, 1] are the homogeneous representation of x and
where e
x = [u, v, 1] and X
X respectively. In Eq. 2.4 s is an arbitrary scale factor; (R, t), called the extrinsic
parameters, is the rotation and translation which relates the world coordinate system to
the camera coordinate system; K is called the camera internal matrix, with (u0 , v0 ) the
coordinates of the principal point, α and β the scale factors in the u and v axes, c the
parameter describing the skewness of the two image axes.
In the general case of an arbitrary scene observed by two views, characterized by
0
0
projection matrices P and P , a corresponding image pair x ↔ x ) is linked by the
fundamental matrix F
0
e
x T Fe
x=0
(2.5)
Since a valid fundamental matrix is a 3 × 3 matrix of with rank 2, any image points
in one image is put in correspondence with a line in the second image, depending on
the 3D structure of the imaged scene. Such ambiguity cannot be solved from image
CHAPTER 2
18
Figure 2.5: (Top) Two test images taken from slightly rotated viewpoints. (Bottom) Detected
SIFT keypoints inside the right image are marked with yellow dots. Colored lines connects
keypoints found in the right image and their corresponding locations in the left image. Three
cases are shown: unmatched keypoints (i.e. on the middle left), mismatched keypoints (on the
pair of chimney-pots) and correct matches.
correspondences alone and gives raise to a whole family of valid projection matrices
0
P and P satisfying Eq. 2.5. Hence little can be inferred unless prior assumption are
made either on relative position of the cameras or structure or the scene.
Assuming the observed scene, or part of it, has a planar structure greatly simplifies
theory and calculations. Even though it may seem a strong approximation, the planarity
assumption is acceptable in many scenarios and has been widely applied. As far as this
thesis is concerned such a simplification holds for:
• dense structure reconstruction through image mosaicing. Since this topic is
mainly concerned with the creation of a wide angle image, such as in panorama
photography or in wide area surveillance, the presence of almost flat scenes,
i.e. scene in which relative depth is negligible with respect to the distance from
the camera, is quite common. Moreover, the case of purely rotating cameras,
for instance PTZ cameras, observing arbitrary scenes, is governed by the same
THEORETICAL BACKGROUND
19
geometry relations as in the former case.
• pose reconstruction. A large number of objects in real life are flat or contains
flat parts. This is all the more true when thinking at objects as being piecewise
flat, as a polyhedral mesh of small polygons joint together. The smaller the
polygons the more precise the approximation.
• sparse structure reconstruction of deformable objects. As before objects can
be thought of being composed of flat parts connected by joints that let them
flex. The piecewise flat model, for example a triangulated mesh, holds even
for many deformable objects. Additional smoothness constraints are needed to
handle deformation degrees of freedom properly.
Planar image registration, a subset of the multiple view registration area, applies
to the cases where geometric relations link views, or part of them, that portray flat
0
regions. The most general type of relation among keypoints pairs x ↔ x ) belonging to
corresponding flat regions in different images is modeled by a homographic relation as
0
se
x = He
x
(2.6)
where H is a 3 × 3 matrix of rank 3, called homography, defined as

 h1

H =  h4

h7
h2
h5
h8

h3 

h6 

h9
(2.7)
It may be shown that the geometric relations in any of the abovementioned cases
can be cast into an homography estimation problem. Due to its vast field of applications
many algorithms have been conceived for computing a homography given a set of
correspondence pairs, for hinstance homogeneous and inhomogeneous DLT, Sampson
approximation and so on, as illustrated in [6]. Every method differs from each other
for the criterium used for the estimation of H, namely the type of distance d to be
minimized. Nonetheless, all the algorithms perform a Least Square (LS) minimization
of an error e that may be expressed in the following form
e=
N
X
0
d(xi , xi )2
(2.8)
i=0
where d can be in principle any linear or non linear function of the unknown entries of
matrix H.
As a final remark, it is worth pointing out that standard LS methods are very sensitive to data, i.e. corresponding point coordinates, affected by non gaussian noise,
hereinafter “outliers”. For example, inaccurate location of corresponding points or
CHAPTER 2
20
false matching are usually randomly distributed and may heavily affect the solution
dragging the LS estimation of H well away from the true one. Two main approaches
may be adopted to estimate parameters of a mathematical model from a set of observed
data which contains outliers. The first approach adopt an explicit filtering stage to sift
data before the LS estimation, for example RANSAC (RANdom SAmple Consensus)
[4] is a popular outlier removal approach. The second approach relies on the use of statistically robust distance functions. Both approaches have been successfully applied,
the choice depending on on the context and the noise presumably affecting the data, for
further investigation refer to [6, 1].
Throughout the thesis, an enhanced version of the original RANSAC algorithm,
suggested in [3], is used. The former method considers many random data subsets,
each containing the minimum number of samples required to compute the model parameters exactly, and select the parameter set which has the largest number of compatible data. Eventually the model parameters are refined using an as large amount of data
as possible, namely every compatible point correspondence.
The innovative part consists in iterating the process by using the estimated homography to bootstrap a new search for point correspondences. The search procedure
proceeds as follows: given an interest point xi in the first image, a match is sought in
a search window centered on the expected position xi = Hxii in the second image (H
is the identity matrix at first iteration). Because the search is now guided, there is a
probability of fixing false matches established at the previous step augmenting the total
number of valid correspondences. The new set of inliers is again used to refine the estimate of H. The estimation and guided matching stages are repeated until the number
of valid correspodences stabilizes.
Bibliography
[1] P. Azzari. Robust image registration using linear and quadratic programming.
Technical report, CV Lab Tech Report, University of Bologna, Italy, 2008.
[2] S. Baker and I. Matthews. Lucas-kanade 20 years on: A unifying framework.
Intl. Journal of Computer Vision, 56(3):221–255, 2004.
[3] D. P. Capel. Image mosaicing and super-resolution. University of Oxford, 2001.
[4] M. A. Fischler and R. C. Bolles. Random sample consensus: A paradigm for
model fitting with applications to image analysis and automated cartography.
Communications of the ACM, 24(6):381395, 1981.
[5] C. Harris and M. Stephens. A combined corner and edge detector. In Proc. of
Alvey Vision Conf,, pages 147–151, 1988.
[6] R. Hartley and A. Zisserman. Multiple view Geometry in computer vision. Cambridge University Press, Second Edition, 2003.
[7] D. G. Lowe. Object recognition from local scale-invariant features. In Proc. of
Intl. Conf. on Computer Vision, pages 147–151, 1988.
[8] D. G. Lowe. Distinctive image features from scale-invariant keypoints. Intl.
Journal of Computer Vision, 60(2):91–110, 2004.
[9] B. D. Lucas and T. Kanade. An iterative image registration technique with an
application to stereo vision. In Proc. of Intl. Joint Conf. on Artificial Intelligence,
pages 674–679, April 1981.
[10] K. Mikolajczyk and C. Schmid. A performance evaluation of local descriptors.
IEEE Trans. on Pattern Analysis and Machine Intelligence, 27(10):1615–1630,
2005.
[11] C. Tomasi and J. Shi. Good features to track. In Proc. of IEEE Intl. Conf. on
Computer Vision and Pattern Recognition, pages 593–600, 1994.
21
22
BIBLIOGRAPHY
Chapter 3
Real-time image mosaicing
Image mosaicing is stirring up a lot of interests in the research community either for
its scientific significance as well as for the potential implications in real world applications; indeed, automatic image alignment and stitching is key to several higher level
image processing tasks.
Next section presents a real-time mosaicing algorithm capable of constructing high
quality seams-free panoramic images. The proposed algorithm performs a fully automatic spatial and tonal registration by exploiting keypoints correspondences and histogram matching techniques. Remarkably, the approach does not rely on a priori assumption, with all the required information extracted from the image set. A rich set
of image sequences has been collected to test the algorithm and assess its stability and
flexibility. In addition, the approach has been successfully integrated in a visual surveillance system in which the mosaic is used as background to perform motion detection
and tracking with a Pan Tilt Zoom (PTZ) camera.
The second next section investigates further on the problem of accurate tonal alignment of a set of spatially registered images. Aside being a key element of any image
mosaicing algorithm, tonal alignment can be regarded as a stand alone topic as long as
principled handling and processing of differently exposed images calls for photometric
normalization.
3.1 On-line image mosaicing for visual surveillance
Image mosaicing is a popular method for effectively increasing the field of view of a
camera by allowing several views of the same scene to be combined into a single image,
called a mosaic. Stitching together multiple images taken from different viewpoints allows to create large field-of-view pictures, up to 360 degrees, with consumer-grade
23
CHAPTER 3
24
camera and without introducing the undesirable lens deformation usually accompanying wide-angle lenses.
Properly handling multiple images taken at different locations, instants and light
conditions requires mosaicing methods to be robust with respect to viewpoint and illumination changes, scene multimodality (i.e. waving trees and hedges), moving objects,
imaging device noise and so on. Other camera related aspects such as varying intrinsics
(focal length, principal point location) should not degrade significantly the performance
of the system. Finally, inherently real time applications, such as visual surveillance, require the method to perform on line at acquisition rate. Ensuring consistent geometric
and photometric reconstruction of the scene by continuously combining pictures in
real-time in a mosaic is a challenging goal.
The next sections describe a real-time image mosaicing technique devised to construct high quality mosaics from video sequences offering all the above mentioned
desired properties. Spatial and tonal consistence is achieved by exploiting an original dual geometric registration scheme, illustrated in section 3.1.2 , and a fast photometric registration stage, introduced in section 3.1.2 and further detailed in section
[4]. Furthermore, the algorithm has been conceived to be completely image based.
No prior information, such as camera calibration (focal length, distortion coefficients),
scene geometry or feedback signals coming from the imaging device (pan/tilt angular
movements, exposure settings), is necessary for the mosaic to be built. Instead all the
required information is automatically extracted from the images, yielding a hardware
independent and general purpose algorithm.
The quality of the attained mosaics has been initially verified by visual inspection.
Although human perceived quality is a largely subjective indicator, it seemed to be
correct since only qualitative applications such as digital photography, photomontage
and so on were initially envisioned.
However, as we addressed the adoption of mosaics within the visual surveillance
domain, we begun to rely on overall system performance as a quantitative quality metric. The idea of mosaic-based motion detection connects with the attempts to improve
motion detection systems developed by researchers in the last years. Some proposed
solutions involved the use of PTZ cameras to widen the surveyed area. Despite of the
many available methods for background difference, none of them can be trivially extended to work with hinged PTZ cameras. Mosaic-based motion detection consists in
the use of traditional background subtraction techniques on a panoramic background
image built by means of a mosaicing algorithm.
This section is composed as follows. Section 3.1.1 provides an overview of the state
of the art in the image mosaicing research field. Section 3.1.2 describes the proposed
algorithm for real-time image mosaicing, detailing both spatial and tonal alignment
REAL-TIME IMAGE MOSAICING
25
phases along with image blending and warping steps. Mosaic-based motion detection,
using moving cameras is examined in Section 3.1.3. Experimental results on real sequences are reported in Section 3.1.4, followed by concluding remarks and possible
directions for future research on this topic in Section 3.1.5.
3.1.1 Previous work
Image mosaicing algorithms
During the last decades a considerable number of scientific works addressed the broad
topic of image registration (for a comprehensive survey refer to [45]). In their diversity, published methods share a lot of theoretical and technical aspects. According to
the adopted image matching techniques, the algorithms can be coarsely classified into
two main families: direct methods and feature-based methods. As long as the number
of frames simultaneously combined is considered, two further categories may be recognized: sequential methods and global registration methods. Inside these super classes,
methods can be further distinguished according to the preferred geometrical and photometric model, treatment of independently moving objects, self-calibration capabilities
and so on. A first simple dichotomic taxonomy is proposed here to highlight the two
main different image matching approaches:
• Direct methods. These algorithms usually attempt at iteratively estimating the
transformation parameters by minimizing an error function based on pixelwise
brightness differences in overlapping areas [11, 39, 41, 26, 36, 42]. The advantage of direct methods is highly accurate registration and reconstruction, due to
the exploitation of information associated with every single pixel. Image formation process non idealities, such as illumination changes [11, 26], lens distortions
[36, 42] and vignetting, can be accounted for in the pixelwise error function.
The main drawback of this class of methods is the high computational cost due
to the non-linear parametrization of the error functions, which call usually for
complex iterative algorithms. Moreover, an initial guess for the parameters is
required to avoid local minima. Since direct methods are usually incompatible
with real time constraints, they often find application in batch registration processes, where maximum accuracy is the goal. Furthermore these algorithms are
sensitive to moving objects in the scene and their presence may cause serious
performance degradation [11, 39, 42].
• Feature-based methods. As opposed to using all the available pixels, these methods establish feature correspondences among images to be registered [5, 44, 9,
1, 12, 17]. Many different features have been used in the literature, including
CHAPTER 3
26
regions, lines and keypoints. Recently, keypoints gathered a large agreement
among researchers, becoming the de facto standard for image registration purposes ([31, 40, 3]). After being detected in one image, keypoints are searched
in a second image based on descriptor similarity. Unlike direct methods, feature
based methods admit linear error functions and hence solutions may be found
in closed form. By selecting appropriate features [9, 17], these methods can be
very robust to illumination changes, image rotations and zooming. Furthermore,
moving objects in the scene are tolerate as long as appropriate filtering schemes,
such as RANSAC [5, 1], or robust error functions, are deployed to deal with
incompatible keypoints.
As far as the registration problem is concerned, two classes of algorithms may be
distinguished as well:
• Global registration methods compute the best alignment among several images
by simultaneously minimizing the misregistration between all the overlapping
pairs of images [11, 39, 41, 26, 36, 42, 9, 12, 17]. Global registration algorithms
deliver the most consistent geometric reconstruction and have been proposed in
conjunction with both direct [11, 39, 36, 42] and feature-based approaches [9,
12, 17]. The joint optimization is usually computationally intensive, moreover
these methods require all the images to be known in advance. Any update to the
image set requires the computation to start over again, hence ruling out even the
possibility of performing on-line, although slowly.
• Sequential algorithms allow the construction of a mosaic by continuously combining new images as soon as they become available. Every new image is aligned
with the previous one (Frame to Frame registration) or with the mosaic built thus
far (Frame to Mosaic registration). Intuitively, alignment of pair of images is
simpler a problem than multiple view alignment, thus yielding a faster computation that holds the potential for real-time operation. Moreover, these algorithms
can usually handle an indefinitely high number of images and does not need to
know all images in advance. Nonetheless, pairwise registration is only locally
optimal since past frames are not explicitly taken into account, moreover the
sequential combination of images may lead to visual artifacts due to error accumulation. The next section hosts a quick overview of sequential mosaicing
algorithms, usually devised in combination with real time applications, such as
motion detection.
REAL-TIME IMAGE MOSAICING
27
Sequential mosaicing for motion detection
Motion segmentation of video sequences is widely recognized as being the first layer
of many video processing applications such as video urveillance, traffic monitoring and
human activity understanding. Among the possible ways for detecting motion, background subtraction can provide the most accurate segmentation of moving objects, but
requires the use of a stationary camera. Moving masks are extracted by thresholding the absolute difference between a reference image (referred to as background) and
the current frame. Also, background maintenance activities are envisioned in order to
keep the background up-to-date in presence of illumination changes and a potentially
dynamic environment.
In the last few years, several approaches have been proposed in order to use background subtraction with hinged pan-tilt-zoom cameras by relying on a mosaic of the
background scene. One of the heaviest drawback of background subtraction algorithms
for PTZ cameras is the computational cost needed to build and maintain high quality
mosaics in real time. Therefore, some approaches enact background subtraction offline [2] or propose batch surveillance applications [38]. Alternatively, real time performances have been obtained by simplifying the geometric model from projective to
rigid 2D [44] or affine [41], thus limiting the fields of application to contexts in which
objects are far away from the camera.
The problem of error propagation when registering sequentially a large number
of images in a sequential fashion is still an open issue. Some authors dealt with it
by exploiting specific informations regarding camera signals [35, 27, 29, 7], such as
pan/tilt angles, or supplement the camera with additional sensors, i.e. compasses and
gyroscopes.
3.1.2 Proposed image mosaicing method
The proposed method belongs to the class of sequential feature-based algorithms. Hence,
feature detection and matching is a very critical stage, for the algorithm must be able
to work fast and reliably even in cluttered and/or dynamic environments. The accuracy
of the detected feature correspondences is for the overall system performance.
As regards feature detection and matching, several approaches, including the KanadeLucas-Tomasi tracker (KLT) [40], Harris corners [25] and the more recent Scale Invariant Feature Transform (SIFT) [31], have been tested. While SIFT demonstrated much
better performance compared to KLT and Harris in terms of robustness to large interframe deformations, i.e. translation, rotation, scale and illumination changes, its computational cost greatly exceeded real-time constraints. Nonetheless, when processing a
continuous video stream, differences among subsequent frames are deemed to be small.
CHAPTER 3
28
Such consideration, along with a much lower computational cost, lead the choice over
KLT and Harris methods, with KLT finally preferred because of a more stable implementation [14]. Moreover, a fast initial guess, based on a phase-correlation approach
[46], is computed to assist the KLT tracker in difficult situations, namely in case of
large camera shifts. The phase correlation guess serves as a coarse estimation of the
camera movement and to initialize the feature tracker. Such a solution allows handling
large camera displacements using small search areas, granting additional benefits in
terms of robustness and performance.
Geometric alignment
A mosaic is a compound image built through properly composing, (aligning), a high
number of frames and warping them into a common reference coordinate system, both
spatial and tonal. The result consists of a single image of a greater resolution and
spatial extent that represent a dense reconstruction of the structure and the appearance
of the scene. Usually mosaicing techniques are concerned with collection of frames
which do not exhibit parallax effects. Such requirement allows seamless stitching to be
accomplished without requiring to recovery the underlying 3D structure of the scene.
Such requirements is known to be satisfied if images are taken in either one of these
two settings:
• an arbitrary scene acquired with a purely rotating camera, any rotation is allowed
in place, i.e. about its optical center, no translations are allowed (to the author’s
knowledge this is the case of most PTZ-based surveillance applications).
• a planar scene taken from arbitrary locations.
If images are also optically corrected, i.e. as they were acquired using an ideal pin
0
hole camera, the most general relationship between corresponding keypoints x ↔ x )
belonging to any pair of images is described by homography matrix of Eq. 2.7.
Given a sequence of N views {I0 , I1 , ..., IN−1 }, the construction of a mosaic requires
the computation of a set of N − 1 pairwise transformations Hi, j that link all the views
together. Assuming each image is a node in a graph and edges are homographies linking two frames, mosaicing algorithms aim at computing the homographies belonging
to a spanning tree. While global registration algorithms compute all the transformations simultaneously, sequential mosaicing consists in exploring the graph one edge at
a time.
Sequential algorithms usually proceeds in chronological order by determining a
chain of N − 1 pairwise homographies among images taken at subsequent instants.
Hereinafter, frame to frame (F2F), or pairwise alignment, is defined as the estimation
REAL-TIME IMAGE MOSAICING
29
of a homography Ht,t−1 linking a pair of temporally adjacent frames. Once the homography chain is computed, the transformation Hi, j linking an image Ii taken at time
i with respect to another image I j at time j > i may be found by concatenating the
transformations in between such as:
Hi, j =
j
Y
Hk,k−1
(3.1)
k=i+1
By defining the reference coordinate system R0 where the mosaic will be composed, N
visualization matrices Qi linking each image local coordinate with R0 may be computed
as
Qi = R 0
i
Y
Hk−1,k , i ∈ [0..N − 1]
(3.2)
k=1
A mosaic can be constructed by projecting all frames Ii with i ∈ 0, .., N − 1 onto the
common reference using the visualization matrices Qi .
Sequential algorithm may also explore the graph by computing the transformations
between a reference frame, usually the first, and all subsequent images. This approach
is known as Frame-To-Reference (F2R). Instead of a chain, a degenerate spanning tree
with one root and N − 1 leaves describes the link topology; a set of N − 1 pairwise
homographies connecting the root with all the leaves is computed. Assuming I0 to be
the first frame, the transformation Hi, j linking an image Ii taken at time i with respect
to another image I j at time j > i may be found by:
−1
H0, j
Hi, j = H0,i
(3.3)
Given R0 , the visualization matrices Qi can be simply computed as
Qi = R0 H0,i
(3.4)
Both kind of approaches have advantages and drawbacks. Frame-to-frame registration benefits from the fact that differences among temporally adjacent frames are
meant to be small both in viewpoints and lighting conditions, hence keypoints correspondences are more reliable and the alignment is usually highly accurate. On the other
hand since the construction of the mosaic requires all the homographies to be multiplied in a chronological order, small estimation errors propagate along the homography
chain and affect all subsequent visualization matrices. As the number of frames grows,
the amount of accumulated error leads to considerable misalignment. This effect is
particularly noticeable when the sequence moves back and forth to the same location
in the scene. When passing from the same location, frames meant to be overlapping
exhibit a displacement due to the accumulated error, usually referred to as drift error.
On the other hand, Frame-To-Reference registration does not suffer from drift error
since a single estimated homography is required to compute any visualization matrix.
CHAPTER 3
30
Indeed, in case of long sequences it may happen that, at some point, a given frame
do not share any overlapping areas with the reference image making it impossible to
establish correspondences and compute the registration. Updating the mosaic with
every new image and computing the registration between the mosaic built so far and
the current image usually solves this issue; this variant is known as Frame-To-Mosaic
registration (F2M). Nonetheless, long sequences still pose serious problem since fair
tonal differences may arise between the mosaic and a given frame as the time pass,
thwarting the keypoints matching process and, sometimes, leading the algorithm to fail
and drop the frame.
Our proposed algorithm tries to get the best from both approaches by performing a
dual registration stage. At first, a frame-to-frame registration between a current frame
It and the previous one It−1 is performed. The quality of the computed homography
Ht,t−1 is then assessed according to a test involving two performance indicators:
• a normalized SSD-based similarity measure computed within the overlapping
areas of the previous frame It−1 and the current frame warped according to the
computed homography ItW = Ht,t−1 It .
• the residual error e of the LS estimation of homography Ht,t−1 , as defined in Eq.
2.8.
If the test is passed, the computed homography is used to identify the region of the
mosaic Bt corresponding to the current frame and a further F2M registration step is
0
performed between It and the the mosaic region Bt . In theory, the homography Ht,t−1
computed during the second step should be an identity matrix. In practice, it is always
0
slightly different Ht,t−1 = I3×3 + and its deviation helps keeping the current frame
consistent with the rest of the mosaic. If the test is not passed, only the F2M registration
step is performed. If it fails too, the frame is skipped.
The visualization matrix Qi , relating an arbitrary frame Ii to the reference frame
R0 , is computed by alternatively multiplying F2F and F2M registration matrices:
Qi = R 0
i
Y
0
Hk−1,k Hk−1,k , i ∈ [0..N − 1]
(3.5)
k=1
The dual registration can be thought as an improved version of the Frame-to-Mosaic
approach to which it return in case the first F2F registration fails. On the other hand,
when F2F step succeeds the benefits from both the approaches are retained. Reliable
registration with respect to the previous frame is delivered by F2F registration, cancellation of the drift error is enabled by F2M alignment. Moreover, as will be detailed
in the next section, tonal registration performed after the F2F alignment bring the current frame in the photometric reference of the mosaic, thus further facilitating the F2M
keypoints matching step.
REAL-TIME IMAGE MOSAICING
31
Even though no theoretical analysis on the drift error reduction has been accomplished, substantial experiments have proved that our dual stage registration method
is effective in bounding the amount of accumulated error and delivers quasi globally
consistent mosaics. Moreover, real-time requirements are fulfilled since the algorithm
is computationally equivalent to two fast sequential registration steps.
Photometric alignment
Tonal misalignments commonly occur when taking multiple pictures with a moving
camera. If not properly handled, the resulting panorama will exhibit seams that do not
correspond to any physical structure of the scene, even though the images are blended
in overlapping regions. These color gradients may affect further processing involving
the mosaic. For example, in a typical visual surveillance system, the motion detector
based on background subtraction may erroneously interpret these artifacts as moving
objects, thus generating false alarms. As a consequence, a comprehensive mosaicing
technique must deal with the problem of photometric misalignments. Tonal misalignents are mostly due to:
• automatic camera exposure adjustments, i.e. changes in shutter time, auto-white
balance, auto gain control and so on;
• environmental illumination changes, e.g. daytime, clouds.
Many methods have tackled the problem of exposure normalization of overlapping
frames, with most of them not explicitly modeling the physical phenomena that make
corresponding pixels exhibit different brightness. The works in [42, 9, 17] address the
problem using spatially-varying weighting functions, also known as feathering techniques, and a clever placement of color discontinuities to minimize the visual impact,
for instance along true color gradients. The seminal proposal by Burt et al. [10] on
image blending using multiresolution splines have been widely employed. The idea is
using a set of frequency-adaptive weighting functions by creating a band-pass pyramid
representation of the image and making the transition widths a function of the pyramid
level. Quite a few other methods followed on the track, anyway they tend to conceal
tonal misalignments rather than correcting them and the results are visually compelling
as long as the photometric difference between images is moderate.
Indeed, larger misalignments call for different and more principled approaches.
The method in [11] yield remarkable results by approximating the camera nonlinear
comparametric function with a linear piecewise function. The algorithm ultimately
yield an Intensity Mapping Function (IMF) that maps every pixel brightness of a given
image to the corresponding value of the tonal reference. The main drawback regards
the high computational cost of such estimation, that makes it unsuited to real-time
CHAPTER 3
32
processing. Another approach consists in the estimation of a single high dynamic range
(HDR) radiance map built from a set of differently exposed images [26, 30, 22]. This
approach models the underlying photometric process and includes an explicit treatment
of saturated, both bright and dark, pixels. Once again these proposals are too time
consuming and their integration into real-time systems is infeasible, at least nowadays.
Besides time performance considerations, our preferable candidate method ought
to be resistant to other issues, for example spatial registration inaccuracies, arising
from small alignment errors, and the presence of moving objects in the scene. These
further considerations prompted us to exploit an histogram-based approach, that allows
to partly overcome the above mentioned problems. The histogram specification (HS)
technique is a histogram-based approach that aims at transforming a cumulative distribution H1 of a random variable into the cumulative distribution H2 of another random
variable by finding a continuous remapping function (see [21] for further details). Assuming a given image and its tonal reference as two random variables, the remapping
of the brightness value of each pixels of the image according to the computed function
results in the given image histogram matching the tonal reference one. In this context,
the remapping function is named Intensity Mapping function . If the image at hand and
its reference are properly spatially aligned, identical histograms yields photometric
alignment. Unfortunately, exact histogram specification holds only for continuous random variables whereas pixel brightness is not. Nonetheless many algorithms, such as
[13, 23], have been conceived to approach theoretical performances. A more in-depth
presentation of related concepts and topics is postponed to the next section 3.2.
Anyway, a typical IMF for gray scale images is a discrete function consisting of 256
pair of corresponding pixel brightness (u1 , u2 ) derived from the cumulative histogram
H1 and H2 of a given image and its tonal reference as follows:
u2 = H2−1 (H1 (u1 ))
(3.6)
A specific photometric registration method relying on the histogram specification
technique is part of the proposed mosaicing approach. This color normalization step is
performed prior to stitch a new frame into the mosaic, just as the geometric registration
step aligns the images into a common spatial coordinate frame. Based on HS, the
method is fast and simple; moreover it does not require the scene to remain completely
static and is tolerant against moving objects and small spatial registration errors. In
fact, the presence of few moving objects often does not alter the overall cumulative
histograms hence impacting negligibly on the photometric registration stage.
Although the method has been conceived to work with gray scale images, its practical generalization to color imagery has been accomplished by transforming images into
a luminance-chrominance color space, such as YUV space, then perform histogram
REAL-TIME IMAGE MOSAICING
33
specification on the intensity channel, apply the IMF and transform back. Performing histogram specification independently on each channel of a RGB color image may
cause tonal artifacts such as the introduction of color hues absent from both source and
target color schemes, as might be seen in Fig. 3.1. This effect probably originates from
the use of Bayer color filter array, which is a popular format for digital acquisition of
color images, and might have a smaller effect when using full color CCD camera (3
independent photo receptors per pixel, one for each RGB channel). More details on
the histogram specification topic and a fast implementation of the algorithm are given
inside [4].
A principled extension of histogram specification to color images has been attempted in [33, 32], conversely a biologically inspired approach that handles the correlation between color channels and their perceptually non uniformity is still to come.
Figure 3.1: Independent histogram specification on each channel of the RGB color space. Unexpected hues appear due to inaccurate correction of photometric misalignment.
Image warping and blending
Every new frame Ii is combined into the mosaic by warping it according to the visualization matrix Qi computed by the geometric alignment stage. Image warping is
accomplished using the backward transformation, namely for each destination pixel its
corresponding source pixels color is queried. In this way neither holes nor overlaps
CHAPTER 3
34
can appear in the warped image, and inside the mosaic accordingly. The backward approach requires the inverse of the visualization matrix Qi to be computed, anyway the
matrix Q−1
i always exists since homographies are non singular linear transformations.
Several different interpolation methods have been investigated among those suggested in literature. In the experiments, bilinear interpolation has been chosen as it has
empirically proved to offer the best tradeoff between accuracy and computational cost
with respect to higher order methods (e.g. cubic interpolation). Conversely, nearest
neighbor interpolation exhibits too much visual artifacts, otherwise it would be attractive due to its speed. Photometric registration, accomplished through a simple pixelwise Look-Up Table (LUT) recoloring using the computed IMF, is performed prior
image warping.
Although geometric and photometric registration should take each frame into the
spatial and tonal reference of the mosaic, seamless stitching usually calls for an additional blending stage in order to conceal small residual artifacts. Blending techniques
consist of a filtering process inside the overlapping areas, usually attained by means
of weighting functions that reinforce smoothness or continuity among adjacent pixels
or regions [39, 10]. Different approaches may encompass temporal filtering schemes
such as mean, mode or median of the distribution of overlapping pixels [6], or also
the exponential update rule. Statistical approaches model the color distribution at each
pixel using parametric [28] or non parametric mixture of gaussian [18].
Since the proposed algorithm usually leave faint residual artifacts, a simple and
fast blending method based on modal filtering has been preferred. In practice, the
mode of the intensity distribution of each pixel is considered the representative sample
and selected to appear into the mosaic image. Assuming pixel intensities being affected
by gaussian noise, this approach is close to a maximum likelihood estimation, anyway
it empirically proved to be robust with respect to small misalignments and undetected
foreground objects.
In presence of moving objects detected by the background subtraction algorithm
(more on that in the following section), a selective update is enabled in order to use the
computed masks as filters to prevent the update of parts of mosaic currently occluded
by foreground objects. Obviously, when a new frame observes unseen areas of the
mosaic, no previous information to perform background subtraction is available, hence
pixels belonging to new areas are assigned to the mosaic directly.
3.1.3 Motion detection
A reliable background mosaic permits to directly extend the use of a standard background subtraction algorithm for stationary cameras, for example the work presented
in [6], to moving PTZ cameras. Although the explanation of the concepts underpin-
REAL-TIME IMAGE MOSAICING
35
ning background subtraction algorithms is outside of the scope of this section, standard
methods basically compare the current frame Ii with a reference image B, i.e. a previously computed background. Moving “blobs”, or aggregate of pixels, are identified
by thresholding the result of the comparison. A moving PTZ camera does not admit
the equivalent of a reference image for it is allowed to change its viewpoint over time.
While recording all possible portions of observable scene may not be practical, combining all the views in a single representation can be accomplished by constructing a
mosaic of the scene. Indeed, standard background subtraction algorithms can still be
employed as long as a prior step trim the portion of the currently visible scene, the
background B, from the mosaic and feed it to the motion segmentation algorithm.
Although, in principle the mosaicing algorithm may be used once for the creation
of the background mosaic during a bootstrap sequence and then left unused, this is not
recommended. As a matter of fact, for the background subtraction and maintenance
operations to be performed efficiently, the current visualization matrix Qi , linking the
current image to the mosaic should always be kept up-to-date. For this reason registration is performed at every new frame even though the background mosaic is already
in place. This way, the current visualization matrix Qi holds the position of the frame
inside the mosaic image, or, equivalently, the location of the corresponding region Bi .
After the portion of the currently visible background Bt has been indexed, the alignment with the actual frame Ii is easily accomplished by backprojecting Bi using the
inverse of the current visualization matrix Qi−1 .
As a final remark, the exploitation of color images permits to achieve considerable
improvements in terms of shadow removal and reduction of camouflage, i.e. whereas
different color tuples map to similar gray level values, although requiring an increased
demand of computational resources. In particular, performing background subtraction
in a different color space, such as HSV or YCr Cb , permits to reveal moving shadows
and to discard them when detecting motion [15, 16]. Shadows can have very a detrimental effect, especially in outdoor environments, causing deformations of the shapes
of moving objects that lead to degraded results of further processing tasks such as
tracking or object recognition.
3.1.4 Experiments
Extensive experiments using several video sequences captured from real world scenes
have been accomplished in order to evaluate the quality of the mosaics generated by the
proposed algorithm. Since no standard evaluation methodology nor sequence dataset
are available, quality assessment is mostly delegated to visual inspection. Nonetheless
the integration within a visual surveillance system allows to consider the overall system performance, namely the computed motion masks, as an indicator of the mosaics
CHAPTER 3
36
quality as well.
To this purpose this section is subdivided into two parts. The first part focuses on
the visually perceived quality of the mosaics; despite being a subjective indicator it provides substantial insights as long as inherently “qualitative” applications are targeted,
such as digital photography, photomontage, post production effects and so on. The
second part is concerned with motion segmentation using a PTZ surveillance camera
and aims at assessing the performance of the algorithm by examining the quality of the
motion masks delivered by the overall system.
A considerable number of image sequences have been used throughout this section,
all of them being different for many specific aspects such as length, environment, illumination, moving objects and so on. Though, the resolution, 320 × 240 pixels, and the
processing hardware, an AMD 2000 MHz, is the same for all of them. For this reason,
time performance delivered by the mosaicing algorithm are quite stable, irrespectively
of the specific sequence, and fluctuates in the range of 10 − 15 frames per second (FPS)
for gray scale images and 5 − 9 frames per second for color RGB images. Such processing speed allows the motion detection system to perform adequately smooth and to
deliver the expected people tracking and alarm signaling functionalities.
Image mosaicing results
Four image sequences have been selected to illustrate the visual quality of the attained
mosaics. All the sequences consists of several hundreds of frames and have been acquired by moving a camera around without particular care. The first pair of sequences
require spatial alignment only, the second pair tonal alignment as well. In Figure 3.2
two mosaics, attained by processing the first pair of outdoor (top) and indoor (bottom)
sequences, are shown.
The first outdoor sequence DCOURT1 (Figure 3.2 top) consists of 680 stills and
has been acquired by manually scanning the scene from left to right and back many
times. The scene exhibit objects at a variable distance from the camera; e.g. a close
wall of a building on the left, a farther gate and a paved courtyard. The wide field
of view and the structured scene (hedges and trees) may emphasize small alignment
errors. Nonetheless the mosaic does not exhibit any visible artifacts or seams, all the
structures being properly aligned and uniformly colored.
The second sequence DLAB1 (Figure 3.2 bottom) is 820 frames long and portrays
an indoor environment with very close objects. The small distance between the observer and the surroundings makes the assumption of quasi-flat scene hardly fulfilled,
leading parallax effects to hinder motion parameter estimation. Nonetheless, the mosaic does not contain any blur or discontinuity and the texture of the scene is sharp and
in-focus everywhere.
REAL-TIME IMAGE MOSAICING
37
Figure 3.2: Two examples of mosaic built from long sequences acquired by randomly panning the camera back and forth across the scene. (Top) Mosaic from sequence DCOURT1 (680
frames). (Bottom) Mosaic from sequence DLAB (820 frames).
The second pair of sequences is more challenging. Aside the more complex camera
motion trajectory, as may be realized by the irregular shapes of the attained mosaic,
considerable illumination changes have taken place during the acquisition. In fact, the
scope is to highlight the visual quality improvements the proposed mosaic delivers by
explicitly compensating illumination changes.
The first sequence, DCOURT2, has been acquired at 12.5 fps with a remote controlled Axis PTZ network camera pointing toward the same outdoor scene as is sequence DCOURT1, but taken from a different point of view. Several exposure changes
occur along the sequence due to the automatic light compensation mechanism embedded in the camera firmware. An example of a sudden photometric variation may be
appraised by looking at Fig. 3.3 where in a matter of few frames the image becomes
highly saturated.
As shown in Fig. 3.4 (top), although the proposed spatial registration algorithm
manages to preserve the consistence of the geometric structures across the whole scene,
many visually unpleasant seams show up due to the considerable tonal misalignment
among frames. Conversely, all the artifacts are eliminated by enabling the photometric
CHAPTER 3
38
Figure 3.3: Department courtyard (DCOURT2) sequence: pair of temporally adjacent frames
with strong photometric variations.
registration and a smooth and sharp reconstruction is obtained, as can be seen in in Fig.
3.4 (bottom).
The last sequence, DLAB1, deals with an indoor highly structured environment.
As before, the sequence has been acquired by manually panning and tilting, using a
Sony TRV 900 camcorder hinged on a tripod. Spot lights spread across the scene cause
sudden exposure compensation every time the camera directly points at them. The
effect of uncorrected photometric changes, shown in Fig. 3.5 (top) seriously degrade
the quality of the mosaic. However, when tonal registration is performed, most of
the color defects disappear and the outcoming mosaic looks much more pleasant and
realistic (Fig. 3.5, bottom).
Motion detection results
Indirect assessment of mosaic quality through the analysis of the performance delivered
by a visual surveillance system is the scope of this section. The motion masks computed by the motion segmentation algorithm have been visually inspected, Receiving
Operator Characteristic (ROC) or other statistical indicators being impractical since no
public data sets equipped with ground truth, for these kind of applications, are available
yet.
All the sequences have been captured with a Sony TRV 900 camcorder at about 12
frame per second (fps) and 320 × 240 pixel resolution. The camcorder has been hinged
on a tripod in order to make it rotate roughly about its optical center. Six challenging
indoor and outdoor sequences have been considered, being different for illumination,
scene structure, and number of moving objects in the scene.
The first sequence DLAB2 is 1121 frames long; it is the sequel of sequence DLAB1
and consists of a wide field of view capture of the interior of our lab. In Fig.3.6, both
the mosaic (top) and the plan of the environment (bottom) are reported. Similarly
to sequence DLAB1, close objects and significant depth variations (near the red door
REAL-TIME IMAGE MOSAICING
39
Figure 3.4: Department courtyard (DCOURT2) sequence: spatially aligned mosaic (top), spatially and tonally aligned mosaic (bottom).
and the wall on both sides) may emphasize slight out-of-center rotations giving raise
to disturbing parallax effects. Moreover the vicinity of the moving foreground object
requires fast camera rotation to allow person tracking, hence leading to large interframe
shift typically difficult to handle.
Despite the mentioned difficulties, the system performed consistently and accurately. Samples of the delivered motion masks are superimposed on the frames in Fig.
CHAPTER 3
40
Figure 3.5: Department laboratory (DLAB1) sequence: spatially aligned mosaic (top), spatially
and tonally aligned mosaic (bottom).
3.7 to ease visual inspection. Detected moving blobs are adherent to the real body shape
of the moving person across the entire sequence irrespective of its position inside the
scene and its distance from the camera.
The second sequence DCOURT3 deals with an outdoor environment with a person
walking in (see Fig. 3.8 and Fig. 3.9). The scene structure is favorable since the wall
is perfectly flat, on the other hand reliable feature detection and matching is difficult
REAL-TIME IMAGE MOSAICING
41
Figure 3.6: Mosaic created through processing the indoor sequence DLAB2 (top), plan of the
environment and cone of view(bottom).
for the building being poorly textured. Moreover, the proximity of the moving person
cause large interframe displacements stressing further the KLT tracker.
Nonetheless, the initial estimation via phase correlation effectively supplements
the KLT tracker leading to reliable estimation of the transformation parameters. As a
result, the detected moving masks reflect the presence of the person and provide a good
approximation of the real shape, as it might be seen in Fig. 3.9. Few false detections
appear from time to time, due to the shadow cast on the wall behind.
A third and more challenging sequence, DCOURT4, consists of 1457 frames and
deals with the large outdoor environment partly visible in Fig. 3.4. Three walking
CHAPTER 3
42
Figure 3.7: Motion detection sample frames from the indoor sequence DLAB2.
person roam around randomly (see Fig. 3.11) and the camera follow their movements.
Several difficulties arise when processing such a sequence. Firstly, although foreground
objects moves slowly because of the distance, LAN traffic caused frame drops and
hence the sequence shows a highly variable frame rate including significant frame lag.
Secondly, the scene exhibit a large range of radiance, the courtyard on the lower right
side being far more darker than the sunlit buildings within the upper area. As the
camera rotates through the scene, such highly varying illumination conditions need to
be compensated to avoid seams in the resulting mosaic. Finally, three moving person
are simultaneously present in the scene. By moving independently from the camera
motion, a large number of keypoints detected on the objects becomes motion outliers
possibly degrading RANSAC performance.
Nonetheless, the motion detector performs steadily, regardless of the lighting condition and the distance of the moving objects. The achieved moving masks adhere to
the silhouette of moving objects, although often signaling also their cast shadows (see
Fig. 3.11).
The next two sequences focus on the benefits deriving from color processing. The
most remarkable advantage, as long as motion segmentation applications are concerned, is the ability to remove shadows using intensity-cromaticity color spaces. In
fact, a color mosaic can trigger the use of different color spaces to get a significant improvement of the motion detection outcomes. An example of the improvement granted
by performing background subtraction in the HUV space compared to gray scale is
REAL-TIME IMAGE MOSAICING
43
Figure 3.8: Mosaic created through processing the outdoor sequence DCOURT3 (top), plan of
the environment and cone of view(bottom).
shown in Figures 3.12 and 3.13.
In rows of Figures 3.12 and 3.13 one can see three frames extracted by two sequences showing the output of the motion detection referring to the same environments
(DLAB1 and DCOURT1, respectively) depicted in Figure 3.2. As always, the detected
moving masks have been superimposed to the frames to ease the visual inspection. In
the top row, the quality of the detected masks using conventional gray scale frames is
presented. In the bottom row, it is shown the improvement yielded by exploiting color
information.
In the samples depicted in Figure 3.12, a person enters the room and casts his
shadow on the wall behind (left), conversely the shadow is removed when using chromaticity (right). In the second set of samples depicted in Figure 3.13 a walking person
is moving around in a sunlit courtyard. Being an outdoor scene, the shadow is yet more
highlighted compared to the indoor one. Although it is clearly visible in the gray level
CHAPTER 3
44
Figure 3.9: Motion detection sample frames from the outdoor sequence DCOURT3.
Figure 3.10: Mosaic created through processing the outdoor sequence DCOURT4.
sequence (left), it has been completely removed in the color one (right).
The last sequence shows the impact of accurate tonal alignment on both background
subtraction and tracking performance of the visual surveillance system. Fig. 3.14
shows a couple of frames referring to the same environments depicted in Fig. 3.4 and
highlights the motion masks; objects identities, computed by the tracking algorithm,
REAL-TIME IMAGE MOSAICING
45
Figure 3.11: Motion detection sample frames from the outdoor sequence DCOURT4.
Figure 3.12: Three gray scale (top) and color (bottom) sequences of three frames each, coming
from DLAB sequence showing shadow suppression using color imagery.
are visualized by means of different colors. Moreover, motion segmentation information are superimposed along with the trajectory followed by the moving object during
the last 20 frames.
Due to unhandled illumination changes, sample frames on the left column of Fig. 3.14
depicts highly inaccurate motion masks yielding to perturbed motion trajectory. On the
contrary, photometric correction allows to deliver reliable motion masks and accurate
trajectories accordingly. As an example Fig. 3.14, middle left, shows a large artifact
CHAPTER 3
46
Figure 3.13: Three gray scale (top) and color (bottom) sequences of three frames each, coming
from DCOURT sequence showing shadow suppression using color imagery.
in the middle of the image, which yield the system to detect one insgle moving mask
instead of two. In this case, a potential detection error is fixed by the tracking algorithm
that recognize the two persons despite the single detected mask. Besides, on the top
right side of the left image a big false alarm is triggered. Conversely, on the middleright, motion masks are detected with a quality comparable to that of background subtraction with stationary camera. Such a quality enables reliably objects tracking in the
whole field of view, independently of the camera movements.
3.1.5 Summary and future work
An automatic, real time and general purpose image mosaicing algorithm has been conceived. The proposed method performs consistently in a wide range of real world
contexts, e.g. indoor and outdoor scenes, by deploying an explicit spatial and tonal
registration procedure. In addition the system is completely image-based and it does
not rely on any a priori assumption regarding scene or camera.
The dual alignment stage permits to bound the drift error allowing the construction
of quasi globally consistent mosaics, without resorting to computational demanding
global adjustment procedures. The use of fast features, supplemented by a phase correlation based bootstrap, permits to handle large and complex camera motions while
preserving real-time computation. The accuracy and the high processing speed make
the algorithm suitable for integration in visual surveillance systems performing on-line
motion detection using background difference. Experiments with several challenging
real-world video sequences have shown the effectiveness of the proposed approach for
both visual and quantitative purposes.
As for future works, the system may be improved by adding on-line learning of
REAL-TIME IMAGE MOSAICING
47
Figure 3.14: Department Courtyard (DCOURT2) motion detection and tracking sample frames:
with (right) and without (left) joint spatial and tonal alignment.
optical properties (focal length, principal point and lens distortions) of the imaging device. The correction of optical non-idealities would lead to a complete independence
from the imaging device and would considerably enhance both spatial and tonal alignment. In addition, a faster implementation of SIFT features will provide more reliable
feature correspondences, and a more accurate stitching accordingly.
CHAPTER 3
48
3.2 A fast and exact histogram specification method
Histogram specification methods aims at finding a function that transforms a source
image so as to match a target distribution with the highest possible degree of accuracy. Many approaches privilege exact specification by exploiting multi-valued ordering functions but incur in computationally expensive implementations. Aside computational complexity, histogram specification algorithms can be rated according to
image distortion and accuracy of reproduction of the target histogram, i.e. histogram
matching.
Topic of this section is a fast algorithm, based on histogram specification, that deliver exact matching to a given target histogram independently of the source image
meanwhile introducing negligible image distortion. The simplicity of the method enables fast computation making the algorithm suitable for real time applications, such
as sequential image mosaicing.
3.2.1 Introduction
Histogram modeling techniques provide sophisticated methods for manipulating colors
and contrast of an image by altering individual pixel such that the intensity histogram
assumes a desired shape ([34, 20]). Histogram specification is a basic histogram modeling technique that transform one histogram into another one by remapping pixel brightness values according to a computed Intensity Mapping Function (IMF). Although histogram modeling operators may encompass the use of complex IMF, histogram specification employs a simple monotonic, non-parametric mapping which re-assigns the
intensity values of pixels in the input image such that the output image exhibits as a
similar histogram as possible to a given target distribution. Ideally, target and output
image histograms should be as similar as possible.
Although in a theoretical continuous case a mapping function yielding a desired
Probability Distribution Function (PDF) exists, in the discrete domain of pixel brightness values only approximated IMF can usually be determined. Approximated IMFs
produce quasi exact histogram matching by introducing well known histogram artifacts
such as gaps and overfull bins, but preserve image structures.
Classic algorithms ([34, 20]), relying on approximted IMFs, have been used for a
wide range of tasks where visual evaluation is crucial, due to them preserving as much
the image structures as possible. On the other hand, histogram artifacts can have very
detrimental effects for subsequent image processing operations such as image fusion,
invisible watermarking, image normalization and image mosaicing.
Recent researches in the field of histogram specification has led to diverse approaches aiming at lower histogram distortions, by slightly modifying the image struc-
REAL-TIME IMAGE MOSAICING
49
ture. Quasi exact and exact specification has been achieved by exploiting multi-valued
IMF capable of mapping pixels according to diverse features, i.e. pixel brightness, average neighborhood brightness, thus allowing to diminish histogram distortions. Though,
the determination and the mapping using multi valued IMF require computationally expensive algorithms.
This section presents a novel approach for fast and exact histogram specification.
The conceived method delivers exact histogram matching meanwhile introducing low
image distortion and allowing for fast computation. The main novelty is the use of oneto-many (OTM) relations among source and target pixels brightness instead of standard
one-to-one mapping. This yields a quick and flexible remapping policy able to prevent
any histogram distortion.
3.2.2 Related work
Histogram specification ([34, 20]) may be regarded as a generalization of histogram
equalization ([34, 37]). Classic implementations of histogram equalization rely on the
fact that transforming a Random Variable (RV) by its Cumulative Distribution Function
(CDF) results in a uniform distribution ([20]). Histogram specification is performed by
using the source CDF to map the source histogram to a uniform one and then using the
inverse of the target CDF to make the uniform histogram to reproduce the target one.
By modeling pixel brightness as a discrete RV r characterized by a PDF pr that
describes the spatial frequency of its gray levels, it can be shown that the RV R = Cr (r)
Rr
is uniformly distributed in [0, 1], where Cr (r) = −∞ pr (v)dv is the monotonically nondecreasing CDF of r. Besides, let Z = Cz (z), z and Z being RVs and Cz the CDF of
z, then one can force R = Z, hence z = Cz−1 (Z) = Cz−1 (Cr (r)), as long as R and Z
are uniform. Then, it turns out that Cr and Cz−1 are the equalizing and the reshaping
function, respectively. Apart from normalization details, histogram specification is
performed by replacing source image graylevel r with r0 : r → r0 = Cz−1 (Cr (r)).
While, in the continuous case, a function capable of transferring the PDF of a target
image to a source image exists, in a discrete domain the same problem usually admits
only approximated solutions. This is due to discrete CDFs being not exactly invertible,
for they are staircase functions and therefore invertible when pixels take distinct values
only. Since the number of pixels in an image is usually considerably larger than the
number of graylevels, the distinct value case is unlikely to occur.
Classic specification algorithm [34, 20], implemented according to the above described theoretical framework, discriminate pixels according to their brightness value,
thus leading to quasi exact histogram matching, with the delivered histogram affected
by artifacts such as holes and overfull bins. Despite producing histogram distortion,
these algorithms are fast and introduce low distortion of image structures, for pixels
CHAPTER 3
50
showing the same graylevel in the original image being mapped into the same target
graylevel. Fig. 3.15 shows an example of the distortion affecting a histogram delivered
Figure 3.15: An image histogram (left), a target histogram (middle) and the outcome after
classical specification (right)
by classic histogram specification algorithms.
Histogram distortion artifacts, i.e. gaps and overfull bins, originates when the
derivatives of corresponding ranks of source and target CDFs exhibit different values.
In this cases both matching ambiguities and overassignments could arise. In practical cases, gaps and overfull bins are emphasized in case the source image histogram is
composed by few large bins. For these reason, the authors of [34, 37] propose to reduce
this effect by preprocessing the source image adding a small amount of uniform noise,
so as to avoid large bins. While these approaches are likely to produce an output image whose histogram is more similar to the target one, the randomly added noise may
potentially reduce the overall image quality by degrading image structures. Nonetheless, these methods grant an improvement in terms of histogram matching compared
to classic methods, and the unstructured noise may be filtered by further processing
procedures.
Several other attempts have been accomplished to improve histogram matching by
exploiting methodological techniques. For instance, the authors of [43] reformulate the
histogram specification problem as an optimization problem. However, exact matching is still attained at the expense of noisy images, as noted in [34]. Moreover, this
method introduces structured noise patterns, i.e. horizontal lines inside uniform areas, due to the row-wise order of evaluation of equivalent pixels. As a matter of fact,
such patterns, although sometimes visually negligible, may mislead further image processing methods (e.g. edge detectors), whereas noisy lines might be mistaken for real
scene structure. The use of multi-valued IMF has been pioneered by th work of Hall
[24], where the histogram approximation has been improved by further discriminating
REAL-TIME IMAGE MOSAICING
51
pixels according to the local average of the 4-connected neighborhood. Recently, this
work has been refined by other authors. For instance, Eramian et al. [19] proposed
two novel neighborhood based metrics to separate pixels with same graylevel, e.g. the
8-connected average and the brigther-than-neighbors count. While this approach permits to effectively split larger bins into smaller ones, exact histogram matching is not
always secured. Coltuc et al. [13] further improve the latter approaches by combining
different metrics, using a variable length bank filtering approach, with the purpose of
discriminating each pixel of the image. Uniquely indexing every single frame amounts
at obtainig invertible CDFs, thus making the exact solution to exist, as it happens in the
continuous case. Leaving the computational complexity of the method apart, the choice
of the filters plays a key role in the indexing process, The ability to discriminate every
single pixels can be attained by analyzing image properties inside large windows centered on each pixels. On the other hand, features extracted from regions far away from
the given pixel may provide loosely correlated information. Often, the right filter size
is strictly dependent on image peculiarities and it must be carefully chosen to prevent
the computational cost to diverge. Nonetheless, the work reported in [13] represents
the state-of-the-art for exact histogram specification methods.
3.2.3 The method
Histogram specification methods can be classified according to computational complexity, image distortion and accuracy in reproducing the target histogram. The proposed method yields histograms perfectly matching a target PDF meanwhile introducing low image distortions.
Approaches
According to theory in Section 3.2.2, histogram specification is generally accomplished
through a mapping between order statistics, where each element of the source distribution is mapped to the correspondingly ranked element of the target distribution. Thus
let f : [0, N − 1] × [0, M − 1] → [0, D − 1] be a scalar function representing an image
with dimension E = N × M and depth D, where f (p) denotes the graylevel of a pixel
p. In this setting, the discrete PDF H f (i.e. the normalized histogram) and the CDF C f
of the image f (·) can be computed as follows:

E


1X
 1 , if f (p) = x
S ( f (p)), S ( f (p)) = 
H f (x) =

 0 , otherwise
E p=0
C f (x) =
x
X
y=0
H f (y)
(3.7)
(3.8)
CHAPTER 3
52
The ideal output of a histogram specification algorithm is an image g : [0, N − 1] ×
[0, M − 1] → [0, D − 1] with a normalized histogram Hg that exactly matches the
target PDF Ht . Given these definitions, each bin of the output histogram must count
N × M × Ht (i) pixels, where i ∈ [0..D − 1] represents the bin index.
Fig. 3.16 outlines graphically, using only 4 gray levels, the way gray levels are
remapped to perform histogram specification by the algorithms described in [20, 19,
13] and our proposal. The first rows refer to the source image and show the distribution
of the 4 gray levels (left) with the corresponding histogram (right). The second rows
show the target distribution (and related histogram), while the arrows from first to
second rows describe the re-mapping procedure (e.g. in Fig. 3.16(a) 0 maps to 0, 1 to
2, 2 to 3 and 3 to 3). Finally, the third rows show in red (dark) color the approximation
errors. For example, the third row of Fig. 3.16(a) shows that gray level 1 is mapped
erroneously in gray level 2 instead that partly in 0, 1 and 2.
(a) Classical
(b) Eramian et al.
(c) Coltuc et al.
(d) Our method
Figure 3.16: Histogram specification mappings methods and approximation errors. Classical
(a), Eramian et al. (b), Coltuc et al. (c), our method (d)
Fig. 3.16(a) depicts the classic histogram specification algorithm. It requires to
compute a simple IMF in the form of a Look-Up-Table (LUT) whose entries refer to
0
0
the D distinct pairs xi ↔ xi where xi is a source gray level and xi is a target gray level.
REAL-TIME IMAGE MOSAICING
53
Hence, D represents the dynamic range of the implicit ordering function based on gray
levels only. In order to perform histogram specification each graylevel x is replaced
with the target graylevel x0 according to:
x0 = D · CT−1 (CS
x
)
D
(3.9)
where Ct and C s are the CDF of the target and the source histogram, respectively. This
method is simply a graylevel remapping, only global histogram information and the
pixel graylevel are considered. The more source and target histograms are different,
the more gaps and overfull bins are likely to appear. In fact, large difference in pixels
count of corresponding bins, through the computed mapping, may cause assignment
problems. The issue is originated from the staircase nature of the discrete CDF and
the coarse quantization step = 1/D given by discriminating pixels only on the basis
of brightness values. As highlighted in Fig. 3.16(a), this problem may lead to gross
approximation errors and poorly matching histograms.
An attractive improvement arises from discriminating pixels having the same gray
level, taking into account some properties of image neighborhood. For example, authors in [19] introduce the neighborhood voting metric α, defined as a function of the
number of pixels in the m×m square neighborhood mask centered on a pixel whose gray
value is strictly less than the pixel brightness. Formerly equivalent pixels can be further
distinguished in m × m classes according to the metric. Thus the dynamic range of the
ordering function based on brightness and metric mα amounts at Dα = D · (m × m).
This grants a finer quantization step α = 1/Dα . In practice, equal gray level pixels
may be discriminated into additional m × m bins, thus reducing the staircase effect of
the CDF and yielding a better approximation of the desired histogram (Fig. 3.16(b)).
Along the same line, another proposal by the same authors of [19] concerns an
algorithm relying on a metric β defined as the m × m neighbor average brightness
around each pixel, approximated to the nearest integer. Similarly, equivalent pixels
can potentially be further subdivided in D classes, thus resulting in a dynamic range of
Dβ = D · D.
In principle, several metric, or features, may be added until each bin consists, at
most, of a single pixel. An interesting example is the work by Coltuc [13] that combines
K average neighborhood metric mk , k ∈ [0..K − 1] computed on image neighbors of
QK−1
k=0 Dmk . As one can see in
increasing size, thus yielding a dynamic range D M =
Fig. 3.16(c), the quantization step decreases and the histogram converges significantly
to the target one.
CHAPTER 3
54
Description of the algorithm
The proposed algorithm has been primarily designed to meet the definition of histogram
specification, namely the generation of an image whose histogram perfectly matches
a given target histogram, independently of the source image. Since each bin i in the
output image must be populated with exactly E × HT (i) pixels, it is likely to happen that
pixels having the same source graylevel shall be spread to different target gray levels.
Nonetheless, the case of indistinguishable pixels may occur irrespective of the dynamic
range of the conceived ordering function.
Therefore, standard IMF, namely bijective relation, has been abandoned in favor of
the concept of one-to-many relationship. A one-to-many relationship holds the potential to handle indistinguishable source pixels by explicitly modeling their mapping to
0
multiple target graylevels. In place of fixed one-to-one correspondences xi ↔ xi , given
by a conventional IMF, one-to-many relations allow to assign a given source pixel many
0 00 target values inside an admissible range xi ↔ xi , xi , ... . Final gray level assignment
is drawn randomly inside every admissible range, although ensuring exact histogram
matching. Moreover, the proposed method deliver exact specification with any ordering function; the use of other metrics, in addition to the brightness value, affect only
the size of the admissible ranges.
Pixels are first ordered according to a given ordering metric, yielding several classes
of equivalence ci , i ∈ [0..D M −1], e.g. defined by individual brightness values. Nonetheless, as mentioned in the previous section, a class of pixels can be further split into subclasses according to other properties, e.g. neighbor brightness average. More different
properties yield more subclasses, thus producing a finer quantization step.
After equivalence classes have been computed, each subclass ci is sequentially assigned to target gray level bins b j , j ∈ [0..D − 1] so that each of them have E × HT (i)
items. A sparse matrix MDM ×D stores the one-to-many mapping, in which row represent source image class and the columns denote target histogram graylevels. Each
matrix entry M(ci , b j ) contains the amount of source pixels inside a class ci that must
be remapped to the gray level b j :

 m0,0

 m
 1,0

 0

 0

 0

 . . .


0
0
0
0
...
0
m1,1
0
0
...
0
m2,1
m2,2
0
...
0
0
m3,2
0
...
0
0
m4,2
m4,3
...
0
...
...
...
0
0
0
...
...
..
. mDM ,D















(3.10)
Histogram matching is attained by imposing that each target gray level (column entry)
REAL-TIME IMAGE MOSAICING
55
is assigned E × HT (i) source pixels or, equivalently, by requiring each column to sum
up to E × HT (i) pixels
S (b j) =
DX
M −1
M(ci , b j ) = E × HT ( j), ∀ j ∈ [0..D − 1]
(3.11)
ci =0
As many other approaches, this method may introduce structured pattern noise in case
gray level assignments follow the order of the evaluation of the input pixels (e.g. typically row-wise). However, although the visual effect can be noticed only for quite
untextured and largely uniform images, this always alters the signals in a systematic
way, possibly misleading further image processing algorithms. This effect has been
significantly alleviated with the introduction of random strings for shuffling gray level
b j inside a given admissible range before establishing the final assignment. Being
computed offline, random strings avoid to add misleading signal patterns to the output
image while preserving computational efficiency.
3.2.4 Experimental results
Extensive experiments have been carried out using standard images widely employed
for benchmark evaluations. In addition, challenging images have been considered in
order to stress the considered methods and emphasize the outcome of the different
strategies adopted. The target machine is a AMD Athlon 2000+ equipped with 512
MB RAM.
Three quantitative performance indicators have been considered, thus allowing
even small differences to be highlighted. In particular, comparisons have been performed according to computing speed and contrast enhancement. However, as stated
at the beginning, a poor histogram matching can affect further image processing steps
even when it is not perceivable. To this purpose, two distortion indicators measure to
which extent the histogram and the image structure have been altered by the specification process.
The experiments have been accomplished over the most four representative methods in literature and results have been compared with the outcome of the proposed
approach. The names of authors in the Tables refer to the methods described in the
respective papers. In particular, Coltuc [13] is the only method achieving an exact
matching histogram, and it is the most direct competitor for all indicators. Finally, for
one image we include the shapes of the original and specified histograms, using all the
methods implemented.
CHAPTER 3
56
Performance Indicators
In this section the performance indicators used to assess and compare the histogram
specification methods are detailed:
• computational speed
Often the time needed to obtain the specified histogram is not directly measurable
since the elapsed time is too short. Therefore we have computed the number of
specifications performed in a given amount of time, that in the experiments has
been fixed to 10 seconds. In this way we can derive the number of iterations per
second S that is our figure of merit.
• histogram distortion
This indicator gives a measure of the effectiveness to achieve a specified histogram by comparing output and target histograms, H and K respectively, by
using the Kolmogorov-Smirnov distance defined in Eq. 3.12:
DKS (H, K) = max(| ĥi − k̂i |), i ∈ [0..D]
i
(3.12)
where ĥi and k̂i represents the ith bin of the histograms.
• image distortion
Among the possible indicators to measure image distortion we have chosen the
one implemented by authors in [19], in order to better allow a direct comparison.
The image distortion between images G1 and G2 , whose size is N × M has been
measured according to the following indicator.
1
∆=
E
Here, µi j =
1
E
P
G1 (i, j)
i, j G2 (i, j)
X
(i, j)∈[0,M−1]×[0,N−1]
G1 (i, j)
− µi j
G2 (i, j)
!2
(3.13)
is the mean ratio. The indicator gives a measure of the
standard deviation of local changes in terms of contrast.
Results
As the images for benchmarks we use some synthetic images from Brodatz textures
collection [8], besides the well known Baboon and Boat (Fig. 3.17). They are 512×512
in size but d72 (640 × 640). From left to right we show the original images, those
specified using our algorithm to match as target PDF respectively a linear, Gaussian and
logarithmic distribution (shown in the last row of Figure 3.17). We do not show images
achieved with the other approaches, since the differences are not visually perceptible.
Rather, they can be assessed through analyzing Tables 3.2 3.1 3.3, column by column.
REAL-TIME IMAGE MOSAICING
(a) Original
57
(b) Linear
(c) Gaussian
(d) Log
Figure 3.17: Brodatz d72 (top), Baboon (middle) and Boat (bottom) histogram specified using
the proposed method with synthetic target histograms.
Table 3.1: Histogram specification results for image d72, 640 × 640, single channel
Method
Classic
Speed
56.58
Distortion ∆
Match DKS [10−2 ]
Lin
Gau
Log
Lin
Gau
Log
.023
.244
.147
4.07
4.15
4.39
Eramα
1.88
.024
.559
.198
.743
.975
1.04
Eramβ
1.05
.024
.701
.203
.067
.059
.107
Coltuc
0.20
.024
.741
.210
.000
.000
.000
Ours
42.91
.024
.741
.210
.000
.000
.000
At a glance, we can see how the performance delivered by the proposed approach
is identical to Coltuc, but for speed. In fact, the algorithm always performs far better
than all the other ones (more that one order of magnitude, more than two as Coltuc is
concerned) but the classic, whose speed is slightly higher. At the opposite, Coltuc is
the slowest one.
As for image and histogram distortion indicators, results in the tables show they are
inversely proportional, as might be expected: the lower the histogram distortion, the
higher the image distortion. As far as image distortion is concerned, the best values are
achieved using classic approaches, although in the linear distribution case performance
are very close for every algorithm and image. On the contrary, the standard algorithm
CHAPTER 3
58
Table 3.2: Histogram specification results for Boat, 512 × 512, single channel
Method
Speed
Distortion ∆
Match DKS [10−2 ]
Lin
Gau
Log
Lin
Gau
Log
Classic
87.32
.009
.203
.090
2.15
2.04
2.05
Eramα
2.99
.009
.226
.098
.490
.421
.638
Eramβ
1.56
.009
.250
.099
.027
.026
.028
Coltuc
0.36
.009
.249
.103
.000
.000
.000
Ours
71.14
.009
.249
.103
.000
.000
.000
Table 3.3: Histogram specification results for Baboon, 512 × 512, single channel
Method
Speed
Distortion ∆
Match DKS [10−2 ]
Lin
Gau
Log
Lin
Gau
Log
Classic
88.82
.010
1.08
.324
.766
.788
.786
Eramα
2.99
.010
1.09
.339
.134
.204
.198
Eramβ
1.56
.010
1.11
.345
.013
.013
.014
Coltuc
0.35
.011
1.12
.346
.000
.000
.000
Ours
67.45
.011
1.12
.346
.000
.000
.000
shows the worst histogram distortion .
Coltuc and the proposed method deliver the same image distortion and are the only
algorithms to produce perfectly matching histograms, i.e. with no histogram distortion
at all. As for histogram distortion, the best algorithm among quasi-exact methods
is Eramian, that always shares with Coltuc and the proposed one comparable image
distortion for all images. However, in any case, it never reach zero histogram distortion.
3.2.5 Conclusion
A novel method to perform a fast and exact histogram specification given a source
image and a target histogram has been detailed. Usually, mapping between source and
target histograms is described via analytic functions or rank statistics computed on the
distribution of pixels brightness. However, histogram distortions artifacts such as gaps
and overfull bins prevent to achieve exact histogram matching.
Additional features, such as neighborhood average brightness, have been introduced to discriminate among pixel having same brightness values, since indexing uniquely
every single pixels would lead to exact histogram matching. Though, these methods
REAL-TIME IMAGE MOSAICING
(a) Original
(b) Linear
59
(c) Gaussian
(d) Log
Figure 3.18: Comparison between source (left column) and specified histograms using five
different specification methods: from top to bottom, Classical, Eramα , Eramβ , ours (Coltuc’s is
identical and it has not been reported), and different target histograms: from left to right, linear,
gaussian and logarithmic.
call for computationally expensive implementations.
Our approach achieves exact matching by replacing the standard mapping function
with the concept of one-to-many relationship. This enables to spread undistinguishable pixels, i.e. having same brightness, to diverse target brightness values and avoids
histogram distortion artifacts.
Established performance indicators have been used to assess quality and computational cost of the conceived algorithm. Results confirm that the proposed method runs
more than two order of magnitude faster than the exact method and more than one order
faster if compared with other quasi-exact approaches. This speedup has been achieved
while maintaining comparable image distortion.
60
CHAPTER 3
Bibliography
[1] P. Azzari and A. Bevilacqua. Joint spatial and tonal alignment for motion detection with ptz camera. In Proc. of Intl. Conf on Image Analysis and Recognition,
volume 4142, pages 764–775, 2006.
[2] A. Bartoli, N. Dalal, B. Bose, and R. Horaud. From video sequences to motion
panoramas. In Proc. of Workshop on Motion and Video Computing, pages 201–
207, December 2002.
[3] H. Bay, A. Ess, T. Tuytelaars, and L. Van Gool. Surf: Speeded up robust features.
Computer Vision and Image Understanding, 110(3):346–359, 2008.
[4] A. Bevilacqua and P. Azzari. A high performance exact histogram specification
algorithm. In Proc. of IEEE Intl. Conf. on Image Analysis and Processing, pages
623–628, 2007.
[5] A. Bevilacqua, L. Di Stefano, and P. Azzari. An effective real-time mosaicing algorithm apt to detect motion through background subtraction using a ptz camera.
In Proc. of IEEE Intl. Conf. on Advanced Video and Signal based Surveillance,
volume 1, pages 511–516, 2005.
[6] A. Bevilacqua, L. Di Stefano, and A. Lanza. An efficient motion detection algorithm based on a statistical non parametric noise model. In Proc. of IEEE Intl.
Conf. on Image Processing, pages 2347–2350, October 2004.
[7] K. S. Bhat, M. Saptharishi, and P. K. Khosla. Motion detection and segmentation
using image mosaics. In Proc. of Intl. Conf. on Multimedia and Expo, volume 3,
pages 1577–1580, 2000.
[8] P. Brodatz. Textures: a photographic album for artists and designers. In Dover
Publications, 1999.
[9] M. Brown and D. G. Lowe. Recognising panoramas. In Proc. of the IEEE Intl.
Conf. on Computer Vision, pages 1218–1225, 2003.
61
62
BIBLIOGRAPHY
[10] P. J. Burt and E. H. Adelson. A multiresolution spline with application to image
mosaics. ACM Trans. on Graphics, 2:217–236, October 1983.
[11] F. M. Candocia. Jointly registering images in domain and range by piecewise
linear comparametric analysis. IEEE Trans. on Image Processing, 12(4):409–
419, 2003.
[12] D. P. Capel. Image mosaicing and super-resolution. University of Oxford, 2001.
[13] D. Coltuc, P. Bolon, and J. M. Chassery. Exact histogram specification. Trans. on
Image Processing, 15(5):1143–1152, May 2006.
c
[14] IntelCorp.
Opencv 1.0, open source computer vision library, 2000-2007.
[15] R. Cucchiara, C. Grana, M. Piccardi, and A. Prati. Detecting moving objects,
ghosts, and shadows in video streams. IEEE Trans. on Pattern Analysis and
Machine Intelligence, 25(10):1337–1342, October 2003.
[16] R. Cucchiara, C. Grana, A. Prati, and S. Sirotti. Improving shadow suppression
in moving object detection with hsv color information. In Proc. of Intelligent
Transportation Systems Conference, pages 360–365, 2001.
[17] A. Eden, M. Uyttendaele, and R. Szeliski. Seamless image stitching of scenes
with large motions and exposure differences. In Proc. of IEEE Intl. Conf. on
Computer Vision and Pattern Recognition, volume 2, pages 2498–2505, 2006.
[18] A. Elgammal, R. Duraiswami, D. Harwood, and L. Davis. Background and foreground modeling using nonparametric kernel density for visual surveillance. In
Proc. of the IEEE, volume 90, pages 1151–1163, July 2002.
[19] M. Eramian and D. Mould. Histogram equalization using neighborhood metrics.
In Proc. of Canadian Conf. on Computer and Robot Vision, pages 397–404, 2005.
[20] R. C. Gonzales and R. E. Woods. Digital image processing. Upper Saddle River,
NJ, Prentice Hall, 2002.
[21] Rafael C. Gonzalez and Richard E. Woods. Digital image processing. AddisonWesley, 2002. GON r 02:1 1.Ex.
[22] M. D. Grossberg and S. K. Nayar. Determining the camera response from images.
IEEE Trans. on Pattern Analysis and Machine Intelligence, 25(11):1455–1467,
November 2003.
[23] M. Grundland and N. A. Dogson. Color histogram specification by histogram
warping. In Proc. of SPIE Color Imaging X: Processing, Hardcopy, and Applications, pages 610–621, January 2005.
BIBLIOGRAPHY
63
[24] E.L. Hall. Almost uniform distributions for computer image enhancement. IEEE
Transactions on Computers, 23(2):207–208, February 1974.
[25] C. Harris and M. Stephens. A combined corner and edge detector. In Proc. of
Alvey Vision Conf,, pages 147–151, 1988.
[26] D. Hasler and S. Susstrunk. Colour handling in panoramic photography. In Videometrics and Optical Methods for 3D Shape Measurements, pages 62–72, January
2002.
[27] E. Hayman and J. Eklundh. Statistical background subtraction for a mobile observer. In Proc. of IEEE Intl. Conf. on Computer Vision, pages 67–74, 2003.
[28] B. Brumitt K. Toyama, J. Krumm and B. Meyers. Wallflower: Principles and
practice of background maintenance. In Proc. of Intl. Conf. on Computer Vision,
pages 255–261, 1999.
[29] S. Kang, J. Paik, A. Koschan, B. Abidi, and M. A. Abidi. Real-time video tracking
using ptz cameras. In Proc. of Intl. Conf. on Quality Control by Artificial Vision,
pages 103–111, May 2003.
[30] S. J. Kim and M. Pollefeys. Radiometric self-alignment of image sequences. In
Proc. of IEEE Intl. Conf. Computer Vision and Pattern Recognition, volume 2,
pages 645–651, 2004.
[31] D. G. Lowe. Distinctive image features from scale-invariant keypoints. Intl.
Journal of Computer Vision, 60(2):91–110, November 2004.
[32] F. Pitié, A. Kokaram, and R. Dahyot. Towards automated colour grading. In Proc.
of IEEE European Conference on Visual Media Production, London, November
2005.
[33] F. Pitié, A. Kokaram, and R. Dahyot. Automated colour grading using colour
distribution transfer. Computer Vision and Image Understanding, February 2007.
[34] A. Rosenfeld and A. Kak. Digital picture processing. Upper Saddle River, NJ,
Prentice Hall, 1982.
[35] M. Saptharishi, K. Bhat, C. Diehl, C. Oliver, M. Savvides, A. Soto, J. Dolan, and
P. Khosla. Recent advances in distributed collaborative surveillance. In Proc. of
SPIE on Unattended Ground Sensor Technologies and Applications, pages 199–
208, April 2000.
64
BIBLIOGRAPHY
[36] H. S. Sawnhey and R. Kumar. True multi-image alignment and its applications
to mosaicing and lens distortion correction. IEEE Trans. on Pattern Analysis and
Machine Intelligence, 21(3):235–243, March 1999.
[37] L.G. Shapiro and G.C. Stockman. Computer Vision. Prentice Hall Inc., New
Jersey, 2001.
[38] Y. Sugaya and K. Kanatani. Extracting moving objects from a moving camera
video sequence. In Proc. of Symposium on Sensing via Image Information, pages
279–284, June 2004.
[39] R. Szeliski. Video mosaics for virtual environments. Computer Graphics and
Applications, 16(2):22–30, 1996.
[40] C. Tomasi and J. Shi. Good features to track. In Proc. of IEEE Intl. Conf. on
Computer Vision and Pattern Recognition, pages 593–600, 1994.
[41] F. Winkelman and I. Patras. Online globally consistent mosaicing using an efficient representation. In Proc. IEEE Intl. Conf. on Systems, Man and Cybernetics,
pages 3116–3121, October 2004.
[42] Y. Xiong and K. Turkowski. Registration, calibration and blending in creating
high quality panoramas. In Proc. of IEEE Workshop on Applications of Computer
Vision, pages 69–74, 1998.
[43] Y. J. Zhang. Improving the accuracy of direct histogram specification. Journal of
Electronic Imaging, 28(3):213–214, 1992.
[44] Z. Zhu, G. Xu, E. M. Riseman, and A. R. Hanson. Fast generation of dynamic
and multi-resolution 360 panorama from video sequences. In Proc. IEEE of Intl.
Conf. on Multimedia Computing and Systems, pages 400–406, July 1999.
[45] B. Zitova and J. Flusser. Image registration methods: a survey. Image and Vision
Computing, 21(11):977–1000, October 2003.
[46] S. Zokai and G. Wolberg. Image registration using log-polar mappings for recovery of large-scale similarity and projective transformations. IEEE Trans. on
Image Processing, 14(10):1422–1434, October 2005.
Chapter 4
Evaluation methodology for
image mosaicing algorithms
As soon as image mosaicing has been recognized as a key building block of many
computer vision applications, the need for a principled and widespread methodology
allowing to assess and compare the performance delivered by different approaches has
become of primary importance. Indeed, several image mosaicing algorithms claiming to advance the state of the art have been proposed in recent years. Though, improvements can be sometimes recognized without quantitative evidences, a quantitative
methodology for comparing different algorithms is essential as this discipline evolves.
What algorithm is the best? How to ascertain its primacy? To answer such questions, this section proposes a comprehensive evaluation methodology including standard data sets, ground-truth information and performance metrics. Aside the explanation of the key components, the performance of three variants of a well-known mosaicing algorithm are evaluated according to the proposed methodology.
4.1 Introdution and related work
Image mosaicing represents a popular way of achieving a dense scene reconstruction
by composing several overlapping views of the same scene matter. It can be regarded
as a special case of scene reconstruction when the images are spatially related by a
planar collineation (homography) or subclasses of this transformation (affinity, similarity, translation). As pointed out in section 3.1.2, this assumption holds when images
exhibit no parallax effects, i.e. when the scene is approximately planar or the camera
purely rotates about its optical center. In these circumstances, knowledge of the planar
geometric transformations among images permits to reconstruct a dense model of the
65
CHAPTER 4
66
scene, known also as mosaic or panorama.
Several mosaicing algorithms aimed at advancing the state-of-the-art have been
proposed in literature. Some innovations such as the topology inference proposed by
Shawney [13], the global geometric consistency proposed by Shum [15] or the recent automatic panorama recognition presented by Brown [5] clearly provide sharp
improvements over the existing state of the art. However, this is not always the case
and due to the lack of a reference test bed it is often very difficult, or even impossible,
to evaluate and compare different mosaicing algorithms. Moreover, only visual inspections or problem specific metrics have been used so far for performance assessment.
The adoption of metrics based on human perception arises from the fact that in the past
mosaics have been mostly used in computer graphic applications aimed to a human
audience, such as publicity, photomontage, special effects.
Nowadays mosaicing algorithms are employed not only to generate visually pleasant pictures but also serve as key building blocks for many computer vision applications, such as e.g. motion detection and tracking [3, 9], mosaic-based localization [10],
resolution enhancement [6], augmented reality [1]. In such scenarios, visually similar
mosaics can be characterized by different levels of numerical accuracy and hence have
a different impact on the addressed computer vision applications.
We believe that in these settings a proper reference test bed and evaluation methodology is needed, so as to allow for quantitative performance assessment. Moreover,
algorithms are becoming so accurate that human based perception metrics will soon be
unable to meaningfully distinguish mosaics obtained with different algorithms (e.g. the
mosaics in the left column of Fig.4.1 look identical but they turned out very different
in terms of accuracy of reconstruction of the original scene, see Fig.4.2).
Inspired by the renowned work of Scharstein [14] and the more recent work by
Baker [2], respectively in the field of stereo matching and optical flow, this section
proposes an evaluation methodology for mosaicing algorithms that allows for principled quantitative discussion about performances and represents a useful tool for other
researchers. The proposed methodology enables to rate any mosaicing algorithm based
solely on the output yielded on standard data sets, and therefore irrespectively of any
knowledge on its theoretical foundations or implementation. To this purpose, we have
conceived a framework consisting of data sets and tools for their creation, groundtruth information and performance metrics. As a case study, the methodology has been
applied to the comparison and ranking of three variants of a well-known mosaicing
algorithm that produce high quality, as well as visually indiscernible results.
To the best of our knowledge, there exists no other similar performance evaluation
framework in the field of image mosaicing. The issue of performance evaluation is addressed in two well known references [4, 16] that are thorough surveys of the literature
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 67
in the field of planar image registration. Although covering a wide range of algorithms
and applications, the suggested performance indicators pertain only to specific classes
of methods, e.g. keypoints-based algorithms, and may not be widely applicable.
An on-line version of our results, along with the data sets with ground-truth used in
this work, can be found at: http://www.vision.deis.unibo.it/MosPerf. This
web page includes also an online form that allows researchers to download the data
sets and then submit their own results for evaluation.
4.2 Evaluation methodology
Quantitative evaluation has been usually achieved by calculating errors statistics among
registered images of the input sequence. This corresponds to the adoption, within a mosaicing framework, of performance metrics borrowed from image registration theory.
Examples of such performance indicators can be found in [4, 16] These indicators
require a set of corresponding control points to be available, so as to compute error
statistics, e.g. the mean square distance, between the image data and the predictions
yielded by the algorithm at hand. However, this approach suffers from at least four
major drawbacks:
• comparison among different algorithms is impossible unless the very same set of
control points is used. To the best of our knowledge such a reference test bed has
not been proposed so far.
• an algorithm cannot be evaluated based solely on its output, since the registration
transformations need to be available to compute error statistics.
• any set of control points can be exactly fit using a sufficiently highly parameterized registration model (overfitting), thus defying these statistics
• algorithm accuracy and noise affecting the data are coupled, error statistics can
take large values even in case of good fitting only because of noisy measurements.
Instead, the proposed quantitative evaluation methodology relies on the computation of error statistics obtained by comparing the mosaic yielded by a given algorithm,
on a reference data set (i.e. a sequence of images to be stitched together), to the corresponding ground-truth mosaic (i.e. the mosaic that would be obtained by exactly
stitching together the images of the reference data set). To the best of our knowledge
there exists no work proposing a quantitative evaluation methodology for mosaicing
algorithms based on comparison with ground-truth information.
CHAPTER 4
68
The approach outlined in this section holds the potential to allow for fair and informed quantitative evaluation of algorithms based solely on their outputs. This is a
very important point: since the comparison is taken to a higher level of abstraction.
The proposed framework does not require the algorithms to use control points nor homographic registration models. We only assume that the ”algorithm” accepts several
images as input for creating a composite image, no matter whether it be a software
running on a laptop, an hardware implementation or just a skilled photographer. As a
matter of fact, a crucial ingredient in our proposal is the availability of reference data
sets with accurate ground truth. How to obtain such data? The issue is addressed in the
next section.
4.2.1 Generation of data sets with ground truth
We focus here on the method used to collect data sets with ground-truth and defer the
selection of specific data sets to Section 4.3. The data sets generation problem can be
approached from two main directions:
• acquisition of real measurements using alternative methods that ensure a much
higher degree of precision compared to that affordable by the techniques under
assessment. For example, authors in [14] used structured-light to obtain highly
reliable ground truth. Indeed, the advantage of this method is the generation of
data sets consisting of real-world data and real challenges. On the other hand
care must be taken to ensure that the ground-truth method is really accurate and
unbiased. Moreover, the controllability of the test bed environment remains an
important issue. Is it manageable to collect several data sets each of them isolating a single peculiar aspect such as different degree of optical distortion, different
light conditions while maintaining everything else roughly constant?
• creation of synthetic data that bear good resemblance with real imagery, for
example by rendering detailed scenes using a computer graphics environment.
From this vantage point, the computed imagery will always be somehow synthetic but the controllability is complete. Unfortunately, general purpose renderers such as PoV [12] have been mostly conceived for computer graphics applications and some computer vision aspects are not easily embeddable in this
framework. Are radiosity and photon mapping algorithms really important if
non ideal optical lenses need still to be simulated with a custom postprocessing
stage? Not to mention non linear camera response function or sensor noise.
In the end, both approaches are interesting on their own and can be tweaked to
emphasize different challenges that a mosaicing algorithm must be able to tackle.
Nonetheless, there is a third intermediate way envisioned by authors in [2], through
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 69
which they claimed to obtain “realistic synthetic imagery” using image interpolation
techniques and computer graphics tools. Along the same lines, we have developed
a software component, called Virtual Camera (VC) that generates photorealistic synthetic images using a mixture of real and precomputed information. By exploiting the
geometry of projective planes, the VC approach retains both controllability and realism
while being easy to implement and computationally cheap.
Controllability descends from the fact that VC simulates the geometric image formation process of today imaging devices taking into accounts internal parameters, pose
and position, sensor size and resolution, focal length and sensor noise. Simplicity
comes from the fact that the actual scene is just a plane. This does not represent a loss
of generality since the constraint of lack of parallax required to properly apply planar
registration techniques is naturally enforced in this way. The realism comes from the
fact that a real picture is used to texture the planar scene framed by the VC. In this way
realistic noise is naturally embedded in the framework and need not to be simulated
using synthetic statistical distributions.
Hence, VC is a fully configurable renderer able to generate images of a realistic
planar virtual scene. Moreover, any virtual frame can be easily created by just defining
a simple homography H, as explained in the remainder of this section. Denoting a 2D
point as x = [u, v] and a 3D point as X = [X, Y, Z], Eq. 2.4 relates a 3D point X and its
projection on the image x.
Since the scene model is a plane, we can assume, without loss of generality, that
it is located on Z = 0 of the world coordinate system. Denoting the ith column of the
rotation matrix R by ri , from eq. 2.4 follows


 u 


h
s  v  = K r1


1
r2
r3


 X 


h
i  Y 
 = K r
t 
1

 0 


1
r2


 X 

i 
t  Y 


1
(4.1)
By still using X to denote a point on the scene plane, even though X = [X, Y] since
Z is always equal to 0, a scene point X and its image projection x are related by a
homography H given by
e with H = K
se
x = HX
h
r1
r2
t
i
(4.2)
Hence, to collect a data sets sequence, a reference image is initially chosen (i.e. a
satellite or aerial image) and then a list of VC parameters, one for each snapshot, is
computed. These parameters encode the desired trajectory and internals of the camera.
In this manner, different positions and orientations are used to generate the translation
and panning sequences of the actual datasets. Every snapshot of the sequence is just
CHAPTER 4
70
the projection of the scene onto the virtual camera sensor according to Eq. 4.2 and the
VC parameters.
The ground truth mosaic is simply generated by cutting-and-pasting the portion of
the reference image that has been viewed by the VC during the sequence (i.e. a pixel
of the reference image belongs to the ground-truth mosaic if it has been projected in at
least one snapshot of the data set). Due to its simplicity, this approach ensures that the
ground truth is completely unbiased and does not favor any conceivable method.
Several issues must be careful considered in order to generate meaningful data
sets. The most important is the pixelation effect. The pixelation effect is known in
computer graphic as the artifact that causes individual pixel to be visible to the eye,
mostly because the image has a lower resolution than the medium is being displayed
on. In these scenario the pixelation effect can occur because the camera is too slanted
or gets too close to the scene plane, so that texture projection requires oversampling.
To avoid this undesirable artifact, a minimum distance and a maximum rotation of the
VC with respect to the scene, given the texture resolution, are estimated beforehand
and used as thresholds.
A very similar workaround has been adopted to avoid strongly deformed mosaics
that would require image oversampling during the reconstruction stage. All the images
comprising a sequence are taken so that they are compliant with the aforementioned
threshold.
4.2.2 Data normalization
Some relevant issues concerning the normalization of the delivered mosaics must be
properly taken into account, in order to be able to compare different algorithms based
solely on their outputs.
Registering a sequence of N views amounts at finding the N × N pairwise transformation Hi, j that links each view to another. As discussed in Section 3.1.2, using graph
theory this can be seen as a view-graph with images being nodes and transformations
being edges connecting nodes. In this settings, we would end up with a huge KN complete graph and a terrific computational cost. However, most of the transformations are
not independent since to be compatible they must fulfill the condition that a composite
transformation computed by concatenation around any cycle in the view-graph is equal
to the identity.
Thus only a subset of (N − 1) transformations touring an arbitrary maximal cycle is
required to completely describe the problem. In addition, since the view order is unimportant, an arbitrary order can be induced in the sequence, obtaining a transformation
chain C where the individual transformations could be written in the form Hi−1,i with
0
i ∈ [1..N − 1]. For this reason, two registration algorithms A, A are equivalent if their
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 71
0
transformation chains C, C are the same:
0
Hi−1,i = Hi−1,i , i ∈ [1..N − 1]
(4.3)
Once the homography chain C is known, the creation of the mosaic requires to
fix a coordinate frame, refereed to here as the reprojection coordinate system (RCS),
through the choice of a rendering matrix R0 applied to a reference frame I0 . Once R0
has been fixed, the visualization matrices Qi through which every image reprojects in
the RCS takes the form
Qi = R 0
i
Y
H j−1, j , i ∈ [0..N − 1]
(4.4)
j=1
The reference frame is not special, for the very same mosaic could be obtained by
selecting any other frame Ii in the sequence and computing the visualization matrices
Qi accordingly.
The RCS is usually chosen as the coordinate system of one image in the sequence,
so that the rendering matrix would be the identity for that image. In other cases, the
choice may be driven by another criterion, e.g. minimum global distortion of the
panorama. The rendering matrix R0 (typically a translation and a scale change, but,
in principle, even a homography) links the RCS to an arbitrary reference image of the
sequence.
When comparing two panoramas built from the composition of images warped
according to homography chains, one can try to compare corresponding pixels of the
two images. For these reason it can be stated that, two registration algorithms A, A
0
produce equivalent mosaics if the corresponding visualization matrices are all the same
Qi = R 0
i
Y
j=1
0
H j−1, j = R0
i
Y
0
0
H j−1, j = Qi , i ∈ [1..N − 1]
(4.5)
j=1
0
Since we cannot expect the rendering matrices R0 , R0 chosen by different algorithms to be the same, the resulting mosaics will exhibit different corresponding pixels
even if homography chains are identical, and thus contradicting the definition of equivalent registration algorithms. In other terms, the concept of equivalent registration does
0
not imply the concept of equivalent visualization except for the case R0 = R0
Therefore, since we want to appraise the registration capabilities of mosaicing algorithms by analysing the delivered mosaics, a major issue to be dealt with before
the computation of the performance metrics is normalization of the panoramas. This
amounts at filtering out the visualization effects due to different choices of the rendering matrix R0 so that all panoramas will lay in the same RCS even though originally
built in different rendering coordinate systems. By doing that, the remaining discrepancies between the panoramas will be due to registration inaccuracies, i.e. different
registration matrices along the homography chains.
CHAPTER 4
72
This is the reason why an R0 default rendering matrix and a corresponding reference
frame, i.e. the first of the sequence, are specified for every sequence of our data sets. By
imposing these two additional constraints, it is ensured that any algorithm will render in
the same RCS as that of the ground-truth mosaic. Thus, since the ground-truth mosaics
and those generated by the algorithms are normalized, performance metrics based on
the comparison of corresponding pixels become appropriate.
Finally, it is worth pointing out that since the frames forming data set sequences
are generated according to known homograpies (i.e. by Eq. 4.2), it is also possibile
to render a panorama using these known trasformations and R0 , I0 . Such an image
would not be affected by registration errors, for the homography chain being exactly
known, and hence differ from the ground truth mosaic only because of the effects of
the resampling and interpolation processes. The performance metrics associated with
the panoramas rendered using the known transformations will be reported in Section
4.3, as they can be seen as upper bounds on the performance attainable by mosaicing
algorithms.
4.2.3 Performance metrics
As mentioned in the previous section, provided that data are properly normalized, different algorithms can be assessed and ranked based on direct pixelwise comparison
between the generated and the ground truth mosaics. Denoting the mosaic under evaluation as IC and the ground truth as IT , the following performance metrics have been
defined:
1. Average of the intensity distances. It amounts to the MSE over intensities of
corresponding pixels
MSE =
1 X
1 X
D xy =
mC (x, y) − mT (x, y) 2
M (x,y)
M (x,y)
(4.6)
where mC (x, y), mT (x, y) are corresponding pixels in IC , IT and M is the number
of pixel belonging to the region of overlap between the two images. Pixels not
shared by both images are neglected.
2. Average of the geometric distances. It amounts to the MSE of the distances
between corresponding control points in IC , IT
2
1X
1 X i i
(xC , yC ) − (xiT , yiT )
est =
Di =
L i
L i
(4.7)
where L is the number of correspondences. Corresponding control points (xiT , yiT ) →
(xCi , yCi ) are obtained by matching L KLT keypoints, located over an approximately regular grid, between IT and IC .
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 73
Method
PT
MSE
SR-KLT
Mis
PR
est
Time MSE Mis
LP
est Time
MSE
Mis
est
Time
226.98 0.092 0.098 1.17 54.71 2.686 0.561 1.49 606.47 1.203 0.238 3.34
SR-Harris 231.67 0.645 0.143 1.14 51.25 1.431 0.471 1.45 756.49 1.975 0.436 3.22
SR-SIFT
279.80 2.395 0.381 26.41 48.71 1.648 0.363 9.72 1106.23 2.982 0.675 54.62
SR-GT
223.62
0
0.093
47.85
0
0.306
536.71
0
0.120
Table 4.1: Experimental results on sequences PT, PR and LP.
3. Number of misplaced pixels. It is the sum of missing and redundant pixels normalized with respect to N
Mis =
1
1 X
(R + P) =
(x, y) ∈ mC ∧ (x, y) < mT +
N
N (x,y)
X
(x, y) ∈ mT ∧ (x, y) < mC
(4.8)
(x,y)
Since Mis is often a very small number, it has been scaled by 103 in tables 4.1
and 4.2 of next section.
4.3 Experimental results
This section aims at comparing three mosaicing algorithms on the basis of the proposed
methodology.
The algorithms are iterative variants of the well known Direct Linear Transform
(DLT) registration algorithm [7]. The DLT algorithm estimates the spatial transformation occurring between two images (pairwise registration) performing a linear regression on a set of corresponding points. The transformation model is an over-parameterized
9 dof homography and the system is solved using Singular Value Decomposition (SVD).
Robust estimation is obtained performing outliers removal with the RANSAC algorithm. The mosaicing algorithm is an iterated application of this registration algorithm
along pair of frames of the sequence. Sequential concatenation of n pairwise registrations amounts at finding the transformation that relates the nth view to the reference
one and thus to the RCS.
The three algorithms differ in the features detection and tracking methods employed
to determine the set of corresponding points. The first two algorithms, referred to as
SR-Harris and SR-KLT (SR stands for Sequential Registration), rely on respectively the
Harris and the KLT detector for features extraction. Both algorithms match detected
features by means of the KLT tracker. Since this kind of tracker suffers from large
CHAPTER 4
74
Method
PTEx
MSE
Mis
est
LPEx
Time
MSE
Mis
est
Time
SR-KLT
466.43 2.277 0.390
4.99
715.48
1.774 0.378
8.77
SR-Harris
574.55 1.988 0.490
4.84
850.88
3.333 0.538
8.69
SR-SIFT
895.75 7.883 0.791 143.63
1279.22 5.636 0.741 89.86
SR-GT
218.23
520.47
0
0.096
0
0.119
Table 4.2: Experimental results on extended sequences PTEx and LPEx.
shift, its robustness has been increased with a coarse initial guess by means of a phase
correlation step. The third algorithm, referred to as SR-SIFT, uses the SIFT detection
and tracking implementation described in [8]. The three algorithms share the same
simple blending method; a simple pixelwise average of color values within overlapping
areas has been chosen (see Section 3.1.2 for different approaches).
Each test sequence consists of a collection of views, a rendering matrix and a reference frame to which the supplied rendering matrix must be applied to identify the
rendering coordinate system. According to the image formation model described in
Section 4.2.1 the focus has been on sequences with spatial misalignments only., for the
recovery of the spatial structure is the primary concern of most mosaicing algorithms
known in literature.
The five sequences 1 are:
• Pure Translation (PT): it consists of 9 frames acquired by translating on the right
and keeping the optical axis of the virtual camera orthogonal to the scene plane.
Adjacent frames overlap by a 30% − 50% of their area and small vertical misalignments have been added.
• Pure Rotation (PR): it is composed of 9 frames acquired by rotating the virtual
camera around the Y axis (Z pointing toward the observer). Adjacent frames are
spaced by 4 degrees and overlap is about 80%.
• Looping Path (LP): it consists of 18 frames, acquired by moving the virtual camera on a loop by means of translations, above the X, Y plane parallel to the scene,
so that the last frame roughly overlaps the first frame.
• Pure Translation Extended (PTEx) and Looping Path Extended (LPEx) are longer
sequences (36 and 37 frames respectively) that extend PT and PR by including,
respectively, repeated panning and looping.
1 Images
used by the virtual camera are courtesy of NASA Earth Observatory [11]
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 75
Figure 4.1: Mosaics generated from sequence Pure Translation. From top to bottom: SR-KLT,
SR-Harris and SR-SIFT.
Two important remarks are worth to be emphasized:
• all the sequences do not feature illumination changes; this is a design choice
taken to focus on the geometrical part of the mosaicing problem by decoupling
it from photometric aspects.
• some of the sequences exhibit basic camera motions and might not be considered
as representative of real world sequence. This is another design choice taken to
dissect possible camera motion into several primitives and to study the performance of the algorithms on them independently.
Table 4.1 and Table 4.2 report for each algorithm and for each sequence the performance metrics MSE, Mis, est and the execution time. SR-GT, reported in the last
row of each table, refers to a pseudo-algorithm that composes the mosaic based on the
known transformations used by VC to generate the data sets. For each performance
CHAPTER 4
76
Figure 4.2: Sum of Squared Differences maps computed by subtracting generated mosaics and
the ground truth. From top to bottom: truth SR-KLT, SR-Harris and SR-SIFT.
metric the best performing algorithm is highlighted in boldface.
Tables 4.1 and 4.2 show clearly that on the whole dataset, with the exception of
sequence PR for which all the algorithms perform very close to SR-GT, SR-KLT is the
best performing algorithm. Tables show also that overall, SR-Harris outperforms SRSIFT. Notably, on the PR sequence SR-SIFT takes advantage of its rotation invariant
features. This clear ranking is impressive if compared to the similar appearance of
the three mosaics reported in Figure 4.1. On the contrary, the SSD (Sum of Squared
Differences) maps depicted in Figure 4.2 (whose average value is the MSE performance
metric) allow to appreciate the local differences between the mosaics.
An interesting remark stems from pairwise comparison of the performance of SRKLT, SR-Harris and SR-SIFT on short and extended sequences (PT vs PTEx and LP
vs LPEx). Even though the framed portion of the scene is substantially the same for
both pairs, all the metrics agree on the fact that the longer the sequence the worst the
mosaic, no matter the algorithm or the sequence. Such increasing inaccuracy is known
EVALUATION METHODOLOGY FOR IMAGE MOSAICING ALGORITHMS 77
as drift error and manifest itself as the looping path problem [3], named after the fact it
is visually emphasized in looping path sequences (that is, sequence that loops back so
that the pair of images overlap after several frames). However, as pointed out by Tables
4.1 and 4.2 the drift accumulation is an inherent drawback of sequential algorithms, not
depending on the sequence. Conversely, SR-GT exhibits an opposite behavior since
the average of several corresponding pixels corrupted by resampling noise is a good
estimate of the noise-free value. This suggests that the resampling error is normally
distributed.
As a final remark, it is worth highlighting that the most suitable quality indicator
when dealing with geometric misalignments only, as it is our case, is est . However, this
not always applies since in the general case photometric changes occur as well. Under
these circumstances, even a perfect spatial alignment (est = 0) could yield mosaics
showing significant color differences compared to the ground truth. In general, the
MSE measure, which senses both geometric and photometric alignment errors, is a
more appropriate choice. These experiments show that MSE is monotonically related
to the “exact” est estimator, thus empirically validating the MSE metric as a quality
measure of the mosaic.
Conclusions
Image mosaicing techniques have a long history, evaluation methodologies for their
comparison have not. Throughout this section a complete evaluation methodology
including data sets, ground-truth information and performance metrics have been devised. The proposed data sets comprises 5 synthetic test sequences created by means of
a fully configurable virtual camera. Simple pixelwise performance metrics such as the
MSE have been employed to favor fairness and simplicity. The definition of a default
visualization matrix and a reference frame is a simple procedure aimed at filtering out
differences among mosaics visualized in different rendering coordinates system.
Afterwards, three variants of a known algorithm have been evaluated and compared
according to the proposed methodology. Despite the fact that these approaches generates very good as well as visually similar results the evaluation procedure clearly shows
that the KLT-based algorithm performs better.
In conclusion, we are firmly convinced that a widely accepted quantitative evaluation procedure is of utter importance as a branch of a discipline moves from its pioneering works to maturity. The purpose of this work has been to highlight this shortage
and to propose an evaluation methodology that we hope will allow for principled discussion about algorithm performances and represent a useful tool for other researchers.
Further information concerning the proposed evaluation methodology can be found at
CHAPTER 4
78
the web site http://www.vision.deis.unibo.it/MosPerf.
Future developments are directed toward the creation of more challenging datasets
featuring spatial as well as tonal misalignments, in the attempt of reduce the gap to synthetic realistic sequences. Moreover, the evaluation of more sophisticated algorithms,
both through in-house development and direct collaboration with authors, is envisioned
and promoted by the, currently under construction, on-line evaluation service hosted
on the site.
Bibliography
[1] P. Azzari, L. Di Stefano, F. Tombari, and S. Mattoccia. Markerless augmented reality using image mosaics. In Proc. of Intl. Conf. on Image and Signal Processing,
2008.
[2] S. Baker, D. Scharstein, J. P. Lewis, S. Roth, M. Black, and R. Szeliski. A
database and evaluation methodology for optical flow. In Proc. of IEEE Intl.
Conf. on Computer Vision, pages 1–8, October 2007.
[3] A. Bevilacqua and P. Azzari. High-quality real time motion detection using ptz
cameras. In Proc. of IEEE Intl. Conf. on Advanced Video and Signal based
Surveillance, page 23, 2006.
[4] L. Gottesfeld Brown. A survey of image registration techniques. ACM Computing
Surveys, 24(4):325–376, 1992.
[5] M. Brown and D. G. Lowe. Automatic panoramic image stitching using invariant
features. Intl. Journal of Computer Vision, 74(1):59–73, August 2007.
[6] D. Capel and A. Zisserman. Computer vision applied to super resolution. IEEE
Signal Processing Magazine, 20(3):75–86, May 2003.
[7] R. Hartley and A. Zisserman. Multiple view Geometry in computer vision. Cambridge University Press, Second Edition, 2003.
[8] R. Hess and A. Fern. Improved video registration using non-distinctive local
image features. In Proc. of IEEE Intl. Conf. Computer Vision and Pattern Recognition, pages 1–8, 2007.
[9] M. Irani, P. Anandan, J.R. Bergen, R. Kumar, and S. Hsu. Efficient representations
of video sequences and their applications. Signal Processing Image Communication, 8(4):327–351, May 1996.
[10] Alonzo Kelly. Mobile robot localization from large-scale appearance mosaics.
Intl. Journal of Robotic Research, 19(11):1104–1125, 2000.
79
80
BIBLIOGRAPHY
c Earth Observatory. Picture of the day gallery.
[11] Nasa
[12] PoV-Ray. Persistence of vision raytracer.
[13] H. Sawhney, S. Hsu, and R. Kumar. Robust video mosaicing through topology
inference and local to global alignment. In Proc. of European Conf. on Compuer
Vision, pages 103–119, 1998.
[14] D. Scharstein and R. Szeliski. A taxonomy and evaluation of dense two-frame
stereo correspondence algorithms. Intl. Journal of Computer Vision, 47(1-3):7–
42, 2002.
[15] H. Shum and R. Szeliski.
Systems and experiment paper: construction of
panoramic image mosaics with global and local alignment. Intl. Journal of Computer Vision, 36(2):101–130, 2000.
[16] B. Zitova and J. Flusser. Image registration methods: a survey. Image and Vision
Computing, 21(11):977–1000, October 2003.
Chapter 5
Camera pose reconstruction
Camera pose reconstruction addresses the problem of recovering the position and orientation, the pose, of a camera with respect to a given spatial coordinate. Visual pose
reconstruction algorithms determine camera pose by relying only on information extracted from images. The camera pose reconstruction from image analysis in its general statement can be a tough problem, nonetheless a couple useful assumptions may
be employed without harming generality too much. In particular, assuming previously
calibrated cameras and presence of flat objects in the scene is realistic in many scenarios. In this settings, pose reconstruction can be cast back to a homography estimation
problem, as anticipated in chapter 2.
In the next sections, two original applications, building on the concepts and algorithms of camera pose reconstruction, are illustrated. The first section is concerned with
the proposal of an innovative use of image mosaics to boost the performance of known
pose reconstruction algorithms. An augmented reality (AR) system, exploiting such
mosaic-based pose reconstruction technique, has been implemented to demonstrate the
improvements compared to conceptional approaches. The conceived AR system has
been able to deliver real time, stable and realistic rendering of virtual objects and animations in several videos of real scenes.
The second section focuses on a novel human-machine interface concept for gaming applications based on visual camera pose reconstruction. In this context, a user
interacts with the application by moving a hand held camera, the commands inferred
from the reconstructed camera movements being conveyed as input to the videogame.
Such a way of interacting ought to be practical and intuitive as long as 3D commands
need to be naturally imparted to applications or electronic appliances. A proof of concept game has been also developed to demonstrate feasibility and effectiveness of the
conceived vision-based interface.
81
CHAPTER 5
82
5.1 Markerless augmented reality using image mosaics
Augmented reality aims at delivering spatially coherent information to a user moving
in a known environment. Accurate and reliable pose estimation is the key to success.
Many approaches track reference objects into the scene but as the environment becomes
larger more objects need to be tracked. leading to computationally intensive methods.
Instead, we propose an original approach that is suitable for environment where big
planar structures are present. Several images of coplanar objects, or zoomed-in pictures of big planar structure, are composed into a large reference object using image
mosaicing techniques, so that the pose reconstruction problem is simplified to that of
finding the pose from a single plane. Experimental results show the effectiveness of
this approach on two interesting case studies, i.e. aeronautical servicing and cultural
heritage.
5.1.1 Introduction and related work
Augmented reality techniques convey information that is both semantically and spatially coherent with the observed scene. Information is shown by augmenting the scene
captured through a camera with graphical objects that are properly aligned with the
3D structure of the scene and often contextually close to the user needs. In this section we mainly focus on structural coherence, nonetheless a simple demonstration of
contextual awareness is given in the experimental results section.
The capability to deliver spatially coherent information to a user moving in a known
environment is enabled by accurate and reliable pose reconstruction algorithms. Such
algorithms try to compute the pose of the observer with respect to the world the user is
moving in by establishing correspondences among objects detected in the scene. Based
on these correspondences, both the information to be displayed and the structure of the
scene is estimated.
Most of the algorithms described in literature can be thought of in terms of a binary
taxonomy: those that rely on absolute information [22, 18], such as known models, and
those based on chained transformations [23, 25]. The former seek to find camera poses
that correctly reproject some fixed features of a given 3D model into the 2D images.
They do not suffer from estimation drift but often lack precision, which results in jitter.
The latter do not exploit a priori information but match interest points between images.
Since correspondences between adjacent frames can be located precisely, usually these
algorithms do not jitter but instead suffer from drift or even loss of track.
Pose estimation algorithms represent the world as a collection of reference objects,
usually modeled as 3D meshes, associated with appearance models, such as collection
of key frames or image patches related to each vertex. Navigation of large environ-
CAMERA POSE RECONSTRUCTION
83
ments is handled using several objects spread across the scene, so that many of them
are visible even though the user moves widely inside the environment. Many algorithms are known to estimate the pose very quickly using a single object and a single
image [22, 18]. However, in presence of several objects, the pose of the observer is
optimized together with the relative position of the visible objects typically using temporal coherence constraints, i.e. objects projections in different images are expected
to confirm the same pose. As the environment grows larger so does the number of
required objects, thus yielding to computationally intensive algorithms.
To reduce the complexity Simon et al. [23] and Uematsu et al. [25] considers only
planar reference objects. In this settings they can exploit both temporal and spatial
coherence in the estimation, i.e. homographies between planes can be computed independently and deployed as additional constraints. This involves constructing at each
frames a unified projective space and mapping all the planes to that space according to
computed homographies. The pose is subsequently calculated using correspondences
between the space and image projections.
Nonetheless when several planar reference objects are also coplanar, the unified
projective space can be profitably built in advance using image mosaicing techniques.
As the cluster of objects becomes larger, using a mosaic as appearance model instead
of a single shot, taken from larger distance or with shorter focal length, becomes more
and more useful. In fact, the mosaic approach allows to maintain plenty of details that
a single shot would miss.
We propose a practical approach that is suitable for environment where big planar
structures are present. By mosaicing images of several coplanar objects, or zoomed-in
pictures of a big flat structure, during a training stage, most part of the computation
required to recovery the pose is shifted off-line. At run-time, the algorithm simply
determines the pose with respect to a unique large reference object using approaches,
such as [22, 18, 24], that are known to be fast and robust. This notably diminishes the
on-line computational requirements and increases the accuracy of the estimated pose.
5.1.2 Methodology
The method is split up into two distinct stages. The first can be regarded as a training
phase and is performed off-line. It deals with the definition of a large planar reference
object together with the construction of its appearance model, i.e. a mosaic of images
that portray the planar structure. Several keypoints are extracted from the appearance
model using the SIFT features detector [15]. Metric measurements can be easily introduced in this framework by specifying the real world position of at least four non
collinear points within the planar objects and computing the metric to projective homography accordingly.
CHAPTER 5
84
The second stage performs on-line and addresses the estimation of the pose of the
observer at a given instant using a set of points correspondences between the visible
scene and the constructed appearance model. This stage encompasses a feature tracker,
that establishes keypoint matches, and may deploy any pose estimation algorithm based
on point correspondences. The projection of virtual objects is easily accomplished once
the pose is known.
Construction of the appearance model
The first stage concerns the construction of the large reference object and its appearance
model from a collection of pictures using a mosaicing algorithm. The idea of using
mosaics in augmented reality applications is not a novelty in itself. For instance, Dehais
et al. [5] use mosaics to augment the scene with virtual objects. However, with their
system the user is allowed to rotate only and both the training and the testing sequence
must be captured from the same vantage point. The approach proposed by Liu et
al. [14] is also based on image mosaicing, but it requires fiducial markers and the
viewpoint is again allowed to rotate only. Instead, our method relies on natural markers
present in the scene and allows for arbitrary motion as long as a sufficient portion of
the model is visible to the observer.
During a training stage the construction of the appearance model using several
views of a roughly planar structure in the scene is carried out. The transformations
among the views are homographies as long as the observed subject is planar. The
algorithm we use to mosaic images can be regarded as an iterative version of the pairwise DLT method described in [10] and evaluated in Chapter 4. From each pair of
views a set of point correspondences is established and the best homography Hi, j in the
least square sense is fit; then the procedure is repeated for all pairs and visualization
matrices Qi are computed. The rendering coordinate systems onto which images are
composed into the mosaic turns out to be the common projective space computed by
[25], provided that all patterns are coplanar.
Instead of building a mosaic, one might also capture the whole planar structure
with a single shot taken from a larger distance or with a shorter focal length and then
use such a shot as the appearance model. Indeed, this choice is potentially preferable
when, given the resolution of the acquisition device, objects are as small as they can be
captured by a single shot without losing too much information. In fact, in such a case
objects are already registered with respect to each other and taking a picture is quicker
than building a mosaic. Indeed, in any application scenario the more appropriate approach should be identified carefully. In the experimental results section, a comparison
between the two approaches, in two different case studies, is presented.
Finally, given the appearance model, the SIFT feature detector extracts a set of
CAMERA POSE RECONSTRUCTION
85
keypoints xi from it. Extracted features that appear in the model but do not belong to the
planar reference object are discarded using a homography-based RANSAC algorithm
(see Section 2.2).
Pose estimation
Pose estimation from point correspondences, for calibrated cameras, has been extensively studied in literature. For an intuitive visualization of the geometry of planar
pose estimation problem, Fig. 5.1 may be of help. Keypoints xi = (ui , vi ), located on
the camera imaging sensor (bottom left plane), are in one-to-one correspondence with
points Xi standing on a flat reference object (upper right plane). It can be assumed,
without loss of generality, that the reference object lays on the z = 0 plane of the world
coordinate frame, so that all 3D points Xi possess third null coordinate. The set of core are just the homogeneous notations,
responding 2D-3D points (xi , Xi ), of which e
x, X
are related by projective equations involving the internal camera matrix K, the rotation
matrix R and the translation vector t
se
x=A
h
R
t
i
e
X
(5.1)
Both R and t can be retrieved up to a scalar value s provided that enough corresponding
pairs (xi , Xi ) are available and the camera is internally calibrated.
Figure 5.1: Geometry of pose estimation from 2D-3D correspondences problem.
Nonetheless, two well known algorithms, addressing the problem from very diverse
points of view, have been employed to emphasize flexibility and effectiveness of our
CHAPTER 5
86
proposal. The first algorithm has been illustrated by Simon et al. [24], and has been
considered for long the classical photogrammetric formulation. In practice, they solve
for the unknown pose by minimizing the following objective function:
N
X
i
k ubi −
!
!
R2 Xi + ty 2
R1 Xi + t x
,
b
v
−
k
i
R3 Xi + tz
R3 Xi + tz
(5.2)
where Ri is the ith row of matrix R and t is a 3 × 1 vector. This computation minimizes
the error distance among projections in the image space. In place of the sequential
estimation proposed in their paper, we compute the pose of each frame with respect to
our appearance model thus avoiding potential estimation drift issues.
Theoretically, an equivalent reformulation of the problem consists in estimating
0
(R, t) that relates the known reference points Xi with the corresponding Xi so that:
0
Xi = RXi + t
(5.3)
0 0 0
0
where Xi = (Xi , Yi , Zi ) and Xi = Xi , Yi , Zi are expressed in an object-centered and
camera-centered reference frame respectively. From this viewpoint, the second algorithm, proposed by Schweighofer et al. [22], aims at minimizing an object space error
bi . This algorithm yields the best results
by means of the line-of-sight projection matrix V
according to a recent analysis of the state-of-the-art carried out in [18].
Once the pose is retrieved it is then possible to project 3D models in the image
according to (R, t) and the known camera intrinsics.
5.1.3 Experimental results
This section reports the performance of the pose estimation algorithms, presented in
Section 5.1.2, in two different case studies. Performance are measured in terms of
estimation steadiness and smoothness. Under this perspective, the most stable the estimated pose over time the better the algorithm. In the following we plot the recovered
position of the camera center coordinates OC = OCX , OCY , OCZ expressed in the objectcentered frame. Both algorithms are run twice on each sequence with different appear-
ance models; the first time using a single image (Fig. 5.2 top), the second time using a
mosaic (Fig. 5.2 bottom). All the frames used to build the models do not belong to the
test sequences.
The two test sequences have been acquired by a freely moving observer using a
consumer grade web camera, a Logitech Quick Cam Sphere. Each sequence is about
600 frames long and images have a resolution of 640 × 480 pixels.
CAMERA POSE RECONSTRUCTION
87
Figure 5.2: Small (top) and large (bottom) appearance models.
Aeronautical servicing
The first case study is drawn from a collaborative research project called ARIS (Augmented Reality to Increase Safety) that addresses the application of Augmented Reality into the field of aeronautical servicing. The ultimate aim of the project is to equip
engineers with see-through goggles by which a context-aware system will act as a virtual assistant providing information on the maintenance procedure in real-time using
augmented reality. The sequence portraits the inside of a cockpit of a plane. Useful
information in this context concerns the position of the most important switches and
leverages as well as instructions on how to operate them properly (refer to Fig.5.4 for
some examples).
In the upper row of Fig.5.3 the position of OC according to the pose estimated
using a small appearance model is reported. While the pose is correct most of the
time, the peaks in the plots denote that the estimation suffers from jitter. Notably, both
pose estimation methods are affected by these peaks approximately in the same way.
Conversely, the plots in the lower row of Fig.5.3 show that, when using the mosaic
as appearance model, the estimated pose exhibits a much smoother trend and jitter is
almost completely eliminated, with the exception of some creases on the z component.
It is also worth noticing the proposed approach yields accurate and convincing video
augmentation also in presence of significant image brightness changes, as shown by
Fig.5.4.
CHAPTER 5
88
Figure 5.3: Recovered camera center coordinates using small (top) and large (bottom) appearance models: Schweighofer et al. (violet), Simon et al. (blue). Left to right: OCX , OCY , OCZ .
Figure 5.4: Augmented cockpit sequence samples.
Cultural heritage
The second case study concerns an advanced context-aware system for delivering information to visitors of museums or archaeological sites, by means of Augmented Reality.
The considered sequence has been acquired at the Archaeological Museum in Bologna
and displays a showcase with Etruscan jewellery. Fig. 5.6 shows that the pose of
the observer with respect to the showcase is accurately retrieved, as vouched by the
coloured outlines superimposed on the borders of the shelves. Besides, additional context aware information is conveyed by highlighting the object that is likely to be the
most important for the user given his position and orientation.
As before, the estimation using a small appearance model is quite good but suffers
from jitter (as it can be seen in the upper row of Fig.5.5). When using the mosaic (lower
row of Fig.5.5), jitter mostly disappears and, unlike previous experiment, the pose is
smoother even when there are no macroscopic estimation error.
CAMERA POSE RECONSTRUCTION
89
Figure 5.5: Recovered camera center coordinates using small (top) and large (bottom) appearance models: Schweighofer et al. (violet), Simon et al. (blue). Left to right: OCX , OCY , OCZ .
Figure 5.6: Augmented samples from jewellery sequence.
5.1.4 Conclusions
In this section we have described an approach to augmented reality that is suitable to
environments where large planar objects are present. Instead of modeling the reference
objects using a single image or a set of independent images, we propose to build a
mosaic by registering together several detailed views. The pose is then estimated from
the correspondences between the actual frame and the appearance model of the reference planar object using known pose estimation algorithms. Experiments demonstrate
that two very different pose estimation algorithms largely benefit from the proposed
approach. In this sense our proposal can be thought as a preprocessing step able to improve the computational performance and accuracy of any pose estimation algorithms.
CHAPTER 5
90
5.2 Vision-based markerless gaming interface
This section discusses a novel human machine interface for gaming applications based
on computer vision. The key idea is to allow the user to interact with the game by
simply moving a hand-held consumer grade camera. Detection of natural features in
the incoming video stream avoids instrumenting the scene with optical markers while
preserving real-time computation and accuracy. A prototype videogame developed as
proof-of-concept of the camera-based gaming interface is also presented. Thanks to
recent advances in real-time extraction and matching of natural features from images
on mobile platforms, our proposal holds the potential to enable a new generation of
camera-controlled videogames for hand-held mobile devices.
5.2.1 Introduction
The ever increasing pervasiveness of computer systems into our everyday environment
calls for novel mechanisms of human-computer interaction. Interfaces to computerized equipment need to be straightforward and effective, the ability to interact using
inexpensive tools being highly regarded.
In the last decades, keyboard and mouse have become the main interfaces for transferring information and commands to computerized equipment. In some applications
involving 3D information, such as visualization, computer games and control of robots,
other interfaces based on remote controller [19], joysticks and wands can improve the
communication capabilities despite being sometimes impractical or limited.
Wearable and handheld devices, such as datagloves, “backpacks” [3] and haptics,
are designed to be more user friendly, helping untrained users in performing complex
tasks. On the other hand, the high cost and cumbersome hardware limit the field of
usability of these solutions.
In daily life, however, vision and hearing are the main channels through which humans gather information about their surroundings. Therefore, the design of new interfaces that allow computerized equipment to communicate with humans by understanding visual and auditive input may conjugate effectiveness, naturalness and affordable
prices.
Vision based interfaces hold the potential to communicate with computerized equipment at a distance and the machine can be taught to recognize and react to human-like
feedbacks. Despite many advances have been recently reached in the field of human
gesture, motion and behavior understanding [11, 26, 12], engineers have been mostly
focusing on marker-based tracking systems for vision-based human-computer interaction applications. The gaming industry is recently showing a growing interest for
vision based interfaces, with many proof of concepts developed so far [8, 27, 2, 20].
CAMERA POSE RECONSTRUCTION
91
As a matter of fact, visual markers can be reliably tracked [6] at low computational
costs, although game boards/controllers must be instrumented with them.
Conversely, our proposal deals with a novel vision-based gaming interface able to
deliver position and orientation of the player by simply using a hand-held consumer
grade camera and without requiring any visual marker. The proposed approach is
straightforward since the movement of the camera directly translates into 3D commands to the game and requires no instrumentation of the environment. It is also very
effective since camera pose is estimated with millimetric precision. Finally, it is cheap
since it relies on widely available low-cost cameras.
5.2.2 Related work
Recent works in literature show that, to some extent, human behaviour understanding using imaging devices is attainable. Harville and al. [11] conceived a robust
algorithm for 3D person tracking and activity recognition. The work by Viola and
Jones [26] paved the way for sound automatic face detection. Isard and al. [12]
demonstrated reliable tracking of deformable objects in presence of occlusion and cluttered environments. These outstanding achievements have inspired the work of Lu
[17, 16] on vision-based game interfaces controlled respectively by head and hands
movements. Head, face and body position tracking for computer games was also successfully demonstrated in the work of Freeman et al. [7]. However, despite being very
flexible and natural interfaces from a human perspective, the underlying technology is
still computational too intensive to guarantee short latency time and smooth operations.
Moreover precise handling and maneuvering tasks demand a detection and reconstruction accuracy that, in some cases, current algorithms may not deliver.
Tracking of optical markers has rapidly emerged as a fast and accurate alternative
for conveying simplified information to computer systems. Although complex human
behaviours cannot be captured, location and orientation information can be robustly
retrieved in a wide variety of environmental conditions and at low computational cost.
Examples of videogames built on top of optical marker trackers have been growing
steadily in recent years. Cho et al. [2] described an augmented reality shoot-em-up
game in which players aim at virtual opponents rendered on a game board filled with
optical markers. Oda et al. [20] developed a racing game where users steer their
virtual cars using controllers stuck with markers monitored with cameras. Govil and
al. [8] designed a marker-based golf ball tracker used to set speed and direction of a
virtual ball in a golf simulator. By exploiting the implementation of a marker tracker
for portable devices, Wagner and colleagues [27] developed an Augmented Reality
(AR) game where multiple players are allowed to interact using camera-equipped PDA
devices.
CHAPTER 5
92
Nonetheless, recent advances in the field of object recognition showed that accurate pose estimation and tracking can be achieved without the need of specific visual
markers, but instead using keypoints extracted from textured areas [15]. In particular,
the SURF (Speeded Up Robust Features) algorithm [1] reconciled accuracy and low
computational cost for robust keypoints extraction and tracking.
Therefore we propose to deploy a camera pose estimation approach based on natural keypoints correspondences as a novel human-machine interface for gaming purposes. It is worth pointing out that camera pose estimation using natural keypoints
on mobile phones has been recently demonstrated by Wagner et al. [28]. Hence, our
proposal holds the potential for development of new camera-controlled gaming applications for hand-held mobile devices such as phones and PDAs. The remainder of the
section describes the camera pose estimation algorithm in terms of its key components
and present a prototype videogame, dubbed Black Hole, developed so far as proof-ofconcept of our proposed approach.
5.2.3 Markerless pose estimation
The interface consists essentially of an automatic camera pose estimation algorithm
for scenes in which flat objects are present, therefore limiting the types of suitable
scenes. In this case, however, the limitation is slight, since the requirements is that a
plane be visible, even if partially occluded, in the scene. This is common in indoor
environments, where a textured ceiling or ground plane is usually visible. Outdoors,
even rough ground (grass, roads or pavements), provide also an acceptable reference
for the system.
The pose recovery algorithm is largely inspired by the camera tracker illustrated by
Simon et al. [24], for it delivers accurate estimation at low computational cost. However, differently from the original formulation, pose recovery is performed every time
with respect to a reference frame (pose detection) instead of arising from the composition of multiple pairwise registration (pose tracking) among subsequent frames. Hence,
pose detection tolerates failures since each frame is processed independently; besides
it does not suffer from the dead reckoning issue typical of pairwise composition. On
the other hand, pose detection requires a reference object to be known beforehand, i.e.
the object with respect to which the pose is continuously computed. Moreover, pose
jittering may arise since temporal correlation is usually not reinforced. In the rest of
this section the solutions to these two problems are addressed and described.
Using natural keypoints instead of markers makes the instrumentation of the scene
not needed anymore since any flat object can be a suitable reference. Just before starting a gaming session a brand new natural reference is learnt on-the-fly by simply taking
a snapshot of a textured planar object and extracting a vector of keypoints descriptors.
CAMERA POSE RECONSTRUCTION
93
The corresponding points of the reference keypoint set are searched within every new
incoming frame and pairs of matching keypoints are likely to be detected even in case
of large pose and illuminations changes, as shown in Fig. 5.7. Incorrect keypoints pairs
can be easily detected and discarded using a RANSAC-based homography estimation
step [10]. The remaining corresponding pairs are linked by the geometric relationships
explained in Section 5.1.2, hence they are fed to a pose estimation algorithm, for example the one described in [24], in order to obtain a reliable estimation of the position
and orientation of the camera with respect to the reference object. Differently from
the mosaic-based approach described in Section 5.1, here pose estimation relies on a
single-image description of the reference object. This choice is tightly connected with
the intended application; since gaming interfaces have to be as simple and practical
as possible, acquisition of a single snapshot is quicker and easier than that of multiple
views or a video.
Figure 5.7: Tracking SURF keypoints in few snapshots taken from different viewpoints: correct
(green) and incorrect (red) corresponding pairs.
Nonetheless, delivered poses still exhibit an excellent accuracy with camera position usually estimated in the range of few millimeters from the true one. Nonetheless,
since this approach does not exploit the temporal continuity of the camera trajectory,
the sequence of estimated poses usually exhibit jitter effects. This problem manifests
as small vibrations among subsequent estimations, such discontinuities being quite noticeable by a human observer and tending to degrade the gaming experience. In order
to mitigate this effect a pose smoothing technique has been adopted. The adopted
approach, described in [21], consists in linking every new pose with those computed
during a previous time window by exploiting a Support Vector Regression scheme as a
temporal regularization term.
Natural keypoint correspondences and pose smoothing make the conceived pose
CHAPTER 5
94
estimation algorithm fast, robust and practical, thus providing accurate and jitter-free
estimations without the need for fiducial markers placed all across the scene.
5.2.4 Gaming application
A prototype videogames has been developed using as interface the vision-based pose
estimation algorithm described previously. In addition, few third-party libraries have
been integrated for a number of specialized tasks, in particular:
• OpenGL (Open Graphics Library) [9], a portable and interactive 2D and 3D
graphics library adopted for fast visualization and rendering.
• OpenCV (Open Computer Vision) [4], a collection of computer vision functions
used for video capturing, keypoints detection and numerical optimization.
• Tokamak [13], an open-source real-time physics engine used for accurate simulation of dynamics of rigid body, gravity, friction and so on.
The typical hardware configuration used to run the games consists of a single laptop
PC powered by an Intel Core 2 CPU, equipped with 4 GB RAM and running Windows
XP. The video camera is a Logitech Quick Cam Sphere grabbing color sequences at
640 × 480 resolution. The game has been developed in C++ using Microsoft Visual
Studio 2005. Using this setting the frame rate ranges between 6 and 10 frames per
second (FPS), keypoints extraction being the major bottleneck of the system. Although
quite far from real-time processing, the system is responsive enough to allow for a
satisfactory gaming experience. By reducing the camera resolution to 320 × 240 the
frame rate increase to 9 - 15 FPS without severely penalizing accuracy.
Black Hole
Black Hole is a puzzle game inspired by the dark atmosphere of Star Wars. The goal is
to steer a R2D2-like ball through a Death Star maze till the endpoint avoiding the holes
spread along the path. The user can slant and rotate the maze by moving a webcam
held in his hand. Gravity effect allows the user to control the ball by moving the maze;
friction and collision against maze walls and floor are also implemented in order to add
realism. Every time the user loses a ball, by letting it fall in a hole, it obtains a number
of points commensurate to the distance from the starting point. After three lost balls
the game ends and the final score is the sum of the points obtained thus far.
Figure 5.2.4 shows the starting and ending screens of Black Hole together with
some screenshots taken during a gaming session. Figure 5.8 shows some images taken
by the webcam hand-held by the player and the corresponding game screen, the reference object being a textured picture printed on a paper sheet and laying on the desktop.
CAMERA POSE RECONSTRUCTION
95
Black Hole starting screen (left) and game ending (right).
The image pairs, screenshot and camera frame, show how the floating maze is tilted
according to the instantaneous orientation of the hand-held camera with respect to the
reference object.
Feedback and observations
The game has been on show for few weeks in our laboratory rooms and has been played
by some colleagues from other labs that gently provided feedbacks and suggestions.
First of all, only a picture of a person pointing the camera to the reference pattern
laying on the table has been required by anybody to start playing the games. Such a
limited amount of training information hints at the ease of use and naturalness of the
conceived interface. Most of the players manage to get to the end of the game, this
suggesting also good intuitiveness and friendliness. On the other hand several persons
expressed concerns about the difficulty of keeping the reference object always in sight
during the gaming session. Even though occasional pose estimation failure does not
necessarily ruin the game experience, it might be annoying especially during fast and
critical phases. Another set of complains concerns the responsiveness of the gameplay
which is mainly accountable to the high computational cost that the system incur when
highly textured areas generate a large amount of keypoints.
5.2.5 Conclusions and future work
The ubiquitous presence of computerized equipments in everyday environment calls for
conception and design of natural and easy-to-use human-machine interfaces. Practical,
straightforward and inexpensive are the keywords for the next generation of interaction
paradigms. Videogames are a challenging test ground since fast response and high
accuracy are also required. Vision-based interfaces hold the potential to fulfill this
expectations. A vision-based approach based on tracking natural features has been
96
CHAPTER 5
Figure 5.8: In the left column, 4 snapshots depict the maze, tilted in different ways, according to
the orientation of the camera with respect to the reference object computed in each frame (right
column).
conceived as an interface for gaming applications. The proposed approach allows the
user to interact with a videogame by simply moving a webcam pointing toward a planar
CAMERA POSE RECONSTRUCTION
97
textured object present in the scene. According to the feedback received by several
users, the interface is intuitive, fast, responsive and, ultimately, enjoyable.
As for future directions of works, pose estimation from non-flat surfaces or largerthan-a-single frame object would prove useful to increase the possibility for the user to
move around. Moreover, as for the difficulty of keeping the reference object always in
sight, we wish to investigate on the possibility of enabling also a mixed-reality mode,
in which the user would see the virtual objects of the game superimposed to actual
video stream coming from the camera.
Eventually, the proposed approach is particularly suited to enable gaming applications on hand held devices such as phones and PDA, for the user may simply point the
integrated camera toward a textured plane and play by moving the device in his hand.
Therefore, in the near feature we plan to port our gamimg interface on a state-of-the-art
hand held device.
98
CHAPTER 5
Bibliography
[1] H. Bay, A. Ess, T. Tuytelaars, and L. Van Gool. Surf: Speeded up robust features.
Computer Vision and Image Understanding, 110(3):346–359, 2008.
[2] K. Cho, W. Kang, J. Soh, J. Lee, and H. S. Yang. Ghost hunter: a handheld
augmented reality game system with dynamic environment. In Proc. of Intl. Conf.
on Entertainment Computing, pages 10–15, 2007.
[3] B. Close, J. Donoghue, J. Squires, P. De Bondi, M. Morris, W. Piekarski, and
B. Thomas. Arquake: an outdoor/indoor augmented reality first person application. In Proc. of IEEE Intl. Symp. on Wearable Computers, pages 139–146,
2000.
c
[4] IntelCorp.
Opencv 1.0, open source computer vision library, 2000-2007.
[5] C. Dehais, M. Douze, G. Morin, and V. Charvillat. Augmented reality through
real-time tracking of video sequences using a panoramic view. In Proc. of Intl.
Conf. on Pattern Recognition, pages 995–998, 2004.
[6] M. Fiala. Artag, a fiducial marker system using digital techniques. In Proc. of
IEEE Intl. Conf. on Computer Vision, pages 590–596, 2005.
[7] W. T. Freeman, K. Tanaka, J. Ohta, and K. Kyuma. Computer vision for computer
games. In Proc. of Intl. Conf. on Automatic Face and Gesture Recognition, pages
100–105, 1996.
[8] A. Govil, S. You, and U. Neumann. A video-based augmented reality golf simulator. In Proc. of ACM Multimedia, pages 489–490, 2000.
[9] Khronos Group.
Opengl 2.1, open computer graphics library, 1992-2008.
http://www.opengl.org/.
[10] R. Hartley and A. Zisserman. Multiple view Geometry in computer vision. Cambridge University Press, Second Edition, 2003.
99
100
BIBLIOGRAPHY
[11] M. Harville and D. Li. Fast, integrated person tracking and activity recognition
with plan-view templates from a single stereo camera. In Proc. of Intl. Conf. on
Computer Vision and Pattern Recognition, pages 398–405, 2004.
[12] M. Isard and A. Blake. Condensation - conditional density propagation for visual
tracking. Intl. Journal of Computer Vision, 29(1):5–28, 1998.
[13] D.
Lam.
Tokamak,
open
physics
engine
library.
http://www.tokamakphysics.com/.
[14] P. Liu, X. Sun, N. D. Georganas, and E. Dubois. Augmented reality: a novel approach for navigating in panorama-based virtual. In Proc. Intl. Workshop on Haptic, Audio and Visual Environments and their Applications, pages 13–18, 2003.
[15] D. G. Lowe. Distinctive image features from scale-invariant keypoints. Intl.
Journal of Computer Vision, 60(2):91–110, 2004.
[16] P. Lu, Y. Chen, X. Zeng, and Y. Wang. A vision-based game control method. In
Proc. of Intl. Conf. on Computer Vision, Workshop on Human Machine Interaction, pages 70–78, 2005.
[17] P. Lu, X. Y. Zeng, X. Huang, and Y. Wang. Navigation in 3d game by markov
model based head pose estimating. In Proc. of Intl. Conf. on Image and Graphics,
pages 493–496, 2004.
[18] F. Moreno-Noguer, V. Lepetit, and P. Fua. Accurate non-iterative o(n) solution
to the pnp problem. In Proc. of IEEE Intl. Conf. on Computer Vision, pages 1–8,
October 2007.
c Wii. http://wii.nintendo.com/.
[19] Nintendo.
[20] O. Oda, L. J. Lister, S. White, and S. Feiner. Developing an augmented reality
racing game. In Proc. of Intl. Conf. on Intelligent Technologies for Interactive
Environment, 2008.
[21] S. Salti and L. Di Stefano. Svr-based jitter reduction for markerless augmented reality. In Proc. of Intl. Conf. on Image Analysis and Processing (submitted paper),
2008.
[22] G. Schweighofer and A. Pinz. Robust pose estimation from a planar target. IEEE
Trans. on Pattern Analysis and Machine Intelligence, 28(12):2024–2030, 2006.
[23] G. Simon and M. Berger. Real time registration of known or recovered multiplanar structures: application to ar. In Proc. of IEEE British Machine Vision
Conference, pages 567–576, 2002.
BIBLIOGRAPHY
101
[24] G. Simon, A. W. Fitzgibbon, and A. Zisserman. Markerless tracking using planar
structures in the scene. In Proc. of Intl. Symposium on Augmented Reality, pages
120–128, May-June 2000.
[25] Y. Uematsu and H. Saito. Vision-based registration for augmented reality with
integration of arbitrary multiple planes. In Proc. of Intl. Conf. on Image Analysis
and Processing, pages 155–162, 2005.
[26] P. Viola and M. J. Jones. Robust real-time face detection. Intl. Journal of Computer Vision, 57(2):137–154, 2004.
[27] D. Wagner, T. Pintaric, F. Ledermann, and D. Schmalstieg. Towards massively
multi-user augmented reality on handheld devices. In Proc. of Intl. Conf. on
Pervasive Computing, pages 208–219, 2005.
[28] D. Wagner, G. Reitmayr, Alessandro Mulloni, T. Drummond, and D. Schmalstieg.
Pose tracking from natural features on mobile phones. In Proc. of Intl. Symp. on
Mixed and Augmented Reality, pages 125–134, 2008.
102
BIBLIOGRAPHY
Chapter 6
3D reconstruction of deformable
surfaces
This chapter investigates sparse geometric reconstruction of objects using a set of images. Differently from conventional structure from motion algorithms that usually deal
with rigid objects, an innovative method for fast shape retrieval of deformable objects
relying on a single camera is detailed.
The shape reconstruction problem is tackled by describing a deformable object with
a tesselated surface, for instance a triangulated mesh, with a sufficient level of detail,
i.e. number of triangles. Assuming the region of object inside a triangle as being flat,
the geometric reconstruction of the whole mesh amounts at computing the homography
between each triangle of the model and its corresponding projection in a given image.
The extension to deformable objects requires to properly constrains each homography
considering that every triangle is connected to others inside the mesh, and any solution
must maintain continuity across the mesh. Moreover, smoothing constraints must be
included to prevent unrealistic deformations to produce high likelyhood estimates.
A re-parametrization of the problem in terms of the vertex coordinates of the triangulated model has been envisioned, thus permitting to specify continuity and smoothing constraints in an elegant and concise formulation. The devised framework admits
also a fast iterative linear solver, based on projection kernels, boosting the computation
performance of the algorithm. The algorithm recovers the shape of a deformable surface using 3D-2D correspondences computed from natural texture, thus not requiring
any instrumentation of the scene.
Thanks to a ongoing collaboration between the Ecole Polytechnique Federal of
Lausanne and Solar Impulse SA [6], the conceived approach has been tested in a challenging real scenario. Solar Impulse is an ambitious project aimed at realizing the first,
103
104
CHAPTER 6
solar propelled, airplane able to trip around the world without exploiting fossil energy.
Since the wings of SolarImpulse will be both very long and very light, they must be
monitored accurately both for safety and efficiency. The proposed algorithm has been
deployedfor for measuring wing deformations of the SolarImpulse scaled model prototype. Performance assessment using both synthetic and real data is reported in the last
section of the chapter.
6.1 Shape recovery of non-rigid objects
Experimental determination and measurement of wing deformations is of fundamental
importance for the analysis of structural dynamics in the aerospace industry. Knowing
the way wings deform during flight could provide valuable information for testing the
validity of finite elements analysis and for improving the design and manufacturing
process.
Present methods of measuring wing deformations usually entail the instrumentation
of the aircraft, i.e. a set of accelerometers or strain gauges placed all over the aircraft.
Despite being accurate, such methods are invasive and might influence the dynamics
and, eventually, the measurements (i.e. added mass due to instrumentation). Moreover,
these sensors can only measure deformations, along a single direction, at a few preset
locations and are difficult to move once the wing is constructed.
Since vision-based approaches are known to provide dense measurements through
non-contact sensing, some works based on imaging devices have been attempted. The
work by Ryall and al. [14] shows how three dimensional modes of an oscillating wing
section can be recovered by tracking visual markers stuck on it. However it requires
special hardware, i.e. synchronized strobe lights and camera, and performs off-line.
Recently, Barrows [3] has proposed a multiple-camera system for on-line reconstruction of a wing inside a wind tunnel. Both the approaches require cumbersome hardware
and the instrumentation of the aircraft, making them expensive and impractical for the
acquisition of measurements during the flight.
This section describes a vision-based on-line approach for measuring wing deformations that relies on a single camera and on “natural markers”, i.e. textured areas
underneath the wings. By requiring just a single camera, this method is a cheap and
practical way of evaluating the behavior of wings in real conditions.
To validate this technique and demonstrate that it can be deployed in a realistic
aeronautical context, a complete pipeline designed to measure the deformations of SolarImpulse’s [6] scaled model wings has been put in place. This is an interesting test
case because the wings of SolarImpulse will be both very long and very light. As a result, they are bound to deform noticeably in flight and it will be important to verify that
3D RECONSTRUCTION OF DEFORMABLE SURFACES
105
they behave as expected. Experiments shows that measurements accuracy up to few
millimeters can be achieved monitoring a 4-meters wide model of the Solar Impulse
with a consumer grade camera.
6.1.1 Related work
Monocular 3D shape recovery of deformable surfaces is known to be an ill-posed
problem even when there is sufficient texture for structure-from-motion and templatematching approaches to be effective. A priori knowledge of deformation models is
required to solve ambiguities and make the problem tractable.
Structure-from-motion methods rely on feature points tracked through a sequence
to retrieve the deformed shape of a surface [9, 15]. However, the underlying linearity
assumptions of these methods limit their applicability to smooth deformations. The
use of more generally applicable constraints have been advocated [18, 16], even though
additional assumptions, that may not apply, are required.
Statistical learning approaches have therefore become an attractive alternative that
takes advantage of observed training data. Linear approaches have been applied to
faces [4, 10] as well as to general non-rigid surfaces [16]. However, they impose the
same restrictive smoothness constraints as before. Moreover, training the model of
highly deformable surfaces represented by meshes with many vertices, and therefore
many degrees of freedom, requires a number of training examples that quickly becomes
intractable.
Another class of approaches solve this problem by introducing a physical model
that can infer the shape of untextured surface portions from the rest of the surface [12,
11]. Due to the high dimensionality of such representations, modal analysis [15] was
proposed to model the deformations as linear combinations of modes. Some knowledge
about the surface material must be assumed since the deformation model is defined in
terms of physical parameters. Moreover the complexity and non-linearity of the true
physics make physically-based approaches an accurate approximation only in case of
small deformations.
Since one can reasonably assume that aircraft wings are made of material whose
mechanical property can be known and expected deformations are meant to be small,
physical models become a suitable choice in this context. Moreover, a similar approach
[15] has been integrated into a software package designed to model the deformations of
sails from video sequences and to measure visually their curvature. Delivered to Team
Alinghi, it supports the design team by monitoring the behavior of the spinnaker under
real sailing conditions, providing valuable informations to improve its design.
Since sails act very much like wings, both may be treated as smooth deformable
surfaces and the approach we propose for measuring wing deformations is largely in-
CHAPTER 6
106
spired by the works of Salzmann and Pilet [16, 15].
6.2 Deformable shape recovery
We represent a surface as a 3D triangulated mesh M=(V, F), where V= v1 , ..., vNV is
the vector of vertices and F is the list of facets. The position of a vertex vi is specified
by its 3D coordinates (xi , yi , zi ). The overall shape is therefore controlled by a state
vector S , that is the vector of all x, y and z coordinates. We assume we are given a set
of 3D to 2D correspondences between surface points and image locations.
We assume that a mesh deforms to minimize the objective function
(S ) = λD D (S ) + C (S )
(6.1)
where C is a data term that takes point correspondences into account, D is a smoothness term that tends to preserve the regularity of the mesh, and λD is a constant.
6.2.1 Data term
In this section, we formulate the computation of the 3D mesh vertex coordinates given
the data term in terms of solving a linear system. To this purpose we express all world
coordinates in the camera referential for simplicity and without loss of generality. Let
Xi be a 3D point whose coordinates are expressed in the camera referential. Since
we use a single camera and assume its internal parameters to be known, we write its
perspective projection as:




 ui 




 v  = 1 A [I3×3 | 0]  xi 
 1 
 i  ki


1
(6.2)
where A is the internal parameter matrix and ki a scale factor. If Xi lies on the facet of
a triangulated mesh, it can be conveniently expressed as a weighted sum of the facet
vertices, so that (6.2) can be rewritten as


 ui 


 v  = 1 A ai vi,1 + bi vi,2 + ci vi,3 i

 ki


1
(6.3)
where vi,1≤i≤3 are the 3-D coordinate vectors of the vertices and (ai , bi , ci ) the barycentric coordinates of Xi .
Let’s assume that we are given a list of n such 3-D to 2-D correspondences for
points lying inside the mesh facets. As pointed out by [16], the vi,1≤i≤3 coordinates of
3D RECONSTRUCTION OF DEFORMABLE SURFACES
the vertices can be computed by solving

 a1 T1 b1 T1 c1 T1
0

 . . .
...
...
...

 0
a j Tj b j Tj c j Tj

 . . .
...
...
...


0
bl Tl
0
 al Tl

...
...
...
...
...
...
0
...
cl Tl
...
with

 u j A3
Tj = A2×3 − 
v j A3

. . . 


. . .  
  v1 



. . .  
  . . .  = 0

. . .  
 vnv 
0 

...
107
(6.4)




where A3 represents the last row of matrix A and a2×3 its first two rows.
6.2.2 Smoothness term
Previous work by Salzmann et al. [16] demonstrates that keypoint correspondences do
not provide enough independent equations for the problem to be solved uniquely. Two
kind of smoothness terms have been used to prevent the estimation of unrealistically
deformed shapes:
• stiffness matrix, it carries information about the physical properties of the surface
material. Physical properties are expressed by coupling the displacements of
neighboring vertices of the mesh. A popular algorithm from [8] has been used
to generate a system of equations given a triangulated mesh and few additional
parameters such as mass and thickness.
• inextensibility constraints, they model a kind of triangulation that can be thought
of as a polyhedron made of metal plates whose edges have been replaced by
hinges. Length variations of the edges are discouraged through adding penalties
to the overall energy function.
6.2.3 Optimization strategy
Differently from the approach in [7] we chose to implement inextensibility constraints
exactly. Since such constraints are quadratic, they do not fit in a linear formulation
[16]. For that reason an iterative optimization has been conceived.
The idea is to minimize
||MX|| subject to C(X) = 0 ,
where X is an n × 1 vector and C(X) an m × 1 vector of constraints.
(6.5)
CHAPTER 6
108
At each iteration, given the current X state, find dX such that
C(X + dX) = 0
AdX = −C(X) ,
⇒
†
(6.6)
†
⇒ dX = −A C(X) + (I − A A)dZ ,
where A is the m × n Jacobian matrix of C, A† its n × n pseudo-inverse, and dZ an
arbitrary n × 1 vector. In general, m < n and A† can be computed as limδ→0 At (AAt +
δI)−1 , which involves inverting an m × m matrix and exists even if AAt itself is non
invertible.
Let P = I − A† A be the projector onto the kernel of A and let dX0 = −A†C(X) be the
minimum norm solution of Eq. 6.6. We choose dZ by minimizing
||M(X + dX0 + PdZ)|| ,
(6.7)
or, equivalently, solving in the least square sense
MPdZ = −M(X + dX0 ) .
(6.8)
In this setting, matrix M consists of two parts, the first comes from the data term
while the second is made of physical relations encoded in the stiffness matrix. The
functional C represents the nonlinear inextensibility constraints.
Since the optimization criterion M weights all the data fairly, gross outliers generate
large residuals that could bias the solution. To give outliers a milder impact on the
solution, we reformulated the original problem in a reweighted least squares fashion:
k W MX k subject to C (X) = 0
(6.9)
where W is a diagonal weighting matrix. The main diagonal of W is the vector L whose
coefficients are computed as follows:
Li = − exp
di
(6.10)
d̂
where di =k Fi k is the norm of the ith residuals and F = MX − b. d̂ =
1
N
P
i
di is
the average of the norm of the residuals. In this settings the reweighted least squares
solution is given by
k W M (X + dX0 + PdZ) k
(6.11)
6.3 Detailed approach
The proposed approach entails the accurate calibration of the imaging device, the presence of a 3D model of the object in its rest position and the capability of establishing
correspondences between that model and a given image. The whole approach is split
in two main stages:
3D RECONSTRUCTION OF DEFORMABLE SURFACES
109
• Offline phase, it consists of camera calibration and generation of the 3D model
in its rest, i.e. undeformed, position
• Online phase, it aims at retrieving pose and deformations given the actual image
and the rest model
6.3.1 Offline phase
A 3D model of an object in its rest position is composed of two parts: a pointwise model
consisting a cloud of points Xi that lie on its surface and a geometric model in the form
of a triangulated mesh that approximates its hull. The pointwise model is necessary
to detect and establish correspondences between the object and a given image. The
geometric model represents a piecewise planar approximation of the true object shape
and embeds also the concept of joints, i.e. lines along which the shape is allowed to
deform. For the algorithm to perform consistently, the two models have to be spatially
aligned, registered pointwise and geometric models will be called hereinafter, just, 3D
model of the object.
The construction of the pointwise model is performed using Australis [13], a structurefrom-motion software. Given multiple pictures of the same subject taken from different
viewpoints, the algorithm is able to generate a sparse cloud of 3D points that reproject
consistently in all the views. In detail, the standard reconstruction process take place
as follow:
• a set of retroreflective markers, manually placed all over the scene, are automatically detected in every pictures and correspondences are established based on
appearance and geometric constraints
• a reference object, shipped together with the software, is used to retrieve an
initial estimate of the pose for every single pictures.
• a bundle adjustment solver [2, 5] performs a non linear minimization of the reprojection error across the whole set of correspondences yielding accurate poses
and structure
However, the standard process suffered from many drawbacks and a revisioned procedure has been devised to improve reliability and flexibility.
Detailed insights concerning the characterization of the performance of the standard approach and the improvements obtained using the modified method are reported
in [1].
Finally, each point Xi belonging to the pointwise model is linked with a vector of
all the SIFT descriptors computed in each image in which it appeared. This step is
CHAPTER 6
110
fundamental to enable subsequent keypoints matching between the pointwise model
and a given image.
The geometric model is a triangulated mesh M=(V, F), where V= v1 , ..., vNV is
the vector of vertices and F is the list of facets, that represents the aircraft in its rest
position. The wings have been manually measured and the tesselation roughly follows
the joints between distinct parts of the real plane. The topology of the vertices and the
facets underwent many changes, the final arrangement may be appreciated in Fig. 6.3,
top.
In order to deliver a set of 3D points expressed in terms of barycentric coordinates
with respect to the facet of the mesh, pointwise and geometric models must be registered into the same coordinate frame. A useful initial guess is obtained by aligning the
eigenvectors of the Principal Component Analysis (PCA) decomposition of the points
cloud and the vertices of the mesh. The underlying idea is that the cloud of points is
uniformly distributed across the aircraft, an assumption not so far from reality given
the symmetry of the texture underneath the wings. Registration accuracy is improved
by deploying a subsequent refinement using the algorithm proposed in [17]. This algorithm performs a robust registration of 3D point data to a triangle mesh in presence
of outliers and changes in scale. After the registration, points whose distance from the
nearest facet is above an acceptance threshold are marked as outliers and removed from
the pointwise model. Inliers are converted in barycentric coordinates with respect to
the closest facet.
6.3.2 Online phase
The scope of the online phase is, given an image I, to retrieve pose and deformations
of the considered object. The mathematical procedure presented in section 6.2, devised
for such goal, requires a 3D model of the object in its rest position and a set of 2D-3D
correspondences. The former requirement is fulfilled by performing the steps described
in the previous section. The generation of 2D-3D correspondences is accomplished as
follows:
• a set of keypoints xi is extracted from image I
• the set of keypoints xi is matched with the descriptors stored in the pointwise
model (see Figure 6.2)
• the matching between keypoints xi and descriptors of points Xi belonging to
the pointwise model naturally defines 2D-3D correspondences relating image
projections and 3D points xi ↔ Xi .
3D RECONSTRUCTION OF DEFORMABLE SURFACES
111
Figure 6.1: 3D reconstruction from multiple views. Boxes are cameras, white spots are reconstructed 3d points.
The set of 2D-3D correspondences are then fed to the algorithm. The vertex coordinates of the rest model are the parameters of the state vector S that are to be optimized
given the data term, i.e. the 2D-3D correspondences, and the smoothness and con0
tinuity constraints. After optimization, the computed state vector S contains all the
coordinates of the vertices and represents the sparse reconstruction of the deformed
object observed in image I (see Figure 6.3). Object deformations are defined as the
0
difference between the estimated state vector S and the vector of coordinates in the
rest position S .
6.4 Results
6.4.1 Simulations
Synthetic tests have been conducted to evaluate the performance of the algorithm in
a controlled environment and to see how it degrades as different amounts of noise affects the data. The idea has been to create synthetic 2D-3D correspondences using
112
CHAPTER 6
Figure 6.2: Keypoints matching. Correspondences between the image and the 3D model are
highlighted with red circles.
realistic generative models. As far as 3D points belonging to the pointwise model are
conceerned, triangulated mesh describing the aircraft has been deformed designed and
deformed by applying a twisting deformation creating a given angle between the two
wingtips. Then, a set of 3D points randomly spread over the triangulated mesh have
been generated. By projecting the 3D points on virtual cameras randomly spread in the
scene, 2D correspondences have been generated. Moreover, uncertainty in the matching process is accounted for by adding gaussian noise to computed projections. The
impact of the number and positions of points located on the facets has been analyzed.
The graph in Fig. 6.4 reports on the Y axis the Root Mean Square (RMS) of the
difference between the true and the estimated twisting angle, on the X axis the standard
deviation of the noise applied to the projections. RMS values have been computed on
1000 trials per number of points.
Remarkably, the algorithm yields high quality reconstructions with realistic amount
of noise, i.e. around 1 pixel. Hence accurate wing deformations can be measured using
the proposed vision-based approach. Two other facts emerged; the first is the more the
correspondences the more precise the reconstruction, the second is that uniformly distributed points are better than scattered ones. Both evidences are quite straightforward,
3D RECONSTRUCTION OF DEFORMABLE SURFACES
113
Figure 6.3: Deformed geometric model (top), 2D-3D correspondences (coloured lines in the
middle), reprojected geometric model on the image (bottom)
perhaps the second remark becomes more interesting when noting that 3 uniform points
are better than 5 scattered ones, hence highlighting the importance of the location aside
the mere count.
114
CHAPTER 6
Figure 6.4: Twisting angle RMS error with different numbers of points per facet: 3 on uniformly
spread (red) and 3 (green), 4 (blue), 5 (yellow) scattered points.
6.4.2 Experiments
A wings measurement system for diagnostic and validation purposes requires on-site
quantitative performance evaluation. To accomplish this task we decided to obtain
ground truth data and compare the attained results to it. But how could ground truth
data could be generated?
Two methods, an Optical Motion Capture (OMC) system and a Structured Light
Scanner (SLS), accredited of very high accuracy, have been evaluated by assessing the
delivered reconstruction in a simple and controllable scenario. The test bed consisted
of a stiff beam whose steepness could be carefully set. Since everything was precisely
measured, the geometry of any points in the scenario could be carefully computed
beforehand and used as ground truth for comparing the methods. With an accuracy of
about 0.2 mm, the OMC exhibited the highest level of accuracy, performing an order
of magnitude better than the vision-based approach.
Both the OMC and the video-based system have been then deployed in a more
relevant setup: measuring wing deformations of the Solar Impulse 4 meter wingspan
model. OMC reconstruction has been considered as ground truth data, and the estimation yielded by the video-based approach have been compared with respect to ground
truth.
Qualitative and quantitative results are presented. Qualitative results concern the
reprojections of the geometric model of the aircraft onto the pictures from which shape
has been recovered. As shown in Fig. 6.5 (right), we asked two people to shake the
wings during the acquisition to procure deformations. A set of 2D-3D correspondences
have been detected using keypoints matching then the optimization procedure jointly
determined the deformed model, green mesh (Fig. 6.5), and correct/incorrect matches,
drawn respectively with green and red lines. The recovered shape has been reprojected
3D RECONSTRUCTION OF DEFORMABLE SURFACES
115
inside every picture (green mesh) and most of the time it is precisely aligned with the
contour of the aircraft (see Fig. 6.6). Fig. 6.5 reports the altitude of the left (red)
and right (blue) wingtip computed in each frame of Fig 6.6 with respect to a constant
ground plane passing through the body of the aircraft. As can be noted the trends are
visually compatible with the deformations (upward then downward) applied by the two
persons in the pictures.
Figure 6.5: Wingtips altitude chart (left), estimated mesh reprojection (right).
Video-based 3D reconstruction has been compared with ground truth shape by
computing the distance between corresponding points. The RMS error was found to
be in the order of 2.5mm. Since the model is 4 meters wide, expectations dictate the
measured error to turn to 3 − 4 cm and a 0.5 of twist deviation when coping with the
real 60 meters wingspan prototype.
6.4.3 Conclusions and future work
The proposed algorithm has shown potential for accurately recovering the shape of
large deformable surfaces such as aircraft wings. This is a very important achievement
since it may be used for accurate, cheap and non contact measurement of aircraft wings
deformations during flight.
A quantitative validation process using the SolarImpulse scaled model attests that
an error in the order of 2 mm over a 4 meter wingspan model has been delivered by the
system. This error translates on a deviation of about 0.5 degree affecting the twisting
angle.
Nevertheless, there is still room for improvements by integrating improved physicallybased deformation models, integrating over time and explicitly representing uncertainty in the equations. This is what we will endeavor to do in the future. Furthermore,
the use of additional cameras should provide a further increase of accuracy.
116
CHAPTER 6
Figure 6.6: Estimated mesh reprojection in few samples of a video sequence.
Bibliography
[1] P. Azzari, P. Fua, and P. Lagger. Video-based measurements of wing deformations. Technical report, CV Lab Tech Report, Ecole Polytechnique Federal Lausanne, Switzerland, 2008.
[2] R. I. Hartley B. Triggs, P. McLauchlan and A. W. Fitzgibbon. Bundle adjustment:
A modern synthesis. In Vision Algorithms: Theory and Practice, pages 298–372,
1999.
[3] D. A. Barrows. Videogrammetric model deformation measurement technique for
wind tunnel applications. In AIAA Aerospace Science Meeting and Exhibit, 2007.
[4] T. Cootes, G. Edwards, and C. Taylor. Active appearance models. In Proc. of
European Conf. on Computer Vision, pages 484–498, 1998.
[5] R. Hartley and A. Zisserman. Multiple view Geometry in computer vision. Cambridge University Press, Second Edition, 2003.
c Around the world in a solar airplane.
[6] Solar Impulse.
[7] J.Pilet, V.Lepetit, and P.Fua. Fast non-rigid surface detection, registration and
realistic augmentation. Intl. Journal of Computer Vision, 76(2):109–122, 2008.
[8] Y. W. Kwon and H. Bang. The finite element method using MATLAB. CRC Press,
2000.
[9] X. Llado, A. Del Bue, and L. Agapito. Non-rigid 3d factorization for projective
reconstruction. In Proc. of IEEE British Machine Vision Conference, pages 484–
498, 2005.
[10] I. Matthews and S. Baker. Active appearance models revisited. Intl. Journal of
Computer Vision, 60(2):136–164, 2004.
[11] T. McInerney and D. Terzopoulos. A finite element model for 3d shape reconstruction and nonrigid motion tracking. In Proc. of IEEE Intl. Conf. on Computer
Vision, pages 518–523, 1993.
117
118
BIBLIOGRAPHY
[12] D. Metaxas and D. Terzopoulos. Constrained deformable superquadrics and nonrigid motion tracking. IEEE Trans. on Pattern Analysis and Machine Intelligence,
15(6):580–591, 1993.
c Australis 7, http://www.photometrix.com.au.
[13] Photometrix.
[14] T. G. Ryall and C. S. Fraser. Determination of structural modes of vibration using
digital photogrammetry. AIAA Journal of Aircraft, 39(1):114–119, 2002.
[15] M. Salzmann, J.Pilet, S.Ilic, and P.Fua. Surface deformation models for non-rigid
3d shape recovery. IEEE Trans. on Pattern Analysis and Machine Intelligence,
29(8):1481–1487, 2007.
[16] M. Salzmann, V. Lepetit, and P. Fua. Deformable surface tracking ambiguities.
In Proc. of IEEE Intl. Conf. on Computer Vision and Pattern Recognition, pages
1–8, June 2007.
[17] O. Urfalioglu, P. Mikulastic, and I. Stegmann. Scale invariant robust registration
of 3d-point data and a triangle mesh by global optimization. In Proc. of Intl. Conf.
on Advanced Concepts on Intelligent Vision Systems, pages 1059–1070, 2006.
[18] R. White and D. Forsyth. Combining cues: shape from shading and texture. In
Proc. of IEEE Intl. Conf. on Computer Vision and Pattern Recognition, pages
1809–1816, 2006.
Chapter 7
Closing words
7.1 Summary
This thesis has investigated the problem of combining information contained in multiple, overlapping views of a scene for visual reconstruction purposes. Within this broad
problem, three major topics have been addressed: dense geometric reconstruction ,
camera pose reconstruction, sparse geometric reconstruction of deformable surfaces.
Dense geometric reconstruction. Image mosaicing, the combination of several overlapping images into a collective view, has been the principal field of investigation. In
this context, a robust and fast sequential image mosaicing algorithm has been conceived. By deploying novel spatial and tonal alignment approaches, the proposed
method performs consistently in a wide range of real world scenarios, e.g. indoor
and outdoor scenes.
An original dual geometric alignment stage permits to bound the drift error allowing the construction of quasi globally consistent mosaics, without resorting to computational demanding global adjustment procedures. The use of fast features, supplemented by a phase correlation based bootstrap, allows for handling large and complex
camera motions while preserving real-time computation. A fast tonal alignment stage,
based on histogram specification, has been conceived in order to deliver exact histogram matching and limited image distortion. Replacing standard mapping functions
with one-to-many mapping relationships has been key to avoid histogram distortion
artifacts without incurring in computationally intensive implementations.
Moreover, the mosaicing algorithm does not rely on any a priori information regarding scene or camera, thus resulting in a practical and flexible image-based solution.
Accuracy, fast processing and flexibility have enabled integration into a video surveil119
120
CHAPTER 7
lance system for on-line motion detection using a PTZ camera. Extensive experiments
with several challenging photographs and surveillance sequences have shown the effectiveness of the proposed approach.
As far as principled performance assessment of mosaicing algorithms is concerned,
to the best of our knowledge, no established evaluation framework exists in literature,
albeit a widely accepted quantitative evaluation procedure is highly desirable for a
discipline moving from its pioneering works to maturity. This issue has been addressed
by devising a comprehensive evaluation methodology including data sets, ground-truth
information and performance metrics. The effectiveness of the proposed methodology
has been demonstrated by evaluating and ranking three algorithms that produce visually
indistinguishable results.
Camera pose reconstruction. An original use of image mosaics in conjunction with
standard pose reconstruction algorithms has been proposed. The idea is to model the
reference object, i.e. the object with respect to which the pose is estimated, with a mosaic built offline from several detailed images. Standard pose reconstruction from planar object algorithms can then compute the pose between a given frame and the mosaic.
Experiments, using two different pose estimation algorithms, have demonstrated considerable improvements in estimation accuracy. The mosaic-based pose reconstruction
approach has been successfully integrated into a real-time Augmented Reality system
under development in our Laboratory.
Moreover, a markerless vision-based approach based on natural features tracking
has been conceived as a novel interface for gaming applications. The proposed approach allows the user to interact with a videogame by simply moving a webcam
pointing towards any planar textured object present in the scene. The only requirements being a consumer grade camera, the proposed interface is practical, inexpensive
and, according to the feedback received by several users, intuitive and enjoyable.
Sparse reconstruction of deformable shapes. A robust vision-based approach for accurate shape recovery of deformable surfaces from a single camera has been devised.
Building on previous work in literature, the proposed method addresses the problem
of obtaining highly accurate measurements of large and complex deformable objects,
such as aircraft wings. State-of-the-art keypoints matching techniques have been deployed for non invasive, accurate and reliable sensing. A sophisticated modelization
of the problem allows for dealing with reconstruction ambiguities, stemming from single view analysis, by introducing smoothness and continuity constraints in a concise
way. A iterative linear LS estimation algorithm, based on projection kernels, delivers
accurate results and fast computation.
CLOSING WORDS
121
A quantitative validation, using the SolarImpulse 4-meter wingspan scaled model,
has reported reconstruction errors in the order of 2 mm compared to ground truth data,
thus making it possible to foresee deployment of the method for accurate, cheap and
non contact measurement of aircraft wings deformations.
7.2 Future directions
This final section discusses some possible avenues for future research and applications
stemming from results and insights achieved in the course of the doctorate and discussed throughout this thesis.
Evaluation methodology for image mosaicing algorithm. For long time, image mosaics have been assessed subjectively via visual inspection, for qualitative applications
such as digital photography, photomontage and post production effects, have been considered as the most important targets of such technology. The fast development in
theoretical understanding, algorithms and processing power has rapidly raised the bar
of mosaics quality to a level human eyes cannot discriminate or yield decisive insights.
Moreover, nowadays mosaicing algorithms are employed not only to generate visually pleasant pictures but also serve as key building blocks of many computer vision
applications, such as e.g. motion detection and tracking, mosaic-based localization,
resolution enhancement, augmented reality. Finally, history teaches that the introduction of widespread accepted quantitative benchmarks invariably brought decisive benefits to the research within discipline, by facilitating communication, collaboration and
dissemination among researchers dealing with similar challenges.
For these reasons, we hold a firm conviction that a widely accepted quantitative
evaluation procedure is of utter importance for image mosaicing to moves from its
pioneering works to maturity. The purpose of the evaluation methodology described
in chapter 4is to provide the image mosaicing community with a comprehensive tool
that, we hope, will allow for principled discussion about algorithms and performances
among researchers and professionals. Data sets, rankings and further information on
the evaluation methodology can be freely accessed at the web site http://www.vision.deis.unibo.it/MosPerf
All the researchers operating in the image mosaicing fields are heartily invited to use
the methodology for evaluating their own algorithms, as well as to suggest insights,
corrections, additional datasets or everything that could help improving our current
proposal. The invitation is extended to companies developing commercial image mosaicing softwares, for they may gather useful insights by evaluating their commercial
products, such as [6, 8, 10, 5, 3, 14, 11], according to the proposed methodology. Remarkably, no disclosure of any kind of technical detail is needed since just the mosaics
122
CHAPTER 7
obtained on the reference data sets are required for the evaluation to take place.
Vision-based interface for portable device games. The ubiquitous presence of computerized equipments in everyday environment calls for conception and design of natural and easy-to-use human-machine interfaces. Practical, straightforward and inexpensive are the keywords for the next generation of interaction paradigms. Videogames
are a challenging test ground since fast response and high accuracy are also required.
Vision-based interfaces, as the one described in chapter 5.2, hold the potential to fulfill
this expectation.
In particular, the segment of intelligent hand held devices, such smart-phones [2],
PDA or consoles (Nintendo DS [7], Play Station Portable [12]), may see in the near
future an ever-increasing penetration of vision based interface. Indeed, the proposed
approach is particularly suited to enable gaming applications on hand held devices,
for the user may simply point the integrated camera toward a textured plane and play
by moving the device in his hand. Moreover, recent demonstration of camera pose
reconstruction using natural keypoints on mobile phones allows for envisioning the
deployment of camera-based games, such as Black Hole, on everybody’s portable devices. Whatever the actual videogame, the proposed human-interface method may be
employed as a general purpose middleware to deliver pose information, concerning the
hand held device, to the game logic.
Video-based metric measurement of dynamic scene. Vision-based reconstruction
approaches are known to recovery the geometric structure from the analysis of multiple views of the same subject. Several applications have already hit the market, e.g.
ImageModeler [4], PhotoModeler [13], Boujou [1], Australis [9]. However, existing
products are mainly intended for static scenes or dedicated to specific functions, i.e.
image stabilization, super resolution. Moreover, the availability of a number of images
may not be easily ensured in any given scenario.
The video-based measurement algorithm for deformable surfaces described in chapter 6 holds the potential to pave the way a new generation of accurate non invasive
tools for geometric reconstruction of complex, static or dynamic, objects from single
pictures, provided that a rest position model is available. Although the rest model has
still to be constructed with traditional methods, once it is available shape reconstruction
can be attained on-line from a single image and deformable objects or dynamic scenes
can be handled seamlessly.
Bibliography
c Imagemodeler, http://www.2d3.com/.
[1] 2D3.
c iphone , http://www.apple.com/iphone.
[2] Apple.
c Panorama maker 4, http://www.arcsoft.com/products/panoramamaker.
[3] ArcSoft.
c Imagemodeler, http://usa.autodesk.com.
[4] Autodesk.
c Panorama composer 3, http://panorama.firmtools.com.
[5] FirmTools.
c Autopano pro 1.3, http://www.autopano.net.
[6] Kolor.
c Ds, http://www.nintendo.com/ds.
[7] Nintendo.
c Image assembler 3, http://www.panavue.com.
[8] Panavue.
c Australis 7, http://www.photometrix.com.au.
[9] Photometrix.
c Panorama 3, http://www.iseemedia.com.
[10] Photovista.
c Ptgui 6, http://www.ptgui.com.
[11] New House Software.
c Play station portable, http://www.us.playstation.com/psp.
[12] Sony.
c Photomodeler, http://www.photomodeler.com.
[13] EOS Systems.
c Photofit 1.4, http://www.photofit4panorama.com/.
[14] TekMate.
123
124
BIBLIOGRAPHY
Bibliography
c Imagemodeler, http://www.2d3.com/.
[1] 2D3.
c iphone , http://www.apple.com/iphone.
[2] Apple.
c Panorama maker 4, http://www.arcsoft.com/products/panoramamaker.
[3] ArcSoft.
c Imagemodeler, http://usa.autodesk.com.
[4] Autodesk.
[5] P. Azzari. Robust image registration using linear and quadratic programming.
Technical report, CV Lab Tech Report, University of Bologna, Italy, 2008.
[6] P. Azzari and A. Bevilacqua. Joint spatial and tonal alignment for motion detection with ptz camera. In Proc. of Intl. Conf on Image Analysis and Recognition,
volume 4142, pages 764–775, 2006.
[7] P. Azzari, P. Fua, and P. Lagger. Video-based measurements of wing deformations. Technical report, CV Lab Tech Report, Ecole Polytechnique Federal
Lausanne, Switzerland, 2008.
[8] P. Azzari, L. Di Stefano, F. Tombari, and S. Mattoccia. Markerless augmented
reality using image mosaics. In Proc. of Intl. Conf. on Image and Signal Processing, 2008.
[9] R. I. Hartley B. Triggs, P. McLauchlan and A. W. Fitzgibbon. Bundle adjustment: A modern synthesis. In Vision Algorithms: Theory and Practice, pages
298–372, 1999.
[10] S. Baker and I. Matthews. Lucas-kanade 20 years on: A unifying framework.
Intl. Journal of Computer Vision, 56(3):221–255, 2004.
[11] S. Baker, D. Scharstein, J. P. Lewis, S. Roth, M. Black, and R. Szeliski. A
database and evaluation methodology for optical flow. In Proc. of IEEE Intl.
Conf. on Computer Vision, pages 1–8, October 2007.
125
126
BIBLIOGRAPHY
[12] D. A. Barrows. Videogrammetric model deformation measurement technique
for wind tunnel applications. In AIAA Aerospace Science Meeting and Exhibit,
2007.
[13] A. Bartoli, N. Dalal, B. Bose, and R. Horaud. From video sequences to motion
panoramas. In Proc. of Workshop on Motion and Video Computing, pages 201–
207, December 2002.
[14] H. Bay, A. Ess, T. Tuytelaars, and L. Van Gool. Surf: Speeded up robust features.
Computer Vision and Image Understanding, 110(3):346–359, 2008.
[15] A. Bevilacqua and P. Azzari. High-quality real time motion detection using ptz
cameras. In Proc. of IEEE Intl. Conf. on Advanced Video and Signal based
Surveillance, page 23, 2006.
[16] A. Bevilacqua and P. Azzari. A high performance exact histogram specification
algorithm. In Proc. of IEEE Intl. Conf. on Image Analysis and Processing, pages
623–628, 2007.
[17] A. Bevilacqua, L. Di Stefano, and P. Azzari. An effective real-time mosaicing algorithm apt to detect motion through background subtraction using a ptz camera.
In Proc. of IEEE Intl. Conf. on Advanced Video and Signal based Surveillance,
volume 1, pages 511–516, 2005.
[18] A. Bevilacqua, L. Di Stefano, and A. Lanza. An efficient motion detection algorithm based on a statistical non parametric noise model. In Proc. of IEEE Intl.
Conf. on Image Processing, pages 2347–2350, October 2004.
[19] K. S. Bhat, M. Saptharishi, and P. K. Khosla. Motion detection and segmentation
using image mosaics. In Proc. of Intl. Conf. on Multimedia and Expo, volume 3,
pages 1577–1580, 2000.
[20] P. Brodatz. Textures: a photographic album for artists and designers. In Dover
Publications, 1999.
[21] L. Gottesfeld Brown. A survey of image registration techniques. ACM Computing Surveys, 24(4):325–376, 1992.
[22] M. Brown and D. G. Lowe. Recognising panoramas. In Proc. of the IEEE Intl.
Conf. on Computer Vision, pages 1218–1225, 2003.
[23] M. Brown and D. G. Lowe. Automatic panoramic image stitching using invariant features. Intl. Journal of Computer Vision, 74(1):59–73, August 2007.
BIBLIOGRAPHY
127
[24] P. J. Burt and E. H. Adelson. A multiresolution spline with application to image
mosaics. ACM Trans. on Graphics, 2:217–236, October 1983.
[25] F. M. Candocia. Jointly registering images in domain and range by piecewise
linear comparametric analysis. IEEE Trans. on Image Processing, 12(4):409–
419, 2003.
[26] D. Capel and A. Zisserman. Computer vision applied to super resolution. IEEE
Signal Processing Magazine, 20(3):75–86, May 2003.
[27] D. P. Capel. Image mosaicing and super-resolution. University of Oxford, 2001.
[28] K. Cho, W. Kang, J. Soh, J. Lee, and H. S. Yang. Ghost hunter: a handheld
augmented reality game system with dynamic environment. In Proc. of Intl.
Conf. on Entertainment Computing, pages 10–15, 2007.
[29] B. Close, J. Donoghue, J. Squires, P. De Bondi, M. Morris, W. Piekarski, and
B. Thomas. Arquake: an outdoor/indoor augmented reality first person application. In Proc. of IEEE Intl. Symp. on Wearable Computers, pages 139–146,
2000.
[30] D. Coltuc, P. Bolon, and J. M. Chassery. Exact histogram specification. Trans.
on Image Processing, 15(5):1143–1152, May 2006.
[31] T. Cootes, G. Edwards, and C. Taylor. Active appearance models. In Proc. of
European Conf. on Computer Vision, pages 484–498, 1998.
c
[32] IntelCorp.
Opencv 1.0, open source computer vision library, 2000-2007.
[33] R. Cucchiara, C. Grana, M. Piccardi, and A. Prati. Detecting moving objects,
ghosts, and shadows in video streams. IEEE Trans. on Pattern Analysis and
Machine Intelligence, 25(10):1337–1342, October 2003.
[34] R. Cucchiara, C. Grana, A. Prati, and S. Sirotti. Improving shadow suppression
in moving object detection with hsv color information. In Proc. of Intelligent
Transportation Systems Conference, pages 360–365, 2001.
[35] C. Dehais, M. Douze, G. Morin, and V. Charvillat. Augmented reality through
real-time tracking of video sequences using a panoramic view. In Proc. of Intl.
Conf. on Pattern Recognition, pages 995–998, 2004.
[36] A. Eden, M. Uyttendaele, and R. Szeliski. Seamless image stitching of scenes
with large motions and exposure differences. In Proc. of IEEE Intl. Conf. on
Computer Vision and Pattern Recognition, volume 2, pages 2498–2505, 2006.
128
BIBLIOGRAPHY
[37] A. Elgammal, R. Duraiswami, D. Harwood, and L. Davis. Background and
foreground modeling using nonparametric kernel density for visual surveillance.
In Proc. of the IEEE, volume 90, pages 1151–1163, July 2002.
[38] M. Eramian and D. Mould. Histogram equalization using neighborhood metrics.
In Proc. of Canadian Conf. on Computer and Robot Vision, pages 397–404,
2005.
[39] M. Fiala. Artag, a fiducial marker system using digital techniques. In Proc. of
IEEE Intl. Conf. on Computer Vision, pages 590–596, 2005.
c Panorama composer 3, http://panorama.firmtools.com.
[40] FirmTools.
[41] M. A. Fischler and R. C. Bolles. Random sample consensus: A paradigm for
model fitting with applications to image analysis and automated cartography.
Communications of the ACM, 24(6):381395, 1981.
[42] W. T. Freeman, K. Tanaka, J. Ohta, and K. Kyuma. Computer vision for computer games. In Proc. of Intl. Conf. on Automatic Face and Gesture Recognition,
pages 100–105, 1996.
[43] R. C. Gonzales and R. E. Woods. Digital image processing. Upper Saddle River,
NJ, Prentice Hall, 2002.
[44] Rafael C. Gonzalez and Richard E. Woods. Digital image processing. AddisonWesley, 2002. GON r 02:1 1.Ex.
[45] A. Govil, S. You, and U. Neumann. A video-based augmented reality golf simulator. In Proc. of ACM Multimedia, pages 489–490, 2000.
[46] M. D. Grossberg and S. K. Nayar. Determining the camera response from images. IEEE Trans. on Pattern Analysis and Machine Intelligence, 25(11):1455–
1467, November 2003.
[47] Khronos Group.
Opengl 2.1, open computer graphics library, 1992-2008.
http://www.opengl.org/.
[48] M. Grundland and N. A. Dogson. Color histogram specification by histogram
warping. In Proc. of SPIE Color Imaging X: Processing, Hardcopy, and Applications, pages 610–621, January 2005.
[49] E.L. Hall. Almost uniform distributions for computer image enhancement. IEEE
Transactions on Computers, 23(2):207–208, February 1974.
BIBLIOGRAPHY
129
[50] C. Harris and M. Stephens. A combined corner and edge detector. In Proc. of
Alvey Vision Conf,, pages 147–151, 1988.
[51] R. Hartley and A. Zisserman. Multiple view Geometry in computer vision. Cambridge University Press, Second Edition, 2003.
[52] M. Harville and D. Li. Fast, integrated person tracking and activity recognition
with plan-view templates from a single stereo camera. In Proc. of Intl. Conf. on
Computer Vision and Pattern Recognition, pages 398–405, 2004.
[53] D. Hasler and S. Susstrunk. Colour handling in panoramic photography. In
Videometrics and Optical Methods for 3D Shape Measurements, pages 62–72,
January 2002.
[54] E. Hayman and J. Eklundh. Statistical background subtraction for a mobile
observer. In Proc. of IEEE Intl. Conf. on Computer Vision, pages 67–74, 2003.
[55] R. Hess and A. Fern. Improved video registration using non-distinctive local image features. In Proc. of IEEE Intl. Conf. Computer Vision and Pattern Recognition, pages 1–8, 2007.
c Around the world in a solar airplane.
[56] Solar Impulse.
[57] M. Irani, P. Anandan, J.R. Bergen, R. Kumar, and S. Hsu. Efficient representations of video sequences and their applications. Signal Processing Image Communication, 8(4):327–351, May 1996.
[58] M. Isard and A. Blake. Condensation - conditional density propagation for visual
tracking. Intl. Journal of Computer Vision, 29(1):5–28, 1998.
[59] J.Pilet, V.Lepetit, and P.Fua. Fast non-rigid surface detection, registration and
realistic augmentation. Intl. Journal of Computer Vision, 76(2):109–122, 2008.
[60] B. Brumitt K. Toyama, J. Krumm and B. Meyers. Wallflower: Principles and
practice of background maintenance. In Proc. of Intl. Conf. on Computer Vision,
pages 255–261, 1999.
[61] S. Kang, J. Paik, A. Koschan, B. Abidi, and M. A. Abidi. Real-time video tracking using ptz cameras. In Proc. of Intl. Conf. on Quality Control by Artificial
Vision, pages 103–111, May 2003.
[62] Alonzo Kelly. Mobile robot localization from large-scale appearance mosaics.
Intl. Journal of Robotic Research, 19(11):1104–1125, 2000.
130
BIBLIOGRAPHY
[63] S. J. Kim and M. Pollefeys. Radiometric self-alignment of image sequences. In
Proc. of IEEE Intl. Conf. Computer Vision and Pattern Recognition, volume 2,
pages 645–651, 2004.
c Autopano pro 1.3, http://www.autopano.net.
[64] Kolor.
[65] Y. W. Kwon and H. Bang. The finite element method using MATLAB. CRC
Press, 2000.
[66] D.
Lam.
Tokamak,
open
physics
engine
library.
http://www.tokamakphysics.com/.
[67] P. Liu, X. Sun, N. D. Georganas, and E. Dubois. Augmented reality: a novel
approach for navigating in panorama-based virtual. In Proc. Intl. Workshop on
Haptic, Audio and Visual Environments and their Applications, pages 13–18,
2003.
[68] X. Llado, A. Del Bue, and L. Agapito. Non-rigid 3d factorization for projective
reconstruction. In Proc. of IEEE British Machine Vision Conference, pages 484–
498, 2005.
[69] D. G. Lowe. Object recognition from local scale-invariant features. In Proc. of
Intl. Conf. on Computer Vision, pages 147–151, 1988.
[70] D. G. Lowe. Distinctive image features from scale-invariant keypoints. Intl.
Journal of Computer Vision, 60(2):91–110, 2004.
[71] D. G. Lowe. Distinctive image features from scale-invariant keypoints. Intl.
Journal of Computer Vision, 60(2):91–110, November 2004.
[72] P. Lu, Y. Chen, X. Zeng, and Y. Wang. A vision-based game control method. In
Proc. of Intl. Conf. on Computer Vision, Workshop on Human Machine Interaction, pages 70–78, 2005.
[73] P. Lu, X. Y. Zeng, X. Huang, and Y. Wang. Navigation in 3d game by markov
model based head pose estimating. In Proc. of Intl. Conf. on Image and Graphics, pages 493–496, 2004.
[74] B. D. Lucas and T. Kanade. An iterative image registration technique with an
application to stereo vision. In Proc. of Intl. Joint Conf. on Artificial Intelligence,
pages 674–679, April 1981.
[75] I. Matthews and S. Baker. Active appearance models revisited. Intl. Journal of
Computer Vision, 60(2):136–164, 2004.
BIBLIOGRAPHY
131
[76] T. McInerney and D. Terzopoulos. A finite element model for 3d shape reconstruction and nonrigid motion tracking. In Proc. of IEEE Intl. Conf. on Computer
Vision, pages 518–523, 1993.
[77] D. Metaxas and D. Terzopoulos. Constrained deformable superquadrics and
nonrigid motion tracking. IEEE Trans. on Pattern Analysis and Machine Intelligence, 15(6):580–591, 1993.
[78] K. Mikolajczyk and C. Schmid. A performance evaluation of local descriptors.
IEEE Trans. on Pattern Analysis and Machine Intelligence, 27(10):1615–1630,
2005.
[79] F. Moreno-Noguer, V. Lepetit, and P. Fua. Accurate non-iterative o(n) solution
to the pnp problem. In Proc. of IEEE Intl. Conf. on Computer Vision, pages 1–8,
October 2007.
c Ds, http://www.nintendo.com/ds.
[80] Nintendo.
c Wii. http://wii.nintendo.com/.
[81] Nintendo.
c Earth Observatory. Picture of the day gallery.
[82] Nasa
[83] O. Oda, L. J. Lister, S. White, and S. Feiner. Developing an augmented reality
racing game. In Proc. of Intl. Conf. on Intelligent Technologies for Interactive
Environment, 2008.
c Image assembler 3, http://www.panavue.com.
[84] Panavue.
c Australis 7, http://www.photometrix.com.au.
[85] Photometrix.
c Panorama 3, http://www.iseemedia.com.
[86] Photovista.
[87] F. Pitié, A. Kokaram, and R. Dahyot. Towards automated colour grading.
In Proc. of IEEE European Conference on Visual Media Production, London,
November 2005.
[88] F. Pitié, A. Kokaram, and R. Dahyot. Automated colour grading using colour
distribution transfer. Computer Vision and Image Understanding, February
2007.
[89] PoV-Ray. Persistence of vision raytracer.
[90] A. Rosenfeld and A. Kak. Digital picture processing. Upper Saddle River, NJ,
Prentice Hall, 1982.
132
BIBLIOGRAPHY
[91] T. G. Ryall and C. S. Fraser. Determination of structural modes of vibration
using digital photogrammetry. AIAA Journal of Aircraft, 39(1):114–119, 2002.
[92] S. Salti and L. Di Stefano. Svr-based jitter reduction for markerless augmented
reality. In Proc. of Intl. Conf. on Image Analysis and Processing (submitted
paper), 2008.
[93] M. Salzmann, J.Pilet, S.Ilic, and P.Fua. Surface deformation models for nonrigid 3d shape recovery. IEEE Trans. on Pattern Analysis and Machine Intelligence, 29(8):1481–1487, 2007.
[94] M. Salzmann, V. Lepetit, and P. Fua. Deformable surface tracking ambiguities.
In Proc. of IEEE Intl. Conf. on Computer Vision and Pattern Recognition, pages
1–8, June 2007.
[95] M. Saptharishi, K. Bhat, C. Diehl, C. Oliver, M. Savvides, A. Soto, J. Dolan, and
P. Khosla. Recent advances in distributed collaborative surveillance. In Proc.
of SPIE on Unattended Ground Sensor Technologies and Applications, pages
199–208, April 2000.
[96] H. Sawhney, S. Hsu, and R. Kumar. Robust video mosaicing through topology
inference and local to global alignment. In Proc. of European Conf. on Compuer
Vision, pages 103–119, 1998.
[97] H. S. Sawnhey and R. Kumar. True multi-image alignment and its applications
to mosaicing and lens distortion correction. IEEE Trans. on Pattern Analysis
and Machine Intelligence, 21(3):235–243, March 1999.
[98] D. Scharstein and R. Szeliski. A taxonomy and evaluation of dense two-frame
stereo correspondence algorithms. Intl. Journal of Computer Vision, 47(1-3):7–
42, 2002.
[99] G. Schweighofer and A. Pinz. Robust pose estimation from a planar target. IEEE
Trans. on Pattern Analysis and Machine Intelligence, 28(12):2024–2030, 2006.
[100] L.G. Shapiro and G.C. Stockman. Computer Vision. Prentice Hall Inc., New
Jersey, 2001.
[101] H. Shum and R. Szeliski. Systems and experiment paper: construction of
panoramic image mosaics with global and local alignment. Intl. Journal of Computer Vision, 36(2):101–130, 2000.
[102] G. Simon and M. Berger. Real time registration of known or recovered multiplanar structures: application to ar. In Proc. of IEEE British Machine Vision
Conference, pages 567–576, 2002.
BIBLIOGRAPHY
133
[103] G. Simon, A. W. Fitzgibbon, and A. Zisserman. Markerless tracking using planar structures in the scene. In Proc. of Intl. Symposium on Augmented Reality,
pages 120–128, May-June 2000.
c Ptgui 6, http://www.ptgui.com.
[104] New House Software.
c Play station portable, http://www.us.playstation.com/psp.
[105] Sony.
[106] Y. Sugaya and K. Kanatani. Extracting moving objects from a moving camera
video sequence. In Proc. of Symposium on Sensing via Image Information, pages
279–284, June 2004.
c Photomodeler, http://www.photomodeler.com.
[107] EOS Systems.
[108] R. Szeliski. Video mosaics for virtual environments. Computer Graphics and
Applications, 16(2):22–30, 1996.
c Photofit 1.4, http://www.photofit4panorama.com/.
[109] TekMate.
[110] C. Tomasi and J. Shi. Good features to track. In Proc. of IEEE Intl. Conf. on
Computer Vision and Pattern Recognition, pages 593–600, 1994.
[111] Y. Uematsu and H. Saito. Vision-based registration for augmented reality with
integration of arbitrary multiple planes. In Proc. of Intl. Conf. on Image Analysis
and Processing, pages 155–162, 2005.
[112] O. Urfalioglu, P. Mikulastic, and I. Stegmann. Scale invariant robust registration
of 3d-point data and a triangle mesh by global optimization. In Proc. of Intl.
Conf. on Advanced Concepts on Intelligent Vision Systems, pages 1059–1070,
2006.
[113] P. Viola and M. J. Jones. Robust real-time face detection. Intl. Journal of Computer Vision, 57(2):137–154, 2004.
[114] D. Wagner, T. Pintaric, F. Ledermann, and D. Schmalstieg. Towards massively
multi-user augmented reality on handheld devices. In Proc. of Intl. Conf. on
Pervasive Computing, pages 208–219, 2005.
[115] D. Wagner, G. Reitmayr, Alessandro Mulloni, T. Drummond, and D. Schmalstieg. Pose tracking from natural features on mobile phones. In Proc. of Intl.
Symp. on Mixed and Augmented Reality, pages 125–134, 2008.
[116] R. White and D. Forsyth. Combining cues: shape from shading and texture. In
Proc. of IEEE Intl. Conf. on Computer Vision and Pattern Recognition, pages
1809–1816, 2006.
134
BIBLIOGRAPHY
[117] F. Winkelman and I. Patras. Online globally consistent mosaicing using an efficient representation. In Proc. IEEE Intl. Conf. on Systems, Man and Cybernetics,
pages 3116–3121, October 2004.
[118] Y. Xiong and K. Turkowski. Registration, calibration and blending in creating
high quality panoramas. In Proc. of IEEE Workshop on Applications of Computer Vision, pages 69–74, 1998.
[119] Y. J. Zhang. Improving the accuracy of direct histogram specification. Journal
of Electronic Imaging, 28(3):213–214, 1992.
[120] Z. Zhu, G. Xu, E. M. Riseman, and A. R. Hanson. Fast generation of dynamic
and multi-resolution 360 panorama from video sequences. In Proc. IEEE of Intl.
Conf. on Multimedia Computing and Systems, pages 400–406, July 1999.
[121] B. Zitova and J. Flusser. Image registration methods: a survey. Image and Vision
Computing, 21(11):977–1000, October 2003.
[122] S. Zokai and G. Wolberg. Image registration using log-polar mappings for recovery of large-scale similarity and projective transformations. IEEE Trans. on
Image Processing, 14(10):1422–1434, October 2005.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
