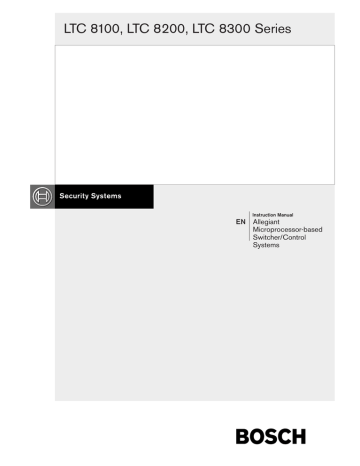

LTC 8100, LTC 8200, LTC 8300 Series
Instruction Manual
EN Allegiant
Microprocessor-based
Switcher/Control
Systems
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Important Safeguards
EN | 2
Important Safeguards
1. Read, Follow, and Retain Instructions - All safety
and operating instructions should be read and
followed before operating the unit. Retain instructions
for future reference.
2. Heed Warnings – Adhere to all warnings on the unit
and in the operating instructions.
3. Attachments - Attachments not recommended by
the product manufacturer should not be used, as they
may cause hazards.
4. Installation Cautions - Do not place this unit on an
unstable stand, tripod, bracket, or mount. The unit
may fall, causing serious injury to a person and
serious damage to the unit. Use only manufacturerrecommended accessories, or those sold with the
product. Mount the unit per the manufacturer's
instructions. Appliance and cart combination should
be moved with care. Quick stops, excessive force, or
uneven surfaces may cause the appliance and cart
combination to overturn.
5. Cleaning - Unplug the unit from the outlet before
cleaning. Follow any instructions provided with the
unit. Generally, using a damp cloth for cleaning is
sufficient. Do not use liquid cleaners or aerosol
cleaners.
6. Servicing - Do not attempt to service this unit
yourself. Opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
7. Damage Requiring Service - Unplug the unit from
the main AC power source and refer servicing to
qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled or an object has fallen
into the unit.
• If the unit has been exposed to water and/or
inclement weather (rain, snow, etc.).
• If the unit does not operate normally, when
following the operating instructions. Adjust only
those controls specified in the operating
instructions. Improper adjustment of other controls
may result in damage, and require extensive work
by a qualified technician to restore the unit to
normal operation.
• If the unit has been dropped or the cabinet
damaged.
• If the unit exhibits a distinct change in
performance, this indicates that service is needed.
8. Replacement Parts - When replacement parts are
required, the service technician should use
replacement parts specified by the manufacturer, or
that have the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electrical shock, or other hazards.
9. Safety Check - Upon completion of servicing or
repairs to the unit, ask the service technician to
perform safety checks to ensure proper operating
condition.
Bosch Security Systems | December 8, 2004
10. Power Sources - Operate the unit only from the type
of power source indicated on the label. If unsure of
the type of power supply to use, contact your dealer
or local power company.
• For units intended to operate from battery power,
refer to the operating instructions.
• For units intended to operate with External Power
Supplies, use only the recommended approved
power supplies.
• For units intended to operate with a limited power
source, this power source must comply with
EN60950. Substitutions may damage the unit or
cause fire or shock.
• For units intended to operate at 24VAC, normal
input voltage is 24VAC. Voltage applied to the
unit's power input should not exceed 30VAC.
User-supplied wiring, from the 24VAC supply to
unit, must be in compliance with electrical codes
(Class 2 power levels). Do not ground the 24VAC
supply at the terminals or at the unit's power
supply terminals.
11. Coax Grounding - If an outside cable system is
connected to the unit, ensure that the cable system is
grounded. U.S.A. models only--Section 810 of the
National Electrical Code, ANSI/NFPA No.70,
provides information regarding proper grounding of
the mount and supporting structure, grounding of the
coax to a discharge unit, size of grounding
conductors, location of discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode.
12. Grounding or Polarization - This unit may be
equipped with a polarized alternating current line
plug (a plug with one blade wider than the other).
This safety feature allows the plug to fit into the
power outlet in only one way. If unable to insert the
plug fully into the outlet, try reversing the plug. If the
plug still fails to fit, contact an electrician to arrange
replacement of the obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
Alternately, this unit may be equipped with a
3-wire grounding plug (a plug with a third pin, for
grounding). This safety feature allows the plug to fit
into a grounding power outlet only. If unable to insert
the plug into the outlet, contact an electrician to
arrange replacement of the obsolete outlet. Do not
defeat the safety purpose of the grounding plug.
13. Lightning - For added protection during a lightning
storm, or when this unit is left unattended and
unused for long periods of time, unplug the unit from
the wall outlet and disconnect the cable system. This
will prevent damage to the unit due to lightning and
power line surges.
EN | 3
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Safety Precautions
For Indoor Product
1. Water and Moisture - Do not use this unit near
water - for example, in a wet basement, in an
unprotected outdoor installation, or in any area
classified as a wet location.
2. Object and Liquid Entry - Never push objects of
any kind into this unit through openings, as they
may touch dangerous voltage points or short out
parts that could result in a fire or electrical shock.
Never spill liquid of any kind on the unit.
3. Power Cord and Power Cord Protection - For
units intended to operate with 230VAC, 50Hz,
the input and output power cord must comply
with the latest versions of IEC Publication 227 or
IEC Publication 245.
Power supply cords should be routed so they are
not likely to be walked on or pinched. Pay
particular attention to location of cords and plugs,
convenience receptacles, and the point of exit
from the appliance.
4. Overloading - Do not overload outlets and
extension cords; this can result in a risk of fire or
electrical shock.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC SENSITIVE
DEVICES
WARNING:
Electrostatic-sensitive device. Use
proper CMOS/MOSFET handling
precautions to avoid electrostatic
discharge.
NOTE: Grounded wrist straps must be worn and proper ESD
safety precautions observed when handling the electrostaticsensitive printed circuit boards.
CAUTION: Lithium Battery
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the battery manufacturer’s
instructions.
Cover Removal
WARNING: Removal of the cover should only be
performed by qualified service personnel - not user
serviceable. The unit should always be unplugged before
removing the cover and remain unplugged while the is
removed.
Safety Precautions
For Outdoor Product
Power Lines - An outdoor system should not be
located in the vicinity of overhead power lines,
electric lights, or power circuits, or where it may
contact such power lines or circuits. When
installing an outdoor system, extreme care should
be taken to keep from touching power lines or
circuits, as this contact might be fatal. U.S.A.
models only - refer to the National Electrical
Code Article 820 regarding installation of CATV
systems.
For Rack-mount Product
1. Ventilation - This unit should not be placed in a
built-in installation or rack, unless proper
ventilation is provided, or the manufacturer’s
instructions have been adhered to. The
equipment must not exceed its maximum
operating temperature requirements.
2. Mechanical Loading - Mounting of the
equipment in a rack shall be such that a
hazardous condition is not achieved due to
uneven mechanical loading.
Bosch Security Systems | December 8, 2004
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that can cause an electric
shock.
This symbol indicates the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Installation should be performed by qualified
service personnel only in accordance with the
National Electrical Code or applicable local
codes.
Power Disconnect. Units with or without
ON-OFF switches have power supplied to the
unit whenever the power cord is inserted into the
power source; however, the unit is operational
only when the ON-OFF switch is in the ON
position. The power cord is the main power
disconnect for all units.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | FCC & ICES Information
FCC & ICES INFORMATION
EN | 4
Sicherheitshinweise
(U.S.A. and Canadian Models Only)
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1)
This device may not cause harmful interference, and
(2)
This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules and ICES-003 of Industry Canada. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer, or an experienced radio/TV technician for
help.
Intentional or unintentional changes or modifications, not
expressly approved by the party responsible for compliance, shall
not be made. Any such changes or modifications could void the
user’s authority to operate the equipment.
The user may find the following booklet, prepared by the Federal
Communications Commission, helpful: How to Identify and
Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
Sécurité
VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU
VERMEIDEN, IST DIE ABDECKUNG (ODER RÜCKSEITE) NICHT
ZU ENTFERNEN. ES BEFINDEN SICH KEINE TEILE IN DIESEM
BEREICH, DIE VOM BENUTZER GEWARTET WERDEN
KÖNNEN. LASSEN SIE WARTUNGSARBEITEN NUR VON
QUALIFIZIERTEM WARTUNGSPERSONAL AUSFÜHREN.
Das Symbol macht auf nicht isolierte „gefährliche Spannung"
im Gehäuse aufmerksam. Dies kann zu einem elektrischen
Schlag führen.
Der Benutzer sollte sich ausführlich über Anweisungen für
die Bedienung und Instandhaltung (Wartung) in den
begleitenden Unterlagen informieren.
Achtung! Die Installation sollte nur von qualifiziertem
Kundendienstpersonal gemäß jeweils zutreffender
Elektrovorschriften ausgeführt werden.
Unterbrechung des Netzanschlusses. Geräte mit oder ohne
Netzschalter haben Spannung am Gerät anliegen, sobald der
Netzstecker in die Steckdose gesteckt wird. Das Gerät ist jedoch
nur betriebsbereit, wenn der Netzschalter (EIN/AUS) auf EIN
steht. Wenn das Netzkabel aus der Steckdose gezogen wird, ist
die Spannungszuführung zum Gerät vollkommen unterbrochen.
Precauciones de Seguridad
PRECAUCIÓN: PARA DISMINUIR EL RIESGO DE DESCARGA
ELÉCTRICA, NO RETIRE LA CUBIERTA (NI LA PARTE
POSTERIOR). NO EXISTEN PIEZAS DE RECAMBIO EN EL
INTERIOR DEL EQUIPO. EL PERSONAL DE SERVICIO
CUALIFICADO SE ENCARGA DE REALIZAR LAS
REPARACIONES.
ATTENTION : POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION,
N'ESSAYEZ PAS DE RETIRER LE CAPOT (OU LE PANNEAU
ARRIÈRE). CET APPAREIL NE CONTIENT AUCUN COMPOSANT
SUSCEPTIBLE D'ÊTRE RÉPARÉ PAR L'UTILISATEUR. CONFIEZ
LA RÉPARATION DE L'APPAREIL À DU PERSONNEL QUALIFIÉ.
Ce symbole signale que le produit renferme une « tension
potentiellement dangereuse » non isolée susceptible de
provoquer une électrocution.
Ce symbole invite l'utilisateur à consulter les instructions
d'utilisation et d'entretien (dépannage) reprises dans la
documentation qui accompagne l'appareil.
Attention : l'installation doit exclusivement être réalisée par du
personnel qualifié, conformément au code national d'électricité
américain (NEC) ou au code d'électricité local en vigueur.
Coupure de l'alimentation. Qu'ils soient pourvus ou non d'un
commutateur ON/OFF, tous les appareils reçoivent de l'énergie une
fois le cordon branché sur la source d'alimentation. Toutefois,
l'appareil ne fonctionne réellement que lorsque
le commutateur est réglé sur ON. Le débranchement du cordon
d'alimentation permet de couper l'alimentation des appareils.
Bosch Security Systems | December 8, 2004
Este símbolo indica que existen puntos de tensión peligrosos
sin aislamiento dentro de la cubierta de la unidad. Estos
puntos pueden constituir un riesgo de descarga eléctrica.
El usuario debe consultar las instrucciones de funcionamiento y
mantenimiento (reparación) en la documentación que se
suministra con el aparato.
Atención: la instalación la debe realizar únicamente personal
cualificado de conformidad con el National Electric Code o las
normas aplicables en su país.
Desconexión de la alimentación. Las unidades con o sin
interruptores de encendido/apagado reciben alimentación
eléctrica siempre que el cable de alimentación esté conectado a
la fuente de alimentación. Sin embargo, la unidad sólo funciona
cuando el interruptor está en la posición de encendido. El cable
de alimentación es la principal fuente de desconexión de todas
las unidades.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Safety Precautions
Veiligheidsmaatregelen
VOORZICHTIG: OPEN DE BEHUIZING OF DE ACHTERKANT
VAN HET APPARAAT NIET. ZO VERMINDERT U HET RISICO
OP ELEKTRISCHE SCHOKKEN. IN HET APPARAAT
BEVINDEN ZICH GEEN ONDERDELEN DIE U ZELF KUNT
REPAREREN. LAAT SERVICE EN ONDERHOUD UITVOEREN
DOOR GEKWALIFICEERD PERSONEEL.
EN | 5
Medidas de Segurança
CUIDADO: PARA REDUZIR O RISCO DE CHOQUE
ELÉCTRICO, NÃO RETIRE A TAMPA (OU A PARTE
POSTERIOR). NO INTERIOR, NÃO EXISTEM PEÇAS QUE
POSSAM SER REPARADAS PELO UTILIZADOR. REMETA A
ASSISTÊNCIA PARA OS TÉCNICOS QUALIFICADOS.
Dit symbool geeft aan dat er binnen in het apparaat
ongeïsoleerde, gevaarlijke spanning aanwezig is die mogelijk
elektrische schokken kan veroorzaken.
Este símbolo indica a presença de "tensão perigosa" não
isolada dentro da estrutura do produto, o que pode constituir
risco de choque eléctrico.
De gebruiker dient de bedienings- en onderhoudsvoorschriften
te raadplegen in de documentatie die werd meegeleverd met
het apparaat.
O utilizador deve consultar as instruções de funcionamento
e manutenção (assistência) nos documentos que
acompanham o aparelho.
Attentie: het apparaat mag alleen door gekwalificeerd personeel
worden geïnstalleerd. De installatie dient in overeenstemming
met de nationale elektrische richtlijnen of de van toepassing
zijnde lokale richtlijnen te worden uitgevoerd.
Spanning uitschakelen. Apparatuur met of zonder
aan-uitschakelaar staat onder spanning zolang de stekker is
aangesloten op de wandcontactdoos. De apparatuur is uitsluitend
in werking als de aan-uitschakelaar aan staat. Het netsnoer is de
"hoofdschakelaar" voor alle apparatuur.
Sicurezza
ATTENZIONE: PER RIDURRE IL RISCHIO DI SCOSSE
ELETTRICHE NON RIMUOVERE LA COPERTURA (O IL
PANNELLO POSTERIORE). L'UNITÀ NON CONTIENE
COMPONENTI INTERNI RIPARABILI DALL'UTENTE. PER
QUALSIASI INTERVENTO, RIVOLGERSI A PERSONALE
TECNICO QUALIFICATO.
Atenção: a instalação deve ser executada apenas por técnicos
qualificados da assistência, de acordo com o código eléctrico
nacional ou os códigos locais aplicáveis.
Corte de corrente. As unidades com ou sem interruptores
ON-OFF (ligar/desligar) recebem corrente sempre que o fio de
alimentação está introduzido na fonte de alimentação; contudo, a
unidade apenas está operacional quando o interruptor ON-OFF
está na posição ON. O fio de alimentação destina-se a desligar a
corrente em todas as unidades.
Zasady Bezpieczeństwa
PRZESTROGA: ABY ZMNIEJSZYĆ RYZYKO PORAŻENIA
ELEKTRYCZNEGO, NIE NALEŻY ZDEJMOWAĆ POKRYWY
GÓRNEJ (ani tylnej). WEWNĄTRZ URZĄDZENIA NIE MA
ŻADNYCH ELEMENTÓW, KTÓRE MOGĄ BYĆ NAPRAWIANE
SAMODZIELNIE PRZEZ UŻYTKOWNIKA. SERWIS NALEŻY
ZLECAĆ WYKWALIFIKOWANYM PRACOWNIKOM OBSŁUGI.
Questo simbolo indica la presenza di "tensione pericolosa" non
isolata all'interno del contenitore del prodotto. Ciò comporta
un potenziale rischio di scosse elettriche.
Ten symbol wskazuje na obecność nieizolowanego
„niebezpiecznego napięcia” we wnętrzu urządzenia. Napięcie
to grozi porażeniem elektrycznym.
Si consiglia di consultare le istruzioni operative e di
manutenzione (interventi tecnici) contenute nella
documentazione fornita con il dispositivo.
Użytkownik powinien zapoznać się z instrukcjami obsługi i
konserwacji (serwisu), zamieszczonymi w dokumentacji
towarzyszącej urządzeniu.
Attenzione: l'installazione deve essere effettuata esclusivamente
da personale tecnico qualificato in conformità con il National
Electrical Code o con le normative locali vigenti.
Scollegamento dell'alimentazione. Le unità dotate o sprovviste di
interruttori ON-OFF vengono alimentate quando si inserisce il
cavo nella presa dell'alimentazione. L'unità è tuttavia in funzione
solo quando l'interruttore ON-OFF si trova nella posizione ON. Il
cavo di alimentazione costituisce il dispositivo di scollegamento
dell'alimentazione principale per tutte le unità.
Bosch Security Systems | December 8, 2004
Uwaga: Instalacja może być wykonywana wyłącznie przez
wykwalifikowanych pracowników obsługi, zgodnie z zasadami
kodeksu National Electrical Code lub innych obowiązujących
norm.
Odłączanie zasilania Niezależnie od wyposażenia w wyłącznik
zasilania, prąd do urządzenia jest doprowadzany zawsze, gdy
przewód zasilania jest podłączony do źródła zasilania; jednak
urządzenie działa tylko wtedy, gdy wyłącznik zasilania jest
włączony. Przewód zasilania jest głównym wyłącznikiem zasilania
we wszystkich urządzeniach.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Table of Contents
EN | 6
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
FCC & ICES Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.0
UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.1
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.0
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.0
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.0
ALLEGIANT FEATURE SUMMARY TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.0
SYSTEM ACCESSORY COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.1
Alarm Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.2
Signal Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.3
IntuiKey Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.4
LTC 8555/00 & LTC 8555/01 Series Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.5
LTC 8555/02 & LTC 8555/03 Series Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.6
KBD-Rack Keyboard Mounting Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.7
LTC 8558/00 Keyboard Extension Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.8
LTC 8557 Series Keyboard Extension Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.9
LTC 8560 Series Receiver/Driver Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.10 AutoDome Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.11 LTC 8569, LTC 8570, LTC 8571, LTC 8572 Series Code Merger Unit . . . . . . . . . . . . . . . . . . . . .12
5.12 LTC 8770 Switcher Follower Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.13 LTC 8712 Series Console Port Expander Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.14 LTC 8780 Series Data Converter Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.15 LTC 8785 Series Code Converters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5.16 LTC 8782 Series Code Translator Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5.17 LTC 8808/00 Video Interconnect Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5.18 LTC 8059/00 Series Allegiant Master Control Software for Windows . . . . . . . . . . . . . . . . . . . . . .13
5.19 LTC 8850/00 Windows Based Graphical User Interface Allegiant Software . . . . . . . . . . . . . . . . .13
5.20 Logging Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6.0
INSTALLATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.1
Internal Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.2
Enclosure Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.3
Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6.4
Termination Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.5
Looping Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.6
Keyboard Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.7
Biphase Control Code Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.8
External Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.9
Satellite Configuration Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6.10 Feature Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.11 Main Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
7.0
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7.1
Logging Printer Option Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7.2
Windows Compatible Computer Interface Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Table of Contents
EN | 7
8.0
VIDEO MONITOR DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8.1
Time/Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8.2
Monitor Title/System Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
8.3
Monitor Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
8.4
Broadcast Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
8.5
Program Prompts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
8.6
Camera Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
8.7
Camera Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
8.8
Video Loss Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
9.0
FACTORY DEFAULT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
9.1
User Selectable DIP Switch Settings for System Configuration Options . . . . . . . . . . . . . . . . . . . .28
10.0 USER INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
10.1 User Priority Access Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
11.0 ALARM INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11.1 Basic Alarm Response Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11.2 Auto-Build Alarm Response Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11.3 Sequence & Display Alarm Response Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11.4 Alarm Activated Pre-Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11.5 Sample Alarm Responses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
12.0 KEYBOARD OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
12.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
12.2 System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
12.3 Switcher Commands
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
12.4 Controlling Camera Movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
12.5 Alarm Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
12.6 Sequence Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
12.7 Sequence Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
13.0 KEYBOARD USER FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
13.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
14.0 MAINTENANCE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
14.1 Cleaning The Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
14.2 Replacement of Memory Backup Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
15.0 CHARACTER ROM TABLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
16.0 ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
17.0 TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
18.0 GLOSSARY OF TERMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
APPENDIX A SATELLITE SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
APPENDIX B INSTALLATION CHECKLISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
APPENDIX C QUICK REFERENCE CABLE INTERCONNECTIONS . . . . . . . . . . . . . . . . . . . . .60
APPENDIX D REAR PANEL CONNECTOR PINOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Unpacking
1.0
UNPACKING
This equipment should be unpacked and handled with
care. If an item appears to have been damaged in
shipment, notify the shipper.
Verify that all parts shown in the Parts List have been
included. If any items are missing, notify your Bosch
Security Systems Sales or Customer Service
Representative.
The original packing carton is the safest container in
which to transport the unit. Save it for possible future
use.
1.1
Parts List
Qty
Item
1
LTC 8100, LTC 8200, LTC 8300 unit (verify model number)
2
AC power cords (one for 120 VAC, and one for
220 - 240 VAC)
2
Rack-mount brackets LTC 8100 and LTC 8200 only
(LTC 8300 has brackets attached)
1
Rear connectors
1
Offset screwdriver
1
This installation manual
2.0
3.0
EN | 8
DESCRIPTION
The LTC 8100 Series, LTC 8200 Series, and
LTC 8300 Series Allegiant video switcher/control
systems combine both switching and computer
technology to provide powerful performance and
unique system features for the security user. Offering
full matrix switching capability, these systems can be
programmed to display the video from any camera on
any monitor, either manually or via independent
automatic switching sequences.
The LTC 8100 Series provide 8 camera inputs,
2 monitor outputs, 2 keyboards, 8 direct connect
alarm input points, an integral signal distribution unit,
and a computer interface port.
The LTC 8200 Series provide 16 camera inputs,
5 monitor outputs, 4 keyboards, 16 direct connect
alarm input points, an integral signal distribution
unit, and a computer interface port.
The LTC 8300 Series provide 32 camera inputs,
6 monitor outputs, 4 keyboards, 32 direct connect
alarm input points, an integral signal distribution unit,
a computer interface port, and a logging printer port.
SERVICE
If the unit needs repair, contact the nearest Bosch
Security Systems Service Center for authorization to
return and shipping instructions.
Service Centers
USA
Phone:
800-366-2283 or 717-735-6638
Fax:
800-366-1329 or 717-735-6639
CCTV Spare Parts
Phone:
800-894-5215 or 408-956-3853 or 3854
Fax:
408-957-3198
E-mail:
BoschCCTVparts@ca.slr.com
Canada
Phone:
514-738-2434
Europe, Middle East & Asia Pacific Region
Phone:
32-1-440-0711
For additional information, see
www.boschsecurity.com.
Bosch Security Systems | December 8, 2004
These systems can be programmed with up to
60 sequences which can be run independently of each
other, in either a forward or reverse direction. Any of
the sequences can utilize the SalvoSwitching capability
where any number of system monitors may be selected
to switch as a group. Using the optional LTC 8059/00
Master Control Software (MCS) for Windows® package
or the LTC 8850/00 Bosch Graphical User Interface
(GUI) with Allegiant Server, sequences can be made
to activate and deactivate automatically, based upon
the time of day and the day of week.
Using the LTC 8100, LTC 8200, or LTC 8300 Series
integral signal distribution ports, connections to
on-site receiver/drivers are easily made. On-site
receiver/drivers provide operator control of pan, tilt,
zoom, multiple pre-positions, four auxiliaries, autopan,
and random scan. The series also supports variable
speed operation and full programming functions of
AutoDome Series dome cameras.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Description
With its built-in alarm interface capability, an external
contact closure or logic level can be used to
automatically display any camera. Any monitor or
group of monitors can be set to display cameras under
alarm conditions. The base system contains three
built-in alarm response modes: basic, auto-build, and
sequence and display. In addition to these three
modes, the PC based software packages offer
VersAlarm - a new dimension in alarm handling.
VersAlarm has the ability to combine any or all three
standard modes. Alarm video may be selected to
reset either manually or automatically. In addition, a
16 character alarm title can be selected to appear
instead of the camera title during alarm conditions.
System operation and programming is accomplished
using a full-function, ergonomically designed keyboard.
Multiple keyboards may be used in the system. Built-in
operator priority levels and the ability to restrict
certain operators from controlling designated functions
provide maximum flexibility.
The LTC 8100, LTC 8200, and LTC 8300 Series
includes a black outlined 48 character on-screen
display for time-date, camera number, camera ID
(16 characters), and monitor (12 characters) or status
information. When programming camera ID and
monitor titles, 235 different characters are available.
Enhanced programming and switching features can be
obtained by utilizing a standard Windows equipped
PC and the optional LTC 8059/00 MCS for Windows
package or LTC 8850/00 GUI software. A userfriendly spreadsheet format provides the ability to
enter camera titles, enter operator names, schedule
64 timed events, change system parameters, program
camera sequences, install lockouts, and access the
advanced VersAlarm alarm handling screens with
speed and efficiency. The programmed information
may then be transferred into the Allegiant system,
stored on disk, or printed from a PC.
The LTC 8850/00 Bosch GUI software is designed
around an intuitive graphic-based interface. The GUI
provides high performance programming, control and
monitoring of all system functions by using on-screen
icons to reflect real time status of the devices
controlled by the system.
Bosch Security Systems | December 8, 2004
EN | 9
The LTC 8850/00 GUI software also provides the
ability to monitor system status events. System alarms,
switching functions, sequence events, keyboard actions,
and video loss information can be viewed in real time
on the PC screen and, if desired, logged to the
PC hard drive.
The LTC 8850/00 GUI software can also be used
to enable a special on-screen icon for identifying
controllable cameras.
The CPU inside these matrix switchers supports
powerful macro capabilities. The macros can be
activated using system keyboards, system time event
functions, alarm activations, and via special function
icons in the LTC 8850/00 GUI software.
The LTC 8100, LTC 8200, or LTC 8300 Series can
serve as the master switcher in a SatelliteSwitch
configuration. This innovative SatelliteSwitch feature
enables a single LTC 8100, LTC 8200, or LTC 8300
Series system to communicate with remotely located
"Satellite" systems. Any Allegiant system model can
serve as a remote Satellite switcher. This powerful
feature permits the design of a distributed matrix video
switching system with control at one central location
and individual control at the local sites. The main
control site can view/control local cameras plus
cameras located at any of the remotely distributed
Satellite sites. The Satellite sites can view/control only
cameras associated with their own site. When these
models are used in this type of configuration, the main
system can access up to 256 cameras located anywhere
in the system.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Allegiant Feature Summary Table
4.0
ALLEGIANT FEATURE
SUMMARY TABLE
The Allegiant LTC 8100, LTC 8200, and LTC 8300 Series
system are available in two operating configurations: a
base system and the base system with an optional PC
based software package. The base system includes
features required for most switching/controller systems.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
The addition of the optional LTC 8059/00
MCS for Windows or optional LTC 8850/00 GUI
software package enables the user to customize the
system’s configuration using a menu driven program
run on any personal computer using Microsoft®
Windows 95, 98 SE, ME, NT, 2000, or XP.
The following TABLE lists available features.
Base
Allegiant
Feature
System
Full camera switching/control on all monitors
Y
Up to 4 (LTC 8300 and LTC 8200) or 2 (LTC 8100) external keyboards
Y
32 Alarm inputs (LTC 8300), 16 alarms (LTC 8200), 8 alarms (LTC 8100) Y
3 User-selectable pre-defined alarm response modes
Y
Full control of on-site receiver/drivers
Y
SalvoSwitching
Y
60 Programmable sequences
Y
Alarm call-up of pre-position scenes
Y
RS-232 Interface port for Computer
(all models), Logging Printer (LTC 8300 only)
Y
Keyboard logon/logoff function
Y
User-selectable password security
Y
16 Character camera titles and 12 character monitor titles
Y
Format selection time/date format
Y
Local keyboard test function
Y
Table and Sequence printout feature (LTC 8300 only)
Y
Parameter designation for RS-232 communication
Y
Integral video loss detection
N
Satellite configurations
N
Restrict user/keyboard access to cameras
N
Restrict user/keyboard access to receiver/drivers
N
Restrict user access to keyboard
N
Restrict user/keyboard access to monitors
N
Designate user name and ID number
N
Designate zoned alarm call-ups
N
VersAlarm alarm feature
N
Designate displayed camera number
N
Designate receiver/driver functions on alarm
N
Program 64 Time Activated Events
N
Designate receiver/driver functions in sequences
N
Broadcast monitor messages
N
Alarm title designation
N
Personal computer displayed monitoring of system status
N
Personal computer emulation of system keyboard
N
Bosch Security Systems | December 8, 2004
EN | 10
With Optional
PC-Based
Software
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | System Accessory Components
In addition, the LTC 8100, LTC 8200, and LTC 8300
Series systems provide the capability to control on-site
receiver/driver units and the AutoDome Series of
integral pan/tilt/zoom/camera dome series.
The LTC 8300 Series systems contain a logging printer
output port, to which an inexpensive RS-232 serial
printer may be attached. This provides a permanent
record showing time and date of changes to system
status, such as:
1. Incoming Alarms
2. Acknowledgment of alarms by users
3. Loading sequences
4. User logon to keyboard or console port
5. Console broadcast message
6. Console transfer of system tables
7. Activation of Time Event Functions
8. Power up reset message
9. Video loss message
The printer may also be used to provide a hard copy
of all system configuration Tables and Sequences.
If a logging printer port is required for the LTC 8200
or LTC 8100 Series system, the console port can be
converted to operate in this mode via DIP switch
configuration, or by the appropriate command via
Command Console Language (CCL). Refer to the
CCL manual available for download from our web site
for details.
If a logging printer and a standard console port are
required for the LTC 8200 or LTC 8100 Series systems,
an LTC 8712 Series Console Port Expander can be
used to add additional console ports to the system.
5.0
SYSTEM ACCESSORY
COMPONENTS
The Allegiant Series accessory products provide
many optional features to the base system. A brief
description of accessory products is provided below.
Complete specification information can be found in
respective product data sheets. Applicable accessories
are designed to be compatible throughout the Allegiant
Series.
Bosch Security Systems | December 8, 2004
5.1
EN | 11
Alarm Interface
These systems contain an integral 32 (LTC 8300),
16 (LTC 8200), or 8 (LTC 8100) input alarm input
capability. The series also provides 6 (LTC 8300),
5 (LTC 8200), or 2 (LTC 8100) alarm output relays for
connecting external alerting devices or VCRs. The
separate LTC 8540/00 Alarm Interface accessory is
not applicable to the LTC 8100, LTC 8200, or
LTC 8300 Series.
5.2
Signal Distribution
The series contain an integral signal distribution unit
for communicating to Receiver/Drivers, Switcher
Followers, and Satellite systems. The integral unit
provides 16 (LTC 8300), 12 (LTC 8200), or
8 (LTC 8100) outputs, each capable of driving up
to 8 remote devices. Either star or daisy chain wiring
configurations may be used. The separate LTC 8568/00
and LTC 8768/00 Signal Distribution accessory units,
are not applicable to the series.
5.3
IntuiKey Keyboard
This full-function, multipurpose keyboard is used for
system control and programming, and includes integral
pan/tilt/zoom joystick and a splash resistant design.
The IntuiKey’s LCD displays and softkeys provide a
menu driven system for ease of use, supporting a
multitude of languages.
5.4
LTC 8555/00 and LTC 8555/01
Series Keyboards
These full-function, compact keyboards are used for
system control and programming and include integral
pan/tilt joystick with LED readouts to display camera
and monitor numbers.
The LTC 8555/01 is identical to the LTC 8555/00, but
has ICON characters instead of English text.
5.5
LTC 8555/02 and LTC 8555/03
Series Keyboards
These keyboards are similar to the LTC 8555/00
except that RS-232 protocol is used for data
communication. These keyboards have the capability of
remotely locating an Allegiant keyboard via RS-232
transmission medium such as phone line modems, fiber
optics, etc. Requires a full duplex RS-232 link capable
of operating at 9600 baud. All other specifications are
the same as for the LTC 8555/00 keyboard.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | System Accessory Components
These keyboards connect to an Allegiant’s console
port or to a port provided by an LTC 8712 Console
Expander accessory unit. Up to 4 may be connected
to a single LTC 8712 unit. When used with dial-up type
phone modems, these keyboards provide rudimentary
dialing capability.
The LTC 8555/03 is identical to the LTC 8555/02,
but has ICON characters instead of English text.
5.6
KBD-Rack Keyboard
Mounting Kit
Rack-mounting kit designed to provide vertical,
horizontal, or inclined mounting for IntuiKey
keyboards.
5.7
LTC 8558/00 Keyboard
Extension Cable
Six-conductor extension cable that carries data/power
for remote keyboards up to 30 m (100 ft) away from
main CPU bay.
5.8
LTC 8557 Series Keyboard
Extension Kits
Interface kit used to remote keyboards up to 1.6 km
(5000 ft) away from main CPU bay. Customer-supplied
24 gauge shielded twisted pair (Belden 9841 or
equivalent) required between main CPU bay site and
keyboard site. Kit provides two junction boxes, interface
cable, and appropriate keyboard power supply.
5.9
LTC 8560 Series Receiver/
Driver Units
Decodes data transmitted from the biphase control data
outputs of the Allegiant system, for camera site control of
Pan/Tilt, Zoom Lens, pre-positions, and auxiliaries. Unit
contains integral local test feature, autopan or random
scanning, and is available in several input and output
drive voltage versions.
5.10
AutoDome Series
Integral camera, high speed pan/tilt, zoom lens, and
receiver/driver system in compact dome enclosure.
Various enclosure mounting options are available for
indoor and outdoor applications.
Bosch Security Systems | December 8, 2004
5.11
EN | 12
LTC 8569, LTC 8570, LTC 8571,
LTC 8572 Series Code Merger Unit
Control code merger and line driver unit used to
combine control code from two systems (up to four
with LTC 8570 model) for communicating to
Receiver/Drivers, Switcher Followers, and satellite
systems. Provides 32 or 64 outputs capable of driving up
to 256 or 512 remote devices. Either star or daisy chain
wiring configurations may be used. Unit will accept signal
input either from Allegiant main CPU bay, LTC 8568
output, or an output from another code merger unit.
Multiple units may be cascaded to obtain additional
outputs.
5.12
LTC 8770 Switcher
Follower Series
Accessory unit which provides relay contact closures
corresponding to cameras displayed on system monitors.
The LTC 8770 may be configured to follow non-alarmed
video, alarmed video, or both. Each unit provides
24 relay contact outputs.
5.13
LTC 8712 Series Console
Port Expander Units
The LTC 8712 Series port expander interfaces to the
RS-232 Console port of an Allegiant system to
permit up to 4 external PCs, logging printers, or other
computing devices. This permits multiple PCs or
computing devices to communicate with a single
Allegiant system.
5.14
LTC 8780 Series Data
Converter Units
The LTC 8780 Series convert the biphase control code
generated by Allegiant Series matrix switchers into
standard RS-232, and converts RS-232 back to biphase
code. This provides transmission of the biphase control
code over conventional RS-232 transmission media
(phone modems, fiber optics, microwaves, etc.). The
LTC 8780 Series can also be used to perform the
Satellite Selector functions in Allegiant satellite system
configurations and operate as a 15-channel remote signal
distribution unit.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | System Accessory Components
5.15
LTC 8785 Series Code Converters
LTC 8785 Series units are designed for use in pre-1996
Allegiant systems which have been upgraded to operate
AutoDome Series of cameras. The LTC 8785 Series Code
Converters are used to provide the source for the fixed
speed control code when the system is generating the
new variable speed control code preferred by the
AutoDome cameras. The LTC 8785 Series Code
Converter receives the variable speed control code from
one of the Allegiant Signal Distribution outputs and
converts it into the appropriate fixed speed control code.
Outputs from the LTC 8785 Series Code Converter may
be connected to older LTC 8561 Series receiver/drivers
using existing field cables.
5.16
LTC 8782 Series Code
Translator Units
Code translators convert Allegiant control code to and
from other manufacturer’s code formats. Contact your
local manufacturer’s representative for additional
information.
5.17
LTC 8808/00 Video
Interconnect Panel
Optional accessory item which provides the LTC 8300 or
LTC 8200 Series systems with the capability of looping its
video inputs (the LTC 8100 provides integral BNCs for
looping so the LTC 8808/00 is not required). This patch
panel contains 32 BNC connectors on front for external
video connections, and two 16-contact ribbon connectors
on the rear. Two 16-conductor ribbon cables are included
for interfacing the patch panel to the video looping
connectors on the LTC 8300 or LTC 8200 Series
equipment bay (only one ribbon cable is used for the
LTC 8200). The patch panel is one standard EIA 19-inch
rack unit high, and one unit wide.
5.18
LTC 8059/00 Series Allegiant
Master Control Software for
Windows
The LTC 8059/00 Series Allegiant MCS for Windows
consists of a Windows NT, Windows 95 or Windows 98
compatible program for configuration of standard system
features. The program provides advanced alarm and
sequence programming, in addition to other features not
available via the system keyboard. Online real time
monitoring of system status is also included.
Bosch Security Systems | December 8, 2004
EN | 13
Other standard MCS for Windows features include: user
passwords, lockout tables, 64 programmable time event
functions, and custom alarm responses using the
VersAlarm alarm mode. In addition to the operational
switching sequences entered via standard keyboard, more
complex switching sequences may be programmed, to
incorporate remote control commands into the switching
sequence. Video loss detection in LTC 8100, LTC 8200,
and LTC 8300 Series systems and monitoring of all
system operation in real-time, are standard features of the
Allegiant MCS for Windows package.
5.19
LTC 8850/00 Windows Based
Graphical User Interface Allegiant
Software
The LTC 8850/00 software package uses a GUI to
integrate and control security systems. The GUI
interfaces directly to the Allegiant system and provides
complete control and programming of all system features.
Refer to the LTC 8850/00 data sheet for specifications.
5.20
Logging Printer
An optional RS-232 serial printer may be connected to
the LTC 8300 Series to provide a permanent record of
significant system status changes. Time and date is
printed for system events such as alarms, start-up after
power failure, sequence loading, operator logon/logoff to
keyboards, and download of information from the
optional MCS for Windows or LTC 8850/00 GUI. The
printer may also be used to obtain hard copies of all
system Tables and Sequences.
NOTE: The Printer port does not provide a standardized
pinout connection. An interface cable designed for a
standard serial printer connection is available. If desired,
a cable can be made up at installation, by following the
cable pinout information provided at the end of this
manual.
EN | 14
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | System Accessory Components
Up to 32
Video Inputs
Maximum
Additional
System Cameras
LTC 8300 Series
Main CPU Bay
3 m (10 ft) Interconnect
Cable Supplied with Keyboard
Up to 6
Monitor Outputs
Monitor 1
Monitor 2
Video Coax
Monitor 3
Monitor 4
Monitor 5
Monitor 6
BOSCH
Prod
BOSCH
Mon
Prod
Shot
Clr
Mon
Shot
Clr
1
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
0
0
Maximum of four Allegiant Series
Full Function Keyboards up to 1.5 km (5000 ft)
away using optional Remote Hookup Kit
Figure 1 LTC 8300 Series Video Switching System
Bosch Security Systems | December 8, 2004
EN | 15
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | System Accessory Components
Video
Coax
32 Separate
Alarm Inputs
AutoDome®
Contact Closure
or Active Low Logic Level
Twisted-Pair
Typical
6 Pairs
of Relay
Outputs
Video Coax
Pan/Tilt
Receiver/
Driver
Video Coax
Additional
System Cameras
Optional LTC 8059/00 Master Control Software
or LTC 8850/00 Graphical User Interface (GUI)
Software Package can be Run on Windows®
based PC.
Up to 1.5 km (5000 ft)
using 18 AWG Shielded
Twisted Pair Cable
(Belden 8760 or
equivalent)
RS-232 Data
Video Coax
Serial Logging
Printer Capability
3 m (10 ft) Interface Cable provided
with Optional Software Package
LTC 8300 Series
Main CPU Bay
RS-232 Data
3 m (10 ft) Interconnect
Cable Supplied with Keyboard
Up to 6
Monitor Outputs
Monitor 1
Monitor 2
Video Coax
Monitor 3
Monitor 4
Monitor 5
Monitor 6
BOSCH
Prod
BOSCH
Mon
Prod
Shot
Clr
Mon
Shot
Clr
1
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
0
0
Maximum of four Allegiant Series
Full Function Keyboards up to 1.5 km (5000 ft)
away using optional Remote Hookup Kit
Figure 2 LTC 8300 Series Full Capacity Configuration
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
6.0
INSTALLATION PROCEDURE
6.2
CAUTION: Do Not Apply Power to
Equipment Until Instructed to do so.
If the unit is to be installed into a standard 19-inch EIA
rack, remove the four (4) rubber bumper foot pads on the
bottom. Four holes are provided for mounting the bay in
the rack.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC SENSITIVE
DEVICES
WARNING:
Electrostatic-sensitive device. Use
proper CMOS/MOSFET handling
precautions to avoid electrostatic
discharge.
NOTE: Grounded wrist straps must be worn and proper ESD
safety precautions observed when handling the electrostaticsensitive printed circuit boards.
6.1
EN | 16
Internal Selections
The LTC 8100, LTC 8200, and LTC 8300 Series
incorporate printed circuit boar/ds (PCB) that contain
user-selectable DIP switches. If necessary, follow the
instructions in the COVER REMOVAL Section below to
access the DIP switches. Removal of the cover should
only be performed by qualified service personnel.
The LTC 8x00 Series circuit board contains the video
input termination switches S0801, S0802, S0803, and
S0804 (S0803 and S0804 are only present on the
LTC 8300 Series). The video termination switches on the
Allegiant must be set to the correct position prior to
installation. Read the TERMINATION PRACTICES Section
prior to installing the system to determine if it is
necessary to change the video module termination
switches.
The circuit board contains two 8-position DIP switches
for system configuration options, and two lithium
batteries. The DIP switches can be used to modify certain
system operating conditions. Review the FACTORY
DEFAULT SETTINGS Section to determine if it is
necessary to change the DIP switches from the factory
default positions.
The circuit board’s lithium batteries require attention only
when it is necessary to change them. These batteries
enable the RAM memory to retain its contents for up to
a year without power. Since the batteries are not used
while the AC power is on, several years of service should
be expected before it becomes necessary to change them.
Bosch Security Systems | December 8, 2004
Enclosure Mounting
The LTC 8300 is supplied with the rack-mounting
brackets attached. The LTC 8200 and LTC 8100 are
shipped with the rack-mounting brackets unattached.
On these systems, the brackets must be attached prior
to being installed into a rack. Use the supplied offset
screwdriver to remove the two (2) star head screws
located on each side near the front of the unit. Then
attach the supplied rack mounting brackets to the unit.
If the LTC 8300 Series are not going to be rack-mounted,
the enclosure’s mounting brackets can be removed. The
cover of the unit must be removed before access to the
mounting brackets is possible.
6.3
Cover Removal
Cover Removal
WARNING: Removal of the cover should only be
performed by qualified service personnel - not user
serviceable. The unit should always be unplugged before
removing the cover and remain unplugged while the
cover is removed.
Cover removal is necessary only if changes need to be
made to the video input termination switches, system
configuration DIP switches, or batteries.
For the LTC 8300, the top cover is fastened to the
case by 4 screws located on the rear of the unit. For the
LTC 8100 and LTC 8200 units, the top cover is fastened
by 8 screws on the top and 4 screws on each side. Use
the supplied offset screwdriver to remove the star head
screws. After the screws have been removed, the cover
slides back and off the unit. Reverse procedure to reinstall.
EN | 17
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
6.3.1 Mounting Ear Removal
If the LTC 8300 Series is to be used as a desk top
unit, remove each mounting ear by removing the
screw holding the mounting ear to the enclosure
chassis (see Figure 3).
6.4
Termination Practices
Video from every camera should be terminated with a
75Ω resistance. Each video line should be terminated
exactly once. If video from a camera is going to several
devices, only the last device on the video line should be
terminated.
6.4.1 Video Terminations
The main circuit board has DIP switches to select the
termination of each video line. To terminate an input line,
ensure that the appropriate DIP switch on the video
module is ON (Factory Default Setting). If nonterminated operation is required for looping purposes,
turn the switch OFF. See the TABLE below to determine
the DIP switch numbers that correspond to video input.
Video
Inputs
Switch
Switch
No.
Systems
6.3.2 Video Termination Selections
The video input termination DIP switches are located
toward the rear of the circuit board. Note that the
Factory Default Settings are all ON (input terminated
with 75Ω). Only those switches associated with looping
video inputs need to be changed to OFF (unterminated).
1-4
S0801
1-4
LTC 8100, LTC 8200, LTC 8300
5-8
S0802
1-4
LTC 8100, LTC 8200, LTC 8300
9-12
S0801
5-8
LTC 8200, LTC 8300
13-16
S0802
5-8
LTC 8200, LTC 8300
17-20
S0803
1-4
LTC 8300
21-24
S0804
1-4
LTC 8300
6.3.3 CPU Module Selections
To access the circuit board, remove the cover and lid as
described in the COVER REMOVAL Section. The batteries
and the two 8-position system configuration DIP switches
(S0201 and S0202) near the front of the unit will now be
visible. Change only the desired CPU DIP switches
based on the features described in the FACTORY DEFAULT
SETTINGS Section of this manual.
25-28
S0803
5-8
LTC 8300
29-32
S0804
5-8
LTC 8300
Figure 3 Cover and Rack Brackets Removal
6.3.4 Battery Replacement
CAUTION: Lithium Battery
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the battery manufacturer’s
instructions.
If the batteries have reached the end of their useful life,
the Time and Date portion of on-screen display will
begin to alternate with an indication of ?? ?? ??. The
LED on the front panel of the unit will also light,
indicating a low battery condition. Access the circuit
board as described in the INTERNAL SELECTIONS
Section above, then follow the instructions found in the
MAINTENANCE INFORMATION Section of this manual
for replacement procedures.
Bosch Security Systems | December 8, 2004
Video Input Termination Switches
If looping video inputs are desired, the LTC 8200 and the
LTC 8300 Series require an optional LTC 8808/00 patch
panel (for the LTC 8100 Series, the looping BNCs are
included on the unit). A single LTC 8808/00 provides
looping capability for all 16 (LTC 8200) or 32 (LTC 8300)
video inputs. If necessary, refer to the Section on
LOOPING VIDEO CONNECTIONS below.
Just like camera inputs, monitor outputs on the Allegiant
system are designed to be terminated. Each monitor
output expects to be connected to a 75Ω load. This is the
load typically provided by a monitor. If a monitor output
line is looped through several monitors or other
equipment, ensure that only the last unit on the line is
terminated.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
6.5
Looping Video Connections
The Allegiant Series has outputs available for video
input looping connections. Looping connections for
LTC 8200 and LTC 8300 require the optional
LTC 8808/00 Video Interconnect (patch) Panel. The
patch panel provides 32 BNCs for video connections.
Patch panels are connected to the rear of the main bay
via supplied ribbon cables. Each cable can carry video
for up to 16 cameras. For LTC 8300 Series systems,
2 cables can be attached to the patch panel to support
up to 32 cameras. Each ribbon cable should be attached
to the appropriate VIDEO connector on the rear of the
main bay.
LTC 8808/00 Typical Use
LTC 8300
Upper
LTC 8809/00 Cable
Lower
LTC 8809/00 Cable
Figure 4 Video Interconnect Panel
6.6
Keyboard Hookup
Connect a maximum of 4 (LTC 8300 or LTC 8200
Series) or 2 (LTC 8100 Series) system keyboards to
any of the keyboard ports (modular phone type jacks)
provided on the rear of the main bay. Be sure to
connect a keyboard to at least port #1.
NOTE: The LTC 8555 Series RS-232 type keyboards
are not connected to the standard keyboard ports.
The keyboards connect to the Console port, or to a
LTC 8712 Series Port Expander. Note that when
LTC 8555 RS-232 type keyboards are connected to the
system, the corresponding standard keyboard ports
are automatically disabled.
Each keyboard is supplied with a 3 m (10 ft) cable for
local hookups. Allegiant systems can provide power
to keyboards up to 30 m (100 ft) away via the optional
LTC 8558/00 hookup cable. For distances of up to
1.5 km (5000 ft), the optional LTC 8557 Series hookup
kit is required. This product is supplied with a remote
power pack, and requires user-supplied shielded twisted
pair (Belden 9841 or equivalent) for communication.
Bosch Security Systems | December 8, 2004
6.7
EN | 18
Biphase Control Code Output
Connections
Allegiant systems provide separate outputs (16 for
LTC 8300, 12 for LTC 8200, 8 for LTC 8100 Series) for
driving remote receiver/drivers, switcher/followers, and
satellite systems. Either star or daisy chain wiring
configurations may be used.
Connect shielded twisted pair cable between the camera
site receiver/driver locations (or other accessory device)
and any of the outputs provided on the Allegiant’s rear
panel. Use the straight slot side of the supplied offset
screwdriver to tighten the terminal block screws.
Maximum transmission distance is 1.5 km (5000 ft) using
1 mm2 (18 AWG) shielded twisted pair (Belden 8760 or
equivalent). Contact removable screw terminal blocks are
provided with up to 4 separate connection groups per
block. Each group provides three connections; +, –, and S
(Shield). Do not mix connections between groups, i.e.
connecting one wire of the cable to the + of one group and
another wire of the same cable to the – of another group.
Each output is rated to handle up to 8 receiver/drivers, as
in a daisy chain configuration, to a maximum of 1.5 km
(5000 ft). Select and maintain a wire color convention to
avoid confusion at the various camera sites.
Example: White to +, Black to –, and Shield to S.
The CODE OUT LED located on the Allegiant front
panel will flash when the joystick, a lens control, or a
video switching action is activated. The CODE OUT
LED also flashes occasionally when system status
information is being generated by the system.
6.8
External Alarm Connections
The LTC 8100, LTC 8200, and LTC 8300 Series contain
integral alarm input and output connections. These alarm
inputs provide automatic display of video under alarm
conditions. The units accept up to 32 (LTC 8300),
16 (LTC 8200), 8 (LTC 8100) contact closures or logic
level inputs from remote sensing devices (door contacts,
PIRs, etc.). The alarm inputs are designed to generate
alarm conditions upon closure of the external contacts
(normally open contacts). The units also provide
6 (LTC 8300), 5 (LTC 8200), or 2 (LTC 8100) relay
closure outputs upon alarm conditions.
Alarm input connections are made to 12 contact
removable screw terminal blocks located on the rear panel.
Each terminal block provides 8 alarm input connections.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
Connect any 2-conductor shielded wire (the shield and
ground wire are both connected to the connector pins
labeled G) between the alarming device (contact closure
or logic level) and the appropriate Allegiant input. Use
the straight slot side of the supplied offset screwdriver to
tighten the terminal block screws. The alarm input
numbers are marked on the removable connector block.
Note that every two alarm inputs share a common
ground connection. The total wire loop resistance
should not exceed 1,000Ω. Input #1 corresponds to
camera #1 in the Factory Default Settings, but this
relationship can be changed via programming with the
optional LTC 8059/00 MCS for Windows package or
LTC 8850/00 GUI software package.
Allegiant units also provide isolated alarm relay outputs.
An alarm output is typically used to activate the alarm
input of a security DVR/VCR or other alerting device. A
VCR is normally programmed to change recording
speeds from a slower time lapse mode to a faster real
time mode upon alarm activation. Operation of the relay
outputs depends on the system configuration for
responding to alarm events. The alarm output relays
activate accordingly under the following conditions:
1. Relay 1 activates if the system is set to use the
Basic alarm response mode, and an alarm occurs
on any system monitor. Relay 1 deactivates after
all alarms have been removed from the inputs.
Relay 1 also deactivates if the system (monitor or
alarm(s)) is disarmed by an operator via the
keyboard. Pressing Acknowledge on the system
keyboard does not deactivate Relay 1 since the
alarm video follows the contact applied to the unit
in this alarm response mode. Other relays are
not used in this mode.
2. Relay 1 activates if the base system is set to use
the Sequence & Display alarm response mode
and an alarm occurs on any system monitor.
Relay 1 deactivates after all alarm videos have
been acknowledged (by pressing the
Acknowledge key) via system operator(s) from
all system monitors. Relay 1 also deactivates if
the system is disarmed (either the monitor or
the alarm(s)) by an operator via the keyboard.
Removal of the alarm input does not deactivate
Relay 1 since the alarm video(s) are not
dependent on duration of the contact applied to
the unit in this alarm response mode. Other relays
are not used in this mode.
Bosch Security Systems | December 8, 2004
EN | 19
3. If the base system is set to use the Autobuild
alarm response mode, and an alarm occurs on
system monitors, the relay corresponding to the
monitor number activates for the duration that the
corresponding alarm input is applied to the unit.
The relay deactivates if the monitor associated
with the relay or if the alarm(s) being displayed on
the monitor is disarmed by an operator via the
keyboard. Pressing Acknowledge on the system
keyboard does not deactivate the relays since the
alarm video follows the contact applied to the unit
in this alarm response mode.
4. If the VersAlarm Group table screen in the
PC- based LTC 8059/00 MCS for Windows
package or the LTC 8850/00 GUI software
contains an alarm group that includes monitors,
and the Monitor option has been selected in the
Relay Action column, the corresponding relay
activates for the duration the alarm video remains
on the monitor. The relay deactivates if the
associated monitor (or the alarm(s) being
displayed on the monitor) is disarmed by an
operator via the keyboard. Pressing Acknowledge
on the system keyboard does not deactivate the
relay unless this feature has been selected for the
associated alarm group. If the Monitor option has
been set to 1 in the Group table, only Relay 1
activates when monitors in that alarm group
become alarmed.
Typically, any 2-conductor wire can be used between the
rear panel terminal block containing the relay outputs,
and the VCR alarm input. Use the straight slot side of the
supplied offset screwdriver to tighten the terminal block
screws. If another external device is to be controlled, do
not exceed the relay ratings of 1 A, 40 VAC/DC.
6.9
Satellite Configuration Installations
Due to many variables, only general guidelines will be
covered for installing satellite systems. Refer to the
APPENDICES of this manual and either the
LTC 8059/00 MCS for Windows or LTC 8850/00 GUI
software manual for additional information on satellite
systems.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
Video and
Data Links
Central
Control
Station
Satellite
Sysem
#6
Satellite
Sysem
#1
Satellite
Sysem
#3
Satellite
Sysem
#5
Satellite
Sysem
#2
Satellite
Sysem
#4
S9507002AE
Figure 5 Satellite Concept Configuration
6.9.1 Satellite Site Trunk Line Monitor Outputs
At each of the remote satellite sites, a desired number of
monitor outputs from the switcher must be assigned as
trunk lines. The number of trunk lines can range from
1 to the maximum number of monitor outputs provided
by the switcher. Note that the number of trunk lines
coming from a satellite site determines the maximum
number of cameras from that site that may be viewed
simultaneously at the main site. If operators will be
stationed at the satellite site, they should be prevented
from accessing the monitor outputs designated as trunk
lines. This can be accomplished via the Monitor
Lockout tables in either the LTC 8059/00 MCS for
Windows or the LTC 8850/00 GUI software (see below).
6.9.2 Main Site Trunk Line Video Inputs
At the main site, video trunk line connections coming
from each of the remote site(s) should be connected (and
properly terminated) using an available video input at
the main bay. There are no programming restrictions
concerning their connections, but a sense of order can
be maintained if a group of video inputs are used at the
upper end of the system’s designed capacity. This allows
the main system to be more easily expanded in the
future with additional local cameras or trunk lines. As
an example, assume that there are a total of 8 trunk lines
coming from all satellite sites which will be connected to
a main site system designed for 32 inputs. Inputs 25 to 32
can be reserved for the trunk lines, leaving inputs 1 to 24
for local camera connections. If there will be no local
camera inputs, the trunk lines can start at the first video
input.
Bosch Security Systems | December 8, 2004
EN | 20
6.9.3 Control Data Lines in Satellite Systems
Each satellite site must be provided with an Allegiant
biphase control data line coming from the Signal
Distribution located at the main site. The Signal
Distribution unit is an integral part of the LTC 8100,
LTC 8200, and LTC 8300 Series. This data line carries
all pan/tilt/zoom control commands, in addition to the
switching commands generated by the main site switcher.
The control data line should be connected to an
LTC 8780 Series Data Converter unit, which provides
address decoding functions for the satellite site. An
LTC 8780 Series is required at each satellite site, and
must be given a unique site address number.
If operators stationed at the satellite site are permitted to
control pan/tilt/zoom-equipped cameras, an LTC 8569
Series Code Merger unit must be installed at the satellite
site. The Code Merger combines code generated by the
main site and the satellite sites so both sites have control
over pan/tilt/zoom-equipped cameras at the satellite site.
The LTC 8780 Series can then be connected to one of the
data outputs of the LTC 8569 Series unit.
6.9.4 Satellite Site Programming Requirements
The optional LTC 8059/00 MCS for Windows or the
optional LTC 8850/00 GUI software is required to
properly program a satellite system.
Programming the satellite sites is usually limited to
designating their logical camera numbers to appropriate
values via the Camera ID table of the MCS or GUI
software.
Note that no duplicate camera numbers are permitted
anywhere in the system. Allegiant logical camera
designations can be renumbered to any four-digit number
on the LTC 8100, LTC 8200, LTC 8300 Series, LTC 8600
Series, LTC 8800 Series, or LTC 8900 Series systems, and
any three-digit number on LTC 8500 systems.
Few other restrictions exist. These camera numbers are
the numbers entered at both the satellite and the main
site keyboards when camera selections are made. On any
pan/tilt/zoom-equipped camera, this logical number must
also be entered as the receiver/driver’s site address
number.
EN | 21
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
To maintain a sense of order, it is preferable to program a
satellite for a range of camera numbers. For example, in a
three Allegiant type satellite system, the first satellite can
be programmed for camera numbers 1 to 50. Satellite
two can be programmed for camera numbers 101 to 131,
and satellite three can use numbers 201 to 225.
If necessary, the MCS or GUI software Keyboard-toMonitor Lockout table can be programmed in the
satellite switcher to prevent any local operators from
inadvertently accessing the satellite’s monitor outputs
being used as trunk lines.
If operators will be stationed at the satellite site, camera
titles should be entered into the switcher. If desired, these
titles can be selected (explained below) to appear at the
main site.
The only other requirement is to ensure that the Console
ports of all Allegiant type satellites have the handshake
option disabled (CTS = off). This is done via keyboard
User Function 30 (see Section 13, KEYBOARD USER
FUNCTIONS), the MCS or GUI software’s ParametersSystem screen.
6.9.5 Main Site Programming Requirements
At the main site, the Camera ID table must be
programmed to ensure proper satellite operation. It is
easiest to start with the trunk line inputs. For each trunk
line, the satellite’s monitor output number and its bay
address must be entered (same number as the satellite’s
LTC 8780 address).
Camera numbers should be programmed next. No
duplicate camera numbers are allowed anywhere in the
entire system. Designate remote cameras (located at
satellite sites) using numbers above those at the main
bay’s physical video inputs (9+ on LTC 8100 Series,
17+ on LTC 8200 Series, 33+ on LTC 8300 Series,
65+ on LTC 8500, 129+ on LTC 8600, 257+ on
LTC 8800 Series, 4097+ on LTC 8900 Series). Enter the
desired camera number, (the satellite bay that it is
actually connected to), and select if either a local title will
be used, or if the remotely generated title will be used.
For satellite camera entries, only those numbers
representing actual cameras need to be entered. For
example, all 16 cameras associated with an LTC 8200
switcher do not need to be entered if only 5 cameras are
actually connected to the switcher. If desired, a few extra
camera numbers may be included at this time for future
expansion. If a local title is specified, the camera’s title
can also be entered at this time. Designate any local
camera numbers appropriately, and enter their
corresponding titles.
NOTE: Either a local camera, or a remote camera
programmed with a local title, will need to be selected to
view certain on-screen prompts or data during
programming of the main site via a system keyboard.
Once the system is programmed and configured, any
unused monitor outputs located at the main site should
be selected to display a local camera via the system
keyboard. This prevents unused monitor outputs from
using up trunk lines which may result in some confusing
operational responses.
BOSCH
BOSCH
Figure 6 Front Panels: LTC 8300 Series - Top, LTC 8200 Series, LTC 8100 Series - Bottom
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
6.9.6 Alarm Inputs in Satellite Systems
Any alarm inputs to the main site, which have been
programmed to activate cameras located at satellites, will
operate normally except when limited by the number of
trunk lines available. The software automatically
determines trunk usage depending on the priority level of
operators currently viewing satellite cameras. Alarm
inputs applied at a satellite site will NOT activate alarm
video at the main site. If the application requires alarms
located at a satellite to activate video at the main site, the
remote alarms must be brought back to the main site. If
necessary, the main site’s LTC 8540/00 Alarm Interface
unit can be remotely located via an RS-232 link. Since
the Alarm Interface capability is an integral part of the
LTC 8100, LTC 8200, and LTC 8300 Series, this is not
possible if an LTC 8100, LTC 8200, or LTC 8300 Series
system is being used as the main site system. If more than
one satellite site contains alarms, multiple LTC 8540/00
Alarm Interfaces can be remotely located. The number of
alarm interfaces which can be remoted is limited only by
the capacity of the main site system to support this
capability.
6.10
Feature Selection
Certain user-selectable features can provide enhanced
Allegiant system operation capabilities. Any changes
involving configuration option DIP Switch Settings should
be made prior to installation. Refer to FACTORY
DEFAULT SETTINGS Section for feature descriptions and
instructions.
Bosch Security Systems | December 8, 2004
6.11
EN | 22
Main Power Connections
Connect the AC power cord to an appropriate AC power
source. Verify that the selected LTC 8100, LTC 8200, or
LTC 8300 Series model matches the desired voltage
input.
NOTES:
•
The system may require several seconds to fully
initialize after a power up reset. This time can vary
based on the activity and general size of the
system. Verify that the front panel POWER LED
lights and the front panel STATUS LED begin to
blink randomly.
•
ALL CAMERAS SHOULD BE PHASED
PROPERLY WITH EACH OTHER TO
AVOID VERTICAL ROLLING MONITOR
DISPLAY DURING SWITCHING.
•
THE SYSTEM IS DESIGNED TO PROVIDE
VERTICAL SYNCHRONIZED SWITCHING
BASED ON THE MAIN VOLTAGE INPUT
FREQUENCY.
Proceed to the next applicable accessory installation
section or immediately to the appropriate system
operating instruction section.
EN | 23
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Installation Procedure
A1
A9
A17
A25
Gnd
Gnd
Gnd
Gnd
A2
A10
A18
A26
A3
A11
A19
A27
Gnd
Gnd
Gnd
Gnd
A4
A12
A20
A28
A5
A13
A21
A29
Gnd
Gnd
Gnd
Gnd
A6
A14
A22
A30
A7
A15
A24
A31
Gnd
Gnd
Gnd
Gnd
A8
A16
A24
A32
--
+
S
--
R5
R5
R6
R6
A6
A14
A7
A15
Gnd
Gnd
A8
A16
--
+
S
--
R4
R5
R5
A6
A7
Gnd
A8
--
+
S
--
Rear Panel and Alarm Input Connector Detail
+
S
--
+
S
--
+
S
Rear Panel Biphase Outputs Connector Detail
R1
R1
R2
R2
R3
R3
R4
R4
Rear Panel Relay Outputs Connector Detail
Figure 7 LTC 8300 Series Rear Panel
A1
A9
Gnd
Gnd
A2
A10
A3
A11
Gnd
Gnd
A4
A12
A5
A13
Gnd
Gnd
Rear Panel and Alarm Input Connector Detail
+
S
--
+
S
--
+
S
Rear Panel Biphase Outputs Connector Detail
R1
R1
R2
R2
R3
R3
R4
Rear Panel Relay Outputs Connector Detail
Figure 8 LTC 8200 Series Rear Panel
A1
Gnd
A2
A3
Gnd
A4
A5
Gnd
Rear Panel and Alarm Input Connector Detail
+
S
--
+
S
--
+
S
Rear Panel Biphase Outputs Connector Detail
R1
R1
R2
R2
Rear Panel Relay Outputs Connector Detail
Figure 9 LTC 8100 Series Rear Panel
Figure 10 LTC 8808/00 Video Interconnect Panel
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Optional Accessories
7.0
OPTIONAL ACCESSORIES
7.1
Logging Printer Option Installation
NOTE: Installation for each printer varies; the following
steps are generally required. Save the printer reference
manual for procedures not covered.
7.2
EN | 24
Windows-compatible Computer
Interface Installation
NOTE: Installation for each computer varies; the
following steps are generally required. Save the computer
reference manual for procedures not covered here.
•
Switch the main power to the printer OFF.
•
Switch the main power to the computer OFF.
•
Install ribbon cartridge and paper if necessary.
•
•
Set any configuration switches for your particular
printer to match the format provided by the
LTC 8300 Series system.
Attach the PC security key, provided with the
MCS for Windows or the LTC 8850/00 GUI
software kit, to the computer.
•
The supplied interconnect cable uses a custom
pinout. If it ever becomes necessary to replace the
cable, it can be ordered separately (part number:
LTC 8506/00). Alternatively, a cable can be
configured using the information in APPENDIX D.
•
The system communication protocol can be
changed via keyboard User Function 31
(see Section 13, KEYBOARD USER FUNCTIONS),
the optional LTC 8059/00 MCS for Windows or
the LTC 8850/00 GUI software. Factory default
values are as follows:
Baud rate
Stop bits
Data bits
Parity
•
1. Attach one end of the supplied interface cable
to the Allegiant bay connector marked
CONSOLE.
19,200
1
8
None
The required interconnect cable uses a custom
pinout. Refer to APPENDIX D for wiring details.
1. Attach the 25-pin male D-type connector side
of the RS-232 cable to the connector on the
printer.
2. Attach the 9-pin male connector side of the
cable to the LTC 8300 Series bay connector
marked PRINTER.
•
Apply power to the printer.
•
Verify printer logging by loading a previously
stored sequence into a monitor, activating an
alarm, or performing a system reset. Any of these
actions should cause printouts to occur.
Bosch Security Systems | December 8, 2004
2. Attach the other end of the cable to an
available serial port (COM1 or COM2) on the
rear of the computer.
•
Apply power to the computer and allow it to boot
up its operating system before inserting the MCS
or GUI software disc.
•
Refer to the LTC 8059/00 MCS or LTC 8850/00
GUI software reference manual for operating
instructions.
EN | 25
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Video Monitor Display
8.0
VIDEO MONITOR DISPLAY
The LTC 8100, LTC 8200, and LTC 8300 systems feature
an integral text overlay with two rows of 24 characters
each. There are a total of 235 different characters that can
be displayed. Refer to Section CHARACTER ROM
TABLES for further details.
NOTE: If no video signal is present, a third line will
appear stating: VIDEO NOT PRESENT.
The display is broken down into five areas as shown in
the Figure 11 below:
8.1
Time / Date
The time/date display is generated by the system CPU
microprocessor module. It is crystal controlled and
battery protected for one year (minimum) without power.
The display is updated once per second and all monitors
update simultaneously. The time/date message is always
on the right side of the video display with the time on the
top line. Time displays hours, minutes, and seconds, and
can be set to either 12-hour or 24-hour operation. The
date is available in three user-selectable formats:
1. U.S. Format: MM/DD/YY
2. International Format: DD/MM/YY
3. Asian Format: YY/MM/DD
12-Character System Status
Display or Monitor Title
12-or 24-Hour
Time Display
Camera Number
XXXX Status/Title
Camera Title
16-Character
Camera Title
Figure 11 Monitor Overlay Display
Bosch Security Systems | December 8, 2004
12:00:00
10-20-96
3 Selectable Date Formats
(MM-DD-YY, DD-MM-YY,
YY-MM-DD)
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Video Monitor Display
Monitor Title/System Status
Display
The monitor title/system status display area is a
12-column display to the right of the camera number. It
is unique on each of the monitors and has different uses,
some of which may be user selected via keyboard. The
various uses are described below.
Format of Monitor Overlay’s
System Status Display
1
2
3
4
5
6
7
8
9
10
11
12
A
A
A
M
C
E
R
M
A
S
S
S
l
l
l
o
a
r
e
o
b
e
e
e
a
a
a
n
m
r
m
n
s
q
q
q
r
r
r
m
m
m
o
/
A
A
r
L
L
R
N
N
S
r
r
/
o
o
e
u
u
t
m
m
D
c
c
l
m
m
a
I
k
k
t
R
8.2.1
System Status Display
If this display is enabled (factory default), it allows the
Allegiant system to dynamically inform the user of system
status. The 12-column display is divided into smaller
message columns (see Figure above), in which special
characters report the following:
8.2.3
Location 4 - Monitor Arm Status Indication
In the MONITOR ARMED location, the characters SM
or DM will appear if the monitor is armed for alarm. SM
means that the monitor is a step or sequence monitor,
and will automatically step through multiple alarm
videos. DM indicates that the monitor is a display or
review monitor, which will collect alarm videos from
one or more step monitors.
When an alarm occurs, the alarmed camera’s video will
replace the current display of the monitor. If the monitor
is not armed, this location is blank.
8.2.4
Location 5 - Camera Arm Status Indication
In the CAMERA ARMED location characters CA are
displayed if the camera being viewed is armed for alarm
on that monitor. If the alarm signal associated with this
camera becomes active, the camera will be displayed on
the appropriate armed monitors.
8.2.5
Location 6 - Error Indication
This location displays ERR when a user error occurs.
The specific error number appears in locations 7 and 8,
and also in the Camera Number Display field on the
keyboard. The display will return to normal after a few
seconds, or if the user presses [Enter] on the keyboard.
Location 6 is also used to indicate the sequencing
direction when alarms occur. Possible character
combinations are:
•
Whether the switcher is running or stopped.
•
The switcher’s direction.
1. ^R: the alarms are sequencing in a forward
direction.
•
Whether a monitor or remote camera is locked.
2.
•
The alarm status of the camera and monitor.
8.2.2
Locations 1, 2, and 3 - Alarm Indication
When the monitor overlay is in Status Display mode,
locations 1 through 3 indicate whether a camera on the
monitor is in alarm. If the on-screen camera is currently
in alarm, an ALM message in a box will flash at this
location. A in a box means that a camera other
than the on-screen camera is in alarm. If no cameras are
currently in alarm on this monitor, these spaces are
blank. When a monitor has cameras in alarm, press
NEXT, RUN, or PREVIOUS on the keyboard to move
through the alarm sequencer rather than the regular
camera sequencer. The alarm switcher status will be
displayed in location 6 using symbols described.
Bosch Security Systems | December 8, 2004
RV:
the alarms are sequencing in a reverse
direction.
3. ^S: the alarm sequencing has stopped, but if
started again would sequence in a forward
direction.
4.
SV: the alarm sequencing has stopped, but if
started again would sequence in a reverse
direction.
Location 6 can also be used to display a symbol
indicating pan/tilt/zoom-equipped cameras. Using the
optional LTC 8850/00 GUI software, controllable
cameras can be individually configured to display a
symbol in location 6 whenever they are viewed on a
system monitor.
▲
▼
8.2
EN | 26
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Video Monitor Display
EN | 27
8.2.6
Location 7 - Remote Lock Indication
This location will display characters RL to indicate that
control over the movements of the camera being viewed
have been locked by a user. Control over this camera is
now possible only by the user who locked the camera, or
has higher priority. If the camera is not locked, the icon is
not displayed. If a user error has occurred, this location
will temporarily hold part of the error number.
8.2.10 Location 12 - Sequence Status Indication
This location indicates the status of the sequence active in
the monitor. Possible character combinations are:
8.2.7
Location 8 - Monitor Lock Indication
This location will display characters ML to indicate that
the monitor has been locked by a user. The camera
currently being viewed cannot be changed except by the
user who locked the monitor, or has higher priority. If the
monitor is not locked, the icon will not be displayed. If a
user error has occurred, this location will temporarily
hold part of the error number.
3. ^S: the sequence is stopped, but if started again
would sequence in a forward direction.
8.2.8
Location 9 - Sequence Type Indication
This location displays the type of sequence currently
loaded on the monitor. An absolute sequence is
indicated by the characters AS, meaning that monitors
programmed in the sequence program refer to the exact
monitor(s) where the sequence may be run. Sequences
created via the system keyboards are always of this type,
so absolute sequences are the only type possible in a base
system. Relative sequences are designated by the
characters RS in this location. These sequences will run
on any monitor or group of monitors, and can only be
programmed via the optional LTC 8059/00 MCS for
Windows or the LTC 8850/00 GUI software on a PC.
8.2.9
Locations 10 and 11 - Sequence Number
The sequence number currently active for the monitor is
displayed here. This is a number between 1 and 60, or 00
to indicate that no sequence is loaded.
1. ^R: the current sequence is sequencing in a
forward direction.
2.
4.
8.3
RV:
the current sequence is sequencing in a
reverse direction.
SV:
the sequence is stopped, but if started again
would sequence in a reverse direction.
Monitor Message
The monitor message is a stationary 12-character title
which may be placed on a monitor instead of the
System Status display. Specific monitor messages can
be programmed from either the keyboard
(see User Function 17 in Section 13) or the optional
LTC 8059 MCS package or the LTC 8850/00 GUI
software.
8.4
Broadcast Message
A message can be sent by the operator of the PC using
the optional LTC 8059 MCS package or the
LTC 8850/00 GUI software to all the monitors in the
system. This message may be up to 24 characters, and
can be used to notify all users at all monitor locations of
important information. The message, along with its
beginning and ending time and date, is also printed on
the logging printer (if one is connected), as well as any
user acknowledgment. The broadcast duration may be set
for 1 to 60 seconds. The message is displayed on a line
by itself.
8.5
Program Prompts
During entry of sequence programming via the keyboard,
the Allegiant system prompts the user on the monitor his
keyboard is currently controlling. The display will return
to its previous form when the user leaves the
programming mode.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Factory Default Settings
8.6
Camera Number
The left-most display on the top line shows the systemgenerated camera number is always displayed. This
unique number identifies this camera when using the
keyboard for video call ups. In base systems, this number
is the same as the numbered BNC connector that the
camera is plugged into on the rear of the bay (physical
camera number). However, the optional MCS for
Windows or the optional GUI software package can be
used to change this number to any unique number
between 1 and 9999.
8.7
Camera Title
The camera identification display, which is the first
16 characters of the lower line, are used to label each
camera. Each camera has its own title, displayed
whenever that camera is called up for viewing. The 235
possible characters can be entered from the keyboard via
user function, or from PC keyboard via the optional
MCS for Windows or optional GUI software.
8.8
Video Loss Detection
The Allegiant system is capable of detecting loss of video.
When the unit detects that an input has lost video, a
VIDEO NOT PRESENT message is displayed on the
respective monitor.
NOTE: It may take up to five seconds for the unit to
display the video loss message when a video source is
disconnected.
9.0
FACTORY DEFAULT
SETTINGS
As the Allegiant system is shipped from the factory,
certain features are set to a default configuration.
Some features can be selected by the installer at the
time of system installation/configuration. The default
configuration represents the simplest mode of operation.
Default settings are detailed in this section.
Bosch Security Systems | December 8, 2004
9.1
EN | 28
User Selectable DIP Switch
Settings for System Configuration
Options
NOTE: To access the DIP switches, refer to Section 6 for
cover removal instructions.
The circuit board contains two 8-position DIP switches
(S0201 and S0202). The options assigned to DIP switches
are:
Switch
Number
S0201-1
S0201-2 to 8
S0202-1 to 3
S0202-4
S0202-5
S0202-6
S0202-7
S0202-8
Default
Setting
OFF (NTSC)
OFF
OFF
OFF
ON
OFF
ON
ON
Switch
Function
Raster Frequency
Reserved
Reserved
Printer Port Mode
Security Feature
Reserved
Keyboard Mode
Communication
Parameters and Boot
Screen Execution
Switch 1 of S0201
This switch determines the frequency of an internal raster
generator that is displayed on monitor outputs when a
camera loses video or an unused channel is selected. The
presence of the raster generator allows on-screen text to
remain visible and includes a message notifying the user
of the video loss condition.
Factory Default Settings for 60 Hz NTSC models is
OFF, and ON for 50 Hz PAL models.
Switch 2 to 8 of S0201
These switch functions are reserved and should be left
OFF.
Switch 1 to 3 of S0202
These switch functions are reserved and should be left
OFF.
Switch 4 of S0202
If switch 4 is ON (usually at system installation), the
Printer port on the rear panel is configured as an
auxiliary Console port. The Printer port has the same
pin-out as the normal Console port, so the Console cable
supplied with the LTC 8059/00 MCS for Windows or
LTC 8850/00 GUI software may be used to interface
with the Printer port when switch 4 is ON.
EN | 29
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Factory Default Settings
NOTE: This feature can also be implemented via the
PRT2CON CCL command using an external PC, dumb
terminal, or other computing device.
Communication parameters (baud & handshake) for the
Printer port can be set via Keyboard User Function 31
(covered later in this manual), with the optional
LTC 8059/00 MCS for Windows, or the LTC 8850/00
GUI software.
Switch 5 of S0202
Switch 5 controls the system security modes. When this
switch is ON (factory default), the system login features
can be controlled using Keyboard User Function 27 and
User Function 28 (see Section 13, KEYBOARD USER
FUNCTIONS). Users with priority 1 can access User
Function 27 to enable or disable the system keyboard
login feature. When enabled, the system keyboards
require each user to logon and logoff the system. All
users are required to enter a user number and the correct
password before system interaction is permitted.
Users with priority 1 can also access User Function 28 to
enable or disable the Console port login feature. When
enabled, any external PC or other computing device will
be required to logon and logoff the system, and enter a
user number and correct password. If this switch is OFF
(usually at time of system installation) or if features are
disabled via User Function 27 and 28, the system
keyboards and the Console port are always online with
the system.
Switch 6 of S0202
This switch is reserved, and should be left off.
Switch 7 of S0202
Switch 7 controls the system keyboard polling mode.
When switch 7 is ON (factory default), the CPU
communicates with system keyboards via a 6 poll byte
protocol. This format provides variable speed pan/tilt
control for AutoDome-equipped camera sites.
NOTE: The variable speed mode is not compatible with
the pre-1996 LTC 8561 Receiver/Drivers without using a
LTC 8785 Series Code Converter unit.
Bosch Security Systems | December 8, 2004
Dip switch 7 can be turned off (usually at system
installation) to allow operation with the older fixed
speed only type keyboards that use a 4 poll byte
protocol. In this mode, the system can communicate with
the older LTC 8561 Series of Receiver/Drivers, without
using the LTC 8785 Code Converter unit. Note that fixed
speed keyboard mode allows only the first 63 auxiliary
and pre-position functions to be accessed. This is not an
issue on older receiver/driver versions, but may pose a
problem if the system must be expected to access all
functions available in the AutoDome Series of
pan/tilt/zoom dome cameras.
Switch 8 of S0202
Switch 8 controls the Protocol Settings of the Console
and Printer external RS-232 ports.
If the switch is OFF, the system will use the Factory
Default Settings for the RS-232 data communication
protocols listed below.
With switch 8 ON, any RS-232 port protocols changed
using keyboard User Function 30 (covered later in this
manual), the optional LTC 8059 MCS, or the optional
LTC 8850/00 GUI software are active.
Users with priority level 1 can also use Keyboard User
Function 29 to reset any changed protocols back to the
default settings (see below).
Switch 8 also controls the activation of a boot screen
program previously downloaded into CPU memory. This
custom program is entered via the optional LTC 8059
MCS, or the optional LTC 8850/00 GUI software, to
provide special system functions/features. If the Switch is
OFF, any existing boot screen will not be active.
If Dip switch 8 is OFF (or after activation of keyboard
User Function 29), Data Communication Settings for
the Allegiant systems:
Setting
Baud
Stop Bits
Data Bits
Parity
Handshake
Console Port
19,200
1
8
None
Yes
Printer Port
19,200
1
8
None
No
EN | 30
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | User Information
10.0 USER INFORMATION
There are eight levels of user priority in the system. Each
of the 32 users in the Allegiant system has a default
priority level assigned. User levels determine access to
system functions and provide prioritization of user control
of monitors and pan/tilt/zoom-equipped camera sites.
Users with higher priority (highest = 1) can regain control
over monitors or pan/tilt/zoom cameras locked by
another user.
User
Number
Default
Password
Priority
Level
Default
Keyboard
The 8 priority level user assignments can be changed via
the optional LTC 8059/00 MCS for Windows or the
LTC 8850/00 GUI software. For a base system, the
above TABLE shows the default values set. Note that in
base systems where the login feature has not been
selected, user number is automatically assigned to a
specific keyboard port. This essentially sets the keyboard
as the priority determinator. Also shown in the TABLE
are factory default user passwords. Once a user is logged
on to the system, the password can be changed via
keyboard User Function 10. Refer to
Section 13, KEYBOARD USER FUNCTIONS.
1
1
1
1
2
2
2
2
10.1
3
3
2
3*
4
4
2
4*
5
5
8
—
The following TABLE shows system function access as it
applies to the 8 levels of users.
6
6
8
—
7
7
8
—
System Function
1
—
Switch Video On Monitors
Yes
Yes
Yes
Yes
Yes
8
9
10
8
2
User Priority Access Table
Priority Level
2 to 7
8
9
2
—
Control Pan/Tilt/Zoom Camera Yes
10
2
—
Lock Monitor
Yes
Yes
Yes
Yes
Yes
Yes
Yes
11
11
2
—
Lock Pan/Tilt/Zoom Camera
12
12
2
—
Acknowledge Alarms
Yes
Yes
—
Perform Keyboard Test
Yes
Yes
Yes
Yes
Yes
Yes
13
13
2
14
14
2
—
Show Keyboard Number
15
15
2
—
Activate Keyboard Beeper
Yes
Yes
Yes
Yes
Yes
Yes
16
16
2
—
Change User Password
17
17
2
—
Program Sequences
Yes
Yes
No
Yes
No
No
18
18
2
—
Position Video Overlay Display Yes
19
19
2
—
Set Overlay Display Brightness Yes
Yes
20
20
2
—
Select Overlay Display Type
Yes
Yes
No
Yes
Yes
No
No
21
21
8
—
Set System Time/Date
22
22
8
—
Program Pre-positions
Yes
Yes
—
Set Time/Date Format
Yes
No
No
No
No
23
23
8
24
24
8
—
Set Camera and Monitor Titles Yes
25
25
8
—
Enable Time Events
Yes
No
No
Yes
No
No
26
26
8
—
Reset System
27
27
8
—
Printout Tables and Sequences Yes
No
No
Yes
No
No
No
No
28
28
8
—
Default Monitor Overlay
29
29
8
—
Select Alarm Response Mode Yes
30
30
8
—
Select Printer Mode
Yes
No
No
No
No
31
31
8
—
Designate Alarm Monitor Type Yes
32
32
8
—
Select Keyboard LogIn
Yes
No
No
Select Console LogIn
Yes
No
No
Configure/Reset RS-232 Ports Yes
No
No
*Not applicable to LTC 8100 Series.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Alarm Information
11.0 ALARM INFORMATION
Automatically switching video in response to an external
signal (usually a contact closure) is necessary in any video
switching system. The Allegiant system permits users with
priority level 1 to select 1 of 3 predefined alarm response
modes (via keyboard User Function 19). A description of
the three modes appear below. Pictorial examples of
alarm responses are shown on the following pages.
The system can also be programmed with a variety of
alarm response characteristics using the flexible
VersAlarm system. See the LTC 8059/00 MCS for
Windows or the LTC 8850/00 GUI software manual
for details.
11.1
Basic Alarm Response Mode
In BASIC alarm response mode, any/all monitors can be
selected as alarm display monitors. Each alarm can then
be armed to display its camera(s) on any set of armed
monitors. Multiple alarms, on the same monitor,
sequence at a 1 second rate. Monitors and alarms can be
armed and disarmed individually as required. Alarmed
video automatically clears when the alarm input signal is
reset.
11.2
Auto-Build Alarm Response Mode
This mode uses a set of (or all) monitors as alarm display
monitors. Each triggered alarm displays its alarm video
on a different monitor, starting with the lowest numbered
armed monitor. If all armed monitors are already
displaying alarm video, subsequent alarms will build on
the existing alarmed monitors. Each monitor sequences
through its alarm videos at a 1 second rate. Monitors and
alarms can be armed and disarmed individually, as
required. Alarmed video automatically clears when the
alarm input signal is reset.
Bosch Security Systems | December 8, 2004
11.3
EN | 31
Sequence & Display
Alarm Response Mode
This mode designates two monitors as alarm response
monitors. Monitor #1 is the DISPLAY monitor (also
called a REVIEW monitor) and monitor #2 is the
SEQUENCE (or STEP) monitor. The first alarm will
appear on both monitors; additional alarms will begin to
sequence at a 1 second rate on the SEQUENCE
monitor. The DISPLAY monitor holds the first alarmed
camera video until manually acknowledged via the
keyboard. When the first video is cleared from the
DISPLAY monitor, the next alarmed video (next is the
camera that alarmed second) is displayed until cleared.
Operation continues in this manner. Alarms can be
armed and disarmed individually, as required. All alarms
must be manually cleared; the presence of alarm video is
not dependent upon the duration of the alarm input
signal to the system.
11.4
Alarm Activated Pre-Position
Alarm activated pre-position enables a pan/tilt/zoomequipped camera to automatically position itself to a
preprogrammed scene as a result of an alarm signal.
This capability exists in each of the three alarm response
modes. The pan/tilt and zoom on the camera must have
the necessary options for pre-position control. The system
default is to activate pre-position #16 of the system
camera receiving an alarm. Use the optional MCS for
Windows package or the LTC 8850/00 GUI software, to
configure the response to alarms as required by the user.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Alarm Information
11.5
Sample Alarm Responses
11.5.1 Basic Mode
In Basic alarm response mode, cameras are individually
armed for each alarm monitor.
MONITOR
1
Alarm Status
1st Alarm
2nd Alarm
3rd Alarm
MONITOR
2
MONITOR
6
Alarm Station Display
Video associated with 1st alarm is displayed on
any/all appropriately armed monitors.
Video associated with 2nd alarm is displayed on
any/all appropriately armed monitors.
Video associated with 3rd alarm is displayed on
any/all appropriately armed monitors.
Monitors and their respectively armed cameras are
programmed individually.
Multiple alarms on monitors are sequenced automatically.
Alarmed video remains on monitors for duration of
alarm input signal.
11.5.2 Auto-build Mode
In the Auto-build alarm response mode, alarms build
up on armed monitors as new alarms are received.
1
2
6
7
MONITOR
1
Alarm Status
1st Alarm
2nd Alarm
3rd Alarm
6th Alarm
7th Alarm
MONITOR
2
MONITOR
6
Alarm Station Display
Video associated with 1st alarm is displayed on
monitor # 1 (if armed).
Video associated with 2nd alarm is displayed on
monitor # 2 (if armed).
Video associated with 3rd alarm is displayed on
monitor # 3 (if armed).
(C o n t i n u e s e q u e n c e)
Video associated with 6th alarm is displayed on
monitor # 6 (if armed).
Video associated with 7th alarm is sequenced
with video of 1st alarm on monitor # 1.
Any number of monitors may be armed.
Multiple alarms on monitors are sequenced automatically.
Alarm video remains on monitors for duration of alarm
input signal.
Bosch Security Systems | December 8, 2004
EN | 32
EN | 33
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Alarm Information
11.5.3 Sequence & Display Mode
In the Sequence & Display mode alarm response mode, a monitor pair is used to display alarmed video.
Display
Monitor
1st Alarm
Occurs
Sequence
Monitor
1
Keyboard Operator
Monitor Actions
D = Video associated with
1st alarm is displayed.
1
Action
NONE
S = Video associated with
1st alarm is displayed.
2nd Alarm
Occurs
D = Video associated with
1st alarm is still displayed.
1
1
2
3rd Alarm
Occurs
1
1
S = Video associated with
1st and 2nd alarms are sequenced.
2
3
2
NONE
2
D = Video associated with
1st alarm is still displayed.
NONE
S = Video associated with 1st, 2nd,
and 3rd alarms are sequenced.
D = 1st alarm video is removed.
2nd alarm video is now displayed.
1st ALARM IS
ACKNOWLEDGED
3
S = Video associated with 2nd and
3rd alarms continue to sequence.
3
3
D = 2nd alarm video is removed.
3rd alarm video is now displayed.
2nd ALARM IS
ACKNOWLEDGED
S = Only video associated with
2nd alarm remains.
Since all alarms have been
acknowledged, both monitors return
to normal operator control.
Bosch Security Systems | December 8, 2004
3rd ALARM IS
ACKNOWLEDGED
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
12.0 KEYBOARD OPERATION
12.1
General
Primary operation of an Allegiant switcher is controlled
via system keyboard. The 2 types of keyboards currently
available are:
• Conventional LTC 8555 Series (incorporates
LEDs and pushbuttons)
•
IntuiKey model (uses dynamic LCD menu
screens)
General operation steps for both keyboard models
follows. Refer to the individual instruction manuals
supplied with the keyboard for additional information.
As the system is supplied from the factory, various userselectable features have been set to a default state. See
Section 9, FACTORY DEFAULT SETTINGS for feature
descriptions. Since these features are user selectable and
can have a significant effect on the operation of the
system, it is important to take note of any changes that
may be in effect.
12.2
System Commands
12.2.1 Keyboard Login Procedure
Keyboard modes:
• Via Factory Default Settings, a keyboard is
ready for use as soon as power is applied to the
system.
•
System operator must logon to a keyboard to
access the system. When a system is configured
to use the keyboard logon, operators must be
pre-assigned a user number and password. Up
to 32 user numbers are available, each having
default priority level. User specific priority levels
can only be changed via the optional PC-based
MCS program. Refer to the MCS manual for
complete details.
If the logon feature is enabled and an operator is not
logged in, LED keyboards show flashing dashes in their
display. IntuiKey keyboards prompt for entry of a user
number when attempting to enter the main Allegiant
softscreen menu.
Bosch Security Systems | December 8, 2004
EN | 34
Enter your assigned user number via the numeric keypad
and press [Enter]. When prompted, enter the password.
Invalid passwords cause the keyboard to revert to its
initial state. Once the login is successful, the keyboard
will show camera and monitor numbers in its display.
Upon logging in, the monitor controlled by the keyboard
may automatically switch to a pre-assigned camera
number. This function is only applicable if enabled by the
system administrator (via the optional MCS package)
and may not function if the monitor is running a
sequence and/or in an alarm condition.
NOTE: The information below applies to both
IntuiKey keyboards and LTC 8555 Series keyboards.
Where applicable, button designations specific to
IntuiKey keyboards will be shown in plain text.
Equivalent button designations that apply to
LTC 8555 Series keyboards will be placed in [ ]
immediately after the IntuiKey button text.
12.2.2 Keyboard Logoff Procedure
If the login feature has not been enabled, this action is
not applicable. If the feature has been enabled, press
User Logoff [User, then OFF].
12.3
Switcher Commands
12.3.1 Camera Selection
The keyboard default mode is the camera mode, so enter
a camera number for viewing, and press [Enter].
12.3.2 Monitor Selection
Press MON [Monitor], enter a monitor number, and
press [Enter].
12.4
Controlling Camera Movement
12.4.1 General
Camera positioning is controlled via an eight-way joystick
on the right-hand side of the keyboard. This joystick
moves the camera pan/tilt, (if equipped), up, down, left,
right, or diagonally. Rotate the joystick knob to control
the zoom lens in or out.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
EN | 35
Moving the joystick up and to the right simultaneously
moves the camera in a diagonal direction. Rotating the
ZOOM control knob causes the lens to either zoom in or
out. The direction of its response depends on the
camera/lens model, and certain system configuration
settings that are determined at installation.
With LTC 8555 Series keyboards, press [Monitor],
[Lock], then [ON] to lock a monitor, or [OFF] to unlock
the monitor. If the monitor to be unlocked is not the one
currently being controlled by the keyboard, enter the
monitor number (but do not press [Enter]) after you
press [Monitor].
Up to four pan/tilt/zoom commands may be sent to a
remote camera site at a time (Example - Zoom In, Focus
Far, Pan Left, and Tilt Down). All three zoom lens
functions can also be sent simultaneously (Example Zoom Out, Focus Near, Iris Open).
If the Status option is enabled, the section of the
on-screen overlay between the camera number and the
time shows a ML indicating the monitor is locked. This
prevents other operators from changing the video on the
monitor being used (unless they have a higher priority).
Remember to unlock the monitor when finished so other
operators can access it.
12.4.2 Focus and Iris Lens Control
The lens control buttons are on the right side of the
keyboard. The camera's zoom lens, (if equipped), can be
controlled to focus near or far, and open or close the iris
(if the lens supports manual iris operation).
12.4.3 Lock or Unlock Control of a Camera
When using IntuiKey keyboards, press Device Lockout,
located on the main Allegiant menu screen to enter a
menu screen for these options.
With LTC 8555 Series keyboards, press [Lock], then
[ON] to lock a camera, or [OFF] to unlock a camera. If
the camera to be locked is not the one currently being
viewed, enter the camera number via the numeric
keyboard (but do not press [Enter]) before pressing the
[Lock].
If the Status option is enabled, the section of the onscreen overlay between the camera number and the time
shows RL, indicating the camera is locked. Activating a
camera lock immediately prevents other operators (unless
they have a higher priority) from controlling the locked
pan/tilt/zoom camera. Remember to unlock the camera
when finished so other operators can access it.
12.4.4 Lock or Unlock Control of a Monitor
When using IntuiKey keyboards, press Device Lockout,
located on the main Allegiant menu screen, to enter a
menu screen with these options.
Bosch Security Systems | December 8, 2004
If an operator with a higher priority accesses a locked
monitor and switches to a different camera, the lock is
automatically removed.
12.4.5 Recording a Camera Pre-position Scene
Select a camera with pan/tilt/zoom control with preposition options. Using the joystick and lens controls,
adjust the camera to view the scene you wish to store.
When using IntuiKey keyboards, press Camera Control,
located on the main Allegiant menu screen to enter a
menu screen with this option. Press Set Shot [Set], then
select the scene number via the numeric keypad, and
press [Enter]. The camera position will now be stored for
recall later.
If an AutoDome Series camera is being used, certain
pre-position commands are also used to activate
operational features/functions. Refer to the AutoDome
operation manual for complete information. If an
Allegiant conventional receiver/driver is being controlled,
the pan/tilt and zoom lens must have the necessary
options for pre-position operation.
On certain models of AutoDomes and Allegiant
Receiver/Driver Series, it is possible to disable a
previously stored pre-position, or remove it from a preposition tour, by pressing Set Shot [Set], the digit 9,
followed by the 2-digit pre-position number. Refer to
information supplied with the device to determine
whether it supports this feature.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
12.4.6 Recalling a Camera Pre-position Scene
Select the camera to be activated. Press Shot, enter a
previously stored camera position number via the
numeric keypad, then press [Enter]. The camera
automatically returns to the previously stored position. If
a second pre-position is called prior to the completion of
the first, the camera will move directly to the second shot.
If the AutoDome Series camera is being used, certain
pre-position commands are also used to activate
operational features/functions. Refer to the AutoDome
operation manual for complete information.
12.4.7 Activate/Deactivate Auxiliary Function
When using IntuiKey keyboards, press Camera Control,
on the main Allegiant menu screen, to enter a menu
containing this option. To turn on an auxiliary function of
a remote camera device, press Aux ON [ON], enter the
number of the auxiliary you wish to activate, then press
[Enter]. Holding the [Enter] key down causes the
auxiliary function to be sent repeatedly. This capability is
useful when the auxiliary is activating a housing window
washer function, or a temporary light source.
To turn off an auxiliary function of a remote camera
device, press Aux OFF [OFF], enter the number of
the auxiliary you wish to deactivate, then press [Enter].
With the AutoDome Series of cameras, auxiliary
commands are used to activate/deactivate certain
operational features/functions. Refer to the AutoDome
camera manual for complete information on features
supported by the model.
In the Allegiant Receiver/Driver Series, the first
4 auxiliaries correspond to relay outputs. Option switches
in the receiver/driver can configure these to operate as
either latching or momentary type functions. If
configured for the latching type, the auxiliary will stay
on once activated, until turned off. If configured as
momentary, the auxiliary remains on only as long as the
[Enter] key is depressed. Auxiliary outputs 2 through 4
can also be configured as a contact closure, 24 VAC,
or as line voltage. Auxiliary number 5 controls the
DITHER function, detailed below. Auxiliary number
6 corresponds to an internal receiver/driver
AUTOPANNING feature, previously enabled by
an option switch inside the receiver/driver.
EN | 36
DITHER is a legacy Allegiant receiver/driver feature
designed to extend the life of tube-based low-light level
cameras. Its function was to prevent bright lights in the
scene from burning a spot on the camera imager. When
this feature is active, and the pan/tilt is not moved for a
period of about 2 minutes, the receiver/driver
automatically pans right for approximately 0.5 seconds.
Two minutes later, a pan left occurs, and the cycle
continues until disabled. The feature is enabled by an
option switch in the receiver/driver, and is controlled by
the auxiliary 5 function. To activate the DITHER
function, turn on auxiliary 5. To deactivate the feature,
turn OFF auxiliary 5. When first enabled, the pan/tilt
unit makes one short left/right cycle to indicate that the
DITHER function has been activated. Note that a
camera in the DITHER mode will accumulate a viewing
error if left unattended for a long period of time, so
occasionally a manual adjustment of the pan/tilt may be
required.
12.5
Alarm Commands
12.5.1 Arm/Disarm Individual Alarms
Alarm commands control the system's automatic video
switching capabilities, in response to alarm signals.
When using IntuiKey keyboards, press Alarm
Control, located on the main Allegiant menu screen,
to enter a menu screen with these options. To arm an
individual alarm on the monitor currently controlled
by the IntuiKey, press Arm Alarm, enter alarm
number to be armed via the numeric keypad, and
press [Enter]. To disarm an individual alarm when
using the IntuiKey, press Disarm Alarm, enter the
alarm number to be disarmed via the numeric keypad,
and press [Enter].
To arm/disarm an individual alarm when using
LTC 8555 Series keyboards, press Alarm, enter in the
alarm number to be armed via the numeric keypad, and
press [ON] to arm the alarm, or [OFF] to disarm it.
Using default settings, the camera activated by an alarm is
normally the same as the alarm number, although this
relationship can be changed via the optional Allegiant
PC-based MCS package. When the alarm number does
not match the camera number, it is important to specify
the alarm number when using this command.
The monitor status display (if enabled) shows CA
(camera/alarm armed) whenever an armed camera is
selected.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
12.5.2 Arm/Disarm All Alarms
Press Alarm Control, located on the main Allegiant
menu screen to enter the menu screen containing these
options.
When using the IntuiKey:
• To arm all alarms on the monitor currently
controlled, press Arm All Alarms.
•
To disarm all alarms, press Disarm All Alarms.
When using LTC 8555 Series keyboards:
• To arm all alarms, press User, Alarm, and then
[ON].
•
To disarm all alarms, press [OFF].
12.5.3 Arm/Disarm Monitor
When using IntuiKey keyboards:
• Press Alarm Control, located on the main
Allegiant menu screen to enter the screen with
these options.
•
•
To arm the monitor currently controlled, press
Arm Monitor.
To disarm the monitor, press Disarm Monitor.
When using the LTC 8555 Series:
• To arm the monitor, press User, Monitor, then
[ON] to arm all alarms.
•
To disarm all alarms, press [OFF].
NOTE: Alarm video will appear on a monitor only if the
monitor is armed and the alarm is armed for that
monitor. The monitor status display (if enabled) will show
a MA (monitor armed).
12.5.4 Alarms Acknowledgement
Bell [Ack] is provided so system operators can respond
to alarms from the keyboard. Pressing Bell [Ack] while
the keyboard is beeping (due to an alarm condition)
always silences the beeper. Depending on alarm
configuration programming, subsequent pressing of Bell
[Ack] either clears alarm video from the monitors or has
no effect.
Bosch Security Systems | December 8, 2004
12.6
EN | 37
Sequence Control
12.6.1 Load/Clear a Sequence
To load a previously programmed sequence to run on
your monitor, press Load Sequence [Seq], enter the
desired sequence number (1 to 60), then press [Enter].
Note that loading a sequence does not automatically start
the sequence running.
Since sequences may be programmed to use more than
one monitor, all required monitors must be available. If a
sequence is already on a monitor, the operator who
loaded it originally (or an operator with a higher priority)
is permitted to load a new sequence on the monitor(s).
Others will receive an error message.
To clear a monitor sequence, press Load sequence
[Seq], then press [Enter]. Only the operator who
originally loaded it (or an operator with a higher priority)
is permitted to clear a monitor sequence. Others will
receive an error message.
If enabled, the status display area of the monitor indicates
the sequence number in the appropriate location. If no
sequence is currently loaded, 00 is displayed.
12.6.2 Run a Sequence
To run a sequence currently loaded on a monitor, press
Start Sequence [Run]. If the sequence was stopped, the
command starts sequencing. Direction of the sequencing
is indicated in the monitor status display (if enabled), by a
directional arrow and the letter R to the right of the
sequence number. If Start Sequence [Run] is pressed
while a sequence is already running, the switcher goes
immediately to the next step in the sequence. Holding
down Start Sequence [Run] produces a quick-scan
effect. If Start Sequence [Run] is depressed when no
sequence is loaded, an error results. If the monitor is in
alarm, Start Sequence [Run] controls switching of alarm
video rather than a loaded sequence.
12.6.3 Stop a Running Sequence
To stop a sequence that is currently running, press Hold
Sequence [Hold]. The monitor status display now shows
a S to the right of the sequence number. If the sequence
is already stopped, pressing Hold Sequence [Hold] has
no effect. If no sequence is currently loaded, pressing
Hold Sequence [Hold] results in an error condition. If
the monitor is in alarm, Hold Sequence [Hold] stops the
alarm switcher rather than a loaded sequence.
EN | 38
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
12.6.4 Controlling Sequence Direction
The direction of a sequence can be set to run either
forward or reverse. It is also possible to manually step
forward or reverse through a stopped sequence. These
actions work as follows:
If Next Sequence Step [Next] is pressed with the
sequence in the stop state, the sequence switches forward
and remains stopped. If the sequence is running when
Next Sequence Step [Next] is pressed, it immediately
goes to the next step and continues to run. The same is
true for the Previous Sequence Step [Prev] button, but
in the reverse direction. If either Next Sequence Step
[Next] or Previous Sequence Step [Prev] is held down,
quick-scan switching at a rate of approximately two steps
per second will take place. When sequences are first
loaded, their direction defaults to forward.
If Previous Sequence Step [Prev] is pressed while a
camera sequence is running, it reverses the sequence. If
Previous Sequence Step [Prev] is pushed while in a
hold mode, and the display is showing the forward
prompt, the first push changes the direction only, and a
second push then switches to the previous step. The same
is true for Next Sequence Step [Next], in the opposite
direction. The monitor status display shows an arrow
pointing either up or down to indicate the sequence
direction. The arrow will be to the right of the sequence
number, either above or below the sequence run R or
stopped S indicator. If the monitor is in alarm, Previous
Sequence Step [Prev] and Next Sequence Step [Next]
control the alarm switcher rather than the loaded
sequence.
If no sequence is loaded, pressing Next Sequence Step
[Next] or Previous Sequence Step [Prev] automatically
steps the switcher through the camera numbers in
numerical order.
12.7
Sequence Programming
12.7.1 Programming a Simple Camera Sequence
The Allegiant system has very powerful sequencing
capabilities. Using a system keyboard, it is possible to
enter sequences to run on a single or on multiple
monitors. As long as valid camera and monitor numbers
are used, they can be entered into a sequence randomly.
More powerful features are available when sequences are
programmed via the PC-based LTC 8059 MCS, including
receiver/driver activation as part of a sequence step.
Sequence programming is only limited by the amount of
CPU memory reserved for storing the sequence steps.
The current limit for these Allegiant models is 3000 steps.
Comparing a sequence to a spreadsheet, a simple
sequence would consist of 3 columns as follows:
CAMERA
1
2
3
4
5
MONITOR
1
1
1
1
1
DWELL
2
2
2
2
2
Sequence programming is best described by going
through the above example. To enter the programming
mode, press Program Sequence [Prog]. Enter an
available sequence number (1 to 60 for these Allegiant
models), then press [Enter]. The on-screen monitor
display changes to the following format:
1st Line =
Camera (Ignore)
2nd Line = >C0001<
S0001
L0001 Time (Ignore)
M001
D02
Date (Ignore)
The top line of the display always indicates the current
step being viewed in the S0001 Section. The total length of
the sequence is displayed in the L0001 Section.
When programming a new sequence, the camera number
that was being viewed before entering the programming
mode is automatically placed between the > < prompts,
as in C0001 above. Now enter the 1st camera of the
sequence into this position. If the camera number is
correct, no action is necessary. If not, enter the desired
camera number via the keypad, and press [Enter].
Bosch Security Systems | December 8, 2004
EN | 39
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard Operation
Using the joystick, move RIGHT one step. The prompts
will shift over to the monitor number shown in the
example as M001. The monitor that was being controlled
by the keyboard before entering the programming
mode is defaulted to this position. If correct, no action is
necessary. If not, enter the desired monitor number via
the keypad, and press [Enter].
Move RIGHT again. The prompts now shift over to the
dwell time shown in the example as D02. The default
dwell time for a new sequence is always 2 seconds. If a
different dwell period is desired, change the value to any
number between 1 and 60. One line is now complete.
Press Next Step [Next] to add a second line. The camera
number automatically increments, while the monitor
number and dwell remain the same as the first line. Since
this line is correct, no change is necessary and Next Step
[Next] may be pressed 3 more times until line 5 is
reached. The joystick can be used to move around within
the spreadsheet, but only the Next Step [Next] key can
add new lines.
Continue entering camera, monitor, and dwell times in
this fashion, until finished.
If you only want to store the sequence for future use and
then exit the programming mode, press Exit / Save
[Prog]. Press Exit / Run [Run], to exit the
programming mode, store the sequence into memory,
and start the sequence running. The switcher steps
through the 5 steps in the order shown, and repeats the
sequence when it reaches the last step. To program a
sequence to run once through all its steps and then stop,
enter the value 62 for the dwell time in the last step and
press [Enter]. The dwell display will change to STP,
meaning stop. To program a sequence to run once
through all its steps and then unload itself, enter the value
63 for the dwell time in the last step, and press [Enter].
The dwell display will change to ULD, meaning unload.
Bosch Security Systems | December 8, 2004
To edit an existing sequence, press Program Sequence
[Prog], enter the existing sequence number, then press
[Enter]. You can insert a line into a sequence by
navigating down to the line where inserting a new line,
and press Insert Step [ON]. A new line identical to the
one you are on is added to the next step. To delete a step,
navigate to the line to be deleted, and press Delete
Current Step [OFF]. To delete all steps below the line
you are viewing, press Delete From Here To End
[Lock]. (Be careful with this feature!)
It is also possible to erase a sequence:
Press Delete From Here To End [Lock] while on the
first line of the sequence. Then press Delete Current
Step [OFF]. The sequence will be erased, and the
programming mode is automatically exited.
12.7.2 Programming a SalvoSwitching
Camera Sequence
A SalvoSwitching sequence can be used to switch a group
of monitors simultaneously as a synchronized group. To
program a Salvo sequence, enter the programming
mode as described above for a simple camera sequence.
By definition, Salvo sequencing involve more than one
monitor. An example of a simple Salvo sequence that
switches cameras on three monitors simutaneously is
shown below:
CAMERA
1
2
3
7
8
9
21
22
23
MONITOR
1
2
3
1
2
3
1
3
3
DWELL
SLV
SLV
2
SLV
SLV
2
SLV
SLV
2
In general, follow the instructions used for the simple
camera sequence (described above), but instead of
entering a number of seconds for steps that must switch
instantly, enter 61 and press [Enter]. This causes the
switcher to automatically change to the salvo abbreviation
SLV. Dwell time (in seconds) is entered only when you
reach the step containing the last monitor that will be
switched within the synchronized group.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.0 KEYBOARD USER
FUNCTIONS
13.1
General
User functions are keyboard operations which are used
infrequently, but provide important system options. These
functions are listed below.
NOTE: Certain functions are restricted to certain user
priority levels. Information on user priority levels can be
found in Section 10, USER INFORMATION. To execute
these user functions, select the desired function, and
follow the steps below.
For IntuiKey Keyboards:
1. From the main Allegiant screen, press User
Functions (softkey).
2. Use Previous or Next to navigate to the desired
function.
3. Press the desired softkey.
Bosch Security Systems | December 8, 2004
EN | 40
For LTC 8555 Series Keyboards:
1. Press USER and verify the indicator lights.
2. Using the numeric keypad, enter the desired user
function number.
3. Press [Enter]. Note that the keyboard camera
display shows F followed by the selected function
number.
4. Follow the directions for the specific user function
(described in its section, herein). In many cases,
the joystick is used to select options
5. Press USER to exit back to normal mode.
EXAMPLE: USER 2 ENTER
The above example accesses User Function #2 as
described in THIS SECTION.
EN | 41
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
Fn#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
99
Joystick
Up/Down
n/a
n/a
n/a
Up/Down
Brightness
Time/Date ON/OFF
Set
Set
Set
n/a
Select
n/a
Select
n/a
n/a
Select
Set
Select
Select
Select
Select
Select
n/a
Up/Down
Brightness
Time/Date
Keyboard Login
Console Login
Default Parameters
Console Parameters
Printer Parameters
n/a
n/a
Select
Camera No.
Select
Select
Select
Select
n/a
Select
Select
n/a
Select
Joystick
Left/Right
n/a
n/a
n/a
Left/Right
Msg vs. Stat
Overlay ON/OFF
Select
Select
Select
n/a
n/a
n/a
n/a
n/a
n/a
Enable/Disable
Select
n/a
n/a
n/a
n/a
n/a
n/a
Left/Right
Msg vs. Stat
Overlay
Select
Select
Select
Select
Select
n/a
n/a
n/a
Enable/Disable
Enable/Disable
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
Bosch Security Systems | December 8, 2004
Access Level
Function Description
Local keyboard test
Show keyboard port number
Select keyboard beeper ON/OFF
Adjust position of monitor display
Monitor display brightness / status selection
Select monitor display option
Set time
Set date
Set camera ID
Change user password
Select time/date format
Default all monitor overlays
Print configuration tables to system printer
Reserved
Reset system (password required)
Time event enable/disable
Set monitor ID
Print sequence
Select alarm response (password req’d)
Select printer verbosity
Designate alarm monitor type (password)
Select control code format (fixed/variable)
Display CPU software version number
Set positions on all monitor displays
Set brightness on all monitor displays
Set display option on all monitors
Select keyboard login
Select console login
Default RS-232 parameters
Set console RS-232 parameters
Set printer RS-232 parameters (LTC 8300 only)
Reserved
Display user number and priority
Camera indicator
Controllable cameras
Select crosspoint data
R/D addresses mode
Printer port mode
Select DIU interface port
Vertical sync adjust
Cache remote Cameras
Keyboard login auto-off mode
CPU battery status
Use functions index
1
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
—
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
—
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
2-7
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
N
N
—
N
N
N
N
N
N
N
N
Y
Y
Y
Y
N
N
N
N
N
—
Y
N
N
N
N
N
N
N
N
N
Y
Y
8
Y
Y
Y
N
N
N
N
N
N
Y
N
N
N
—
N
N
N
N
N
N
N
N
Y
N
N
N
N
N
N
N
N
—
Y
N
N
N
N
N
N
N
N
N
Y
Y
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.1.2
User Function 1 Local Keyboard Test
User Function 1 can be used as a local test to ensure
that all the keyboard LEDs and switches are working.
This function automatically calibrates the center position
of the analog joystick on LTC 8555 keyboards. Upon
entering this test, the keyboard will beep and all LEDs
will light for about two seconds. The USER should note
if there are any LED failures.
Each key may be pressed to display a unique code
number associated with that key. Follow the TABLE
below to ensure that all keys are properly being
processed by the keyboard. Push USER last, as this
causes the keyboard to exit the test mode.
If the logon system feature has been selected by the
system installer, the same local test may be initiated
while the keyboard is not ON LINE by pressing *.
Key
No.
IRIS UP
044
IRIS DOWN
045
FOCUS UP
042
FOCUS DOWN
043
1
ZOOM CLOCKWISE 041
1
ZOOM COUNTER
040
CLOCKWISE
ALARM
004
USER
000
SEQUENCE
032
HOLD
036
RUN
033
PREVIOUS
035
NEXT
034
#1
010
#2
018
#3
026
#4
011
#5
019
#6
027
Key
CAMERA
MONITOR
ACKNOWLEDGE
PROGRAM
SET
SHOT
OFF
ON
*
LOCK
#7
#8
#9
CLEAR
#0
1
ENTER
1
UP
1
RIGHT
1
DOWN
1
LEFT
1
No.
024
008
005
002
001
009
025
017
016
003
012
020
028
037
013
029
052
051
050
053
Keyboard tests show a speed indicator value in the first digit position
when performing pan, tilt, or zoom actions.
Bosch Security Systems | December 8, 2004
EN | 42
13.1.3
User Function 2 Show Keyboard Port Number
User Function 2 may be used to identify which
port a keyboard is plugged into. After entering
User Function 2, read the keyboard port number
from the monitor display on the keyboard. If using
the LTC 8555 Series keyboard, press [User] to exit.
13.1.4
User Function 3 Select Keyboard Beeper ON/OFF
When User Function 3 is selected, the keyboard user
may enable/disable the keyboard audio beeper. If
using the LTC 8555 Series keyboard, press [ON] to
enable the beeper or [OFF] to disable it. Press [User]
to exit. Upon power up of the keyboard and whenever
the Allegiant system undergoes a reset, this setting is
set to [ON].
13.1.5
User Function 4 Adjust Position of Monitor Overlay
User Function 4 allows the characters on the video
monitor display to be positioned from the keyboard.
Only the display on the monitor that the keyboard is
currently connected to is effected.
If using the LTC 8555 Series keyboard, use the joystick
to position the display as required. Press [Enter] to
store the position. Press [User] to exit.
13.1.6
User Function 5 Monitor Display Brightness / Status Selection
The white portion of the characters on the video
monitor display may be made brighter or dimmer by
the User Function 5. Only the display on the monitor
that the keyboard is currently connected to is effected.
After entering the mode, there are four possible
settings. If using the LTC 8555 Series keyboard, moving
the joystick up increases the brightness, and moving it
down decreases the brightness.
The User Function 5 also permits selection of either
the status display or a 12-character monitor message
to appear in the first line of the monitor display. The
status display indicates alarm, sequence, and lockout
information regarding the monitor. The monitor
message is a stationary display. This means the display
will not change as video is switched from camera to
camera on the monitor. After entering the mode, move
the joystick left to select monitor message format, and
right to select status format. If using LTC 8555 Series
keyboard, to exit the mode, press [User].
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.1.7
User Function 6 Select Monitor Display Option
User Function 6 allows the user to remove the time
and date (the left side of the display), or the entire
display from the individual monitor. If using the
LTC 8555 Series keyboard, move the joystick down to
blank the time and date from the screen. This is
sometimes desirable when a VCR with its own time
and date is being used. Move the joystick up to add
the time and date back.
Move the joystick left to blank the left side portion of
the display from the monitor, and right to return it.
Refer to User Function 5 to verify brightness level.
Press [User] to exit the mode.
13.1.8
User Function 7 Set Time
User Function 7 enables operator setting of the time
displayed on all system monitors. After entering the
mode, use the joystick select hours, minutes, or seconds
in an edit line (displayed on the monitor screen). If
using the LTC 8555 Series keyboard, moving the
joystick up or down counts the data item up or down;
moving right or left selects between data items. NEXT
is used to set the seconds to zero. If NEXT is pressed
when the seconds are over 30, the minute count
(shown on the operating clock display) is incremented.
If NEXT is pressed when the seconds are under 30,
the minutes are left unaffected. Press [Enter] to update
the time displayed on all system monitors, and press
[User] to exit the mode.
13.1.9
User Function 8 Set Date
User Function 8 enables the operator to set the date
displayed on all system monitors. If using the LTC 8555
Series keyboard, the joystick is used to select the day,
month, or year in an edit line (displayed on the monitor
screen). Move the joystick up or down to count the data
item up or down; move right or left selects between the
data items. If using the LTC 8555 Series keyboard, press
[Enter] to update the date displayed on all system
monitors. Press [User] to exit the mode.
13.1.10 User Function 9 Set Camera ID
User Function 9 permits entry of a 16-character
camera identification message. This message appears
on the video monitor display whenever the specific
camera is called up for viewing. If desired, this
message can be used to identify the particular scene
being viewed. Refer to Section 15, the CHARACTER ROM
Bosch Security Systems | December 8, 2004
EN | 43
TABLES for the various characters available. After
entering the mode, users with priority level 1 can use
the joystick to move right or left to select the character
to be changed. The selected character will be identified
by a box with a question mark inside it. The first line
of the video monitor screen indicates the code number
of the character selected. Move the joystick up or
down to step through the Character ROM table, or
enter the character’s number (as identified in the
tables) via the numeric keypad, and press [Enter].
Once the title has been set, press [Enter] to store it to
memory. If using the LTC 8555 Series keyboard, press
[User] to exit the mode.
13.1.11 User Function 10 Change USER Password
User Function 10 allows an operator to change system
access passwords. This feature is only required in
systems where the system installer has enabled
keyboard login and the password security feature.
After entering the mode, the video monitor display
prompts for the current password OLD PASSWORD.
Enter the current user password via the numeric
keypad, and press [Enter]. If the system does not
accept the old password, the system reamins at this
prompt. If the entered password is valid, the display
changes to the NEW PASSWORD prompt for entry
of the new password (up to 6 numerals) via the
numeric keypad, then press [Enter]. Leave this step
blank if no password is desired. If none is used, at
logon, press [Enter] at the P prompt. To safeguard
against typographical errors, the system prompts
VERIFY PASSWORD requiring reentry of the new
password. If the entered passwords do not agree, the
system prompts for reentry and verification of the new
password. If the two password entries agree, the video
monitor prompt indicates PASSWORD UPDATED.
Press [User] to exit the mode.
13.1.12 User Function 11 Select Time / Date Format
User Function 11 can be used by priority level 1 to
select time and date format used throughout the
system. The 2 formats of time available are - 12-hour
mode and 24-hour mode. The date is available in a
MM-DD-YY format (U.S.), a DD-MM-YY format
(Int’l), and a YY-MM-DD format (Asian). After
entering the mode, move the joystick up or down to
select the desired format. If using the LTC 8555 Series
keyboard, press [Enter] to convert the system to the
format chosen, then press [User] to exit the mode.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.1.13 User Function 12 Default All Monitor Overlays
User Function 12 can be used by users with the
priority level 1, to reset all monitor overlays to default
characteristics; bottom center of screen, and full
brightness. After entering the mode, press [Enter] to
reset all monitor overlays. If using the LTC 8555 Series
keyboard, press [User] to exit.
13.1.14 User Function 13 Print System Configuration Tables
Users with priority level 1 can use this function to print
the contents of the various tables programmed. Move
the joystick up and down to select a table, then press
[Enter] to send it to the printer port. If using the
LTC 8555 Series keyboard, press [User] to exit.
13.1.15 User Function 14 Reserved Function
13.1.16 User Function 15 System Reset
The system may be reset from the keyboard by users
with priority level 1. After entering this mode, the
video monitor screen indicates RESET SYSTEM.
Enter the password via the numeric keypad, and
press [Enter]. The system will then reset. If using the
LTC 8555 Series keyboard, press [User] to exit the
mode without resetting the system.
NOTE: The system should be reset whenever a change
is made on the main CPU module’s DIP switches.
Alternatively, the main power to the CPU bay may be
switched off for 10 seconds, then restored. Depending
on the size and complexity of the system, several
seconds may be required before operation is restored.
This time is due to the amount of initialization tasks
being performed, and is considered normal.
13.1.17 User Function 16 - Time Event
Enable/Disable
Users with priority level 1 can use this function to
enable or disable any of the programmed time event
functions. Up to 64 time event functions can be
programmed with the optional LTC 8059/00 MCS for
Windows, or the LTC 8850/00 GUI software. Moving
the joystick up and down steps through a table of the
64 time events. If an event has been programmed,
moving the joystick to the right enables the event, and
to the left disables it. The current status of an enabled
time event is displayed by this user function.
Bosch Security Systems | December 8, 2004
EN | 44
13.1.18 User Function 17 Set Monitor ID
User Function 17 can be used by users with the
priority level 1, to enter a (12-character) monitor
identification message for display in the top line of the
monitor overlay display on any system monitor(s).
This monitor title will be visible on the display
regardless of the camera currently being viewed. This
message can be used to identify the particular monitor
or a group of cameras assigned to this monitor. Refer
to Section 15, CHARACTER ROM TABLES, for the
available characters. After entering the mode, the
joystick is moved right or left to select the character to
be changed. The selected character is identified by a
box with a question mark inside it. The first line of the
video monitor display indicates the code number of the
character selected. Move the joystick up or down to
step through the Character ROM Table, or enter the
character’s number identified in the Tables via the
numeric keypad, then press [Enter]. Once the monitor
title has been set, press [Enter] to store it to memory.
If using the LTC 8555 Series keyboard, press [User]
to exit the mode. The user may select between this
monitor message and the status display by using
the User 5 Function described above.
13.1.19 User Function 18 Print Sequence
Use this function to print the contents of a
programmed sequence. Users with priority level 1 can
use the joystick to select the desired sequence, then
press [Enter] to print it to the printer port. Only those
sequences currently existing in memory will be shown
in the list. If using the LTC 8555 Series keyboard, press
[User] to exit.
13.1.20 User Function 19 Select Alarm Response
Users with the priority level 1 can use this function to
reset the system alarm configuration tables to one of
these predefined alarm response modes: BASIC,
AUTOBUILD, or SEQUENCE & DISPLAY. Move
the joystick up or down to select the desired mode,
then enter your user password on the numeric keypad,
and press [Enter] to update the alarm system. If using
the LTC 8555 Series keyboard, press [User] to exit.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.1.21 User Function 20 Select Printer Verbosity
Priority level 1 users can use this function to select
between print modes; Limited Printing and Full
Printing. This selection determines the amount of
information printed during alarm processing. Both
modes print alarm activation and deactivation
messages, but Full Printing goes into much more
detail. Use the joystick to select the desired mode, then
press [Enter]. If using the LTC 8555 Series keyboard,
press [User] to exit without changing the print mode.
13.1.22 User Function 21 Designate Alarm Monitor Type
Priority level 1 users can use this function to designate
the monitor currently controlled by the keyboard as
either a STEP monitor or a REVIEW monitor. This
function can only be used in the predefined
SEQUENCE & DISPLAY alarm response mode (see
Section 11, ALARM INFORMATION) to select which
monitor is the STEP (also called SEQUENCE)
monitor, and which is the REVIEW (also called
DISPLAY or CONTROL) monitor. To designate a
monitor as the STEP or REVIEW monitor, enter
User Function 21, then move the joystick up or down
to select the monitor type. Enter your password on the
keyboard and press [Enter]. If using the LTC 8555
Series keyboard, press [User] to exit. After selecting
new STEP and REVIEW monitors, the previous ones
may be disarmed (see Setion 12.5.3, Arm/Disarm Monitor
instructions).
13.1.23 User Function 22 Select Control Code Format
This function designates whether variable speed
pan/tilt and zoom commands are enabled (Factory
Default Setting). In most cases, there is no need to
disable this function. If it becomes necessary to enable
or disable variable speed operation, users with priority
level 1 have this capability. Move the joystick up or
down to select the desired setting, then press [Enter]. If
using the LTC 8555 Series keyboard, press [User] to
exit.
13.1.24 User Function 23 Display CPU Software Version Number
Users can use this function to display the revision
number of the Allegiant’s CPU software on the
monitor screen.
Bosch Security Systems | December 8, 2004
EN | 45
13.1.25 User Function 24 Set Positions on All Monitor Displays
This function is similar to User Function 4, except it
changes the monitor display positions of all monitors
in the system.
After entering User Function 24, use the joystick to
position the display as required on the monitor
controlled by the keyboard. Press [Enter] to store and
change all system monitor displays to this position. If
using the LTC 8555 Series keyboard, press [User] to exit.
13.1.26 User Function 25 Set Brightness on All Monitor Displays
This function is similar to User Function 5, except it
changes the monitor display brightness of all monitors
in the system.
The white portion of the characters on the video
monitor displays may be made brighter or dimmer via
the User Function 25. Move the joystick up to
increase brightness, or down to decrease brightness.
Once the display on the monitor that the keyboard is
currently controlling is adjusted, press [Enter] to
change all system monitors to the same setting. Press
[User] to exit the mode.
The User Function 25 mode can also select either the
status display or a 12-character monitor message to
appear in the first line of the monitor display. The
status display indicates alarm, sequence, and lockout
information regarding the monitor. The monitor
message is a stationary display; the display will not
change as video is switched from camera to camera on
the monitor. After entering the mode, move the
joystick left to select the monitor message format, or
right to select the status format on the monitor the
keyboard is controlling. Press [Enter] to change all
system monitors to the same setting. If using the
LTC 8555 Series keyboard, press [User] to exit.
13.1.27 User Function 26 Set Display Option On All Monitors
This function is similar to User Function 6, except it
selects the monitor display option of all monitors in
the system. The User Function 26 mode allows
removal of the time and date, the left side of the
display, or to remove the entire display from the
system monitors. Move the joystick down to blank the
time and date from the screen. This is sometimes
desirable when a VCR with its own time and date is
being used. Move the joystick up to add the time and
date back again.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
Move the joystick left to blank the left side of the
display from the monitor and right to return it. Refer
to User Function 5 or 25 to verify brightness level.
Press [Enter] to update all system monitors to the
selected format. If using the LTC 8555 Series keyboard,
press [User] to exit.
13.1.28 User Function 27 Select Keyboard Login
This function controls the system’s keyboard login
feature. Move the joystick up or down to select the
mode for the system to function in. If the login feature
is enabled (MUST USE KBD PWD is selected), the
system keyboards require each user to login and logoff
the system. All users are required to enter a user
number and correct password to interact with the
system. If the login feature is disabled (NO KBD
PWD LOGIN is selected), system keyboards are
always online with the system.
Once selection is made, exit the User Function mode
and reset the system either via keyboard User Function
15, or by removing and restoring the main AC power
to the system. Once the system has been reset, the
keyboard login function will be active and all system
keyboards will need to be logged in to access the
system.
13.1.29 User Function 28 Select Console Login
This function controls the system’s external
Console port login feature. After entering the mode,
move the joystick up or down to select the mode in
which the system should function. If the login feature
is enabled (MUST USE CON PWD is selected), any
external PC or other computing device will be
required to login to communicate with the system.
External computing devices are required to enter a
user number and correct password. If the Console
login feature is disabled (NO CON PWD LOGIN is
selected), the Console port is available for
communication.
Once the selection is made, exit the User Function
mode and reset the system, either via keyboard
User Function 15 or by removing and restoring the
main AC power to the system. Once the system has
been reset, the Console login function is active, and
all external computing devices need to login to access
the system.
Bosch Security Systems | December 8, 2004
EN | 46
13.1.30 User Function 29 Reset RS-232 Parameters to Default
This function returns the system’s external
RS-232 ports to a known default state. After entering
the mode, enter a valid password. The system will
reset after placing the RS-232 protocols back to the
default state. Refer to the Section 9, FACTORY
DEFAULT SETTINGS for additional information.
13.1.31 User Function 30 Set Console RS-232 Parameters
Priority level 1 users can select the RS-232 baud rate
and handshake options for the system’s Console port,
via this function. Upon entry to this mode, the current
settings are displayed. Move the joystick up/down to
select the baud rate, and left/right to select the
handshake option. After being changed, the port is
also automatically set to eight data bits, no parity, and
one stop bit. Once new settings have been selected,
enter the user password and press [Enter]. If using
the LTC 8555 Series keyboard, press [User] to exit.
13.1.32 User Function 31 Set Printer RS-232 Parameters
Priority level 1 users can select the RS-232 baud rate
and handshake options for the LTC 8300 system’s
Printer port, via this function. Upon entry to the mode,
the current settings are displayed. Move the joystick
up/down to select the baud rate, and left/right to select
the handshake option. After being changed, the port is
also automatically set to eight data bits, no parity, and
one stop bit. Once new settings have been selected,
enter the user password and press [Enter]. If using the
LTC 8555 Series keyboard, press [User] to exit.
13.1.33 User Function 32 Reserved Function
13.1.34 User Function 33 Display User Number and Priority
This function displays the current user’s number and
priority level on the monitor screen. The user number
will be displayed on the top line and the user’s priority
level will be displayed on the bottom line of the
monitor screen. If using the LTC 8555 Series keyboard,
press [User] to exit.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Keyboard User Functions
13.1.35 User Function 34 Camera Indicator
Priority 1 users can use this function to enable an onscreen indicator to identify a pan/tilt equipped camera.
Move the joystick up or down to select DISP CAM
CONTROL or NO CAM CONTL DISPL. Press
[Enter] to activate your selection. When enabled,
cameras identified as controllable (via User Function
35 or the optional PC software package), show a ↔ in
the middle of the first line of monitor text.
13.1.36 User Function 35 Controllable Cameras
Priority 1 users can use this function to select camera
sites equipped with pan/tilt devices. Move the joystick
up or down to select the camera number, and left or
right to select FIXED or MOVABLE. User Function
34 or the optional PC software package enables or
disables the display of the controllable camera
indicators on the system monitor displays.
13.1.37 User Function 36 Select Crosspoint Data
Priority 1 users can use this function to select options
for accessory device data that can be sent out the
biphase control port. Move the joystick up or down to
select XPOINT DATA, ALARM XPOINT, or
PHYSICAL CAMERA NUMBER, and left or right
to enable/disable the selected option. These options
need only be enabled when Switcher Follower
accessory devices are being used in the system.
13.1.38 User Function 37 R/D Address Mode
Priority 1 users can use this function to select whether
the biphase control data commands will be addressed
using the cameras’ logical numbers or physical
indexes in the camera table. Move the joystick up or
down to select LOGICAL or PHYSICAL and press
[Enter] to activate your selection. If this option is set
to LOGICAL, receiver/drivers should be addressed
using the cameras’ logical identification number. If
it is set to PHYSICAL, receiver/drivers should be
addressed using the cameras’ physical number.
13.1.39 User Function 38 Printer Port Mode (LTC 8300 Series only)
This function allows configuration of the system’s
PRINTER port, for use with a Console Port Expander
accessory device. Priority 1 users can move the joystick up
or down to select the Printer port function; NORMAL or
EXPANDED. Press [Enter] to activate your selection.
You must reset the system for this setting to take effect.
Bosch Security Systems | December 8, 2004
EN | 47
13.1.40 User Function 39 –
Select DIU Interface Port
Priority 1 users can use this function to select the
switcher’s interface port to be connected to an external
Allegiant Bilinx Data Interface unit accessory unit.
Move the joystick up or down until the desired port
for use as a data interface (DIU) is displayed. Press
[Enter] to configure the port. If using the LTC 8555
keyboard, press [User] to exit the mode.
13.1.41 User Function 40 Vertical Sync Adjust
Priority 1 users can use this function to synchronize the
vertical switching action of the switcher to the camera
currently selected on the monitor. Press either [NEXT]
or [PREVIOUS] to synchronize the phase delay of the
system to the camera signal. The system may
temporarily stop functioning for 1 or 2 seconds while
the adjustment is being made. The current phase delay
setting will be displayed on the bottom line of the
monitor text.
13.1.42 User Function 41 –
Cache Remote Cameras
This function is only applicable to Allegiant Satellite
systems that employ a multi-level cascaded system
configuration. Priority 1 users can eliminate generation
of repetitive Satellite commands (that could cause
undesirable operation) by disabling the remote camera
cache feature using this function. After entering the
mode, move the joystick up or down to select the
desired option. Enter a valid password, and press
[Enter]. After a change is made, the system must be
reset either via User Function 15 or by temporarily
removing AC power to the unit.
13.1.43 User Function 42 –
Keyboard Login Auto-off Mode
Priority 1 users can use this function to select a keyboard
logoff feature to automatically log a keyboard off after a
preselected time of inactivity. After entering the mode,
move the joystick up or down to select the desired time
period. Enter a valid password, and press [Enter]. If using
the LTC 8555 keyboard, press [User] to exit the mode.
13.1.44 User Function 43 –
CPU Battery Status
Use this function to view the condition of the batteries
used to backup CPU memory. Once the function is
entered, the condition is displayed on the monitor text
display. If using the LTC 8555 keyboard, press [User] to
exit the mode.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Maintenance Information
13.1.45 User Function 99 - User Function Index
This function is an index listing of all Keyboard User
Functions. Move the joystick up or down to view an
abbreviated description of the function number
currently shown in the first line of the monitor display.
14.0 MAINTENANCE INFORMATION
THE ALLEGIANT SYSTEM IS DESIGNED TO
PERFORM FOR LONG PERIODS OF TIME
WITH LITTLE OR NO MAINTENANCE.
OCCASIONALLY, KEYBOARD CLEANING
OR CPU BATTERY REPLACEMENT MAY
BE NECESSARY. INSTRUCTIONS ARE
PROVIDED IN THIS SECTION.
14.1
Cleaning the Keyboard
The keyboard may be cleaned when necessary, by
temporarily removing it from the system and wiping it
with a damp cloth. If a conventional spray cleaner is
required, spray the cloth first, then wipe off the surfaces.
Do not use petroleum-based cleaners or those containing
benzene, triclorethylene, ammonia or acetone, which
could damage plastic surfaces.
14.2
Replacement of Memory Backup
Batteries
The circuit board’s lithium batteries only require attention
when replacement is necessary. The batteries enable
RAM memory to retain its contents for up to a year
without the unit being powered. Since these batteries are
not used while the AC power is on, several years of
service should be expected before replacing them is
necessary.
When the batteries have reached the end of their useful
life, the Time and Date portion of on-screen monitor
displays alternate with ?? ?? ??. This display informs the
user that the CPU batteries must be replaced. The front
panel of the unit must also provides LED indication of a
low battery condition.
The memory backup batteries are located on the CPU
module. Refer to the INSTALLATION PROCEDURE,
Section 6 for information on removing the unit cover to
access the CPU module.
Bosch Security Systems | December 8, 2004
EN | 48
The two batteries are mounted on the left edge of the
circuit board. Insert a small flat-blade screwdriver into the
slot on one of the battery holder sockets and gently pry
the battery from the holder until it can be removed by
your fingers. Replace the old battery with the new battery
by lifting the retaining clip up while inserting the battery
into the socket. Ensure that the negative side of the
battery contacts the socket by seating the battery until it is
somewhat flush with the battery holder. Repeat this
procedure for the other battery.
Reprogramming of the system’s time and date and
sequences must now be reentered. Other systemprogrammed data (camera titles, alarm configurations,
user lockout data etc.), are stored in nonvolatile memory,
and should be unaffected.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Character ROM Tables
EN | 49
15.0 CHARACTER ROM TABLES
(continued on next page)
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Error Messages
Bosch Security Systems | December 8, 2004
EN | 50
EN | 51
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Error Messages
16.0 ERROR MESSAGES
Error
Error
Description
The camera number entered from the
Error 01 Invalid camera request keyboard does not exist. If using the
optional LTC 8059/00 MCS or the
LTC 8850/00 GUI software, ensure that
the number exists in the Camera
Identification table. Download the table to
be sure.
Description
Error 20 Acknowledge denied
ACKNOWLEDGE has been
pressed by a user without authority
to acknowledge alarms.
The monitor number entered from the
Error 02 Invalid monitor request keyboard does not exist. Enter a valid
monitor number.
Error 21 Incorrect acknowledge
To properly acknowledge an alarm
event, the keyboard must be
switched to a monitor that is
displaying the alarms.
Error 03 Locked remote device
The remote device requested cannot be
controlled because it is locked by a user
with equal or higher priority. Check with
the other users or request that a higher
priority user unlock the remote device.
Error 22 Acknowledge disabled
Alarms on this monitor cannot be
acknowledged because that
capability has been disabled by the
system programmer.
Error 04 Monitor locked
The monitor requested cannot be accessed
because it is locked by a user with equal or
higher priority. Check with the other users
or request that a higher priority user
unlock the monitor.
Error 23 Camera not in alarm
The camera displayed on the
monitor is not an alarm video;
only alarm-generated video can be
acknowledged.
Error 05 Remote device
access restricted
Remote is locked out by Remote Lock Out
table.
Error 24 Keyboard not enabled for
acknowledge
This keyboard may not
acknowledge alarm video on this
monitor; it has been disabled by
the system programmer.
Error 06 Monitor access
restricted
Monitor is locked out by Monitor Lock
Out Table.
Error 25 Alarm switcher running
Alarm video may only be
acknowledged if the alarm switcher
is not running; press HOLD to
stop the switcher.
Error 10 Access denied
A function was requested that requires a
higher user priority. Only a Priority 2 user
or a supervisor with Priority 1 may access
this function.
Error 50 SEQUENCE not available
The user tried to load a switcher
sequence that does not exist. This
is a good way to tell from the
keyboard, which sequence
numbers are unused when desiring
to add one.
Error 51 SEQUENCE not available
A request was made to load an
ABSOLUTE sequence without the
keyboard being on one of the
monitors in that sequence. Because
inadvertent loading of monitors
should be avoided, the user is
required to switch his keyboard to
one of the monitors used by the
sequence. The PROGRAM mode
may be used to review which
monitors are used in the sequence.
Error 11 Access denied
A function was requested for which your
user priority is too low. Only a supervisor
with Priority 1 may access this function.
Error 52 SEQUENCE request
A request was made to load a
RELATIVE sequence on a
monitor number that is too high.
The monitors used by the
sequence would extend past the
highest monitor. Try switching to a
lower monitor number before
loading the sequence.
Error 15 Invalid user function
The function number requested from the
keyboard is invalid. Refer to the User
Function table for a listing of the valid
user function numbers.
Error 53 Switcher empty
The user has tried to control a
sequence using NEXT, PREV,
RUN, or HOLD without a
sequence having been loaded.
Bosch Security Systems | December 8, 2004
EN | 52
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Error Messages
Error
Description
Error
Description
Error 55 SEQUENCE priority
The switcher sequence being requested or
cleared requires monitors that are in use by
a user of equal or higher priority. Contact a
user with higher priority, or have the
system administrator clear the monitors in
question.
Error 80 Trunk not available
An attempt was made to access a
remote camera connected to a
satellite system, but no unused
trunk lines are currently available.
Error 56 SEQUENCE request
The user has tried to load a sequence that
is being edited in the PROGRAM mode.
Once editing has been completed, the
sequence may be loaded.
Error 81 Satellite Trunk Siezed
The camera currently viewed has
changed because an operator with
a higher priority has selected a
different camera that seized the
trunk line from the satellite.
Error 58 SEQUENCE request
The sequence being requested is a Relative
sequence, and the user is only permitted
access to Absolute sequences.
Error 89 Internal stack error
A stack overflow has occurred
within the system. Report this to
the manufacturer.
Error 60 PROGRAM request
The user has tried to program a sequence
that is currently running. The sequence
must first be stopped before any editing
can be performed.
Error 90 Keyboard entry undefined
The keyboard entry is not defined.
Check the appropriate section of
the instruction manual for the
desired operation and try again.
Error 62 PROGRAM request
The user has tried to program a new
sequence when the system is out of
sequence memory space. Delete unused
sequences and then program the new
sequence.
Error 92 - Keyboard entry out of
range
The data entered for a valid
command was not in the permitted
range. Check the appropriate
section of this instruction manual
for the acceptable ranges for the
command in question and try
again.
Error 63 PROGRAM request
Some other user is already programming a
sequence on this monitor.
Error 94 - Keyboard entry invalid An invalid character has been
received from the keyboard,
usually caused by a
communication error. Verify that
the keyboard-to-system cable is
securely connected.
Error 70 Monitor not allocated
to alarm monitor
group
This monitor cannot be used for alarm
operations; it has not been designated as
alarm-capable by the system programmer.
Error 95 - Keyboard entry
incomplete
The control sequence sent from the
keyboard was incomplete, usually
indicating a communication error.
Verify that the keyboard-to-system
cable is not producing an
intermittent connection.
Error 96 - * (STAR) undefined
The * key has been pressed, but
there is no definition for this
button.
A group of alarm monitors may not have
Error 71 Step monitor required an armed Review (display) monitor without
having armed Step (sequence) monitors.
Error 78 Must enter alarm
number
A specific alarm number must be entered
when arming or disarming an alarm.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Troubleshooting
EN | 53
17.0 TROUBLESHOOTING
Allegiant systems are designed to perform reliably for long periods of time. All circuitry consists of state of the art
components designed around a single bay concept. If troubleshooting becomes necessary, follow these guidelines:
Problem
Description/Solution
System Checkout
Front panel power LED is not lit.
• Check the main AC supply source.
Green STATUS LED on front panel is not blinking
and BATTERY LED is off.
• Remove power from unit for 30 seconds. Apply power and verify that the STATUS
LED is blinking. If still not functional, seek service.
• If Red BATTERY LED is lit, replace microprocessor board batteries. Follow
procedure outlined in Maintenance Information Section.
Keyboard Checkout
No keyboard display indicators.
• Check interconnect cable for cut or broken wires between the keyboard and the
main bay and replace cable if necessary.
• Relocate keyboard connector on the bay to another keyboard input port.
• Replace keyboard.
Keyboard indicators lit but keyboard is inoperative. • Verify that the keyboard is loggedon to the system (if logon feature is enabled).
• Check interconnect cable for cut or broken wires between the keyboard and the
main bay and replace cable if necessary.
• Relocate the keyboard connector on the bay to another keyboard input port.
• Replace the keyboard.
Limited keyboard functions.
• If possible, perform local the keyboard test described in Section 13, KEYBOARD
USER FUNCTIONS to verify operation of all keys. If this local test cannot be performed,
replace the keyboard.
• LTC 8059/00 MCS for Windows package users or LTC 8850/00 GUI software
users should refer to lockout tables to determine if the problem is related to user
restriction tables. If table settings are verified and no discrepancies are found,
replace the keyboard.
Keyboard Joystick not centered.
• If the analog joystick of the system keyboard becomes un-centered due to normal
wear, it can be recalibrated. If using the IntuiKey keyboard, go to the Keyboard
Control menu and press Joystick Auto Calibrate. If using the LTC 8555 Series
keyboard, refer to User Function 1 procedure.
Video Monitor Display Checkout
No video display on any monitor.
• Verify proper CPU operation as described above under System Checkout.
No video display on some monitors.
• Verify that an operational camera is selected on suspect monitors.
• Confirm that the monitor is operational.
• Check the monitor coax connections.
• Verify that the coax connection is to the correct monitor output on the rear of the
bay.
Poor video on monitor.
• Check the monitor for proper termination.
• Check operation of a known good camera, directly to monitor.
Partial or no on-screen alphanumeric display.
• Check user-selectable brightness feature (via User 5 Function) and then verify that
alphanumeric display has been enabled (via User 6 Function). Position the overlay
with User 4 Function.
Time and Date portion of the on-screen display
• Replace CPU batteries.
alternates with ?? ?? ??, and the LED on the front
panel indicates a low battery condition.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Troubleshooting
Problem
EN | 54
Description/Solution
Remote Receiver/Driver Functions Inoperative
All receiver/drivers and functions inoperative.
• Verify that the CODE LED indicator on the front panel lights during P/T/Z control
actions. If not, the unit requires service.
Individual receiver/driver nonoperative.
• Check the Green LED code indicator inside the receiver/driver box. If not lighting,
check shielded twisted-pair cable between the unit and receiver/driver box.
• Confirm that the camera address setting in the receiver/driver corresponds to the
camera number selected by the keyboard.
• Perform internal receiver/driver local test to verify operation its receiver/driver
circuitry and the pan/tilt/zoom wiring.
AutoDome Series cameras are not operating in a
variable speed fashion.
• Verify that CPU DIP switch 7 is selected for variable speed mode.
No Alarm Response
No system alarms are operative.
• Verify that the Alarm LED on the front panel lights when the unit is in alarm. If not,
verify that alarm programming is correctly enabled.
Individual cameras/monitors not responding when • Ensure that the desired cameras are properly armed on the appropriate armed
alarmed.
system monitors.
• Verify that the alarming device and the cable to the unit’s alarm interface connections
are intact.
Incorrect system alarm response.
• Verify that the desired alarm response mode has been selected.
• Refer to Section 13, KEYBOARD USER FUNCTIONS for instructions.
Alarms cannot be reset.
• Power off/on unit to clear all alarms. (Any alarms that re-initiate are still active.)
• Verify alarm response and user settings for alarm acknowledge authority.
• Remove alarm connections to rear of unit. If alrams are still present, investigate
possibility that alarm input polarity has been changed by the installer using “CCL”
commands.
CPU Software Version Numbers
During the system evolution, new CPU software
• Using a system keyboard, an operator with a priority level 1 can enter keyboard
versions will be released. Some troubleshooting
User Function 23. Press [User], then Enter 23 using the numeric keypad, and
cases require Factory Technical Support personnel press [Enter].
to ask for the version of the CPU. To obtain a CPU
• The CPU version number will be displayed on the overlay of the monitor currently
software version:
being controlled by the keyboard. Record this number for future reference.
Bosch Security Systems | December 8, 2004
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Glossary of Terms
18.0
EN | 55
GLOSSARY OF TERMS
Term
Definition
AUXILIARY
An auxiliary is an additional function of the remote receiver/driver which permits on/off control of outputs
available to the user. In the Allegiant system, four relay outputs are available, which can be configured for
contact closures, 24 VAC output, or LINE voltage output. Additionally they can also be set to activate either
momentarily, or in a latching mode.
COMMAND SCRIPT
A unique feature of the Allegiant system wherein a section of nonvolatile memory can be used to store
specialized factory programming. This program then provides custom features, not ordinarily obtainable.
DITHER
A receiver/driver feature providing added protection to very low light level cameras, by periodically panning
a few degrees left and right automatically.
LOCKOUTS
Switcher/controller system ability to restrict access to certain system functions/features. The Allegiant
system modes of lockouts are:
•
By operator level, allowing a higher priority level operator to lockout lower level operators from
viewing or controlling specific cameras.
•
By MCS setups to:
1. Restrict operators/keyboards from viewing/accessing any camera.
2. Restrict operators/keyboards from controlling/accessing any pan/tilt.
3. Restrict operators from using certain keyboards.
4. Restrict operators/keyboards from accessing certain monitors.
LOGON, LOGOFF
A selectable Allegiant feature requiring operators to enter a User number and optional password into the
keyboard prior to access.
MATRIX SWITCHING
The ability of a switching system to display any camera on any monitor, or the same camera on all monitors.
PHASED CAMERAS
These are properly integrated cameras, giving a roll-free video display when switching from one camera to
the next in a sequential switcher system. Phased cameras are the result of line-locked cameras powered
from the same AC power, externally synchronized, or vertically phased adjusted on cameras equipped with
this option.
PRE-POSITION
The ability to store the position of a pan/tilt/zoom lens, so that the desired scene can later be automatically
recalled. With the Allegiant system, there can be multiple preset scenes stored for each pan/tilt camera. For
each scene, the pan, tilt, zoom, and focus settings are stored.
SalvoSwitching
The ability of the Allegiant system to switch multiple video monitors as a synchronized group. Since multiple
monitors switch together, multiple scenes of an area or zone are viewable before switching to the next area.
SEQUENCE
A series of camera scenes that can be preprogrammed to switch automatically. The Allegiant system can
store up to 60 sequences, each one capable of having random camera order, individual camera dwell
times, and SalvoSwitching steps.
TIME EVENT
An Allegiant system feature (available with the LTC 8059/00 MCS for Windows or the LTC 8850/00 GUI
software) enabling various system functions to periodically be activated automatically. Event functions
(monitor message broadcasts, sequence and switching operations, receiver/driver actions, message
printing, alarm settings, and execution of custom factory programming) can be stored in the system memory
for execution at a predetermined time. The task can be specified to begin on a specific year, month, day,
and time, and can repeat at intervals from every five minutes to a year.
VERTICAL INTERVAL
Camera to camera video switching during the vertical blanking interval of the video signal. This minimizes
visual switching disturbances such as rolling, jitter, video flashes, etc., and eliminates frame information loss
when used with video tape machines.
SWITCHING
VersAlarm
A flexible system of configuring alarms via the optional LTC 8059/00 MCS for Windows or the
LTC 8850/00 GUI software. Multiple groups of monitors can be programmed to respond to alarm
conditions in various ways. Additionally, each alarm may call up 1 to 4 cameras with user-selectable remote
operations. Alarm video may also be programmed to display user-defined alarm titles on the monitor overlay
display rather than the usual camera titles.
Bosch Security Systems | December 8, 2004
EN | 56
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix A - Satellite Systems
APPENDIX A - SATELLITE SYSTEMS
A satellite system configuration is usually used for a
large distributed system, or to obtain extremely large
matrix sizes configured more conventionally. Typically,
a single Main control site can be used to view/control
cameras located both locally and at various remote
satellite sites. Since many satellite sites can be linked to
a single Main control site, very large, distributed
systems can be achieved. If the satellite systems are
located at the same site as the Main system, the result
is a large conventional-type system. In a satellite
configuration, the Main control site can view/control
any camera in the entire system, but the remote
satellite sites can only view/control cameras associated
with their own site. Satellites may be configured to
operate either independently or, with no local
viewing/control capability.
The Main site must consist of any Allegiant Series
switcher (LTC 8100, LTC 8200, LTC 8300, LTC 8500,
LTC 8600, or LTC 8800). Satellite site switchers can be
any Allegiant model switcher. A LTC 8780 Series Data
Converter is required at each satellite site, to perform
address decoding and data conversion for the
switching system. If the satellite site contains
pan/tilt/zoom cameras, a LTC 8569 Code Merger is
also required at the satellite site. All products are
standard models, and the only required option is to
use either the Master Control Software for Windows
LTC 8059/00 or the LTC 8850/00 GUI software
package for initial programming of each Allegiant
system.
Each satellite site must have an Allegiant control data
line from the code distribution unit at the Main site.
This data line carries all pan/tilt/zoom control
commands, in addition to the switching commands
generated by the Main site switcher. The control data
line should be connected to a LTC 8780 Series Data
Converter to provide address decoding functions for
the satellite site. If operators at the satellite site are
permitted to control pan/tilt/zoom-equipped cameras,
a LTC 8569 Series Code Merger must be installed at
the satellite site. The Code Merger combines code
generated by the main site and the satellite site, so
both sites have control over pan/tilt/zoom-equipped
cameras located at the satellite site. The LTC 8780
Series unit can then be connected to one of the data
outputs of the LTC 8569 Series unit.
Bosch Security Systems | December 8, 2004
One or more monitor outputs from each satellite
system are used as trunk lines to link the remote sites
to the Main site. The number of trunk lines from a
satellite site determines the maximum number of
cameras from that site that may be viewed
simultaneously at the Main site. A satellite switcher
can provide only as many trunk lines as it has
monitor outputs.
Sufficient monitor outputs used as trunk lines must be
included in remote satellite switcher sites. The Main
site switcher must include sufficient camera inputs for
local cameras plus trunk lines. The maximum physical
number of camera inputs or monitor outputs used as
trunk lines cannot exceed the capacity of the system.
A single Main site switcher can control multiple
satellite sites up to its video input limit. If full matrix
switching is required at the Main site, the number of
trunk lines from each satellite site must equal the
number of monitors connected to the Main site
switcher. Multiple independently controlled Main site
systems can be combined to provide large numbers of
monitor outputs at the Main site. System capacities are
listed below:
System
Type
Max.
Camera
Inputs
Max.
Monitor
Outputs
Max.
No. of
Satellite Sites
LTC 8100 Series
8
2
8
LTC 8200 Series
16
5
16
LTC 8300 Series
32
6
32
LTC 8500 Series
64
8
64
LTC 8600 Series
128
16
128
LTC 8800 Series
256
64
256
4096
512
256
LTC 8900
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix A Satellite Systems
Since Allegiant Series switchers can act as Main site
switchers, they provide additional logical camera
numbers for identifying the location of the satellite
camera inputs in the system. These logical camera
numbers can also be used to provide titles which
would appear on the Main site’s monitors for any
remote cameras. Since each camera (anywhere in the
system) must have a unique camera number, logical
camera numbers together with physical camera inputs
make up the total system camera capacity. Thus, there
is a trade-off between the total number of Main site
cameras and the number of inputs used as trunk lines.
The more inputs used as trunk lines, the fewer there
are for use as direct camera inputs.
Model No.
Maximum Number* System Cameras
LTC 8100 Series
264
LTC 8200 Series
272
LTC 8300 Series
288
LTC 8500 Series
320
LTC 8600 Series
1152
TC 8700 Series
2304
LTC 8800 Series
2304
LTC 8900 Series
4608
*Camera inputs at all sites, plus trunk lines.
The Main site system must be programmed via
the Master Control Software for Windows
LTC 8059/00 or the LTC 8850/00 GUI, to identify
camera trunk line inputs as well as remote satellite
cameras. All systems must be configured with no
duplicate camera numbers anywhere in the system.
Bosch Security Systems | December 8, 2004
EN | 57
Any alarm inputs to the Main site configured to
activate satellite cameras operate normally except
when limited by the number of available trunk lines.
The software automatically determines trunk usage,
depending on the priority level of operators currently
viewing satellite cameras. Alarm inputs applied at a
satellite site will NOT activate alarm video at the Main
site. If the application requires alarms located at a
satellite to activate video at the Main site, the Main
site’s LTC 8540/00 Alarm Interface unit must be
remotely located. Multiple LTC 8540/00 Alarm
Interfaces may be remoted via the LTC 8713 Alarm
Port expander accessory, located at the Main switcher
site in LTC 8800 and LTC 8900 systems. Up to 2
LTC 8540/00 Alarm Interfaces with a LTC 8713 Alarm
Port Expander can be used in a LTC 8600 system.
One LTC 8540/00 can be used in LTC 8500 systems.
Since the LTC 8100, LTC 8200, and LTC 8300 Series
contain an integral alarm interface, the remote alarm
interface application does not apply.
A unique time and date synchronizing feature
provided in the Time Event table of the MCS for
Windows or the GUI software may be programmed
into the Main site switcher. This permits periodic
synchronizing of the time and date to all switchers in
the system based on the Main site’s clock.
A conceptual diagram of a satellite switching system is
follows.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix A Satellite Systems
EN | 58
Typical Main Allegiant Control Center
Typical System Monitors
(Local and/or Remote Video)
Typical Fixed Cameras
Video
BOSCH
BOSCH
Video
BOSCH
BOSCH
Video
BOSCH
Typical Controllable Camera
Typical LTC 8100, LTC 8200,
or LTC 8300 Allegiant System
Biphase Data Lines to All
Local P/T/Z Camera Sites
BOSCH
Prod
Mon
Shot
Clr
1
2
3
4
5
6
7
8
9
Typical Alarm
Input Contact to
Activate Local or
Satellite Cameras
0
Biphase Control
and Satellite
Switching Data
Typical IntuiKey Keyboard
1 Biphase Data Line to Each
Remote Satellite Site
Incoming Video TRUNK Lines
From All Satellite Sites
Typical Allegiant Satellite Site
Typical Local Monitors
(Local Video Only)
Video
BOSCH
Typical Fixed Cameras
BOSCH
Video
BOSCH
BOSCH
Video
BOSCH
Typical Alarm
Input Contact
(For Local Alarms Only)
Typical Controllable Camera
Typical LTC 8100, LTC 8200,
or LTC 8300 Allegiant system
Biphase
Data
Console
RS-232 Port
BOSCH
Prod
Mon
Shot
Clr
3
1
2
4
5
6
7
8
9
0
IntuiKey Keyboard
(P/T/Z Control of
Local Cameras Only)
LTC 8780 Data
Converter
Biphase Data Lines to All
Local P/T/Z Camera Sites
LTC 8569 Code Merger
Bosch Security Systems | December 8, 2004
Biphase Control + Satellite Data
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix B - Installation Checklists
APPENDIX B - INSTALLATION
CHECKLISTS
This is a simplified guide for those already familiar
with installing and programming Allegiant systems.
1 System Hardware Installation
Unpack equipment and verify that there is no damage.
•
Set applicable CPU DIP switches to activate
desired features.
•
If applicable, install bay into EIA 19-inch rack
(remember to remove the rubber bumper foot
pads).
•
Connect camera inputs and monitor outputs to
appropriate connections on equipment bay(s).
•
Connect system keyboards, any alarm
connections, and any signal distribution
connections to bay.
•
Apply main AC power to the equipment.
•
Verify proper system operation, then begin
appropriate programming.
2 Satellite Configuration Hardware Installation
Main Site:
•
Install Allegiant Series bay and appropriate
accessory products accordingly. Verify biphase
control code line is run to each satellite site.
•
Attach trunk line inputs, local camera inputs, and
monitor outputs to the Allegiant Series bay. Apply
main AC power to the equipment.
•
Program the Camera ID table via the MCS or
GUI software.
•
Switch all unused monitor outputs located at the
main site to display a local camera input.
Bosch Security Systems | December 8, 2004
EN | 59
Satellite Site(s):
•
Install the satellite switcher and appropriate
accessories.
•
Connect the biphase code line to LTC 8780 Data
Converter and configure it to the desired satellite
address and the switcher’s baud rate.
•
If necessary, program the satellite switcher for the
appropriate camera titles, and any other related
requirements.
3 Programming Via System Keyboard
• Enter the system time (User Function 7) and date
(User Function 8) and Camera ID titles (User
Function 9. If desired, adjust the monitor overlay
displays (User Functions 4, 5, and 6 or, 24, 25 and
26).
•
Enter the desired Sequences.
•
Configure and test the alarm response mode.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix C - Quick Reference Cable Interconnections EN | 60
APPENDIX C QUICK REFERENCE CABLE
INTERCONNECTIONS
1 System Video Connections
COAX — All video input and output connections to the
Allegiant system should be made using a good grade of
RG59U, RG6, or RG11U coaxial cable, using BNC
connectors. Use the following guidelines for proper cable
specifications:
1. Center conductor should be copper, not copper
weld or steel. Use stranded wire where there will
be cable movement, as with pan/tilts, elevators,
etc.
2. Copper braided shield at 93% coverage or better.
3. Cable impedance of 75Ω.
4. Select cable based on a target of no more than
15Ω of the center conductor resistance. A typical
value for RG59U is 15Ω per 300 m (1000 ft),
therefore the maximum cable run should be no
more than 300 m (1000 ft). RG11U/RG6 is
typically rated for 6Ω per 300 m (1000 ft), which
permits runs up to 760 m (2500 ft).
5. Use video amplifiers to extend cable distances
beyond the maximum limitations listed above.
2 Keyboards
1. The keyboard is supplied with 3 m (10 ft) of
6-conductor phone-type cable with RJ-11
connectors. The cable plugs directly into the rear
of the system’s main bay on one end, and into the
back of the keyboard on the other end. Both data
and power for the keyboard travel over this cable.
2. An optional 30 m (100 ft) cable is also available.
3. An optional kit which permits the keyboard to be
extended beyond 30 m (100 ft) is available, and
uses customer-supplied shielded twisted pair. The
kit consists of two breakout boxes which convert
from phone-type cables to shielded twisted pair,
and provide for local keyboard power. The
maximum distance using 24-gauge wire (Belden
9841 or equivalent) is typically 1.5 km (500 ft).
3 Alarm Connections
The alarm inputs can be dry contact closures or logic
levels. Connect the alarm inputs to removable screw-type
terminal blocks; the use of simple twisted pair wire is
acceptable.
Bosch Security Systems | December 8, 2004
4 Signal Distribution Connections
Only shielded twisted pair wire should be used between
the integral distribution unit outputs and the camera site
receiver/drivers. Connect the distribution unit to
removable screw-type terminal blocks. Each output is
rated to handle up to 8 receiver/driver loads (as in a
daisy chain configuration) to a maximum of 1.5 km
(5000 ft) using 1 mm2 (18) gauge wire (Belden 8760 or
equivalent).
5 Receiver/Drivers
CODE INPUT — The code input is supplied by the
shielded twisted pair cable from the signal distribution
connections. This cable is connected to a removable
screw-type terminal block, which has provisions for
looping the code cable to another receiver/driver.
OUTPUT CONNECTIONS — All pan/tilt and lens
connections require multiconductor cable. Refer to the
appropriate specification sheet for cable gauge, number of
conductors required, and maximum distances allowable.
The lens cables and any pre-position cables should be
kept shielded from other signal wires to minimize
interference.
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual | Appendix D - Rear Panel Connector Pinouts
APPENDIX D REAR PANEL CONNECTOR PINOUTS
1 Console Port RS-232 Pinouts
EN | 61
The LTC 8506/00 cable (used to connect the Allegiant’s
CONSOLE port to an external PC) uses the following
pinouts:
9-Pin Male
(CONSOLE)
Allegiant 9-Pin Female
Designation
(PC)
Pin #
1
Designation
CHASSIS GND
1
Chassis GND
None
2
RX
2
RX
3
3
TX
3
TX
2
4
CTS
4
CTS
1
5
RTS
5
RTS
8
6
NO CONNECTION
6
No Connection
None
7
DATA GND
7
Data GND
5
8
NO CONNECTION
8
No connection
None
9
NO CONNECTION
9
No connection
None
2 Keyboard RS-485 Ports
(pins 4 & 6 are jumpered)
Pin #
1
2
Designation
12 VAC
GND
(pins 1 & 7 are jumpered)
3
-DATA
4
+DATA
5
GND
9-Pin Male
(8300 Port)
Allegiant 25-Pin Female
Designation
(Printer)
6
12 VAC
1
Chassis GND
1
3 Printer Port RS-232 Pinouts
2
RX
2
Pin #
Designation
3
TX
3
1
CHASSIS GND
4
CTS
4, 8
2
RX
5
RTS
5
3
TX
6
GND
None
4
CTS
7
Data GND
7
5
RTS
8
GND
None
6
NO CONNECTION
9
GND
None
7
DATA GND
8
NO CONNECTION
9
NO CONNECTION
Bosch Security Systems | December 8, 2004
The cable used to connect the LTC 8300’s PRINTER
port to a standard serial printer uses the following
pinouts:
(pins 6 & 20 are jumpered)
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual |
Bosch Security Systems | December 8, 2004
EN | 62
LTC 8100, LTC 8200, LTC 8300 Series | Instruction Manual |
Bosch Security Systems | December 8, 2004
EN | 63
